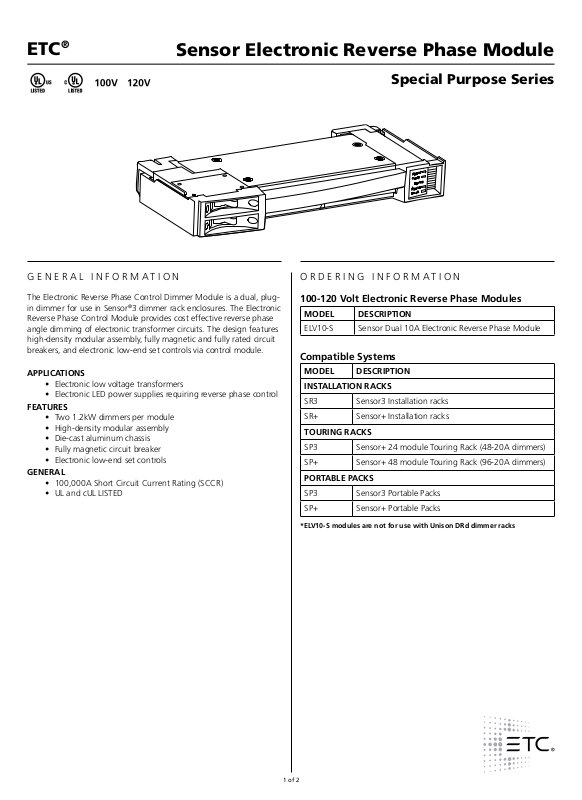

ETC ELV10-S Datasheet

ETC

®

Sensor Electronic Reverse Phase Module

Special Purpose Series

Signal

Fault

ELV10

Signal
Fault

GENERAL INFORMATION

The Electronic Reverse Phase Control Dimmer Module is a dual, plug­in dimmer for use in Sensor
Reverse Phase Control Module provides cost effective reverse phase
angle dimming of electronic transformer circuits. The design features
high-density modular assembly, fully magnetic and fully rated circuit
breakers, and electronic low-end set controls via control module.

APPLICATIONS

• Electronic low voltage transformers

• Electronic LED power supplies requiring reverse phase control

FEATURES

• Two 1.2kW dimmers per module

• High-density modular assembly

• Die-cast aluminum chassis

• Fully magnetic circuit breaker

• Electronic low-end set controls

GENERAL

• 100,000A Short Circuit Current Rating (SCCR)

• UL and cUL LISTED

®

3 dimmer rack enclosures. The Electronic

ORDERING INFORMATION

100-120 Volt Electronic Reverse Phase Modules

MODEL DESCRIPTION

ELV10-S Sensor Dual 10A Electronic Reverse Phase Module

Compatible Systems

MODEL DESCRIPTION

INSTALLATION RACKS

SR3 Sensor3 Installation racks

SR+ Sensor+ Installation racks

TOURING RACKS

SP3 Sensor+ 24 module Touring Rack (48-20A dimmers)

SP+ Sensor+ 48 module Touring Rack (96-20A dimmers)

PORTABLE PACKS

SP3 Sensor3 Portable Packs

SP+ Sensor+ Portable Packs

*ELV10-S modules are not for use with Unison DRd dimmer racks

1 of 2

®

REVERSE PHASE FIRING MODE

Sensor Electronic Reverse Phase ModuleETC

Special Purpose Series

SPECIFICATIONS

GENERAL

• Dual density, plug in modules, for use in Sensor
rack enclosures

• Provides Reverse Phase Control dimming for electronic low­voltage transformers

• UL and cUL Listed for continuous duty at 100% of rated load

- ELV10 – 1.2kW

PHYSICAL

• Modular plug-in assemblies

• Cast aluminum chassis, finished with fine textured
epoxy paint

CIRCUIT BREAKERS

• Fully magnetic to eliminate nuisance tripping

• 20x inrush current rating

• 125%, 10 -120 seconds, must-trip rating

• Rated for 100% switching duty applications

ELECTRICAL RATINGS

• 100,000A Short Circuit Current Rating (SCCR)

• UL and cUL LISTED

• 1W minimum load

POWER DEVICE

• One signal and one fault LED per circuit

• Integral temperature sensor

EFFICIENCY

• Efficiency is 96.9%

®

dimming

PHYSICAL

Module Dimensions

MODEL HEIGHT WIDTH DEPTH

inches mm inches mm inches mm

ELV10-S 1.5 38. 11.8 300 4.9 127

Module Weights

MODEL WEIGHT SHIPPING WEIGHT

lbs kgs lbs kgs

ELV10-S 2.4 1.1 3.3 1.5

Maximum BTU Production per module

MODEL BTUS WATTS EFFICIENCY

ELV10-S 286.8 84 96.5%

These values should be provided to a qualified HVAC design engineer, along with
dimmer quantities, types and dimmer room dimensions, to calculate dimmer room
air handling requirements.

Dimmer room HVAC systems must at all times maintain the specified ambient
temperature at the dimmer rack. Dimming systems operating within 10°F of the
upper or lower temperature limits must strictly follow installation and operation
guidelines to operate reliably.

OPERATION MODE

V

0

ms
