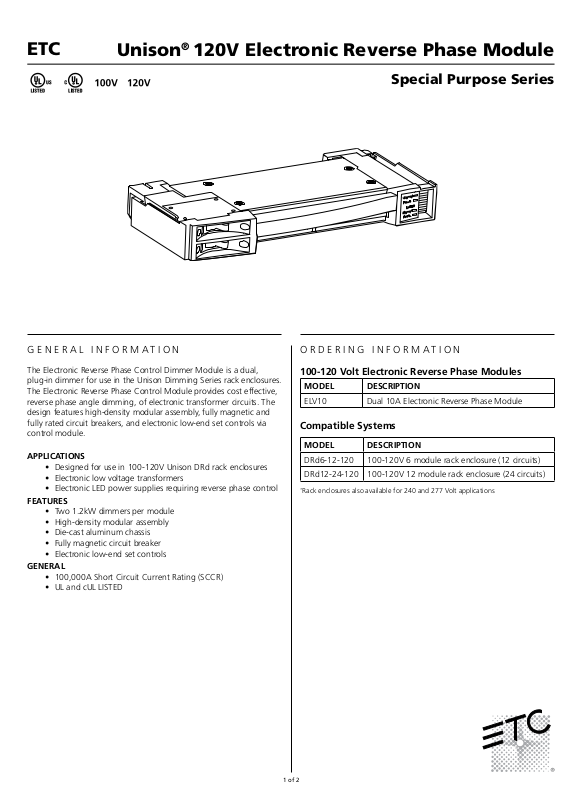

ETC ELV10 Datasheet

ETC

Unison® 120V Electronic Reverse Phase Module

Special Purpose Series

Signal

Fault

ELV10

Signal
Fault

GENERAL INFORMATION

The Electronic Reverse Phase Control Dimmer Module is a dual,
plug-in dimmer for use in the Unison Dimming Series rack enclosures.
The Electronic Reverse Phase Control Module provides cost effective,
reverse phase angle dimming, of electronic transformer circuits. The
design features high-density modular assembly, fully magnetic and
fully rated circuit breakers, and electronic low-end set controls via
control module.

APPLICATIONS

• Designed for use in 100-120V Unison DRd rack enclosures

• Electronic low voltage transformers

• Electronic LED power supplies requiring reverse phase control

FEATURES

• Two 1.2kW dimmers per module

• High-density modular assembly

• Die-cast aluminum chassis

• Fully magnetic circuit breaker

• Electronic low-end set controls

GENERAL

• 100,000A Short Circuit Current Rating (SCCR)

• UL and cUL LISTED

ORDERING INFORMATION

100-120 Volt Electronic Reverse Phase Modules

MODEL DESCRIPTION

ELV10 Dual 10A Electronic Reverse Phase Module

Compatible Systems

MODEL DESCRIPTION

DRd6-12-120 100-120V 6 module rack enclosure (12 circuits)

DRd12-24-120 100-120V 12 module rack enclosure (24 circuits)

*

Rack enclosures also available for 240 and 277 Volt applications

1 of 2

Unison® 120V Electronic Reverse Phase ModuleETC

FORWARD PHASE FIRING MODE

Special Purpose Series

SPECIFICATIONS

GENERAL

• Dual density, plug in modules, for use in Unison Dimming
Series rack enclosures

• Provides Reverse Phase Control dimming for electronic low­voltage transformers

• UL and cUL Listed for continuous duty at 100% of rated load

- ELV10 – 1.2kW

PHYSICAL

• Modular plug-in assemblies

• Cast aluminum chassis, finished with textured epoxy paint

CIRCUIT BREAKERS

• Fully magnetic to eliminate nuisance tripping

• 20x inrush current rating

• 125%, 10-120 seconds, must-trip rating

• Rated for 100% switching duty applications

ELECTRICAL RATINGS

• 100,000A Short Circuit Current Rating (SCCR)

• UL and cUL LISTED

• 1W minimum load

POWER DEVICE

• One control and one output LED per circuit

• 4000V isolation between control and power components

• Integral temperature sensor

EFFICIENCY

• Efficiency is 96.9%

PHYSICAL

Module Dimensions

MODEL HEIGHT WIDTH DEPTH

inches mm inches mm inches mm

ELV10 1.5 38.1 11.8 300 4.9 127

Module Weights

MODEL WEIGHT SHIPPING WEIGHT

lbs kgs lbs kgs

ELV10 2.4 1.1 3.3 1.5

Maximum BTU Production per module

MODEL BTUS WATTS EFFICIENCY

ELV10 286.8 84 96.5%

These values should be provided to a qualified HVAC design engineer, along with
dimmer quantities, types and dimmer room dimensions, to calculate dimmer room
air handling requirements.

Dimmer room HVAC systems must at all times maintain the specified ambient
temperature at the dimmer rack. Dimming systems operating within 10°F of the
upper or lower temperature limits must strictly follow installation and operation
guidelines to operate reliably.

OPERATION MODES

V

0

REVERSE PHASE FIRING MODE

V

0

Corporate Headquarters • 3031 Pleasant View Rd, PO Box 620979, Middleton WI 53562 0979 USA • Tel [phone] • Fax [phone]
London, UK • Unit 26-28, Victoria Industrial Estate, Victoria Road, London W3 6UU, UK • Tel [phone] • Fax [phone]
Rome, IT • Via Ennio Quirino Visconti, 11, 00193 Rome, Italy • Tel [phone] • Fax [phone]
Holzkirchen, DE • Ohmstrasse 3, 83607 Holzkirchen, Germany • Tel [phone] • Fax [phone]
Hong Kong • Room 1801, 18/F, Tower 1 Phase 1, Enterprise Square, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong • Tel [phone] • Fax [phone]
Web • www.etcconnect.com • Copyright©2016 ETC. All Rights Reserved. All product information and specifications subject to change. 7183L1004 Rev.C Printed in USA 08/16

Unison® products protected by one or more of the following: U.S. Patent No. 5,323,088, 6,849,943, and 5,352,958; European Patent No. 0603333; German Patent No. 69203609

ms

ms
