USER MANUAL
Canopy Rangehood
60cm/90cm
MODEL: ERC60S/ERC90S
CONTENTS
PAG E
4
5
6
7
8
10
11
12
14
SECTION
Welcome Section
Safety Instructions
Specifications
Controls
Installation Requirements
Cleaning & Maintenance
Troubleshooting & Technical Data
Warranty
Purchase Details
3
Residentia Group
—
Head Office
118 Campbell Street
Collingwood, VIictoria
Australia 3066
—
ACN.
600 546 656
—
Online.
residentia.group
Dear Customer,
Congratulations on purchasing your new rangehood. The Esatto brand
is proudly distributed within Australia by Residentia Group Pty Ltd.
Please refer to the warranty card at the rear of this manual for information
regarding your product’s parts and labour warranty, or visit us online at
www.residentia.group
At Residentia Group, we are customer obsessed and our Support Team
are there to ensure you get the most out of your appliance. Should you
want to learn more about optional accessories (such as carbon filters)
or most importantly taking care of your rangehood when cleaning, our
Support Team are here to help.
You can use our online Support Centre at anytime by visiting
http://support.residentiagroup.com.au, or you can contact us via telephone
by dialling 1300 11 HELP (4357).
It is important that you read through the following use and care manual
thoroughly to familiarise yourself with the installation and operation
requirements of your appliance to ensure optimum performance.
Again, thank you for choosing an Esatto appliance and we look forward to
being of service to you.
Kind Regards,
The Esatto & Residentia Teams
Postage.
PO Box 341
Mt Eliza, Victoria
Australia 3930
Telephone.
1300 11 4357
Email.
support@residentiagroup.com.au
SAFETY
This rangehood must only be installed in
accordance with the instructions provided.
Incorrect installation may cause harm to persons,
damage property and void the product’s warranty.
This rangehood complies the safety standard AS/
NZS60335.2.31 and AS/NZS 60335.1
Important
Please ensure that you read the entire instructions
before beginning the installation of your
rangehood.
Warning
All electrical work must be done in accordance
with local and national electrical codes as
applicable and should be undertaken by licenced
and qualified persons only.
– This rangehood is designed for domestic
household use only
– This appliance is not intended to be used by
children, or persons with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge, unless they
have been given supervision or instruction
concerning the use of the rangehood by a
person responsible for their safety.
– Young children should be supervised to ensure
that they do not play with the appliance.
– You must read the instructions concerning the
method and frequency of cleaning.
.
Important!
There is a risk of fire if cleaning isn’t carried out in
accordance with the instructions.
– Never flambé under the rangehood.
–
Exhaust air must not be discharged into an
existing flue which is used by other appliances
for exhausting fumes.
– If the power supply cord of this rangehood is
damaged in any way, it must only be replaced
by one of our authorised service agents. Please
call the Support Team on 1300 11 4375 for
further assistance.
– Your new rangehood is guaranteed against
electrical or mechanical defects, subject
to certain exclusions that are noted in the
Warranty Terms and Conditions (at the rear
of this user manual). The foregoing does not
affect your statutory rights.
– The use of this rangehood for any other
purpose or in any other environment, without
our express agreement, will invalidate any
warranty or liability claim.
– No modifications to the appliance are
permitted.
– Repairs may only be carried out by authorised
service agents.
– Cleaning of the rangehood should be carried
out on a regular basis.
– There shall be adequate ventilation of the room
when the range hood is used at the same time
as appliances burning gas or other fuels (not
applicable that only discharge the air back into
the room).
– The air must not be discharged into a flue that
is used for exhausting fumes from appliances
burning gas or other fuels.
– Regulations concerning the discharge of air
have to be fulfilled.
Unpacking
During transportation, protective packaging
was used to protect the appliance against any
damage. After unpacking, please dispose of all
elements of packaging in a way that will not cause
damage to the environment. All materials used
for packaging the appliance are environmentally
friendly; they are 100% recyclable and are marked
with the appropriate symbol.
Caution!
During unpacking, the packaging materials
(polythene bags, polystyrene pieces, etc.) should
be kept out of reach of children.
5
Disposal of the appliance
Old appliances should not simply be disposed of with normal household waste, but should be
delivered to a collection and recycling centre for electric and electronic equipment. A symbol shown
on the product, the instruction manual or the packaging shows that it is suitable for recycling.
Materials used inside the appliance are recyclable and are labelled with information concerning this.
By recycling materials or other parts from used devices you are making a significant contribution to the
protection of our environment.
Information on appropriate disposal centres for used devices can be provided by your local authority.

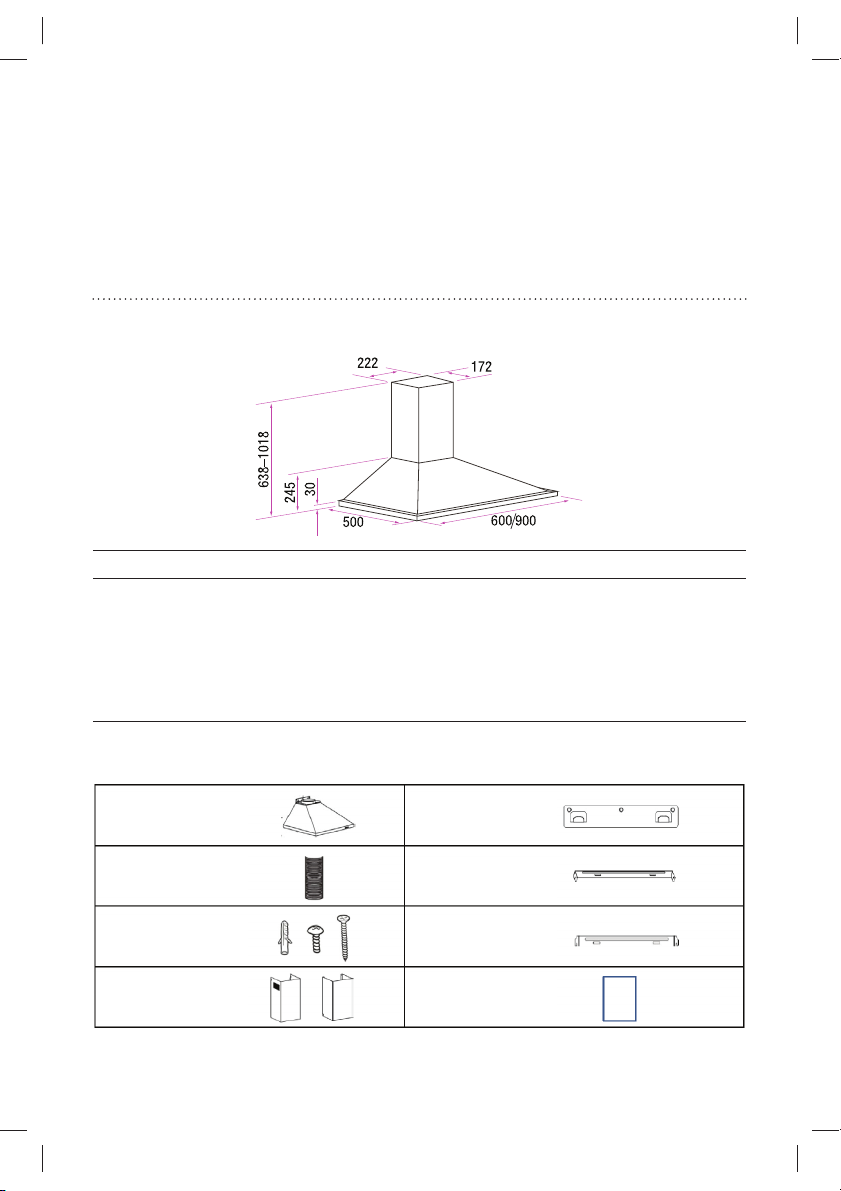

SPECIFICATIONS & COMPONENTS
&3$4: &3$4:
Product dimensions (W,D,H):
600mm, 500mm, 638–1018mm
Weight: 10.0kg
Extraction: Powerful extraction
Other features:
– 3 speed push button control
– 2 × LED lights
–
2 × $OXPLQLXPILOWHUV
Product dimensions (W,D,H):
900mm, 500mm, 638–1018mm
Weight: 12.0kg
Extraction: Powerful extraction
Other features:
– 3 speed push button control
– 2 × LED lights
–
3 × $OXPLQLXPILOWHUV
Rangehood components
Your (VDWWR Canopy Rangehood is supplied with:
1 x Rangehood
1 x Expandable 150mm
ducting adapter
1 x packet of
fasteners, wall plugs and
safety screws
Y4UBJOMFTTTUFFMnVF
pieces (upper and lower)
1 x Wall bracket (“hook”) for
the rangehood
1 x Wall bracket for inside
chimney pieces
1 x Outside chimney bracket
1 x User Manual, Quick Start
Guide and Warranty Card
6
CONTROLS

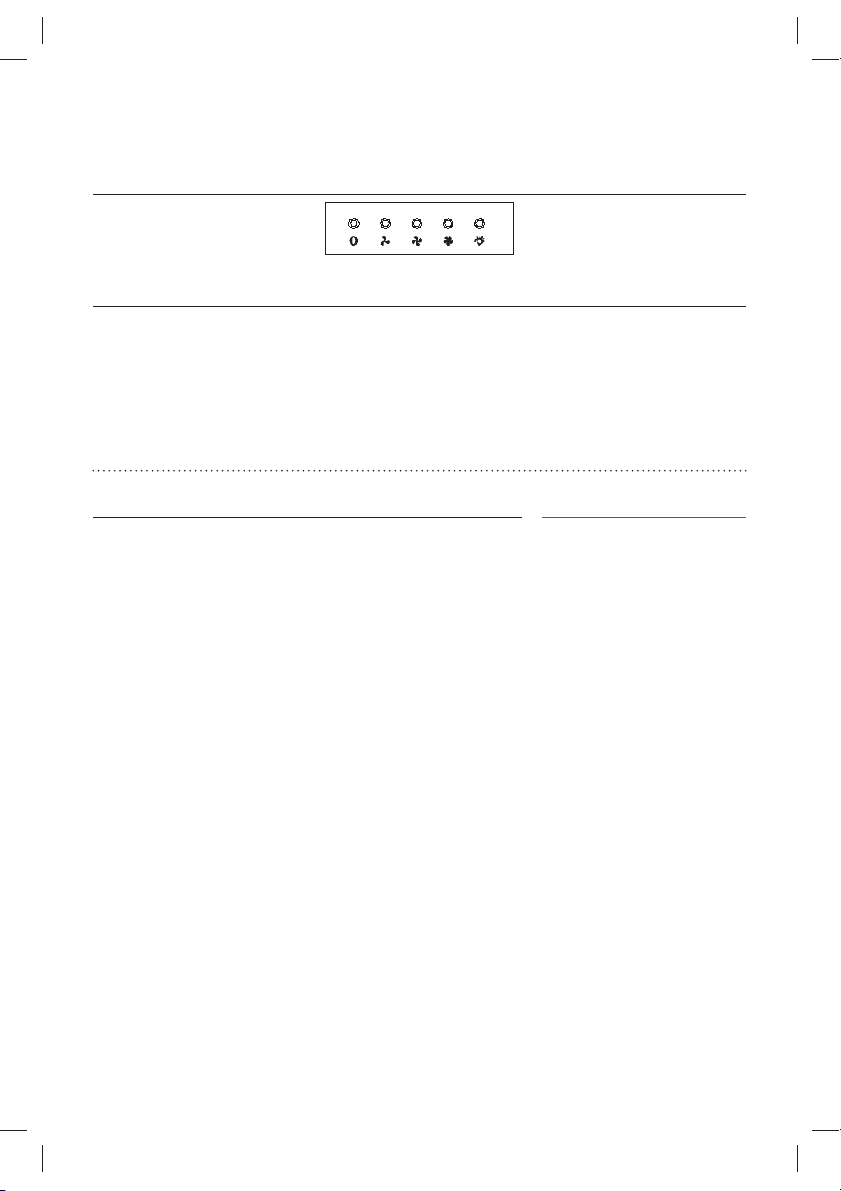

Your Canopy Rangehood features push button controls (Fig. 1) with three speed levels of extraction.
Light
Light
Stop
Stop
Stop
Low
Mid
Low
Mid
Low
Mid
Light
High
High
High
Fig. 1
–
Push the ‘Low’ button, and
the rangehood will operate at
low speed.
–
Push the ‘Mid’ button,
and the rangehood will
operate at a medium speed.
–
Push the ‘High’ button, and
the rangehood will operate at
a high speed.
– Push the ‘Light’ button and
the two lights will come on. To
turn the lights off, simply push
the ‘Light’ button again.
INSTALLATION REQUIREMENTS
Typical installation tools required
You’ll most likely require the following tools/equipment
(not supplied) for the installation of your rangehood.
– Electrical drill – Tape
Screw-driver – Spirit Le
–
If ducting your rangehood, you’ll also most likely require:
– Jig saw – Ladder
– Duct-tape – Ducting
Important installation safety notes:
– Always switch the power off prior to beginning the installation.
– Stainless steel is very easily damaged during installation.
Wherever possible, protect the rangehood with the cardboard
box or plastic
wrap during the installation.
– For safety reasons, this Rangehood must be earthed.
– A power point must be located within 1.5m of the power cord exit
from the rangehood, and it should be always accessible to allow
isolation from power during cleaning or maintenance.
– A 150mm round ducting adapter is supplied, however all other
ducting accessories are not.
– All ducting must comply with building codes and local
requirements.
– If you are re-circulating the air, rather than ducting, please ensure
that the side outlet grilles are not obstructed in any way as this
will affect the efficiency of the rangehood.
– Ensure that the rangehood is mounted in a level position,
both horizontally and vertically. This is essential to ensure the
rangehood operates correctly and prevents grease build up at
one end.
Measure
vel
–
To switch the rangehood
motor or light off, simply press
the stop button a second time.
It’s important to carefully read
the following installation
instructions before beginning
the installation of your
rangehood.
WARNING!
All electrical work associated
with the installation of this
rangehood must be carried out
by a licensed electrician. This
rangehood must be correctly
installed by a suitably qualified
person in strict accordance with
all applicable rules and regulations
and following the instructions in
this manual.
—
Do not try to install
the rangehood yourself; doing so
will expose you to danger and void
the warranty. Improper installation,
adjustment, alteration or service
can cause injury or damage.
We decline any responsibility for
in jury or damage, to persons or
property, as a result of improper
installation.
7
Ducting options
Before beginning the installation of your
rangehood, the method of ducting should be
considered and selected. The guide below
illustrates the various ducting options.
Note:
This rangehood can be operated in recirculation
mode where required, although it is
recommended to duct wherever possible.

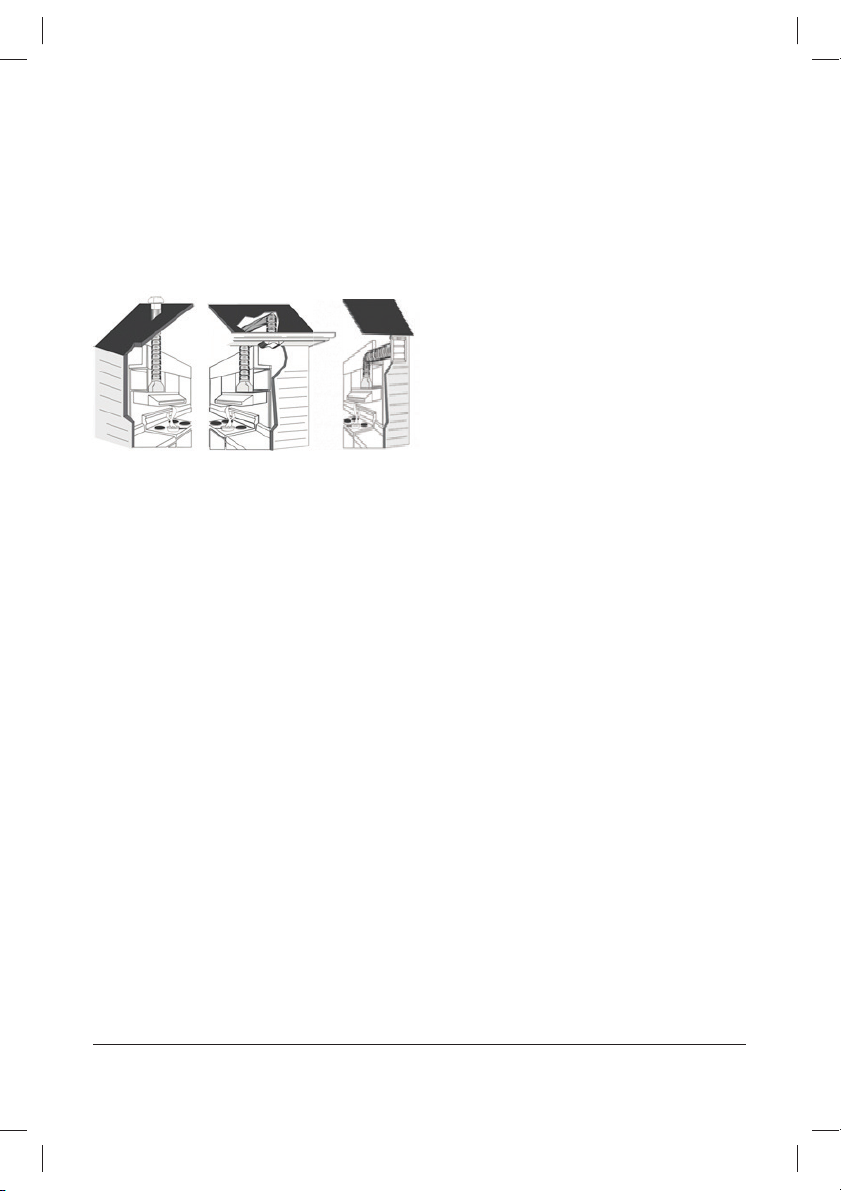

Fig. 3 Fig. 4Fig. 2
— Straight up and through your tiled or metal
roof. (Fig. 2)
— Into your ceiling cavity and then vented
through your eaves. (Fig. 3)
— Through your wall (Fig. 4)
Further to your various ducting options,
below are some tips on how to correctly duct
your rangehood:
– Always use correctly sized ducting:
DO NOT reduce the size of the ducting
– Always use solid ducting
– Always use non-flammable ducting
– Always duct to the outside atmosphere
– Do not use flexible ducting
– Do not duct into the ceiling space:
always vent to the outside atmosphere.
– Avoid sharp 90 degree bends as much
as possible, use 45 degree bends instead
wherever possible
– Duct to the outside atmosphere using the
shortest duct run possible
– Use cylindrical ducting whenever possible
Positioning the rangehood:
Installation heights
– Over gas and electric cookers, we
recommend our rangehoods to be mounted
at a height of between 600-800mm above
the cooking surface.
– Electric cooktops must have a minimum
height of 600mm from the underside of the
rangehood to the cooktop face.
– Gas cooktops must have a minimum of
650mm from the burner to the underside
of the rangedhood.
– Gas Regulations require the fi lters of the
rangehood to be at least 1200mm above the
cooking surface when used over open flame
grillers or barbecues.*
* We do not recommend this rangehood
for outdoor use or being installed above
barbecues/open flame grillers.
8

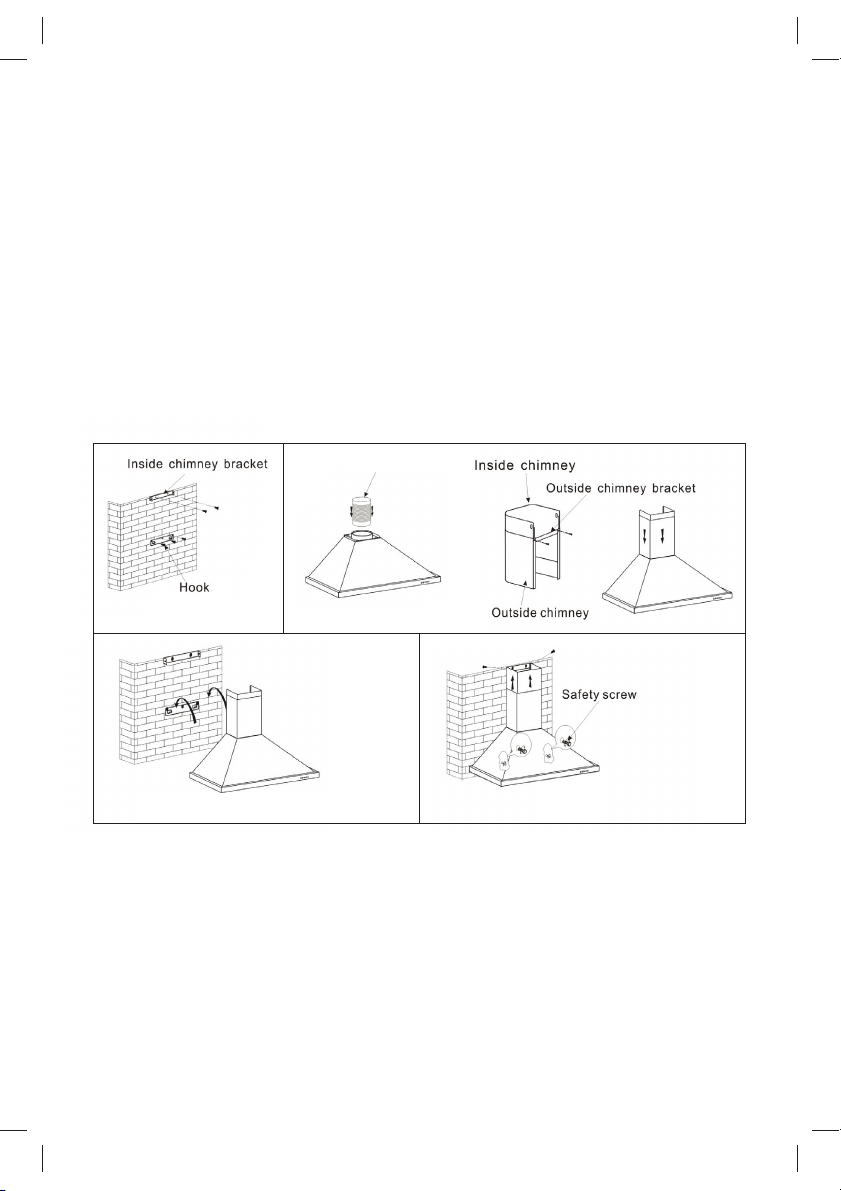

Installing the rangehood
– Once the installation height has been
determined, use the fasteners and wall plugs
to install the mounting bracket (hook) on to
the wall ensuring that it’s secured in a level
position. The mounting bracket connects to
the canopy at the top (i.e. where the chimney
connects into the canopy). Also using the
fasteners and wall plugs, install the wall bracket
for the chimney pieces. (Fig. 5)
– Using the screws provided, attach the
expandable 150mm ducting adapter to
the canopy. With the two Chimney pieces
together, fix the “outside chimney” bracket
onto the outside chimney (flue) piece. Ensure
that the inner chimney piece can move freely
inside. Now attach the chimney pieces to the
canopy. (Fig. 6)
Expandable tube
Fig. 5 Fig. 6
– Lift the canopy (including the chimney pieces)
on to the wall bracket
(hook). (Fig. 7)
– Adjust the height of the inside chimney
piece and fix into place with the screws. After
adjusting the position of the canopy, fix into
place with the safety screws (Fig. 8) into the
wall (you’ll need to remove the grease filters
first).
Fig. 7
Fig. 8
9
CLEANING & MAINTENANCE
Cleaning the grease filters
Keeping this filter clean will keep the rangehood
extraction performance at an optimum. Please
strictly follow the guidelines below.
– The grease filter is made of high-density
stainless steel. Please ensure you never use
a corrosive detergent during cleaning.
– Method 1: Put the filter into 40–50°C
clean water with a small amount of regular
dishwashing liquid, and soak for 2–3 mins.
Wear gloves and clean with a soft brush.
Please do not apply too much pressure,
as the filter is delicate and will damage easy.
–
Warning! Your rangehood grease filters can
not be washed in your dishwasher, or the
protection coating would be cleaned away.
Cleaning the cooker hood
To protect the main body of your rangehood
from corrosion or stains, the cooker hood should
be cleaned with hot water with a non-corrosive
detergent every two months. For stubborn stains
or marks, you can try using a specific stainless
steel cleaner available from most supermarkets.
Warning!
Please do not use a corrosive detergent, or
abrasive cloths, as it will damage the body.
– Keep the motor and other spare parts free
from water, as this will cause damage to the
appliance.
– Before cleaning the rangehood, always switch
the power off at the outlet and unplug the
rangehood.
– If your rangehood has a damaged plug or
cord, please ensure your rangehood remains
unplugged and contact After Sales Support for
further assistance. Any electrical work should
only be completed by a suitably licenced and
authorised person.
– If you’re using a carbon filter, it should never
be exposed to heat.
10
TROUBLESHOOTING & TECHNICAL DATA
Operation in case of emergency
In the event of an emergency you should:
– Switch off all rangehood controls.
– Switch the rangehood off at the power outlet
and immediately unplug.
– Call After Sales Support on 1300 11 HELP (4357).
Some minor faults can be fixed by referring to
the instructions given in the Troubleshooting
section below.
Important!
If your appliance appears to be operating
incorrectly, then you should disconnect it from
your electrical supply and then contact After
Sales Support on 1300 11 HELP (4357).
Fault: Common Cause: Common Solutions:
The lights work, however the motor does
not work
Neither the lights or the
motor works
The rangehood is vibrating against the wall
Insufficient suction The distance between the range-
The motor is blocked or jammed. Call After Sales Support for further
The capacitor is damaged. Call After Sales Support for further
Beside the above mentioned, check the following:
Light globes are damaged or blown Call After Sales Support for further
The power cord is loose. Ensure that the rangehood is
The rangehood canopy is not fixed
to the wall correctly.
hood and your cooktop is too great.
Warning!
Do not attempt to repair the rangehood yourself.
Please note that if an engineer is asked to attend
whilst the pr
that the problem is not the result of an appliance
fault, then you may be liable for the cost of the
call out charge.
The appliance must be accessible for the
engineer to perform any necessary repair. If
your appliance is installed in such a way that
an engineer is concerned that damage will be
caused to the appliance or your kitchen, then
they will not complete a repair. This includes
situations where the rangehood has been tiled
in or sealed in with a sealant.
Please refer to the conditions of that appear on
the warranty card at the rear of this user manual.
oduct is under warranty and finds
guidance.
guidance.
guidance.
correctly plugged in and the power
outlet is switched on.
Ensure that the internal safety
screws have been used and are
tight.
Have your installer re-adjust the
installation position, ensuring that
the minimum distances are observed as per the building code.
Technical data
Electrical details: Rated Voltage: "$220 – 240 V, 50Hz
11
| Rated Power: 21W
WARRANTY
Warranty terms and conditions
Cooking appliances (rangehoods)
This document sets out the terms and conditions of
the product warranties for Residentia Group Appliances.
It is an important document. Please keep it with your
proof of purchase documents in a safe place for future
reference should you require service for your Appliance.
1. In this warranty
(a) ‘acceptable quality’ as referred to in clause
10 of this warranty has the same meaning
referred to in the ACL;
(b) ‘ACL’ means Trade Practices Amendment
(Australian Consumer Law) Act (No.2) 2010;
(c) ‘Appliance’ means any Residentia Group
product purchased by you accompanied by
this document;
(d) ‘ASR’ means Residentia Group authorised
service representative;
(e) ‘Residentia Group’ means Residentia Group
Pty Ltd of 118 Campbell St Collingwood
Victoria 3083, ACN 600 546 656 in respect
of Appliances purchased in Australia;
(f) ‘major failure’ as referred to in clause 10 of
this warranty has the same meaning referred
to in the ACL and includes a situation when
an Appliance cannot be repaired or it is
uneconomic for Residentia Group, at its
discretion, to repair an Appliance during the
Warranty Period;
(g) ‘Warranty Period’ means:
(i) where the Appliance is used for
personal, domestic or household
use (i.e. normal single family
use) as set out in the instruction
manual, the Appliance is warranted
against manufacturing defects for
24 months, following the date of
(h) ‘you’ means the purchaser of the Appliance
2. This warranty only applies to Appliances
purchased and used in Australia and is in addition
to (and does not exclude, restrict, or modify in
any way) any non-excludable statutory warranties
in Australia.
3. During the Warranty Period Residentia Group or
its ASR will, at no extra charge if your Appliance
is readily accessible for service, without special
equipment and subject to these terms and
conditions, repair or replace any parts which it
considers to be defective. Residentia Group or its
ASR may use remanufactured parts to repair your
Appliance. You agree that any replaced Appliances
or parts become the property of Residentia Group.
This warranty does not apply to light globes,
batteries, filters or similar perishable parts.
4. Parts and Appliances not supplied by Residentia
Group are not covered by this warranty.
original purchase of the Appliance;
not having purchased the Appliance for resale, and ‘your’ has a corresponding meaning.
12
WARRANTY CONTINUED
5. You will bear the cost of transportation, travel and
delivery of the Appliance to and from Residentia
Group or its ASR. If you reside outside of the
service area, you will bear the cost of:
(a) travel of an authorised representative;
(b) transportation and delivery of the Appliance
6. Proof of purchase is required before you can make
7. You may not make a claim under this warranty
(a) the Appliance is damaged by:
(i) accident
(ii) misuse or abuse, including failure
(iii) normal wear and tear
(iv) power surges, electrical storm
(v) incomplete or improper installation
(vi) incorrect, improper or inappropriate
(vii) insect or vermin infestation
(viii) failure to comply with any additional
(b) the Appliance is modified without authority
(c) the Appliance’s serial number or warranty seal
(d) the Appliance was serviced or repaired by
to and from Residentia Group or its ASR, in all
instances, unless the Appliance is transported
by Residentia Group or its ASR, the Appliance
is transported at the owner’s cost and risk
while in transit to and from Residentia Group
or its ASR.
a claim under this warranty.
unless the defect claimed is due to faulty or
defective parts or workmanship. Residentia Group
is not liable in the following situations (which are
not exhaustive):
to properly maintain or service
damage or incorrect power supply
operation
instructions supplied with the
Appliance;
from Residentia Group in writing;
has been removed or defaced;
anyone other than Residentia Group, an
authorised repairer or ASR.
8. This warranty, the contract to which it relates and
the relationship between you and Residentia Group
are governed by the law applicable where the
Appliance was purchased.
9. To the extent permitted by law, Residentia Group
excludes all warranties and liabilities (other than
as contained in this document) including liability
for any loss or damage whether direct or indirect
arising from your purchase, use or non use of the
Appliance.
10. For Appliances and services provided by
Residentia Group in Australia, the Appliances come
with a guarantee by Residentia Group that cannot
be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a
major failure and for compensation for any other
reasonably foreseeable loss or damage. You are
also entitled to have the Appliance repaired or
replaced if the Appliance fails to be of acceptable
quality and the failure does not amount to a major
failure. The benefits to you given by this warranty
are in addition to your other rights and remedies
under a law in relation to the Appliances or services
to which the warranty relates.
11. At all times during the Warranty Period, Residentia
Group shall, at its discretion, determine whether
repair, replacement or refund will apply if an
Appliance has a valid warranty claim applicable to
it.
12. To enquire about claiming under this warranty,
please follow these steps:
(a) carefully check the operating instructions,
user manual and the terms of this warranty;
(b) have the model and serial number of the
Appliance available;
(c) have the proof of purchase (e.g. an invoice)
available;
(d) telephone the numbers shown below.
13. You accept that if you make a warranty claim,
Residentia Group and its ASR may exchange
information in relation to you to enable Residentia
Group to meet its obligations under this warranty.
IMPORTANT
Before calling for service, please ensure that the steps
in point 12 have been followed.
TELEPHONE CONTACTS ► Service: Please call 1300 11 HELP (4357)
The Australian Consumer Law requires the inclusion of the following
statement with this warranty: Our goods come with guarantees that
cannot be excluded under the Australian Consumer Law. You are entitled
to a replacement or refund for a major failure and for compensation for any
other reasonably foreseeable loss or damage. You are also entitled to have
the goods repaired or replaced if the goods fail to be of acceptable quality
and the failure does not amount to a major failure.
► Spare Parts: Please call 1300 11 SPARE (7727)
13
PURCHASE DETAILS
For your records, please record details of your purchase
below and staple your receipt on the opposite page.
Store details
Store name
Address
Telephone
Purchase date
Product details
Model no.
Serial no.*
|
|
|
|
|
|
* Note. Your serial number can be found on the inside of the rangehood, underneath the grease filter.
14
RECEIPT
15
Visit Us Online
www.esatto.house
www.airvolution.space
VERSION
NUMBER
1.3
Loading...
