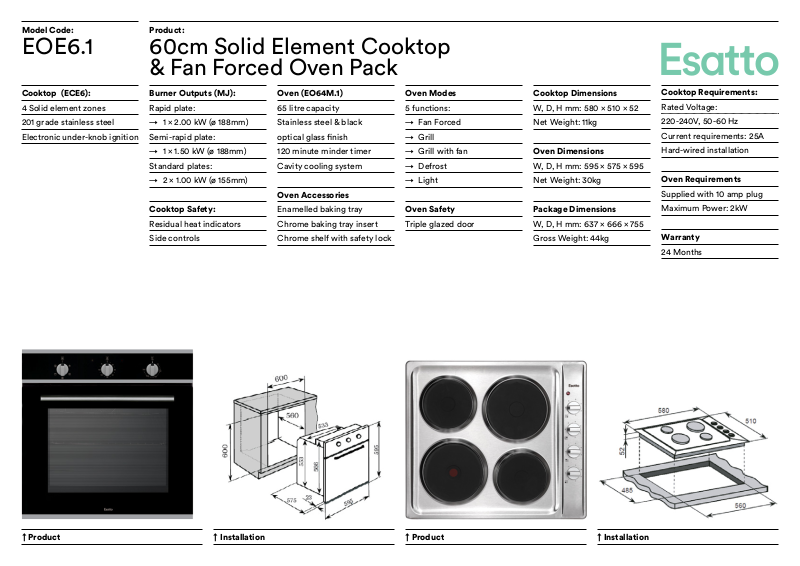

Model Code:
Product:
EOE6.1
Cooktop (ECE6):
4 Solid element zones
201 grade stainless steel
Electronic under-knob ignition
60cm Solid Element Cooktop
& Fan Forced Oven Pack
Burner Outputs (MJ):
Rapid plate:
→ 1 × 2.00 kW (ø 188mm)
Semi-rapid plate:
→ 1 × 1.50 kW (ø 188mm)
Standard plates:
→ 2 × 1.00 kW (ø 155mm)
Cooktop Safety:
Residual heat indicators
Side controls
Oven (EO64M.1)
65 litre capacity
Stainless steel & black
optical glass nish
120 minute minder timer
Cavity cooling system
Oven Accessories
Enamelled baking tray
Chrome baking tray insert
Chrome shelf with safety lock
Oven Modes
5 functions:
→ Fan Forced
→ Grill
→ Grill with fan
→ Defrost
→ Light
Oven Safety
Triple glazed door
Cooktop Dimensions
W, D, H mm: 580 × 510 × 52
Net Weight: 11kg
Oven Dimensions
W, D, H mm: 595 × 575 × 595
Net Weight: 30kg
Package Dimensions
W, D, H mm: 637 × 666 × 755
Gross Weight: 44kg
Cooktop Requirements:
Rated Voltage:
220-240V, 50-60 Hz
Current requirements: 25A
Hard-wired installation
Oven Requirements
Supplied with 10 amp plug
Maximum Power: 2kW
Warranty
24 Months
↑ Product ↑ Product↑ Installation ↑ Installation
