User Manual
THIS PAGE HAS BEEN LEFT
INTENTIONALLY BLANK
4
esatto.house
5
Welcome
Residentia Group
—
Head Office
165 Barkly Avenue
Burnley, Victoria
Australia 3121
—
ACN
600 546 656
—
Online
residentia.group
www.esatto.house
@esatto.house
—
Postage
PO Box 5177
Burnley, Victoria
Australia 3121
—
Telephone
1300 11 4357
Congratulations on purchasing your new esatto appliance. The esatto brand is proudly
distributed within Australia by Residentia Group Pty Ltd.
Please refer to the warranty card at the rear of this manual for information regarding
your product’s parts and labour warranty, or visit us online at: www.residentia.group
At Residentia Group, we are customer obsessed and our Support Team are there to
ensure you get the most out of your appliance. Should you want to learn more about
your washing machine such as the various washing modes or importantly taking care
of the appliance, our Support Team are here to help.
You can use our online Support Centre at anytime by visiting:
http://support.residentiagroup.com.au
Or you can contact us via phone by dialing: 1300 11 HELP (4357).
It is important that you read through the following use and care manual thoroughly to
familiarise yourself with the installation and operation requirements of your appliance
to ensure optimum performance.
Again, thank you for choosing an esatto appliance and we look forward to being of
service to you.
Kind Regards,
The Residentia Team
User Manual
Sfety Instructions
6
DRYER CARE SYMBOLS
Please pay attention to use the drying machine if the
materials of your clothes can not be dried by it or contain
the symbols as follows:
IMPORTANT!
CAUTION: RISK OF FIRE!
To prevent any damages to your and others’ life or property,
you have to follow the safety notes.
• This product belongs to the category of electrical
appliances, and only for drying textiles which have been
washed with water in the household.
Please pay attention to the safety of power use during
the operation!
• The power source with reliable earthing must be
used. Its earth wire must be buried under the ground
and shall not be connected with the public utilities
such as city water pipe or gas pipe etc. The earth wire
and null wire shall be distinguished and shall not be
connected together.
• The maximum mass of dry textile material is 8 kilograms
to be used in the appliance.
• That the tumble dryer is not to be used if industrial
chemicals have been used for cleaning.
• Do not dry unwashed items in the tumble dryer.
• Adequate ventilation has to be provided to avoid the
back ow of gases into the room from appliance burning
other fuels, including open res
• WARNING: never stop a tumble dryer before the end
of the drying cycle unless all items are quickly removed
and spread out so that the heat is dissipated.
• The exhaust air must not be discharged into a ue which
is used for exhausting fumes from appliance burning gas
or other fuels.
• The appliance must not be install behind a lockable
door, a sliding door or a door with a hinge on the
opposite side to that of the tumble dryer. In such a way
that a full opening of the tumble dryer door is restricted.
• Keep pets away from this appliance.
• Oil-aected items can ignite spontaneously, especially
when exposed to heat sources such as in a tumble dryer.
The items become warm, causing an oxidation reaction
in the oil. Oxidation creates heat. If the heat cannot
escape, the items can become hot enough to catch re.
Piling, stacking or storing oil-aected items can prevent
heat from escaping and so create a re hazard.
• If it is unavoidable that fabrics that contain vegetable
or cooking oil or have been contaminated by hair care
products be placed in a tumble dryer they should rst
be washed in hot water with extra detergent-this will
reduce, but not eliminate, the hazard.
• The appliance should not be overturned during normal
use or maintenance.
• If the power cable is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualied
persons in order to avoid a hazard.
• This appliance is for indoor use only.
• The openings must not be obstructed by a carpet.
esatto.house
7
Children of less than 3 years should be kept away
unless continuously supervised. 26. If the appliance
appear high temperature abnormally, please draw
the mail plug immediately.
• The appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. Children should be
supervised to ensure that they do not play with
the appliance.
To ensure your and your family’s safety, please make
improvement immediately if any power use at your
home does not meet the above-mentioned requirement.
ELECTRIC SHOCK HAZARD
1. Do not draw the power cord forcefully to pull out
the mains plug.
2. Please do not plug/draw the mains plug with wet hands.
3. Do not damage the power cord and the power plug.
INJURY DANGER
1. Do not disassemble and install the dryer under no
instruction or supervision.
2. Do not stack this dryer on washing machine without
stacking kits.(if want stacking on washing machine,
please purchase the Independent parts and it must
be installed by the manufacturer, its service agent or
similarly qualied persons in order to avoid a hazard.)
3. Do not lean on the opened door of the dryer.
4. Do not put any objects on the dryer, such as a candle or
electric cooker.
DAMAGE DANGER
1. Do not dry over the rated capacity.
2. Do not operate the dryer without the lter door and
lter base.
3. Do not dry the clothes before being spun.
4. Do not expose the dryer directly under the sun, and
indoor use only.
5. Do not install the dryer in the humid and
drenching environment.
6. At the cleaning and maintenance, please do remember
to pull out the power plug and do not directly wash the
dryer with water.
EXPLOSION & FIRE DANGER
• Please do not dry the clothes with some ammable
substances such as the coal oil, alcohol or there will be
the explosion.
• The appliance contains an environmentally friendly
but ammable R290 refrigerant. Keep away from open
ame And other sources of ignition.
• The tumble dryer is not to be used if industrial chemicals
have been used for cleaning.
• Do not dry unwashed items in the tumble dryer.
• Items that have been soiled with substances such
as cooking oil, acetone, alcohol, petrol, kerosene,
spot removers, turpentine, waxes and wax removers
should be washed in hot water with an extra amount of
detergent before being dried in the tumble dryer.
• Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes
or pillows tted with foam rubber pads should not be
dried in the tumble dryer.
• Fabric softeners, or similar products, should be used as
specied by the fabric softener instructions.
• Oil-aected items can ignite spontaneously, especially
when exposed to heat sources such as in a tumble dryer.
• The items become warm, causing an oxidation reaction
in the oil. Oxidation creates heat. If the heat cannot
escape, the items can become hot enough to catch re.
Piling, stacking or storing oil-aected items can prevent
heat from escaping and so create a re hazard.
• Remove all objects from pockets such as lighters
and matches.
• If it is unavoidable that fabrics that contain vegetable
or cooking oil or have been contaminated by hair care
products be placed in a tumble dryer they should rst
be washed in hot water with extra detergent. This will
reduce, but not eliminate, the hazard.
• WARNING: Never stop a tumble dryer before the end
of the drying cycle unless all items are quickly removed
and spread out so that the heat is dissipated.
• Openings must not be obstructed.
• The lint trap has to be cleaned frequently.
• Lint must not to be allowed to accumulate around
the dryer.
DISPOSAL OF PACKAGING
• The packaging is designed to protect the appliance from
damage during transportation. The packaging materials
are environmentally friendly and should be recycled.
Recycling the packaging can reduce the use of raw
materials in the manufacturing process and the amount
of waste in landll sites.
User Manual

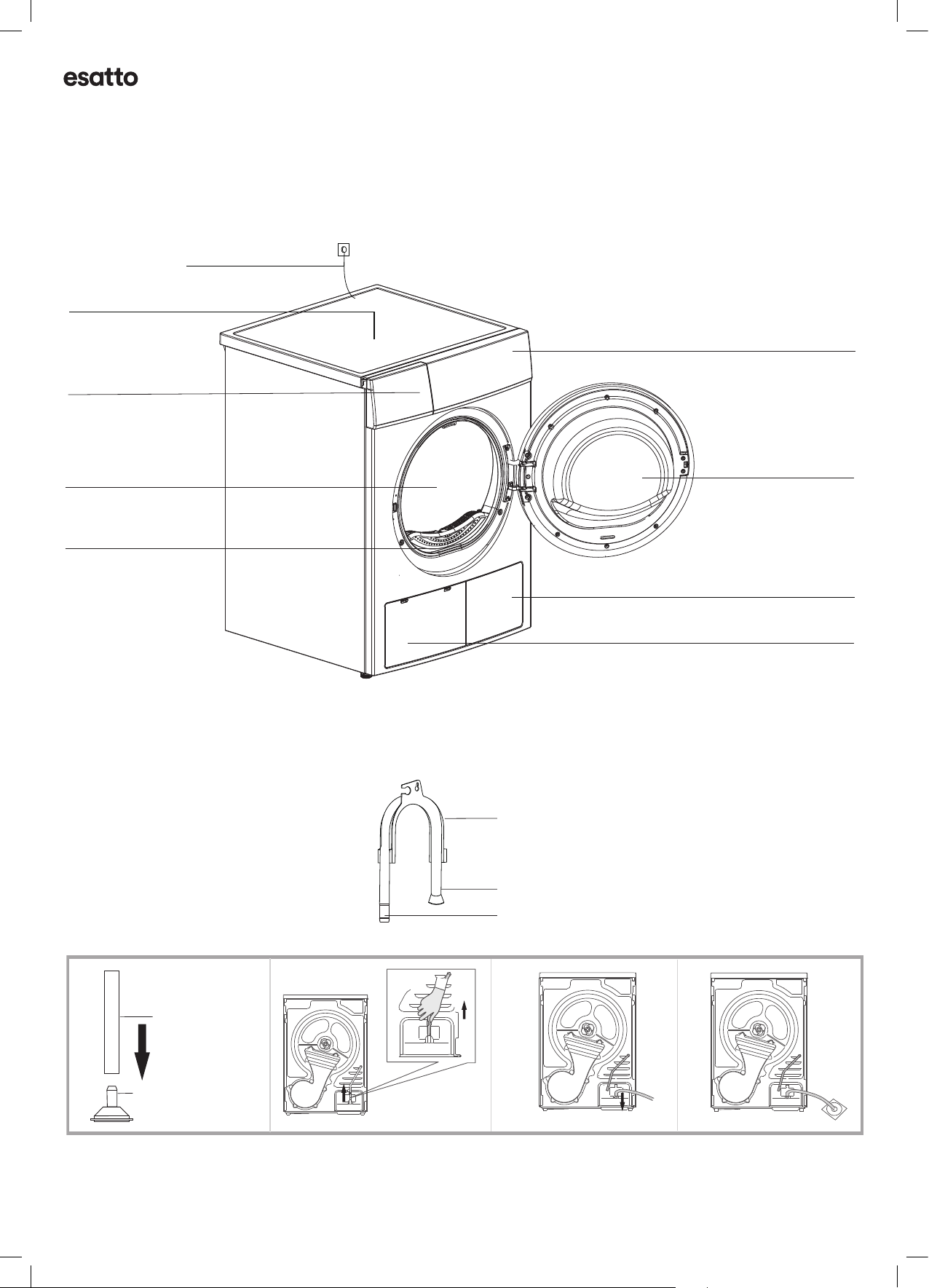

Product Description
INSTALLATION
Accessories
Product Description
Note: The actual model you purchased might differ. Please see the product you purchased in kind prevail.
Connector
Power cord
Door filter
Water container
Door
Control panel
Air inlet
Maintenance cover
Drum
Top board
INSTALLATION
Accessories
Product Description
Note: The actual model you purchased might differ. Please see the product you purchased in kind prevail.
Installation
Connector
Power cord
Door filter
Water container
Door
Control panel
Air inlet
Maintenance cover
Drum
Top board
The following parts are necessary for this model to avoid the question of the housing drawer
is easy to fill full.
Please wear gloves to install them as per the instruction below.
8
Your Dryer
Power Cord
Power cord
Top board
Top Panel
Water Container
Water container
Drying Drum
Drum
Door Filter
Door filter
Maintenance cover
Maintenance Cover
Control panel
Control Panel
Door
Door
Air Inlet
Air inlet
NOTE!
The images in this user manual are for reference only. Your appliance may appear dierently.
ACCESSORIES
The following parts are necessary
if you wish to use the drain hose to
drain the water externally. Please
follow the instructions below to do this.
Hose Holder
Condensing Drain Hose
Connector
Hose holder
Drain hose joint
1. Pull up the drain
hose joint
2. Pull up the upper
drain hose
3. Connect the external
drain hose into the
water pump
4. Put the external drain
hose into the oor drain
(be careful not to bend
the external drain hose)
