Congratulations on purchasing your new esatto appliance. The esatto brand is proudly distributed within Australia by Residentia Group Pty Ltd.
Please refer to the warranty card at the rear of this manual for information regarding your product’s parts and labour warranty, or visit us online at: www.residentia.group
At Residentia Group, we are customer obsessed and our Support Team are there to ensure you get the most out of your appliance. Should you want to learn more about your washing machine such as the various washing modes or importantly taking care of the appliance, our Support Team are here to help.
You can use our online Support Centre at anytime by visiting: http://support.residentiagroup.com.au
Or you can contact us via phone by dialing: 1300 11 HELP (4357).
It is important that you read through the following use and care manual thoroughly to familiarise yourself with the installation and operation requirements of your appliance to ensure optimum performance.
Again, thank you for choosing an esatto appliance and we look forward to being of service to you.
Kind Regards, The Residentia Team
User Manual
Sfety Instructions
6
CONDITIONS OF USE
This appliance is intended to be used in household and similar applications such as farm houses or by customers in serviced apartments, holiday apartments and other residential type environments.
SAFETY INSTRUCTIONS
Before the installation and use of the appliance, carefully read the supplied instructions.
The manufacturer is not responsible if an incorrect installation and use causes injuries and damages.
Always keep the instructions with your appliance for future reference.
WARNING: To prevent any damages to your and others’ life or property, you have to follow the safety notes.
WARNING: Caution, risk of re!
CHILDREN & VULNERABLE PEOPLE SAFETY
WARNING: Risk of suocation, injury or
permanent disability.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction for the operation of the appliance by a person who is responsible for their safety.
Do not let children play with the appliance.
Keep all packaging away from children.
Keep all detergents away from children.
Keep children and pets away from the appliance door when it is open.
Cleaning and user maintenance shall not be made by children without supervision.
INSTALLATION
Remove all the packaging. Do not install or use a damaged appliance. Obey the installation instruction supplied with the appliance. Make sure that the oor where you install the appliance is at, stable, heat resistant and clean. Always remove the plug and turn o the water supply to the appliance after every use. Sharp and rigid items such as coins, nails and screws may cause serious damage to this appliance- always ensure pockets of clothing are empty. Always ensure that the drum has drained all water before opening the appliance door. If water is visible, do not open the appliance door. Do not install the appliance behind a lockable door, a sliding door or a door with a hinge on the opposite side, where the appliance door cannot be fully opened. Always be careful when you move the appliance because it is heavy. Always wear safety gloves. Always move the appliance vertically. The rear surface of the appliance must be put against the wall. This appliance should not be installed in a bathroom or similar wet rooms, as well as rooms with explosive or caustic gases. Washing machines with a single water inlet and should only be connected to the cold water supply outlet. Models featuring two inlet valves can be connected to both the hot and cold water outlets. The appliance can be installed as freestanding or below the kitchen counter with correct space. When the appliance is put in its permanent position, check if it is fully level with the aid of a spirit level. If it is not, adjust the feet until it is.
esatto.house
7
ELECTRICAL CONNECTION
WARNING: Caution, risk of re and electrical shock!
The appliance must be earthed. Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician. Always use a correctly installed shockproof socket. Do not use multi-plug adapters and extension cables. Make sure not to cause damage to the mains plug and to the mains cable. Should the appliance power supply cable need to be replaced, this must be carried out by our Service Centre. Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation. Do not connect the appliance plug with a power connection board. Do not pull the mains cable to disconnect the appliance. Always pull the mains plug. Do not touch the mains cable or the mains plug with wet hands. This appliance complies with the E.E.C. Directives.
CARE & CLEANING
WARNING: Risk of injury or damage to the appliance.
Before maintenance, deactivate the appliance and disconnect the mains plug. Do not use water spray and steam to clean the appliance. Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
PRODUCT DISPOSAL
Disconnect the appliance from the mains supply. Cut o the mains cable and discard it. Remove the door catch to prevent children and pets to get closed in the appliance.
APPLIANCE USE
WARNING: Risk of re, explosion, electric shock or damage to the appliance.
Use this appliance in a household only.
Before operating this appliance, ensure that all packaging and transport bolts have been removed. Otherwise, serious
damage can occur to the appliance. Before washing any clothes for the rst time, the washing machine should be operated for one whole cycle without any clothes inside. Do not climb up or sit on top of the appliance. Do not change the specication of this appliance. If you use fabric softener or similar products, obey the instructions on the packaging. Do not sit or stand on the open door. Obey the maximum load volume of 8.0 kg (refer to the “Program chart” chapter). Ensure all objects are removed from clothing pockets such as lighters and matches. Please only use front load washing machine detergents. Flammable and explosive or toxic solvents are forbidden for use with this appliance. Gasoline and alcohol should not be used as a detergent. Never wash carpets or rugs within the appliance. Be careful to avoid burns when the machine drains hot washing water. After a wash program completes, please wait two minutes before opening the door. If a tumble dryer is installed on top of the washing machine, use the suitable stacking kit. The stacking kit, available from your authorised vendor, can be used only with the appliance specied in the instructions, supplied with the accessory. Read it carefully before installation (Refer to the Installation section of this manual). Never lean against the machine door. Please do not close the machine door with excessive force and if you nd it dicult to close the door, ensure that the clothing load isn’t excessive. Glass door may become hot during operation.
TRANSPORT
Always move the appliance cautiously. Do not use the machine door or the handle of the detergent dispenser, to lift the appliance. Transportation bolts should be reinstalled within the machine by a specialised person, prior to transporting the appliance. Ensure that all accumulated water is drained from the appliance before moving.
User Manual
the trough.
Position drain hose properly ,otherwise damage might result of water leakage.
Do not kink or protrac t the drain hose.
Water troug h
100cm
Max.
Warning!
Warning!
Min.6 0cm
Please make sure to ass emble the acoustic sponges, whi ch can effectively reduce the noise cau sed by the machine while working, in orde r to provide you with a more peacef ul and quiet living environment.
Note!
Instlltion
INSTALLATION POSITIONING
Ensure that your appliance is installed on solid and at ground, in a level position. Please do not place the appliance on a slope, soft carpet or wooden oor. Your appliance should only be installed within an internal environment. Do not install the appliance outdoors.

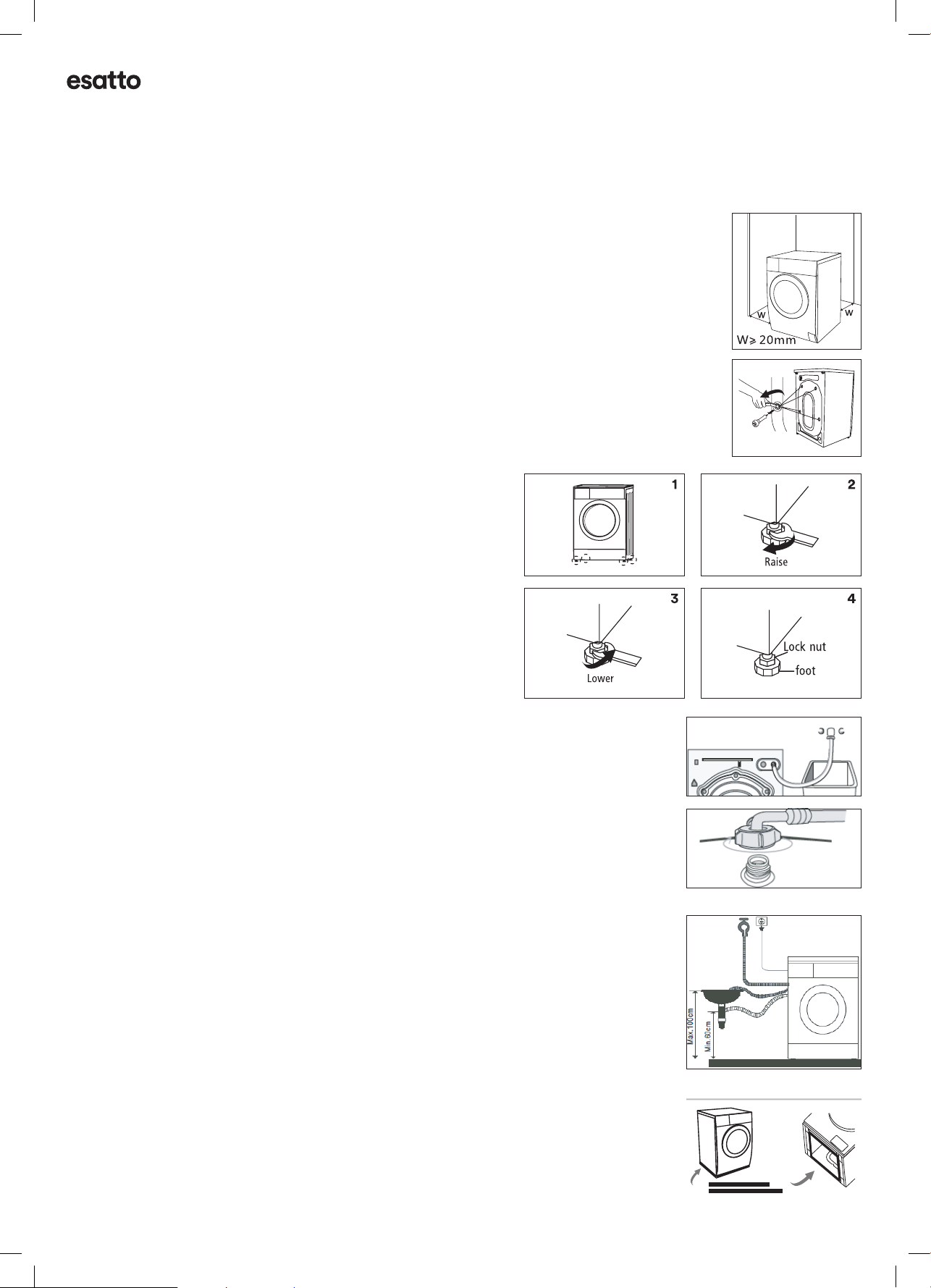

REMOVING THE TRANSPORTATION BOLTS
WARNING: Before using the appliance, the transport bolts must be removed from
the backside of this machine. Please take the following steps to remove the bolts: Loosen all 4 bolts with a spanner and then remove them. Use the plugs (supplied) to plug the holes. Keep the transport bolts for future use.
LEVEL ADJUSTING
If the oor is obviously uneven, your appliance feet need to be adjusted. If your appliance isn’t level, it will cause your appliance to vibrate, and potentially move from its position. Once you’ve positioned your washing machine, press down from the top in all four corners to ensure that it’s completely stable (i.e. not rocking in any direction). Also use a spirit level to ensure that it is completely level in all directions. Should you need to make adjustments, use a spanner to turn the appliance legs until it makes contact with the oor. Turn the leg using one hand and then fasten the nut up against the appliance cabinet, to lock the leg in place. After making any adjustments to the appliance legs, re-check to ensure it is level and no rocking occurring.
8
CONNECT THE INLET PIPE
Connect the hose elbow to the cold water outlet, screwing in a clockwise direction. Connect the other end of the inlet hose to the water inlet valve on the rear of the washing machine. After installation, if there are any leaks detected, remove the hose and re-install using the steps above. The hose is designed to be used on a standard washing machine outlet.
POSITION THE OUTLET HOSE
The outlet hose (used to drain the discharged water) is to be ideally connected to the relevant waste pipe, although it can also be positioned to drain into a sink/trough. Note that the outlet hose has a minimum outlet position of 60cm and a maximum position of 100cm (as illustrated on the right).
Note: If you are positioning the outlet hose to drain into a sink or trough, please ensure that it is xed in place and that the sink remains unblocked at all times.
ACOUSTIC SPONGE
To reduce noise and vibrations caused by the machine when in operation, please apply the acoustic sponges.
Lay the machine onto the oor with a layer of soft material in between (such as cardboard, foam or a blanket) to protect the machine and your oor from scratches.
Stick the 2 × longer sponges to the wider bottom edges of machine, and the 2 × shorter sponges to the shorter bottom edges.
2x 2x
