Esatto EDW6W, EDW6SL User Manual

Model Code/s:

Product:

Document:

EDW6W
EDW6SL

Freestanding
Dishwasher

User Manual

Dear Customer, Congratulations on purchasing your dishwasher.

The Esatto brand is proudly distributed within
Australia by Residentia Group Pty Ltd.

Please refer to the warranty card at the rear of this
manual for information regarding your product’s
parts and labour warranty, or visit us online at
www.residentiagroup.com.au.

At Residentia Group, we are customer obsessed
and our Support Team are there to ensure you get
the most out of your appliance. Should you want
to learn more about the various dishwasher
functions, or even checking to ensure your crockery
is suitable for your dishwasher, our Support Team
are here to help.

You can use our online Support Centre at anytime
by visiting http://support.residentiagroup.com.au,
or you can contact us via phone by dialling:
1300 11 HELP (4357).

It is important that you read through the following
use and care manual thoroughly to familiarise
yourself with the installation and operation
requirements of your appliance to ensure optimum
performance.

Again, thank you for choosing an Esatto appliance
and we look forward to being of service to you.

Kind Regards,

The Residentia Team

T 1300 11 4357
E [e-mail]
W residentiagroup.com.au
ACN

600 546 656

Residentia Group

PO Box 581
Stanhope Gardens
NSW Australia 2768

User Manual:

Page:

3

Contents: Page:

Safety instructions 4
Your Dishwasher 6
Installation Instructions 7
Operating Your Dishwasher 9
Cleaning & Maintenance 16

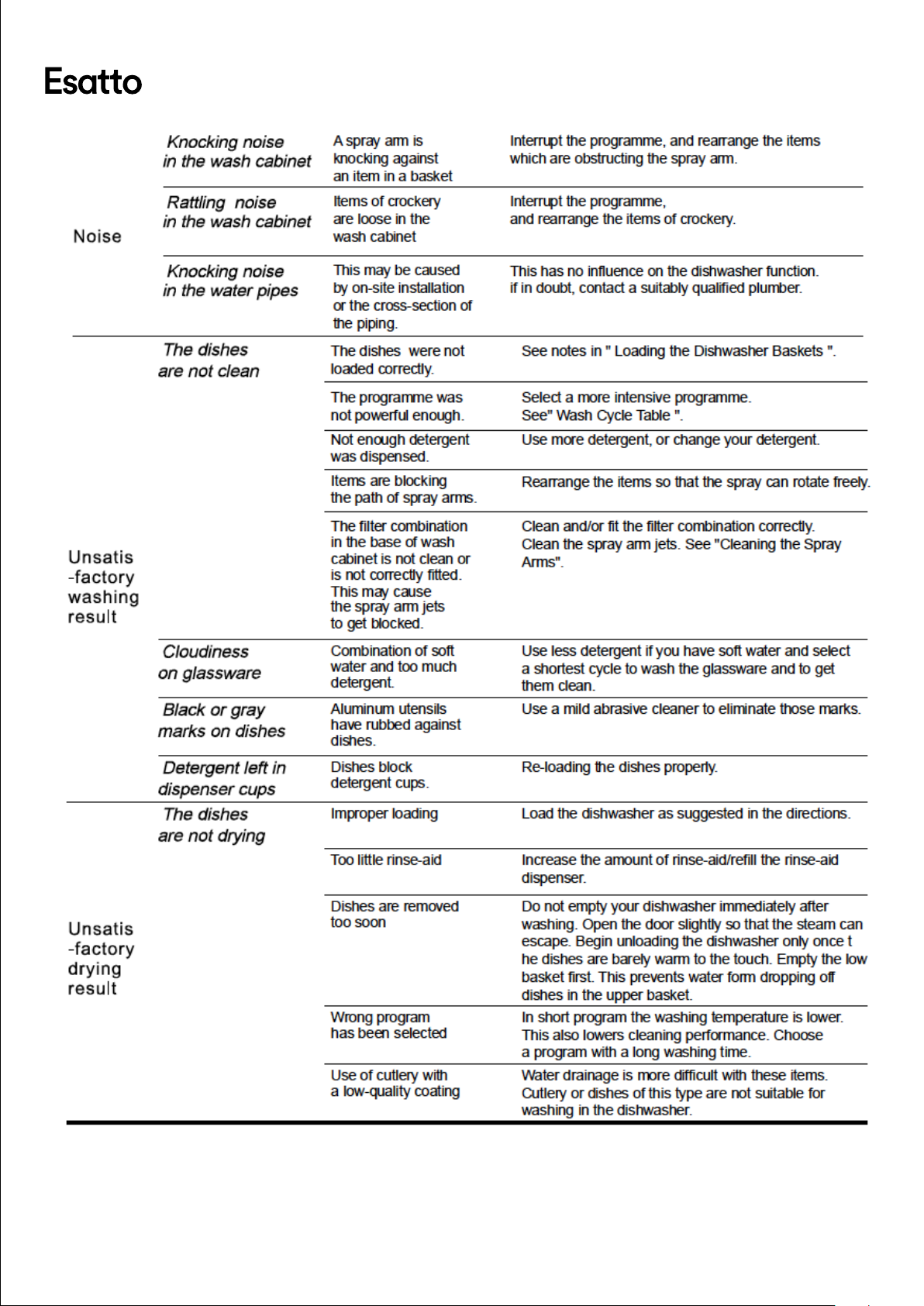

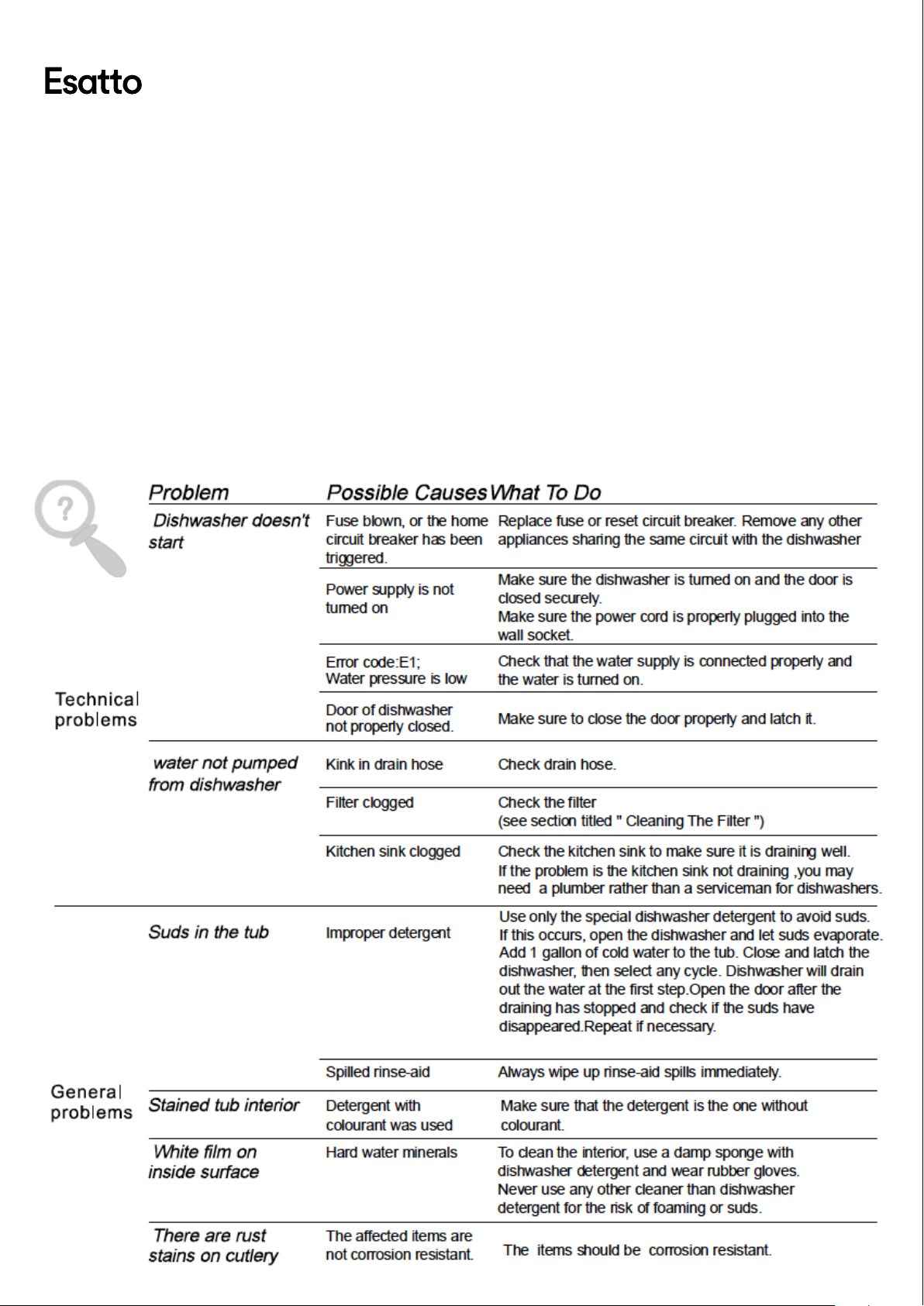

Troubleshooting 18
Technical Data 20
Warranty Information 22

User Manual:

Page:

4

Safety Instructions

This dishwasher is intended to be used in domestic environments only, including:

→ household kitchen;
→ sta/oce kitchen;
→ hotel/motel kitchens; or
→ bed and breakfast type environments.

It has not been designed for use in commercial kitchen environments.

Warning Please ensure that you carefully read this user manual before installing

and using the dishwasher, as it will help you to use and maintain the
dishwasher properly.

→ Keep it as a reference for the future as it also contains your product warranty card.
→ Pass this user manual on to any subsequent owners of the appliance.

Important! The electricity supply to the dishwasher must be cut o before any

adjustments or maintenance work is undertaken.

→ This dishwasher must be grounded. In the event of a malfunction or product failure,

grounding will reduce the risk of an electric shock by providing a path of least resistance
of electric current.

→ The plug must be plugged into an appropriate outlet that is installed and grounded in

accordance with all local codes.

Warning Improper connection of the equipment-grounding conductor can result

in the risk of an electric shock. Check with a qualied electrician or
service representative if you are in doubt as to whether your dishwasher
is grounded properly. Never modify the plug supplied with the appliance.
If the plug doesn't t the outlet, have a licenced and suitably qualied
electrician install the correct outlet.

→ Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
→ Do not touch the heating element during or immediately after use. (This instruction is

only applicable to machines with a visual heating element.)

→ Do not operate your dishwasher unless all enclosure panels are properly in place. Open

the door very carefully if the dishwasher is operating, there is a risk of water squirting
out.

→ Do not place any heavy objects on or stand on the door when it is open. The appliance

could tip forward.

→ When loading items to be washed:

1) Locate sharp items so that they are not likely to damage the door seal;

2) Warning: Knives and other utensils with sharp points must be loaded in
the basket with their points down or placed in a horizontal position.

→ When using your dishwasher, you should prevent plastic items from coming into contact

with the heating element.(This instruction is only applicable to machines with a visual

heating element.)

→ Check that the detergent compartment is empty after completion of the wash cycle.
→ Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For

plastic items not so marked, check the manufacturer's recommendations.

→ Use only detergent and rinse additives designed for an automatic dishwasher.
→ Never use soap, laundry detergent, or hand-washing detergent in your dishwasher. Keep

these products out of the reach of children.

→ Keep children away from detergent and rinse. Always be sure to keep the dishwasher

door closed with children around, as there may still be residual detergent inside.

User Manual:

Page:

5

→ This appliance is not intended for use by persons (including children with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning use of the appliance by a

person responsible for their safety.)

→ Children should be supervised to ensure that they do not play with the appliance.
→ The door should not be left open, since this could increase the risk of tripping.
→ If the supply cord is damaged, it must be replaced by the manufacturer or its service

agent or a similarly qualied person in order to avoid a hazard.

→ Remove the door to the washing compartment when removing an old dishwasher from

service or discarding it.

→ During installation, the power supply must not be excessively or dangerously bent or

attened.

→ The appliance is to be connected to the water mains using new hose sets and that old

hose-sets should not be reused.

→ The maximum number of place settings to be washed is 12.
→ The maximum permissible inlet water pressure is 1Mpa.
→ The minimum permissible inlet water pressure is 0.04Mpa.
→ Never use an extension cord.
→ It's recommended to provide a separate circuit to serve your dishwasher alone and you

should use the required 10 amp fuse.

→ An extension hose can be used but should be no longer than 4 meters, otherwise the

performance of the dishwasher will be eected.

DECLARATION OF CONFORMITY

→ The manufacturer declares that the dishwasher is built using certied materials and

requires the appliance to be installed in accordance with the standards currently in force.

This appliance must be used by a trained person for domestic purposes only.

UNPACKING

→ During transportation, protective packaging was used to protect the appliance against

any damage. After unpacking, please dispose of all elements of packaging in a way

that will not cause damage to the environment. All materials used for packaging the

appliance are environmentally friendly; they are 100% recyclable and are marked with the

appropriate symbol.

→ During unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.)

should be kept out of reach of children.

DISPOSAL OF THE APPLIANCE

→ Old appliances should not simply be disposed of with normal household waste, but

should be delivered to a collection and recycling centre for electric and electronic

equipment. A symbol shown on the product, the instruction manual or the packaging

shows that it is suitable for recycling.

→ Materials used inside the appliance are recyclable and are labelled with information

concerning this. By recycling materials or other parts from used devices you are making a

signicant contribution to the protection of our environment.

→ Information on appropriate disposal centres for used devices can be provided by your

local authority.

User Manual:

Your Dishwasher

SPECIFICATIONS

Page:

6

1 Upper Basket 2 Spray Arms 3 Lower Basket
4 Main Filter 5 Detergent Dispenser 6 Cup Shelf
7 Cutlery Basket 8 Coarse Filter 9 Rinse Aid Dispenser
10 Drain Pipe 11 Inlet pipe connector

MODEL PRODUCT DIMENSIONS (W×D×H) PRODUCT FEATURES

EDW6W
EDW6SL

600mm, 580-1175mm, 850mm — 12 Place Setting capacity

— Removable cutlery basket

User Manual:

Page:

7

Installation Instructions

It’s important to carefully read the following installation instructions before beginning the installation of

your dishwasher.

Important! The installation of the pipes and electrical outlets should be completed by suitably

licensed and qualied persons.

POSITIONING

→ The installation position of the dishwasher should be near the existing inlet, drainage

wastepipe and power outlet.

→ Choose a position near your sink to facilitate the installation of inlet and drain hoses

(refer to gure one).

→ If the dishwasher is installed in the corner of your kitchen cabinetry, make sure an

allowance is made to ensure your dishwasher door can freely open without obstruction

from other cabinetry/door handles.

1

2

Figure 1. Cabinet dimensions:

Less than 5mm between the top of dishwasher and cabinet and the outer
door aligned to cabinet.

Figure 2. Minimum space when the door is opened.

User Manual:

Page:

8

COLD WATER CONNECTION

→ Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure

that it is fastened tightly in place.

→ If the water pipes are new or have not been used for an extended period of time, let the

water run to make sure that the water is clear. This precaution is needed to avoid the risk

of the water inlet to be blocked and damage the appliance.

CONNECTION OF THE DRAIN HOSE

→ Insert the drain hose into a drain pipe with a minimum diarmeter of 40mm, or connect it

onto the trap of your sink where a dishwasher connection is present.

Important! The top of the hose must be less than 1000mm, as illustrated below.

Note: If you require a longer drain hose, make sure you use a similar drain hose. It must be no

longer than 4 metres; otherwise the performance of the dishwasher will be eected.

LEVELLING THE DISHWASHER

→ Once you have positioned the dishwasher in your desired location, it needs to be levelled

correctly. Using a spirit level, you can wind each of the feet to ensure the dishwasher is

stable and level.

Important! Your dishwasher must be level for it's proper operation and wash performance. Use a

spirit level to ensure this is the case.
