User Manual
Dear Customer, Congratulations on purchasing your new gas
cooktop. The Esatto brand is proudly distributed
within Australia by Residentia Group Pty Ltd.
Please refer to the warranty card at the rear of this
manual for information regarding your product’s
parts and labour warranty, or visit us online at
www.residentiagroup.com.au.
At Residentia Group, we are customer obsessed
and our Support Team are there to ensure you get
the most out of your appliance. Should you want
to learn more about your cooktop such as the
various features or importantly taking care of the
appliance, our Support Team are here to help.
You can use our online Support Centre at anytime
by visiting http://support.residentiagroup.com.au,
or you can contact us via phone by dialling:
1300 11 HELP (4357).
It is important that you read through the following
use and care manual thoroughly to familiarise
yourself with the installation and operation
requirements of your appliance to ensure optimum
performance.
Again, thank you for choosing an Esatto appliance
and we look forward to being of service to you.
Kind Regards,
The Residentia Team
T 1300 11 4357
E info@residentiagroup.com.au
W residentiagroup.com.au
ACN
600 546 656
Residentia Group
PO Box 581
Stanhope Gardens
NSW Australia 2768
Page:
User Manual:
3
Contents: Page:
Safety instructions 4
Your Esatto Cooktop 6
Installation Instructions 8
Cleaning & Maintenance 17
Technical Data 18
Purchase Details 19
Warranty Information 20

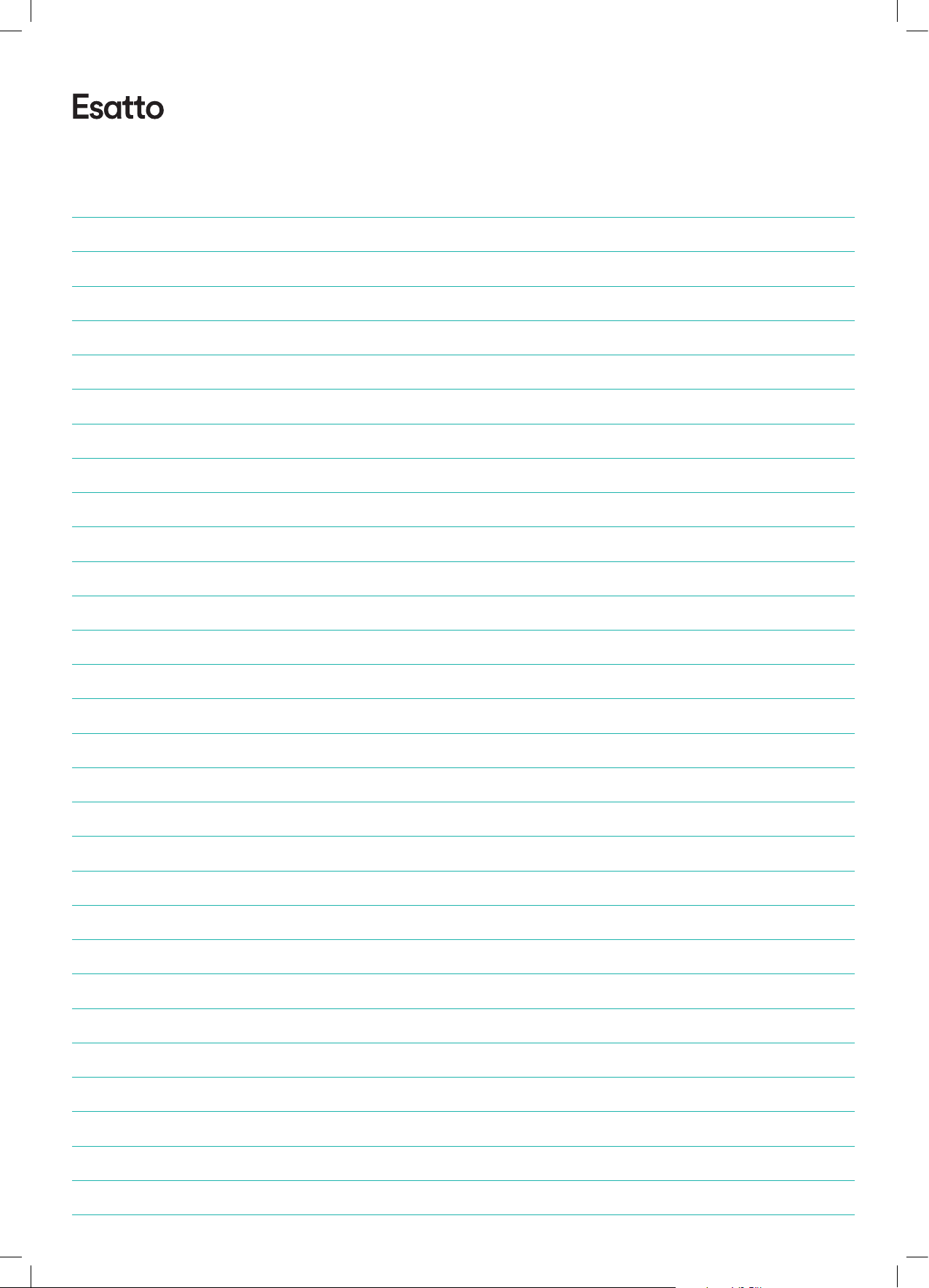

Notes 22
Page:
User Manual:
4
Safety Instructions
Your safety is of the utmost importance to. Please make sure that you read this instruction booklet before attempting
to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the
Retailer where you purchased your unit from.
The appliance should only be installed and connected by a suitably qualied and authorised person, strictly in
accordance with the manufacturer’s instructions. Please see the specic section of this user manual that refers to
installation.
IMPORTANT! The gas supply to the cooktop must be cut o before any adjustments or maintenance
work is undertaken.
WARNING When using this product, basic precautions should always be taken including the
following:
→ The appliance is designed for domestic household use and for the cooking and frying of
domestic foodstus.
→ Care should be taken to ensure that the units and work surfaces that you build the
appliance into, meet with the relevant standards.
→ Not for use in Marine craft, caravans or mobile homes.
→ The adjacent furniture and all materials used in the installation must be able to withstand
a minimum temperature of 65°C above the ambient temperature
of the room it is located in, whilst in use.
→ Certain types of vinyl or laminate kitchen cabinetry
are particularly prone to heat damage or discolouration at temperatures above the
guidelines given.
→ Any damage caused by the cooktop being installed in contravention of this temperature
limit, will be the liability of the owner.
→ Your new cooktop is guaranteed against electrical or mechanical defects, subject to
certain exclusions that are noted in the Warranty Terms and Conditions (at the rear of
this user manual). The foregoing does not aect your statutory rights.
→ The use of this cooktop for any other purpose or in any other environment, without the
express agreement of Residentia Group, will invalidate any warranty or liability claim.
→ You should not use this appliance to store items on or as a work surface.
→ No modications to the appliance are permitted by Residentia Group.
→ You should not store or place ammable or highly ammable liquids/materials on top of
or near the appliance. Items made from aluminium, plastic or plastic lm should also be
kept away from the appliance, as they may fuse to the surface.
→ Repairs may only be carried out by authorised service agents.
→ Your Esatto cooktop is not to be used by children or persons with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction.
→ Any lm or stickers that are present on the cooktop when it is delivered should be
removed before use.
→ Care should be used when utilising the cooktop, otherwise there is a risk of burns being
caused.
→ You should not allow the electrical connection cables to come into contact with the
cooktop surface when it is hot or any hot cookware.
→ If fat and oil overheats, then it can ignite extremely quickly. For this reason, when cooking
with fat and oil the appliance should not be left unattended.
→ Make sure that all of the cooking zones are switched o after use.
→ Cleaning of the cooktop should be carried out on a regular basis, once the cooktop has
cooled down.
→ Great care should be taken whilst using this appliance and when following the cleaning
procedure.
→ You should not use a steam jet or any other high pressure cleaning equipment to clean
the appliance.
Page:
User Manual:
5
DECLARATION OF CONFORMITY
This appliance complies with the following European Directives:
— 2006/95/CE General regulations / Low tension
— 2009/142/CE Concerning gas appliances
— 1935/2004/CE 90/128/EEC This appliance is suitable to come in contact with food
— 2004/108/CE Electromagnetic compatibility
— AS4551- Domestic gas cooking appliances
— Low voltage – 73/23
— Safety standards – EN 60335-1, EN30-1-1, AS/NZS 3350-1,3350-2-6
The manufacturer declares that the cooktop is built using certied materials and requires the appliance to be installed
in accordance with the standards currently in force. This cooktop should only be used by a trained person and for
domestic purposes only.
UNPACKING
During transportation, protective packaging was used to protect the appliance against any damage. After unpacking,
please dispose of all elements of packaging in a way that will not cause damage to the environment. All materials used
for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate
symbol.
→ During unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.)
should be kept out of reach of children.
DISPOSAL OF THE APPLIANCE
Old appliances should not simply be disposed of with normal household waste, but should be delivered to a collection
and recycling centre for electric and electronic equipment. A symbol shown on the product, the instruction manual or
the packaging shows that it is suitable for recycling.
Materials used inside the appliance are recyclable and are labelled with information concerning this. By recycling
materials or other parts from used devices you are making a signicant contribution to the protection of our
environment.
Information on appropriate disposal centres for used devices can be provided by your local authority.
User Manual:
Your Esatto Cooktop
SPECIFICATIONS
Page:
6
Connection points diagram above:
1. Front of cooktop
2. Gas connection point
3. Electrical connection point.
MODEL PRODUCT DIMENSIONS
ECG6 600mm, 510mm, 40mm 560mm x 480mm
ECG61 580mm, 500mm, 40mm 560mm x 480mm
ECGW61 580mm, 500mm, 40mm 560mm x 480mm
ECG60S 580mm, 500mm, 40mm 560mm x 480mm
ECGW60S 580mm, 500mm, 40mm 560mm x 480mm
MODEL BURNERS NG OTHER
ECG6
ECG61
ECGW61
ECG60S
ECGW60S
W×D×H
1 × 10.8 MJ/h rapid burner
2 × 6.5 MJ/h semi-rapid burners
1 × 3.6 MJ/h auxiliary burner
1 × 10.8 MJ/h rapid burner
2 × 6.5 MJ/h semi-rapid burners
1 × 3.6 MJ/h auxiliary burner
1 × 14.4 MJ/h triple crown (wok) burner
2 × 6.5 MJ/h semi-rapid burners
1 × 3.6 MJ/h auxiliary burner
1 × 10.8 MJ/h rapid burner
2 × 6.5 MJ/h semi-rapid burners
1 × 3.6 MJ/h auxiliary burner
1 × 14.4 MJ/h triple crown (wok) burner
2 × 6.5 MJ/h semi-rapid burners
1 × 3.6 MJ/h auxiliary burner
CUTOUT DIMENSIONS
W×D
CONNECTION POINT LOCATIONS
DIAGRAM ABOVE
Gas: 42mm (from left), 60mm (from rear)
Electrical: 220mm (from right), 40mm (from
rear)
Gas: 33mm (from left), 65mm (from rear)
Electrical: 96mm (from right), 52mm (from rear)
Gas: 33mm (from left), 65mm (from rear)
Electrical: 96mm (from right), 52mm (from rear)
Gas: 33mm (from left), 65mm (from rear)
Electrical: 96mm (from right), 52mm (from rear)
Gas: 33mm (from left), 65mm (from rear)
Electrical: 96mm (from right), 52mm (from rear)
Front control operation
Automatic ignition
Enamel trivets
Side control operation
Automatic ignition
Heavy duty cast iron pan stands
Flame failure safety device on each burner
Side control operation
Automatic ignition
Heavy duty cast iron pan stands
Flame failure safety device on each burner
Side control operation
Automatic ignition
Heavy duty cast iron pan stands
Flame failure safety device on each burner
Front control operation
Automatic ignition
Heavy duty cast iron pan stands
Flame failure safety device on each burner
COOKTOP COMPONENTS
Your Esatto cooktop is supplied with:
→ LPG conversion jets (optional use)
→ Regulator
→ Sealing strip
Page:
User Manual:
BurnerMin.panbasediameterincm
Smallburner
10
Mediumburner
12
Largeburner
14
Wokburner
14
BurnerMin.panbasediameterincm
Smallburner
10
Mediumburner
12
Largeburner
14
Wokburner
14
Max.diameterattopofpanincm
Smallburner
22
Mediumburner
22
Largeburner
24
Wokburner
24
7
Your Esatto Cooktop (Continued)
CONTROLS
The following symbols will appear on the control panel, next to each control knob:
● Gas o Large ame: maximum setting Small ame: minimum setting
→ The minimum setting is at the end of the anti-clockwise rotation of the control knob.
→ All operation positions must be selected between the maximum and minimum position.
→ Never select a knob position between the maximum and o position.
Burner indicator
→ The symbol above indicates which gas burner the knob operates.
AUTOMATIC IGNITION WITH FLAME FAILURE SAFETY DEVICE
Your Esatto cooktop is tted with a ame failure safety device on each burner, which is designed to stop the ow of gas
to the burner head in the event of the ame going out.
To ignite a burner:
→ Press in the control knob of the burner that you wish to light and turn it anti-clockwise to
the maximum position.
→ If you keep the knob depressed, the automatic ignition for the burner will operate.
→ You should hold down the control knob for 10 secs after the ame on the burner has lit.
→ After this 10-second interval, turn the control knob to your required setting between the
maximum and minimum setting symbols.
→ To switch the burner o, turn the control knob fully clockwise to the gas o position.
→ In case of power failure, the burners can be lit by carefully using a match.
SUITABLE PANS
Refer to the chart below and ensure that the pan diameter falls within the minimum and maximum diameters given for
the burner to you using. A pan base which is too small will be unstable on the pan support. If the pan diameter is too
large, ames can spread out to the sides and damage or burn the worktop, wall claddings or surrounding units and also
parts of the cooktop. The manufacturer cannot be held liable for this type of damage.
→ Wide, shallow pans are preferable to tall, narrow ones. They will heat up faster.
→ Select pans which are suitable for the burner they are to be used on. In general: use
larger diameter pans on the large burners, and smaller diameter pans on the small
burners.
→ Pans with thick bases are preferable as these distribute heat more evenly. With thin
bases, there is a danger of food overheating in places. Stir the food frequently.
→ Any heat-resistant pans can be used on a gas burner.
→ Always place the pan on the pan support supplied with the cooktop. Do not place a pan
directly on top of the burner.
→ Remember when purchasing new pans that manufacturers usually refer to the diameter
at the top of the pan in their documentation.
→ Use a lid whenever possible to minimise heat loss.
→ When using a wok make sure that the base does not touch the burner. A distance of 1 cm
should be maintained between the burner and the base of the wok pan above it.
WARNING! Place pots and pans at on the cooktop trivets to ensure they do not tip over. Slight tilting cannot always
be avoided.
Page:
User Manual:
8
Installation Instructions
It’s important to carefully read the following installation instructions before beginning the installation of your cooktop.
IMPORTANT! The installation must be carried out by a suitably qualied and authorised person, in
accordance with the current version of the following:
→ AS/NZS5601.1 Gas Installations - current edition
→ NZS 5261 – Code of Practice for the Installation of Gas Burning Appliances and
Equipment (New Zealand)
→ Local gas tting regulations
→ AS/NZS 3000 – Electrical Installations (Wiring Rules)
→ Building codes
→ Installation Instructions
POSITIONING
The adjacent cabinetry and wall materials must be able to withstand a minimum temperature rise of 65°C above the
ambient temperature of the room.
NOT ALLOWED: RECOMMENDED:
→ This appliance has been designed for use within a kitchen.
IMPORTANT! The cooktop must not be installed in a bathroom or shower room.
This appliance is classied as Class 3 and therefore is to be built into a kitchen unit (depending on size) or 600mm deep
worktop, providing the following minimum distances are allowed:
→ The minimum clearance from a combustible surface shall be a 200 mm horizontal
distance from the periphery of any gas burner (AS 5601). Where the horizontal clearance
is less than 200mm, that vertical surface must be protected by a non-combustible
material for 150mm above the cooktop surface across the entire length (depth, width),
indicated below. The 150mm protected surface may be ceramic tiles or another approved
non-combustible material.
→ For the installation of your rangehood, a minimum safety clearance of at least 760 mm
above the burner cap must be maintained. For any ammable objects (i.e. utensil rails,
wall cabinets, shelves, etc) a minimum clearance of at least 760 mm above the burner
cap must be maintained between them and the cooktop below.
Loading...
