UHF Transceiver Module TRX916
User Manual
UHF Transceiver Module TRX916 User Manual V 1.0
Table Of Contents
1 KEY FEATURES .................................................................................................................................. 4
2 APPLICATIONS FOR THE MODULE.............................................................................................. 4
3 DESCRIPTION OF THE MODULE................................................................................................... 4
4 HISTORY FOR THE DOCUMENT.................................................................................................... 5
5 TERMINAL LAYOUT ......................................................................................................................... 5
5.1 PIN ASSIGNMENT ............................................................................................................................ 5
6 BLOCK DIAGRAM .............................................................................................................................. 6
7 ABSOLUTE MAXIMUM RATINGS .................................................................................................. 6
8 OPERATING CONDITIONS............................................................................................................... 7
9 RF RECEIVE SECTION...................................................................................................................... 7
10 RF TRANSMIT SECTION................................................................................................................... 7
11 DC CHARACTERISTICS.................................................................................................................... 8
12 MODULE DIMENSION....................................................................................................................... 8

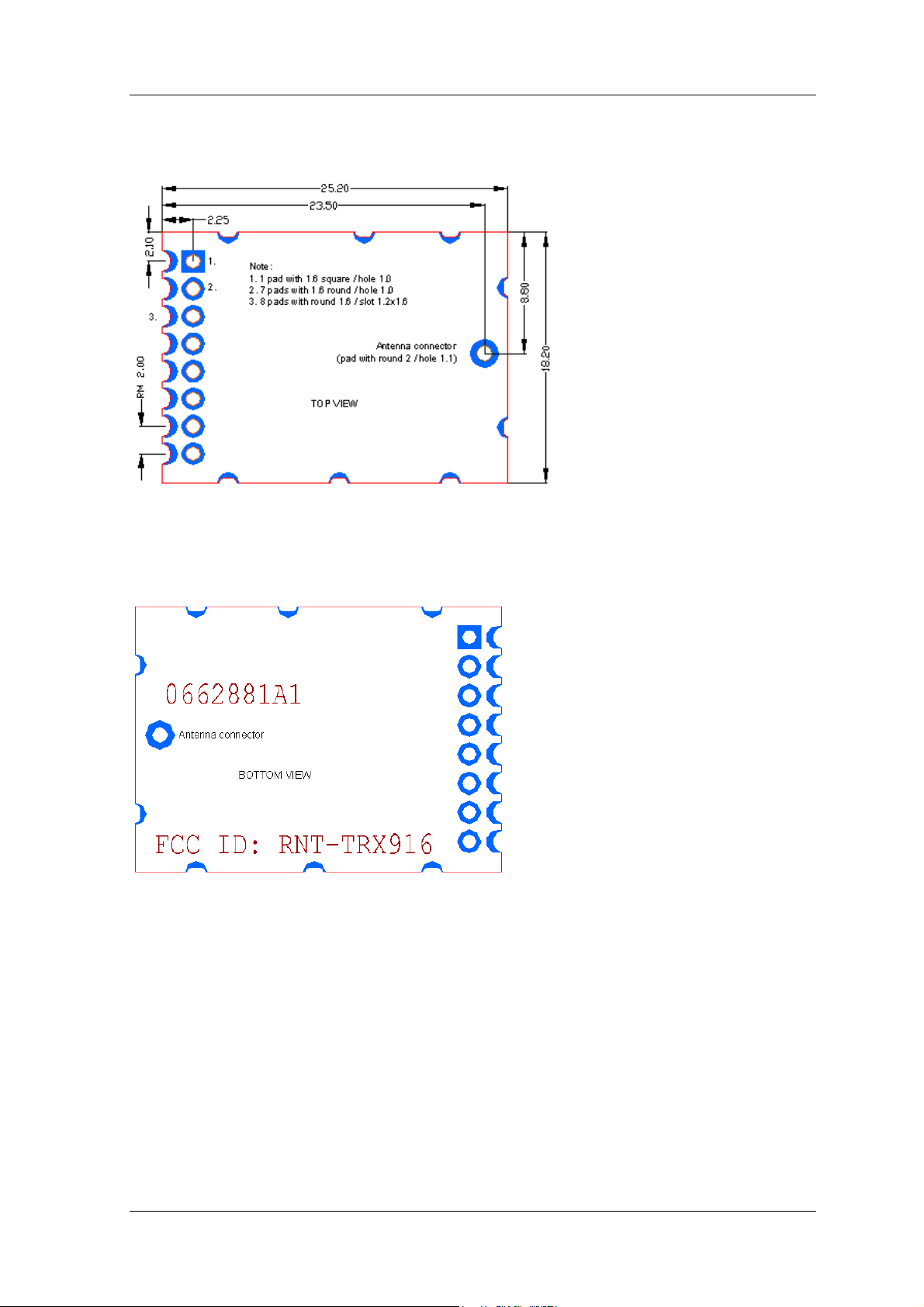

13 FOOTPRINT.......................................................................................................................................... 9
14 LABELING DRAWING ....................................................................................................................... 9
15 SOFTWARE / REGISTER SETTINGS ............................................................................................ 10
16 NOTES OF DESIGN ........................................................................................................................... 10
17 FCC INFORMATION......................................................................................................................... 10
17.1 FCC ID......................................................................................................................................... 10
17.2 FCC NOTICE................................................................................................................................. 11
17.3 INFORMATION TO THE USER.......................................................................................................... 11
17.4 LABELING REQUIREMENTS............................................................................................................ 12
17.5 RF EXPOSURE............................................................................................................................... 12
17.6 PERFORMANCE INFORMATION....................................................................................................... 12
18 ORDERING INFORMATION........................................................................................................... 12
19 DISCLAIMER ..................................................................................................................................... 12
eQ-3 Limited Page : 2 of 12
UHF Transceiver Module TRX916 User Manual V 1.0
st
English edition October 2006
1
Documentation © 2006 eQ-3 Limited, Hong Kong
All rights reserved. This handbook must not be reproduced in any form, even in excerpts,
or duplicated or processed using electronic, mechanical or chemical procedures without
written permission of the publisher.
This handbook may contain mistakes and printing errors. The information in this handbook
is regularly checked and corrections made in the next issue. We accept no liability for
technical mistakes or printing errors, or their consequences.
All trademarks and patents are acknowledged.
Printed in Hong Kong
Modifications due to technical improvements may be made without prior notification.
00073928 Y 2006 V 1.0
eQ-3 Limited Page : 3 of 12
UHF Transceiver Module TRX916 User Manual V 1.0
1 Key Features
• Supply voltage 1.8 V – 3.6 V
• Frequency 916.500 MHz
• Data rate 10 kbit/s
• High sensitivity -104 dBm
• Output power (EIRP) 94 dBuV/m @ 3 m or –1 dBm (EIRP)
• FSK modulation
• Integral λ/4 monopole
• Separate 64-byte RX and TX data FIFOs
• Efficient SPI interface: All register can be programmed with one “burst” transfer
2 Applications For The Module
• Consumer Electronics
• RKE Two-way Remote Keyless Entry
• Low power telemetry
• Home and building automation
• Wireless alarm and security systems
• Wireless sensor networks
3 Description Of The Module
The transceiver module eQ-3 TRX916 contains a true single chip UHF transceiver
designed for very low power wireless applications.
The transceiver module operates within the frequency band 902 MHz to 928 MHz
according to FCC Part 15, Section 15.249. The transmission and receive frequency is set to
916.5 MHz. FSK modulation is done with 19 kHz deviation.
The transceiver module TRX916 provides extensive hardware support for packet handling,
data buffering, burst transmission link quality and wake on radio.
The main operation parameters and the 64-byte transmit/receive FIFOs of the transceiver
module can be controlled via an SPI interface. A system consists of two transceiver
modules integrated in an appropriate terminal equipment, which can be used in each case
as transmitters and/or receivers.
eQ-3 Limited Page : 4 of 12
