User’s Guide

Unpacking the projector

Refer to the following checklist and make sure you have received all of the items. Contact the place of purchase if items

are missing.

YMain Unit YRemote Control Y AA type dry cell batteries

(2 pcs.)

YPower cable

(3m)

YLens cover

Notations used in this guide

Indicates content which may cause projector damage or malfunction.

Indicates additional information and points which may be useful to know regarding a topic.

s Indicates a page where useful information regarding a topic can be found.

Indicates operating methods and the order of operations. The procedure indicated should be carried out in the order of the numbered steps.

Indicates remote control or main unit buttons.

“(Menu name)”

Indicates menu items and messages which are displayed on screen. Example: “Brightness”

Depending on the type of disc, the functions and operations which can be performed may be different. These marks inform you of the type of disc being used.

YUser’s Guide (this manual)

Safety Instructions..................................................... 2

Use and Storage......................................................... 5

About Discs ............................................................... 7

Part Names ................................................................ 8

Preparing the Remote Control................................... 11

Quick Start

Installation................................................................. 13

Projection distance and screen size............................................ 13

Connecting the power cable and turning the main power

switch ON................................................................................... 13

Disc Playback ............................................................ 14

Playing a disc and projecting ..................................................... 14

Adjusting the projection position and volume ........................... 15

Stopping playback...................................................................... 16

Turning off the power ................................................................ 16

Basic Operations During Playback............................ 17

Temporarily freezing playback (pause)...................................... 17

Reverse search/forward search................................................... 17

Reviewing playback from a position 10 seconds before............ 18

Skip............................................................................................. 18

Frame advance............................................................................ 18

Slow motion playback................................................................ 19

Temporarily using the projectors light as illumination

(Break)........................................................................................ 19

Selecting a picture quality to suit the conditions of the room

(Color Mode).............................................................................. 19

Temporarily stopping the audio (Mute) ..................................... 19

Advanced Operations

Becoming a playback expert ..................................... 20

Changing the brightness of the display window (Dimmer) ....... 20

Playback from a DVD menu ...................................................... 21

PBC (playback control) playback .............................................. 22

MP3/WMA, JPEG playback ...................................................... 23

Playback by selecting the chapter or track number.................... 25

Designated time playback (time search) .................................... 26

Looping playback of a favorite scene (A-B repeat playback) .... 27

Looping playback (repeat play).................................................. 28

Playing in the order of your choice (program play) ................... 30

Playback at random (random play) ............................................ 31

Changing the audio language ..................................................... 32

Changing the subtitles display.................................................... 33

Changing the angle..................................................................... 33

Making operations from the menu bar....................................... 34

Auto-standby, goodnight timer (Sleep timer) settings ............... 35

For better image quality (Progressive mode)............................. 36

Tray lock .................................................................................... 36

Becoming a Projection Expert................................... 37

Connecting to other video equipment ........................................ 37

Projecting images from external video equipment..................... 38

Becoming an Audio Expert ....................................... 39

Listening with headphones ......................................................... 39

Connecting to audio equipment with an optical digital input..... 40

Connecting a subwoofer............................................................. 40

Selecting Sound Mode................................................................ 41

Adjusting high pitched tones ...................................................... 41

Adjusting the audio playback level ............................................ 42

Adjusting the audio input level of external audio equipment..... 42

Settings and Adjustments

Settings Menu Operation and Functions ................... 43

Using the settings menu.............................................................. 43

Settings menu list ....................................................................... 44

Language code list...................................................................... 46

“DIGITAL AUDIO OUTPUT” settings and output signals ...... 46

Country (area) code list .............................................................. 47

Picture Quality Menu Operations and Functions ...... 48

Using the Picture Quality menu ................................................. 48

Picture Quality menu list ............................................................ 49

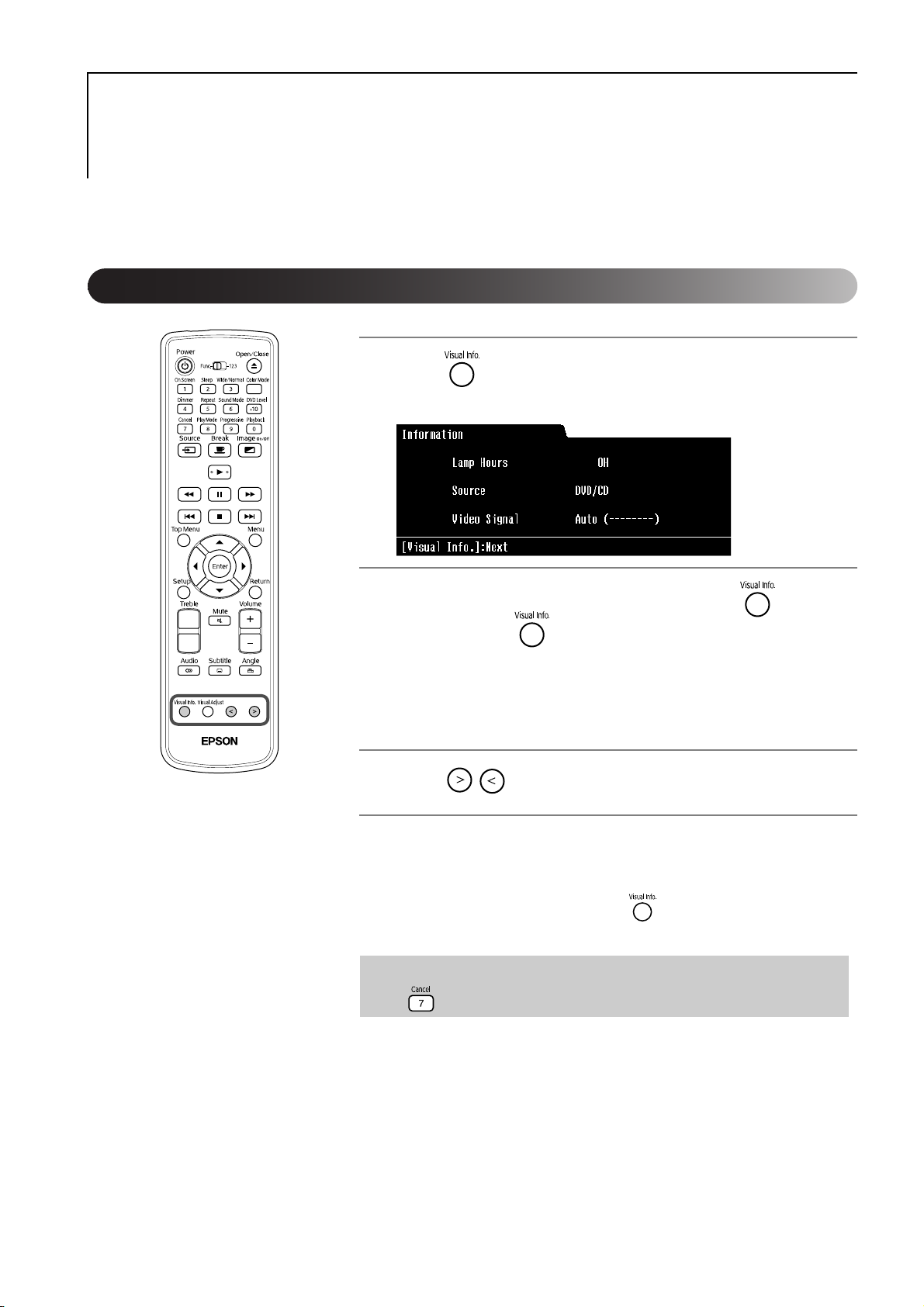

Information Menu Operation and Functions............. 50

Using the Information menu....................................................... 50

Information menu list ................................................................. 51

Appendix

Troubleshooting......................................................... 52

Reading the indicators................................................................ 52

When the indicators provide no help.......................................... 54

Maintenance .............................................................. 56

Cleaning...................................................................................... 56

Consumables replacement period............................................... 57

How to replace consumables...................................................... 58

Optional Accessories and Consumables.................... 60

Projection Distance and Screen Size ......................... 60

Specifications / Compliant Resolutions..................... 61

Glossary..................................................................... 64

Index .......................................................................... 65

Address List............................................................... 66

Adjustments

Quick Start

Advanced Operations

Settings and

Appendix

Safety Instructions

Important information

Read the following important information about your

unit.

This symbol is intended to alert the user

to the presence of important operating

and maintenance (servicing) instructions

in the literature accompanying the unit.

Important safety information

Warning :

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Warning :

Never look into the projector lens when the lamp is switched on as the bright light can damage your eyes. Never let children look into the lens when it is on.

Warning :

Never open any covers on the projector except the lamp cover. Dangerous electrical voltages inside the projector can cause severe injury. Except as specifically directed in the User's Guide supplied, do not attempt to service this product yourself. Refer all servicing to qualified service personnel.

Warning :

Keep the plastic bags for the projector, accessories and optional parts out of the reach of children. Children covering their heads with bags may result in death by suffocation. Be particularly careful around small children.

Class 1 LASER Product Caution :

Do not open the top cover. There are no user serviceable parts inside the unit.

Caution :

When you replace the lamp, never touch the new bulb with your bare hands. The invisible residue left by the oil on your hands may shorten the bulb life. Use a cloth or gloves to handle the new bulb.

Important safety instructions

Follow these safety instructions when setting up and

using the projector :

• Read these instructions.

• Keep these instructions.

• Heed all warnings.

• Follow all instructions.

• Do not use this apparatus near water.

• Clean only with dry cloth.

• Do not block any ventilation openings. Install in

accordance with the manufacturer's instructions.

• Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

• Do not overide the safety purpose of the polarized or

grounding-type plug. A polarized plug has two

blades with one wider than the other. A grounding

type plug has two blades and a third grounding

prong. The wide blade or the third grounding prong

are provided for your safety. If the provided plug

does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

• Protect the power cord from being walked on or

pinched particularly at plugs, convenience

receptacles, and the point where they exit from the

unit.

• Only use attachments/accessories specified by the

manufacturer.

• Use only with the cart stand, tripod, bracket, or table

specified by the manufacturer, or sold with the unit.

When a cart is used, use caution when moving the

cart/unit combination to avoid injury from tip-over.

Caution :

To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel.

This symbol is intended to alert the user

to the presence of uninsulated

"dangerous voltage" within the product's

enclosure that may be of sufficient

magnitude to constitute a risk of electric

shock to persons.

• Unplug this unit during lightning storms or when

unused for long periods of time.

• Refer all servicing to qualified service personnel.

Servicing is required when the unit has been

damaged in any way, such as the power-supply cord

or plug is damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus has been

exposed to rain or moisture, does not operate

normally, or has been dropped.

• Do not expose this unit to water or place objects

containing liquids on this unit.

• Do not place the source of a naked flame, such as a lit

candle, on this unit.

• Connect this unit to an earthed electrical outlet.

• Ensure there is at least 20 cm between the exhaust

vent and any walls, and so on.

• Ensure there is at least 10 cm between the air intake

vent and any walls, and so on.

• Do not project when the lens cover is on.

It is possible that the lens cover may melt from the

heat and cause burns or injuries.

To interrupt the projection, press [Image On/Off]

during projection.

• Do not leave this unit or the remote control with its

batteries installed in such places as the inside of a car

with the windows closed, in direct sunlight, near the

intake/exhaust of an air conditioner or heater, or in

places where the temperature rises above normal.

This may have a negative effect upon the internal

parts of this unit and cause heat deformation or fire.

• When unplugging the power plug/power connector,

do not pull on the power cable.

Make sure you grasp the plug or connector part, then

unplug.

• Do not set the volume too high from the outset.

A loud sound may be produced suddenly that may

cause damage to the speaker or your hearing. As a

precaution, lower the volume before you switch off

this unit then raise it gradually after you switch it

back on.

• When using headphones, do not turn the volume up

too loudly.

You may adversely affect your hearing when

listening at loud volumes over extended periods of

time.

• When maintaining this unit, remove the power plug/

power connector form the wall outlet.

If not, you run the risk of an electric shock.

• Do not place the projector on an unstable cart, stand,

or table.

• Use the type of power source indicated on the

projector. If you are not sure of the power available,

consult your dealer or local electricity company.

• Place the projector near a wall outlet where the plug

can be easily unplugged.

• Check the specifications of the power cable. Using

an inappropriate power cable could result in fire or

electric shock.

The power cable supplied with the projector is

intended to comply with power supply requirements

for the country of purchase.

• Take the following precautions when handling the

plug. Failure to comply with these precautions could

result in fire or electric shock.

− Do not insert the plug into an outlet with dust

present.

− Insert the plug firmly into the outlet.

− Do not handle the plug with wet hands.

• Do not overload wall outlets, extension cables, or

integral convenience receptacles. This can cause fire

or electric shock.

• Do not place the projector where the cable can be

stepped on. It may result in fraying or damage to the

plug.

• Unplug the projector from the wall outlet before

cleaning. Use a damp cloth for cleaning. Do not use

liquid or aerosol cleaners.

• Do not block the slots and opening in the projector

case. They provide ventilation and prevent the

projector from overheating. Do not place the

projector on a sofa, rug, or other soft surface, or in a

closed-in cabinet unless proper ventilation is

provided.

• Never push objects of any kind through cabinet slots.

Never spill liquid of any kind into the projector.

• Unplug the projector from the wall outlet and refer

servicing to qualified service personnel under the

following conditions:

− When the power cable or plug is damaged or

frayed.

− If liquid has been spilled into the projector, or it

has been exposed to rain or water.

− If it does not operate normally when you follow the

operating instructions, or if it exhibits a distinct

change in performance, indicating a need for

service.

− If it has been dropped or the housing has been

damaged.

• The internal projector components consist of many

glass parts such as the lens and projection lamp.

The lamp is fragile, and can easily break. If the lamp

breaks, handle the projector with extreme care to

avoid injury from broken glass, and contact your

dealer or the nearest address provided on page 66 for

repairs.

Particular care should be taken when the projector is

installed to a ceiling, as small pieces of glass may fall

down when the lamp cover is removed. Be very

careful not to allow such pieces of glass to get into

the eyes or mouth.

• Material or paper may get stuck against the air filter

underneath the projector while it is in use. Remove

anything from underneath the projector that might

get stuck against the air filter in this way.

• Never try to remove the lamp immediately after use.

Doing so will result in serious burns. Before

removing the lamp, turn off the power supply and

wait the time specified on page 58 to allow the lamp

to cool completely.

• A mercury lamp with high internal pressure is used

as the projector's light source. Mercury lamps may

make a loud noise when they break. Handle the lamp

with extreme care while observing the following.

If the following points are not observed, injury or

poisoning may result.

− Do not damage the lamp or subject it to any

impacts.

− Do not use the lamp after the lamp replacement

period has elapsed. Once the lamp replacement

period has elapsed, the possibility of the lamp

breaking becomes greater. When the lamp

replacement message appears, replace the lamp

with a new one as soon as possible.

− The gases inside mercury lamps contain mercury

vapor. If the lamp breaks, immediately ventilate

the room to prevent the gases that are released

when the lamp breaks from being inhaled or

coming into contact with the eyes or mouth.

− Do not bring your face close to the projector while

it is in use, in order to prevent the gases that are

released when the lamp breaks from being inhaled

or coming into contact with the eyes or mouth.

− If the lamp breaks and needs to be replaced with a

new lamp, contact the place of purchase or the

nearest address provided on page 66 to carry out

the replacement. If the lamp breaks, pieces of

broken glass may get scattered around inside the

projector.

− Particular care should be taken when the projector

is installed to a ceiling, as small pieces of glass

may fall down when the lamp cover is removed. If

cleaning the projector or replacing the lamp

yourself, be very careful not to allow such pieces

of glass to get into the eyes or mouth.

If the lamp breaks and gas from the lamp or

fragments of broken glass are inhaled or get into

the eyes or mouth, or if any other ill effects are

noticed, immediately seek medical advice.

In addition, consult your local regulations

regarding proper disposal and do not place in the

trash.

• If there is an electrical storm, do not touch the power

plug, otherwise you may receive an electric shock.

• Clean the inside of the projector periodically.

If the inside of the projector has not been cleaned for

a long time, dust may build up and cause fire or

electric shocks. Contact your dealer or the nearest

address provided on page 66 to clean inside the

projector at least once a year. A charge will be levied

for this service.

• If using a remote control that takes batteries, keep

these batteries out of the reach of children. Batteries

are choking hazards and can be very dangerous if

swallowed.

If the batteries are swallowed, seek medical

assistance immediately.

• When replacing batteries, take the following

precautions.

− Replace the batteries as soon as they run out.

− If the batteries leak, wipe away battery fluid with a

soft cloth. If fluid gets on your hands, wash

immediately.

− Do not expose batteries to heat or flame.

− Dispose of used batteries according to local

regulations.

− Remove the batteries if you won't be using the

projector for a long period of time.

• Do not stand on the projector or place heavy objects

on it.

Use and Storage

Take note of the following advice in order to prevent malfunction and damage.

Notes on handling and storage

• Use and store this unit within the operating

temperature range and storage temperature

range as specified in this manual.

• Do not install the unit in a place prone to

vibration or shock.

• Do not install the unit close to television, radio or

video equipment that generates magnetic fields.

This may have a negative effect when projecting the

playback of audio and image with this unit, and may

cause this unit to malfunction.In the event that such

symptoms occur, move the unit further away from

any television, radio and video equipment.

• Do not install this machine on an incline.

• Do not move this unit during playback.

This may damage the disc or cause malfunction.

• Avoid using or storing this unit in cigarette or

other smoke filled places, or in rooms containing

a large amount of dust.

This may cause degradation of the image quality.

• Do not touch the projection lens with your bare

hands.

If fingerprints or marks are left on the face of the

lens, the image will not be projected clearly.Make

sure the lens cover is securely in place when not in

use.

• EPSON will not be held responsible for damage

arising from projector or lamp failure outside the

range of that which is covered in your warranty

terms.

Condensation

If you move this unit from a cold place into a warm

room, or, if the room in which this unit is installed is

heated rapidly, condensation (moisture) may form

internally or on the lens surface.If condensation forms,

it may not only cause incorrect operation such as

weakening of the image, but also damage the disc and/

or parts.In order to prevent against condensation, setup

this unit in the room approximately one hour before it is

to be used.If by some chance condensation does form,

turn on the main power switch then wait one to two

hours before use. Do not use the lamp during this time.

Lamp

This machine uses a mercury lamp with a high internal

pressure as its light source.Mercury lamps have the

following characteristics.

• Lamp brightness decreases once the rated lamp usage

time has passed.

• When the lamp reaches the end of its life, it may enter

a state where it will no longer light, or it may explode

with a loud noise due to impact, deterioration, or the

expiration of its usage time.

• Depending on the individual difference of each lamp

and the conditions of use, there is a considerable

difference in the time it takes for the lamp to reach the

end of its life.

To provide against contingencies, prepare a

replacement lamp in advance.

• The potential for the lamp to explode increases once

the lamp usage time has been exceeded.

When the lamp replacement message appears,

promptly replace the lamp with a new one.

LCD panel

• Although the liquid crystal panel is made using very

precise high technology, you may see some black

pixels, or pixels that are always lit red, blue, or

green.You may also be able to see lines with irregular

brightness or color.

These are normal characteristics of liquid crystal

panels, and are not indicative of any malfunction.Be

aware of this fact.

• Do not leave this unit projecting a still image over a

long period of time.

It is possible that remnants of the image may remain

(screen burn). You may be able to avoid screen burn

by switching off the power and leaving the projector

for a while.If the screen burn does not disappear, contact your dealer for advice. sp. 66

When moving this unit

• Make sure the lens cover is securely in place.

• Remove the disc and close the disc tray.

• Move the projector, holding it as shown in the

following illustration.

Be careful not to damage the mesh covering the

speaker with your hands.

Transportation cautions

• Many glass and precision parts are used within this

unit.In order to prevent impact during transportation,

re-use the box and protective packaging you received

at the time of purchase.

If you no longer have the original packing, protect

the outside of this unit with shock absorbing material

to protect it from impact, place it inside a strong box

and make sure it is clearly labeled for the

transportation of precision equipment.

• Take off the lense cap and wrap it.

• If using a courier service for transportation, inform

them that this unit contains precision equipment and

should be handled accordingly.

* Your warranty does not cover any damages that may

occur to this product during transportation.

• This unit is equipped with Macrovision copy

protection.The intellectual property rights to the

patent of this copy protection technology are owned

by the Macrovision company of America, and others.

When employing this technology, a license is

required from the Macrovision company.The

Macrovision company does not authorise the use of

this technology except for a limited range of intended

purposes, including home use.Further, remodeling,

disassembly, and reverse engineering are prohibited.

• Reproduction of a disc for the purposes of broadcast,

projection in public, public musical performance, or

rental (regardless of compensation, remuneration, or

lack thereof) without the permission of the copyright

owner, is strictly prohibited.

About Discs

Readable disc types

The following discs can be played.

DVD video Audio CD

Video CD/SVCD (Super Video CD)

PBC (Playback control) equipped Video CD (version 2.0

compliant).

CD-R/CD-RW

Only discs recorded in the following formats can be

reproduced.

• Audio format (finalized)

• Video CD format

• SVCD format

• MP3/WMA, JPEG discs recorded in accordance with

ISO9660 standard

DVD-R/DVD-RW

Only discs recorded in the DVD video format (finalized)

can be reproduced.

• You cannot play DVD videos if the disc region code

does not correspond to the region code label on the

side of this unit.

• The performance and tonal quality of copy-control

CD discs that do not conform to the compact disc

(CD) standard cannot be guaranteed with this unit.

CDs that conform to the CD standard will bear the

following compact disc logo mark.Check what is

displayed on the packaging of the audio disc.

• This unit conforms to the NTSC, PAL, and SECAM

television signal formats.

• In the case of DVD video, SVCD, and Video CD,

playback functions may be limited by the intentions

of the software producers.As this unit plays back the

contents of a disc according to the intentions of the

software producers, certain functions may not work

if performed.Refer to the attached user information

of the disc being played.

• Depending on how a DVD-R, DVD-RW, CD-R, or

CD-RW has been recorded, or if a disc is dirty,

smeared, scratched, or warped, some discs may not

be readable, or playback make take some time.

• Only the audio of the following discs can be

reproduced.

·MIX-MODE CD ·CD-G ·CD-EXTRA

·CD TEXT

Unreadable disc types

• The following discs cannot be played.It is possible to

damage the speaker with the noise generated if these

discs are played back by mistake.

·DVD-R/DVD-RW recorded in the VR format

·DVD-ROM ·CD-ROM ·PHOTO CD

·DVD+R ·DVD+RW ·DVD-RAM

·DVD audio ·SACD ·DVD−R DL

• Round discs with a diameter other than 8 cm or

12 cm

• Specially made non-circular (heart, polygon shaped,

and so on) discs

Disc Handling

• Avoid touching the playback side with your bare

hands.

• Make sure you store discs in their cases when not in

use.

• Avoid storing your discs is places with high humidity

or in direct sunlight.

• If the playback surface of the disc is dirty with dust

or fingerprints, the image and audio quality may

deteriorate.When the playback surface is dirty, gently

wipe the disc clean with a soft dry cloth, starting

from the center of the disc then moving outwards.

• Do not use cleaning products such as benzine, or

anti-static products designed for analog records.

• Do not glue paper or stickers on to a disc.

Part Names

Front

vSubwoofer output port sp. 40

vS-Video input port sp. 38

vAudio input port sp. 37, 38

vRemote control light-

receiving area sp. 11

How to open the interface cover

Press here to open

vVideo input port sp. 37

vOptical Audio-Out port sp. 40

vProjection lens

vAir intake

vent

sp. 56

vMain power switch

sp. 13

vPower inlet port

sp. 13

vLens cover sp. 13

Rear

vDisplay window

sp. 14

vSpeaker

vHeadphone jack sp. 39

vDisc tray sp. 14

vRemote control light-

receiving area sp. 11

vLamp cover opening latch

sp. 58

vAir exhaust vent

Do not block the exhaust vents, and do not touch the exhaust vent immediately after projecting, or while projecting, since it becomes hot.

vSpeaker

vOpen/close button sp. 14

Top

vFocus ring sp. 15

vZoom ring sp. 15

vVertical lens shift

dial sp. 15

vStatus display indicator

sp. 52

vHorizontal lens shift dial sp. 15

vLamp cover sp. 58

vSkip buttons sp. 18

vImage On

indicator

sp. 53

vSource button

sp. 38

vPower button

sp. 13, 16

vStop button

sp. 16

vPlay/Pause button

sp. 14, 17

vVo l u me

adjustment buttons

sp. 15

vBreak button

sp. 19

vImage Off

indicator

sp. 13, 16, 53

vImage On/Off button

sp. 23

Remote control

vRemote control

light-emitting area

sp. 16

Handy functions

sp. 34 sp. 35

sp. 55 sp. 19

sp. 20 sp. 28

sp. 41 sp. 42

sp. 48, 50 sp. 30, 31

sp. 36 sp. 18

Buttons used during playback

sp. 14, 16 sp. 17, 18

vFunction/numerics toggle switchsp. 17, 21

sp. 14

Useful functions

p. 38

p. 19

p. 23

sp. 17 sp. 17

sp. 18 sp. 18

sp. 16

sp. 21, 22 sp. 21, 22

sp. 43 sp. 22, 44

sp. 21

Buttons used when adjusting DVD video

sp. 32

sp. 33

Buttons used when adjusting audio

sp. 41 sp. 15

sp. 19

Buttons used when adjusting or checking the projection

sp. 50

sp. 48

sp. 48, 50

Preparing the Remote Control

Inserting the batteries

At the time of purchase, the batteries are not installed into the remote control.

Insert the batteries provided with this unit, before use.

Push in the catch on the rear of the remote control, then lift it

upwards.

Insert the batteries in their correct polarity.

Close the battery cover.

If delays in the responsiveness of the remote control occur, or if it does not

operate after it has been used for some time, it probably means that the

batteries are becoming flat. Replace the batteries.Have two spare AA-size

(SUM-3) batteries ready to use when required.

Remote control usage range

Operable range (horizontal)

Approx. 30°

Operable range (vertical)

Approx. 15°

Approx. 30°

7 m7 m

Approx. 15°

7 m7 m

Avoid allowing direct sunlight or fluorescent light to fall on the remote

control light-receiving area of this unit.The signal from the remote control

may not be able to be received.

Quick Start

Playback procedure

No complicated connections are necessary.You don’t even need to select the television type or change the input.

You can enjoy your DVD’s on the big screen by following these four easy steps.

There is also a JVC original sound system compliant speaker built-in so you can appreciate natural, sweeter sounding

audio.

Position in front of the screen. sp. 13

Connect the power cable then turn on the main power switch. sp. 13

Play a disc. sp. 14

Adjust the projection position, size, and volume. sp. 15

Installation

Projection distance and screen size

Place the unit in a position to project the

best size image onto the screen.

The further this unit is moved away from the

screen, the larger the projected image becomes.

For detailed projection distance values sp. 60

You can adjust the position of the projected

image vertically and horizontally, by using the lens shift dial. sp. 15

*standard values

Position this unit so that it is parallel to

the screen.

Screen

If this unit is not placed parallel to the screen, the projected image is distorted in the shape of a keystone.

Quick Start

Connecting the power cable and turning the main power switch ON

Remove the lens cover.

At the time of purchase, the lens cover is not

attached to the projector.

Accessory

Connect the power cable.

Turn on the main power switch.

and the Image Off indicator lights

orange.

Lit orange

Disc Playback

Playing a disc and projecting

Press to open the disc tray.

A beep sounds and the power comes on.

The same operation can be performed using

on the remote control.

Place the disc in the disc tray with the

label facing upwards.

When using 8 cm discs, place the disc in the

hollow in the center of the disc tray.

Press to close the disc tray.

Depending on the disc inserted, operation is as

follows.

Excluding : The projection lamp lights

automatically, and projection begins.It takes a few

seconds from when the lamp lights up until the

projected image is brightly projected.

The display window during playback

Display window

: Press to commence audio

playback.The projection lamp does not light.

The same operation can be performed using

on the remote control.

When a menu is displayed

sp. 21

sp. 22 sp. 23

When using in high altitude areas of above 1500 m,

set the “High Altitude Mode” to “ON”.

sp. 51

When playing

Chapter number

When playing

Track number

When playing

Track number

When playing

Elapsed playback time

Track number

Elapsed playback time

Group number

File number

Adjusting the projection position and volume

Adjust the volume and image being projected.

Adjusting the size of the projected image (Zoom ring)

To decrease the size, turn towards “T”.

To increase the size, turn towards “W”.

Setting the focus (Focus ring)

Adjusting the volume (Volume)

Using the control panel

Using the remote control

Quick Start

Adjusting the image position (lens shift)

You can move the position of the projected image up, down, left and right, using the lens shift.The range of movement is shown in the diagram on the right.

Standard projection position (when the lens shift dial is centered)

From the standard projection position the adjustable image shift range

* The clearest image is obtained when both

the horizontal and vertical planes of the lens shift dial are centered.

moves down

moves up

moves left

moves right

* The image cannot be

shifted beyond the horizontal and vertical limits.

Example)

When shifting the maximum amount to the left or right on the horizontal plane, the vertical range of the shift is up to 36% of the height of the image. When shifting the maximum amount up or down on the vertical plane, the horizontal range of the shift is up to 17% of the width of the image.

When the markings meet, the image is centered.

Turning off the power

Remove the disc from the disc tray.

Press .

If the lamp was on, the lamp turns off

and the Image Off indicator on the main unit flashes orange (during cool-down).

“Now Cooling” is displayed in the display

window.

The confirmation buzzer beeps twice to

indicate that cool-down has completed.Turn off the main power switch.

If you only press to turn off the power,

electricity continues to be consumed.

Stopping playback

Press .

After stopping, when

you press , playback is resumed from the

interrupted scene (resume).

Things to note when using resume

• Even if you press and turn off the power,

playback resumes when you press .

• Resume cannot be used in the following

situations.

- The disc is removed from the disc tray.

After pressing to turn off the power and

pressing to turn the power back on.

is pressed twice.

- If the main power switch is turned off.

• Resume cannot be used during program playback

or random playback.

• The position from where playback resumes may

be slightly different to where playback was

stopped.

• The audio language, subtitle language, and angle

settings are memorized along with the stopping

position.

• It is possible that resume cannot be used if the

disc is stopped when the disc menu is displayed.

Replace the lamp cover.

Keep the lens cover in place when the projector is

not being used to protect the lens from dirt and

damage.

The Image Off indicator flashes orange to

indicate that the internal lamp cooling function

(cool-down) is taking place.The buttons on the

remote control and the main unit are disabled

when cool-down is taking place (approx. 9

seconds).

Do not turn off the power or unplug the unit during cool-

down as this may reduce the lifespan of the lamp.

Basic Operations During Playback

From here on, operations are explained primarily using the buttons of the remote control.Where there is a button with the

same marking on the main unit, that button can be used to the same effect.

Set to the [Function] position before performing operations

Temporarily freezing playback (pause)

Press during playback.

• For the projector unit, press .

• To resume playback, press .

• Selects play/pause each time you press .

Note the following points when pausing during a

slideshow.

- When you press after pausing, playback

restarts from the beginning of the next file.

- You cannot pause using on the main unit.

Reverse search/forward search

Quick Start

Press or during playback.

• There are five levels of reverse/forward search

speed that change each time the buttons are

pressed.

• Press to return to normal playback.

• For the main unit, keep pressing or . If

you keep pressing or the reverse/

forward search speed advances from 5x to 20x.

During forward/

reverse, sound is not output.

During forward/reverse search, sound

is output intermittently.

Set to the [Function] position before performing operations

Reviewing playback from a position 10 seconds before

Press during playback.

• Depending on the type of disc, this operation

may not be possible.

• You cannot return to the previous title.

Skip

Press or during playback.

If you press once during chapter/track

playback, playback returns to the start of the

chapter or track being played.After this, playback

returns to the start of the previous chapter/track

each time you press (Except for

).After this, playback returns to the start

of the previous chapter/track each time you press

• You can perform skip operations

during playback.

• You can only perform

skip operations during playback with the PBC

function off.

• You can also use the

buttons to skip during playback.

• Depending on the disc, certain operations may

not be possible.

Frame advance

Press during paused playback.

• A single frame is advanced each time you press

. This unit does not have a frame return

function.

• Press to return to normal playback.

Slow motion playback

Press at the point where you want

to begin slow motion playback. The image will pause.

Press .

• There are 5 levels of playback speed which

change each time is pressed.

• Slow motion review can be performed

by pressing . There are 5 levels of review

speed which change each time is pressed.

• Press to return to normal playback.

• Sound is not output during slow motion

playback.

Selecting a picture quality to suit the conditions of the room (Color Mode)

You can select a picture quality to correspond to the

brightness and other conditions of your room.

Press .

The currently selected color mode name is

displayed on the screen.

While the color mode name is displayed,

press repeatedly until the desired

color mode name appears.

Quick Start

Temporarily using the projectors light as illumination (Break)

The break function is useful if, in the middle of a

movie, you want to get up or move around carrying a

drink, or some food, and so on. By simply pressing the

button you can pause the disc being played until

you can get up to turn the lights on in the room.

Press during playback.

• The projection lamp remains lit, whilst the

projected image disappears. flashes in the

lower right of the screen.

• The lamp darkens after about five minutes if the

projector is left in break mode without any

operations being made.Additionally, when about

30 minutes have elapsed, the projector power

automatically switches off.

After waiting a few seconds, the color mode name disappears and the picture quality changes.

Suitable for use in bright rooms.

Suitable for use in rooms with the curtains closed. (default setting)

Suitable for use in rooms with the curtains closed and the lights out.

Suitable for use in completely darkened rooms.

• When theater or theater black are selected, the EPSON cinema filter operates automatically and character's skin color takes on a more natural tone across the whole image.

• Press to return to the state before break was

pressed.If the power has switched off, press

to switch the power back on.

• Operations cannot be performed when the disc

menu is displayed.

• When you press any of the following buttons,

break mode is cancelled and the function of

the button you pressed is performed.

, , , ,

Temporarily stopping the audio (Mute)

Press during playback.

• Sound stops coming from the speakers,

headphones, and the subwoofer.

• Press to return to normal playback.The

former volume is also restored when the

projector power is next switched on,

Advanced Operations

Becoming a playback expert

Changing the brightness of the display window (Dimmer)

Set to the [Function] position before performing operations

Press .

Whenever you press the display window display changes as

follows. The brightness of the display window and the brightness of the

indicators on the main unit change accordingly.

The brightness increases.

The brightness decreases.

Darkens during playback and

brightens when paused or stopped.

• When an is inserted, this function is not available, even when

“DIMMER AUTO” is set. It changes to “DIMMER OFF”.

• When in stand-by mode, the brightness cannot be changed, even if

is pressed.

• Once the brightness is changed, it is remembered even after the main

power switch is turned off.

Playback from a DVD menu

Some have the following kind of original menu saved onto them.

•Top menu: When multiple titles (image and audio) have been recorded, this

integrated disc information is displayed.

•Menu: Title specific playback data (chapter, angle, audio, and subtitle menus)

is displayed.

Press or during playback or when stopped.

Press and select the item you want to

see.

You can also select the title number or chapter number directly using the

numeric buttons.

When using the numeric buttons

With the function/numerics toggle switch in the [123] position, press the

following buttons.

Advanced Operations

Example)

5: 10: →

15: → 20: → →

25: → →

Once you have finished entering numbers, return the function/numerics toggle

switch back to the [Function] position.

Press .

• Certain discs may not contain a menu. If a menu is not recorded, these

operations cannot be made.

• Depending on the disc, playback may begin automatically, even if is

not pressed.

PBC (playback control) playback

If a Video CD with “PBC (playback control) enabled” specified on the disc or

jacket is inserted in the disc tray, a menu screen is displayed. You can select the

scene or information you wish to see interactively from this menu.

When playing a Video CD that contains PBC, the following

kind of menu is displayed.

Select the item you want to see using the numeric buttons.

sp. 21

The selected contents are played.

To turn to the previous/next page of the menu screen

Press / when the menu screen is displayed.

To call the menu screen during playback

Each time is pressed, the menu goes back by one step. Press repeatedly

until the menu is displayed.

To play without using the menu (playback without PBC)

Playback using either of the following methods.

• When stopped, specify the track number that you want to see using the numeric

buttons.

• When stopped, select the track number using / then press .

Calling the menu screen when playing back without PBC

Press or .

After pressing twice to stop playback, press .

MP3/WMA, JPEG playback

Set to the [Function] position before performing operations

When playing back a disc that contains both MP3/WMA files

and JPEG files, the following kind of group/track (file) name list is displayed.

Press and select the group.

Advanced Operations

When you press the pointer moves to the track (file)

name list. When you press the pointer returns to the

group name list.

Press and select the track.

You can also make the same selection using .

Press or to begin playback.

When you press for a , continuous playback begins from

the selected file (slideshow playback

selected file is played.

* During slideshow playback, each file is displayed for approximately 3

seconds then the next file is displayed. Once playback of all files is completed, the slideshow stops automatically.

• Track selection can also be made by entering the track number with the numeric keys.In this case, steps 3-5 are unnecessary.

). When you press , only the

When playing back a disc on which a mixture of different file types (MP3/

WMA files and JPEG files) has been saved, select the file type to be played

from the “FILE TYPE” PICTURE settings menu.

When playing MP3/WMA audio (Image Off)

Once menu selection is complete and the audio begins, press . This unit beeps

and the projection lamp turns off so you can enjoy just the music being played.

Press to turn the lamp back on. Once the lamp has been turned off and when

the Image Off indicator is flashing orange, the lamp does not come back on even if

you press . Wait until the Image Off indicator goes out.

“MP3/WMA, JPEG playback” Continued

sp. 44

Set to the [Function] position before performing operations

When you want to repeat playback

Press during playback or when stopped.

Each time you press , the repeat mode changes as shown in the

following table.

Press .

Repeat play position

Repeat

mode

Track

repeat

Group repeat

Disc repeat

Repeat OFF

Disc

Group 1 Group 2

Track 1 Tra ck 2 Track A Track B

Screen display

not

displayed

Display window display

not

displayed

*MP3/WMA files only

When MP3/WMA files are recorded on the disc, repeat play can be

performed even during program play and random play.

Repeat mode Screen display

Repeats the track chosen when repeat play was selected

Repeats all tracks set during program play, or repeats all tracks in random play

Repeat OFF not displayed not displayed

Display window

display

Notes on playback

• Depending on the recording and the characteristics of the disc it is possible that the disc may not be readable, or that reading the disc may take some time.

• The time it takes to read a disc differs depending on the number of groups or tracks (files) recorded on the disc.

• The order of the group/track (file) name list display and the order displayed on a PC screen may be different.

• When playing commercially available MP3 discs, it is possible that playback will be in a different order to the order described on the disc.

• It may take some time to play still pictures containing MP3 files. The timeelapsed is not displayed until playback has commenced. Further, there are times when an accurate elapsed time is not displayed, even once playback has commenced.

• It is possible that data that has been processed, edited, or saved using computer image editing software might not play.

Specifications of files that can be played

To playback a CD-R or CD-RW containing MP3/WMA or JPEG files with

this unit, the contents of the disc must conform to the following criteria.

MP3/WMA

File system: ISO9660 level 1 or level 2

Discs that have been recorded in the packet write (UDF) format cannot be

read.

Bitrate: MP3: 32 kbps - 320 kbps

WMA: 64 kbps - 160 kbps

Sampling frequency: 16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz

Filename: Half width English characters only. Must bear the “.mp3” or “.wma” file

extension. Distinction between upper and lowercase characters is not

performed.

Group (folder) count: up to 99

Track (file) count: up to 1000

Other: It is possible to playback multi-session recorded discs.

This unit is not compatible with Multiple Bit Rate (MBR : a file that contains

the same content encoded at several different bit rates).

JPEG

File system: ISO9660 level 1 or level 2

Discs that have been recorded in the packet write (UDF) format cannot be

read.

Filename: Half width English characters only. Must bear the “.jpg” or “.jpeg” file

extension. Distinction between upper and lowercase characters is not

performed.

Total number of pixels: Images containing up to 8192 x 7680 pixels can be read.

However, because it takes time to reproduce files with a resolution exceeding

640 x 480 pixels, it is recommended that images be saved at 640 x 480 pixels.

Group (folder) count: up to 99

Track (file) count: up to 1000

Other: It is possible to playback multi-session recorded discs.

Only baseline JPEG is supported.

Monochrome JPEG files cannot be read.

Progressive JPEG and motion JPEG are not supported.

JPEG data created by a digital camera and conforming to the DCF (Design

rule for Camera File system) standard is supported. When certain digital

camera functions such as automatic rotation have been used, it is likely that the

data will not comply to the DCF standard. If this is the case, playback may not

be possible.

Advanced Operations

Playback by selecting the chapter or track number

During playback, select the chapter or track number you wish to play by pressing the numeric buttons.

s “When using the numeric buttons” p. 21

• Can be used when stopped or when playing back

with PBC off.

• Can also be used when stopped.

• Depending on the disc, certain operations may not be possible.

Designated time playback (time search)

Set to the [Function] position before performing operations

You can playback from a specified time position. Depending on the disc, the

start point position varies as follows.

Time elapsed from the start of the title

When executing from stopped: Time elapsed from

the start of the disc

When executing during playback: Elapsed time from the start of the current

track being played

Press twice during playback or when stopped.

The following menu bar is projected.

Status bar

Menu bar

• This function can only be used during playback.

• Cannot be used when playing back using the PBC

function.

Press until the pointer reaches .

Press .

Enter the time using the numeric buttons.

• The start position is specified in hours/minutes/seconds. You can leave out the minutes/seconds if desired.

• The start position is specified in minutes/ seconds.

Entering the time

Example)

To playback from 0 hours, 23 minutes, and 45 seconds

Set the Function/Numerics toggle switch to the [123] position.

Press the numeric buttons in the order of → → →

→ .

If you make a mistake, press and delete the incorrect number, then re-

enter the correct number.

Once you have finished entering the time, return the function/numerics toggle switch back to the [Function] position.

Press .

Press once and the menu bar disappears.

• If the elapsed time is not displayed in the display window during

playback with , this function will not work.

• It is also possible that some discs may prohibit time

searching.

• The status bar is not displayed when playing back cinemascope

(letterbox) . Although functions can be set in this state, when

it is necessary to display the status bar, press to return the aspect

ratio to normal. Press to return to the former aspect ratio.

• When playing back in program play or random play modes, this function

will not work.

Looping playback of a favorite scene (A-B repeat playback)

Set to the [Function] position before performing operations

Set the playback range (start point to end point) from the menu bar during

plackback.

Press twice during playback.

The following menu bar is projected.

• Where possible, this function can be used during playback.

• Cannot be used when playing back using the PBC

function.

Press until the pointer reaches .

Press .

Press then select .

You can also select other repeat modes from here.Other repeat modes sp. 28

Advanced Operations

When you reach the scene or track to be the starting point of

the loop range, press .

The menu bar icon changes to .

When you reach the scene or track to be the end point of the

loop range, press .

The menu bar icon changes to and is displayed in the

display window of the main unit. A to B playback begins.

“Looping playback of a favorite scene (A-B repeat playback)” Continued

Press once and the menu bar disappears.

To cancel A to B playback

To cancel A to B play back, do one of the following operations.

• Display the menu bar, select then press twice.

• Press .

• Turn off the power switch on the main unit.

• You cannot specify a range which includes multiple titles or tracks.

• “A-B repeat” cannot be performed at the following times.

- During program play - During random play

- During repeat play - During PBC

• The status bar is not displayed when playing back cinemascope

(letterbox) . Although functions can be set in this state, when

it is necessary to display the status bar, press to return the aspect

ratio to normal. Press to return to the former aspect ratio.

Looping playback (repeat play)

Set to the [Function] position before performing operations

Depending on the type of disc, you can loop playback within a range of titles,

chapters, or tracks, as in the following table.

Press during playback.

The repeat mode changes whenever you press and the repeat mode

name and icon are displayed on the projected screen and in the display

window.

• Where possible, this function can be used during playback.

• Cannot be used when playing back using the PBC

function.

Repeat play position

Repeat

mode

Chapter repeat

Title

Chapter 1 Chapter 2 Chapter 3 Chapter 4

Screen display

Display

window

display

Title repeat

Repeat OFF

not

displayed

Repeat play position

Repeat

mode

Track repeat

Repeat all tracks

Repeat OFF

Track 1 Tr a c k 2 Track 3 Track 4

Screen display

Canceling repeat play

• Press repeatedly until “ ” is displayed on the screen.

• Turn off the power switch on the main unit.

• You cannot use the “Title repeat” function with some DVDs.

•

• Display the menu bar and move the pointer to to select repeat

play. sp. 34

To cancel repeat, press .

Display window display

not

displayed

Advanced Operations

Repeat modes available during program play and random play

Repeat mode Screen display

Repeats the chapter/track designated when repeat play was selected

Repeats all tracks set during program play, or repeats all tracks in random play

Repeat OFF

Display window

display

not displayed

Playing in the order of your choice (program play)

Set to the [Function] position before performing operations

You can set titles, chapters, and tracks to playback in the order of your

preference.

Press when stopped.

Each time you press , the display window on the main unit changes

as follows. Press repeatedly until “PRGM” is displayed.

Program play

Random play sp. 31

Normal display

Set the order according to the following screen explanations.

s “When using the numeric buttons” p. 21

Normal playback

Press .

• Playback begins according to the order you set.

• Once the set playback is fully complete, playback ceases and

“Program” is displayed.

Canceling set items on the program screen individually

Set numbers are deleted one by one each time is pressed.

Canceling all set items on the program screen

Press . Also cancelled when the power to this unit is switched off.

Resuming normal playback

When stopped, press repeatedly until the display window of the main unit

returns to its normal display state.

In this case, the contents entered in the program screen remain in memory. Program

play can be executed by pressing again and selecting “PRGM”.

• A maximum of 99 titles, chapters or tracks can be selected. If you try to enter more than 99, “FULL” is displayed.

• If the total of the set playback time exceeds 9 hours, 59 minutes and 59 seconds, “--:--” is displayed in the display window of the main unit, however, you can continue to perform the set order as it is.

• If you press , instead of setting the chapter or track number, “ALL” is displayed and all of the chapters and tracks contained in that title/group are set.

• If stopped during program play mode, resume play cannot be used.

• Depending on the type of disc, you may not be able to use program play.

Playback at random (random play)

Set to the [Function] position before performing operations

You can choose to play titles or chapters/tracks at random with this unit.

The playback order always changes when using random play.

Press when stopped.

Whenever you press the display window display changes in the

following way. Keep pressing until “RANDOM” is displayed.

Program play sp. 30

Random play

Normal display

Press .

Once one title or track has finished, another title or track is played

randomly.

Normal playback

Advanced Operations

Resuming normal playback

When stopped, press repeatedly until the display window of the main unit

returns to its normal display state.

• Random play is cancelled if the following operations are performed.

- The disc tray is opened.

- Power to this unit is switched off.

• Even if you press repeatedly during random play, you cannot skip

to the previously played content. It only returns to the start of the current

chapter/track.

• If stopped during random play mode, resume play cannot be used.

Changing the audio language

When a disc has been recorded with multiple audio signals or languages, you

can switch to the available audio signal or language of your preference.

Press during playback.

The current audio settings are displayed.

While the audio settings are displayed, press

repeatedly and select the desired setting.

Press to change the setting.

Wait a few seconds, or press .

• You can also use the menu bar to change the setting. sp. 34

• If a language code (for example AA) is displayed sp. 46

• The meaning of the characters displayed during

playback is as follows.

- ST: Stereo - L: Left channel audio - R: Right channel audio

Changing the subtitles display

You can choose whether or not to display subtitles for discs that have been

recorded with subtitles. When a disc has been recorded with multiple language

subtitles, you can switch to the available language of your preference.

Press during playback.

The current subtitle settings are displayed.

While the subtitle settings are displayed, press

repeatedly and select your language/OFF. Press

Changing the angle

and select the subtitle language.

If you press repeatedly, you can select the subtitle type

and subtitles display on/off.

Wait a few seconds, or press .

For discs that have been recorded with multiple camera angles, you can switch

from the main angle to a different camera angle of your preference, such as

from above, or from the right, during playback.

Press during playback.

The current angle is displayed.

Advanced Operations

While the angle is displayed, press repeatedly and

select the desired angle.

Press to change the setting.

Wait a few seconds, or press .

Making operations from the menu bar

Set to the [Function] position before performing operations

Press twice during playback.

The following status bar and menu bar is projected.

Press until the pointer reaches the item you wish to

use.

Press .

• Press once and the menu bar disappears.

• When stopped, some functions may not work.

• The status bar is not displayed when playing back cinemascope

(letterbox) . Although functions can be set in this state, when

it is necessary to display the status bar, press to return the aspect

ratio to normal. Press to return to the former aspect ratio.

Menu bar function list

Select the repeat mode.

sp. 28, 29

Set a time based start point.

sp. 26

only.

During playback, select the chapter number you wish to play using

the numeric buttons.

With the function/numerics toggle switch in the [123 ] position, enter

the number in the following way.

Example)

5: 10: → 20: →

If you make a mistake, enter the correct number once again.

Press .

Select the audio language/type.

sp. 32

Select to change the subtitles display.

sp. 33

Select the angle.

sp. 33

Auto-standby, goodnight timer (Sleep timer) settings

Set to the [Function] position before performing operations

Auto stand-by: When playback has finished or been stopped, or an operation

has not been performed for around 3 minutes, the power switches off

automatically.

Sleep timer: Once the set time has elapsed, the power switches off

automatically. You can prevent unneccesary power being consumed if you fall

asleep while watching a movie.

You cannot use auto stand-by and sleep timer at the same time.

Press .

• Each time you press , the display window display changes as

follows. Press repeatedly until the desired item is displayed.

Auto stand-by is activated.

Advanced Operations

After 10 minutes have elapsed, the power switches off.

After 150 minutes have elapsed, the power switches off.

Sleep timer is cancelled.

• If you select something other than “A.STBY ON”, auto stand-by is

cancelled.

Setting auto stand-by

“A.STBY” flashes approximately 20 seconds before the power switches off.

Changing the sleep timer

Press repeatedly and select the new time.

Checking the sleep timer setting

Once the sleep timer has been set, if you press once, the set time is displayed in the display window.

Canceling the sleep timer

Perform either of the following operations.

Press .

Press repeatedly until “SLEEP OFF” is displayed in the display window.

• Sleep timer settings are not memorized. If the power is switched off, the

sleep timer is canceled.

• When in external video mode, video is switched off automatically if no

signal is input and no operations are performed for 30 minutes. This

function is performed regardless of the sleep timer settings.

• Auto stand-by cannot be used when in external video mode.

• Auto stand-by does not work with discs that return to the menu once

playback has completed.

For better image quality (Progressive mode)

Set to the [Function] position before performing operations

To enjoy clearer images, enable Progressive mode.

When stopped, or when there is no disc loaded in the disc tray,

press .

Whenever you press the display window display changes in the

following way. Press until “PROGRESSIVE” is displayed.

All scan lines are displayed in one video field. This achieves a far superior image than interlacing.

Traditional video system. A single screen is made up of two video fields comprising the odd number of scan lines and the even number of scan lines, displayed alternately.

Tray l ock

You can lock the disc tray so that small children cannot interfere with it. The

disc lock allows you to lock the tray when a disc has been inserted.

With the power turned on ( is lit green) press and hold

on the main unit, then press .

• “LOCKED” is displayed in the display window on the main unit, and

the disc tray is locked.

• To cancel the disc lock, follow the same procedure. “UNLOCKED” is

displayed in the display window on the main unit, and the disc tray

becomes unlocked.

Becoming a Projection Expert

Connecting to other video equipment

Aside from the built-in DVD player, this unit can

project images by connecting to the following kind of

equipment with a video output port.

- Video recorcer - Game machine

- Video camera and so on

When the video equipment you are connecting

conforms to both the S-Video format and the composite

video format, you can enjoy higher quality images by

connecting with S-Video.

The composite video format, is also simply referred to

as “Video Out”.

• Turn off connected equipment. Damage may result

• Do not try to force a cable connector to fit a port

• Close the interface cover when you are not

If the equipment you are connecting has a unique

connector shape, connect using the cable that came

with your equipment, or an optional cable.

if you try to connect when the power is on.

with a different shape. This may damage the unit or the equipment.

connecting to external video equipment.

Composite video format

Output

Audio

Vid eo

To audio out port

To Video out port

Advanced Operations

White

Red

Ye ll o w

To Audio input port

To Video input port (yellow)

Video/audio cable (commercially available)

“Connecting to other video equipment” Continued

S-Video format

White

RCAaudio cable

(commercially available)

Output

To audio out port

Audio

S-Video

To S-Video out port

S-video cable (commercially available)

Red

To A u d i o

input port

To S-Video input port

Projecting images from external video equipment

Connect with the ▲ facing downwards

Remove the lens cover if it is in place.

Turn on the power switch on the main unit then press .

Press .

“VIDEO” is displayed in the display window and this unit switches to

external video mode.

Switch on the power to the connected video equipment then

start playback.

If the lamp was off, it comes on.

After a moment, the image is projected.

To return to the standard built-in DVD player

Press . “DVD/CD” is displayed in the display window and this unit switches

back to DVD mode.

Functions available when in external video mode

The functions available when in external video mode are as follows.

vColor Mode sp. 19 v Wide/Normal sp. 55 v Sleep sp. 35 vSound Mode sp. 41 v DVD level sp. 42 v Break sp. 19 vImage On/Off sp. 23 v Adjusting high pitched tones sp. 41 v Mute sp. 19 vVolume sp. 15 v Information sp. 50 v Picture Quality sp. 48 vSelect button sp. 48, 50

Becoming an Audio Expert

Listening with headphones

• When listening with headphones, make sure the volume is not too high. You may affect your hearing in an adverse

way when listening to sounds at high volume over an extended period of time.

• Don’t set the volume too high from the outset. A loud sound may be produced suddenly that may cause damage to

your headphones or your hearing. As a precaution, lower the volume before you switch off this unit then raise it

gradually after you switch it back on.

Connecting commercially available headphones.

Advanced Operations

To jack

Headphones

Once you have connected your headphones to the headphone jack, sound does not come from the speakers. When

connected to a subwoofer, sound also stops coming from the subwoofer.

Connecting to audio equipment with an optical digital input

You can connect to AV amplifiers and equipment capable of making digital recordings (MD recorders, and so-on) when

they are equipped with a digital audio input port. When connecting, use a commercially available optical digital audio

cable.

When connecting the cable, remove the cap, align the shape, and insert firmly. Apply the cap when not in use to prevent dust from entering the port.

MD recorder

AV amplifier

• The signal being output from the Optical Audio-Out port is changed with the “DIGITAL AUDIO OUTPUT” setting in

the settings menu. For detailed output signal information sp. 46

• The settings menu “D. RANGE COMPRESSION” setting is invalid when connecting to an amplifier with a built-in

Dolby Digital decoder. sp. 45

To optical digital input port

Optical digital cable (commercially available)

To Optical Audio-Out port

Connecting a subwoofer

You can enjoy richer more powerful bass, by connecting to the optional subwoofer.

For connection and usage instructions, refer to the “User’s Guide” provided with your subwoofer.

Powered Subwoofer

(optional)

RCA cable

(comes with the subwoofer)

To Subwoofer output port

Selecting Sound Mode

Set to the [Function] position before performing operations

You can obtain broader more natural audio from the speakers of this unit by

activating the JVC original sound system function.

Press .

Each time you press , the display window display changes as

follows. Press repeatedly until the desired mode name is displayed.

Broader, more natural audio is achieved.

Sounds are more pleasant to the ear.

Canceling JVC original sound system (default setting)

About JVC original sound system

Alpha waves are said to be the brain waves which are generated when a person is

relaxing. JVC original sound system is the alpha wave frequency fluctuation given

to the necessary variation between the left and right signals in a sound circuit (the

indirect sounds between L-R). This is called LFO modulation. The aim is to correct

the audio signal to fall easily within this median region, to produce natural

sounding audio that relaxes you simply by listening to it.

Advanced Operations

Adjusting high pitched tones

Adjusts the volume of high pitched tones.

Available when audio is being input from external video equipment.

raises

lowers

Adjusting the audio playback level

Set to the [Function] position before performing operations

The audio of a DVD video may be recorded at a level (volume) which is lower

than other kinds of disc. The unit's default setting recognises and plays DVDs

at a higher volume. Make the following settings if this difference bothers you.

Press during playback.

Each time you press , the display window display changes as

follows. As you listen to the audio being played, press repeatedly until

the setting you want is displayed.

Standard

Middle

High (default setting)

• The setting is only effective when is played. Even if this

setting is changed, the output level from the Optical Audio-Out port

does not change.

• This operation can also be performed when stopped or paused.

Adjusting the audio input level of external audio equipment

Set to the [Function] position before performing operations

You can adjust the audio input level of equipment connected to the Audio port.

Press and switch to the external video mode.

Press and hold for approximately 2 seconds.

Each time you press and hold , the display window display changes

as follows.

For normal use (default setting)

Use this setting when the input level from external equipment is too low and the audio is difficult to hear.

Settings and Adjustments

Settings Menu Operation and Functions

The settings of this unit can be adjusted to suit the environment in which it is used.

Using the settings menu

You can select your language from the “ON SCREEN LANGUAGE” list.

When stopped, or when there is no disc loaded in the disc

tray, press .

The following settings menu is displayed.

When you press the pointer moves to the icons at the

top right, from where you can select the menu group.

PICTURE settings menu

LANGUAGE settings menu

AUDIO settings menu

OTHERS settings menu

Settings and

Adjustments

Press and select the item to be set.

When you press the setting contents are displayed in

a pull-down menu.

“Using the settings menu” Continued

When in a settings menu, to return to the previous state by one step,

Press .

Settings menu list

Boldface is the default.

LANGUAGE settings menu

Setting Item Setting Contents

MENU LANGUAGE

Select the language for the DVD video menu.

AUDIO LANGUAGE

Select the language for the DVD video soundtrack.

SUBTITLE

Select the language for the DVD video subtitles.

ON SCREEN LANGUAGE

Select the language for displaying the menus (Settings, Picture Quality, Information).

Press and select the item, then press .

For “AA” and other language codes, see the “Language code list”. sp. 46 These settings become available when settings have been recorded on the disc itself. When settings have not been recorded, the setting contents become available. If the language selected has not been recorded on the disc, the default language for that disc is used.

ENGLISH

FRENCH GERMAN SPANISH

PICTURE settings menu

Setting Item Setting Contents

PICTURE SOURCE AUT O: The image source (video/film) is determined automatically.

FILM: Suitable for film, or video images that have been recorded

with the progressive scan method.

VIDEO: Suitable for video images.

SCREEN SAVER

Select whether or not to fade out the projected screen after a still picture has been displayed for around 5 minutes and no operation has been performed.

FILE TYPE

Select which format to play when a disc containing both MP3/WMA and JPEG files is inserted.

ON: Fades out. OFF: Does not fade.

AUDIO: Plays only MP3/WMA files. STILL PICTURE: Plays only JPEG files.

Once you have changed this setting, open and close the disc tray, or switch the power off and then back on again. The change then becomes effective.

AUDIO settings menu

Setting Item Setting Contents

DIGITAL AUDIO OUTPUT

Select the kind of output signal according to the equipment connected to the Optical Audio-Out port. For detailed signal information sp. 46

DOWN MIX

Toggles the signal from the Optical AudioOut port, between “DIGITAL AUDIO OUTPUT” and “PCM ONLY”. The audio signal from the built-in speaker and the headphone jack is also changed.

D. RANGE COMPRESSION

Corrects the variation in the way we hear loud and quiet sounds when playing back at low volume. Only available for DVD videos that have been recorded in Dolby Digital.

PCM ONLY: Use when connected to equipment that is only

compliant with Linear PCM.

DOLBY DIGITAL/PCM: Use when connected to a Dolby Digital

Decoder or when connected to equipment with this function.

STREAM/PCM: Use when connected to a DTS/Dolby Digital

Decoder, or when connected to equipment with these functions.

DOLBY SURROUND: Use when connecting to equipment with

built-in Dolby Pro-Logic decoder.

STEREO: Use when connecting to standard equipment.

AUT O: D. Range Compression is performed automatically. ON: D. Range Compression is always on.

OTHERS settings menu

Setting Item Setting Contents

RESUME

Selects whether or not to use the resume play feature when commencing playback again after playback has been stopped.

ON SCREEN GUIDE

Selects whether or not to display the on-screen guide.

PARENTAL LOCK

Sets the parental lock that cuts extreme scenes from the DVD video and replaces them with other scenes.

* The settings menu closes automatically if the password is incorrect 3 times.

ON: Activates resume play. OFF: Playback starts from the beginning.

ON: Displayed. OFF: Not displayed.

COUNTRY CODE: Under normal circumstances, select GB.

sp. 47

SET LEVEL: The smaller the numerical value, the greater the

restriction. When “NONE” is selected, restriction is not performed.

PASSWORD

EXIT: Exits the parental lock settings.

: Make sure you set the password. The four digit password is set using the remote control numeric buttons (1-9,0). The password set here is input upon playback or at the next time you make changes to settings. If by any chance you forget the password, input 8888.

Settings and

Adjustments

Language code list

Code Language Code Language Code Language Code Language

AA Afar GD Scots Gaelic MK Macedonian SN Shona

AB Abkhazian GL Galician ML Malayalam SO Somali

AF Afrikaans GN Guarani MN Mongolian SQ Albanian

AM Ameharic GU Gujarati MO Moldavian SR Serbian

AR Arabic HA Hausa MR Marathi SS Siswati

AS Assamese HI Hindi MS Malay (MAY) ST Sesotho

AY Aymara HR Croatian MT Maltese SU Sundanese

AZ Azerbaijani HU Hungarian MY Burmese SV Swedish

BA Bashkir HY Armenian NA Nauru SW Swahili

BE Byelorussian IA Interlingua NE Nepali TA Tamil

BG Bulgarian IE Interlingue NL Dutch TE Telugu

BH Bihari IK Inupiak NO Norwegian TG Tajik

BI Bislama IN Indonesian OC Occitan TH Thai

Bengali

Bangla

BO Tibetan JI Yiddish PA Punjabi TL Tagalog

BR Breton JW Javanese PL Polish TN Setswana

CA Catalan KA Georgian PS Pashto, Pushto TO Tongan

CO Corsican KK Kazakh PT Portuguese TR Turkish

CS Czech KL Greenlandic QU Quechua TS Tsonga

CY Welsh KM Cambodian RM Rhaeto-Romance TT Tatar

DA Danish KN Kannada RN Kirundi TW Twi

DZ Bhutani KO Korean (KOR) RO Rumanian UK Ukranian

EL Greek KS Kashmiri RU Russian UR Urdu

EO Esperanto KU Kurdish RW Kinyarwanda UZ Uzbek

ET Estonian KY Kirghiz SA Sanskrit VI Vietnamese

EU Basque LA Latin SD Sindhi VO Volapuk

FA Persian LN Lingala SG Sangho WO Wolof

FI Finnish LO Lao SH Serbo-Croatian XH Xhosa

FJ Fijian LT Lithuanian SI Singhalese YO Yoruba

FO Faroese LV Latvian, Lettish SK Slovak ZU Zulu

FY Frisian MG Malagasy SL Slovenian

GA Irish MI Maori SM Samoan

IS Icelandic OM (Afan) Oromo TI Tigrinya

IW Hebrew OR Oriya TK Turkmen

“DIGITAL AUDIO OUTPUT” settings and output signals

Playback Disc

Stream/PCM Dolby Digital/PCM PCM Only

48 kHz, 16/20/24 bit

Linear PCM DVD video

96 kHz Linear PCM DVD video

DTS DVD video DTS bit stream 48 kHz 16 bit linear PCM

Dolby digital DVD video Dolby digital bit stream

Audio CD Video CD SVCD 44.1 kHz, 16 bit stereo linear PCM/48 kHz, 16 bit linear PCM

DTS Audio CD DTS bit stream 44.1 kHz, 16 bit linear PCM

MP3/WMA disc 32/44.1/48 KHz, 16 bit linear PCM

“DIGITAL AUDIO OUTPUT” Settings

48 kHz, 16 bit stereo linear PCM

48 kHz, 16 bit stereo linear

PCM

Country (area) code list

AD Andorra ET Ethiopia LC Saint Lucia SD Sudan AE United Arab Emirates FI Finland LI Liechtenstein SE Sweden AF Afghanistan FJ Fiji LK Sri Lanka SG Singapore AG Antigua and Barbuda

AI Anguilla LS Lesotho SI Slovenia

AL Albania AM Armenia LU Luxembourg SK Slovakia AN Netherlands Antilles FO Faroe Islands LV Latvia SL Sierra Leone AO Angola FR France LY Libyan Arab Jamahiriya SM San Marino AQ Antarctica FX France, Metropolitan MA Morocco SN Senegal AR Argentina GA Gabon MC Monaco SO Somalia AS American Samoa GB United Kingdom MD Moldova, Republic of SR Suriname

AT Austria GD Grenada MG Madagascar ST Sao Tome and Principe AU Australia GE Georgia MH Marshall Islands SV El Salvador

AW Aruba GF French Guiana ML Mali SY Syrian Arab Republic

AZ Azerbaijan GH Ghana MM Myanmar SZ Swaziland BA Bosnia and Herzegovina GI Gibraltar MN Mongolia TC Turks and Caicos Islands BB Barbados GL Greenland MO Macau TD Chad BD Bangladesh GM Gambia MP Northern Mariana Islands BE Belgium GN Guinea MQ Mar tinique BF Burkina Faso GP Guadeloupe MR Mauritania TG Togo BG Bulgaria GQ Equatorial Guinea MS Montserrat TH Thailand BH Bahrain GR Greece MT Malta TJ Tajikistan

BI Burundi

BJ Benin MV Maldives TM Turkmenistan BM Bermuda GT Guatemala MW Malawi TN Tunisia BN Brunei Darussalam GU Guam MX Mexico TO Tonga BO Bolivia GW Guinea-Bissau MY Malaysia TP East Timor BR Brazil GY Guyana MZ Mozambique TR Turkey BS Bahamas HK Hong Kong NA Namibia TT Trinidad and Tobago BT Bhutan BV Bouvet Island NE Niger TW Taiwan

BW Botswana HN Honduras NF Norfolk Island

BY Belarus HR Croatia NG Nigeria BZ Belize HT Haiti NI Nicaragua UA Ukraine CA Canada HU Hungary NL Netherlands UG Uganda CC Cocos (Keeling) Islands ID Indonesia NO Norway CF Central African Republic IE Ireland NP Nepal CG Congo IL Israel NR Nauru US United States CH Switzerland IN India NU Niue UY Uruguay

CI Cote d’lvoire CK Cook Islands OM Oman CL Chile IQ Iraq PA Panama

CM Cameroon IR Iran (Islamic Republic of) PE Peru

CN China IS Iceland PF French Polynesia CO Colombia IT Italy PG Papua New Guinea VE Venezuela CR Costa Rica JM Jamaica PH Philippines VG Virgin Islands (British) CU Cuba JO Jordan PK Pakistan VI Virgin Islands (U.S.) CV Cape Verde JP Japan PL Poland VN Viet Nam CX Christmas Island KE Kenya CY Cyprus KG Kyrgyzstan CZ Czech Republic KH Cambodia PN Pitcairn DE Germany KI Kiribati PR Puerto Rico WS Samoa

DJ Djibouti KM Comoros PT Portugal YE Yemen

DK Denmark KN Saint Kitts and Nevis PW Palau YT Mayotte

DM Dominica

DO Dominican Republic QA Qatar ZA South Africa DZ Algeria KR Korea, Republic of RE Réunion ZM Zambia EC Ecuador KW Kuwait RO Romania ZR Zaire EE Estonia KY Cayman Islands RU Russian Federation ZW Zimbabwe EG Egypt KZ Kazakhstan RW Rwanda EH Western Sahara ER Eritrea SB Solomon Islands ES Spain LB Lebanon SC Seychelles

Falkland Islands

(Malvinas)

Micronesia

(Federated States of)

South Georgia and the

South Sandwich Islands

Heard Island and

McDonald Islands

British Indian Ocean

Te rr i t or y

Korea, Democratic

People’s Republic of

Lao People’s Democratic

Republic

LR Liberia SH Saint Helena

LT Lithuania SJ Svalbard and Jan Mayen

French Southern

Te r r it o r i e s

MU Mauritius TK Tokelau

NC New Caledonia TV Tuvalu

Tanzania, United

Republic of

United States Minor

Outlying Islands

NZ New Zealand UZ Uzbekistan

Vatican City State

(Holy See)

Saint Vincent and the

Grenadines

Saint Pierre and

Miquelon

PY Paraguay YU Yugoslavia

SA Saudi Arabia

VU Vanuatu

Wallis and Futuna

Islands

Settings and

Adjustments

Picture Quality Menu Operations and Functions

You can perform adjustments on the brightness, contrast, and other values of the projected image.

Using the Picture Quality menu

Press during projection.

The following menu is displayed.

The menu item changes as follows whenever is

pressed. Press repeatedly until the item that you want

to change is displayed.

Brightness → Contrast → Color Saturation → Tint → Sharpness →

Keystone → Exit Picture Quality menu

Press to make your adjustments.

When left in an unchanged state for a period of time, the

adjustment closes and the Picture Quality menu disappears.

• After making the adjustment, press , the adjustment closes and the

Picture Quality menu disappears.

When in a settings menu, to return to the previous setting,

Press .

Picture Quality menu list

Setting Item Setting Contents

Brightness Adjusts the image brightness.

Contrast Adjusts the difference between light and shade in the images.

Color Saturation Adjusts the color saturation for the images.

Tint Only displayed when an NTSC signal is being input.

Adjusts the image tint.

Sharpness Adjusts the image sharpness.

Keystone If the screen is not positioned vertically, the projected image is distorted in the shape of a

keystone. You can correct keystone distortion in the following way.

Settings and

Adjustments

Information Menu Operation and Functions

You can set the “Information” for checking the status of this unit, “Video Signal”, “High Altitude Mode”, and “Lamp-

Hours Reset”.

Using the Information menu

Press during projection.

The following Information is displayed.

The menu item changes as follows whenever is

pressed. Press repeatedly until the item that you want

to confirm or change is displayed.

Information → Video Signal → High Altitude Mode → Lamp-Hours

Reset → Exit Information menu

Press to make your adjustments.

When left in an unchanged state for a period of time, the

adjustment closes and the Information menu disappears.

• After making the adjustment, press , the adjustment closes and the

Information menu disappears.

When in a settings menu, to return to the previous setting,

Press .

Information menu list

Setting Item Setting Contents

Information

Displays the current status.

Video Signal Sets the signal format of the video equipment connected to the Video input port or the S-Video

High Altitude Mode

Lamp-Hours Reset

Lamp Hours: Accumulated usage time of the lamp. 0H is displayed for 0-10 hours. Displayed in

units of 1 hour for 10 hours and above. The display changes to yellow text when it

is time to change the lamp.

Source: Displays whether standard DVD images are being projected, or images from

external video equipment are being projected.

Video Signal: Displays the format of the video signal being input.

input port. At the time of purchase, this is set to “Auto” so the video signal is recognized

automatically. If interference appears in the projected images or no images appear when you

select “Auto”, select the appropriate signal manually.

When using this unit in high altitude areas above 1500 m, select “ON”.

If the lamp has been replaced, make sure you initialize this setting. The accumulated lamp

operating time is cleared.

Settings and

Adjustments

Appendix

Troubleshooting

Reading the indicators

You can check the status of this unit using the indicators on the top

panel.

Check each condition in the following table and follow the steps

to remedy the problem.

* If all indicators are switched off, check that the power cable is

connected correctly and whether or not the main power switch

is turned on.

When flashes green / orange alternately Error

Red

Internal error

Turn the main power switch off then on. If the indicator status does not change once

has been pressed and the power

switched on

Fan related error/Sensor error

High temperature error (overheating)

The lamp turns off automatically and projection stops. After being in this state for around 40 seconds and then entering stand-by mode, check the 2 items listed to the right. If the power was turned off, turn the main power switch back on again.

Lamp error/Lamp fails to light up/Lamp cuts out /Lamp cover open

Check if the lamp is broken. sp. 58

Reinsert the lamp then turn on the main power

The lamp is not broken

switch on the main unit and press .

• Move this unit away from the wall by at least 20 cm.

• Clean the air filter.

sp. 56

Disconnect the power cable from the electrical outlet and contact your dealer.

sp. 66

: flashing green/orange alternately

: lit : flashing : off

If the indicator status does not change

once has been

pressed and the power turned on

If the condition is not fixed once the lamp is re-inserted

The lamp is broken

Contact your dealer. sp. 66

When the or indicators flash orange Warning

: lit : flashing : off

High-speed cooling in

Orange

Green

Orange

Green

progress

You can continue projecting in this state. Projection stops automatically if subsequent high temperatures are registered.

Lamp replacement notification

It is time to replace the lamp. Replace the lamp with a new one as soon as possible. If you continue use when in this state, it is possible that the lamp may explode.

Check the 2 items listed to the right.

• Move this unit away from the wall by at least 20 cm.

• Clean the air filter.

sp. 56

When the or indicators are off Normal

Shows that this unit is ready to be used.

In warm-up mode pressing or has no effect.

Do not turn off the power or unplug the unit during warm-up, as this may reduce the lifespan of the lamp.

Green GreenGreen

Standing-by

OrangeOrange

Warming up (approx. 20 seconds)

If there is no improvement when you press and switch the power on, discontinue use and disconnect the power cable from the electrical outlet. Contact your dealer.

sp. 66

sp. 58

: lit : flashing : off

Green GreenGreen

Green Orange

Green GreenGreen

Projection in Progress

Cooling down (approx. 9 seconds)

Break

The operation of all remote control and main unit buttons is suspended during cool-down. Enters stand-by mode once cool-down has completed. Do not turn off the power or unplug the unit during cool-down, as this may reduce the lifespan of the lamp.

Press to return to normal playback.

Appendix

When the indicators provide no help

If this unit is not functioning normally, check the following notes before requesting repairs. However, if the unit fails to

improve, contact your dealer for advice.

At these times Check here.

Power does not turn on • Is the main power switch in the on position? sp. 13

• Disconnect and reconnect the power cable. sp. 13

• Is the projector cooling down ? sp. 53

• If the indicator goes on and off when you touch the power cable, turn

off the main power switch then disconnect and reconnect the power cable. If the unit fails to improve, it is possible that the power cable has been damaged. Stop using the projector, disconnect the power cable from the electrical outlet, and contact your dealer.

No images appear • Is the Image Off indicator lit orange ? sp. 23

• You cannot play DVD videos if the disc region code does not correspond to the region code label on the side of this unit.

• Press to switch to DVD.

• Is the lamp spent? sp. 52

Images are fuzzy or out of focus

Images appear dark • Is the color mode appropriate to the usage environment ? sp. 19

The remote control does not work

No sound can be heard or the sound is faint.

• Has the focus been adjusted ? sp. 15

• Is the lens cover in place ? sp. 13

• Is the projector at the correct distance? sp. 60

• Could there be condensation ? sp. 5

• Is the lamp due for replacement? sp. 57

• Is the screensaver running ? sp. 44

• Is the Function/Numerics toggle switch in the [1 2 3] (numerical

input) position ?

• Depending on the disc, certain operations are prohibited. -

• Are the batteries dead, or have the batteries been inserted correctly? sp. 11

• Has the volume been adjusted to the minimum setting? sp. 15

• Is mute mode active? Press .

Reference

page

sp. 66

sp. 7

sp. 38

sp. 21

• Is the DVD level setting set to “DVD LEVEL 1” ? sp. 42

The audio distorts Is the volume too loud ? sp. 15

The audio/subtitle language cannot be changed

Subtitles do not appear • If there are no subtitles on the disc, they are not displayed. -

If multiple languages are not recorded on the disc, they cannot be changed.

• Is the subtitle language set to “OFF” ? sp. 33

• When using A-B repeat, subtitles may not be displayed before and

after point A and point B.

When using external video modes

At these times Check here.

No images appear • Is the power for the connected equipment turned on?

Switch on the power to the connected equipment, or start playback depending on the playback method for the connected equipment.

• When signals have been connected to both the S-Video input port and the Video input port, only the S-Video signal is available. If you want to watch the image from the equipment connected to the Video input port, disconnect the cable from the S-Video input port.

“Signal not supported” is displayed

“No signal.” is displayed • Are the cables connected correctly? sp. 37, 38

The signal is distorted If an extension cable is used, electrical interference may affect the

Image is truncated (large) or small

Image colors are not right In the Information menu, set the “Video Signal” to the signal format

If you cannot project even when the “Video Signal” is set to “Auto” in the Information menu, set to the signal format appropriate to the equipment.

• Is the power to the connected equipment turned on ? Switch on the power to the connected equipment, or start playback depending on the playback method for the connected equipment.

• Press to switch to DVD.

signals. Connect amplification equipment and check.

The unit automatically recognizes and projects the aspect ratio for the input signal. If the aspect ratio is not projected correctly, press and select the aspect ratio appropriate to the input signal.

appropriate to the equipment.

Reference

page

sp. 38

sp. 51

sp. 38

sp. 51

Appendix

Maintenance

This section describes maintenance tasks such as cleaning the projector and replacing consumable parts.

Cleaning

Cleaning the air filter

When dust builds up on the air filter, or the message

“The projector is overheating. Make sure nothing is

blocking the air vents, and clean or replace the air filter”

is displayed, remove any dust from the air filter using a

vaccum cleaner.

If dust collects on the air filter, it can cause the internal

temperature of the projector to rise, and this can lead to

problems with operation and shortening of the optical

engine’s service life. It is recommended that you clean these

parts at least once every three months. Clean them more

often than this if using the projector in particularly dusty

environments.

Cleaning the main unit

Clean the surface by wiping it gently with a soft cloth.

If the projector is particularly dirty, moisten the cloth

with water containing a small amount of neutral

detergent, and then firmly wring the cloth dry before

using it to wipe the projector’s surface. Then wipe it

again with a soft, dry cloth.

Cleaning the projection lens

Use a commercially available air blower, or use a lens

cleaning paper to gently wipe the lens.

Do not use volatile substances such as wax, alcohol, or thinner

to clean the projector's surface. These can cause the projector

to warp and make the coating finish peel off.

Do not rub the lens with harsh materials or subject the lens to

shocks, as it can easily become damaged.

Consumables replacement period

Air filter replacement period

When the air filter gets dirty or is broken Replace it with the optional air filter. s “Optional Accessories and Consumables” p. 60

Lamp replacement period

• The message “Replace the lamp” appears on the screen when projection starts.

• The projected image gets darker or starts to deteriorate.

• In order to maintain the initial brightness and image quality, the lamp replacement message is displayed after about 1900

hours of use has passed. The time at which this message is displayed will vary depending on the color mode settings and

the conditions under which this unit has been used.

• If you continue to use the lamp after this period, the possibility of the lamp breaking becomes greater. When the lamp

replacement message appears, replace the lamp with a new one as soon as possible, even if it is still working.

• Depending on the characteristics of the lamp and on the way it has been used, the lamp may become darker or stop

working before the lamp warning message appears. You should always have a spare lamp ready in case it is needed.

• Contact your dealer for a spare lamp.

Appendix

How to replace consumables

Replacing the air filter

Dispose of used air filters properly in accordance with your local regulations. Filter: Polypropylene

Replacing the lamp

The lamp is hot immediately

after use. Once the power has

been switched off, allow

approximately one hour to

pass before replacing the

lamp to allow it to cool

thoroughly.

Once the power has turned off, cooldown has completed, and the projector has beeped twice, turn off the main power switch.

Remove the air filter cover.

Place your finger in the hollow and lift upwards.

Remove the lamp cover by inserting the screwdriver that came with the replacement lamp into the lamp cover opening latch.

Tighten the lamp attachment screws firmly.

Resetting the lamp operating time

After the lamp has been replaced, make sure you initialize the Lamp Hours setting. The projector has a built-in counter that keeps track of the lamp operating time and the lamp replacement message is displayed based on this counter.

Turn on the main power switch on the main unit then press . If the lamp is not lit, press

Install the lamp cover.

If you press repeatedly during projection, “Lamp-Hours Reset” is displayed.

Take out the old air filter.

Install the new air filter.

Install the filter cover.

Loosen the lamp attachment screws.

Take out the old lamp. If replacing the lamp yourself, be careful to avoid pieces of broken glass.

• Install the lamp and the lamp cover securely. For the safety of this unit, the lamp

will not turn on if the lamp or the lamp cover is not installed correctly.

• The lamp contains mercury. Dispose of used lamps properly in accordance with

your local regulations.

Install the new lamp.

Press and select “Yes”. Reset is performed when you press .

Appendix

Optional Accessories and Consumables

The following optional accessories and consumables are available for purchase if required. This list of optional

accessories is current as of August, 2005. Details of accessories are subject to change without notice.

Consumables

Lamp unit ELPLP33

(Lamp x1)

Use as a replacement for used lamps.

Air filter set ELPAF09

(Air filter x1)

Use as a replacement for used air filters.

Optional accessories

50” Portable screen ELPSC06

60” Portable screen ELPSC07

80” Portable screen ELPSC08

A compact screen which can be carried easily.

(Aspect ratio 4:3)

Powered subwoofer ELPSP01

Enjoy richer, more powerful bass.

Projection Distance and Screen Size

Refer to the following table and place the unit in a position which allows the best possible projection for the size of the

screen.

Units: cm (in.) Units: cm (fit.)

Projection Distance

16:9 Screen Size

30” 66 x 37 (26 x 15) 73 - 111 (2.4 - 3.7)

40” 89 x 50 (35 x 20) 99 - 149 (3.2 - 4.9)

60” 130 x 70 (51 x 28) 149 - 225 (4.9 - 7.4)

80” 180 x 100 (71 x 39) 200 - 301 (6.6 - 9.9)

100” 220 x 120 (87 x 47) 251 - 377 (8.2 - 12.4)

120” 270 x 150 (106 x 59) 301 - 453 (9.9 - 14.9)

150” 330 x 190 (130 x 75) 377 - 567 (12.4 - 18.6)

Minimum Maximum

(Zoom Adjustment Wide) - (Zoom Adjustment Tele)

Units: cm (in.) Units: cm (fit.)

Projection Distance

4:3 Screen Size

30” 61 x 46 (24 x 18) 90 - 136 (2.9 - 4.5)

40” 81 x 61 (32 x 24) 121 - 183 (4.0 - 6.0)

60” 120 x 90 (47 x 35) 183 - 276 (6.0 - 9.0)

80” 160 x 120 (63 x 47) 245 - 369 (8.0 - 12.1)

100” 200 x 150 (79 x 59) 307 - 462 (10.1 - 15.2)

120” 240 x 180 (94 x 71) 369 - 555 (12.1 - 18.2)

150” 300 x 230 (118 x 91) 462 - 694 (15.1 - 22.8)

Minimum Maximum

(Zoom Adjustment Wide) - (Zoom Adjustment Tele)

Specifications / Compliant Resolutions

Product name EMP-TWD1

Dimensions 340(W) x 180(H) x 310(D) mm (excluding feet)

Panel size 0.55-inch wide

Display method Polysilicon TFT active matrix

Resolution 409,920 pixels (854 (W) x 480 (H)dots) x 3

Focus adjustment Manual

Zoom adjustment Manual (approx. 1:1.5)

Lens shift Manual (vertical maximum approx. 50%, horizontal maximum approx. 25%)

Lamp (light source) UHE lamp, 135 W, Model No.: ELPLP33

100-240VAC 50/60 Hz 2.6 - 1.2 A

Power supply

Operating temperature +5° - +35°C (No condensation)

Storage temperature -10° - +60°C (No condensation)

Weight Approximately 7.0kg

Connectors

Speaker

Audio output

Readable disc types

Power Consumption Operating: 230 W (100 - 120 V area), 220 W (220 - 240 V area) Standby: 6 W (100 - 120 V area), 9 W (220 - 240 V area)

Audio port 1 RCA pin jack

Input

Output

Output sound wave pressure level 79 dB/Wm Maximum input (JIS) 10W Rated impedance 4Ω

Analog audio output

Digital audio output

DVD video, Video CD, SVCD, Audio CD, CD-R/RW (Audio CD, Video CD, SVCD, MP3/ WMA, JPEG format), DVD-R/RW (DVD video format)

S-Video port 1 Mini DIN 4-pin

Video port 1 RCA pin jack

Subwoofer port 1 RCA pin jack

Optical Audio-Out port 1 Square optical jack

Headphone jack 1 3.5mm mini-jack

1 speaker system: Practical, maximum output 10W + 10W

(10% THD JEITA/4Ω)

1 headphone system: 12 mW/32Ω

Acceptable impedance 16Ω - 1kΩ

1 subwoofer system (L+R): 0.25 Vrms/27 kΩ

Dynamic range 70 dB (JEITA) or more

Total harmonic distortion rate 0.5% (JEITA) or less

Light: -21dBm to -15 dBm

Appendix

Pixelworks DNXTM IC is installed in this unit.

Composite Video/S-Video

Signal Resolution

TV (NTSC) 640 × 480 640 × 480 (4:3) 854 × 480 (16:9)

TV(PAL, SECAM) 768 × 576 640 × 480 (4:3) 854 × 480 (16:9)

Normal Wide

Aspect Mode

Safety

EMC

USA

UL60950 3rd Edition

UL60065 7th Edition

Canada

CSA C22.2 No.60950

CSA C22.2 No.60065

European Community

The Low Voltage Directive

(73/23/EEC)

IEC60950 3rd Edition

IEC60065 7th Edition

USA

FCC Part 15B Class B (DoC)

Canada

ICES-003 Class B

European Community

The EMC Directive

(89/336/EEC)

EN55022 Class B

EN55024

IEC/EN61000-3-2

IEC/EN61000-3-3

EN55013: 2001+AI: 2003

EN55020: 2002+AI: 2003

EN61000-4-2

EN61000-4-3

EN61000-4-4

Australia/New Zealand

AS/NZS CISPR 22:2002 Class B

AS/NZS CISPR 13

DECLARATION of CONFORMITY

According to 47CFR, Part 2 and 15

Class B Personal Computers and Peripherals; and/or

CPU Boards and Power Supplies used with Class B

Personal Computers

We : EPSON AMERICA, INC.

Located at : 3840 Kilroy Airport Way

MS: 3-13

Long Beach, CA 90806

Tel : 562-290-5254

Declare under sole responsibility that the product identified herein, complies with 47CFR Part 2 and 15 of the

FCC rules as a Class B digital device. Each product marketed, is identical to the representative unit tested

and found to be compliant with the standards. Records maintained continue to reflect the equipment being

produced can be expected to be within the variation accepted, due to quantity production and testing on a

statistical basis as required by 47CFR 2.909. Operation is subject to the following two conditions : (1) this

device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

Trade Name : EPSON

Type of Product : Projector

Model : EMP-TWD1

FCC Compliance Statement

For United States Users

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference to

radio or television reception. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause interference to radio and television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by

one or more of the following measures.

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

WARNING

The connection of a non-shielded equipment interface cable to this equipment will invalidate the FCC

Certification or Declaration of this device and may cause interference levels which exceed the limits

established by the FCC for this equipment. It is the responsibility of the user to obtain and use a shielded

equipment interface cable with this device. If this equipment has more than one interface connector, do not

leave cables connected to unused interfaces. Changes or modifications not expressly approved by the

manufacturer could void the user’s authority to operate the equipment.

Glossary

JPEG

A file format used for saving image files. Most photographs taken with digital cameras are saved in the JPEG format.

MP3

The abbreviated form of “MPEG1 Audio Layer-3”, a standard for audio compression. It enables the size of the data to be greatly reduced, whilst maintaining a high sound quality.

NTSC

The abbreviated form of the “National Television Standards Committee”, and given to one of the analog color television wave transmission systems. This system is used in Japan, the USA and Latin America.

PAL

The abbreviated form of “Phase Alteration by Line”, and given to one of the analog color television wave transmission systems. This system is used in China, Western Europe, with the exception of France, and in other African and Asian countries.

SECAM

The abbreviated form of “SEquential Couleur A Memoire”, and given to one of the analog color television wave transmission systems. This system is used in France, Eastern Europe, the former Soviet Union, the Middle East and some African nations.

WMA

The abbreviated form of “Windows Media Audio”, an audio compression technology developed by the Microsoft Corporation of America. You can encode WMA data using Windows Media Player Ver.7, 7.1, Windows Media Player for Windows XP, or the Windows Media Player 9 Series. Windows Media and the Windows logo, are trademarks or registered trademarks of the Microsoft Corporation of America, in America and in other countries. When encoding WMA files, please use applications that have been certified by the Microsoft Corporation of America. If you use an application that has not been certified, it is possible that it may not operate correctly.

Dynamic Range

Shows the ratio of minimum and maximum audio level values recorded to a disc in decibels (dB). The dynamic range values indicate what detailed signals can be reproduced by various equipment.

Optical digital out

Converts the audio signal into a digital signal and enables it to be transmitted along optical fiber. An advantage is that interference is not produced, unlike conventional means, where external interference is picked up by the cable.

Playback control (PBC)

A method for playing back Video CDs. You can select the screen or information you want to see from the menu screen displayed.

Disc related terms

Title/Chapter/Track

One movie on a DVD is divided into units called titles, which may contain any number of chapters. Video and Audio CDs are divided into units called tracks.

DVD video

Title 1 Title 2

Chapter 1 Chapter 2 Chapter 1 Chapter 2

Video CD/Audio CD

Track 1 Track 2 Track 3 Track 4

Aspect ratio

The ratio between an image's length and its height. HDTV images have an aspect ratio of 16:9 and appear elongated. The aspect ratio for standard images is 4:3.

Cool-down

A process to enable the lamp to cool down from the high temperatures attained during projection. Performed automatically when this unit is turned off. Do not remove the power plug during cool-down. If cool-down is not performed correctly, the lamp or internal structure of the main unitcan overheat which may reduce the lifespan of the lamp or cause damage to this unit. Cool-down is complete once the main unit beeps twice.

Parental Lock

For age restriction. There are also display level settings for when a DVD video contains material which is undesirable for viewers of a young age.

Index

A.STBY .................................................................................... 35

Air exhaust vent Air intake vent Angle

........................................................................................ 33

Aspect ratio Audio input level AUDIO settings menu

.......................................................................... 8

............................................................................ 8

........................................................................ 55, 64

...................................................................... 42

..............................................................45

Break ......................................................................................... 19

Brightness

.................................................................................49

Chapter ...................................................................................... 64

Cleaning the air filter Cleaning the lens Cleaning the main unit Color Mode Color Saturation Consumables Contrast

............................................................................... 19

..................................................................................... 49

................................................................ 56

...................................................................... 56

.............................................................. 56

........................................................................ 49

.............................................................................60

D. RANGE COMPRESSION ................................................... 45

DIGITAL AUDIO OUTPUT Dimmer Display window Dolby Digital DOWN MIX DVD level

..................................................................................... 20

........................................................................14

............................................................................45

.............................................................................45

................................................................................. 42

...................................................45

File ............................................................................................ 23

FILE TYPE Focus adjustment

............................................................................... 44

...................................................................... 15

Group (folder) ........................................................................... 23

Headphones .............................................................................. 39

High Altitude Mode How to replace the batteries

..................................................................51

..................................................... 11

Image On/Off ............................................................................ 23

Indicator Information Input Signal

....................................................................................52

...............................................................................51

............................................................................... 51

JPEG ......................................................................................... 23

Lamp replacement period ..........................................................57

Lamp-Hours LANGUAGE settings menu Lens shift

..............................................................................51

.....................................................44

...................................................................................15

Main power switch ....................................................................13

.........................................................................................21

Menu bar MP3 Mute

...................................................................................34

...........................................................................................23

..........................................................................................19

ON SCREEN GUIDE ...............................................................45

ON SCREEN LANGUAGE Optional accessories OTHERS settings menu Overheating

...............................................................................52

.....................................................44

..................................................................60

............................................................45

PARENTAL LOCK ..................................................................45

PBC (playback control) PICTURE settings menu PICTURE SOURCE Power inlet port

.............................................................22

...........................................................44

.................................................................44

...........................................................................8

Remote control ..........................................................................10

Replacing the air filter Replacing the lamp Resetting the lamp operating time RESUME

...................................................................................45

...............................................................58

....................................................................58

.............................................58

SCREEN SAVER ......................................................................44

Sharpness Slideshow playback Source Standing-by Status bar SVCD S-Video input port

...................................................................................49

...................................................................23

........................................................................................51

...............................................................................53

...................................................................................26

..........................................................................................7

.....................................................................38

Tint ............................................................................................49

...........................................................................................64

Title Track

.........................................................................................64

Tray lock

...................................................................................36

Video input port ........................................................................37

Video Signal Volume

..............................................................................51

......................................................................................15

Keystone ................................................................................... 49

Zoom adjustment .......................................................................15

Address List

This address list is current as of the 6th of December 2004.

A more up-to-date contact address can be obtained from the corresponding website listed here. If you do not find what

you need on any of these pages, please visit the main EPSON home page at www.epson.com.

< EUROPE >

AUSTRIA :

EPSON Support Center Austria

Tech. Help Desk:

00491805 235470

Web Address:

http://www.epson.at

BELGIUM :

EPSON Support Center BeNeLux

Tech. Help Desk:

032 702 22082

Web Address:

http://www.epson.be

BULGARIA :

PROSOFT

6. AIJendov Str. BG-1113 Sofia

Tel: 00359.2.730.231

Fax: 00359.2.9711049

E-mail: Prosoft@internet-BG.BG

CROATIA :

Recro d.d.

Trg. Sportova 11

HR-10000 Zagreb

Tel: 00385.1.6350.777

Fax: 00385.1.6350.716

E-mail: recro@recro.hr

Web Address:

http://Www.recro.hr

CYPRUS :

CTC- INFOCOM

6a. lonos Str., Engomi

P. O. Box 1744

2406 Nicosia, Cyprus

Tel: 00357.2.458477

Fax: 00357.2.668490

CZECH :

EPRINT s.r.o.

Stresovicka 49

CZ-16200 Praha 6

Tel: 00420.2.20180610

Fax: 00420.2.20180611

E-mail: eprint@mbox.vol.cz

DENMARK :

Tech. Help Desk: 70 279 273

Web Address:

http://www.epson.dk

FINLAND :

Tech. Help Desk: 0201 552090

(note. Some geographical areas

excluded)

Web Address:

http://www.epson.fi

FRANCE :

EPSON France,

68 bis rue Marjolin, F-92300

Levallois,

Tech. Help Desk: 0.821.017.017

Web Address:

http://www.epson.fr

GERMANY :

EPSON Deutschland GmbH

Zulpicher StraBe 6 40549 Dusseldorf

Tech. Help Desk: 01805 235470

Web Address:

http://www.epson.de

GREECE :

Pouliadis Ass. Corp.

Aristotelous St. 3

GR-19674 Athens

Tel: 0030.1.9242072

Fax: 0030.1.9441066

HUNGARY :

R.A. Trade Kft.

Petofi Sandor u. 64

H-2040 Budaor

Tel: 0036.23.415.317

Fax: 0036.23.417.310

IRELAND :

Tech. Help Desk: 01 679 9015

Web Address:

http://www.epson.ie

ITALY :

EPSON Italia s.p.a.

Assistenza e Servizio Clienti Viale F.

Lli Casiragi, 427 20099 Sesto San

Giovanni (MI)

Tech. Help Desk: 02.29400341

Web Address:

http://www.epson.it

LUXEMBURG :

EPSON Support Center BeNeLux

Tech. Help Desk: 0032 70 222082

Web Address:

http://www.epson.be

MACEDONIA :

Rema Kompjuteri d.o.o.

St. Naroden Front 19a lok 16

91000 Skopje/ Macedonia

Tel: 00389.91.118159

Fax: 00389.91.118159

NETHERLANDS :

EPSON Support Center BeNeLux

Tech. Help Desk: 043 3515752

Web Address:

http://www.epson.nl

NORWAY :

Tech. Help Desk: 815 35 180

Web Address:

http://www.epson.no

POLAND :

FOR EVER Sp. z.o.o.

Ul. Frankciska Kawy 44 PL- 01-496

Wa rs zaw a

Tel: 0048.22.638.9782

Fax: 0048.22.638.9786

E-mail: office@for-ever.com.pl

PORTUGAL :

EPSON Portugal, S.A.

Rua do Progresso, 471-1

Perafita- Apartado 5132

Tech. Help Desk: 0808 200015

Web Address:

http://www.epson.pt

ROMANIA :

MB Distribution S.R. L.

162, Barbu Vacarescu Blvd. Sector 2

RO- 71422 Bucharest

Tel: 0040.1.2300314

Fax: 0040.1.2300313

E-mail: office@mbd-epson.ro

SLOVAKIA :

Print Trade spol. s.r.o.

Cajkovskeho 8

SK-98401 Lucenec

Tel: 00421.863.4331517

Fax: 00421.863.4325656

E-mail: Prntrd@lc.psg.SK

Web Address:

http://www.printtrade.sk

SLOVENIA :

Repro Ljubljana d.o.o.

Smartinska 106

SLO-1001 Ljubljana

Tel: 00386.61.1853411

Fax: 00386.61.1400126

< OCEANIA >

SPAIN :

EPSON IBERICA, S.A.

Avda. Roma 18-26,

08290 Cerdanyola del Valles,

Barcelona, SPAIN

Tech. Help Desk: 902.404142

E-mail: soporte@epson.es

Web Address:

http://www.epson.es

SWEDEN :

Tech. Help Desk: 077 140 01 34

Web Address:

http://www.epson.se

SWITZERLAND :

EXCOM Service AG

Moosacher Str. 6

CH-8820 Wadenswil

Tel: 01.7822111

Fax: 01.7822349

Web Address:

http://www.excom.ch

TURKEY :

Romar Pazarlama Sanayi ve TIC. A.S.

Rihtim Cad. No. 201

Tahir Han

TR-Karakoy-Istanbul

Tel: 0090.212.2520809

Fax: 0090.212.2580804

UNITED KINGDOM :

EPSON (UK) Ltd.

Campus 100, Maylands Avenue

Hemel Hempstead, Herts, HP2 7TJ

Tech. Help Desk: 0990 133640

Web Address:

http://www.epson.co.uk

YUGOSLAVIA :

BS Procesor d.o.o.

Hadzi Nikole Zivkovica 2

11000 Beograd

Tel: 00381.11.639610

Fax: 00381.11.639610

AUSTRALIA :

EPSON AUSTRALIA PTYLIMITED

3, Talavera Road,

N.Ryde NSW 2113,

AUSTRALIA

Tel: 1300 361 054

Web Address:

http://www.epson.com.au

form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written

permission of SEIKO EPSON CORPORATION. No patent liability is assumed with respect to the use of the information

contained herein. Neither is any liability assumed for damages resulting from the use of the information contained

herein.

Neither SEIKO EPSON CORPORATION nor its affiliates shall be liable to the purchaser of this product or third parties

for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of

this product or unauthorised modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to

strictly comply with SEIKO EPSON CORPORATION’s operating and maintenance instructions.

SEIKO EPSON CORPORATION shall not be liable against any damages or problems arising from the use of any

options or any consumable products other than those designated as Original EPSON Products or EPSON Approved

Products by SEIKO EPSON CORPORATION.

General Notice:

EPSON is a registered trademark of SEIKO EPSON CORPORATION.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby

Laboratories.

Manufactured under license from Digital Theater Systems, Inc. , “DTS” and “DTS 2.0 + Digital Out” are

trademarks of Digital Theater Systems, Inc.

3LCD logo is a trademark of SEIKO EPSON CORPORATION.

Windows Media and the Windows logo are trademarks or registered trademarks of the Microsoft Corporation of

America in America and in other countries.

Pixelworks and DNX are trademarks of Pixelworks, Inc.

The DVD video logo is a trademark.

Other product names used herein are also for identification purposes only and may be trademarks of their respective

owners. EPSON disclaims any and all rights in those marks.

User’s Guide

Printed in China

05.XX-XA(G04)

Printed on 100% recycled paper.

410232300

Epson TWD1 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Safety Instructions

Important information

Important safety instructions

Use and Storage

About Discs

Part Names

Preparing the Remote Control

Quick Start

Installation

Projection distance and screen size

Connecting the power cable and turning the main power switch ON

Disc Playback

Playing a disc and projecting

Adjusting the projection position and volume

Turning off the power

Stopping playback

Basic Operations During Playback

Temporarily freezing playback (pause)

Reverse search/forward search

Reviewing playback from a position 10 seconds before

Skip

Frame advance

Slow motion playback

Selecting a picture quality to suit the conditions of the room (Color Mode)

Temporarily using the projectors light as illumination (Break)

Temporarily stopping the audio (Mute)

Advanced Operations

Becoming a playback expert

Changing the brightness of the display window (Dimmer)

Playback from a DVD menu

PBC (playback control) playback

MP3/WMA, JPEG playback

Playback by selecting the chapter or track number

Designated time playback (time search)

Looping playback of a favorite scene (A-B repeat playback)

Looping playback (repeat play)

Playing in the order of your choice (program play)

Playback at random (random play)

Changing the audio language

Changing the subtitles display

Changing the angle

Making operations from the menu bar

Auto-standby, goodnight timer (Sleep timer) settings

For better image quality (Progressive mode)

Tray l ock

Becoming a Projection Expert

Connecting to other video equipment

Projecting images from external video equipment

Becoming an Audio Expert

Listening with headphones

Connecting to audio equipment with an optical digital input

Connecting a subwoofer

Selecting Sound Mode

Adjusting high pitched tones

Adjusting the audio playback level

Adjusting the audio input level of external audio equipment

Settings and Adjustments

Settings Menu Operation and Functions

Using the settings menu

Settings menu list

Language code list

“DIGITAL AUDIO OUTPUT” settings and output signals

Country (area) code list

Picture Quality Menu Operations and Functions

Using the Picture Quality menu

Picture Quality menu list

Information Menu Operation and Functions

Using the Information menu

Information menu list

Appendix

Troubleshooting

Reading the indicators

When the indicators provide no help

Maintenance

Cleaning
