Epson Stylus NX620/625 Series

Quick Guide

Basic Copying, Printing, and Scanning

Maintenance

Network Setup

Solving Problems

Loading Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Using Special Papers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Placing Originals for Copying or Scanning. . . . . . . . . . . . . . . . 9

Copying a Document or Photo . . . . . . . . . . . . . . . . . . . . . . . . . 10

Printing From a Memory Card . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Inserting a Memory Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Removing Your Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Printing From Your Computer . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Printing in Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Printing With a Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Selecting the Correct Paper Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Scanning a Document or Photo . . . . . . . . . . . . . . . . . . . . . . . . 17

Quick Scanning From the Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . 17

Scanning With Epson Scan Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

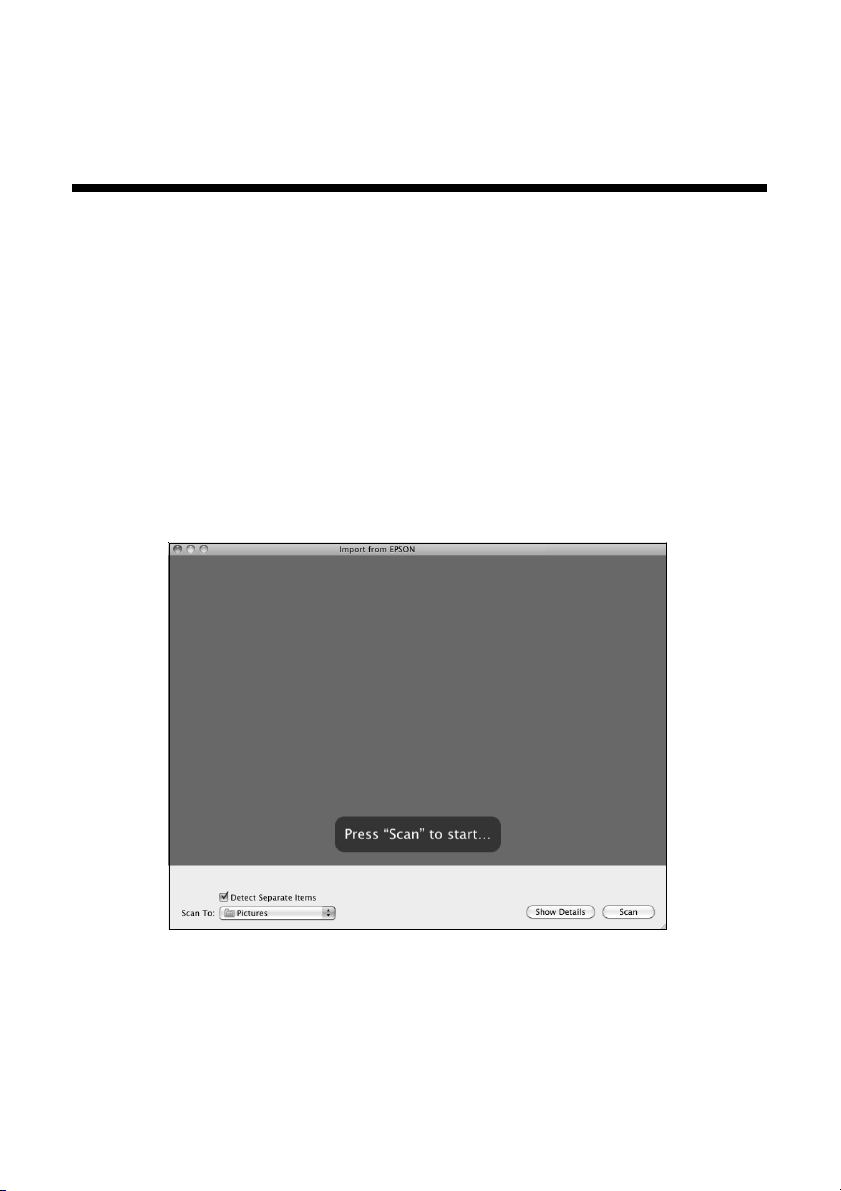

Scanning With Mac OS X 10.6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Maintaining Your Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Checking the Print Head Nozzles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Cleaning the Print Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Checking Ink Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Purchasing Epson Ink Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

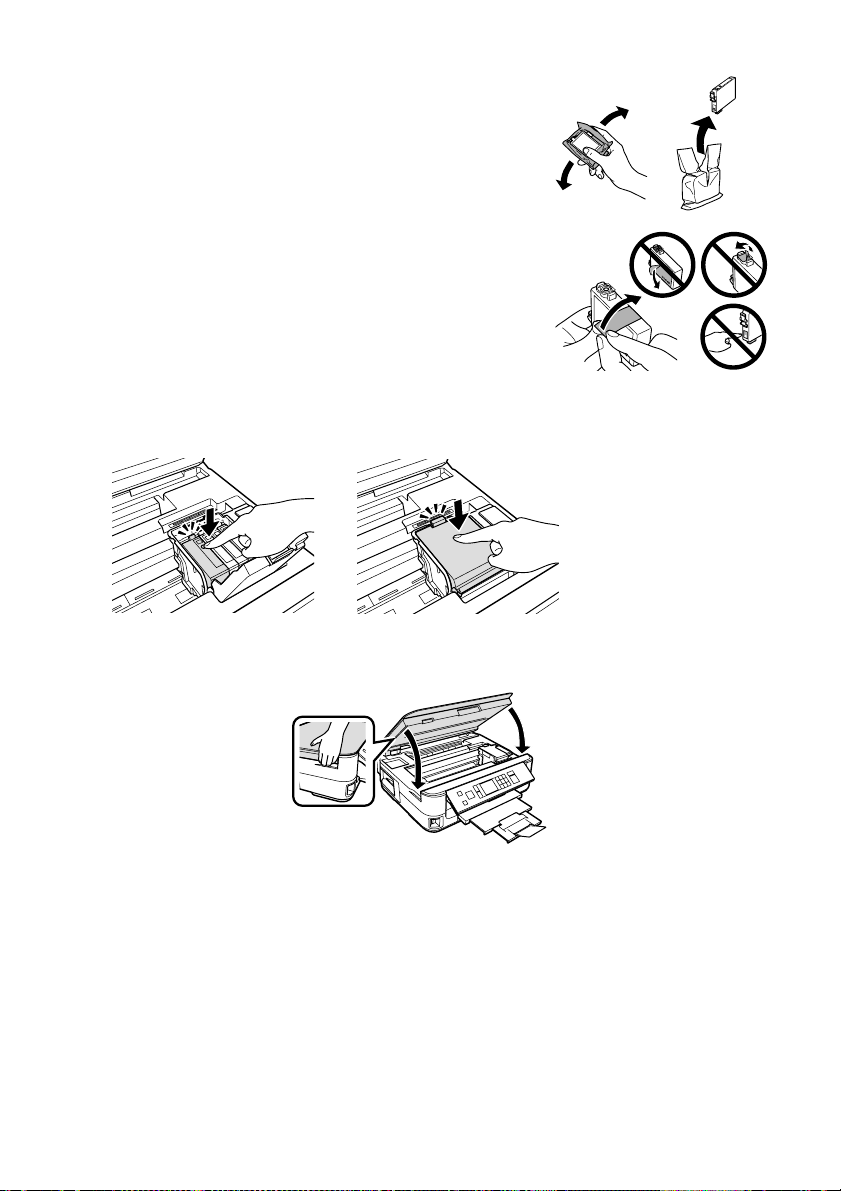

Replacing Ink Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Network Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

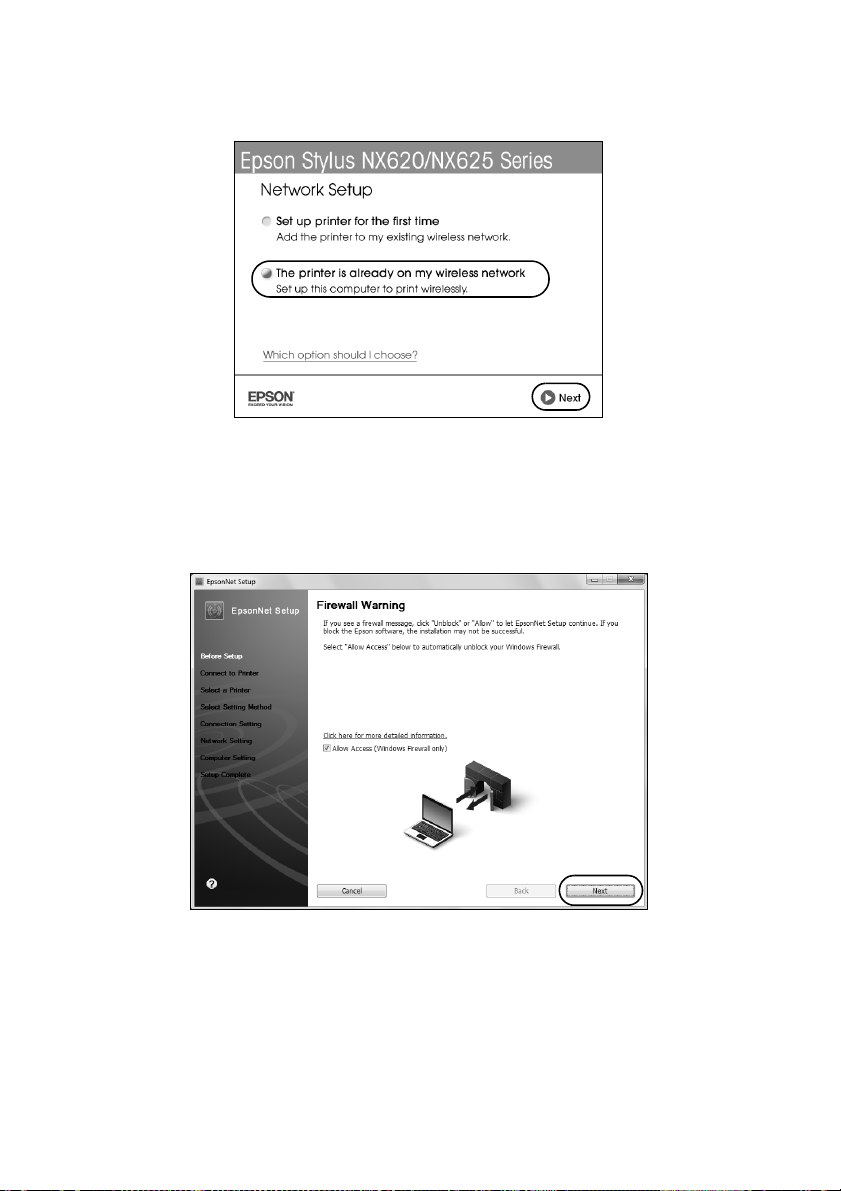

Wireless Network Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Wired (Ethernet) Network Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

2 Contents

Solving Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Checking for Software Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Error Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

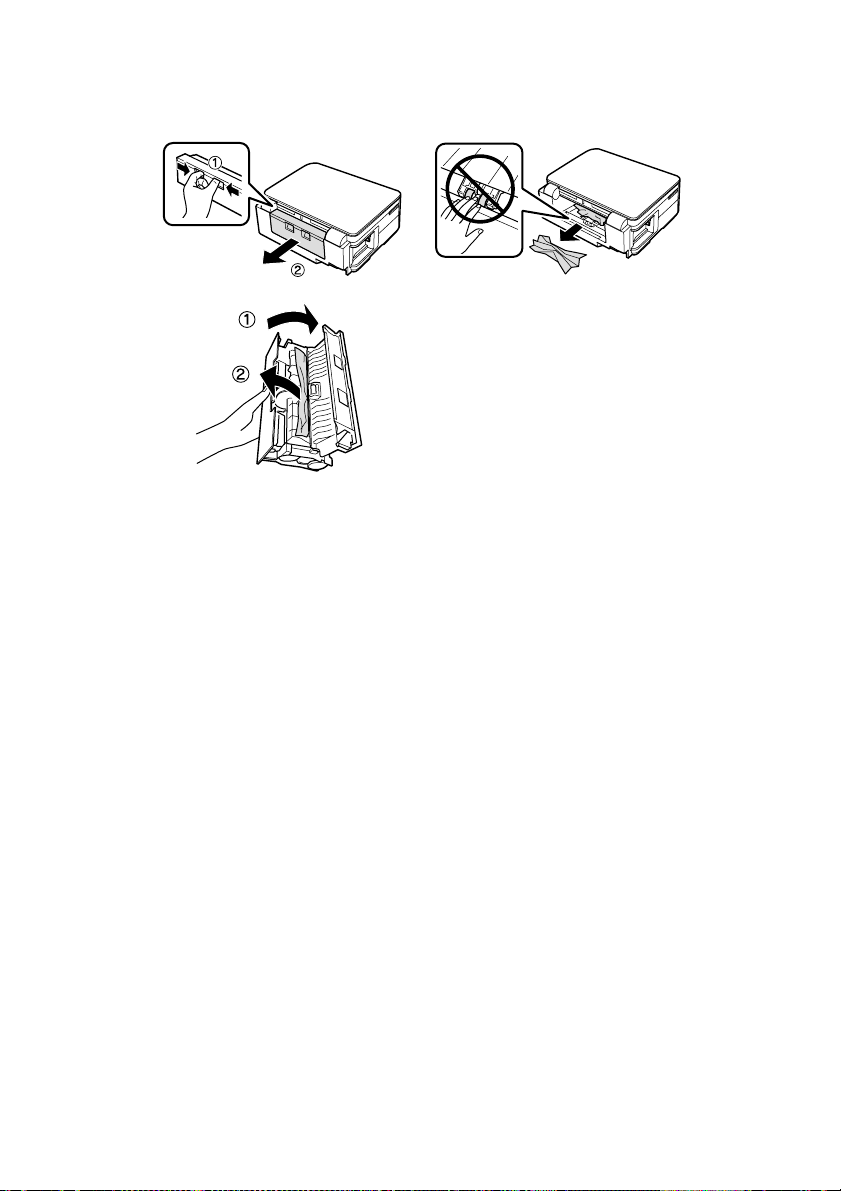

Problems and Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Where to Get Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Contents 3

Loading Paper

You can print documents and photos on a variety of paper types and sizes. For details, see page 7. (For instructions on loading envelopes, see your online User’s Guide.)

1. Pull out the paper cassette.

Note:

If you are using legal-size paper, extend the paper cassette. See your online User’s Guide for details.

2. Slide the edge guides to the sides of the cassette, then slide the edge guide to your paper size.

4 Loading Paper

3. Load paper against the edge guide, with the glossy or printable side face down. (Load letterhead or pre-printed paper top edge first. Always load paper short edge first; don’t load it sideways.)

Note:

Make sure the paper is loaded against the edge guide and not sticking out from the end of the cassette.

Fan the paper and align its edges before loading.

Do not use transparencies or paper with binder holes.

If you are just making a copy or printing a rough draft, plain paper is fine. However, for the best results, use one of Epson’s special ink jet papers, as listed on page 7.

For automatic two-sided printing, use plain paper or Epson Bright White Paper.

You can load up to about 150 sheets of plain paper or 20 sheets of photo paper. See your online User’s Guide for more information on paper loading limits.

Loading Paper 5

4. Slide the edge guides against the edges of the paper, but not too tightly.

5. Insert the cassette back into the printer.

Note:

Keep the cassette flat as you insert it.

The paper may slide forward slightly as you insert the cassette. This is normal.

Do not remove or insert the cassette while printing or copying.

6. Slide out the output tray and raise the stopper.

Note:

If you are using legal-size paper, do not raise the stopper.

6 Loading Paper

Using Special Papers

Epson offers a wide array of high quality papers, making it easy to maximize the impact of your documents, photos, presentations, and other projects.

You can purchase genuine Epson ink and paper at Epson Supplies Central www.epson.com/ink3 (U.S. sales) or www.epson.ca (Canadian sales). You can also purchase supplies from an Epson authorized reseller. To find the nearest one, call 800-GO-EPSON (800-463-7766).

Paper name Size

Epson Presentation Paper Matte Letter (8.5 × 11 inches

[216 × 279 mm])

Legal (8.5 × 14 inches [216 × 356 mm])

Epson Premium Presentation

Paper Matte

Epson Premium Presentation

Paper Matte Double-sided

Epson Ultra Premium Photo

Paper Glossy

Borderless 8 × 10 inches (203 × 254 mm)

Letter (8.5 × 11 inches [216 × 279 mm])

Borderless 4 × 6 inches (102 × 152 mm)

Borderless 5 × 7 inches (127 × 178 mm)

Borderless 8 × 10 inches (203 × 254 mm)

Letter (8.5 × 11 inches [216 × 279 mm])

Part number

S041062 100

S041067 100

S041467 50

S041257 S04218050100

S041568 50

S042181 S04217460100

S041945 20

S041946 20

S042182 S0421752550

Sheet count

Epson Premium Photo Paper

Semi-gloss

Borderless 4 × 6 inches (102 × 152 mm)

Letter (8.5 × 11 inches [216 × 279 mm])

S041982 40

S041331 20

Using Special Papers 7

Paper name Size

Part number

Sheet count

Epson Premium Photo Paper

Glossy

Epson Photo Paper Glossy Borderless 4 × 6 inches

Epson Bright White Paper Letter (8.5 × 11 inches

Epson Photo Quality Self-

adhesive Sheets

Epson Iron-on Cool Peel Transfer

paper

Borderless 4 × 6 inches (102 × 152 mm)

Borderless 5 × 7 inches (127 × 178 mm)

Borderless 8 × 10 inches (203 × 254 mm)

Letter (8.5 × 11 inches [216 × 279 mm])

(102 × 152 mm)

Letter (8.5 × 11 inches [216 × 279 mm])

[216 × 279 mm])

A4 (8.3 × 11.7 inches [210 × 297 mm])

Letter (8.5 × 11 inches [216 × 279 mm])

S041808 S04172740100

S041464 20

S041465 20

S042183 S0416672550

S041809 S04203850100

S041141 S041649 S041271

S041586 500

S041106 10

S041153 10

20 50 100

8 Using Special Papers

Placing Originals for Copying or Scanning

Before you copy or scan, place your documents or photos (up to letter- or A4-size) on the scanner glass.

1. Open the document cover.

2. Place your original face-down on the scanner glass, with the top against the back left corner.

3. Close the cover gently to keep your original in place.

Placing Originals for Copying or Scanning 9

Copying a Document or Photo

You can copy documents onto plain paper or Epson special paper just like you would on a copy machine.

You can copy a photo onto 4 × 6-inch, 5 × 7-inch, 8 × 10-inch, letter-size, or A4size Epson photo paper (various types available) for instant photo reprints.

1. Load paper in the paper cassette (see page 4).

2. Place your original document or photo on the scanner glass (see page 9).

3. Press the

4. Press

5. Press

6. Press u or d to select

7. Press l or r to adjust the Density (darkness or lightness) of the copy.

OK.

+ or – to select the number of copies you want (up to 99).

Home button, then press u, d, l, or r to select Copy.

Color or B&W copies.

10 Copying a Document or Photo

8. To change the layout, press x

Copy Settings OK again. Select With Border to leave a small margin around the image or Borderless to expand the image all the way to the edge of the paper (slight

, and press OK. Then press u or d to select Layout, and press

cropping may occur), then press

Note:

You cannot print borderless on plain paper.

Menu, press u or d to select Paper and

OK.

9. To change paper type, paper size, or any other print settings, press u or d to select the setting, then press

OK.

Note:

Not all Paper Type, Paper Size, Layout, and Quality settings may be available depending on the options you choose. See the online User’s Guide for details.

OK. Press u or d to select an option, then press

10. After you finish selecting settings, press x Menu to exit the settings menu.

11. Press the x

Clear Settings

Note:

Do not pull out paper as it is printing; it ejects automatically.

Start button to begin copying. To cancel copying, press y Stop/

Copying a Document or Photo 11

Printing From a Memory Card

Your product lets you print photos from your digital camera’s memory card. See the online User’s Guide for instructions.

Inserting a Memory Card

1. Insert the card into the slot, as shown. Insert just one card at a time. For a list of compatible memory cards, see the online User’s Guide.

The memory card access light flashes, then stays on.

Caution:

If your memory card requires an adapter, attach it before inserting the card into the slot; otherwise, the card might get stuck.

Do not remove the card or turn off the product while the light is flashing, or you may lose data on the card.

2. See the online User’s Guide to select and print your photos.

Memory card access light

Removing Your Card

After you finish printing your photos, follow these steps to remove the card:

1. Make sure the memory card access light is not flashing.

2. If the product is connected to your computer with a USB cable, do one of the following before removing the memory card or turning off the printer:

■ Windows

Computer or Windows Explorer, and select

■ Macintosh

the trash.

3. Pull the card straight out of its slot.

12 Printing From a Memory Card

: Right-click the name of your card (removable disk) in My

Eject.

: Drag the removable disk icon from your desktop into

Printing From Your Computer

This section describes the basic steps for printing from a Windows or Macintosh® computer. For detailed instructions on printing, see the online User’s Guide.

Tip:

It’s a good idea to check for updates to your Epson product software; see page 45.

Printing in Windows

1. Open a photo or document in a printing program, and select the print option.

2. Select

Epson NX620 Series or Epson Stylus NX620, then click the

Preferences or Properties button.

3. On the Main tab, select basic print settings. Make sure you choose the correct paper

Type setting for your paper (see page 16).

Select the type of document you’re printing (choose

Photo or Best Photo for pictures)

Select your paper Type

Select your paper Size

Tip:

For more information about print settings, click Help.

Click here for borderless photos

Select your document or photo

Orientation

4. To resize your printout or print double-sided, click the Page Layout tab.

Printing From Your Computer 13

5. For more printing options, click the Advanced tab.

6. Click

7. Click

OK to save your settings.

OK or Print to start printing. This window appears and shows the

progress of your print job.

Cancel printing

Printing With a Macintosh

Follow the steps below to print from Mac OS® X 10.5 to 10.6.

Note:

If you’re printing from Mac OS X 10.4, see your online User’s Guide for instructions.

1. Open a photo or document in a printing program, and select the print option.

2. Select

Epson Stylus NX620 as the Printer setting.

Select your Epson product

3. Click the arrow to expand the Print window, if necessary.

14 Printing With a Macintosh

Click to expand

4. Select basic copy and page settings. For borderless photos, choose a

Size

setting with a Borderless option.

Note:

If the setting you want isn’t shown (for example, Scale), check for it in your application before printing or check for it at the bottom of this window.

Copy and page settings

Application settings

Paper

5. Choose Print Settings from the pop-up menu, and select these print settings:

Choose Print Settings

Select your Media Type (see page 16)

Select Color or Black/Grayscale output

Select higher quality or faster printing (if available)

6. Choose any other printing options you may need from the pop-up menu. See the online User’s Guide for details.

Printing With a Macintosh 15

7. Click the Advanced button to change additional settings.

Note:

For more information on print settings, click ?.

8. Click Print.

9. To monitor your print job, click the printer icon in the Dock.

ancel

printing

Pause or resume printing

Select the print job

Selecting the Correct Paper Type

Select the correct Type (see page 13) or Media Type (see page 15) setting in your printer software so the ink coverage can be adjusted accordingly.

For this paper/media Select this setting

Plain paper Epson Bright White Paper Epson Presentation Paper Matte Epson Iron-on Cool Peel Transfer paper Epson Photo Quality Self-adhesive Sheets

Epson Ultra Premium Photo Paper Glossy Ultra Premium Photo Paper Glossy

Epson Premium Photo Paper Glossy Premium Photo Paper Glossy

Epson Photo Paper Glossy Photo Paper Glossy

Epson Premium Photo Paper Semi-gloss Premium Photo Paper Semi-Gloss

Epson Premium Presentation Paper Matte Epson Premium Presentation Paper Matte

Double-sided

Envelopes Envelope

16 Selecting the Correct Paper Type

Plain Paper/Bright White Paper

Premium Presentation Paper Matte

Scanning a Document or Photo

You can use your Epson Stylus NX620/625 Series to scan original documents and photos and save them on your computer.

Quick Scanning From the Control Panel

You can quickly scan a photo or document and save it on your computer. You can even scan a photo and have it automatically included in an email message.

Note:

For Mac OS X 10.6, see “Scanning With Mac OS X 10.6” on page 19.

1. Place your original document or photo on the scanner glass (see page 9).

2. Press the or r to select

3. Press

OK, then press u or d to select one of the

Home button, then press u, d, l,

Scan.

following options:

■ Scan to PC automatically creates a JPG

image and saves it to your computer; ideal for scanning photos

■ Scan to PC (PDF) automatically creates a PDF file and saves it to your

computer; ideal for scanning documents

■ Scan to PC (Email) automatically scans a photo, resizes it, launches your

email application, and attaches a JPG image to a new outgoing message

4. Do one of the following:

■ If you connected your product to your computer with a USB cable, press

OK to select USB Connection and begin scanning.

■ If you connected your product to a wireless or wired network, press

u or d until you see your computer name, then press

OK to begin

scanning.

Once your image is scanned, you see its icon in Windows Explorer or Macintosh Finder, or as an attachment in your email application.

Scanning a Document or Photo 17

Scanning With Epson Scan Software

You can scan from any TWAIN-compliant application using Epson Scan. Or you can start Epson Scan directly from your computer and save your image to a file.

Note:

For detailed scanning instructions, see the online User’s Guide. For Mac OS X 10.6, see “Scanning With Mac OS X 10.6” on page 19.

1. Place your original document or photo on the scanner glass (see page 9).

2. Do one of the following to start Epson Scan:

■ Windows:

Double-click the

■ Mac OS X 10.4 and 10.5:

Open the

Applications folder, open the Epson Software folder, and

double-click the

■ To scan from an application, start your application. Then open the File

menu, choose

3. Epson Scan opens in Full Auto Mode the first time you use it. (You can change the scan mode using the Mode selector in the upper right corner.)

EPSON Scan icon on your desktop.

EPSON Scan icon

Import or Acquire, and select your product.

Click here to change the scan mode

4. Click

Scan.

18 Scanning With Epson Scan Software

+ 42 hidden pages
