RM0403-3-E01

Application Manua

Real Time Clock Module

RX-8564LC

Model Product Number RX-8564LC Q418564C0xxxx00

NOTICE

• The material is subject to change without notice.

• Any part of this material may not be reproduced or duplicated in any form or any means without the written permission of EPSON TOYOCOM.

• The information, applied circuit, program, usage etc., written in this material is just for reference.

EPSON TOYOCOM does not assume any liability for the occurrence of infringing any patent or copyright of a third party. This material does not authorize the licensing for any patent or intellectual copyrights.

• Any product described in this material may contain technology or the subject relating to strategic

products under the control of the Foreign Exchange and Foreign Trade Law of Japan and may require an export licence from the Ministry of International Trade and industry or other approval from another government agency.

• These products are intended for general use in electronic equipment. When using them in specific

applications that require extremely high reliability such as applications stated below, it is required to obtain the permission from EPSON TOYOCOM in advance. / Space equipment (artificial satellites, rockets, etc) / Transportation vehicles and related (automobiles, aircraft, trains, vessels, etc) / Medical instruments to sustain life / Submarine transmitters / Power stations and related / Fire work equipment and security equipment / traffic control equipment / and others requiring equivalent reliability.

• In this manual for EPSON TOYOCOM, product code and marking will still remain as previously

identified prior to the merger.Due to the on going strategy of gradual unification of part numbers, please review product code and marking as they will change during the course of the coming months. We apologize for the inconvenience, but we will eventually have a unified part numbering system for Epson Toyocom which will be user friendly.

RX − 8564 LC

CONTENTS

1. Overview

2. Block diagram

3. Terminal description

3.1. Terminal connections

3.2. Pin Functions

...................................................................................................................1

.........................................................................................................1

.............................................................................................2

..............................................................................................................2

.............................................................................................................................2

4. External Dimensions / Marking Layout

4.1. External Dimensions

4.2. Marking Layout

5. Absolute Maximum Ratings

6. Recommended operating conditions

7. Frequency Characteristics

8. Electrical Characteristics

8.1. DC characteristics

8.2. AC electrical characteristics

9. Reference data

......................................................................................................7

................................................................................................................3

..........................................................................................................................3

..............................................................................4

.............................................................4

.................................................................................4

....................................................................................5

....................................................................................................................5

..................................................................................................6

..........................................................3

10. External connection example

11. Application notes

................................................................................................9

.........................................................................8

12. Overview of Functions and Description of Registers

12.1. Overview of Functions

12.2. Register table

........................................................................................................................11

13. Description of Functions

13.1. Description of register s

13.1.1. Control register 1 ( Reg − 00 [h] ) ...................................................................................12

13.1.2. Control register 2 ( Reg − 01 [h] ) ...................................................................................13

13.1.3. Clock counter ( Reg − 02 [h] to 04 [h] )...........................................................................14

13.1.4. Calendar counter ( Reg − 05 [h] , 07 [h] , 08 [h] )............................................................15

13.1.5. Day counter ( Reg − 6[h] ) .............................................................................................15

13.1.6. Alarm registers ( Reg − 09 [h] to 0C [h] ) ........................................................................16

13.1.7. Timer setting register ( Reg − 0E [h] )............................................................................16

13.1.8. Down counter for fixed-cycle timer ( Reg − 0F [h] ).........................................................16

13.1.9. CLKOUT output register (Reg - 0D [h]) ..........................................................................17

13.2. Fixed-cycle Timer Interrupt Function

13.3. Alarm Interrupt Funct ion

13.4. /INT "L" Inter r upt Output When Interrupt Function Operat es

13.5. Flow Charts

13.6. Reading/Writing Data via the I2C Bus Interface

............................................................................................................................29

........................................................................................................10

................................................................................12

.......................................................................................................12

.............................................................................18

....................................................................................................25

.........................................................32

..........................10

.................................28

RX − 8564 LC

Low power consumption / Small size thin model package I2C-Bus Interface Real Time Clock Module

RX −−−− 8564 LC

• Built in frequency adjusted 32.768 kHz crystal unit.

• Interface type : 400 kHz two-wire I2C-bus interface

• Wide operating voltage range : 1.8 V to 5.5 V

• Wide timekeeper voltage range : 1.0 V to 5.5 V ( at Ta = +25 °C )

• Low backup current : 275 nA

• 32.768-kHz clock frequency output

: C-MOS output with output control

• Real-time clock function Clock/calendar function, auto leap year correction function, alarm interrupt function, etc.

1. Overview

This module is an I2C bus interface real-time clock that has bult-in 32.768-kHz crystal oscillator. In addition to a calendar (year, month, day, weekday, hour, minute, second) function and a clock counter function, this module's real-time clock functions include an alarm function and a fixed-cycle timer interrupt function. The devices in this module are fabricated via a C-MOS process for low current consumption, which enables long-term battery back-up. All of these many functions are implemented in a compact package, which makes it suitable for various kinds of mobile telephones, handy terminals and other small electronic devices.

2. Block diagram

( Typ. )

/ 3 V

The I2C-BUS is a trademark of PHILIPS ELECTRONICS N.V.

CLKOUT CLKOE

/ INT

SCL SDA

32.768 kHz CRYSTAL

OUTPUT CONTROL

C-BUS

INTERFACE

OSC

POR

Voltage Detector

DIVIDER

CONTROL LOGIC

ADDRESS REGISTER

Control 1 Control 2

Seconds

Minutes

Hours

Days

Weekdays

Month / Century

Years

Minutes Alarm

Hour Alarm

Day Alarm

Weekday Alarm

CLKOUT frequency

Timer Control

Timer

Page − 1

ETM12E-01

RX − 8564 LC

3. Terminal description

3.1. Terminal connections

N.C.

5. /INT 8. SCL

# 1

# 6

−

8564 LC

# 12

# 7

12.

11. CLKOE

10. VDD

9. CLKOUT

N.C.

6. GND

VSOJ

−

12pin

7. SDA

3.2. Pin Functions

Signal

name

SCL Input This is the serial clock input pin for I2C Bus communications.

SDA Bi-Directional

CLKOUT Output

CLKOE Input

I/O Function

This pin's signal is used for input and output of address, data, and ACK bits, synchronized with the serial clock used for I2C communications.

Since the SDA pin is an N-ch open drain pin during output, be sure to connect a suitable pull-up resistance relative to the signal line capacity.

The CLKOUT pin is a clock output pin (C-MOS output) with the output control function. The CLKOE pin can be used in combination with the FE bit, FD1 bit, and FD0 bit to control the output mode of the CLKOUT output pin.

The CLKOE input pin can be used in combination with the FE bit, FD1 bit, and FD0 bit to select the frequency output from the CLKOUT output pin (32.768 kHz, 1024 Hz, 32 Hz, or 1 Hz) or to stop output. When output is stopped, the CLKOUT output pin is at low level ( = " L " ).

CLKOE pin

input

" H "

" L "

During the initial power-on (when power is applied from 0 V), if the CLKOE input pin is at high level ( = " H " ), the power-on reset function selects 32.768 kHz as the frequency.

CLKOUT pin

bit

1 Output 0 1 0

OFF OFF OFF

output

( C-MOS ) ( " L " ) ( " L " ) ( " L " )

/INT Output

VDD

GND

N.C.

−

This pin outputs alarm signals, fixed timer interrupt signals, and other interrupt signals at low level ( = " L " ). This pin is an open drain pin.

This pin connects to the plus side of the power. This pin connects to the minus side (ground) of the power. This pin is not connected internally. Be sure to connect using OPEN, or GND or VDD.

Note : Be sure to connect a bypass capacitor rated at least 0.1 µF between VDD and GND.

Page − 2

ETM12E-01

RX − 8564 LC

4. External Dimensions / Marking Layout

4.1. External Dimensions

RX − 8564 LC

( VSOJ − 12pin )

• External dimensions • Recommended soldering pattern

# 12 # 7

# 1 # 6

0.2

3.6

0.5 0.22

2.4

0.08 M

Min. 0

± 0.1

1.1

0.08

2.5

± 0.2

( 0.4 )

2.8

0.8 1.6 0.8

3.2

2.77

0.270.5

Unit : mm

2.4

4.2. Marking Layout

RX − 8564 LC

( VSOJ − 12pin )

Logo

#1 Pin Mark

Type

E 8564

A123B

Production lot

∗ Contents displayed indicate the general markings and display, but are not the standards f or the fonts, sizes and positioning.

Page − 3

ETM12E-01

RX − 8564 LC

5. Absolute Maximum Ratings

Parameter Symbol Condition Rating Unit

GND = 0 V

Supply Voltage VDD Between VDD and GND Supply Voltage IDD VDD pin Input Voltage VI Input pin Output Voltage VO /INT pin DC Input Current II DC Output Current IO

Storage Temperature Range

STG

Stored bare product after

unpacking

6. Recommended operating conditions

Item Symbol Condition Rating Unit

Operating supply voltage VDD

Clock supply voltage VDD

Operating temperature T

OPR

No condensation

I2C-BUS access

at 400 kHz

to +6.5 V

−0.5 to 50 mA

−50 GND−0.5 GND−0.5

to VDD+0.5 V to VDD+0.5 V to 10 mA

−10

to 10 mA

−10

to +125

−55

1.8 to 5.5 V

(∗1)

LOW

to 5.5 V to +85

−40

°C

GND = 0 V

°C

∗1)

See " 8.1. DC Electrical Characteristics ".

7. Frequency Characteristics

* Unless otherwise specified, GND = 0 V

Item Symbol Comments Min. Typ. Max. Unit

Output frequency fo 32.768 Frequency precision

∆ f / f

Frequency voltage

f / V characteristics Frequency temperature

Top characteristics

Oscillation startup-up time

STA

Aging fa

∗1 )

This difference is 1 minute by 1 month. ( excluding offset )

∗2 )

Includes variation in frequency during two rounds of reflow processing. ∗ Reflow processing is performed under conditions specified by Seiko Epson Corporation.

(See the relevant specifications.)

Ta = +25 °C VDD = 3.0 V

Ta = +25 °C VDD = 1.8 V to 5.5 V

Ta = −20 °C to +70 °C, VDD = 3.0 V ; Reference at +25 °C

Ta = +25 °C VDD = 1.8 V Ta = −40 °C to +85 °C, VDD = 3.0 V

Ta = +25 °C , VDD = 3.0 V ; first year −5

−120

5 ± 23

± 2

+10

3.0 s

, Ta = +25 °C , VDD = 3.0 V

( Typ. )

(∗1) (∗2)

( Max. )

kHz

× 10−6

× 10−6 / V

× 10−6

/ year

Page − 4

ETM12E-01

RX − 8564 LC

8. Electrical Characteristics

8.1. DC characteristics

Item Symbol Condition Min. Typ. Max. Unit

* Unless otherwise specified, GND = 0 V , VDD = 1.8 V to 5.5 V

, Ta = −40 °C to +85 °C

Current consumption

IDD

∗ interface active

Current consumption

∗ interface inactive ( f

SCL

= 0 Hz )

IDD

∗ CLKOUT = disabled ( CLKOE = GND )

Current consumption

∗ interface inactive ( f

SCL

= 0 Hz )

DD32K

∗ CLKOUT = 32 kHz output ( LOAD is 0 pF )

"L" input voltage VIL

"H" input voltage VIH

"L" output current

( SDA )

SCL

= 400 kHz

SCL

= 100 kHz

SCL

= 0 Hz, VDD = 5.0 V

SCL

= 0 Hz, VDD = 3.0 V

SCL

= 0 Hz, VDD = 2.0 V

SCL

= 0 Hz, VDD = 5.0 V

SCL

= 0 Hz, VDD = 3.0 V

SCL

= 0 Hz, VDD = 2.0 V

GND − 0.5

0.7 × V

VOL = 0.4 V, VDD = 5 V −3

800

200

µA

330 800 nA

275 700 nA

250 650 nA

2.5 3.4

1.5 2.2

1.1 1.6

0.3 × V

VDD + 0.5

µA

"L" output current

"H" output current

( /INT )

( CLKOUT )

Leakage current ILO

Low voltage detection V

IOL

IOH

LOW

VOL = 0.4 V, VDD = 5 V −1

VOH = 4.6 V, VDD = 5 V

VO = VDD or GND −1

Ta = +25 °C

Ta = −20 °C to +70 °C

Ta = −40 °C to +85 °C

1 mA

µA

0.9 1.0 V

0.9 1.2 V

0.9 1.3 V

Page − 5

ETM12E-01

RX − 8564 LC

8.2. AC electrical characteristics

Item Symbol Condition Min. Typ. Max. Unit

* Unless otherwise specified, GND = 0 V , VDD = 1.8 V to 5.5 V

, Ta = −40 °C to +85 °C

SCL clock frequency f Start condition set-up time t Start condition hold time t Data set-up time t Data hold time t Stop condition set-up time t

Bus free time between a STOP and START condition

SCL "L" time t SCL "H" time t

SCL

400 kHz

SU; STA

0.6

HD; STA

0.6

SU; DAT

100 ns

HD; DAT

0 ns

SU; STO

0.6

BUF

1.3

LOW

1.3

HIGH

0.6 SCL and SDA rise time tr 0.3 SCL and SDA fall time tf 0.3 Tolerance spike time on bus tSP 50 ns

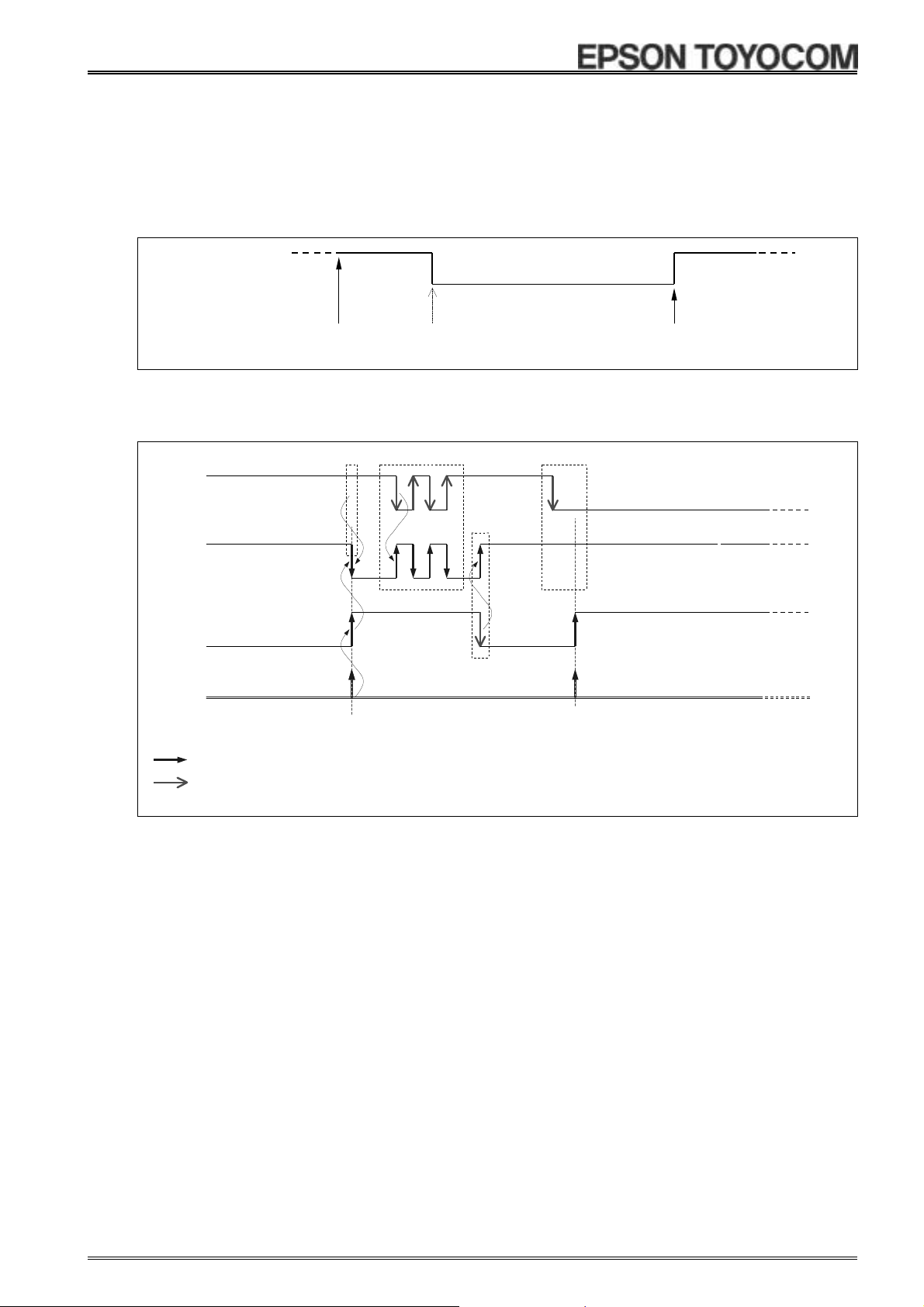

Timing chart

µs µs

µs µs µs µs µs µs

Protocol

STAR T

CONDITION

(S)

SU ; STA

LOW tHIGH

BIT 7

MSB (A7)

BIT 6

1 / f

SCL

(A6)

BIT 0

LSB

(R/W)

ACK

(A)

STOP

CONDITION

(P)

START

CONDITION

(S)

SU ; ST

SCL

(S)

(P)

(S)

BUF

(A)

HD ; STA

SU ; DAT

HD ; DAT

SU ; STO

HD ; STA

Note : I2C access time between a START and a START condition or between a START and a STOP condition to this

device must be less than one second.

Page − 6

ETM12E-01

RX − 8564 LC

9. Reference data

(1) Example of frequency and temperature characteristics

-6

× 10

∆

-50

-100

Frequency

-150

-50 0 50 100

θT = +25 °C Typ.

α = -0.035 × 10

Temperature [°C]

-6

Typ.

[ Fin ding the fr equency st ability ]

Freq u e ncy and temperature characteristics c an be

approximated using the following equations.

∆fT = α ( θT − θX ) 2

∆f

: Frequency deviation in any temper ature

α [ 1 / °

( −0.035 ± 0.005 ) × 10

: Coeff icient of sec o ndary temper a ture

]

: Ultimate temperature

[ °C ]

: Any temperature

[ °C ]

−

+25

(

2. To determine overall clock accuracy, add the frequency precision an d voltage ch aracteri stics.

f/f = ∆f/fo + ∆f

∆

∆f/f : Cl o c k accuracy (st a ble frequency)

f/fo : Frequency pr ecision

∆

: Frequency deviation in any tem perature.

∆

: Frequency deviation in any voltage.

∆

+ ∆

in any temperature and voltage.

3. Ho w to find the date differenc e

Date Difference = ∆f/f × 86400(Sec)

For example: ∆f/f = 11.574

∗

approximately 1 second/day.

-6

is an error of

/ °C2

± 5 °C )

(2) Current and voltage consumption characteristics

(2-1) Current consumption when non-accessed (i)

when CLKOUT=OFF

1.0

0.5

Current consumption [

Condition :

SCL

=0 Hz, Ta=+25 °C, CLKOUT=OFF

34 5

Supply Voltage VDD[V]

IDD[µA]

(2-2) Current consumption when non-accessed (ii)

when CLKOUT=32.768kHz

Condition :

SCL

=0 Hz, Ta=+25 °C, CLKOUT=32.768 kHz

Current consumpt ion [

Supply Voltage VDD[V]

CL=30 pF

32K[µA]

CL=0 pF

345

Page − 7

ETM12E-01

RX − 8564 LC

10. External connection example

VDD

8564

SLAVE ADRS = 1010001

GND

SCL

SDA

SCL

I C-BUS

Master

SDA

Pull up Registor

R =

BUS

I C-BUS

device

GND

SCL

SDA

Page − 8

ETM12E-01

RX − 8564 LC

11. Application notes

1) Notes on handling

This module uses a C-MOS IC to realize low power consumption. Carefully note the following caut ions when handling.

(1) St atic electricity

(2) Noise

(3) Voltage levels of input pins

(4) Handling of unused pins

2) Notes o n pa ckaging

(1) Soldering heat resistance.

(2) Packaging equipment

(3) Ultrasonic cleaning

(4) Mounting orientation (5) Leakage between pins

(6) Use of adhesive after packaging product

While this module has built-in circuitry designed to p rote ct it against elec trostatic discharge, the chip could s till be damage d by a large discharge of static electricity. Containers used for packing and transport should be constructed of conductive materials. In addition, only soldering irons, measurement circuits, and other such devices which do not leak high voltage should be used with this module, which should also be grounded when such devices are being used.

If a signal with excessive exte rnal noise is applied to the powe r supply or input pins, the de vice may malfunction or " latch up." In order to ensure stable operation, connect a filter capacitor (preferably ceramic) of greater that 0.1 µF as close as possible to the power supply pins (between VDD and GNDs). Also, avoid placing any device that generates high level of electronic noise near this module. * Do not connect signal lines to the shaded area in the figure shown in Fig. 1 and, if possible, em bed this area in a GND land.

When the input pins are at the mid-level, this will cause increased current consumption and a reduced noise margin, and can impair the functioning of the device. Therefore, try as much as possible to apply the voltage level close to VDD or GND.

Since the input impedance of the input pins is extremely high, operating the device with t hese pins in the open cir cuit stat e can lead to unstable voltage level and malfunctions due t o noise. Therefore, pull-up or pull-down resistors should be provided for all unuse d input pins.

If the temperature within the package exceeds +260 °C, the characteristics of the cryst al oscillator will be degraded and it may be damaged. The reflow conditions within our reflow profile is recommended. Therefore, always check the mounting temperature and time before mounting this device. Also, check again i f the mounting conditions are later changed. * See Fig. 2 profile for our evaluation of Soldering heat resistance for reference.

This product uses a molded pack age whose back contains glass. Therefore, it is possible for shocks during packaging to cause product breakage, depending on the packaging machinery and conditions. Please be sure to check that the load placed on products during packaging is as low as possible (low speeds during loading onto the substrate, low chuck forces, etc.) before using packaging equipment. Carry out the same checks when c hanging packaging conditions. The presence of foreign objects between this product and the packaging substrate may result in product breakage. Guard against introduction of foreign objects during packaging. Also, carry out measures to eliminate static electricity during packaging of and op erati ons with this product.

Depending on the usage conditions, there is a possibility that the crystal oscillator will be damaged by resonance during ultrasonic cleaning. Since the conditions under which ultrasonic cleaning is carried out (the type of cleaner, power level, time, state of the inside of the cleaning vessel, etc.) vary widely, this device is not warranted against damage during ultrasonic cleaning.

This device can be damaged if it is mounted in the wrong ori ent ati on. Always confirm the orientation of the device before mounting. Leakage between pins may occur if the power is turne d on w h ile the de vice has condensation or d irt on it. Make sure the de vice is d r y

and clean before supplying power to it. This product uses a molded pack age whose back contains glass.

Please check that use of the adhesive does not cause problems before adopting any adhesive as a measure to reinforce the packaging for your product.

Fig. 1 : Example GND Pattern

RX − 8564 LC

( VSOJ − 12 pin )

∗ The shaded part ( ) indicates where a GND pattern should be set without getting too close to a signal line

Fig. 2 : Reference profile for our evaluation of Soldering heat resistance.

Tem perature [ °C ]

+1 ∼ +5 °C/ s

Page − 9

+1 ∼ +5 °C / s

+170 °C +220

100 s

Pre-heating area

+260 °C Max.

35 s

Stable Melting area

−1 ∼ −5 °C / s

time [ s ]

ETM12E-01

RX − 8564 LC

12. Overview of Functions and Description of Registers

12.1. Overview of Functions

1) Clock functions

2) Fixed-cycle interrupt generation function

3) Alarm interrupt function

4) 32.768 kHz output function

This function is used to set and read out month, day, hour, date, minute, second, and year (last two digits) data. Any (two-digit) year that is a multiple of 4 is treated as a leap year and calculated automatically as such until the year 2099.

∗ For details, see "13.1. Description of Registers".

The fixed-cycle timer interrupt generation function generates an interrupt event periodically at any fixed cycle set between 244.14 µs and 255 minutes. When an interrupt event is generated, the /INT pin goes to low level ("L") and "1" is set to the TF bit to report that an event has occurred. Two types of operations can be selected for this function (level interrupt mode and repeated interrupt mode).

∗ For details, see "13.2. Fixed-cycle Interrupt Function".

The alarm interrupt generation function generates interrupt events for alarm settings such as date, day, hour, and minute settings. When an interrupt event occurs, the AF bit value is set to "1" and the /INT pin goes to low level to indicate that an event has occurred.

∗ For details, see "13.3. Alarm Interrupt Function".

The 32.768 kHz clock signal (with precision equal to that of the on-chip crystal osillator) can be output (as C-MOS output) via the CLKOUT pin. If a different frequency is required, 32.768 kHz,

∗ For details, see "13.1.9. CLKOUT output register".

1024 Hz, 32 Hz, or 1 Hz can be selected

Page − 10

ETM12E-01

RX − 8564 LC

12.2. Register table

Address [h]

Function bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0 note

00 Control 1 TEST 0 STOP 0 TEST 0 0 0 01 Control 2 0

TI / TP

AF TF AIE TIE 02 Seconds VL 40 20 10 8 4 2 1 03 Minutes 04 Hours 05 Days 06 Weekdays 07 Months / Century C

40 20 10 8 4 2 1

× × × × ×

20 10 8 4 2 1 20 10 8 4 2 1

× × × × ×

× ×

10 8 4 2 1

4 2 1

08 Years 80 40 20 10 8 4 2 1 09 Minute Alarm AE 40 20 10 8 4 2 1

0A Hour Alarm AE 0B Day Alarm AE 0C Weekday Alarm AE 0D CLKOUT frequency FE

20 10 8 4 2 1

× × × × ×

4 2 1

× × × × ×

FD1 FD0

∗3 , ∗4 ∗4 , ∗5

∗1 ∗5 ∗5 ∗5 ∗5 ∗5

∗5 ∗5 ∗5 ∗2 , ∗5

0E Timer control TE

× × × × ×

TD1 TD0

0F Timer 128 64 32 16 8 4 2 1

Note)

During the initial power-on (from 0 V) and if the value of the VL bit is "1" when the VL bit is read, be sure to initialize all registers before using them. When doing this, be careful to avoid setting incorrect data as the date or time, as timed operations cannot be guaranteed if incorrect date or time data has been set.

During the initial power-on (from 0 V), the power-on reset function sets "1" to the VL bit.

∗1.

∗ Since the value of other registers is undefined at this time, be sure to reset all registers before using them.

During the initial power-on (from 0 V), the power-on reset function sets "1" to the FE bit and the FD1 and FD0 bits

∗2.

are reset to "0".

∗ If the CLKOE input pin is at high level ("H"), output from the CLKOUT output pin is at 32.768 kHz.

∗3. The two TEST bits for address 00 (Control 1) are for use by Seiko Epson Corporation.

When initializing, be sure to write "0". Afterward, be sure to write "0" whenever writing to these bits. ∗ This device's operations are not guaranteed if "1" has been set to any of these bits.

All bits marked with "0" should have a value of "0" after initialization.

∗4.

All bits marked with “x” are read-only bits whose value when read is undefined. Be sure to mask these bits after

∗5.

they are read.

∗5

Page − 11

ETM12E-01

RX − 8564 LC

13. Description of Functions

13.1. Description of register s

13.1.1. Control register 1 ( Reg − 00 [h] )

Address [h] Function bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0

00 Control 1 TEST 0 STOP 0 TEST 0 0 0

• This register is used to control stopping and starting of the clock function, calendar function, and other functions.

1) TEST bits (bit 7 and bit 3)

These two TEST bits are for use by Seiko Epson Corporation.

When initializing, be sure to write "0". Afterward, be sure to write "0" whenever writing to these bits.

∗ This device's operations are not guaranteed if "1" has been set to any of these bits.

2) STOP bit

The STOP bit is used to stop functions such as the clock, calendar, alarm, and timer. Writing "1" to the STOP bit stops operation of the clock, calendar, alarm, timer, etc.

∗1) When the STOP bit = "1", operations are restricted.

Do not use any settings other than the clock and calendar settings.

∗2) When the STOP bit = "1", output via CLKOUT may be stopped, depending on the selected frequency.

Note this with caution. (1) If 32.768 kHz has been selected as the output frequency, output will continue at 32.768 kHz. (2) If any other output frequency was selected (1024 Hz, 32 Hz, or 1 Hz), CLKOUT output is stopped.

∗3) When the STOP bit = "1", the I2C-BUS bus timeout function is disabled. Note this with caution.

When the STOP bit = "0", these operations are resumed (stop mode is canceled).

∗ 0.5 seconds after the STOP bit value is changed from "1" to "0", the "second" value is updated (without waiting for a full second to elapse). This operation occurs once only after changing the STOP bit value. (This is done to keep the error margin to within ±0.5 seconds in relation to the actual time whenever the clock value is changed via any timing.)

Page − 12

ETM12E-01

RX − 8564 LC

13.1.2. Control register 2 ( Reg − 01 [h] )

Address [h] Function bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0

01 Control 2 0

TI / TP

AF TF AIE TIE

• This register is used to monitor various interrupt event settings and the conditions under which various interruptrelated events occur.

1) TI / TP bit ( Interrupt Signal Output Mode Select. Interrupt / Periodic )

When a fixed-cycle timer interrupt event occurs (when the TF bit goes from "0" to 1") , this bit specifies whether the interrupt operation occurs just once or repeatedly. Writing "1" to this bit sets repeated operation. Writing "0" to this bit sets single-shot operation.

For details, see "9.2. Fixed-cycle Timer Interrupt Function ".

∗

2) AF bit ( Alarm Flag )

This is a flag bit that retains the result when an alarm interrupt event has been detected. When an alarm interrupt event occurs, this bit's value changes from "0" to "1".

For details, see "9.3. Alarm Interrupt Function".

∗

3) TF bit ( Timer Flag )

This is a flag bit that retains the result when a fixed-cycle timer interrupt event has been detected. When a fixed-cycle timer interrupt event occurs, this bit's value changes from "0" to "1".

For details, see "9.2. Fixed-cycle Timer Interrupt Function ".

∗

4) AIE bit ( Alarm Interrupt Enable )

This bit sets the operation of the /INT interrupt signal when an alarm interrupt event has occurred (the AF bit value changes from "0" to "1"). When a "1" is written to this bit, occurrence of an interrupt event causes a low-level interrupt signal to be output from /INT pin. Writing "0" to this bit prohibits low-level output from the /INT pin.

For details, see "9.3. Alarm Interrupt Function".

∗

5) TIE bit ( Timer Interrupt Enable )

This bit sets the operation of the /INT interrupt signal when a fixed-cycle interrupt event has occurred (the TF bit value changes from "0" to "1"). When a "1" is written to this bit, occurrence of an interrupt event causes a low-level interrupt signal to be output from /INT pin.

Writing "0" to this bit prohibits low-level output from the /INT pin.

∗ For details, see "9.2. Fixed-cycle Timer Interrupt Function ".

Page − 13

ETM12E-01

RX − 8564 LC

13.1.3. Clock counter ( Reg − 02 [h] to 04 [h] )

Address [h]

02 Seconds VL 40 20 10 8 4 2 1

Function bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0

03 Minutes 04 Hours

× × ×

• The clock counter counts seconds, minutes, and hours.

40 20 10 8 4 2 1

20 10 8 4 2 1

• The data format is BCD format. For example, when the "seconds" register value is "0101 1001" it indicates 59 seconds.

∗ When overwriting time data, we recommend setting "1" to the STOP bit to stop the clock before overwriting. (This

prevents unintentional carry operations from occurring while overwriting data.)

∗ Note with caution that writing non-existent time data may interfere with normal operation of the clock counter.

1) [

Seconds

] register ( Reg − 02 [h] )

This counter counts seconds. Count values are updated as: 00 seconds, 01 second, 02 to 59 seconds, 00 seconds, 01 second, etc. in that order.

2) [

Minutes

] register ( Reg − 03 [h] )

This counter counts minutes. Count values are updated as: 00 minutes, 01 minute, 02 to 59 minutes, 00 minutes, 01 minute, etc. in that order.

3) [

] register ( Reg − 04 [h] )

Hours

The [Hours] counter uses a 24-hour clock. Count values are updated as: 00 hours, 01 hour, 02 to 23 hours, 00 hours, 01 hour, etc. in that order.

4) VL bit ( Voltage Low Flag )

This is a flag bit that retains the result when detecting low voltage.

When the power source's vol t age drops below VLOW[V]*, this flag is s et to 1.

If this bit's value is "1" when read, this RTC's data is ignored, in which case all registers should be initialized before being used.

(1) A "1" is set to this VL flag during initial power-on (from 0 V). Since the value of other registers is undefined at this time, be sure to reset all registers before using

them.

(2) When recovering from backup mode, read this VL flag, and if its value is "1" be sure to initialize the

registers before using them. (3) When initializing, be sure to clear this VL flag to zero to prepare for the next voltage detection. (4) This VL flag was designed to provide a voltage drop warning after the voltage of the backup battery or

other devices has gradually dropped, and it is not designed to respond to sharp fluctuations in voltage

due to power supply chatter, etc.

(1) VL= ” 1 ” (2) VL= ” 0 ” (3) VL= ” 1 ”

LOW

GND

(1) VL="1" as res ult of initial supply of power

(2) When the power supply is low but voltage not dropping t o V

with no change

(3) When the power supply is low and voltage dropping belo w V

∗

The value of the VL bi t in (2) and (3) need to be zero cleared in (1).

LOW

GND=0 V

, VL remains at "0"

, VL becomes "1".

(5) This VL flag is cleared via a write operation regardless of data. Be sure to read this flag's value before writing to this register.

Page − 14

ETM12E-01

RX − 8564 LC

13.1.4. Calendar counter ( Reg − 05 [h] , 07 [h] , 08 [h] )

Address [h]

Function bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0

05 Days 07 Months / Century C 08 Years 80 40 20 10 8 4 2 1

• The auto calendar function updates all dates, months, and years from January 1, 2001 to December 31, 2099.

• The data format is BCD format. For example, a date register value of "0011 0001" indicates the 31st. ∗ Note with caution that writing non-existent date data may interfere with normal operation of the calendar counter.

1) [

] register ( Reg − 05 [h] )

Day

• This is the date counter. Updating of this counter varies depending on the month.

∗ A leap year is set whenever the year value is a multiple of four (such as 04, 08, 12, 88, 92, or 96). In

February of a leap year, the counter counts dates from "01," "02," "03," to "28," "29," "01," etc.

[ Days ]

Write / Read

2) [

Months / Century

] register ( Reg − 07 [h] )

• This is the month counter.

It is updated in annual cycles of regularly ordered months (January, February, March, etc.).

3) [ YEAR ] register ( Reg − 08 [h] )

• This is the year counter. It is updated in 100-year cycles of regularly ordered years (00, 01, 02 to 99, etc.).

∗ Any year that is a multiple of four (04, 08, 12, 88, 92, 96, etc.) is handled as a leap year.

4) C bit ( Century bit )

• This bit indicates change of century. ∗ When the year digit data overflows from 99 to 00, this bit is set. By presetting it to 0 while still in the 20th

century, it will be set in year 2000, but in fact the first year in the 21 century should be 2001.

13.1.5. Day counter ( Reg − 6[h] )

Address [h]

Function bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0

× ×

Month Date update pattern

1, 3, 5, 7, 8, 10, or 12 4, 6, 9, or 11 February in normal year February in leap year

20 10 8 4 2 1

10 8 4 2 1

01, 02, 03 ∼ 30, 31, 01 ∼ 01, 02, 03 ∼ 30, 01, 02 ∼ 01, 02, 03 ∼ 28, 01, 02 ∼ 01, 02, 03 ∼ 28, 29, 01 ∼

06 Weekdays

• The day (of the week) is indicated by 3 bits, bit 0 to bit 2. [

Weekdays

]

× × × × ×

bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0 Day

× × × × × × × × × × × × × × ×

Write / Read

× × × × × × × × × × × × × × × × × × × ×

0 0 0 Sunday 0 0 1 Monday 0 1 0 Tuesday 0 1 1 Wednesday 1 0 0 Thursday 1 0 1 Friday 1 1 0 Saturday

4 2 1

∗ Note with caution that any settings other than the seven listed above may prevent normal operation.

Page − 15

ETM12E-01

RX − 8564 LC

13.1.6. Alarm registers ( Reg − 09 [h] to 0C [h] )

Address [h]

09 Minute Alarm AE 40 20 10 8 4 2 1

Function bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0

0A Hour Alarm AE 0B Day Alarm AE

0C Weekday Alarm AE

• The AIE bit and AF bit can both be set or used when using alarm interrupt function to set interrupt events for dates, days, hours, minutes, etc.

• When the current time matches the settings in the above alarm registers, the AF bit's value is "1" and the /INT pin's status is low to indicate that an alarm interrupt event has occurred.

∗

For details, see "9.3. Alarm Interrupt Function".

13.1.7. Timer setting register ( Reg − 0E [h] )

Address [h]

Function bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0

0E Timer control TE

• This register is used to control the fixed-cycle timer interrupt function.

• To use the fixed-cycle timer interrupt function, the TI/TP bits (Reg − 01 [h]), timer register (Reg − 0F [h]), and the

TF and TIE bits are all set or used.

1) TE bit ( Timer Enable )

This bit is used to control operation of the fixed-cycle timer interrupt function. When "1" is written to this bit, the fixed-cycle timer interrupt function starts operating. When "0" is written to this bit, the fixed-cycle timer interrupt function stops operating.

∗ For details, see "9.2. Fixed-cycle Timer Interrupt Function ".

2) TD1,TD0 bits ( Timer countDown interval select 1, 0 )

These bits specify the fixed-cycle timer interrupt function's countdown period (source clock). Four different periods can be selected via combinations of these two bit values.

∗ For details, see "9.2. Fixed-cycle Timer Interrupt Function ".

13.1.8. Down counter for fixed-cycle timer ( Reg − 0F [h] )

Address [h]

Function bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0

× ×

20 10 8 4 2 1 20 10 8 4 2 1

× × × ×

× × × × ×

4 2 1

TD1 TD0

0F Timer 128 64 32 16 8 4 2 1

• This register is used to set the default (preset) value for the counter. Any count value from 1 (01 h) to 255 (FFh) can be set

• To use the fixed-cycle timer interrupt function, the TE, TI/TP, TF, TIE, TD1, and TD0 bits are set and used.

• When this down counter's count value changes from 01h to 00h, when TF bit = "1", or when the /INT pin is at low

level ("L"), it indicates that a fixed-cycle timer interrupt event has occurred.

• The current countdown status can be checked by reading this register.

∗ However, since the read data is not held (the data may be changing), to obtain accurate data the countdown

status should be read twice and then compared.

∗ For details, see "9.2. Fixed-cycle Timer Interrupt Function ".

Page − 16

ETM12E-01

RX − 8564 LC

13.1.9. CLKOUT output register (Reg - 0D [h])

Address [h]

Function bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0

0D CLKOUT frequency FE

• This register is used to control clock output via the CLKOUT output pin.

× × × × ×

FD1 FD0

• This register is valid only when the CLKOE input pin is at high level, at which time clock output is enabled or disabled (stopped) depending on the settings in this register. ∗ When the CLKOE input pin is at low level, CLKOUT is at low level regardless of the settings in this register.

1) FE bit ( F

requency

output Enable )

When this register is valid (when CLKOE is at high level), it is used to control the CLKOUT pin's output status. When the FE bit value is "1", the CLKOUT pin is in output mode. The content being output at that time is the frequency specified via the FD1 and FD0 bit. When the FE bit value is "0", the CLKOUT pin is output STOP mode (= low level).

2) FD1, FD0 bits

A combination of the FD1 and FD0 bits is used to select the frequency to be output.

3) CLKOUT output based on various settings

CLKOE pin

input

bit

FD1

bit

0 0 0 1 1 0

" H "

1 1

" L "

Χ : don't care

0 1 0

Χ Χ Χ Χ Χ Χ

FD0

bit

CLKOUT pin

output

32768 Hz Output ( C-MOS )

1024 Hz Output ( C-MOS )

32 Hz Output ( C-MOS )

1 Hz Output ( C-MOS )

OFF OFF OFF

( " L " ) ( " L " ) ( " L " )

∗ During initial power-on (from 0 V), "1" is set to the FE bit by the power-on reset function, and the FD1

and FD0 bits are reset to zero.

Consequently, 32.768 kHz output can be obtained from the CLKOUT output pin by setting the CLKOE

input pin to high level.

Note) Re: CLKOUT output operation when STOP bit value is "1"

Note with caution that when the STOP bit value is "1", output via CLKOUT may be stopped, depending on the selected frequency. (1) When 32.768 kHz output has been selected, output continues at 32.768 kHz. (2) When any other frequency has been set (1024Hz, 32Hz, or 1Hz), CLKOUT output is stopped.

Page − 17

ETM12E-01

RX − 8564 LC

13.2. Fixed-cycle Timer Interrupt Function

13.2.1. Overview of fixed-cycle timer interrupt function

The fixed-cycle timer interrupt function generates an interrupt event periodically at any fixed cycle set between

244.14 µs and 255 minutes.

There are two operation modes: "level interrupt mode" whereby the operation ends after one time, and "repeated

interrupt mode" whereby the operation is automatically repeated.

When either of these interrupt events occurs, the event's occurrence is indicated by the "1" value set to the TF

bit and by the low-level ("L") status of the /INT pin.

• The fixed-cycle timer interrupt function is used with several combinations of settings.

(1) Operation mode setting (level interrupt mode or repeated interrupt mode) (2) Fixed-cycle timer operation period setting (period = countdown reference cycle × count value) (3) Setting as to whether to output (at low level) an interrupt signal from the /INT output pin after a specified

amount of operation time has elapsed.

• When operation of the fixed-cycle timer starts (TE, "0" → "1"), various events occur after the specified time has

elapsed. (1) The TF (Timer Flag) bit value, which indicates when a fixed-cycle timer interrupt event has occurred, changes

from "0" to "1".

(2) When the TIE (Timer Interrupt Enable) bit value is "1", the /INT output pin status changes from Hi-Z to "L".

1) Overview of level interrupt mode (TI/TP bit = "0")

Once an interrupt event has occurred, the operation ends after one iteration. ∗ However, if only the TF bit is cleared to zero without stopping operation of the fixed-cycle timer (TE bit

value remains "1"), note with caution that an interrupt event will occur during the next timer cycle (period).

If an interrupt event occurs during level interrupt mode, the /INT output goes to low level. The low level output is maintained as it is until the TF bit is cleared to zero. (When TIE = "1" )

∗Example of /INT operation

TIE = " 1 " TF = " 0 " TF = " 0 " TE = " 0 "

→ " 1

period

2) Overview of repeated interrupt mode (TI/TP bit = "1")

After an interrupt event occurs, the operation is automatically repeated. When an interrupt event occurs during repeated interrupt mode, /INT output goes to low level only during

the tRTN period, and then it is automatically canceled and returns to Hi-Z status. However, even after returning to Hi-Z status, similar /INT output is obtained after the next interrupt event occurs. Afterward, this is repeated until fixed-cycle timer operation is stopped.

∗Example of /INT operation

TIE = " 1 " TF = " 0 " TF = " 0 " TE = " 0 "

→ " 1

period

→ " 1

uto reset tim

tRTN

→ " 1

TF = " 1 "→ " 0 "

TIE = " 1 "→ " 0 "

Page − 18

ETM12E-01

RX − 8564 LC

3) Overview of fixed-cycle timer interrupt function

(1) Changing the TE (Timer Enable) bit value from "0" to "1" starts operation of the fixed-cycle timer

interrupt function.

(2) When the TE bit = "1", the timer's down counter (Timer Register/Reg − 0F[h]) counts down once per

cycle (countdown cycle) of the source clock that was selected via the TD1 and TD0 bits (Timer countdown interval select bits 1 and 0).

(3) The following processing is executed after an event is triggered by the countdown reaching a count

value of "0".

∗1) The TF (Timer Flag) bit value becomes "1". ∗2) When the TIE (Timer Interrupt Enable) bit value becomes "1", the /INT output pin's status changes

∗3) The timer's down counter automatically returns to the preset value and then the countdown

(4) When the TE bit is cleared from "1" to 0", the fixed-cycle timer interrupt function stops.

∗1) The TF bit value remains "1" until it is cleared to zero (even if the fixed-cycle timer function has been

∗2) The timer's down counter value becomes invalid once the fixed-cycle timer function has been

∗ Operation example

∗ Operation example during repeated interrupt mode and when preset value is "5" (05h).

TE-bit

Timer Enable )

(

Timer's down counter (Timer Register)

Fixed-cycle timer interrupt Internal event occurs at

( )

∗ Before starting the fixed-cycle timer interrupt function each time, be sure to write a value (preset

value/Reg-0F[h]) as the down counter value for the timer (when TE = "0").

(Note) Note with caution that the preset value must be set or reset to enable correct operation.

∗ Timer cycle (Period) = Source clock × value (preset value) set to timer's down counter

from Hi-z to "L".

∗ After the /INT output pin's status changes from Hi-z to "L", the /INT status is either held at low

level or automatically cleared, depending on the TI/TP bit's setting from the operation mode (level interrupt mode or repeated interrupt mode).

operation is repeated.

∗ When the TE bit value is "1", countdown operation of the timer's down counter will be repeated

regardless of the operation mode or of any event that has occurred.

stopped).

stopped.

∗ When the fixed-cycle timer interrupt function is stopped, the timer's down counter value and the

preset value both become invalid.

∗ The preset value must be written again (when TE = "0") in order to start the fixed-cycle timer

interrupt function again.

" 1 "

4321

Period

" 0 "

4321

Period Period

(Timer function is OFF )

Countdown is stopped

∗

Count value and prese t

∗

value are invalid.

part

4 3 2 1

(Timer function is ON )

Source

clock

/INT output (Open drain output)

∗ When the TE-bit is changed to "1", the countdown starts from the pr ese t value , whic h is "5" (05h) in this example.

Page − 19

When TIE = "1"

∗

output is at low lev el only during tRTN

period.

ETM12E-01

RX − 8564 LC

13.2.2. Related registers for function of timer interrupts.

Address [h] Function bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0

01 Control 2 0 0E Timer control 0F Timer

× × × × ×

128 64 32 16 8 4 2 1

AIE

TIE

TD1 TD0

∗ Before starting the fixed-cycle timer interrupt function each time, be sure to write a va lue (preset value/Reg-0F[h])

as the timer's down counter value (when TE = "0").

(Note) Note with caution that the preset value must be set or reset to enable correct operation. ∗ Before entering operation settings, we recommend first clearing the TE bit to "0" and then clearing the TF and TIE

bits to "0" in that order, so that all control-related bits are zero-cleared (= set to operation stop mode) to prevent hardware interrupts from occurring inadvertently while entering settings.

1) TI / TP bit ( Interrupt Signal Output Mode Select. Interrupt / Periodic )

When a fixed-cycle timer interrupt event occurs, this bit selects whether to end the operation after one iteration or to repeat the operation.

Write / Read

Data Description

[Level interrupt mode]

Fixed-cycle timer interrupt function operates one time only

∗) Another operation can be set via various bit settings.

[Repeated interrupt mode] Fixed-cycle timer interrupt function operates repeatedly

(∗)

2) TD1, TD0 bits ( Timer countDown interval select 1, 0 )

These bits specify the fixed-cycle timer interrupt function's countdown period (source clock). Four different periods can be selected via combinations of these two bit values.

/INT auto recovery time tRTN

TD1,

TD0

TD1

( bit 1 )

0 0 4096 Hz

W / R

0 1 64 Hz 1 0 1 1

TD0

( bit 0 )

1 Hz

1/60 Hz

Source clock

/ 244.14 µs cycle 122 µs 244 µs / 15.625 ms cycle 7.813 ms 15.625 ms / Updated per second / Updated per minute

during repeated interrupt mode

Preset value

n = 1

Preset value

1 < n

15.625 ms 15.625 ms

∗1) During repeated interrupt mode (TI/TP bit = "1"), the auto recovery time tRTN (when the /INT pin is

switched from low level to Hi-Z) varies according to the source clock and preset value, as shown above.

∗2) The countdown when a 1-Hz source clock has been selected is linked to updating of the internal clock's

seconds setting. ∗ Since the internal clock is linked to updating of the seconds setting, if the timer is started at a clock time of 0.9 seconds, the first countdown will occur only 0.1 second later. (The second and subsequent countdowns will occur at the correct time interval.)

∗2) The countdown when a 1/60-Hz source clock has been selected is linked to updating of the internal

clock's minutes setting. ∗ Since the internal clock is linked to updating of the minutes setting, if the timer is started at a clock time of 50 seconds, the first countdown will occur only 10 seconds later. (The second and subsequent countdowns will occur at the correct time interval.)

Page − 20

ETM12E-01

RX − 8564 LC

3) Down counter for fixed-cycle timer ( Timer Register )

This register is used to set the default (preset) value for the counter. Any count value from 1 (01 h) to 255 (FFh) can be set

When the fixed-cycle timer interrupt function is operating, the down counter counts down one step per source clock cycle, and when the count value goes from 01h to 00h, an event such as changing the TF bit value to "1" occurs.

∗ When the fixed-cycle timer function has been stopped (when the TE bit value has been changed from "1"

4) TE bit ( Timer Enable )

5) TF bit ( Timer Flag )

to "0"), the timer's down counter value and preset value both become invalid.

∗ The preset value must be written again (when TE = "0") in order to start the fixed-cycle timer interrupt

function again.

∗ The status during a countdown can be checked by reading this register.

( However, since the read data is not held (the data may be changing), to obtain accurate data the

countdown status should be read twice and then compared. )

This bit enables operation of the of the fixed-cycle timer interrupt function to start.

Write / Read

This is a flag bit that retains the result when a fixed-cycle timer interrupt event is detected. If it was already cleared to zero, this value changes from "0" to "1" when an event occurs, and the new

value is retained.

Write

Read

Data Description

0 Stops fixed-cycle timer interrupt function 1 Starts fixed-cycle timer interrupt function

Data Description

The TF bit is cleared to zero (to cancel the interrupt event), to prepare for the next event detection.

Note) Even after the interrupt event has been canceled, the fixed-cycle timer

function operates continuously as long as the TE bit (Timer Enable) value is "1".

∗ Level interrupt mode (single-shot operation)

1) Clearing the TF bit to zero cancels the low-level status of the /INT pin (the /INT pin goes to Hi-Z status) .

2) When the TE bit value remains "1", the timer's down counter continues

to count down, and when the counter value goes form 01h to 00h, the TF bit value is again changed to "1", the /INT pin goes to low level, and an event occurs.

1 This bit is invalid after a "1" has been written to it. 0 Fixed-cycle timer interrupt events are not detected.

Fixed-cycle timer interrupt events are detected.

∗ Result is retained until this bit is cleared to zero

Page − 21

ETM12E-01

RX − 8564 LC

6) TIE bit ( Timer Interrupt Enable )

13.2.3. Fixed-cycle timer interrupt interval (example)

This bit is used to control output of interrupt signals from the /INT pin when a fixed-cycle timer interrupt event has occurred.

When a "1" is written to this bit, occurrence of an interrupt event causes a low-level interrupt signal to be output from /INT pin. When a "0" is written to this bit, output from the /INT pin is prohibited (disabled).

TIE

Data Description

1) When a fixed-cycle timer interrupt event occurs, an interrupt signal is not

generated or is canceled (/INT status remains Hi-Z).

2) When a fixed-cycle timer interrupt event occurs, the interrupt signal is

canceled (/INT status changes from low to Hi-Z).

Write / Read

When a fixed-cycle timer interrupt event occurs, an interrupt signal is generated (/INT status changes from Hi-Z to low).

∗ Level interrupt mode (single-shot operation) If the TIE bit value is changed from "0" to "1" without first canceling the

interrupt event, the /INT pin immediately goes to low level.

The combination of the source clock settings (settings in TD1 and TD0) and fixed-cycle timer countdown setting (Reg−C setting) sets the fixed-cycle timer interrupt interval, as shown in the following examples.

Source clock

Timer Counter

setting

(00h) − − − −

(01h) 244.14 µs

(02h) 488.28 µs

(03h) 732.42 µs

•

255

• Fixed-cycle timer interrupt time error and fixed-cycle timer interrupt interval time

(FFh)

4096 Hz

TD1,0 = 0,0

64 Hz

TD1,0 = 0,1

15.625 ms 1 s 1 min

31.250 ms 2 s 2 min

46.875 ms 3 s 3 min

•

62.26 ms 3.984 s 255 s 255 min

1 Hz

(When seconds

setting is updated)

TD1,0 = 1,0

•

A fixed-cycle timer interrupt time error is an error in the selected source clock's

1/60 Hz

(When minutes

setting is updated)

TD1,0 = 1,1

•

interval time.

−1

Accordingly, the fixed-cycle timer interrupt's interval (one cycle) falls within the following range in relation to the set time.

Fixed-cycle timer interrupt's interval

(Fixed-cycle timer interrupt's set time(∗) − source clock interval) to (fixed-cycle timer interrupt set time)

∗) Fixed-cycle timer interrupt's set time = Source clock setting × Countdown timer setting for fixed-cycle timer

∗ The time actually set to the timer is adjusted by adding the time described above to the

communication time for the serial data transfer clock used for the setting.

Page − 22

ETM12E-01

RX − 8564 LC

13.2.4. Diagram of fixed-cycle timer interrupt function

13.2.4.1. Operation example of level interrupt mode ( TI / TP = " 0 " )

• After an interrupt event has occurred, this function operates only once.

Start of fixed-cycle timer operation

TE bit

TIE bit

(1)

" 1 "

(4)

(5)

∗ Even if the TEbit is cleared to zero, the TF bit value

(6)

is held as "1". Also, the /INT pin is not canceled. The TF bit value is held until it is directly cleared to zero.

" 1 " " 0 "

" 1 "

" 0 "

/INT output

TF bit

Internal interrupt

processing

(3)

1st period

→ 00

• • •

(1)

∗ The fixed-cycle timer function starts (the countdown starts) when the TE bit value changes from "0" to "1".

∗

Before starting the fixed-cycle timer interrupt function each time, be sure to write a value

(preset value/Reg-0F[h]) as the timer's down counter value (when TE = "0").

RTC's internal operation

Write operation

01 h

(2)

2nd period

• • •

01 h→00 h

(6)

∗ After the TF bit is cleared to zero, the

/INT pin is set to Hi-Z mode regardless of the TE bit's value.

(7)

∗

When the TF bit is cleared to zero, /INT is canceled.

∗

When TE = "0" the countdown is stopped

Hi - z " L "

" 1 "

" 0 "

∗ Before starting the fixed-cycle timer interrupt function each time, be sure to write a va lue (preset value/Reg-0F[h])

as the timer's down counter value (when TE = "0").

bits to "0" in that order, so that all control-related bits are zero-cleared (= set to operation stop mode) to prevent hardware interrupts from occurring inadvertently while entering settings.

(1) When the TE bit value is changed from "0" to 1", the fixed-cycle timer's countdown begins. (2) A fixed-cycle timer interrupt event occurs when the down counter value goes from 01h to 00h during a

countdown in which the down counter's count value is decremented at each source clock cycle. (3) When a fixed-cycle timer interrupt event occurs, the TF bit value is changed to "1". (4) If the TIE bit = "1" when a fixed-cycle timer interrupt occurs, /TIRQ pin output goes low.

∗ If the TIE bit = "0" when a fixed-cycle timer interrupt occurs, /TIRQ pin output remains Hi-Z. (5) During the period when the TF bit value is "1" following the occurrence of an interrupt event, the TIE bit can be

set to switch the /INT pin to any status. (6) As long as the TE bit value remains “1", the operation sequence "countdown by timer's down counter → internal

event processing → loading of preset value → countdown…" is repeated regardless of the operation mode, etc.

However, this operation sequence has no effect unless the TF bit has been cleared to zero.

∗ If the TE bit value remains "1" and only the TF bit is cleared to zero, (the fixed-cycle timer continues to

operate), note with caution that an interrupt event will occur the next time the counter value changes from 01h to 00h (the TF bit will become "1" again and the /INT pin status will be "L").

(6) When the TF bit = "1" its value is retained until it is cleared to zero. Even when the TE bit is cleared to zero, the TF bit value is retained as "1" and the /INT pin status is not reset.

(7) After the TF bit is cleared to zero, the /TIRQ pin is set to Hi-Z status regardless of the TIE bit's value.

Page − 23

ETM12E-01

RX − 8564 LC

13.2.4.2. Operation example of repeated interrupt mode ( TI / TP = " 1 " )

• After an interrupt event has occurred, execution of the operation is automatically repeated continuously.

Fixed-cycle timer operation

TE bit

starts

(1)

" 1 "

Fixed-cycle timer operation in progress

Fixed-cycle timer operation

sto

(10)

" 1 " " 0 "

TIE bit

(5)

(9)

" 1 " " 0 "

Hi - z

/INT output

TF bit

Event occurs

RTC's internal operation

• • •

→ 00

(1)

∗

The fixed-cycle timer function (countdown) starts when the TE bit value is changed from "0"to "1".

∗

Before starting the fixed-cycle timer interrupt function each time, be sure to write a value (preset

value/Reg-0F[h]) as the timer's down counter value (when TE = "0").

01 h

(3)

(6)

(4)

2nd period1st period 3rd period

(2)

tRTNtRTN

(8)

∗

Low level is held during tRTN, even if the TF bit is cleared to zero.

(7)

tRTN

(11)

∗

TF bit value is held as "1" even if the TE bit is clear e d t o zero.

(10)

∗

As long as the TE bit value is "0", the countdown is stopped and no events occ ur.

" L "

" 1 " " 0 "

Write operation

∗ Before starting the fixed-cycle timer interrupt function each time, be sure to write a va lue (preset value/Reg-0F[h])

as the timer's down counter value (when TE = "0").

bits to "0" in that order, so that all control-related bits are zero-cleared (= set to operation stop mode) to prevent hardware interrupts from occurring inadvertently while entering settings.

(1) When the TE bit value is changed from "0" to 1", the fixed-cycle timer's countdown begins. (2) A fixed-cycle timer interrupt event starts a countdown based on the countdown period (source clock). When the

count value changes from 01h to 00h, an interrupt event occurs.

∗

After the interrupt event that occurs when the count value changes from 01h to 00h, the counter

automatically reloads the preset value and again starts to count down. (Repeated operation)

(3) When a fixed-cycle timer interrupt event occurs, "1" is written to the TF bit. (4) When the TF bit = "1" its value is retained until it is cleared to zero.

∗ ( 11 ) Even when the TE bit is cleared to zero, the TF bit value is retained as "1" and the /TIRQ pin status is

not reset.

(5) If the TIE bit = "1" when a fixed-cycle timer interrupt occurs, /INT pin output goes low. ∗ ( 9 ) If the TIE bit = "0" when a fixed-cycle timer interrupt occurs, /INT pin output remains Hi-Z.

(6) Output from the /INT pin remains low during the tRTN period following each event, after which it is automatically

cleared to Hi-Z status.

(7) When the next interrupt event occurs, the /INT is again set to low level ("L"). ∗ (4) In this operation example, the TF bit is not cleared to zero, so the "1" value is held.

(8) When /INT is at low level ("L"), it remains at low level during the tRTN period, even if the TF bit value is changed

from "1" to "0".

(10) Changing the TE bit value from "1" to 0" stops the fixed-cycle timer's function (stops the countdown).

Page − 24

ETM12E-01

RX − 8564 LC

13.3. Alarm Interrupt Funct ion

13.3.1. Diagram of alarm interrupt function

The alarm interrupt generation function generates interrupt events for alarm settings such as date, day, hour, and minute settings.

When an interrupt event occurs, the AF bit value is set to "1" and the /INT pin goes to low level to indicate that an event has occurred. ∗ When an alarm interrupt event occurs, low-level output from /AIRQ is not automatically reset (it can be reset only intentionally) and the low-level status of /AIRQ is retained.

∗Example of /INT operation

IE bit

/INT output

F bit

Event occurs

RTC internal operation

Write operation

AIE = " 1 " ( AF = " 0 " → " 1 " )

" 1 "

(4)

(2)

(1)

AF = " 1 " → " 0 " or AIE = " 1 "

→ " 0

" 1 " " 0 "

(5)

(7)

Hi - z " L "

(6)

(3)

" 1 " " 0 "

(1) The minute, hour, day of week (weekday), and date at which an alarm interrupt event will occur is set in

advance, and the interrupt event occurs when the current time matches this pre-set time. (2) When a time alarm interrupt event occurs, the AF bit values becomes "1". (3) When the AF bit = "1", its value is retained until it is cleared to zero. (4) If AIE = "1" when an alarm interrupt occurs, the /INT pin output goes low.

∗ When an alarm interrupt event occurs, /INT pin output goes low, and this status is then held until it is cleared

via the AF bit or AIE bit.

(5) If the AIE value is changed from "1" to "0" while /INT is low, the /INT status immediately changes from low to Hi-

z. ∗ After the alarm interrupt occurs and before the AF bit value is cleared to zero, the /INT status can be

controlled via the AIE bit.

(6) If the AF bit value is changed from "1" to "0" while /INT is low, the /INT status immediately changes from low to

Hi-z. (7) If the AIE bit value is "0" when an alarm interrupt occurs, the /INT pin status remains Hi-z.

Page − 25

ETM12E-01

RX − 8564 LC

13.3.2. Alarm interrupt function registers

Address [h] Function bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0

01 Control 2 0 03 Minutes

04 Hours 05 Days 06 Weekdays

09 Minute Alarm 0A Hour Alarm 0B Day Alarm 0C Weekday Alarm

40 20 10 8 4 2 1

× × × × × × × × ×

AE 40 20 10 8 4 2 1 AE

× × × × × ×

TI / TP

AIE

TIE

20 10 8 4 2 1 20 10 8 4 2 1

4 2 1

20 10 8 4 2 1

4 2 1

∗ Before entering settings for operations, we recommend writing a "0" to the AIE bit to prevent hardware interrupts

from occurring inadvertently while entering settings.

1) Alarm registers ( Reg − 09 [h] to 0C [h] )

The hour, minute, date or day when an alarm interrupt event will occur is set using this register and the AE bit.

When the settings made in the alarm registers match the current time, the AF bit value is changed to "1". At that time, if the AIE bit value has already been set to "1", the /INT pin goes low.

• AE bit ∗1) When the AE bit value is "1", the data concerning the setting in question is ignored and is not

subject to any comparison that would trigger an alarm interrupt.

To exclude a setting from possibly triggering an alarm interrupt, write "1" to the AE bit in the register

corresponding to the setting in question.

(Example) To leave [hour], [minute], and [day of week (weekday)] settings as possible alarm interrupt

triggers while excluding only the [day] setting from being a possible alarm interrupt trigger: → Write 80h (AE = "1") to the register used for the [day] setting register (the DAY Alarm register, (Reg − 0B[h])).

∗2) If all four AE bits have a value of "1", no alarm interrupt events will occur.

2) AF bit ( Alarm Flag )

This is a flag bit that retains the result when an alarm interrupt event has been detected. When this flag bit value is already set to "0", occurrence of an alarm interrupt event changes it to "1".

Write

Data Description

The AF bit is cleared to zero to prepare for the next status detection

∗ Clearing this bit to zero enables /AIRQ low output to be canceled (/AIRQ

remains Hi-Z) when an alarm interrupt event has occurred.

Read

1 This bit is invalid after a "1" has been written to it. 0 Alarm interrupt events are not detected.

Alarm interrupt events are detected.

∗ Result is retained until this bit is cleared to zero.

Page − 26

ETM12E-01

RX − 8564 LC

3) AIE bit ( Alarm Interrupt Enable )

13.3.3. Examples of alarm settings

1) Basic information about alarm settings

2) Examples of alarm settings are listed below.

This bit is used to control interrupt signal output from the /INT pin when an alarm interrupt event has occurred.

Writing "1" to this bit causes a low-level interrupt signal to be output from the /INT pin when an interrupt event occurs. When a "0" is written to this bit, output from the /INT pin is prohibited (disabled).

AIE

Write / Read

∗ To detect when an alarm interrupt event has occurred without having to set the /INT pin to low level,

monitor the AF bit value (to see if it changes from "0" to "1") while keeping the AIE bit value as "0".

• Four parameters can be set as alarm objects: minute, hour, day, and date.

• Hour settings are based on a 24-hour clock.

• To exclude a setting from possibly triggering an alarm interrupt, write "1" to the AE bit in the register

corresponding to the setting in question.

∗ If all four AE bits have a value of "1", no alarm interrupt events will occur.

• Alarm interrupt events occur when conditions change to become conditions which trigger an alarm.

Data Description

1 ) When an alarm interrupt event occurs, an interrupt signal is not generated or is canceled (/INT status remains Hi-z).

2 ) When an alarm interrupt event occurs, the interrupt signal is canceled (/INT status changes from low to Hi-z).

When an alarm interrupt event occurs, an interrupt signal is generated (/INT status changes from Hi-z to low).

∗ If the AIE bit value is changed from "0" to "1" without first canceling an

interrupt event (i.e., if the AF bit value remains "1"), the /INT pin is immediately set to low level ("L").

Reg − 0C[h] Reg − 0B[h] Reg − 0A[h]

Reg − 09[h]

Weekday

Alarm

[Weekday] set

At 7:30 AM every Monday

At 7:30 PM on the 15th of each month

At the top of each =hour (one-hour cycle)

01 h

(Monday

[Weekday])

AE bit "1"

([Weekday]

ignored)

AE bit "1"

([Weekday]

ignored)

([Day] ignored)

([15] days)

([Day] ignored)

Day

Alarm

[Day] set

AE bit "1"

15 h

AE bit "1"

Hour

Alarm

[Hour] set

07h

(7:00 AM)

19 h

(7:00 PM)

AE bit "1"

([Hour] ignored)

Minute

Alarm

[Minute] set

30h

(30 [Minute])

30 h

(30 minutes)

00 h

(00 minutes)

Page − 27

ETM12E-01

RX − 8564 LC

13.4. /INT "L" Inter r upt O utput When Interrupt Function Operates

1) Setting interrupt events to occur in response to /INT "L" interrupt output

2) How to prevent /INT pin from going to low level ("L")

The /INT interrupt output pin is shared as the output pin for two kinds of interrupt events: events related to the fixed-cycle timer interrupt function and events related to the alarm interrupt function.

When an interrupt occurs (when /INT is at low level ("L")), read the TF and AF flags to determine which type of interrupt event occurred (which flag value changed to "1").

To prevent the /INT pin from going to low level ("L"), clear all TIE and AIE bits to zero. To detect when an interrupt event has occurred without having to set the /INT pin to low level, monitor the TF and AF flag bit values to see if the target interrupt event has occurred (i.e., to see if either flag bit value changes from "0" to "1").

Page − 28

ETM12E-01

RX − 8564 LC

13.5. Flow Charts

1) Initialization example

• The flow charts shown below are intended as examples only.

∗ These examples are written to be easily understood, and therefore they may not be as efficient as the actual

processing.

∗ Ways to boost processing efficiency include setting several processes as parallel processes and changing the

sequence of operations in areas where it does not create any problems. (Some of the processing described here may not be necessary under certain use conditions.)

∗ To ensure that operations are as expected, make adjustments according to the use conditions (use environment).

Initialization

Initialize Control 1

Initialize Control 2

Initialize the Control 1 register. (Reg-00[h])

•

Be sure to write "0" to the two TEST bits.

•

Initialize the Control 2 register. (Reg-01[h])

•

• Write "0" to the AIE and TI E bits to prevent output of unintended interrupts.

Set current time

Set "[Year/Month/Day [day of week] hour :minute:second]. (Reg-02[h]to

•

08[h])

For current time setting, refer to "W rite to clock and calendar" below.

∗

Set a larm interrupt

Set the alarm interrupt func tion. (Reg-09[h] to 0C[h])

• (If the alarm interrupt function is not being used, we recommend writi ng "1"

to all four AE bits.)

Set CLKOUT output

Set the CLKO UT output pin's output status. (Reg-0D[h] )

• (Since the initial power-on setti ng is "output 32.768 kHz clock", write "0" to

the FE bit to stop output.)

Set timer interrupt

Set the timer interrupt function. (Reg-0E[h] to 0F[h])

• (If the timer interrupt function is not used, write "0" to the TE bit.)

Go to next process

∗ The address auto increment f unction can be used to set continuous writing

from Re g - 00[h] to 0F[h] during initialization.

In such cases, be sure to write "1" to the STOP bit (to stop the clock) before

starting the continuous write oper ati on, and write "0" to the STOP bit (to start the clock) once initialization is completed.

2) Example of initial power-on processing

Initial power-on

processing

Wait

Initialization

To next process

Wait unt il the internal crystal oscillator has begun to osc illate.

• (This wait time should be about one second. For details, refer to the

regu latio n for the oscillation start time t

Be sure to initialize all registers.

• (For further description of initialization, see "Initialization" below.)

STA

[s].)

Page − 29

ETM12E-01

RX − 8564 LC

3) Example of processing to recover f r om backup mode

Backup recovery

processing

VL = " 0 " ?

Yes ( VL = " 0 " )

To next process

∗

No ( VL = " 1 " )

∗

Initialization

1) Check the VL bit (Voltage Low Flag).

∗

Wh en the VL bit = "1", it may be due to

∗3

∗2)

an error during bac kup (clock data or register settings may have been lost, due to a voltage drop, etc.), so be sure to initialize.

Be sure to initialize all registers. (For

∗3)

further description of initialization, see "Initialization" below.)

4) Example of clock and calendar write processing

Set current time

STOP ← " 1 "

Writ e "1 " to the STOP bit t o pr ev en t clock up da tes whil e s et t i ng th e c u rr e nt

•

time.

Write current tim e

Writ e th e data (amo ng the [Year /Month /Day [day of

•

week]:hour:minute:second] data) that needs to be set (or reset).

∗ When initializing be sure to initialize all of the data.

STOP

← " 0

Zero-clear the STOP bit to start (restart) the clock's operation.

• ∗ The clock starts from the set [s ec ond] + 500 ms (500 ms aft er the set

second). (The first [second] update occurs 500 ms later.)

To next process

5) Example of clock and calendar read processing

Read current time

To next process

• The required information (among the [Year/Month/Day [day of week]:hour:minute:second] data) is read within one second.

∗ There is no need to manipulate the STOP bit.

Page − 30

ETM12E-01

RX − 8564 LC

6) Example of timer interrupt function setting

Set timer interrupt

function

← " 0

TF ← " 0" TIE

← " 0

Zero-clear the TE bit to stop the timer interrupt function.

•

Zero-clear the TF bit and TIE bit to cancel the previous t i mer in terrup t output

•

(/IRQ out put).

i. Cancel timer interrupt

Set TI / TP bit

∗

• Select the operation mode (one-shot interrupt or repe ated continuous

interrupts).

1) When repeated continuous interrupts are selected Write "1" to the TI / TP bits.

2) When one-shot interrupt is selected

Write "0" to the TI / TP bits.

∗ 2

Set TIE bit

∗ 2

• Select event-triggered /INT output (output /do not output interrupt when at

low level).

1) Output interrupt when at low level

function

Write "1" to the TIE bit.

2) Do not output interrupt when at low level

ii. Set timer interrupt

Write "0" to t he TIE bit.

Set TD1, TD0 bit

Set the timer's countdown period (= source clock).

•

• Select using a combination of TD1 a n d T D 0 bit values.

Initialize counter

∗

• Set down counter's initial value. (Reg − 0F[h])

(Note) Be sure to set or reset the down counter's initial value each time.

← " 1

• Writ e " 1 " t o the TE bit to start th e timer int errupt functio n. (Note) Before starting the timer interrupt function, be sure to set or reset the

down counter's ini tial value (see ∗3 above).

Start timer interrupt function iii.

To next process

Page − 31

ETM12E-01

RX − 8564 LC

13.6. Reading/Writing Data via the I2C Bus Interface

13.6.1. Overview of I2C-BUS

The I2C bus supports bi-directional communications via two signal lines: the SDA (data) line and SCL (clock) line. A combination of these two signals is used to transmit and receive communication start/stop signals, data transfer signals, acknowledge signals, and so on.

Both the SCL and SDA signals are held at high level whenever communications are not being performed. The starting and stopping of communications is controlled at the rising edge or falling edge of SDA while SCL is at high level.

During data transfers, data changes that occur on the SDA line are performed while the SCL line is at low level, and on the receiving side the data is output while the SCL line is at high level. The I2C bus device does not include a chip select pin such as is found in ordinary logic devices. Instead of using a chip select pin, slave addresses are allocated to each device and the receiving device responds to communications only when its slave address matches the slave address in the received data. In either case, the data is transferred via the SCL line at a rate of one bit per clock pulse.

13.6.2. System configuration

All ports connected to the I2C bus must be either open drain or open collector ports in order to enable AND connections to multiple devices.

SCL and SDA are both connected to the V

line via a pull-up resistance. Consequently, SCL and SDA are both

held at high level when the bus is released (when communication is not being performed).

VDD

SDA SCL

Master

Transmitter/

Receiver

CPU, etc.

Slave

Transmitter/

Receiver

8564

[

Master

Transmitter/

Receiver

]

Other I2C bus device

Slave

Transmitter/

Receiver

Any device that controls the data transmission and data reception is defined as a "Master". and any device that is controlled by a master device is defined as a “Slave”. The device transmitting data is defined as a “Transmitter” and the device receiving data is defined as a receiver”

In the case of this RTC module, controllers such as a CPU are defined as master devices and the RTC module is defined as a slave device. When a device is used for both transmitting and receiving data, it is defined as either a transmitter or receiver depending on these conditions.

Page − 32

ETM12E-01

RX − 8564 LC

µµµµ

13.6.3. Starting and stopping I2C bus communications

START

condition

Repeated START(RESTART)

condition

STOP

condition

SCL

SDA

1) START condition, repeated START condition, and STOP condition

[ S ]

[ Sr ] [ P ]

1 s ( Max. )

(1) START condition

• The SDA level changes from high to low while SCL is at high level.

(2) STOP condition

• This condition regulates how communications on the I2C-BUS are terminated. The SDA level changes from low to high while SCL is at high level.

(3) Repeated START condition (RESTART condition)

• In some cases, the START condition occurs between a previous START condition and the next STOP condition, in which case the second START condition is distinguished as a RESTART condition. Since the required status is the same as for the START condition, the SDA level changes from high to low while SCL is at high level.

2) Caution points

∗1) The master device always controls the START, RESTART, and STOP conditions for communications. ∗2) The master device does not impose any restrictions on the timing by which STOP conditions affect

transmissions, so communications can be forcibly stopped at any time while in progress. (However, this is only when this RTC module is in receiver mode (data reception mode = SDA released).

∗3) When communicating with this RTC module, the series of operations from transmitting the START

condition to transmitting the STOP condition should occur

within 1 seconds

. (A RESTART condition may be sent between a START condition and STOP condition, but even in such cases the series of operations from transmitting the START condition to transmitting the STOP condition should still occur

seconds

within 1

If this series of operations requires

1 seconds or longer,

the I2C bus interface will be automatically cleared and set to standby mode by this RTC module's bus timeout function. Note with caution that both write and read operations are invalid for communications that occur during or after this auto clearing operation. (When the read operation is invalid, all data that is read has a value of "1").

Restarting of communications begins with transfer of the START condition again ∗4) When communicating with this RTC module, wait

at least 1.3 µs (see the tBUF rule)

between transferring a STOP condition (to stop communications) and transferring the next START condition (to start the next round of communications).

STOP

condition

START

condition

SCL

SDA

[ P ]

1.3

s (Min.)

[ S ]

Page − 33

ETM12E-01

RX − 8564 LC

13.6.4. Data transfers and acknowledge responses during I2C-BUS communications

1) Data transfers

Data transfers are performed in 8-bit (1 byte) units once the START condition has occurred. There is no limit on the amount (bytes) of data that are transferred between the START condition and STOP condition. (

However, the transfer time must be no longer than 1 seconds

The address auto increment function operates during both write and read operations.

After address Fh, incrementation goes to address 0h

Updating of data on the transmitter (transmitting side)'s SDA line is performed while the SCL line is at low level. The receiver (receiving side) receives data while the SCL line is at high level.

SCL

SDA

Data is valid

when data line is

stable

Data can be

changed

∗ Note with caution that if the SDA data is changed while the SCL line is at high level, it will be treated as a START, RESTART, or STOP condition.

2) Data acknowledge response (ACK signal)

When transferring data, the receiver generates a confirmation response (ACK signal, low active) each time an 8-bit data segment is received. If there is no ACK signal from the receiver, it indicates that normal communication has not been established. (This does not include instances where the master device intentionally does not generate an ACK signal.)

Immediately after the falling edge of the clock pulse corresponding to the 8th bit of data on the SCL line, the transmitter releases the SDA line and the receiver sets the SDA line to low (= acknowledge) level.

SCL from Master

SDA from transmitter (sendi ng side)

SDA from receiver (receiving side)

Release SDA

Low active

ACK signal

After transmitting the ACK signal, if the Master remains the receiver for transfer of the next byte, the SDA is released at the falling edge of the clock corresponding to the 9th bit of data on the SCL line. Data transfer resumes when the Master becomes the transmitter. When the Master is the receiver, if the Master does not send an ACK signal in response to the last byte sent from the slave, that indicates to the transmitter that data transfer has ended. At that point, the transmitter continues to release the SDA and awaits a STOP condition from the Master.

13.6.5. Slave address

The I2C bus device does not include a chip select pin such as is found in ordinary logic devices. Instead of using a chip select pin, slave addresses are allocated to each device. All communications begin with transmitting the [START condition] + [slave address (+ R/W specification)]. The receiving device responds to this communication only when the specified slave address it has received matches its own slave address.

Slave addresses have a fixed length of 7 bits. This RTC's slave address is

[1010

001

∗∗∗∗].

An R/W bit ("∗∗∗∗" above) is added to each 7-bit slave address during 8-bit transfers.

Transfer data

Read Write

A3 h A2 h

bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0

1 0 1 0 0 0 1

Slave address R/W bit

1 ( = Read) 0 ( = Write)

Page − 34

ETM12E-01

RX − 8564 LC

13.6.6. I

C bus protocol

In the following sequence descriptions, it is assumed that the CPU is the master and the [ 8564 ] is the slave.

1) Address specification write sequence

Since the [ 8564 ] includes an address auto increment function, once the initial address has been specified, the [ 8564 ] increments (by one byte) the receive address each time data is transferred.

(1) CPU transfers start condition [S]. (2) CPU transmits the [ 8564 ] 's slave address with the R/W bit set to write mode. (3) Check for ACK signal from [ 8564 ] . (4) CPU transmits write address to [ 8564 ] . (5) Check for ACK signal from [ 8564 ] . (6) CPU transfers write data to the address specified at (4) above. (7) Check for ACK signal from [ 8564 ] . (8) Repeat (6) and (7) if necessary. Addresses are automatically incremented. (9) CPU transfers stop condition [P].

(1)

2) Address specification read sequence

After using write mode to write the address to be read, set read mode to read the actual data.

(1) CPU transfers start condition [S]. (2) CPU transmits the [ 8564 ] 's slave address with the R/W bit set to write mode. (3) Check for ACK signal from [ 8564 ] . (4) CPU transfers address for reading from [ 8564 ] . (5) Check for ACK signal from [ 8564 ] . (6) CPU transfers RESTART condition [Sr] (in which case, CPU does not transfer a STOP condition [P]). (7) CPU transfers [ 8564 ] 's slave address with the R/W bit set to read mode. (8) Check for ACK signal from [ 8564 ] (from this point on, the CPU is the receiver and the [ 8564 ] is the transmitter). (9) Data from address specified at (4) above is output by the [ 8564 ] . (10) CPU transfers ACK signal to [ 8564 ] . (11) Repeat (9) and (10) if necessary. Read addresses are automatically incremented. (12) CPU transfers ACK signal for "1". (13) CPU transfers stop condition [P].

(1)

(2)

Slave address

3) Read sequence when address is not specified

Once read mode has been initially set, data can be read immediately. In such cases, the address for each read operation is the previously accessed address + 1.

(1) CPU transfers start condition [S]. (2) CPU transmits the [ 8564 ] 's slave address with the R/W bit set to read mode. (3) Check for ACK signal from [ 8564 ] (from this point on, the CPU is the receiver and the [ 8564 ] is the transmitter). (4) Data is output from the [ 8564 ] to the address following the end of the previously accessed address. (5) CPU transfers ACK signal to [ 8564 ] . (6) Repeat (4) and (5) if necessary. Read addresses are automatically incremented in the [ 8564 ] . (7) CPU transfers ACK signal for "1". (8) CPU transfers stop condition [P].

(1)

(2)

Slave address

(2)

Slave address

R/W

(3)

R/W

ACK from

Address

(3)

[

(4)

8564

(4)

Address

(4)

Data

]

(5)

ACK from

(5)

(6) Sr

8564

[

(5)

ACK signal from

]

(6)

Data

(7)

Slave address

ACK from CPU

(7)

8564

[

]

(8)

R/W

(6)

Data

(7)

(8)

Data

(9)

Data

(8)

(10)

(11) Data

ACK from CPU

(12)

(13)

Page − 35

ETM12E-01

butor



Application Manual

AMERICA

EPSON ELECTRONICS AMERICA, INC.

HEADQUARTER 150 River Oaks Parkway, San Jose, CA 95134, U.S.A. Phone: (1)800-228-3964 (Toll free) : (1)408-922-0200 (Main) Fax: (1)408-922-0238 http://www.eea.epson.com

Atlanta Office One Crown Center 1895 Phoenix Blvd. Suite 348 Atlanta, GA 30349 Phone: (1)800-228-3964 (Toll free) : (1)770-907-7667 (Main) Boston Office 301Edgewater Place, Ste. 120, Wakefield, MA 01880, U.S.A. Phone: (1)800-922-7667 (Toll free) : (1)781-246-3600 (Main) Fax: (1)781-246-5443 Chicago Office 101 Virginia St., Ste. 290, Crystal Lake, IL 60014, U.S.A. Phone: (1)800-853-3588 (Toll free) : (1)815-455-7630 (Main) Fax: (1)815-455-7633 El Segundo Office 1960 E. Grand Ave., 2nd Floor, El Segundo, CA 90245, U.S.A. Phone: (1)800-249-7730 (Toll free) : (1)310-955-5300 (Main) Fax: (1)310-955-5400

EUROPE

EPSON EUROPE ELECTRONICS GmbH

HEADQUARTER Riesstrasse 15, 80992 Munich, Germany Phone: (49)-(0)89-14005-0 Fax: (49)-(0)89-14005-110 http://www.epson-electronics.de
