User’s Guide for cameras with firmware upgraded to version 2.0
Copyright Notice
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means,
electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Seiko Epson Corporation. The information
contained herein is designed only for use with this Epson printer. Epson is not responsible for any use of this information as applied to other printers.
Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or
expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs,
or alterations to this product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation’s operating and maintenance
instructions.
Seiko Epson Corporation shall not be liable for any damages or problems arising from the use of any options or any consumable products other
than those designated as Original Epson Products or Epson Approved Products by Seiko Epson Corporation.
A Note Concerning Responsible Use of Copyrighted Materials
Epson encourages each user to be responsible and respectful of the copyright laws when using any Epson product. While some countries’ laws
permit limited copying or reuse of copyrighted material in certain circumstances, those circumstances may not be as broad as some people assume.
Contact your legal advisor for any questions regarding copyright law.
Trademarks
Epson is a registered trademark and Exceed Your Vision is a trademark of Seiko Epson Corporation.
General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective owners. Epson
disclaims any and all rights in those marks.
© 2006 Epson America, Inc. 12/06
2
Contents
Introduction
Warnings, Cautions, and Notes . . . . . . . . . . . . . . . . . . . 5
Chapter 1 Getting Started
Unpacking Your Camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Camera Parts and Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Attaching the Strap to the Camera . . . . . . . . . . . . . . . . . . . . 11
Using the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Installing the Battery in the Camera . . . . . . . . . . . . . . 13
Using a Memory Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Inserting a Memory Card . . . . . . . . . . . . . . . . . . . . . . . 14
Removing the Memory Card . . . . . . . . . . . . . . . . . . . . 14
Mounting and Removing Lenses . . . . . . . . . . . . . . . . . . . . . . 15
Incompatible Lenses . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Mounting an M-mount Lens . . . . . . . . . . . . . . . . . . . . 15
Removing an M-mount Lens . . . . . . . . . . . . . . . . . . . . 16
Mounting and Removing an L-mount Lens . . . . . . . 16
Selecting the Focal Length . . . . . . . . . . . . . . . . . . . . . . 16
Chapter 2 Taking Photos
Turning the Camera On and Off . . . . . . . . . . . . . . . . . . . . . . 18
Taking a Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Setting White Balance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Setting Image Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Setting ISO Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Setting the Exposure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Setting the Shutter Speed Automatically . . . . . . . . . . 21
Setting the Shutter Speed Manually . . . . . . . . . . . . . . 22
Setting the Aperture. . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Using the Light Meter . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Focusing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Chapter 3 Viewing and Managing Photos
Opening the LCD Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Viewing Images. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Viewing Photo Information . . . . . . . . . . . . . . . . . . . . . 28
Magnifying Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Running a Slide Show . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Managing Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Deleting Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Locking/Unlocking Images . . . . . . . . . . . . . . . . . . . . . 32
Selecting Photos to be Printed
(DPOF Setting). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Chapter 4 Customizing the Settings
Accessing the Settings Menu. . . . . . . . . . . . . . . . . . . . . . . . . . 34
Using the Jog Dial. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Setting Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Settings Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Basic Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
3
Chapter 5 Opening RAW Images on Your Computer
Software Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Installing the Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
EPSON PhotoRAW . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
EPSON RAW Plug-In . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Opening a RAW Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Using EPSON PhotoRAW . . . . . . . . . . . . . . . . . . . . . . .40
Using EPSON RAW Plug-In . . . . . . . . . . . . . . . . . . . . .40
Finding More Information . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Chapter 6 Maintenance and Troubleshooting
Setting the Time and Date. . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Calibrating the Status Gauge . . . . . . . . . . . . . . . . . . . . . . . . . .42
Formatting the Memory Card . . . . . . . . . . . . . . . . . . . . . . . . .42
Cleaning the Camera Body . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Cleaning the CCD Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Storing the Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Where To Get Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Internet Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Speak to a Support Representative. . . . . . . . . . . . . . . .45
Purchase Supplies and Accessories . . . . . . . . . . . . . . .45
Appendix
Standards and Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Lithium-ion Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Battery Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Image Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Optical System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Display Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Viewfinder Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Battery Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Optional Accessory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . 48
FCC Compliance Statement for United States Users. . . . . . 52
WARNING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Index
4
Introduction
The Epson R-D1 offers the convenience of digital imaging technology
with the classic features of a traditional rangefinder camera to produce
high-quality photographs and an enjoyable shooting experience.
Traditional rangefinder design
If you are already familiar with rangefinder photography, you will be
up to speed in no time with the R-D1. If you are new to this type of
camera, you will quickly discover the benefits of time-tested
rangefinder design, such as:
❏ Parallax-corrected bright-line frames within the viewfinder for
better composition
❏ Unobstructed and clear view of a subject during exposure
❏ Relatively silent and shock-free operations as compared to a single
lens reflex (SLR) camera
Wide variety of lenses available
The R-D1 is equipped with an EM mount, which accepts a wide variety
of M-type bayonet lenses originally introduced for film-based
rangefinder cameras. This opens up a world of possibilities with
hundreds of lenses to choose from, both vintage and contemporary.
With an adapter ring, L-mount lenses can also be used with the R-D1,
further enhancing its shooting potential.
Note:
The lenses you own and use on a film-based rangefinder camera may
produce unexpected results when used with the R-D1.
Life-size magnification
The R-D1 comes with a viewfinder with 1.0x magnification, so what
you see through the viewfinder is at the same size as seen with a naked
eye. Using both eyes you can easily see what is happening outside the
viewfinder. With the R-D1 you will focus more on what you are
shooting, not what you are shooting with.
Print optimized images
The pictures you take using the R-D1 can be saved in unprocessed RAW
format, which can be postprocessed for printing using the bundled
software. We at Epson believe that photographic images, be they
film-based or digital, are best expressed on printed media. The R-D1
reflects this philosophy.
Warnings, Cautions, and Notes
Observe the following while you read this manual:
Warnings must be followed carefully to avoid bodily injury.
w
Cautions must be observed to avoid damage to your equipment.
c
Notes contain important information and useful tips on the operation of your
product.
Introduction 5
Chapter 1
Getting Started
Unpacking Your Camera
Make sure you have these items:
Camera body
Battery Strap
6 Getting Started
Lens hole cover
Battery charger Power cord
User’s Guide CD-ROMs:
(for battery charger)
EPSON PhotoRAW/EPSON RAW
Plug-in
®
Adobe
Photoshop® 2.0 (may
not be included in some regions)
Camera Parts and Functions
Front View
Rangefinder window
Images from this window are used to display the image
superimposing field in the center of the finder frame.
1
1
Bright-line frame illumination window
Receives light to illuminate bright-line frames in the
viewfinder.
Viewfinder window
Images from this window are displayed in the viewfinder.
X-sync contact
Used to connect an external flash unit. (See the flash’s
manual for details on how to attach the flash.)
Lens release button
Used to unmount the lens. (See“Mounting and Removing
Lenses” on page 15
the lens.)
for details on how to attach or remove
Getting Started 7
1
1
1
1
1
1
1
1
Top View
Power switch
Switches the power on or off. (See “Turning
the Camera On and Off” on page 18 for
details.)

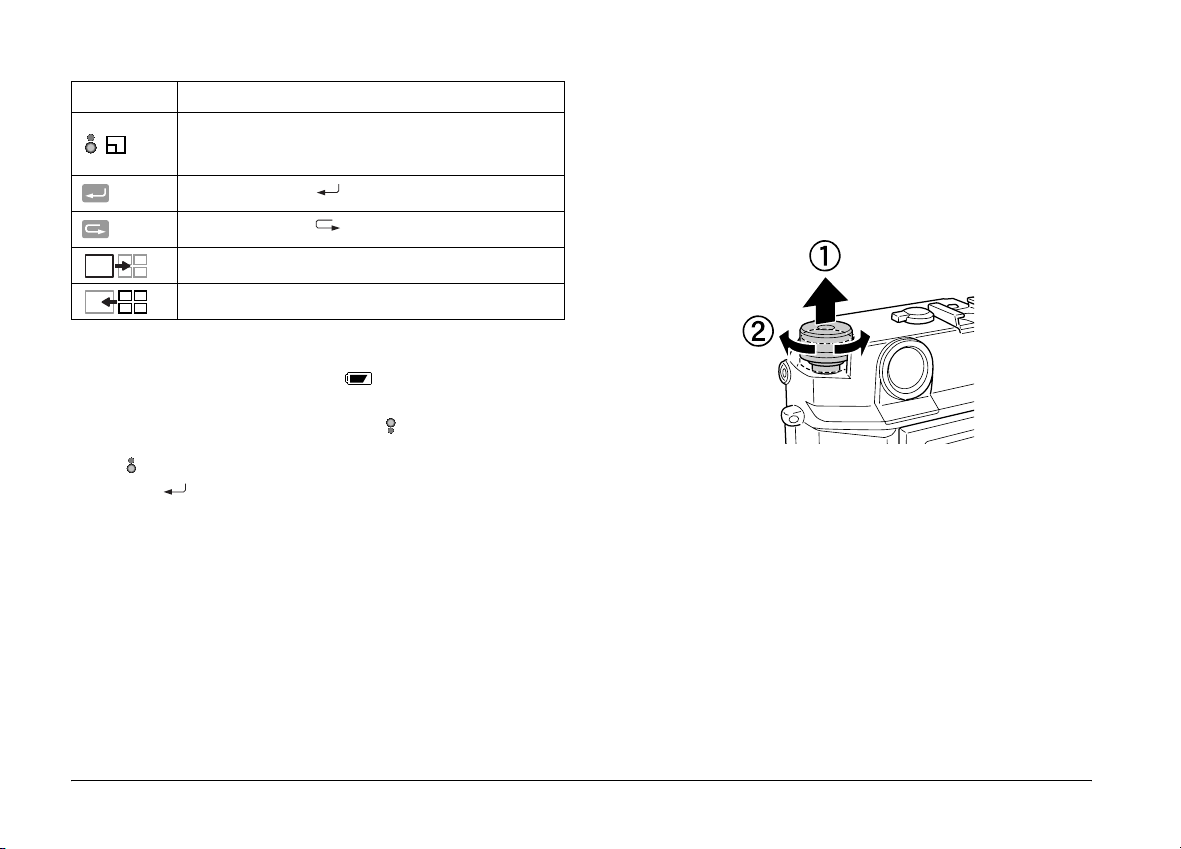

Shutter speed/ISO sensitivity dial
Sets the shutter speed, exposure
compensation (in AE mode), and ISO
sensitivity (when pulled up). (See “Sett ing the
Exposure” on page 21 and “Setting ISO
Sensitivity” on page 21 for details.)
Accessory shoe
Used to mount optional equipment such as
a flash or external viewfinder. (See the flash
manual or viewfinder manual for details on
how to attach them.)
Jog dial
Scrolls through the menu items and pictures
displayed on the LCD monitor. (See “Viewing
and Managing Photos” on page 26 and
“Customizing the Settings” on page 34.)
Lower position Upper position
Shutter charge lever
Used to cock the shutter before taking
each picture. (See “Taking a Picture” on
page 18 for details.)
Shutter release button
Releases the shutter. If pressed halfway
(without releasing the shutter), the
metered and selected shutter speeds are
displayed at the bottom of the viewfinder.
Also used to recover from the power save
mode.
Dial-lock release button
Unlocks the shutter speed dial from the AE
position.
Status gauge
Displays the current settings: white
balance, remaining battery power, the
number of remaining shots, and image
quality. (See “Status Gauge” on page 10
for details.)
Frame selector lever
Selects a bright-line frame for 28 mm,
35 mm, or 50 mm lens. (See “Selecting the
Focal Length” on page 16 for details.)
8 Getting Started
Back View
Rangefinder eyepiece
Used to compose your pictures and to focus on the subject.
1
AE-lock button
Locks the shutter speed at the metered value when using
automatic exposure. (See “Locking the Exposure Setting
(AE-lock)” on page 24 for details.)
Quality (Q) / White Balance (WB) lever
Used to set image quality or white balance. (See “Setting
Image Quality” and “Setting White Balance” on page 19 for
details.)
Memory card access light
Lights when a picture is being saved in the memory card.
Flashes when there is an error or battery is low.
Memory card slot
Accepts an SD memory card of up to 2 GB capacity. (See
“Using a Memory Card” on page 13 for details.)
Memory card slot cover
Protects the memory card and memory card slot.
Focal length conversion table
Lists equivalent 35 mm focal lengths for the a ttached lenses.
(See “Determining the Effective Focal Length” on page 17
for details.)
1
1
1
1
1
1
1
1
1
Getting Started 9
LCD Monitor
Status Gauge
White balance
Indicates the white balance setting. (See
“Setting White Balance” on page 19 for
details).
AAuto
Sunny
Shade
Cloudy
Incandescent
Fluorescent
Remaining battery power
Indicates the remaining battery power.
The current battery level is indicated on the
scale from E (Empty) to F (Full).
(LCD) button
Switches between the shooting mode and the playback mode.
(MENU) button
Displays the main menu on the LCD monitor when in the playback mode.
(ENTER) button
Sets the selected item or settings when in the playback mode. Also toggles between single and
tile display modes.
(CANCEL) button
Returns to the previous menu without making any settings.
(USER) button
Executes the preassigned function from the following: Delete, Lock, Magnify, Print, and Film.
The number of remaining shots
Indicates the number of remaining shots you can
take (up to 999). The needle points to ‘E’ if there
is no memory card or when an error occurs.
Note: The actual number of shots you can take is
not limited to 999 and varies with the size of the
memory card used.
Image quality
Indicates the image quality setting. (See “Setting
Image Quality” on page 20 for details)
Note: Status gauge can be calibrated
if needed. See “Calibrating the Status
Gauge” on page 42 for details.
R RAW/RAW+JPEG (High) *
HJPEG (High)
NJPEG (Normal)
* Selected in the Settings menu (see page 35).
10 Getting Started
Attaching the Strap to the Camera
1. Remove the protective pads and metal rings from the strap.
Metal ring
4. Lace the strap end through the two plastic fasteners.
1
1
Protective pad
2. Attach the protective pad and the metal ring to one side of the
camera.
3. Lace the end of the strap through the holes in the protective pad
and the metal ring.
5. Repeat these steps to attach the other end of the strap to the other
side of the camera.
Using the Battery
Caution:
Only use the Epson lithium-ion battery (EU-85). Do not use any other
c
make or model of battery under any circumstances.
Charging the Battery
The camera comes with a lithium-ion battery (model EU 85). Be sure to
charge it before using the camera for the first time, or if you have not
used it for a long time. It takes approximately 3.5 hours to fully charge
a new or empty battery.
Getting Started 11
1
1
1
1
1
1
1
1
1. Connect the power cord to the battery charger, then plug it into an
electrical outlet.
2. Insert the battery into the battery charger with the terminal end
first. The red indicator light on the charger lights up to indicate the
battery is being charged.
3. When the indicator light turns off, the battery is fully charged.
Remove the battery from the charger.
12 Getting Started
4. Disconnect the battery charger from the power outlet.
Installing the Battery in the Camera
1. Make sure the camera’s power switch is in the Off position, then
open the battery cover.
DUMMY
2. Insert the battery into the camera as far as it will go, making sure
the orientation of the battery is correct.
DUMMY
3. Close the battery cover until it clicks.
Note:
You can check the amount of battery power remaining in the camera by
checking the status gauge. (See page 10.)
Using a Memory Card
You cannot take pictures unless a memory card is installed in the
camera. The camera accepts SD memory cards of up to 2 GB capacity.
Caution:
❏ Make sure there is no dirt or dust on the memory card terminal. If
c
Note:
❏ Be sure to read the documentation included with the card to make sure
❏ If the memory card has been already formatted with a computer or another
it is dirty, you may not be able to read from or write to the card.
❏ Never insert or remove a memory card while the memory card
access light is on. This may cause data in the card to be lost or
damaged, or render the memory card unusable.
❏ Keep the memory card slot cover closed except when you insert or
remove the memory card. This protects the memory card and the
slot from dust particles and static shock; otherwise data on the
memory card may be lost or damaged.
❏ Static shock to the memory card may cause the camera to
malfunction.
you use it correctly.
digital camera, you may not be able to save images on the card. If this
happens, reformat the card using this camera. For instructions, see
“Formatting the Memory Card” on page 42.
1
1
1
1
1
1
1
1
1
Getting Started 13
1
Inserting a Memory Card
Removing the Memory Card
1. Make sure that the memory card is not locked. Slide the write
protect switch to unlock the card if needed.
Write protect
switch
2. Make sure that the memory card access light is off, then open the
memory card slot cover. Insert the memory card all the way into
the slot until it clicks.
DUMMY
3. Close the memory card cover.
1. Make sure the memory card access light is off, then open the
memory card slot cover.
DUMMY
2. Push in the memory card until it clicks, then release your finger.
The memory card pops out.
DUMMY
Note:
If the memory card is not ejected, push it again.
3. Remove the card and close the memory card cover.
14 Getting Started
Mounting and Removing Lenses
The camera accepts a wide variety of M-type bayonet mount
(M-mount) lenses. You can also use L-type screw mount (L-mount)
lenses by attaching a third-party adapter ring.
Incompatible Lenses
Certain lenses are not compatible with the camera due to physical
constraints:
❏ Lenses that project more than 20.5 mm into the camera body.
These lenses cannot be used because they may touch the inner
parts of the camera. Some models known to be incompatible
include:
❏ Hologon 15 mm F8
❏ Super Angulon 21 mm F3.4
❏ Super Angulon 21 mm F4
❏ Elmarit 28 mm F2.8 (earliest model)
❏ Summicron 50 mm (Dual Range Summicron)
❏ Collapsible lenses.
However collapsible lenses such as the Hektor 50 mm F2.5 or the
Elmar 50 mm F3.5 can be used with the camera as long as the lens
barrel is not pushed into the camera body. Be very careful if using
these types of lenses.
❏ Lenses that have an auxiliary viewfinder lens.
These lenses cannot be used effectively because the baseline length
is different from the one used for this camera.
Mounting an M-mount Lens
1. Align the dot on the lens with the red dot on the lens release button.
Caution:
❏ Do not touch the inner parts of the camera.
c
❏ Beware of dust particles entering the camera body.
2. Insert the lens into the camera body, then turn the lens clockwise
until it clicks.
1
1
1
1
1
1
1
1
1
Getting Started 15
1
Removing an M-mount Lens
1. Press the lens release button and turn the lens body
counterclockwise.
2. Pull the lens straight out.
Mounting and Removing an L-mount Lens
For an L-mount lens, you need an optional M-bayonet adapter ring.
Attach the adapter ring to the lens, then install the lens on the camera
as you would an M-mount lens. When you want to remove the lens,
the procedure is the same as for an M-mount lens.
Selecting the Focal Length
You need to select the focal length of the mounted lens in order to
display the correct bright-line frame that indicates the field of view
covered by the lens. The automatic parallax correction feature allows
you to capture what you see in the selected bright-line frame. Turn the
frame selector lever to select 28 mm, 35 mm, or 50 mm to match the
focal length of the lens being used.
16 Getting Started
Determining the Effective Focal Length
The CCD sensor in this camera is an APS-C size, about 34% smaller
than the area covered by 35 mm film. This effectively increases the
working focal length of the attached lens by 1.53x to produce the
equivalent 35 mm focal length.
For example, if you use a 50 mm lens with this camera, the effective
focal length would be 50 × 1.53 = 76.5 mm. This is particularly helpful
when you are using a telephoto lens, because you can use a 200 mm
lens to achieve the same field of view of a 300 mm lens, which is heavier
and more expensive.
The focal length conversion table on the rear panel of the camera shows
equivalent 35 mm focal lengths of the lenses attached to the camera.
1
1
1
1
1
DUMMY
1
1
1
1
1
Getting Started 17
Chapter 2
Taking Photos
Turning the Camera On and Off
Turn on Turn off
DUMMY
When you turn on the camera the first time, you need to set the current
date (month, day, and year) and time (hours and minutes) on the LCD
monitor. Once these settings are made, the camera automatically
records the date and time for each picture taken.
For instructions, see “Setting the Time and Date” on page 41.
Caution:
Never turn off the power while the memory card access light is on. This
c
ma y cau se dat a in th e card to be lost or damaged, or render the memory
card unusable. Under certain circumstances, the memory card access
light may remain on for several seconds after taking a picture (for
example, if you turn on noise reduction and take a long exposure).
Taking a Picture
1. Make sure the camera is turned on and a memory card is installed.
2. Before taking a picture, you may need to adjust the white balance,
image quality setting, ISO sensitivity, exposure, and focus, as
described on the following pages.
3. When you are ready to shoot, push the shutter charge lever as far
as it will go to the right to cock the shutter.
Note:
The shutter charge lever can be left in the “ready” position when shooting
a series of pictures.
18 Taking Photos
4. Gently press the shutter release button. You should hear a clacking
sound that indicates the shutter release.
2. Rotate the jog dial to select the desired white balance setting.
2
2
DUMMY
Setting White Balance
The white balance feature adjusts the camera for different types of
ambient light. You can either set the white balance to be adjusted
automatically, or select the particular setting to suit the ambient light
type.
1. Pull down and hold the Q/WB lever at the WB position.
The selected setting is indicated on the status gauge:
Setting Description
A (Auto) Automatically determined
(Sunny) Outdoors on a sunny day
(Shade) In the shade on a sunny day
(Cloudy) Cloudy day without visible sun
(Incandescent) Incandescent light
(Fluorescent) Fluorescent light
3. Release the Q/WB lever.
Taking Photos 19
2
2
2
2
2
2
2
2
Setting Image Quality
Image quality determines the format in which the image is saved, the
size of the image as it will be displayed on a computer screen, and the
file size of image stored in a memory card. Select the image quality
according to how you plan to use the image data.
Image Format
Images can b e saved in RAW f ormat, JPEG form at, or b oth fil e types at
the same time if RAW+JPG is selected as the Raw Setting in the
Settings menu (see page 35). To open or process RAW images, you need
to install the software on the CD-ROM that came with your camera.
Because they are uncompressed, RAW images take up a lot of storage
space, but are also well suited for image processing and printing on
paper. For more information, see “Opening RAW Images on Your
Computer” on page 38.
JPEG is a universal image format that can be viewed on most computers
without using proprietary software. Files saved in JPEG format are
compressed and smaller than those saved in RAW format. They do lose
varying degrees of picture quality when compressed, and are less
suited for postprocessing because resaving a JPEG file further degrades
its quality. JPEG format is fine for viewing on a regular computer screen
and can also produce good quality prints if saved in a high enough
resolution.
Set the image quality as follows:
1. Pull up and hold the Q/WB lever at the Q position.
2. Rotate the jog dial to select the desired image quality setting on the
status gauge:
Setting Format Image Size File Size
R RAW 3,008 x 2,000 10 MB*
H JPEG (High) 3,008 x 2,000 3 MB
N JPEG (Normal) 2,240 x 1,488 1.5 MB
* 13 MB if RAW+JPEG is selected as the RAW Setting in the Settings
menu. See page 35 for more information.
3. Release the Q/WB lever.
20 Taking Photos
Setting ISO Sensitivity
The ISO sensitivity setting determines the camera’s sensitivity to
available light. As ISO sensitivity is increased, less light is required to
expose an image, which permits faster shutter speeds. This is helpful
for shooting fast moving subjects without blurring, but it also amplifies
any digital noises caught in an image, which can produce a picture with
a grainy appearance.
To set ISO sensitivity, pull up and rotate the outer ring of the shutter
speed dial to select 200, 400, 800, or 1600.
Setting the Exposure
You can set the exposure automatically or manually. Automatic
exposure is a convenient feature that works sufficiently under most
conditions. With manual exposure, you have more control over how
your pictures will be exposed.
Setting the Shutter Speed Automatically
Use the aperture priority automatic exposure (AE) feature to
automatically set the shutter speed for the selected aperture setting.
This is useful when you want to control the depth of field or to produce
special effects, or when you simply want to take point-and-shoot
snapshots.
The AE feature works sufficiently most of the time, but under certain
conditions you can also apply exposure compensation within the range
of +2 EV to -2 EV in 1/3 EV increments. You may, for example, increase
the compensation value by one notch (+1/3 EV) to overexpose a subject
standing in a bright background. Likewise, if your subject is too bright
for the background, you would lower the EV to underexpose the
subject.
2
2
2
2
2
2
2
2
2
Taking Photos 21
2
Follow these steps:
1. To use automatic exposure, rotate the shutter speed dial to the AE
position.
2. If you need to select an exposure compensation setting, first release
the dial from the AE position by pressing the dial-lock release
button.
3. While holding the button down, rotate the dial to the desired
position.
Setting the Shutter Speed Manually
You can specify the shutter speed from 1 to 1/2000 sec., or B (Bulb).
To set the shutter speed, rotate the shutter speed dial to the desired
shutter speed value.
Note:
❏ If the dial is in the AE position, press the dial-lock release button before
attempting to rotate it.
❏ To avoid blurring, set the shutter speed faster than "1/focal length (mm)."
If using a slower shutter speed, the use of a tripod is recommended.
❏ For brighter subjects, fast moving subjects or with a higher ISO
sensitivity, a higher shutter speed is recommended.
22 Taking Photos
B (Bulb) Setting
The bulb setting is used for shooting night pictures or astronomical
objects. With this setting, the shutter stays open as long as the shutter
release button is depressed.
Note:
❏ When you set NR (Noise Reduction) to Hi (High) in the Film Settings
screen and set the exposure at more than 2 seconds, noise reduction is
automatically performed after taking a photo. Do not turn the power off
until the SD card access light goes out. If you turn the power off before
the noise reduction procedure is complete, the image is saved without noise
reduction.
❏ When taking photos in B shooting mode, use a tripod and shutter release
cable to prevent the picture from blurring. Install the cable as shown in
the illustration below.
Setting the Aperture
Rotate the lens aperture ring to the desired value.
For more information, see the documentation included with your lens.
2
2
2
2
2
Using a Flash
You can use an optional flash unit when shooting pictures under low
light conditions. The syncro speed of the flash is 1/125 second. Set the
shutter speed dial to 125 when using a flash.
For more information, see the documentation included with your flash.
Using the Light Meter
The camera has a built-in light meter that calculates the best shutter
speed for the amount of light available through the lens. Press the
shutter release button halfway to view the metered shutter speed (in
red) at the bottom of the viewfinder, then adjust the exposure settings
as needed.
The metered value is displayed in the range of 1 (1 second) through
2000 (1/2000 second). For any value higher than one second, 1 is
displayed in the viewfinder. Likewise, for values lower than 1/2000
second, 2000 is displayed in the viewfinder.
Taking Photos 23
2
2
2
2
2
With Manual Exposure
When manual exposure is selected, the manually selected shutter speed
is lit and the metered speed flashes.
50060
Flashes
Lights
You can rotate the shutter speed dial and/or the aperture ring on the
lens to match the metered value, at which point only one shutter speed
will be displayed in the viewfinder. Or you can disregard the meter
reading and do your own exposure adjustments.
With Automatic Exposure
When AE is selected, the metered shutter speed is lit. If you are using
exposure compensation, the shutter speed flashes to indicate that it is
a compensated value.
60
Lights or flashes
Locking the Exposure Setting (AE-lock)
You can lock the exposure setting at the metered value using the
AE-lock button. This is useful, for example, when you create a single
panoramic picture from a series of images, to make sure they all have
the same level of exposure.
To lock the exposure setting, point to the subject when using the AE
mode and press the AE-lock button. The exposure setting remains
locked until the AE-lock button is released.
24 Taking Photos
Focusing
The camera’s viewfinder has a magnification of 1.0x, which allows you
to keep both eyes open when focusing on your subject.
When focusing, keep your eye in the center of the rangefinder eyepiece
for the best result.
To focus on a subject, rotate the lens focusing ring until the
double-image converges in the center of the bright-line frame.
2
2
2
2
2
If a subject has a distinct vertical line (e.g., a tree or a tower), rotate the
focus ring until the lines merge into a single continuous line. This
usually produces sharper images as straight lines are easier to focus on.
2
2
2
2
2
Taking Photos 25
Chapter 3
Viewing and Managing Photos
Opening the LCD Monitor
1. Pull open the rear panel using the notch at the bottom.
DUMMY
Notch
2. Gently rotate the panel clockwise until the LCD monitor faces
outward.
DUMMY
3. Push the panel back into place.
DUMMY
Caution:
❏ Do not pick up or handle the camera by the rear panel.
c
❏ Do not operate the camera while the rear panel is left open.
26 Viewing and Managing Photos
Viewing Images
1. Make sure the camera is on.
2. Press the (LCD) button. The camera enters playback mode and
displays the newest recorded image.
3. Rotate the jog dial (lower position) clockwise or counterclockwise
to display the image you want to view.
Image display
3
3
3
Note:
If you do any of the following while the camera is in playback mode, the
LCD monitor is turned off and the camera returns to shooting mode:
❏ Press the (LCD) button
❏ Press the shutter release button
❏ Invert the LCD monitor
Monitor icons Current image/
Monitor Icons
The icons displayed at the bottom of the LCD monitor indicate the
following functions or operations.
Icon Description
Indicates you can select the menu option by rotating the
jog dial (upper position) clockwise or counterclockwise.
Indicates you can scroll the image horizontally by
rotating the jog dial (upper position). Displayed only for
the Magnify feature.
Indicates you can scroll the image vertically by rotating
the jog dial (upper position). Displayed only for the
Magnify feature.
Indicates you can display the previous or next image by
rotating the jog dial (lower position).
Viewing and Managing Photos 27
total images
(up to 9999)
3
3
3
3
3
3
3
Icon Description
Indicates you can magnify or shrink the image by
rotating the jog dial (lower position). Displayed only for
the Magnify feature.
Appears when the (ENTER) button is active.
Appears when the (CANCEL) button is active.
Indicates single display mode.
Indicates tile display mode (thumbnails of four images).
Note:
❏ When the battery is running low, the (battery) icon appears above
the jog dial icon.
❏ When the jog dial is in the upper position, the (upper) icon at the bottom
left corner turns green. Likewise, when the jog dial is in the lower position,
the (lower) icon turns green.
❏ Press the (ENTER) button to toggle between the single and tile
display modes.
Viewing Photo Information
Follow these steps to see more photo information:
1. Display an image on the LCD monitor.
2. Pull up the jog dial to the upper position, then rotate it to display
the desired set of information about the image.
The following sets of information are available:
❏ General information
❏ Exposure histogram
❏ Highlight
❏ Composition grid
❏ Detailed information
28 Viewing and Managing Photos
General Information
File sequence
number
Image quality
Indicates this
image is locked
Number of prints
(if DPOF is set)
Highlight
Outlines and flashes highlight areas.
3
3
3
3
Date and time this
image was taken
Exposure Histogram
Shows the densities of shadow and highlight areas occupied
in the image.
Composition Grid
Shows the grid to aid composition.
Viewing and Managing Photos 29
3
3
3
3
3
3
Detailed Information
Lists detailed information about camera settings.
Listed information includes the following:
❏ File name (file number and format)
❏ Image size (image quality)
❏ Color (color/monochrome) setting. If monochrome is set, the color
of the filter is also displayed.
❏ Shutter speed. If the image was taken using the AE feature, AE and
the exposure compensation value (if used) are displayed.
❏ ISO sensitivity
❏ White balance
❏ Film setting
Magnifying Images
Follow these steps to zoom in on an image displayed on the LCD
monitor (up to 16x).
1. Display an image on the LCD monitor.
2. Press the (MENU) button.
3. Select (Magnify) using the jog dial, then press the (ENTER)
button. The Magnify mode ( ) icon is displayed at the top left
corner of the screen.
4. Rotate the jog dial (lower position) to enlarge or reduce the image.
5. To view different areas of the image, rotate the jog dial (upper
position) and press the (ENTER) button to switch the direction
from vertical to horizontal, or vice versa. The current direction
setting is indicated by the (horizontal direction) icon or
(vertical direction) icon at the bottom left of the screen.
6. To return to the main menu, press the (CANCEL) button once
or twice.
30 Viewing and Managing Photos
Running a Slide Show
This feature allows you to view all the images in a slide show format,
with a three-second interval between images.
1. Display an image on the LCD monitor.
2. Press the (MENU) button.
3. Select (Slide Show) using the jog dial, then press the
(ENTER) button.
Managing Images
Deleting Images
In playback mode, you can delete the currently displayed image or all
the images saved on the memory card.
1. Display an image on the LCD monitor.
2. Press the (MENU) button.
3. Select (Delete) using the jog dial, then press the (ENTER)
button.
3
3
3
3
3
4. Select the order in which you want the images to be displayed:
❏ Rotate the jog dial clockwise to start the slide show from the
oldest image recorded. The forward playback (r) icon is
displayed at the bottom of the screen.
❏ Rotate the jog dial counterclockwise to start the slide show
from the newest image back to the oldest one. The reverse
playback (l) icon is displayed at the bottom of the screen.
To pause the slide show, press the (ENTER) button. To restart, press
the (ENTER) button again.
To return to the main menu, press the (CANCEL) button.
4. Select Delete 1 image or Delete all images using the jog dial
(upper position), then press the (ENTER) button. You see the
confirmation screen.
Note:
❏ If you select Delete 1 image, you can select an image you want to
delete by rotating the jog dial (lower position).
❏ You cannot delete images that have a lock ( ) icon. See the next
section, “Locking/Unlocking Images” on page 32 for details.
❏ If the memory card is locked, the message “Cannot delete. The SD
card is write-protected” is displayed. Remove the card from the
camera, then unlock the card and try again.
Viewing and Managing Photos 31
3
3
3
3
3
5. In the confirmation screen, select OK using the jog dial, then press
the (ENTER) button.
Caution:
This operation cannot be undone.
c
Note:
This procedure does not securely delete the data from the memory card. To
securely "flush" the memory card so that no data can be recovered from the
card using third-party data recovery software, use Full Format to format the
card. For instructions, see “Formatting the Memory Card” on page 42.
Locking/Unlocking Images
Use this feature to protect images from accidental deletion.
Note:
Locked images are read-only and cannot be modified.
1. Display an image on the LCD monitor.
2. Press the (MENU) button.
3. Select (Lock) using the jog dial, then press the (ENTER)
button. You see the Lock menu.
4. Select Lock/Unlock 1 image, Lock all images, or Unlock all
images using the jog dial (upper position), then press the
(ENTER) button.
When the image is locked, the lock ( ) icon is displayed at the top right
of the image.
If you select Lock/Unlock 1 image, you can select an image you want
to lock by rotating the jog dial (lower position).
If you select Lock/Unlock 1 image for a locked image, the image will
be unlocked.
Caution:
If you format a memory card that contains images, all the data on the
c
card will be lost, including locked images.
Selecting Photos to be Printed (DPOF Setting)
This feature allows you to specify the number of prints for the images
you want to print from a printer, application, or photo lab that supports
Digital Print Order Format (DPOF).
Note:
This feature is not available for images saved in RAW format.
1. Display an image on the LCD monitor.
2. Press the (MENU) button.
32 Viewing and Managing Photos
3. Select (Print Order) using the jog dial, then press the
(ENTER) button.
3
3
3
4. Select Set DPOF for one for the displayed image, or Set DPOF for
all for all the images using the jog dial (upper position), then press
the (ENTER) button.
Note:
❏ To select another image, rotate the jog dial in the lower position.
❏ To view the current DPOF setting, select View current DPOF.
5. Specify the number of prints using the jog dial, then press the
(ENTER) button.
3
3
3
3
3
3
3
Viewing and Managing Photos 33
Chapter 4
Customizing the Settings
You can use the LCD screen to adjust camera settings.
Accessing the Settings Menu
1. Press (LCD) then (MENU) to display the main menu on the
LCD monitor.
2. Select (Settings) using the jog dial, then press the (ENTER)
button to display the Settings menu.
3. Select the desired setting using the jog dial, then press the
(ENTER) button. The selected setting is displayed.
If you select (Basic Setup), select the desired setting and press
the (ENTER) button again.
4. Change the value or select the item using the jog dial, then press
the (ENTER) button.
Using the Jog Dial
Rotate the jog dial clockwise or counterclockwise to display the
previous or next menu or photo. The jog dial is used in either the raised
or lowered position, depending on the menu or function. To use the jog
dial in the raised position, pull it up as shown below.
Setting Items
Settings Menu
Setting Description
(Color Setting) Selects whether to save images in Color or
(Basic Setup) Displays the Basic Setup menu. See “Basic Setup
Monochrome. For Monochrome, you can
select the Monochrome Filter by pressing the
(MENU) button.
Menu” on page 36.
34 Customizing the Settings
Setting Description
(Format SD Card) Formats the memory card. You can select
(Initialize Settings) Resets the current settings (except date and
(Long Exp Noise
Reduction)
(Color Space) Selects the color space from sRGB or Adobe
(RAW Setting) Sets the image format recorded when shooting
Quick Format or Full Format. See “Formatting
the Memory Card” on page 42 for details.
time) to their default settings as shown below.
Setting Default Value
Color Color
Film Standard
Date YYYY/MM/DD
Power Save Timer 5min
Sequential Numbering On
LCD Brightness 5/8
Language English
USER Button Delete
Reduces noise that appears in an image taken
with a long exposure. The shooting time may
become longer depending on shooting
conditions.
RGB. Adobe RGB is a wider color space than
sRGB and encompasses the colors that can be
printed with CMYK inks. Select Adobe RGB if you
have a printer that supports it.
in RAW mode. You can select RAW format only,
or both RAW and JPEG (high resolution) format
in a single file. RAW+JPEG provides the
convenience of viewing the JPEG image on
most computers while retaining the RAW data
for postprocessing, at an increase in image size
and memory card access time.
Setting Description
(Film Setting) Allows you to quickly switch film profiles to best
suit the shooting subject or environment. For
each film profile (Film1, Film2, or Film3), you can
assign Edge Enhance, Saturation, Tint, Contrast,
and NR (Noise Reduction). By default, Film1 is
preset for portrait, Film2 for landscape, and
Film3 for night pictures. Use Standard if no
particular profile is required.
4
4
4
4
4
4
4
4
4
4
Customizing the Settings 35
Basic Setup Menu
Setting Description
Time and Date Sets the current date and time
Date Format Selects date display format from the following:
Power Save Timer Selects the length of time before the camera
Sequential Numbering Specifies whether to save images with a
LCD Brightness Changes brightness of the LCD monitor.
Language Selects the language for messages and menus
(year, month, day, hours and minutes).
See “Setting the Time and Date” on page 41.
YYYY/MM/DD (default setting),
MM/DD/YYYY,
DD/MM/YYYY
enters the power save mode, in which the LCD
monitor is turned off automatically to reduce
power consumption.
The available settings are 3min, 5min (default
setting), 10min, or 20min.
Press any button to exit the power save mode.
sequential number (as part of the file name).
On (default): sequential numbers continue
even if the memory card is replaced.
Off: sequential numbers end and a new
sequence of numbers starts when the memory
card is replaced.
Also shows the firmware version.
displayed on the LCD monitor from the
following: Japanese, English, French, German,
Italian, Spanish, Dutch, T (Traditional)-Chinese
Setting Description
Calibrate Needles Displays the Needle Calibration menu to adjust
Dead Pixel Correction Corrects non-functional pixels so they are less
Quick View Displays the image on the LCD monitor (i.e.,
the status gauge needles: E (number of
remaining shots), R (image quality), E
(remaining battery power), and A (white
balance).
conspicuous in photographed images. Repe at
this procedure every few months, or if you
notice missing (black) pixels or hot (white)
pixels. For the pixels that cannot be corrected
with this setting, try Long Exp Noise Reduction
(see page 35).
Note:
Be sure to attach the lens cap before executing
this feature. Otherwise, correct pixels may be
incorrectly calibrated. Also make sure the
battery has enough power left when using this
feature. You cannot execute this function with
a near-empty battery.
enters the playback mode) automatically
when you release the shutter. You can select
the time period during which each image is
displayed on the LCD monitor: 3 sec or 10 sec.
Quick View is canceled and the LCD monitor is
turned off if you do any of the following:
❏ Press the (LCD) button
❏ Press the (MENU) button
❏ Press the (USER) button
❏ Press the shutter release button
❏ Turn off the camera
36 Customizing the Settings
Setting Description
Assign USER Button You can assign one of the following functions
to the (USER) button: Delete, Lock,
Magnify, Print, and Film. By default, Delete is
assigned to this button.
Note:
The (USER) button does not function in the
tile display mode.
4
4
4
4
4
4
4
4
4
Customizing the Settings 37
4
Chapter 5
Opening RAW Images on Your Computer
Software Overview
To open RAW format images, you need to install the Epson PhotoRAW
software included on the CD-ROM that came with your camera:
❏ EPSON PhotoRAW is a standalone application that can process
multiple RAW images at one time using the batch feature.
❏ EPSON RAW Plug-In lets you process your images using Adobe
Photoshop (versions 7, CS, CS2, and Elements 2 and 3).
System Requirements
Windows: OS: Microsoft® Windows® 98 Second Edition,
Hardware: Pentium
Memory: 256 MB or more (1 GB or more is
Hard Disk: 10 MB or more is required for installation
Display: XGA (1024 × 768) or higher, 24-bit color or
Macintosh
®
: OS: Ma c® OS 10.2 or later
Hardware: PowerPC
Memory: 256 MB or more (1GB or more is
Hard disk: 10 MB or more is required for installation
Display: 1024 × 768 or higher, 16-bit color or higher
Me, 2000 Professional, XP Home Edition, XP
Professional
GHz or faster is recommended)
recommended)
500 MB or more is required for operation
higher
recommended)
recommended)
500 MB or more is required for operation
(24-bit color is recommended)
®
III 1 GHz or faster (Pentium 4 2
®
G4 or higher (PowerPC G5 is
38 Opening RAW Images on Your Computer
Installing the Software
To install the software, you need administrator privileges.
EPSON PhotoRAW
1. Insert the software CD-ROM into your CD-ROM drive.
The EPSON Installer Program dialog box appears automatically.
Note:
If it does not appear, click the CD-ROM icon, and then select Open from
the File menu. Then double-click EPSETUP. EXE.
2. Follow the on-screen instructions until all the software is installed.
When you see a message that the installation is complete, click
Finish.
Uninstalling PhotoRAW
If you need to uninstall PhotoRAW, do one of the following:
❏ Click Start, point to Settings, and select Control Panel,
Add/Remove Programs, and then click EPSON PhotoRAW.
❏ Click Start, point to Programs, and select EPSON PhotoRAW, and
then click Uninstall.
EPSON RAW Plug-In
1. Insert the software CD-ROM into the CD-ROM drive.
Windows:
The EPSON Installer Program dialog box appears automatically.
Note:
If it does not appear, click the CD-ROM icon, and then select Open from
the File menu. Then double-click EPSETUP. EXE.
Macintosh:
Double-click Install EPSON RAW Plug-In icon inside the EPSON
folder.
2. Follow the on-screen instructions until the software is installed.
When you see a message that the installation is complete, click
Finish or Quit.
Note:
EPSON RAW Plug-In program is automatically installed in the plug-in
folder for Adobe Photoshop. If the plug-in folder for Adobe Photoshop is
not detected automatically, specify the folder manually.
Uninstalling RAW Plug-In
If you need to uninstall the RAW Plug-in, follow the instructions below.
Windows:
Click Start, point to Settings, and select Control Panel, Add/Remove
Programs, and then click EPSON RAW Plug-In.
Macintosh:
Delete the EPSON folder in the plug-in folder of Adobe Photoshop.
5
5
5
5
5
5
5
5
5
Opening RAW Images on Your Computer 39
5
Opening a RAW Image
Be sure to copy your RAW image files to your hard disk before trying
to open and process them. Working with them while they are still on
the memory card will take a very long time.
Using EPSON PhotoRAW
Click Start, point to All programs (or Programs), and select EPSON
PhotoRAW, and then click EPSON PhotoRAW.
EPSON PhotoRAW starts and the main window is displayed.
For Macintosh
Start Adobe Photoshop and open the RAW file you want to process.
The main window for EPSON RAW Plug-In is displayed.
Note:
❏ If the EPSON RAW Plug-In does not start automatically even if you select
a RAW file, select Open from the File menu, and select EPSON RAW
Plug-In from the Format drop-down list. Then select the RAW file.
❏ You cannot select a RAW file from a sub folder.
Using EPSON RAW Plug-In
For Windows
1. Start Adobe Photoshop.
2. Click File and point to Open. The Open dialog box is displayed.
3. Select the desired RAW file, then click the Open button.
40 Opening RAW Images on Your Computer
Finding More Information
For more information about the bundled software, see the online help.
Chapter 6
Maintenance and Troubleshooting
6
Setting the Time and Date
1. Press (LCD), then (MENU) to display the main menu on the
LCD monitor.
2. Select (Settings), (Basic Setup), then Time and Date using
the jog dial, then press the (ENTER) button.
3. Use the following to set the time and/or date:
Jog dial Changes the value.
(ENTER) button Moves the cursor forward.
(CANCEL) button Moves the cursor backward.
Note:
If you remove the battery from the camera, the date and time settings will be
lost after approximately two days.
Pressing this button on the minutes slot
applies the change and returns to the
previous menu.
Pressing this button on the year slot returns
to the previous menu without setting time
or date.
6
6
6
6
6
6
6
6
6
Maintenance and Troubleshooting 41
Calibrating the Status Gauge
The gauge readings may deviate slightly from the set positions over
time. If this happens, follow the steps below to calibrate the gauge
needles.
1. Press (LCD) then (MENU) to display the main menu on the
LCD monitor.
2. Select (Settings), (Basic Setup), then Calibrate Needles
using the jog dial, then press (ENTER).
3. Select the needle you want to calibrate using the jog dial, then press
(ENTER).
Needle Calibration
Please calibrate
carefully.
Finish
S e lect B a c k
4. Select
l or r using the jog dial, then press (ENTER) repeatedly
to adjust the needle position on the status gauge.
5. Select Finish using the jog dial, then press (ENTER).
6. Repeat steps 2 through 4 if you want to calibrate the other needles.
7. Select Finish using the jog dial, then press (ENTER).
Formatting the Memory Card
Format the memory card when you want to erase all the data on the
card, or if the memory card has been formatted with a computer or
another digital camera and you cannot save any images on the card.
Follow these steps:
1. Press (LCD) then (MENU) to display the main menu on the
LCD monitor.
2. Select (Settings) then (Format SD Card) using the jog dial,
then press (ENTER).
3. Select Quick Format or Full Format using the jog dial, then press
(ENTER). The confirmation screen is displayed.
4. Select OK using the jog dial, then press (ENTER).
The formatting starts and th e message “Formatting...” is displayed.
After the memory card is formatted, the screen returns to the
Settings menu.
Note:
❏ When you format the memory card, all the data on the card will be lost,
including the locked images.
❏ If the memory card is locked, the message “Cannot format. The SD card
is write-protected” is displayed. Remove the card from the camera, then
unlock the card and try again.
42 Maintenance and Troubleshooting
Caution:
Do not remove the memory card from the camera while the card is being
c
formatted.
Note:
Quick Format does not securely delete the data from the memory card. To
securely “flush” the memory card so that no data can be recovered from the
card, use Full Format to format the card.
Cleaning the Camera Body
Clean your camera thoroughly several times a year to keep it in good
working condition. Before you perform any maintenance procedure on
the camera, be sure to read the safety instructions on page 48. Then
follow these guidelines to clean the camera:
❏ Be sure to turn off the camera before cleaning.
❏ Use a clean, dry cloth to keep the camera free of dust.
❏ Do not use abrasive cleaners.
❏ If necessary, clean the battery contacts with a dry cloth.
Cleaning the CCD Sensor
Caution:
❏ Do not use blower cans that use compressed air.
c
❏ Do not touch the sensor with your finger or a cloth. Doing so may
damage the sensor and may affect image quality.
❏ Do not let the blower tip enter the camera body or touch the sensor
surface. The shutter or sensor may be damaged if the shutter is
accidentally released.
1. Remove the memory card from the camera.
2. Turn the shutter speed dial to B and attach the cable release.
3. Insert a fully charged battery and turn on the camera.
Caution:
Do not use a low battery. If the battery dies and the shutter closes during
c
cleaning, the camera may be damaged.
4. Cock the shutter, then remove the lens or lens hole cover.
5. Lock the shutter open using the cable release.
6. Blow off the dust carefully using the hand blower.
7. After cleaning, unlock the cable release and close the shutter.
8. Attach the lens or lens hole cover and remove the cable release.
6
6
6
6
6
6
6
If dark spots appear on the same place on all the pictures you take, there
may be dust particles on the CCD image sensor inside the camera. To
clean the CCD sensor, you need a hand blower and a cable shutter
release with a shutter lock feature.
6
6
6
Maintenance and Troubleshooting 43
Storing the Camera
Troubleshooting
If you are not planning to use the camera for a long period of time,
remove the battery and store it at room temperature in a dry location.
Store the camera in its case. Do not store the camera in following
conditions:
❏ Direct sunlight or bright light
❏ High humidity
❏ High heat
❏ Excessive dirt or dust
❏ Excessive vibrations
❏ Strong magnetic fields
Error Messages
Message Remedy
Cannot delete. The image is
locked.
Cannot delete. The SD card is
write-protected.
Cannot lock. The SD card is
write-protected.
Cannot unlock. The SD card is
write-protected.
Other Problems
Problem Remedy
Permanent black or white spots
(dead pixels) appear in
pictures taken with the
camera.
The shutter cannot be released
and the memory card access
light flashes.
Unlock the image using the lock
function in the main menu, then try
again.
Remove the card from the camera,
release the write-protect switch from
the lock position, and try again.
The memory card is write-protected.
Remove it from the camera, release
the write-protect switch from the lock
position, and try again.
Remove the card from the camera,
release the write-protect switch from
the lock position, and try again.
Use the Dead Pixel Correction feature
to correct the dead pixels. See “Basic
Setup Menu” on page 36 for details.
Due to the nature of the CCD sensor,
dead pixels cannot be completely
eliminated.
The battery power is too low. Charge
the battery and try again.
44 Maintenance and Troubleshooting
Where To Get Help
Epson provides these technical support services:
Internet Support
Visit Epson’s support website for solutions to common problems. You
can download documentation, get FAQs and troubleshooting advice,
or e-mail Epson with your questions.
Speak to a Support Representative
Before you call Epson for support, please have the following
information ready:
❏ Product name (Epson Rangefinder Digital Camera R-D1)
❏ Product serial number (located on the camera body)
❏ Proof of purchase (such as a store receipt) and date of purchase
❏ Description of the problem
Then call:
U.S.: (562) 276-4315, 6
Friday.
Canada: (905) 709-3839, 6
Friday.
Toll or long distance charges may apply.
AM to 6 PM, Pacific Time, Monday through
AM to 6 PM, Pacific Time, Monday through
Purchase Supplies and Accessories
You can purchase camera accessories from an Epson authorized
reseller. To find the nearest reseller, call 800-GO-EPSON
(800-463-7766). Or you can purchase online at www.epsonstore.com
(U.S. sales) or www.epson.ca (Canadian sales).
6
6
6
6
6
6
6
6
6
Maintenance and Troubleshooting 45
6
Appendix
Standards and Approvals
Camera
EMC Directive 89/336/EEC EN55022 Class B
EN55024
Lithium-ion Battery
EMC Directive 89/336/EEC EN55022 Class B
EN55024
Battery Charger
Low Voltage Directive 73/23/EEC
EMC Directive 89/336/EEC
EN60950
EN55022 Class B
EN55024
Specifications
General
Model type: Lens-interchangeable rangefinder digital
camera
Dimensions: Height: 88.5 mm (3.54 in.)
Width: 142 mm (5.68 in.)
Depth: 39.5 mm (1.58 in.)
Weight: Approx. 560 g (1.2 lb)
Temperature: Operating: 5 to 35°C
Storage: –20 to 60°C
Humidity:
(without condensation)
External interfaces: Memory card slot (for SD memory card up
Image Format
Recording format: RAW, JPEG
File type: Exif 2.21, DCF 2.0, DPOF 1.1 compliant
Image size/
typical file size:
Operating: 30 to 80%
Storage: 10 to 80%
to 2 GB)
X-sync contact (for external flash unit)
JPEG: 2240 × 1488 pixels/1.5 MB
JPEG: 3008 × 2000 pixels/3 MB
RAW (12-bit)/10 MB
46 Appendix
JPEG compression ratio: Locked at 1/4
PRINT image matching: Supports PRINT Image Matching III
Optical System
Image sensor: Primary-color filter CCD
(APS size: 23.7 × 15.6 mm)
Pixels: 6.1 M
Lens mount: EM mount (M-type bayonet mount; L-type
screw mount with an optional adapter
ring)
Viewfinder: Real image range finder type see-through
viewfinder
Viewfinder magnification: 1.0x
Rangefinder: Combined coincidence-type
(interlocking range: 0.7 m to infinity)
Rangefinder baseline
length: 38.2 mm
Visual field frame: 28/35/50 mm bright frame switching, auto
parallax compensation
Frame coverage: 85% (at 3 m)
Shutter: Electronically controlled vertically
traveling focal plane shutter
Shutter speed: 1/2000–1 sec, bulb
Flash: Synchronous: 1/125 sec or slower
Supported only in synchronized shooting
Metering: TTL screen surface direct actual-aperture
center-weighted averaged metering
Exposure control: Automatic exposure (AE) with aperture
priority and AE-lock/manual
Exposure compensation
range: +/-2.0EV in 1/3EV steps (AE mode only)
ISO sensitivity: 200/400/800/1600
35 mm equivalent focal
length multiplier: 1.53x
Display Functions
LCD monitor: Type 2 low-temperature polysilicon color
LCD
235 K pixels
Status gauge: Analog needle indicators
Viewfinder Indicators
Shutter speed: 1/2000–1 sec. (flashing metered/lit: set on
dial)
Bright-line frames: for 50/28/35 mm lenses
Power Supply
Battery type: Lithium-ion
Model: EU-85
Output voltage: 3.7 V
Capacity: 1500 mAh
Appendix 47
Battery charge life-cycle: Number of shots possible
Under shooting conditions 1*: Up to about
1000 shots
U nd e r sh o o ti n g c on d i ti o n s 2 * * : U p t o a b o ut
360 shots (compliant with the CIPA
standard)
* Shooting conditions 1:
Shooting six pictures per minute at a
regular interval then turning the camera
off for one minute before turning it on
again and repeating this procedure, while
the flash is off, a shutter speed of 1/250,
ISO of 200, image quality of N (JPEG:
2240 × 1488 pixels) and WB on Sunny.
** Shooting conditions 2:
Turning on the camera and waiting 30
seconds before taking the first picture,
then taking nine more pictures at 30
second intervals before turning off the
camera and removing the battery for
10 minutes and repeating this procedure,
while using the flash - which is attached to
the accessory shoe - on full for every
second shot, with a shutter speed of 1/125,
ISO of 200, image quality of H (JPEG:
3008 × 2000 pixels) and WB on Auto.
Battery Charger
Model: A281H
Input voltage: 100–240 VAC, 50/60Hz
Charging method: Constant voltage, constant current
Optional Accessory
The following option is available for the camera.
❏ Lithium-ion battery (Model: EU-85)
Important Safety Instructions
Read all of these instructions before using this product, and keep this
guide handy for later reference. Follow all warnings and instructions
marked on this product and the options.
When using the camera
❏ Follow all warnings and instructions marked on this product.
❏ Do not insert objects into any openings.
❏ Do not touch the components inside this product unless instructed
to do so in the user documentation. Never force this product’s
components into place. Although this product is designed to be
sturdy, rough handling can damage it.
❏ Protect the camera from rapid temperature change.
❏ Never spill liquid onto this product.
❏ If this product emits unusual noises, odors, or smoke, cancel the
current operation and turn it off immediately. Remove the battery
from the product. Contact our Customer Support.
❏ To prevent fire or electric shock, do not cover this product with a
blanket or other covering that may give off a static electric shock.
❏ To prevent fire or electric shock, do not expose this product or its
options to rain or moisture.
❏ To prevent fire or explosion, do not use this product where
flammable or volatile gas is stored.
❏ Do not use this product outdoors during a thunderstorm.
48 Appendix
❏ Do not use this product after moving it from a cold to warm
environment, or vice-versa. Condensation may form on electronic
parts.
❏ To prevent possible injury, do not take flash pictures in close
proximity to anyone’s eyes.
❏ Do not insert your finger into the camera or EM mount.
❏ If the liquid crystal solution contained in the LCD monitor leaks
out and gets on your hands, wash them thoroughly with soap and
water. If it gets into your eyes, flush them immediately with water.
❏ When connecting this product to a computer or other device with
a cable, ensure the correct orientation of the connectors. Each
connector has only one correct orientation. Inserting a connector in
the wrong orientation may damage both devices connected by the
cable.
When using the strap
❏ Do not swing the camera about. This can damage the camera or
other objects, or cause injury.
❏ Do not pull or tighten the strap too much when wearing it; this can
cause serious injury.
❏ Keep the strap away from children.
When using the battery
Follow the precautions below when using the battery as mishandling
it may cause injury.
❏ If battery acid gets into your eyes or on your skin, immediately rinse
the affected area thoroughly with water and seek medical
treatment. If a battery is swallowed, seek medical treatment
immediately.
❏ Use only an Epson Li-ion battery for this camera, as specified in
this manual.
❏ Do not use the battery that comes with this product for other
devices.
❏ To protect against short-circuiting, do not remove the outside
sleeves of the battery.
❏ Do not handle the battery with wet hands or use it near water.
❏ Do not expose the battery to water or high humidity.
❏ Do not drop, puncture, disassemble, mutilate, or short-circuit the
battery.
❏ Do not expose the battery to heat, fire, or water.
❏ Do not use batteries that are leaking or damaged in any way.
❏ Do not charge the battery on battery chargers other than the one
provided with this product.
❏ Do not charge the battery near open flame or in very hot locations.
❏ Keep the battery away from heat sources.
❏ Prevent the battery from coming into contact with metal objects
that could short-circuit it, such as coins or keys.
❏ Do not solder wires or terminals directly to the battery.
❏ Do not touch battery terminals.
❏ Keep the battery away from open flame.
❏ If overheating, discoloration, distortion, a strange smell or any
other abnormal situations occur, remove the battery from this
product and do not use it.
❏ Keep batteries out of the reach of children.
❏ If charging has not finished after the regular charging time, stop
charging.
❏ Do not place the battery into a high-pressured container or a
microwave oven.
❏ Do not insert the battery into power outlets or other power sources,
such as cigarette lighters.
❏ Charge the battery before using it. The battery is not fully charged
when you purchase it.
Appendix 49
When storing the battery
❏ When not using this device for a long period, remove the battery
from this product and store it separately.
❏ Do not store the battery where temperature or humidity is very
high.
❏ Store the battery out of children’s reach.
❏ Discharge the battery completely before storing it for a long time.
❏ When not using the battery for a long time, charge the battery and
then discharge it completely about once a year during storage.
When disposing of the battery
Before disposing of the battery, make sure you discharge it completely.
Warning:
❏ Be sure to completely cover both ends of the battery with tape to
w
prevent combustion or explosion when disposing of it.
❏ Do not dispose of the battery as ordinary refuse. Instead, dispose
of it in a collection or recycle box in accordance with local laws.
This mark indicates that the battery will be recycled by
RBRC. When you dispose of the battery, contact RBRC.
When using the battery charger
Warning:
Read all relevant safety and operating instructions before using
w
this product, as misuse could result in personal injury from fire,
explosion, leakage, overheating, or electric shock.
These safety and operating instructions should be kept for future
reference.
❏ Use only the Epson battery charger provided to charge the Epson
Li-ion battery Model EU-85. Never attempt to charge other types
of batteries in this charger as they may explode, leak, overheat, or
cause personal injury.
❏ Do not charge primary (non-rechargeable) batteries.
❏ Do not handle the battery charger with wet hands or use it near
water.
❏ Do not expose the battery charger to water or high humidity.
❏ Use only the type of power source indicated on the battery
charger’s label, and always supply power directly from a standard,
domestic power outlet with a power cord that meets the relevant
local safety standards.
❏ Place the battery charger near an electrical outlet where the power
cord can be easily unplugged.
❏ The battery charger is designed for use and provided with this
product. Do not attempt to use it with other electronic devices
unless specified.
❏ The battery charger included is designed for use with this product.
Use of any other battery charger could result in fire, electric shock,
or injury.
❏ Use only a power source that meets the power requirements
indicated on the label attached to the product. If you are not sure
of the power supply specifications in your area, contact your local
power company or contact our Customer Support.
❏ Make sure the total amperage of all devices plugged into the power
outlet does not exceed the power outlet’s ampere rating.
❏ If you plan to use this product in Germany, the building installation
must be protected by a 16 amp circuit breaker to provide adequate
short-circuit protection and over-current protection for this
product.
❏ Do not use a damaged or frayed battery charger.
50 Appendix
❏ If you use an extension cord with this product, make sure the total
amperage of all devices plugged into the extension cord does not
exceed the cord’s ampere rating.
❏ Never disassemble, modify, or attempt to repair the battery charger
by yourself except as specifically explained in this guide.
❏ Do not use power outlets controlled by wall switches or automatic
timers.
❏ Do not use power outlets on the same circuit as large motors or
other appliances that may cause voltage fluctuations.
❏ Avoid using outlets on the same circuit as photocopiers or air
conditioning systems that regularly switch on and off.
❏ Position this product’s power cord so that it will not be stepped on
or run over.
❏ Do not place any objects on the power cord or the battery charger.
❏ Keep the power cord straight at the ends and at the points where
it enters the transformer.
❏ Do not let the power cord become damaged or frayed. Place the
battery charger in a location where people are unlikely to walk on
the power code, and the cord is not pinched by items placed upon
or against it.
❏ If you cannot insert the plug into the power outlet, contact an
electrician.
❏ Use the power cord provided or a 6 to 10 foot UL-approved type
SPT-2 or heavier type, 2 X 18 AWG cord with a 125 V 10 A plug and
125 V 7 A connector.
When using a memory card
❏ Only memory cards designed for the product’s specifications can
be used.
❏ The methods for using memory cards vary according to card type.
Be sure to refer to the documentation included with your memory
card for details.
❏ Do not remove the memory card while the power switch is on.
When using the LCD
❏ The LCD monitor on this product may contain a few small bright
or dark spots. These are normal and do not mean that your LCD
monitor is damaged in any way.
❏ If the LCD monitor on this product is damaged, consult your
dealer.
❏ If the liquid crystal solution contained in the LCD monitor on this
product leaks out and gets onto your hands, wash them thor oughly
with soap and water. If it gets into your eyes, flush them
immediately with water. If discomfort or vision problems remain
after a thorough flushing, see a doctor immediately.
❏ Only use a soft, dry cloth to clean the display. Do not use liquid or
chemical cleaners.
When storing, maintaining, or transporting the camera
❏ Do not store this product outdoors.
❏ Do not store this product near water.
❏ Do not store this product in a location subject to high temperature
or humidity.
❏ Do not store this product in a location subject to rapid changes in
temperature or humidity.
❏ Do not store this product in a location subject to direct sunlight or
strong light sources.
Appendix 51
FCC Compliance Statement for United States Users
This equipment complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio or television reception. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause interference to radio and television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures.
❏ Reorient or relocate the receiving antenna
❏ Increase the separation between the equipment and receiver
❏ Connect the equipment to an outlet on a circuit different from that
to which the receiver is connected
❏ Consult your dealer or an experienced radio/TV technician for
help
WARNING
The connection of a non-shielded equipment interface cable to this
equipment will invalidate the FCC Certification of this device and may
cause interference levels which exceed the limits established by the FCC
for this equipment. It is the responsibility of the user to obtain and use
a shielded equipment interface cable with this device. If this equipment
has more than one interface connector, do not leave cables connected
to unused interfaces.
Changes or modifications not expressly approved by the manufacturer
could void the user’s authority to operate the equipment.
52 Appendix
DECLARATION of CONFORMITY
According to 47CFR, Part 2 and 15 for Class B Personal Computers and
Peripherals; and/or CPU Boards and Power Supplies used with Class
B Personal Computers:
We:
Located at:
Declare under sole responsibility that the product identified herein,
complies with 47CFR Part 2 and 15 of the FCC rules as a Class B digital
device. Each product marketed, is identical to the representative unit
tested and found to be compliant with the standards. Records
maintained continue to reflect the equipment being produced can be
expected to be within the variation accepted, due to quantity
production and testing on a statistical basis as required by 47CFR §2.909
Operation is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired
operation.
Trade Name:
Type of Product:
Model:
EPSON AMERICA, INC.
MS 3-13
3840 Kilroy Airport Way
Long Beach, CA 90806
Telephone: (562) 290-5254
EPSON
Digital Still Camera
G911A
Appendix 53
Index
A
accessory shoe, 8
adapter ring, 15
AE-lock, 24
AE-lock button, 9
aperture
setting, 23
B
battery
charging, 11
installing, 13
lithium-ion battery, 11
bright-line frame
illumination window, 7
selecting, 16
bulb setting, 23
button
CANCEL button, 10
ENTER button, 10
LCD button, 10
MENU button, 10
USER button, 10
C
Cable release, 23
calibrating status gauge, 42
cleaning
camera, 43
CCD sensor, 43
contacting Epson, 45
customer support, 45
D
dial-lock release button, 8
display icons, 27
E
EPSON PhotoRAW, 39
F
flash, 23
focal length conversion scale, 9
focusing, 25
format memory card, 42
frame selector lever, 8
I
icons, 27
image quality, 10
installing software, 39
ISO sensitivity dial, 8
J
Jog dial, 8
L
LCD monitor, 10, 26
lens
incompatible lens, 15
mounting L-mount lens, 16
mounting M-mount lens, 15
release button, 7
removing M-mount lens, 16
M
memory card
access light, 9
formatting, 42
inserting, 14
removing, 14
slot, 9
slot cover, 9
write protecting, 14, 42
O
option, flash, 23
optional accessory, 48
P
power on/off, 18
power switch, 8
PRINT image matching, 47
R
rangefinder eyepiece, 9
rangefinder window, 7
S
SD memory card, formatting, 42
setting
aperture, 23
white balance, 19
shutter charge lever, 8, 18
shutter release button, 8
shutter speed, 8, 23
software, installing, 39
status gauge, 8, 10
storing camera, 44
T
technical support, 45
V
viewfinder window, 7
W
white balance, 10
X
X-sync contact, 7
54 Index
Loading...
