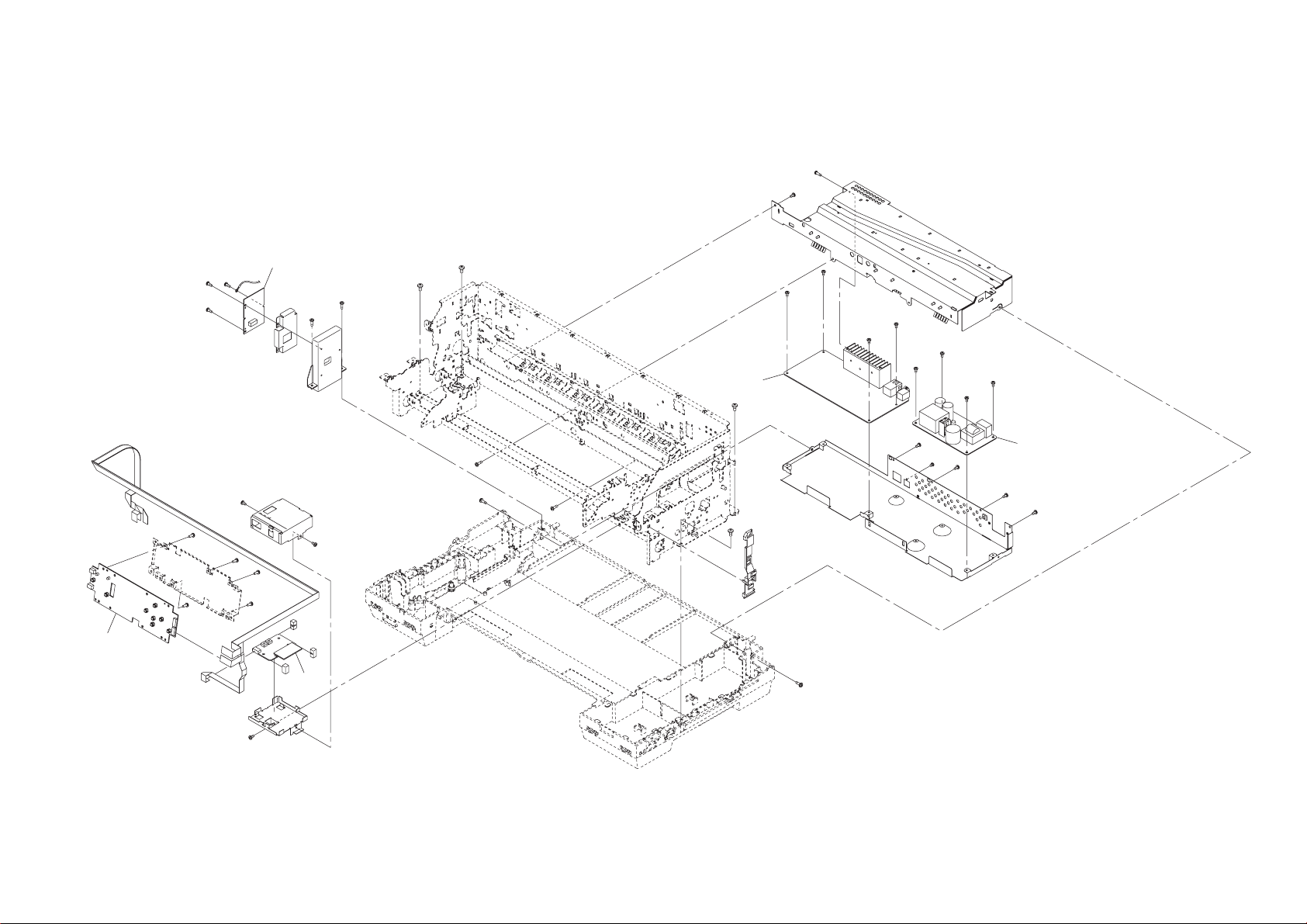

Epson R3000 Exploded Diagrams
EPSON
Stylus Photo R3000
RefNo. Part Code Part Name Specification Qty
8 1304557 ADAPTER,CDR 1
10 1582486 FRAME,ROLLE PAPER,LEFT,ASSY.;IEI 1
11 1582487 FRAME,ROLLE PAPER,RIGHT,ASSY.;IEI 1
12 1549014 TRAY,CDR 1
13 1236444 SHEET,CD,DUMMY 1
100 1533838 HOUSING,REAR 1
101 1533840 COVER,RIGHT 1
102 1533841 COVER,LEFT 1
103 1533863 DECORATION PLATE,RIGHT 1
104 1533864 DECORATION PLATE,LEFT 1
105 1533858 BUTTON,OK 1
106 1533859 COVER,LCD 1
110 1550689 PAPER SUPPORT SUB ASSY;NON EHC,IEI;ASP 1
111 1550687 COVER, PRINTER, ASSY, ASP 1
112 1550684 HOUSING UPPER UNIT.;IEI,ASP 1
113 1550686 HOUSING UPPER SUPPORT.B.,ASSY.;IEI,ASP 1
200 2144321 BOARD ASSY.,MAIN 6534C,STD_IC10 PKG CHANGECA86 MAIN(6534C) 1
202 2130133 BOARD ASSY.,SUB 6541A,STANDARDCA86 SUB-D(6541A) 1
203 2135226 WIRELESS LAN USB MODULE SP88W8786-MD0-2C2T00 04 1
204 2130248 CR CONTACT MODULE E6756CR5L27-2 3
205 2131886 CONNECTOR,CSIC;H ,, 9
300 2130060 BOARD ASSY.,POWER SUPPLY 6536A,CA86/CB35_STANDARDCA86 PSE(6536A) 1
350 2130062 BOARD ASSY.,PANEL 6537A,STANDARDCA86 PNL(6537A) 1
400 2121764 POWER CABLE 1
500 2136990 PRINTER MECHANISM,CA86,ASP;IEI 1
501 1539519 INK SUPPLY UNIT;IEI 1
502 1558483 ROLLER PF SUB ASSY,ASP,;IEI 1
503 1539004 PF ENCODER SUB ASSY.;IEI 1
504 1539013 INK SYSTEM ASSY.;IEI 1
505 1539017 TRAY FRONT ASSY.;IEI 1
506 1559695 CARRIAGE SUB ASSY, ASP,;IEI 1
507 1539292 PAPER DETECTOR SUB ASSY 1
508 1539301 AUTO PG UT 1
509 1540368 FRAME ASSY PAPER EJECT 1
510 1557662 SCALE,CR;C 1
511 1535516 GUIDE,TUBE,CR 1
512 1535906 POROUS PAD,GUIDE,INK EJECT 1
513 1535907 POROUS PAD,PAPER GUIDE,LEFT 1
514 1535905 POROUS PAD,PAPER GUIDE,FRONT 1
515 1535908 POROUS PAD,GUIDE,INK EJECT,LEFT 1
517 2116975 DETECTOR,LEAF,B2 1
518 1535369 LOCK,TRAY,FRONT 1
519 5125513 PAD,FRONT TRAY SUPPORT 1
521 1550690 PAPER GUIDE FRONT SUB ASSY UNIT.;IEI,ASP 1
522 2143411 HARNESS,DETECTOR,TRAY,FRONT;B 1
700 F196010 PRINT HEAD IA692V-1 1
701 1539007 WASTE FLUID TUBE ASSY.;IEI 1
702 1539031 TRAY POROUS PAD UNIT.;IEI 1
703 1581040 MOTOR,DECOMP,ASSY;B.,IEI 1
704 1539305 STACKER UNIT 1
705 1539324 COVER,STACKER UNIT.;IEI 1
706 1539308 CABLE HEAD ASSY.;IEI 1
707 1535535 HOLDER,CABLE,TUBE,RELAY 2
708 1535993 POROUS PAD,INK EJECT 1
709 1535994 POROUS PAD,INK EJECT;B 1
710 1535995 POROUS PAD,INK EJECT;C 1
711 1535996 POROUS PAD,INK EJECT;D 1
712 1535997 POROUS PAD,INK EJECT;E 1
713 1535998 POROUS PAD,INK EJECT;F 1
EPSON
Stylus Photo R3000
714 1535999 POROUS PAD,INK EJECT;G 1
715 1536000 POROUS PAD,INK EJECT;H 1
716 1536001 POROUS PAD,INK EJECT;I 1
717 1536002 POROUS PAD,INK EJECT;J 1
718 1536003 POROUS PAD,INK EJECT;K 1
719 1521980 FOOT;B 8
720 1550691 ASF.SUB.ASSY;IEI,ASP 1
NON FIG 1550874 INK CART.UNBOXED,PBK-L1,PIG'T;099C,AS T1571 1
NON FIG 1550876 INK CART.UNBOXED,C-L1,PIG'T;099C,AS T1572 1
NON FIG 1550877 INK CART.UNBOXED,VM-L1,PIG'T;099C,AS T1573 1
NON FIG 1550878 INK CART.UNBOXED,Y-L1,PIG'T;099C,AS T1574 1
NON FIG 1550879 INK CART.UNBOXED,LC-L1,PIG'T;099C,AS T1575 1
NON FIG 1550880 INK CART.UNBOXED,VLM-L1,PIG'T;099C,AS T1576 1
NON FIG 1550881 INK CART.UNBOXED,LBK-L1,PIG'T;099C,AS T1577 1
NON FIG 1550882 INK CART.UNBOXED,MBK-L1,PIG'T;099C,AS T1578 1
NON FIG 1550883 INK CART.UNBOXED,LLBK-L1,PIG'T;099C,AS T1579 1
NON FIG 1033657 GREASE G-45 1
NON FIG 1049533 FLAX DISPENSER ST C440,640,740/PM750C,2000C,770C - #F723 1
NON FIG 1053480 I PACK,319LM 06-015 #F984 1
NON FIG 1080614 GREASE G-26 (40GR)(B702600001) 1
NON FIG 1266905 I/P,903BGP,500,PRINTING 10-026 #F1069 1
NON FIG 1276333 PG ADJUSTMENT PLATE 1
NON FIG 1294120 SONIC TENSION METER U507 1
NON FIG 1304994 SURFACE PLATES 1
NON FIG 1409257 GREASE G-74 1
NON FIG 1462531 I/P,DPIC009BSP,110,PRINTING CH08-001 #N003 1
NON FIG 1480655 GREASE G-71(BLUE) 1
NON FIG 1553098 PF Roller Adjustment Jig #F1067 1
NON FIG 1553099 PF Roller Adjustment Jig Stand #F1068 1
NON FIG 6104713 SHIPPING CLEANING LIQUID,CR06A,1kg CH08-0011 #N007 1
NON FIG 6104714 SHIPPING CLEANING LIQUID,CR06A,18kg CH08-009 #N006 1
Only numbered Service Parts
are available.
10
12
11
13
400
08
EPSON STYLUS PHOTO R3000 No.1 Rev.01 CA86-ACCE-011C
