Welcome

Your PowerLite Presenter is a portable, lightweight projector with a built-in DVD player and
powerful speakers. From classrooms to boardrooms, your full-color presentations and videos
will be bright and vibrant even in ordinary indoor lighting. You can connect the projector to
a wide range of computers and video sources, as well as USB storage devices.

PowerLite Presenter offers these outstanding features:

■ Widescreen viewing with native WXGA (1280 × 800) resolution and a 16:10 aspect ratio

■ Up to 2500 lumens of White and Color Light Output (brightness), enough for viewing

in daylight

■ DVD player with Dolby

■ Built-in speakers with DTS digital surround sound

■ Closed captioning

■ Microphone input

■ HDMI interface for connecting high-end video equipment.

■ Long-life bulb providing up to 5000 hours of use

®

Digital and DTS

®

■ USB plug and play connectivity for quick and easy setup

■ Automatic digital keystone correction and automatic color mode

Registration and Warranty

Your PowerLite Presenter comes with a warranty that lets you project with confidence. For
details, see the warranty brochure included with your projector.

In addition, Epson
unlikely event of an equipment failure, you won’t have to wait for your unit to be repaired.
Instead, Epson will ship you a replacement unit anywhere in the United States or Canada. See
the brochure included with your projector for details.

We encourage you to register your PowerLite Presenter. You can register using the CD that
came in the box. Or you can register online at http://www.epson.com/webreg. Registering
also lets you receive special updates on new accessories, products, and service.

6 Welcome

®

offers free Extra Care Road Service during your warranty period. In the

SM

Optional Accessories

Epson provides these replacement parts and optional accessories for the PowerLite Presenter:

Product Part number

Replacement lamp (ELPLP55) V13H010L55
Replacement air filter (ELPAF26) V13H134A26
Kensington
Accolade

Projection Screen
Portable Pop-up Screen 80” ELPSC08
Portable Projection Screen 50” ELPSC06
DC-10s Document Camera ELPDC10S
DC06 Document Camera V12H321001

®

security lock ELPSL01

®

Duet™ Ultra Portable

ELPSC80

You can purchase accessories from an Epson authorized reseller. To find the nearest reseller,
call 800-GO-EPSON (800-463-7766). Or you can purchase online at www.epsonstore.com
(U.S. sales) or www.epson.ca (Canadian sales).

About This Manual

See the Quick Setup sheet to set up your PowerLite Presenter and start using it. This book
contains information on using all the features of PowerLite Presenter, troubleshooting tips,
and specifications.

Please follow these guidelines as you read through the manual:

Warnings: Must be followed carefully to avoid bodily injury.

Cautions: Must be observed to avoid damage to your equipment.

Notes: Contain important information about your equipment.

Tips: Contain helpful projection tips.

Need additional help? Visit Epson’s U.S. support website or Canadian support website for
solutions to common problems. You can download utilities and documentation, get FAQ’s
and troubleshooting advice, or e-mail Epson with your questions.

®

If you need more help, you can use the Epson PrivateLine

Support service. Call
[phone] and enter the PIN on the PrivateLine support card that came with PowerLite
Presenter.

Welcome 7

PowerLite Presenter Parts and Controls

Front View

A/V mute/
Lens cover slide

Lens
cover

Foot
adjustment
lever

Remote control
receiver

Air filter/
Air intake vent

Adjustable
foot

Disc slot

Back View

Video port

HDMI port

Computer
port

Speaker

Component
video ports

Eject
button

Disc
indicator light

Audio
inputs

Lens

USB port
(Type B)

Headphone
jack

Remote control
receiver

Security
slot

Handle

Foot
adjustment

lever
Adjustable
foot

Air exhaust
vent

8 Welcome

Mic input
port

Power
inlet

Digital coaxial
audio-out port

USB port
(Type A)

Storage
feet

Speaker

Top View

Focus image

Zoom image

Control panel

Lamp cover

Power
status light

Turn
PowerLite
Presenter
on or off

Lamp
warning light

Temperature
warning light

Ambient light
sensor

Project from
external equipment

Play/Pause

Access Setup menu
(DVD settings)

Stop

Control
volume

Access DVD
menu (chapter
selection, etc.)

Select
menu
settings

Return to
previous menu

Access Visual
Setup menu
(projector settings)

Welcome 9

Remote Control

Turn
PowerLite
Presenter
on or off

Open menus/functions
assigned by user

Function/numerics
toggle switch

Note: The remote control buttons can
glow in the dark. Expose the remote
control to light for several minutes
before using it in the dark.

Eject DVD

Change aspect ratio

Project from
external equipment

Adjust picture for
different lighting

Fix image shape (if
PowerLite Presenter
is tilted)

Temporarily turn
off the image and
sound

Control
playback

Control volume

Access DVD features

10 Welcome

Important Safety Instructions

Follow these safety instructions when setting up and using your PowerLite Presenter:

■ Except as specifically explained in this User’s Guide, do not attempt to service this product

yourself. Refer all servicing to qualified service personnel.

■ Never open any cover on the projector, except the lamp and filter covers. Dangerous

electrical voltages inside the projector can severely injure you.

■ The projector’s accessories come packaged in plastic bags. Keep plastic bags away from

small children to avoid any risk of suffocation.

■ Never look into the projector lens when the lamp is turned on; the bright light can

damage your eyes. Never let children or pets look into the lens when it is on.

■ Don’t place the projector on an unstable cart, stand, or table. Also, don’t stand on the

projector or place heavy objects on it.

■ Never push objects through the cabinet slots or spill liquid into the projector.

■ Do not use the projector near water, or sources of heat or vibration. Do not expose it to

rain or moisture.

■ Do not move the unit during playback.

■ Do not touch the projection lens with bare hands.

■ Use a damp cloth for cleaning. Do not use liquid or aerosol cleaners. Do not use solvents

such as alcohol, thinner, or benzine. Unplug the projector from the wall outlet before
cleaning.

■ Do not use the projector in places where flammable gases or explosive gases may be

present in the atmosphere.

■ Do not use the projector in places where there is excessive humidity or dust, near cooking

or heating appliances, or in places where it may come into contact with smoke or steam.
Do not use or store the projector outdoors for an extended length of time.

■ Never try to remove the lamp immediately after use. Doing so will result in serious burns.

Before removing the lamp, turn off the projector and wait approximately one hour for the
lamp to cool completely.

■ The lamp is fragile and can easily break. If the lamp breaks, handle the projector with

extreme care to avoid injury from broken glass, and contact Epson to replace the lamp.

■ Do not use the lamp after the lamp replacement period has elapsed, because the

possibility of lamp breakage increases. When the lamp replacement message appears,
replace the lamp with a new one as soon as possible.

Welcome 11

■ The lamp(s) in this product contain mercury. Please consult your state and local

regulations regarding disposal or recycling. Do not put in the trash.

■ The lamp in this projector is under high internal pressure and may make a loud noise if it

breaks. If it breaks, ventilate the room to prevent mercury gas inside the lamp from being
inhaled or coming into contact with the eyes or mouth.

■ Do not bring your face close to the projector while it is in use, to prevent burns from hot

air leaving the exhaust vent, and to prevent inhaling or contact with the gases inside the
lamp if it breaks.

■ Do not place anything that can become warped or damaged by heat near the air exhaust

vents.

■ Do not place the projector near a flame.

■ Before you move the projector, make sure it is turned off, the plug is disconnected from

the outlet, and all cables are disconnected.

■ If the lamp breaks and gas from the lamp or fragments of broken glass are inhaled or get

into the eyes or mouth, or if any other ill effects are noticed, immediately seek medical
advice.

■ Do not disassemble or damage the lamp or subject it to any impacts.

■ Use the type of power source indicated on the projector. If you’re not sure of the power

available, consult the power company.

■ If you use the projector in a country other than where you purchased it, use the correct

power cord for that country.

■ Place the projector near a wall outlet where the plug can be easily unplugged.

■ Don’t place the projector where the cord can be walked on. This may result in fraying or

damage to the plug.

■ Do not bend, twist, or pull the power cable excessively, and do not place heavy objects on

top of the power cable.

■ Do not modify the power cable.

■ Keep the power cable away from hot electrical appliances.

■ Do not pull the power cable when disconnecting the plug. Always be sure to hold the

plug when disconnecting it.

■ Don’t insert the plug into an outlet with dust present, and insert the plug firmly into the

outlet. Failure to do so could result in sparks or fire.

■ Don’t handle the plug with wet hands.

12 Welcome

■ Don’t overload wall outlets, extension cords, or integral convenience receptacles. This can

cause fire or electric shock.

■ Unplug the projector from the wall outlet and refer servicing to qualified service

personnel under the following conditions: when the power cord or plug is damaged or
frayed; if liquid has been spilled into the projector, or if it has been exposed to rain, water,
or excessive humidity; if smoke, unusual smells, or unusual noises come from the
projector; if it doesn’t operate normally when you follow the operating instructions, or if
it exhibits a distinct change in performance, indicating a need for service; if it has been
dropped or the housing has been damaged.

■ If there is an electrical storm, do not touch the power plug, otherwise you may receive an

electric shock.

■ Keep the projector unplugged during electrical storms and when the projector is not in

use for extended periods.

■ Keep the batteries for the remote control out of the reach of children. Batteries are

choking hazards and can be very dangerous if swallowed. If they are swallowed, seek
medical attention immediately.

■ Replace the batteries as soon as they run out.

■ Do not expose batteries to heat or flame and do not put them in water.

■ Dispose of used batteries according to local regulations.

■ Remove the batteries if you won’t be using the projector for an extended period.

■ Insert batteries so that the polarities are correct, and do not mix new and old batteries.

■ Do not use batteries other than those specified in this User’s Guide.

■ Don’t block the slots and openings in the projector case. They provide ventilation and

prevent the projector from overheating. Don’t operate the projector on a sofa, rug, or
other soft surface, or in a closed-in cabinet unless proper ventilation is provided.

■ Don’t leave the projector or remote control on top of heat-producing equipment or in a

heated place, such as a car.

■ Don’t use the projector outside of the required temperature range (41 to 95 °F [5 to 35

°C]). Doing so may cause an unstable display and could lead to projector damage.

■ Don’t store the projector outside of the required temperature range (14 to 140 °F [–10 to

60 °C]) or in direct sunlight for long periods of time. Doing so may cause damage to the
case.

■ Make sure there is at least 8 inches of space between the exhaust ventilation slots and the

wall or other object.

Welcome 13

■ Make sure there is at least 4 inches of space between the intake ventilation slots and the

wall or other object.

■ Avoid projecting a high-contrast still image for more than 15 minutes to prevent burn-in.

If this happens, project a bright screen until the burn-in disappears (from 30 to 60
minutes). If you can’t eliminate the burn-in, contact Epson as described on page 68.

■ Do not turn the volume too high, especially when using headphones. Listening to high

volume sounds over an extended period can damage your hearing. Sudden high volume
can also damage the speakers.

WARNING: The cords included with this product contain chemicals, including lead, known
to the State of California to cause birth defects or other reproductive harm. Wash hands after
handling. (This notice is provided in accordance with Proposition 65 in Cal. Health & Safety
Code § 25249.5 and following.)

14 Welcome

Unpacking and Setting Up

Follow these instructions to unpack your projector, choose a location, and set up your
projector.

Unpacking

Make sure you have all the parts shown here:

Remote control and

PowerLite Presenter

2 AA Batteries

VGA computer cable

CD with User’s Guide and
electronic registration

Password
Protected
sticker

Power cord

Protective
case

Unpacking and Setting Up 15

Choosing a Location

You can use your PowerLite Presenter just about anywhere—in the classroom or conference
room, on a tabletop, desktop, or cart.

Your projector should be directly in front of the screen,
facing straight ahead (at a 90-degree angle to the surface).

If the image is too low, you can raise it by extending the feet
and tilting the projector up. This causes the image to lose its
rectangular shape, but the projector will correct it
automatically. If necessary, you can adjust the shape using
the keystone buttons on the remote control or the Visual
Setup menu. See page 21 for instructions.

The farther you place the projector from the screen, the
larger the image will be.

The following tables list the distances required for various image sizes (measured diagonally).
Note that the zoom adjustment also affects image size.

Wide screen aspect ratio (16:10)

Image size (diagonal) Projection distance

33 in. 3.0 to 3.6 ft. (0.91 to 1.1 meters)

40 in. 3.6 to 4.4 ft. (1.1 to 1.3 meters)

50 in. 4.6 to 5.5 ft. (1.4 to 1.7 meters)

60 in. 5.5 to 6.6 ft. (1.7 to 2.0 meters)

80 in. 7.4 to 8.9 ft. (2.3 to 2.7 meters)

100 in. 9.2 to 11.1 ft. (2.8 to 3.4 meters)

150 in. 13.9 to 16.7 ft. (4.2 to 5.1 meters)

200 in. 18.6 to 22.3 ft. (5.7 to 6.8 meters)

320 in. 29.8 to 35.7 ft. (9.1 to 10.9 meters)

Standard aspect ratio (4:3)

Image size (diagonal) Projection distance

29 in. 3 to 3.6 ft. (0.9 to 1.1 meters)

30 in. 3.1 to 3.7 ft. (0.9 to 1.1 meters)

16 Unpacking and Setting Up

Standard aspect ratio (4:3)

Image size (diagonal) Projection distance

40 in. 4.1 to 5 ft. (1.3 to 1.5 meters)

50 in. 5.2 to 6.2 ft. (1.6 to 1.9 meters)

60 in. 6.2 to 7.5 ft. (1.9 to 2.3 meters)

70 in. 7.3 to 8.8 ft. (2.2 to 2.7 meters)

80 in. 8.4 to 10 ft. (2.6 to 3.1 meters)

100 in. 10.5 to 12.6 ft. (3.2 to 3.8 meters)

150 in. 15.7 to 18.9 ft. (4.8 to 5.8 meters)

200 in. 21 to 25.3 ft. (6.4 to 7.7 meters)

280 in. 29.5 to 35.4 ft. (9 to 10.8 meters)

Wide screen aspect ratio (16:9)

Image size (diagonal) Projection distance

32 in. 3 to 3.6 ft. (0.9 to 1.1 meters)

40 in. 3.7 to 4.5 ft. (1.1 to 1.4 meters)

50 in. 4.7 to 5.7 ft. (1.4 to 1.7 meters)

60 in. 5.7 to 6.8 ft. (1.7 to 2.1 meters)

70 in. 6.6 to 8 ft. (2 to 2.4 meters)

80 in. 7.6 to 9.1 ft. (2.3 to 2.8 meters)

100 in. 9.5 to 11.4 ft. (2.9 to 3.5 meters)

150 in. 14.3 to 17.2 ft. (4.4 to 5.2 meters)

200 in. 19.1 to 22.9 ft. (5.8 to 7 meters)

310 in. 29.6 to 35.6 ft. (9 to 10.8 meters)

When setting up the projector, keep these considerations in mind:

■ Make sure you don’t block the air vents on the sides.

■ Make sure you place the projector within 9 feet (2.7 meters) of an electrical outlet, power

strip, or extension cord.

■ Do not tilt the projector more than 10 degrees while playing CDs or DVDs.

Unpacking and Setting Up 17

Setting Up PowerLite Presenter

1. If you have a screen, set it up following the instructions included with the screen. Make
sure you read all the instructions to avoid damaging the screen.

2. Put the batteries in the remote control.

Note: Use only AA-size alkaline or manganese dry batteries.

3. Reattach the battery cover.

4. Expose the remote control to bright light for several minutes before using it in the dark.
The buttons will glow in the dark briefly.

18 Unpacking and Setting Up

5. Open the lens cover, then connect the power cord and plug in the projector. The
light turns orange.

Once you’ve finished setting up the projector, do one of the following:

■ If you would like to play a DVD, see “Playing DVDs” on page 20.

■ If you would like to connect other equipment to the projector, see“Using PowerLite

Presenter with Other Equipment” on page 29.

Turning the Projector Off

1. If there is a disc inside the projector, eject it.

2. Press the button on the projector or the on the remote control. The projector
will beep twice when it is finished powering off.

Warning: Do not disconnect the power cable before the projector beeps, or you may damage
the projector.

3. Close the lens cover.

Unpacking and Setting Up 19

Playing DVDs

Follow the instructions in this section to play a DVD and control playback.

Starting a DVD

Insert your DVD into the slot.

Warning: Close the lens cover before inserting or ejecting a disc. When the picture appears, do not
look into the lens, and do not allow children or pets to look into the lens. The bright light may affect
your vision.

After about 30 seconds, the projector warms up and the picture comes on.

20 Playing DVDs

Adjusting the Picture

After you set up and start the projector, you may need to make certain adjustments.

■ If the image is too low, you can extend the feet (by pressing the foot adjustment levers)

and tilt the projector up.

■ If the image is horizontally tilted, you can turn the feet to level it.

■ Your projector automatically detects the vertical tilt and corrects the image shape. If you

find that the image is not rectangular, however, use the
control or the Keystone setting in the Signal menu (see page 51) to adjust the image
shape.

Keystone buttons on the remote

Playing DVDs 21

■ Use the zoom ring to adjust the image size.

■ Rotate the focus ring to sharpen the picture.

■ To enlarge or reduce the aspect ratio of the picture, press the button on the remote

control to select

Adjusting the Sound

To adjust the volume, use the + or – Volume buttons on the control panel or remote control.

You can also press the button on the remote control to temporarily turn off the sound.

22 Playing DVDs

Normal, 16:9, or Zoom (if available for the video source you’re using).

Controlling Playback

You can use the buttons on the remote control or the control panel to pause, fast-forward, or
replay sections of your video or audio. You can also select items on a DVD menu by using the
remote control.

Note:

DVD movies are divided into units called titles. Each title may contain any number of chapters.
Music CDs and video CDs are divided into tracks.

Some features may not be available depending on your media or file type.

Pausing

There are three ways to pause a DVD or audio track:

■ To pause a movie, or a music CD or MP3 player track, press on the remote control

or on the control panel.

To resume, press on the remote control or on the control panel.

■ To pause a movie and display the Epson logo, press on the remote control or control

panel.

To resume, press on the remote control or on the control panel.

■ To temporarily turn off the image and sound, press on the

remote control or close the lens cover. Press the button again or
open the lens cover to resume your DVD or presentation.

Playing DVDs 23

Searching (Fast Forward or Reverse)

■ To move forward or backward through a video or music CD, press

or on the remote control.

Each time you press the button, the search (or “shuttle”) speed
increases.

■ To return to normal play, press .

Playing in Slow Motion

You can play a video frame by frame or in slow motion (“jog control”).

1. Press on the remote control.

2. Press repeatedly to advance the video frame by frame.

3. Press or to move forward or backward in slow motion. Each time you press the
button, the speed decreases.

4. Press to return to normal play.

Skipping

■ To skip to the next chapter or track, press on the remote control.

■ To return to the start of the current chapter or track, press on the remote control.

Zooming In or Out

■ Press to zoom in the image. (Make sure the toggle switch on the remote control is

set to the

■ Continue pressing to zoom in or out. Use the , , , and buttons to pan

around the image if necessary.

24 Playing DVDs

Func- position.)

Using DVD Menus

Many DVDs display a top menu at startup and include submenus that let you select chapters.

■ To display a menu, press (press the button for about 3 seconds

to display the top menu).

■ To select items in a menu, press , , , or . Then press

if necessary.

You can also select a title or chapter by number.

■ If you want to use the numeric buttons, you need to set the toggle

switch on the remote control to the

■ After you set the toggle switch, you can simply press the numeric

-Num position.

button for the numbers 1 through 9.

■ To enter the number 10, press , then .

■ To enter the number 15, press , then .

■ To enter the number 20, press , then .

■ After entering your number, you may need to press the button.

Temporarily Stopping Audio

■ To temporarily stop the soundtrack (from the built-in speakers or headphones), press

. The video continues to play.

Press again to resume.

Playing DVDs 25

Adjusting the Color Mode

You can select a color mode to optimize picture quality based on the lighting conditions in
the room.

1. Press . The currently selected color mode is displayed on the screen.

2. Press repeatedly until the desired color mode appears. After a few seconds, the color
mode name disappears and the picture quality changes.

You can select from the following color modes:

■ Auto: Selects the best mode for your surroundings.

■ Dynamic: Use in rooms with bright light.

■ Presentation: Use for making color presentations in a bright room.

■ Theatre: Use in completely darkened rooms.

■ Blackboard: Use to project accurate colors on a green chalkboard (adjusts the white

point).

Note: Fan speed varies depending on the selected color mode. This is normal.

Adjusting the Sound and Audio Modes

You can switch between stereo sound and virtual surround sound and select from several
audio modes, depending on the type of movie (or music) you’re playing.

1. To display the sound mode, press the button on the remote control. You see the
current setting displayed on the screen.

2. To switch between

3. To change the audio mode, press . You see the current setting displayed on the
screen.

4. Continue pressing to select the mode you want:

Standard.

For audio CDs, the modes are:

26 Playing DVDs

Stereo and Multi (virtual surround sound), press again.

Concert, Drama, Action, or

Classic, Jazz, Rock, and Digital.

Listening with Headphones

Connect headphones as shown below:

After you connect headphones, you no longer hear any sound from the built-in speakers.
However, you can still adjust the volume to the headphones using the projector’s volume
controls on the control panel or remote control.

Warning:

Make sure the volume is not set too high, especially when you first plug in the headphones.
Listening to high volume sounds over an extended period can damage your hearing. Sudden high
volume can also damage your hearing or your headphones.

Do not look into the lens, and do not allow children or pets to look into the lens. The bright light may
affect your vision.

Playing DVDs 27

Connecting a Microphone

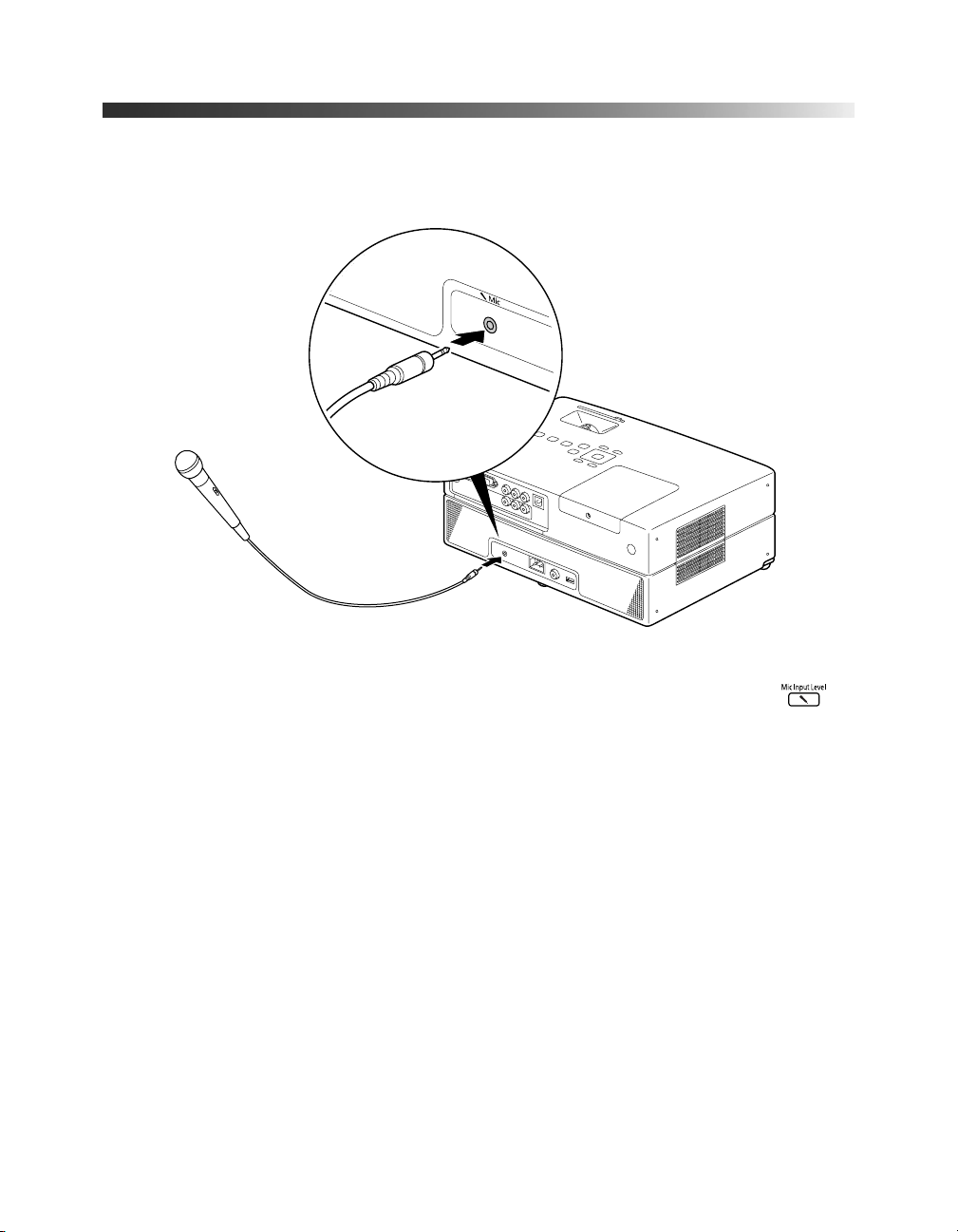

Connect a microphone as shown below:

You can adjust the volume using the projector’s volume controls on the control panel or
remote control. If the microphone level is too low, you can adjust it by pressing the
button on the remote control or through the Option menu (see page 50).

28 Playing DVDs

Using PowerLite Presenter with Other Equipment

You can connect a variety of video, audio, and computer equipment to PowerLite Presenter to
further enhance your viewing and listening experience.

■ Video equipment such as a VCR, DVR, cable or satellite TV receiver, game console,

video camera, digital camera, iPod

■ A USB flash drive containing photos, music files, or DivX

■ Audio input equipment such as an iPod or other MP3 player to play music through the

projector (audio cables not included)

■ Audio output equipment such as an AV amplifier or a 5.1 Stereo Surround Sound System

to play audio from the projector

■ Computer or laptop to project anything you can see or hear on your computer through

the projector

Warning: Close the lens cover before connecting/disconnecting your device. The bright light may
affect your vision. Additionally, you may leave fingerprints on the lens which can affect projection
quality. When the picture appears, do not look into the lens, and do not allow children or pets to look
into the lens.

®

, or other device that has a video output port

®

videos

Viewing Video from External Devices

You can connect to external video devices that have HDMI, composite video, or component
video ports. To play audio from component or composite sources, you also need to connect
standard white and red audio jacks to the projector’s

L and R Audio inputs.

When you view video from an external source, you can use most of the projector’s controls,
including adjusting color mode, volume, and sound mode.

You will need connection cables, which may be included with your external equipment, or
may be purchased from an electronics store.

Caution: Before connecting, make sure all equipment is turned off.

Connect the external equipment as shown on the following pages.

Using PowerLite Presenter with Other Equipment 29

HDMI Connection

For connecting an HD cable or satellite TV receiver, HD DVR, Blu-ray DVD player, or HD
camcorder.

Composite Video Connection

White

Yellow

Video

L

Audio

R

For connecting a VCR, or DVD player, cable or satellite TV receiver or DVR, game console,
camcorder, iPod, digital camera, or other device with a video output port.

Red

30 Using PowerLite Presenter with Other Equipment

Component Video Connection

White

Output

L

Audio

R

For connecting a cable or satellite TV receiver, DVR, or game console.

Red

RCA stereo
audio cable

Component video cable

After you connect your equipment to the projector, follow these steps to begin:

1. Make sure all of the equipment is plugged into a power source.

2. Open the lens cover and press the button on the projector or the on the remote
control.

3. Press the button on the projector or the button on the remote control.

4. When you see the menu, use the down-arrow or up-arrow button to select the correct
source (if necessary), then press the button on the projector or the button on the
remote control.

■ If you used the HDMI connection, select HDMI.

■ If you used the component video connection, select Component.

■ Otherwise, select Video.

5. Turn on the power to the connected video equipment, then start playing the video or
game.

6. Normally, your projector selects the correct aspect ratio automatically. If you need to
change the aspect, press the button on the remote control and select

Zoom (if available for the video source you’re using).

or

Normal, 16:9,

After you start playing your video or game, you may find that you need to adjust the position
or shape of the picture. Or you may need to focus or zoom the image. See “Adjusting the
Picture” on page 21.

Using PowerLite Presenter with Other Equipment 31

Connecting a USB Device

You can connect a USB device, such as a flash drive or memory card reader containing a
memory card. You can view photos or play music or DivX videos. The projector supports the
following types of files on USB devices:

■ MP3

■ WMA

■ JPEG

■ DivX

■ MPEG 1/2/4

Connect the drive or other device to the USB port as shown below. When you’re finished,
make sure you press before removing the device from the USB slot.

For instructions on playing MP3, WMA, JPEG, DivX, or MPEG 1/2/4 files, see page 38.

32 Using PowerLite Presenter with Other Equipment

Playing Projector Audio Through an External Audio System

You can connect the projector to an amplifier, a 5.1 Stereo Surround Sound System, or a
digital audio recorder. To output sound from the projector, the external equipment needs to
have a digital coaxial (S/PDIF) audio input port.

You will also need a digital coaxial cable, which may be provided with your external
equipment, or may be purchased from an electronics store.

1. Make sure the equipment is turned off, then connect the cable as shown:

Digital coaxial cable

2. Turn on your audio equipment and play your movie, music, or other presentation with
sound from your projector.

3. You may need to change the

Stream if you are connecting a DTS/Dolby Digital Decoder or PCM if you are

connecting to equipment that is only compliant with linear PCM. For more information,
see page 50.

You can use any of your projector’s audio controls, as described on pages 22 and 26.

Digital Output setting in the Audio Setup Page. Select

Using PowerLite Presenter with Other Equipment 33

Connecting a Computer or Laptop

You can connect the projector to a computer or laptop to play videos or games, display
presentations or photos, or project anything you can see and hear on your computer.

Connecting to the USB Port

You can connect a Windows Vista®, Windows XP, or Windows 2000 (SP4) computer to the
projector’s Type B (square) USB port and project your computer’s display.

The first time you connect your computer to the projector’s USB port, software from the
projector installs on your computer.

1. Connect the power cords and plug in all the equipment.

2. Open the lens cover and press the button on the projector or the button on the
remote control.

3. Turn on your computer.

4. Connect the square end of a USB cable (not included) to the projector’s
USB port.

5. Connect the flat end of the cable to any available USB port on your notebook or desktop
computer.

Messages appear as the projector is recognized and the software installation begins.

34 Using PowerLite Presenter with Other Equipment

TypeB (square)

6. Follow the instructions on your computer screen to install the Epson USB Display
software. If you see a “Digital Signature Warning,” select Continue. You will only need to
install the software the first time you connect.

7. After the software has installed, you see your computer’s desktop displayed by the
projector. (It may take a moment.)

8. If you want to play audio from the computer through the projector, you also need to
connect a stereo mini-jack cable to the projector’s RCA stereo

L and R Audio inputs.

Connect the other end of the cable to the audio output connector(s) on your computer.

9. Normally, your projector selects the correct aspect ratio automatically. If you need to
change the aspect, press the button on the remote control and select

Zoom (if available for the video source you’re using).

or

Normal, 16:9,

When you are projecting through the USB port, you can use the Page Up and Page
Down buttons on the projector’s remote control to move through a Microsoft

®

PowerPoint

slide show.

After your image appears, you may find that you need to adjust the position or shape of the
picture. Or you may need to focus or zoom the image. See “Adjusting the Picture” on
page 21.

Using PowerLite Presenter with Other Equipment 35

Connecting to the PC Port

You will need a computer cable (D-sub 15-pin to D-sub 15-pin) and an RCA stereo audio
cable (2-RCA to stereo mini-pin). You can purchase these cables from an electronics store.

Caution: Before connecting, make sure all equipment is turned off.

1. Connect the computer or laptop as shown.

White

Red

D-sub 15-pin
computer cable

RCA stereo
audio cable

2. Connect the power cords and plug in all the equipment.

3. Open the lens cover and press the button on the projector or the button on the
remote control.

4. Press the button on the projector or the button on the remote control.

5. When you see the menu, use the down-arrow or up-arrow button to select PC (if
necessary), then press the button on the projector or the button on the remote
control.

6. Turn on the power to the connected computer or laptop.

36 Using PowerLite Presenter with Other Equipment

7. Switch the display on the computer or laptop to display on the projector, or on both the
projector and the computer screen. Usually you do this by pressing function keys to
toggle through display choices; see your computer documentation for instructions.

Note: If your laptop cannot play movies on both the laptop display and an external display, you
may need to disable the laptop display to view movies on the projector. See your laptop
documentation for instructions.

8. Normally, the projector selects the correct aspect ratio automatically. If you need to
change the aspect, press the button on the remote control and select

Zoom (if available).

or

Normal, 16:9,

After your image appears, you may find that you need to adjust the position or shape of the
picture. Or you may need to focus or zoom the image. See “Adjusting the Picture” on
page 21.

Using PowerLite Presenter with Other Equipment 37

Doing More with PowerLite Presenter

Follow the instructions in this section to play music and photos on your projector, use
advanced playback controls, and adjust various projector features.

Playing Music and DivX Videos and Viewing Photos

You can play music CDs and discs or USB devices with MP3, WMA, DivX, and MPEG
1/2/4 files. You can also view JPEG photos on discs or USB devices.

Playing Music CDs

■ To play a music CD, simply insert it in the slot.

You can use most of the playback features, including pause, resume,
fast forward, reverse, and skip to the next or previous track. See
page 23 for instructions.

■ You can also select a specific track by using the numeric buttons, as

described on page 25. To use the numeric buttons, you need to set
the toggle switch on the remote control to the

■ To turn off the lamp, close the lens cover.

38 Doing More with PowerLite Presenter

-Num position.

Playing MP3/WMA Music or DivX Videos

You can play MP3 or WMA music files and DivX or MPEG 1/2/4 videos on CDs, DVDs, or
USB devices. See page 69 for information on the types of discs that are supported.

When you insert a disc or USB device that contains MP3, WMA, and/or DivX files, you see a
list of files and/or folders:

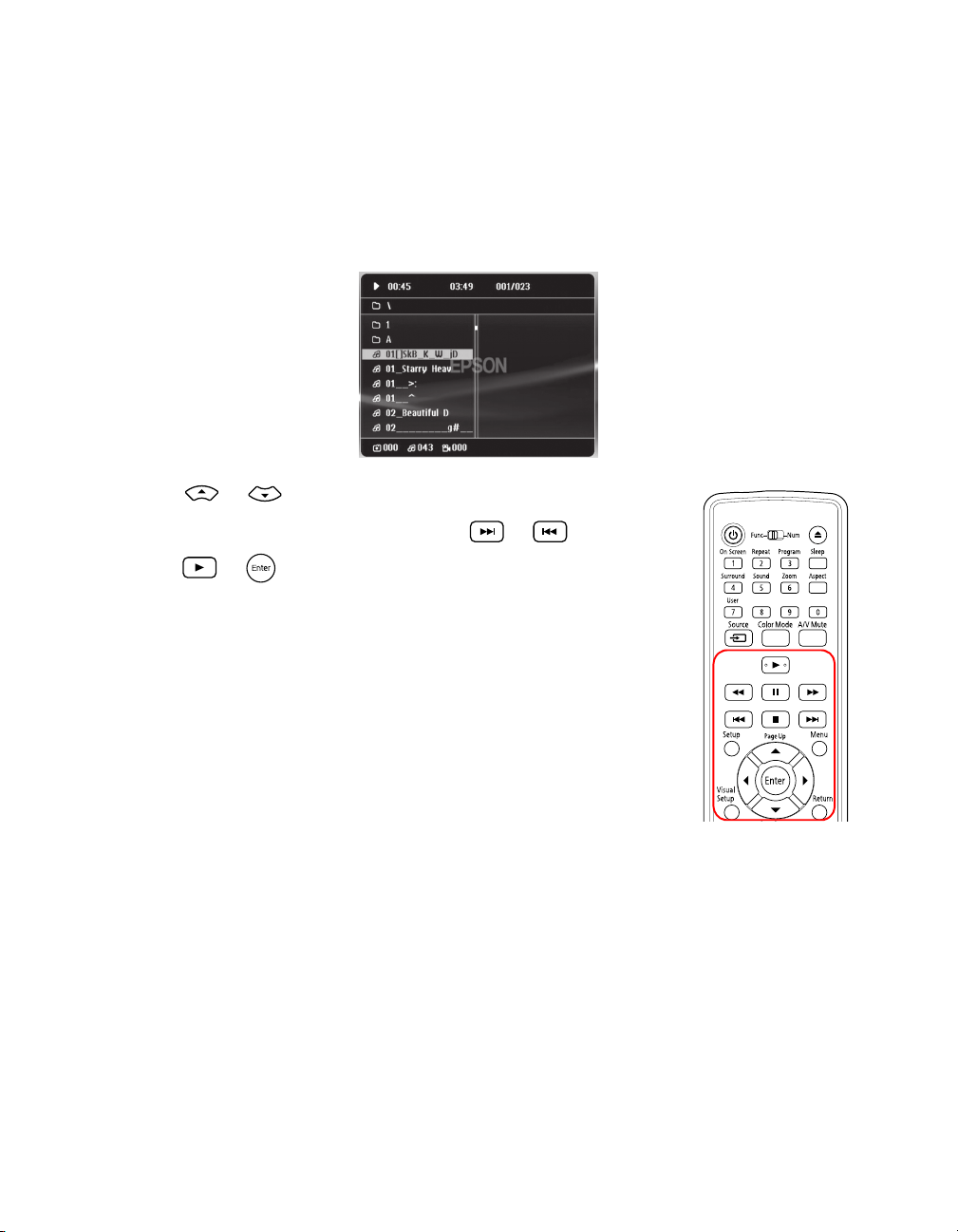

1. Press or to select a folder or file.

To go to the next or previous page, press or .

2. Press or to begin playing the selected track or file.

When a file is finished playing, the next file in the sequence will
start automatically.

■ To turn off the lamp when playing music files, close the lens cover.

■ When you play MP3 or WMA files, scrolling through the list of

songs will pause the music until you highlight the next file.

Note: You can use the Setup menu to change the way files are displayed.
See page 49 for instructions.

Doing More with PowerLite Presenter 39

Viewing JPEG Photos

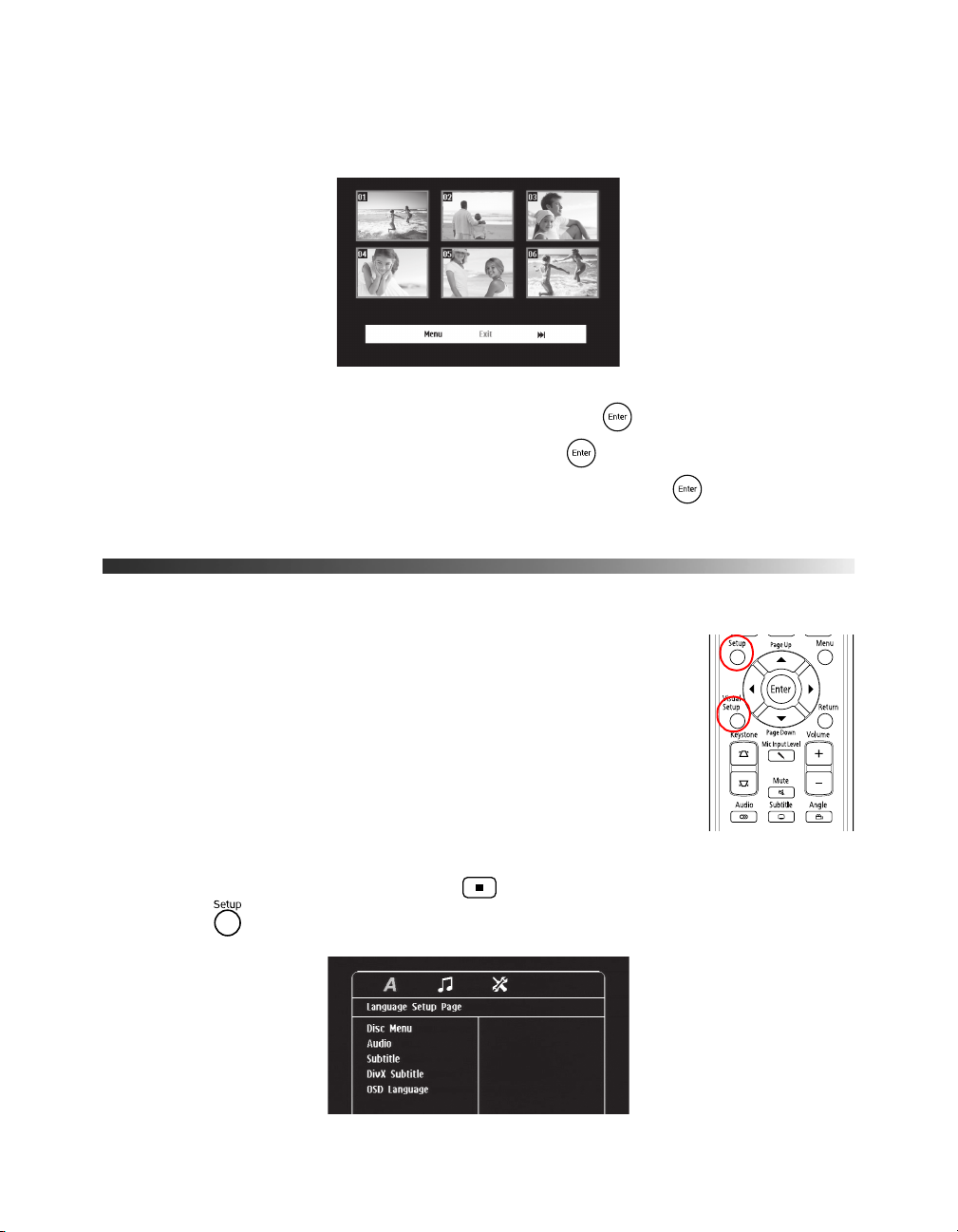

When you insert a disc or USB device that contains JPEG photo files, you see a list of files
and/or folders.

■ Press or to select a folder or file, then press to begin

displaying the photos.

■ To rotate an image, press or .

■ To stop the slideshow and display a thumbnail screen, press .

■ To display the next or previous page of thumbnails, press or .

■ To display the list of the files and folders, press .

■ If your disc or USB device includes both music files and JPEG photos, you can play a

slideshow with music.

1. To display the list of files, press .

2. Select the music file you want and press to start playing it.

3. Select the JPEG file you want and press to start displaying the slideshow.

40 Doing More with PowerLite Presenter

Using Advanced Playback Controls

Your projector provides advanced features for looping videos or music tracks and selecting
titles, chapters, or tracks. On DVDs that include subtitles, multiple languages, or multiple
camera angles, you can use the remote control for easy access to these features.

Repeating a Chapter, Title, Track, or File

You can select a chapter or title on a DVD to repeat continuously (or loop). You can also
repeat a track on a music CD or an MP3, WMA, JPEG, or DivX file.

1. To repeat a chapter, title, or track, press (make sure the toggle switch on the remote
control is set to the
repeat option.

2. Press again to cycle through the options for repeating.

■ On a video DVD, you can repeat a chapter or title or select random play (Shuffle).

■ On an audio or video CD, you can repeat one track or all tracks or select random

play (Shuffle).

■ For MP3, WMA, JPEG, and DivX files, you can repeat a file, all files in a folder on

on a disc, or select random play (Shuffle).

Func- position). You see an icon on the screen indicating the selected

3. To cancel repeat play, press until

Repeat Off is displayed on the screen.

Doing More with PowerLite Presenter 41

Changing the Play Sequence (Program Play)

You can create your own program for playing tracks on a music CD or chapters and titles on
a DVD. Programs are saved for up to 10 discs, even after you change the CD or DVD.

1. Press (make sure the toggle switch on the remote control is set

Func- position). You see the program screen, which allows

to the
you to set a playback sequence:

2. Set the toggle switch on the remote control to the

-Num position.

3. Use the numeric buttons to set the program order (up to 99 chapters, titles, or tracks).

■ Press , , , or to move the cursor.

■ If a disc has more than 10 chapters or tracks, press or to display the next or

previous page. Or, select

■ To delete a track or chapter you have entered, select it and press .

■ To close the program screen, select Exit on the screen and press .

4. To begin playing your programmed sequence, select

5. Set the toggle switch on the remote control back to the

Next or Prev on the screen and press .

Start on the screen and press .

Func- position.

6. To cancel the program, press .

7. To resume normal playback, stop play and press .

42 Doing More with PowerLite Presenter

Selecting Language, Subtitles, and Camera Angles

Some DVDs and DivX files allow you to display subtitles or select from several languages or
camera angles. If these features are available, you can use the buttons on the remote control to
select them.

1. Press the appropriate button on the remote control:

■ To change the language of the video, press .

■ To display subtitles, press . You may have a choice of subtitle languages or

subtitle files (for DivX videos).

■ To change camera angles, press .

2. Press the button repeatedly to select the option you want.

Note: You can also use the Playback information screen, as described below. For a list of language
codes, see page 75.

Using the Playback Information Screen

You can check the current playback status and change settings while you are playing a DVD,
audio or video CD, or DivX video.

1. Press (make sure the toggle switch on the remote control is set
to the Func- position). You see an information screen like the
following below the projected image:

2. Press or to select the item you want to set and press .

3. Select the setting you want and press .

You can set the title, chapter, track number, or start time using the
numeric keys, as described on page 25. To use the numeric buttons, you need to set the
toggle switch on the remote control to the

-123 position.

After you press , playback starts from the title, chapter, track, or time you selected.

Doing More with PowerLite Presenter 43

Playing Video CDs with Playback Control (PBC)

When you insert a video CD with playback control (PBC), you see a menu like the following:

■ To select the item you want to play, press or , or set the toggle switch on the

remote control to the
page 25.

■ To display the next or previous menu page, press or when the menu is

displayed.

■ To open the menu during playback, press repeatedly until the menu you want is

displayed.

To use the Preview function, follow these steps:

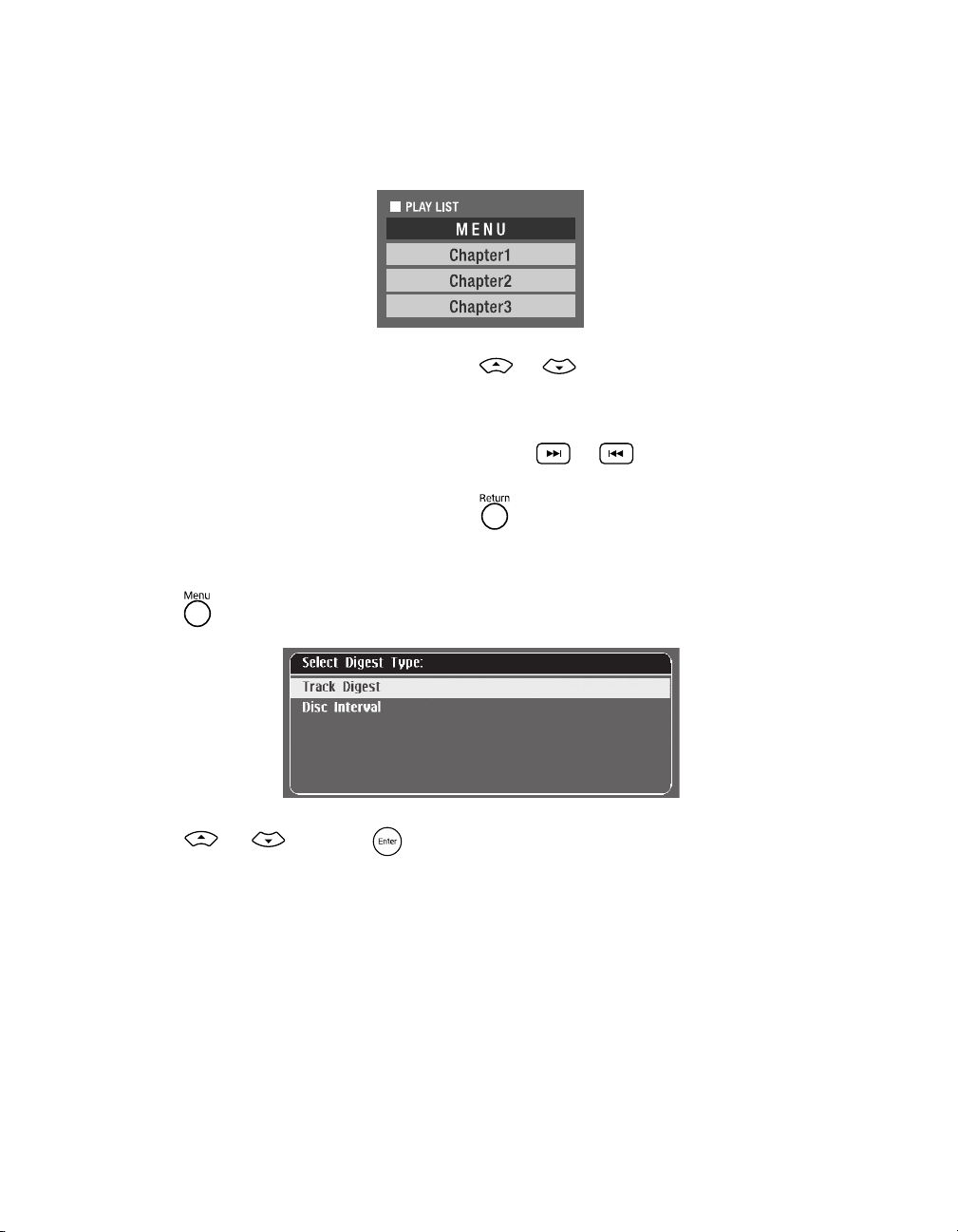

1. Press to display the preview menu:

-Num position, then use the numeric buttons as described on

2. Press , or and press to select one of the following (each displays 6 images or
tracks on a single screen page):

Track Digest: Plays the first 3 or 4 seconds of each track sequentially.

Disc Interval: Divides the total disc time by 6 and plays the first 3 or 4 seconds of each

interval.

44 Doing More with PowerLite Presenter

Track Interval: Divides each track into 6 intervals and plays the first 3 or 4 seconds of

each interval.

■ To return to the initial menu, select Menu and press .

■ To close the preview menu, select Exit and press .

3. Select the track you want to see using the arrow buttons and press .

Customizing PowerLite Presenter

You can limit children’s access, adjust the sound, and customize other
features of the projector. Many of these settings are available by pressing

Setup or Visual Setup buttons on the remote control.

the

Locking DVDs

You can lock up to 40 DVDs to prevent children from viewing them.
When a disc is locked, you need to enter a password before you can play
it.

1. Insert the DVD you want to lock. Press twice to stop the video.

2. Press the button on the remote control. You see the Language Setup Page:

Doing More with PowerLite Presenter 45

3. Press until you see the Others Setup Page.

4. Press to highlight

5. Press to select

6. Press to highlight

7. Press to select

8. Set the toggle switch on the remote control to the
using the numeric buttons. The first time you set a password, you need to enter

Disc Lock, then press to change the setting.

Lock, then press .

Password, then press to change it.

Change.

-Num position, then enter 6 digits

000000

in the Old Password column first, then enter the new password.

9. Enter the same digits again for

Confirm PWD using the numeric buttons.

10. Press to save your password.

Once a password is set, you need to enter it before you can view the locked CD or DVD.
If you forget your password, enter

000000 in the Old Password column to reset the

password.

11. Press to exit the menu.

Locking the Power Button on the Control Panel

You can lock the button on the control panel to prevent young children from accidentally
turning on the projector and looking into the lens. (You can still turn on the projector using
the remote control, so you may want to place it out of children’s reach.) You will also be able
to turn on the projector by holding down the button on the control panel for at least 5
seconds.

Warning: Do not allow young children or pets to look into the projector lens when the projector is
turned on. The lens projects bright light that may affect their vision.

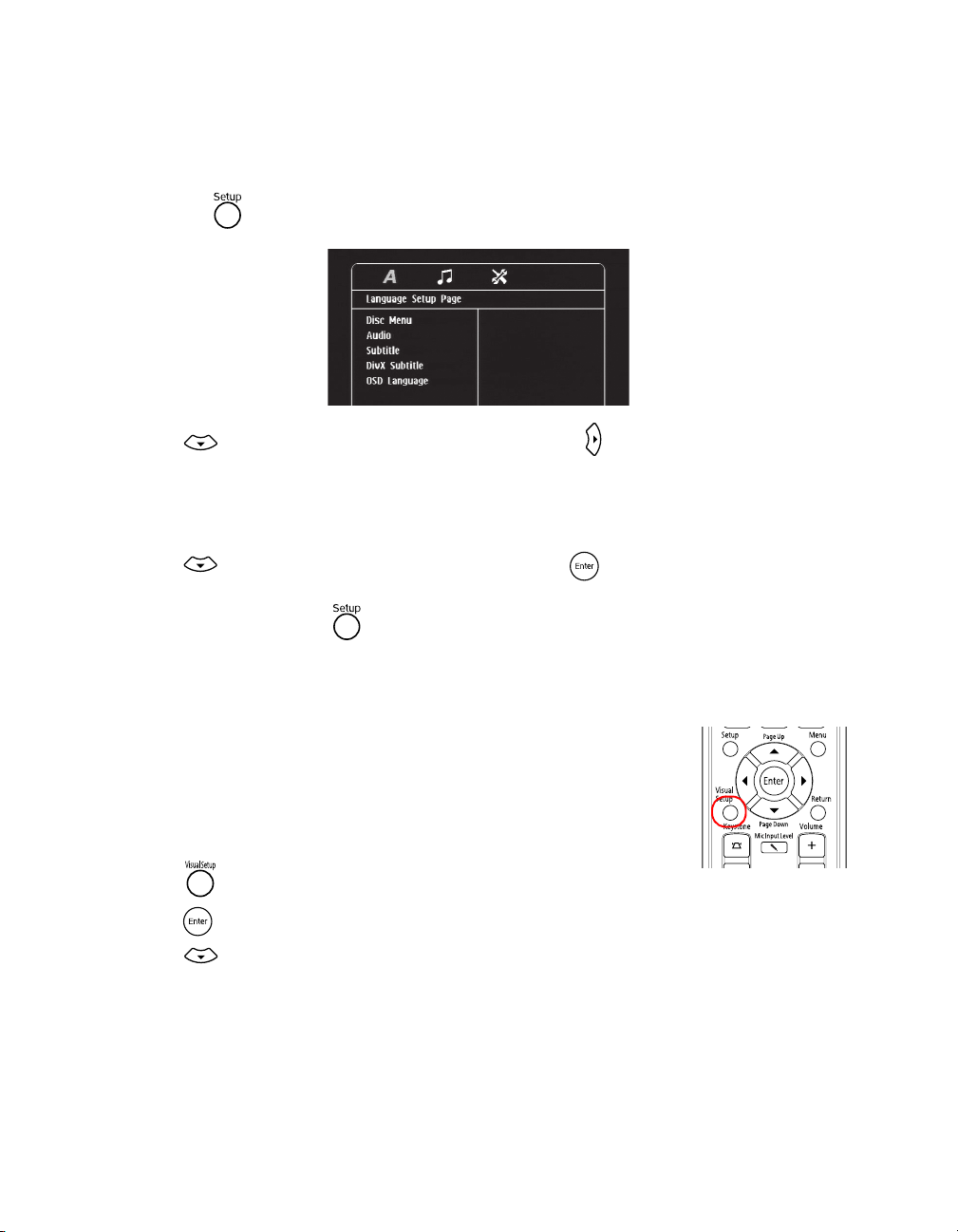

1. Press on the remote control. You see the Visual Setup menu:

2. Press to highlight

3. Press until you see

Option, then press to select it.

Child Lock.

46 Doing More with PowerLite Presenter

4. Press or to select On, then press .

5. Press to exit the menu.

You need to restart the projector for the setting to take effect.

Note: When the Child Lock setting is turned on, the projector will not automatically power up when
you insert a disc.

Saving Power

The power turns off automatically when a DVD is stopped for more
than 30 minutes. You can select a time to turn off the projector while a
DVD is playing, in case you fall asleep while watching.

To select a sleep setting, press . Continue pressing the button to
select from the following settings:

■ Sleep Off: The power switches off automatically after 30 minutes

of inactivity (default setting).

■ Sleep 10, 20, 30, 60, 90, 120, 150: The power switches off

automatically after the number of minutes specified, whether or
not a movie is playing. You can select from

After you set the sleep timer, you can see the time remaining by pressing .

10 to 150 minutes.

Note: Sleep timer settings are not saved after you turn the projector off.

Doing More with PowerLite Presenter 47

Changing Language Settings

You can use the Language Setup Page to change the default language for DVDs that allow
you to make this selection.

1. Press the button on the remote control. You see the Language Setup Page:

2. Press to highlight the setting you want, then press to display the list of languages
available.

OSD Language is the language used for the projector’s menus. Other settings may not

be available, depending on the DVD or DivX file you are playing.

3. Press to select the language you want, then press to save it. For a list of language
codes, see page 75.

4. To exit the menu, press .

Adjusting Picture Quality

You can use the Image page on the Visual Setup menu to adjust the
brightness, contrast, color saturation, tint, sharpness, and other settings
that affect image quality.

Note: You cannot change Image page settings when the Color Mode is set
to Auto.

1. Press on the remote control. You see the Visual Setup menu.

2. Press to select

Image.

3. Press until you see the option you want to set.

You can adjust the following items for various viewing conditions and individual videos:

■ Brightness

■ Contrast

■ Color Saturation

■ Tint

(only works on NTSC signals)

48 Doing More with PowerLite Presenter

■ Sharpness

■ Color Temp.

■ Auto Iris (Adjusts the light intensity based on the brightness of the displayed image.)

(High makes the image more blue; Low makes it more red.)

4. Press or to increase, decrease, or change the setting.

5. Press to exit the menu.

Using the Others Setup Page

The Others Setup Page lets you select various settings, including screensaver, Video CD
options, and MP3/WMA/JPEG file navigation. You can also display your code for DivX
video on demand services and return all settings to their defaults.

1. Press on the remote control. You see the Language Setup page.

2. Press to display the Others Setup Page.

3. Press to highlight the setting you want, then press to view or change the option.

4. Press to select the option you want, then press to save it. You can choose from
the following:

■ Screen Saver: By default, the screen saver starts when a still image is projected for

more than 15 minutes. Select

■ PBC: Select Off to turn off playback control when you play Video CDs.

Off to turn off this setting.

■ DivX® VOD code: Select this setting to display your video on demand registration

code. This code allows you to purchase or rent videos through DivX video on
demand services at www.divx.com/vod (and play them on the projector).

■ MP3/JPEG Nav: When you insert a disc or USB device that has MP3, WMA, JPEG,

DivX, or MPEG 1/2/4 files, you normally see a menu showing the file and folder
names. Select

Without Menu if you don’t want to see the folder names (all files on

the disc or USB device will be shown in a list, regardless of which folders they are
located in).

■ Default: Press and press to return all settings to their factory defaults (except

for the Disc Lock password and lamp hours).

■ Password: See page 45 for instructions on setting a password for locking DVDs.

■ Disc Lock: See page 45 for instructions on setting a password for locking DVDs.

5. To exit the Setup menu, press .

Doing More with PowerLite Presenter 49

Adjusting Dolby Audio Settings

You can adjust settings for external equipment with a DTS/Dolby
Digital Decoder or DVDs recorded in Dolby Digital.

1. Press the button on the remote control. You see the

Setup Page.

2. Press to display the

3. Press to highlight
can select the following settings:

■ Digital Output: Change to Stream if you have connected a DTS/Dolby Digital

Decoder to the Audio-Out port.

■ Night Mode: Turn this setting on if you are watching a Dolby Digital DVD at low

volume.

4. Press or to select the setting you want to change, then press to save it.

5. To exit the menu, press .

Audio Setup Page.

Digital Output or Night Mode, then press to select it. You

Language

Setting Video and Other Options

You can use the Visual Setup menus to adjust the signal format for external video equipment
and set other options.

Option Menu

1. Press on the remote control. You see the Visual Setup menu.

2. Press to highlight

3. Press until you see the option you want to set.

You can adjust the following items:

■ Mic Input Volume: Adjust this setting if the microphone level is too low or too high.

■ Closed Caption: Turn this setting on to display closed captioning for content that

provides it.

■ User Button: You can assign one of the following four items to the User button:

Closed Caption, Power Consumption, Info, Resolution. By pressing the button, the
assigned menu item selection/adjustment screen is displayed, allowing you to make
one-touch settings/adjustments.

Option, then press to select it.

50 Doing More with PowerLite Presenter

■ Child Lock: Turn this setting on to lock the button on the control panel. See

page 46 for more information.

■ High Altitude Mode: Turn this setting on if you use the projector at an altitude

above 4900 feet (1500 meters), to ensure that the projector does not overheat.

4. Press or to adjust the setting.

5. Press to exit the menu.

Signal Menu

1. Press on the remote control. You see the Visual Setup menu.

2. Press to highlight

Signal, then press to select it.

3. Press until you see the option you want to set.

You can adjust the following items:

■ Keystone: Adjust this setting to correct the shape of the image if the projector has

been tilted upward.

■ Auto Keystone: Select On to have the projector automatically adjust the shape of

the image when the projector has been tilted upward or downward.

■ Power Consumption: Select ECO if the images being projected are too bright (such

as when projecting images in a dark room or onto a small screen). You cannot select a
Power Consumption setting when the Color Mode is set to

■ Resolution: Set to Auto to have the projector automatically identify the resolution

Auto.

of the input signal. If necessary (because some of the image is missing, for example),
adjust to

■ Video Signal: Normally, you can leave this set to Auto when using external

Wide or Normal.

equipment. If no image appears or you see interference, select the appropriate signal.

4. Press or to adjust the setting.

5. Press to exit the menu.

Doing More with PowerLite Presenter 51

Viewing Status Information and Resetting the Lamp Timer

You can use the Info page on the Visual Setup menu to view the number of hours the lamp
has been used, and to reset the timer after you install a new lamp. You can also view video
signal information and error codes for any problems that occur.

1. Press on the remote control. You see the Visual Setup menu.

2. Press to highlight
information.

Note: If the lamp has been used less than 10 hours, 0H is displayed.

3. To reset the lamp timer after replacing the lamp, press .

4. Press to exit.

Info, then press to display the lamp usage and other

52 Doing More with PowerLite Presenter

Caring for Your PowerLite Presenter

The projector needs little maintenance. All you need to do on a regular basis is keep the lens
clean. You also may need to clean the air filter to help prevent overheating.

Warning: Before you clean any part of the projector, turn it off and unplug the power cord. Never
open any part of the projector, except as described in this User’s Guide. Dangerous electrical
voltages in the projector can injure you severely. Do not try to service this product yourself, except
as specifically explained in this User’s Guide.

The only parts you should replace are the lamp and air filter. If another part needs replacing,
contact Epson or a qualified servicer (see page 68).

Follow the instructions in this section to clean the lens and case, clean and replace the air
filter, replace the lamp, and store or transport the projector.

Protecting PowerLite Presenter

The projector is designed for use virtually anywhere. However, the projector and its
accessories should not be exposed to water, smoke, direct heat or sunlight, or left outside for
long periods of time. As with other electronic equipment, please avoid exposure of the
projector to moisture, dust, smoke, and other environmental factors which may result in
damage to internal electronics over time. See the warranty brochure included with your
projector for additional details on the use of the projector.

Cleaning the Lens

Clean the lens whenever you notice dirt or dust on the surface.

To remove dirt or smears, use lens-cleaning paper. If necessary, moisten a soft cloth with lens
cleaner and gently wipe the lens surface.

Caution: Never rub the lens with abrasive materials.

Caring for Your PowerLite Presenter 53

Cleaning the Case

Before you clean the case, turn off the projector and unplug the power cord.

■ To remove dirt or dust, wipe the case with a soft, dry, lint-free cloth.

■ To remove stubborn dirt or stains, moisten a soft cloth with water and a neutral

detergent. Wring the cloth as dry as possible, then wipe the case.

Caution: Never use wax, alcohol, benzene, thinner, or other chemical detergents. These can
damage the case. Never spray cleaners directly on

the projector.

Cleaning and Replacing the Air Filter

Clean the air filter and air intake vent when dust builds up or when you see the following
message:

The projector is overheating. Make sure nothing is blocking the air vents, and
clean or replace the air filter.

Dust clogs prevent proper ventilation, which can cause overheating and damage the projector.

1. Press the button on the control panel or the button on the remote control to turn
the projector off. When you hear a short beep, disconnect the power cable.

2. Use a small vacuum cleaner designed for computers and other office equipment to clean
the filter, as shown.

If you cannot clean the removable filter or it is broken, you need to replace it.

You can purchase a new filter (part # V13H134A26) from an Epson authorized reseller.
To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you can purchase
online at www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales).

54 Caring for Your PowerLite Presenter

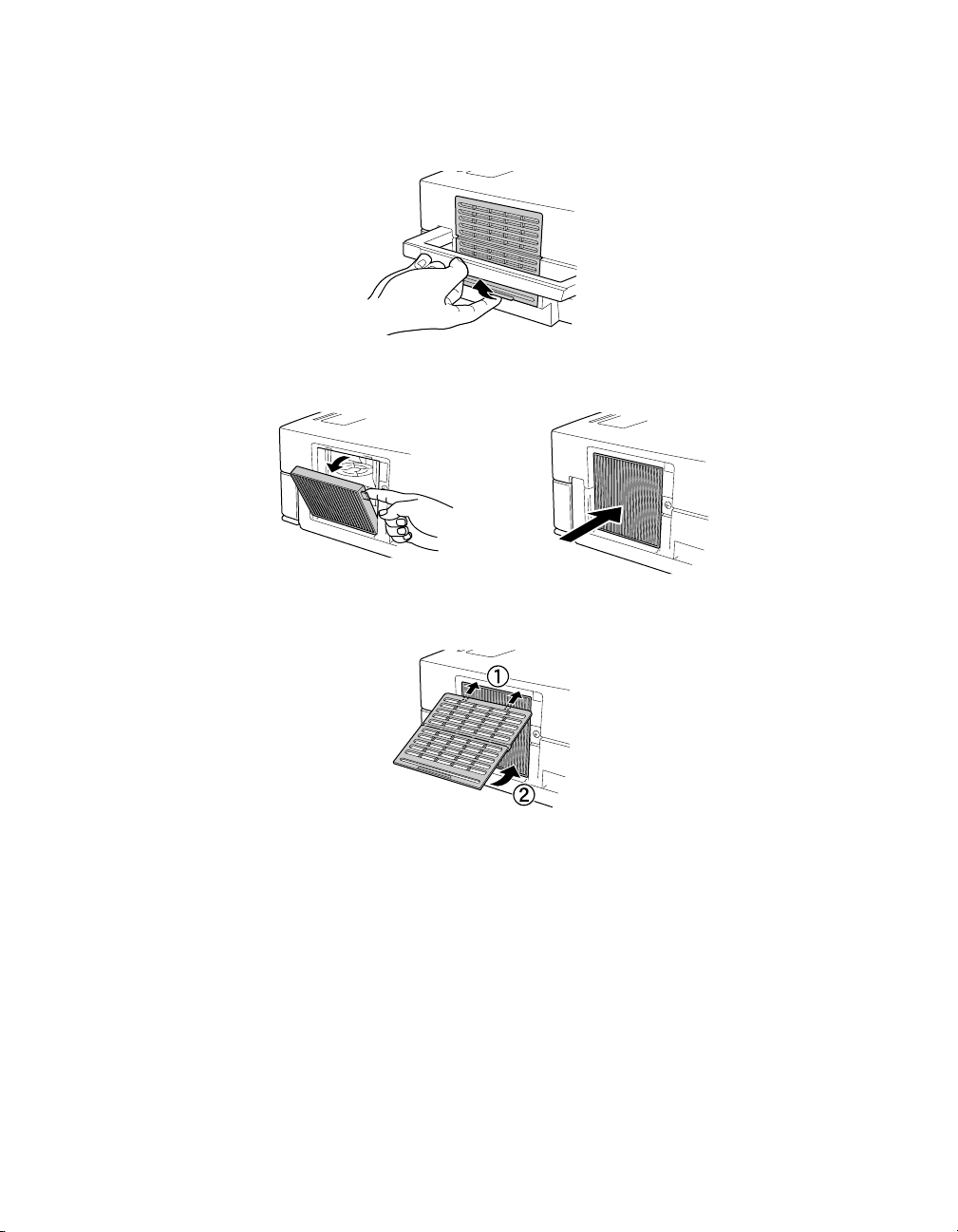

3. If you need to clean or replace the filter, lift up the handle, press up on the tab, and lift off
the cover.

4. Remove the old filter and install the new filter.

5. Replace the cover.

Caring for Your PowerLite Presenter 55

Replacing the Lamp

The life span of the lamp is about 4000 hours if Power Consumption in the Signal menu is set
to Normal, and about 5000 hours if Power Consumption is set to ECO.

You can check how long the lamp has been used as described on page 52. If the number
shown is close to the limit, make sure you have a spare lamp handy.

Note: Turn off this product when not in use to prolong the life of the projector.

It’s time to replace the lamp when:

Lamp warning light

■ The projected image gets darker or starts to deteriorate.

■ The lamp warning light flashes orange.

■ The message Replace the lamp appears on the screen when you start projecting.

Caution: If you continue to use the lamp after you see the replacement indicators, the lamp is more
likely to break.

You can purchase a new lamp (part # V13H010L55) from an Epson authorized reseller. To
find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you can purchase online
at www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales).

Be sure to read the safety instructions before replacing the lamp. See page 11.

Follow these steps to replace the lamp:

1. Press the button on the control panel or the button on the remote control to turn
the projector off. When you hear two short beeps, disconnect the power cable.

2. If the projector has been on, let it cool for at least an hour.

Warning: Let the lamp cool before replacing it. If the lamp breaks, handle the shards carefully
to avoid injury.

56 Caring for Your PowerLite Presenter

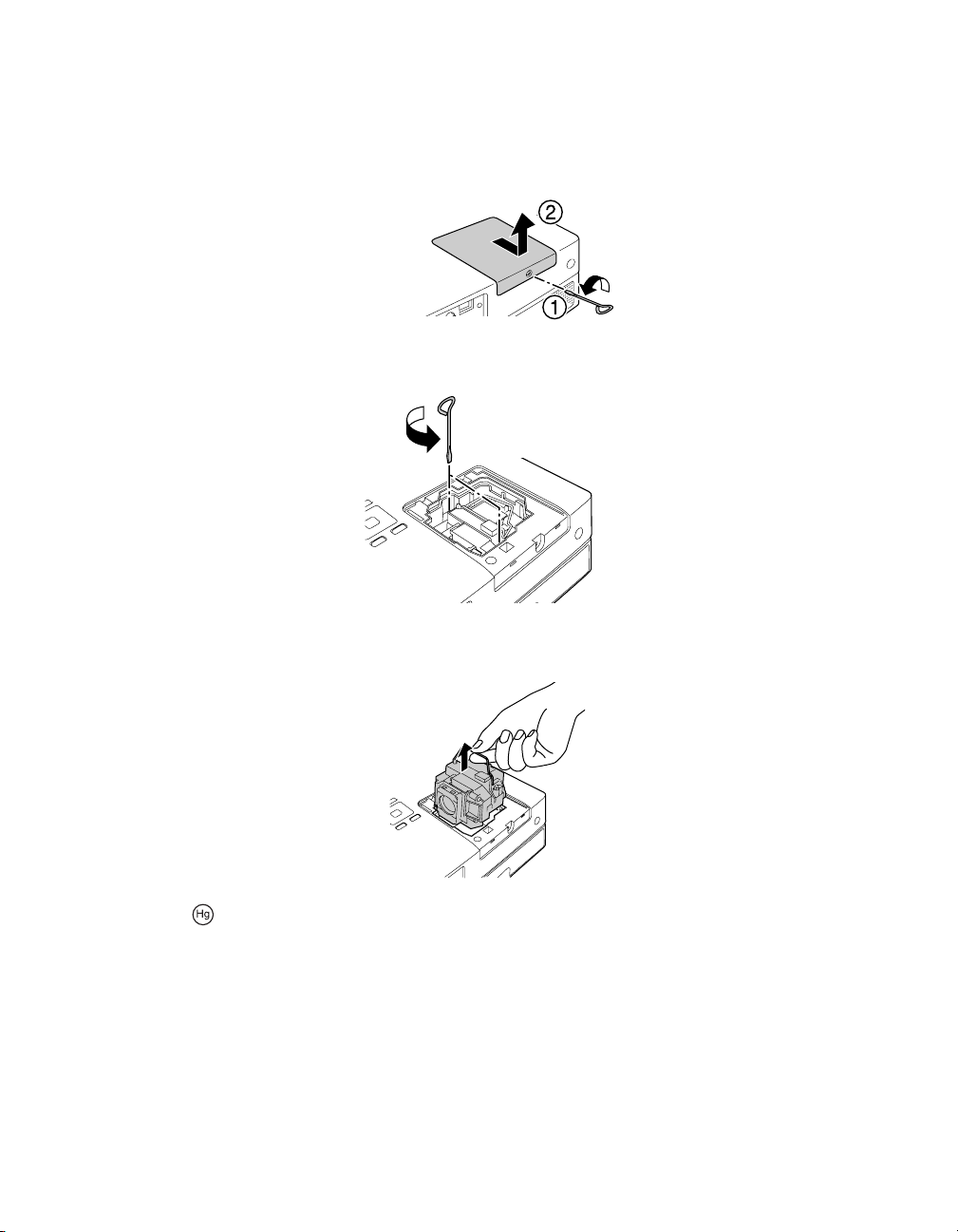

3. Loosen the lamp cover screw using the screwdriver that came with the replacement lamp.
(The screw won’t come all the way out.) Then slide out the lamp cover and lift up to
remove it.

4. Loosen the two silver screws holding the lamp in place. (You can’t remove these screws.)

5. Grasp the lamp handle as shown and pull the lamp straight out.

Note: The lamp(s) in this product contain mercury. Please consult your state and
local regulations regarding disposal or recycling. Do not put in the trash.

Caring for Your PowerLite Presenter 57

6. Gently insert the new lamp and tighten its screws.

Caution: Don’t touch the glass portion of the lamp with your bare hands; the invisible residue
left by the oil on your hands may shorten the lamp life. Use a cloth or gloves to handle the new
lamp assembly.

7. To replace the lamp cover, slide it into position, then tighten the screw. (The projector
won’t work if the lamp cover is loose.)

8. After replacing the lamp, you need to reset the lamp timer, as described in the next
section.

Resetting the Lamp Timer

1. Connect the power cable and press the button on the projector or the button on
the remote control to turn the projector on.

2. Press on the projector on the remote control. You see the Visual Setup menu.

3. Press to highlight

Info, then press on the projector or on the remote

control to select it.

58 Caring for Your PowerLite Presenter

4. Press again. You see the following on the screen:

5. Select

The lamp usage timer displays

Yes and press or to reset the timer.

0 H (zero hours) until you’ve used the lamp for at least

10 hours.

Storing PowerLite Presenter

Follow these guidelines when storing the projector:

■ Make sure the temperature and humidity of the storage area are within the recommended

range for the projector: 14 to 140 °F (–10 to 60 °C) and 20 to 80% relative humidity
without condensation.

■ Make sure all discs are ejected.

■ Close the lens cover and retract the feet.

■ Remove the batteries from the remote control.

■ Place the projector in its protective case. You can stand it on end for

convenient storage.

■ Package the projector in its original packaging or equivalent (as described in

the following section).

Caring for Your PowerLite Presenter 59

Transporting PowerLite Presenter

Note: Epson shall not be liable for any damages incurred during transportation.

Your projector contains many glass and precision parts. If you need to transport it, follow
these guidelines to prevent damage:

■ When shipping the projector for repairs, use the original packaging material if possible. If

you do not have the original packaging, use equivalent materials, placing plenty of
cushioning around the projector. Be sure the carrier is capable of transporting fragile
equipment and is aware that the projector is fragile.

■ If you move the projector from a cold environment into a warm room, condensation

(moisture) may form internally or on the lens surface. To avoid damage that might be
caused by condensation, wait approximately an hour before using the projector. If
condensation forms, turn off the power, then wait an hour or two before use.

■ When you are hand-carrying the projector, make sure all discs are ejected, the lens cover

is closed, and the feet are retracted.

■ Lift the projector by its handle as shown:

60 Caring for Your PowerLite Presenter

Problem Solving

This section explains how to interpret the projector’s status lights, solve problems, and
contact technical support.

What To Do When the Lights Flash

The lights on top of the projector indicate its status and let you know when a problem occurs.

If all lights are off, make sure the power cable is connected correctly.

The light is orange.

The projector is in sleep mode. Press the button on the projector or the button on the
remote control to turn it on.

The light is flashing green.

The projector is warming up. Wait for the picture to appear. This can take a few minutes.

The light is flashing orange.

The projector is cooling down. Wait until the light stops flashing before you unplug the
projector.

The light is green.

The projector is operating correctly. If you don’t see a picture, open the lens cover slide.

Problem Solving 61

The warning light is flashing orange and the light is flashing red.

High-speed cooling is in process. If the projector gets too hot again, projection stops
automatically. Make sure the projector is at least 8 inches (20 cm) away from the wall.

Clean or replace the air filters if necessary (see page 54). If you are using the projector at an
altitude above 4900 feet (1500 meters), turn on High Altitude Mode (see page 51).

The warning light is flashing orange.

The lamp needs to be replaced. See page 56.

The light is red and the warning light is red.

The projector is too hot and has turned off the lamp. Make sure the projector is at least 8
inches (20 cm) away from the wall.

Clean or replace the air filters if necessary (see page 54). If you are using the projector at an
altitude above 4900 feet (1500 meters), turn on High Altitude Mode (see page 51).

Let the projector cool for five minutes. When the light turns orange, press the button to
turn the lamp back on. If the status doesn’t change, wait a few minutes, then unplug the
projector and contact Epson. See page 68.

The light is red and the warning light is flashing red.

The lamp may be incorrectly installed, the lamp cover may be loose, or the lamp may be
broken. Turn off the power, wait a few minutes (or wait 1 hour if you’ve been using the
projector), and check the lamp. See page 58. If the lamp is broken, or the lights continue to
flash after you turn the power back on, unplug the projector and contact Epson. See page 68.

The light is red and the warning light is flashing red.

The projector has a problem with its fan or temperature sensor. Wait a few minutes, then
unplug the projector and contact Epson. See page 68.

The light is red and both warning lights are flashing red.

The projector may have an internal error. Press . Then unplug the power cable, plug it in
again, and press again. If the lights continue to flash, unplug the projector and contact
Epson. See page 68.

The light is red and both warning lights are red.

The projector may have an auto iris or ballast error. Unplug the projector and contact Epson.
See page 68.

62 Problem Solving

Solving PowerLite Presenter Operation Problems

The projector doesn’t turn on.

■ Make sure the power cord is securely attached at both ends. Try using a different power

outlet.

If the power cord has been damaged, turn off the projector, disconnect the power cord,
and contact Epson. See page 68.

■ Make sure you pressed the button on the projector or the button on the remote

control.

■ If the light is flashing green, the projector is warming up. Wait for the picture to

appear, which can take a few minutes.

■ If the light is flashing orange, the projector is cooling down. Wait for the light to turn

orange.

■ Make sure the Child Lock is not set. See page 46.

The projector turns itself off after a period of time.

The power turns off automatically when the projector is idle for more than 30 minutes. Press
the button on the projector or the button on the remote control to turn on the
projector. For instructions on changing the Sleep setting, see page 47.

No picture appears on the screen.

■ Make sure the projector is turned on (the light is green and not flashing). If the

light is flashing green, wait for the projector to warm up.

■ Make sure the lens cover is open.

■ If you’re playing a DVD, make sure its region code is 1.

■ Check the warning light. If it is flashing orange, you need to replace the lamp. See

page 56.

■ The Screensaver feature turns off the picture if a still image is projected for more than 15

minutes. See page 49.

■ If you’re using external video equipment, check the solutions on page 66.

Problem Solving 63

The DVD skips.

■ Make sure the projector is not tilted more than 10 degrees while playing CDs or DVDs.

This can cause skipping or disc scratches.

■ Make sure there are no fingerprints or scratches on the DVD.

The remote control doesn’t work.

■ Make sure the toggle switch is in the correct position: set to -Num to use the numeric

buttons, or to

■ Make sure you’re within 19 feet (6 meters) of the projector, and within range of its front

Func- to use the other functions of these buttons.

or back sensor (approximately 30° left or right, and 15° above or below).

■ You may need to replace the remote control’s batteries. Make sure they’re inserted with

the positive (+) and negative (–) ends positioned as shown in the battery compartment.

■ Some discs don’t support all of the remote control’s functions.

■ If you’re using a “universal” remote control, it might not work with the projector. Epson

does not support any third-party remote controls.

Solving Picture and Sound Problems

The picture is blurry or out of focus.

■ Adjust the focus using the focus ring. See page 21 for instructions.

■ There may be dirt on the lens. Clean the lens as described on page 53.

■ Make sure the lens is not fogged by condensation. If you’ve just moved the projector from

a cold environment, wait approximately an hour before using it. If condensation forms,
unplug the projector and wait an hour or two before use.

■ Make sure the projector is placed the correct distance from the screen: no closer than

3 feet (0.9 meters) and no farther than 35.7 feet (10.9 meters).

■ Adjust the Sharpness setting. See page 48.

■ If you’re using the Keystone adjustment, be aware that it lessens image quality. You may

want to decrease the projection angle to reduce the amount of keystone correction
needed. Try adjusting the projector’s position relative to the screen.

■ If you’re using external video equipment, check the solutions on page 66.

64 Problem Solving

The picture looks too light or too dark.

■ Press the button on the remote control to select the best setting for your viewing

environment. See page 26.

■ Adjust the Brightness and Contrast settings. See page 48.

■ If the picture looks darker than it used to, you may need to replace the lamp. See page 56.

The colors on the screen don’t look right.

■ Press the button on the remote control to select the best setting for your viewing

environment.

■ Adjust the Color Saturation or Tint settings. See page 48.

■ If you’re using external video equipment, check the solutions on page 66.

The picture is wider at the top or bottom.

■ You’ve tilted the projector to raise or lower the image, causing it to become “keystoned.”

Use the or buttons on the remote control or the Signal menu (see page 51)to
correct the problem.

The picture is taller on the left or right side.

The projector is set at an angle to the screen. Face it squarely toward the screen.

There is no sound, or the sound is not loud enough.

■ Try pressing the + Volume button on the projector or on the remote control.

■ Press the button on the remote control to make sure the sound hasn’t been turned

off temporarily.

■ If you’re using external video equipment with a component or composite video

connection, make sure you connected the red and white audio jacks to the projector’s
audio ports (see page 29).

■ If you’re using external equipment, you may need to adjust the Audio settings in the

setup menu (see page 50).

Problem Solving 65

There is a problem with the sound quality.

■ Try pressing the button on the remote control and adjusting the sound mode. (Make

sure the toggle switch on the remote control is set to the

■ If you’re using external equipment, you may need to adjust the Audio settings in the

setup menu (see page 50).

■ If the sound is distorted or too loud, try pressing the — Volume button on the projector

or on the remote control.

Func- position.)

No sound can be heard from the microphone.

■ Make sure the microphone is connected correctly. See page 28.

■ Increase the Mic Input Level. See page 28.

■ The projector is compatible with dynamic microphones. Make sure you are not using a

plug-in power microphone.

Subtitles do not appear.

■ The DVD might not include subtitles.

■ Make sure the subtitle language is not set to OFF (see page 43).

You can’t change the language on a DVD.

The DVD might not include multiple languages.

Problems with External Video Equipment

No picture appears on the screen.

■ Make sure the equipment is turned on.

■ Press the button on the projector or the button on the remote control.

■ Press the or Play button on the external equipment.

You see the message No Signal.

■ Make sure the equipment is turned on.

■ Make sure your cable(s) are connected correctly (see page 29).

66 Problem Solving

■ Press the button on the projector or the button on the remote control to select

the external video source. Allow a few seconds for the projector to sync up.

■ If you’re using a PC notebook, hold down the Fn key on the keyboard and press the

function key that lets you display on an external monitor. It may have an icon such as

, or it may be labelled CRT/LCD. Allow a few seconds for the projector to sync up

after pressing it. Check your notebook’s manual or online help for details.

On most systems, the key lets you toggle between the LCD screen and the
projector, or display on both at the same time.

If you connect the notebook while the projector or computer are already turned on, the
function Fn key that changes the computer’s image signal to external output may not
work. Turn the computer and the projector off and then back on again.

You see the message Signal not supported.

Press the button on the remote control and check the Video Signal setting (see
page 51).

The picture is cut off (too large) or too small.

Press the button on the remote control and select the appropriate aspect ratio.

Press the button on the remote control and select the appropriate zoom setting. (Make
sure the toggle switch on the remote control is set to the

Func- position.)

The picture is distorted.

■ If you’re using an extension cable, electrical interference may affect the signal.

■ Check the solutions on pages 64 and 65.

The colors are not right.

■ Press the button on the remote control and check the Video Signal setting (see

page 51).

■ Press the button on the remote control to select the best setting for your viewing

environment.

■ Adjust the Color Saturation or Tint settings. See page 48.

Problem Solving 67

Where To Get Help

Epson provides these technical support services:

Internet Support

Visit Epson’s U.S. support website or Canadian support website for solutions to common
problems. You can download utilities and documentation, get FAQ’s and troubleshooting
advice, or e-mail Epson with your questions.

Speak to a Support Representative

To use the Epson PrivateLine Support service, call [phone] and enter the PIN on the
included Epson PrivateLine Support card. This is the fastest way of speaking to a live
representative, and it’s free. This service is available 6
through Friday, for the duration of your warranty period.

You may also speak with a projector support specialist by dialing one of these numbers:

■ U.S.: [phone], 6 AM to 6 PM, Pacific Time, Monday through Friday

■ Canada: [phone], 6 AM to 6 PM, Pacific Time, Monday through Friday

Days and hours of support are subject to change without notice. Toll or long distance charges
may apply.

AM to 6 PM, Pacific Time, Monday

Before you call, please have the following information ready:

■ Product name (PowerLite Presenter)

■ Product serial number (located on the bottom of the projector)

■ Proof of purchase (such as a store receipt) and date of purchase

■ Computer or video configuration

■ Description of the problem

Note: If you need help with optional equipment, see the information included in the box with the
equipment.

Purchase Supplies and Accessories

You can purchase screens, carrying cases, or other accessories from an Epson authorized
reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you can
purchase online at www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales).

68 Problem Solving

Specifications

General

Type of display Poly-silicon TFT active matrix

Size of LCD panels 0.59 inch (15 mm) wide

Lens F=1.58 to 1.72, f=16.9 to 20.28 mm

Resolution
(native format) 1280 × 800 pixels × 3, WXGA

Light Output
(brightness) White Light Output 2500 lumens (ISO 21118 standard)

Color Light Output 2500 lumens

Contrast ratio Up to 300:1 (native), up to 2000:1 (Auto Iris on)

Image size 29 to 320 inches (0.7 to 8.1 meters)

Projection distance 3 to 35.7 feet (0.9 to 10.9 meters)

Speakers Stereo speakers (10 W × 2)

Zoom ratio 1:1.2

Aspect ratio Native 16:10 (4:3 resize)

DVD Unit Audio: Virtual Surround, Dolby Digital, DTS Digital Surround

Media: DVD Video, DVD-R/RW, DVD-R DL, DVD+R/RW,
DVD+R DL, CD-R/RW, DVD-VR (without CPRM), Video CD, Super
Video CD, Audio CD, MP3 (CD/DVD), WMA (CD/DVD), JPEG,
DivX (CD/DVD), DivX Ultra (CD/DVD), Dual Disk, WMV
(CD/DVD)
See page 73 for detailed file specifications.

Noise level 29 dB (Power Consumption: ECO)

34 dB (Power Consumption: Normal)

Keystone correction Vertical: –30° to +30°

Tilt angle Up to 10°

Specifications 69

Remote Control

Range Approx. 19 feet (6 m)

Battery AA × 2 (Alkaline or Manganese dry cell)

Operating angle Horizontal: +/– 30°

Vertical: +/– 15°

Projection Lamp

Type 200 W UHE (Ultra High Efficiency) E-TORL

Part number ELPLP55/ V13H010L55

Lamp life Approx. 4000 hours (Power Consumption: Normal)

Approx. 5000 hours (Power Consumption: ECO)

Note: Lamp life results will vary depending upon mode selected, environmental conditions, and
usage.

Turn off this product when not in use to prolong the life of the projector.

Dimensions

Height 5 inches (127 mm) excluding feet

Width 13.2 inches (335 mm)

Depth 9.41 inches (239 mm)

Weight 9.5 lb. (4.3 kg)

Electrical

Rated voltage 100 to 240 VAC

Rated frequency 50/60 Hz

Power consumption Operating:

70 Specifications

100 to 120 VAC, 310 W (Power Consumption: Normal)
100 to 120 VAC, 259 W (Power Consumption: ECO)
220 to 240 VAC, 292 W (Power Consumption: Normal)
220 to 240 VAC, 246 W (Power Consumption: ECO)
Standby:
100 to 120 VAC, 0.3 W
220 to 240 VAC, 0.4W

Environmental

Temperature Operating: 41 to 95 °F (5 to 35 °C) without condensation

Storage: 14 to 140 °F (–10 to 60 °C) without condensation

Humidity Operating: 20 to 80% RH, non-condensing

Operating altitude Up to 7500 feet (2286 m)

Safety and Approvals

United States FCC Part 15B Class B

UL60950-1 2nd Edition (cTUVus Mark)

Canada ICES-003 Class B

CSA C22.2 No.60950-1-07 (cTUVus Mark)

Compatible Video Formats

Composite video

Signal Resolution

TV (NTSC) 720 x 480

720 x 360*

TV (PAL, SECAM) 720 x 576

720 x 432*

* Letterbox signal

Component video

Signal Resolution

SDTV (480i, 60Hz) 720 x 480

720 x 360*

SDTV (576i, 50Hz) 720 x 576

720 x 432*

SDTV (480p, 60Hz) 720 x 480

720 x 360*

SDTV (576p, 50Hz) 720 x 576

720 x 432*

Normal aspect
mode

1066 x 800
(4:3)
1066 x 800
(4:3)

Normal aspect
mode

1066 x 800
(4:3)
1066 x 800
(4:3)
1066 x 800
(4:3)
1066 x 800
(4:3)

16:9 aspect
mode

1280 x 720
(16:9)
1280 x 720
(16:9)

16:9 aspect
mode

1280 x 720
(16:9)
1280 x 720
(16:9)
1280 x 720
(16:9)
1280 x 720
(16:9)

Zoom aspect
mode

1280 x 800
(16:10)
1280 x 800
(16:10)

Zoom aspect
mode

1280 x 800
(16:10)
1280 x 800
(16:10)
1280 x 800
(16:10)
1280 x 800
(16:10)

Specifications 71

Component video

Normal aspect

Signal Resolution

HDTV (720p) 16:9 1280 x 720 1280 x 720

HDTV (1080i) 16:9 1920 x 1080 1280 x 720

* Letterbox signal

mode

(16:9)

(16:9)

16:9 aspect
mode

— 1280 x 800

— 1280 x 800

Zoom aspect
mode

(16:10)

(16:10)

HDMI video

Normal aspect

Signal Resolution

VGA60 640 x 480

640 x 360*

SDTV (480i, 60Hz) 720 x 480

720 x 360*

SDTV (576i, 50Hz) 720 x 576

720 x 432*

SDTV (480p) 720 x 480

720 x 360*

SDTV (576p) 720 x 576

720 x 432*
SVGA60 800 x 600 1066 x 800 1280 x 720 1280 x 800
XGA60 1024 x 768 1066 x 800 1280 x 720 1280 x 800
HDTV (720p) 1280 x 720 1280 x 720 — 1280 x 800
WXGA60 1280 x 800 1280 x 800 1280 x 720 1280 x 800
SXGA2_60 1280 x 960 1066 x 800 1280 x 720 1280 x 800
SXGA3_60 1280 x 1024 1000 x 800 1280 x 720 1280 x 800
SXGA+60 1400 x 1050 1066 x 800 1280 x 720 1280 x 800
UXGA60 1600 x 1200 1066 x 800 1280 x 720 1280 x 800
HDTV (1080i) 1920 x 1080 1280 x 720 — 1280 x 800
HDTV (1080p, 50Hz) 1920 x 1080 1280 x 720 — 1280 x 800
HDTV (1080i, 60Hz) 1920 x 1080 1280 x 720 — 1280 x 800

* Letterbox signal

mode

1066 x 800 1280 x 720 1280 x 800

1066 x 800 1280 x 720 1280 x 800

1066 x 800 1280 x 720 1280 x 800

1066 x 800 1280 x 720 1280 x 800

1066 x 800 1280 x 720 1280 x 800

16:9 aspect
mode

Zoom aspect
mode

72 Specifications

Computer image

Normal aspect

Signal Resolution

VGA 60/72/75/85, iMac* 640 x 480

640 x 360**

SVGA56/60/72/75/85,
iMac*

XGA60/70/75/85, iMac* 1024 x 768

SXGA1_70/75/85 1152 x 864 1066 x 800 1280 x 720 1280 x 800
WXGA60/75/85 1280 x 800 1280 x 800 1280 x 720 1280 x 800
WXGA60-1 1280 x 768 1280 x 768 1280 x 720 1280 x 800
WXGA60-2 1360 x 768 1280 x 722 1280 x 720 1280 x 800
SXGA2_60/75/85 1280 x 960 1066 x 800 1280 x 720 1280 x 800
SXGA3_60/75/85 1280 x 1024 1000 x 800 1280 x 720 1280 x 800
SXGA+60/75/85 1400 x 1050 1066 x 800 1280 x 720 1280 x 800
WXGA+60/75/85 1440 x 900 1280 x 800 1280 x 720 1280 x 800
UXGA60 1600 x 1200 1066 x 800 1280 x 720 1280 x 800
WSXGA+60 1680 x 1050 1280 x 800 1280 x 720 1280 x 800
MAC13” 640 x 480 1066 x 800 1280 x 720 1280 x 800
MAC16” 832 x 624 1066 x 800 1280 x 720 1280 x 800
MAC19” 1024 x 768 1066 x 800 1280 x 720 1280 x 800
MAC21” 1152 x 870 1059 x 800 1280 x 720 1280 x 800

* Only supported by models that include a VGA output port.

** Letterbox signal

800 x 600
800 x 450**

1024 x 576**

mode

1066 x 800 1280 x 720 1280 x 800

1066 x 800 1280 x 720 1280 x 800

1066 x 800 1280 x 720 1280 x 800

16:9 aspect
mode

Zoom aspect
mode

File Specifications

Your projector supports MP3, WMA, DivX, DivX Ultra, MPEG, and JPG files that conform to the

following specifications:

File system Discs: ISO9660 level 1 or level 2 (Discs that have been recorded in the

packet write [UDF] format cannot be read.)
USB devices: FAT16 and FAT32

File name Alphanumeric characters only, with .mp3, .wma, .divx, .avi, .vid, .div,

.xvid, .mpe, .mpg, .mpeg, .dat, .vob, or .jpg file extensions.

File size USB devices: 4GB (FAT32)

Group (folder) count Up to 300 (unlimited when MP3/JPEG Nav is set to

Without Menu)

Specifications 73

Track (file) count Up to 648 (unlimited when MP3/JPEG Nav is set to Without Menu)

Bit rate MP3: 16 to 320 kbps; WMA: 64 to 192 kbps; DivX: Up to 3 mbps, 30 fps

optimum, MPEG: up to 5.57 mbps for USB devices, up to 5.6 mbps for
CDs, up to 19 mbps for DVDs

Sampling frequency MP3: 11 kHz, 16 kHz, 22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz, WMA:

44.1 kHz, 48 kHz

Total number of pixels JPG: Up to 3027 × 2048, DivX, MPEG-1/2/4 (Advanced Simple Profile):

Up to 720 × 576 pixels

Your projector can play multi-session recorded discs. Multiple bit rate files and WAV files are not

supported. The projector supports baseline JPEG files created by a digital camera and conforming to
the DCF (Design rule for Camera File system) standard. Motion JPEG files are not supported. Certain
digital camera functions such as automatic rotation may not be supported.

These specifications are subject to change without notice.

74 Specifications

Language Codes

Abkhazian 6566 Gaelic; Scottish

Afar 6565 Gallegan 7176 Malayalam 7776 Slovensky 8373
Afrikaans 6570 Georgian 7565 Maltese 7784 Slovenian 8376
Amharic 6577 Gikuyu; Kikuyu 7573 Manx 7186 Somali 8379
Arabic 6582 Guarani 7178 Maori 7773 Sotho; Southern 8384
Armenian 7289 Gujarati 7185 Marathi 7782 South Ndebele 7882
Assamese 6583 Hausa 7265 Marshallese 7772 Sundanese 8385
Avestan 6569 Herero 7290 Moldavian 7779 Suomi 7073
Aymara 6589 Hindi 7273 Mongolian 7778 Swahili 8387
Azerhaijani 6590 Hiri Motu 7279 Nauru 7865 Swati 8383
Bahasa Melayu 7783 Hrwatski 6779 Navaho; Navajo 7886 Svenska 8386
Bashkir 6665 Ido 7379 Ndebele, North 7868 Tagalog 8476
Belarusian 6669 Interlingua

Bengali 6678 Interlingue 7365 Ndonga 7871 Tajik 8471
Bihari 6672 Inuktitut 7385 Nederlands 7876 Tamil 8465
Bislama 6673 Inupiaq 7375 Nepali 7869 Tatar 8484
Bokmål,
Norwegian
Bosanski 6683 Íslenska 7383 Northern Sami 8369 Thai 8472
Brezhoneg 6682 Italiano 7384 North Ndebele 7868 Tibetan 6679
Bulgarian 6671 Ivrit 7269 Norwegian

Burmese 7789 Japanese 7465 Occitan;

Castellano,
Español
Catalán 6765 Kalaallisut 7576 Oriya 7982 Tswana 8478
Chamorro 6772 Kannada 7578 Oromo 7977 Türkçe 8482

Chechen 6769 Kashmiri 7583 Ossetian; Ossetic 7983 Turkmen 8475
Chewa; Chichewa;
Nyanja

Chuang; Zhuang 9065 Khmer 7577 Persian 7065 Ukurainian 8575
Church Slavic;
Slavonic
Chuvash 6786 Kirghiz 7589 Português 8084 Uzbek 8590
Corsican 6779 Komi 7586 Pushto 8083 Vietnamese 8673

Dansk 6865 Kuanyama;

Deutsch 6869 Kurdish 7585 Raeto-Romance 8277 Welsh 6789
Dzongkha 6890 Lao 7679 Romanian 8279 Wolof 8779
English 6978 Latina 7665 Rundi 8278 Xhosa 8872
Esperanto 6979 Latvian 7686 Samoan 8377 Yiddish 8973
Estonian 6984 Letzeburgesch; 7666 Sango 8371 Yoruba 8979
Euskara 6985 Limburgan;

Faroese 7079 Lithuanian 7684 Serbian 8382
Français 7082 Luxembourgish; 7666 Shona 8378
Frysk 7089 Macedonian 7775 Shqip 8381
Fijian 7074 Malagasy 7771 Sindhi 8368

7866 Irish 7165 Norsk 7879 Telugu 8469

6983 Javanese 7486 Old Bulgarian;

7889 Kazakh 7575 Pali 8073 Twi 8487

9072 Kernewek 7587 Panjabi 8065 Uighur 8571

6785 Kinyarwanda 8287 Polski 8076 Urdu 8582

6783 Korean 7579 Russian 8285 Volapuk 8679

6976 Lingala 7678 Sardinian 8367

Gaelic

(International)

Kwanyama

Limburger

7168 Magyar 7285 Sinhalese 8373

7365 Ndebele, South 7882 Tahitian 8489

Nynorsk;

Provencal

Old Slavonic

7574 Quechua 8185 Walloon 8765

7673 Sanskrit 8365 Zulu 9085

7878 Tigrinya 8473

7967 Tonga (Tonga

Island)

6785 Tsonga 8483

8479

Specifications 75

Index

A

Accessories, 7, 68
Air filter

cleaning and replacing, 54 to 55

ordering, 7
Air vents, 8
Audio

adjusting, 22, 26, 50

problems, 65 to 66
Audio system connection, 33
Auto Iris, 49
AV amplifier, connecting, 33

B

Blurry picture, 64
Brightness

adjusting, 48

lamp, 56, 69
Buttons, 9, 10

C

Cable box, connecting, 29 to 31
Camcorder, connecting, 29 to 31
Camera angle, 43
CDs, playing, 38
Child Lock, 46
Cleaning

air filter, 54 to 55

lens and projector case, 53 to 54
Closed captioning, 50
Color mode, 26
Color problems, 65, 67
Component video connection, 29
Composite video connection, 29
Computer connection, 34 to 37

Contrast ratio, 69
Control panel, projector, 9

D

Dark image, 65
Digital audio recorder, connecting, 33
Digital camera, connecting, 29 to 31
Distance, projection, 16, 69
Documentation, 7
DVDs

menus, 25
playing, 20 to 27

DVR, connecting, 29 to 31

E

Electrical specifications, 70
Environmental specifications, 71
Epson

accessories, 7, 68
PrivateLine Support, 68
Road Service, 6

technical support, 7, 68
Exhaust vent, 8
External equipment

connecting, 29 to 37

problems, 66

F

Fast forward, 24
File specifications, 73
File type setting, 49
Filter, see Air filter
Focus ring, 22
Formats, video, 71 to 73

76 Index

G

L

Game console, connecting, 29 to 31
General specifications, 69

H

HDMI connection, 29
Headphones, 27
Help, 7, 68
High altitude mode, 51, 62

I


blurry, 64
distorted, 65
shape, 65, 69
size, 16, 69
too light or dark, 65
turning off, 23

wrong colors, 65
Intake vent, 8
iPod, connecting, 29 to 31

J

Jog control, 24
JPEG, 39, 49, 73

Lamp

brightness, 56, 69
light, 62
ordering, 7, 56
replacing, 56 to 58
specifications, 70

usage timer, resetting, 52, 58 to 59
Language, 43, 48, 75
Laptop connection, 34 to 37
Lens, cleaning, 53
Lights, projector, 61 to 62
Location, projector, 16 to 17
Lock, security, 7
Locking Power button, 46
Looping, 41

M

Maintenance, 53 to 59
Menus, 25
Microphone, connecting, 28
Movies

pausing, 23

playing, 20 to 27

searching, 24
MP3, 39, 49, 73
Music, playing, 38 to 40
Muting, 23, 25

K

Kensington lock, 7
Keystone correction, 65, 69

N

No Signal message, 66

O

Optional accessories, 7
Overheating, 17, 54, 62

Index 77

P

R

Parental controls, 45
Parts, identifying, 8 to 9
Pausing, 23
PBC (Playback Control), 44
Photos, displaying, 38 to 40

adjusting, 21, 26, 48 to 52

problems, 63 to 65
Positioning projector, 16 to 17
Power button locking, 46
Power, saving, 47
Problems

audio, 65 to 66

color, 65, 67

lights indicating, 61 to 62

operation, 63 to 64

overheating, 17, 54, 62

picture, 63 to 65

remote control, 64
Program play, 42
Projection distance, 16, 69
Projector

choosing location, 16 to 17

cleaning, 54

control panel, 9

dimensions, 70

distance from screen, 16, 69

lights, 61 to 62

maintenance, 53 to 59

operation problems, 63 to 64

parts, 8

positioning, 16 to 17

speakers, 69

specifications, see Specifications

storing, 59

transporting, 60

turning off, 19

Registration, 6
Remote control

buttons, 10
problems, 64

specifications, 70
Repeating scenes or tracks, 41
Replacing lamp, 56 to 58
Resetting lamp timer, 52, 58 to 59
Resolution, 69
Road Service, 6

S

Safety approvals, 71
Satellite receiver, connecting, 29 to 31
Screen distance, 16, 69
Screen saver setting, 49
Searching, 24
Shuttle control, 24
Signal not supported message, 67
Size, image, 16, 69
Skipping chapters or tracks, 24
Sleep mode, 47, 61, 63
Slow motion, 24
Sound

adjusting, 22, 26, 50

problems, 65 to 66
Sources, switching, 31, 36, 67
Speakers, projector, 69
Specifications

compatible video formats, 71 to 73

electrical, 70

environmental, 71

file specifications, 73

general, 69

lamp, 70

language codes, 75

remote control, 70
Storing projector, 59
Subtitles, 43
Support, see Technical support
Surround sound system, connecting, 33

78 Index

T

Technical support, 7, 68
Temperature, projector, 54, 62
Transporting projector, 60
TV video formats, 71 to 73

U

USB cable, projecting with, 34
USB devices, 32

V

VCR, connecting, 29 to 31
Ventilation, 17, 54, 62
Vents, 8
Video camera, connecting, 29 to 31
Video, compatible formats, 71 to 73
Volume, adjusting, 22

W

Warranty, 6
WMA, 39, 49, 73

Z

Zooming, 21, 24

Index 79
