PowerLite® 420/425W/430/435W

*412161100*

Video Device

Quick Setup

Before using the projector, make sure you read the safety instructions in the online User’s Guide.

Connect the projector

Choose from the following connections. See the sections below or the online User's Guide for details.

Computer

VGA cable

USB cable

HDMI cable

Connect up to 5 video devices and use the Source Search button on the projector or remote control to switch between them.

RCA video cable (composite video)

S-Video cable

Audio cable

Component video to VGA cable

Audio cable

HDMI cable

Camera, USB Device, or Epson Document Camera DC-06

USB Port

Connect the square end of a USB cable to the projector’s USB TypeB (square) port. Connect the flat end of the cable to any USB port on your computer.

Windows® 2000 SP4 or later: After turning on the projector, follow the on-screen instructions to install the Epson USB Display software (EMP_UDSE.EXE; only on first connection).

Note: If the software screen does not display automatically, open My Computer or Computer, then double-click EPSON_PJ_UD.

Mac OS® X 10.5.1 or higher: After turning on the projector, the setup folder

for USB Display appears in the Finder. Double-click USB Display Installer and follow the on-screen instructions to install the Epson USB Display software (only on first connection).

Monitor Port

Connect one end of a VGA cable to the projector’s Computer1 or Computer2 port, and the other end to your computer’s monitor port. If

you are using a laptop, switch it to external display (see “Troubleshooting”). You can also connect an audio cable.

Connect a digital camera, USB flash drive, USB storage device, or Epson document camera DC-06 to the projector’s USB TypeA (flat) port.

If you connect a digital camera, USB flash drive, or USB storage device, you can use the projector’s Slideshow feature to project images. See the online User’s Guide for details.

External Monitor, External Speakers, and Microphone

You can also connect an external monitor, external speakers, and a microphone to your projector to enhance your presentations. See the online User’s Guide for details.

HDMI Port

Connect one end of an HDMI cable to the projector’s HDMI port and the other end to an HDMI port on your computer.

Wireless Network

You can connect the projector wirelessly over an 802.11b, 802.11g, or 802.11n wireless network. See “Project wirelessly” for instructions.

Wired Network

You can connect the projector to your network using an Ethernet® cable.

See “Project over a wired network” for instructions.

Turn on your projector

Turn on your computer or video source.

Plug in the projector. The power light on the projector turns orange.

Press the power button on the projector or remote control. The

projector beeps, the power light flashes green, and then stays on.

Note: To shut down the projector, press the power button twice, then

unplug it. You don’t have to wait for the projector to cool down.

The default language of the menu system is English. To select another

language, press the Menu button on the remote control. Select Extended and press . Select Language and press . Select your language and press . Press the Menu button to exit the menu system.

Adjust the image

If you don’t see an image, press the Source Search button on the

projector or the remote control to select the image source.

Using the remote control

Make sure the batteries are installed as shown (two AA batteries).

Note: If you still see a blank screen or have other display problems, see

the troubleshooting tips on the back of this sheet.

To raise the image, press the foot release button and lift the front of the

projector. Release the button to lock the foot in position.

Press the Wide or Tele buttons on the projector to enlarge or reduce

the image.

Turn projector on

and off

Access projector

menus

Turn off projector

display

For more information on using the remote control, see the online User’s Guide.

Choose which source to display

Navigate projector menus

Get solutions to common problems

Turn the focus ring to sharpen the image.

If your image looks like or , press the or buttons on the

projector to correct it.

If your image looks like or , you’ve placed the projector off to

one side of the screen at an angle. Place it directly in front of the center of the screen, facing the screen squarely. Or press the or buttons on the projector to open the Keystone menu, and then press the Wide or

Tele buttons to correct the horizontal keystone.

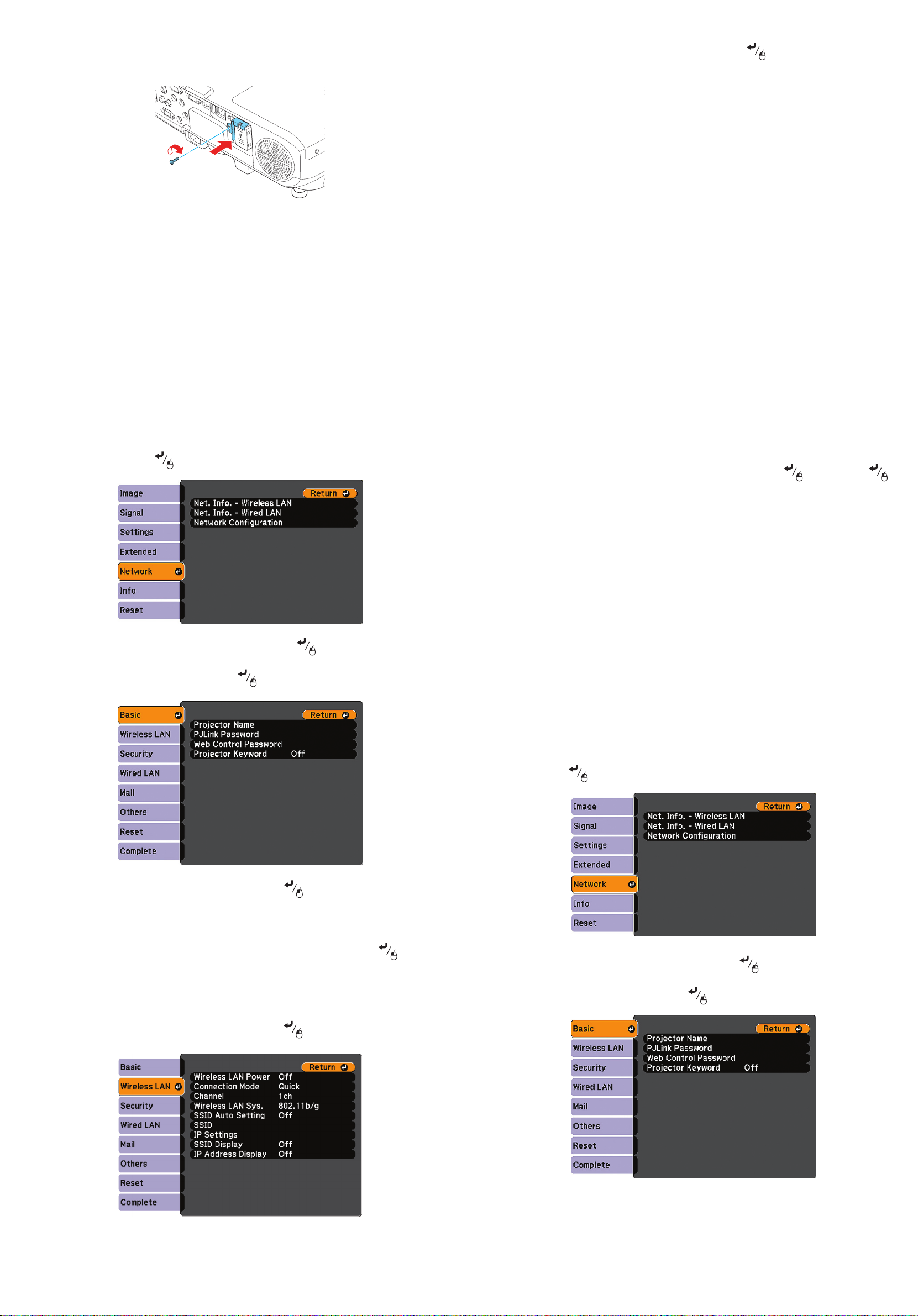

Project wirelessly

Follow the steps here to connect the projector wirelessly over an 802.11b,

802.11g, or 802.11n wireless network. You must install the optional Epson wireless LAN module (part number V12H418P12). Your computer must have a wireless card or built-in wireless interface, and be running Windows 7, Windows Vista®, Windows XP Professional x64, Windows XP, or Windows 2000, or Mac OS X 10.3 to 10.7.

Turn off the projector and unplug the power cord.

Remove the screw securing the wireless LAN module stopper, then

remove the stopper.

Insert the wireless LAN module into the port.

Replace the wireless LAN module stopper and secure it using the screw

you removed.

Select the Connection Mode setting, press , and choose one of these

options:

Plug in and turn on the projector.

To configure your projector for your wireless network, do one of

the following:

•

If you’re using the optional Quick Wireless Connection USB key

(Windows only), insert it into the projector’s USB TypeA port, wait for the displayed message, remove the key, and connect it to a USB port on your computer. Follow the on-screen instructions to install the driver, then run your presentation. For details, see the online User’s Guide.

If you’re not using the key, continue with these steps.

•

Press the Menu button on the remote control, select the Network

menu, and press .

•

Quick to connect the projector to one computer on the network

(Ad Hoc)

Advanced to connect the projector to multiple computers on

the network (infrastructure)

If you selected Quick connection mode, select the Channel setting for

your wireless network and turn on the SSID Auto Setting setting.

Select the type of wireless network you are using as the Wireless LAN

Sys. setting.

If you selected Advanced connection mode, enter your network SSID (up

to 32 characters) as the SSID setting.

If your network assigns addresses automatically, select IP Settings and

turn on the DHCP setting. If not, turn off the DHCP setting and enter the projector’s IP Address, Subnet Mask, and Gateway Address, as needed.

To prevent the SSID and IP address from appearing on the network

standby screen, set the SSID Display and/or IP Address Display settings to Off.

When you are finished, select Complete and press , then press

again to save your settings.

Choose Network Configuration and press .

Select the Basic menu and press .

Press the Menu button to exit the menu system.

See “Install network software” for additional instructions.

Project over a wired network

Follow the steps here to configure your projector for your wired network using the projector’s menu system.

Plug in and turn on the projector.

Press the Menu button on the remote control, select the Network menu,

and press .

Select the Projector Name setting, press , and enter a name (up to

16 characters long) to identify your projector over the network.

Use the displayed keyboard to enter characters. Press the arrow buttons

on the remote control to highlight the characters and press to select them.

Note: See the online User’s Guide for information on adding passwords.

Select the Wireless LAN menu and press .

Select Network Configuration and press .

Select the Basic menu and press .

Select the Projector Name setting, press , and enter a name (up to

16 characters long) to identify your projector over the network.

Troubleshooting

Use the displayed keyboard to enter characters. Press the arrow buttons

on the remote control to highlight the characters and press to select them.

Note: See the online User’s Guide for information on adding passwords.

Select the Wired LAN menu and press .

Choose IP Settings and press .

If you see a blank screen or the No signal message after turning on your computer or video device, check the following:

Make sure the power light on the projector is green and not flashing,

•

and the A/V Mute slide is open.

Press the Source Search button on the projector or the remote control

•

to select the computer as the image source.

If you’re using a Windows notebook, press the function key on your

•

keyboard that lets you display on an external monitor. It may be labeled

CRT/LCD or have an icon such as . You may have to hold down the Fn key while pressing it (such as Fn + F7). Wait a moment for the display

to appear.

If you’re using a Mac® laptop, open System Preferences and select

•

Displays. Select the VGA Display or Color LCD option if necessary, then click the Arrange or Arrangement tab, and select the Mirror Displays check box.

If your network assigns addresses automatically, select IP Settings and

turn on the DHCP setting. If not, turn off the DHCP setting and enter the projector’s IP Address, Subnet Mask, and Gateway Address, as needed.

To prevent the IP address from appearing on the network standby screen,

set the IP Address Display setting to Off.

When you are finished, select Complete and press , then press

again to save your settings.

Press the Menu button to exit the menu system.

See “Install network software” for additional instructions.

Install network software

Install the EasyMP® Network Projection software on each computer that will project over the network. Use the CD labeled Epson Projector Software to install the program.

Where to get help

Manuals

For more information about using the projector, click the icons on your desktop to access the online manuals (may require an Internet connection). If you don’t have icons to the manuals, you can install them from the projector CD or go to the Epson website, as described below.

Telephone Support Services

To use the Epson PrivateLine® Support service, call (800) 637-7661 and enter the PIN on the Epson PrivateLine Support card included with your projector. This service is available 6 am to 6 pm, Pacific Time, Monday through Friday, for the duration of your warranty period. You may also speak with a projector support specialist by dialing:

US: (562) 276-4394, 6 am to 8 pm, Pacific Time, Monday through Friday, and 7 am to 4 pm, Pacific Time, Saturday

Canada: (905) 709-3839, 6 am to 8 pm, Pacific Time, Monday through Friday

Days and hours of support are subject to change without notice. Toll or long distance charges may apply.

For instructions on installing and using your network software, click the icon on your desktop to access the on-screen EasyMP Network Projection Operation Guide. If you don’t see the EasyMP Network Projection Guide icon, you can install it from the projector CD or go to the Epson website, as described on the right.

To monitor and control your projector over the network, download and install the EasyMP Monitor software and manual from the Epson support web site. You can install a link to the downloads page from the projector CD or go to the Epson website, as described on the right.

Internet Support

Visit www.epson.com/support (U.S.) or www.epson.ca/support (Canada) for solutions to common problems. You can download utilities and documentation, get FAQs and troubleshooting advice, or e-mail Epson.

Registration

Register today to get product updates, special promotions, and customer-only offers. You can use the CD included with your projector or register online at

www.epson.com/webreg.

Optional accessories

For a list of optional accessories, see the online User’s Guide.

You can purchase screens or other accessories from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you can purchase online at www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales).
