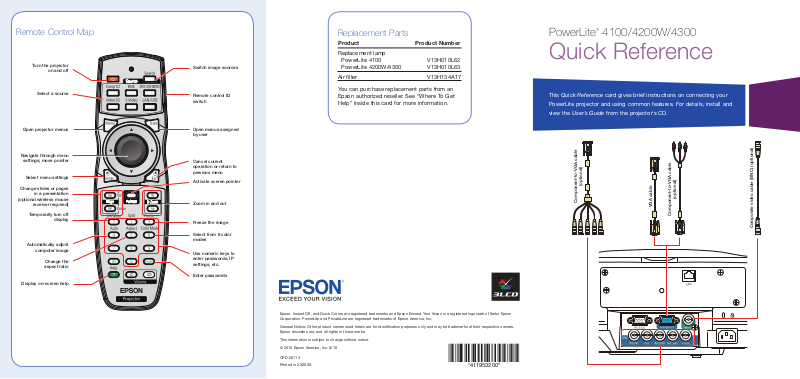

PowerLite® 4100/4200W/4300
Quick Reference
This Quick Reference card gives brief instructions on connecting your
PowerLite projector and using common features. For details, install and
view the User’s Guide from the projector’s CD.
(optional)
Component-to-VGA cable
(optional)
VGA cable
Component-to-VGA cable
Composite video cable (BNC) (optional)
Installing the Manuals
1. Insert the projector CD in your
computer’s CD or DVD drive.
(Double-click the Epson installer
icon, if necessary.)
2. Select your language, select your
projector model, and follow the
instructions on the screen to register.
Then click Install Projector User’s
Guides to install the manuals. For
Windows users, click Install Link
to Download EasyMP Monitor to
install an icon on your computer’s
desktop that you can use to access
the EasyMP Monitor software.
3. To view the manuals, double-click
the PowerLite 4100_4200W_4300
Guide or EasyMP Monitor
Operation Guide (for Windows
users only) icon on your computer’s
desktop.
Turning the Projector On
1. Turn on your computer or image
source.
2. Remove the lens cover.
3. Press the power button. After
the power light stays green, the
projector is ready.
Note: If the Direct Power On function is
enabled, you can turn the projector on
without pressing the power button;
just plug it in or flip the switch controlling
the outlet to which the projector is
connected. To turn on this feature, see
the User’s Guide.
Switching Between Image Sources
Press the Search button (remote
control), one of the Source buttons
(remote control), or the Source
Search button (projector).
Adjusting Image Position
If the projector is mounted to the
ceiling, use the vertical lens shift dial
to move your image up or down or
use the horizontal lens shift dial to
move your image left or right. You
can also use the ceiling mount to
adjust the position.
Horizontal lens shift dial
Vertical lens shift dial
If the projector is on a table, place
it so it faces the screen as squarely
as possible. To raise the image, use
the vertical lens shift dial as shown
above, or press the blue foot release
lever and lift the front of the projector
to extend the front adjustable foot.
Release the lever to lock the foot in
position.
4. If your image does not appear, see
“Switching Between Image Sources”
or “Troubleshooting.”
You can fine-tune the height or level
the image by turning any of the
projector’s adjustable feet. Use the
horizontal lens shift dial to move your
image left or right.

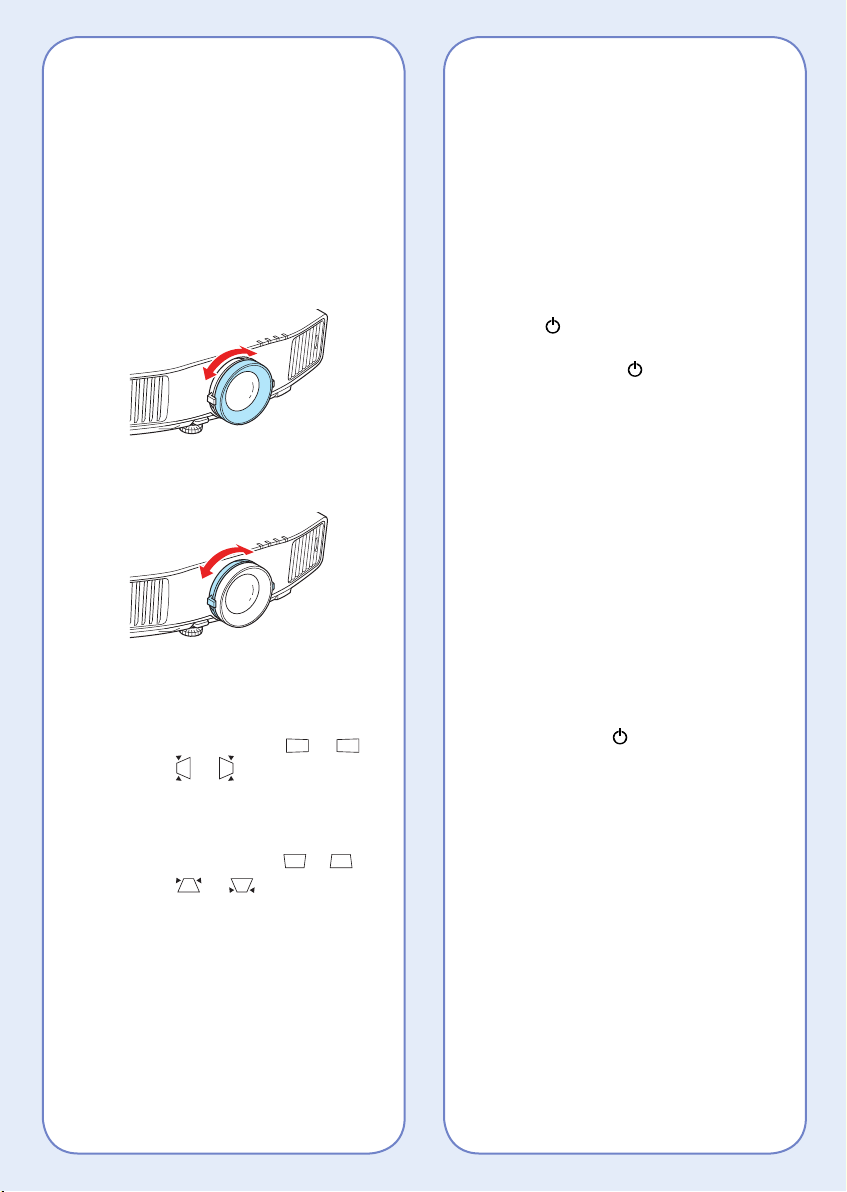

Focusing and Zooming
Turn the focus ring to sharpen the
image.
Turn the zoom ring to reduce/enlarge
the image.
Correcting Image Shape
• If your image looks like or ,
press the or button on the
projector to correct it. You can also
use the remote control to correct the
image shape (see the User’s Guide).
• If your image looks like or ,
press the or button to
correct it. You can also use the
remote control to correct the image
shape (see the User’s Guide).
• If your image is uneven on all sides,
you can use Quick Corner® to adjust
the shape. See the User’s Guide.
Changing the Aspect Ratio
Press the Aspect button on the remote
control to change the aspect ratio.
For images input through the
Computer1 port, select Normal to
automatically resize the image.
Turning the Projector Off
Press the power button to turn
the projector off. At the confirmation
message, press the power button
again.
Note: If the Direct Power On function is
enabled, you can unplug the projector or flip
the switch controlling the outlet to which the
projector is connected instead.
With Epson’s Instant Off® technology,
you don’t have to wait for the projector
to cool down; just turn it off or unplug it
when you’re done.
Troubleshooting
You see a blank screen or the
message No signal.
• Make sure the power light on the
projector is green and not flashing,
and the lens cover is removed.
• Make sure the cables are connected
correctly. See the User’s Guide.
• You may need to change the image
source. See “Switching Between
Image Sources.” (Also make sure the
source device is turned on.)
The projector and the notebook
don’t display the same image.
Windows
Press the function key on your
keyboard that lets you display on an
external monitor (allow a few seconds
for the projector to sync up after you
press the key). It may be labeled
CRT/LCD or have a icon, and
you may have to hold down the Fn
key while pressing it.
If that doesn’t work, open the Display
utility in the Windows Control Panel
(in Windows Vista®, right-click on the
desktop and select Personalize).
Next, click Change display settings,
Display settings, or Settings and
Advanced or Advanced Settings.
Make sure the external monitor port is
set as your primary display and/or
enabled. See your computer’s
documentation or online help for
details.
Mac OS® X
Select System Preferences, Display
or Displays, and Detect Displays.
Then, if you’re using Mac OS X 10.6.x,
click Show displays in menu bar. If
you’re using a different version of Mac
OS X, select VGA Display or Color
LCD, Arrangement or Arrange, and
Mirror Displays.
®
Where To Get Help
Internet support
Visit epson.com/support (U.S.)
or epson.ca/support (Canada)
where you can download utilities
and documentation, get FAQs and
troubleshooting advice, or e-mail
Epson.
Speak to a support representative
To use the Epson PrivateLine®
Support service, call (800) 637-7661
and enter the PIN on the included
Epson PrivateLine Support card. This
service is available 6 am to 6 pm, Pacific
Time, Monday through Friday, for
the duration of your warranty period.
You may also speak with a projector
support specialist by dialing one of the
following numbers.
U.S.: (562) 276-4394, 6 am to 6 pm,
Pacific Time, Monday-Friday
Canada: (905) 709-3839, 6 am to 6 pm,
Pacific Time, Monday-Friday
Days and hours of support are subject
to change without notice. Toll or long
distance charges may apply.
Purchase supplies and accessories
You can purchase screens, ceiling
mounts, and other accessories from an
Epson authorized reseller. To find the
nearest reseller, call 800-GO-EPSON
(800-463-7766). Or you can purchase
online at www.epsonstore.com (U.S.
sales) or www.epson.ca (Canadian
sales).

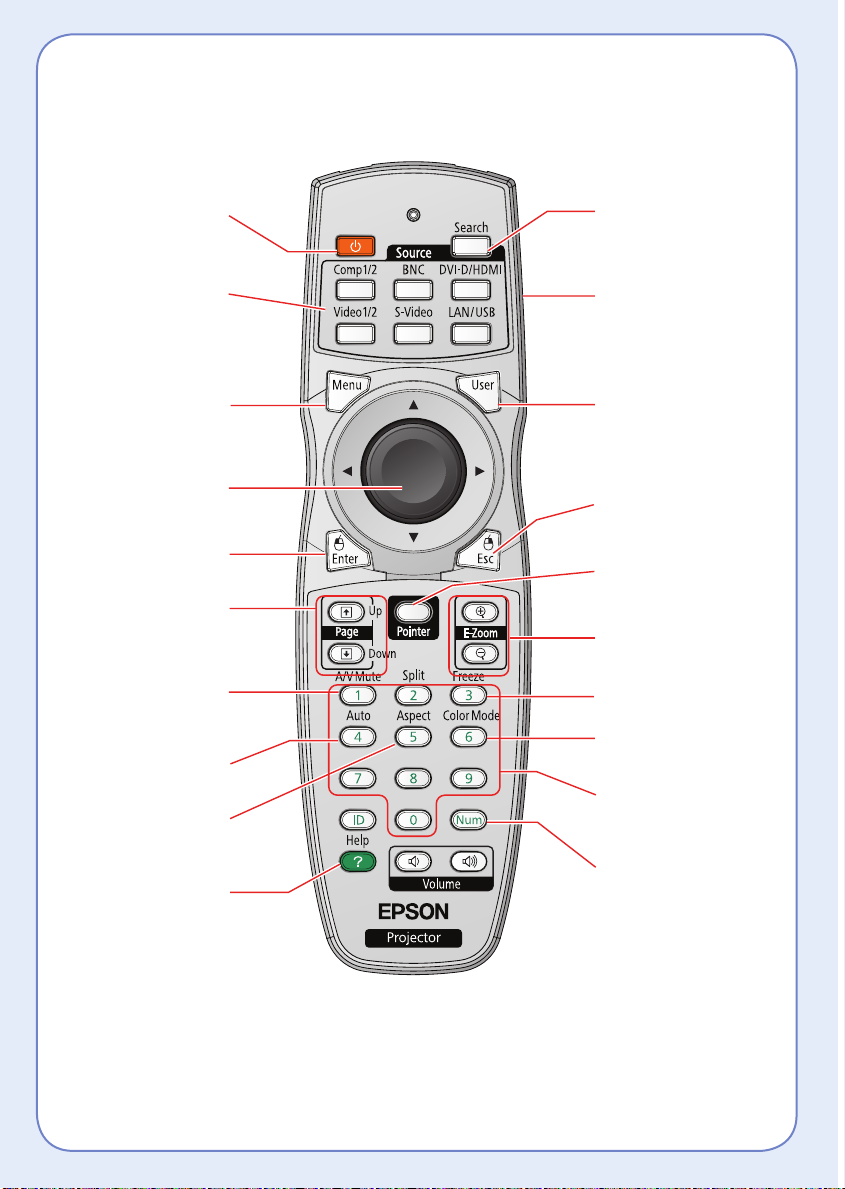

Remote Control Map
*411953200*
*411953200*
Turn the projector
on and off
Select a source
Open projector menus
Navigate through menu
settings; move pointer
Select menu settings
Change slides or pages
in a presentation
(optional wireless mouse
receiver required)
Temporarily turn off
display
Automatically adjust
computer image
Change the
aspect ratio
Display on-screen help
Switch image sources
Remote control ID
switch
Open menus assigned
by user
Cancel current
operation or return to
previous menu
Activate screen pointer
Zoom in and out
Freeze the image
Select from 8 color
modes
Use numeric keys to
enter passwords, IP
settings, etc.
Enter passwords
Replacement Parts
*411953200*
*411953200*
Product Product Number
Replacement lamp
PowerLite 4100 V13H010L62
PowerLite 4200W/4300 V13H010L63
Air filter V13H134A17
You can purchase replacement parts from an
Epson authorized reseller. See “Where To Get
Help” inside this card for more information.
