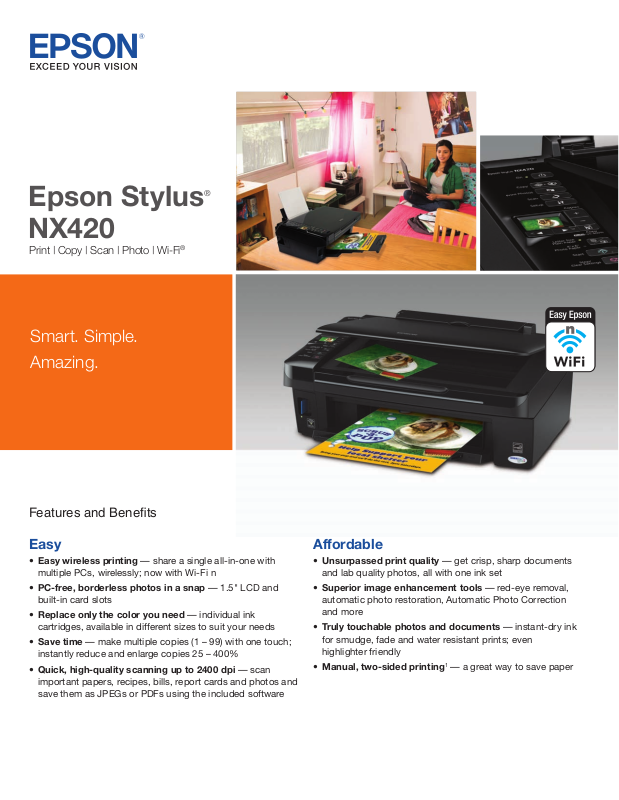

Epson Stylus®
NX420

Print | Copy | Scan | Photo | Wi-Fi

Smart. Simple.

Amazing.

®

Features and Benefits

Easy

• Easy wireless printing — share a single all-in-one with
multiple PCs, wirelessly; now with Wi-Fi n

• PC-free, borderless photos in a snap — 1.5" LCD and
built-in card slots

• Replace only the color you need — individual ink
cartridges, available in different sizes to suit your needs

• Save time — make multiple copies (1 – 99) with one touch;
instantly reduce and enlarge copies 25 – 400%

• Quick, high-quality scanning up to 2400 dpi — scan
important papers, recipes, bills, report cards and photos and
save them as JPEGs or PDFs using the included software

Affordable

• Unsurpassed print quality — get crisp, sharp documents
and lab quality photos, all with one ink set

• Superior image enhancement tools — red-eye removal,
automatic photo restoration, Automatic Photo Correction
and more

• Truly touchable photos and documents — instant-dry ink
for smudge, fade and water resistant prints; even
highlighter friendly

• Manual, two-sided printing1 — a great way to save paper

Epson Stylus® NX420 Print | Copy | Scan | Photo | Wi-Fi

®

Specifications

PRINT
Printing Technology 4-color (CMYK) drop-on-demand MicroPiezo® ink jet technology
Maximum Print Resolution 5760 x 1440 optimized dpi
ISO Print Speed† Black 6.4 ISO ppm

Color 3.3 ISO ppm

Minimum Ink Droplet Size 3 picoliters
COPY
Copy Quality Color: Black/White, Draft: Normal
Copy Quantity 1 – 99 (PC-free)
Maximum Copy Size 8.5" x 11" (PC-free)
Copy Features Fit to page, automatic reduction and enlargement (25 – 400%)
SCAN
Scanner Type Color flatbed
Photoelectric Device Color CIS line sensor
Optical Resolution 1200 dpi
Hardware Resolution 1200 x 2400 dpi
Maximum Resolution 9600 x 9600 dpi interpolated
Scanner Bit Depth 48-bit color / 24-bit output
PC-free Filters and Image Enhancements Auto Photo Correction, sepia, black-and-white, red-eye removal
CONNECTIVITY
Connectivity Hi-Speed USB 2.0

Built-in Memory Card Slots Compatibility Memory Stick®, Memory Stick Duo™,2 MagicGate™ Memory Stick,

Wireless Wi-Fi (802.11 b/g/n)

MagicGate Memory Stick Duo™,2 Memory Stick PRO™, Memory
Stick Pro Duo™,2 Memory Stick Micro2, Memory Stick PRO-HG
Duo2, Secure Digital (SD™), SDHC™, mini SD™,2 mini SDHC™,2
micro SD™,2 micro SDHC™,2 MultiMediaCard™, xD-Picture Card™,
xD-Picture Card Type-M, RS-MMC,2 xD-Picture Card Type-H

Supported Digital Camera Technologies Epson PRINT Image Matching®, Exif Print, DPOF, DCF v. 1.0/2.0
Operating Systems Windows® 7, Windows Vista®, Windows XP, Windows XP x64,

Mac OS® X 10.4.11, 10.5.8, 10.6.x

PAPER HANDLING
PC-free Paper Support Plain (8.5" x 11"), Photo (4" x 6")
Maximum Paper Size 8.5" x 44"
Paper Sizes 3.5" x 5", 4" x 6", 5" x 7", 8" x 10", 8.5" x 11", A4, B5, A5, A6,

half letter, executive, user definable (3.5" – 44" in length)

Borderless Photo Sizes 4" x 6", 5" x 7", 8" x 10", 8.5" x 11", A4, 16:9 wide
Paper Types Supports plain paper, Epson Bright White Paper, Photo Paper

Glossy, Premium Photo Paper Glossy, Ultra Premium Photo Paper
Glossy, Premium Photo Paper Semigloss, Presentation Paper
Matte, Premium Presentation Paper Matte, Premium Presentation
Paper Matte Double-sided, Ultra Premium Presentation Paper
Matte and Matte Scrapbook Photo Paper (letter)

Envelope Types No. 10, plain paper, bond paper
Input Paper Capacity 100 sheets plain paper, 10 envelopes

GENERAL
Color Preview Monitor 1.5" LCD
Temperature Operating: 50 ° to 95 °F (10 ° to 35 °C)

Relative Humidity Operating: 20 – 80% (no condensation)

Storage: -4 ° to 140 °F (-20 ° to 40 °C)

Storage: 5 – 85% (no condensation)

Sound Level 38 dB
Rated Voltage 100 – 120 VAC
Rated Frequency 50 – 60 Hz
Rated Current 0.5 Amp
Power Consumption Approx. 13 W ISO 10561 (Standalone copy printing)

Safety Approvals Safety standards UL60950, CSA C22.2 No. 60950

Approx. 0.2 W (Standby Mode)
ENERGY STAR® qualified

EMI FCC Part 15 subpart B class B,
CAN/CSA-CEI/IEC CISPR 22 class B

Country of Origin Indonesia/Thailand
Weight and Dimensions (W x D x H) Printing: 17.7" x 21.3" x 11.7"

What’s In The Box Epson Stylus NX420 color all-in-one, instruction booklets,

Storage: 17.7" x 13.5" x 7.2"
Weight: 12.3 lb

CD-ROM with drivers, power cord, 4 DURABrite® Ultra Ink
cartridges (one 125 Standard-capacity Black ink cartridge
and three 125 Standard-capacity color ink cartridges: Cyan,
Magenta, Yellow)

Software Included Epson printer driver, Web to Page, Epson Scan
Warranty One-year limited warranty in the U.S. and Canada

Quick product exchange

INK
Ink Type DURABrite Ultra pigment ink

(smudge, fade and water resistant)

Ink Palette Cyan, Magenta, Yellow and Black
Ink Cartridge Configuration 4 individual ink cartridges
Fade Resistance / Print Longevity3 Up to 118 years
Replacement Ink Cartidges4 124 Moderate-capacity Black, Cyan, Magenta, Yellow

125 Standard-capacity Black, Cyan, Magenta, Yellow

ECO FEATURES

• ENERGY STAR qualified

• RoHS compliant

• Save up to 50% on paper with manual, two-sided printing

• Designed to be recycled

• Epson America, Inc. is a SmartWaySM Transport Partner

5

1

6

† ISO ppm is based on the new international standard for measuring print speed. Black and color print speeds are determined in default, single-side mode, in accordance with ISO/IEC 24734.
Actual print times will vary based on system configuration, software, and page complexity. See www.epson.com/printspeed for details, including complete ISO reports.

1 Some functions, like manual two-sided printing, may not be supported by Mac®.
2 Adapter required
3 Display permanence based on accelerated testing of prints displayed under glass in indoor display conditions; album permanence based on accelerated testing of prints in dark storage conditions.

Actual print stability will vary according to media, printed image, display conditions, light intensity, temperature, humidity and atmospheric conditions. Epson does not guarantee the longevity of
prints. For maximum print life, display all prints under glass or UV filter or properly store them.

4 Yields based on ISO/IEC 24711 in default mode printing continuously. Actual yields will be lower with higher-density images, hot or dusty conditions, less frequent printing, or printing predominantly

with one color. All ink colors are used for printing and all-in-one maintenance, and all colors have to be installed for printing. For print quality, part of the ink from the included cartridges is used for

printer startup and a variable amount of ink remains in the cartridges after the "replace cartridge" signal. For details, see www.epson.com/cartridgeinfo
5 See our website for convenient and reasonable recycling options at www.epson.com/recycle
6 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
