Home Cinema LS100

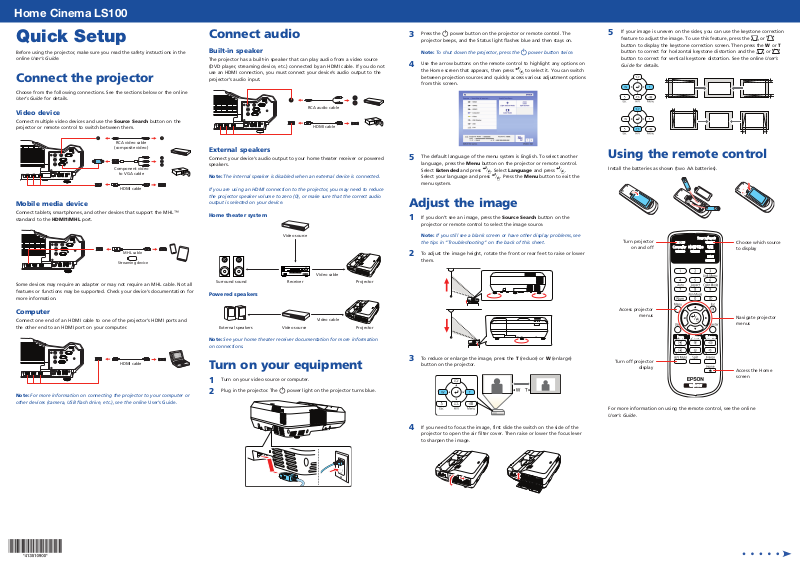

Quick Setup

Before using the projector, make sure you read the safety instructions in the
online User’s Guide.

Connect the projector

Choose from the following connections. See the sections below or the online
User’s Guide for details.

Video device

Connect multiple video devices and use the Source Search button on the
projector or remote control to switch between them.

RCA video cable

(composite video)

Component video

to VGA cable

HDMI cable

Mobile media device

Connect tablets, smartphones, and other devices that support the MHL™
standard to the HDMI1/MHL port.

Connect audio

Built-in speaker

The projector has a built-in speaker that can play audio from a video source
(DVD player, streaming device, etc.) connected by an HDMI cable. If you do not
use an HDMI connection, you must connect your device’s audio output to the
projector’s audio input.

RCA audio cable

HDMI cable

External speakers

Connect your device’s audio output to your home theater receiver or powered
speakers.

Note: The internal speaker is disabled when an external device is connected.

If you are using an HDMI connection to the projector, you may need to reduce
the projector speaker volume to zero (0), or make sure that the correct audio
output is selected on your device.

Home theater system

MHL cable

Streaming device

Some devices may require an adapter or may not require an MHL cable. Not all
features or functions may be supported. Check your device’s documentation for
more information.

Computer

Connect one end of an HDMI cable to one of the projector’s HDMI ports and
the other end to an HDMI port on your computer.

HDMI cable

Video source

Video cable

Surround sound Receiver Projector

Powered speakers

Video cable

External speakers Video source Projector

Note: See your home theater receiver documentation for more information
on connections.

Turn on your equipment

Note: For more information on connecting the projector to your computer or

other devices (camera, USB flash drive, etc.), see the online User’s Guide.

Turn on your video source or computer.

1

Plug in the projector. The power light on the projector turns blue.

2

Press the power button on the projector or remote control. The

3

projector beeps, and the Status light flashes blue and then stays on.

Note: To shut down the projector, press the power button twice.

Use the arrow buttons on the remote control to highlight any options on

4

the Home screen that appears, then press to select it. You can switch
between projection sources and quickly access various adjustment options
from this screen.

If your image is uneven on the sides, you can use the keystone correction

5

feature to adjust the image. To use this feature, press the or
button to display the keystone correction screen. Then press the W or T
button to correct for horizontal keystone distortion and the or
button to correct for vertical keystone distortion. See the online User’s
Guide for details.

The default language of the menu system is English. To select another

5

language, press the Menu button on the projector or remote control.
Select Extended and press . Select Language and press .
Select your language and press . Press the Menu button to exit the
menu system.

Adjust the image

If you don’t see an image, press the Source Search button on the

1

projector or remote control to select the image source.

Note: If you still see a blank screen or have other display problems, see
the tips in “Troubleshooting” on the back of this sheet.

To adjust the image height, rotate the front or rear feet to raise or lower

2

them.

Using the remote control

Install the batteries as shown (two AA batteries).

Turn projector

on and off

Choose which source
to display

To reduce or enlarge the image, press the T (reduce) or W (enlarge)

3

button on the projector.

If you need to focus the image, first slide the switch on the side of the

4

projector to open the air filter cover. Then raise or lower the focus lever
to sharpen the image.

Access projector

menus

Turn off projector

display

For more information on using the remote control, see the online
User’s Guide.

Navigate projector
menus

Access the Home
screen
