Epson EPL-N2000 Network Guide

Download

Printing with the EPL-N2000 for the Network Administrator

For Printing on the Multiprotocol Network:



DOS Using Novell® NetWare® 2.x, 3.1x, and 4.x Print Server or Remote Printer



Windows® 3.1 Using Novell® NetWa re® 2.x, 3.1x, and 4.x Prin t Serv er or Re m ot e Pr in te r



Windows® 95 Using MS IPX or MS TCP/IP



Windows® NT Using DLC, MS IPX, or TCP/IP



Macintosh® Using EtherTalk



UNIX® Using lp d a nd ftp Com ma n ds



IBM® OS/2 LAN® Server Using NetBEUI and TCP/IP

User’s Guide

4006480 C01-00

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of SEIKO EPSON CORPORATION. No patent liability is assumed with respect to the use of the information contained herein. Neither is any liability assumed for damages resulting from the use of the information contained herein.

Neither SEIKO EPSON CORPORATION nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly comply with SEIKO EPSON CORPORATION‘s operating and maintenance instructions.

SEIKO EPSON CORPORATION shall not be liable against any damages or problems arising from the use of any options or any consumable products other than those designated as Original EPSON Products or EPSON Approved Products by SEIKO EPSON CORPORATION.

EPSON and EPSON ESC/P are registered trademarks and EPSON ESC/P 2 is a trademark of SEIKO EPSON CORPORATION.

General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective owners. EPSON disclaims any and all rights in those marks.

FCC Compliance Statement

For United States Users

This equipment has been tested and found to comply with the limits fo r a Cl ass A d igital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can r adiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception. However, there is no gua r an tee that interference will n o t o ccur in a particular installation. If this equi pm ent does cause interference to radio and television reception, which can be determined by turning the equipment off an d on, the user is encouraged to try to correct the interference by one or more of the following measures.



Reorient or relocate the receiving antenna



Increase the separati on between the equipment and receiver



Connect the equipment into an outlet on a circuit different from that to wh ich the receiver is connected



Consult the dealer or an experienced radio/TV technician for help.

This device co mpl ies with Part 15 of the FCC Rules . Operation is subj ect to the following two conditions: (1) this device may not cause harmful interference, and (2) this device m u s t accept any interf er ence received, including interfer en ce that may cause undesired operation.

WARNING

The connection of a non-sh ielded equipment interface cable to this equipment will invalidate the FCC Certification of this device and may cause interference levels which exceed the limits esta blished by the FCC for this equipment. It is th e r es po n s ib ility of the user to obtain and use a shielded equipment interface cable with this device. If this equipment has more tha n one in ter f ace connector, do not leave cables connected to unused interfaces.

Changes or modifications not expressly approved by the manufacturer could void the user’ s authority to operate the equi pm ent.

For Canadian Users

This Class A digit al apparatus meets all requirements of the Canadian InterferenceCausing Equipment Regulations.

Cet appareil numeriq ue de l a classe A respecte toutes les ex ig ences du Reglement sur le materiel brouilleur du Canada.

iii

For European Users

This product conforms to CE marking requirements in accordance with EC Directive 89/336/EEC.

WARNING

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Introduction

Ethernet Card Hardware . . . . . . . . . . . . . . . . . . . . . . 1-2

Ethernet Card Software . . . . . . . . . . . . . . . . . . . . . . . 1-2

Supported Network Protocols and Features . . . . . . . . . . . 1-3

Operation Modes for Novell NetWare . . . . . . . . . . . . . . 1-5

Print Server mode . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Remote Printer mode . . . . . . . . . . . . . . . . . . . . . . 1-6

About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

Terms and Concepts . . . . . . . . . . . . . . . . . . . . . . . . 1-8

Chapter 1

Connecting the Ethernet Card to the Network . . . . . . . . . 1-1

Initialization of the Ethernet Card . . . . . . . . . . . . . . . 1-1

Connecting via the Ethernet interface . . . . . . . . . . . . 1-1

Making the interface connection setting . . . . . . . . . . . 1-2

Ethernet Card Operation . . . . . . . . . . . . . . . . . . . . . . 1-2

Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Printing status sheets . . . . . . . . . . . . . . . . . . . . . . 1-4

Resetting the Ethernet card . . . . . . . . . . . . . . . . . . 1-4

Getting Started

Chapter 2

Installing EPSON Net! for NetWare DOS . . . . . . . . . . . . . 2-2

Using the Ethernet Card in Print Server Mode . . . . . . . . . . 2-3

Assigning print queues on a file server . . . . . . . . . . . . 2-3

Assigning print queues on multiple file servers . . . . . . . 2-6

Changing the configuration in Print Server mode . . . . . . 2-8

Using the Ethernet Card in Remote Printer Mode . . . . . . . . 2-10

Defining the Ethernet card in NetWare . . . . . . . . . . . . 2-10

Configuring the Ethernet card as a remote printer . . . . . . 2-11

Changing the port number . . . . . . . . . . . . . . . . . . . 2-12

Enabling/disabling Hunting . . . . . . . . . . . . . . . . . . 2-13

Using the Ethernet Card in Auto Print Server/

Remote Printer Mode . . . . . . . . . . . . . . . . . . . . . . . . 2-13

Using DOS

Chapter 3

Installing EPSON Net! for Windows . . . . . . . . . . . . . . . . 3-2

Monitoring the Printers on Your Network . . . . . . . . . . . . 3-2

Selecting the network protocol via the Summary dialog box 3-3

Checking printer status . . . . . . . . . . . . . . . . . . . . . 3-4

Sorting the printers . . . . . . . . . . . . . . . . . . . . . . . . 3-6

Setting the refresh interval . . . . . . . . . . . . . . . . . . . 3-6

Configuring the Ethernet Card for Novell NetWare . . . . . . . 3-7

Using the Ethernet card in Print Server mode . . . . . . . . 3-7

Using the Ethernet card in Remote Printer mode . . . . . . . 3-14

Configuring the Ethernet Card for TCP/IP . . . . . . . . . . . . 3-17

Installing LPR software in Windows NT . . . . . . . . . . . 3-17

Configuring the Ethernet card . . . . . . . . . . . . . . . . . 3-19

Setting up your printer in Windows 95 . . . . . . . . . . . . 3-21

Setting up your printer in Windows NT . . . . . . . . . . . . 3-22

Configuring the Ethernet Card for AppleTalk . . . . . . . . . . 3-23

Using the DLC Support in Windows NT . . . . . . . . . . . . . 3-26

Installing DLC in Windows NT . . . . . . . . . . . . . . . . . 3-26

Configuring the printer . . . . . . . . . . . . . . . . . . . . . 3-27

Using Windows

Chapter 4

Using Macintosh

Installing EPSON Net! for Macintosh . . . . . . . . . . . . . . . 4-2

Monitoring the Printers on Your Network . . . . . . . . . . . . 4-2

Checking the printer via the Summary dialog box . . . . . 4-2

Selecting the zone . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Sorting the printers . . . . . . . . . . . . . . . . . . . . . . . 4-4

Setting the refresh interval . . . . . . . . . . . . . . . . . . . 4-4

Configuring the Ethernet Card for AppleTalk . . . . . . . . . . 4-5

Configuring the card . . . . . . . . . . . . . . . . . . . . . . 4-5

Choosing the printer on Macintosh . . . . . . . . . . . . . . 4-7

Configuring the Ethernet Card for Novell NetWare . . . . . . 4-8

Using the Ethernet card in Print Server mode . . . . . . . . 4-8

Using the Ethernet card in Remote Printer mode . . . . . . 4-11

Chapter 5

Using UNIX

Installing and Printing with the Ethernet Card . . . . . . . . . 5-1

Setting up the card . . . . . . . . . . . . . . . . . . . . . . . 5-1

Printing via lpr . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

Printcap file . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

Chapter 6

Using OS/2

Installing on an OS/2 System . . . . . . . . . . . . . . . . . . . 6-1

Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Installing Redirection Software . . . . . . . . . . . . . . . . . . 6-2

Getting printer driver status information . . . . . . . . . . 6-3

Printing through Pipes . . . . . . . . . . . . . . . . . . . . . . . 6-4

Installing the software . . . . . . . . . . . . . . . . . . . . . 6-4

Configuring New Printers . . . . . . . . . . . . . . . . . . . . . 6-5

Sharing the Board among Multiple Workstations . . . . . . . . 6-7

vii

Chapter 7

EPSON Status Monitor Utility . . . . . . . . . . . . . . . . . . . 7-1

System Requirement . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

For Windows 95 . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

For Windows NT 3.51 . . . . . . . . . . . . . . . . . . . . . . 7-1

Installing the Status Monitor Utility . . . . . . . . . . . . . . . . 7-2

Accessing the Status Monitor . . . . . . . . . . . . . . . . . . . . 7-2

For Windows 95 . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2

For Windows NT 3.51 . . . . . . . . . . . . . . . . . . . . . . 7-3

Acessing Online Help . . . . . . . . . . . . . . . . . . . . . . . . 7-3

Setting up the EPL-N2000 on a Network . . . . . . . . . . . . . 7-4

For Windows 95 . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4

For Windows NT 3.51 . . . . . . . . . . . . . . . . . . . . . . 7-5

Using the EPSON Statu s Mon itor

Appendix

Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Network Software . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Ethernet Network Hardware Connectors . . . . . . . . . . . . . A-1

Index

Specifications

viii

Introduction

The EPL-N2000 printer contains an Ethernet® card for use on your network. This manual covers in format ion only about the E the rnet card that comes installed in the pr inte r and the utility softwar e that configures it for network printing. For information about the printer, see your printer user’s guide.

Note:

This manual is written for network administrators, and many of the steps included here require detailed network knowledge and administrator rights.

The Ethernet card can connect directly anywhere on your network using a 10BASE2 or 10BASE-T cable. Th e ca rd au t omat ic ally selects the correct interface when it connects to the network. In addition, it supports IEEE 802.2, IEEE 802.3, and Ethern et II network p rotocols.

Because the Ethernet card supports multiple protocols and automatically detects the protocols on your network, you can print from DOS, Microsoft

IBM

OS/2 applications.

Windows®, Apple® Macintosh®, UNIX, and

Use EPSON Net!, the utility software provide d with your printer, to quickly and easily configure the Ethernet card to use protocols such as Novell EtherTalk

NetWare®, Microsof t IP X/ SP X, Microsoft TC P /IP ,

, and NetBI OS an d TC P/IP for OS/2 Warp and War p

Connect.

Note:

The EPSON Net! utility software only configures the Ethernet card to work with the protocols that exist on your network. This does not imply that you can use all of the above mentioned protocols in your network or operating system. The protocols that the Ethernet card can use may vary depending on the operating systems used and network configuration.

Introduction

No special utility software is neede d for th e DLC trans p ort protocol of Wi n dows NT and the protocol of UNIX net w ork. You can use OS-standard utility software tools.

Ethernet Card Hardware

The Ethernet card comes pre- installed in your printer. It has connectors for either an Ethernet Thin Coaxial (10BASE2) or an Ethernet Twisted-Pair (10BASE-T) network connection. The lights and buttons are provided to help you monitor and operate the Ethernet card. For more information about the hardware aspects of the card, see Chapter 1.

Ethernet Card Software

The utility software that comes with your printer includes the following programs used to configure the Ethernet card on a network:

❏ EPSON Net! fo r N etW ar e D OS is an easy -to-use, menu- dri v en

utility program that runs in DOS. Use it to configure the Ethernet card for NetWare in DOS.

❏ EPSON Net! for Windows and EPSON Net! for Macintosh are

easy-to-use, menu-driven utility programs that run in Windows an d Maci ntosh respectively. Us e the appr opr iat e on e to configure the Ethern et card for NetWar e, TCP/ IP (available only for Windows), and AppleTalk.

Introduction

❏ EPSON Net! for OS/2 is a charac t er based utilit y for in stallin g

on an OS/2 Net BIO S n e tw or k .

Supported Network Protocols and Features

The Ethernet card supports the following network protocols and features. It cannot use protocols that are not available or are not installed in your operating system.

Novell NetWare in DOS, Windows 3.1, Windows 95, and Windows NT

❏ Supports IPX, SP X, an d NCP p r ot oc ols that are configured for

NetWare 3.x and NetWare 4.x Bin dery emulation mod e.

❏ Uses Microsoft IPX with Windows 95 and Windows NT for

NetWare.

❏ Provides th e same functi on s as NetWare’s PS ERVER program

in print server mode and RPRINTER in remote printer mode.

❏ Services up to 32 print queues on up to eight file servers in

print server mode.

❏ It is easy to configure the Etherne t card fo r NetW are using

EPSON Net! for NetWare DOS, EPSON Net! for Windows, or EPSON Net! fo r M ac i ntosh. (EPSON Net ! for M acintosh can not edit/configure NetWare print queues.)

TCP/IP in Windows

❏ Support s M i cr osoft TCP/IP i n Windows N T. ❏ It is easy to con figu r e an d chan ge the IP address an d ot h er

settings with EPSON Ne t! for Windows.

Introduction

Windows NT

❏ Supports the DLC protocol so that you can use the printer to

emulate a Hew l et t Pac k ar d

network printer.

AppleTalk

❏ Supports EtherTalk Phase I an d Ph as e II co mmu n ic at i on . ❏ It is e a sy to se t th e Appl eTalk zo n e, ren a me the p rinter, and

change other settings with EPSON Net! for Macintosh or EPSON Net! for Windows.

❏ Works with optionally equipped EPSONScript (PostScript)

printers.

UNIX

❏ Supports most major commands, including lpr, ftp, and ping

over TCP/IP.

❏ Requires no setup utility. The IP address is allocated by

sending the ar p an d pi ng com man d s d ir e c tly fr om t h e h ost computer.

OS/2

❏ Supports IBM OS/2 Warp and Warp Connec t wit h or wi thout

NetBIOS and NetBIOS over TCP/IP.

❏ Provides installation with the EP SON Net ! for OS /2 utility.

Introduction

Operation Modes for Novell NetWare

If you are setting up the Ethernet card for use in a NetWare environment, you will need to determine wh eth er you want to set it up in Print Server mode or Remote Printer mode. For more details, find the app r opr iate chapter for you r oper at in g syst em an d read the NetW ar e section in that cha p ter. Th e factory default operating mode for the card in a NetWar e en v ir onmen t is Pr int Server mode.

Note:

❏ If you use the Ethernet card in a NetWare and WAN (Wide Area

Network) environment and connecte it to a general phone line (including IS DN), the ca r d m ay open the dial -up-r o o te r a n d ap ck e ts may be sent to the WAN. To avoid this problem and extra phone fees, mask the vendor code as shown below in the dial-up-rooter.

Vender code 00:00:48:xx:xx:xx

❏ The factory default NetWare condition of the Ethernet card is

disabled. You must configure the card with on a NetWare network.

Print Server mode

EPSON Net!

to work

In Print Server mode, the Ethernet card performs all print server functions and can service up to 32 que ues and eigh t file server s. No VAP (Value-Added Pr oc ess) or NLM (NetWare Loadab le Module application, the file server assigns the print job to a print queue. When the corresponding prin ter is ready, the pr int ser ver se nds the print job to the printer.

The Ethernet card oper ate s like any Novell NetWare print server , servicing the assigned queues in a round robin fashion. In queues of the same priority, the Ethernet card services the first job in a queue before those in a lower pr iori ty queue. The E thernet card also supports encrypted passwords.

) is required. When you send a print job from your

Introduction

This mode provides the highest printing speed wh ile retaining the control, security, and convenience of a NetWar e pr in t server .

Remote Printer mode

As a remote prin te r, the Ethernet car d e mul at es a workstation running Novell’s RPRIN TE R p r og r am, an d operates un d er the control of a Novell NetWare print serv er . The print serv er can be either a dedicat ed wor kstation runnin g PS ER VER or a file server.

At power-up, the interface will attempt to attach to a print ser ver (elsewhere on the network) and act as a p ar t icul ar printer of that print server. To do this, it needs to know which print server to attach to, and which printe r of that print serve r to use. This is similar to the need to spec ify thes e par ameters in the RPRINTER command line (or to interactively choose them from the RPRINTER program).

You can set up th ese par a meters on the Ethern et car d with th e EPSON Net! utility. Once the Etherne t card is set up, it will store these settings, which me an s th at you will norm ally only need to do this once at the time of installat ion. How ev er , as wit h all Novell remote printers, the Ethernet card’s print speed is slower in Remote Printer mode than in Print Server mode.

The main advantage of Remo te Prin te r mo de is that co nn ec tion t o a file server is not required, making t h is mode d es irable in installations with limited av ailable file server connections. Each NetWare print server can support up to 16 printers and requires only one file server connection.

About This Manual

This manual describes how to use EPSON Net!, the utility software provide d with your p rin ter, to configu re the Ethe rne t ca rd for network printing. You can also find instructions on using many operating system dependent utilities to configure the card.

Introduction

The Introdu ct ion an d Ch ap t er 1 sh ou ld be read first. Read these sections to get overall information about the Ethernet card hardware and software. The Appendix is for your reference.

For information about how to use the utility softwa re in your operating sys tem, refer to the appropriate chapte r as follow s:

❏ DOS: see Ch ap t er 2 for information on EPSON Net! for

NetW are DOS. This chapter descr i b es how to co n figure the Ethernet card in DOS for Novell NetWare.

❏ Windows 3.1, Windows 95, and Windows NT: see Chap t e r 3

for information on EPSON Net! for Windows and configuration in Windows NT with DLC support. This chap ter describes how to configure the Ethernet card in Windows to work with Novell NetWare, TCP/IP, and AppleTalk protocols.

❏ Macintosh: see Chapter 4 for information on EPSON Net! for

Macintosh. This chapter describes how to configure the Ethernet card with a Macintosh to work with AppleTalk, TCP/IP, an d Novell Net War e p r otocols.

❏ UNIX: see Chapter 5 for de tails about using sever al varia tions

of UNIX. This chapter includes information about using UNIX with TCP/IP.

❏ OS/2: see Chapt er 6 for details on using an OS/ 2 s y st em an d

installing extra softwar e.

❏ EPSON Statu s M on itor: Chapter 7 c ontains details on

installing and using the EPSON Status M onitor utility. This utility is available for use on a network and requires Windows 95 or Window s NT 3.51.

Introduction

Terms and Concepts

The following terms and concepts help you understand this manual.

configuration

proper operat i on. work with protocols available on a network.

node address

any piece of equipment conn ec t ed to a networ k.

file server

a print server.

print queue

the print server sends the job to the assigned printer.

print server

remote printer

network, but under the control of a NetWare print server. Traditionally, a remote printer is connec t ed to a network workstation running NetWare’s RPRINTER, but the Ethernet card can also func tion as a remote printer .

status sheet

Ethernet card is pushed. If the car d is insta lled as a print server , the status sheet lists the co n figuratio n s of th e Eth er net card on eac h network.

is a prepared or set up condition of a device for

Configuring

is a set of numbers that gives a unique identity to

stores data require d fo r th e Eth er n et card to ope rate as

is an area where a print j ob is stored as a file , unt il

moves jobs from print queues to printers.

is a shared printer connected elsewhere on t he

prin ts each ti m e the

the Ethernet card is to set it up to

status sh e et

button of the

EtherTalk

Ethernet transmissions.

print spooler

a queue.

Introduction

is AppleTalk’s communication protocol governing

is an application that places print jobs or reques ts in

protocol

exchanged through a network. There are many different layers of protocols for different asp ects of hard ware and soft ware operation. Computers and software cannot communicate with each other usin g different protoc ol s .

is a rule that controls how data or info rmatio n is

TCP/IP

layer of protocols that p r ovides commun i c a t i on s be tween node s on a network .

ftp

lpd

(Transmission Control Protocol/Internet Protocol) is a

is a TCP/IP application protocol for file transfer.

is a TCP/IP remote printing protocol application.

Introduction

Chapter 1

Getting Started

This chapter explains how to connect the Ethernet card to the network and how to operate the card.

Connecting the Ethernet Card to the Network

You must physically connect the Ethernet card to the network using either a 10BASE-T or 10BASE2 network cable.

You should leave the printer or leaving the printer set to auto interface mode (default), which automatically switches modes to match the type of interface being used.

Initialization of the Ethernet Card

The first time you use the Ethernet card, turn on the printer while pressing and holding down the status sheet button for about three seconds. The Ethernet card initialize. For the location of the status sheet button, refer to the page 1-3.

Connecting via the Ethernet interface

Attach the network cable to the appropriate connector on the Ethernet card interface as shown in the diagram below. Your printer package contains a coaxial Y-connector for a 10BASE2 network interface connection. You must connect the Ethernet card in your printer to the network and select the Ethernet interface for network connection.

Note:

The Ethernet card plate, shown below, is located on the back of your printer.

Getting Star te d

1-1

Twisted-Pair (10BASE-T)

Caution:

Do not attach more than one cable at a time.

Thin Coaxial (10BASE2)

Making the interface connection setting

Because your printer is set to the auto interface mode by default, you do not have to make the interface connection setting. This allows you to connect the Ethernet card to the network using either a 10BASE-T or 10BASE2 network cable.

To learn more about the interface connection setting, see the section on SelecType settings in your printer user’s guide.

Ethernet Card Operation

The LED lights and the button can provide you with important information about the operation and configuration of the Ethernet card.

1-2

Getting Started

status light, red

status light, green status sheet button

data transmission light

Lights

The Ethernet card has three LEDs (1 red and 2 green) that indicate the current operating status of the Ethernet card when you first turn on the printer, during normal operation, and when errors occur.

Stat us li g ht s

Here is a brief explanation of the two status lights:

Red Green Status

Blink simultaneously Initializing status at power on or reset

Blink alternately Recognizing the network at connection Off On Normal ready status On On Error status

Data transmission light

When the Ethernet card receives a data packet, it automatically recognizes the protocol of the packet and switches to that protocol mode. When the card sends data, the green data transmission light blinks.

Getting Star te d

1-3

Printing status sheets

Before you start configuring the Ethernet card, be sure to press the status sheet button on the Ethernet card to print important information such as current configuration, serial number, and the address of the Ethernet card. You will need this information to configure the Ethernet card.

You can print a status sheet after the printer is turned on and has completed its initialization. The status sheet will not print when the printer has started printing, when it is off line, or when it is not ready to print.

Note:

If the printer does not print the status sheet, first make sure that the printer is on line and no print jobs are processing, then and wait one minute. If it still does not print the status sheet, turn it off, wait at least five seconds, and then turn it on again.

Caution:

After turning off the power, wait at least five seconds before

turning it back on; otherwise you may damage the printer.

Resetting the Ethernet card

When you turn on the printer, the Ethernet card initializes automatically. If an error occurs with the Ethernet card, reset it. You can reset the Ethernet card in the following ways:

Switching the Ethernet card-equipped printer off and back

❑

on again.

Caution:

After turning off the power, wait at least five seconds before

turning it back on; otherwise you may damage the printer.

Using the reset function or buffer clearing operation from

❑

the control panel of your printer.

1-4

Getting Started

If you turn on the printer while pressing the status sheet button on the card, all configuration settings are reset to the factory default settings.

Note:

If your printer has an EPSONScript (PostScript) level 2 module installed, allow a minute for the printer to initialize before trying to configure the Ethernet card on the network. The Ethernet card may not respond if initialization has not been completed.

Getting Star te d

1-5

1-6

Getting Started

Chapter 2

Using DOS

This chapter describes how to configure the Ethernet card with EPSON Net! for NetWare DOS to operate with Novell NetWare. If you use DOS as your operating system, you need to use this utility program to configure the card.

Before configuring the Ethernet card, make sure of the following points:

Has Novell NetWare been set up to provide print services

❑

on the network? For details about setup, see your Novell NetWare documentation.

Will you use the card as a dedicated print server, remote

❑

printer, or mix of these two modes using the Ethernet card’s Auto Print Server/Remote Printer mode? See the appropriate section in this chapter for more information.

Has the printer been set up with the Ethernet card

❑

connected to the network, and has it been turned on? For details, see Chapter 1 in this manual and your printer user’s guide.

Using DOS

2-1

Installing EPSON Net! for NetWare DOS

EPSON Net! for NetWare DOS is EPSON’s proprietary network printer management utility program. Follow these steps to install it.

1. At a workstation with a high-density disk drive, insert the EPSON Net! for NetWare DOS disk in drive A (or B).

2. Use the DOS COPY command (copy a:filename.*) to copy the following files to a network directory or to your hard drive:

EPNWDE.EXE EPNWDE.DAT

Note:

To configure the Ethernet card with EPSON Net! for NetWare

❑

DOS, you must first log in to the NetWare network with supervisor privileges.

This utility requires a minimum of 480 KB of conventional

❑

memory.

2-2

Using DOS

Using the Ethernet Card in Print S e rver Mode

The Ethernet card is set to Print Server mode by default, so you don’t have to make any special settings to use it in this mode. However, you must assign print queues on a file server or multiple file servers to the Ethernet card. See the following sections for instructions.

Assigning print queues on a file server

To set up queues on a file server while the card is in print server mode, follow the steps below:

1. Log in to the network with supervisor privileges.

2. Run EPSON Net! for NetWare DOS.

3. After searching the network, the following dialog box appears. Highlight the printer you want to configure from the list and then click Open.

Using DOS

2-3

4. In the NetWare Status dialog box, click printer.

to configure the

Edit

5. The NetWare config dialog box appears. Make sure the

Server

6. The default printer name appears in the Print Server name box. If you want to rename the printer, simply type the new name into the box.

2-4

Using DOS

radio button is selected as shown below.

7. To assign a print queue to your print server, click Add queue dialog box appears and shows the queues that are available to the file server.

Note:

If you want to set up queues on multiple file servers, see the next section.

8. Select a print queue from the Queue drop-down list, or create a new queue by typing its name in the Queue box.

Add

. The

9. Set the priority level from the Priority box. The available options are from 1 to 10, with 1 having the highest priority.

10. Click OK.

11. Repeat steps 7 through 10 if you want to add additional print queues to the print server.

12. To save your settings, click

Caution:

Once you make changes to the Ethernet card, you must wait

for at least five minutes before turning off or rebooting your printer.

Save

Using DOS

2-5

Assigning print queues on multiple file servers

The Ethernet card can service up to 32 queues and eight file servers in print server mode. The EPSON Net! for NetWare DOS utility allows you to configure print queues on multiple file servers. However, you must have supervisor privileges and the correct password for each file server.

Follow these steps to configure multiple file servers:

1. Access the NetWare config dialog box, and click

Add

2-6

Using DOS

2. Select the file server you want to attach to the printer from the File Server list. If you have not already logged in to the selected file server, the Login Fileserver dialog box appears.

3. Type a user name with supervisor privileges and the password; then click OK.

4. Select the file server you want to attach to the printer and then select a print queue from the Queue list box, or create a new queue by typing a name in the box. Next, click OK.

5. Repeat steps 1 through 4 if you wish to attach additional file servers to the printer.

6. To save your settings and exit EPSON Net! for NetWare DOS, click OK and then click box.

7. To delete a queue, highlight the queue in the NetWare config dialog box and then press

in the NetWare config dialog

Save

Delete

. At the prompt, click OK.

Using DOS

2-7

Changing the configuration in Print Server mode

In Print Server mode, you can use EPSON Net! for NetWare DOS to do the f ollow i n g :

❑

Rename the print server

❑

Set a password

❑

Set the queue polling time

Before editing the Ethernet card configuration, you must first log in to the network with supervisor privileges.

Renaming the print server

Always use EPSON Net! for NetWare DOS to rename the print server name in the Ethernet card. PCONSOLE can not change the print server name in the Ethernet card.

1. Access the NetWare config dialog box, and type the new print server name in the Print Server name box. You can type up to 32 characters. The following characters are not allowed: Ctrl / \ : ; , * | + = [ ] ” and space. A period (.) is allowed if it is not the first character.

2. Click

Save

Setting the password

A password is required to connect to a restricted file server, EPSON Net! for NetWare DOS can set the password, also make the encrypted password.

To make the password, follow these steps:

2-8

Using DOS

1. From the NetWare config dialog box, click following dialog box appears:

2. Type the same password that you used to log in to the file server and click OK.

Password

. The

Caution

Once you make changes to the Ethernet card, you must wait

for at least five minutes before turning off or rebooting your printer.

Setting the queue polling time inte rval

Use EPSON Net! for NetWare DOS to change the interval at which the parallel port(s) check queues for waiting print jobs. To reduce network traffic, you can change the polling interval from 1 second up to 90 seconds. The factory default setting is 5 seconds.

1. From the NetWare config dialog, enter a value in seconds, from 1 to 90 in the Poll Time (sec) box.

2. Click

Caution

Once you make changes to the Ethernet card, you must wait

for at least five minutes before turning off or rebooting your printer.

to save your setting changes.

Save

Using DOS

2-9

Using the Ethernet Card in Remote Prin ter Mode

Before using an Ethernet card as a remote printer, you must define it using PCONSOLE on any Novell print server. When defined, the remote printer may have its printer port defined, such as LPT1 or COM2. However, to maintain compatibility, you should define a remote printer as LPT1.

Defining the Ethernet card in NetWare

Before using EPSON Net! for NetWare DOS to install the Ethernet card as a remote printer, you must do the following:

1. From any NetWare workstation, log in to the network with superv iso r priv ile ge s.

Note:

If you use NetWare 4.x, menu screens will differ slightly and Bindery Emulation has to be selected. Press F4 to switch between Directory Services and Bindery Emulation.

2. Type

3. From the Available Options screen, select

4. From the Print Server Information list, select

5. Select

2-10

Using DOS

PCONSOLE

Information

Print Servers list and press

Configuration

Printer Configuration

Enter

at the

. Next, select the print server name from the

and press

prompt.

DOS

Enter

from the menu and then press

Print Server

6. From the Configured Printers list, highlight a port number and press

7. From the Printer Configuration screen, select the name of your printer. Then, highlight the Printer Type and select

Remote LPT1

Enter

8. Press

9. Select Configuration menu and assign a queue to the print server port from the Available Queues list.

10. Press

; then press

Esc

Queues Serviced by Printer

to exit.

Esc

to save changes.

Enter

from the Print Server

Configuring the Ethernet card as a remote printer

Once you change the Operating Mode option to Remote Printer mode, you can also change the printer port assignment in Remote Printer mode using EPSON Net! for NetWare DOS.

To change the Operating mode to Remote Printer and select a printer to configure, read the following:

1. Run EPSON Net! for NetWare DOS.

2. Select the printer you wish to configure, and click

3. Click

to open the NetWare config dialog box.

Edit

Open

Using DOS

2-11

4. Make sure the Operating Mode is set to

5. Click on the printer you want to configure from the Print Server name drop-down list or type a new name for the printer.

Remote Printer

6. Click

See the next sections to change the port number and enable or disable Hunting.

to save your changes.

Save

Changing the port number

Use EPSON Net! for NetWare DOS to change the parallel port number for the remote printer as follows:

1. In the NetWare config dialog, type number for any available port in the Port No. box. The available settings for Novell NetWare versions 3.x and below are from 0 to 15. For NetWare 4.x and higher, the available settings are from 0 to

254.

2. Click

2-12

Using DOS

to sav e the port set ti n g.

Save

Enabling/disabling Hunting

You can use EPSON Net! for NetWare DOS to turn the Ethernet card’s Hunting feature on or off. When Hunting is on, the interface card connects to the first available unassigned active port. This feature is useful if the Novell print server has many printer ports. To change this setting, follow these steps:

1. In the NetWare config dialog, click On unde r Hu n t in g to enable the function. The default setting is

Off

2. Click

to save the setting.

Save

Using the Ethernet Card in Auto Print Server/ Remote Printer Mode

When you use EPSON Net! for NetWare DOS, you can configure the Ethernet card to use Auto Print Server/Remote Printer mode. In this mode, the Ethernet card provides automatic switching between print server and remote printer operation, depending on network conditions.

If the Ethernet card is in Auto Print Server/Remote Printer mode and has the same name as the main Novell print server on your network, it detects the presence of the print server and operates as a remote printer. This way if your primary print server becomes unavailable, the Ethernet card automatically switch es mod es to pro vid e prin t ser v er back up.

To use the Ethernet card in Auto Print Server/Remote Printer mode, you must configure it for both print server and remote printer operation. For information on changing the various print server and remote printer settings, see the appropriate sections earlier in this chapter. To select the Auto Print Server/Remote Printer mode, follow these steps:

Using DOS

2-13

1. First make sure the host printer is turned on and the interface is connected to the network.

2. Log in to the selected file server with supervisor privileges.

3. R u n EP S O N Ne t! for Ne tW a re DOS.

4. Select the printer you wish to configure and click

5. Click

6. Click the Operating Mode to select auto switching mode.

to open the NetWare config dialog box.

Edit

Auto PrintServer /Remote

option button under

Open

2-14

Using DOS

Chapter 3

Using Windows

This chapter describes how to configure the Ethernet card with EPSON Net! for Windows to operate with the multiple protocols on the network. It also describes printing in Windows NT with DLC support.

EPSON Net! for Windows can configure the card for NetWare, AppleTalk, or TCP/IP. Also you can use NetWare and TCP/IP in Windows to configure the Ethernet card.

Note:

The EPSON Net! utility software only configures the Ethernet card to work with specific protocols that may exist on your network. This does not imply that you can use all of the above mentioned protocols in your network or operating system. The protocols that the Ethernet card can use may vary depending on the operating systems used and network configuration.

Before you start configuring the Ethernet card, make sure of the following points:

To use Novell NetWare for Windows 3.1, Windows 95, or

❑

Windows NT, you must set up print services on the network. For details about setup, see the Novell NetWare documentation.

Decide whether you want to use the Ethernet card as a

❑

dedicated prin t ser ver or remot e prin ter under Nov ell NetWare. See the appropriate section in this chapter.

Using Windows

3-1

To use TCP/IP with Windows NT, you must install

❑

TCP/IP on the network. For details, see your operating system documentation.

If you use Windows NT, decide whether you want to use

❑

the Ethernet card with DLC support. For details, see the appropriate section in this chapter.

Installing EPSON Net! for Windows

To install EPSON Net! for Windows, follow these steps:

1. Make sure Windows is running, the Ethernet card is connected to the network, and the printer is turned on.

2. Ins ert the EP SON Ne t! for Win dows dis k in driv e A (or B).

3. Choose Run from the File menu in Windows 3.1 or Windows NT, or choose Run fro m the Start menu in Windows 95.

4. Type a:install.exe (or b:install.exe) and click OK.

5. Follow the instructions on the screen.

After installation is complete, EPSON Net! for Windows appears in the EPSON Net! group or folder.

Monitoring the Printers on Your Network

You can monitor the printers connected to your network according to the protocol they use, and you can also check their status.

3-2

Using Windows

Selecting the network protocol via the Summary dialog box

Follow these steps to open the Summary dialog box and check the available printers and their status:

1. Open the EPSON Net! for Windows folder or program group and double-click the EPSON Net! icon. The following screen appears:

2. Click NetWare or TCP/IP in the Summary dialog box.

Note:

Some buttons may be dimmed, meaning they are disabled,

❏

because EPSON Net! for Windows can not use those protocols with your system.

If you are using Windows 3.1, you can only click NetWare.

❏

The list that appears shows the printers on the network that use the selected protocol, the serial number of all Ethernet cards, the printer names, and the current status of the printers.

3. To exit EPSON Net! for Windows, click Exit.

Using Windows

3-3

Checking printer status

To check a printer’s status, you need to open the Summary dialog box in EPSON Net! and select a network protocol as described in the previous section. Then select the Option menu.

Note:

You need to select the address for the EPL-N2000 in the Summary dialog box to find and configure the Ethernet card.

Network

from

If you selected

❑

section, EPSON Net! for Windows searches up to seven hops for available NetWare addresses.

NetWar e

as the protocol in the previous

3-4

Using Windows

If you selected

❑

TCP/IP

as the protocol in the previous section, EPSON Net! for Windows searches the network for all IP subnet addresses.

Click any address or click

Select All

and click OK. EPSON Net! for Windows sends a find packet to all selected addresses and detects the current status of those items. If open, the Summary dialog box will show the latest information about the printers connected at the selected addresses.

Using Windows

3-5

Sorting the printers

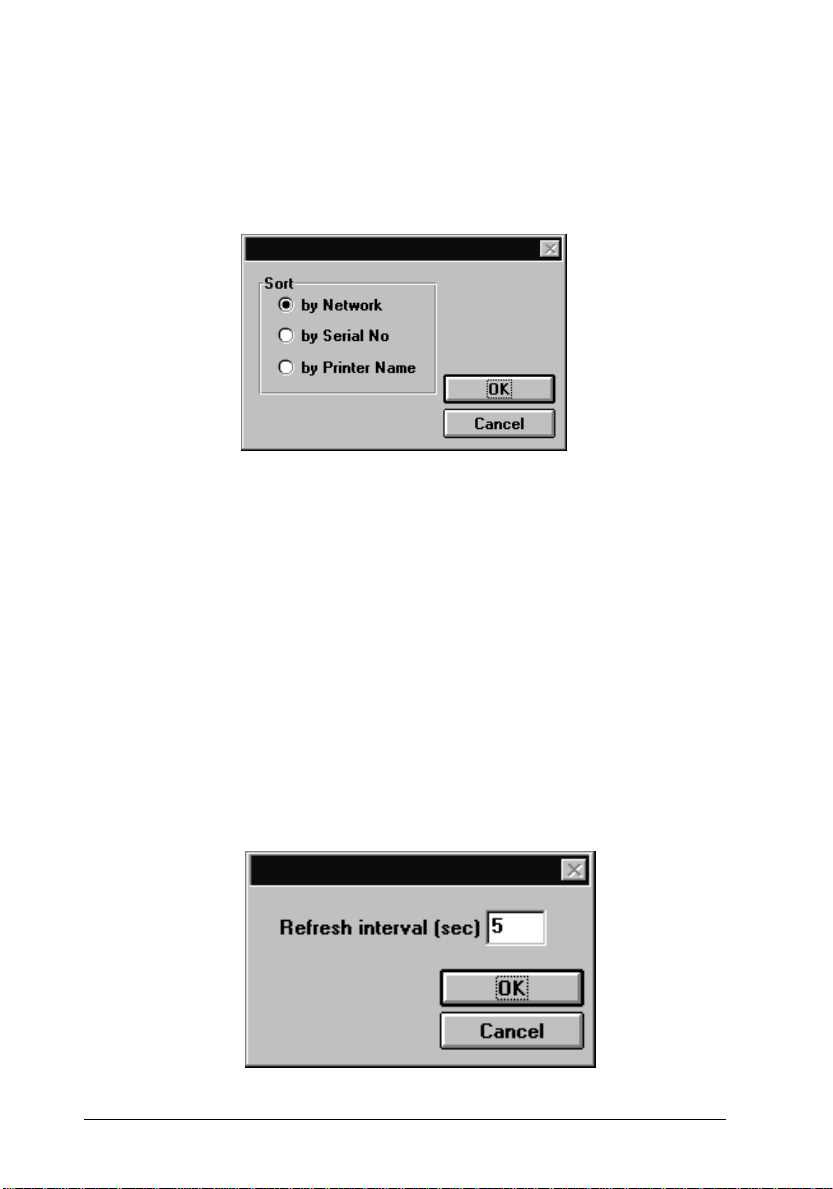

If you need to sort the printers listed in the Summary dialog box, choose

Click any of the sort options and click OK. The Summary dialog box shows the printers sorted by the selected option.

from the Option menu.

Sort

Setting the refresh interval

You can set the refresh interval (factory default 5 seconds) for the Summary dialog box. The Summary dialog box monitors the printers by polling the network at the specified intervals. Choose value from 1 to 99 (seconds) in the box, and then click OK. Monitoring the printer may increase network traffic. The default value or more higher is recommended.

Preferences

from the Option menu and type any

3-6

Using Windows

Configuring the Ethernet Card for Novell NetWare

To use the printer on a Novell NetWare network, you need to configure the Ethernet card for NetWare.

With EPSON Net! for Windows, you can configure the Ethernet card in one of two operating modes, Print Server or Remote Printer. See the appropriate section below that fits your needs.

Using the Ethernet card in Print Server mode

See the following sections to configure the Ethernet card in Print Server or Auto Print Server/Remote Printer mode.

Logging in to file servers

To configure the Ethernet card in Print Server mode, you must have supervisor privileges.

1. Open the EPSON Net! folder or program group and

double-click the

EPSON Net! for Windows

icon.

2. Click

3. Highlight the printer you want to configure from the list.

NetWare

Note:

If you have connected more than one printer with the same type of Ethernet card to the network, you can distinguish which card is which using the card’s unique serial numbers. Press the status sheet button on the Ethernet card plate to print a status sheet for each printer and check the serial numbers.

in the Summary dialog box.

Using Windows

3-7

4. Click

in the Summary dialog box.

Open

Note:

If you have already logged in with supervisor privileges before starting EPSON Net! for Windows, skip to "Setting up Print Server mode," the next section.

5. Click

F/S Login

in the message dialog box.

6. Highlight the file server you want to login from.

7. Click

to open the Login dialog box.

8. Type your username and password, and then click OK.

Note:

You must have supervisor privileges to add or remove print queues in Print Server mode.

If you want to log in to more file servers, repeat steps 6 through 8. You can attach up to eight file servers and add up to 32 print queues to an Ethernet card.

9. Click

to return to the NetWare Config dialog box.

To configure the Ethernet card as a print server, see the following section. To configure it as a remote printer, see page 3-14.

3-8

Using Windows

Setting up Print Server mode

Use the NetWare menu of the Config dialog box to configure the Ethernet card in Print Server mode.

1. Click the

NetWare

tab. Make sure that the Config dialog box

shows the correct serial number for the target Ethernet card.

Note:

Press the status sheet button on the Ethernet card plate to confirm the serial number for the printer in question. If a different serial number is shown on the status sheet, click

Cancel

return to the Summary dialog box and select the correct one.

2. Click

Print Server

in the Mode box

3. The default printer name appears in the Print Server Name

box. If you want to rename the printer, simply type any new name (up to 47 characters) in the box.

Note:

❏

All your typed characters will automatically change to upper case, spaces will change to underscores, and plus sign (+) will change to letter P. Also, the character disabling to use to the Print Server Name will be ignored automatically.

❏

If you want to set up the Ethernet card to serve a print queue in one file server, input the file server name in the File Server #1 box. If you wanto to set up the card to serve print queues in multiple file servers, leave the File Server #1 box blank.

4. Set the polling time from 5 (factory default) to 90 seconds.

The print server searches print queues (in file servers) for print job s at the sp ec if ied po llin g int er va ls.

Using Windows

3-9

Adding or creating print queues in a print server

You can attach up to 32 print queues on eight file servers to the Ethernet print server.

1. O pe n E P SO N Net! for Window s.

2. Select

3. Click

4. Click a file server in the File Servers list.

NetWar e

Note:

If you have not logged in to some file servers, click the NetWare menu. The NetWare dialog box appears allowing you to add unlogged file servers.

Add

box appears and shows the queues that are available for the file servers that you have logged in to.

TCP/IP

on the NetWare menu. The Add NetWare dialog

, and click Open.

F/S Login

3-10

Using Windows

5. Click an existing print queue in the Queue list. Or, to add a

new print queue, click in the Queue Name box and click OK.

6. Set the priority level for the selected print queue in the

Priority box. The available options are from 1 to 10, with 1 having the highest priority.

7. Click OK to return to the NetWare menu.

8. Repeat the above steps if you want to add more print queues

to the print server.

Create

and type a new queue name

Removing print queues from the print server

To delete unwanted print queues, follow these steps:

1. Access the Add NetWare Queue dialog box as described

above, and select the queue you want to delete.

2. Click

3. Click OK to complete deletion.

Remove

Using Windows

3-11

Saving your s ettings

When finished making settings in the Config dialog box, follow these steps:

1. Click OK to return to the Summary dialog box. Or, click

Update

without closing the Config dialog box.

to send the new settings to the Ethernet card

Caution:

Once you make changes to the Ethernet card, you must wait for at least five minutes before turning off or rebooting your printer.

2. Click

After configuring the Ethernet card to work as a print server, be sure to set up NetWare to use the configured print server. For more information, see your NetWare documentation.

If you plan to use the printer in Remote Printer mode, also see the page 3-14.

If you can not log in to the file server or can not set the print queue, make changes to one or more of the following settings and try again: Print Server Name, File Server #1, and Polling Time. Then save these settings, and set the queue by using PCONSOLE as described in "Creating a print server by PCONSOLE," below. In step 3 of that section, if you can not find the name of your print server in the Print Server Name list, press the name.

to exit EPSON Net! for Windows.

Exit

key on your keyboard and input the File Server

Insert

3-12

Using Windows

Creating a print server by PCONSOLE

1. From any NetWare workstation, log in to the network with

supervisor privileges.

Note:

If you use NetWare 4.x, menu screens will differ slightly and Bindery Emulation has to be selected. Press F4 to switch between Directory Services and Bindery Emulation.

2. Type

3. From the Available Options screen, select

4. From the Print Server Information list, select

5. Select

6. From the Configured Printers list, select a port number and

7. From the Printer configuration screen, type the printer name.

8. Press

9. Select

PCONSOLE

Information

name from the Print Servers list and press

Configuration

Printer Configuration

Enter

press

Next, highlight the Type and press

LPT1

Configuration menu and assign a queue to the print server port from the Available Queues list.

Enter

; then press

Esc

Queues Serviced by Printer

at the

and press

Enter

prompt.

DOS

Print Server

. Next, select the print server

Enter

Print Server

Enter

from the menu and then press

. Select

Enter

to save changes.

from the Print Server

Remote

10. Press

Esc

to exit.

Using Windows

3-13

Using the Ethernet card in Remote Printer mode

See the following sections to use the Ethernet card in Remote Printer or Auto Print Server/Remote Printer mode.

Atta c h ing to a print se rver

To set up the Ethernet card in Remote Printer mode, you must assign a print server and print queue to the Ethernet card. If you have not set up a print server and print queue, you can do so using PCONSOLE or the NetWare Administrator utility in DOS or Windows. For more information, see your NetWare documentation.

It is a good idea to write down the print server name and the printer port number to which you will assign the Ethernet card. They will be required in the steps below.

The following steps explain how to assign a print server and print queue to an Ethernet card functioning in Remote Printer mode:

1. From any NetWare workstation, log in to the network with superv iso r priv ile ge s.

Note:

If you use NetWare 4.x, menu screens will differ slightly and Bindery Emulation has to be selected. Press F4 to switch between Directory Services and Bindery Emulation.

2. Type

3. From the Available Options screen, select

4. From the Print Server Information list, select

3-14

Using Windows

PCONSOLE

Information

name from the Print Servers list and press

Configuration

at the

and press

prompt.

DOS

. Next, select the print server

Enter

Print Server

Enter

Print Server

5. Select

6. From the Configured Printers list, select a port number and

7. From the Printer configuration screen, type the printer name.

Printer Configuration

Enter

press

Next, highlight the Type and press

LPT1

Enter

from the menu and then press

. Select

Enter

Remote

8. Press

9. Select Configuration menu and assign a queue to the print server port from the Available Queues list.

10. Press

; then press

Esc

Queues Serviced by Printer

to exit.

Esc

to save changes.

Enter

from the Print Server

Configuring th e Ethernet card as a remot e printer

After setting up the NetWare print server, follow these steps to configure the Ethernet card in Remote Printer mode:

1. Start EPSON! Ne t for Windows.

2. Click

3. Highlight the printer you want to configure from the list.

NetWare

Note:

in the Summary dialog box.

4. Click

Open.

Using Windows

3-15

5. Click the correct serial number for the target Ethernet card is shown.

Note:

Press the status button on the Ethernet card plate to confirm the serial number for the printer in question. If a different serial number is shown on the status sheet, click the Summary dialog box and select the correct one.

NetWare

tab, if necessary. Make sure that the

Cancel

to return to

6. Click

7. Type the name of the print server you want to attach the

8. Type the port number in the Port number box. It must be the

9. Click OK to return to the Summary dialog box. Or, click

10. Click

After configuring the Ethernet card in Remote Printer mode, make sure that the remote printer can work correctly. For more information, see your NetWare documentation.

Remote Pr inter

printer to in the Print Server name box. It must be the same that you use in NetWare.

same port number you use in the NetWare print server and print queue.

Update

without closing the Config dialog box.

to send the new settings to the Ethernet card

Caution:

Once you make changes to the Ethernet card, you must wait for at least five minutes before turning off or rebooting your printer.

to exit EPSON Net! for Windows.

Exit

in the Mode box.

3-16

Using Windows

Configuring the Ethernet Card for TCP/IP

To use the printer on a TCP/IP network, you need to configure the Ethernet card for TCP/IP.

Before using the Ethernet card with TCP/IP, you need to install the standard TCP/IP software in Windows NT.

Note:

In most cases, Windows 3.1 can’t use TCP/IP to share network printers.

Installing LPR software in Windows NT

Follow the steps below to install LP R soft ware in Win dows N T. If you have already installed the TCP/IP Network Print Serv ice from TCP/IP Protocol and Related Components, you can skip these steps.

1. Open the Control Panel.

2. Double-click the

3. After the Network settings dialog box appears, look for

Microsoft TCP/IP Printing

If the option is listed, it is already installed, and you can skip to the next section. If the TCP/IP printing option is not listed, clic k Add Soft w are .

4. After the Add Network Software dialog appears, choose

TCP/IP Protocol and Related Componen ts

Network Software list box; then click OK.

Network

icon.

in the Installed Software list box.

from the

Using Windows

3-17

5. In the Windows NT TCP/IP Installation Options dialog box, select

TCP/IP Netwo r k Printing Support

Continue

. If you cannot select this option, cancel the

, and clic k

operation, and proceed to “Setting up your printer in Windows NT” on page 3-22.

6. The next dialog box will ask for the setup disk for Windows NT. Insert the appropriate disk, and follow the instructions on the screen.

7. After setup is finished, the Network Setting dialog box appears again. Make sure that

Microsoft TCP/IP Printing

appears in the Installed Network Software list box; then click OK.

8. When the TCP/IP Components dialog box appears, set the IP address and the subnet mask of the Windows NT server or workstation. If you want to use the gateway (router), set the IP address of the nearest gateway as the default gateway. If you do not use the gateway, do not set the default gateway.

9. When the Network Settings dialog box appears, click

Now

For more information, see your Windows NT documentation.

3-18

Using Windows

Restart

Configuring the Ethernet card

To use TCP/IP on the network, you can set the IP address for the Ethernet card using EPSON Net! for Windows. Follow these steps in Windows NT:

1. Start EPSON! Net for Windows.

2. Click

3. Highlight the printer you want to configure from the list.

TCP/IP

Note:

EPSON Net! for Windows cannot use TCP/IP in Windows 3.1. However to configure the card for TCP/IP, click is available, and click

Note:

in the Protocol dialog box.

Open

. Then skip to step 5.

NetWare

, if it

4. Click

Open

Using Windows

3-19

5. Click the

TCP/IP

tab. Make sure that the correct serial number

for the target Ethernet card is shown.

Note:

Press the status sheet button on the Ethernet card plate to confirm the serial number for the printer in question. If a different serial number is shown on the status sheet, click

Cancel

return to the Summary dialog box and select the correct one.

6. Set the following options on TCP/IP menu:

❑

IP address: Det er min e and assign an IP addres s

❑

Subnet mask: Assign the subnet mask

❑

Auto IP S et: Click

Off

Note:

The Auto IP Set option is a function designed specifically for UNIX users. Leave it off; otherwise, the assigned IP address might be changed unexpectedly in UNIX.

3-20

Using Windows

7. When finished, click OK to return to the Summary dialog box. Or, click Ethernet card without closing the Config dialog box.

Caution:

Once you make changes to the Ethernet card, you must wait

for at least five minutes before turning off or rebooting your printer.

Update

to send the new settings to the

8. Click

After configuring the Ethernet card for TCP/IP, set up your printer in Windows and make sure that the TCP/IP network can work correctly.

to exit EPSON Net! for Windows.

Exit

Setting up your printer in Windows 95

After configuring the Ethernet card, you need to set up the network printer on each computer. In Windows 95, use the Add Printer wizard as follows:

Note:

Before setting up your printer in Windows 95, you must install the EPSON Status Monitor. For installation instructions, see Chapter 7.

1. Open the Printers folder.

2. Double-click

3. Click

4. Click

Network Printer Browse

icon. If you do not see the EPSON Status Monitor, it has not been installed. See Chapter 7 for installation instructions.

Add Printer

; then double-click the

and click

EPSON Printer Network

5. Double-click the domain icon that the printer is connected to.

6. Select your printer icon; then click OK.

Using Windows

3-21

7. Follow the instruction on the screen. Be sure to select the printer that contains the configured Ethernet card.

You can change the printer driver settings from the Properties dialog box at any time.

Setting up your printer in Windows NT

After configuring the Ethernet card, you need to set up the network printer on each computer. Follow these steps to set up your printer in Windows NT.

1. Click

2. Choose the

3. After the Create Printer dialog box appears, enter the name of

4. Choose your printer driver from the Driver pull-down menu.

5. Choose

6. After the Print Destinations dialog box appears on the screen,

7. After the Add LPR compatible Printer dialog box appears on

8. Type an appropriate printer name in the Name of the printer

9. Verify that all your settings and are correct in the Create

Print Manager

Create Printer

your printer in the Printer Name text box.

from the Print To pull-down menu.

Other

select

LPR Port

click OK.

the screen, enter the previously specified IP address of the Ethernet card in the first text box.

on that machine text box, and click OK.

Printer dialog box. Make changes if necessary, and click OK.

in the Main program group.

command from the Printer menu.

from the Available Print Monitors list, and

You can change the printer driver settings from the Create Printer dialog box at any time.

3-22

Using Windows

Configuring the Ethernet Card for AppleTalk

To use the printer on an AppleTalk network, you need to configure the Ethernet card for AppleTalk.

When using EPSON Net! for Windows to configure the Ethernet card for AppleTalk, use either NetWare or TCP/IP because EPSON Net! for Windows can not use AppleTalk for configuration.

Note:

If you cannot use NetWare or TCP/IP in Windows, use EPSON Net! for Macintosh to configure the Ethernet card for AppleTalk.

Follow these steps in Windows NT:

1. Start EPSON! Net for Windows.

2. Click

NetWare

Note:

EPSON Net! for Windows cannot use TCP/IP in Windows 3.1. However to configure the card for TCP/IP, click is available, and click Open. Then skip to step 5.

TCP/IP

in the Summary dialog box.

NetWare

Using Windows

, if it

3-23

3. Highlight the printer you want to configure from the list.

Note:

4. Click

5. Click the

Open

AppleTalk

tab. Make sure that the correct serial

number of the target Ethernet card is shown.

Note:

Press the status sheet button on the Ethernet card plate to confirm the serial number for the printer in question. If a different serial number is shown on the status sheet, click

Cancel

return to the Summary dialog box and select the correct one.

3-24

Using Windows

6. Set the following options on the AppleTalk menu:

❑

Zone: Keep the current configuration or type the name of the AppleTalk zone you want the printer to appear in.

❑

Printer name: The default printer name appears. You can rename it. If the same type of printers are connected to the same network, be sure to give them unique names.

Note:

You can also rename the printer with EPSON Namer.

❑

Entity Type #1, #2, an d #3: You don’t have to set these options. EPSON Net! just shows the printer’s Entity types on an AppleT alk n etw or k .

❑

Network No.: Always click

❑

AppleTalk PS: You don’t have to set this option if it is dimmed. This option is available only if an E P SON PostScript printer can not make AppleTalk active or inactive automatically.

7. Click OK to return to the Summary dialog box. Or, click

Update,

without closing the Config dialog box.

to send the new settings to the Ethernet card

Auto

8. Click

Caution:

Once you make changes to the Ethernet card, you must wait for at least five minutes before turning off or rebooting your printer.

to exit EPSON Net! for Windows.

Exit

Using Windows

3-25

Using the DLC Support in Windows NT

The Ethernet card can work with the DLC support in Windows NT. You don’t need to use EPSON Net! for Windows to use the DLC support.

Installing DLC in Windows NT

To use the Ethernet card with the DLC support provided in Windows NT, make sure that Windows NT has been set up with the DLC protocol. To install DLC support, follow these steps:

1. Run Windows NT.

2. Double-click on the

3. Double-click on the

4. Click on the Add Software button.

5. Select DLC Transport protocol from the Network Software list, and click

6. Follow the directions on screen and reboot your system for the installation to take effect.

Note:

To verify that the DLC protocol is installed correctly, check the list of installed Network Software in the Networks dialog box.

Control Panel Network

Continue

icon.

3-26

Using Windows

Configuring the printer

Follow these steps to configure the printer:

1. Select

2. Choose

3. Type a name for the printer in the Printer Name field.

4. Select the printer driver from the Driver pull-down menu.

5. Select

6. Choose

7. Type a name for the port in the Name box.

Print Manager

Create Printer

the screen. The Create Printer dialog box appears.

from the Print To pull-down menu. The Print

Other

Destinations dialog box appears.

[HP Network Port]

Destinations list. The Add an HP Network Peripheral Port dialog box appears.

Note:

If HP Network Port does not appear as a choice in the dialog box, then the DLC transport protocol and driver are not installed. Go to the "Installing DLC in Windows NT" section above for installation instructions.

from the Main group.

from the Printer menu at the top of

from the Available Print

Note:

The name must not be identical to an existing port, such as LPT1, or any other existing DOS device.

8. Select

9. Click the

LAN Hardware Address (Node Address)

card Address list. This address matches the one listed under Node Number on the status sheet.

button and select the

Timer

Then click OK.

Job Oriented

Using Windows

from the

option.

3-27

10. Click OK to exit the Add a Network Peripheral Port dialog box.

Note:

You may share the new printer if you wish. To do so, click the

Share the Printer on the Network

defaults to the printer name and can be changed if necessary.

11. Click OK to exit the Create Printer dialog box. A dialog box from the selected model’s device driver appears.

12. Set any printer-specific options, and click OK.

You are now ready to print.

box. The share name

3-28

Using Windows

Chapter 4

Using Macintosh

This chapter describes how to configure the Ethernet card with EPSON Net! for Macintosh. If you use AppleTalk, you can use the EPSON Net! utility program to configure the Ethernet card.

Note:

The EPSON Net! utility software only configures the Ethernet card to work with specific protocols that may exist on your network. It does not imply that you can use all protocols mentioned above in your operating system. Protocols the Ethernet card can really use vary depending upon operating systems and network configuration.

Before you start configuring the Ethernet card, make sure of the following points:

The correct printer driver must be installed in the

❑

Macintosh system.

EPSON Net! for Macintosh can configure fhe Ethernet card

❑

for AppleTalk, NetWare, and TCP/IP.

The configurations about Novell NetWare File Server, print

❑

queue and others are required to use PCONSOLE. EXE after configuring the NetWare part of the Ethernet card.

Before continuing, be sure to connect the Ethernet card to the network and turn on the printer. For details, see Chapter 1 in this manual and the user’s guide of your printer.

Using Macin to s h

4-1

Installing EPSON Net! for Macintosh

To install EPSON Net! for Macintosh, follow these steps:

1. Turn on your Macintosh.

2. Create a folder for EPSON Net! for Macintosh.

3. Ins ert the EPSO N Net! for Macin tos h disk in the drive.

4. Copy programs from the disk to the folder.

Monitoring the Printers on Your Network

You can monitor and check the status of the printers connected to your network according to the protocol you use.

Checking the printer via the Summary dialog box

To check the status of all printers that are turned on and enabled for a certain protocol, follow the steps below.

1. Open the EPSO N Net! folder and dou ble-c lick the EPSON Net! for Macintosh icon. The following screen appears:

4-2

Using Macintosh

2. To exit EPSON Net! for Macintosh, click

Quit

Selecting the zone

You can select the network printers to monitor by their zone or address. Choose dialog box.

Note:

You need to select the zone to configure the Ethernet card in the Configuration dialog box.

from the Options menu in the Summary

Zone

Click a zone to select it, or press and hold the clicking multiple zones to select them, or click click OK. EPSON Net! sends a find packet to the selected zone(s) and detects the current printer’s status. The Summary dialog box can show the latest information about the printers located in that zone.

Using Macin to s h

key while

Shift

Select All

. Then

4-3

Sorting the printers

You can sort the printers in the Summary dialog box. Choose

from the Options menu.

Sort

Click any of the sort options and click OK. The Summary dialog box shows the printers sorting them by the selected sort option.

Setting the refresh interval

You can set the refresh interval (factory default 5 seconds) for the Summary dialog box. Choose Options menu.

Preferences

from the

Type any value from 1 to 99 in seconds and click OK. The Summary dialog box monitors the printers, polling the network at the specified intervals.

4-4

Using Macintosh

Configuring the Ethernet Card for AppleTalk

If you want to use the printer on an AppleTalk network, you must configure the card for AppleTalk.

Configuring the card

Use EPSON Net! for Macintosh to configure the Ethernet card for AppleTalk, and choose AppleTalk depending on your syste m .

1. Open the EPSON Net! folder and double-click the

Net! for Macintosh

2. Highlight the printer you want to configure from the list.

Note:

If you have connected more than one printer with the same type of Ethernet card to the network, you can distinguish them with the Ethernet card’s unique serial numbers. Print a status sheet for each printer and check the serial number.

icon.

EPSON

3. Click

in the Summary dialog box.

Open

Using Macin to s h

4-5

4. Click the

AppleTalk

config icon. Make sure that the Configuration dialog box shows the correct serial number of the target Ethernet card.

Note:

You can confirm the serial number by pressing the status sheet button on the Ethernet card plate and printing out a status sheet for the printer in question. If a different serial number is shown on the status sheet, click

Cancel

to return to the Summary

dialog box and select the correct one.

5. Set the following options in the AppleTalk Configuration dialog box:

❑

Available Zone: Select the netw or k zone tha t you want the printer to appear in.

❑

Printer nam e: The default printer n ame app ears. You can rename it. If the same type of printers are connected to the same network, be sure to give them unique names.

4-6

Using Macintosh

❑

Entity Type #1, #2, an d #3: You don’t have to set these options. EPSON Net! just shows the printer’s Entity types on an AppleT alk n etw or k .

❑

AppleTalk PS: You don’t have to set this opti o n us uall y . It is available only when an EPSON PostSc r ipt printer that is connected to the network cannot make AppleTalk active or inactive automatic ally.

6. Click OK to return to the Summary dialog box. Click to send the new settings to the Ethernet card without closing the Configuration dialog box.

Caution:

Once you make changes to the Ethernet card, you must wait

for at least five minutes before turning off or rebooting your printer.

7. Click

to exit EPSON Net! for Macintosh.

Exit

Choosing the printer on Macintosh

To print to the new printer, use Chooser to select your printer. Select the options you have specified with EPSON Net! for Macintosh.

1. Open Chooser from the Apple menu.

2. Click your printer driver icon.

3. Click the AppleTalk zone that contains the printer.

Update

4. Click the printer name.

5. Make sure AppleTalk is active.

6. Close Chooser.

Using Macin to s h

4-7

Configuring the Ethernet Card for Novell NetWare

To use the printer on a Novell NetWare network, you must configure the Ethernet card especially for NetWare.

If you use EPSON Net! for Macintosh, you can configure the Ethernet card in one of two operating modes, Print Server or Remote Printer. See the appropriate section that matches your needs.

Note:

EPSON Net! for Macintosh can only use AppleTalk to configure the Ethernet card for NetWare. So you need to use PCONSOLE from DOS, as shown on page 4-10, to configure Print Server mode and/or attach a print queue to the NetWare file server you want to use.

Using the Ethernet card in Print Server mode

See the following sections to configure the Ethernet card in Print Server mod e.

Setti ng up Print Server mode

Use the NetWare config icon of the Configuration dialog box to configure the Ethernet card in Print Server mode.

1. Click the

4-8

NetWare

for the target Ethernet card is shown.

Note:

Press the status sheet button on the Ethernet card plate to confirm the serial number for the printer in question. If a different serial number is shown on the status sheet, click return to the Summary dialog box and select the correct one.

Using Macintosh

icon. Make sure the correct serial number

Cancel

2. Click

Print Server

3. The default printer name appears in the Print Server name box. If you want to rename the printer, simply type any new name (up to 47 characters) in the box.

Note:

❏

If you want to set up the Ethernet card to serve a print queue in one file server, input the file server name in the File Server #1 box. If you want to set up the card to serve print queues in multiple file servers leave the File Server #1 box blank.

❏

If you can not log in to the file server or can not set the print queue, make changes to one or more of the following settings and try again; Print Server Name, File Server #1, and Polling Time. Then save these settings, and set the queue by using PCONSOLE as described in "Creating a print server by PCONSOLE," below. In step 3 of that section, if you can not find the name of your print server in the Print Server Name list, press the

Insert

key on your keyboard and input

the File Server name.

4. Set the polling time from 5 (factory default) to 90 seconds. The print server searches print queues (in files servers) for print job s at the sp ec if ied po llin g int er va ls.

Using Macin to s h

4-9

Creating a print server by PCONSOLE

1. From any NetWare workstation, log in to the network with superv iso r priv ile ge s.

Note:

If you use NetWare 4.x, menu screens will differ slightly and Bindery Emulation has to be selected. Press F4 to switch between Directory Services and Bindery Emulation.

2. Type

3. From the Available Options screen, select

4. From the Print Server Information list, select

5. Select

6. From the Configured Printers list, select a port number and

7. From the Printer configuration screen, type the printer name.

8. Press

9. Select

PCONSOLE

Information

name from the Print Servers list and press

Configuration

Printer Configuration

Enter

press

Enter

Next, highlight the Type and press

LPT1

; then press

Esc

Queues Serv iced by Printer

Configuration menu and assign a queue to the print server port from the Available Queues list.

at the

and press

prompt.

DOS

. Next, select the print server

Enter

from the menu and then press

to save changes.

Enter

Print Server

Enter

Print Server

. Select

Enter

from the Print Server

Remote

10. Press

4-10

to exit.

Esc

Using Macintosh

Finishing the configuration

When finished with the NetWare Configuration dialog box, follow these steps:

1. Click OK to return to the Summary dialog box. When you click

Update

card without closing the Config dialog box.

Caution:

Once you make changes to the Ethernet card, you must wait

for at least five minutes before turning off or rebooting your printer.

, only the new settings are sent to the Ethernet

2. Click

After configuring the Ethernet card in Print Server mode, be sure to set up Novell NetWare to use the configured print server. For more information, see your NetWare documentation.

to exit EPSON Net! for Macintosh.

Exit

Using the Ethernet card in Remote Printer mode

See the following sections to use the Ethernet card as a remote printer.

Defining the Ethernet card in NetWare

Before configuring the Ethernet card in Remote Printer mode, you must set up a print server and print queue using PCONSOLE or the NetWare Administrator utility in DOS or Windows. For more information, see your NetWare documentation.

When setting up the printer for NetWare, remember the print server name and the printer port number to which you will assign the Ethernet card. They are important for a remote printer.

Using Macintosh

4-11

The following steps explain using PCONSOLE in DOS:

1. From any NetWare workstation, log in to the network with superv iso r priv ile ge s.

Note:

If you use NetWare 4.x, menu screens will differ slightly and Bindery Emulation has to be selected. Press F4 to switch between Directory Services and Bindery Emulation.

2. Type

3. From the Available Options screen, select

4. From the Print Server Information list, select

5. Select

6. From the Configured Printers list, highlight a port number

7. From the Printer Configuration screen, type the printer name.

8. Press

9. Select

10. Press

PCONSOLE

Information

Print Servers list and press

Configuration

Printer Configuration

Enter

and press

Next, highlight the Printer Type and select

Configuration menu and assign a queue to the print server port from the Available Queues list.

Enter

; then press

Esc

Queues Serv iced by Printer

to exit.

Esc

at the

. Next, select the print server name from the

and press

Enter

prompt.

DOS

Print Server

Enter

Print Server

Enter

from the menu and then press

Remote LPT1

to save changes.

from the Print Server

4-12

Using Macintosh

Configuring th e Ethernet card as a remot e printer

After setting up the NetWare print server, follow these steps to configure the Ethernet card in Remote Printer mode:

1. Start EPSON! Net for Macintosh.

2. Highlight the printer you want to configure from the list.

3. Click

4. Click the NetWare icon. Make sure the correct serial number of the target Ethernet card is shown.

Note:

5. Click

6. Type the printer server name in the Print Server name box. It must be the same as the one you have set up for NetWare.

7. Type the port number in the Port number box. It must be the same as the one you have set up for the NetWare print server and print queue.

8. Click OK to return to the Summary dialog box. When you click

Update

card without closing the Config dialog box.

in the Summary dialog box.

Open

Remote P rinter

, only the new settings are sent to the Ethernet

Cancel

Caution:

Once you make changes to the Ethernet card, you must wait for at least five minutes before turning off or rebooting your printer.

Using Macintosh

4-13

9. Click

After configuring the Ethernet card in Remote Printer mode, make sure that the remote printer can work correctly. For more information, see your NetWare documentation.

to exit EPSON Net! for Macintosh.

Exit

4-14

Using Macintosh

Chapter 5

Using UNI X

The Ethernet card supports many standard UNIX commands and can be configured from a host computer without using a special setup utility.

Installing and Printing with the Ethernet Card

See the following sections for general information concerning setting up (with TCP/IP) and printing.

The Ethernet card is able to function as a remote printer on systems using TCP/IP Ethernet transfer with Berkeley’s popular lpr remote printing protocol, or standard ftp (file transfer protocol).

Setting up the card

All devices operating with TCP/IP have to be assigned a unique “IP Address node.” This address must be different from that assigned to any other device to which your network is capable of communicating. This unique address acts like a telephone number, enabling all other devices on the network to be able to “dial up” and “talk to” the Ethernet card, as long as they know its number.

There are conventions surrounding how to make up an IP address, which are discussed later. In the most complex case, where a network is capable of communicating with other networks worldwide, it is necessary to have some of the numbers assigned by an international body that coordinates the numbering.

Using UNIX

5-1

Unless the network is not yet in existence, an address will already have been given to the network section that the Ethernet card is to be plugged into. You need to give the interface card an address that has the same first three sets of numbers as the other devices in that network section, and you need to give it a unique last (4th set) number. The network supervisor should be able to determine what addresses are in use at the site.

How to input the IP address

Use arp or ping to set the IP address for the Ethernet card, as describ ed b elow :

1. Print the Network Status Sheet in SelecType Test Menu to

see a report that includes the node address.

2. Enter the arp command: arp-s (IP address) (node address). For example:

arp -s 133.200.3.181 00:00:48:92:da:35

5-2

Ping the new IP address. For example:

ping 133.200.3.181

The Ethernet card will be set to this IP address.

Caution: Two different Ethernet cards should not be active on the same

network until their addresses have been set, otherwise they will both have the same address (which will confuse the network).

Using UNIX

Updating the Hosts file

Once the IP address is defined, the /etc/hosts file needs to have this IP address and host name added. For example:

132.147.69.4 allison

Testing the connection

Use ping to test if the Ethernet card is responding. For example, send the following command:

ping allison

ping 132.147.69.4

If the card responds, you are ready to print. If it doesn’t respond, print a network status sheet and check the IP address, also check the information contained in the /etc/hosts file.

Printing via lpr

Once you have assigned an inte rnet addr ess to the Ethernet card, you need to add its address to all the “telephone directories” of all the host computers that will be sending print jobs to it. The method for doing this differs from system to system, so you should refer to your network operating system documentation for details.

Be sure to give each Ethernet card a unique name, and each name and IP address. It does not matter what name is given to the Ethernet card. The name, which is easier to remember than the IP address, is used thereafter to refer to the Ethernet card printer device.

Using UNIX

5-3

After setting up the card as a valid network device, you need to make a few remote printer settings. The lpr protocol program is given the name of a remote printer, and a host name on which it resides. It is looking for three names to link together:

❑

The name of the local printer which will n ow be re direct ed to the Ethernet card. The default printer name is often used here (for ex ampl e, ’lp’ ).

❑

The name of the remote printer. This may be any name, as the Ethernet card will always honor a print request. The name given here will appear in print er st atus displays.

❑

The host name for the ca rd. This must be the name assigned to the Etherne t card (above).

Printcap file

Typically, the above information is stored in the /etc/Printcap file, examples of which are shown below:

printer1:\ : lp= : rm = allison : rp = lpb : sd = /vor/spool/printer1:

For UNIX systems without Printcap files, see the section on scripts at the end of the chapter.

5-4

Using UNIX

Operation

After setting up the card, you can use the lpr command from any host to direct a print file to the Ethernet card. The card does not have to interpret any of the incoming print data, allowing binary image files, font download files, as well as ASCII text to be printed transparently.

The interface card can handle many separate communication channels simultaneously. Unless coupled with a compatible spooling unit, the Ethernet card will not have any disk-spooling capability, so incoming print requests from other hosts when the card is already servicing a print job are “stacked,” and serviced in rotation.

The Ethernet card will respond to an lpq print query by sending back details of the current print job, as well as all stacked prints. If a connection request is received after all available connections are taken up, the card will not respond to the connection attempt.

Note: An lpq enquiry may show “missing” stack entries; for example, only jobs 2, 5, and 7 appear. The missing entries (1, 3, 4, and 6) will be print jobs sent by a different protocol, such as Novell or EtherTalk.

Printing a file

At the prompt, type (example):

lpr -pallison filename or lp - d allison

Using UNIX

5-5

Technical

For programmers’ information, the Ethernet card TCP/IP mode responds only to arp packets and to TCP/IP connections made to socket number 0x0203 and the ftp socket. You must use lpr protocol to send data to socket 0x0203. Also, connection attempts to other sockets will meet with no response.

Instead of lpr, which may strip control characters, (use - l to avoid this), ftp may be used to print. Enter ftp, then open the Ethernet card by entering its host name (for example, “open allison”). A file may be printed simply by sending it (“send filename”). You can use console commands or Scripts to automate this process, and create ftp spool queues.

ftp (Line ending)

As a default, ftp runs with binary file transfer. This may be changed to ASCII file transfer by simply entering the command “ASCII” on the ftp command line. When in ASCII mode, the Ethernet card will convert incoming UNIX line-ends to include a carriage return. To change back to BINARY mode, enter the command “BINARY” on the ftp command line.

ftp (Form feed)

The Ethernet card will append a form feed to the end of the print job if the destination file is given the name of “FEED” or “feed.” For example, to send a text file called “txtfile” to the Ethernet card in ASCII mode and append a formfeed, use the following ftp commands:

ascii send txtfile feed

5-6

Using UNIX

lpr filters

Filters for lpr are controlled by the name given to the remote printer. When setting up an lpr printer entry, a name is entered for:

the local printer name to be redirected

❑

the host name of the station to which the print is sent

❑

the remote printer name (name of the printer port on the

❑

remote station).

It is this last name that the Ethernet card uses to determine which filters to use.

Many different remote printer names may be set up, all directed to the same Ethernet card remote host, and each is given a different local printer name to be redirected. Different types of print jobs may thus be sent to different printer names, which will then all print out on the same printer, through the same Ethernet card interfac e, but usin g different filters.

Using UNIX

5-7

The remote printer name options used to invoke the different filters are as follows:

lpb Binary files (no filters) lpa ASCII files (carriage returns at line ends) lpbf Binary file with form feed at file end lpaf ASCII file with form feed at file end

All other remote printer name options will be treated the same as lpb.

Note:

Some versions of lpr strip out all control characters and carriage return characters from a file before it is sent, making it unsuitable for bit-image files or font download files. In many cases the “-l” option may be used on the lpr command line to prevent this happening (worth trying even if this option is not documented).

The following is an example of sending a text file, “txtfile,” via lpr with a form feed appended:

% lpr -plpaf txtfile

5-8

Using UNIX

Chapter 6

Using OS/2

This chapter explains how to configure and use the Ethernet card with an IBM OS/2 System. See Chapter 1 for information on hardware installation.

Note:

If the Ethernet card’s firmware version is 4.00 or below, it does

❑

not support NetBIOS over TCP/IP protocol. Therefore use the NetBIOS protocol provided by OS/2 Warp or OS/2 Warp Connect.

The following programs are not supported in the NetBIOS over

❑

TCP/IP protocol: RPRINT, RSTAT - LPT redirection REMPRT, REMSTAT - pipe support

Installing on an OS/2 System

Before you set up the software, you must connect the card to the network, and turn on the printer. EPSON Net! for OS/2 provides the following programs:

TCP/IP

RPRINT, RSTAT—LPT redirection

REMPRT, REMSTAT—pipe support

Requirements

OS/2 Warp Connect must be installed with NetBIOS over TCP/IP protocol.

Using OS/2

6-1

Installing Redirection Software

Follow these steps to install the redirection software:

1. Place the EPSON Net! for OS/2 Installation disk in drive A (or B) of your PC.

2. Open an OS/2 full screen command session.

3. Open the OS2 directory on drive A (or B) and select the PIPE\REDIRECT directory. For example, type CD TCPIP\REDIRE CT\PIPE and press the Enter key.

4. Copy the driver software files RPRINT.EXE and RSTAT.EXE to the root directory of the LAN Server file server.

COPY A :*.* C:\

5. Edit the file STARTUP.CMD in the file server root directory and insert the following command as the last line:

RPRINT <serial number> [/portname]

Note:

Print a status sheet for each printer to check for the serial number.

6-2

The optional [/portname] designates the port that will be redirecting to the remote printer. If no optional port name is defined, the program assumes LPT1 as the port.

The following are examples of commands that can be added to the STARTUP.CMD:

RPRINT 10900416 /LPT1 Causes print files directed to LPT1 to be

received by an interface with the serial number 10900416.

RPRINT 10900701 /LPT2 Causes print files directed to LPT2 to be

received by an interface with the serial number 10900701.

Using OS/2

RPRINT 1090328F /LPT3 Causes print files directed to LPT3 to be

received by an interface with the serial number 1090328F.

RPRINT 10903605 Causes print files directed to LPT1 to be

received by an interface with the serial number 10903605.

6. Re-boot the LAN Server file server and make sure the driver starts successfully.

All printed output spooled to this file server will be redirected to the remote printer interface specified above. Also after typing “RPRINT <serial number> (/portname)” at the OS/2 command prompt, this redirection will be worked immediately.

Getting printer driver status information

To make sure the printer driver is working, type RSTAT at the OS/2 command prompt. RSTAT will return a one line status report for each printer driver served. For example:

ITC Remote Print Servers active for LPT1

—Pri

nter Ready

or, if the printer driver in use, it returns the following if only one port is selected:

ITC Remote Print Servers active for LPT1

—Pri

nter Busy

If several ports are redirected, RSTAT returns a message similar to the following:

ITC Remote Print Servers active for LPT1—Printer Busy ITC Remote Print Servers active for LPT2—Printer Ready ITC Remote Print Servers active for LPT3—Printer Ready

Using OS/2

6-3

Printing through Pipes

This section describes how to install the software necessary for printing through named pipes.

Installing the software

1. Place the EPSON Net! for OS/2 Installation disk in drive A (or B) of your PC.

2. Open an OS/2 full screen command session and create a directory for Remote Print Services on your hard disk.

MD C:\EPNET

3. Open the OS2 directory on drive A (or B) and select the NETBEUI directory. For example, type CD NETBEUI and then type CD PIPES to select the pipes directory.

4. Copy all files to the new directory from the installation disk in drive A.

COPY A:*.* C:\EPNET

Software components

You should now have the following list of files in the C:\EPNET directory:

ADDPORT.CMD Command to add ports on the server DELPORT.CMD Command to remove ports from the server PORTCHG.EXE Program used by the above commands REMPRT.EXE Remote Print Service program REMDRV.EXE Remote Print Service driver REMSTAT.EXE Printer status program

6-4

Using OS/2

Configuring New Printers

This section explains how to configure new printers on a LAN Server for use with remote print service.

Note:

You must have supervisor rights on the server to configure printers and queues.

1. Open an OS/2 full screen command session from your server.

2. Change to the remote print service directory:

CD \EPNET

3. Create ports for your new printers using the ADDPORT

command. Choose names that will help to identify the printers, using up to a maximum of 7 characters for each name (for example, EPLASER or PUBSPRT). However, do not use the following characters when assigning a name to the printer:

/ \ . [ ] : ; | > < + = ? * $”

4. See your OS/2 documentation for instructions on installing printers and creating queues attached to the server.

Note:

To set up and use the card through a shared OS/2 print

❏

queue(s) that will receive print jobs from other workstations, you must install and select either the IBMNULL or MSNULL printer driver. For the DEVICE to connect to, choose a port name from those added in step 3 above (for example, EPLASER).

To connect the card directly to a workstation(s), you must

❏

install the proprietary OS/2 printer driver.

Using OS/2

6-5

5. In the EPNET remote print service directory, create an initialization file called REMPRT.INI at the same time directory of existing REMPRT. EXE. This file is used by the remote print service at start-up and assigns the remote printer names to the device port names. The format of the file is as follow s:

Example:

10900701 EPLASER 10900416 PUBSPRT

6. Edit your STARTUP.CMD file and add the following line at the end:

\EPNET\REMPRT @REMPRT.INI

This line ensures that the remote print service is initialized each time you start the server. If you wish to start the print service manually, you can execute the REMPRT.EXE file from the OS/2 command prompt.

7. Use the LAN Server Administration facility (NET ADMIN) to add newly created printers to the list of shared resources.

8. To obtain printer driver status information on the REMPRT process, type REMSTAT. The following are examples of information returned by this command:

ITC Remote Print Servers active for PUBSPRT—Printer Ready

ITC Remote Print Servers active for EPLASER—Printer Busy

6-6

Using OS/2

Sharing the Board among Multiple Workstations

If two or more OS/2 Warp Connect with LAN Server workstations will be printing to the Ethernet card, use the Pipes method instead of the Redirect method and configure a unique port name for each workstation. For example, if one Ethernet card will be used by three OS/2 Warp Connect workstations, the cards serial number is 10900416 and the workstations should be configured as PortA, PortB, and PortC (or any other unique port names).

First workstation:

ADDPORT PORTA REMPRT 10900416 PORTA

Second workstati on:

ADDPORT PORTB REMPRT 10900416 PORTB

Third workstation:

ADDPORT PORTC REMPRT 10900416 PORTC

See “Configuring New Printers” on page 6-5 for more information.

Using OS/2

6-7

6-8

Using OS/2

Chapter 7

Using the EPSON Status Monitor

EPSON Status Monitor Utility

The EPSON Status Monitor utility is available for use on a network and requires Windows 95 or Windows NT 3.51.

This utility shows your printer status and allows you to change printer settings, such as print density.

System Requirement

To use the EPSON Status Monitor, make sure your network configuration is as follows. The Status Monitor does not work correctly if the configuration is incorrect.

For Windows 95

ODI driver is not selected as Network card driver.

❑

Microsoft DLC is not installed.

❑

For Windows NT 3.51

AppleTal k is inst all ed.

Using the EPSON Status Monitor

7-1

Installing the Status Monitor Utility

1. Make sure Windows is running.

2. Insert the EPSON Status Monitor disk into drive A (or B).

3. For Windows 95 users: click Start, then choose Run. For Windows NT users: make sure the Program Manager window is open; then choose Run on the File menu.

4. Type A:\SETUP (or B:\SETUP); then click OK. The utility is installed automatically.

5. When ins tallat io n is comp let e, click OK.

The Status Monitor utility is now installed on your computer.

Accessing the Status Monitor

For Windows 95

1. Click Start, then point to Programs.

2. Point to EPSON Stat us M onitor, then click EPSON Status Monitor. The Status Monitor appears.

To close the Status Monitor, click the close button at the top right of the Status Monitor dialog box or right-click the EPSON Status Monitor icon in the tray icon area on the taskbar, then click Exit in the dialog box that appears.

7-2

Using the EPSON Status Monitor

For Windows NT 3.51

1. Make sure Windows is running, and the Program Manager window is open.

2. Double-click the EPSON Status Monitor folder.

3. Double-click the EPSON Status Monitor icon. The Status Monitor appears.

To close the Status Monitor, click the Control-menu box to the left of the EPSON Status Monitor title bar, then choose the Close. Clic k Exit in the dialog box that appears.

Acessing Online Help

For detailed information about the Status Monitor, refer to online help. To access online help, follow one of the procedures below.

Click the ? button at the top right of the EPSON Status

❑

Monitor window, and the pointer will become a ?. Then move the ? over the term that you want to know more about and click.

For Windows 95 users: Click the close button at the top

❑

right of the EPSON Status Monitor window, then click Help in the dialog box that appears. For Windows NT Users: Click the Control-menu box to the left of the EPSON Status Monitor title bar, then choose Close. Click Help in the dialog box that appears.

Using the EPSON Status Monitor

7-3

Setting up the EPL-N2000 on a Network

Note:

Before reading this section, make sure the EPL-N2000 is

❑

physically connected to the network.

To use your printer as a network printer, install both the printer

❑

driver and the EPSON Status Monitor utility in your computer. Read the previous section to install the utility. For instructions on how to install the printer driver, see “Installing the Printer Driver” in your Getting Ready! guide.

To set up your printer as a network printer, follow these steps:

For Windows 95

1. Double-click the My Computer icon.

2. Double-click the Printers folder.

3. Right-click the EPSON EPL-N2000 icon, and click Properti es.

Be sure to right-click.

4. Click the Details tab.

5. Click the Add Port button.

6. Choose the Network radio button; then click Browse.

7. Double-click the EPSON Printer Network icon.

8. Double-click the domain icon that the printer is connected to.

9. Select your printer icon.

10. Click OK in all open dialog boxes to set up your printer on

the network.

7-4

Using the EPSON Status Monitor

Epson EPL-N2000 Network Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Introduction

Getting Started

Using DOS

Using Windows

Using Macintosh

Using UNI X

Using OS/2

Using the EPSON Status Monitor
