Epson ELPMB27 User Manual

ELPMB27
Short Throw Projector Wall Mount Installation Manual
xxx(FR)
xxx(DE)
xxx(IT)
xxx(ES)
xxx(PT)
xxx(ZHS)

Safety Instructions

Before using the wall mount, make sure you read all of the safety instructions below and then save this manual for later reference. Incomplete or incorrect installation could cause damage to the product or result in personal injury or property damage.
For additional information, see the User’s Guide and Safety Instructions included with your projector.

Explanation of Symbols

The warning symbols shown below are used throughout this installation manual to prevent the possibility of personal injury or property damage. Make sure you understand these warnings when reading this installation manual.
Warning
Caution
Warnings indicate information that, if ignored, could possibly result in personal injury or even death due to incorrect handling.
Cautions indicate information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling.
Symbol indicating an action that must not be done
Symbol indicating an action that should be done

Safety Precautions for Installation

Warning
The wall mount weighs approximately 10 kg (22 lbs.). To prevent injury, handle the mount carefully.
This product is meant for mounting the projector and optional accessories only. Do not attach anything heavier than the projector and optional accessories to the product.
Doing so could cause the product to fall and cause personal injury or property damage.
Installation of the product on the wall should be performed by at least two qualified technicians using only approved mounting equipment. Incomplete or incorrect installation could cause the product to fall and cause personal injury or property damage. For additional help, contact the customer support office listed in the projector's User’s Guid e.
Make sure you follow the instructions in this guide to install the wall mount.
Otherwise, the wall mount may fall and result in personal injury or property damage.
Turn off the projector when installing the mount to avoid fire or electric shock.
Handle the power cord carefully to avoid fire or electric shock.
Observe the following precautions when handling:
• Do not handle the cord with wet hands.
• Do not use a cord that is damaged or modified.
• Do not pull the cord with too much force when routing it through the arm unit.
When installing the product, do not hold on to the cable cover to position the mount.
Doing so could cause the cable cover to detach, resulting in personal injury or property damage.
When you mount the projector on the wall with the wall mount, the wall requires enough strength to hold the projector, optional accessories, and the wall mount. This wall mount should be installed on a concrete wall. Confirm the weight of the projector, optional accessories, and the wall mount before installation, and maintain the strength of the wall. If the wall is not strong enough, reinforce the wall before installation.
Do not install the product in a location where it might be exposed to vibration or shock, which could cause damage to the product or mounting surface.
It could also cause the product to fall, resulting in personal injury or property damage.
Warning
In order to resist vibration and support the weight of the projector and optional accessories, use M8 nuts and bolts and tighten all screws firmly after installation.
Otherwise, the projector or wall mount may fall and cause personal injury or property damage. Epson accepts no responsibility for any damage or injury caused by lack of wall strength or inadequate installation.
If you need to loosen any screws while installing, be careful not to drop the projector or the mount.
If the projector or the mount falls, it could cause personal injury or property damage.
Do not use the mount when damaged and confirm on a regular basis that there are no damaged parts.
Never modify the mount.
Do not hang on the mount or hang a heavy object on it.
If the mount or the projector falls, it could cause personal injury or property damage.
Stop using the mount and contact Epson Customer Service if any of the following occur:
• The mount is dropped or damaged during installation.
• The arm unit detaches from the wall or falls.
If you apply adhesives to prevent the screws from loosening, or if you use lubricants or oils on the wall mount, the housing may crack and cause the projector to fall, resulting in personal injury or property damage.
Tighten all screws firmly after adjustment.
Otherwise, the projector or wall mount may fall and cause personal injury or property damage.
Never loosen the bolts and nuts after installation. Confirm on a regular basis that the screws have not become loose. If you find any loose screws, tighten them firmly.
Otherwise, the projector or wall mount may fall and cause personal injury or property damage.
English
Caution
Install the product in a location free from humidity and dust to prevent the projector's lens and optical components from becoming dirty.
Do not install the product in a location where the operating temperature of the projector might be exceeded.
Otherwise, damage may result.
Do not install the product in a location where there is excessive humidity or dust, near cooking or heating appliances, or in a location exposed to smoke or steam.
Fire or electric shock may result.
Do not use excessive force when adjusting the product.
Using too much force could result in personal injury or property damage.

Before Use

This product is used for mounting the following short throw projectors to a wall: EB-435W/EB-430/EB-425W/EB-420/ PowerLite 435W/PowerLite 430/PowerLite 425W/PowerLite 420.

Choosing a Location

Determine where you will install the wall mount and prepare the location in advance. Also, make sure there is a gap of 410
to 660 mm (16 to 26 inches) from the top of the image projected onto the white board to the ceiling. See "Screen Size and Projection Distance" on page 7 for more details.
Do not install the product in a location where it might be exposed to vibration or shock, which could cause damage to the
projector or mounting surface. It could also cause the product to fall, resulting in serious injury or death.
Install the product in a location away from direct sunlight and other electric devices such as fluorescent lights or air
conditioning. Direct sunlight and some kinds of fluorescent lights could interfere with the remote control of the projector.
Epson recommends that the length of the connection cord be less than 20 meters (65.61 ft.) in order to reduce external
noise.

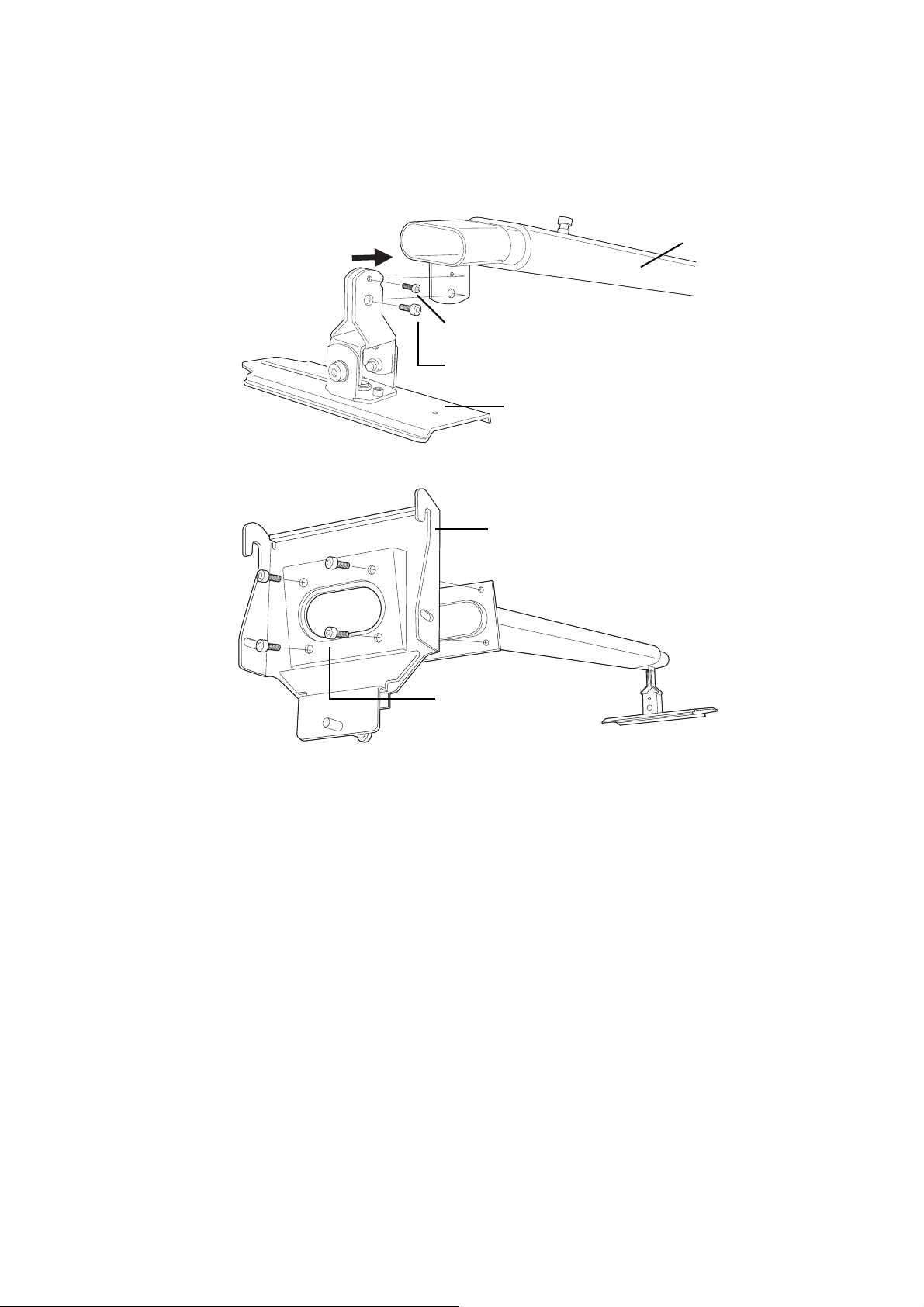

Package Contents

English
Adjustment unit
Attachment plate
Cable cover
Arm cover
Arm unit
Wall plate
Interface cover bracket
Arm plate
Wall plate cover
Hexagonal wrenches (M4 and M8)
M4 x 12 mm hexagon socket head cap bolts with washers (x3)
M8 x 12 mm hexagon socket head cap bolts without washers (x4)
M4 x 12 mm hexagon socket head cap bolts without washers (x6)
M8 x 15 mm hexagon socket head cap bolts without washers (x3)
M4 x 12 mm hexagon socket head cap bolts with washers/spring washers (x5)
Installation Manual (this guide)
Document CD-ROM
Use only the supplied bolts to install the wall mount. Do not substitute these bolts with any other types.

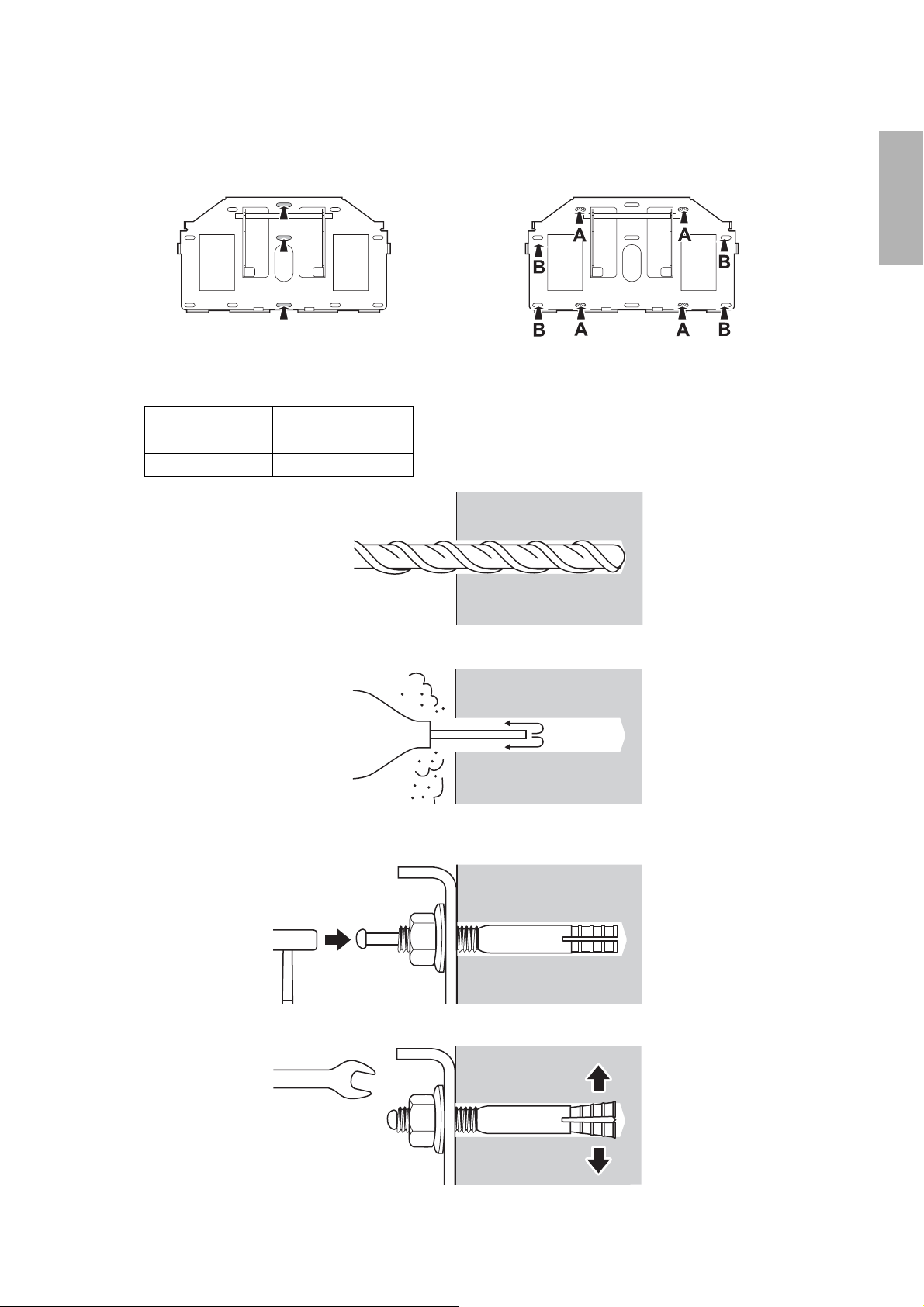

You need to use commercially available M8 x 50 mm anchors (at least 3) to attach the wall plate to the wall.
Gather the tools and parts you need before you begin installation.

Specifications

Weight Approx. 10 kg (22 lbs.)
Maximum load capacity 5.5 kg (12.13 lbs.)
Arm length 1510 mm (15.45 inches) (from wall plate attachment point to arm cover point)
Vertical slide adjustment range 0 to 134 mm (0 to 5.27 inches) (arm length minimum)
0 to 230 mm (0 to 9.05 inches) (arm length maximum)
Vertical tilt adjustment range 0 to - 9.5°
Horizontal rotation adjustment range 0 to ± 5°
Horizontal roll adjustment range 0 to ± 5°
Horizontal slide adjustment range 0 to ± 45 mm (0 to ± 1.77 inches)
Vertical tilt adjustment
Vertical slide adjustment
Horizontal rotation adjustment
Horizontal roll adjustment
Horizontal slide adjustment

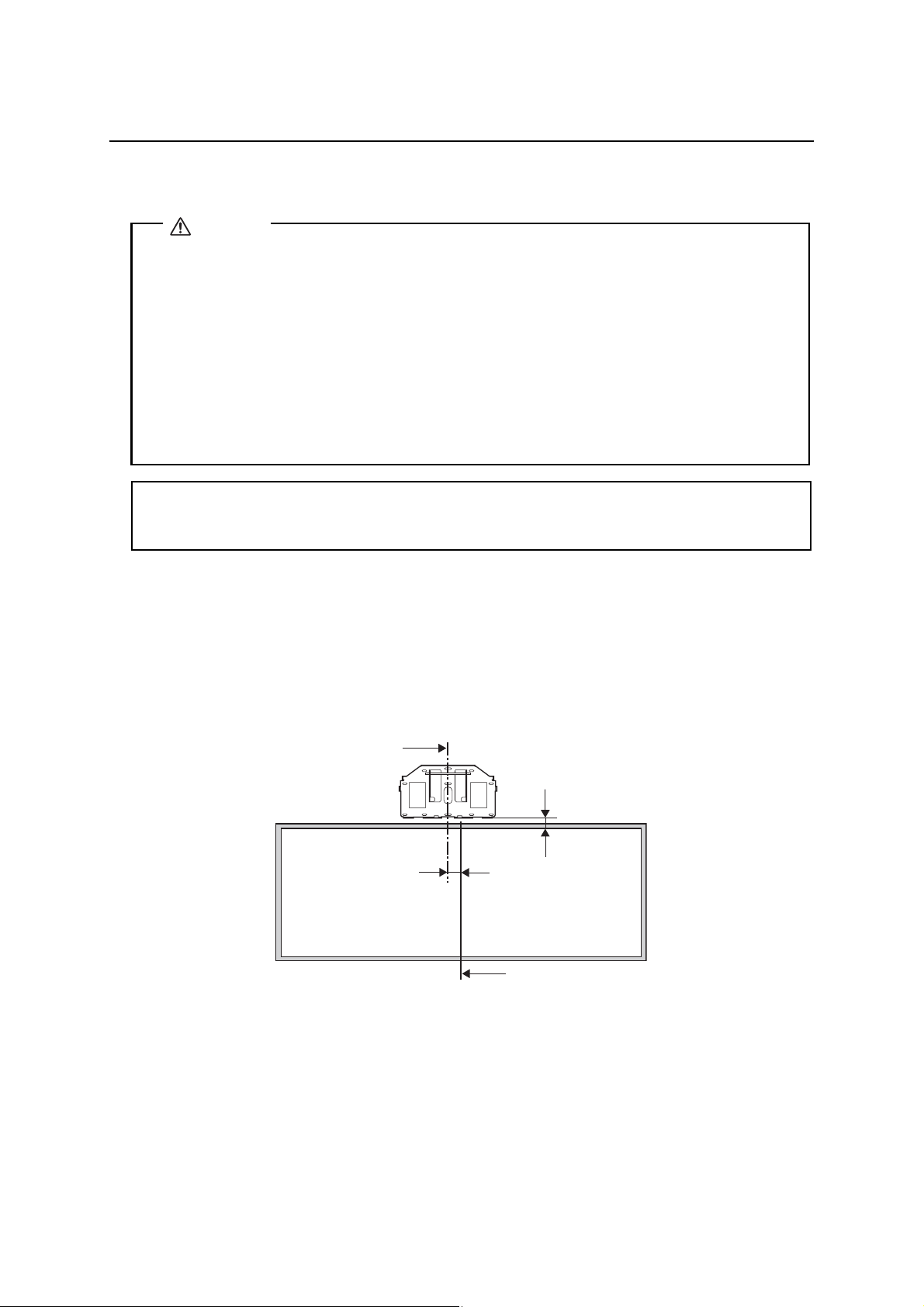

Center of lens
Projected image
Units: mm (inches)
