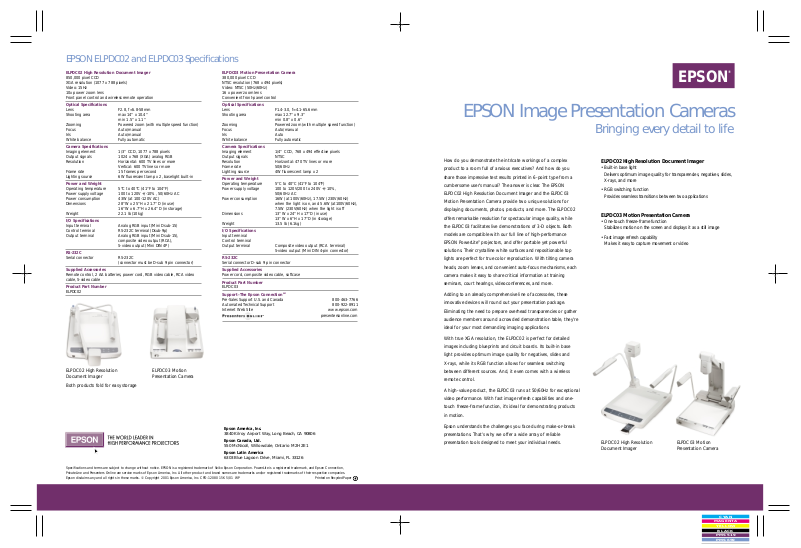

EPSON Image Presentation Cameras

Bringing every detail to life

How do you demonstrate the intricate workings of a complex
product to a room full of anxious executives? And how do you
share those impressive test results printed in 6-point type from a
cumbersome user’s manual? The answer is clear. The EPSON
ELPDC02 High Resolution Document Imager and the ELPDC03
Motion Presentation Camera provide two unique solutions for
displaying documents, photos, products, and more. The ELPDC02
offers remarkable resolution for spectacular image quality, while
the ELPDC03 facilitates live demonstrations of 3-D objects. Both
models are compatible with our full line of high-performance
EPSON PowerLite®projectors, and offer portable yet powerful
solutions. Their crystalline white surfaces and repositionable top
lights are perfect for true color reproduction. With tilting camera
heads, zoom lenses, and convenient auto-focus mechanisms, each
camera makes it easy to share critical information at training
seminars, court hearings, videoconferences, and more.

Adding to an already comprehensive line of accessories, these
innovative devices will round out your presentation package.
Eliminating the need to prepare overhead transparencies or gather
audience members around a crowded demonstration table, they’re
ideal for your most demanding imaging applications.

ELPDC02 High Resolution Document Imager

• Built-in base light
Delivers optimum image quality for transparencies, negatives, slides,
X-rays, and more

• RGB switching function
Provides seamless transitions between two applications

ELPDC03 Motion Presentation Camera

• One-touch freeze-frame function
Stabilizes motion on the screen and displays it as a still image

• Fast image refresh capability
Makes it easy to capture movement or video

With true XGA resolution, the ELPDC02 is perfect for detailed
images including blueprints and circuit boards. Its built-in base
light provides optimum image quality for negatives, slides and
X-rays, while its RGB function allows for seamless switching
between different sources. And, it even comes with a wireless
remote control.

A high-value product, the ELPDC03 runs at 50/60Hz for exceptional
video performance. With fast image refresh capabilities and one­touch freeze-frame function, it’s ideal for demonstrating products
in motion.

Epson understands the challenges you face during make-or-break
presentations. That’s why we offer a wide array of reliable
presentation tools designed to meet your individual needs.

ELPDC02 High Resolution
Document Imager

ELPDC03 Motion
Presentation Camera

EPSON ELPDC02 and ELPDC03 Specifications

ELPDC02 High Resolution Document Imager

850,000 pixel CCD
XGA resolution (1077 x 788 pixels)
Video: 15Hz
10x power zoom lens
Front panel control and wireless remote operation

Optical Specifications

Lens F2.8, f=5.8-58mm
Shooting area max 14"x 10.4"

min 1.5"x 1.1"
Zooming Powered zoom (with multiple speed function)
Focus Auto/manual
Iris Auto/manual
White balance Fully automatic

Camera Specifications

Imaging element 1/3" CCD, 1077 x 788 pixels
Output signals 1024 x 768 (XGA) analog RGB
Resolution Horizontal: 600 TV lines or more

Vertical: 600 TV lines or more
Frame rate 15 frames per second
Lighting source 6W fluorescent lamp x 2, baselight built-in

Power and Weight

Operating temperature 5°C to 40°C (41°F to 104°F)
Power supply voltage 100 to 120V +/-10%, 50/60Hz AC
Power consumption 43W (at 100-120V AC)
Dimensions 28"W x 25"H x 21.7"D (in use)

16"W x 6.7"H x 26.4"D (in storage)
Weight 22.1 lb (10kg)

I/O Specifications

Input terminal Analog RGB input (Mini Dsub-15)
Control terminal RS-232C terminal (Dsub-9p)
Output terminal Analog RGB input (Mini Dsub-15),

composite video output (RCA),

S-video output (Mini DIN 4P)

RS-232C

Serial connector RS-232C

(connector must be D-sub 9 pin connector)

Supplied Accessories

Remote control, 2 AA batteries, power cord, RGB video cable, RCA video
cable, S-video cable

Product Part Number

ELPDC02

ELPDC03 Motion Presentation Camera

380,000 pixel CCD
NTSC resolution (768 x 494 pixels)
Video: NTSC (50Hz/60Hz)
16 x power zoom lens
Convenient front-panel control

Optical Specifications

Lens F1.4-3.0, f=4.1-65.6mm
Shooting area max 12.7"x 9.3"

Zooming Powered zoom (with multiple speed function)
Focus Auto/manual
Iris Auto
White balance Fully automatic

Camera Specifications

Imaging element 1/4" CCD, 768 x 494 effective pixels
Output signals NTSC
Resolution Horizontal: 470 TV lines or more
Frame rate 50/60Hz
Lighting source 4W fluorescent lamp x 2

Power and Weight

Operating temperature 5°C to 40°C (41°F to 104°F)
Power supply voltage 100 to 120V/200 to 240V +/-10%,

Power consumption 16W (at 100V/60Hz), 17.5W (230V/60Hz)

Dimensions 13"W x 24"H x 17"D (in use)
Weight 13.5 lb (6.1kg)

I/O Specifications

Input terminal
Control terminal
Output terminal Composite video output (RCA terminal)

RS-232C

Serial connector D-sub 9 pin connector

Supplied Accessories

Power cord, composite video cable, softcase

Product Part Number

ELPDC03

Support–The Epson Connection

Pre-Sales Support U.S. and Canada 800-463-7766
Automated Technical Support 800-922-8911
Internet Web Site www.epson.com

min 0.8"x 0.6"

50/60Hz AC
when the light is on, and 5.6W (at100V/60Hz),

7.5W (230V/60Hz) when the light is off
13"W x 6"H x 17"D (in storage)

S-video output (Mini DIN 4-pin connector)

SM

SM

presentersonline.com

ELPDC02 High Resolution
Document Imager

ELPDC03 Motion
Presentation Camera

Both products fold for easy storage
