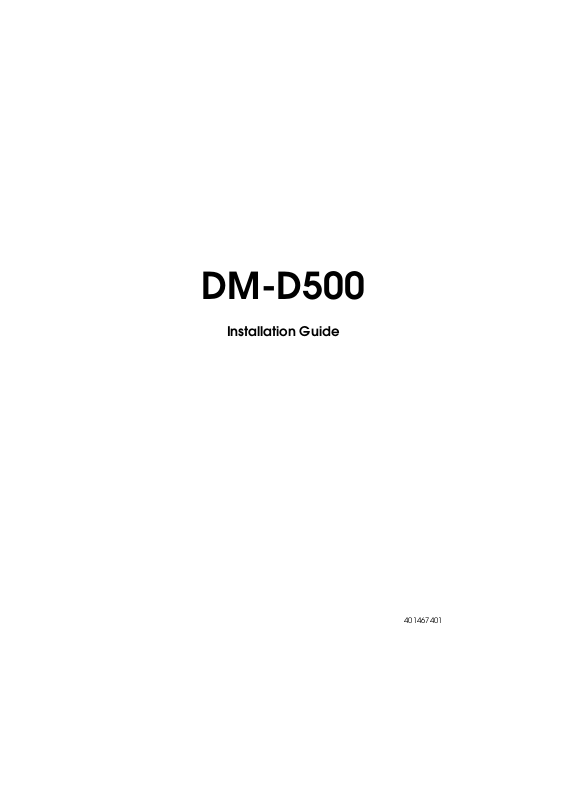

DM-D500
Installation Guide
401467401
Page 2
English
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any
form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written
permission of Seiko Epson Corporation. No patent liability is assumed with respect to the use of the information
contained herein. While every precaution has been taken in the preparation of this book, Seiko Epson Corporation
assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use
of the information contained herein.
Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for
damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of
this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to
strictly comply with Seiko Epson Corporation’s operating and maintenance instructions.
Seiko Epson Corporation shall not be liable against any damages or problems arising from the use of any options or
any consumable products other than those designated as Original Epson Products or Epson Approved Products by
Seiko Epson Corporation.
EPSON is a registered trademark of Seiko Epson Corporation in Japan and other countries/regions.
General Notice: Other product and company names used herein are for identification purpose only and may be
trademarks of their respective companies.
NOTICE: The contents of this manual are subject to change without notice.
Copyright © 2001 by Seiko Epson Corporation, Nagano, Japan.
Page 3
Safety Precautions
This section presents important information intended to ensure
safe and effective use of this product. Read this section carefully,
and store it in an accessible location.
WARNING:
Shut down your equipment immediately if it produces smoke, a strange
odor, or unusual noise. Continued use may lead to fire or electric shock.
Immediately turn the power off and contact your dealer or a SEIKO
EPSON service center for advice.
Never attempt to repair this product yourself. Improper repair work can
be dangerous.
Never disassemble or modify this product. Tampering with this product
may result in injury, fire, or electric shock.
Be sure to use the specified power source. Connection to an improper
power source may cause fire or shock.
Do not allow foreign matter to fall into the equipment. Penetration by
foreign objects may lead to fire or shock.
If water or other liquid spills into this equipment, immediately turn the
power off and contact your dealer or a SEIKO EPSON service center for
advice. Continued usage may lead to fire or shock.
English
CAUTION:
Do not plug the cable differently from the instruction in this manual.
Wrong connection may cause equipment damage and fire.
Be sure to set this equipment on a firm, stable, horizontal surface.
Product may be damaged or cause injury if it falls.
Do not use in locations subject to high humidity or dust levels. Excessive
humidity and dust may cause equipment damage, fire, or shock.
Do not place heavy objects on top of this product. Equipment may be
damaged and cause injury if it falls.
Do not attach more than one extension support. The product may be
damaged or cause injury if it falls.
A stopper limits the horizontal rotation of the display. Do not try to force
it to turn beyond the limits of the stopper. Doing so may damage the
equipment.
DM-D500 Installation Guide 1
Page 4
English
Unpacking
The items shown in illustration 1 are in the box.
1
User’s Manual
display (DM-D500)
Make sure that you have all the items shown, and that none has
been damaged. If you find anything missing or damaged, contact
your DM-D500 dealer.
Cautions on Handling
When you use the DM-D500, note the following points:
❏ Avoid locations that are subject to high temperature and
humidity.
❏ Avoid dirty and dusty locations.
❏ Avoid locations that are unstable or are subject to high levels of
vibration.
❏ When connecting or disconnecting cables, make sure that the
power switch of the DM-D500 and printers connected to the
DM-D500 are turned off.
❏ Do not drop the DM-D500, because you may damage the built-
in vacuum fluorescent display.
Usage
The DM-D500 can be used with the following equipment.
❏ TM-H5000II and TM-J8000 printers. You can attach the
DM-D500 to TM-H5000II and TM-J8000 printers using the
“DM-D pole unit for TM printers (Type
5.)
page
2 DM-D500 Installation Guide
B)” (DP-503). (See
Page 5
❏ TM-U950 printer. You can attach the DM-D500 to the TM-U950
printer using the “DM-D pole unit for TM printers (Type
(DP-502). (See page
7.)
❏ TM-H6000 series and TM-U675 printers. You can attach the
DM-D500 to TM-H6000 series and TM-U675 printers using the
“DM-D pole unit for TM printers (Type
9.)
page
A)” (DP-502). (See
❏ TM-T88II, TM-U210, TM-U230, TM-T90, and TM-L90 printers.
You can attach the DM-D500 to these printers using the “DM-D
pole unit for TM printers” (DP-505). (See page
14.)
❏ Other TM printers. You can attach the DM-D500 using the
“DM-D pole unit for TM printers (Type
Velcro tapes or screws. (See page
A)” (DP-502) and
18.)
❏ DM-D stand. You can attach the DM-D500 directly to the
DM-D stand using the “DM-D stand unit for DM-D500”
(DP-501). When using the DM-D stand, an optional power
supply unit (PS-180) is required. Also, if you want to raise the
height of the DM-D500, an optional extension support unit
(DP-105) is required. (See page
21.)
Precautions When Connecting to a TM Printer
English
A)”
Before the DM-D500 is connected to a TM printer, check the serial
number on the label affixed to the rear or bottom of the TM printer.
If the serial number is one of the numbers listed in the following
table, the printer can be connected to the DM-D500 without an
additional board. If the serial number is not listed in the table, the
DM-D500 requires the latest model of the UB-S01 board (Part code:
C8233610200).
DM-D500 Installation Guide 3
Page 6
English
Printer Model Serial No. Printer Model Serial No.
TM-H5000 — None *1 TM-U590 101 ART0 010001 and higher
TM-H5000II 001 AR30 010001 and higher 111 ARU0 003001 and higher
011 AR40 040001 and higher ARU0 510001 and higher
AR40 530001 and higher 131 ARY0 003001 and higher
021 AR50 040001 and higher ARY0 510001 and higher
AR50 510001 and higher 141 BUV0 000001 and higher
031 AR60 040001 and higher BUV0 510001 and higher
AR60 510001 and higher TM-H6000
series
041 AR70 040001 and higher 011 BMR0 020001 and higher
AR70 510001 and higher 021 BMS0 020001 and higher
091 BFX0 000001 and higher 031 BMT0 020001 and higher
BFX0 510001 and higher 041 BV40 020001 and higher
161 BKS0 000001 and higher 061 BX50 020001 and higher
BKS0 510001 and higher 071 B7R0 020001 and higher
181 BNV0 000001 and higher TM-U675 001 BMK0 020001 and higher
BNV0 510001 and higher 011 BML0 020001 and higher
201 B430 000001 and higher 021 BMM0 020001 and higher
B430 510001 and higher 061 BX30 020001 and higher
211 B5X0 000001 and higher TM-T285 001 2XT0 010001 and higher
B5X0 510001 and higher TM-J8000 011 AQS0 010001 and higher
*1: If your printer is a TM-H5000, always purchase the latest model of the UB-S01 before using it with
the DM-D500.
001 BMQ0 020001 and higher
If your TM printer is not listed above, it can be connected to the
DM-D500 without any special modifications.
If an old model of the UB-S01 (Part code: C8233610000) is
connected to the TM printer, purchase and install the latest model
of the UB-S01 board (Part code: C8233610200).
If the RS-232 interface of the TM printer or the UB-S01 board has a
blue seal or a scribed square (as shown in illustrations 2 and 3), it
can be connected to the DM-D500 without an additional board.
23
blue seal
scribed square
4 DM-D500 Installation Guide
Page 7
Assembling
Attaching to the TM-H5000II or TM-J8000
The DM-D500 can be attached directly to a TM-H5000II or
TM-J8000 printer using the “DM-D pole unit for TM printers
(Type
B)” (DP-503).
Required items
The items shown in illustration 4 are used to attach the DM-D500 to
a TM-H5000II or TM-J8000 printer. These items are packed with the
“DM-D pole unit for TM printers (Type
4
fixing screws
B)” (DP-503).
English
base
support C
support B
(for extension)
Assembling
1. Pass the cable for the DM-D500 through support C, and attach
support
using support
the hole on support
C to the DM-D500 as shown in illustration 5. When
B for extension, insert the tab on support B into
C as shown in illustration 6 until you feel it
click.
56
when using support B
for extension
DM-D500 Installation Guide 5
Page 8
English
2. Attach the base to the setting position on
the TM printer, and secure it with the
screws as shown in illustration 7.
3. Pass the cable for the DM-D500 through
the base as shown in illustration 8.
4. Insert the tab on the base into the hole on
the support as shown in illustration 9
until you feel it click.
7
8
9
5. Connect the cable for the
DM-D500 to the DM
connector on the TM printer
as shown in illustration 10.
6 DM-D500 Installation Guide
10
Page 9
Attaching to the TM-U950
The DM-D500 can be attached directly to a TM-U950 printer using
the “DM-D pole unit for TM printers (Type
Required items
The items shown in illustrations 11 or 12 are used to attach a
DM-D500 to a TM-U950 printer. These items are packed with the
“DM-D pole unit for TM printers (Type
11
rubber feet
(square)
fixing screws
12
A)” (DP-502).
A)” (DP-502).
English
support C
support B
for extension
DM-D500 Installation Guide 7
fixing plate A
Page 10
English
Assembling
1. Pass the cable for the DM-D500 through support C, and attach
support
using support
the hole on support
C to the DM-D500 as shown in illustration 13. When
B for extension, insert the tab on support B into
C as shown in illustration 14 until you feel
it click.
13 14
when using support B
for extension
2. Attach the rubber feet to the printer
as shown in illustration 15.
3. Pass the cable for the
DM-D500 through the
hole on fixing plate
A,
and fix the cable at the
bottom as shown in
illustration 16.
8 DM-D500 Installation Guide
15
16
Page 11
English
4. Connect the cable for the
DM-D500 to the DM connector
on the TM printer as shown in
illustration 17.
5. Adjust the length of the cable,
and secure fixing plate
A to the
printer with screws as shown in
illustration 18.
6. Store any excess cable in the
support, and attach the DM-D500
to fixing plate
illustration 19.
A as shown in
17
18
19
Attaching to the TM-H6000 Series or TM-U675
The DM-D500 can be attached directly to a TM-H6000 series or TMU675 printer using the “DM-D pole unit for TM printers (Type
(DP-502). You can attach fixing plate
TM-H6000 series or TM-U675. After attaching it, you can slide the
display freely.
A on either side of the
DM-D500 Installation Guide 9
A)”
Page 12
English
Required items
The items shown in illustration 20 are used to attach the DM-D500
to TM-H6000 series or TM-U675 printers. These items are packed
with the “DM-D pole unit for TM printers (Type
A)” (DP-502).
20
stopper
fixing screws for
rubber feet (small)
support C
fixing screw
for stopper
rubber feet (small)
support B
for extension fixing plate A
angle fixing
screw
fixing plate B
fixing screws for
fixing plate B
Assembling
1. Pass the cable for the DM-D500 through support C, and attach
support
using support
the hole on support
C to the DM-D500 as shown in illustration 21. When
B for extension, insert the tab on support B into
C as shown in illustration 22 until you feel
it click.
21 22
10 DM-D500 Installation Guide
when using support B
for extension
Page 13
English
2. Attach the rubber feet to the printer as shown in illustration 23.
23
3. Attach fixing plate B to the printer as shown in illustration 24.
24
4. Pass the cable for the DM-D500 through the hole on fixing
plate
A, and fix the cable at the bottom as shown in
illustration
25.
25
DM-D500 Installation Guide 11
Page 14
English
5. Connect the cable for the DM-D500 to the DM connector on the
TM printer as shown in illustration 26.
26
6. Attach fixing plate A to the TM printer using the stopper.
When you attach the stopper, insert the projections on the
stopper into the holes of fixing plate
B. Fixing plate A can be
attached on either side of the printer. (Illustration 27 shows
fixing plate
A attached to the right side of the printer.)
27
12 DM-D500 Installation Guide
Page 15
English
7. The horizontal rotation mechanism of fixing plate A can be
adjusted. To secure the location of the display, set fixing
plate
A to one of the four positions shown in illustration 28, 29,
30, or 31, and secure it with the angle fixing screw.
28
29
30
31
DM-D500 Installation Guide 13
Page 16
English
Note:
The roll paper cover may not open if
the position of the display is not
correct. Before securing the position
of the display, make sure that you
can open the roll paper cover. See
illustration 32.
32
roll paper cover
8. Store any excess cable in the
support, and attach the
DM-D500 to fixing plate
shown in illustration 33.
A as
33
9. Connect the power cable
of the printer. To avoid
34
disconnection, hook the
cable to the tabs on fixing
plate
B, as shown in
illustration 34.
Attaching to the TM-T88II, TM-U210, TM-U230, TM-T90, or TM-L90
The DM-D500 can be attached to a TM-T88II, TM-U210, TM-U230,
TM-T90, or TM-L90 printer using the “DM-D pole unit for TM
printers” (DP-505).
14 DM-D500 Installation Guide
Page 17
Required items
The items shown in illustration 35 are used to attach a DM-D500 to
a TM-T88II, TM-U210, TM-U230, TM-T90, or TM-L90 printer. These
items are packed with the “DM-D pole unit for TM printers”
(DP-505).
35
English
support extension
support
fixing screws for
wooden position
Velcro tapes
(square type)
fixing plate installation
Velcro tape
(round type)
Assembling
Before assembling this product, you must install the UB-S09 in the
TM printer. See the UB-S09 installation manual for the installation
instructions.
Assembling using Velcro tapes
1. Make sure both the printer and the host computer are
turned
off.
2. Disconnect the DC cable from the printer.
CAUTION:
❏ You must disconnect the power supply because electrical
current is flowing in some parts of the printer circuit even when
the power switch is turned off; otherwise, you may damage the
UB-S09 and the printer.
❏ When disconnecting the DC cable, hold the plug firmly. Do not
tug on the cord itself.
manual
DM-D500 Installation Guide 15
Page 18
English
3. Pass the cable for the customer display through the support,
and attach the support to the display as shown in illustration
36. When using the extension support, insert the tab on the
extension support into the hole on the support as shown in
illustration 37 until you feel it click.
36
37
when using an
extension support
4. Pass the cable for the display through the hole on the fixing
plate, and attach the support to the fixing plate as shown in
illustration 38.
38
16 DM-D500 Installation Guide
Page 19
English
5. Peel the backing off of one side of the Velcro tapes, and attach
the tapes to both faces of the fixing plate. See the table below to
find the attaching position for Velcro tapes and the display for
your particular printer. (The positioning numbers of Velcro
tapes on the fixing plate are shown in illustrations 39 and
40.)
Printer type Positioning number of
TM-T88II 1 to 9 and 11 Right side
TM-U210/U230/T90/L90 1 to 11 Both sides
3
Velcro tape attachment
1 to 11 Left side
1
39
5
4
2
Attaching position for display
(seen from the front of the printer)
40
8
10
11
6
9
7
6. Peel off the backing on the other side of the Velcro tapes, and
stick the fixing plate where you want it.
7. Connect the cable for the display to the DC connector on the
TM printer (UB-S09) until you feel it click as shown in
illustration 41. Store any excess cable in the TM printer, if
necessary.
41
TM-T88II printer with the UB-S09 installed
CAUTION:
Do not connect this connector to an ordinary telephone line.
DM-D500 Installation Guide 17
Page 20
English
8. Place the TM printer on the fixing plate. (See the table below for
the mounting position for each TM printer.)
Printer type Mounting positions for TM printers
TM-T88II Set the printer so that no rubber foot on the rear side of the
TM-U210/U230/T90/L90 Set the printer so that no rubber foot on the rear side of the
printer is placed on the Velcro tape.
printer is placed on the Velcro tape.
Set the printer so that the iron plate on the rear side of the
printer is placed on the Velcro tapes.
Note:
Place the TM-U230 printer as shown in
illustration 42. (Do not place it vertically.)
42
9. Connect the power supply to the TM printer.
Assembling using screws
1. Follow steps 1 to 4 in “Assembling using Velcro tapes.”
2. Secure the fixing plate where you want it
with the fixing screws as shown in
illustration 43.
43
3. Follow steps 7 to 9 in “Assembling using Velcro tapes.”
Attaching to Other TM Printers
When using with other TM printers, the DM-D500 can be attached
to a desk or other surface using the “DM-D pole unit for TM
printers (Type
18 DM-D500 Installation Guide
A)” (DP-502) and screws or Velcro tapes.
Page 21
Required items
The items shown in illustration 44 are used when the DM-D500 is
used with other TM printers. These items are packed with the
“DM-D pole unit for TM printers (Type
A)” (DP-502).
44
Velcro tapes Velcro tapes
fixing plate A
English
fixing screws for
wood position
support C
support B
(for extension)
Assembling using Velcro tapes
1. Attach Velcro tapes to the bottom of
fixing plate
illustration
A as shown in
45.
45
2. Pass the cable for the DM-D500 through support C, and attach
support
using support
the hole on support
C to the DM-D500 as shown in illustration 46. When
B for extension, insert the tab on support B into
C as shown in illustration 47 until you feel
it click.
46 47
when using support B
for extension
DM-D500 Installation Guide 19
Page 22
English
3. Pass the cable for the
DM-D500 through the hole
on fixing plate
the cable at the bottom as
shown in illustration
A, and fix
48
48.
4. Connect the cable for
the DM-D500 to the
49
DC connector on the
TM printer as shown
in illustration 49.
5. Store any excess cable in the
support, and attach the
DM-D500 to fixing plate
shown in illustration 50.
A as
50
6. Peel off the Velcro tapes, and attach the display to the setting
position.
Assembling using screws
1. Follow steps 2 and 3 in “Assembling
using Velcro tapes.”
2. Secure fixing plate A to the setting
51
position with fixing screws as shown in
illustration 51.
3. Attach the DM-D500 to fixing plate A.
20 DM-D500 Installation Guide
Page 23
Attaching to the DM-D Stand
The DM-D500 can be attached directly to the DM-D stand using the
“DM-D stand unit for DM-D500” (DP-501). The DM-D500 with the
DM-D stand can be connected to a TM printer or be used as a
standalone product.
Required items
The items shown in illustration 52, 53, or 54 are used to attach the
DM-D500 to the DM-D stand. Note that an optional power unit
(PS-180) is required when using the DM-D stand. Also, another
optional extension support (DP-105) is required if you want to raise
the height of the DM-D500. Get them separately from the DM-D
stand unit (DP-501).
English
52
<extension support (DP-105)>
53 54
Velcro tapes
<DM-D stand unit for DM-D500 (DP-501)>
DM-D stand base plate
extension cable
for power supply
extension
support
RS-232 connector
installation screw (mm type)
power supply
unit (PS-180)
AC cable
DM-D500 Installation Guide 21
Page 24
English
Connectors for the DM-D stand
The connectors for the DM-D stand are shown in illustration 55.
computer connector
display connector
printer connector
55
power supply unit connector
extension cable connector
Note:
The DM-D stand comes with inch-type hexagonal lock screws installed to
secure the interface cable to the interface connector for the RS-232. If you
plan to use an interface cable that requires millimeter-type lock screws,
replace the inch-type screws with the included millimeter-type screws
using a hex screwdriver (5 mm {0.2"}). To distinguish the two types of
screws, see illustration 56.
notch (one or more lines)
56
millimeter-typeinch-type
RS-232 connector
installation screw
Jumper settings
Set the jumpers on the DM-D stand as follows:
JP1 JP2 Contents
1-2 1-2 When connecting both the TM printer and the DM-D stand. (Default setting.)
2-3 2-3 When using the DM-D stand as a standalone. (TM printer is not connected.)
The jumpers are located as shown in illustration 57.
57
22 DM-D500 Installation Guide
Page 25
Precautions on using the power supply unit
To avoid damage to the DM-D500 and the power supply unit, note
the following points.
❏ Use the optional Seiko Epson product, PS-180, as the power
supply.
❏ Never connect the DC cable to the power supply unit when the
power supply unit is connected.
❏ Unplug the DC cable by holding the connector part. If you pull
the cable to unplug it, it may be damaged.
Assembling
1. Pass the cable for the DM-D500 through the DM-D stand as
shown in illustration 58. When raising the height of the DM-D
stand, attach the extension support (DP-105) to the DM-D stand
as shown in illustration 59.
58 59
when using the
extension support
(DP-105)
English
2. Insert the tab on the DM-D500 (or the
extension support) into the hole on the
DM-D stand as shown in illustration
60 until you feel it click.
DM-D500 Installation Guide 23
60
Page 26
English
3. Connect the cable for the DM-D500 to the display connector on
the DM-D stand as shown in illustration 61 until you feel it
click.
61
4. Connect one end of the computer interface cable to the
computer connector on the DM-D stand; then connect the other
end to the RS-232 connector on the computer as shown in
illustration 62. Tighten the screws on both ends of the cables to
fasten them.
62
computer
24 DM-D500 Installation Guide
Page 27
English
5. If using the unit as a standalone, go to step 6. When using the
DM stand with the printer, connect one end of the printer
interface cable for the printer to the printer connector on the
DM-D stand; then connect the other end to the connector on the
printer as shown in illustration 63. Tighten the screws on both
ends of the cable to fasten them.
63
printer
6. If not using the extension cable packed with the DM-D stand
for power supply, go to step 7. When using the extension cable,
connect it (with the arrow mark up) to the extension cable
connector indicated with “POWER OUT” on the DM-D stand;
then connect the other end to the power connector on the
printer as shown in illustration 64.
extension cable
connector
64
extension cable
for power supply
DM-D500 Installation Guide 25
Page 28
English
7. Connect the DC cable of the power supply unit (with the arrow
mark up) to the power supply unit connector indicated with
“POWER IN” on the DM-D stand as shown in illustration 65.
power supply unit
connector
65
DC cable of
power supply unit
8. When using as a standalone product, set the jumpers as shown
in “Jumper settings” on page
9. Arrange the cables as shown in
illustration 66. Put the cables for the
DM-D500 inside the DM-D stand.
22.
66
10. Attach the base plate to the DM-D stand following the numbers
of the arrows shown in illustration 67. Then, push the base
plate until it is locked by the hook on the DM-D stand.
67
11. When the extension support (DP-105) is used, attach Velcro
tapes to the four corners of the plate to keep it from falling
down.
12. Connect the cord of the power unit to the socket.
26 DM-D500 Installation Guide
Page 29
Part Names and Functions
Exterior
English
68
display
DIP switch
(rear side of the display)
power switch
(bottom of the display)
❏ Display: Characters are displayed.
❏ Power switch: The power is turned on/off.
❏ DIP switch: The functions of the DM-D500 are changed.
See “DIP Switch” for details.
Note:
When turning on the DM-D500 again after turning it off, wait for at least
3
seconds.
DM-D500 Installation Guide 27
Page 30
English
DIP Switch
DIP Switch Functions
The DM-D500 has two groups of DIP switches. The functions of the
DIP switches are as follows:
DIP switch 1
DSW1 No. Function ON OFF Default setting
1-1 Data receive error Ignored Displays “?” OFF
1-2 Hand shaking XON/XOFF (*1) DTR/DSR OFF
1-3 Data length 7 bits 8 bits OFF
1-4 Parity on or off Parity No parity OFF
1-5 Parity type Even Odd OFF
1-6 Change transmission speed See “Transmission speed.” ON
1-7 OFF
1-8 ON
(*1) XON/XOFF is effective only when the DM-D500 is connected as a standalone.
Transmission speed*
SW1-6 SW1-7 SW1-8 Transmission speed (bps)
ON ON ON 2400
OFF ON ON 4800
ON OFF ON 9600
OFF OFF ON 19200
ON ON OFF 38400
OFF ON OFF 57600
ON OFF OFF 115200
*When the DM-D500 is connected to a TM printer, be sure that the transmission speed
matches that of the printer.
28 DM-D500 Installation Guide
Page 31
DIP switch 2
DSW2
Function ON OFF Default
No.
2-1 Y-connection (*1) Enabled Disabled OFF
2-2 Self test selection (*2) Perform self test Do not perform OFF
2-3 20 column and 2 line
2-4 Device selection
2-5 Address 0 The display device number (1-7) corresponds to
2-6 Address 1 OFF
2-7 Address 2 OFF
2-8 Reserved (*5) − Fixed to OFF OFF
(*1) The “Y-connection enable” is set when a TM printer with no modular jack for the DM-D is
connected with this product, using one COM port to connect both TM printer and DM
display. In this case, an optional DM-D stand (DP-501) and a connecting cable are required.
In cases other than above, choose “Y-connection disabled” (default setting).
(*2) This function can select whether or not you perform self test when turning on the power.
See “Self Test” for details.
(*3) When selecting “20 column and 2 line mode,” this product can be used like the
DM-D105/106/205/206. In this case, the graphic display and the original functions for the
DM-D500 cannot be used; however, by selecting “256 × 64 dots mode,” they can be used.
(*4) When setting to “Printer is selected,” data is sent to the TM printer, but is not dis played on
the display. When setting to “Display is selected,” data is displayed on the display but is not
output from the TM printer. The selection can be changed using the <ESC=> command.
(*5) Stays at OFF setting.
mode selection
default setting
20 column and 2 line
(*3)
mode
Printer is selected Display is selected OFF
Address number 0 to 2. (All OFF is regarded as
no display number.)
256 × 64 dots mode OFF
Note:
❏ The changes in DIP switch settings are effective when the power is
turned on again.
❏ The data transmission setting, such as data length and transmission
speed, must be the same on both your computer and printer.
English
setting
OFF
DM-D500 Installation Guide 29
Page 32
English
Turning and Tilting the DM-D500
You can turn or tilt the display while holding the support. The
display can be moved easily, so do not move it any further if it
stops. If you move it by force, you may damage it.
With the “DM-D pole unit for IR” (DP-504) and the “DM-D pole
unit for TM printers (Type
face the direction you desire. In this case, remove the base, change
the position of the tab on the base so that the display faces in the
direction you desire, and reattach it to the base as shown in
illustration 69.
48°
69
The display area has the following range of movement:
❏ Tilt: 48° max. (4 steps, 5 positions)
❏ Horizontal rotation: 90° max. (45° for each left and right)
B)” (DP-503), the display area may not
45° for left
(you can turn the
same angle for right)
30 DM-D500 Installation Guide
Page 33
English
Specifications
Tilt angle Max. 48° (4 steps, 5 positions)
Horizontal rotation Max. 90° (for each left and right at 45°)
Vacuum fluorescent
display
Characters Alphanumeric characters: 95, International characters: 37
Character grid Font A: 8 × 16 dot, Font B: 5 × 7 dot, Kanji: 16 × 16 dot
Character style • Black/White reverse and emphasis
Emulation mode • Cursor (except the window on the graphic mode): DM-D10x emulation
Electrical specification • Type: PS-180 (when using the DM-D stand)
Reliability MTBF (vacuum fluorescent display only): 30,000 hours (a half-value period
Temperature Operating: 5° to 40°C {41° to 104°F}
Humidity Operating: 30% to 85% (no condensation)
Overall dimensions See figures below.
Weight (mass) DM-D500: 460 g {1.01 lb}, DP-501: 440 g {0.97 lb}, DP-502: 264 g {0.58 lb},
• Total number of dots: 256 × 64 (W × H)
• Dot pitch: 0.55 × 0.55 mm {0.0217 × 0.0217"}
• Number of characters: 42 column × 8 lines max. (when using font B)
• Display color: Green (505 nm)
• Brightness: 300 (cd/m2 )
Extended graphics: 128 × 12
Kanji supports one of the following sets: Japanese (JIS Level 1 and 2),
Simplified Chinese (GB2312)
• Size change, character spacing, and line spacing (only for the window
on the graphic mode)
• Period, comma: DM-D20x emulation
• Annunciator: DM-D20x emulation
• Rated voltage: DC 11.4 to 48 V
• Rated current: 0.53 A (at 11.4 V) (max.)
of the brightness)
Storage: –10° to 50°C {14° to 122°F}
Storage: 30% to 90% (no condensation)
DP-503: 116
g {0.26 lb}, DP-505: 418 g {0.92 lb}
DM-D500 Installation Guide 31
Page 34
English
<DM-D500 and DM-D stand>
213 mm {8.4"}
DM-D500
DM-D stand (DP-501)
200 mm {7.9"}
83 mm {3.3"}
65 mm {2.6"}
51 mm {2.0"}
48°
118 mm {4.7"}
90°
32 DM-D500 Installation Guide
Page 35
<DM-D pole units>
DM-D pole unit for
TM printer (Type B)
(DP-503)
English
DM-D pole unit for
TM printers (Type A)
(DP-502)
50 mm
{1.9"}
53 mm
{2.1"}
248 mm
{9.8"}
base
DM-D pole unit for
TM printers (DP-505)
130 mm
{5.1"}
260 mm
{10.2"}
164 mm
{6.5"}
78 mm
{3.1"}
260 mm
{10.2"}
214 mm
{8.4"}
DM-D500 Installation Guide 33
Page 36
English
34 DM-D500 Installation Guide
Loading...
