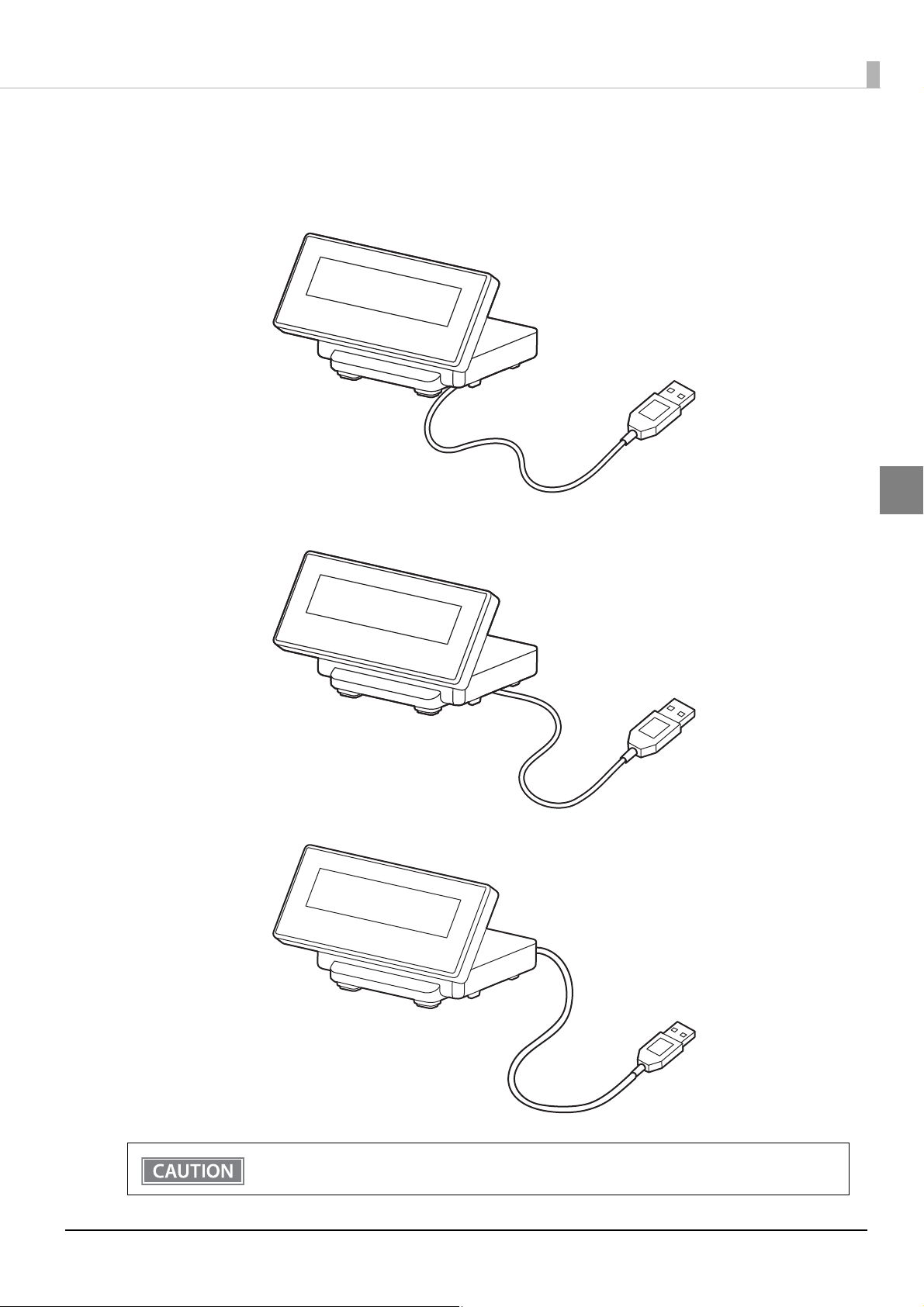

■ Drawing Out the Cable........................................................................................................ 17
■ Affixing the Customer Display........................................................................................... 18
■ Memory Switch Setting ...................................................................................................... 19
Handling .........................................................................................................21
■ Turning the Power On/Off .................................................................................................. 21
■ Changing the Angle of the Display Unit.......................................................................... 21
■ Adjusting the Contrast........................................................................................................ 21
■ Cleaning the Outer Case ..................................................................................................... 22
7
Application Development Information ...................................................... 23
■ Controlling the Customer display..................................................................................... 23
ePOS-Print XML ................................................................................................................................................................ 23
ESC/POS .............................................................................................................................................................................. 23
■ Cautionary Notes on Marquee Display ............................................................................ 24
■ Software................................................................................................................................. 25
Development Kits ............................................................................................................................................................ 25
Drivers.................................................................................................................................................................................. 25
Manuals............................................................................................................................................................................... 26
Download........................................................................................................................................................................... 26
Appendix ........................................................................................................ 27
■ Product Specifications ........................................................................................................ 27
Environmental Conditions ...........................................................................................................................................27
External Dimensions and Mass...................................................................................................................................28
■ Character Code Tables......................................................................................................... 29
8
Chapter 1 Product Overview
Product Overview
This chapter describes features of the product.
Features
DM-D30 is a customer display for displaying characters. The main features of this product are as follows.
Display
• 20 digit x 2 lines dot matrix for displaying half-width characters.
Usability
• Compact.
• You can adjust the angle of the display so it is easy to see.
• Power supply to the product is USB bus power.
Interface
• You can connect to a Windows PC USB port or the USB ports for the printers shown under "Connectable TM
Printers" on page 9
• When connected to a TM printer, attach the wireless LAN unit to the stand section to connect the TM
printer and a smart device or the like via wireless LAN.
.
Connectable TM Printers
The following TM printers can be connected for use.
• TM-m30
1
• TM-m30II
• TM-m30II-NT
• TM-m30II-H
• TM-T88VI
• TM-T70II-DT(TM-DT software Ver. 4.0 or later)
• TM-T88V-DT(TM-DT software Ver. 4.0 or later)
• TM-T70II-DT2
• TM-T88VI-DT2
9
Product Structure
Accessories
Included
• Affixing tape
• Manual
Option
• USB extension cable (1 m): OT-UL30
• Use the OT-UL30 if you want to extend the USB cable for the connection between this product
and the TM printer.
• If attaching the wireless LAN unit to the stand of this product, you cannot use the USB extension
cable. (The wireless LAN unit may not operate properly due to the voltage decrease from the
cable.)
10
Part Names and Functions
Chapter 1 Product Overview
1
1 Contrast adjustment control Move this to adjust the contrast of the LCD screen.
2 Display Displays on the LCD screen. You can adjust the angle of the display.
Note:
The display is covered with a protective film. Remove before use.
3 Stand Supports the display unit. Place it on a flat surface.
4 USB cable Use to connect to the printer or a computer.
5 Wireless LAN unit connector Use to connect the Wireless LAN unit that is pre-installed to the printer’s USB
connector, when connecting to a Wi-Fi
®
model printer.
11
System Outline
DM-D30
DM-D30
Computer
USB
This section explains the system connection pattern using this product.
Connecting with TM Printer
Connect this product’s USB cable to the TM printer. Power is supplied from the printer.
For the connectable TM printers, see
"Connectable TM Printers" on page 9.
Connecting with Computer
Connect this product’s USB cable to the computer. Power is supplied from the computer.
• When connecting to a bus power hub, this product may not always operate.
• Install the driver you are using before connecting.
12
Setup
This chapter explains the installation and setting operations necessary to use this product.

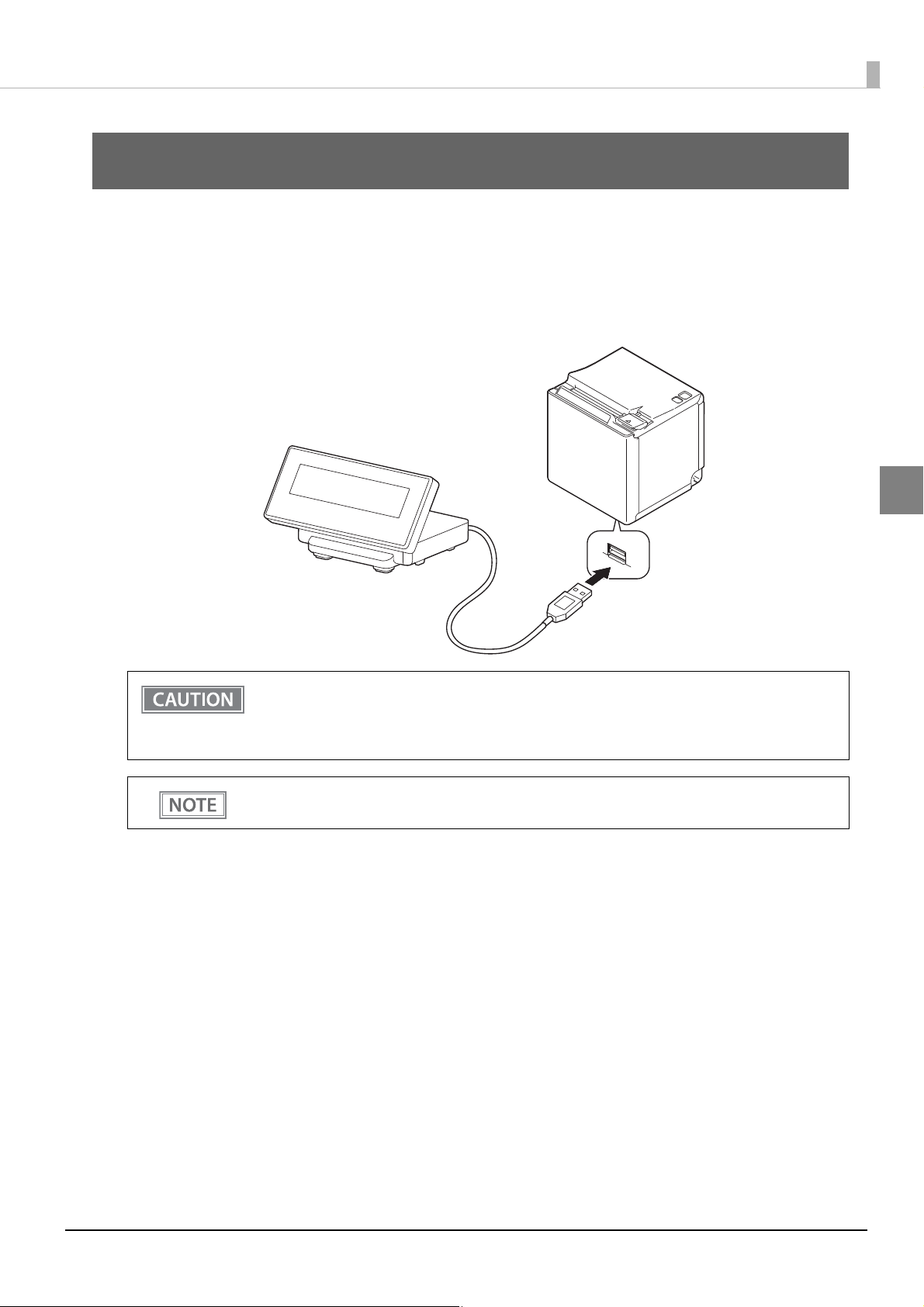

Connecting to the Printer
Connect the USB cable of the customer display to the USB connector on the printer.
Chapter 2 Setup
2
• When you connect the USB cable to the printer, be sure to turn off the printer before connect-
ing.
• If extending the connection cable, use the dedicated extension cable OT-UL30. However, if con-
necting the wireless LAN unit to the stand of the DM-D30, you cannot use the extension cable.
For the position of connectors on the printer and so on, see the documentation provided with the
printer.
13
Connecting to the Computer
Connect the USB cable of the customer display to the USB connector on the computer.
We do not recommend using this USB bus power device with a USB extension cable. Depending on
the configuration of the cable, operational errors or a deterioration in EMC characteristics may
occur due to a drop in voltage.
14
Chapter 2 Setup

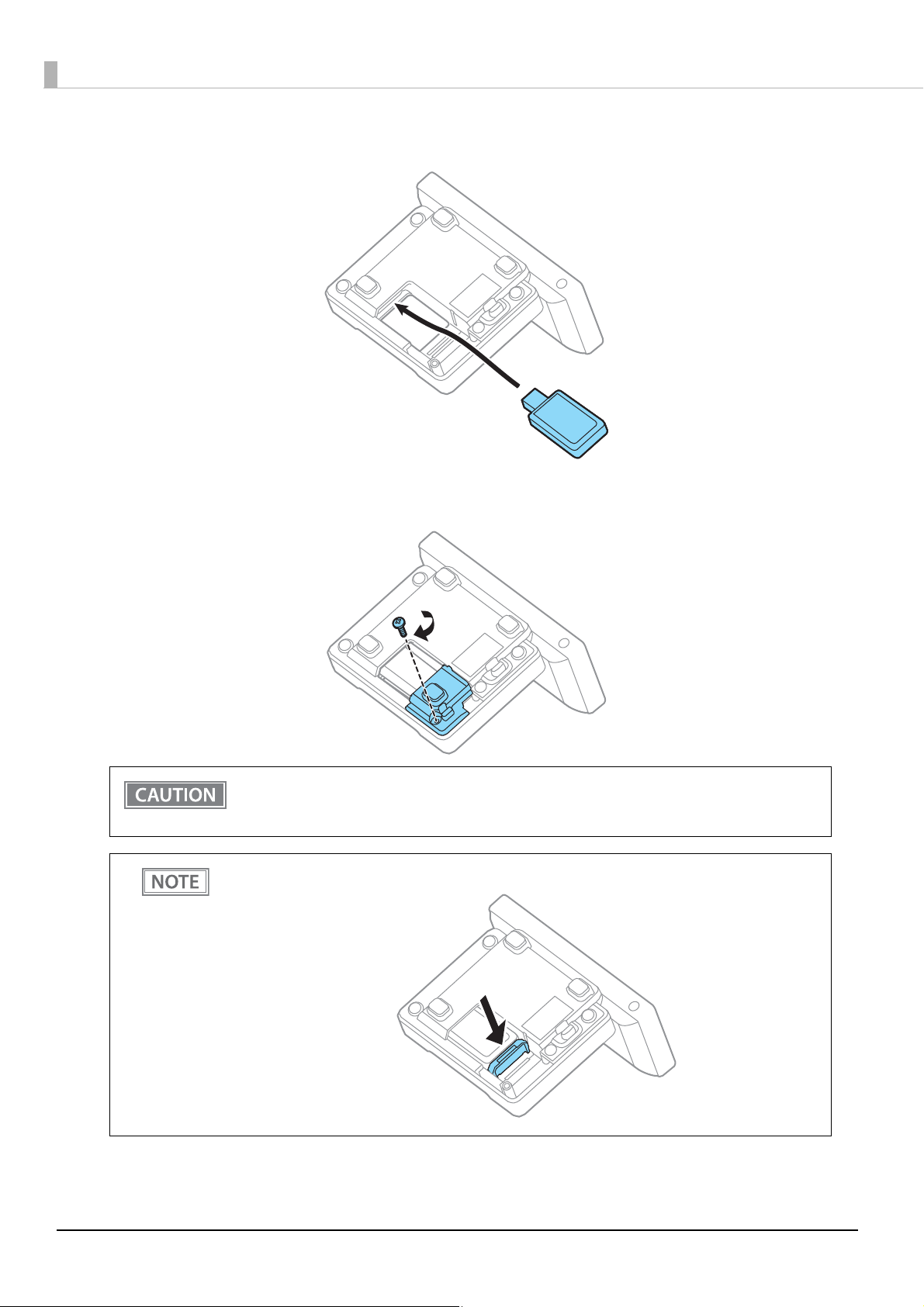

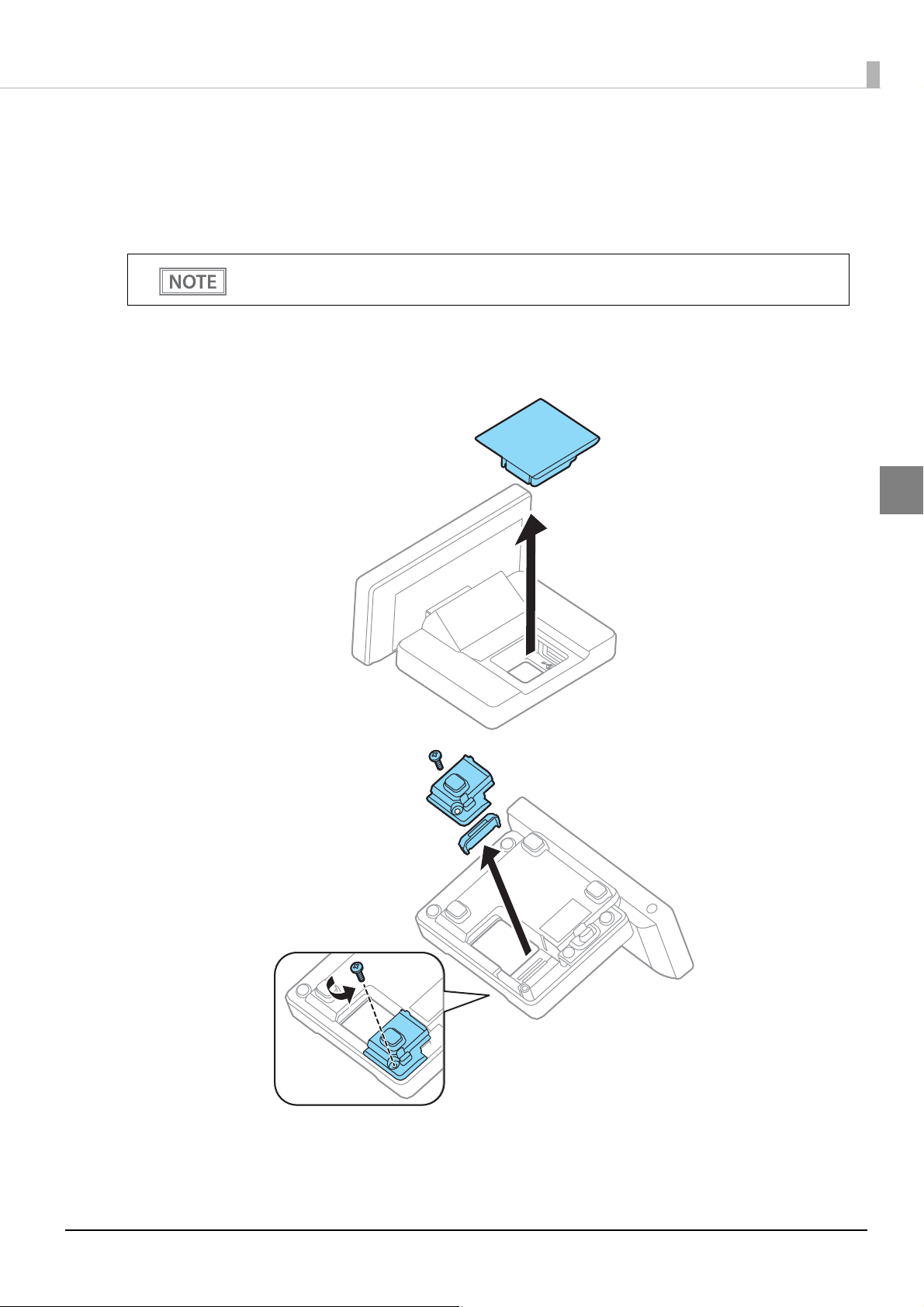

Connecting the Printer’s Wireless LAN Unit
When the Wireless LAN unit is connected to the printer's USB connector and there are no free USB connectors,
you can use the Wireless LAN unit and the customer display at the same time by connecting the Wireless LAN
unit to the Wireless LAN unit connector on this device.
You can only use the optional Wireless LAN unit supported by the TM printer.
Follow the steps below to connect the Wireless LAN unit to the device's Wireless LAN unit connector.
Remove the covers for the top and bottom of the stand as shown in the illustration.
1
2
15
Connect the Wireless LAN unit to the Wireless LAN unit connector.
2
Reattach the cover for the bottom. Keep the cover for the stand removed.
3
• Do not place anything in the upper section (cover opening) of the Wireless LAN unit. If heat is
not allowed to dissipate when using the product, it may lead to a malfunction.
• Do not use a USB extension cable. Operational errors may occur due to a drop in voltage.
Install dividers if necessary depending on the length of the Wireless LAN unit.
16
Drawing Out the Cable
You can draw out the USB cable from the front, the side, or the back.
Chapter 2 Setup
2
Be sure to turn off the power on the printer when connecting USB cable to the printer.
17
If you draw the cable from the front, fold the cable back inside the hollow of the stand, and then
secure the cable as shown in the illustration, so that it does not become loose.
Affixing the Customer Display
You can use the affixing tape supplied to secure the device.
Attach the affixing tape to the points shown in the following illustration.
18
Memory Switch Setting
This product has a memory switch which can be set using the printer setting utility of the TM printer.
Printer setting utilities are prepared for each TM product.
Turn Off Backlight
Select the period of time until the backlight turns off, from 0 to 120 minutes
Initial setting: 0 (Normaly On)
Code-page
Specify from 40 code pages and custom pages
Initial setting: PC437:USA,Standard Europe
Chapter 2 Setup
2
International character set
Specify from 18 sets
Initial setting: USA
Adjust Brightness
Select from 20%, 40%, 60%, and 100%
Initial setting: 100%
Cursor Display
Select "Enabled" or "Disabled"
Initial setting: Disabled
19
20
Chapter 3 Handling
35°
Handling
This chapter explains the basic handling methods for this product.
Turning the Power On/Off
The power for this product is supplied by USB bus power, which means that the power is supplied from the connected printer or computer through the USB connector.
To turn this product on or off, turn the connected printer or computer on or off.
The display may not turn off while the power is still supplied to USB connector, even if the printer's
Power LED is off.
Changing the Angle of the Display Unit
You can change the angle of the display unit by holding the stand with your hand while moving the display unit.
The following shows the range of motion.
Do not exceed the range of motion when moving the display unit. Applying excess force when
moving the display unit may cause damage.
Adjusting the Contrast
You can adjust the contrast of the LCD screen by sliding the contrast adjustment control on the side of the
stand.
3
21
Cleaning the Outer Case
Be sure to disconnect the USB cable from the printer or the computer, and then wipe the dirt off the outer case
with a dry cloth or a damp cloth.
• Never clean the product with alcohol, benzine, thinner, or other such solvents. Doing so may
damage or break the parts made of plastic and rubber.
• Rubbing the LCD screen with too much force using a dry cloth may scratch the surface.
22
Chapter 4 Application Development Information
Application Development Information
This chapter explains how to control the customer display as well as necessary information for developing system applications using this product.
Controlling the Customer display
This product supports the following control commands.
• ePOS-Print XML (Only when connected to a TM printer that supports ePOS-Print)
• ESC/POS
Users can control the customer display by using the aforementioned commands, or the following development
kits or drivers.
• Epson ePOS SDK
• EPSON OPOS ADK
• EPSON OPOS ADK for .NET
• EPSON JavaPOS ADK
• EPSON Advanced Printer Driver Ver.5 (APD5)
ePOS-Print XML
ePOS-Print XML is the Epson original control command system for POS printers and customer displays.
By sending an XML-format request message via HTTP transmission to a TM printer that supports ePOS-Print,
you can control the customer display connected to the printer. For details about ePOS-Print XML, see the
ePOS-Print XML User's Manual.
Control via ePOS-Print XML is possible only when connected to a TM printer that supports ePOSPrint.
For the supported printers, see
"Connectable TM Printers" on page 9.
ESC/POS
ESC/POS is the Epson original printer command system for POS printers and customer display. With ESC/POS
commands, you can directly control all the this product functions, but detailed knowledge of printer specifications or combination of commands is required, compared to using drivers and applications.
For details on the ESC/POS commands, see "ESC/POS Command Reference for Customer Displays" by accessing the URL below.
www.epson-biz.com/pos/reference/
4
23
Cautionary Notes on Marquee Display
Due to the nature of the LCD installed, the marquee display (horizontal scroll display) may become difficult to
see when the characters displayed are switched at a short interval.
We recommend using the following method to set the character display switch interval to 600 msec or longer.
• ePOS SDK
Perform settings using the unitWait parameter of addMarguee (for JavaScript) or addMarqueeText (for the others).
For details, see the User's Manual included with SDK.
• ESC/POS Commands
Perform settings using the parameter n of the command US ^.
For details, see "ESC/POS Command Reference for Customer Displays."
• OPOS ADK
Perform settings using the MarqueeUnitWait property.
For details, see the Application Development Guide included with ADK.
24
Chapter 4 Application Development Information
Software
The following software are provided for application development.
Development Kits
Software Description
Epson ePOS SDK Development kit for controlling the POS peripheral devices such as the printer and
for iOS
for Android
for Universal Windows apps
for JavaScript
TM
customer display from the Web application or native application for smart devices.
It includes libraries, manuals, and sample programs.
EPSON OPOS ADK OCX driver that controls the POS peripheral devices such as the customer display
using the OLE technologies
Because controlling POS peripherals with original commands is not required on the
application side, efficient system development is possible.
EPSON OPOS ADK
for .NET
EPSON JavaPOS ADK JavaPOS ADK is a UPOS driver in Java environment. You can develop applications
∗ OLE technology developed by Microsoft divides software into part blocks.
Development kits are supported only when connected to a TM printer that supports ePOS-Print.
For the supported printers, see
The OPOS ADK for .NET is a POS industry standard printer driver compatible with
Microsoft POS for .NET.
It allows you to develop applications that are compatible with the UPOS (Unified
POS) specification.
When developing applications, use a separate development environment such as
Microsoft Visual Studio .NET.
based on the UPOS (UnifiedPOS) specifications.
"Connectable TM Printers" on page 9
*
.
Drivers
Software Description
Operating
environment
4
EPSON Advanced Printer Driver
Ver.5 (APD5)
TM Virtual Port Driver Connect the USB directly to the PC, and use this when con-
Windows printer driver that can display on the customer display. You cannot send ESC/POS commands to the customer display or monitor the status.
trolling using ESC/POS commands.
This driver allows you to recognize customer displays connected by USB as a virtual serial port.
Windows
Windows
25
Manuals
Software Description
Each TM printer's Technical Reference Guide
ePOS-Print XML Use’s Manual Describes ePOS-Print XML statements. This manual comes with sample programs.
TM printer's Technical Reference Guide explains about the necessary information for
developing, designing, installing the POS system using the TM printers, or for developing and designing the printer applications.
Download
You can obtain software and manuals from one of the following URLs.
For customers in North America, go to the following web site and follow the on-screen instructions.
www.epson.com/support/
For customers in other countries, go to the following web site:
www.epson-biz.com/
26
Appendix
Product Specifications
Display type STN LCD (160 x 32 dots)
Number of characters displayed 40 characters (20 columns x 2 rows)
Display color White/Blue
Appendix
Brightness 100 cd/m
Character classes Alphanumeric: 95 characters (8 x 16 dots)
International characters: 18 sets (8 x 16 dots)
Graphic characters: 128 characters x 41 pages
Character size 4.1 x 8.3 mm {0.16 x 0.33"} (W x H, alphanumeric)
Character pitch 4.7 mm {0.19"}
Interface USB USB 2.0 High/Full speed
Reliability Lifespan 50,000 hours
Input voltage DC 4.75 to 5.25 V (Operates with USB bus power)
Current consumption 0.2 A (Wireless LAN unit not connected)
0.7 A (Wireless LAN unit connected)
Angle of the Display Unit 0 - 35°
Power supply USB bus power
2
Environmental Conditions
Item Specification
Temperature Operating: 5 to 45 °C {41 to 113 °F}
Storage: -10 to 50 °C {14 to 122 °F}
Humidity Operating: 10 to 90 % (non-condensing)
Storage: 10 to 90 % (non-condensing)
27
External Dimensions and Mass
[Unit: mm]
Item Specification
Width 130 mm (5.12 inches)
Depth 100 mm (3.94 inches)
Height 68 mm (2.68 inches)
Mass approximately 0.26 kg (0.57 lb)
∗ When the angle of display unit is 0 degree.
102
130
100
68
28
Character Code Tables
Refer to the following URL regarding the Character Code Tables for Customer Displays.
www.epson-biz.com/pos/reference/charcode_dm_d_en/
Appendix
29
30
Loading...
