ChromaBlast

Getting Started Guide

For EPSON Stylus

C88/C88+/D88+

Revision 11/2006

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 /C88 +

ChromaBlastTM

Getting Started Guide

for the

EPSON Stylus® C88/C88+/D88+

ChromaBlast ColorSure™ are trademarks of Sawgrass Technologies, Inc.

Other trademarks and registered trademarks are the property of their respective owners.

No part of this manual may be reproduced or transmitted in any form by any means without the prior written consent of Sawgrass Technologies, Inc. Information in this manual is subject to change without notice and does not represent a commitment on the part of Sawgrass Technologies, Inc.

, ChromaBlast™ inks, ChromaBlast Driver™, and

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 & C88 +

IMPORTANT – READ CAREFULLY:

This product is for commercial use only.

This Process License Agreement ("PLA") is a legal agreement between you and Sawgrass Technologies, Inc. ("Sawgrass"). By installing the ChromaBlast™ cartridge in your printer, or otherwise using the Sawgrass ChromaBlast If you do not agree to the terms of this PLA, Sawgrass is unwilling to license the process of using the ChromaBlast™ ink to you. In such event, you may not use the ChromaBlast

™

ink, you agree to be bound by the terms of this PLA.

™

ink, and you

should promptly contact your supplier for instructions on return of the unopened package. The process of using ChromaBlast

provide a complete list of the relevant patents upon request. The use of the ChromaBlast

™

ink is protected by U.S. and foreign patents. Sawgrass will

™

ink to

practice the patented process is permitted by this license.

1. GRANT OF LICENSE This PLA grants you the following rights: You may install and use the ChromaBlast practice the printing process described in U.S. Patent No. 6,341,856 (“Sawgrass Process”). The use of any ink, dye or pigment to practice the Sawgrass Process, other than a ChromaBlast

™

ink packaged herewith in your EPSON printer to

™

ink purchased from Sawgrass or its authorized distributor accompanied by a PLA, is not a licensed use of the Sawgrass Process. No rights to use the Sawgrass Process, except those specified herein, are granted, and no rights to use any other process, product, software or hardware developed or sold by Sawgrass are granted or implied hereby.

2. LIMITATIONS ON REVERSE ENGINEERING You agree that you will not attempt to reverse engineer, reproduce or deformulate the ChromaBlast

™

ink.

3. PATENTS AND COPYRIGHTS Sawgrass owns multiple U.S. and foreign patents which may apply to the Sawgrass Process and/or the use of ChromaBlast

™

ink. All patents in and to the method of using ChromaBlast™ ink are owned by Sawgrass Technologies, Inc. You may not copy the printed materials accompanying the ChromaBlast™ ink. All rights not specifically granted under this PLA are reserved by Sawgrass Technologies, Inc.

Sawgrass agrees to replace any defective product, or to refund the purchase price, within a reasonable time, which shall be Sawgrass' sole responsibility for errors or defects in the goods. THERE ARE N O OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SAWGRASS SHALL NOT BE LIABLE FOR LOSS OF PROFIT OR OTHER ECONOMIC LOSS, OR FOR INDIRECT, SPECIAL, CONSEQUENTIAL OR OTHER SIMILAR DAMAGES.

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 /C88 +

IMPORTANT – READ CAREFULLY:

This product is for commercial use only.

This Process License Agreement ("PLA") is a legal agreement between you and Sawgrass Technologies, Inc. ("Sawgrass"). By installing the ChromaBlast™ media in your printer, or otherwise using the Sawgrass ChromaBlast™ media, you agree to be bound by the terms of this PLA. If you do not agree to the terms of this PLA, Sawgrass is unwilling to license the process of using the ChromaBlast™ media to you. In such event, you may not use the ChromaBlast™ media, and you should promptly contact your supplier for instructions on return of the unopened package.

The process of using ChromaBlast™ media is protected by U.S. and foreign patents. Sawgrass will provide a complete list of the relevant patents upon request. The use of the ChromaBlast™ media to practice the patented process is permitted by this license.

1. GRANT OF LICENSE This PLA grants you the following rights: You may use the ChromaBlast™ media packaged herewith with your ChromaBlast™ ink in your Epson printer to practice the printing process described in U.S. Patent No. 6,341,856 (“Sawgrass Process”). The use of any ink, dye or pigment and media combination to practice the Sawgrass Process, other than ChromaBlast™ ink and ChromaBlast™ media purchased from Sawgrass or its authorized distributor accompanied by a PLA, is not a licensed use of the Sawgrass Process. No rights to use the Sawgrass Process, except those specified herein, are granted, and no rights to use any other process, product, software or hardware developed or sold by Sawgrass are granted or implied hereby.

2. LIMITATIONS ON REVERSE ENGINEERING You agree that you will not attempt to reverse engineer, reproduce or deformulate the ChromaBlast™ media or ink.

3. PATENTS AND COPYRIGHTS Sawgrass owns multiple U.S. and foreign patents which may apply to the Sawgrass Transfer Media Process and/or the use of ChromaBlast™ media. All patents in and to the method of using ChromaBlast™ media are owned by Sawgrass Technologies, Inc. You may not copy the printed materials accompanying the ChromaBlast™ media. All rights not specifically granted under this PLA are reserved by Sawgrass Technologies, Inc.

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 & C88 +

END-USER LICENSE AGREEMENT FOR SAWGRASS SOFTWARE- ChromaBlast Driver™

IMPORTANT-READ CAREFULLY: This Sawgrass Technologies Inc. End-User License Agreement ("EULA") is a legal agreement between you (either an individual or a single entity) and Sawgrass Technologies, Inc for the Sawgrass software product identified above, which includes computer software and may include associated media, printed materials, and "online" or electronic documentation ("SOFTWARE PRODUCT"). By installing, copying, or otherwise using the SOFTWARE PRODUCT, you agree to be bound by the terms of this EULA. If you do not agree to the terms of this EULA, do not install or use the SOFTWARE PRODUCT.

Software PRODUCT LICENSE Copyright laws and international copyright treaties, as well as other intellectual property laws and treaties protect the SOFTWARE PRODUCT. The SOFTWARE PRODUCT is licensed, not sold. The title to, and ownership of, this SOFTWARE PRODUCT remains with Sawgrass Technologies, Inc. (Sawgrass).

GRANT OF LICENSE. This EULA grants you the following rights:

• This license is provided to you for your use according to the terms hereof. You may install and use the SOFTWARE PRODUCT packaged herewith to practice the printing process described in U.S. Patent No. 6,341,856 (the "Sawgrass Proce ss"). The use of any ink, dye or p igment to practice the Sawg rass Process, other than a ChromaBlast™ ink which is purchase d from Saw grass or its au thorize d distr ibutor, is not a lic ensed use of the SOFTWARE PRODUCT. You agree n ot to use the SOFTWA RE PRODUCT fo r any other p urpose

COPYRIGHT. All title and copyrights in and to the SOFTWARE PRODUCT (including but not limited to any images, photographs, animations, video, audio, music, text, and "applets" incorporated into the SOFTWARE PRODUCT), the accompanying printed materials, and any copies of the SOFTWARE PRODUCT are owned by Sawgrass Technologies Inc. or its suppliers. Copyright laws and international treaty provisions protect the SOFTWARE PRODUCT. Therefore, you must treat the SOFTWARE PRODUCT like any other copyrighted material, except that you may install the

or in any process except as expressl y perm itted he reby.

• Not for Resale. You may not sell, or otherwise transfer for value, the SOFTWARE PRODUCT.

• No Reverse Engineering, Decompilation, Copying or Disassembly. You may not reverse engineer,

decompile, copy or disassemble the SOFTWARE PRODUCT.

• No Rental. You may not rent, lease, or lend the SOFTWARE PRODUCT.

• Support Services. Sawgrass Technologies, Inc. may provide you with support services related to the

SOFTWARE PRODUCT ("Support Services"). Use of Support Services is governed by the Sawgrass policies and programs described in the user manual, in "online" documentation, and/or in other Sawgrassprovided materials. Any supplemental software code provided to you as part of the Support Services shall be considered part of the SOFTWARE PRODUCT and subject to the terms and conditions of this EULA. With respect to technical information you provide to Sawgrass as part of the Support Services, Sawgrass may use such information for its business purposes, including for product support and development. Sawgrass will not utilize such technical information in a form that personally identifies you.

• No Assignment or Sublicense. You may not assign or sublicense the rights granted hereby.

• Termination. Without prejudice to any other rights, Sawgrass may terminate this EULA if you fail to

comply with the terms and conditions of this EULA. In the event of termination, you must destroy all copies of the SOFTWARE PRODUCT and all of its component parts.

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 /C88 +

SOFTWARE PRODUCT on a computer for the uses permitted hereby. You may not copy the printed materials accompanying the SOFTWARE PRODUCT. You may not loan, rent, lease, or otherwise transfer the other medium to another user, except as part of the permanent transfer (as provided above) of the SOFTWARE PRODUCT.

U.S. GOVERNMENT RESTRICTED RIGHTS. The SOFTWARE PRODUCT and documentation are provided with RESTRICTED RIGHTS. Use, duplication, or disclosure by the Government is subject to restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013 or subparagraphs (c)(1) and (2) of the Commercial Computer Software-Restricted Rights at 48 CFR 52.227-19, as applicable.

MISCELLANEOUS a. If you acquired this product in the United States, this EULA is governed by the laws of the State of South Carolina. In the event of any dispute arising under this license or from the use of the SOFTWARE PRODUCT, each party irrevocably agrees to the jurisdiction of the United States District Court for the District of South Carolina, Charleston Division. b. If you acquired this product in Canada, this EULA is governed by the laws of the Province of Ontario, Canada. In the event of any dispute arising under this license or from the use of the SOFTWARE PRODUCT, each party irrevocably agrees to the jurisdiction of the courts of the Province of Ontario and further agrees to commence any litigation which may arise hereunder in the courts located in the Judicial District of York, Province of Ontario. c. If this product was acquired outside the United States, then local law may apply.

LIMITED WARRANTY. Sawgrass warrants that (a) the SOFTWARE PRODUCT will perform substantially in accordance with the accompanying written materials for a period of thirty (30) days from the date of receipt, and (b) any Support Services provided by Sawgrass shall be substantially as described in applicable written materials provided to you by Sawgrass, and Sawgrass support engineers will make commercially reasonable efforts to solve any problem issues. Some states and jurisdictions do not allow limitations on duration of an implied warranty, so the above limitation may not apply to you. To the extent allowed by applicable law, implied warranties on the SOFTWARE PRODUCT, if any, are limited to thirty (30) days.

CUSTOMER REMEDIES. Sawgrass' and its suppliers' entire liability and your exclusive remedy shall be, at Sawgrass' option, either (a) return of the price paid, if any, or (b) repair or replacement of the SOFTWARE PRODUCT that does not meet Sawgrass' Limited Warranty and which is returned to Sawgrass with a copy of your receipt. This Limited Warranty is void if failure of the SOFTWARE PRODUCT has resulted from accident, abuse, or misapplication. Any replacement SOFTWARE PRODUCT will be warranted for the remainder of the original warranty period or thirty (30) days, whichever is longer. Outside the United States, neither these remedies nor any product support services offered by Sawgrass are available without proof of purchase from an authorized international source.

NO OTHER WARRANTIES. To the maximum extent permitted by applicable law, Sawgrass and its suppliers disclaim all other warranties and conditions, either express or implied, including, but not limited to, implied warranties of merchantability, fitness for a particular purpose, title, and non-infringement, with regard to the SOFTWARE PRODUCT, and the provision of or failure to provide Support Services. This limited warranty gives you specific legal rights. You may have others, which vary from state/jurisdiction to state/jurisdiction.

LIMITATION OF LIABILITY. To the maximum extent permitted by applicable law, in no event shall Sawgrass or its suppliers be liable for any special, incidental, indirect, or consequential damages whatsoever (including, without limitation, damages for loss of business profits, business interruption, loss of business information, or any other pecuniary loss) arising out of the use of or inability to use the SOFTWARE PRODUCT or the provision of or failure to provide Support Services, even if Sawgrass has been advised of the possibility of such damages. In any case, Sawgrass' entire liability under any provision of this EULA shall be limited to U.S. $5.00. Because some states and jurisdictions do not allow the exclusion or limitation of liability, the above limitation may not apply to you.

ChromaBlast™ ink, ChromaBlast™ media, ChromaBlast Driver™, Quick Connect II™, and Color Sure™

are trademarks of Sawgrass Technologies, Inc.

General Notice: Other product names used herein are for identification purposes only and may be

trademarks of their respective owners. Sawgrass Technologies, Inc. disclaims any and all rights in

those marks.

Sawgrass Technologies, Inc. ChromaBlast

Sawgrass Technologies, Inc. Limited Warranty

– QuickConnect II

™

Getting Started Guide for the EPSON Stylus C88 & C88 +

System

What Is Covered:

Defects in materials or workmanship.

Length of Warranty Coverage: The warranty coverage for the QuickConnect is one year from date of purchase. Any QuickConnect not purchased from Authorized Sawgrass

Resellers is not covered.

How to get service:

Please contact Sawgrass Technologies Technical Support at 843-8841575 or an Authorized Sawgrass Reseller. A technical support representative will troubleshoot the issue and provide instructions on how to get a replacement if necessary.

Wha t we wil l do:

Provide you with a new, or at our option, a refurbished QuickConnect unit. Alternatively, at our option, we may refund the purchase price. The exchange is under warranty for the remainder of the original products’ warranty period or 90 days, whichever is longer. The replacement will be shipped to you via Ground shipment. Any rush shipments will be freight prepaid.

What your warranty does not cover:

Damage from misuse or neglect. Damage caused by use outside of Sawgrass Technologies recommendations.

Limitations of Warranty

THERE ARE NO OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR ANY IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE. SAWGRASS SHALL NOT BE LIABLE FOR LOSS OF PROFIT OR OTHER ECONOMIC LOSS, OR FOR INDIRECT, SPECIAL, CONSEQUENTIAL, OR OTHER SIMILAR DAMAGES.

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 /C88 +

Table of Contents

Introduction ........................................................................................................ 8

About this Document......................................................................................... 9

™

Installing ChromaBlast

Replacing an Empty Cartridge........................................................................ 13

Quick Connect II™ Set-up for the C88/C88+/D88+ ........................................ 15

Printer Set-up for the C88/C88+/D88+............................................................. 17

Printing and Heat Transfer Instructions......................................................... 22

ChromaBlast Driver™ Introduction ................................................................ 25

System Requirements...................................................................................... 25

Setup Instructions – Windows 2000 and XP .................................................. 26

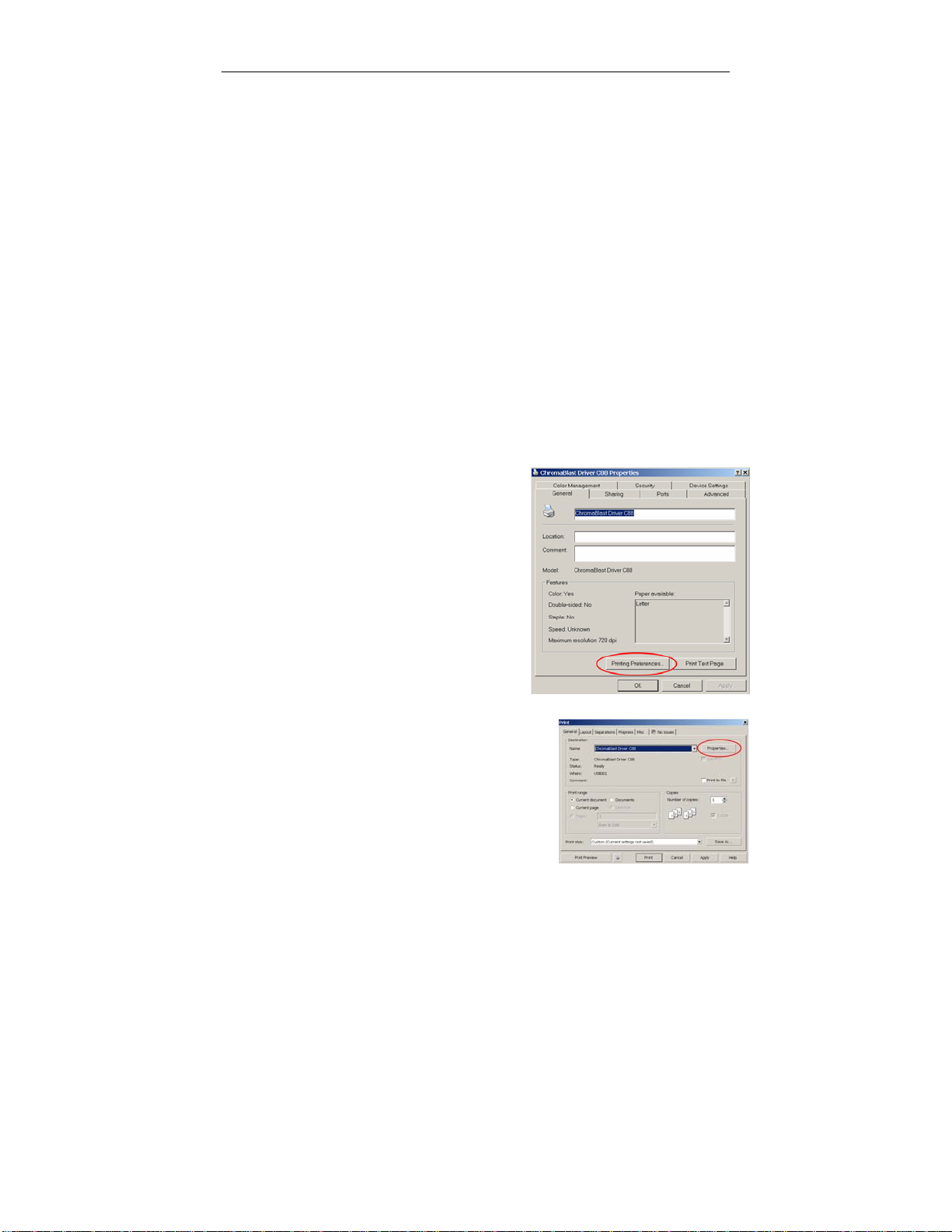

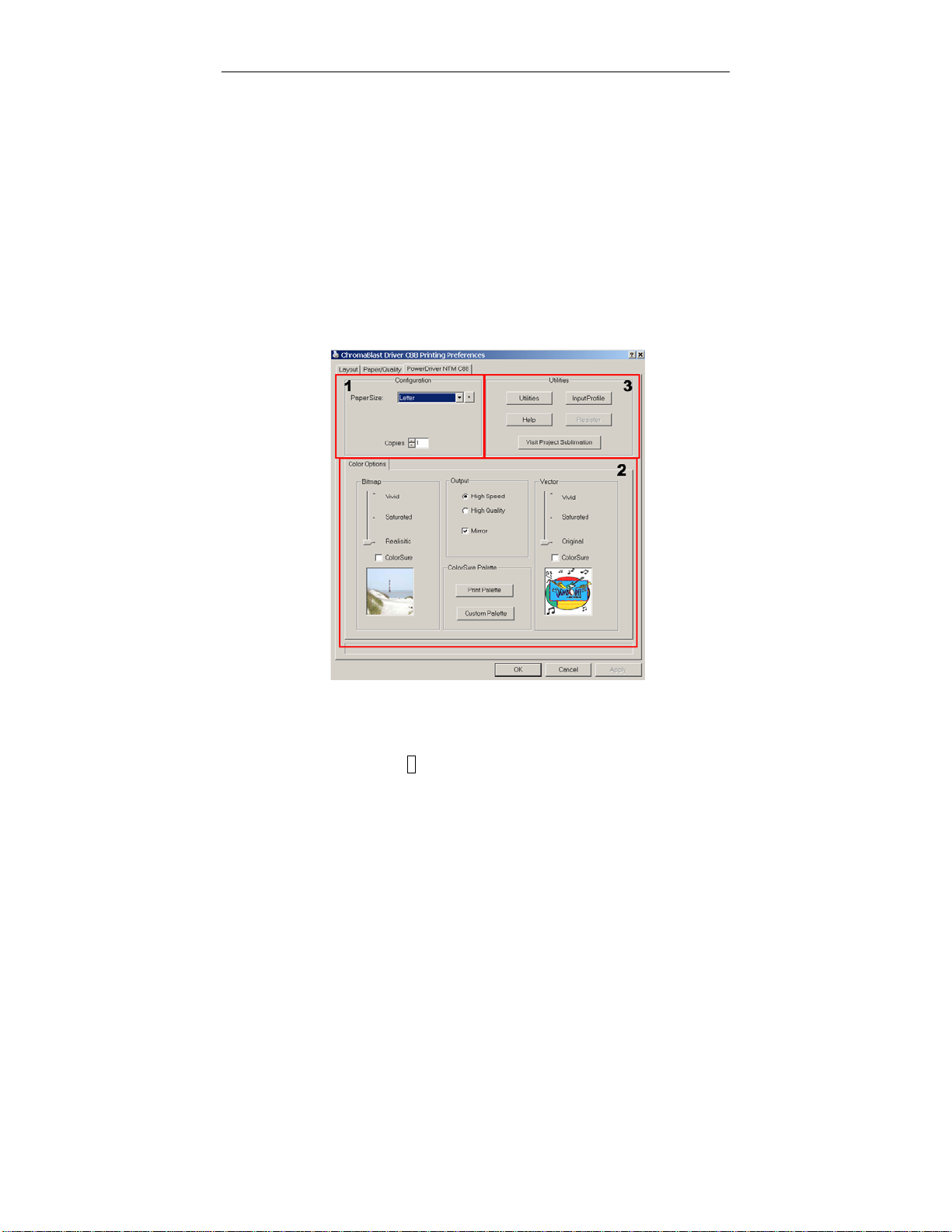

Using ChromaBlast Driver™ in Windows 2000 / XP...................................... 31

Appendix A: Network Printing in Windows 2000, XP.................................... 36

Cartridges............................................................... 10

Host Machine (Server)...................................................................................... 36

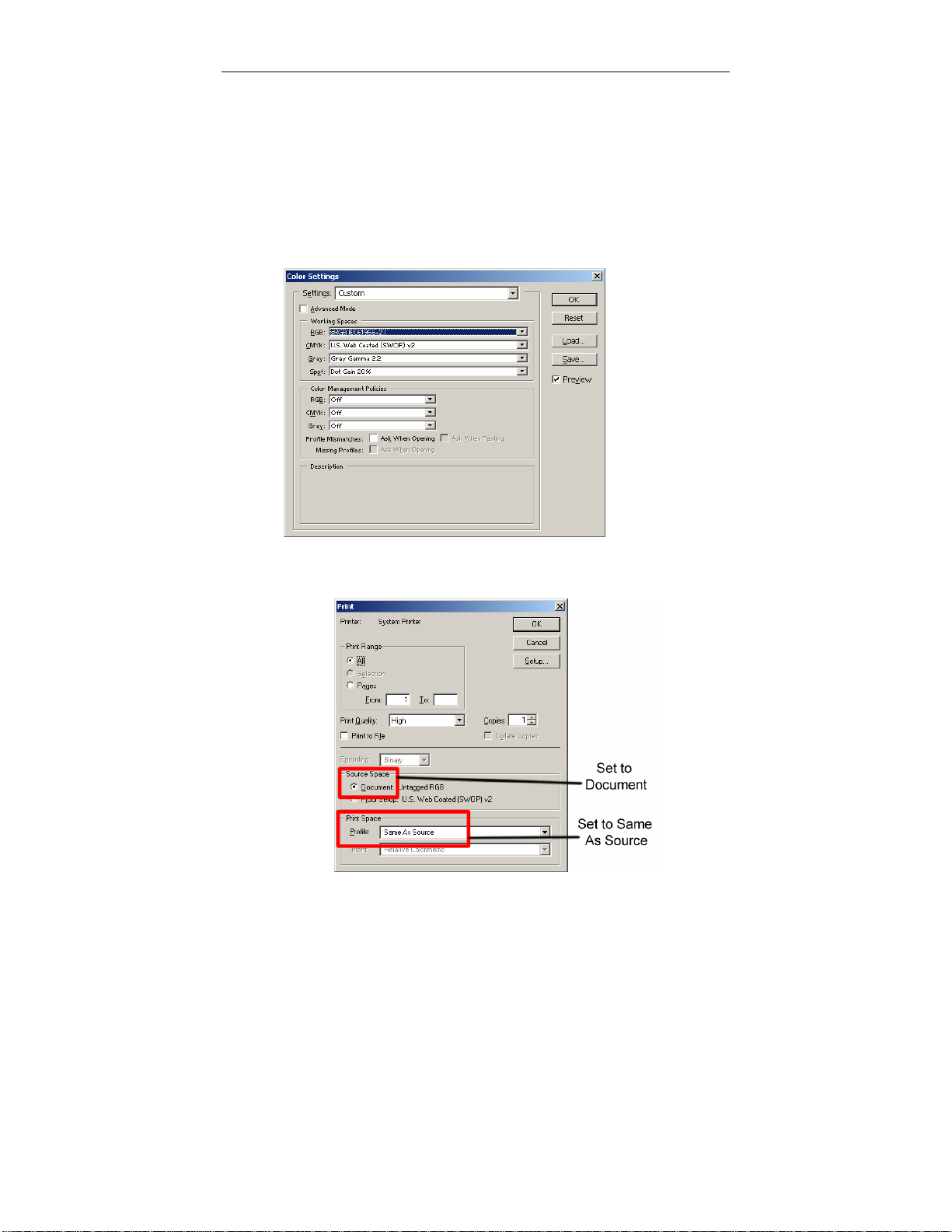

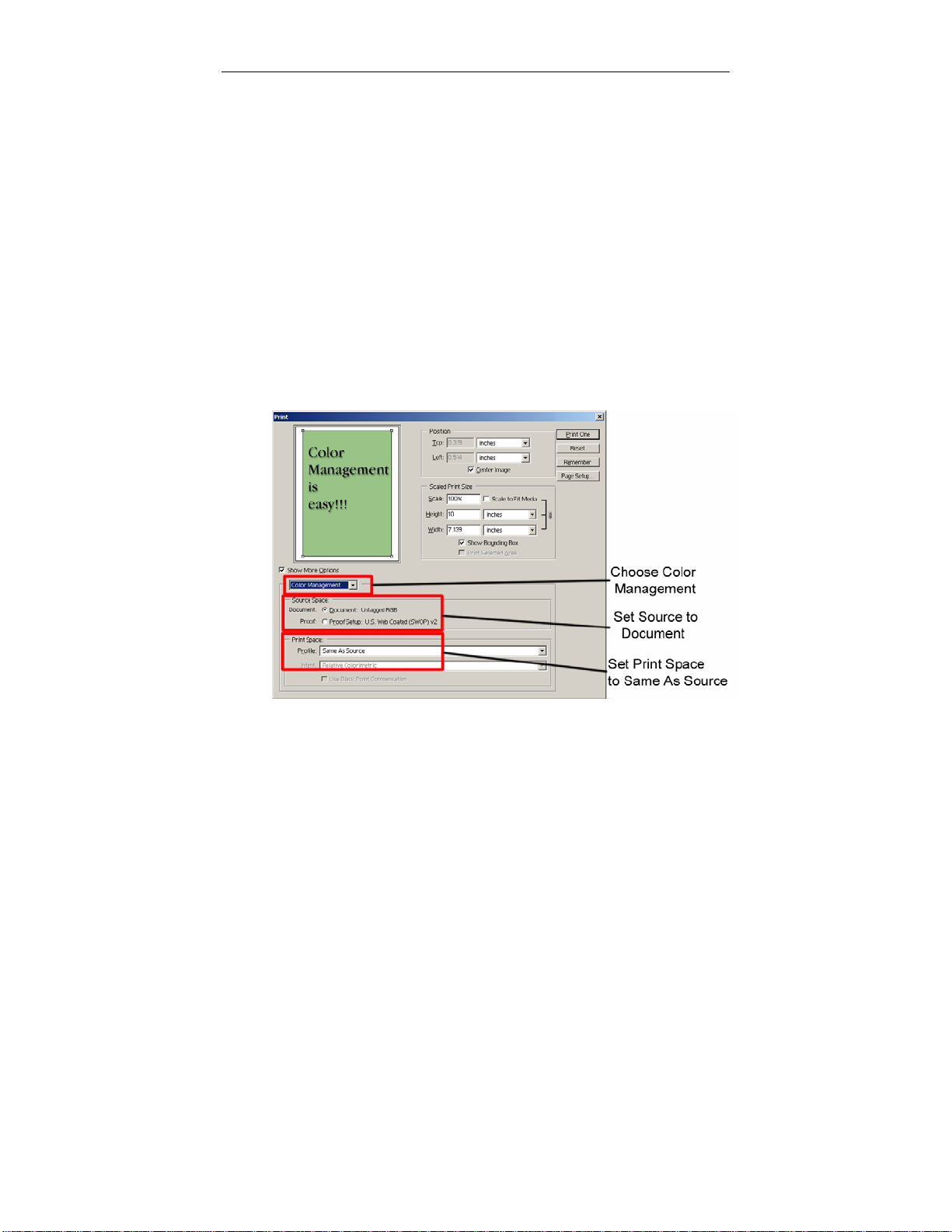

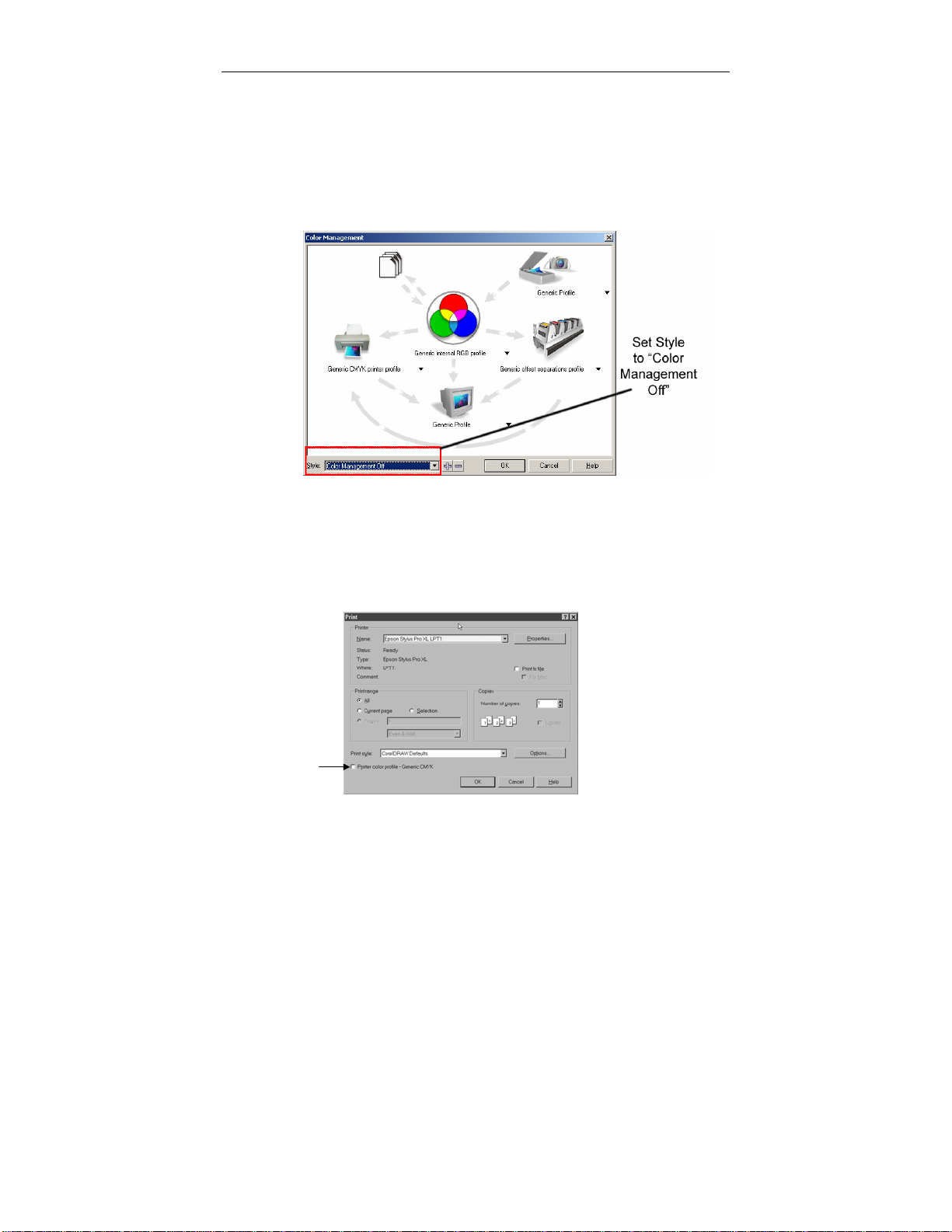

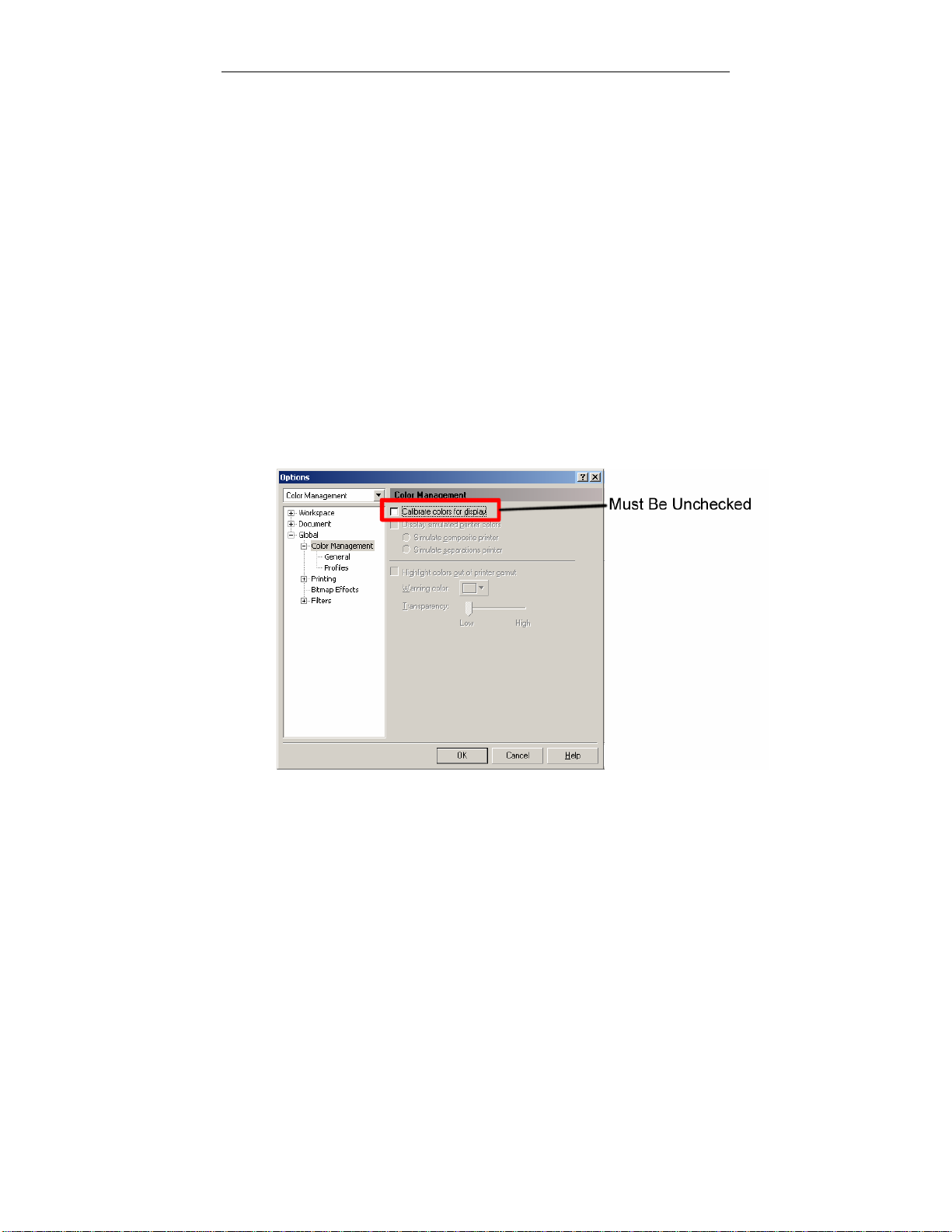

Appendix B: Defeating Application Color Management ............................... 37

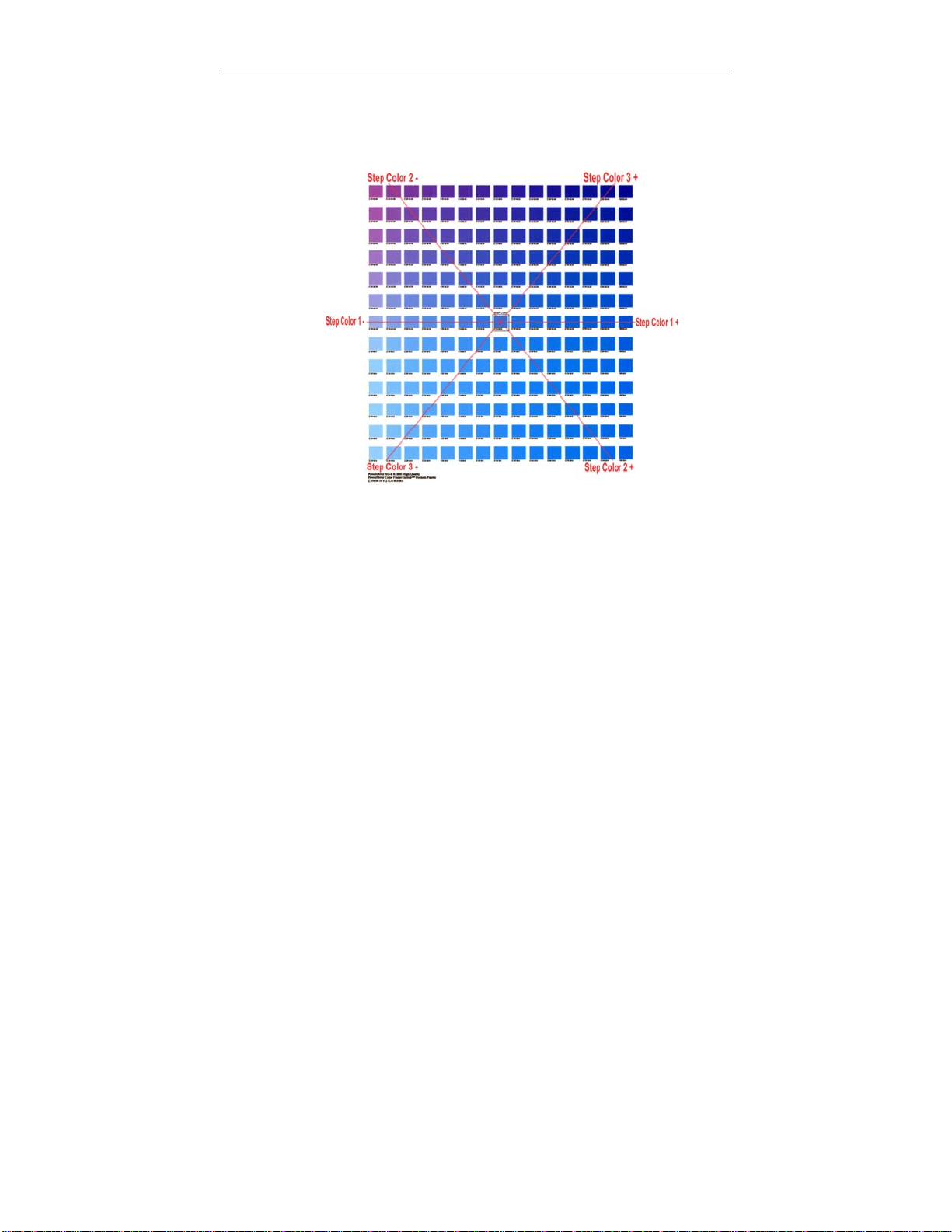

Appendix C: Using ColorSure™ and Custom Palette................................... 42

Supplies & Equipment..................................................................................... 50

Operating Conditions....................................................................................... 50

Ink Storage........................................................................................................ 50

Media Storage................................................................................................... 50

Troubleshooting............................................................................................... 51

Technical Support............................................................................................ 54

Project Sublimation.......................................................................................... 54

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 & C88 +

Introduction

Welcome to Sawgrass Technologies, Inc. and ChromaBlast™. We are excited to offer a total cotton solution for your business. We look forward to working with you and a continued partnership in digital imaging.

The ChromaBlast™ Getting Started Guide contains information for using ChromaBlast™ inks and ChromaBlast media, along with helpful tips for getting the best printing results possible. The information provided pertains only to the use of ChromaBlast™ inks in your printer.

ChromaBlast Driver is included with the ChromaBlast™ system. Developed by Sawgrass Technologies, the ChromaBlast Driver™ is user-friendly soft ware that enables you to maximize output quality and quantity. Please refer to the detailed instructions provided in this manual or on your ChromaBlast Driver™ CD to customize each print.

Technical support is available from your Authorized ChromaBlast™ reseller or directly from Sawgrass Technologies, Inc. See the section entitled Technical Support for additional information. Please feel free to contact us with your feedback about our products. For additional information on ChromaBlast™inks, ChromaBlast™ media, or our other products, visit our web site at

www.sawgrassink.com. Thank you and enjoy ChromaBlast™.

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 /C88 +

About this Document

This document contains descriptions and procedures for using ChromaBlast™ inks, along with additional information on setting up your EPSON Stylus C88/C88+/D88+ printer and for getting the best results from use of this system.

The documentation provided pertains only to the use of ChromaBlast inks in your EPSON Stylus C88/C88+/D88+ ink jet printer. To assist you in the overall setup process, references are made back to the EPSON Stylus C88/C88+/D88+ Printer Basics Guide for instructions.

To help point out important information, specific instructions, and helpful tips look for the following symbols:

™

Indicates Must-Do items, including warnings and important guidelines. These must be followed to prevent damage to

our printer.

Indicates useful tips for printing and sublimation.

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 & C88 +

Installing ChromaBlast

1. Ensure the printer power is on and that the green light is not blinking.

2. Open the printer cover and lower the output tray.

™

Cartridges

3. Press the Ink Button for one second to move the cartridge holder into the change cartridge position.

Ink Button

Paper Feed

Button

Powe

Do not hold the Ink Button for more than 2 seconds or the printer will clean the print head.

Sawgrass Technologies, Inc. ChromaBlast

4. Open the cartridge cover.

™

Getting Started Guide for the EPSON Stylus C88 /C88 +

5. Squeeze the tab at the back of the Epson cartridge as you lift it out of the printer. Remove all Epson cartridges from the cartridge holder.

6. Insert the ChromaBlast they are firmly seated.

™

cartridges into the cartridge holder, ensuring

Sawgrass Technologies, Inc. ChromaBlast

7. When the ChromaBlast cover.

8. Close the printer cover and press the ink button for one second. The printer will move the print head to the parked position and charge the ink delivery system with the ChromaBlast

™

cartridges are in place, close the cartridge

™

Getting Started Guide for the EPSON Stylus C88 & C88 +

™

inks.

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 /C88 +

Replacing an Empty Cartridge

When a cartridge is low on ink the Ink Button on the printer will blink. If the cartridge is empty, the light will become solid. Both are indications of a cartridge change.

To change a cartridge when the ink light is blinking or solid:

1. Determine which cartridge needs to be changed by pressing the Ink button for 1 second. The ink carriage will move to the far left in the machine and will stop beneath the mark on the printer.

2. Press the ink button again.  If more than one ink cartridge is empty, the next cartridge will

move beneath the mark on the printer.

 Press the ink button until all empty cartridges have been

confirmed and the cartridge holder moves into the change cartridge position.

3. Open the cartridge

cover.

R1800

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 & C88 +

4. Squeeze the tab at the back of the empty cartridge as you lift if from

the printer.

5. Insert the new cartridge into the cartridge holder, ensuring that it is

firmly seated. Repeat steps 4-6 for each empty cartridge.

6. Close the cartridge cover.

7. Close the printer cover and press

the ink button for one second to return the cartridges to their parked position and to charge the ink delivery system with the new ink.

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 /C88 +

Quick Connect II™ Set-up for the C88/C88+/D88+

1. Check to ensure that you have all of the components necessary to

setup your Quick Connect II™ system.

Components

1. Ink Cartridge + tubes

2. 1 x Long Tube Grip

3. 1 x Short Tube Grip

4. 4 x Ink Bags

5. Small primer bottle

6. Ink Box

7. Chips

8. Foam Block

9. Power Driver CD (Not Shown)

10. Printe

2. Place the Quick Connect II box on a level surface next to where your printer is going to be placed. It should be on the left hand side of your printer with the clamps facing towards the front.

3. Remove the lid from the box and place it to the side.

4. Clamp the tubes at the end of each line before you clip on each bag to prevent ink from entering them. Insert the ink bags into the ink box by clipping them into the connectors inside each chamber. All chambers are labeled with the corresponding color for each ink bag.

Your ink bags should never be elevated above the print head. Keeping the bags beside the printer at the same level assures the ink delivery system will operate properly.

Sawgrass Technologies, Inc. ChromaBlast

5. Once all ink bags are connected inside your Quick Connect II™ ink box, you will need to obtain the small primer bottle to prime each line.

6. Take the cartridge in one hand and the priming bottle in the other. Squeeze the priming bottle to release all of the air and insert it into the bottom of the cartridge to pull ink through the line until a small amount of it reaches the reservoir.

7. Once ink is in the reservoir, pinch together the clamp that’s connected to the tube on the outside of the box. This will ensure that no more ink will pull into the reservoir until you are ready for it.

8. Repeat Steps 6 & 7 for each cartridge.

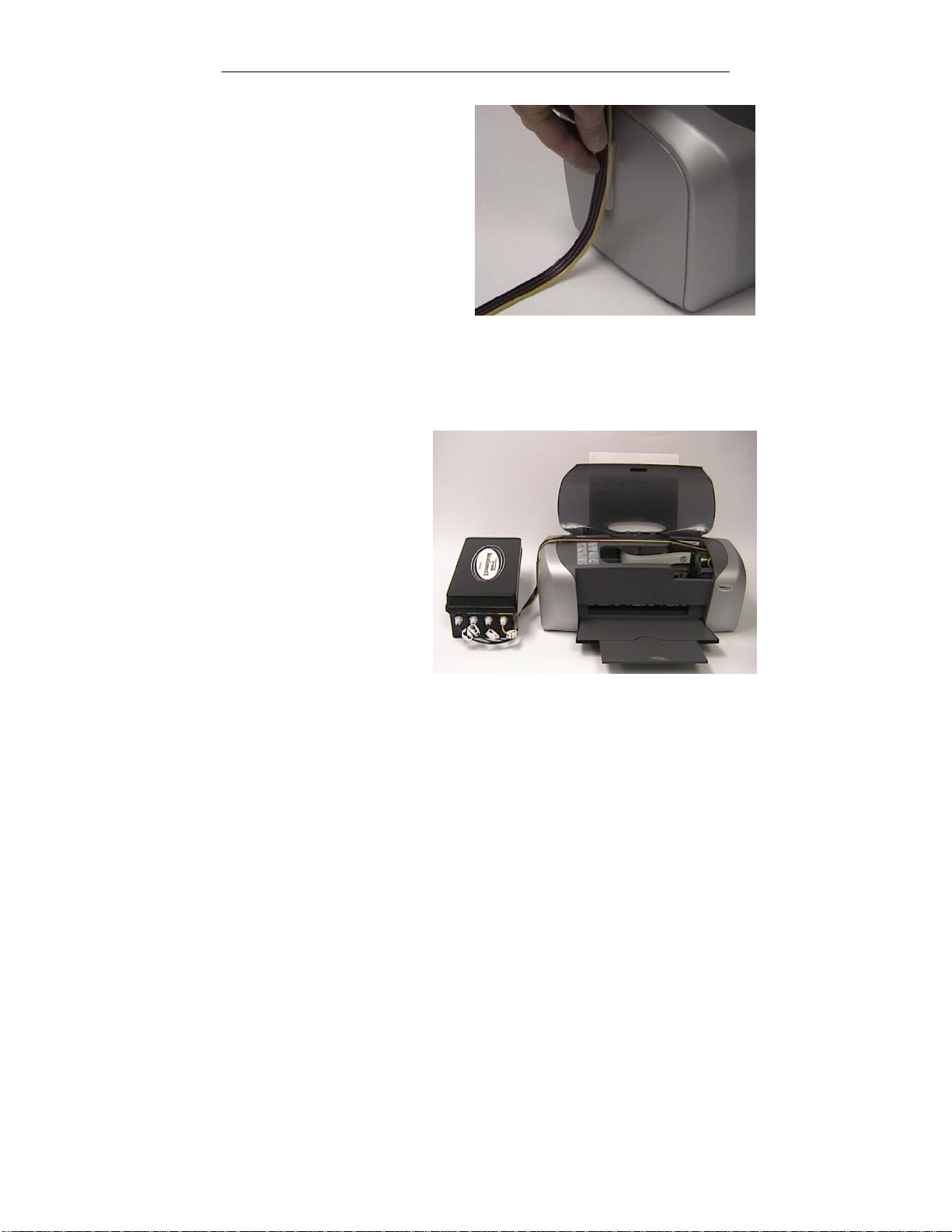

9. Place the lid back onto the Quick Connect II™ ink box and gently place the cartridges on top of the box while you are completing the printer setup.

Remember to match the

corresponding cartridge

chamber. Once the tube is

filled, there is no way to

™

Getting Started Guide for the EPSON Stylus C88 & C88 +

right color ink to its

undo it!

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 /C88 +

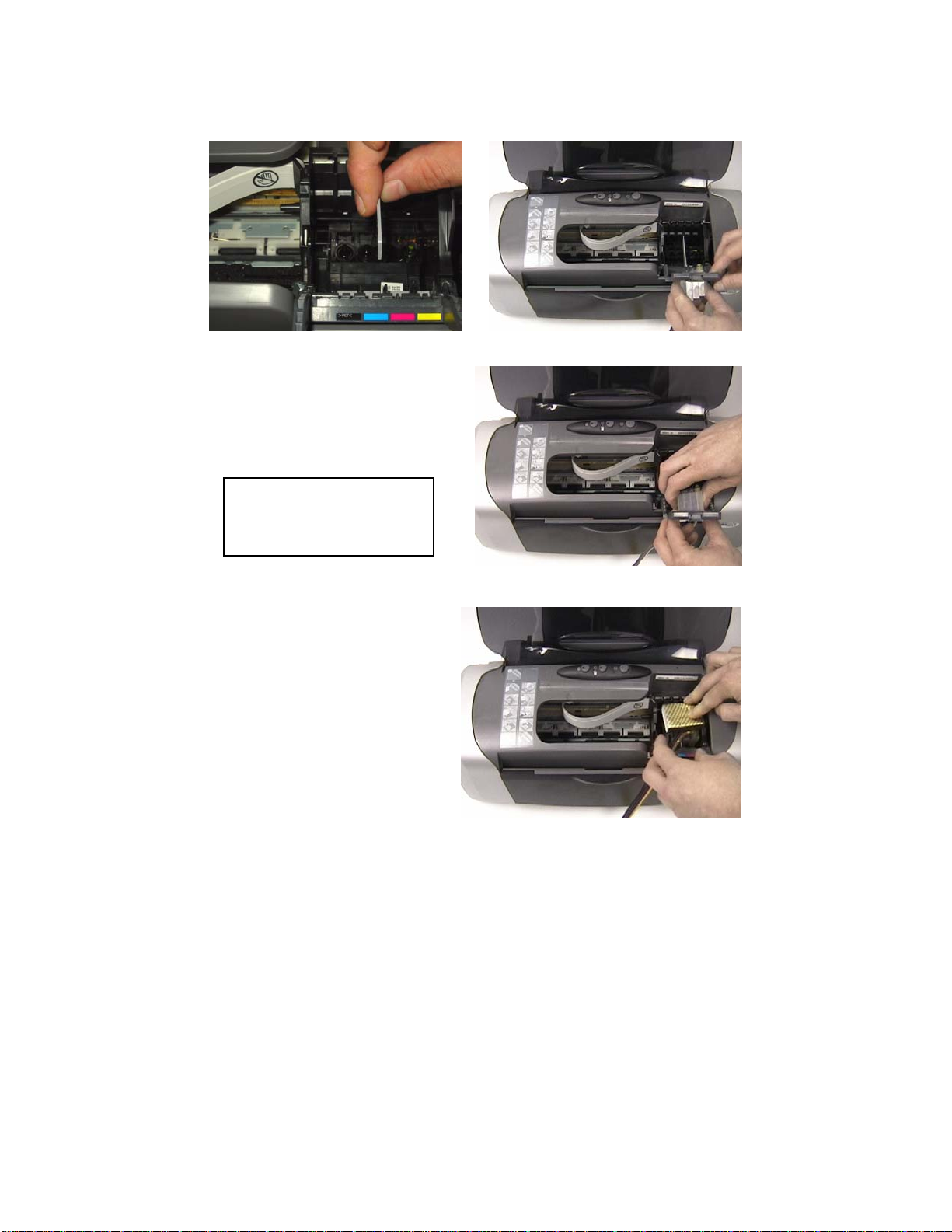

Printer Set-up for the C88/C88+/D88+

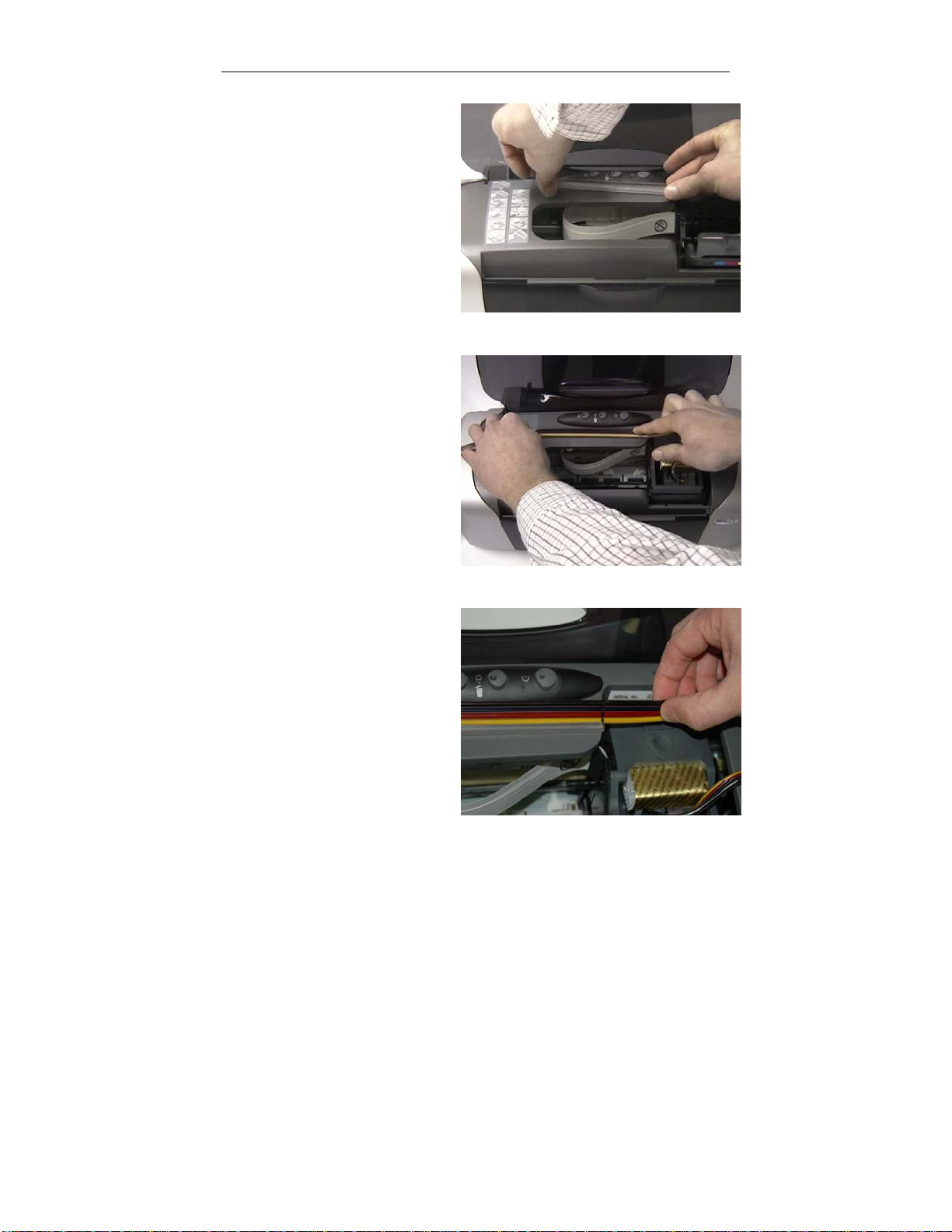

1. Turn the printer on, lift the lid, and press the ink button 6.

2. The cartridge bay will shift into the remove position. Lift the bay lid and remove any installed cartridges.

3. Install the cartridge chips into the slot on the front of the cartridge bay.

Note: The chip has an up arrow on the back of it showing which way it should go in the printer.

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 & C88 +

4. Insert the plastic cross bar into place by sliding the notched end into the back of the chip holders as shown.

5. Gently slide the cartridges through the hole in the cartridge cover. Start with the black cartridge on the left and attach the cartridges in this order:

(from left to right)

Black, Cyan, Magenta,

and Yellow

6. Obtain the foam block, place it on top of the cartridges, and close the cartridge cover. Be careful not to pinch the tubes when closing the cover.

Sawgrass Technologies, Inc. ChromaBlast

7. Obtain the long tube holder and remove the tabs from the back exposing the adhesive. Place the tube holder in the flat gray area just beneath the buttons on the printer.

8. Slide tubing into the holder for placement.

9. Position the tubing so that the black line on it lines up with the edge of the tube holder. Note: This will leave enough slack so that the cartridge bay can easily slide from one side of the printer to the other without creating tension on the tubes.

™

Getting Started Guide for the EPSON Stylus C88 /C88 +

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 & C88 +

10. Obtain the short tube holder and remove the tabs from the back exposing the adhesive. Attach it to the left hand side of the printer where the tubes hang down to meet the Quick Connect II™ ink box. Slide tubes into the holder for placement.

11. Unclamp the end of each tube so that you are ready for printing.

10. Press the ink button to move the print head back to the ink cartridge parked position.

Congratulations! You’ve successfully installed a C88/C88+/D88+ Quick Connect II ink system and printer.

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 /C88 +

Tips:

 Perform a nozzle check from The

ChromaBlast Driver™. A few cleanings may be necessary to get a good nozzle check.

 Make sure you install ChromaBlast Driver™ from the CD that

came with your Quick Connect II system. Refer to the ChromaBlast Driver™ documentation and video tutorial on how to use it.

 You may want to remove the printer lid or leave it open at all

times.

 You may have a little air in your lines but this will clear after a

few prints.

 If you are going to leave your system without using it for

several days you should clamp your lines with the tube clamps.

 Do not raise the ink box higher than the printer

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 & C88 +

Printing and Heat Transfer Instructions

RECOMMEND APPLICATIONS

White or light colored fabrics in 100% cotton. PRINTING

Print using the supplied ChromaBlast Driver program only. The print side of ChromaBlast media is opposite the ChromaBlast logo.

• For the Epson C88/C88+/D88+, place print side face up in the printer tray.

Mirror Image: Check this box in the ChromaBlast Driver to ensure the image prints in reverse and that text appears correctly when image is transferred. If your image is already reversed in your graphic program, leave this box unchecked.

TRANSFERRING THE IMAGE USING A COMMERCIAL HEAT PRESS

1. If desired, you may trim the non-printed area before transferring, leaving .25 in. margin around the printed area.

2. Place garment on the heat press. Cover with ChromaBlast paper with image face down.

3. Press image according to proper pressure, heat, and time settings.

4. Peel the paper off the shirt while the shirt is still hot using an even motion.

5. Stretch the image area while the shirt is hot from both left to right and top to bottom to reduce the hand.

HEAT PRESS SETTINGS

• Pressure: Heavy. If using a pneumatic press, set the pressure to 60 psi.

• Temperature and Time: 350°F (176°C) for 45-60 seconds Due to variations in cotton garments and in heat presses, time

and temperature can be adjusted for preferred performance up to 400°F for 25 seconds. Some scorching may occur, but will wash out.

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 /C88 +

STORAGE INSTRUCTIONS

Store ChromaBlast media in a cool, dry area within the provided plastic storage bag. Do not remove from carton until ready to use.

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 & C88 +

ChromaBlast Driver™

User Guide

For Epson Stylus® C88/C88+/D88+

For distribution with ChromaBlast™ only

NOT

FOR RESALE

Rev 1.0.0

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 /C88 +

ChromaBlast Driver™ Introduction

Obtaining the benefits of the ChromaBlast Driver™ color management is now incredibly easy - simply print from your application with the ChromaBlast Driver ChromaBlast Driver™ prints your image just like the Epson printer driver except for the colors. Watch how it magically makes ChromaBlast

™

rather than the Epson printer driver. The

™

ink

colors picture perfect! The ChromaBlast Driver™ delivers both convenience and the highest

quality ChromaBlast

™

color management technology. The innovation demonstrated by the ChromaBlast Driver™ is the result of our dedication to you, our customers. At Sawgrass Technologies, we are focused on delivering the highest quality digital transfer technology available. We fully expect that you will be “wowed” by the results you obtain with ChromaBlast

™

ink and the ChromaBlast Driver™.

The ChromaBlast Driver™ runs under Windows 2000/XP.

System Requirements

Minimum Hardware:

Pentium 4 – 2.0GHz or Athlon XP 2000+ Processor 512 MB System Memory

Recommended Hardware:

Pentium 4 – 3.0GHz or Athlon XP 2500+ Processor 1 GB System Memory

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 & C88 +

Setup Instructions – Windows 2000 and XP

Product Overview

The ChromaBlast Driver™ is color management software that has been written as a Windows printer driver. It is designed to work with Epson ink-jet printers and Sawgrass ChromaBlast program will install Sawgrass color management software, the Sawgrass ChromaBlast™ printer driver software, and ColorSure tools and utilities.

™

ink. The installation

Quick Start

1. Unpack and setup printer as described in the Epson manual.

2. Install the Epson printer driver and verify printer operation.

3. Insert the ChromaBlast Driver™ CD into the CDROM drive on the computer and install the ChromaBlast Driver™.

Step By Step Installation

To get started printing as soon as possible, these are the steps Sawgrass recommends you perform while setting up your sublimation printer driver software.

1. Setup the printer according to the Epson instructions.

2. Install the ChromaBlast inks.

3. Install the Epson printer driver. According to the Epson user’s manual.

4. After the Epson driver is installed, check to see which port the printer is set to:

a. In XP you can do this by clicking on Start, Printers and Faxes.

For XP with the Classic menu enabled or Windows 2000, click Start, Settings, Printers.

b. Right click on the Epson printer you just installed and click on

the Properties option.

c. Select the Ports tab and write dow n the port the printer is

assigned to. You will use this later in the ChromaBlast Driver™ software installation.

5. Insert the ChromaBlast Driver™ CD into your CDROM drive. The installation program should run automatically. (If the program does not automatically run, click Start, Run. Browse to your CDROM drive and click on Setup).

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 /C88 +

6. The Welcome screen is displayed. Click Next to proceed.

7. The License Agreement is displayed next. Select the appropriate choice for acceptance of the Licensing Agreement to continue.

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 & C88 +

8. If you have not previously registered the ChromaBlast Driver™, you will be prompted to do so. Registering is the only way to take full advantage of the features in the ChromaBlast Driver™. If you choose to register later, select Register Later and click Next to proceed with the installation.

9. If you choose to register now, the registration screen will be displayed. To obtain your registration code you may do so in one of the following ways: Register on-line and receive your registration code via e-mail. Call Sawgrass Technologies, Inc. directly (843) 884-1575 and obtain your code over the phone. Send a fax and receive your registration code by fax.

To register, you will use your Product ID (displayed on the registration screen) to obtain a Registration code. You will need separate registration code for every machine on which The ChromaBlast Driver™ is installed. Enter your registration code and click the Apply Code button.

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 /C88 +

10. Sawgrass Technologies, Inc. provides ColorSure color palettes for use with Corel and Adobe. (Check the ColorSure section of the manual for information on how to use ColorSure to get perfect spot colors). If Setup detects either of these applications on your system, the palette files will be placed in the appropriate folder indicated in the Destination Folder box. Click Next to proceed with the installation.

11. The ChromaBlast Driver™ installation program will attempt to use plug-n-play to determine the port that the printer is connected to, click Next to continue. Note: Cancel any ‘Found

New Hardware’ wizards that may start during this proc ess, do NOT cancel any file copy process however.

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 & C88 +

12. If the installation cannot find the printer port then you will be given the opportunity to choose the port you want to use for the product you are installing. Use the value that was recorded in step 4 above.

13. Once the installation has completed, the Installation Complete screen will display. Click OK to end the installation.

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 /C88 +

Using ChromaBlast Driver™ in Windows 2000 / XP

The ChromaBlast Driver™ is simple to use. Whenever you have ChromaBlast

™

inks in your printer, you should print using the ChromaBlast Driver™. Do not print to your Epson printer with the Epson printer driver; printing with the Epson driver will not give you the benefit of color management.

Quick Start Example (Corel Draw)

1) Open/Cre ate an image in Corel Draw.

2) Select print from the File menu.

3) Select the ChromaBlast Dri v er™ printer.

4) Use the properties button to access and set the Color, Output, Ink and Substrate, Resolution, and Advanced options.

5) Click Print.

Setting ChromaBlast Driver™ printer properties

To configure the ChromaBlast Driver™ for the correct substrate, you must display its printer properties. There are two ways to display the printer properties:

From the Windows Desktop:

1. Click on Start> Settings> Printers.

2. Right-click on your ChromaBlast Driver™ printer.

3. Select Properties from the pop-up menu.

4. Select the Printing Preferences button.

From an Application:

1. Select File, Print Setup.

2. Choose the ChromaBlast Driver™ printer from the list of printers.

3. Click the Properties button.

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 & C88 +

ChromaBlast Driver™ Properties Overview

The following figure shows the printer properties for a registered version of the ChromaBlast Driver™. The Advanced Color Options tab and the Print Palette functions will not be available if the product has not been registered.

There are three main property groups;

Configuration – Set Paper, Transfer Substrate, and Copy Count Color Settings

group comes in two modes; Easy and Advanced) Both are described below.

Options

– Utilities for printer maintenance, online help, product registration,

and setting input profiles

– Color management control options. (The Color Options

Group 1 – Configuration

Paper Size – From the drop down list, select the paper size you wish to use. To add custom

paper sizes click the + button to the right of the paper size drop down list. Note:

After adding a custom paper size, the printing preferences dialog must be closed and re-opened before the new paper size will show in the paper size drop down list.

Copies – Sets the copy count for the number of prints to be made.

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 /C88 +

Group 2 - Color Settings

Overview

This tab gives you access to all of the color management controls available in the ChromaBlast Driver™. Color correction allows you to create transfers from all kinds of images, from photorealistic images to spot color logos. For maximum flexibility, the ChromaBlast Driver™ lets you color correct bitmap and vector elements differently, even if they are in the same graphics file. For example, if you scan a photograph and import it into CorelDraw, the ChromaBlast Driver™ will use the color management settings that have been selected for Bitmap. If you then add text on top of the bitmap image, the ChromaBlast Driver™ will use the color management settings that have been selected for Vector. The photograph and the text will be color corrected differently! Why? You can now sublimate images with realistic photographic backgrounds that have vivid spot color text.

Vector and Bitmap Explanation

Bitmaps are a grid of pixels. Bitmaps come from digital cameras, scanners, and photo cds. Bitmaps can also be created in applications like Corel PhotoPaint or Adobe PhotoShop. Bitmaps have file extensions like GIF, JPG, BMP, and TIF. Vector components consist of shapes, curves, lines, and text. They are created in programs such as CorelDraw and Adobe Illustrator. Higher end programs like CorelDraw can combine Vector and Bitmaps into a single image. As a rule of thumb, if the object in your image is made of curves, text, shapes, or fills, it will be color corrected using the ChromaBlast Driver™ Vector settings. All other image types will be color corrected based on the ChromaBlast Driver™ Bitmap setting.

Color Correction Settings Realistic (Bitmap ONLY) - This setting is most suitable for reproducing

skin tones in scanned photographs.

Original (Vector ONLY) - This setting is most suitable for reproducing

life-like clipart.

Saturated - The Saturated setting will make the colors in your image

more intense. Saturated output tries to remain color accurate with a slight bump in intensity.

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 & C88 +

Vivid – This setting is most suitable for images where it is important that

the colors are vivid and contrast well with each other. Artwork, graphics, logos, and text, as well as photographs of landscapes or still life are good candidates for the Vivid setting. This can be set for either Bitmap or Vector images.

ColorSure Enhancement - The ColorSure enhancement is used to

replace specific colors in your image with a spot color chosen from the ColorSure palette. This resulting spot color enhancement is not affected by color setting. A ColorSure spot color will ALWAYS print the same. See Appendix C for an overview of ColorSure.

Print Palette Button – Prints the ColorSure palette for the selected

substrate. ColorSure is a method for reproducing exact spot colors. The two main components are; 1) the transferred palette and 2) the CorelDraw, Corel PhotoPaint, and Adobe swatches. For a complete description on how to use ColorSure to get perfect spot colors, see appendix C.

Custom Palette Button – The Custom Palette utility enables you to add,

edit, import and export custom colors to the ColorSure palette. If you need to precisely match a specific color, the Color Finder tool makes this a breeze. For a complete description on how to use the Custom Palette, refer to Appendix C.

Mirror – When you transfer an image, the result will be “flipped” when

compared to the printed image. In order for your transfers to come out correctly, you must flip the image before transferring. Select this option to do the flipping for you. If you are doing this yourself in your editing application, make sure this option is turned off.

High Speed – If the printer supports multiple resolutions, choose the

most appropriate setting. For soft substrates, the High Speed option works well.

High Quality – If the printer supports multiple resolutions, choose the

most appropriate setting. For hard substrates, choose the High Quality option.

Group 3 – Printer Options

Utilities – Click this button to display a utilities screen. From the utilities

screen you can print a nozzle check pattern, run a print head cleaning cycle, align the printer’s print head, spool a ChromaBlast Driver™ print file to the printer, and print a page of primary ink colors.

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 /C88 +

Help – This will display a help dialog box for an easy overview of the

ChromaBlast Driver™ functions and settings. It also contains a link to the Sawgrass Technologies website.

click this button for instructions on how to register the product and unlock all the features.

Input Profile – This option allows you to specify an input profile that the

driver will use when color correcting your image. If you are printing scanned artwork and your scanner manufacturer provided ICC profiles for your scanner model, select the profile here In order to select a profile IT MUST BE INSTALLED ON YOUR MACHINE. To install a profile on your machine, locate the profile on your machine using Windows Explorer. (The ChromaBlast Driver™ supports both ICC and ICM profile types). Right click on the profile file name and select “Install”.

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 & C88 +

Appendix A: Network Printing in Windows 2000, XP

Network printing with the ChromaBlast Driver™ in Windows 2000 and Windows XP is simple. Before a network printer can be used it must be installed on the network and shared.

Host Machine (Server)

The server machine must have installed the printer and have the printer shared. To install the networked printer, run Start | Setting | Printer | Add Printer. The Wizard will guide you through setting up the printer. When prompted, choose “Network Printer” and browse to the server machine to locate the ChromaBlast Driver™.

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 /C88 +

Appendix B: Defeating Application Color Management

The ChromaBlast Driver™ provides a complete color management solution for your ChromaBlast™ media printing. It is extremely

important that you turn off any color matching features associated with your design software. An explanation of how to disable print-time

color management in several popular design packages follows:

CorelDraw™ version 9

1. Create a new graphic.

2. From the main menu choose Tools, Color Management. The

Color Management dialog box is displayed.

3. In the Color Management window (see figure below), UNCHECK

the Calibrate colors for display box.

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 & C88 +

CorelDraw™ version 10, 11 and 12

1. Create a new graphic.

2. From the main menu choose Tools, Color Management. In the

Color Management window (see figure below), set the Style option to Color Management Off.

CorelDraw ™ (version 5, 6, or 7)

If you are using version 5, 6, or 7 of CorelDRAW, ensure that you have the Printer Color Profile check box unchecked. This setting is found in the lower left of the Print dialog window. See figure below.

Make sure this box is not checked.

CorelDRAW 5, 6, and 7 print dialog

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 /C88 +

Adobe Photoshop™ 6

Color Setup

From the main menu choose Edit, Color Settings. On the Color Settings dialog box:

1. Set all Color Management Policies to Off

2. Uncheck Prof ile Mismatches

3. Uncheck Ask When Opening.

To Print RGB Graphics

Choose File, Print, and set the options as described below:

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 & C88 +

To Print CMYK Graphics

Choose File, Print, and set the options as described below:

Adobe Photoshop™ 7 and CS

Color Setup

From the main menu choose Edit, Color Settings. On the Color Settings dialog box, turn all Color Management Policies off. Turn off Profile Mismatches.

Sawgrass Technologies, Inc. ChromaBlast

To Print: Always select File, Print with Preview. On the print dialog page, set

the options as described below:

a. Check Show More Options b. Choose Color Management c. Choose Document as Source Space d. Choose Same as Source for Print Space

From the Color Management drop option list, make sure that Source is set to “Document” and Print Space is set to “Same As Source”.

™

Getting Started Guide for the EPSON Stylus C88 /C88 +

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 & C88 +

Appendix C: Using ColorSure™ and Custom Palette

I. Introduction

ColorSure is a method for reproducing exact spot colors. There are four main components of the ColorSure System: 1.) the printed palette; 2.) Color Finder; 3.) Custom Palette; and 4.) the CorelDRAW and Adobe application palettes / swatches.

1. ColorSure Palette: This is your main color palette that includes

a wide variety of 152 commonly used colors.

2. Color Finder: If a color you need is not on the ColorSure

palette, the Color Finder tool allows you to locate the exact custom color you are looking for.

3. Custom Palette: With the Custom Palette feature, you can add

new custom colors to the existing ColorSure Palette mentioned in step 1.

4. Application Palettes: You can add your Color Finder colors to

an existing application palette, or you can add multiple custom colors to new, custom palette files (*.cpl, *.acl, etc.).

II. Printing the ColorSure Palette

The first thing you will want to do is to print your ColorSure palette to the shirt you will be using. Most likely you will have customers who desire precise colors. Having your ColorSure palette available allows the customer to choose the color from the palette that is the closest match to what they want, and this gives you a starting point for finding the exact custom color that will match your customer’s needs.

To print the ColorSure palette, follow the steps below:

• Click ‘Start’ and navigate to the ‘Printers and Faxes’ folder.

Right-click on your ChromaBlast Driver™ printer and select ‘Printing Preferences’ from the menu. You may also open ChromaBlast Driver™ from within an Adobe or Corel program by going to File, Print, and choosing the ChromaBlast Driver™ printer from the pull-down menu. Click Properties to open the ChromaBlast Driver™.

• Select the color settings and the output (high speed, high quality)

that you wish to print the palette, and click the box ‘Print Palette’.

the

Sawgrass Technologies, Inc. ChromaBlast

• You now have a visual representation of how the ColorSure

palette colors will appear on your t-shirt.

™

Getting Started Guide for the EPSON Stylus C88 /C88 +

III. Designing Your Artwork

By picking colors from the ColorSure palette, you will be able to consistently reproduce colors in a reliable manner. To assist you in designing your artwork, the ChromaBlast Driver™ installs three palettes: two for Adobe products and one for Corel products. These colors match the palette that is printed from within the ChromaBlast Driver™.

• To open the ColorSure Palette in Corel 10, 11, and 12, choose

Window | Color Palettes | Open Palette. Select the file “ChromaBlast_Rut.cpl, ChromaBlast _Uni.cpl, or ChromaBlast _Wil.cpl depending on which palette you wish to load.”

• To open the ColorSure Palette in Illustrator, choose Window |

Swatch Libraries | Other Library. Navigate to where it was installed to when you installed PowerDriver: C:\Program Files\Sawgrass\PowerDriver\Adobe Illustrator and hit Open. For

easier access to the Palette file copy it from this [above] path to Illustrator10\Presets\Swatches and the palettes will show up in your pull-down list directly under the Swatch Libraries menu. Other versions of Illustrator will have similar steps.

• To open the ColorSure Palette in Adobe PhotoShop, choose the

Swatches Palette, click the option arrow on the palette, choose Replace Swatches and pick the “ChromaBlast _Rut.aco, ChromaBlast _Uni.aco, or ChromaBlast _Wil.aco” file.

HINT

After you have the ColorSure palette loaded into CorelDraw, move the cursor over each color. As the cursor hovers over each different color, the ColorSure name is displayed in the status area at the bottom of the screen.

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 & C88 +

IV. Using Color Finder

After printing the ColorSure Palette, you see that you have an array of colors to work with. There will be times, however, when the color you need is not included in the ColorSure Palette. This is a common example of when you will launch the ChromaBlast Driver™ Custom Palette Utility.

The Custom Palette Utility is a small program that coincides with the ChromaBlast Driver™ to assist you in finding custom colors and making custom palettes.

Within the Custom Palette Utility is the Color Finder tool. This tool allows you to start with a specific color (e.g. navy blue) and find similar colors in the same family by adding and subtracting up to three colors (CMYK) called ‘Step Colors.’ For example, starting with navy blue with a CMYK value of 60,60,0,40 and choosing two step colors (e.g. cyan and magenta) would expand the original navy blue in four directions (more cyan, less cyan, more magenta, and less magenta). This expanded color chart is outputted directly to your printer.

How to use Color Finder:

• First, open the Printing Preferences window.

• At the bottom of the window, click the Palette Utility button; this

will open the Custom Palette Utility window.

• Select the appropriate settings for Printer, Substrate, and Print

Quality. Then click the Start Color Chooser button and select your desired starting color from the basic colors or the color matrix. To use the color matrix, click anywhere in the matrix window. You can use the slider at the right of the matrix to adjust luminosity. Clicking ‘OK’ will automatically fill the CMYK boxes with the corresponding values. If you do not wish to use Color Chooser, you also have the option to manually enter the Start Color values in the CMYK boxes.

▬ For advanced users, CMYK values can be determined

by printing out a Custom Palette, which is outlined in the next section.

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 /C88 +

Custom Palette Utility

• You may alter the chosen start color’s CMYK value by selecting

two or three Step Colors. Using multiple step colors will present you with a greater range and variety of colors to choose from.

▬ For instance, if you choose to modify your Start Color

with two steps, then Step Color 1 will change its values on the X (horizontal) axis and Step Color 2 will change its values on the Y (vertical) axis.

Color Finder Palette with two Step Colors

Sawgrass Technologies, Inc. ChromaBlast

▬ If you modify your Start Color with three steps, Step

Color 1 will remain the same. However Step Color 2 and Step Color 3 will form an imaginary ‘X’ and their values will change on opposing diagonal Y axes.

™

Getting Started Guide for the EPSON Stylus C88 & C88 +

Color Finder Palette with three Step Colors

• Next, determine what Step Size you want to apply to the Color

Finder palette. This is simply a question of how much you want your Start Color to fluctuate. If your Start Color is close the color you are looking for, use a low Step Size (i.e. 5-10). However, if your start color is not close to what you are looking for, use a higher Step Size. You can enter any Step Size value between 1 and 40.

▬ As an example, let’s say your Start Color is C:20, M:100,

Y:150, K:0 and you select Cyan and Magenta to be your Step Colors. You also enter a Step Size of 10. When the ‘Print Similar Colors Chart’ button is clicked, your Start Color will be in the middle of the Similar Colors Chart and from there each color will vary the Cyan and Magenta values by 10.

Sawgrass Technologies, Inc. ChromaBlast

• When you are finished selecting the Start Color, Step Colors,

and the Step Size, click on the Print Similar Colors Chart button. This will print your custom Similar Colors Chart directly to the printer.

• After printing the Color Chart, try to match your desired color to

one that is on the palette. If you find a suitable match, you are finished using the Color Finder tool. Move on to Section V. The Custom Palette.

• If you couldn’t find an accurate match on the first printed Similar

Colors Chart, don’t worry. Follow the easy steps below, and you will find a more suitable custom color.

1. First, try to locate a new Start Color from the chart that is closer than the original color.

2. Next, after finding a more suitable Start Color, write down that color’s CMYK value. Here is how to obtain this value. There are numbers under each color that are dependant upon which Step Colors you chose. For example, it might say C:70 M:120. Take note of these values. Then, at the bottom left of the Color Finder palette you will see a full set of CMYK values. The new Start Color’s CMYK value would be C:70, M:120 and whatever the YK values are from the full set.

™

Getting Started Guide for the EPSON Stylus C88 /C88 +

3. Lastly, plug the CMYK values for the new Start Color into the boxes in Color Finder, choose your Step Size, and click on Print Similar Colors once again. Continue with steps 1-3 until you find your desired color.

V. The Custom Palette

Let us assume that you have found the exact color you need using the Color Finder tool. What you will want to do next is apply these custom color values to either an existing palette, or to create a new custom palette altogether. This allows you access to this color again should the same job arise.

How to use Custom Palette:

• First, you need to assign the CMYK values of the matched color from the Similar Colors Chart to the Output Color CMYK fields in the Custom Palette section.

Sawgrass Technologies, Inc. ChromaBlast

• Give your new custom color a descriptive Name in its designated field (e.g. IBM Blue).

• Next, assign an RGB Input Color value. There are two methods to establish this value.

1. If you have the original file, sample the color that was matched in your graphic design application with the eye dropper tool. This will give you the RGB value of that color. Input this value into the RGB Input Color fields of the Custom Palette section.

2. If you do not have the original file, or the artwork has not yet been designed, simply click on the ‘Input Color Chooser’ button, and then click on “Define Custom Colors”. From the color matrix, find a color that closely resembles the color that you are adding to the custom palette. At the bottom-right of the color matrix window are the RGB values. Simply click ‘OK’ and the RGB Input Color values will be automatically entered. Please take note of these RGB values for later use in your design applications.

• Click the Add Color button. A window will pop up asking you whether you want to add the color to the palette for all substrates, or just the current substrate. Click ‘YES’ here unless you have the same custom color saved on palettes for other substrates. Another window will then ask you if you want to save the custom color for all resolutions or just the current one. Click ‘YES’ here unless you have the same custom color saved on palettes for other resolutions.

™

Getting Started Guide for the EPSON Stylus C88 & C88 +

• Lastly, click the Save Palette button. When finished, simply Exit out of the window.

* The ‘Import Palette’ and ‘Export Palette’ buttons are convenient to have in the event you need to transfer palettes to and from different computers.

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 /C88 +

VI. Adding Swatches to your Application Palette:

It is possible to add your custom color(s) swatch to an application palette as well. You will need to take note of the Input Color RGB value that you assigned in the previous step in order to create the new swatch. Refer to your specific design application software’s manual for instructions on this.

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 & C88 +

Supplies & Equipment

ChromaBlast™ ink and media are sold through a network of Authorized ChromaBlast™ Channel Partners. A full listing of authorized resellers is available on our Web site at www.chromablast.com

Operating Conditions

Certain environmental conditions should be taken into account for the operation of ChromaBlast humidity.

 Operating conditions are 65 ~ 80 °F with 35~60% relative humidity.  Optimum operating conditions are 70 ~ 75 °F with 40~50% relative

humidity.

Ink Storage

 ChromaBlast™ product should be stored in an environmental

controlled room with a temperature range of 50

 Do not expose ChromaBlast

sunlight, for extended periods.

 For best results, install your ChromaBlast

the cartridge. Please refer to the individual cartridge for the specific ink expiration date.

Media Storage

 Store the ChromaBlast™ media in a cool, dry area within the

provided plastic storage bag. Do not remove from carton until ready to use.

ink including temperature and relative

F ~ 75 oF.

cartridges directly to light, especially

cartridges by the date on

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 /C88 +

Troubleshooting

The troubleshooting tips found in this section relate mainly to problems that can be seen in transferred ChromaBlast™ images. If you are having problems related to the performance of your printer, please refer to the

Problem Solving section found in the EPSON Stylus C88/C88+/D88+ Printer User’s Guide.

The colors in my transferred image are incorrect

 The image may need color adjustment. Use the ChromaBlast

Driver™ color matching software. For more information on how to use this software, please see the section entitled ChromaBlast

Driver™

User’s Guide.

 Ensure you used the right printer driver and driver settings.

Please see the section entitled ChromaBlast Driver™

User’s

Guide.

 Ensure you pressed the item with the proper time, temperature,

and pressure. For guidelines see the section entitled Printing and Heat Transfer Instructions.

 Verify all colors print correctly. Run the Nozzle Check utility and

clean the print heads as required.

My printout gets cut off on the bottom or side

 Verify the printer driver is setup for the correct paper size. Your

printer driver setting needs to match the media size that is loaded in your printer.

 Ensure the right paper guide is in the proper position on the

printer. When setting up the printer, slide the right paper guide to the left until it clicks into position.

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 & C88 +

My image looks good but it washes out

 Ensure you pressed the garment with the proper time,

temperature, and pressure. For guidelines, see the section entitled Printing and Heat Transfer Instructions.

 Ensure you used the recommended ChromaBlast™ media and

inks.

Colors are light and splotchy

 Ensure you printed on the correct side of the media. For the

Epson C88/C88+/D88+ place print side face up in the printer tray so that the missing corner is in the top right hand side when facing the printer.

 Ensure you used the recommended ChromaBlast™ media and

inks.

 Ensure you pressed the item with the proper time, temperature,

and pressure. For guidelines, see the section entitled Printing and Heat Transfer Instructions.

 Verify your printer driver settings are correct. Please see the

section entitled ChromaBlast Driver™ User’s Guide for additional information.

My image looks blurred

 Ensure you pressed the item with the proper time, temperature,

and pressure. For guidelines, see the section entitled Printing and Heat Transfer Instructions.

 Ensure you used the recommended ChromaBlast™ media and

inks.

 Ensure you printed on the correct side of the media. For the

Epson C88/C88+/D88+ place print side face up in the printer tray so that the missing corner is in the top right hand side when facing the printer.

 Verify that the printer’s print heads are properly aligned. For

further instructions, see the EPSON Stylus C88/C88+/D88+ Printer User’s Guide.

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 /C88 +

My image has gaps or bands present

 Ensure that all of the printer’s nozzles are firing properly. Perform

a Nozzle Check from the Utility tab of your printer driver. For further instructions, see the EPSON Stylus C88/C88+/D88+ Printer User’s Guide

 If one or more of the nozzles fail to print, perform a Print Head

Cleaning. For further instructions, see the EPSON Stylus C88/C88+/D88+ Printer User’s Guide.

Sawgrass Technologies, Inc. ChromaBlast

™

Getting Started Guide for the EPSON Stylus C88 & C88 +

Technical Support

If you are having difficulties achieving good results from your ChromaBlast™ inks or media, you have several support options:

1. Telephone: You may contact your authorized SubliJet reseller during their normal hours of operation for assistance. A full listing of authorized SubliJet Resellers is available on our Web site at www.sublimation.com at (843) 884-1575 between the hours of 8:00 AM and 5:30 PM Eastern Standard Time.

2. Internet: Visit the Technical Support area of the Sawgrass Technologies, Inc. website at www.sublimation.com to some of the most common problems. You may submit a detailed description of your problem if you need further assistance.

3. E-mail: You may e-mail Sawgrass Technical Support with a detailed description of your problem at support@sublimation.com

4. Fax: You may fax a detailed description of your problem to Sawgrass Technical Support at (843) 849-3847.

. In addition, you may also contact Sawgrass Technical Support

. The troubleshooting utility found here will provide you with solutions

Project Sublimation

Whether you are a current business owner adding sublimation to your line-up, a novice/intermediate sublimation user who would like to learn more, or an entrepreneur exploring the dye-sub industry, Project Sublimation is the industry’s choice for practical, hands-on instruction. From equipment and product overview to marketing and pricing your products; from the science of sublimation to color management, our two-day, interactive workshop series will give you the background and know-how needed to run a full-service sublimation business.

At Project Sublimation workshop events, you will also have the opportunity to network with fellow sublimation users across the US and Canada. The new, enhanced Project Sublimation web site gives attendees access to the full business assets and forums, an invaluable resource for growing your sublimation business.

Isn’t it time you took your business to the next level?

Project Sublimation travels to cities throughout the United States and Canada. Join us in a city near you for this dynamic, full-service workshop. Spend two days with one of our experts and get a leg up on your competition.

Please visit us on the web at www.ProjectSublimation.com

or phone us toll free at 1.888.780.7349

Epson D88+, C88 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
