Epson ACULASER 2600, ACULASER C2600 User Manual

Laser Printer

Warnings must be followed

carefully to avoid bodily injure.

w

Paper Jam Guide

When the LCD panel displays the Jam WWWWW error message, choose the appropriate
description to clear the jammed paper.
For more information, see the Online User’s Guide.

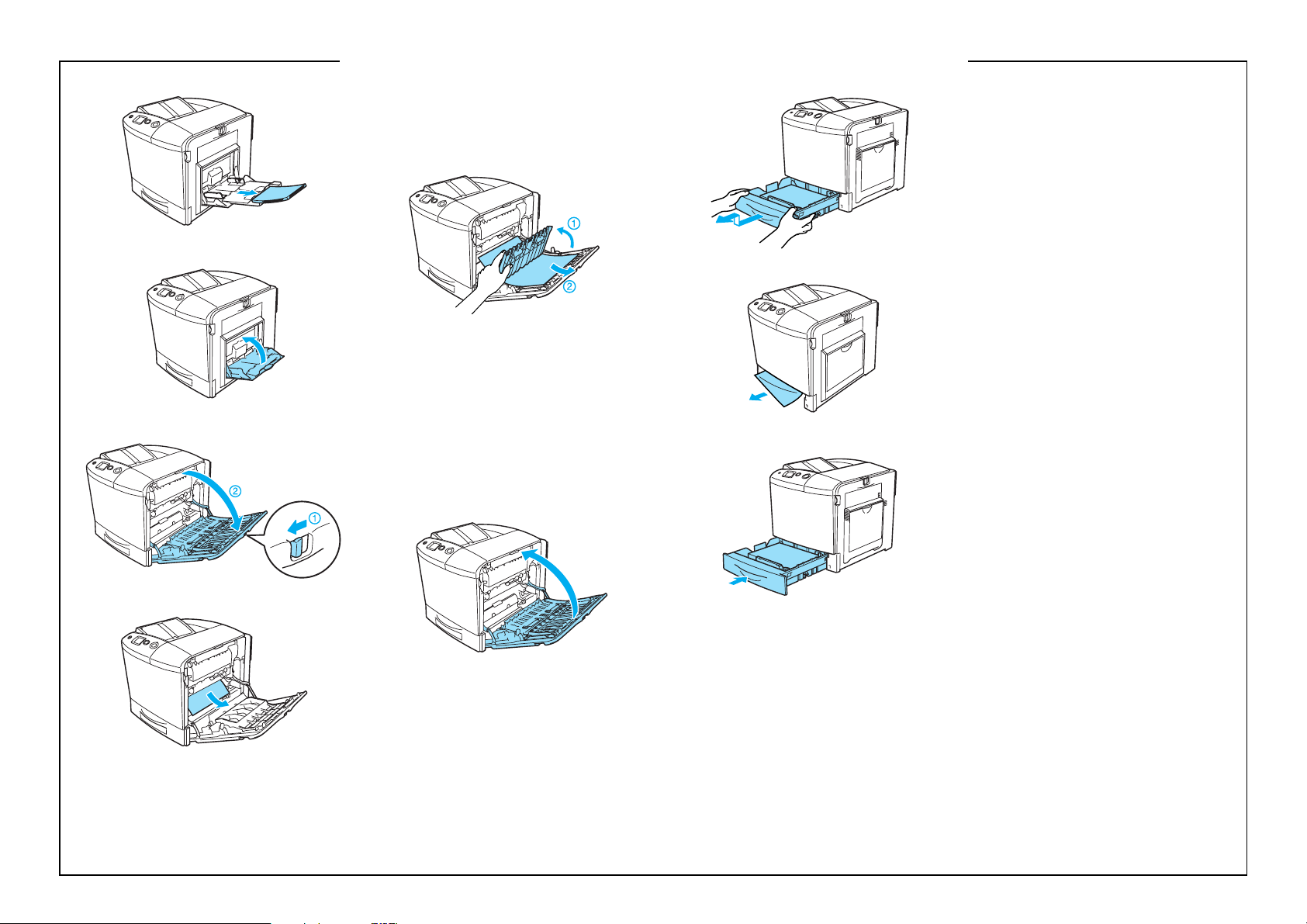

Jam A (cover A) Jam MP, A (MP tray and cover A)

1

2

3

4

If the optional Duplex Unit is installed,
lift up the Duplex Unit. Hold it and gently
pull out any sheets of paper. Be careful
not to tear the jammed paper.

Warning:

Be careful not to touch the fuser, which is

w

marked CAUTION HIGH TEMPERATURE,
or the surrounding areas. If the printer has
been in use, the fuser and the surrounding
areas may be very hot. If you must touch one
of these areas, open cover A and B, then wait
30 minutes to allow the heat to subside
before doing so.

5

1

2

5

If the optional Duplex Unit is installed,
lift up the Duplex Unit. Hold it and gently
pull out any sheets of paper. Be careful
not to tear the jammed paper.

3

Warning:

Be careful not to touch the fuser, which is

w

marked CAUTION HIGH TEMPERATURE,
or the surrounding areas. If the printer has
been in use, the fuser and the surrounding

4

areas may be very hot. If you must touch one
of these areas, open cover A and B, then wait
30 minutes to allow the heat to subside
before doing so.

6

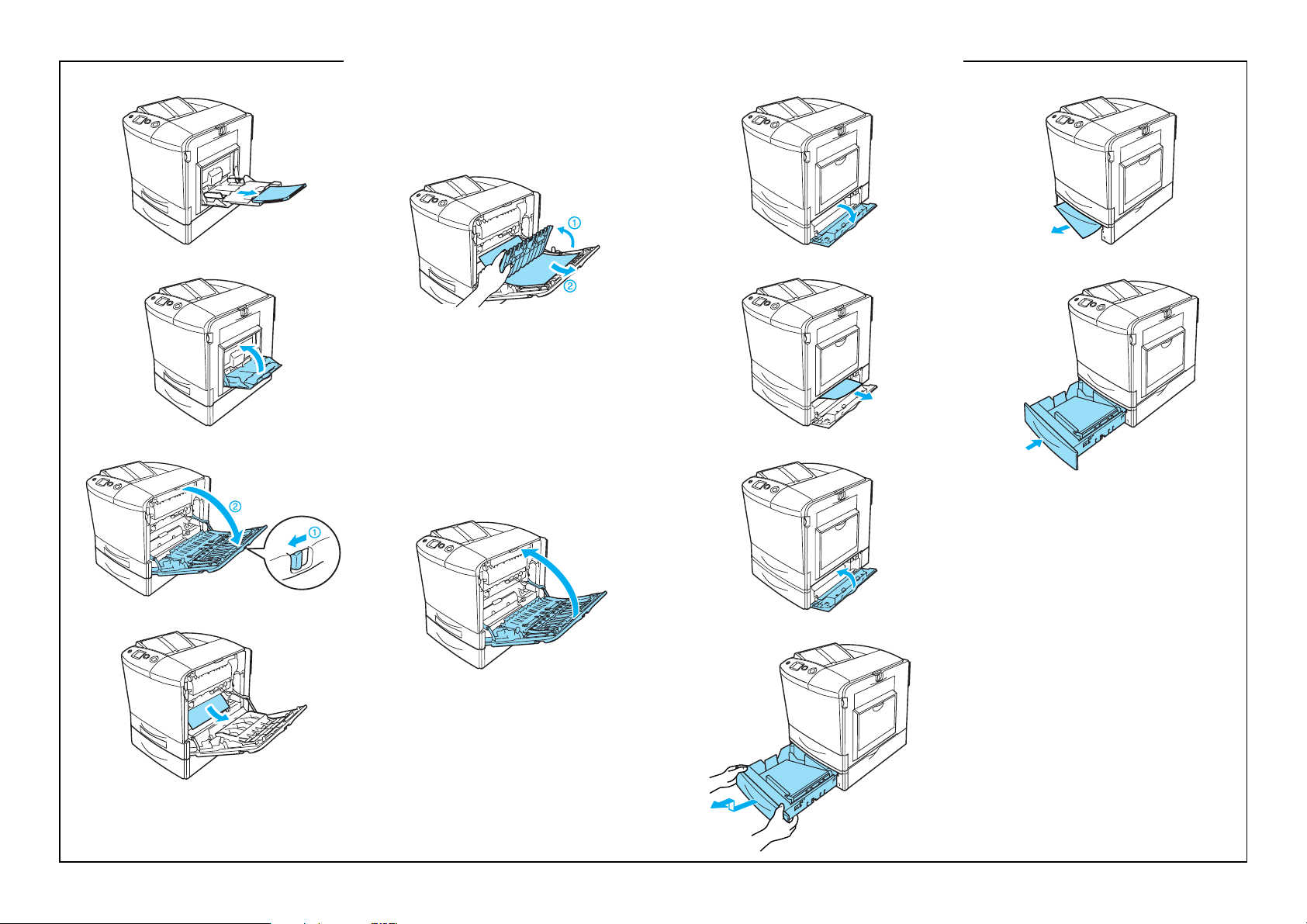

Jam A, B (cover A and B)

1

2

3

If the optional Duplex Unit is installed,
lift up the Duplex Unit. Hold it and gently
pull out any sheets of paper. Be careful
not to tear the jammed paper.

Warning:

Be careful not to touch the fuser, which is

w

marked CAUTION HIGH TEMPERATURE,
or the surrounding areas. If the printer has
been in use, the fuser and the surrounding
areas may be very hot. If you must touch one
of these areas, open cover A and B, then wait
30 minutes to allow the heat to subside
before doing so.

Warning:

Be careful not to touch the fuser, which is

w

marked CAUTION HIGH TEMPERATURE,
or the surrounding areas. If the printer has
been in use, the fuser and the surrounding
areas may be very hot. If you must touch one
of these areas, open cover A and B, then wait
30 minutes to allow the heat to subside
before doing so.

If you can remove the paper, close covers
B and A. If you cannot remove the paper,
go to the next step.

7

9

10

11

5

Warning:

4

6

Be careful not to touch the fuser, which is

w

marked CAUTION HIGH TEMPERATURE,
or the surrounding areas. If the printer has
been in use, the fuser and the surrounding
areas may be very hot. If you must touch one
of these areas, open cover A and B, then wait
30 minutes to allow the heat to subside
before doing so.

12

8
