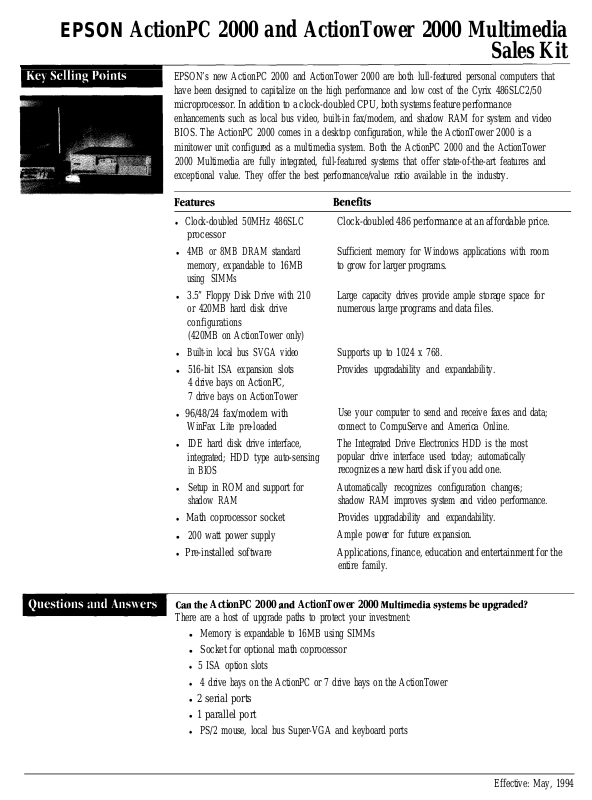

Epson ActionTower 2000 Product Information
EPSON
ActionPC 2000
and
EPSON’s new ActionPC 2000 and ActionTower 2000 are both lull-featured personal computers that
have been designed to capitalize on the high performance and low cost of the Cyrix 486SLC2/50
microprocessor. In addition to a clock-doubled CPU, both systems feature performance
enhancements such as local bus video, built-in fax/modem, and shadow RAM for system and video
BIOS. The ActionPC 2000 comes in a desktop configuration, while the ActionTower 2000 is a
minitower unit configured as a multimedia system. Both the ActionPC 2000 and the ActionTower
2000 Multimedia are fully integrated, full-featured systems that offer state-of-the-art features and
exceptional value. They offer the best performance/value ratio available in the industry.
ActionTower 2000 Multimedia
Sales Kit
Features
l Clock-doubled 50MHz 486SLC
processor
l
4MB or 8MB DRAM standard
memory, expandable to 16MB
using SIMMs
l
3.5” Floppy Disk Drive with 210
or 420MB hard disk drive
configurations
(420MB on ActionTower only)
l
Built-in local bus SVGA video
l
516-bit ISA expansion slots
4 drive bays on ActionPC,
7 drive bays on ActionTower
l 96/48/24 fax/modem with
WinFax Lite pre-loaded
l
IDE hard disk drive interface,
integrated; HDD type auto-sensing
in BIOS
l
Setup in ROM and support for
shadow RAM
l Math coprocessor socket
l
200 watt power supply
l Pre-installed software
Benefits
Clock-doubled 486 performance at an affordable price.
Sufficient memory for Windows applications with room
to grow for larger programs.
Large capacity drives provide ample storage space for
numerous large programs and data files.
Supports up to 1024 x 768.
Provides upgradability and expandability.
Use your computer to send and receive faxes and data;
connect to CompuServe and America Online.
The Integrated Drive Electronics HDD is the most
popular drive interface used today; automatically
recognizes a new hard disk if you add one.
Automatically recognizes configuration changes;
shadow RAM improves system and video performance.
Provides upgradability and expandability.
Ample power for future expansion.
Applications, finance, education and entertainment for the
entire family.
Can
the ActionPC 2000
and
ActionTower 2000
Multimedia systems be upgraded?
There are a host of upgrade paths to protect your investment:
l
Memory is expandable to 16MB using SIMMs
l
Socket for optional math coprocessor
l 5 ISA option slots
l
4 drive bays on the ActionPC or 7 drive bays on the ActionTower
l 2 serial ports
l 1 parallel port
l
PS/2 mouse, local bus Super-VGA and keyboard ports
Effective: May, 1994
What are
ActionTower 2000
the differences
Multimedia?
between
the ActionPC 2000 and the
The ActionPC 2000 and the ActionTower 2000 Multimedia are both full-featured personal computers
utilizing the high performance and low cost of the Cyrix 486SLC2/50 microprocessor. The difference
is that the ActionPC 2000 is a desktop configuration, and the ActionTower 2000 Multimedia is a
minitower configured as a multimedia system. The ActionTower 2000 Multimedia includes all of the
features of the ActionPC 2000, plus the following:
l Minitower case
l
One additional 3.5” external drive bay
l
Two additional internal 3.5” drive bays
l Double-speed CD-ROM drive
l
16-bit stereo sound card
l Speakers
l Multimedia software bundle pre-installed
What configurations are available?
ActionPC2000 ActionTower 2000
4MB DRAM 4MB DRAM
210MB HDD
What
is a
local bus system?
210MB HDD
ActionTower
8MB DRAM
420MB HDD
Local bus provides a new way for the CPU to communicate with peripherals. The original ISA
expansion bus was designed to run at 8MHz. As processor speeds increased to 50MHz, and faster,
the bus speed stayed at 8MHz. Local bus is designed to transmit 32 bits of data at the local speed of a
PC’s processor. A PC with a local bus normally uses this high-speed circuit for display adapters or
disk controllers, where speed is most crucial. Slower conventional expansion slots are used to
communicate with the modem and sound card, where speed is not crucial.
What
is a
multimedia system?
A multimedia system comes with a sound card and CD-ROM drive installed, and has outstanding
sound and graphics capabilities. A computer CD can store vast amounts of information because it
uses light to record data in a form that’s more tightly packed than conventional magnetic media. A
multimedia system allows software to combine sound and graphics simultaneously, including video,
film clips and animation. Multimedia systems enhance learning and entertainment by involving more
of your senses. The ActionTower 2000 systems come in a minitower configuration with multimedia
equipment and software.
How
does a
customer take advantage of EPSON’s On-Site
warranty
service?
The ActionPC 2000 and the ActionTower 2000 Multimedia systems come with a one year
On-Site warranty. If your system needs servicing, simply call EPSON’s toll-free number,
(800) 922-8911, for a referral to the nearest EPSON Authorized On-Site Servicer. On-Site service
is typically available from 9:00 a.m. to 5:00 p.m. PST, Monday through Friday.
