EPSON AMERICA INC.
Product Support Bulletin
EPSON
Subject:
Date: 12/4/91
Page(s): 1 of 14
This bulletin provides detailed explanations and illustrations for some of the more
commonly used printer commands used in ESC/P2 Listed below are the
commands discussed in this bulletin.
Command
ESC X m n1 n2
ESC ( C m1 m2 n1 n1
ESC(vm1 m2 n1 n2
ESC(Vm1 m2 n1 n2
ESCtn
ESC ( t n1 n2 d1 d2 d3
ESC( ^ n1 n2 d1...d
Understanding and Using
Command Name
Select Pitch and Point Size
Set Page Length in Defined Units
Set Relative Vertical Position
Set Absolute Vertical Position
Select Character Table
Assign Character Table
Print Data as Characters
2
ESCP/2
Commands and Syntax
PSB No: P-0082
Originator: JW
PSB Page
2
5
6
8
9
10
14
PSB No: P-0082
Page: 2 of 14
ESC X m n1 n2
C X m n1 n2 is the command for selecting pitch and point size where m, n1 and
n2 are variables. The variable "m" is used to select the pitch which is the character
spacing. The variable "n1" selects the point size and the variable “n2”, at this time,
will always be 0 (zero). The variables "m" and "n1" are explained below.
The values used for ’m’ are 0,1,18,21,24,30,36,42,48,60, and 72. If "0" is
used as the value for ”m”, there will be no change in pitch. If "1" is used as the
value for "m", the character pitch will be proportional spacing. To determine the
character pitch for all other values of "m", divide 360 by "m".
then 360 divided by 60 equals 6 and the character pitch is 6 characters per inch. If
m=30, the character pitch is 12 characters per inch.
For the Roman and Sans Serif fonts, the values used for "n1" are 0,16,20,21,24,
28,32,36,40,42,44,48,52,56,60 and 84. For all other fonts, the values used for
"n1" are 0,21, and 42. The actual point size that will print is n1 divided by 2. For
example, if n1=20, the point size is 10. If n1=48, the point size is 24.
When selecting a point size larger than 24 (the value for n1 is greater than 48)
select proportional spacing (m=1) for the character pitch.
(Select Pitch and Point Size)
For example, if m=60
NOTE:
In the Basic programming language, the command would look like this.
LPRlNT CHR$(27);"X";CHR$(1);CHR$(48);CHR$(0);”This is 24 point proportional
spaced”
Chr$(27) is ESC, chr$(1) selects proportional spacing, chr$(48) selects 24 point
character size. At this time, n2 is always zero (0).
PSB No: P-0082
Page: 3 of 14
10 INPUT “Point Size”;A$
20
B=VAL(A$)*2
21
RESTORE 70
22 FOR X=1 TO 16
23 READY
24
IF B=Y THEN GOTO 30
25 NEXT X
26 CLS
27 PRINT A$ ” is not a valid point size choice.”
20 GOTO 10
30 C=VAL(A$)
40 LPRINT CHR$(27);“X”;CHR$(1);CHR$(B);CHR$(0);”These are “;A$;” point
characters”
50
LPRINT CHR$(27);“(v”;CHR$(2);CHR$(C);CHR$(C);CHR$(0)
60
GOTO 10
70 DATA 0,16,20,21,24,28,32,36,40,42,44,48,52,56,60,64
Line 10 Line 20 tine 21 -
Line 30 - computes the value for “n1” for advancing paper using the ESC ( v
Line 40 -
Line 50 -
Line 60
NOTE: To halt the program, hold down the “Ctrl” key and press the “C” key.
allows you to specify the point size desired.
computes the value for “n1” in the ESC X command.
check to ensure that a valid point size was input
valid, the program jumps to line 30.
program prints a message on the screen and starts over again.
command.
sends the “Set Pitch and Point Size” command to the printer. (Note: The
pitch is set for proportional spacing for all point sizes to ensure proper
character spacing regardless of the point size.)
sends the “Set Relative Vertical Position” command to the printer. This
command advances the paper in preparation for printing the next line.
causes the program to start again at the beginning.
If the point size is not valid, the
If the point size is
These are 8 point characters
These are 10 point characters
These are 10.5 point characters
These are 12 point characters
These are 14 point characters
These are 16 point characters
PSB No: P-0082
Page: 4 of 14
These
These
are 18 point characters
are 20 point characters
These are 21 point characters
These are 22 point characters
These are 24 point characters
These are 26 point characters
These are 28 point characters
These are 30 point characters
These are 32 point characters
PSB No: P-0082
Page: 5 of 14
ESC ( C m1 m2 n1 n2 (Set Page Length in Defined Units
ESC ( C m1 m2 n1 n2 is the command for setting the page length in units where ml,
m2, n1 and n2 are variables. The “unit’ is usually 1/360 of an inch unless defined
otherwise by the “ESC ( U" command. Currently, the values for m1 and m2 MUST be
m1=2 and m2=0.
To determine the values for n1 and n2 perform the following steps.
1.
Determine the desired page length in inches.
2
Multiply the page length by 360.
Divide the result by 256 using long division.
3.
4.
The remainder in the quotient from step 3 is the value for n1.
The whole number in the quotient from step 3 is the value for n2.
5.
EXAMPLE
1.
The page length is 8.5
2
8.5 x 360 = 3060
3.
3060 divided by 256 =
4.
n1=244
5.
n2=11
inches.
11 with
a
remainder of 244.
II
In the Basic programming language, the command would look like this.
This command, as listed in the line above, will set the page length to 8.5 inches.
NOTE: The current line becomes the top of form. This command cancels any
previously set top and bottom margin settings. If you wish to set the top and bottom
margins via software command, the commands must be issued AFTER the “Set Page
Length in Defined Units” command. The proper page length setting can be confirmed
by issuing a “Form Feed” command, chr$(12), or by pressing the “FF button on the
control panel while the printer is “Off Line”.
PSB No: P-0082
Page: 6 of 14
ESC ( v m1 m2 n1 n2 (Set Relative Vertical Position
1
ESC (v m1 m2 n1 n2 is the command for advancing the print position vertically in
units where m1, m2, n1 and n2 are variables. The "unit" is usually 1/360 of an inch
unless defined otherwise by the “ESC ( U" command. Currently, the values for ml
and m2 MUST be m1=2 and m2=0.
To determine the values for n1 and n2 perform the following steps.
1.
Determine the desired vertical motion distance in inches.
2
Multiply the distance by 360.
3.
Divide the result by 256 using long division.
4.
The remainder in the quotient from step 3 is the value for n1.
5.
The whole number in the quotient from step 3 is the value for n2
EXAMPLE
1.
The desired distance is 1 inch.
2 1x360=360
3.
360 divided by 256=1 with a remainder of 104.
4.
n1=104
5.
n2=1
In the Basic programming language, the command would look like this.
This command, as listed in the line above, will feed the paper up 1 inch from the
current line. The current print column (horizontal position) IS NOT changed.
‘Reverse” paper feed less than 1/2 inch can be performed with this command. To
accomplish "reverse" paper feeding requires the following steps.
1.
Determine the desired vertical motion dice in inches.
2
Multiply the distance by 360.
3.
Divide the result by 256 using long division.
4.
Subtract the remainder in the quotient computed in step 3 from 256.
5.
The result from step 4 is the value for n1.
6.
The value for n2 will always be 255.
PSB No: P-0082
Page: 7 of 14
EXAMPLE
1.
The desired distance is 1/4 inch.
2.
4.
5.
6.
In the Basic programming language, the command would look like this.
LPRlNT CHR$(27);“(v”;CHR$(2);CHR$(0);CHR$(166);CHR$(255)
This command, as listed in the line above, will feed the reverse feed the paper 1/4 inch
from the current line. The current print column (horizontal position) IS NOT changed.
1/4 x 360 = 90
3.
90 divided by 256
256-90=166
n1=166
n2=255
=0with
remainderof90.
a
PSB No: P-0082
Page: 8 of 14
C
(V m1 m2 n1 n2 is the command for changing the print position vertically (with
respect to the Top of Form position) in units where m1, m2, n1 and n2 are variables.
The "unit” is usually 1/360 of an inch unless defined otherwise by the ”ESC(U"
command.
To determine the values for n1 and n2 perform the following steps.
2 Multiply the distance by 360.
3.
4.
5.
EXAMPLE
2 1x360=360
3.
4.
5.
Currently, the values for m1 and m2 MUST be m1=2 and m2=0.
1.
Determine the desired vertical distance from the Top of Form in inches.
Divide the result by 256 using long division.
The remainder in the quotient from step 3 is the value for n1.
The whole number in the quotient from step 3 is the value for n2
1.
The desired dice from the Top of Form is 1 inch.
1
360 divided by 256=
n1=104
n2=1
with a remainder of 104.
In the Basic programming language, the command would look like this.
This command, as listed in the line above, will position the paper 1 inch from the
current Top of Form setting.
of the paper, the paper will be positioned so that the printer is ready to print 1 inch
down from the top edge of the paper.
For example, if the Top of Form setting is the top edge
PSB No: P-0082
Page: 9 of
ESC t n is the command for selecting a character table to be used for printing where
n is a variable. The following table lists the values for n and the character table
associated with the value.
14
n
II
3 I PC437 (US)
II
NOTE: 1. Character tables other than those listed above can be assigned by using
the ESC ( t command (Assign Character Table).
2
The value used for n can be either the ASCII value OR the ASCII character
(i.e. chr$(1) or “1”).
In the Basic programming language, the command would look like this.
LPRlNT CHR$(27);"t";CHR$(0);
CHR$(27) is ESC and CHR$(0) selects table #0 (italic).
I
Table
Table 1
II
II
PSB No: P-0082
Page:
10
of
14
ESC ( t n1 n2 d1 d2 d3 (Assign Character Table)
ESC (t n1 n2 d1 d2 d3 is the command for assigning character tables where n1, n2,
d1,d2, and d3 are variables. Currently, variables, n1, n2 and d3 MUST be n1=3,
n2=0, and d3=0. Variable d1 is a number corresponding to one of the four tables
selectable with the ESC t n command. This is the table that will be replaced. Valid
values for d1 are 0,1,2, and 3 (see Table 1 below). Variable d2 is a number
corresponding to a registered table.
indicated by Variable d1. Valid Values for d2 are 0, 1,3,7,8, and 9 (see Table 2
below).
This is the table that will replace the table
Table 1
Table 2
After using the ESC ( t command, the ESC t n command MUST be sent to select the
table before printing from the new table.
0 is sent (assign Registered Table 3 (PC850) to Selectable Table 1 (PC437). In order
to print the Q character (ASCII 245), the command ESC t 1 must be sent. In the Basic
programming language, the sequence would be as follows:
LPRINT CHR$(27);“(T);CHR$(3);CHR$(0);CHR$(1);CHR$(3);CHR$(0);
LPRINT CHR$(27);"t";CHR$(1);
LPRINT CHR$(245)
Some ESC/P2 documentation may illustrate as many as 22 different Registered
Tables. The Registered Tables are a part of the character set, therefore, they are
contained in the Character Generator ROM. The CG ROM differs based upon the
destination country. For this reason, only the above Registered Tables are available
on LQ-570, LQ-1070, LQ-870 and LQ-1170 printers sold for the U.S. market. Foreign
Character Generator ROMs ARE NOT available in the United States. The following
For example, the command ESC ( t 3 0 1 3
PSB No: P-0082
Page:
11 of 14

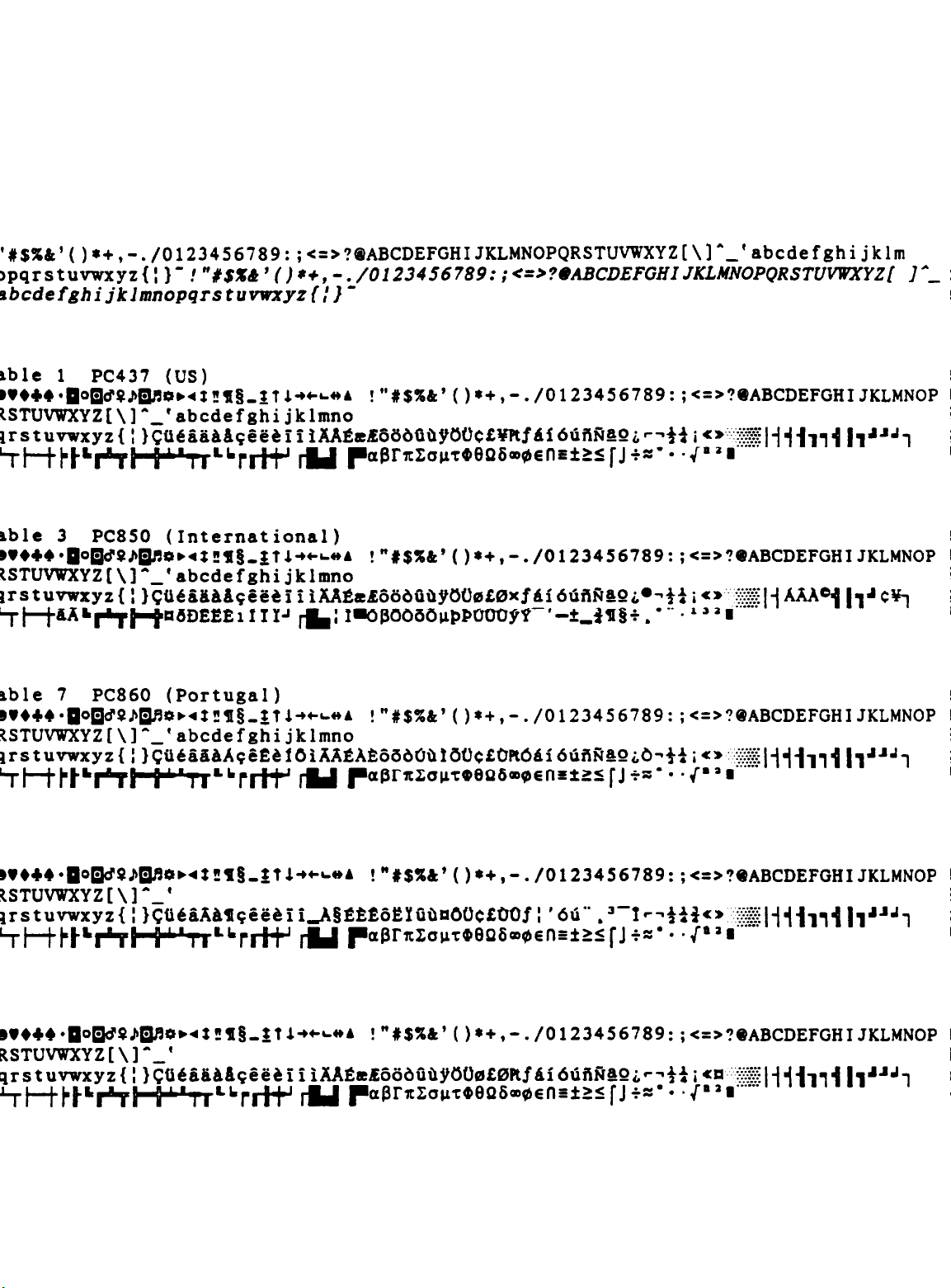

page contains a print sample of the Registered Tables available in printers sold in the
U.S. In order to print the first 31 characters in Tables 1 through 9, the ESC ( ^
command must be sent.
Listed below is a Basic language program and an explanation of the program that will
print the output illustrated on page 13 of this bulletin.
10
FOR Z=1 TO 6
20
READ Y,Y$
30 LPRINT “Table”;Y;” “;Y$
40 LPRINT CHR$(27);“(t”;CHR$(3);CHR$(0);CHR$(0);CHR$(Y);CHR$(0);
50
LPRINT CHR$(27);“t”;CHR$(0)
60
IF Y=0 THEN GOTO 100
70 LPRINT CHR$(27);“(^“;CHR$(31);CHR$(0);
80 FOR X=1 TO 255:LPRlNT CHR$(X);:NEXT X
90
GOTO 120
100 FOR X=33 TO 126:LPRINT CHR$(X);:NEXT X
110 FOR X=161 TO 254:LPRlNT CHR$(X);:NEXT X
120 LPRINT CHR$(10):LPRINT CHR$(10)
130 NEXT Z
140 DATA 0, Italic, 1, PC437 (US),3,PC850 (International),7,PC860 (Portugal)
150
DATA 8, PC863 (Canada-French),9,PC865 (Norway)
Program Description
10
Begin loop to print the 6 Registered Tables
20
Read Registered Table number and Table Name
30
Print Registered Table number and Table Name
40
Send the Assign Character Table command to the printer assigning the
Registered Character Table read in line 20 to Selectable Character Table 0.
Send the Select Character Table command to the printer selecting Selectable
50
Table number 0 as the current Character Table for printing.
If the Registered Character Table number is 0, do not execute commands in lines
60
70 through 90. This is because the Italic Character Table duplicates control
codes and non-displayable characters in ASCII values 127 through 160. Program
lines 100 and 110 prevent the attempted printing of this range of ASCII values.
Note: tines 70 through 90 will execute ONLY if the Registered Character Table to be
printed is NOT table number 0. Refer to the conditional command in line 60.
70
If the Registered Character Table number is not 0, send the Print Data as
Characters command to the printer. Specifically, this command, as listed, tells
the printer to print the next 31 bytes as data, not control codes.
PSB No: P-0082
Page:
12 of 14
60 If the Registered Character Table number is not 0, print ASCII values 1 through
255 inclusive. Remember, line 70 allows the first 31 ASCII values to print as
characters, not control codes.
90 If the Registered Character Table number is not 0, do not execute commands in
lines 100 and 110.
100 If this Registered Character Table number is 0, sand ASCII values 33 through 126
to the printer.
110 If this Registered Character Table number is 0, send ASCII values 161 through
254 to the printer.
120 Send 2 line feed commands to the printer to provide separation between tables.
130 If program lines 20 through 120 have not executed 6 times, return to line 20 and
start again.
140 Data that is read by line 20. This line and line 150 contain the Registered Table
number and name that will be used by this program.
PSB No: P-0082
Page: 13 of 14
Table 0
‘#$X&
>pqrstuvwxyz(
nbcdefghijklmnopqrstuvwxyz{,‘}-
Italic
()*+,-
./0123456789:;c=>?~ABCDEFGHIJKLMNOPQRSTU~YZ~\~n-fabcdefghijklm
:}‘!“#$X&‘()*+,-./0123456789:;
e=> ?BABCDEFGHI
JKLMNOPQRSTUVRXYZ[
\ J
^,
Table 8
D~,+~*~o~~~pRU.4:!!~[g,~tl~t~oA
XSTUWXYZ[\]--’
PC863 (Canada-French)
abcdefghijklmno
!“#$%C’()*+,-./Or23456789
:;<=*?@ABCDEFGHIJKLMNOP
~rstuvwxyz{I)~~~b~Alt~EBbii~~E~E~~X~iiO~6U~fbOf~‘66”.3-f~~~~~a:.,~~~~~~~~~~)~JJJ~
kt-fttL+nLLrrt+l
Table 9
b~~~**no~~bORU,4:"~~-~tl~t~~A
RSTUWYCYZ[\I--’
PC865 (Norway)
abcdefghijklmno
w
raprxCalrr~BQG~B~nnfLIFJ9='..Jn2r
!“#SX&‘()*+,-./0123456789
:;<=>?QABCDEFGHIJKLMNOP
qrstuvwxyz( I}CU~~~AA~oe~iiiXAB~b;~ij~a~~a~0f0Ptfbi6ri~RPo;~~f?;~n-:-~~.~)~i111~)lJJJ~
fH-ttLpTw+LLr+jJ
rly raPrxCa~+~BQ6~8EnifL~rJ~~.*.~a2~
PSB No: P-0082
Page:
14 of 14
C ( ^ n1 n2 d1,.. dk is the command for printing control codes as data where n1
and n2 are variables and d1...dk represent the data that is to be printed as
characters. The variables n1 and n2 tell the printer "the next xx
ASCII
codes are to be
interpreted as characters instead of control codes”. This command is used primarily
to print displayable characters such as ASCII values 0 through 31 in Registered Tables
1 through 9 which are normally used as
control codes (LF, FF,
ESC, etc.)
TO determine the values for n1 and n2 perform the following steps.
1.
Determine how many ASCII codes will be sent sequentially immediately
following n1 and n2
2
Using long division, divide the quantity of ASCII codes that will be sent
sequentially immediately following n1 and n2 by 255.
3.
The remainder in the quotient is the value for n1.
4.
The whole number in the quotient is the value for n2
EXAMPLE
1. The symbols for the different suits of a card deck (hearts, diamonds, clubs,
and spades -
V’, +, 4,
and 4) are to be printed. These are each separate
ASCII codes (ASCII codes 2, 3, 4, and 5 when using the PC437 Character
table).
2. 4 divided by 255=
0 with a remainder of 4.
3. n1=4
4. n2=0
In the Basic programming language, the command would look like this.
This command, as listed in the line above, will cause the printer to print the symbols
for the different suits of a card deck (hearts, diamonds, clubs, and spades
and
4).
Another example of using the ESC ( ^ command is illustrated in the
V’,
+, 4,
explanation of the ESC ( t (Assign Character Table) command.
Loading...
