Introduction

The PowerLite® Pro Cinema 31000/61000 projector lets you enjoy theater-quality images in the relaxing environment of your own home. Designed especially for home cinema use, it offers these outstanding features:

■

Native 1080p (1920 × 1080) resolution, dynamic contrast ratio up to 1000000:1 (500000:1 for the Pro Cinema 31000), and up to 1200 lumens of brightness (white light output and color light output) for incredibly rich, sharp images in any room lighting

■

Auto Iris system that constantly controls the light output based on the gamma and black/white levels of your projected content, for perfectly adjusted images and deepest blacks

■

Epson® C2Fine™ 3LCD technology for reliable picture quality, increased contrast ratio and uniform colors

■

1080Perfect™ video processing using HQV® Reon-VX technology for more film-like images free of noise or artifacts

■

10-bit with partial 12-bit color quality for unmatched color accuracy, with over a billion colors available

Introduction

■

Epson AccuCinema™ color management delivered by the built-in optical Cinema Filter blocks out excess light for an expanded, purer color range and sophisticated grayscale tracking

■

HDMI™ (High Definition Multimedia Interface™) port for superior, uncompressed digital video

■

True 16:9 wide-format projection

■

Flexible setup configurations, including front projection and ceiling mounted, with vertical and horizontal offset lens shift

■

Five color modes, including x.v.Color™, to quickly optimize viewing for different lighting environments, and a vast array of custom color adjustments

Projector Parts

Front

Control panel (side)

Infrared receiver (rear)

Lamp cover

Ventilation slots

Back

AC power inlet

(intake)

Lens cover

Component video port

PC port

Infrared receiver (front)

Cable holders

Video port

Adjustable foot

Kensington lock port

Ventilation slots (exhaust)

Control port (RS-232C)

Main power switch

S-Video port

LAN port (Pro Cinema 61000 only)

HDMI ports

Trigger out ports (second port on Pro Cinema 61000 only)

Introduction

Bottom

Air filter cover release

Mounting bracket attachment points

Optional cable cover attachment points

Projector Control Panel

Status lights (see page 61)

Introduction

Power button

Menu button Displays the menus

Lens button Adjusts focus, zoom, and lens shift

Source button Switches the video input source

Esc button Exits the current menu item

Enter button Selects menu items or opens the line menu

Menu navigation buttons

Remote Control

Power buttons Turn projector on or off

Lens Shift button Moves image up/down/left/right

Zoom button Adjusts the image size

Focus button Sharpens the image

Default button Restores default settings when menu is displayed

Illumination button Lights the remote control buttons for easy viewing

Source buttons Switch between equipment connected to the projector

HDMI Link buttons Let you operate HDMI CEC compatible devices

Menu navigation buttons

Enter button Selects menu items or opens the line menu

Esc (escape) button Exits the current menu item

Menu button Displays the projector’s menus

Memory button Recalls custom picture settings

Lens Iris button Adjusts the amount of light passing through the lens

Aspect button Changes the picture’s aspect ratio

RGBCMY button Adjusts the hue, saturation, and brightness for each color

Super-res button Sharpens blurred edges of upscaled images

Pattern button Displays test patterns to adjust the image

Color Mode button Optimizes viewing for different lighting environments

Frame Int (interpolation) button Smooths motion in rapid pictures

Blank button Temporarily stops projection or hides the menu screen

Introduction

Optional Accessories

Epson provides the following optional accessories for the projector:

Product Part number

Replacement lamp V13H010L66

Air filter replacement V13H134A28

Kensington security lock (anti-theft device) ELPSL01

Cable cover V12H003005

Projector mount ELPHB800

Panamorph™ Fixed Anamorphic Lens Kit ELPFALK

Panamorph Movable Anamorphic Lens Kit ELPALK2

In addition to the accessories listed above, 1-year and 2-year extended service plans are available. You can purchase these plans and other accessories from an authorized Epson reseller. To find the nearest reseller, please call 800-GO-EPSON (800-463-7766). To purchase online, visit www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales).

Registration and Warranty

Introduction

Your projector comes with a basic three-year carry-in warranty. For details, see page 79.

In addition, Epson offers free Extra Care

Home Service. In the unlikely event of an equipment failure, you won’t have to wait for your unit to be repaired. Instead, Epson will ship you a replacement unit anywhere in the United States, Canada, or Puerto Rico. See your Extra Care Home Service brochure for details.

To register, simply follow the registration instructions on the CD, or register online at www.epson.com/webreg. Registering also lets you receive special updates on new accessories, products, and service.

Using This Manual

This book contains all the information you need to use the projector, in addition to basic setup and maintenance instructions, troubleshooting tips, important safety instructions, specifications, and warranty information.

Please follow these guidelines as you read through the manual:

Warning: Must be followed carefully to avoid bodily injury.

Caution: Must be observed to avoid damage to your equipment.

Note: Contains important information about your projector.

Tip: Contains helpful projection tips.

Need additional help? Take advantage of Epson’s automated support services 24 hours a day at www.epson.com/support (U.S.) or epson.ca/support (Canada). Use this site to view FAQs (Frequently Asked Questions) or product information and e-mail your questions to Epson support.

If you need more help, you can use the Epson PrivateLine (800) 637-7661 and enter the PIN on the PrivateLine support card that came with your projector.

Support service. Call

Introduction

Setting Up the Projector

Follow the instructions in this section to choose a location for the projector, connect the cables, and display an image.

Choosing a Location

You can install the projector for the viewing setups shown below, as well as rear projection.

Center

Side

Ceiling

Setting Up the Projector

Ideally, keep the projector level and place it at a height so its lens is centered between the top and bottom of the screen, as shown below. If this is not possible, use the lens shift function to reposition the image (see page 23). As a rule of thumb, you can use lens shift to move the image up or down by nearly its full height, and left or right by about one-half its width (for details, see page 24).

Offset A

Offset B

Offset refers to distance from

Projection distance

bottom of image to center of lens using maximum lens shift.

If you place the projector off to the side, aim it straight ahead (rather than at the center of the screen), then use the horizontal lens shift to center the image on the screen.

Caution: Do not try to move the lens by hand, or you may damage the projector. Always use the lens shift function to change the lens position.

Setting Up the Projector

The size of the image is determined by the distance from the projector’s lens to the screen. Depending on your display settings, the actual size may differ. Use these tables as a guide for projector placement:

16:9 aspect ratio

Diagonal image size

Projection distance

2.7 to 5.9 feet

0.83 to 1.79 m

(width × height) Offset A Offset B

30 in. (26 × 15 in.)

76.2 cm (66 × 37 cm)

5.1 in. 13 cm

20.6 in. 52 cm

3.6 to 7.9 feet

1.11 to 2.40 m

5.5 to 11.8 feet

1.69 to 3.61 m

7.4 to 15.8 feet

2.26 to 4.82 m

9.3 to 19.8 feet

2.83 to 6.04 m

11.2 to 23.8 feet

3.41 to 7.25 m

14.0 to 29.8 feet

4.27 to 9.08 m

18.7 to 39.7 feet

5.70 to 12.11 m

4:3 aspect ratio

Projection distance

3.3 to 7.2 feet

1.02 to 2.20 m

4.5 to 9.6 feet

1.37 to 2.94 m

6.8 to 14.5 feet

2.07 to 4.43 m

7.4 to 19.4 feet

2.27 to 5.91 m

40 in. (35 × 20 in.)

101.6 cm (89 × 50 cm)

60 in. (51 × 28 in.)

152.4 cm (130 × 75 cm)

80 in. (71 × 39 in.)

203.2 cm (180 × 100 cm)

100 in. (87 × 47 in.) 254 cm (220 × 120 cm)

120 in. (106 × 59 in.) 305 cm (270 × 150 cm)

150 in. (130 × 75 in.) 381 cm (330 × 190 cm)

200 in. (173 × 98 in.) 508 cm (440 × 249 cm)

Diagonal image size (width × height) Offset A Offset B

30 in. (24 × 18 in.)

76.2 cm (61 × 46 cm)

40 in. (32 × 24 in.)

101.6 cm (81 × 61 cm)

60 in. (47 × 35 in.)

152.4 cm (120 × 90 cm)

80 in. (63 × 47 in.)

203.2 cm (160 × 120 cm)

7.8 in. 20 cm

11.8 in. 30 cm

15.7 in. 40 cm

19.6 in. 50 cm

24 in. 60 cm

29 in. 75 cm

39 in. 87 cm

7.2 in. 18 cm

9.6 in. 24 cm

14.4 in. 37 cm

19.2 in. 49 cm

27.5 in. 70 cm

41.2 in. 105 cm

54.9 in. 139 cm

68.6 in. 174 cm

82 in. 209 cm

103 in. 262 cm

137 in. 336 cm

25.2 in. 64 cm

33.6 in. 85 cm

50.4 in. 128 cm

67.2 in. 171 cm

11.4 to 24.3 feet

3.48 to 7.40 m

Setting Up the Projector

100 in. (79 × 59 in.) 254 cm (200 × 150 cm)

24 in. 61 cm

84 in. 213 cm

4:3 aspect ratio

Projection distance

13.7 to 29.2 feet

4.18 to 8.89 m

17.2 to 36.5 feet

5.23 to 11.12 m

Diagonal image size (width × height) Offset A Offset B

120 in. (94 × 71 in.) 305 cm (240 × 180 cm)

150 in. (118 × 91 in.) 381 cm (300 × 230 cm)

29 in. 73 cm

36 in. 91 cm

101 in. 256 cm

126 in. 320 cm

22.9 to 48.7 feet

6.99 to 14.83 m

200 in. (161 × 118 in.) 508 cm (410 × 300 cm)

48 in. 122 cm

168 in. 427 cm

To determine the exact image size when you know the projection distance (or the exact projection distance when you know the desired image size), you can use the Image Size Calculator. This program is available on the Epson website at epson.com/support (U.S.) or epson.ca/support (Canada).

Also keep these considerations in mind:

■

Make sure there is plenty of space for ventilation around the projector. Air coming out of the ventilation slots can be quite hot. Do not place anything near the slots that can be damaged by heat.

■

Make sure the projector is within 9.8 feet (3 m) of a grounded electrical outlet or extension cord.

Setting Up the Projector

Installing the Projector

To install the projector, you first need to determine the location, based on the size of your screen (maximum diagonal image size). Use the tables on page 14 as a guide to positioning the projector.

To suspend the projector from a ceiling, you will need the optional projector mount designed for the projector. See page 10 for ordering information. Follow the instructions included with the mount to install the projector.

Warning: When installing or adjusting the ceiling mount, do not use adhesives to prevent the screws from loosening and do not use any type of oil or lubricant. These may cause the projector casing to crack and the projector may fall, causing serious injury and serious damage to the projector.

If you install the projector on the ceiling, you will need to invert the picture so that it appears right side up. Follow these steps:

1. Press the

2. Open the

3. Select

4. Press the

button on the remote control.

Settings

Front/Ceiling

button when done.

menu, then select

Projection

If you are planning to use an AV controller with the projector, refer to the table of ESC/VP21 command codes on page 74. In addition, the projector’s

Trigger out

port can be used to

lower a projection screen or operate an anamorphic lens (see page 45).

Setting Up the Projector

The following illustrations show the dimensions of the projector:

Center of lens

17.3 in. (440 mm)

8.7 in. (220 mm)

6.9 in.

174 mm

0.43 in. 11 mm

0.138 in.

12.3 in.

312 mm

6.3 in. (160 mm)

3.5 mm

2.4 in.

60 mm

3.6 in.

92 mm

1.38 in. 35 mm

0.98 in. 25 mm

180 mm

7.1 in.

7.3 in.

185 mm

15.9 in.

405 mm

7.3 in.

185 mm

M4×9mm

Setting Up the Projector

Connecting the Cables

Connecting Video and Computer Equipment

You can connect the projector to many types of video equipment, such as a Blu-ray

™

/DVD player, digital tuner, cable or satellite box, video game console, camcorder, or

Disc digital camera. You can also connect it to a desktop or laptop PC or Apple system. For details on compatible video formats, see page 71.

You can connect up to six pieces of video equipment at the same time, using any of the commercially available cables shown below:

Port name Video equipment connection Computer connection

Macintosh®

HDMI 1/ HDMI 2

Component Use a component video cable

PC — Use a Mini D-sub, 15-pin monitor cable

S-Video Use an S-video cable: —

Use an HDMI cable:

For a computer with a DVI port, you can also use a commercially available DVI-D to HDMI conversion cable.

—

(with RCA-style connectors):

Connect the cable to the three component video ports. Match corresponding colors between the cable and the ports.

to connect to a computer RGB (monitor) port:

Video Use an RCA video cable: —

Setting Up the Projector

For best results, connect your video equipment to the

HDMI

port, if possible. If your equipment doesn’t support HDMI, connect it to one of the following ports (highest quality listed first):

Connect video equipment to one of these ports

Component

(for component video),

S-Video

, or

Video

(for composite video).

Connect a computer to one of these ports

When you connect an HDMI cable to the projector, it is recommended that you fasten it as shown with one of the included cable clamps.

Making Other Connections

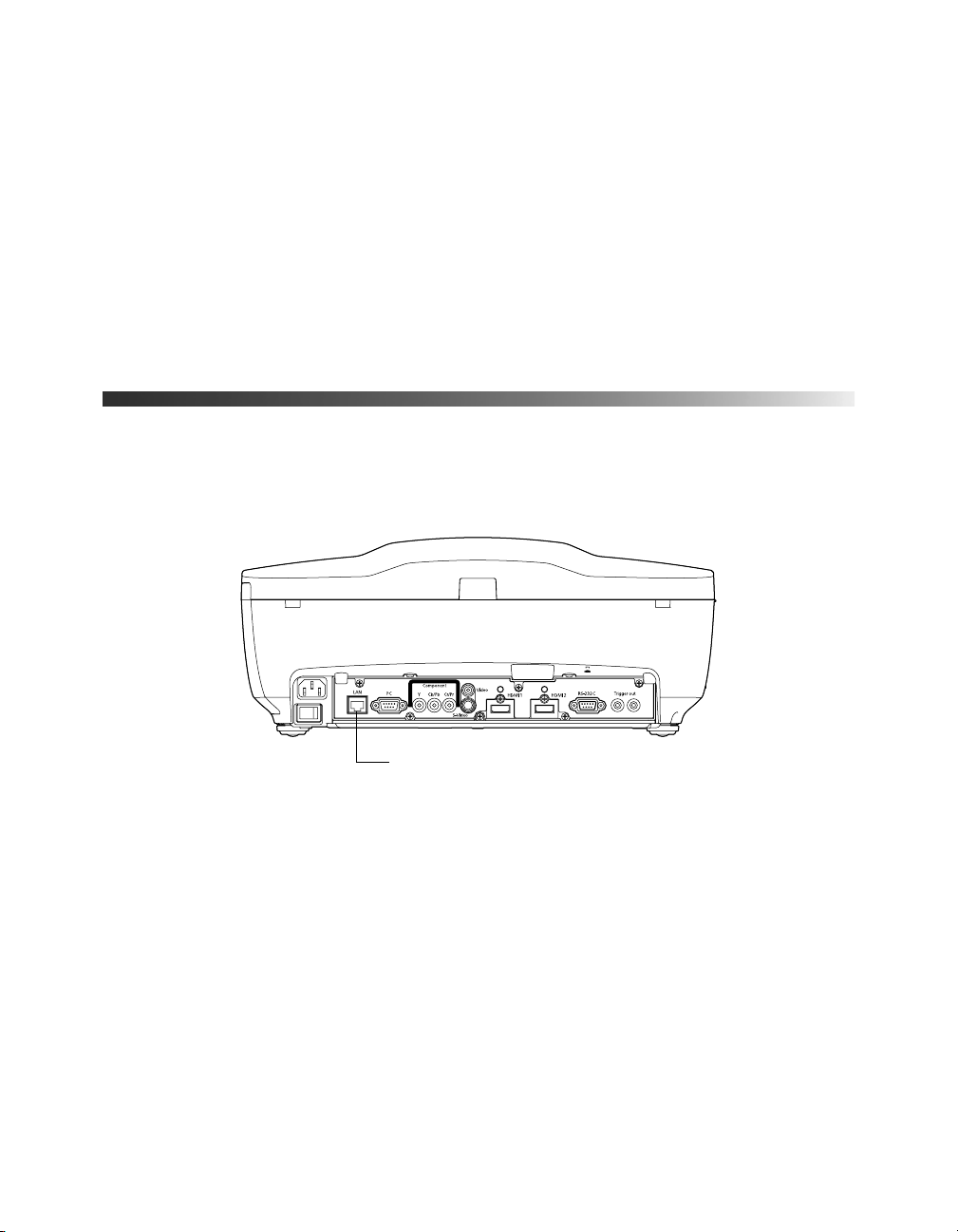

Connect the power cable and other cables described below, depending on how you plan to use the projector.

■

Plug the power cable into the projector and a grounded electrical outlet.

Setting Up the Projector

■

The

Trigger out

port(s) output a 12-volt DC signal when the projector is turned on. This lets a central control system monitor whether the projector is on or off, and can be used to raise or lower your projection screen automatically when the projector is in use. Depending on the setting you select (see page 45), it can also be used to operate an anamorphic lens.

Connect a 3.5-mm mini jack to the port, as shown.

■

To use an AV controller with the projector, connect a 9-pin null modem serial cable to the

RS-232C

port.

Refer to the table of ESC/VP21 command codes on page 74.

Installing Batteries in the Remote Control

The remote control uses two AA manganese or alkaline batteries.

Warning: Keep batteries away from children. If a battery is swallowed, contact your doctor immediately.

1. Release the tab and lift open the cover.

2. Insert two new AA batteries as shown.

3. Insert the tab on the cover and press it down until it clicks into place.

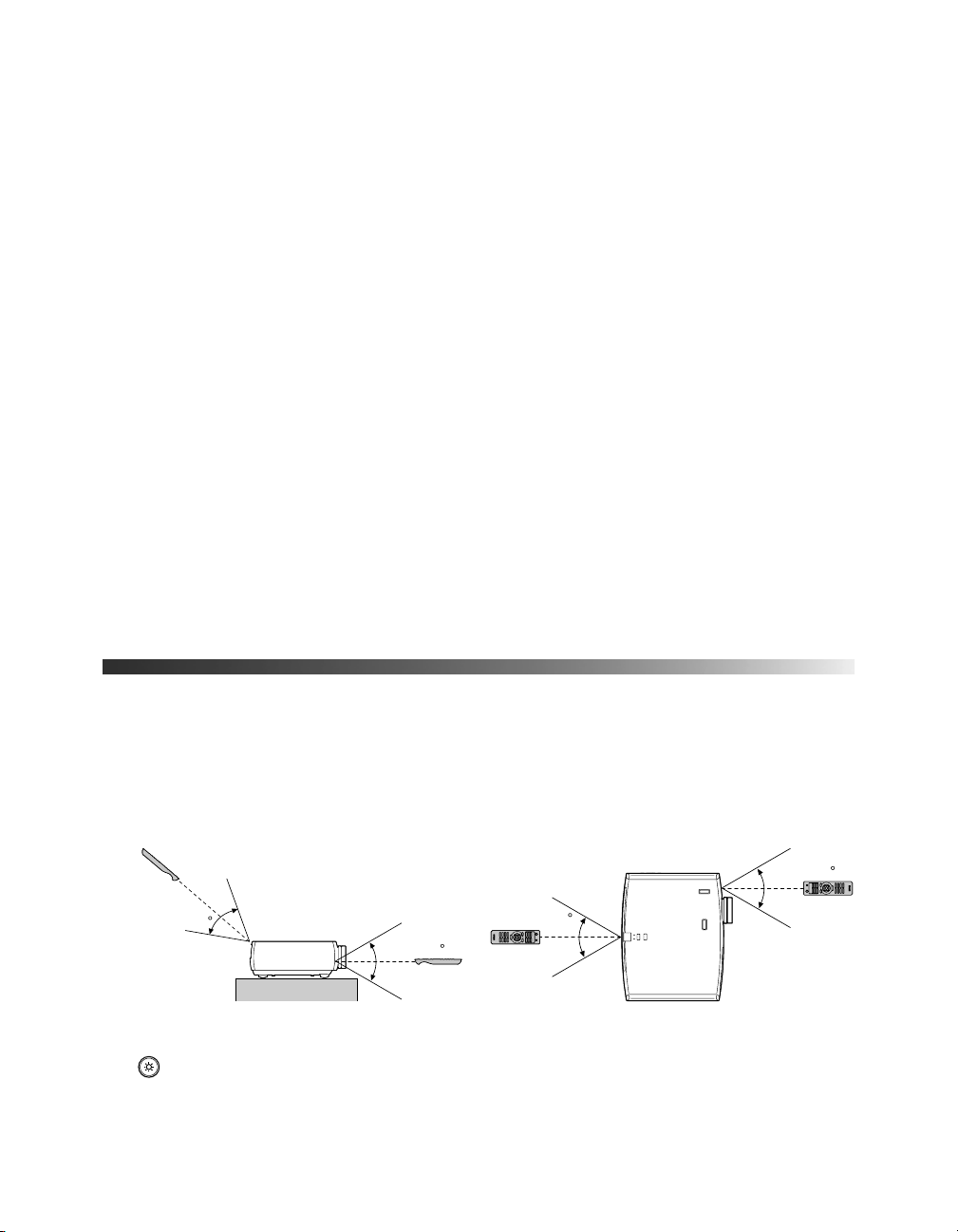

Aim the remote control at the screen, or at the front or back of the projector. Make sure you are within 30 feet of the projector.

If you suspect the batteries are weak, press the

illumination button. If the buttons do not glow,

replace the batteries.

Setting Up the Projector

Turning the Projector On and Off

Turning On the Projector

1. Remove the lens cap.

2. Turn on any connected equipment you plan to use.

3. Turn on the main power switch on the back of the projector.

4. Press the Ppower button on the projector or the

Note: To prevent children from turning on the projector, you can use the Child Lock feature. See page 29 for details.

If you’ll be using the projector at an altitude above 4900 feet (1500 meters), turn on High Altitude Mode so the fan can properly cool the projector at the high altitude air pressure. See page 46 for details.

button on the remote control.

Remote controlProjector

The projector takes about 30 seconds to warm up and display an image. If you don’t see a picture, you may need to change the image source as described on page 22.

Setting Up the Projector

Turning Off the Projector

1. Turn off any equipment connected to the projector.

2. Press the Ppower button on the projector or the P

Standby

button on the remote control. When you see a confirmation message, press the button again to turn the projector off.

Caution: Turn off this product when not in use to prolong the life of the projector. Continuous 24-hour-a-day use may reduce the overall life of the product.

Note: You can disable the confirmation message if you only want to press the button once to turn off the projector (see page 43).

3. If you need to move the projector, wait for the Ppower light to stop flashing, then turn

off the projector’s main power switch on the back. You can now unplug the projector.

Caution: Never turn off the main power switch without first turning off the projector and letting it cool as described above, or you could damage it and reduce lamp life.

Selecting the Image Source

The source buttons on the projector and remote control let you switch between images from different pieces of equipment connected to the projector (such as a DVD player, cable or satellite box, or video game console).

Press the video source is connected.

Source

button on the remote control that corresponds to the port to which your

Setting Up the Projector

If you press the source button on the projector, you see a list of available sources. Press the source button to move through the list and select the desired source.

Note: If an image does not appear, see “Problem Solving” on page 61.

To temporarily turn off the image and darken the screen, press the Blank button on the remote control. Press the Blank button again to return to normal viewing.

Positioning the Image

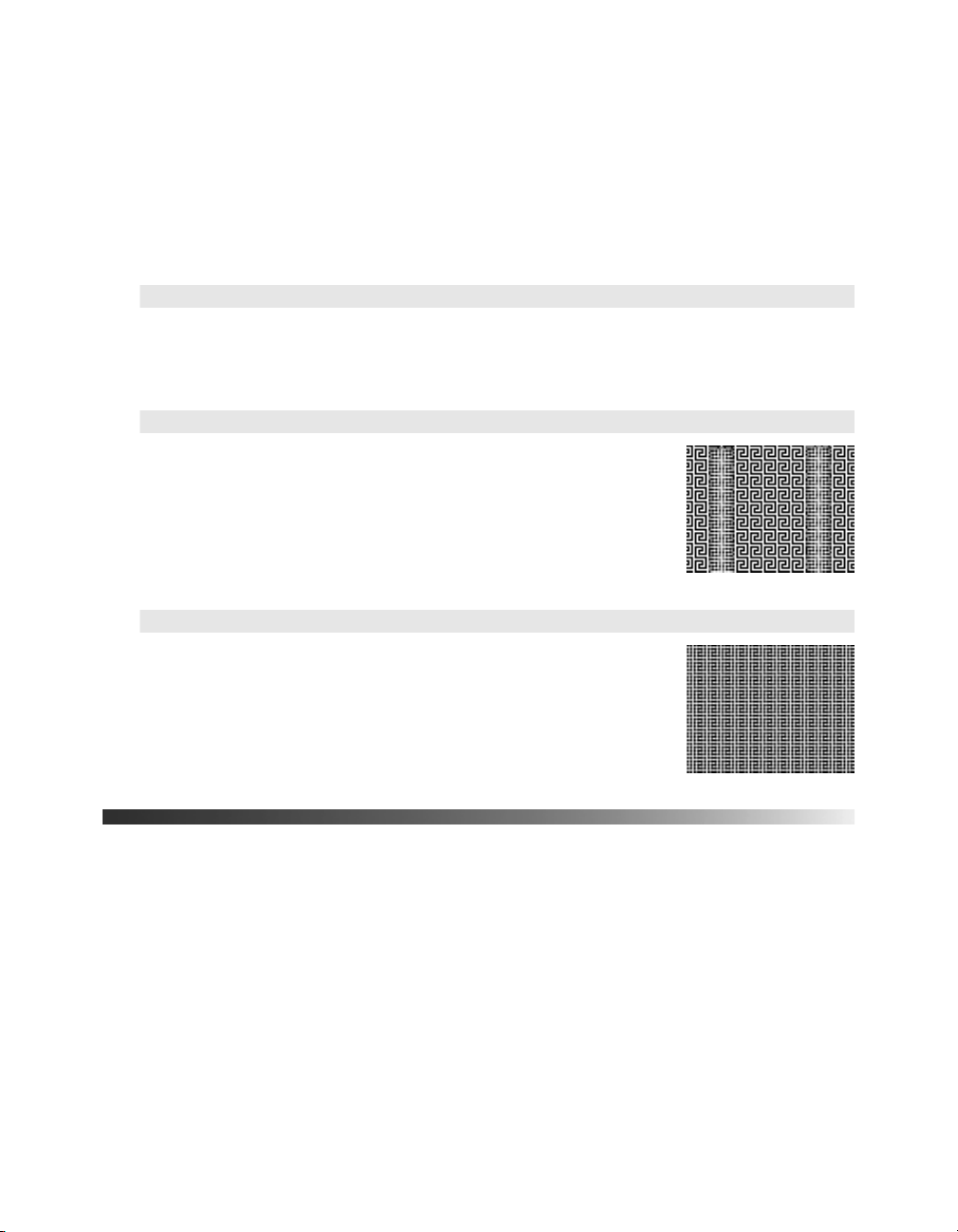

You can display a test pattern to help adjust the image position by pressing the button on the remote control. Select

Display Position

button to turn off the test pattern. You can also use the

, then press

Pattern

button to isolate colors when

Enter

Pattern

. Press the

Esc

displaying color bars (see page 36).

If the image is not centered on the screen, use the lens shift function, as described below, to adjust its position.

■

If the image looks like or , make sure the projector is not tilted up or down. Instead, keep the projector level, then use the lens shift to position the image on the screen.

■

If the image looks like or , the projector has been placed off to one side of the screen and angled toward it. Instead, face the projector straight ahead, then use the lens shift to center the image.

Setting Up the Projector

To use the lens shift, press the

Lens Shift

button on the remote control, then use the

lrud arrow buttons to adjust the image position. To return the lens to the center, press and hold any arrow button until the lens moves to the center and stops.

Caution: Do not try to move the lens by hand, or you may damage the projector. Always use the lens shift function to change the lens position.

The amount by which you can shift the image is expressed in terms of the horizontal (H) and vertical (V) image size, as shown below:

Maximum lens shift boundary

Note that the image cannot be moved to the maximum distance in both the vertical and horizontal directions at the same time. For example, when the image has been shifted horizontally by the full amount, it can be shifted vertically by only 9 percent of the height of the image.

If the image is centered on the screen but one side is taller than the other, adjust the front feet so that the projector is level.

Setting Up the Projector

Making Basic Adjustments

Follow the instructions in this chapter to make basic adjustments to the image shape, size, color, and quality. For further refinements, see “Making Detailed Adjustments” on page 31.

Focusing and Zooming

To focus the image, press the arrow buttons to adjust the picture.

To adjust the image size, press the arrow buttons to reduce or enlarge the picture.

Focus

button on the remote control, then use the l and r

Zoom

button on the remote control, then use the l and r

Making Basic Adjustments

Choosing the Aspect Ratio

In many cases, video signals are automatically resized to fit on your screen when need to change the size of the image (or aspect ratio) for certain image types by pressing the

Select one of these settings (some settings may not be available, depending on the input sigal):

Auto

is selected as the Aspect setting. You may

Aspect

button on the remote control.

■ Normal

for HDTV (16:9 aspect ratio), computer images, or

images recorded at a 4:3 aspect ratio.

4:3 image using Normal settingHDTV (16:9) image using Normal setting

■ Full

for images recorded in squeeze mode (using horizontal compression). 4:3 images not

recorded in squeeze mode are stretched to fit the screen.

■ Zoom

■ Wide

for images recorded in letterbox format. Fits the image to the screen.

Note: Depending on the image’s aspect ratio, the top and bottom may be hidden from view. Use the Zoom Size option to adjust the image vertically. If subtitles aren’t visible, use Zoom Caption Pos. to reposition the image. See page 43.

to expand a 4:3 image to 16:9 so it fills the whole screen. This stretches only the

right and left sides of the image; the central part is unchanged.

■ Anamorphic Wide

CinemaScope

to display images that have a 2.40:1 aspect ratio (such as

) when using a commercially available anamorphic lens (available from

Epson—see page 10).

Note: If you use this setting without an anamorphic lens, the image fills the screen vertically but not at the correct aspect ratio. Make sure Overscan is set to Off (100%), or the image won’t display correctly (see page 42). If your anamorphic lens has a motorized transport, you can operate it automatically with the Trigger out port (see page 45).

■ Horiz. Squeeze

equipped the projector with a fixed anamorphic lens.

Making Basic Adjustments

to display images that have a 16:9 or 4:3 aspect ratio when you’ve

Choosing the Color Mode

You can change the Color Mode to automatically adjust brightness, contrast, and color, letting you quickly optimize the projected image for various lighting environments. You can also select a different color mode for each input source—which is useful if you view different types of images from different sources. (For example, you might set the HDMI 1 source to

Living Room

and the PC source to

if it’s usually used for watching movies in the daytime with the blinds closed,

Dynamic

for playing video games with the blinds open.)

Select the image source you want to adjust, then press the control. Choose from these settings:

■ Dynamic

■ Living Room

day.

■ THX

room.

■ Cinema

■ x.v.Color

viewing movies through HDMI.

The built-in Epson Cinema Filter automatically improves color reproduction in a darkened room; it is used when you select

for projecting the brightest picture available.

for watching television programs during the

for projecting natural, accurate colors in a dimly lit

for viewing movies in a dimly lit room.

for the most natural color reproduction when

Cinema

x.v.Color

Color Mode

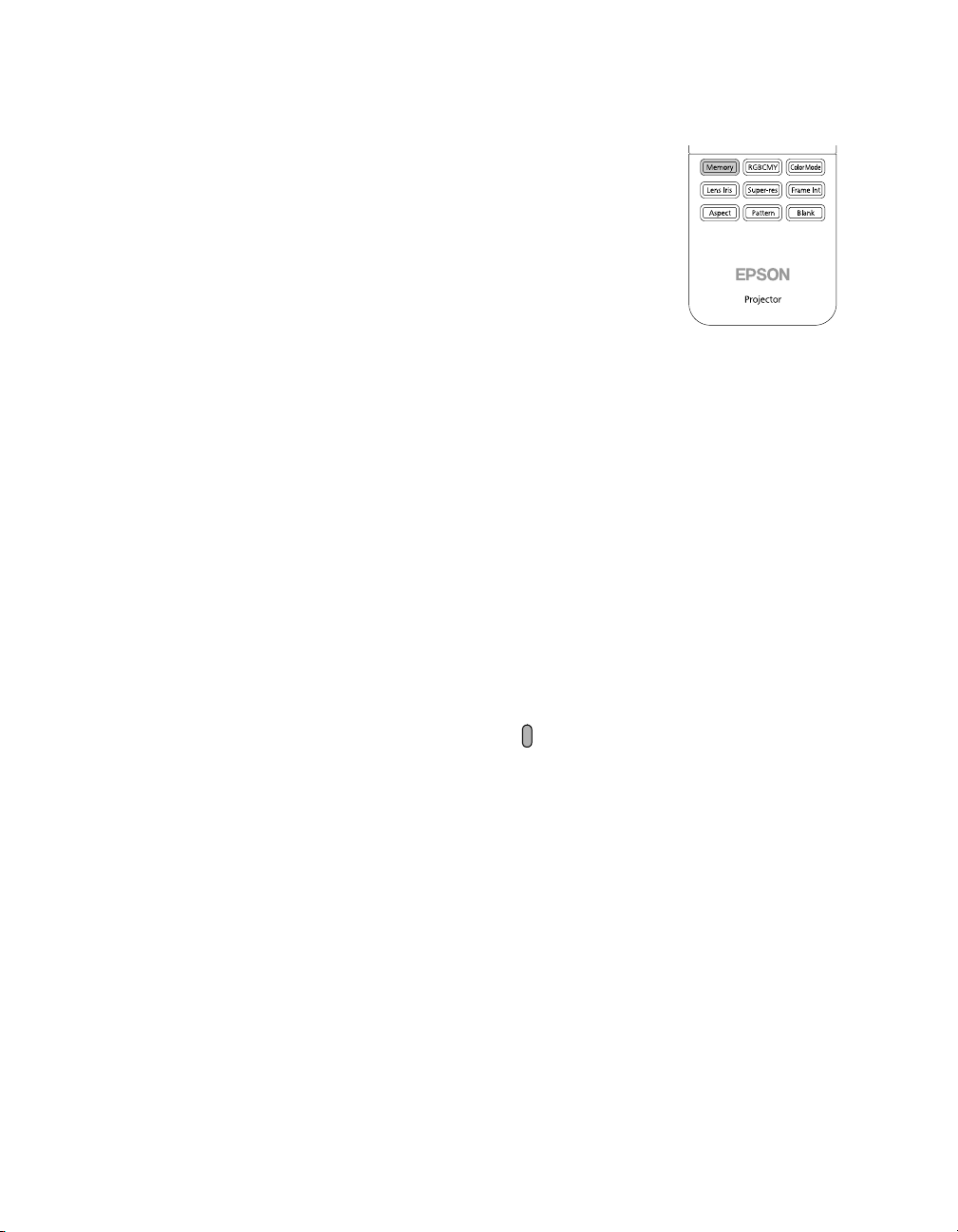

button on the remote

Advanced Color Adjustments

To further customize the color and image quality, you can adjust the gamma and individual RGBCMY color tones. (Not available when

x.v.Color

is selected as the Color Mode.)

Making Basic Adjustments

Note: You can fine-tune these and other color and image quality settings using the projector’s menu system (see page 31). You can also save combinations of picture settings with the Memory feature for easy recall (see page 39). If you don’t like the settings you have selected on a particular menu screen, you can press the Default button to restore the factory settings.

Adjusting the Gamma Setting

You can select from five gamma settings (2.0 to 2.4) or customize your own setting from your image or a displayed graph. Lower values will increase the contrast of dark areas, but tend to blur the bright areas. Higher values will darken the light areas. Gamma presets make minor adjustments to mid-tone values. The larger the gamma preset, the lower the midtone values. Changing these settings affects contrast which can be seen as a blur in bright areas.

1. Press the

button, then select

You see the following displayed on the screen:

2. Do one of the following:

■

Select one of the numeric correction values using the u or d button on the remote

Enter

control and press the

button. You see the setting reflected in the graph on the right. The horizontal axis represents the input signal level, and the vertical axis represents the output signal level. Press the

■

Select

Customized

. Then continue with the next step.

3. Do one of the following:

■

Select

Adjust it from the image

the arrow buttons to move the icon to the area of brightness you want to adjust, then

Enter.

press

The custom gamma graph appears with the channel selected for

adjustment. Press the u or d button to adjust and then press


Advanced

Gamma

button to exit.

. You see a gamma icon on the projected image. Use

Enter.

■

Select button to select the point on the graph that you want to adjust, and then use the u or d button to adjust the settings. Press

Making Basic Adjustments

Adjust it from the graph

. When the gamma graph appears, use the l or r

Enter

to save your setting and exit.

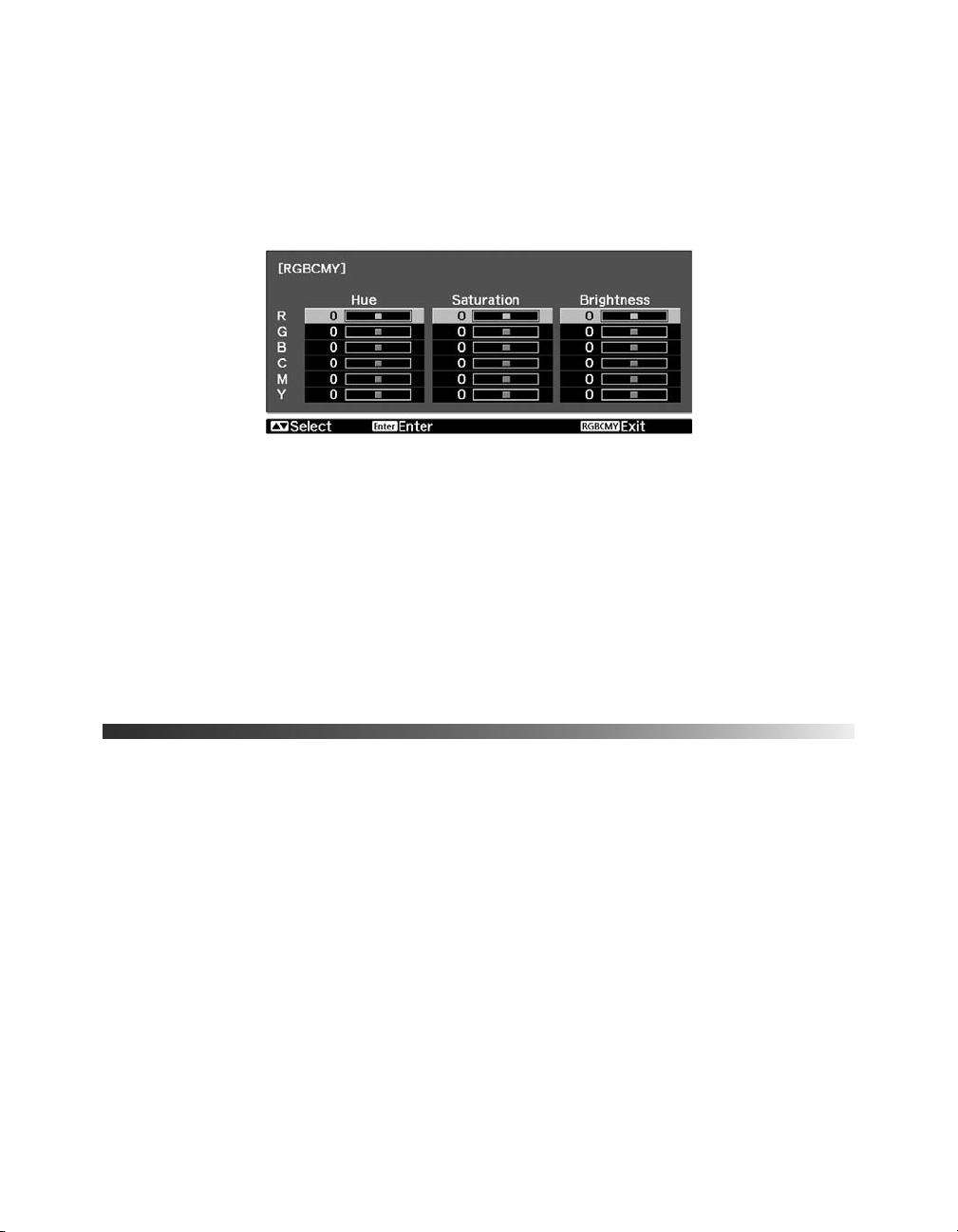

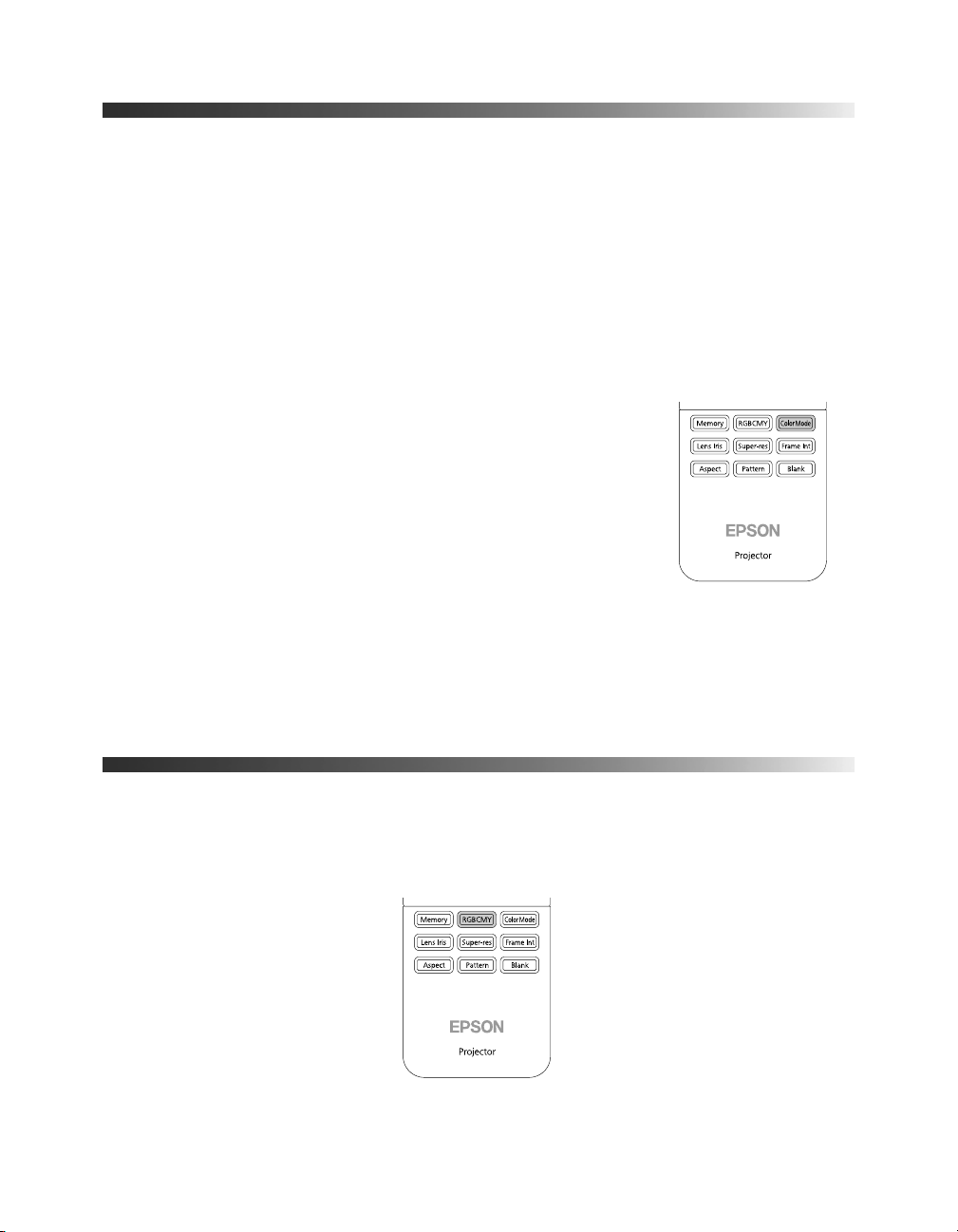

Adjusting RGBCMY

Use this feature to adjust the hue, saturation, and brightness for each of the red (R), green (G), blue (B), cyan (C), magenta (M), and yellow (Y) color components.

1. Press the

RBGCMY

button. You see the following displayed on the screen:

2. Use the u or d button on the remote control to select the color you want to adjust, and

press the

3. Select the

Enter

button.

Hue, Saturation

, or

Brightness

for that color, and use the l or r button to

make the adjustment.

4. Press

Note: You can also adjust the offset and gain using the RGB setting in the projector’s menu system (see page 37).

Esc

to adjust another color, or press

RGBCMY

to exit.

Locking the Projector

The projector includes three lock settings to prevent the image from being accidentally changed once it’s adjusted, and to keep children from turning on the projector without adult supervision.

To access the lock settings, follow these steps:

1. Press the

2. Use the menu navigation buttons to open the

button on the remote control.

Settings

menu, then open

Making Basic Adjustments

Lock Setting

3. Choose from these options:

■ Lens Lock

disables the focus, zoom, and lens shift. If you try to use one of these

functions, a lock icon appears on the screen.

■ Child Lock

to disable the Ppower button on the projector’s control panel unless it is

pressed for about 3 seconds. (You can use the Ppower button to turn it off, however.) Since you can still use the remote control to turn on the projector, you may want to keep it away from children’s reach.

■ Control Panel Lock

to disable all the buttons on the projector’s control panel,

except for the Ppower button. A lock icon appears on the screen whenever you press a button with Control Panel Lock turned on. To cancel Control Panel Lock, press and hold the

Enter

button on the projector’s control panel for at least 7

seconds.

4. Press

to exit the menu system.

If you turned on the Control Panel Lock, the projector buttons are now locked.

If you turned on the Child Lock, turn off the projector and let it cool down. The Child Lock takes effect after the cool-down period.

Caution: If the Direct Power On setting is turned on (see page 44), using the main power switch can cause the projector to start even though the Child Lock is in use.

Making Basic Adjustments

Making Detailed Adjustments

You can use the projector’s on-screen menus to make detailed adjustments to the image quality—such as the brightness, contrast, sharpness, and color. You can also change the menu display, sleep mode settings, and other projector features.

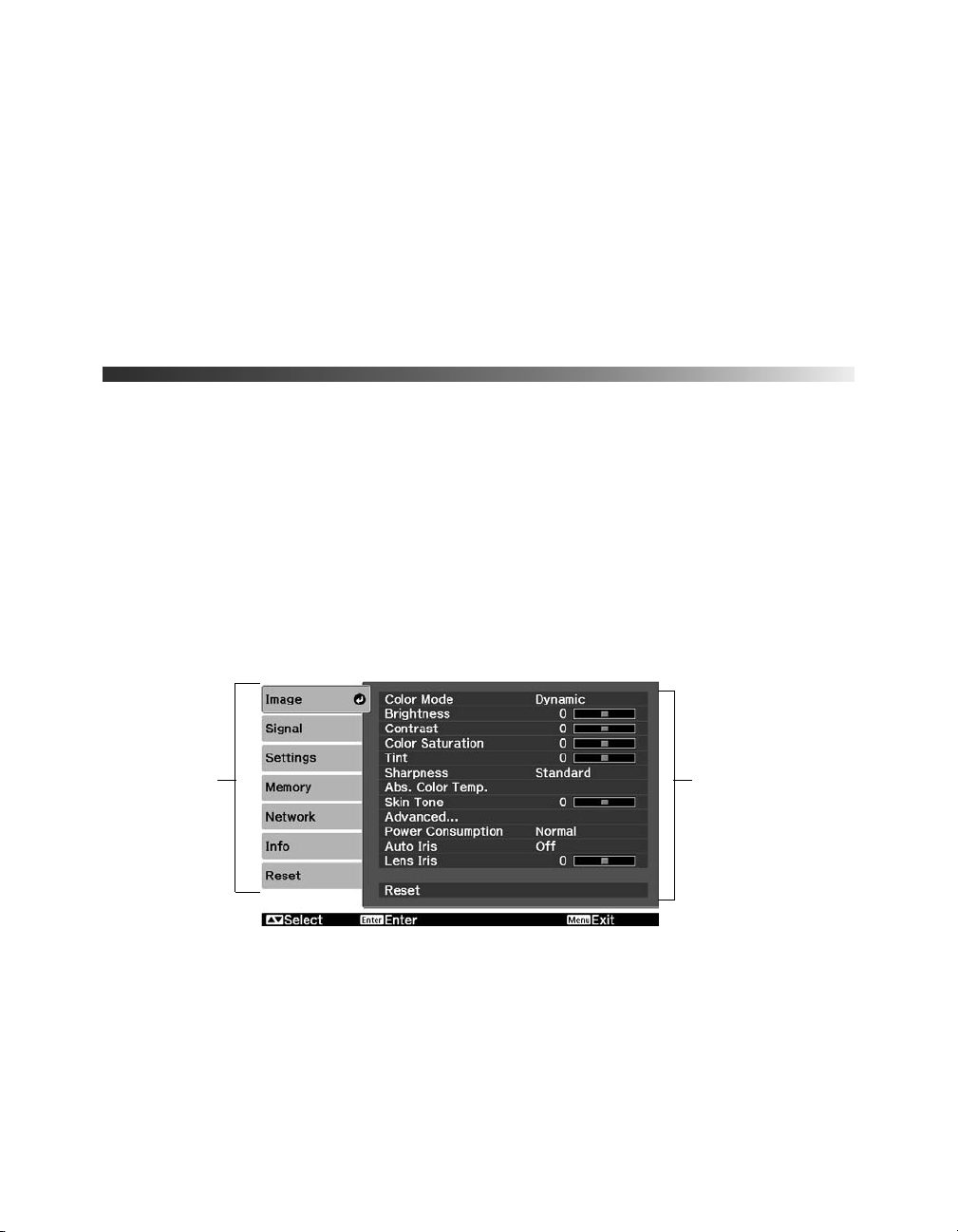

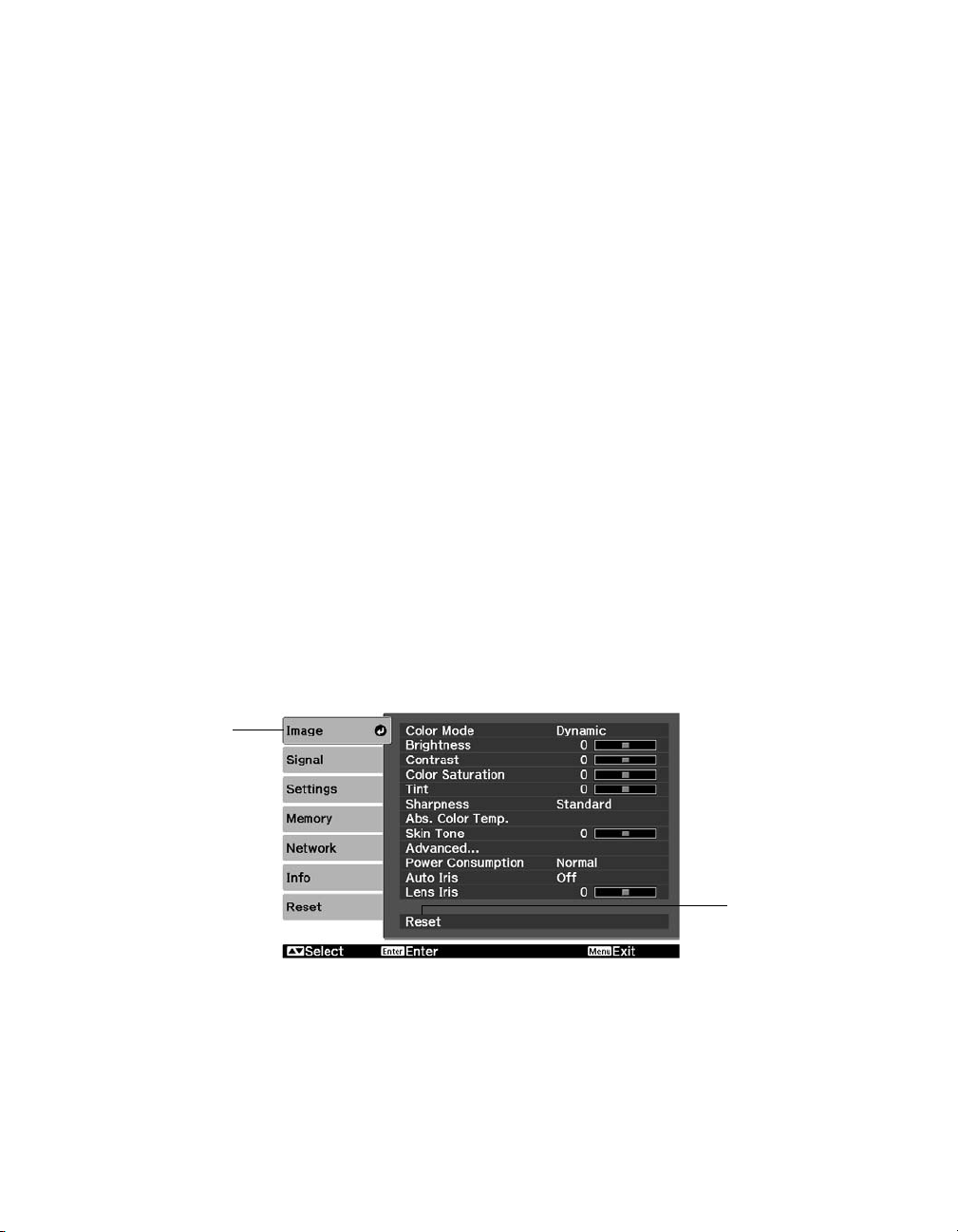

Using the Menu System

You can access the menu system either from the remote control or the buttons on the projector’s control panel. You can also change the menu language and control how the menus display (see page 32).

Note: If you press Blank on the remote control while a menu is being displayed, the menu screen disappears. This is useful for checking the effects of your image adjustments. Press Blank again to make the menu reappear.

To display the menu, press the

button on the projector or remote control. You see a

display like this one:

Main menu options

Note: You may see different options, depending on your projector model and how your equipment is connected to it.

1. Press the u or d button to highlight a main menu option (

Enter

etc.), then press the

button to select it.

2. Press the u or d button to highlight a setting, then press the

Image, Signal, Settings

Enter

Settings available for the highlighted menu

button.

Making Detailed Adjustments

3. Press the u, d, l, or r button to change settings as necessary. You may have to press the

Enter

button to confirm your choice.

Esc

4. When you’re finished, press the

button to exit the menu system.

button to return to the previous menu or press the

Changing How the Menus Display

Use these options to control how the menus display.

■ Language

Settings > Language

Select from 21 languages to use in the menu system.

■ Menu Position

Settings > Display > Menu Position

Use the arrow buttons to choose a position on the screen for displaying the menu.

■ Menu Color

Settings > Display > Menu Color

Select a color scheme for displaying the menus.

Adjusting the Picture Quality

Before fine-tuning the image using these adjustments, make sure you have already selected the best Color Mode for your picture and viewing environment, as described on page 27. Then use the settings in this section to finish adjusting the picture to your liking. Note that some settings can only be used under certain conditions—for example, depending on the color mode you’ve selected.

Most image quality settings are saved independently for each input source (Video, S-Video, HDMI, Component, PC) and color mode. After you finish adjusting the settings for one input source, switch to the other input sources you’ll be using and make any necessary adjustments.

Making Detailed Adjustments

Input Brightness Settings

If the signal from connected equipment is weak and images appear dark, you can adjust the Brightness and Contrast settings. You can adjust brightness and contrast for each image source and color mode.

The Brightness setting controls how much light is produced by the projector, and the Contrast setting adjusts the difference between the bright and dark areas of the projected image. The other settings in this section control how the projector interprets the light and dark areas of the picture.

■ Brightness

Image > Brightness

Adjust the brightness so it’s suitable for your viewing conditions. For example, if you’re projecting in a brightly lit room or onto an especially large screen, you may need to increase the brightness. Decrease the brightness for dark rooms or small screens.

■ Contrast

Image > Contrast

This setting adjusts the difference between bright and dark areas.

■ Auto Iris

Image > Auto Iris

When this setting is on, the light output is automatically adjusted according to the brightness of the image. Select either

Normal

High Speed

to indicate how quickly you would like the projector to respond to changes in the brightness of the image. The setting is stored separately for each image source and color mode.

■ Lens Iris

Image > Lens Iris

Lets you adjust the brightness of the image by controlling the amount of light that passes through the projection lens. You can also access this setting by pressing the

Lens Iris

button on the remote control.

Making Detailed Adjustments

■ Setup Level

Signal > Advanced > Setup Level

Note: This setting can be used only when an NTSC signal is being input through the Video or S-Video port, or when a video signal is being input through the Component video ports.

This setting adjusts the threshold at which dark areas of the image are rendered black (0 IRE). For compatibility with most DVD and video equipment sold in North America, leave this setting at 0%. Check your video equipment’s specifications to be sure of the correct setting.

■ EPSON Super White

Signal > Advanced > EPSON Super White

Note: This setting can be used only when a signal is being input through the HDMI1 or HDMI2 port and the Color Mode is set to THX or Cinema (see page 27).

If bright parts of the image are washed out or overexposed (when the input signal contains values over 100 IRE), turn this setting on to compensate.

■ HDMI Video Range

Signal > Advanced > HDMI Video Range

Note: This setting can be used only when EPSON Super White is turned off and a signal is being input through the HDMI 1 or HDMI 2 port.

If your video equipment has an HDMI port and you’ve connected it to the projector using an HDMI cable, set the level of the projector to match that of the video equipment.

■ Power Consumption

Image > Power Consumption

This setting controls the light output from the projector. On produces a brighter image and the lamp uses more power. To save power, extend the life of the lamp, and reduce fan noise, select

Sharpness and Picture Quality Settings

If the image looks fuzzy, or if it contains noise or flickering, you can use these settings to correct it.

Making Detailed Adjustments

ECO

Normal

, the projector

■ Sharpness

Image > Sharpness

Use this function to make lines and edges appear more distinct in the image. This setting is stored separately for each image source and color mode setting. You can select

Standard

to adjust the sharpness of the entire image, or select

Advanced

to access the

following submenu:

Note: The Advanced setting cannot be used with a signal input through the PC port.

Use

Thin Line Enhancement

Enhancement

to sharpen large contours and backgrounds. You can also enhance the

to sharpen details such as hair and clothing, or

Thick Line

sharpness of vertical and horizontal edges that appear in the image.

■ Progressive

Signal > Progressive

Converts interlaced to progressive signals. The projector uses 3D DigiScan™ HD Circuitry Processing for video-sourced images.

Leave the setting on and animation. Select video camera. Set to

Note: This setting can be used only when viewing composite video or S-video signals, or 480i or 576i, or 1080i signals input through the Component, HDMI 1, or HDMI 2 ports (see page 71).

■ Noise Reduction

Signal > Advanced > Noise Reduction

Note: This setting cannot be used when the Color Mode is set to x.v.Color (see page 27) or with a signal input through the PC port.

Auto

to automatically detect and convert movie, computer graphics,

Video

for watching video images such as videos captured with a

Film

if flickering appears with the

Auto

setting.

This setting reduces flickering of analog images. You can select from 3 levels of noise reduction.

Making Detailed Adjustments

■ Mosquito NR

Signal > Advanced > Mosquito NR

Note: This setting cannot be used when the Color Mode is set to x.v.Color (see page 27) or with a signal input through the PC port.

This setting reduces grainy noise that can appear around the edges of MPEG images. You can select from 3 levels.

■ Block NR

Signal > Advanced > Block NR

Note: This setting cannot be used when the Color Mode is set to x.v.Color (see page 27) or with a signal input through the PC port.

This setting reduces block noise that can appear when projecting MPEG images that have been compressed at a low bit rate.

■ Frame Interpolation

Signal > Frame Interpolation

This setting compares the current and previous frames, then creates a frame between them to reduce fuzziness and produce clearer moving images. You can select from 3 levels of frame interpolation. You can also access this setting by pressing the

Frame Int

on the remote control.

button

Color Settings

If the image colors don’t look correct, you can adjust them using these settings. Use the first three settings described below to make the most visible changes. If you only need to make slight adjustments, you can fine-tune the picture with the remaining settings. Most color settings are stored separately for each image source and color mode.

Note: If you’re using a commercially available color calibration DVD, you can display a color-bar test pattern and then filter colors in the image by pressing the Pattern button. Select one of the Color Isolation options for the color you want to filter (R/G/B). This lets you adjust color settings without holding a filter over your eyes while making adjustments. Press the Esc button when you’re done.

■ Color Saturation

Image > Color Saturation

Note: This setting cannot be used when the Color Mode is set to x.v.Color (see page 27) or with a signal input through the PC port.

Adjusts the color intensity of the image.

Making Detailed Adjustments

■ Tint

Image > Tint

Note: This setting cannot be used when the Color Mode is set to x.v.Color (see page 27) or with a signal input through the PC port.

Shifts the color balance between magenta and green.

■ Abs. Color Temp.

Image > Abs. Color Temp.

Note: This setting cannot be used when the Color Mode is set to THX or x.v.Color (see page 27).

Shifts the color balance between red and blue, making the image appear warmer or cooler.

■ Skin Tone

Image > Skin Tone

Note: This setting cannot be used when the Color Mode is set to THX or x.v.Color (see page 27).

Makes fine adjustments to the tint and controls the amount of magenta or green in the image. Also useful for correcting black-and-white images, if they look tinted.

■ RGB

Image > Advanced > RGB

Note: This setting cannot be used when the Color Mode is set to x.v.Color (see page 27).

Use the RGB settings to fine-tune the color of the image. You can adjust the offset and

Offset

gain for each signal color (red, green, and blue). Use

Gain

for the lightest shades.

to adjust darker shades and

Making Detailed Adjustments

■ RGBCMY

Image > Advanced > RGBCMY

Note: This setting cannot be used when the Color Mode is set to x.v.Color (see page 27).

Use the RGBCMY settings to adjust the hue, saturation, and brightness of the six color components (red, green, blue, cyan, magenta, yellow). After adjusting each color, press

Esc

to move to another menu option. You can also access this setting by pressing the

RGBCMY

■ Gamma

Image > Advanced > Gamma

Note: This setting cannot be used when the Color Mode is set to x.v.Color (see page 27).

button on the remote control. See page 29 for more information.

■ Color Gamut

Image > Advanced > Color Gamut

Note: This setting can only be used when the Color Mode is set to THX (see page 27).

Lets you select the color gamut according to the equipment being used. Select from the following standards: HDTV, SMPTE-C, and EBU.

■ Super-resolution

Signal > Super-resolution

Can be used for upscaled video, to sharpen the image and enhance apparent detail. You can select from 3 levels of enhancement. Note that intentionally blurred parts of the image, such as out-of-focus backgrounds, may become sharper. You can also access this setting by pressing the

Making Detailed Adjustments

Super-res

button on the remote control.

Adjustments for Computer Images

In addition to the settings described previously, you can adjust the Tracking and Sync settings for analog RGB computer images. Normally, these settings are adjusted automatically by the projector. If you notice that the image is blurry or contains dark vertical bands, you may need to adjust the settings yourself.

■ Auto Setup

Signal > Auto Setup

Leave this setting on so that the projector automatically adjusts the tracking, sync, and position of the image.

■ Tracking

Signal > Tracking

Adjust the tracking to eliminate vertical bands. It is easiest to adjust the tracking when the image contains a lot of fine detail (such as black text on a white background).

■ Sync.

Signal > Sync.

Adjust the synchronization to eliminate blurriness. For best results, make sure the tracking is properly adjusted first.

Selecting Memory Settings and Resetting the Projector

Your projector comes with 10 memory locations where you can save customized settings to obtain the best picture quality for each of your video inputs. In addition, you can save the current focus, zoom, and lens shift settings for reuse at a later time.

Making Detailed Adjustments

Selecting Memory Settings

You can easily recall the memory settings by using the memory button on the remote control.

1. Press the

2. Select

Memory

Load Memory

button on the remote control.

Load Lens Position

3. Use the arrow buttons to select the desired setting, then press the

Enter

button.

After a moment, the image appears on the screen using the retrieved settings. Certain settings may not be applied, depending on the input signal.

Note: Because of the mechanical nature of the lens, you may need to fine-tune the adjustment after loading a saved lens position.

Creating Memory Settings

Memory settings can be used to store most of the picture quality settings on page 34 and color settings on page 36. Before saving them to memory, adjust the settings to the desired levels.

1. Press the

2. Select

Memory

Save Memory

3. Select the memory name you want to use, then press the settings.

Note: Saved settings are indicated by a green highlight next to the memory name. If you select a name that is already in use, the existing settings will be erased and new ones saved in their place.

button on the remote control.

Save Lens Position

Enter

button to save your

Renaming Memory Settings

You can rename memory settings so that they are easier for you to recognize.

1. Press the

2. Select

3. Select the memory name you want to change, then press the selection screen is displayed.

4. Do one of the following:

■

Making Detailed Adjustments

Memory

Rename Memory

To select a name from the displayed preset names, select the desired name and press the

Enter

button on the remote control.

Rename Lens Position

button.

Enter

button. The name

■

To create your own name, select

Customized

the name. Use the arrow buttons to select a character, then press the When you have selected all of the characters in your name, select

Enter

button.

Deleting Saved Memory Settings

You can clear all your memory settings at once.

and use the keyboard screen to enter

Enter

button.

Finish

and press the

1. Press the

2. Open the

3. Select

Note: You can delete memory settings one at a time with the Erase Memory setting under the Memory menu.

button on the remote control.

Reset

Yes

, then press the

menu, then select

Enter

button to delete the memory settings.

Reset Memory

Resetting the Projector

If the image quality isn’t what you expect, one or more settings may be adjusted improperly. If necessary, you can restore the projector to its factory-default (original) settings.

To restore the settings in a specific menu (such as the Image or Settings menu), open that

Reset

menu, select Image menu settings:

Open the Image menu . . .

, and confirm as needed. The example below shows how to reset the

and select Reset

You can also reset the lamp usage timer or restore all the projector settings to their original values. Follow these steps:

1. Press the

2. Open the

button on the remote control.

Reset

menu.

Making Detailed Adjustments

3. Do one of the following:

■

Select

Reset All

to return all projector settings to their original defaults (except

Component, Memory, Language, Network, and Lamp).

■

Select

■

Reset Memory

Select

Reset Lens Position

Select

Reset Lamp Hours

to clear all memory settings.

to clear all lens position memory settings.

to clear the lamp usage timer and reset it to zero. You should reset the lamp timer only when you install a new projector lamp. See page 59 for more information.

Customizing Projector Features

Use the settings in this section to adjust the image size and position, suppress on-screen text, and select basic setup options.

Image Sizing

Before adjusting any of these settings, make sure you have already selected an appropriate aspect ratio for the type of picture you’re viewing (see page 26).

■ Overscan

Signal > Advanced > Overscan

For component video formats, this setting lets you see the edges of the image that are not normally visible in the picture. If you see interference when you set adjusting the

■ Position

Signal > Position

Note: This setting cannot be used with a signal input through the HDMI 1 or HMDI 2 port.

Use the arrow buttons to fine-tune the position of the image on the screen.

■

Aspect

Signal > Aspect

This setting lets you change the aspect ratio of your image, and works the same as pressing the

Making Detailed Adjustments

Position

Aspect

Overscan

Off

as described below.

button on the remote control. See page 26 for more information.

, try

■ Zoom Size

Signal > Zoom Size

Lets you adjust the proportions of the image when the aspect ratio has been set to Make sure

■ Zoom Caption Pos.

Signal > Zoom Caption Pos.

Overscan

is set to

Off

before using this function.

Lets you adjust the vertical position of the image so that subtitles are visible (available only if the aspect ratio has been set to

Zoom

). Make sure

Overscan

is set to

Off

using this function.

Screen Options

■ Messages

Settings > Display > Messages

Turn this setting off if you want to prevent on-screen messages from appearing (such as the no-signal message, or the identifying text that appears when you switch between image sources or color modes).

■ Startup Screen

Settings > Display > Startup Screen

Turn this setting off if you want to prevent the startup screen from appearing while the projector is warming up.

Zoom

before

■ Display Background

Settings > Display > Display Background

Changes the screen that’s used when the projector is not receiving a signal or when you press the

■ Standby Confirmation

Settings > Display > Standby Confirmation

Sets whether a confirmation message is displayed when you press the P

Blank

button to temporarily stop projection.

Standby

on the remote control to turn off the projector.

Making Detailed Adjustments

button

Other Setup Options

■ Projection

Settings > Projection

You can select different options for projecting the image:

Rear/Ceiling

■ Standby Mode (PowerLite Pro Cinema 61000 only)

Settings > Operation > Standby Mode

Select

Communication On

to monitor and control the projector over your network

Front, Front/Ceiling, Rear

when the projector is in standby mode.

■ Direct Power On

Settings > Operation > Direct Power On

Sets projection to start when the main power switch is turned on, without pressing the P power button on the remote control or the projector.

Note: When Direct Power On is enabled, restoration of power after a power outage can cause the projector to turn on.

■ Video Signal

Settings > Input Signal > Video Signal

Leave this setting on

Auto

so the projector can automatically interpret the format, such as

NTSC or PAL (for standard TV formats).

■ Component

Settings > Input Signal > Component

Change this setting to match the type of equipment connected to the Component port. For component video, select or select

■ HDMI1 EQ Setting HDMI2 EQ Setting

Settings > Input Signal > HDMI1 EQ Setting or HDMI2 EQ Setting

YCbCr

If you’re using a long HDMI cable, you may have to select a higher setting to increase the projector’s sensitivity to the incoming signal. You can select a separate setting for each of the projector’s HDMI ports.

Making Detailed Adjustments

Auto

to let the projector automatically interpret the signal;

YPbPr

to manually select your video equipment’s signal.

■ Trigger Out

Settings > Operation > Trigger Out

Select

Power

to have the

Trigger out

port output a 12-volt signal to lower your projection screen when the projector is running. Or select a motorized anamorphic lens (commercially available) when the

Horiz. Squeeze

aspect ratio is selected.

Anamorphic Wide

to engage

The PowerLite Pro Cinema 61000 has two settings, that let you use its two

Note: If you change this setting, the new setting will take effect the next time you turn the projector on.

■ Illumination

Settings > Operation > Illumination

Trigger Out

ports for independent functions.

Trigger Out 1

and

Trigger Out 2

Turn off this setting to deactivate the lights on the projector’s Ppower button and power light. Use this setting if you find the lights distracting in a darkened room.

■ Sleep Mode

Settings > Operation > Sleep Mode

Turn off this setting if you don’t want the projector to enter sleep mode. (Sleep mode shuts the projector off automatically when there is no video signal.)

5min., 10min.

Select

, or

30min.

as the length of time before shutoff; decreasing the time

conserves power and extends the life of the lamp.

To turn the projector back on, press the Ppower button on the remote control or the projector.

■ Lens Lock

Settings > Lock Setting > Lens Lock

Disables the focus, zoom, and lens shift. If you try to use one of these functions, a lock icon appears on the screen.

■ Child Lock

Settings > Lock Setting > Child Lock

Lets you lock the Ppower button on the projector’s control panel to make it more difficult for a child to turn on the projector. See page 29 for more information.

Making Detailed Adjustments

■ Control Panel Lock

Settings > Lock Setting > Control Panel Lock

Lets you disable all the buttons on the projector’s control panel (except for the Ppower button) to prevent the image from being accidentally changed once it is adjusted. See page 29 for more information.

■ High Altitude Mode

Settings > Operation > High Altitude Mode

Adjusts the speed of the fan so it can properly cool the projector at higher altitudes. Turn this setting on if you are using the projector at an altitude of 4900 feet (1500 meters) or higher.

Making Network Settings

You can connect the PowerLite Pro Cinema 61000 to your network and make network settings using the menu options below.

■ Network Information

Network > Network information

Lets you check the projector’s status on your network. You can check the projector’s network name and MAC address, whether the projector is set to use DHCP, and the IP address, subnet mask, and gateway address assigned to the projector.

■ Basic

Network > Basic

Select

Projector Name

projector on your network.

PJLink Password

Select PJLink software.

Select

Web Control Password

browser (see page 51).

Making Detailed Adjustments

to enter up to a 16-character name to help you identify the

to control access to the projector when using compatible

to control access to the projector when using a web

■ Wired LAN

Network > Wired LAN

Assigns a network address to your projector. Select network assigns addresses automatically. Otherwise, select

DHCP

and set it to On if your

Off

and enter the projector’s IP

address, subnet mask, and gateway address.

Note: You can enter a number from 0 to 255 in each field of the address. For the IP Address and Gateway Address, you cannot use 0.x.x.x, 127.x.x.x, or 224.0.0.0 through

255.255.255.255. For the Subnet Mask, do not use 0.x.x.x through 254.x.x.x, or

255.255.255.255.

■ Mail

Network > Mail

Turn on

Mail Notification

if you want to receive e-mail alerts about the status of the

projector (see page 51).

Select

SMTP Server

Note: You can enter a number from 0 to 255 in each field of the address. You cannot use

0.x.x.x, 127.x.x.x, or 224.0.0.0 through 255.255.255.255.

Select

Port Number

to enter the IP address for your SMTP server.

to enter the port number for the SMTP server. The default value is

25. You can enter a number from 1 to 65535.

Select an

Address Setting

to enter up to three e-mail address where you want to be notified if a problem occurs. You can also select the types of problems about which you want to be notified.

■ AMX Device Discovery

Network > AMX Device Discovery

When the projector is connected to a network, select On to allow the projector to be

Off

detected by AMX Device Discovery. Select

if your network doesn’t use an AMX

controller.

Making Detailed Adjustments

Using HDMI Link

When you connect HDMI CEC-compatible devices to the projector with HDMI cables, you can control them using the HDMI Link buttons on the projector’s remote control. This lets you use just one remote control to operate many commonly used features on all your devices.

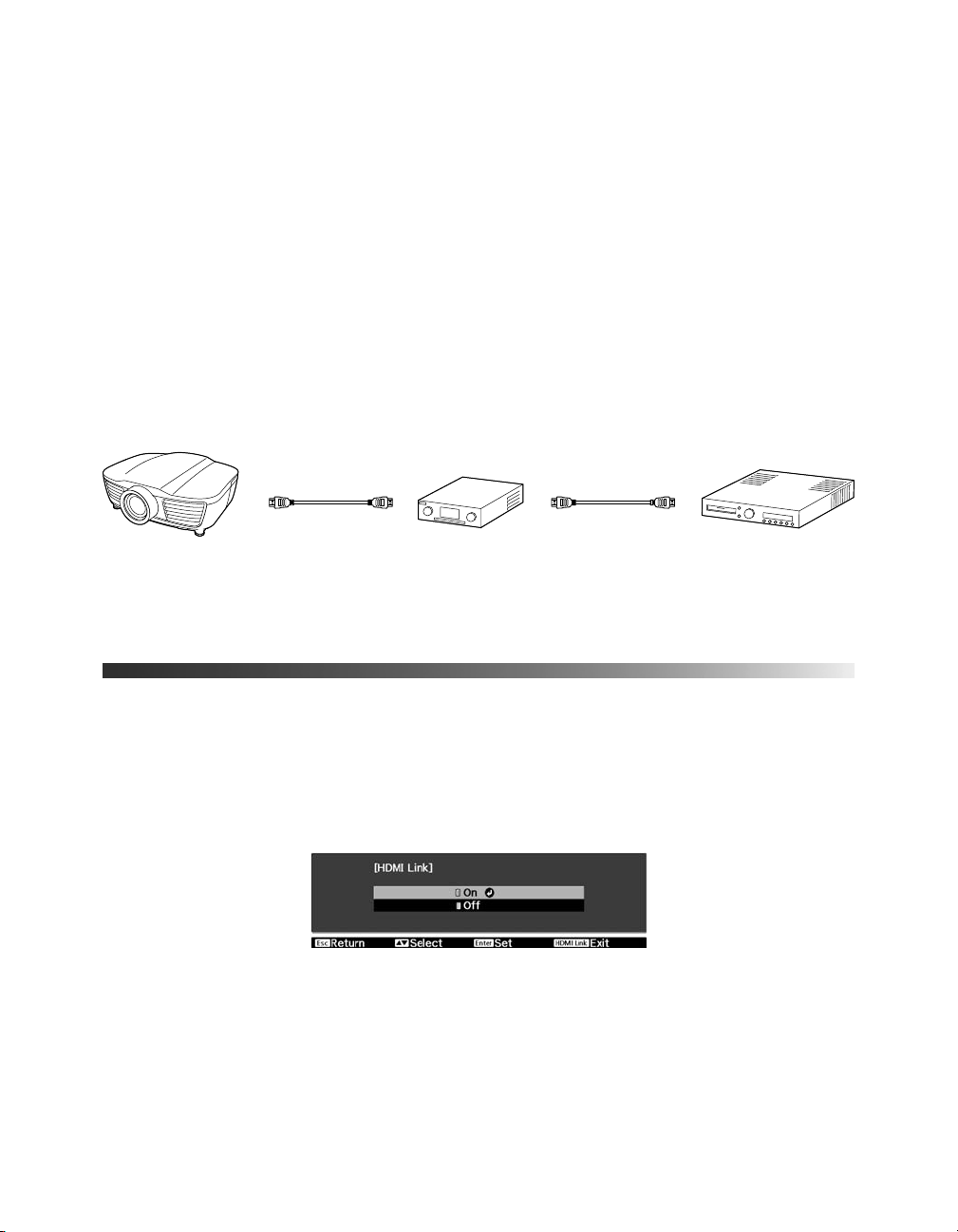

In a typical configuration, your DVD player may be connected to the projector through an amplifier or home theater system. Even if the amplifier does not conform to the HDMI CEC standard, you can still use the projector’s HDMI Link buttons to operate the DVD player as long as the DVD player conforms to the HDMI CEC standard.

Amplifier

HDMI cable HDMI cable

Note: Some HDMI CEC functions may not operate, depending on the connected product’s design and compliance with the HDMI CEC standard.

DVD player

Setting Up HDMI Link

To prepare your devices to work with the HDMI Link buttons, follow these steps:

1. Press the

2. Select

3. Set up your connected devices so their HDMI CEC-compatible functions are enabled. For details, refer to the manufacturer’s documentation.

HDMI Link

button on the projector’s remote control.

and set it to On.

Using HDMI Link

1. Press the

2. Select

HDMI Link

Device Connections

button on the projector’s remote control.

. You see this screen:

3. Use the u and d arrow buttons to select the device you want to operate, then press

Enter

. Devices are listed by type (Player, Recorder, AV System, or Tuner) and by name,

if the model number is available.

4. Once the device is selected, use the HDMI Link buttons on the remote control to operate it. You can also use the power buttons, arrow buttons,

Enter

, and

Esc

. Commonly available functions include turning on the device when it’s in standby mode, starting playback, adjusting the volume, and operating the device’s link menu.

In addition, HDMI Link allows your projector and other devices to be turned on and off together:

■

If you turn on a connected device, the projector automatically turns on and switches to the correct input source.

■

If you turn on the projector, connected devices such as an amplifier and DVD player are turned on. If multiple video devices are connected, the one last used is turned on. When you turn off the projector, the connected devices are turned off.

Note: For this to work, the CEC power link function of the connected devices must be enabled.

Using HDMI Link

Using the Projector on a Network

When you connect the PowerLite Pro Cinema 61000 to your network, you can select projector settings and control projection from a web browser. This lets you access the projector remotely. You can also use e-mail alerts to notify you if a problem occurs with the projector.

Connecting the Projector to Your Network

1. Connect a Category 5 network cable to the projector’s switch or router.

LAN port

2. Press the

3. Open the

4. Turn on enter the projector’s IP address, subnet mask, and gateway address. (For details, see page 47.)

Tip: If you have multiple projectors connected to your network, you can enter a name for each projector to help you identify it on the network. In the Network menu, select Basic, then select Projector Name.

button on the remote control.

Network

DHCP

menu and select

if your network assigns addresses automatically. Otherwise, select

Wired LAN

LAN

port and to your network’s

Off

and

Using the Projector on a Network

Monitoring the Projector with a Web Browser

Once you have connected the projector to your network, you can select projector settings and control projection using a compatible web browser.

Note: This feature supports Microsoft® Internet Explorer® 6.0 and later, and Safari® on Mac OS® X

10.2.8 and later. You must be able to connect through your network without using a proxy server.

This features does not let you access all projector settings and functions.

1. Make sure the projector is turned on.

Note: If the projector is turned off, you can still access it if you’ve set Standby Mode to Communication On (see page 44).

2. Start your web browser on a computer connected to the network.

3. Type the projector’s IP address in the browser’s address box and press

Enter

. You see the

web control screen.

4. If necessary, enter the Web Control password (see page 46).

5. To select projector menu settings, select the name of the menu and follow the on-screen instructions to select settings.

6. To control projection, select the

Web Remote

option. Select the icon corresponding to

the item you want to control.

Setting Up E-mail Alerts

Once you have connected the projector to your network, you can set up the projector to send you an e-mail alert if there is a problem with the projector.

1. Press the

2. Open the

3. Turn on

4. Enter the IP address for your

Note: You can enter a number from 0 to 255 in each field of the address. You cannot use

0.x.x.x, 127.x.x.x, or 224.0.0.0 through 255.255.255.255.

button on the remote control.

Network

Mail Notification

menu and select

SMTP Server

Mail

5. Enter the SMTP server

Port Number

, from 1 to 65535 (default is 25).

Using the Projector on a Network

6. Choose an

Address

field, enter the e-mail address, and select the alerts you want to

receive. You can enter up to three e-mail addresses.

Receiving E-mail Alerts

When a problem occurs, you will receive an e-mail with the following information:

■ EPSON Projector

■

The name of the projector experiencing the problem

■

The IP address of the affected projector

■

Detailed information about the problem

appears at the start of the message, a problem has occurred. If – appears, the problem has

on the subject line

been resolved.

Note: You can receive e-mail alerts when the projector is turned off if you’ve set Standby Mode to Communication On (see page 44). If a critical problem causes the projector to shut down, you may not receive an alert.

Using the Projector on a Network

Maintenance

Your projector needs little maintenance. All you need to do on a regular basis is keep the lens clean. You also may need to clean the air filter to prevent overheating.

Warning: Before you clean any part of the projector, turn it off and unplug the power cord. Never open any cover on the projector, except the lamp and filter covers. Dangerous electrical voltages in the projector can injure you severely. Do not try to service this product yourself, except as specifically explained in this User’s Guide.

The only parts you should replace are the air filter and the lamp. If another part needs replacing, contact your dealer or a qualified servicer.

Cleaning the Lens

Clean the lens whenever you notice dirt or dust on the surface.

■

Use a blower brush that is designed for camera equipment to remove dust from the lens.

■

To remove dirt or smears, use a lens cloth or tissue. If necessary, moisten the cloth with lens cleaner and gently wipe the lens surface.

Caution: Never rub the lens with abrasive materials. Use only lens cleaning fluids that are designed for cleaning optics.

Maintenance

Cleaning the Projector Case

Before you clean the case, turn off the projector and unplug the power cord.

■

To remove dirt or dust, wipe the case with a soft, dry, lint-free cloth.

■

To remove stubborn dirt or stains, moisten a soft cloth with water and a neutral detergent. Then wipe the case and dry it with a dry cloth.

Caution: Never use wax, alcohol, benzene, thinner, or other chemical detergents. These can damage the case.

Cleaning and Replacing the Air Filter

Your projector includes an air filter to ensure the best performance. If dust collects on the air filter, clean it as described below. Dust clogs prevent proper ventilation and cause overheating and damage to the projector.

Maintenance

1. If the projector is on, press the Ppower button on the projector or the P button on the remote control. Wait for the projector to cool and the Ppower light to stop flashing.

2. Turn off the main power switch on the back of the projector.

3. Unplug the power cord and disconnect any cables.

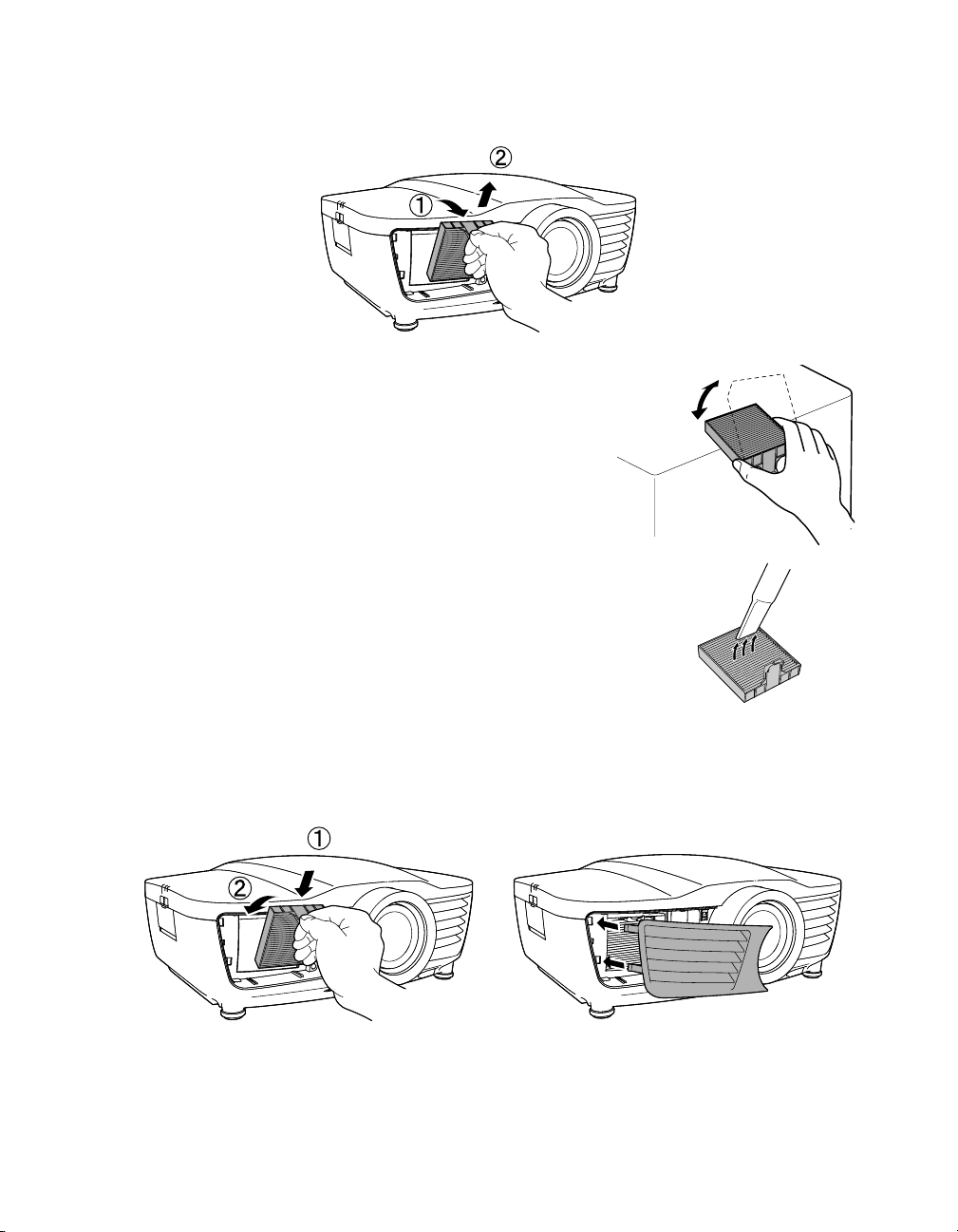

4. Press the air filter cover release and then remove the cover.

Cover release

Standby

5. Grasp the tab on the air filter and remove it as shown.

6. Gently tap both sides of the air filter against a hard surface four or five times to remove loose dust from the air filter.

Note: Do not tap the filter too hard. This can cause it to bend or break.

7. Use a small vacuum cleaner that is designed for computers and other office equipment to remove any remaining dust from the surface of the filter. If you don’t have one, gently clean the filter using a very soft brush (such as a clean artist’s paintbrush).

If the dirt is difficult to remove or the filter is broken, replace it. You can purchase air filter part number V13H134A28 from an authorized Epson reseller. To find the nearest reseller, please call 800-GO-EPSON (800-463-7766). To purchase online, visit www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales).

8. Insert the air filter as shown.

9. Reattach the air filter cover by inserting the tabs as shown and pressing the cover against the projector until it clicks into place.

Maintenance

Replacing the Lamp

The projection lamp lasts for up to 5000 hours. You can use the

Info

menu to check how

long it’s been in use (see page 59). It’s time to replace the lamp when:

■

The projected image gets darker or starts to deteriorate.

■

The projector’s lamp light flashes orange at half-second

Lamp light

intervals.

■

The message

Replace the lamp

appears on the screen

when you start projecting.

Note: Lamp life results will vary depending on mode selected, environmental conditions, and usage.

Turn off this product when not in use to prolong the life of the projector.

You can purchase lamp part number V13H010L66 from an authorized Epson reseller. To find the nearest reseller, please call 800-GO-EPSON (800-463-7766). To purchase online, visit www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales).

Be sure to read the “Important Safety Information” on page 75 before replacing the lamp.

Warning: Let the lamp cool fully (about 1 hour) before replacing it. In the unlikely event that the lamp has broken, small glass fragments may be present and should be removed carefully to avoid injury.

Caution: Never touch the glass portion of the lamp with your bare hands; the invisible residue left by the oil on your hands may shorten the lamp life. Use a cloth or glove to handle the new lamp.

Maintenance

Follow these steps to replace the lamp:

1. If the projector is on, press the Ppower button on the projector or the P

Standby

button on the remote control. Wait for the projector to cool and the Ppower light to stop flashing.

2. Turn off the main power switch on the back of the projector.

3. Unplug the power cord and disconnect any cables.

4. Wait about an hour to make sure the lamp is no longer hot.

5. Use the screwdriver that came with the lamp (or a similar tool) to loosen the screw on the lamp cover. Then remove the cover as shown.

6. Loosen the two screws securing the lamp (they don’t come all the way out).

7. Grasp the lamp as shown and pull it straight out.

Warning: The lamp(s) in this product contain mercury. Please consult your state and local regulations regarding disposal or recycling. Do not put in the trash.

Maintenance

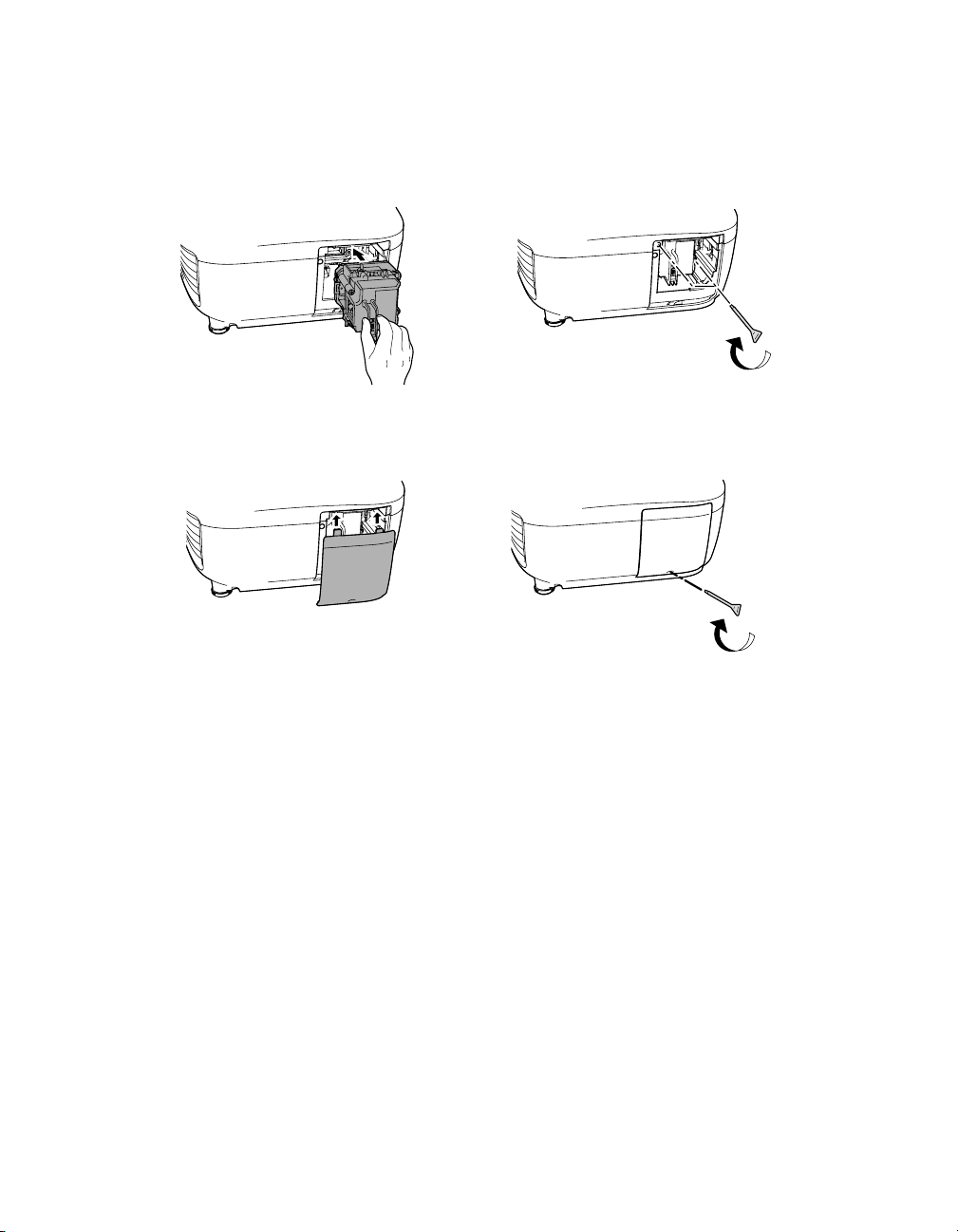

8. Gently insert the new lamp and tighten its screws.

Caution: Don’t touch the glass portion of the lamp assembly. Touching the glass could result in premature lamp failure.

9. Replace the lamp cover and tighten the screw. (The projector won’t work if the lamp cover is open or loose.)

Maintenance

10. Reset the lamp usage timer, as described on page 59.

Resetting the Lamp Usage Timer

After replacing the lamp, plug the projector back in and turn on the main power switch on

the back. Press the Ppower button on the projector or the Then follow these steps to reset the lamp usage timer:

1. Press the

button on the projector or remote control.

button on the remote control.

2. Use the menu navigation buttons to open the

Hours

3. When you see a confirmation prompt, highlight

4. When you’re finished, press the

button to exit.

Reset

menu, then select

Yes

and press the

Reset Lamp

Enter

button.

The lamp usage timer shows 0H until you’ve used the lamp for at least 10 hours.

Checking the Projector Status

You can use the Info menu to view information about the current display settings and how long the projection lamp has been in use. To access the Info menu:

1. Press the

2. Use the menu navigation buttons to open the appears:

■

Lamp Hours

■

Source

■

Input Signal

button on the projector or remote control.

Info

menu. The following information

■

Sync Info

■

Video Signal

■

Deep Color (color depth)

■

Resolution

■

Scan Mode

■

Refresh Rate

Note: The information displayed depends on the currently selected image source. The Lamp Hours shows 0H until you’ve used the lamp for at least 10 hours.

The resolution indicates the total number of scan lines in the source signal. The number of visible scan lines depends on the signal format standard and selected display settings.

■

Status (error information)

■

Serial Number

Maintenance

Storing the Projector

If you need to store the projector for an extended time, do the following:

■

Make sure the temperature of the storage area is within 14 to 140 °F (–10 to 60 °C).

■

Attach the lens cover and retract the feet.

■

Remove the batteries from the remote control.

■

Pack the projector in its original packaging or equivalent.

Transporting the Projector

Note: Epson shall not be liable for any damages incurred during transportation.

The projector contains many glass and precision parts. When shipping the projector for repairs, use the original packaging material if possible. If you do not have the original packaging, use equivalent materials. Do not used materials that can become lodged in the projector vents. Be sure the carrier is capable of transporting fragile equipment and is aware that the projector is fragile.

Before transporting the projector, make sure you center the lens using the lens shift function (see page 23).

Maintenance

Caution: Transporting the projector with the lens off-center may damage the lens shift mechanism. Do not try to move the lens by hand, or you may damage the projector. Always use the lens shift function to change the lens position.

Problem Solving

This section explains how to interpret the projector’s status lights, solve problems with the picture and remote control, and contact technical support.

What To Do When the Lights Come On or Flash

The lights on the projector indicate the projector’s status and let you know when a problem occurs.

Power light

Lamp and temperature lights

If the projector isn’t working correctly, first turn it off, let it cool down, and unplug the power cord. Then plug the power cord back in and turn on the projector. If this doesn’t solve the problem, check the projector’s status lights.

Power button

Lights indicating normal operation

Light state Cause and solution

All lights are off The projector is turned off or in standby mode. You can unplug

the projector or turn it on.

Note: If the power button and power light don’t light up, they may have been turned off using the Illumination setting (see page 45).

Power light flashes The projector is warming up. Wait for the picture to appear.

Power light is on Projection is in progress.

Problem Solving

Lights indicating normal operation

Light state Cause and solution

Power light flashes The projector is cooling down. Wait until the light stops flashing

and remains on. Then you can unplug the projector or turn it back on.

If the power button is also flashing (PowerLite Pro Cinema 61000 only), the projector will go into network monitoring after cool-down is complete.

Lights indicating a problem

Light state Cause and solution

All lights are off The projector is not receiving power. Make sure the main power

switch on the back of the projector is turned on and the power cord is connected securely at both ends.

The temperature light is flashing orange and the power button is flashing

High-speed cooling is in progress. If the temperature rises further, projection will stop automatically. Make sure there is plenty of space around the projector for ventilation. Clean or replace the air filter if necessary (see page 54).

If you are using the projector at an altitude above 4900 feet (1500 meters), turn on High Altitude Mode so the fan can cool the projector properly (see page 46).

Problem Solving

The temperature light is red

The lamp light and power button are flashing

The lamp light flashes red

Both warning lights are flashing red

The projector is too hot, which turns off the lamp automatically. Let the projector cool for five minutes, then turn it back on. Make sure there is plenty of space around the projector for ventilation. Also, clean or replace the filter if necessary (see page 54).

If you are using the projector at an altitude above 4900 feet (1500 meters), turn on High Altitude Mode so the fan can cool the projector properly (see page 46).

The lamp needs to be replaced soon (see page 56). Make sure you have a spare lamp handy. If you just replaced the lamp, you may need to reset the lamp usage timer (see page 59).

The lamp needs to be replaced. If you just replaced the lamp, make sure the lamp and its cover are securely installed (see page 56).

There is a problem with the auto iris or cinema filter. Turn off the power switch on the back of the projector, and unplug it from the electrical outlet. Then contact Epson for assistance (see page 67).

Lights indicating a problem

Light state Cause and solution

The temperature light flashes red

There is a fan or sensor problem. Turn off the power switch on the back of the projector, and unplug it from the electrical outlet. Then contact Epson for assistance (see page 67).

Solving Picture Problems

You cannot turn on the projector.

■

Make sure the power cord is connected and the main power switch in back of the projector is turned on. Then press the Ppower button on the projector or the on the remote control.

■

If you’ve set the on the projector, or use the remote control (see page 29).

Child Lock

, you have to press the Ppower button for 3 seconds to turn

button

No picture appears on the screen or you see the

■

Press one of the

Source

buttons on the remote control, or press the source button

No Signal

message displayed.

on the projector, to select the correct input source. Allow a few seconds for the projector to sync up after pressing the button.

■

Press the

Blank

button on the remote control to make sure the picture hasn’t been turned

off temporarily.

■

Check that the P power light is on and not flashing, and the lens cover is off.

■

The projector may be in standby (or sleep) mode. If necessary, press the Ppower button

on the projector or the

■

Make sure your video equipment is turned on.

■

Make sure your cable(s) are connected correctly (see page 18).

button on the remote control.

Only part of the picture is displayed, or the picture is distorted.

■

Press the

■

If the Aspect is set to

Pos.

Aspect

button to select a different aspect ratio (see page 26).

Zoom

, you may need to use the

Zoom Size

and

Zoom Caption

options to see the top or bottom section of the screen so that subtitles are visible (see

page 43).

■

Check the

Overscan

to make sure it’s adjusted correctly (see page 42).

Problem Solving

■

Use the

■

If you’ve connected a computer and you see only half the image, make sure the

Position

setting to reposition the image on the screen (see page 42).

computer’s Dual Display setting is turned off. If part of the image is cut off, reset the projector settings (see page 41).

You’re using a computer and no picture appears on the screen.

If you’re using a Windows

■

Press the function key that lets you display on an external monitor. It’s often labeled with an icon such as , but it may also be labeled the

key while pressing it. Check your laptop’s manual or online help.

laptop:

CRT/LCD

. You may have to hold down

On most systems, the key lets you toggle between the LCD screen and the projector, or display on both at the same time. Allow a few seconds for the projector to sync up after pressing it.

■

If the function key doesn’t let you display simultaneously on both screens, you might need to use the Display utility in the Windows Control Panel to make sure that both the LCD screen and external monitor port are enabled. From the Windows Control Panel, open the then click computer; you may need to click a

Display

Advanced

utility. In the Display Properties dialog box, click the

Settings

. The method for adjusting the setting varies from computer to

Monitor

tab, then make sure the external Monitor port is set as your primary display or enabled. See your computer manual or online help for details.

tab,

If you’re using Mac OS X:

1. Select

2. Click

3. To display the entire desktop on both your projector screen and LCD screen, click the

4. Click

Problem Solving

System Preferences

Detect Displays

Arrangement

Arrange

from the Apple menu and click

, if necessary.

tab. (If you don’t see this tab, make sure it isn’t hidden by

another window.)

Mirror Displays

in the lower corner of the screen. One of the monitor icons

automatically moves on top of the other.

Displays

Click here

The picture is upside-down or reversed.

Change the

Projection

setting in the Settings menu (see page 44).

The picture isn’t rectangular.

■

If the image looks like or , the projector has been placed off to one side of the screen and angled toward it. Face the projector straight ahead (instead of at the center of the screen), then use the lens shift function to center the image (see page 23).

■

If the image looks like or , make sure the projector is not tilted up or down.

The picture contains static or noise.

■

Make sure the

Input Signal

is set correctly for your connected video equipment (see

page 44).

■

If you’re viewing still images and you notice flickering or horizontal lines, turn on the

Progressive

■

Make sure your cables are securely connected at both ends.

■

If you’re using an extension cable, you may pick up interference if the cable is not

setting (see page 35).

adequately shielded. You may need to use a signal amplifier for longer cables, or turn on the

HDMI EQ

■

If you’re displaying the same image on your computer and projector screen, try turning

setting (see page 44).

off your laptop’s LCD display (see page 64).

The picture is blurry.

■

Make sure the

■

There may be dirt on the lens. Clean the lens as described on page 53.

■

Adjust the focus (see page 25).

Input Signal

is set correctly for your video equipment (see page 44).

Problem Solving

■

Make sure the lens is not fogged by condensation. If you’ve just moved the projector from a cold environment, wait a couple of minutes before using it.

■

Adjust the

■

If you’re projecting from a computer, you may need to adjust the

Sharpness

setting (see page 35) or turn on

Super-resolution

Tracking

(see page 38).

and

settings (see page 39).

The colors on the screen don’t look right.

■

Make sure the

Input Signal

is set correctly for your connected video equipment (see

page 44).

■

Press the

Color Mode

button on the remote control to select a different color mode (see

page 27).

■

Check the brightness and contrast settings (see page 33).

■

Fine-tune the colors with the settings listed on page 36.

■

If the picture looks dark, check the

Brightness

and

Contrast

. You may also need to replace the lamp. Check the lamp usage

Lens Iris

setting (see page 33), as well as the

timer to see how long the lamp has been in use (see page 59). Replace the lamp if it’s close to the end of its service life (see page 56).

Sync

Solving Remote Control Problems

The projector doesn’t respond to remote control commands.

■

Problem Solving

Make sure you’re within about 30 feet of the projector, and the remote control is aimed at the projector’s front or back sensor within the ranges shown below.

Approx.60

You may need to replace the remote control batteries (see page 20). Press the

illumination button and check if the buttons glow. If they don’t, replace the batteries.

■

Dim the room lights and turn off any fluorescent lights. Make sure the projector is not in direct sunlight.

■

Turn off nearby equipment that emits infrared energy, such as a radiant room heater.

■

Make sure there are no objects between the remote control and the IR receiver.

Solving Other Problems

You cannot operate a connected device using HDMI Link.

■

Make sure the device conforms to the HDMI CEC standard. Make sure you’ve enable its HDMI CEC-compatible features.

■

Make sure you’re using HDMI cables to connect the equipment you want to operate to the projector.

■

If the device was recently connected or the connections were changed, restart the device. It may be necessary to reset its CEC functions.

You cannot monitor or control the projector over your network (PowerLite Pro Cinema 61000 only).

■

Check the network cable and network settings.

■

To monitor or control the projector when it’s turned off, or to receive e-mail alerts, make sure you’ve set

■

Make sure the electrical outlet operates and has not been turned off by a switch or circuit breaker.

Standby Mode

Communication On

(see page 44).

Where to Get Help

Internet Support

Epson provides technical assistance 24 hours a day at epson.com/support (U.S.) or epson.ca/support (Canada). Here you can access troubleshooting information, download

product documentation, and receive technical advice through e-mail.

Problem Solving

Speak to a Support Representative

To use the Epson PrivateLine Support service, call (800) 637-7661 and enter the PIN on the Epson PrivateLine Support card that came with your projector. This is the fastest way of speaking to a live representative, and it’s free. This service is available 6

to 6PM, Pacific

Time, Monday through Friday, for the duration of your warranty period.

You may also speak with a projector support specialist by dialing one of these numbers:

■

U.S.: (562) 276-4394, 6AM to 6PM, Pacific Time, Monday through Friday

■

Canada: (905) 709-3839, 6AM to 6PM, Pacific Time, Monday through Friday

Days and hours of support are subject to change without notice. Toll or long distance charges may apply.

Before you call, please have the following information ready:

■

Product name (PowerLite Pro Cinema 31000 or Pro Cinema 61000)

■

Product serial number (located on the bottom of the projector)

■

Computer configuration, if you’re connected to a computer

■

Description of the problem

Purchase Supplies and Accessories

You can purchase screens, carrying cases, or other accessories from an authorized Epson reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). To purchase online, visit www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales).

Problem Solving

Specifications

General

Type of display Poly-silicon TFT active matrix

Size of LCD panels 0.74 inch (18 mm) wide

Lens F=2.5 to 3.7

Resolution (native format) 1920 × 1080 pixels, 1080p

Brightness White light output 1200 lumens (ISO 21118 standard)

Dynamic contrast ratio 500000:1 (Pro Cinema 31000)

Image size 30 to 300 inches

Projection distance 2.7 to 59.7 feet (0.83 to 18.19 m)

Zoom ratio 1 to 2.1

Aspect ratio 16:9

Fan noise level 21 dB (Power Consumption mode: ECO)

Color light output 1200 lumens (Power Consumption mode: Normal)

1000000:1 (Pro Cinema 61000)

Lamp

Note: Lamp life will vary depending on mode selected, environmental conditions, and usage. Brightness decreases over time.

Turn off this product when not in use to prolong the life of the projector.

Type UHE (Ultra High Efficiency), E-TORL

Power consumption 200 W

Lamp life 4000 to 5000 hours (depending on selected Power Consumption setting)

Part number V13H010L66

Remote Control

Range Approximately 30 feet (10 m)

Batteries AA × 2

Specifications

Dimensions

Height 6.9 inches (175 mm), not including adjustable feet

Width 17.3 inches (440 mm)

Depth 14.6 inches (370 mm); not including lens protrusion

Weight 19.8 lb (9.0 kg)

Electrical

Rated frequency 50/60 Hz AC

Power supply 100 to 120 V AC, 2.9 A

200 to 240 V AC, 1.3 A

Power consumption 100 to 120 V:

Operating: 291 W (Power Consumption: Normal) Operating: 243 W (Power Consumption: ECO) Standby (network on): 8.8 W (Pro Cinema 61000 only) Sleep mode (off): 0.17 W

220 to 240 V:

Operating: 280 W (Power Consumption: Normal) Operating: 235 W (Power Consumption: ECO) Standby (network on): 9.7 W (Pro Cinema 61000 only) Sleep mode (off): 0.27 W

Specifications

Environmental

Temperature Operating: 41 to 95 °F (5 to 35 °C)

Storage: 14 to 140 °F (–10 to 60 °C)

Humidity Operating: 20 to 80% RH, non-condensing

Storage: 10 to 90% RH, non-condensing

Operating altitude Up to 7500 feet (2286 meters)

Over 4900 feet (1500 meters), enable High Altitude mode in the Settings menu (see page 46)

Safety

United States FCC Part 15B Class B (DoC)

UL60950-1

Canada ICES-003 Class B

CSA C22.2 No. 60950-1

Pixelworks DNX

™

ICs are used in this projector.

Compatible Video Formats

The projector supports analog video in NTSC, PAL, and SECAM formats, and it automatically adjusts to the incoming signal. It can receive these formats as composite video, S-video, or component video— which it accepts through the Video, S-Video, and Component ports, respectively.

The projector also supports digital video (SDTV, HDTV) and various monitor display formats. Digital video is accepted by the HDMI and Component video ports. The PC port accepts analog RGB computer monitor signals.

If necessary, you can select a different Aspect setting to optimize the image. The resolution at which the image displays for a given setting depends on the currently active picture source, as listed in the following tables.

Composite video or S-Video

Format

NTSC NTSC 4.43 60 720 × 480

PAL N-PAL 50 720 × 576

M-PAL PAL60 60 720 × 576

SECAM 50/60 720 × 576

Refresh rate (Hz)

Resolution

Component video

Format/ Signal

SDTV

480i 576i 480p 576p

Refresh rate (Hz)

60 50 60 50

Resolution

720 × 480 720 × 576 720 × 480 720 × 576

Specifications

Format/ Signal

HDTV

720p 1080i 1080p

Refresh rate (Hz)

50/60 50/60 50/60

Resolution

1280 × 720 1920 × 1080 1920 × 1080

Analog RGB (computer display)

Signal Refresh rate (Hz) Resolution

VGA 60/72/75/85 640 × 480

56/60/72/

SVGA

XGA 60/70/75/85 1024 × 768

SXGA

WXGA

SXGA 60/75 1400 × 1050

UXGA 60 1600 × 1200

WSXGA 60 1680 × 1050

WUXGA 60 1920 × 1200

MAC13” MAC16” MAC19” MAC21”

75/85 800 × 600

70/75/85 60/75/85 60/75/85

60 60 60/75/85 60/75/85

67 75 59/75 75

1152 × 864 1280 × 960 1280 × 1024

1280 × 768 1360 × 768 1280 × 800 1400 × 900

640 × 480 832 × 624 1024 × 768 1152 × 870

Specifications

HDMI

Signal Refresh rate (Hz) Resolution

VGA 60 640 × 480

SDTV 480i 576i 480p 576p

HDTV 720p 1080i 1080p

60 50 60 50

50/60 50/60 24/30/50/60

720 × 480 720 × 576 720 × 480 720 × 576

1280 × 720 1920 × 1080 1920 × 1080

Specifications

ESC/VP21 Command Codes

You can use an AV controller with a 9-pin null modem serial cable to control the projector. You can download the complete ESC/VP 21 Communication Manual for home theater projectors from the Epson website at www.epson.com/support. Following are some of the available codes:

Item Command

Power ON/OFF ON PWR ON

OFF PWR OFF

A/V Mute ON/OFF ON MUTE ON

OFF MUTE OFF

A/V Mute selection Black MSEL 00

Blue MSEL 01

Source change

Color Mode

Aspect ratio Normal ASPECT 00

Terminal Signal name

Component Component video SOURCE 10

YCbCr SOURCE 14

YPbPr SOURCE 15

Auto SOURCE 1F

PC HDB15 SOURCE 20

RGB SOURCE 21

HDMI 1 HDMI 1 SOURCE 30

Video Video/S-Video SOURCE 40

Video (RCA) SOURCE 41

S-Video SOURCE 42

HDMI 2 HDMI 2 SOURCE A0

Dynamic CMODE 06

Living Room CMODE 0C

THX CMODE 13

Cinema CMODE 15

x.v.Color CMODE 0B

Full ASPECT 40

Zoom ASPECT 50

Wide ASPECT 70

Anamorphic Wide ASPECT 80

Horiz. Squeeze ASPECT 90

Specifications

Notices

Important Safety Information

Follow these safety instructions when setting up and using the projector:

■

Never look into the projector lens when the lamp is turned on; the bright light can damage your eyes. Never let children look into the lens when it is on.

■

Never open any cover on the projector, except the lamp and filter covers. Dangerous electrical voltages inside the projector can severely injure you.

■

Except as specifically explained in this User’s Guide, do not attempt to service this product yourself. Refer all servicing to qualified service personnel.

■

The projector and its accessories come packaged in plastic bags. Keep plastic bags away from small children to avoid any risk of suffocation.

■

Don’t place the projector on an unstable cart, stand, or table. Also, don’t use the projector near water or sources of heat.

■

Use the type of power source indicated on the projector. If you’re not sure of the power available, consult your dealer or power company.

■

Place the projector near a wall outlet where the plug can be easily unplugged.

■

Don’t insert the plug into an outlet with dust present, and insert the plug firmly into the outlet. Failure to do so could result in sparks or fire.

■

Don’t overload wall outlets, extension cords, or integral convenience receptacles. This can cause fire or electric shock.

■

Don’t block the slots and openings in the projector case. They provide ventilation and prevent the projector from overheating. Don’t operate the projector on a sofa, rug, or other soft surface, or in a closed-in cabinet unless proper ventilation is provided.

■

Never push objects through the cabinet slots or spill liquid into the projector.

■

Unplug the projector from the wall outlet and refer servicing to qualified service personnel under the following conditions: when the power cord or plug is damaged or frayed; if liquid has been spilled into the projector, or if it has been exposed to rain or water; if it doesn’t operate normally when you follow the operating instructions, or if it exhibits a distinct change in performance, indicating a need for service; if it has been dropped or the housing has been damaged.

■

Don’t place the projector where the cord can be walked on. This may result in fraying or damage to the plug.

■

Unplug the projector from the wall outlet before cleaning. Use a damp cloth for cleaning. Do not use liquid or aerosol cleaners.

Notices

■

The lamp(s) in this product contain mercury. Please consult your state and local regulations

regarding disposal or recycling. Do not put in the trash.

■

Allow the lamp to cool for one hour before replacing it.

■

Unplug the projector during lightning storms or when not in use for extended periods.

■

Don’t place the projector or remote control on top of heat-producing equipment.

■

If you use the projector in a country other than where you purchased it, use the correct power cord for that country.

■

Don’t stand on the projector or place heavy objects on it.

■

Don’t use the projector outside of the required temperature range of 41 to 95 °F (5 to 35 °C). Doing so may cause an unstable display and could lead to projector damage.

■

Don’t store the projector outside of the required temperature range of 14 to 140 °F (–10 to 60 °C) or in direct sunlight for long periods of time. Doing so may cause damage to the case.

WARNING: The cords included with this product contain chemicals, including lead, known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling. (This notice is provided in accordance with Proposition 65 in Cal. Health & Safety Code § 25249.5 and following.)

Notices

FCC Compliance Statement

For United States Users

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio and television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■

Reorient or relocate the receiving antenna.

■

Increase the separation between the equipment and receiver.

■

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

■

Consult the dealer or an experienced radio/TV technician for help.

WARNING

The connection of a non-shielded equipment interface cable to this equipment will invalidate the FCC Certification of this device and may cause interference levels which exceed the limits established by the FCC for this equipment. It is the responsibility of the user to obtain and use a shielded equipment interface cable with this device. If this equipment has more than one interface connector, do not leave cables connected to unused interfaces. Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.

For Canadian Users

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Notices

Declaration of Conformity

According to 47CFR, Part 2 and 15 for Class B Personal Computers and Peripherals; and/or CPU Boards and Power Supplies used with Class B Personal Computers:

We: Epson America, Inc. Located at: 3840 Kilroy Airport Way

MS 3-13 Long Beach, CA 90806-2469 Telephone: (562) 290-5254

Declare under sole responsibility that the product identified herein, complies with 47CFR Part 2 and 15 of the FCC rules as a Class B digital device. Each product marketed is identical to the representative unit tested and found to be compliant with the standards. Records maintained continue to reflect the equipment being produced can be expected to be within the variation accepted, due to quantity production and testing on a statistical basis as required by 47CFR §2.909. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Trade Name: Epson Type of Product: Projector Model: H417A/H359A Marketing Name: PowerLite Pro Cinema 31000/Pro Cinema 61000

Notices

Epson America, Inc. Limited Warranty

Three-Year Projector Limited Warranty and 90-Day Lamp Limited Warranty

What Is Covered: Epson America, Inc. (“Epson”) warrants to the original retail purchaser of the Epson projector product enclosed with this limited warranty statement that the product, if purchased new and operated in the United States, Canada, or Puerto Rico will be free from defects in workmanship and materials for a period of three (3) years from the date of original purchase. This limited warranty applies only to the projector and not to the projector lamp, which carries a limited warranty period of ninety (90) days from the date of original purchase. For warranty service, you must provide proof of the date of original purchase.

What Epson Will Do To Correct Problems: If your product requires service during the limited warranty period, please call Epson at the number on the bottom of this statement and be prepared to provide the model, serial number, and date of original purchase. Epson will, at its option, repair or replace the defective unit, without charge for parts or labor. When warranty service involves the exchange of the product or of a part, the item replaced becomes Epson property. The exchanged product or part may be new or refurbished to the Epson standard of quality, and at Epson’s option, the replacement may be another model of like kind and quality. Epson's liability for replacement of the covered product will not exceed the original retail selling price of the covered product. Exchange or replacement products or parts assume the remaining warranty period of the product covered by this limited warranty. If Epson replaces the lamp as part of the warranty service, the replacement lamp carries the limited 90-day warranty stated above.

What This Warranty Does Not Cover: This warranty covers only normal use in the United States, Canada or Puerto Rico. Twenty-four hours per day or other excessive continual use is not considered normal use. This warranty does not cover consumables such as filters. This warranty is not transferable. Epson is not responsible for warranty service should the Epson label or logo or the rating label or serial number be removed. Epson is not responsible for warranty service should the product fail to be properly maintained or fail to function properly as a result of misuse, abuse, improper installation, neglect, improper shipping, damage caused by disasters such as fire, flood, and lightning, improper electrical current, software problems, interaction with non-Epson products, or service other than by Epson or an Epson Authorized Servicer. Postage, insurance, or shipping costs incurred in presenting your Epson product for carry-in warranty service are your responsibility. Epson will pay for all freight charges if you choose to send your unit to Epson for repair. If a claimed defect cannot be identified or reproduced in service, you will be held responsible for costs incurred.

THE WARRANTY AND REMEDY PROVIDED ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL

OTHER EXPRESS OR IMPLIED WARRANTIES INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SOME LAWS DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES. IF THESE LAWS APPLY, THEN ALL EXPRESS AND IMPLIED WARRANTIES ARE LIMITED

Notices

TO THE WARRANTY PERIOD IDENTIFIED ABOVE. UNLESS STATED HEREIN, ANY STATEMENTS OR REPRESENTATIONS MADE BY ANY OTHER PERSON OR FIRM ARE VOID. IN THE EVENT THE REMEDIES ABOVE FAIL, EPSON’S ENTIRE LIABILITY SHALL BE LIMITED TO A REFUND OF THE PRICE PAID FOR THE EPSON PRODUCT COVERED BY THIS LIMITED WARRANTY. EXCEPT AS PROVIDED IN THIS WRITTEN WARRANTY, NEITHER EPSON AMERICA, INC. NOR ITS AFFILIATES SHALL BE LIABLE FOR ANY LOSS, INCONVENIENCE, OR DAMAGE, INCLUDING DIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, RESULTING FROM THE USE OR INABILITY TO USE THE EPSON PRODUCT, WHETHER RESULTING FROM BREACH OF WARRANTY OR ANY OTHER LEGAL THEORY.

In Canada, warranties include both warranties and conditions.

Some jurisdictions do not allow limitations on how long an implied warranty lasts and some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from jurisdiction to jurisdiction.

To find the Epson Authorized Reseller nearest you, please visit our website at: www.epson.com.

To find the Epson Customer Care Center nearest you, please visit www.epson.com/support.

To contact the Epson Connection

, please call (800) 637-7661 + PIN or (562) 276-4394 in the U.S. and (905) 709-3839 in Canada or write to Epson America, Inc., P.O. Box 93012, Long Beach, CA 90809-3012.

Notices

Index

Abs. Color Temp. setting, 37 Accessories, 10, 68 Air filter

cleaning and replacing, 54 to 55

ordering, 10 AMX Device Discovery, 47 Anamorphic lens, 20, 26 Anamorphic Wide setting, 26 Anti-theft device, 7, 10 Aspect button, 9, 26, 63 Aspect ratio, selecting, 26, 42 Auto Iris setting, 33 Auto Setup, 39

Batteries, remote control, 20 Blank button, 23 Block NR, 36 Blurry picture, 65 Brightness

setting, 33

specification, 69 Buttons

projector, 8

remote control, 9

Color

adjusting, 27 to 29, 36 to 38 isolating, 36

problems, 66 Color Gamut setting, 38 Color Mode, 9, 27, 66 Color Saturation setting, 36 Color temperature setting, 37 Component setting, 44 Component video connection, 18 Computer

adjusting image, 39

displaying image, 64 Contrast

button, 9

ratio, 69

setting, 33 Control Panel Lock, 30, 46 Control panel, projector, 8

Declaration of Conformity, 78 Direct Power On, 44 Display Background setting, 43 Documentation, 11

Cables, connecting, 18 to 20 Child Lock, 30, 45 Cleaning

air filter, 54 to 55 lens, 53 projector case, 54

Codes, AV controller, 74

ECO mode, 34, 70 Electrical requirements, 70 E-mail alerts, 47, 51 to 52 Epson

accessories, 10, 68

Home Service, 10

PrivateLine Support, 11, 68

technical support, 11, 67

warranty, 10, 79 to 80

Index

EPSON Super White setting, 34 ESC/VP21 command codes, 74

FCC Compliance Statement, 77 Filter, see Air filter Flickering, 35, 65 Focus, 25, 39 Frame Interpolation, 36

Gain, color, 37 Gamma, 27 to 28, 38 Gamut, color, 38


adjusting, 27 to 29, 32 to 39

changing aspect ratio, 26

inverting, 16, 44

positioning, 23 to 24, 42

resizing, 26, 42

selecting source, 22

size, 14 to 15 Image menu, 41 Image problems, 63 to 66 Image Size Calculator, 15 Info menu, 59 Installing projector, 16 Interference, signal, 65

Kensington anti-theft device, 7, 10

HDMI, 18, 19, 34 HDMI EQ setting, 44 HDMI Link

buttons, 9, 49 problems, 67 setting up, 48

using, 49 Help, 67 High Altitude Mode, 46 Home Service, 10 Horiz. Squeeze setting, 26

Illumination of buttons

projector, 45, 61 to 63

remote control, 20 Illumination setting, 45, 61

Lamp

checking usage timer, 59 life, 69 ordering, 10, 56 replacing, 56 to 58 resetting usage timer, 59 safety instructions, 75 to 76

specifications, 69 Language setting, 32 Lens Iris setting, 33 Lens Lock, 30, 45 Lens position memory, 39 to 41 Lens shift, 13, 23 to 24, 39 Lens, cleaning, 53 Lights, projector, 45, 61 to 63 Line menu, 9 Lock

Child Lock, 30, 45

Control Panel Lock, 30

Kensington, 7, 10

Lens Lock, 30, 45

projector buttons, 29

Index

Mail notification, 47 Memory button, 9, 39 to 41 Memory settings

creating, 40 renaming, 40

using, 39 to 41 Menu button, 9, 31 Menus

available settings, 32 to 47

customizing display, 32

line menu, 9

using, 31 to 32 Message setting, 43 Monitoring projector over network, 51 Mosquito NR, 36 Mounting projector, 16 Moving projector, 60

Network

connecting to, 50

e-mail alerts, 51 to 52

monitoring projector, 51

problems, 67

settings, 46 to 47

using, 50 to 52 No image, 63 to 64 Noise Reduction, 35

Positioning projector, 12 to 15 Power Consumption setting, 34 PrivateLine Support, 11, 68 Problems

HDMI Link, 67 indicator lights, 61 to 63 network, 67 picture, 63 to 66

remote control, 66 Progressive mode setting, 35 Projection distance, 14 to 15, 69 Projector

checking status, 59

cleaning, 54

control panel, 8

dimensions, 17, 70

e-mail alerts, 51 to 52

installing, 16

lights, 45, 61 to 63

locking buttons, 29

menus, 32 to 47

monitoring, 51

parts, 7 to 8

positioning, 12 to 15

resetting menu options, 41

security lock, 7, 10

storing, 60

transporting, 60

turning on and off, 21 to 22, 63

Offset, color, 37 Overscan, 42

Pattern button, 9, 23, 36 Picture problems, 63 to 66 Pixelworks, 71 Positioning image, 23 to 24, 42

Registration, 10 Remote control

batteries, 20

buttons, 9

lighting up buttons, 20

problems, 66 Replacing lamp, 56 to 58 Resetting

lamp usage timer, 42, 59

projector settings, 41

Index

Resolution

compatible formats, 71 to 73

projector, 59, 69 RGB setting, 37 RGBCMY setting, 27 to 29, 38

Safety approvals, 71 Safety instructions, 75 to 76 Setup level, 34 Sharpness, 35 Signal menu, 34 Skin Tone setting, 37 Sleep mode, 45 Source buttons, 8, 9 Source, selecting image, 22 Specifications

compatible video formats, 71 to 73

dimensions, 70

electrical, 70

environmental, 70

general, 69

lamp, 69

remote control, 69 Standby Confirmation setting, 43 Standby Mode setting, 44 Startup screen, selecting, 43 Static, 65 Storing projector, 60 Super-resolution, 38 Support, 11, 67 S-Video connection, 18 Sync (Synchronization) setting, 39

Trigger out setting, 45 Turning on and off projector, 21 to 22, 63

Video Signal setting, 44 Video, compatible formats, 71 to 73 VP21 codes, 74

Warranty, 10, 79 to 80 Web browser, 51 Where to Get Help, 67 Wide setting, 26

x.v.Color setting, 27

Zoom, 25, 39 Zoom Caption Pos. setting, 43 Zoom setting, 26 Zoom Size setting, 43

Technical support, 11, 67 Test pattern, 23, 36 THX setting, 27 Tint, 37 Tracking, 39 Transporting projector, 60 Trigger out port, 20, 26

Index

Epson 31000, 61000 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Copyright Notice

Trademarks

Contents

Introduction

Projector Parts

Remote Control

Optional Accessories

Registration and Warranty

Using This Manual

Setting Up the Projector

Choosing a Location

Installing the Projector

Connecting the Cables

Connecting Video and Computer Equipment

Making Other Connections

Installing Batteries in the Remote Control

Turning the Projector On and Off

Turning On the Projector

Turning Off the Projector

Selecting the Image Source

Positioning the Image

Making Basic Adjustments

Focusing and Zooming

Choosing the Aspect Ratio

Choosing the Color Mode

Advanced Color Adjustments

Adjusting the Gamma Setting

Adjusting RGBCMY

Locking the Projector

Making Detailed Adjustments

Using the Menu System

Changing How the Menus Display

Adjusting the Picture Quality

Input Brightness Settings

Sharpness and Picture Quality Settings

Color Settings

Adjustments for Computer Images

Selecting Memory Settings and Resetting the Projector

Selecting Memory Settings

Creating Memory Settings

Renaming Memory Settings

Deleting Saved Memory Settings

Resetting the Projector

Customizing Projector Features

Image Sizing

Screen Options

Other Setup Options

Making Network Settings

Using HDMI Link

Setting Up HDMI Link

Using HDMI Link

Using the Projector on a Network

Connecting the Projector to Your Network

Monitoring the Projector with a Web Browser

Setting Up E-mail Alerts

Receiving E-mail Alerts

Maintenance

Cleaning the Lens

Cleaning the Projector Case

Cleaning and Replacing the Air Filter

Replacing the Lamp

Resetting the Lamp Usage Timer

Checking the Projector Status

Storing the Projector

Transporting the Projector

Problem Solving

What To Do When the Lights Come On or Flash

Solving Picture Problems

Solving Remote Control Problems

Solving Other Problems

Where to Get Help

Specifications

General

Lamp

Remote Control

Dimensions
