Epson 435Wi, 430i, 425Wi User Manual

BrightLink

®

425Wi/430i/435Wi

User's Guide

Contents

BrightLink 425Wi/430i/435Wi User's Guide............................................................................................. 11

Introduction to Your Projector ................................................................................................................. 12

Setting Up the Projector ........................................................................................................................... 27

Projector Features.............................................................................................................................. 12

Product Box Contents.................................................................................................................... 13

Additional Components ................................................................................................................ 15

Optional Equipment and Replacement Parts................................................................................. 16

Warranty and Registration Information.......................................................................................... 17

Notations Used in the Documentation................................................................................................ 17

Where to Go for Additional Information .............................................................................................. 18

Projector Part Locations..................................................................................................................... 18

Projector Parts - Front/Top............................................................................................................ 19

Projector Parts - Rear.................................................................................................................... 20

Projector Parts - Base.................................................................................................................... 22

Projector Parts - Control Panel...................................................................................................... 23

Projector Parts - Interactive Module .............................................................................................. 24

Projector Parts - Interactive Pen.................................................................................................... 24

Projector Parts - Remote Control................................................................................................... 25

Projection Distance............................................................................................................................ 27

Projector Connections........................................................................................................................ 27

Connecting to the Interactive Module............................................................................................ 28

Connecting to Computer Sources.................................................................................................. 28

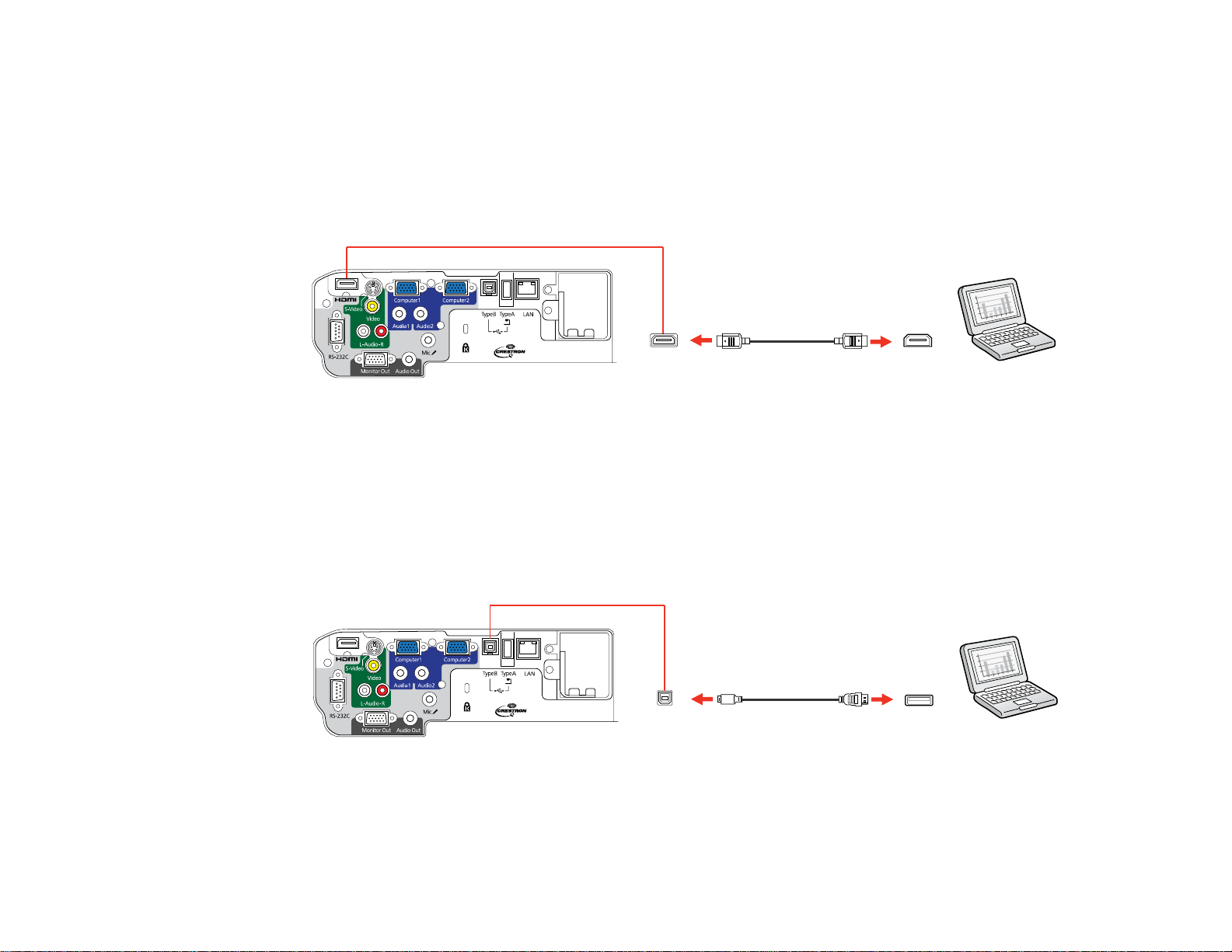

Connecting to a Computer for USB Video and Audio................................................................ 29

Connecting to a Computer for VGA Video ................................................................................ 30

Connecting to a Computer for HDMI Video and Audio.............................................................. 30

Connecting to a Computer for USB Mouse Control................................................................... 31

Connecting to a Computer for Sound........................................................................................ 32

Connecting to Video Sources........................................................................................................ 32

Connecting to an HDMI Video Source ...................................................................................... 32

Connecting to a Component-to-VGA Video Source.................................................................. 33

3

Connecting to a Composite Video Source ................................................................................ 34

Connecting to an S-Video Video Source................................................................................... 34

Connecting to a Video Source for Sound.................................................................................. 35

Connecting to an External Computer Monitor................................................................................ 35

Connecting to External Speakers.................................................................................................. 36

Connecting a Microphone.............................................................................................................. 37

Connecting to External USB Devices............................................................................................ 37

USB Device Projection.............................................................................................................. 37

Connecting a USB Device or Camera to the Projector.............................................................. 38

Selecting the Connected USB Source...................................................................................... 39

Disconnecting a USB Device or Camera From the Projector.................................................... 39

Connecting to a Document Camera .............................................................................................. 40

Installing Batteries in the Remote Control .......................................................................................... 40

Installing Batteries in the Interactive Pens.......................................................................................... 42

Using the Projector on a Network............................................................................................................ 44

Wired Network Projection................................................................................................................... 44

Connecting to a Wired Network..................................................................................................... 45

Selecting Wired Network Settings ................................................................................................. 45

Wireless Network Projection .............................................................................................................. 48

Installing the Wireless LAN Module............................................................................................... 49

Using Quick Wireless Connection (Windows Only)....................................................................... 51

Selecting Wireless Network Settings Manually.............................................................................. 51

Wireless LAN Menu Settings .................................................................................................... 54

Selecting Wireless Network Settings in Windows.......................................................................... 55

Selecting Wireless Network Settings in Mac OS X........................................................................ 55

Setting Up Wireless Network Security........................................................................................... 56

Wireless Security Menu Settings .............................................................................................. 57

Setting Up Projector Network E-Mail Alerts........................................................................................ 58

Network Projector E-mail Alert Messages..................................................................................... 59

Setting Up Monitoring Using SNMP ................................................................................................... 59

Controlling a Networked Projector Using a Web Browser .................................................................. 60

Crestron RoomView Support.............................................................................................................. 62

Setting Up Crestron RoomView Support....................................................................................... 62

4

Controlling a Networked Projector Using Crestron RoomView...................................................... 63

Using Basic Projector Features ............................................................................................................... 65

Turning On the Projector.................................................................................................................... 65

Turning Off the Projector.................................................................................................................... 67

Selecting the Language for the Projector Menus................................................................................ 69

Image Shape...................................................................................................................................... 70

Correcting Image Shape with the Keystone Buttons ..................................................................... 70

Correcting Image Shape with Quick Corner .................................................................................. 72

Resizing the Image with the Wide and Tele Buttons .......................................................................... 75

Focusing the Image Using the Focus Ring......................................................................................... 75

Remote Control Operation ................................................................................................................. 76

Using the Remote Control as a Wireless Mouse ........................................................................... 77

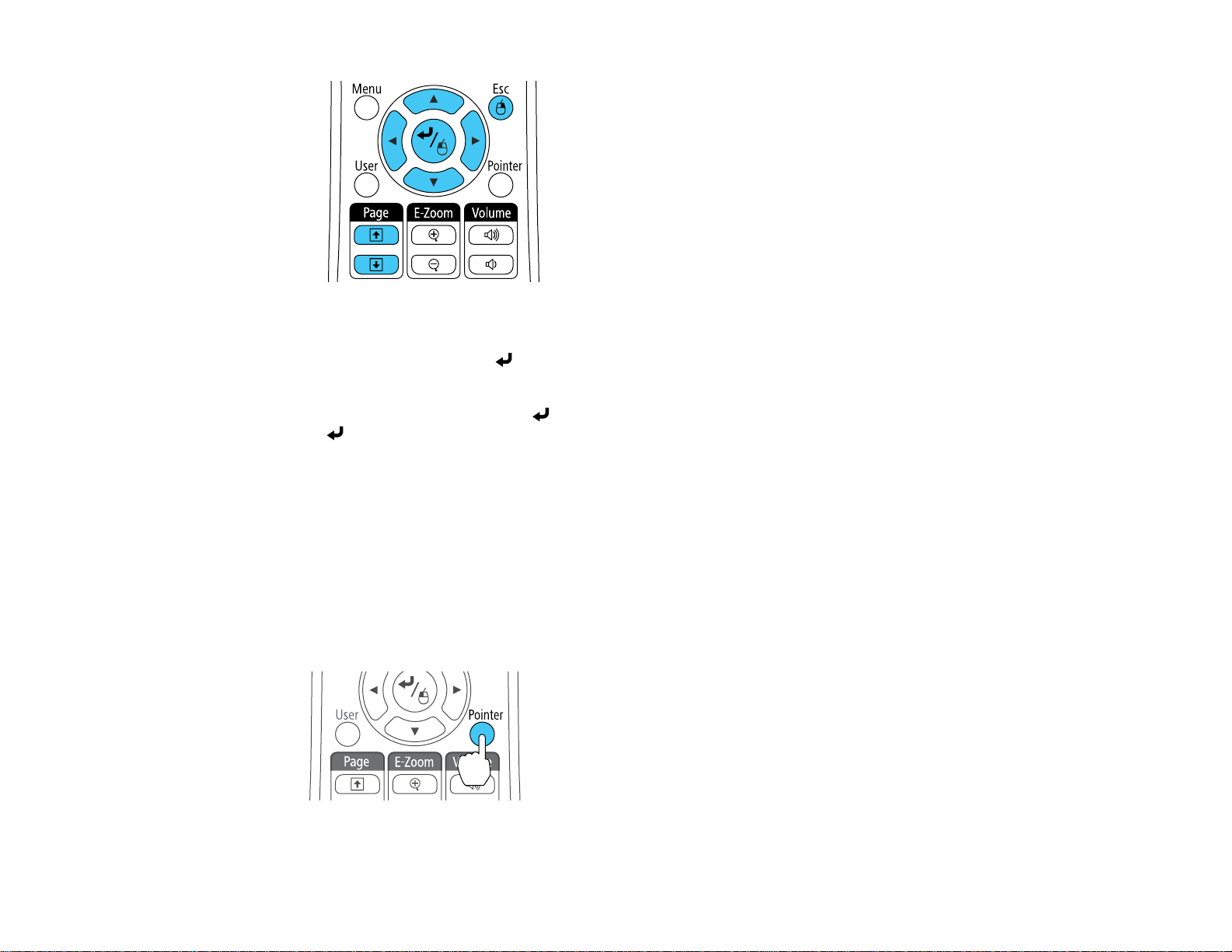

Using the Remote Control as a Presentation Pointer .................................................................... 78

Selecting an Image Source................................................................................................................ 79

Projection Modes ............................................................................................................................... 80

Changing the Projection Mode Using the Remote Control ............................................................ 81

Changing the Projection Mode Using the Menus........................................................................... 81

Image Aspect Ratio............................................................................................................................ 82

Changing the Image Aspect Ratio................................................................................................. 83

Available Image Aspect Ratios...................................................................................................... 83

Color Mode......................................................................................................................................... 84

Changing the Color Mode.............................................................................................................. 85

Available Color Modes................................................................................................................... 85

Turning On Auto Iris....................................................................................................................... 86

Controlling the Volume with the Volume Buttons................................................................................ 87

Projecting a Slide Show ..................................................................................................................... 87

Slideshow Features....................................................................................................................... 88

Supported Slideshow File Types................................................................................................... 88

Starting a Slide Show .................................................................................................................... 89

Slideshow Display Options ....................................................................................................... 91

Adjusting Projector Features................................................................................................................... 93

Shutting Off the Picture and Sound Temporarily................................................................................ 93

Stopping Video Action Temporarily.................................................................................................... 94

5

Zooming Into and Out of Images........................................................................................................ 94

Projector Security Features................................................................................................................ 95

Password Security Types.............................................................................................................. 95

Setting a Password................................................................................................................... 96

Selecting Password Security Types.......................................................................................... 97

Entering a Password to Use the Projector ................................................................................ 98

Saving a User's Logo Image to Display..................................................................................... 99

Locking the Projector's Buttons................................................................................................... 101

Unlocking the Projector's Buttons........................................................................................... 101

Installing a Security Cable........................................................................................................... 102

Creating a User Pattern to Display................................................................................................... 102

Using the Interactive Pens...................................................................................................................... 104

Installing Easy Interactive Driver...................................................................................................... 104

Checking the Connection Status of the Interactive Module.............................................................. 104

Calibrating the Projector................................................................................................................... 105

Using the Pens................................................................................................................................. 107

Easy Interactive Tools...................................................................................................................... 108

Easy Interactive Tools System Requirements............................................................................. 108

Installing Easy Interactive Tools.................................................................................................. 109

Starting and Exiting Easy Interactive Tools ................................................................................. 109

Using the Easy Interactive Tools for Interactive Mode................................................................. 111

Easy Interactive Tools for Interactive Mode............................................................................ 111

Using the On-Screen Keyboard.............................................................................................. 112

Using a Document Camera With Easy Interactive Tools......................................................... 113

Using the Magnifier ................................................................................................................ 114

Using Easy Interactive Annotation Tools..................................................................................... 115

Easy Interactive Annotation Tools .......................................................................................... 115

Selecting Line Width and Color With Easy Interactive Tools................................................... 117

Using the Easy Interactive Tools for Whiteboard Mode............................................................... 118

Easy Interactive Tools for Whiteboard Mode .......................................................................... 118

Using the Shapes Tool in Whiteboard Mode........................................................................... 119

Using Easy Interactive Tools for Saving, Printing, and More....................................................... 120

Easy Interactive Tools for Saving, Printing, and More............................................................. 120

6

Working With the Page List..................................................................................................... 121

Saving Your Pages................................................................................................................. 122

Selecting Language and General Settings.............................................................................. 125

Windows Tablet PC and Ink Tools ................................................................................................... 126

Using Windows Tablet PC and Ink Features............................................................................... 127

Adjusting the Menu Settings.................................................................................................................. 129

Using the Projector's Menus............................................................................................................. 129

Image Quality Settings - Image Menu.............................................................................................. 130

Input Signal Settings - Signal Menu ................................................................................................. 132

Projector Feature Settings - Settings Menu...................................................................................... 134

Projector Setup Settings - Extended Menu ...................................................................................... 137

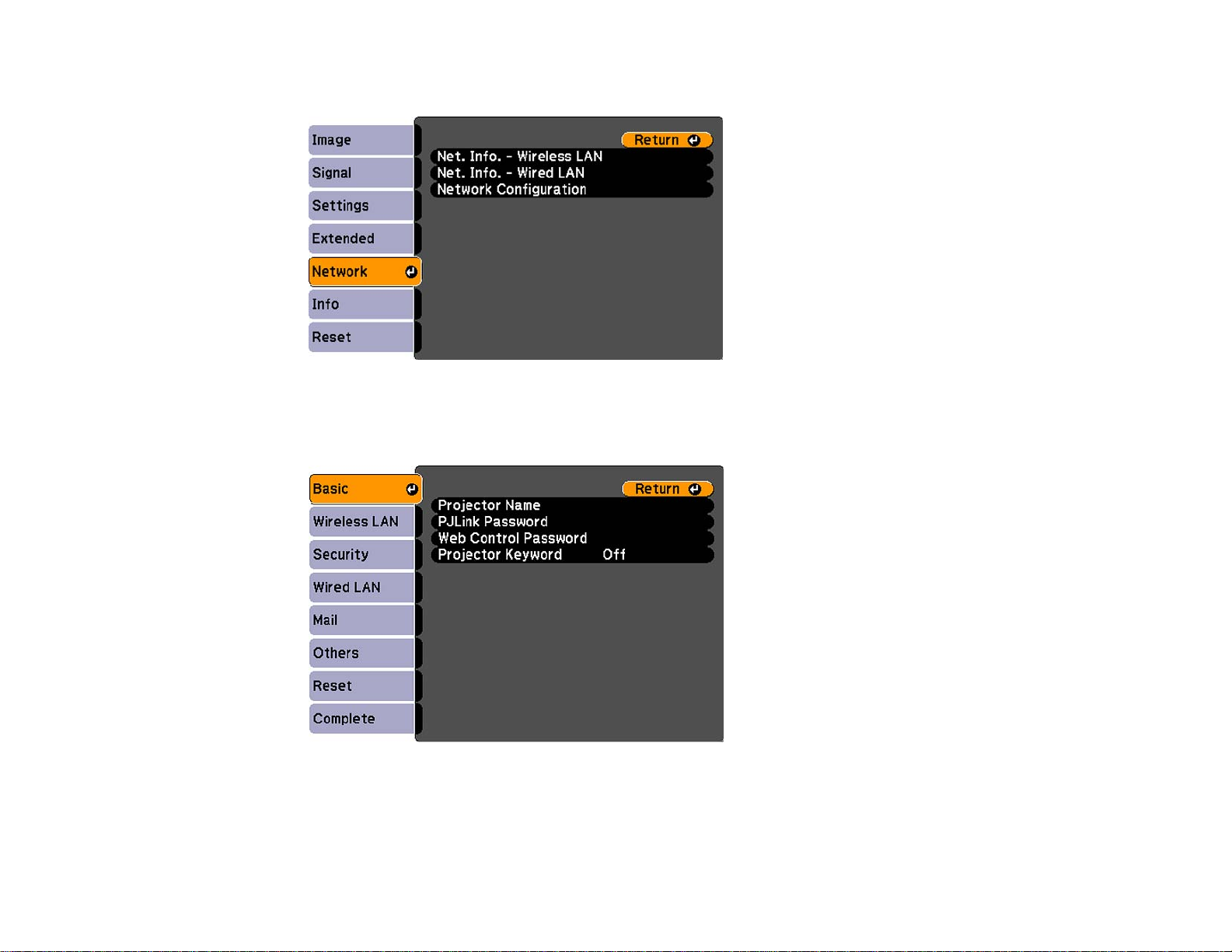

Projector Network Settings - Network Menu..................................................................................... 140

Projector Information Display - Info Menu ........................................................................................ 141

Event ID Code List....................................................................................................................... 143

Projector Reset Options - Reset Menu............................................................................................. 144

Maintaining and Transporting the Projector......................................................................................... 146

Projector Maintenance..................................................................................................................... 146

Cleaning the Lens and Receiver Window.................................................................................... 146

Cleaning the Projector Case........................................................................................................ 147

Air Filter and Vent Maintenance .................................................................................................. 147

Cleaning the Air Filter and Vents............................................................................................. 147

Replacing the Air Filter............................................................................................................ 148

Projector Lamp Maintenance....................................................................................................... 150

Replacing the Lamp................................................................................................................ 151

Resetting the Lamp Timer....................................................................................................... 156

Replacing the Remote Control Batteries ..................................................................................... 157

Replacing the Pen Batteries........................................................................................................ 159

Transporting the Projector................................................................................................................ 160

Solving Problems.................................................................................................................................... 161

Projection Problem Tips................................................................................................................... 161

Projector Light Status....................................................................................................................... 161

Using the Projector Help Displays.................................................................................................... 164

Solving Image or Sound Problems................................................................................................... 164

7

Solutions When No Image Appears............................................................................................. 165

Solutions When Image is Incorrect Using the USB Display Function .......................................... 166

Solutions When "No Signal" Message Appears........................................................................... 166

Displaying From a PC Laptop................................................................................................. 166

Displaying From a Mac Laptop ............................................................................................... 167

Solutions When "Not Supported" Message Appears................................................................... 167

Solutions When Only a Partial Image Appears............................................................................ 167

Solutions When the Image is Not Rectangular............................................................................ 168

Solutions When the Image Contains Noise or Static ................................................................... 168

Solutions When the Image is Fuzzy or Blurry.............................................................................. 169

Solutions When the Image Brightness or Colors are Incorrect.................................................... 170

Solutions When There is No Sound or Low Volume.................................................................... 170

Solutions to Microphone Problems.............................................................................................. 171

Solving Projector or Remote Control Operation Problems............................................................... 171

Solutions to Projector Power or Shut-Off Problems..................................................................... 172

Solutions to Problems with the Remote Control .......................................................................... 172

Solutions to Password Problems................................................................................................. 173

Solving Interactive Pen Problems .................................................................................................... 173

Solutions When "Hardware Device Not Found" Message Appears............................................. 174

Solutions When "Error Occurred in the Easy Interactive Function" Message Appears................ 174

Solutions When the Interactive Pens Do Not Work...................................................................... 174

Solutions When Calibration is Difficult......................................................................................... 175

Solutions When the Interactive Pen Position Is Not Accurate...................................................... 176

Solutions When the Interactive Pens are Slow or Difficult to Use................................................ 176

Solutions When Network Alert E-Mails are Not Received ................................................................ 177

Where to Get Help............................................................................................................................ 177

Technical Specifications ........................................................................................................................ 179

General Projector Specifications...................................................................................................... 179

Projector Lamp Specifications.......................................................................................................... 181

Interactive Module Specifications..................................................................................................... 182

Interactive Pen Specifications.......................................................................................................... 182

Remote Control Specifications......................................................................................................... 183

Projector Dimension Specifications.................................................................................................. 183

8

Projector Electrical Specifications.................................................................................................... 183

Projector Environmental Specifications............................................................................................ 185

Projector Safety and Approvals Specifications................................................................................. 185

Supported Video Display Formats.................................................................................................... 186

USB Display System Requirements................................................................................................. 188

Notices ..................................................................................................................................................... 190

Recycling.......................................................................................................................................... 190

Important Safety Information............................................................................................................ 190

Important Safety Instructions............................................................................................................ 191

Restriction of Use........................................................................................................................ 193

FCC Compliance Statement............................................................................................................. 194

Wireless Telegraphy Act Regulations .............................................................................................. 195

Trademarks...................................................................................................................................... 195

Software Copyright........................................................................................................................... 195

Copyright Notice............................................................................................................................... 237

A Note Concerning Responsible Use of Copyrighted Materials................................................... 238

Copyright Attribution.................................................................................................................... 238

9

BrightLink 425Wi/430i/435Wi User's Guide

Welcome to the BrightLink 425Wi/430i/435Wi User's Guide.

11

Introduction to Your Projector

Refer to these sections to learn more about your projector and this manual.

Projector Features
Notations Used in the Documentation
Where to Go for Additional Information
Projector Part Locations

Projector Features

BrightLink 425Wi/430i/435Wi projectors include these special features:

Bright, high-resolution projection system

• BrightLink 425Wi: Up to 2500 lumens of brightness (white light output and color light output)
BrightLink 430i/435Wi: Up to 3000 lumens of brightness (white light output and color light output)

• BrightLink 430i: Native resolution of 1024 × 768 pixels (XGA)
BrightLink 425Wi/435Wi: Native resolution of 1280 × 800 pixels (WXGA)

Interactive solution

• Turn most surfaces into an interactive learning center; no need to purchase a whiteboard

• Easy installation and setup

• Includes everything you need for a total interactive solution

Flexible connectivity

• Plug-and-play 3-in-1 USB projection, audio, and mouse control for instant setup

• HDMI port for computer or video device connection

• Wired network support for projection

• Projector monitoring and control via remote network computer

• Optional wireless network support, including video and audio transfer

• PC Free photo slide shows via connected USB memory devices or EPSON document camera

• Dual VGA ports for connections by multiple presenters

• Port for connecting an external monitor or second projector

• Port for connecting a microphone

12

Innovative display and operation features

• Low total cost of ownership with long-life projector lamp and high-efficiency air filter

• High digital zoom ratio for larger images in shorter projection distances

• 3000:1 contrast ratio and Auto Iris control for sharp, detailed images

• Built-in closed captioning decoder

• Powerful 16 W speaker system with audio out port for connecting external speakers

• Epson's Instant Off and Direct Power On features for quick setup and shut down

• Support for Crestron RoomView network monitoring systems

• Network message broadcast system to project timely messages to all networked projectors

Product Box Contents
Additional Components
Optional Equipment and Replacement Parts
Warranty and Registration Information

Parent topic: Introduction to Your Projector
Related concepts

Projector Part Locations

Product Box Contents

Save all the packaging in case you need to ship the projector. Always use the original packaging (or
equivalent) when shipping.

Make sure your projector box included all of these parts:

13

Note: If you purchased the RM Easiteach software option, your box will include 2 additional CDs. The

included Short Throw Wall Mount (ELPMB27) is boxed separately. (Instructions for mounting the
projector to a wall and attaching the interactive module are included in the wall mount box.)

1 Projector
2 Lens cover

14

3 Remote control
4 2 AA alkaline batteries (for remote control)
5 2 interactive pens
6 4 AAA alkaline batteries (2 batteries for each interactive pen)
7 Interactive module
8 Pen tray
9 USB cable
10 Power cord
11 VGA computer cable
12 Battery charger with 4 AAA rechargeable batteries (for interactive pens)
13 M4 × 10 mm hexagon socket head cap bolt with washer and spring washer
14 M3 × 8 mm cross-head screw
15 M4 hexagonal wrench
16 Projector software CD (for network usage)
17 Projector software for Easy Interactive Function CD-ROM
18 TeamBoard Draw CD
19 Password Protected sticker

Parent topic: Projector Features

Additional Components

Depending on how you plan to use the projector, you may need to obtain the following additional
components:

• To receive an S-Video signal, you need an S-Video cable compatible with your device. See your local
computer or electronics dealer for purchase information.

• To receive a component video signal, you need a D-sub, 15-pin, component-to-VGA video cable. You
can purchase one from Epson or an authorized EPSON reseller.

• To receive an HDMI signal, you need a compatible HDMI cable. See your local computer or
electronics dealer for purchase information.

15

Note: To connect a Mac that includes only a Mini DisplayPort or Mini-DVI port for video output, you

need to obtain an adapter that allows you to connect to the projector's HDMI port. Contact Apple for
compatible adapter options. Older Mac computers (2009 and earlier) may not support audio through
the HDMI port.

• To project with audio from certain ports, you may need a commercially available audio cable
compatible with your device. See your local computer or electronics dealer for purchase information.

Note: To connect a Mac that includes only a Mini DisplayPort or Mini-DVI port for video output, you need
to obtain an adapter that allows you to connect to the projector's VGA video port. Contact Apple for
compatible adapter options.

Parent topic: Projector Features

Optional Equipment and Replacement Parts

You can purchase screens, other optional accessories, and replacement parts from an EPSON
authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you can
purchase online at www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales).

Epson offers the following optional accessories and replacement parts for your projector:

Option or part Part number

Genuine EPSON replacement lamp (ELPLP60) V13H010L60
BrightLink 425Wi
Genuine EPSON replacement lamp (ELPLP61) V13H010L61
BrightLink 430i/435Wi
Air filter replacement set (2 filters) (ELPAF36) V13H134A36
Wireless LAN module (ELPAP07) V12H418P12
Quick Wireless Connection USB key (ELPAP08) V12H005M08
Additional interactive pen (ELPPN02) V12H442001
EPSON DC-11 document camera (ELPDC11) V12H377020
EPSON DC-06 document camera (ELPDC06) V12H321005
PowerLite Pilot (ELPCB01) V12H443020
Wireless pendant microphone (ELPMC02) V12H4430M2

16

Option or part Part number

Active speakers (ELPSP02) V12H467020
On wall cable management kit ELPCK01
Kensington security lock ELPSL01
90-inch whiteboard V12H468002
96-inch whiteboard V12H468001
6 ft (1.8 m) VGA computer cable (ELPKC02) F3H982-06
10 ft (3.0 m) VGA computer cable (ELPKC09) F3H982-10
25 ft (20 m) VGA computer cable (ELPKC10) F3H982-25
Component-to-VGA video cable ELPKC19
1-Year Extended Depot Repair Service Plan EPPFTPA1
1-Year Extended Exchange Warranty EPPEXPA1
2-Year Extended Depot Repair Service Plan EPPFTPA2

Parent topic: Projector Features

Warranty and Registration Information

Your projector comes with a basic warranty that lets you project with confidence. For details, see the
warranty brochure that came with your projector.

In addition, Epson offers free Extra Care Road Service. In the unlikely event of an equipment failure, you
won’t have to wait for your unit to be repaired. Instead, Epson will ship you a replacement unit anywhere
in the United States, Canada, or Puerto Rico. See the Extra Care Road Service brochure for details.

Register your product online using the projector CD or at this site: www.epson.com/webreg
Registering also lets you receive special updates on new accessories, products, and services.

Parent topic: Projector Features

Notations Used in the Documentation

Follow the guidelines in these notations as you read your documentation:

• Warnings must be followed carefully to avoid bodily injury.

• Cautions must be observed to avoid damage to your equipment.

17

• Notes contain important information about your projector.

• Tips contain additional projection information.

Parent topic: Introduction to Your Projector

Where to Go for Additional Information

Need quick help on using your projector during a presentation? Here's where to look for help:

• Built-in help system
Press the Help button on the remote control or projector to get quick solutions to common problems.

• www.epson.com/support (U.S) or www.epson.ca/support (Canada)
View FAQs (frequently asked questions) and e-mail your questions to Epson technical support 24

hours a day.

• For detailed instructions on using your projector in a network environment, see the EasyMP Network
Projection Operation Guide installed with this manual from your projector CD.

• If you still need help after checking this manual and the sources listed above, you can use the EPSON
PrivateLine Support service to get help fast. For details, see "Where to Get Help".

Parent topic: Introduction to Your Projector
Related references

Where to Get Help

Projector Part Locations

Check the projector part illustrations to learn about the parts on your projector.

Projector Parts - Front/Top
Projector Parts - Rear
Projector Parts - Base
Projector Parts - Control Panel
Projector Parts - Interactive Module
Projector Parts - Interactive Pen
Projector Parts - Remote Control

Parent topic: Introduction to Your Projector

18

Projector Parts - Front/Top

1 Remote control receiver
2 Foot release lever
3 Front adjustable foot
4 Air intake vent (air filter)
5 Focus ring

19

6 Control panel
7 Lamp cover
8 Exhaust vent
9 Projector status lights
10 Lens cover

Parent topic: Projector Part Locations

Projector Parts - Rear

1 HDMI port
2 Video port
3 RS-232C port
4 Monitor Out port
5 Audio1 port
6 Audio Out port
7 Mic (microphone) port

20

8 Power inlet
9 Kensington security slot
10 Optional wireless LAN unit slot
11 Speaker
12 Network (LAN) port
13 USB TypeA port
14 USB TypeB port
15 Computer2 port
16 Audio2 port
17 Computer1 port
18 L-Audio-R audio ports
19 S-Video port

Parent topic: Projector Part Locations

21

Projector Parts - Base

1 Ceiling mount holes (3)
2 Wall mount holes (5)
3 Rear feet
4 Security cable attachment point
5 Front adjustable foot

Parent topic: Projector Part Locations

22

Projector Parts - Control Panel

1 Power button
2 Source Search button (searches for connected video sources)
3 Enter button (selects options)
4 Vertical keystone adjustment buttons (adjust screen shape) and arrow buttons
5 Help button (accesses projector help information)
6 Esc button (cancels/exits functions)
7 Wide/Tele buttons (adjust projected image size), horizontal keystone adjustment buttons (adjust

screen shape), and arrow buttons

8 Menu button (accesses projector menu system)

Parent topic: Projector Part Locations
Related references

Projector Light Status

23

Projector Parts - Interactive Module

1 Interactive receiver window
2 USB port cover

Parent topic: Projector Part Locations

Projector Parts - Interactive Pen

1 Battery indicator light
2 Button
3 Attachment for optional strap or cord

Parent topic: Projector Part Locations

24

Projector Parts - Remote Control

1 Power button

25

2 Computer button (cycles through connected computer sources)
3 Video button (cycles through connected video sources)
4 Numeric buttons (enter numbers)
5 Auto button (automatically adjusts position, tracking, and sync settings)
6 Aspect button (selects the image aspect ratio)
7 Num button (when held down, switches numeric buttons to number function)
8 Menu button (accesses projector menu system)
9 Arrow buttons (move through on-screen options and control wireless mouse functions)
10 Enter button (selects options and controls wireless mouse functions)
11 User button (customizable for different functions)
12 Page up/down buttons (control presentation slides)
13 E-Zoom +/– buttons (zoom into and out of the image)
14 A/V Mute button (turns off picture and sound)
15 Help button (accesses projector help information)
16 Freeze button (stops video action)
17 Volume up/down buttons (adjust speaker volume)
18 Pointer button (activates on-screen pointer)
19 Esc button (cancels/exits functions and controls wireless mouse functions)
20 Color Mode button (selects display modes)
21 LAN button
22 USB button (cycles through connected USB sources)
23 Source Search button (searches for connected sources)

Parent topic: Projector Part Locations

26

Setting Up the Projector

Follow the instructions in these sections to set up your projector for use.

Projection Distance
Projector Connections
Installing Batteries in the Remote Control
Installing Batteries in the Interactive Pens

Projection Distance

The distance at which you place the projector from the screen determines the approximate size of the
image. The image size increases the farther the projector is from the screen, but can vary depending on
the zoom factor, aspect ratio, and other settings.

Refer to the tables in the Installation Guide to determine approximately how far to place the projector
from the screen based on the size of the projected image. (Conversion figures may have been rounded
up or down.) You can also use the projector Throw Distance Calculator at www.epson.com/support
(U.S.) or www.epson.ca/support (Canada).

Parent topic: Setting Up the Projector

Projector Connections

You can connect the projector to a variety of computer, video, and audio sources to display
presentations, movies, or other images, with or without sound.

• Connect any type of computer that has a USB port, standard video output (monitor) port, or HDMI port.

• For video projection, connect devices such as DVD players, gaming consoles, digital cameras, and
camera phones with compatible video output ports.

• If your presentation or video includes sound, you can connect audio input cables, if necessary.

• For slide shows without a computer, you can connect USB devices (such as a flash drive or camera)
or an optional EPSON document camera.

Caution: If you will use the projector at altitudes above 4921 feet (1500 m), turn on High Altitude Mode
to ensure the projector's internal temperature is regulated properly.

Connecting to the Interactive Module
Connecting to Computer Sources

27

Connecting to Video Sources
Connecting to an External Computer Monitor
Connecting to External Speakers
Connecting a Microphone
Connecting to External USB Devices
Connecting to a Document Camera

Parent topic: Setting Up the Projector
Related references

Projector Setup Settings - Extended Menu
Product Box Contents

Connecting to the Interactive Module

The interactive module is a receiver that works with your projector to turn virtually any surface into an
interactive whiteboard. Connect the USB cable from the interactive module to any available USB port on
your computer.

Parent topic: Projector Connections

Connecting to Computer Sources

Follow the instructions in these sections to connect a computer to the projector.

28

Connecting to a Computer for USB Video and Audio
Connecting to a Computer for VGA Video
Connecting to a Computer for HDMI Video and Audio
Connecting to a Computer for USB Mouse Control
Connecting to a Computer for Sound

Parent topic: Projector Connections

Connecting to a Computer for USB Video and Audio

If your computer meets the system requirements, you can send video and audio output to the projector
through the computer's USB port (preferably USB 2.0). Connect the projector to your computer using a
USB cable.

Note: You may experience slow interactive pen function when connecting the projector to your computer
using a USB cable. For the best interactive performance, VGA or HDMI cable connections are
recommended.

1. Turn on your computer.

2. Connect the cable to your projector's USB TypeB port.

3. Connect the other end to any available USB port on your computer.

4. Do one of the following:

• Windows 7/Windows Vista: Select Run EMP_UDSE.exe in the dialog box that appears to install
the EPSON USB Display software.

• Windows XP: Wait as messages appear on your computer screen and the projector installs the
EPSON USB Display software on your computer.

• Windows 2000: Select Computer, EPSON_PJ_UD, and EMP_UDSE.EXE toinstall the EPSON
USB Display software.

29

• Mac OS X: The USB Display setup folder appears on your screen. Select USB Display Installer
and follow the on-screen instructions to install the EPSON USB Display software.

Follow any on-screen instructions. You need to install this software only the first time you connect
the projector to the computer.

The projector displays the image from your computer's desktop and outputs sound, if your presentation
contains audio.

Parent topic: Connecting to Computer Sources
Related references

Projector Setup Settings - Extended Menu

Connecting to a Computer for VGA Video

You can connect the projector to your computer using a VGA computer cable.
Note: To connect a Mac that includes only a Mini DisplayPort or Mini-DVI port for video output, you need

to obtain an adapter that allows you to connect to the projector's VGA video port. Contact Apple for
compatible adapter options.

1. If necessary, disconnect your computer's monitor cable.

2. Connect the VGA computer cable to your computer's monitor port.

3. Connect the other end to a Computer port on the projector.

4. Tighten the screws on the VGA connectors.

Parent topic: Connecting to Computer Sources

Connecting to a Computer for HDMI Video and Audio

If your computer has an HDMI port, you can connect it to the projector using an optional HDMI cable.

30

Note: To connect a Mac that includes only a Mini DisplayPort or Mini-DVI port for video output, you need

to obtain an adapter that allows you to connect to the projector's HDMI port. Contact Apple for
compatible adapter options. Older Mac computers (2009 and earlier) may not support audio through the
HDMI port.

1. Connect the HDMI cable to your computer's HDMI output port.

2. Connect the other end to the projector's HDMI port.

Parent topic: Connecting to Computer Sources

Connecting to a Computer for USB Mouse Control

If you connected your computer to a Computer, USB TypeB, or HDMI port on the projector, you can set
up the remote control to act as a wireless mouse. This lets you control computer presentations at a
distance from your computer. To do this, connect the projector to your computer using a USB cable, if it
is not connected already.

1. Connect the USB cable to your projector's USB TypeB port.

2. Connect the other end to any available USB port on your computer.

3. If necessary, configure your computer to work with an external USB mouse. See your computer
documentation for details.

Parent topic: Connecting to Computer Sources

31

Related references

Projector Setup Settings - Extended Menu
Projector Parts - Remote Control

Connecting to a Computer for Sound

If your computer presentation includes sound and you did not connect it to the projector's USB TypeB or
HDMI port, you can still play sound through the projector's speaker system. Just connect an optional 3.5

mm stereo mini-jack audio cable as described here.

1. Connect the audio cable to your laptop's headphone or audio-out jack, or your desktop's speaker or
audio-out port.

2. Connect the other end to the Audio port that corresponds to the Computer port you are using.

Parent topic: Connecting to Computer Sources

Connecting to Video Sources

Follow the instructions in these sections to connect video devices to the projector.

Connecting to an HDMI Video Source
Connecting to a Component-to-VGA Video Source
Connecting to a Composite Video Source
Connecting to an S-Video Video Source
Connecting to a Video Source for Sound

Parent topic: Projector Connections

Connecting to an HDMI Video Source

If your video source has an HDMI port, you can connect it to the projector using an optional HDMI cable.
The HDMI connection provides the best image quality.

1. Connect the HDMI cable to your video source's HDMI output port.

32

2. Connect the other end to the projector's HDMI port.

Parent topic: Connecting to Video Sources

Connecting to a Component-to-VGA Video Source

If your video source has component video ports, you can connect it to the projector using a component­to-VGA video cable. Depending on your component ports, you may need to use an adapter cable along
with a component video cable.

1. Connect the component connectors to your video source's color-coded component video output
ports, usually labeled Y, Pb, Pr or Y, Cb, Cr. If you are using an adapter, connect these connectors
to your component video cable.

2. Connect the VGA connector to the projector's Computer port.

If your image colors appear incorrect, you may need to change the Input Signal setting in the projector's
Signal menu.

Parent topic: Connecting to Video Sources

33

Related references

Input Signal Settings - Signal Menu

Connecting to a Composite Video Source

If your video source has a composite video port, you can connect it to the projector using an optional
RCA-style video or A/V cable.

1. Connect the cable with the yellow connector to your video source's yellow video output port.

2. Connect the other end to the projector's Video port.

Parent topic: Connecting to Video Sources

Connecting to an S-Video Video Source

If your video source has an S-Video port, you can connect it to the projector using an optional S-Video
cable.

1. Connect the S-Video cable to your video source's S-Video output port.

2. Connect the other end to the projector's S-Video port.

Parent topic: Connecting to Video Sources

34

Connecting to a Video Source for Sound

You can play sound through the projector's speaker system if your video source has audio output ports.
If you are projecting video using a Computer port, connect the projector to the video source using an

optional stereo mini-jack audio cable.
If you are projecting video using the Video or S-Video port, connect the projector to the video source

using an RCA audio cable.

1. Connect the audio cable to your video source's audio-out ports.

2. Do one of the following:

• Connect the other end of the cable to the projector's Audio port that corresponds to the

Computer port you are using for video.

• Connect the red and white plugs on the other end of the cable to the projector's L-Audio-R ports.

1 Audio1 or Audio2 port
2 L-Audio-R ports

Parent topic: Connecting to Video Sources

Connecting to an External Computer Monitor

If you connected the projector to a computer using a Computer port, you can also connect an external
monitor to the projector. This lets you see your presentation on the external monitor even when the
projected image is not visible.

Note: Monitors that use a refresh rate less than 60 MHz may not be able to display images correctly.

35

1. Make sure your computer is connected to the projector's Computer port. If there are two computer
ports, make sure you use the Computer1 port.

2. Connect the external monitor's cable to your projector's Monitor Out port.

Parent topic: Projector Connections

Connecting to External Speakers

To enhance the sound from your presentation, you can connect the projector to external speakers with
built-in amplifiers. You can control the volume using the projector's remote control.

Note: The projector's built-in speaker system is disabled when you connect external speakers.

1. Make sure your computer or video source is connected to the projector with both audio and video
cables as necessary.

2. Locate the appropriate cable to connect your external speakers, such as a stereo mini-jack-to-pin­jack cable, or another type of cable or adapter.

3. Connect one end of the cable to your external speakers as necessary.

4. Connect the stereo mini-jack end of the cable to your projector's Audio Out port.

Parent topic: Projector Connections

36

Connecting a Microphone

You can connect a microphone to the projector's Mic port to provide audio support during presentations.
Note: The projector supports dynamic microphones only. (Condensor microphones are not supported.)

If you want to output audio from the microphone when the projector is turned off, you need to adjust the
Standby Mode and Standby Microphone settings in the Extended menu.

1. Connect the microphone cable to the projector's Mic port.

2. Turn on the microphone, if necessary.

Parent topic: Projector Connections
Related references

Projector Setup Settings - Extended Menu

Connecting to External USB Devices

Follow the instructions in these sections to connect external USB devices to the projector.

USB Device Projection
Connecting a USB Device or Camera to the Projector
Selecting the Connected USB Source
Disconnecting a USB Device or Camera From the Projector

Parent topic: Projector Connections

USB Device Projection

You can project images and other content without using a computer or video device by connecting any of
these devices to your projector:

• USB flash drive

37

• Digital camera or camera phone

• USB hard drive

• Multimedia storage viewer

• USB memory card reader

Note: Digital cameras or camera phones must be USB-mounted devices, not TWAIN-compliant devices.
You can project slide shows from image files on a connected USB device or memory card reader.

Parent topic: Connecting to External USB Devices
Related topics

Projecting a Slide Show

Connecting a USB Device or Camera to the Projector

You can connect your USB device or camera to the projector's USB TypeA port and use it to project
images and other content.

1. If your USB device came with a power adapter, plug the device into an electrical outlet.

2. Connect the USB cable (or USB flash drive or USB memory card reader) into the projector's USB

TypeA port shown here.

38

Note: Do not connect a USB hub or a USB cable longer than 10 feet (3 m), or the device may not

operate correctly.

3. Connect the other end of the cable (if applicable) to your device.

Parent topic: Connecting to External USB Devices
Related topics

Projecting a Slide Show

Selecting the Connected USB Source

You can switch the projector's display to the source you connected to a USB TypeA port.

1. Make sure the connected USB source is turned on, if necessary.

2. Press the USB button on the remote control.

3. Press the button again to cycle through other USB sources, if available.

Parent topic: Connecting to External USB Devices

Disconnecting a USB Device or Camera From the Projector

When you finish presenting with a connected USB device or camera, you must prepare to disconnect the
device from the projector.

1. If the device has a power button, turn off and unplug the device.

2. Disconnect the USB device or camera from the projector.

Parent topic: Connecting to External USB Devices

39

Connecting to a Document Camera

You can connect the EPSON DC-06 document camera to your projector's USB TypeA port to project
images viewed by the camera.

Note: For additional features supported by software, connect the EPSON DC-06 document camera to
your computer instead of the projector. You may be able to connect different EPSON document camera
models to your projector's Computer port. See the document camera's manual for instructions.

1. Locate the USB cable that came with the document camera.

2. Connect the USB cable to the projector's USB TypeA port.

3. Connect the other end of the cable to the document camera's USB Type B port.

Parent topic: Projector Connections
Related references

Optional Equipment and Replacement Parts

Installing Batteries in the Remote Control

The remote control uses the two AA batteries that came with the projector.
Caution: Use only the type of batteries specified in this manual. Do not install batteries of different types,

or mix new and old batteries.

40

1. Open the battery cover as shown.

2. Insert the batteries with the + and – ends facing as shown.

41

3. Close the battery cover and press it down until it clicks into place.

Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat
or flame. Keep batteries out of the reach of children; they are choking hazards and are very
dangerous if swallowed.

Parent topic: Setting Up the Projector

Installing Batteries in the Interactive Pens

Each pen uses two AAA batteries.
Caution: Use only the type of batteries specified in this manual. Do not install batteries of different types,

or mix new and old batteries.

1. Press in the tab on the battery cover and lift the cover off.

42

2. Insert the batteries with the + and – ends facing as shown.

3. Replace the battery cover and press it down until it clicks into place.

Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat
or flame. Keep batteries out of the reach of children; they are choking hazards and are very
dangerous if swallowed.

Parent topic: Setting Up the Projector

43

Using the Projector on a Network

Follow the instructions in these sections to set up your projector for use on a network.
Note: To use the interactive pens with your projected computer image, you need to connect the USB

cable from the interactive module to your computer, even if you are projecting through the network.

Wired Network Projection
Wireless Network Projection
Setting Up Projector Network E-Mail Alerts
Setting Up Monitoring Using SNMP
Controlling a Networked Projector Using a Web Browser
Crestron RoomView Support

Wired Network Projection

You can send images to your projector through a wired network. To do this, you connect the projector to
your network, and then set up your projector and computer for network projection.

After connecting and setting up the projector as described here, install the network software from the
Epson Projector Software CD-ROM on your computer. Use the following software and documentation to
set up, control, and monitor network projection:

• EasyMP Network Projection software sets up your computer for network projection. See the

EasyMP Network Projection Operation Guide installed from your projector CD for instructions.

• EasyMP Monitor software (Windows only) lets you monitor and control your projector through the

network. You can download the latest software and documentation from the Epson web site. Go to

www.epson.com/support (U.S.) or www.epson.ca/support (Canada) and select your projector.

Note: If your projector is connected via a LAN cable to a network that includes a wireless access point,
you can connect to the projector wirelessly using the EasyMP Network Projection software.

Connecting to a Wired Network
Selecting Wired Network Settings

Parent topic: Using the Projector on a Network

44

Connecting to a Wired Network

To connect the projector to a wired local area network (LAN), use a 100Base-TX or 10Base-T network
cable. To ensure proper data transmission, use a Category 5 shielded cable or better.

1. Connect one end of the network cable to your network hub, switch, or router.

2. Connect the other end of the cable to the projector's LAN port.

Parent topic: Wired Network Projection

Selecting Wired Network Settings

Before you can project from computers on your network, you must select the network settings for the
projector using its menu system.

Note: Make sure you already connected the projector to your wired network using the LAN port.

1. Turn on the projector.

2. Press the Menu button.

45

3. Select the Network menu and press Enter.

4. Select Network Configuration and press Enter.

5. Select the Basic menu and press Enter.

6. Select the following basic options as necessary:

• Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the

projector over the network.

46

• PJLink Password lets you enter a password up to 32 alphanumeric characters long for using the

PJLink protocol for projector control.

• Web Control Password lets you enter a password up to 8 alphanumeric characters long for

accessing the projector over the web.

• Projector Keyword lets you turn on a security password to prevent access to the projector by

anyone not in the room with it. You must enter a displayed, randomized keyword from a computer
using the EasyMP Network Projection software to access the projector.

Note: Use the displayed keyboard to enter the name, passwords and keyword. Press the arrow
buttons on the remote control to highlight characters and press Enter to select them.

7. Select the Wired LAN menu and press Enter.

8. If necessary, select IP Settings and press Enter.

9. Select your IP Settings as necessary:

• If your network assigns addresses automatically, turn on the DHCP setting.

• If you must set addresses manually, turn off DHCP and enter the projector's IP Address, Subnet

Mask, and Gateway Address as needed.

Note: To highlight the numbers you want from the displayed keyboard, press the arrow buttons on
the remote control. To select a highlighted number, press Enter.

47

10. To prevent display of the IP address on the standby screen, turn off IP Address Display.

11. When you finish selecting settings, select Complete and follow the on-screen instructions to save
your settings and exit the menus.

Parent topic: Wired Network Projection

Wireless Network Projection

You can send images to your projector through a wireless network. To do this, you must install the
optional EPSON 802.11b/g/n wireless LAN module, and then set up your projector and computer for
wireless projection.

Note: To use the interactive pens with your projected computer image, you need to connect the USB
cable from the interactive module to the computer, even if you are projecting wirelessly through the
network.

Note: If your projector is connected via a LAN cable to a network that includes a wireless access point,
you can connect to the projector wirelessly using the EasyMP Network Projection software.

After installing the module and setting up the projector, install the network software from the Epson
Projector Software CD on your computer. Use the following software and documentation to set up,
control, and monitor wireless projection:

• EasyMP Network Projection software sets up your computer for wireless network projection. See the

EasyMP Network Projection Operation Guide installed from your projector CD for instructions.

• EasyMP Monitor software (Windows only) lets you monitor and control your projector through the

network. You can download the latest software and documentation from the Epson web site. Go to

www.epson.com/support (U.S.) or www.epson.ca/support (Canada) and select your projector.

Note: You can also connect your computer to the projector wirelessly using the EPSON Quick Wireless
Connection USB key (Windows only). Your computer does not need to be connected to a wireless
network or need additional network software to use this connection option.

Installing the Wireless LAN Module
Using Quick Wireless Connection (Windows Only)
Selecting Wireless Network Settings Manually
Selecting Wireless Network Settings in Windows
Selecting Wireless Network Settings in Mac OS X
Setting Up Wireless Network Security

48

Parent topic: Using the Projector on a Network
Related references

Optional Equipment and Replacement Parts

Installing the Wireless LAN Module

To use the projector over a wireless network, install the optional EPSON 802.11b/g/n wireless LAN
module. Do not install any other type of wireless LAN module.

Caution: Never remove the module while its indicator light is green or flashing, or while you are
projecting wirelessly. You may damage the module or lose data.

1. Turn off the projector and unplug the power cord.

2. Remove the screw securing the wireless LAN module stopper, then remove the stopper.

49

3. Insert the wireless LAN module into the port.

4. Replace the wireless LAN module stopper and secure it using the screw you removed.

5. Plug in and turn on the projector.

Parent topic: Wireless Network Projection

50

Related references

Optional Equipment and Replacement Parts

Using Quick Wireless Connection (Windows Only)

You can use the optional EPSON Quick Wireless Connection USB key to quickly connect the projector
to a Windows computer wirelessly. Then you can project your presentation and remove the key when
you are done.

1. Turn on the projector.

2. Connect the USB key to the projector's USB TypeA port.
You see a projected message that the network information update is complete.

3. Remove the USB key.

4. Now connect the USB key to a USB port on your computer or notebook.

Note: In Windows Vista, if you see the AutoPlay window, select Run LaunchU3.exe, then select
Allow on the next screen.

5. Follow the on-screen instructions to install the Quick Wireless Connection driver.
Note: If you see a Windows Firewall message, click Yes to disable the firewall.
After a few minutes, your computer image is displayed by the projector. If it does not appear, press

the LAN button on your projector remote control or restart your computer.

6. Run your presentation as necessary.

7. When you finish projecting wirelessly, remove the USB key from your computer.

Note: You may need to restart your computer to reactivate your wireless LAN connection.

Parent topic: Wireless Network Projection

Selecting Wireless Network Settings Manually

Before you can project from your wireless network, you must select the network settings for the projector
using its menu system.

1. Turn on the projector.

2. Press the Menu button.

51

3. Select the Network menu and press Enter.

4. Select Network Configuration and press Enter.

5. Select the Basic menu and press Enter.

6. Select the following basic options as necessary:

• Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the

projector over the network.

52

• PJLink Password lets you enter a password up to 32 alphanumeric characters long for using the

PJLink protocol for projector control.

• Web Control Password lets you enter a password up to 8 alphanumeric characters long for

accessing the projector over the web.

• Projector Keyword lets you turn on a security password to prevent access to the projector by

anyone not in the room with it. You must enter a displayed, randomized keyword from a computer
using the EasyMP Network Projection software to access the projector.

Note: Use the displayed keyboard to enter the name, passwords and keyword. Press the arrow
buttons on the remote control to highlight characters and press Enter to select them.

7. Select the Wireless LAN menu and press Enter.

8. Select the settings on the Wireless LAN menu as necessary for your network.

9. When you finish selecting settings, select Complete and follow the on-screen instructions to save
your settings and exit the menus.

After you complete the wireless settings for your projector, you need to select the wireless network on
your computer.

Wireless LAN Menu Settings

Parent topic: Wireless Network Projection

53

Wireless LAN Menu Settings

Note: See your projector's EasyMP Network Projection Operation Guide for details on selecting these

settings.

Setting Options Description
Wireless LAN Power On Turns on wireless LAN support

Connection Mode Quick Selects the type of wireless

Channel 1ch In Quick connection mode,

Off

Advanced

6ch
11ch

connection:
Quick: lets you quickly connect

to one computer or use the
optional EPSON Quick Wireless
Connection USB key to connect

Advanced: lets you connect to
multiple computers via a wireless
network access point

selects the frequency band
(channel) used by the wireless
LAN

Wireless LAN Sys. 802.11b/g Sets the type of wireless LAN

802.11b/g/n

system the projector is
connecting to

SSID Auto Setting On Turns on automatic SSID

Off

searching in Quick connection
mode; set to Off when
connecting to multiple projectors
at the same time

SSID Up 32 alphanumeric characters Sets the SSID (network name) of

the wireless LAN system the
projector is connecting to

54

Setting Options Description
IP Settings DHCP (On or Off) Selects DHCP if your network

IP Address
Subnet Mask
Gateway Address

SSID Display On Selects whether to display the

Off

IP Address Display On Selects whether to display the IP

Off

Parent topic: Selecting Wireless Network Settings Manually

Selecting Wireless Network Settings in Windows

Before connecting to the projector, select the correct wireless network on your computer.

1. To access your wireless utility software, double-click the network icon on the Windows taskbar.

2. Do one of the following:

• If your projector is set up on an existing network (Advanced mode), select the network name

(SSID).

assigns addresses automatically,
or turns off DHCP so you can
enter the network's IP address,
subnet mask, and gateway
address as needed

SSID on the network standby
screen

address on the network standby
screen

• If your projector is configured for Quick mode, select the SSID you assigned to the projector.

3. Click Connect.

Parent topic: Wireless Network Projection

Selecting Wireless Network Settings in Mac OS X

Before connecting to the projector, select the correct wireless network in Mac OS X.

1. Click the AirPort icon on the menu bar at the top of the screen.

2. Make sure AirPort is turned on, then do one of the following:

• If your projector is set up on an existing network (Advanced mode), select the network name

(SSID).

• If your projector is configured for Quick mode, select the SSID you assigned to the projector.

55

Parent topic: Wireless Network Projection

Setting Up Wireless Network Security

You can set up security for your projector to use on the wireless network. Set up one of the following
security options to match the settings used on your network:

• WEP encryption

• WPA security

Note: Check with your network administrator for guidance on entering the correct information.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Security menu and press Enter.

5. Select the security settings as necessary to match your network settings.

6. When you finish selecting settings, select Complete and follow the on-screen instructions to save
your settings and exit the menus.

Wireless Security Menu Settings

56

Parent topic: Wireless Network Projection

Wireless Security Menu Settings

Settings on the Security menu let you select the type of security and security settings that match the
network you are connecting the projector to.

Setting Options Description
Security WEP and WPA types available Selects the type of security used

WEP Encryption 128Bit For WEP security, selects the

Format ASCII For WEP security, selects the

Key ID 1 to 4 For WEP security, selects the

Encryption Key 1 to Various characters depending on For the selected WEP Key ID
Encryption Key 4

on the wireless network

64Bit

HEX

type of encryption coding

encryption input method:

ASCII: enables text input
HEX: enables hexadecimal input

WEP encryption key ID

selected WEP Encryption and setting, enter the key used for
Format settings WEP encryption:

128 bit ASCII: 13 alphanumeric
characters

128 bit HEX: 26 characters (0 to
9 and A to F)

64 bit ASCII: 5 alphanumeric
characters

64 bit HEX: 10 characters (0 to 9
and A to F)

Authentication Type Open For WEP security, selects the

Shared

type of WEP authentication used

PSK Various keys from 8 to 32 For WPA-PSK or WPA-2-PSK

characters security, selects the pre-shared

key used on the network

57

Parent topic: Setting Up Wireless Network Security

Setting Up Projector Network E-Mail Alerts

You can set up the projector to send you an e-mail alert over the network if there is a problem with the
projector.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Mail menu and press Enter.

5. Turn on Mail Notification.

6. Enter the IP address for the SMTP Server option.
Note: Do not use these addresses: 127.x.x.x or 224.0.0.0 through 255.255.255.255 (where x is a

number from 0 to 255).

7. Select a number for the SMTP server Port Number, from 1 to 65535 (default is 25).

58

8. Choose an Address field, enter the e-mail address, and select the alerts you want to receive there.
Repeat for up to three addresses.

Note: Your e-mail address can be up to 32 alphanumeric characters long.

9. When you finish selecting settings, select Complete and follow the on-screen instructions to save
your settings and exit the menus.

Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.

Network Projector E-mail Alert Messages

Parent topic: Using the Projector on a Network

Network Projector E-mail Alert Messages

When a problem occurs with a networked projector, and you selected to receive e-mail alerts, you
receive an e-mail containing the following information:

• EPSON Projector on the subject line

• The name of the projector experiencing a problem

• The IP address of the affected projector

• Detailed information about the problem

Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.
Parent topic: Setting Up Projector Network E-Mail Alerts

Setting Up Monitoring Using SNMP

Network administrators can install SNMP (Simple Network Management Protocol) software on network
computers so they can monitor projectors. If your network uses this software, you can set up the
projector for SNMP monitoring.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

59

4. Select the Others menu and press Enter.

5. Enter up to two IP addresses to receive SNMP notifications, using 0 to 255 for each address field.
Note: Do not use these addresses: 127.x.x.x or 224.0.0.0 through 255.255.255.255 (where x is a

number from 0 to 255).

6. If available, select the Priority Gateway setting for your network.

7. If your network environment uses an AMX controller, turn on the AMX Device Discovery setting to
allow the projector to be detected.

8. If your network environment uses a Crestron RoomView controller, turn on the Crestron RoomView
setting to allow the projector to be detected.

9. If you are connecting to a network using Bonjour, turn on the Bonjour setting.

10. When you finish selecting settings, select Complete and follow the on-screen instructions to save
your settings and exit the menus.

Parent topic: Using the Projector on a Network

Controlling a Networked Projector Using a Web Browser

Once you have connected your projector to your network, you can select projector settings and control
projection using a compatible web browser. This lets you access the projector remotely.

60

Note: The web setup and control features support Microsoft Internet Explorer 6.0 or later, and Safari on

networks that do not use a proxy server for connection. You cannot select all of the projector menu
settings or control all projector functions using a web browser.

Note: If you set Standby Mode to Communication On, you can use a Web browser to select settings
and control projection even if the projector is in standby mode. You cannot select all of the projector
menu settings or control all projector functions using a web browser.

1. Make sure the projector is turned on.

2. Start your web browser on a computer connected to the network.

3. Type the projector's IP address into the browser's address box and press the computer's Enter key.
You see the Web Control screen.

4. To select projector menu settings, select the name of the menu and follow the on-screen instructions
to select settings.

5. To control projection remotely, select the Web Remote option.
You see this screen:

1 Power button control
2 Selects Computer port source

61

3 Selects Video, S-Video, and HDMI port sources
4 Freeze button control
5 A/V Mute button control
6 Page Up and Page Down button controls
7 Searches for sources
8 Selects the network source
9 Selects the USB Display or USB device source
10 Volume button controls
11 Closed Caption control

6. Select the icon corresponding to the projector function you want to control.

Parent topic: Using the Projector on a Network

Crestron RoomView Support

If you are using the Crestron RoomView network monitoring and control system, you can set up your
projector for use on the system. Crestron RoomView lets you control and monitor your projector using a
web browser.

Note: You cannot use the EPSON Web Control feature or the Message Broadcasting plug-in for
EasyMP Monitor when you use Crestron RoomView.

For additional information on Crestron RoomView, contact Crestron.

Setting Up Crestron RoomView Support
Controlling a Networked Projector Using Crestron RoomView

Parent topic: Using the Projector on a Network

Setting Up Crestron RoomView Support

To set up your projector for monitoring and control using a Crestron RoomView system, make sure your
computer and projector are connected to the network. If you are connecting wirelessly, set up the
projector using the Advanced network connection mode.

1. Press the Menu button.

2. Select the Network menu and press Enter.

62

3. Select Network Configuration and press Enter.

4. Select the Others menu and press Enter.

5. Set the Crestron RoomView setting to On to allow the projector to be detected.

6. When you finish selecting settings, select Complete and follow the on-screen instructions to save
your settings and exit the menus.

7. Turn off the projector, then turn it on again to enable the setting.

Parent topic: Crestron RoomView Support

Controlling a Networked Projector Using Crestron RoomView

Once you have set up your projector to use Crestron RoomView, you can control and monitor projection
using a compatible web browser.

1. Start your web browser on a computer connected to the network.

2. Type the projector's IP address into the browser's address box and press the computer's Enter key.
You see this screen:

63

3. Select the input source that you want to control in the Sources List box. You can scroll through
available sources using the up and down arrows in the box.

4. To control projection remotely, click the on-screen buttons that correspond to the projector's remote
control buttons. You can scroll through button options at the bottom of the screen.

Note: These on-screen buttons do not directly correspond to the projector's remote control buttons:

• OK acts as the Enter button

• Menu displays the Configuration menu

5. To view information about the projector, click the Info tab.

6. To change projector, Crestron, and password settings, click the Tools tab, select settings on the
displayed screen, and click Send.

7. When you finish selecting settings, click Exit to exit the program.

Parent topic: Crestron RoomView Support

64

Using Basic Projector Features

Follow the instructions in these sections to use your projector's basic features.

Turning On the Projector
Turning Off the Projector
Selecting the Language for the Projector Menus
Image Shape
Resizing the Image with the Wide and Tele Buttons
Focusing the Image Using the Focus Ring
Remote Control Operation
Selecting an Image Source
Projection Modes
Image Aspect Ratio
Color Mode
Controlling the Volume with the Volume Buttons
Projecting a Slide Show

Turning On the Projector

Turn on the computer or video equipment you want to use before you turn on the projector so it can
display the image source.

65

1. Remove the projector's lens cover.

2. Connect the power cord to the projector's power inlet.

3. Plug the power cord into an electrical outlet.

66

The projector's power light turns orange. This indicates that the projector is receiving power, but is
not yet turned on (it is in standby mode).

Note: With Direct Power On turned on, the projector turns on as soon as you plug it in.

4. Press the power button on the projector or the remote control to turn on the projector.
The projector beeps and the power light flashes green as the projector warms up. After about five

seconds, the power light stops flashing and turns green.
Warning: Never look into the projector lens when the lamp is on. This can damage your eyes and is

especially dangerous for children.

If you do not see a projected image right away, try the following:

• Turn on the connected computer or video device.

• Insert a DVD or other video media, and press the play button (if necessary).

• Press the Source Search button on the projector or remote control to detect the video source.

• Press the button for the video source on the remote control.

Parent topic: Using Basic Projector Features
Related references

Projector Setup Settings - Extended Menu

Turning Off the Projector

Before turning off the projector, shut down any computer connected to it so you can see the computer
display during shutdown.

Note: Turn off this product when not in use to prolong the life of the projector. Lamp life will vary
depending upon mode selected, environmental conditions, and usage. Brightness decreases over time.

1. Press the power button on the projector or the remote control.
The projector displays a shutdown confirmation screen.

67

2. Press the power button again. (To leave it on, press any other button.)
The projector beeps twice, the lamp turns off, and the power light turns orange.

Note: With Epson's Instant Off technology, there is no cool-down period so you can pack up the
projector for transport right away (if necessary).

Caution: Do not turn the projector on immediately after turning it off. Turning the projector on and off
frequently may shorten the life of the lamp.

3. To transport or store the projector, make sure the power light is orange (but not flashing), then
unplug the power cord.

Caution: To avoid damaging the projector or lamp, never unplug the power cord when the power
light is green or flashing orange.

68

4. Replace the projector's lens cover.

Parent topic: Using Basic Projector Features

Selecting the Language for the Projector Menus

If you want to view the projector's menus and messages in another language, you can change the
Language setting.

1. Turn on the projector.

2. Press the Menu button.

69

3. Select the Extended menu and press Enter.

4. Select the Language setting and press Enter.

5. Select the language you want to use and press Enter.

6. Press Menu or Esc to exit the menus.

Parent topic: Using Basic Projector Features

Image Shape

You can project an evenly rectangular image by placing the projector directly in front of the center of the
screen and keeping it level. If you place the projector at an angle to the screen, or tilted up or down, or off
to the side, you may need to correct the image shape for the best display quality.

Note: For interactive use, the image must be evenly rectangular, without distortion.

Correcting Image Shape with the Keystone Buttons
Correcting Image Shape with Quick Corner

Parent topic: Using Basic Projector Features

Correcting Image Shape with the Keystone Buttons

You can use the projector's keystone correction buttons to correct the shape of an image that is
unevenly rectangular on the sides.

70

1. Turn on the projector and display an image.
Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

2. Press one of these keystone buttons on the control panel to display the Keystone adjustment
screen.

3. Press a keystone button on the projector's control panel to adjust the image shape.

71

Note: The horizontal keystone adjustment buttons are labeled Wide and Tele.

After correction, your image is slightly smaller.
Note: If the projector is installed out of reach, you can also correct the image shape using the

Keystone settings in the projector menus.

Parent topic: Image Shape
Related references

Projector Feature Settings - Settings Menu

Correcting Image Shape with Quick Corner

You can use the projector's Quick Corner setting to correct the shape and size of an image that is
unevenly rectangular on all sides.

1. Turn on the projector and display an image.
Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

2. Press the Menu button.

72

3. Select the Settings menu and press Enter.

4. Select the Keystone setting and press Enter.

5. Select the Quick Corner setting and press Enter. Then press Enter again.
You see the Quick Corner adjustment screen.

73

6. Use the arrow buttons on the projector or the remote control to select the corner of the image you
want to adjust. Then press Enter.

7. Press the arrow buttons to adjust the image shape as necessary.

8. When you are finished, press Esc.

74

Parent topic: Image Shape

Resizing the Image with the Wide and Tele Buttons

1. Turn on the projector and display an image.

2. To enlarge the image size, press the Wide button on the projector's control panel.

3. To reduce the image size, press the Tele button.

Note: If the projector is installed out of reach, you can also adjust the image size using the Zoom
setting in the projector menus.

Parent topic: Using Basic Projector Features

Focusing the Image Using the Focus Ring

1. Turn on the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

75

2. To sharpen the image focus, rotate the projector’s focus ring.

Parent topic: Using Basic Projector Features

Remote Control Operation

The remote control lets you control the projector from almost anywhere in the room, up to 19.7 feet (6 m)
away. You can point it at the screen or board, or the front or back of the projector.

Make sure that you aim the remote control at the projector's receivers within the angles listed here.

76

1 19.7 feet (6 m)
2 ± 30º
3 70º

Note: Avoid using the remote control in conditions with bright fluorescent lights or in direct sunlight, or
the projector may not respond to commands. If you will not use the remote control for a long time,
remove the batteries.

Using the Remote Control as a Wireless Mouse
Using the Remote Control as a Presentation Pointer

Parent topic: Using Basic Projector Features
Related tasks

Replacing the Remote Control Batteries

Using the Remote Control as a Wireless Mouse

You can use the projector's remote control as a wireless mouse so you can control your computer
presentation from a distance.

1. Connect the projector to a computer using the projector's USB TypeB, Computer, or HDMI port to
display video.

2. If you connected your computer to the Computer or HDMI port, also connect a USB cable to the
projector's USB TypeB port and to a USB port on your computer (for wireless mouse support).

3. Start your presentation.

4. Use the following buttons on the remote control to control your presentation:

• To move through slides or pages, press the up or down Page buttons.

77

• To move the cursor on the screen, use the arrow buttons.

• To left-click, press the button once (press it twice to double-click).

• To right-click, press the Esc button.

• To drag-and-drop, hold the button as you move the cursor with the arrow buttons, then release

at the destination.

Parent topic: Remote Control Operation
Related references

Projector Setup Settings - Extended Menu

Using the Remote Control as a Presentation Pointer

You can use the projector's remote control as a pointer to help you call out important information during
a presentation. The default pointer shape is an arrow, but you can select an alternative shape using the
Settings menu.

1. Press the Pointer button on the remote control.

78

2. Use the arrow buttons on the remote control to move the pointer on the screen.

3. Press Esc to clear the pointer from the screen.

Parent topic: Remote Control Operation
Related references

Projector Feature Settings - Settings Menu

Selecting an Image Source

If you connected multiple image sources to the projector, such as a computer and DVD player, you may
want to switch from one image source to the other.

1. Make sure the connected image source you want to use is turned on.

2. For video image sources, insert a DVD or other video media and press its play button (if necessary).

3. Do one of the following:

• Press the Source Search button on the projector or remote control until you see the image from

the source you want.

79

• Press the button for the source you want on the remote control. If there is more than one port for

that source, press the button again to cycle through the sources.

1 Computerport sources
2 Videoand HDMI sources
3 USBport sources (computer display and external devices)
4 Networksource (LAN)

Parent topic: Using Basic Projector Features

Projection Modes

Depending on how you positioned the projector, you may need to change the projection mode so your
images project correctly.

• Front (default setting) lets you project from a table in front of the screen.

• Front/Ceiling flips the image over top-to-bottom to project upside-down from a ceiling or wall mount.

• Rear flips the image horizontally to project from behind a translucentscreen.

• Rear/Ceiling flips theimage over top-to-bottom and horizontally to project from the ceiling and behind

a translucent screen.

80

You can change the projection mode using the remote control or by changing a menu setting.

Changing the Projection Mode Using the Remote Control
Changing the Projection Mode Using the Menus

Parent topic: Using Basic Projector Features

Changing the Projection Mode Using the Remote Control

You can change the projection mode to flip the image over top-to-bottom.

1. Turn on the projector and display an image.

2. Hold down the A/V Mute button on the remote control for five seconds.

The image disappears briefly and reappears flipped top-to-bottom.

3. To change projection back to the original mode, hold down the A/V Mute button for five seconds
again.

Parent topic: Projection Modes

Changing the Projection Mode Using the Menus

You can change the projection mode to flip the image over top-to-bottom and/or left-to-right using the
projector menus.

1. Turn on the projector and display an image.

2. Press the Menu button.

81

3. Select the Extended menu and press Enter.

4. Select the Projection setting and press Enter.

5. Select a projection mode and press Enter.

6. Press Menu or Esc to exit the menus.

Parent topic: Projection Modes

Image Aspect Ratio

The projector can display images in different width-to-height ratios called aspect ratios. Normally the
input signal from your video source determines the image's aspect ratio. However, for certain images
you can change the aspect ratio to fit your screen by pressing a button on the remote control.

If you always want to use a particular aspect ratio for a certain video input source, you can select it using
the projector's menus.

Note: If you change the image aspect ratio while using the interactive pen, you will need to recalibrate
the pen.

Changing the Image Aspect Ratio
Available Image Aspect Ratios

Parent topic: Using Basic Projector Features

82

Related references

Image Quality Settings - Image Menu

Changing the Image Aspect Ratio

You can change the aspect ratio of the displayed image to resize it.

1. Turn on the projector and switch to the image source you want to use.

2. Press the Aspect button on the remote control.

The shape and size of the displayed image changes, and the name of the aspect ratio appears
briefly on the screen.

3. To cycle through the available aspect ratios for your input signal, press the Aspect button
repeatedly.

Parent topic: Image Aspect Ratio

Available Image Aspect Ratios

You can select the following image aspect ratios, depending on the input signal from your image source.
Note: Black bands and cropped images may project in certain aspect ratios, depending on the aspect

ratio and resolution of your input signal.

BrightLink 425Wi/435Wi

Aspect ratio setting Description
Auto Automatically sets the aspect ratio according to the input signal and

the Resolution setting.

83

Aspect ratio setting Description
Normal Displays images using the full projection area and maintains the

aspect ratio of the image.

16:9 Converts the aspect ratio of the image to 16:9.
Full Displays images using the full width of the projection area, but does

not maintain the aspect ratio.

Zoom Displays images using the full width of the projection area and

maintains the aspect ratio of the image.

Native Displays images as is (aspect ratio and resolution are maintained).

BrightLink 430i

Aspect ratio setting Description
Auto Automatically sets the aspect ratio according to the input signal and

the Resolution setting.

Normal Displays images using the full projection area and maintains the

aspect ratio of the image.

4:3 Displays images using the full projection area at 4:3 aspect ratio.
16:9 Converts the aspect ratio of the image to 16:9.

Note: The Auto aspect ratio setting is available only for HDMI image sources.
Parent topic: Image Aspect Ratio

Color Mode

The projector offers different Color Modes to provide optimum brightness, contrast, and color for a
variety of viewing environments and image types. You can select a mode designed to match your image
and environment, or experiment with the available modes.

If you always want to use a particular color mode for a certain video input source, you can select it using
the projector menus.

Changing the Color Mode
Available Color Modes
Turning On Auto Iris

84

Parent topic: Using Basic Projector Features
Related references

Image Quality Settings - Image Menu

Changing the Color Mode

You can change the projector's Color Mode using the remote control to optimize the image for your
viewing environment.

1. Turn on the projector and switch to the image source you want to use.

2. If you are projecting from a DVD player or other video source, insert a disc or other video media and
press the play button, if necessary.

3. Press the Color Mode button on the remote control to change the Color Mode.

The image appearance changes and the name of the Color Mode appears briefly on the screen.

4. To cycle through all the available Color Modes for your input signal, press the Color Mode button
repeatedly.

Parent topic: Color Mode

Available Color Modes

You can set the projector to use these Color Modes, depending on the input source you are using:

Color Mode Description
Dynamic Best for projecting in a bright room
Presentation Best for color presentations in a bright room
Theatre Best for movies projected in a dark room
Photo Best for still images projected in a bright room

85

Color Mode Description
Sports Best for television images in a bright room
sRGB Best for standard sRGB computer displays
Blackboard Best for presentations onto a green chalkboard (adjusts the colors

Whiteboard Best for presentations onto a whiteboard (adjusts the colors

Parent topic: Color Mode
Related references

Image Quality Settings - Image Menu

Turning On Auto Iris

In certain color modes, you can turn on the Auto Iris setting to automatically optimize the image based on
the brightness of the content you project.

1. Turn on the projector and switch to the image source you want to use.

2. Press the Menu button.

3. Select the Image menu and press Enter.

accordingly)

accordingly)

86

4. Select the Auto Iris setting and select On.
Note: You can turn Auto Iris on or off for each Color Mode that supports the feature. You cannot

change the Auto Iris setting when you are using a Closed Caption setting.

5. Press Menu or Esc to exit the menus.

Parent topic: Color Mode

Controlling the Volume with the Volume Buttons

You can use the Volume buttons on the remote control to adjust the volume as you project a
presentation with audio. The volume buttons control the projector’s internal speaker system.

You must adjust the volume separately for each connected input source.

1. Turn on the projector and start a presentation that includes audio.

2. Press the Volume buttons as necessary to lower or raise the volume.

A volume gauge appears on the screen.

3. To set the volume to a specific level for an input source, you can set the volume using the projector's
menus.

Parent topic: Using Basic Projector Features
Related references

Projector Feature Settings - Settings Menu

Projecting a Slide Show

You can use your projector's Slideshow feature whenever you connect a USB device that contains
compatible image files. This lets you quickly and easily display a slide show, and control it using the
projector's remote control.

87

Slideshow Features
Supported Slideshow File Types
Starting a Slide Show

Parent topic: Using Basic Projector Features
Related concepts

USB Device Projection

Related tasks

Connecting a USB Device or Camera to the Projector

Slideshow Features

Your projector's Slideshow feature lets you do the following:

• Display individual images

• Present a slide show of all images in a folder

Parent topic: Projecting a Slide Show

Supported Slideshow File Types

You can project these types of files using the projector's Slideshow feature.

Note: For best results, place your files on media that is formatted in FAT16/32.

88

File contents File type Details

Image .jpg Make sure the file is not:

Parent topic: Projecting a Slide Show

Starting a Slide Show

After connecting a USB device to the projector, you can switch to the USB input source and start your
slide show.

(extension)

• CMYK format

• Progressive format

• Highly compressed

• Above 8192 × 8192 resolution
.bmp Make sure the file resolution is not above 1280 × 800
.gif Make sure the file is not:

• Above 1280 × 800 resolution

• Animated
.png Make sure the file resolution is not above 1280 × 800

Note: You can change the Slideshow operation options or add special effects by highlighting Option at
the bottom of the screen and pressing Enter.

1. Press the USB button on the projector remote control.
The Slideshow screen appears.

89

2. Do the following as necessary to locate your files:

• If you need to display files inside a subfolder on your device, press the arrow buttons to highlight

the folder and press the Enter button.

• To move back up a folder level on your device, highlight Back to Top and press Enter.

• To view additional images in a folder, highlight Next page or Previous page andpress Enter.

3. Do one of the following to start your slide show:

• To display an individual image, press the arrow buttons to highlight the image and press Enter.

(Press the Esc button to return to the file list screen.)

• To display a slide show of all the images in a folder, press the arrow buttons to highlight the

Slideshow option at the bottom of the screen and press Enter.

Note: If any file names are longer than 8 characters or include unsupported symbols, the file names

may be shortened or changed only in the screen display.

4. While projecting, use the following commands to control the display as necessary:

• To rotate a displayed image, press the up or down arrow button.

• To move to the next or previous image, press the left or right arrow button.

5. To stop the display, follow the on-screen instructions or press the Esc button.

Slideshow Display Options

Parent topic: Projecting a Slide Show

90

Related tasks

Disconnecting a USB Device or Camera From the Projector

Slideshow Display Options

You can select these display options when using the projector's Slideshow feature.

Setting Options Description
Display Order Name Order Displays files in name order

Date Order Displays files in date order

Sort Order In Ascending Sorts files in first-to-last order

In Descending Sorts files in last-to-first order

Continuous Play On Displays a slide show continuously

Off Displays a slide show one time through

Screen Switching No Does not display the next file automatically
Time

1 Second to 60 Seconds Displays files for the selected time and

switches to the next file automatically

91

Setting Options Description
Effect Wipe Transitions between images with a wipe effect

Dissolve Transitions between images with a dissolve

effect

Random Transitions between images using a random

variety of effects

Parent topic: Starting a Slide Show

92

Adjusting Projector Features

Follow the instructions in these sections to use your projector's feature adjustments.

Shutting Off the Picture and Sound Temporarily
Stopping Video Action Temporarily
Zooming Into and Out of Images
Projector Security Features
Creating a User Pattern to Display

Shutting Off the Picture and Sound Temporarily

You can temporarily turn off the projected picture and sound if you want to redirect your audience's
attention during a presentation. Any sound or video action continues to run, however, so you cannot
resume projection at the point that you stopped it.

If you want to display an image such as a company logo or picture when the presentation is stopped, you
can set up this feature using the projector's menus.

1. Press the A/V Mute button on the remote control to temporarily stop projection and mute any sound.

2. To turn the picture and sound back on, press A/V Mute again.

Parent topic: Adjusting Projector Features
Related references

Projector Setup Settings - Extended Menu

93

Stopping Video Action Temporarily

You can temporarily stop the action in a video or computer presentation and keep the current image on
the screen. Any sound or video action continues to run, however, so you cannot resume projection at the
point that you stopped it.

Note: You can also stop video action using the interactive pens.

1. Press the Freeze button on the remote control to stop the video action.

2. To restart the video action in progress, press Freeze again.

Parent topic: Adjusting Projector Features

Zooming Into and Out of Images

You can draw attention to parts of a presentation by zooming into a portion of the image and enlarging it
on the screen.

Note: You can also zoom into your image using the interactive pens.

1. Press the E-Zoom + button on the remote control.

94

You see a crosshair on the screen indicating the center of the zoom area.

2. Use the following buttons on the remote control to adjust the zoomed image:

• Use the arrow buttons to position the crosshair in the image area you want to zoom into.

• Press the E-Zoom + button repeatedly to zoom into the image area, enlarging it as necessary.

• To pan around the zoomed image area, use the arrow buttons.

• To zoom out of the image, press the E-Zoom – button as necessary.

• To return to the original image size, press Esc.

Parent topic: Adjusting Projector Features

Projector Security Features

You can secure your projector to deter theft or prevent unintended use by setting up the following
security features:

• Password security to prevent the projector from being turned on, and prevent changes to the startup

screen and other settings.

• Button lock security to block operation of the projector using the buttons on the control panel.

• Security cabling to physically cable the projector in place.

Password Security Types
Locking the Projector's Buttons
Installing a Security Cable

Parent topic: Adjusting Projector Features

Password Security Types

You can set up these types of password security using one shared password:

• Power On Protect password prevents anyone from using the projector without first entering a

password.

• User's Logo Protect password prevents anyone from changing the custom screen the projector can

display when it turns on or when you use the A/V Mute feature. The presence of the custom screen
discourages theft by identifying the projector’s owner.

• Network Protect password prevents anyone from changing the network settingsin the projector

menus.

Setting a Password

95

Selecting Password Security Types
Entering a Password to Use the Projector
Saving a User's Logo Image to Display

Parent topic: Projector Security Features

Setting a Password

To use password security, you must set a password.

1. Hold down the Freeze button on the remote control until you see the Password Protect menu. This
takes about five seconds.

2. Press the down arrow to select Password and press Enter.
You see the prompt "Change the password?".

3. Select Yes and press Enter.

4. Hold down the Num button on the remote control and use the numeric buttons to set a four-digit
password.

96

The password displays as **** as you enter it. Then you see the confirmation prompt.

5. Enter the password again.
You see the message "Password accepted."

6. Press Esc to return to the Password Protect menu.

7. Make a note of the password and keep it in a safe place in case you forget it.

Parent topic: Password Security Types

Selecting Password Security Types

After setting a password, you see the Password Protect menu. Select the password security types you
want to use.

If you do not see this menu, hold down the Freeze button on the remote control for five seconds until the
menu appears.

1. To prevent unauthorized use of the projector, select Power On Protect, press Enter, select On,
press Enter again, and press Esc.

2. To prevent changes to the User's Logo screen or related display settings, select User's Logo
Protect, press Enter, select On, press Enter again, and press Esc.

3. To prevent changes to network settings, select Network Protect, press Enter, select On, press
Enter again, and press Esc.

You can attach the Password Protect sticker to the projector as an additional theft deterrent.
Note: Be sure to keep the remote control in a safe place; if you lose it, you will not be able to enter the

password required to use the projector.

Parent topic: Password Security Types

97

Entering a Password to Use the Projector

If a password is set up and a Power On Protect password is enabled, you see a prompt to enter a
password whenever you turn on the projector.

You must enter the correct password to use the projector.

1. Hold down the Num button on the remote control while you enter the password using the numeric
buttons.

The password screen closes.

2. If the password is incorrect, the following may happen:

• You see a "wrong password" message and a prompt to try again. Enter the correct password to

proceed.

98

• If you enter an incorrect password several times in succession, the projector displays a request

code and a message to contact EPSON Support. When you contact EPSON Support, provide the
displayed request code and proof of ownership for assistance in unlocking the projector.

Parent topic: Password Security Types

Saving a User's Logo Image to Display

You can transfer an image to the projector and then display it whenever the projector turns on. You can
also display the image when the projector is not receiving an input signal or when you temporarily stop
projection (using the A/V Mute feature). This transferred image is called the User's Logo screen.

The image you select as the User's Logo can be a photo, graphic, or company logo, which is useful in
identifying the projector's owner to help deter theft. You can prevent changes to the User's Logo by
setting up password protection for it.

1. Display the image you want to project as the User's Logo.

2. Press the Menu button, select the Extended menu, and press Enter.

3. Select the User's Logo setting and press Enter.
You see a prompt asking if you want to use the displayed image as a user's logo.

4. Select Yes and press Enter.
You see a selection box overlaying your image.

5. Use the arrow buttons on the remote control to surround the image area you want to use as the
User's Logo and press Enter.

You see a prompt asking if you want to select this image area.

99

6. Select Yes and press Enter. (If you want to change the selected area, select No, press Enter, and
repeat the last step.)

You see the User's Logo zoom factor menu.

7. Select a zoom percentage and press Enter.
You see a prompt asking if you want to save the image as the User's Logo.

8. Select Yes and press Enter.
Note: It takes a few moments for the projector to save the image; do not use the projector, its remote

control, or any connected equipment until it is finished.
You see a completion message.

9. Press Esc to exit the message screen.

10. Select the Extended menu and press Enter.

11. Select Display and press Enter.

12. Select when you want to display the User's Logo screen:

• To display it whenever there is no input signal, select Display Background and set it to Logo.

• To display it whenever you turn the projector on, select Startup Screen and set it to On.

• To display it whenever you press the A/V Mute button, select A/V Mute and set it to Logo.

To prevent anyone from changing the User's Logo settings without first entering a password, set a
password and enable User's Logo security.

Parent topic: Password Security Types

100
