Epson 3010, 3010E User Manual

PowerLite® Home Cinema 3010/3010e

Home Theater Projector

User’s Guide

Contents

Introduction 6

Projector Parts 7

Remote Control 9
Optional Accessories 10
Registration and Warranty 10
Using This Manual 11

Setting Up the Projector 12

Choose a Location 12
Installing the Projector 16
Connecting the Cables 18

Connecting Video and Computer Equipment 18

Making Other Connections 20
Installing Batteries in the Remote Control 21
Turning the Projector On and Off 21

Turning On the Projector 21

Turning Off the Projector 22
Selecting the Image Source 22
Positioning the Image 24

Making Basic Adjustments 26

Focusing and Zooming 26
Choosing the Aspect Ratio 27
Viewing 3D images 28
Projecting in Split Screen mode 29
Starting a Slideshow 30
Choosing Slideshow Options 31
Choosing the Color Mode 32

2 Contents

Advanced Color Adjustments 33

Adjusting the Gamma Setting 33

Adjusting RGBCMY 35
Locking the Projector 36

Making Detailed Adjustments 37

Using the Menu System 37

Changing How the Menus Display 38
Adjusting the Picture Quality 39

Input Brightness Settings 39

Sharpness and Picture Quality Settings 41

Color Settings 43

3D Setup 45

Adjustments for Computer Images 46

WirelessHD Settings 47

Split Screen Setup 48
Selecting Memory Settings and Resetting the Projector 49

Creating Memory Settings 49

Selecting Memory Settings 50

Renaming Memory Settings 50

Deleting Saved Memory Settings 51

Resetting the Projector 51
Customizing Projector Features 52

Image Sizing 52

Screen Options 53

Other Setup Options 54

Using WirelessHD 56

Placing the WirelessHD Transmitter 56
Setting Up a WirelessHD Connection 57

Using HDMI Link 58

Setting Up HDMI Link 58

Contents 3

Changing HDMI Link Settings 59

Maintenance 60

Cleaning the Lens 60
Cleaning the 3D Glasses 61
Cleaning the Projector Case 61
Cleaning and Replacing the Air Filter 62
Replacing the Lamp 64

Resetting the Lamp Usage Timer 67
Checking the Projector Status 67
Storing the Projector 68
Transporting the Projector 68

Problem Solving 69

What To Do When the Lights Come On or Flash 69
Solving Picture Problems 71
Solving Remote Control Problems 75
Solving WirelessHD Problems 75
Where to Get Help 77

Specifications 78

General 78
Lamp 78
Remote Control 79
WirelessHD Transmitter (Home Cinema 3010e only) 79
Dimensions 79
Electrical 80
Environmental 80
Safety 80
Compatible Video Formats 81
ESC/VP21 Command Codes 83

4 Contents

Notices 84

Important Safety Information 84
FCC Compliance Statement 86
Copyright Notice 87

A Note Concerning Responsible Use of Copyrighted Materials 87

Trademarks 88

Contents 5

Introduction

The PowerLite® Home Cinema 3010/3010e projector lets you enjoy theater-quality 3D
images in the relaxing environment of your own home. Designed especially for home cinema
use, it offers these outstanding features:

■ Native 1080p (1920 × 1080) resolution, dynamic contrast ratio up to 40,000:1 and up to

2200 lumens of brightness (white light output) for incredibly rich, sharp images in any

room lighting

■ Auto Iris system that constantly controls the light output based on the gamma and

black/white levels of your projected content, for perfectly adjusted images and deepest

blacks

■ Epson C

uniform colors

■ 1080Perfect

■ 10-bit color quality for unmatched color accuracy, with over a billion colors available

■ HDMI

digital video

2

Fine® 3LCD technology for reliable picture quality, increased contrast ratio and

™

video processing for more film-like images free of noise or artifacts

®

(High-Definition Multimedia Interface®) ports for superior, uncompressed

■ True 16:9 wide-format projection

■ Powerful 10 W per channel stereo speaker system

■ Flexible setup configurations, including front projection and ceiling mounted, with

horizontal keystone slider for offset placement

6 Introduction

Projector Parts

Front

Lamp cover

Air exhaust

Remote receiver

Control panel

Horizontal keystone slider

Zoom ring

Focus ring

Air filter cover

Back

Speakers

Lens cover

Power inlet

Air intake

Cable clip hole

External 3D IR port

Remote receiver

HDMI ports

Adjustable foot

Cable clip hole

USB port

Kensington® lock port

Audio (L-R) port

PC port

Video port

RS-232C port

Component port

Introduction 7

Bottom

Mounting bracket
attachment points

Front adjustable feet

Projector Control Panel

Brightness
sensor

Power
light

Power button

8 Introduction

Source button

Lamp
light

Volume/horizontal
keystone buttons

Escape button

Vertical
keystone
buttons

Temperature
light

Remote Control

On button
Turns projector on

HDMI Link button
Enables and disables the
HDMI link function

2D/3D button
Toggles
between 2D and
3D projection

Menu navigation
buttons

Default button
Resets menu
selection to default
values

Menu button
Displays the projector’s
menus

Auto Iris button
Toggles the Auto Iris
function on or off

Standby button
Turns projector off

Illumination button
Lights the remote control
buttons for easy viewing

Source buttons
Switch between equipment
connected to the projector

HDMI Link control buttons
Control playback of a linked
video device

Color Mode button
Quickly change color settings
to match room lighting

Memory button
Accesses the Memory menu

Aspect button
Changes the picture’s aspect ratio

RGBCMY button
Displays the color adjustment menu

User button
Function can be set by the user
from the Settings menu

Split button
Toggles the Split
Screen function on or
off

Pattern button
Displays test patterns to adjust
the image

A/V Mute button
Temporarily stops projection or
hides the menu screen

Introduction 9

Optional Accessories

Epson provides the following optional accessories for the projector:

Product Part number

Replacement lamp V12H010L68

Air filter replacement V13H134A38

Kensington security lock (anti-theft device) ELPSL01

Projector mount V12H003B20

Computer cable (6 feet [1.8 meters]) V12H005C02

3D active shutter glasses V12H483001

External 3D IR emitter V12H484001

In addition to the accessories listed above, 1-year and 2-year extended service plans are
available. You can purchase these plans and other accessories from an authorized Epson
reseller. To find the nearest reseller, please call 800-GO-EPSON (800-463-7766). To
purchase online, visit www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales).

Registration and Warranty

Your projector comes with a basic two-year carry-in warranty. For details, see the Quick Setup
sheet.

In addition, Epson offers free Extra Care
equipment failure, you won’t have to wait for your unit to be repaired. Instead, Epson will
ship you a replacement unit anywhere in the United States, Canada, or Puerto Rico. See your
Extra Care Home Service brochure for details.

To register, simply follow the registration instructions on the CD, or register online at
epson.com/webreg. Registering also lets you receive special updates on new accessories,
products, and service.

10 Introduction

SM

Home Service. In the unlikely event of an

Using This Manual

This book contains all the information you need to use the projector, in addition to basic
setup and maintenance instructions, troubleshooting tips, important safety instructions,
specifications, and warranty information.

Please follow these guidelines as you read through the manual:

Warning: Must be followed carefully to avoid bodily injury.

Caution: Must be observed to avoid damage to your equipment.

Note: Contains important information about your projector.

Tip: Contains helpful projection tips.

Need additional help? Take advantage of Epson’s automated support services 24 hours a day
at epson.com/support (U.S.) or epson.ca/support (Canada). Use this site to view FAQs or
product information and e-mail Epson.

If you need more help, you can use the Epson PrivateLine
[phone] and enter the PIN on the PrivateLine support card that came with your
projector.

®

Support service. Call

Introduction 11

Setting Up the Projector

Follow the instructions in this section to choose a location for the projector, connect the
cables, and display an image.

Choose a Location

You can install the projector for the viewing setups shown below, as well as rear projection.

Center

Side

Ceiling

12 Setting Up the Projector

Keep the projector level and place it at a height where its lens is centered between the top and
bottom of the screen. If this isn’t possible, use the horizontal keystone slider and vertical
keystone buttons to adjust the image (see page 24).

Note: Image quality may be reduced if excessive keystone correction is used.

Diagonal image size

Projection distance

Offset

Offset refers to distance from
bottom of image to center of
lens.

The size of the image is determined by the distance from the projector’s lens to the screen.
Depending on your display settings and how you use the zoom ring, the actual size may differ.
Use these tables as a guide for projector placement:

16:9 aspect ratio

Diagonal image size

Projection distance

3.8 to 6.2 feet
116 to 190 cm

5.8 to 9.4 feet
176 to 287 cm

7.7 to 12.6 feet
235 to 383 cm

9.7 to 15.7 feet
295 to 480 cm

11.6 to 18.9 feet
354 to 576 cm

14.6 to 23.7 feet
444 to 721 cm

17.5 to 28.4 feet
533 to 866 cm

(width × height) Offset

40 in. (35 × 20 in.)

101.6 cm (89 × 50 cm)

60 in. (51 × 30 in.)

152.4 cm (130 × 75 cm)

80 in. (71 × 39 in.)

203.2 cm (180 × 100 cm)

100 in. (87 × 47 in.)
254 cm (220 × 120 cm)

120 in. (106 × 59 in.)

304.9 cm (270 × 150 cm)

150 in. (130 × 75 in.)
361 cm (330 × 190 cm)

180 in. (173 × 98 in.)
457 cm (440 × 250 cm)

0 in.
(0 cm)

0 in.
(0 cm)

0 in.
(0 cm)

0 in.
(0 cm)

0 in.
(0 cm)

0.3 in.
(1 cm)

0.3 in.
(1 cm)

Setting Up the Projector 13

4:3 aspect ratio

Projection distance

4.7 to 7.6 feet
143 to 233 cm

7.1 to 11.5 feet
216 to 352 cm

Diagonal image size
(width × height) Offset

40 in. (32 × 24 in.)

101.6 cm (81 × 61 cm)

60 in. (47 × 35 in.)

152.4 cm (120 × 90 cm)

0 in.
(0 cm)

0 in.
(0 cm)

9.5 to 15.4 feet
289 to 470 cm

11.8 to 19.3 feet
361 to 588 cm

14.2 to 23.2 feet
434 to 706 cm

17.8 to 29 feet
544 to 883 cm

23.8 to 38.7 feet
726 to 1179 cm

80 in. (63 × 47 in.)

203.2 cm (160 × 120 cm)

100 in. (79 × 59 in.)
254 cm (200 × 150 cm)

120 in. (94 × 71 in.)

304.8 cm (240 × 180 cm)

150 in. (118 × 91 in.)
381 cm (300 × 230 cm)

200 in. (161 × 118 in.)
508 cm (410 × 300 cm)

0 in.
(0 cm)

0 in.
(0 cm)

0.3 in.
(1 cm)

0.3 in.
(1 cm)

0.3 in.
(1 cm)

To determine the exact image size when you know the projection distance (or the exact
projection distance when you know the desired image size), you can use the Image Size
Calculator. This program is available on the Epson website at epson.com/support (U.S.) or
epson.ca/support (Canada).

Also keep these considerations in mind:

■ Make sure there is plenty of space for ventilation around and under the projector. Do not

set the projector on top of loose materials that could block the vents underneath.

■ Make sure the projector is within 9.8 feet (3 m) of a grounded electrical outlet or

extension cord.

14 Setting Up the Projector

In order to view 3D images correctly, 3D glasses must be worn within proper range of the
projector. Use the image below to determine the ideal distance for 3D projection (the shading
represents the 3D viewing area):

60º

16.5 ft (5 m)

13 ft (4 m)

Use the optional external 3D emitter if you cannot view the 3D image normally or if the
projector is located more than 16.5 feet (5 m) from the viewing area. See “Optional
Accessories” on page 10 for ordering information.

Setting Up the Projector 15

Installing the Projector

To install the projector, you first need to determine the location, based on the size of your
screen (maximum diagonal image size). Use the tables on page 13 as a guide to positioning the
projector.

To suspend the projector from a ceiling, you will need the optional projector mount designed
for the projector. See page 10 for ordering information. Follow the instructions included with
the mount to install the projector.

Warning: When installing or adjusting the ceiling mount, do not use adhesives to prevent the
screws from loosening and do not use any type of oil or lubricant. These may cause the projector
casing to crack and the projector may fall, causing serious injury and serious damage to the
projector.

If you install the projector on the ceiling, you will need to invert the picture so that it appears
right side up. Follow these steps:

1. Press the

2. Open the

3. Select

Front/Ceiling.

4. Press the

Menu button on the remote control.

Settings menu, then select Projection.

Menu button to exit the menu system.

16 Setting Up the Projector

The following illustrations show the dimensions of the projector:

16.5 in. (420 mm)

8.3 in. (210 mm)

2.4 in.
(60 mm)

Center of lens

11.8 in. (300 mm)

5.9 in. (150 mm)

3.2 in.
(80 mm)

5.5 in.
(139.6 mm)

2.8 in.
(70 mm)

14.4 in.
(365 mm)

6.3 in.
(160 mm)

Setting Up the Projector 17

Connecting the Cables

Connecting Video and Computer Equipment

You can connect the projector to many types of video equipment, such as a Blu-ray

™

/DVD player, digital tuner, cable or satellite box, video game console, camcorder, or

Disc
digital camera. You can also connect it to a desktop or laptop PC or Apple
details on compatible video formats, see page 81.

You can connect up to six pieces of equipment at the same time, using any of the
commercially available cables shown below:

Note: See page 57 for information on connecting with WirelessHD (PowerLite Home Cinema
3010e only).

Port name Video equipment connection Computer connection

HDMI 1/
HDMI 2

Use an HDMI cable:

®

Mac® system. For

Component Use a component video cable

(with RCA-style connectors):

Connect the cable to the three
component video ports. Match
corresponding colors between the
cable and the ports. For audio, use a
stereo RCA audio cable:

—

18 Setting Up the Projector

Port name Video equipment connection Computer connection

PC — Use a Mini D-sub, 15-pin monitor cable

to connect to a computer RGB
(monitor) port:

For audio, use a stereo RCA to
mini-jack stereo (3.5 mm) audio cable:

Video Use an RCA video and audio cable: —

For best results, connect your video equipment to the HDMI port, if possible. If your
equipment doesn’t support HDMI, connect it to either the
component video) or

Video (for composite video) port.

Component (for high quality,

When you connect an HDMI cable to the projector, it is recommended that you fasten it
with the included cable clip. Follow these steps to install the cable clip:

1. Connect the HDMI cable to one of the HDMI ports on the projector.

2. Insert the end of the cable clip anchor into the cable clip hole near the HDMI port, as

show below.

3. Place the open cable clip around the HDMI cable, but don’t lock it into place.

4. Slide the cable clip towards the projector and lock the clip onto the HDMI connector.

To remove the cable clip, unlock the clip and disconnect the HDMI cable. Then pinch the
side of the cable clip anchor and carefully pull it out of the cable clip hole.

Setting Up the Projector 19

Making Other Connections

Connect the power cable and other cables described below, depending on how you plan to
use the projector.

■ Plug the power cable into the projector and a grounded electrical outlet.

■ To use an AV controller with the projector, connect a 9-pin null modem serial cable to

RS-232C port.

the

■ To connect to a digital camera, flash drive, or storage device, connect the USB cable that

came with your device to both your device and to the projector’s USB port. For

information on using the projector’s Slideshow feature, see page 30.

20 Setting Up the Projector

Installing Batteries in the Remote Control

The remote control uses two AA batteries.

Warning: Keep batteries away from children. If a battery is swallowed, contact your doctor
immediately.

1. Release the tab and lift open the cover.

2. Insert two new AA batteries as shown.

3. Insert the tab on the cover and press it down until it clicks into

place.

Aim the remote control at the screen, or at the front or back of the
projector. Make sure you are within 32 feet (10 meters) of the projector.

If you suspect the batteries are weak, press the illumination button. If
the buttons do not glow, replace the batteries.

Turning the Projector On and Off

Turning On the Projector

1. Remove the lens cap.

2. Turn on any connected equipment you plan to use.

3. Press the

Ppower button on the projector.

On button on the remote control or the

Remote control Projector

Setting Up the Projector 21

Note: To prevent children from turning on the projector, you can use the Child Lock feature. See
page 36 for details.

If you’ll be using the projector at an altitude above 4921 feet (1500 meters), turn on High Altitude
Mode so the fan can properly cool the projector at the high altitude air pressure. See page 55 for
details.

The power light flashes while the projector warms up. If you don’t see a picture, you may
need to change the image source as described on page 22.

Turning Off the Projector

1. Turn off any equipment connected to the projector.

2. Press the Ppower button on the projector twice or press the

Standby button on the

remote control and wait for the light to stop flashing.

Caution: Turn off this product when not in use to prolong the life of the projector.

Selecting the Image Source

The source buttons on the projector and remote control let you switch between images from
different pieces of equipment connected to the projector (such as a Blu-ray Disc/DVD player,
cable or satellite box, or video game console).

Press the
video source is connected.

Source button on the remote control that corresponds to the port to which your

22 Setting Up the Projector

If you press the Source button on the projector, you see a list of available sources. Press
the

Note: If an image does not appear, see “Problem Solving” on page 69.

To temporarily turn off the image and darken the screen, press the A/V Mute button on the
remote control. Press the A/V Mute button again to return to normal viewing.

Source button to move through the list and select the desired source.

Setting Up the Projector 23

Positioning the Image

If the projector is not centered in front of the screen, use the horizontal keystone slider,
horizontal keystone buttons, volume buttons on the projector, and vertical keystone buttons
to correct the shape of the image.

Horizontal keystone slider

Note: You can display a test pattern to help adjust the image position by pressing the Pattern
button on the remote control. Press the Esc button to turn off the test pattern.

The image can be adjusted up to 30° in either direction with the horizontal keystone slider or
buttons:

24 Setting Up the Projector

If one side of the image is taller than the other, make sure the projector is parallel to the
screen. If necessary, adjust the front feet so that the projector is horizontal.

Adjustable feet

Your projector automatically adjusts images that are wider at the top or bottom, but if
necessary, you can also use the vertical keystone buttons on the projector to correct this.

In addition to the horizontal keystone slider, you can use the volume buttons on the projector
to adjust images that are wider on the left or right side.

Note: Press either of the vertical keystone buttons to open the H/V–Keystone menu before
pressing the volume buttons. The volume buttons won’t adjust the H-Keystone setting unless this
menu is active.

Setting Up the Projector 25

Making Basic Adjustments

Follow the instructions in this chapter to make basic adjustments to the image shape, size,
color, and quality. For further refinements, see “Making Detailed Adjustments” on page 37.

Focusing and Zooming

Use the focus ring to sharpen the image.

Use the zoom ring to reduce or enlarge the image.

Zoom ring

Focus ring

26 Making Basic Adjustments

Choosing the Aspect Ratio

In many cases, video signals are automatically resized to
fit on your screen when
setting. You may need to change the size of the image
(or aspect ratio) for certain image types by pressing the

Aspect button on the remote control.

Select one of these settings:

■ Normal for standard TV broadcasts, computer

images, or images with a 4:3 aspect ratio.

■ Full for images recorded in 16:9 (wide-screen) format and squeeze mode.

■ Zoom for letterbox images.

4:3 image using Normal setting 16:9 image using Full setting

■ Wide for expanding a 4:3 image to 16:9 so it fills the whole screen. This stretches only

the right and left sides of the image; the central part is unchanged.

Auto is selected as the Aspect

Note: When displaying 720p, 1080i, or 1080p signals through the HDMI or Component video port,
the aspect ratio is automatically selected and you cannot change it.

If you display a 4:3 image using the Zoom setting, the top and bottom will be cut off. You can use
the Zoom Caption Pos. option and other settings to resize and reposition the image. For details,
see page 53.

For details on how the projector resizes the picture when you choose an Aspect setting, see
page 81.

Making Basic Adjustments 27

Viewing 3D images

To view 3D content, you must first connect a 3D-compatible video device to one of the
HDMI ports on your projector. You will also need a pair of Epson or Epson-compatible
M-3Di active shutter glasses.

1. Turn on and begin playback on the 3D-compatible video device.

2. Press the

3. Press and hold the power button on your 3D glasses for at least one second.

See “Solving Picture Problems” on page 71 for 3D troubleshooting tips.

2D/3D button on the remote control, if necessary.

28 Making Basic Adjustments

Projecting in Split Screen mode

You can use the Split Screen feature to simultaneously project two images from different
image sources next to each other. You can control the Split Screen feature using the remote
control or the projector menus.

Note: While you use the Split Screen feature, other projector features may not be available and
some settings may be automatically applied to both images. You also can’t access Split Screen
mode when USB is the active display source or 3D mode is enabled.

1. Press the Split button on the remote control.

The currently selected input source moves to the left side of the screen.

2. Press the

To select an input source for the other image, select the

select the input source, select

Menu button. You see this screen:

Source setting, press Enter,

Execute, and press Enter. (You can also change image

sources, if necessary.)

Note: You can’t access Split Screen mode when USB is the active display source.

3. To switch the images, select the Swap Screens setting and press Enter.

4. To change the image sizes, select the

option, press

Enter, and press Menu to exit.

Screen Size setting, press Enter, select a sizing

Making Basic Adjustments 29

Note: Depending on the video input signals, the images may not appear at the same size even

if you choose the Equal setting.

5. To choose the audio you want to hear, select the Audio Source setting, press Enter,

select an audio option, press

Note: Select Auto to hear audio from the largest screen or the left screen.

Enter, and press Menu to exit.

6. To exit the Split Screen feature, press the Split or Esc button.

Starting a Slideshow

After connecting a USB device to the projector, you can switch to the USB input source and
start your slide show.

Note: You can change the Slideshow operation options or add special effects by highlighting

Option at the bottom of the screen and pressing Enter. See “Choosing Slideshow Options” on
page 31 for more information.

1. Press the USB source button on the projector remote control. The Slideshow screen

appears.

2. Do the following as necessary to locate your files:

■ If you need to display files inside a subfolder on your device, press the arrow buttons

to highlight the folder and press the

■ To move back up a folder level on your device, highlight Back to Top and press
Enter.

■ To view additional images in a folder, highlight Next page or Previous page and

press

Enter.

30 Making Basic Adjustments

Enter button.

3. Do one of the following to start your slide show:

■ To display an individual image, press the arrow buttons to highlight the image and

press

Enter. (Press the Esc button to return to the file list screen.)

■ To display a slide show of all the images in a folder, press the arrow buttons to

highlight the

Note: If any file names are longer than 8 characters or include unsupported symbols, the file
names may be shortened or changed only in the screen display.

Slideshow option at the bottom of the screen and press Enter.

4. While projecting, use the following commands to control the display as necessary:

■ To rotate a displayed image, press the up or down arrow button.

■ To move to the next or previous image, press the left or right arrow button.

5. To stop the display, follow the on-screen instructions or press the

Esc button.

Choosing Slideshow Options

You can select these display options when using the projector’s Slideshow feature by
highlighting
screen:

Option at the bottom of the Slideshow screen and pressing Enter. You see this

Setting Options Description

Display Order Name Order Displays files in name order

Date Order Displays files in date order

Making Basic Adjustments 31

Setting Options Description

Sort Order In Ascending Sorts files in first-to-last order

In Descending Sorts files in last-to-first order

Continuous Play On Displays a slide show continuously

Off Displays a slide show one time

through

Screen Switching Time No Does not display the next file

automatically

1 Second to 60 Seconds Displays files for the selected time

and switches to the next file
automatically

Effect Wipe Transitions between images with a

wipe effect

Dissolve Transitions between images with a

dissolve effect

Random Transitions between images using a

random variety of effects

Choosing the Color Mode

You can change the Color Mode to automatically adjust brightness, contrast, and color,
letting you quickly optimize the projected image for various lighting environments. You can
also select a different color mode for each input source—which is useful if you view different
types of images from different sources. (For example, you might set the HDMI 1 source to

Living Room if it’s usually used for watching movies in the daytime with the blinds closed,

and the PC source to

Select the image source you want to adjust, then press the
control. Choose from these settings:

■ Auto for automatically-optimized color settings

based on the current lighting environment.

Note: Selecting the Rear or Ceiling projection settings
will disable the Auto Color Mode.

■ Cinema for viewing movies in a dimly lit room.

■ Dynamic for projecting the brightest picture

available.

32 Making Basic Adjustments

Dynamic for playing video games with the blinds open.)

Color Mode button on the remote

■ Living Room for watching television programs during the day.

■ Natural for projecting natural, accurate colors in a dimly lit room.

■ 3D Dynamic for projecting the brightest 3D picture available (only available when the

projector is in 3D Mode).

■ 3D Cinema for viewing 3D movies in a dimly lit room (only available when the projector

is in 3D Mode).

Advanced Color Adjustments

To further customize the color and image quality, you can adjust the gamma and individual
RGBCMY color tones using the

Auto is selected as the Color Mode).

RGBCMY button on the remote control (not available when

Note: You can fine-tune these and other color and image quality settings using the projector’s
menu system (see page 37). You can also save combinations of picture settings with the Memory
feature for easy recall (see page 49). If you don’t like the settings you have selected on a particular
menu screen, you can press the Default button to restore the factory settings.

Adjusting the Gamma Setting

You can select from five gamma settings (2.0 to 2.4) or customize your own setting from your
image or a displayed graph. Lower values will increase the contrast of dark areas, but tend to
blur the bright areas. Higher values will darken the light areas. Gamma presets make minor
adjustments to mid-tone values. The larger the gamma preset, the lower the midtone values.
Changing these settings affects contrast which can be seen as a blur in bright areas.

Making Basic Adjustments 33

Note: This setting cannot be used when the Color Mode is set to Auto (see page 32).

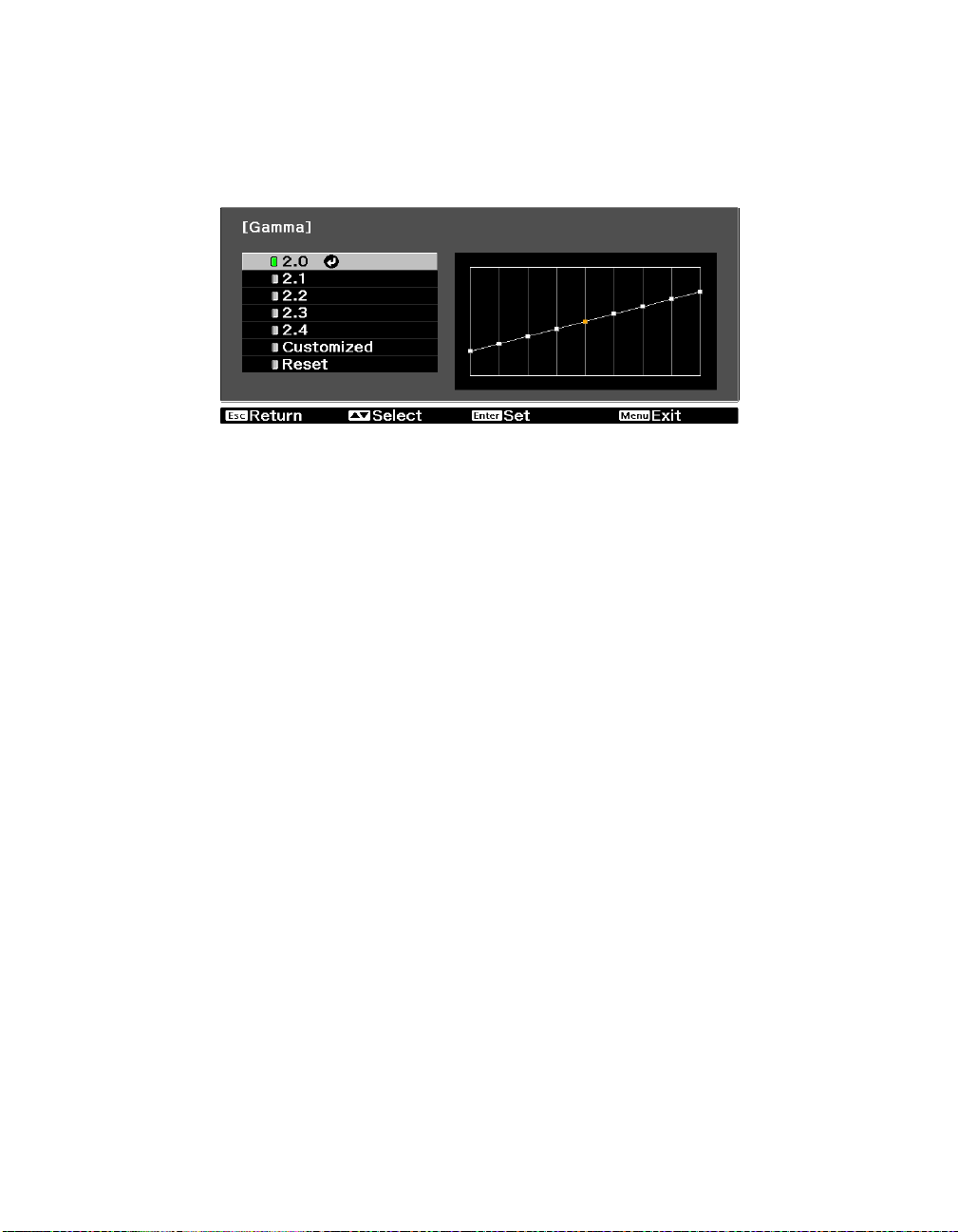

1. Press the Menu button. Select Image from the main menu. Select Advanced and then

Gamma. You see the following displayed on the screen:

2. Do one of the following:

■ Select one of the numeric correction values using the u or d button on the remote

control and press the

Enter button. You see the setting reflected in the graph on the

right. The horizontal axis represents the input signal level, and the vertical axis
represents the output signal level. Press the

■ Select Customized. Then continue with the next step.

Esc button to exit.

3. Do one of the following:

■ Select Adjust it from the image. You see a gamma icon on the projected image. Use

the arrow buttons to move the icon to the area of brightness you want to adjust, then

Enter. The custom gamma graph appears with the channel selected for

press
adjustment. Press the u or d button to adjust and then press
setting and exit

■

Select Adjust it from the graph. When the gamma graph appears, use the l or r
button to select the point on the graph that you want to adjust, and then use the
u or d button to adjust the settings. Press

4. Press the Menu button to close the menu screen when you’re done.

34 Making Basic Adjustments

Enter to save your

.

Enter to save your setting and exit.

Adjusting RGBCMY

Use this feature to adjust the hue, saturation, and brightness for each of the red (R),
green (G), blue (B), cyan (C), magenta (M), and yellow (Y) color components (not available

Auto is selected as the Color Mode).

when

1. Press the

RBGCMY button. You see the following displayed on the screen:

2. Use the u or d button on the remote control to select the color you want to adjust, and

press the

3. Select the

Enter button.

Hue, Saturation, or Brightness for that color, and use the l or r button to

make the adjustment.

4. Press

Note: You can also adjust the offset and gain using the RGB setting in the projector’s menu
system (see page 44).

Esc to adjust another color, or press RGBCMY to exit.

Making Basic Adjustments 35

Locking the Projector

The projector includes two lock settings to prevent the image from being accidentally
changed once it’s adjusted, and to keep children from turning on the projector without adult
supervision.

To access the lock settings, follow these steps:

1. Press the

2. Select

3. Select

4. Choose from these options:

■ Child Lock to disable the Ppower button on the

■ Control Panel Lock to disable all the buttons on the projector’s control panel except

5. Press

If you turned on the Control Panel Lock, the projector buttons are now locked.

If you turned on the Child Lock, turn off the projector and let it cool down. The Child
Lock takes effect after the cool-down period.

Menu button on the remote control.

Settings and press the OK button.

Lock Setting and press the OK button.

projector’s control panel unless it is pressed for
about 3 seconds. Since you can still use the remote control to turn on the projector,
you may want to keep it away from children’s reach.

the Ppower button. A lock icon appears on the screen whenever you press a button
with Control Panel Lock turned on. To operate the projector, you must use the
remote control. To cancel Control Panel Lock, press and hold the
the projector’s control panel for at least 7 seconds.

Menu to exit the menu system.

Enter button on

36 Making Basic Adjustments

Making Detailed Adjustments

You can use the projector’s on-screen menus to make detailed adjustments to the image
quality—such as the brightness, contrast, sharpness, and color. You can also change the menu
display, sleep mode settings, and other projector features.

Using the Menu System

You can access the menu system either from the remote control or the buttons on the
projector’s control panel. You can access the full menu or a line menu that lets you change
selected settings. You can also change the menu language and control how the menus display
(see page 38).

To display the full menu, press the

Menu button on the projector or remote control. You see

a display like this one:

Settings available

Main menu
options

Note: You may see different options, depending on your projector model and how your
equipment is connected to it.

for the highlighted
menu

1. Press the u or d button to highlight a main menu option (Image, Signal, Extended,

Settings, Memory, Info or Reset), then press the Enter button to select it.

2. Press the u or d button to highlight a setting, then press the

Enter button.

3. Press the u, d, l, or r button to change settings as necessary. You may have to press the

Enter button to confirm your choice.

Making Detailed Adjustments 37

4. When you’re finished, press the Esc button to return to the previous menu or press the

Menu button to exit the menu system.

To display one of the line menus, press the

Enter button. You see a display like this at the

bottom of the image:

■ Press the l or r button to adjust the setting.

■ Press the Menu or Esc button to close the line menu when you’re done.

Note: When a line menu is displayed, you can press Default on the remote control to reset the
menu to its factory setting.

Changing How the Menus Display

Use these options to control how the menus display.

■ Language

Extended > Language

Select from 21 languages to use in the menu system.

■ Menu Position

Extended > Display > Menu Position

Use the arrow buttons to choose a position on the screen for displaying the menu.

■ Menu Color

Extended > Display > Menu Color

Select a color scheme for displaying the menus.

38 Making Detailed Adjustments

Adjusting the Picture Quality

Before fine-tuning the image using these adjustments, make sure you have already selected the
best Color Mode for your picture and viewing environment, as described on page 32. Then
use the settings in this section to finish adjusting the picture to your liking.

Most image quality settings are saved independently for each input source (Video, HDMI,
Component, PC) and color mode. After you finish adjusting the settings for one input source,
switch to the other input sources you’ll be using and make any necessary adjustments.

Note: These features are not available when Auto is selected as the Color Mode.

Input Brightness Settings

If the signal from connected equipment is weak and images appear dark, you can adjust the
Brightness and Contrast settings. You can adjust brightness and contrast for each image
source and color mode.

The Brightness setting controls how much light is produced by the projector, and the
Contrast setting adjusts the difference between the bright and dark areas of the projected
image. The other settings in this section control how the projector interprets the light and
dark areas of the picture.

■ Brightness

Image > Brightness

Adjust the brightness so it’s suitable for your viewing conditions. For example, if you’re
projecting in a brightly lit room or onto an especially large screen, you may need to
increase the brightness. Decrease the brightness for dark rooms or small screens; this also
reduces power consumption and fan noise, and helps to prolong the life of the lamp.

■ Contrast

Image > Contrast

This setting adjusts the difference between bright and dark areas.

Making Detailed Adjustments 39

■ Auto Iris

Image > Auto Iris

Note: This setting cannot be used when the Color Mode is set to Auto (see page 32).

When this setting is on, the light output is automatically adjusted according to the
brightness of the image. Select either

Normal or High Speed to indicate how quickly

you would like the projector to respond to changes in the brightness of the image. The
setting is stored separately for each image source and color mode.

■ Setup Level

Signal > Advanced > Setup Level

Note: This setting can be used only when an NTSC signal is being input through the Video port,
or when a video signal is being input through the Component video ports.

This setting adjusts the threshold at which dark areas of the image are rendered black
(0 IRE). For compatibility with most DVD and video equipment sold in the United
States, leave this setting at 0%. Check your video equipment’s specifications to be sure of
the correct setting.

■ EPSON Super White

Signal > Advanced > EPSON Super White

Note: This setting can be used only when the signal is input through the HDMI 1 or HDMI 2
ports with the Color Mode set to Natural or Cinema (see page 32).

If bright parts of the image are washed out or overexposed (when the input signal
contains values over 100 IRE), turn this setting on to compensate.

■ HDMI Video Range

Signal > Advanced > HDMI Video Range

Note: This setting can be used only when HDMI 1 or HDMI 2 is selected as the image source
(see page 22). This setting cannot be used when the Color Mode is set to Auto (see page 32)
or Epson Super White is set to On.

If your video equipment has an HDMI port and you’ve connected it to the projector
using an HDMI cable, set the level of the projector to match that of the video equipment.

■ Power Consumption

Image > Power Consumption

This setting controls the light output from the projector. On Normal, the projector
produces a brighter image and the lamp uses more power. To save power and extend the
life of the lamp, select

40 Making Detailed Adjustments

ECO.

Sharpness and Picture Quality Settings

If the image looks fuzzy, or if it contains noise or flickering, you can use these settings to
correct it.

■ Sharpness

Image > Sharpness

Use this function to make lines and edges appear more distinct in the image. This setting
is stored separately for each image source and color mode setting. You can select

Standard to adjust the sharpness of the entire image, or select Advanced to access the

following submenu:

Note: The Advanced setting cannot be used with a signal input through the PC port.

Choose Thin-Line Enhancement to sharpen details such as hair and clothing. Choose

Thick-Line Enhancement to sharpen large contours and backgrounds. Choose Vert.
Line Enhancement
Enhancement

to increase vertical image sharpness. Choose Horiz. Line

to increase horizontal image sharpness.

Making Detailed Adjustments 41

■ Progressive

Signal > Progressive

Converts interlaced to progressive signals. The projector uses 3D DigiScan™ HD
Circuitry Processing for video-sourced images.

Leave the setting on
output. Select

Film/Auto for viewing movies on a player that produces interlaced

Video for watching videos captured with a video camera. Set to Off when

viewing images with a large amount of movement.

Note: This setting can be used only when viewing a composite video signal, or 480i or 576i, or
1080i signals input through the Component, HDMI 1, or HDMI 2 ports (see page 81).

■ Motion Detection

Signal > Motion Detection

This setting specifies how signals are converted to progressive signals. Select a lower
setting for slow-moving or still images (

M).

(

Note: This setting can be used only when viewing a composite video signal, or 480i or 576i, or
1080i signals input through the Component, HDMI 1, or HDMI 2 ports (see page 81).

■ Noise Reduction

Signal > Advanced > Noise Reduction

Note: This setting may not be available when the Color Mode is set to Auto (see page 32) or
with a signal input through the PC port.

S) or select a higher number for video images

This setting reduces flickering of analog images. You can select from 3 levels of noise
reduction.

■ 2-2 Pull-down

Signal > Advanced > 2-2 Pull-down

Note: This setting can be used only when viewing a 1080p/24Hz signal input through the
Component, HDMI 1, or HDMI 2 ports (see page 81). This setting cannot be used when the
Color Mode is set to Auto (see page 32) or with a signal input through the PC port.

This setting allows you to select whether images are projected with 2-2 Pull-down
detection or 2-3 Pull-down detection. Select

42 Making Detailed Adjustments

On for 2-2 Pull-down detection.

Color Settings

If the image colors don’t look correct, you can adjust them using these settings. Use the first
three settings described below to make the most visible changes. If you only need to make
slight adjustments, you can fine-tune the picture with the remaining settings. Most color
settings are stored separately for each image source and color mode.

■ Color Saturation

Image > Color Saturation

Note: This setting cannot be used when the Color Mode is set to Auto (see page 32) or with a
signal input through the PC port.

Adjusts the color intensity of the image.

■ Tint

Image > Tint

Note: This setting cannot be used when the Color Mode is set to Auto (see page 32) or with a
signal input through the PC port.

Shifts the color balance between magenta and green.

■ Abs. Color Temp.

Image > Abs. Color Temp.

Note: This setting cannot be used when the Color Mode is set to Auto (see page 32).

Shifts the color balance between red and blue, making the image appear warmer or
cooler.

■ Skin Tone

Image > Skin Tone

Note: This setting cannot be used when the Color Mode is set to Auto (see page 32).

Makes fine adjustments to the tint and controls the amount of magenta or green in the
image. Also useful for correcting black-and-white images, if they look tinted.

Making Detailed Adjustments 43

■ RGB

Image > Advanced > RGB

Note: This setting cannot be used when the Color Mode is set to Auto (see page 32).

Use the RGB settings to fine-tune the color of the image. You can adjust the offset and
gain for each signal color (red, green, and blue). Use

Gain for the lightest shades.

■ RGBCMY

Image > Advanced > RGBCMY

Offset to adjust darker shades and

Note: This setting cannot be used when the Color Mode is set to Auto (see page 32).

Use the RGBCMY settings to adjust the hue, saturation, and brightness of the six color
components (red, green, blue, cyan, magenta, yellow). After adjusting each color, press

Esc to move to another menu option. You can also access this setting by pressing the
RGBCMY button on the remote control. See page 35 for more information.

■ Gamma

Image > Advanced > Gamma

Note: This setting cannot be used when the Color Mode is set to Auto (see page 32).

You can select from five gamma settings (2.0 to 2.4) or customize your own setting from
your image or a displayed graph. Lower values will increase the contrast of dark areas, but
tend to blur the bright areas. Higher values will darken the light areas. See page 33 for
more information.

44 Making Detailed Adjustments

3D Setup

Use this menu to adjust 3D brightness, the 3D display format and other 3D settings.

Note: You should only adjust the 3D Format and Inverse 3D Glasses settings if 3D images aren’t
displaying correctly. Changing these settings unnecessarily may cause problems with 3D
projection.

■ 3D Display

Signal > 3D Setup > 3D Display

Enables or disables 3D mode. You can also change this setting by pressing the

2D/3D

button on the remote control.

■ 3D Format

Signal > 3D Setup > 3D Format

Use this setting to select the 3D format supported by your video device. In most cases, the
projector will correctly detect the 3D format when this option is set to
only select the

2D, Side by Side, or Top and Bottom formats when your projector

Auto. You should

doesn’t properly display 3D images. See your video source documentation for
information on which mode to select.

■ 3D Brightness

Signal > 3D Setup > 3D Brightness

Adjusts the brightness of 3D images. Select the

Medium or High settings if the 3D

display is too dark.

Note: This setting is not available when 3D Format is set to Auto.

■ Inverse 3D Glasses

Signal > 3D Setup > Inverse 3D Glasses

Reverses the timing for the left and right shutters on the 3D active shutter glasses. Only
enable this function if 3D images are not displaying correctly.

Note: This setting is not available when 3D Format is set to Auto.

■ 3D IR Emitter

Signal > 3D Setup > 3D IR Emitter

External if you’ve connected an external 3D IR emitter (see “Optional

Select
Accessories” on page 10 for ordering information).

Making Detailed Adjustments 45

■ 3D Viewing Notice

Signal > 3D Setup > 3D Viewing Notice

Enables or disables the viewing notice that is displayed when 3D mode is activated.

Adjustments for Computer Images

In addition to the settings described previously, you can adjust the Tracking and Sync settings
for analog RGB computer images. Normally, these settings are adjusted automatically by the
projector. If you notice that the image is blurry or contains dark vertical bands, you may need
to adjust the settings yourself.

■ Auto Setup

Signal > Auto Setup

Leave this setting on so that the projector automatically adjusts the tracking, sync, and
position of the image.

■ Tracking

Signal > Tracking

Adjust the tracking to eliminate vertical bands. It is easiest to
adjust the tracking when the image contains a lot of fine detail
(such as black text on a white background).

■ Sync.

Signal > Sync.

Adjust the synchronization to eliminate blurriness. For best results,
make sure the tracking is properly adjusted first.

46 Making Detailed Adjustments

WirelessHD Settings

Use these options to manage the WirelessHD connection and access the WirelessHD
reception monitor.

■ Device Connections

Settings > WirelessHD > Device Connections

Select this option to display a list of available WirelessHD devices.

Use the arrow keys to navigate the menu and press

■ WirelessHD

Settings > WirelessHD > WirelessHD

Enter to select a device.

Enables or disables the projector’s WirelessHD connection.

■ Reception

Settings > WirelessHD > Reception

Select this option to display the WirelessHD reception monitor.

■ Rename Device Name

Settings > WirelessHD > Rename Device Name

Use this option to rename the devices displayed in the WirelessHD Device Connections
menu.

■ Erase Device Name

Settings > WirelessHD > Erase Device Name

Use this option to delete the names of devices displayed in the WirelessHD Device
Connections menu and return them to their default values.

Making Detailed Adjustments 47

■ Reset

Settings > WirelessHD

Select this option to reset all WirelessHD settings and return them to their default values.

Split Screen Setup

Press the Menu button while in Split Screen mode to access this menu.

■ Screen Size

Split Screen Setup > Screen Size

Adjusts the size of the two screens. Choose
screen,

Larger Right to increase the size of the right screen, or Equal to split the display

Larger Left to increase the size of the left

evenly between the two screens.

Note: Depending on the source and resolution of each input, the two screens may not appear
to be of equal size when the Equal option is selected.

■ Source

Split Screen Setup > Source

Select this option to open the Source menu and select which inputs should be displayed
in split screen mode.

The Left
on the remote control to highlight

Enter on the remote control to select an option.

and Right columns represent the left and right screens. Use the arrow buttons

Left or Right for the source you want to display. Press

Once you have finished making your selections for both screens, select Execute to exit
the Source menu and apply these settings.

Note: Certain combinations of sources can’t be selected. Invalid input combinations will be
grayed out.

48 Making Detailed Adjustments

■ Swap Screens

Split Screen Setup > Swap Screens

Select this option to quickly switch the images on the left and right sides of the split
screen display.

■ Audio Source

Split Screen Setup > Audio Source

Use this setting to select which screen’s audio you want to hear while in split screen mode.

Note: Select Auto to hear audio from either the largest screen or the screen on the left
(depending on the Screen Size setting).

Selecting Memory Settings and Resetting the Projector

Your projector comes with 8 memory locations that are reserved for color mode calibration by
installers. In addition, there are 2 memory locations where you can save other customized
settings to obtain the best picture quality for each of your video inputs.

Note: Certain menu options may not be available when Auto is selected as the Color Mode.

Creating Memory Settings

Memory settings can be used to store most of the picture quality settings on page 41 and color
settings on page 43. Before saving them to memory, adjust the settings to the desired levels.

1. Press the

2. Select

3. Select the memory name you want to use, then press the
settings.

Note: Saved settings are indicated by a green highlight next to the memory name. If you select
a name that is already in use, the existing settings will be erased and new ones saved in their
place.

Memory button on the remote control.

Save Memory.

Enter button to save your

Making Detailed Adjustments 49

Selecting Memory Settings

You can easily recall the memory settings by using the

Memory button on the remote control.

1. Press the

2. Select

Memory button on the remote control.

Load Memory.

3. Use the arrow buttons to select the desired setting, then
press the

Enter button.

After a moment, the image appears on the screen using the retrieved settings. Certain
settings may not be applied, depending on the input signal.

Renaming Memory Settings

You can rename memory settings so that they are easier for you to recognize.

1. Press the

2. Select

3. Select the memory name you want to change, then press the
selection screen is displayed.

4. Do one of the following:

■ To select a name from the displayed preset names, select the desired name and press

■ To create your own name, select Customized and use the keyboard screen to enter

Memory button on the remote control.

Rename Memory.

Enter button. The name

Enter button.

the

the name. Use the arrow buttons to select a character, then press the
When you have selected all of the characters in your name, select

Enter button.

Finish and press the

Enter button.

50 Making Detailed Adjustments

Deleting Saved Memory Settings

You can clear all your memory settings at once.

1. Press the

2. Open the

3. Select

Note: You can delete memory settings one at a time with the Erase Memory setting under the
Memory menu.

Menu button on the remote control.

Reset menu, then select Reset Memory.

Yes, then press the Enter button to delete the memory settings.

Resetting the Projector

If the image quality isn’t what you expect, one or more settings may be adjusted improperly.
If necessary, you can restore the projector to its factory-default (original) settings.

To restore the settings in a specific menu (such as the Image or Settings menu), open that
menu, select
Image menu settings:

Open the Image
menu . . .

Reset, and confirm as needed. The example below shows how to reset the

and select Reset

You can also reset the lamp usage timer or restore all the projector settings to their original
values. Follow these steps:

1. Press the

2. Open the

Menu button on the remote control.

Reset menu.

Making Detailed Adjustments 51

3. Do one of the following:

■ Select Reset Lamp Hours to clear the lamp usage timer and reset it to zero.

You should reset the lamp timer only when you install a new projector lamp. See
page 67 for more information.

■ Select Reset Memory to clear all memory settings.

■ Select Reset All to return all projector settings to their original defaults (except Input

Signal, User Button, Language, and Lamp Hours).

Customizing Projector Features

Use the settings in this section to adjust the image size and position, suppress on-screen text,
and select basic setup options.

Image Sizing

Before adjusting any of these settings, make sure you have already selected an appropriate
aspect ratio for the type of picture you’re viewing (see page 27).

■ Overscan

Signal > Advanced > Overscan

For component and HDMI video formats, this setting lets you see the edges of the image
that are not normally visible in the picture (see page 81). If you see interference when you
set

Overscan to Off, try adjusting the Position as described below.

Note: The Auto setting is only available when the input source is HDMI1, HDMI2, or
WirelessHD.

■ Position

Signal > Position

Note: This setting cannot be used with a signal input through the HDMI 1 or HMDI 2 port or
the WirelessHD connection (PowerLite Home Cinema 3010e only).

Use the arrow buttons to fine-tune the position of the image on the screen.

52 Making Detailed Adjustments

■ Aspect

Signal > Aspect

This setting lets you change the aspect ratio of your image, and works the same as
pressing the

Note: When displaying 720p, 1080i, or 1080p signals through the HDMI or Component video
port, the aspect ratio is automatically selected and you cannot change it.

If you display a 4:3 image using the Zoom setting, the top and bottom will be cut off. You can
use the Zoom Caption Pos. option and other settings to resize and reposition the image.

For details on how the projector resizes the picture when you choose an Aspect setting, see
page 81.

■ Zoom Caption Pos.

Signal > Zoom Caption Pos.

Aspect button on the remote control. See page 27 for more information.

Lets you adjust the shape and position of the image so that subtitles are visible (available
only if the Aspect setting has been set to

Zoom). Adjust Overscan before changing the

zoom position.

Screen Options

■ Messages

Extended > Display > Messages

Turn this setting off if you want to prevent on-screen messages from appearing (such as
the no-signal message, or the identifying text that appears when you switch between
image sources or color modes).

■ Startup Screen

Extended > Display > Startup Screen

Turn this setting off if you want to prevent the startup screen from appearing while the
projector is warming up.

■ Display Background

Extended > Display > Display Background

Changes the screen that’s used when the projector is not receiving a signal or when you
press the

A/V Mute button to temporarily stop projection.

Making Detailed Adjustments 53

Other Setup Options

■ Projection

Settings > Projection

You can select different options for projecting the image: Front, Front/Ceiling, Rear,

Rear/Ceiling.

Note: Only the Front option is available when the Color Mode is set to Auto.

■ Direct Power On

Extended > Operation > Direct Power On

Sets projection to start without pressing the P power button on the projector or the On
button on the remote control.

Note: When Direct Power On is enabled, power surges that occur after a power outage can
cause the projector to turn on.

■ Video Signal

Extended > Input Signal > Video Signal

Leave this setting on Auto so the projector can automatically interpret the format, such as
NTSC or PAL (for standard TV formats).

■ Component

Extended > Input Signal > Component

Change this setting to match the type of equipment connected to the Component port.
For component video, select
or select

■ Illumination

YCbCr or YPbPr to manually select your video equipment’s signal.

Extended > Operation > Illumination

Turn off this setting to deactivate the lights on the projector’s P power button and power
light. Use this setting if you find the lights distracting in a darkened room.

54 Making Detailed Adjustments

Auto to let the projector automatically interpret the signal;

■ Sleep Mode

Extended > Operation > Sleep Mode

Turn off this setting if you don’t want the projector to enter sleep mode. (Sleep mode
shuts the projector off automatically when there is no video signal.)

5min., 10min., or 30min. as the length of time before shutoff; decreasing the time

Select
conserves power and extends the life of the lamp.

30min. is the default setting.

To turn the projector back on, press the Ppower button on the projector or the
button on the remote control.

■ Child Lock

Settings > Lock Setting > Child Lock

Lets you lock the Ppower button on the projector’s control panel to make it more
difficult for a child to turn on the projector. See page 36 for more information.

■ Control Panel Lock

Settings > Lock Settings > Control Panel Lock

Lets you disable all the buttons on the projector’s control panel to prevent the image from
being accidentally changed once it is adjusted. See page 36 for more information.

■ High Altitude Mode

Extended > Operation > High Altitude Mode

Adjusts the speed of the fan so it can properly cool the projector at higher altitudes. Turn
this setting on if you are using the projector at an altitude of 4921 feet (1500 meters) or
higher.

Note: The maximum operating altitude is 7500 feet (2286 meters).

On

Making Detailed Adjustments 55

Using WirelessHD

You can use the included WirelessHD Transmitter (PowerLite Home Cinema 3010e only) to
wirelessly stream HD content from a video device to the projector.

Placing the WirelessHD Transmitter

Place the WirelessHD Transmitter so that the unit’s lights face the front of the projector.
Make sure the transmitter is within 32 feet (10 meters) of the projector and is located in the
same room.

Note: The wireless transmission range may vary depending on the placement and size of
surrounding objects. Avoid placing the transmitter in an area with many large or metal objects and
do not place the transmitter on a metal surface, as this may interfere with the signal.

Use the images below to determine the best placement for the WirelessHD Transmitter (the
shaded areas represent the WirelessHD transmission area):

16 feet (5 m)

56 Using WirelessHD

32 feet (10 m)

16 feet (5 m)

32 feet (10 m)

Setting Up a WirelessHD Connection

To prepare your device to work with the WirelessHD button, follow these steps:

1. Follow the instructions on the previous page and place the transmitter within range of the
projector.

2. Plug the AC adapter into the transmitter and an electrical outlet.

3. Connect an HDMI cable to your video device and the HDMI port on the side of the
WirelessHD Transmitter.

4. Turn on the power switch on the back of the transmitter.

5. Turn on your source device and begin playback.

6. Turn on the projector.

7. Press the

Your projector should now display content from your video device. If it doesn’t, see “Solving
WirelessHD Problems” on page 75.

WirelessHD button on the projector remote control.

Using WirelessHD 57

Using HDMI Link

When you connect HDMI CEC-compatible devices to the projector with HDMI cables, you
can control them using the HDMI Link control buttons on the projector’s remote control.
This lets you use just one remote control to operate many commonly used features on all your
devices.

In a typical configuration, your DVD player may be connected to the projector through an
amplifier or home theater system. Even if the amplifier does not conform to the HDMI CEC
standard, you can still use the projector’s HDMI Link control buttons to operate the DVD
player as long as the DVD player conforms to the HDMI CEC standard.

HDMI

Amplifier

Note: Some HDMI CEC functions may not operate, depending on the connected product’s design
and compliance with the HDMI CEC standard.

HDMI

DVD player

Setting Up HDMI Link

To prepare your devices to work with the HDMI Link control buttons, follow these steps:

1. Press the

2. Select

3. Press the

HDMI Link button on the projector’s remote control.

HDMI Link and set it to On.

HDMI Link button to exit the menu system.

58 Using HDMI Link

4. Set up your connected devices so their HDMI CEC-compatible functions are enabled.
For details, refer to the device manufacturer’s documentation.

Changing HDMI Link Settings

1. Press the HDMI Link button on the projector’s remote control.

2. Select

Device Connections. You see this screen:

3. Use the u and d arrow buttons to select the device you want to operate, then press

Enter. Devices are listed by type (Player, Recorder, AV System, or Tuner) and by name,

if the model number is available.

4. Once the device is selected, use the HDMI Link control buttons on the remote control to
operate it. You can also use the

Esc. Commonly available functions include turning on the device when it’s in standby

On and Standby buttons, arrow buttons, Enter, and

mode, starting playback, adjusting the volume, and operating the device’s link menu.

In addition, HDMI Link allows your projector and other devices to be turned on and off
together:

■ If you turn on a connected device, the projector automatically turns on and switches

to the correct input source.

■ If you turn on the projector, connected devices such as an amplifier and DVD player

are turned on. If multiple video devices are connected, the one last used is turned on.
When you turn off the projector, the connected devices are turned off.

Note: For this to work, the CEC power link function of the connected devices must be enabled.

Using HDMI Link 59

Maintenance

Your projector needs little maintenance. All you need to do on a regular basis is keep the lens
clean. You also may need to clean the air filter to prevent overheating.

Warning: Before you clean any part of the projector, turn it off and unplug the power cord. Never
open any cover on the projector, except the lamp and filter covers. Dangerous electrical voltages
in the projector can injure you severely. Do not try to service this product yourself, except as
specifically explained in this User’s Guide.

The only parts you should replace are the air filter and the lamp. If another part needs
replacing, contact your dealer or a qualified servicer.

Cleaning the Lens

Clean the lens whenever you notice dirt or dust on the surface.

■ Use a blower brush that is designed for camera equipment to remove dust from the lens.

■ To remove dirt or smears, use a lens cloth or tissue. If necessary, moisten the cloth with

lens cleaner and gently wipe the lens surface.

Caution: Never rub the lens with abrasive materials. Use only lens cleaning fluids that are designed
for cleaning optics.

60 Maintenance

Cleaning the 3D Glasses

Use the included lint-free cloth (do not use paper towels) to gently wipe the 3D glasses
whenever you notice dust or dirt on the surface.

Caution: Never rub the 3D glasses with abrasive materials.

Cleaning the Projector Case

Before you clean the case, turn off the projector and unplug the power cord.

■ To remove dirt or dust, wipe the case with a soft, dry, lint-free cloth.

■ To remove stubborn dirt or stains, moisten a soft cloth with water and a neutral

detergent. Then wipe the case and dry it with a dry cloth.

Caution: Never use wax, alcohol, benzene, thinner, or other chemical detergents. These
can damage the case.

Maintenance 61

Cleaning and Replacing the Air Filter

Your projector includes an air filter to ensure the best performance. If dust collects on the air
filter, clean it as described below. Dust clogs prevent proper ventilation and cause overheating
and damage to the projector.

You can replace the air filter while the projector is mounted to the ceiling, if necessary. The
illustrations here show the projector placed on a table.

1. Press the Ppower button on the projector twice or the
control and wait for the power light to stop flashing. The projector cools down.

2. Unplug the power cord.

3. Pull straight out on the filter holder to remove it.

4. Remove the air filter as shown.

Standby button on the remote

62 Maintenance

5. Gently tap both sides of the air filter against a hard surface four
or five times to remove loose dust from the air filter.

Note: Do not use excessive force when tapping the air filter, or it
may crack and become unusable. Do not rinse the air filter in water,
or use any detergent or solvent to clean it. Do not used canned air,
or the gases may leave a residue.

6. Use a small vacuum cleaner that is designed for computers and
other office equipment to remove any remaining dust from the
surface of the filter. If you don’t have one, gently clean the
filter using a very soft brush (such as a clean artist’s
paintbrush).

If the dirt is difficult to remove or the filter is broken, replace
it. You can purchase air filter part number V13H134A38 from
an authorized Epson reseller. To find the nearest reseller, please
call 800-GO-EPSON (800-463-7766). To purchase online, visit www.epsonstore.com
(U.S. sales) or www.epson.ca (Canadian sales).

7. Insert the air filter as shown.

8. Slide the air filter holder back into place.

Maintenance 63

Replacing the Lamp

The projection lamp lasts for up to 4000 hours in Normal mode. You can use the Info menu
to check how long it’s been in use (see page 67). It’s time to replace the lamp when:

■ The projected image gets darker or starts to deteriorate.

■ The projector’s lamp light flashes orange or red at half-second intervals.

■ The message Replace the lamp appears on the screen when you start projecting.

Note: Lamp life results will vary depending on mode selected, environmental conditions, and
usage.

Turn off this product when not in use to prolong the life of the projector.

You can purchase lamp part number V12H010L68 from an authorized Epson reseller. To
find the nearest reseller, please call 800-GO-EPSON (800-463-7766). To purchase online,
visit www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales).

Be sure to read the “Important Safety Information” on page 84 before replacing the lamp.

Warning: Let the lamp cool fully (about 1 hour) before replacing it. In the unlikely event that the
lamp has broken, small glass fragments may be present and should be removed carefully to avoid
injury.

Caution: Never touch the glass portion of the lamp with your bare hands; the invisible residue left
by the oil on your hands may shorten the lamp life. Use a cloth or glove to handle the new lamp.

Follow these steps to replace the lamp:

1. If the projector is on, press the P power button on the projector twice or the
button on the remote control and wait for the light to stop flashing.

2. Unplug the power cord and any cables.

3. Wait about an hour to make sure the lamp is no longer hot.

4. Loosen the screw securing the lamp cover.

64 Maintenance

Standby

5. Remove the lamp cover as shown.

6. Loosen the screws securing the lamp (they don’t come all the way out).

7. Lift up the lamp handle and gently pull the lamp out of the projector.

Warning: The lamp(s) in this product contain mercury. Please consult your state and local
regulations regarding disposal or recycling. Do not put in the trash.

Maintenance 65

8. Gently insert the new lamp into the projector and press the handle down. Tighten the
screws.

Caution: Don’t touch the glass portion of the lamp assembly. Touching the glass could result
in premature lamp failure.

9. Replace the lamp cover. (The projector won’t work if the lamp cover is open or loose.)

10. Tighten the lamp cover screw.

11. Reset the lamp usage timer, as described on page 67.

66 Maintenance

Resetting the Lamp Usage Timer

After replacing the lamp, plug the projector back in and press the Ppower button on the
projector or the
usage timer:

On button on the remote control. Then follow these steps to reset the lamp

1. Press the

2. Use the menu navigation buttons to open the

Hours

3. When you see a confirmation prompt, highlight

4. When you’re finished, press the

Menu button on the projector or remote control.

Reset menu, then select Reset Lamp

.

Yes and press the Enter button.

Menu button to exit.

The lamp usage timer shows 0H until you’ve used the lamp for at least 10 hours.

Checking the Projector Status

You can use the Info menu to view information about the current display settings and how
long the projection lamp has been in use. To access the Info menu:

1. Press the

2. Use the menu navigation buttons to open the
appears:

■ Lamp Hours ■ 3D Format

■ Source ■ Sync Info

Menu button on the projector or remote control.

Info menu. The following information

■ Input Signal ■ Video Signal

■ Resolution ■ Deep Color (color depth)

■ Scan Mode ■ Status (error information)

■ Refresh Rate ■ Serial Number

Note: The information displayed depends on the currently selected image source. The Lamp
Hours shows 0H until you’ve used the lamp for at least 10 hours.

The resolution indicates the total number of scan lines in the source signal. The number of visible
scan lines depends on the signal format standard and selected display settings (see page 81).

Maintenance 67

Storing the Projector

If you need to store the projector for an extended time, do the following:

■ Make sure the temperature of the storage area is within 14 to 140 °F (–10 to 60 °C).

■ Attach the lens cover and retract the feet.

■ Remove the batteries from the remote control.

■ Pack the projector in its original packaging or equivalent.

Transporting the Projector

Note: Epson shall not be liable for any damages incurred during transportation.

The projector contains many glass and precision parts. When shipping the projector for
repairs, use the original packaging material if possible. If you do not have the original
packaging, use equivalent materials. Do not used materials that can become lodged in the
projector vents. Be sure the carrier is capable of transporting fragile equipment and is aware
that the projector is fragile.

68 Maintenance

Problem Solving

This section explains how to interpret the projector’s status lights, solve problems with the
picture and remote control, and contact technical support.

What To Do When the Lights Come On or Flash

The lights on top of the projector indicate the projector’s status and let you know when a
problem occurs.

If the projector isn’t working correctly, first press the P power button, let the projector cool
down, and unplug the power cord. Then plug the power cord back in and turn on the
projector. If this doesn’t solve the problem, check the status lights on top of the projector.

Note: If the power button and light don’t come on, they may have been turned off using the

Illumination setting (see page 54).

Lights indicating normal operation

Light state Cause and solution

All lights are off The projector is turned off. If necessary, connect the power cord.

Power button is on,
power light is off

The projector is in standby mode. Press the
the projector or the

On button on the remote control to turn it on.

Ppower button on

Problem Solving 69

Lights indicating normal operation

Light state Cause and solution

Power button is on,
power light flashes
blue

The projector is warming up. Wait for the picture to appear.

The projector is cooling down. Wait until the power light stops
flashing and remains off. Then unplug the projector, or press the

Ppower button on the projector or the On button on the remote

control to turn it back on.

Power button and
power light are on

Projection is in progress.

Lights indicating a problem

Light state Cause and solution

All lights are off The projector is not receiving power. Make sure the power cord is

connected securely at both ends.

The temperature
light flashes
orange

The temperature
light is red

The lamp light
flashes orange

High-speed cooling is in progress. If the temperature rises
further, projection will stop automatically. Make sure there is
plenty of space around the projector for ventilation. Clean or
replace the air filter if necessary (see page 62).

If you are using the projector at an altitude above 4921 feet (1500
meters), turn on High Altitude Mode so the fan can cool the
projector properly (see page 55).

The projector is too hot, which turns off the lamp automatically.
Let the projector cool for five minutes, then turn it back on. Make
sure there is plenty of space around the projector for ventilation.
Also, clean or replace the filter if necessary (see page 62).

If you are using the projector at an altitude above 4921 feet (1500
meters), turn on High Altitude Mode so the fan can cool the
projector properly (see page 55).

The lamp needs to be replaced.

The lamp light
flashes red

70 Problem Solving

There is a problem with the lamp. If you just replaced the lamp,
make sure the lamp and its cover are securely installed (see
page 64). Turn off the projector and unplug it from the electrical
outlet. Wait for the lamp to cool. then remove the lamp and check
it for cracks. If the lamp isn’t cracked, reinstall it, plug the
projector into an outlet, and turn the power on. If this doesn’t fix
the problem, or if the lamp is cracked, contact Epson for
assistance (see page 77).

Lights indicating a problem

Light state Cause and solution

The temperature
light flashes red

There is a fan or sensor problem. Turn off the projector and
unplug it from the electrical outlet. Then contact Epson for
assistance (see page 77).

Both warning
lights are flashing
red

There is an internal problem. Turn off the projector and unplug it
from the electrical outlet. Then contact Epson for assistance (see
page 77).

Solving Picture Problems

You cannot turn on the projector.

■ Make sure the power cord is connected. Then wait a moment for the Ppower button to

light up before pressing the Ppower button on the projector or the
remote control.

■ If you’ve set the Control Panel Lock, the control panel buttons are disabled; you must

use the remote control to turn on the projector (see page 36).

■ If you’ve set the Child Lock, you have to press the Ppower button on the projector for 3

seconds to turn on the projector, or use the remote control (see page 36).

No picture appears on the screen or you see the

■ Press one of the Source buttons on the remote control, or press the Source button

No Signal message displayed.

on the projector, to select the correct input source. Allow a few seconds for the projector
to sync up after pressing the button.

On button on the

■ Press the A/V Mute button on the remote control to make sure the picture hasn’t been

turned off temporarily.

■ Check that the power light is on and not flashing, and the lens cover is off.

■ The projector may be in standby (or sleep) mode. If the Ppower button is lit and the

power light is off, press the Ppower button to turn the projector back on.

■ Make sure your video equipment is turned on.

■ Make sure your cable(s) are connected correctly (see page 18).

Problem Solving 71

3D content does not display or does not display correctly.

■ Press the 2D/3D button on the remote control to switch to 3D viewing mode, if

necessary.

■ Make sure that you are within the 3D viewing range (see page 12).

■ Check that your video device and media are both 3D-compatible. Refer to the

documentation that came with your video device for more information.

■ Press the Menu button on the remote control, select the Signal menu, then 3D Setup,

then select

■ Make sure that the Inverse 3D Glasses option is set to No (see page 45).

■ If your video device is connected with the WirelessHD Transmitter (PowerLite Home

3D Format. Make sure that the Auto option is selected.

Cinema 3010e only), see page 75.

Only part of the picture is displayed, or the picture is distorted.

■ Press the Aspect button on the remote control to select a different aspect ratio (see

page 27).

■ If the Aspect is set to Zoom, you may need to use the Zoom Caption Pos. option to see

the top or bottom section of the screen so that subtitles are visible (see page 53).

■ Check the Overscan to make sure it’s adjusted correctly (see page 52).

■ Use the Position setting to reposition the image on the screen (see page 52).

■ If you’ve connected a computer and you see only half the image, make sure the

computer’s Dual Display setting is turned off.

■ If part of the image is cut off, reset the projector settings (see page 51).

■ If your video device is connected with the WirelessHD Transmitter (PowerLite Home

Cinema 3010e only), make sure you are within the wireless transmission range (see
page 56).

You’re using a computer and no picture appears on the screen.

If you’re using a Windows

■ Press the function key that lets you display on an external monitor. It’s often labeled with

an icon such as , but it may also be labeled
the

Fn key while pressing it. Check your laptop’s manual or online help.

On most systems, the key lets you toggle between the LCD screen and the
projector, or display on both at the same time. Allow a few seconds for the projector to
sync up after pressing it.

72 Problem Solving

®

laptop:

CRT/LCD. You may have to hold down

■ If the function key doesn’t let you display simultaneously on both screens, you might

need to use the Display utility in the Windows Control Panel to make sure that both the
LCD screen and external monitor port are enabled. From the Windows Control Panel,
open the
then click
computer; you may need to click a

Display utility. In the Display Properties dialog box, click the Settings tab,

Advanced. The method for adjusting the setting varies from computer to

Monitor tab, then make sure the external Monitor

port is set as your primary display or enabled. See your computer manual or online help
for details.

If you’re using Mac OS X:

1. Open the

2. Select the

3. Click the

4. Check the

System Preferences utility and select Displays.

VGA Display or Color LCD option, if necessary.

Arrange or Arrangement tab.

Mirror Displays checkbox. (See your computer manual for details.)

The picture is upside-down or reversed.

Change the

Projection setting in the Settings menu (see page 54).

The picture isn’t rectangular.

■ If the image looks like or , the projector has been placed off to one side of the

screen and angled toward it. Face the projector straight ahead (instead of at the center of
the screen), then use the horizontal keystone slider to correct the image (see page 24).

■ If the image looks like or , make sure the projector is not tilted up or down, then

use the vertical keystone buttons to adjust the image (see page 24).

The picture contains static or noise.

■ Make sure the Input Signal is set correctly for your connected video equipment (see

page 54).

■ If you’re viewing still images and you notice flickering or horizontal lines, turn on the

Progressive setting (see page 42).

■ Make sure your cables are securely connected at both ends.

■ If you’re using an extension cable, you may pick up interference if the cable is not

adequately shielded. You may need to use a signal amplifier for longer cables.

■ If you’re displaying the same image on your computer and projector screen, try turning

off your laptop’s LCD display (see page 72).

Problem Solving 73

The picture is blurry.

■ Make sure the Input Signal is set correctly for your video equipment (see page 54).

■ There may be dirt on the lens. Clean the lens as described on page 60.

■ Adjust the focus (see page 26).

■ Make sure the lens is not fogged by condensation. If you’ve just moved the projector from

a cold environment, wait a couple of minutes before using it.

■ Adjust the Sharpness setting (see page 41).

■ If you’re projecting from a computer, you may need to adjust the Tracking and Sync

settings (see page 46).

The colors on the screen don’t look right.

■ Make sure the Input Signal is set correctly for your connected video equipment (see

page 54).

■ Press the Color Mode button on the remote control to select a different color mode (see

page 32).

■ Check the brightness and contrast settings (see page 39).

■ Fine-tune the colors with the settings listed on page 43.

■ If the picture looks dark, you may need to replace the lamp. Check the lamp usage timer

to see how long the lamp has been in use (see page 67). Replace the lamp if it’s close to
the end of its service life (see page 64).

74 Problem Solving

Solving Remote Control Problems

The projector doesn’t respond to remote control commands.

■ Make sure you’re within about 32 feet (10 m) of the projector, and the remote control is

aimed at the projector’s front or back sensor within the ranges shown below.

32 ft (10 m)

■ You may need to replace the remote control batteries (see page 21). Press the

32 ft (10 m)

32 ft (10 m)32 ft (10 m)

illumination button and check if the buttons glow. If they don’t, replace the batteries.

■ Dim the room lights and turn off any fluorescent lights. Make sure the projector is not in

direct sunlight.

■ Turn off nearby equipment that emits infrared energy, such as a radiant room heater.

■ Make sure there are no objects between the remote control and the IR receiver.

Solving WirelessHD Problems

The projector cannot display images from the WirelessHD Transmitter.

■ Open the WirelessHD reception monitor and check the strength of the WirelessHD

signal (see page 47). If the signal is weak, you may need to move the transmitter closer to
the projector or remove any large objects located between the transmitter and the
projector.

Problem Solving 75

■ Make sure that your projector is connected to the correct WirelessHD device.

See“WirelessHD Settings” on page 47 for more information.

■ You may need to reset the WirelessHD connection. Turn off both the WirelessHD

Transmitter and the projector. Start playback on your video device, then turn on the
WirelessHD Transmitter and the projector. Wait 10 seconds, then press the

Setup

button on the back of the transmitter.

■ Make sure the WirelessHD Transmitter is not placed on a metal surface, as this may

interfere with the signal.

■ If the green and orange lights on the transmitter are flashing, the unit may be

overheating. Make sure the vents on the back of the transmitter are not blocked and that
the room temperature does not exceed 95 °F (35 °C).

WirelessHD images are displayed, but the picture quality is low.

The resolution and overall image quality are automatically adjusted based on the strength of
the WirelessHD signal. Check the WirelessHD reception (see page 47) and adjust the
position of the transmitter, if necessary.

76 Problem Solving

Where to Get Help

Internet Support

Epson provides technical assistance 24 hours a day at epson.com/support (U.S.) or

epson.ca/support (Canada). Here you can access troubleshooting information, download

product documentation, and receive technical advice through email.

Speak to a Support Representative

To use the Epson PrivateLine Support service, call [phone] and enter the PIN on the
Epson PrivateLine Support card that came with your projector. This is the fastest way of
speaking to a live representative, and it’s free. This service is available 6
Time, Monday through Friday, for the duration of your warranty period.

You may also speak with a projector support specialist by dialing one of these numbers:

■ U.S.: [phone], 6 AM to 8 PM, Pacific Time, Monday through Friday, and 7 AM to

PM, Pacific Time, Saturday

4

■ Canada: [phone], 6 AM to 8 PM, Pacific Time, Monday through Friday

Days and hours of support are subject to change without notice. Toll or long distance charges
may apply.

Before you call, please have the following information ready:

AM to 6 PM, Pacific

■ Product name (PowerLite Home Cinema 3010 or PowerLite Home Cinema 3010e)

■ Product serial number (located on the bottom of the projector or in the projector’s Info

menu)

■ Computer configuration, if you’re connected to a computer

■ Description of the problem

Purchase Supplies and Accessories

You can purchase screens, carrying cases, or other accessories from an authorized Epson
reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). To purchase
online, visit www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales).

Problem Solving 77

Specifications

General

Type of display Poly-silicon TFT active matrix

Size of LCD panels 0.61 inch (15.5 mm) wide

Lens F=1.51 to 1.99

Resolution
(native format) 1920 × 1080 pixels, 1080p

Brightness Normal mode:

White light output up to 2200 lumens (ISO 21118 standard)
Color light output up to 2200 lumens

ECO mode:
White light output up to 1000 lumens

Dynamic contrast ratio 2D:

Up to 40,000:1

3D:
Up to 1,600:1

Image size 30 to 300 inches (0.76 to 7.62 m)

Projection distance 2.85 to 47.57 feet (0.87 to 14.50 m)

Zoom ratio 1 to 1.6

Aspect ratio 16:9 (supports 4:3 to 16:10)

Internal sound system 10 W per channel (stereo)

Fan noise level Normal mode:

Lamp

Note: Lamp life will vary depending on mode selected, environmental conditions, and usage.
Brightness decreases over time.

Turn off this product when not in use to prolong the life of the projector.

Type UHE (Ultra High Efficiency), E-TORL

78 Specifications

32 dB

ECO mode:
24 dB

Power consumption 230 W

Lamp life 4000 hours (Normal mode)

5000 hours (ECO mode)

Part number V12H010L68

Remote Control

Range Approximately 32 feet (10 m)

Batteries AA × 2

WirelessHD Transmitter (Home Cinema 3010e only)

Usable frequency 60 GHz band (2 – 3 ch)

AC adapter 4.75 – 5.25 V DC

Transmission range 32 feet (10 m)

WirelessHD standards Conforms to WirelessHD Ver. 1.0a

Power consumptions During operation:

5.6 W

During standby:

0.71 W

Operating temperature 41 to 95 °F (5 to 35 °C)

Copyright protection HDCP compatible

Dimensions Height:

2.3 inches (59 mm)

Width:

6.1 inches (157 mm)

Depth:

2.4 inches (61 mm)

Weight Approx. 0.4 lb (0.2 kg)

Dimensions

Height 5.4 inches (137.3 mm), not including adjustable feet

Width 14.4 inches (365 mm)

Depth 16.5 inches (420 mm); not including lens protrusion

Weight 13.2 lb (6.0 kg) (Home Cinema 3010)

13.7 lb (6.2 kg) (Home Cinema 3010e)

Specifications 79

Electrical

Rated frequency 50/60 Hz AC

Power supply 100 to 120 V AC:

3.7 A

200 to 240 V AC:

1.7 A

Power consumption 100 to 120 V AC:

Operating:
372 W (Normal mode)
285 W (ECO mode)
Standby:

0.25 W (with HDMI Link enabled)

220 to 240 V AC:

Operating:
358 W (Normal mode)
274 W (ECO mode)
Standby:

0.35 W (with HDMI Link enabled)

Environmental

Temperature Operating: 41 to 95 °F (5 to 35 °C)

Storage: 14 to 140 °F (–10 to 60 °C)

Humidity Operating: 20 to 80% RH, non-condensing

Storage: 10 to 90% RH, non-condensing

Operating altitude Up to 7500 feet (2286 meters);

over 4921 feet (1500 meters), enable High Altitude mode
in the Operation menu (see page 55)

Safety

United States FCC Part 15B Class B (DoC)

Canada ICES-003 Class B

80 Specifications

UL60950-1 2

CSA C22.2 No. 60950-1-07

Pixelworks DNX

nd

edition

™

ICs are used in this projector.

Compatible Video Formats

The projector supports analog video in NTSC, PAL, and SECAM formats, and it automatically adjusts
to the incoming signal. It can receive these formats as composite or component video—which it accepts
through the Video and Component ports, respectively.

The projector also supports digital video (SDTV, HDTV) and various monitor display formats. Digital
video is accepted by the HDMI and Component video ports. The PC port accepts analog RGB
computer monitor signals.

If necessary, you can select a different Aspect setting to optimize the image. The resolution at which the
image displays for a given setting depends on the currently active picture source, as listed in the
following tables.

Composite video

Format

NTSC 60 720 × 480

PAL 50/60 720 × 576

SECAM 50 720 × 576

Component video

Format/
Signal

SDTV

480i
576i
480p
576p

HDTV

720p
1080i
1080p

Refresh rate (Hz)

Refresh rate (Hz)

60
50
60
50

50/60
50/60
50/60

Resolution

Resolution

720 × 480
720 × 576
720 × 480
720 × 576

1280 × 720
1920 × 1080
1920 × 1080

Specifications 81

Analog RGB (computer display)

Signal Refresh rate (Hz) Resolution

VGA 60/72/75/85 640 × 480

56/60/72/

SVGA

XGA 60/70/75/85 1024 × 768

SXGA

WXGA

75/85 800 × 600

70/75/85
60/75/85
60/75/85

60
60
60/75/85

1152 × 864
1280 × 960
1280 × 1024

1280 × 768
1360 × 768
1280 × 800

HDMI

Signal Refresh rate (Hz) Resolution

VGA 60 640 × 480

SDTV
480i
576i
480p
576p

HDTV
720p
1080i
1080p

60
50
60
50

50/60
50/60
24/50/60

720 × 480
720 × 576
720 × 480
720 × 576

1280 × 720
1920 × 1080
1920 × 1080

3D mode

Signal Refresh rate (Hz) Resolution

HDTV
720p
1080i
1080p

WirelessHD

Signal Refresh rate (Hz) Resolution

VGA 60 640 × 480

SDTV
480i
576i
480p
576p

82 Specifications

50/60
50/60
24/50/60

60
50
60
50

1280 × 720
1920 × 1080
1920 × 1080

720 × 480
720 × 576
720 × 480
720 × 576

Signal Refresh rate (Hz) Resolution

HDTV
720p
1080i
1080p

50/60
50/60
24/50/60

1280 × 720
1920 × 1080
1920 × 1080

ESC/VP21 Command Codes

You can use an AV controller with a 9-pin null modem serial cable to control the projector. You can
download the complete ESC/VP 21 Communication Manual for home theater projectors from the
Epson website at epson.com/support (U.S.) or epson.ca/support (Canada).

Specifications 83

Notices

Important Safety Information

Follow these safety instructions when setting up and using the projector:

■ Never look into the projector lens when the lamp is turned on; the bright light can damage your

eyes. Never let children look into the lens when it is on.

■ If you or any viewer experiences the following symptoms or other major discomfort from viewing

3D video images, immediately stop viewing and contact your health care provider: convulsions,
eye or muscle twitching, loss of awareness, altered vision, involuntary movements, disorientation,
eye strain, nausea/vomiting, dizziness, headaches, fatigue, or blurry/double vision that lasts longer
than few seconds. Do not engage in any potentially hazardous activity (such as driving a vehicle or
operating machinery) until your symptoms have completely gone away. If the symptoms persist,
discontinue use and do not resume stereoscopic 3D viewing without discussing your symptoms
with a health care provider / physician.

■ Some viewers may experience a seizure or blackout when exposed to flashing images or lights

contained in certain 3D content. Anyone who has a history of seizures, loss of awareness,
symptoms linked to an epileptic condition, or has a family history of epilepsy, should contact a
health care provider before using the 3D function. It is recommended that all viewers take regular
breaks while watching 3D video images or playing stereoscopic 3D games. The suggested breaks
are, at least 5 to 15 minutes after every 30 to 60 minutes of stereoscopic 3D content viewing.*

■ Due to the possible impact on vision development, viewers of 3D video images should be age 6 or

■ Watching the screen while sitting too close for an extended period of time may cause eye strain.

■ Viewing 3D content may cause dizziness and disorientation for some viewers. Therefore, to avoid

84 Notices

*Based on the guidelines issued by the 3D Consortium revised December 10, 2008. The length
and frequency of necessary breaks will vary from person to person. If you experience any
discomfort, you should immediately stop watching the 3D video images or playing stereoscopic
3D games until the discomfort ends; consult a heath care provider / physician if necessary.

older. Children and teenagers may be more susceptible to health issues associated with viewing in
3D and should be closely supervised to avoid prolonged viewing without rest.

Consult your projector manual to determine the ideal viewing distance.

injury do not place your projector or screen near open stairwells, balconies, or wires, and do not sit
near objects that could be broken if accidentally hit.

■ The following people should limit 3D content viewing:

People with a history of photosensitivity
People with heart disease
People in poor health
People who are sleep deprived
People who are physically tired
People under the influence of drugs or alcohol
Anyone who has ever experienced epileptic seizures or sensory disturbances triggered by flashing
light effects
SOME LIGHT PATTERNS MAY INDUCE SEIZURES IN PERSONS WITH NO PRIOR
HISTORY OF EPILEPSY.

■ Never open any cover on the projector, except the lamp and filter covers. Dangerous electrical

voltages inside the projector can severely injure you.

■ Except as specifically explained in this User’s Guide, do not attempt to service this product

yourself. Refer all servicing to qualified service personnel.

■ The projector and its accessories come packaged in plastic bags. Keep plastic bags away from small

children to avoid any risk of suffocation.

■ Don’t place the projector on an unstable cart, stand, or table. Also, don’t use the projector near

water or sources of heat.

■ Use the type of power source indicated on the projector. If you’re not sure of the power available,

consult your dealer or power company.

■ Place the projector near a wall outlet where the plug can be easily unplugged.

■ Don’t insert the plug into an outlet with dust present, and insert the plug firmly into the outlet.

Failure to do so could result in sparks or fire.

■ Don’t overload wall outlets, extension cords, or integral convenience receptacles. This can cause

fire or electric shock.

■ Don’t block the slots and openings in the projector case. They provide ventilation and prevent the

projector from overheating. Don’t operate the projector on a sofa, rug, or other soft surface, or in a
closed-in cabinet unless proper ventilation is provided.

■ Never push objects through the cabinet slots or spill liquid into the projector.

■ Unplug the projector from the wall outlet and refer servicing to qualified service personnel under

the following conditions: when the power cord or plug is damaged or frayed; if liquid has been
spilled into the projector, or if it has been exposed to rain or water; if it doesn’t operate normally
when you follow the operating instructions, or if it exhibits a distinct change in performance,
indicating a need for service; if it has been dropped or the housing has been damaged.

■ Don’t place the projector where the cord can be walked on. This may result in fraying or damage

to the plug.

■ Unplug the projector from the wall outlet before cleaning. Use a damp cloth for cleaning. Do not

use liquid or aerosol cleaners.

■ The lamp(s) in this product contain mercury. Please consult your state and local regulations

regarding disposal or recycling. Do not put in the trash.

Notices 85

■ Allow the lamp to cool for one hour before replacing it.

■ Unplug the projector during lightning storms or when not in use for extended periods.

■ Don’t place the projector or remote control on top of heat-producing equipment.

■ If you use the projector in a country other than where you purchased it, use the correct power cord

for that country.

■ Don’t stand on the projector or place heavy objects on it.

■ Don’t use the projector outside of the required temperature range of 41 to 95 °F

(5 to 35 °C). Doing so may cause an unstable display and could lead to projector damage.

■ Don’t store the projector outside of the required temperature range of 14 to 140 °F

(–10 to 60 °C) or in direct sunlight for long periods of time. Doing so may cause damage
to the case.

WARNING: The cords included with this product contain chemicals, including lead, known to the
State of California to cause birth defects or other reproductive harm. Wash hands after handling. (This
notice is provided in accordance with Proposition 65 in Cal. Health & Safety Code § 25249.5 and
following.)

FCC Compliance Statement

For United States Users

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio or television reception. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause interference to radio
and television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.

■ Increase the separation between the equipment and receiver.

■ Connect the equipment into an outlet on a circuit different from that to which the receiver is

■ Consult the dealer or an experienced radio/TV technician for help.

The connection of a non-shielded equipment interface cable to this equipment will invalidate the FCC
Certification of this device and may cause interference levels which exceed the limits established by the
FCC for this equipment. It is the responsibility of the user to obtain and use a shielded equipment

86 Notices

connected.

WARNING

interface cable with this device. If this equipment has more than one interface connector, do not leave
cables connected to unused interfaces. Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.

For Canadian Users

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le materiel brouilleur du
Canada.

Copyright Notice

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or
otherwise, without the prior written permission of Seiko Epson Corporation. The information
contained herein is designed only for use with this Epson product. Epson is not responsible for any use
of this information as applied to other products.

Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or
third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of:
accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this
product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation’s operating
and maintenance instructions.

Seiko Epson Corporation shall not be liable for any damages or problems arising from the use of any
options or any consumable products other than those designated as Original Epson Products or Epson
Approved Products by Seiko Epson Corporation.

A Note Concerning Responsible Use of Copyrighted Materials

Epson encourages each user to be responsible and respectful of copyright laws when using any Epson
product. While some countries’ laws permit limited copying or reuse of copyrighted material in certain
circumstances, those circumstances may not be as broad as some people assume. Contact your legal
advisor for any questions regarding copyright law.

Notices 87

Trademarks

Epson, PowerLite, and C2Fine are registered trademarks, 1080Perfect is a trademark, and Epson Exceed Your
Vision is a registered logomark of Seiko Epson Corporation.

PrivateLine is a registered trademark, DigiScan and AccuCinema are trademarks, and Extra Care and Epson
Connection are service marks of Epson America, Inc.

HDMI, the HDMI logo, and High-Definition Multimedia Interface are registered trademarks
of HDMI Licensing, LLC.

WirelessHD is a registered trademark of WirelessHD LLC.

General Notice: Other product names used herein are for identification purposes only and
may be trademarks of their respective owners. Epson disclaims any and all rights in those
marks.

This information is subject to change without notice.

© 2011 Epson America, Inc. 8/11

88 Notices

CPD-35204
