Epson 1640XL User Manual 2

Color Graphics Scanner

User’s Guide

Copyright Notice

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of SEIKO EPSON CORPORATION. The information contained herein is designed only for use with this EPSON scanner. EPSON is not responsible for any use of this information as applied to other scanners.

Neither SEIKO EPSON CORPORATION nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly comply with SEIKO EPSON CORPORATION’s operating and maintenance instructions.

SEIKO EPSON CORPORATION shall not be liable for any damages or problems arising from the use of any options or any consumable products other than those designated as Original EPSON Products or EPSON Approved Products by SEIKO EPSON CORPORATION.

A Note Concerning Responsible Use of Copyrighted Materials

Digital cameras and scanners, like photocopiers and conventional scanners, can be misused by improper copying of copyrighted material. While some countries’ laws permit limited copying of copyrighted material in certain circumstances, those circumstances may not be as broad as some people assume. EPSON encourages each user to be responsible and respectful of the copyright laws when using digital cameras and scanners.

Trademarks

EPSON and EPSON Stylus are registered trademarks of SEIKO EPSON CORPORATION Micro Step Drive and MatrixCCD are trademarks, and Expression and ColorTrue are registered trademarks of Epson America, Inc.

General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective owners. EPSON disclaims any and all rights in those marks.

8/00

Printed on recycled paper.

Contents9

CHAPTER 1 WELCOME 1

About Your Scanner

About Your Software

Getting More Information

Warnings, Cautions, Notes, and Tips

Reading Your Reference Guide

Viewing Your Other Electronic Manuals

Registering

CHAPTER 2 SETTING UP YOUR SCANNER 11

Unpacking Your Scanner

Choosing a Good Place for Your Scanner

Identifying Scanner Parts

Unlocking the Scanner

Attaching the Document Guide Strip

Testing Your Scanner’s Operation

Connecting the Scanner to Your Computer

Connecting to a USB Interface

12 13 14 15 16 17 18 19

1 2 3 4 5 7 9

Connecting to a SCSI Interface

Connecting to an IEEE 1394 FireWire Interface

Installing the Windows Software

Installing the Windows 2000 Software

Installing the Windows 98 Software

Installing the Windows 95 Software

Installing the Windows NT 4.0 Software

20 22 23 23 30 35 40

i

Installing Additional Windows Software 43

Installing Adobe Photoshop LE 43 Installing MonacoEZcolor 43 Installing ScanSoft TextBridge Pro 44

Installing the Macintosh Software 45

Starting the Macintosh Software Installation 45 Installing Other Software on Your Scanning Tools CD-ROM 47 Installing Adobe Photoshop LE 48 Installing MonacoEZcolor 48 Selecting the Expression 1640XL as Your Default Scanner 49

CHAPTER 3 HOW TO SCAN 51

Scanning Tips 51

Selecting Resolution 51 Scaling (Resizing) Images 52 Scanning Color Images 52 Batch Scanning 53

ii

Document Guide 53 Recommended Settings 54

Step-by-Step Scanning Instructions 55

Placing Your Original Document 55 Scanning with EPSON TWAIN Pro 56

Using the

Setting Up the Setting Up Presto! PageManager for One-Touch Scanning 61

] Start Button 58

Using the Document Guide 64

Installing the Document Guide 65 Scanning with the Document Guide 66 Calculating the Adjustment Angle 68 Scanning Your Aligned Document 69 Using the Clear Document Guide 70

CHAPTER 4 NETWORK SCANNING 71

Setting Up the Scanner Server 72

Installing the Scanner Server Software on Windows 2000 73 Installing the Scanner Server Software on Windows 98 78

Installing the Scanner Server Software on Windows 95 and

Windows NT 4.0 84 Starting the Scanner Server Installation on Windows 95 85 Starting the Scanner Server Installation on Windows NT 4.0 86

Finishing the Scanner Server Installation (Windows 95 and

Windows NT 4.0) 87 Changing the Scan Server Start Up Mode 91

Setting Up Client Computers 92

Installing EPSON TWAIN Pro Network on Windows 92 Installing EPSON TWAIN Pro Network on a Macintosh 95

Using a Network Scanner 98

Starting EPSON Scan Server 99 Starting EPSON TWAIN Pro Network 100 Starting a Scan 101 Stopping a Scan in Progress 102

iii

CHAPTER 5 USING OPTIONAL EQUIPMENT 103

Transparency Unit 103

Unpacking the Transparency Unit 104 Removing the Shipping Screw 105 Installing the Transparency Unit 105 Using the Film Guides 107 Scanning Reflective Documents 112 Adjusting the Transparency Guide Scanning Angle 113

Automatic Document Feeder 114

Unpacking the Automatic Document Feeder 114 Installing the Automatic Document Feeder 115 Loading Paper in the Automatic Document Feeder 118 Fixing Paper Jams 120

IEEE 1394 FireWire Scanner Interface Card 122

Installing the Card in Your Scanner 122

CHAPTER 6 SCANNER MAINTENANCE 125

iv

Transporting the Scanner 125 Transporting the Transparency Unit 126 Cleaning the Scanner 127

CHAPTER7 SOLVING PROBLEMS 129

Lights and Buttons 129 Problems and Solutions 131

Setup Problems 131 Scanner Problems 133 Software Problems 134 Scanning Problems 136

Uninstalling the Expression 1640XL Software 141

Uninstalling EPSON TWAIN Pro 141 Uninstalling EPSON TWAIN Pro Network 142 Uninstalling EPSON Scan Server 143

Where To Get Help 144

EPSON Technical Support 144 Software Technical Support 145

APPENDIX A SPECIFICATIONS 147

APPENDIX B INSTALLING THE TCP/IP PROTOCOL 153

Installing the TCP/IP Protocol on Windows 2000 154 Installing the TCP/IP Protocol on Windows 95 and Windows 98 155

Assigning an IP Address for Windows 95 and Windows 98 (First Release) 156

Installing the TCP/IP Protocol on Windows NT 4.0 158

Assigning an IP Address on Windows NT 4.0 159

APPENDIX C NOTICES 161

System Requirements 161

Windows 161 Macintosh 162

Important Safety Instructions 163 ENERGY STAR Compliance 164 Declaration of Conformity 165 FCC Compliance Statement 166

For United States Users 166 Warning 166 For Canadian Users 166

INDEX 169

v

vi

Welcome

The EPSON® Expression® 1640XL is a 42-bit color, large-format professional scanner designed to meet the needs of graphic arts professionals, and business graphics users. It’s ideally suited for small LAN (Local Area Network) users who want to share a scanner within their workgroup. Using EPSON’s ColorTrue® II Imaging System, it reproduces images with amazingly accurate detail

and color. Your scanner can achieve up to 1600 × 3200 dpi hardware resolution with EPSON’s proprietary Micro Step Drive™ technology, and is one of the fastest scanners in its class.

About Your Scanner

Your EPSON Expression 1640XL scanner comes with these features:

■ Superior image quality with remarkable 1600 × 3200 dpi hardware resolution

■ 42-bit color and 3.6 Dmax optical density

■ Start button for easy, automated scanning

■ Fully automatic and manual focusing control

■ Can be shared by users in a network configuration

■ USB and SCSI 2 interfaces standard, and IEEE 1394 OHCI-compliant

FireWire® option

■ Optional transparency unit, automatic document feeder, and IEEE 1394

FireWire scanner interface card

1

About Your Software

The EPSON Expression 1640XL scanner includes these leading-edge applications for professional-quality scans:

EPSON TWAIN Pro

Exclusive professional-quality scanner driver with powerful features for controlling every aspect of your scan. Includes Auto Area Segmentation (AAS) to separate text from background colors, and Text Enhancement Technology (TET) for more accurate OCR scanning.

EPSON Scan Server (PC only)

Enables you to share the Expression 1640XL with other users in a networked workgroup.

EPSON TWAIN Pro Network

This network version of EPSON TWAIN Pro lets client computers use the Expression 1640XL when it’s attached to another computer. Includes an Unsharp Mask option to automatically sharpen images and a Descreening option to remove unwanted moiré patterns (EPSON Scan Server must be installed on the computer sharing the scanner.)

2

Adobe® Photoshop® LE

Edit your photos with this version of the ultimate imaging application. Add special effects, overlay titles and captions, restore old photos, and add many other creative enhancements to your photographs.

Adobe Acrobat®

This software allows you to read the electronic manuals that are included on your CDs as described in the following section.

Reader

ScanSoft TextBridge® Pro

Use the premiere OCR (Optical Character Recognition) software to turn your paper documents into electronic text without retyping.

NewSoft™ Presto!™ PageManager for EPSON

After you’ve scanned your paper documents, use this leading document management software to organize, file, edit, copy, fax, and e-mail them from one convenient screen.

MonacoEZcolor™

Simplify the process of color management by creating customized color profiles for your scanner, monitor, and printer with this easy-to-use ICC profiling tool.

Getting More Information

There are several ways to learn more about your EPSON Expression 1640XL. In addition to the printed materials, help utilities and electronic manuals are available on your computer and CD-ROMs. Here’s where to look for help:

■ Checklist

Read the checklist for your scanner model to make sure you have everything. If anything is missing, call EPSON at (562) 276-4382 (United States) or (905) 709-3839 (Canada).

■ EPSON Expression 1640XL Online Reference Guide

Provides detailed information about EPSON TWAIN Pro, including troubleshooting tips. You must have a web browser (Netscape Navigator® or Microsoft® Internet Explorer, versions 3.0 or later) on your computer to read this guide. See page 5 for instructions on viewing your Reference Guide.

3

■

On-Screen Help

Most of the applications that come with your scanner include on-screen help. For EPSON TWAIN Pro, just click the button or select Help from the menu.

■

Electronic Documents

Several of the applications that came with your scanner include electronic manuals in the Adobe Acrobat®

Manuals

folder on the EPSON Expression 1640XL Scanning Tools CD-ROM,

PDF format. You’ll find electronic user’s guides in the

as well as in the product folders. See page 7 for instructions on locating and viewing your Acrobat manuals.

If none of these sources answers your questions, please see “Where To Get Help” on page 144.

Warnings, Cautions, Notes, and Tips

Please follow these guidelines as you read your documentation:

Warnings must be followed carefully to avoid bodily injury.

4

Cautions must be observed to avoid damage to your equipment.

Notes contain important information about your scanner.

Tips contain additional hints for great scanning.

Reading Your Reference Guide

Your electronic EPSON Expression 1640XL Online Reference Guide is on your EPSON Expression 1640XL Scanning Tools CD-ROM. You can view it from the CD-ROM or copy it to your hard drive and view it from there. You must have a web browser (Netscape Navigator or Internet Explorer, versions 3.0 or later).

If you install the manual to your hard drive, you can read it anytime. For Windows, just click Start, Programs, EPSON, and select Exp1640XL Guide. For Macintosh, double-click the View Reference Guide icon in the Expression 1640XL folder on your hard drive.

Follow these steps to view the manual:

1. Insert your EPSON Expression 1640XL Scanning Tools CD-ROM.

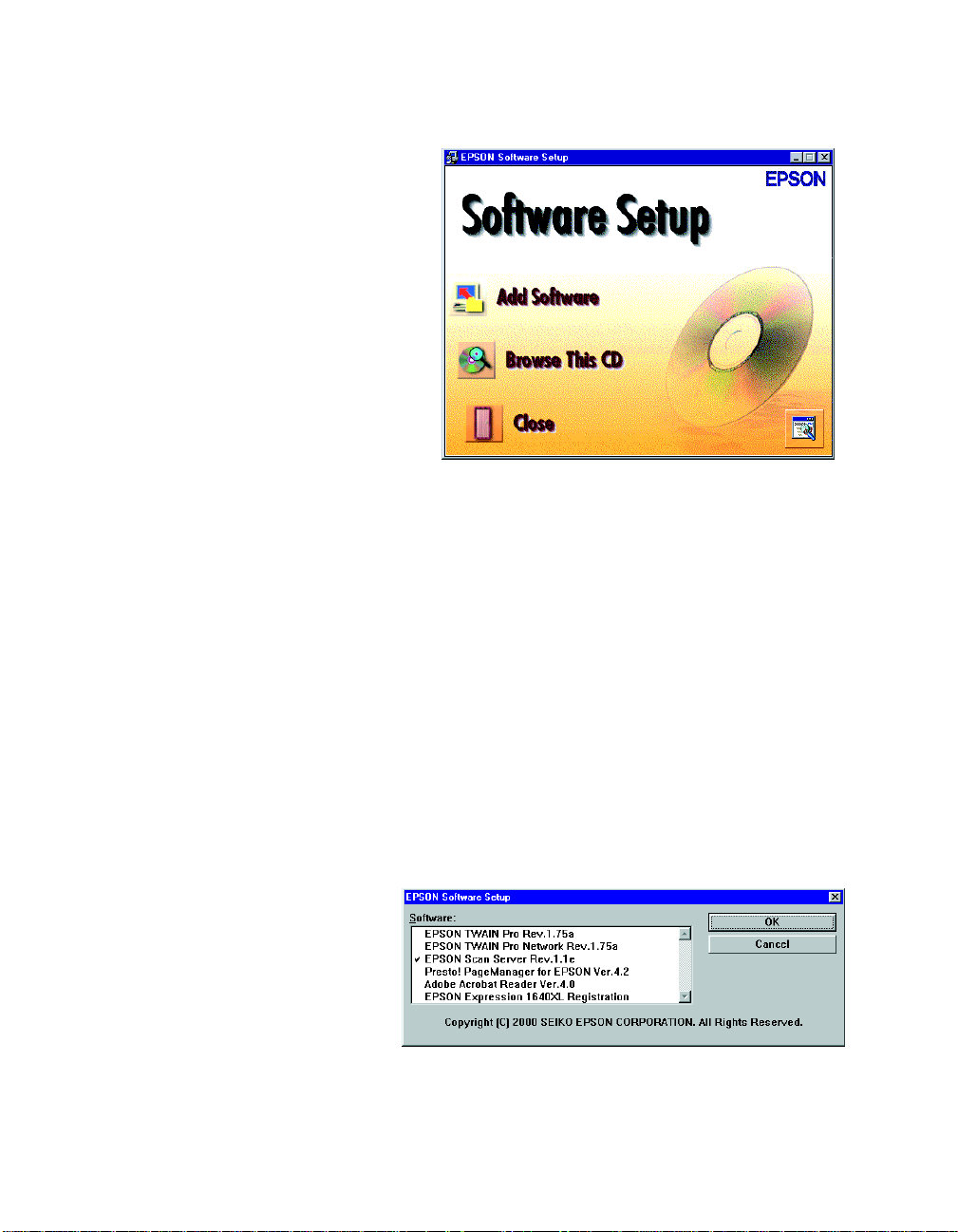

■ If you’re running Windows, when you see the Software Setup window, click

Browse this CD, and double-click the Manuals folder. Then double-click

the XP1640XL.exe icon.

■ If you have a Macintosh, double-click the Manuals folder, and then

double-click the EPSON Expression 1640XL icon.

The Reference Guide window opens:

Click to view the Reference Guide.

Click to install the Reference Guide to your hard drive.

5

2. Click

Click a topic to expand its contents.

View Reference Guide

. Your browser opens and you see this window:

3. Click topics on the left to expand the contents. Then click the subtopic you want to view.

6

Expanded contents list

Viewing Your Other Electronic Manuals

To view your electronic manual for Presto! PageManager for EPSON, ScanSoft TextBridge Pro, or any other PDF manuals, you’ll use Adobe Acrobat Reader. If Acrobat Reader is not already installed on your computer, you can install it with the other scanner software. See the software installation instructions for your system in Chapter 2.

When you open an electronic manual, you’ll see this toolbar:

Show bookmarks and page

This is the toolbar for Acrobat Reader 4.05. The toolbar for Acrobat Reader 3.0 looks slightly different.

With Acrobat Reader, you have several ways to navigate through text:

■ Use the bookmark section on the left side of the screen to move quickly to the

topic of your choice. Click the Show Bookmarks icon on the toolbar to see the bookmark section, if the manual has bookmarks. Some manuals only have a table of contents, but you can also use this to navigate the manual if the topics are hot.

■ Use the arrow buttons in the toolbar or the vertical scroll bar on the right side of

the document to move through the manual. (The box to the left of the scroll bar displays the current page number.)

■ Click on hot topics, which are usually underlined or displayed in a different color.

To find out if a topic is hot, move your cursor over it. If the cursor turns into a pointing hand, the topic is hot—you can jump to it by clicking once.

For more information, see your Acrobat Reader online guide.

7

Locate your PDF manuals as follows:

■ EPSON Expression 1640XL User’s Guide—You can find a PDF version of this

user’s guide in the

Manuals

folder on your Expression 1640XL Scanning Tools

CD-ROM.

■ Acrobat Reader—For Windows, select

Reader Guide

from the Acrobat Reader

Help menu.

For Macintosh, select

Reader Guide

from the Acrobat Reader Help menu. Then

browse to Help\Enu\Reader.pdf.

■ Presto! PageManager—For Windows, click Start, Programs, Presto!

PageManager for EPSON

, PageManager User’s Manual.

For Macintosh, double-click the User’s Guide.pdf icon in the Presto!

PageManager for EPSON

■ ScanSoft TextBridge Pro—For Windows, click

Pro, and select User Guide.

folder on your hard drive.

Start, Programs, TextBridge

For Macintosh, insert your Expression 1640XL Scanning Tools CD-ROM, then double-click the TextBridge Pro folder. Double-click the TextBridge Pro

Documents

folder, then the Getting Started PDF file for the chapter you want

to read.

■ Adobe Photoshop LE—Insert your Adobe Photoshop LE CD-ROM.

For Windows, double-click the My Computer icon on your desktop, then double-click the Photoshop CD-ROM icon. Finally, double-click the

User Guide icon.

8

For Macintosh, double-click the Adobe Photoshop LE CD-ROM icon on your desktop, then double-click the User Guide.pdf icon.

■ MonacoEZcolor—For Windows, click Start, Programs, MonacoEZcolor, and

then select MonacoEZcolor User Guide.

For Macintosh, double-click the MonacoEZcolor folder on your hard drive, and then double-click the MonacoEZcolor User Guide.pdf icon.

Registering

Please take a minute to complete the electronic registration form. If you are installing software under Windows, the electronic registration form will display at the end of the software installation process (see “Chapter 2, Setting Up Your Scanner”). If you are installing software on a Macintosh, click 1640XL Scanning Tools CD-ROM, double-click the double-click the EPSON Registration icon.

Registering enables you to receive special information on options, new products, and software upgrades. You’ll get immediate attention if you have a problem with your scanner.

Browse this CD

E-Reg

on the Expression

folder, and then

9

10

Setting Up Your Scanner

Setting up your scanner is easy. For most installations, just follow the steps in this book in the order listed below.

1. Unpack and choose a place for your scanner.

2. Unlock the scanner.

3. Connect the scanner to your computer.

4. Power on your scanner, then power on your computer.

5. Install the scanner software.

6. View your electronic manuals.

If you have a Macintosh, you may prefer to install the scanner software before you connect the scanner to your computer. See “Installing the Macintosh Software” on page 45. If you decide to connect the scanner before you install the software, you’ll see a message that your scanner driver needs to be installed. Just close the message and proceed with the installation instructions.

If you’re installing a transparency unit, an automatic document feeder, or an IEEE 1394 FireWire scanner interface card, see Chapter 5, “Using Optional Equipment.”

11

Unpacking Your Scanner

Remove the scanner from the box, then remove the packing material from your scanner. Save the packaging in case you need it later. Your EPSON Expression 1640XL comes with these items:

scanner

power cord

USB cable

document guide strip

document guide and adjustment pins

EPSON Expression 1640XL Scanning Tools CD-ROM

Adobe Photoshop LE CD-ROM

MonacoEZcolor CD-ROM (located in plastic sleeve attached to the

MonacoEZcolor User Guide)

MonacoEZcolor User Guide

EPSON Expression 1640XL User’s Guide

12

Choosing a Good Place for Your Scanner

Here are some points to consider:

■ Place the scanner on a flat, stable surface. If the scanner is tilted, it can’t operate

properly.

■ Make sure to place the scanner where you can easily unplug the power cord, and

where your cable can reach your computer.

■ Keep the scanner away from direct sunlight and strong light sources.

■ Be sure there’s enough

room behind the scanner for the cables, and above the scanner so you can fully raise the document cover.

■ Avoid places subject to

shocks and vibrations, or high or rapidly changing temperatures and humidity.

23.4 inches (59.5 cm)

5.9 inches (15 cm)

18 inches (45.8 cm)

6.9 inches (17.5 cm)

25.8 inches (65.6 cm)

13

Identifying Scanner Parts

document cover

carriage (at home position)

transportation lock

SCSI ID switch

terminator switch

document table

lights and buttons

] Start button

optional interface slot

14

USB interface

SCSI interfaces

option connector (ADF/TPU)

AC inlet

transportation lock

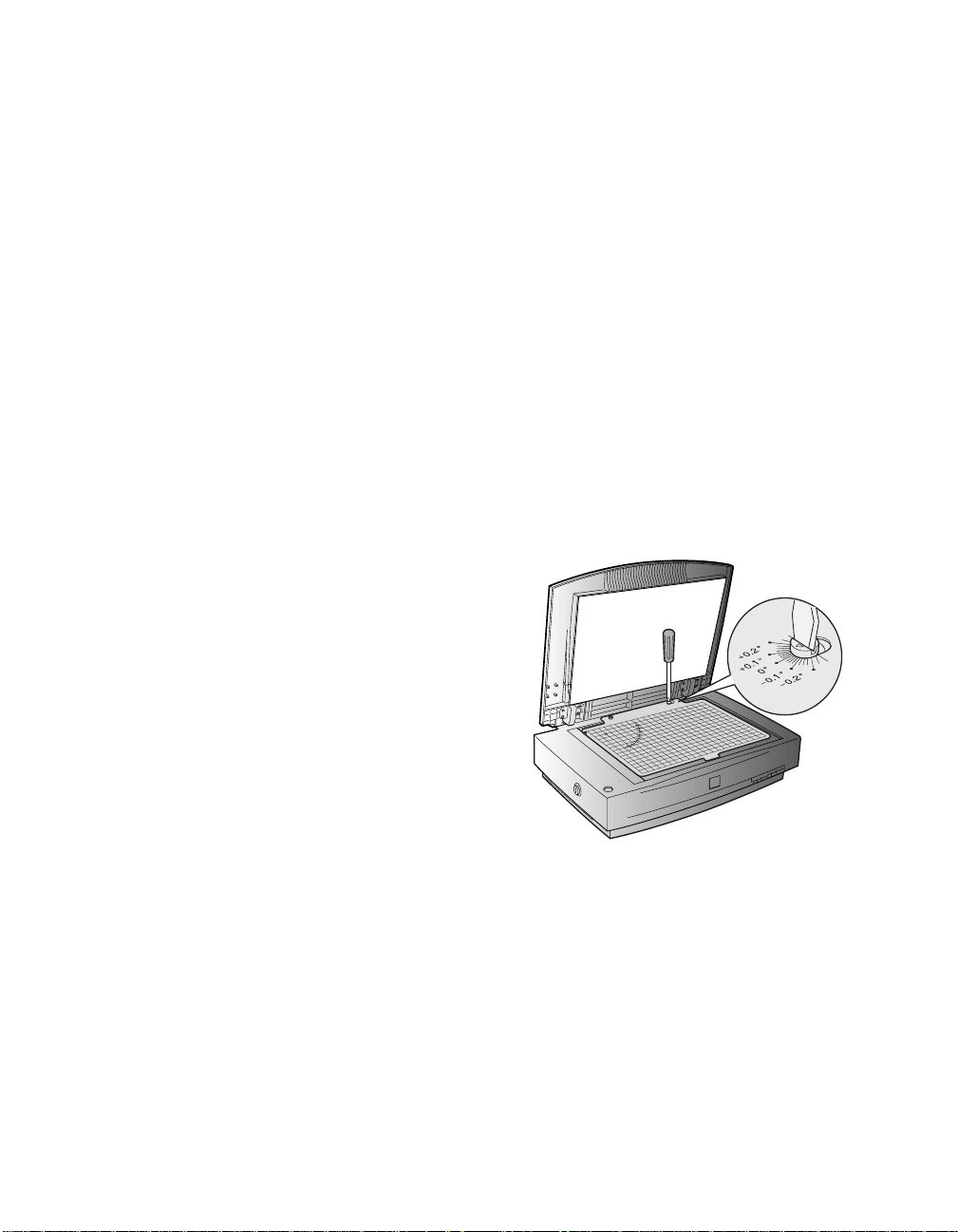

Unlocking the Scanner

Before connecting the scanner to a power source, you must release the transportation lock, located on the side of the scanner.

To release the transportation lock, turn it counterclockwise to the

icon, as shown.

If you can’t turn the transportation lock easily, turn the scanner on; then, after the ERROR and READY lights start flashing, turn the scanner off and try again.

Always lock the transportation lock before moving the scanner. Also, be sure the carriage is in the home position (shown below). See “Transporting the Scanner” on page 125 for more information.

unlocked position

carriage home position

15

Attaching the Document Guide Strip

The document guide strip makes it easy to align documents on the scanner’s document table. To attach the document guide strip to the scanner:

1. Peel the back from the document guide strip.

2. Place the guide strip on top of the document table’s horizontal ruler, as shown in the following illustration:

Peel the back from the document guide strip.

Place the guide strip on top of the horizontal ruler.

16

Document table

Be sure to remove the document guide strip from the scanner if you are using the optional Automatic Document Feeder.

If you are still having difficulty aligning documents on the scanner’s document table, see “Using the Document Guide” on page 64.

Testing Your Scanner’s Operation

To make sure your scanner is working properly, it’s a good idea to turn it on before you connect it to your computer.

The scanner’s voltage cannot be changed. If the label on the back of the scanner does not display the correct voltage for your area, contact your dealer. Do not plug in the power cord.

1. Make sure the scanner is plugged in. Then open the scanner’s document cover so you can see the operation of the carriage.

2. Press the

P OPERATE button to turn the scanner on.

The READY light on the scanner’s front panel flashes, and the scanner’s carriage moves forward, then back. The

READY

light stays on when the scanner is ready

to scan.

P

button

ERROR light OPERATE light

READY light

If you turn off the scanner, wait at least 10 seconds before turning it back on. Rapidly turning the scanner on and off can damage the scanner.

RESET button

OPERATE

17

Connecting the Scanner to Your Computer

You can connect the scanner to your computer in any of these ways:

■ USB

If you have a Power Macintosh® with built-in USB support or your computer is running Windows 2000 or Windows 98 (factory installed), you can connect the Expression 1640XL with the USB cable that came with the scanner. Windows 2000 or Windows 98 must be preinstalled on your computer; they cannot be upgraded from an earlier version of Windows. There is no USB support for Windows 95 and Windows NT 4.0.

■ SCSI

If you have a Power Macintosh with built-in SCSI support or a compatible PCI SCSI/SCSI 2 adapter board, or your Windows computer has an ASPI-compliant SCSI 2 board (Adaptec® boards are recommended), you can connect the scanner with a SCSI 2 cable not more than 19.7 feet long. If you’re connecting multiple SCSI devices, the total length of the SCSI bus (cables) should not exceed 9.8 feet. If your computer is running Windows 95 or Windows NT 4.0, you must use a SCSI connection.

■ IEEE 1394 (FireWire)

If you have purchased the optional IEEE 1394 FireWire scanner interface card, you can connect the scanner to your Power Macintosh or PC with the IEEE 1394 FireWire cable. Your Power Macintosh must have a built-in IEEE 1394 FireWire port or an IEEE 1394 FireWire PCI card, and must be running Macintosh OS 8.6 or later with FireWire Update 2.1 or later. Your PC must have an OHCI compliant FireWire port or card, and must be running a pre-installed version of Windows 2000.

18

Adaptec Power Domain® boards for the Macintosh are designed for hard drives only and are not compatible with scanners.

If you install a USB card in your Macintosh and then upgrade your system to OS 8.6, your USB Manager won’t be installed and your scanner may not work. To have USB support, you must perform a full installation of OS 8.6 from a CD-ROM before you install the card.

2940UW and 2940U2W SCSI

Connecting to a USB Interface

With the USB interface, you can connect or remove your scanner without having to shut down or restart your computer.

Don’t disconnect or connect the USB cable when the Expression 1640XL is scanning.

Windows 2000 or Windows 98 must be preinstalled on your computer, not upgraded. There is no USB support for Windows 95 or Windows NT 4.0.

1. Locate the USB cable that came with your scanner.

2. Connect the square end of the USB cable to the scanner’s USB port.

3. Connect the flat end of the USB cable to your computer’s USB port or USB hub port.

If your scanner and computer are both powered on, you see the Add New Hardware Wizard if you’re running Windows 98 (Found New Hardware wizard in Windows

2000) or a message that your scanner driver needs to be installed if you have a

Macintosh. Continue with the instructions in “Installing the Windows Software” on page 23 or “Installing the Macintosh Software” on page 45.

If you’re using a USB hub, connect the scanner to a first tier hub, which is the hub closest to the computer. If the scanner doesn’t work with the hub, connect it directly to a USB port on your computer.

19

Connecting to a SCSI Interface

Before you connect the scanner, you must have an ASPI-compliant SCSI 2 interface board installed in your computer (Adaptec SCSI 2 interface boards are recommended). Some computers come with a SCSI 2 board preinstalled; check your computer documentation.

Adaptec Power Domain 2940UW and 2940U2W SCSI boards for the Macintosh are designed for hard drives and are not compatible with scanners.

If you purchased a SCSI board as an option, follow the manufacturer’s instructions to install both the board and its driver.

You may also need to change the

SCSI ID switch

scanner’s SCSI ID setting before you connect it to your computer. If you have another SCSI device that uses SCSI ID 2, turn the scanner off and turn the SCSI ID switch on the back of the scanner to a new number.

Choose a number that doesn’t conflict with the ID number of other SCSI devices. Don’t use SCSI ID 0, 1, or 7. If your Macintosh has a built-in CD-ROM, don’t use SCSI ID 3.

Follow these steps to connect the scanner to a SCSI interface:

1. Make sure the scanner and computer are turned off. (The scanner is off when the P OPERATE button is out and the ERROR and READY lights are off.)

20

Do not connect the scanner to the computer while it is turned on, or the scanner could be damaged.

2. Squeeze the lock releases on the lock connector end of your SCSI cable, and then plug the cable into either SCSI connector on the back of the scanner. The cable is secure when both connector locks snap in.

3. Connect the pin end of the SCSI cable to the SCSI port on your computer, or to another SCSI device in the chain. Tighten the screws to secure the cable.

If you’re connecting multiple SCSI devices, the total length of the SCSI bus (cables) should not exceed 9.8 feet (three meters); otherwise the system may not work properly. If you are connecting the scanner directly to your computer, use a cable no more than 19.7 feet (six meters) long.

Don’t use an external terminator.

4. Locate the SCSI terminator switch at the rear of the scanner.

If the scanner is your only SCSI device, or if it’s the last device in a SCSI chain, leave the terminator switch turned ON.

If you’ve connected your scanner in the

terminator switch

middle of a SCSI chain, turn the terminator switch OFF.

5. Plug in the power cables for your computer, scanner, and other external SCSI devices.

Continue with the instructions in “Installing the Windows Software” on page 23 or “Installing the Macintosh Software” on page 45.

21

Connecting to an IEEE 1394 FireWire Interface

If you have purchased the optional IEEE 1394 FireWire scanner interface card, you can connect the scanner to your Power Macintosh or PC using an IEEE 1394 FireWire interface. Your Power Macintosh must have a built-in IEEE 1394 FireWire port or an IEEE 1394 FireWire PCI card, and must be running Macintosh OS 8.6 or later with FireWire Update 2.1 or later. Your PC must have an OHCI compliant FireWire port or card, and must be running a pre-installed version of Windows 2000.

See “IEEE 1394 FireWire Scanner Interface Card” on page 122 for information about system requirements and instructions on installing the card. See page 103 for information about ordering the card.

The IEEE 1394 FireWire scanner interface card has two cable connectors. You can use either one to connect the scanner directly to your computer. At the same time, you can use the second connector to connect other IEEE 1394 FireWire devices in a daisy chain or tree configuration. You can also connect the scanner to another IEEE 1394 FireWire device so that it’s the last IEEE 1394 FireWire device in a chain connected to your computer.

Neither your scanner nor your computer has to be off when you connect the cable. However, be careful not to connect or disconnect the cable when the scanner is in use.

22

Follow these steps to connect the scanner:

1. Connect one end of the cable to the IEEE 1394 FireWire port on the card.

2. Connect the other end of the cable to the IEEE 1394 FireWire port on your computer or on another IEEE 1394 FireWire device.

Continue with “Installing the Macintosh Software” on page 45.

Installing the Windows Software

Before you begin installing software, make sure you recalibrate your monitor to factory specifications. Then follow the instructions for your operating system:

■ If you’re running Windows 2000, continue with the next section, “Installing the

Windows 2000 Software.”

■ If you’re running Windows 98, go to “Installing the Windows 98 Software” on

page 30.

■ If you’re running Windows 95, go to “Installing the Windows 95 Software” on

page 35.

■ If you’re running Windows NT 4.0, go to “Installing the Windows NT 4.0

Software” on page 40.

For instructions on installing software for a network scanner, go to Chapter 4, “Network Scanning.”

When you’ve finished installing the software on your EPSON Expression 1640XL Scanning Tools CD-ROM, continue with “Installing Additional Windows Software” on page 43 if you want to install Adobe Photoshop LE, ScanSoft TextBridge Pro, or MonacoEZcolor.

Installing the Windows 2000 Software

Before you begin, make sure the Expression 1640XL is connected to your computer. Also, make sure you’ve recalibrated your monitor to factory specifications.

This procedure automatically installs your EPSON TWAIN Pro driver and any software you need for a USB connection. If you’re using a SCSI connection and are configuring your SCSI interface card for the first time, you’ll be asked to install your SCSI driver at the beginning of installation. Follow the instructions on the screen to install your SCSI driver, or see the documentation that came with your SCSI card.

23

You may be asked to insert your Windows CD-ROM during this procedure. Make sure you have your Windows CD-ROM available, or know where to find the Windows source files on your hard drive. If you need help locating your source files, contact your computer manufacturer.

1. Turn on your scanner first, then turn on your computer.

2. When you see the window on the right, insert the EPSON Expression 1640XL Scanning Tools CD-ROM in your drive and click

3. Select Search for a suitable driver

for my device

, and then click Next.

24

The Found New Hardware Wizard screen above displays with a SCSI connection and may look slightly different for USB and FireWire connections.

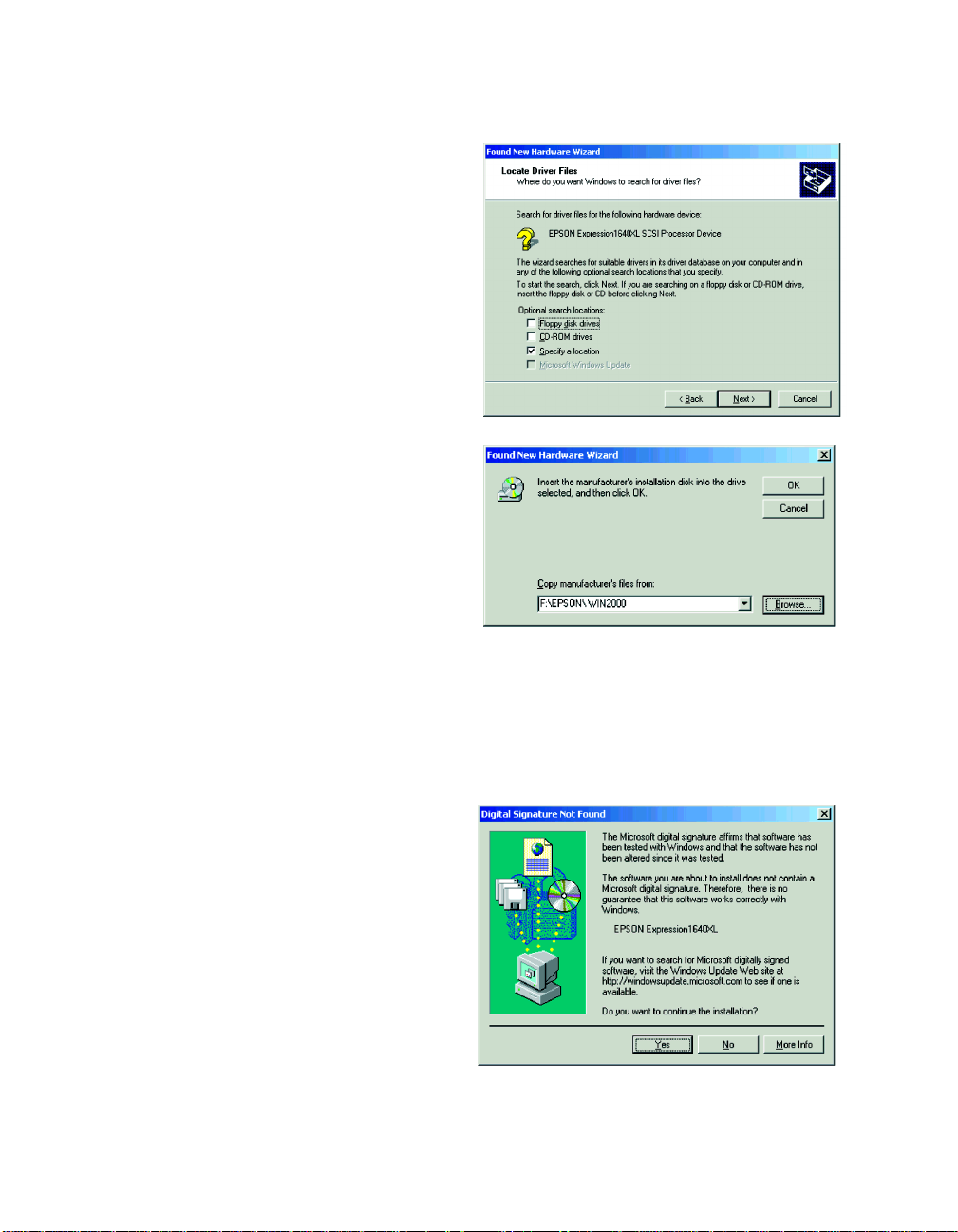

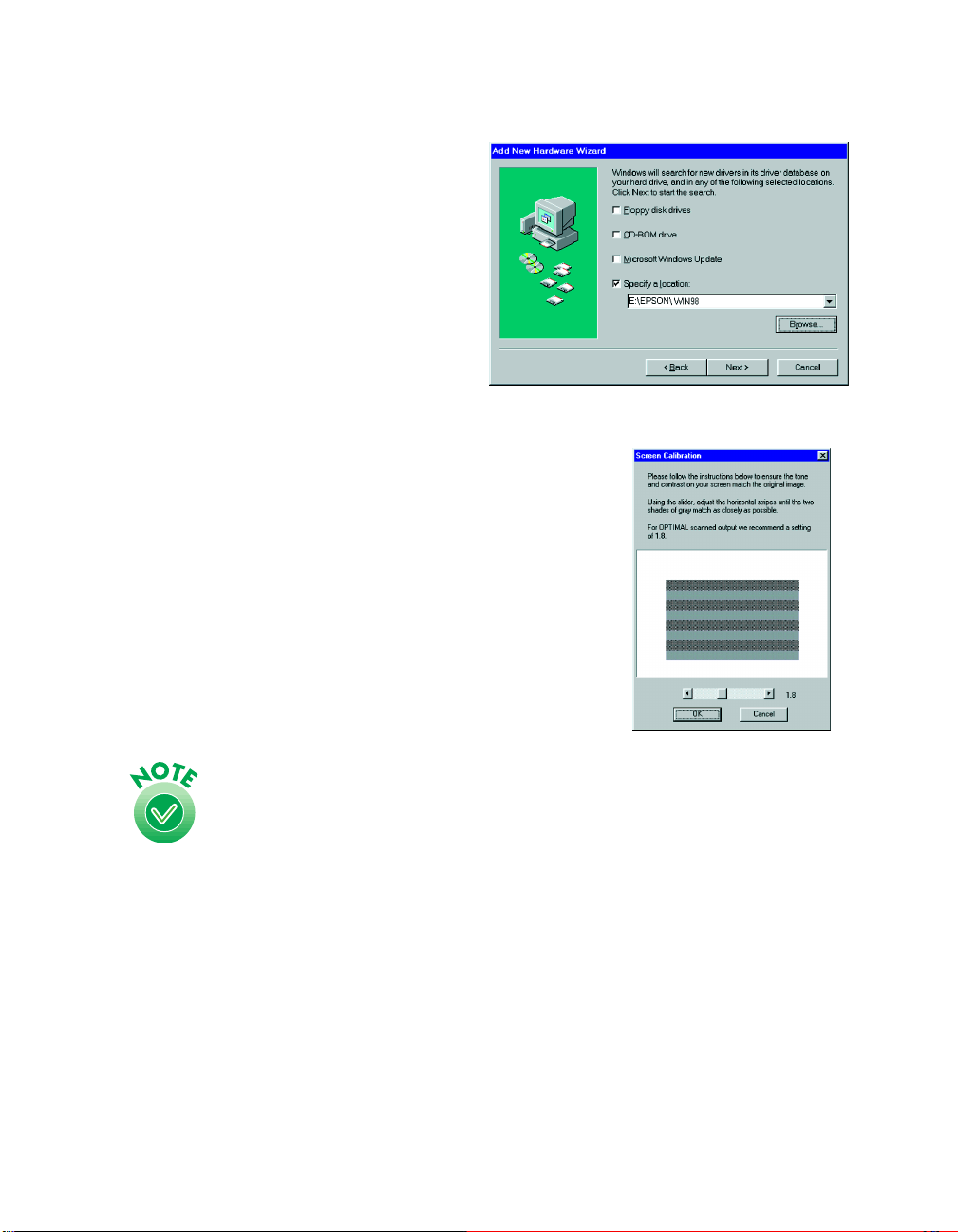

4. Select

Specify a location

necessary, and click

.

5. Browse to EPSON\ Win2000 on your CD-ROM drive. (The example to the right uses “F” as the CD-ROM drive letter. Your CD-ROM drive letter may be different.) Click OK to close the Browse window, and then click

.

If you see a message asking for your Windows 2000 CD-ROM, insert it and click

OK (or click Browse and locate the Windows 2000 source files on your hard

drive; then click OK).

7. When you see the Digital Signature Not Found screen, click Yes.

If prompted for the EPSON Scanners Driver Disk 1, reinsert your EPSON Expression 1640XL Scanning Tools CD-ROM.

25

8. When you see the EPSON Screen Calibration Utility, move the slider right or left until the stripes match as closely as possible. Then click OK.

9. Click Finish when you see a message that installation is complete.

Continue with the instructions in the next section, “Installing Other Software on Your Scanning Tools CD-ROM.”

The EPSON Screen Calibration Utility calibrates the preview image you see in your EPSON TWAIN Pro driver to match your monitor settings.

You won’t need to change the screen calibration as long as you continue to use the same display. If you need to recalibrate your screen at a later time, double-click the Scanners and Cameras icon in your Windows Control Panel to open the Scanners and Cameras Properties window. On the Devices tab, select EPSON Expression 1640XL and click the Properties button to display the EPSON Expression 1640XL Properties window. Click the Utility tab, and then click the Screen Calibration Utility button.

26

Installing Other Software on Your Scanning Tools CD-ROM

Follow these steps to install Presto! PageManager and Adobe Acrobat, and complete the 1640XL electronic registration form:

1. If the Software Setup window doesn’t appear, double-click the My

Computer

Windows desktop, then double-click the Epson CD-ROM icon.

2. Click the Add Software button to display the software selection window. A check mark appears beside applications selected for installation. If you want to deselect either Presto! PageManager or Acrobat Reader, click the application to clear the check mark. Then click OK.

icon on your

Don’t select either of the two network applications, EPSON TWAIN Pro Network or EPSON Scan Server. The EPSON TWAIN Pro driver, which is already installed on your computer, lets you scan to an Expression 1640XL connected to your computer. If you want to install software for a network scanner, go to Chapter 4, “Network Scanning.”

3. Follow the instructions on the screen to install the software.

If you’re done installing software, remove the EPSON Expression 1640XL Scanning Tools CD-ROM and restart your computer. Then follow the instructions in the next section to make sure your scanner is operating properly.

If you want to install ScanSoft TextBridge Pro, MonacoEZcolor, or Adobe Photoshop LE, continue with the instructions under “Installing Additional Windows Software” on page 43.

27

Testing the Scanner’s Operation (Windows 2000)

Follow these steps to test scanner operation:

1. Double-click the Scanners and

Cameras

Panel to open the Scanners and Cameras Properties window.

2. Make sure EPSON

Expression1640XL

then click the

3. Click the Test Scanner or Camera button. If the scanner is operating properly, to Status.

icon in the Windows Control

is selected, and

Properties

Device Ready

button.

appears next

28

Selecting the Expression 1640XL as Your Default Scanner (Windows 2000)

If you have more than one scanner connected to your computer, you can set up the Expression 1640XL as the default scanner.

1. Double-click the

Cameras

icon in your Windows

Scanners and

Control Panel to open the Scanners and Cameras Properties window.

2. Make sure

1640XL Properties button. You see the

EPSON Expression

is selected, and click the

EPSON Expression 1640XL Properties window.

3. Click the Utility tab. Make sure Select

as default scanner for EPSON TWAIN Pro

is checked, and then

click OK.

29

Installing the Windows 98 Software

Before you begin, make sure the Expression 1640XL is connected to your computer. Also, make sure you’ve recalibrated your monitor to factory specifications.

This procedure automatically installs your EPSON TWAIN Pro driver and any software you need for a USB connection. If you’re using a SCSI connection and are configuring your SCSI interface card for the first time, you’ll be asked to install your SCSI driver at the beginning of installation. Follow the instructions on the screen to install your SCSI driver, or see the documentation that came with your SCSI card.

You may be asked to insert your Windows CD-ROM during this procedure. Make sure you have your Windows CD-ROM available, or know where to find the Windows source files on your hard drive. If you need help locating your source files, contact your computer manufacturer.

1. Turn on your scanner first, then turn on your computer.

2. When you see the window on the right, insert the EPSON Expression 1640XL Scanning Tools CD-ROM in your drive and click Next.

30

3. Select Search for the best driver

for your device Next.

, and then click

4. Select

Specify a location

necessary, and click

, if

Browse

.

5. Browse to

EPSON\ Win98

on your CD-ROM drive. (The example to the right uses “E” as the CD-ROM drive letter. Your CD-ROM drive letter may be different.) Click OK to close the Browse window, and then click

6. Follow the instructions on the screen.

7. When you see the EPSON Screen Calibration Utility, move the slider right or left until the stripes match as closely as possible. Then click OK.

8. Click Finish when you see a message that installation is complete.

Continue with the instructions in the next section, “Installing Other Software on Your Scanning Tools CD-ROM.”

The EPSON Screen Calibration Utility calibrates the preview image you see in your EPSON TWAIN Pro driver to match your monitor settings.

You won’t need to change the screen calibration as long as you continue to use the same display. If you need to recalibrate your screen at a later time, double-click the Scanners and Cameras icon in your Windows Control Panel to open the Scanners and Cameras Properties window. On the Devices tab, select EPSON Expression 1640XL and click the Properties button to display the EPSON Expression 1640XL Properties window. Click the Utility tab, and then click the Screen Calibration Utility button.

31

Installing Other Software on Your Scanning Tools CD-ROM

Follow these steps to install Presto! PageManager and Adobe Acrobat, and complete the 1640XL electronic registration form:

1. If the Software Setup window doesn’t appear, double-click the My

Computer

Windows desktop, then double-click the Epson CD-ROM icon.

icon on your

2. Click the

Add Software

button to display the software selection window. A check mark appears beside applications selected for installation. If you want to deselect either Presto! PageManager or Acrobat Reader, click the application to clear the check mark. Then click OK.

Don’t select either of the two network applications, EPSON TWAIN Pro Network or EPSON Scan Server. The EPSON TWAIN Pro driver, which is already installed on your computer, lets you scan to an Expression 1640XL connected to your computer. If you want to install software for a network scanner, go to Chapter 4, “Network Scanning.”

3. Follow the instructions on the screen to install the software.

If you’re done installing software, remove the EPSON Expression 1640XL Scanning Tools CD-ROM and restart your computer. Then follow the instructions in the next section to make sure your scanner is operating properly.

If you want to install ScanSoft TextBridge Pro, Adobe Photoshop LE, or MonacoEZcolor, continue with the instructions under “Installing Additional Windows Software” on page 43.

32

Testing the Scanner’s Operation (Windows 98)

Follow these steps to test scanner operation:

1. Double-click the Scanners and

Cameras

Panel to open the Scanners and Cameras Properties window.

icon in the Windows Control

The Scanners and Cameras Properties screen above displays with a SCSI connection and may look slightly different for USB and FireWire connections.

2. Make sure EPSON Expression1640XL is selected, and then click the

Properties button.

3. Click the Test Scanner or Camera button. If the scanner is operating properly, a confirmation message appears. Click OK to close the message.

Device Ready appears next to Status.

33

Selecting the Expression 1640XL as Your Default Scanner (Windows 98)

If you have more than one scanner connected to your computer, you can set up the Expression 1640XL as the default scanner.

1. Double-click the

Cameras

Control Panel to open the Scanners and Cameras Properties window.

2. Make sure EPSON Expression

1640XL Properties button. You see the EPSON

Expression 1640XL Properties window.

icon in your Windows

is selected, and click the

Scanners and

34

3. Click the

as default scanner for EPSON TWAIN Pro

Utility

tab. Make sure

is checked, and then

Select

click OK.

Installing the Windows 95 Software

Before you begin, make sure the Expression 1640XL is connected to your computer. Also, make sure you’ve recalibrated your monitor to factory specifications.

If you’re configuring your SCSI interface card for the first time, you’ll be asked to install your SCSI driver at the beginning of installation. Make sure you have your Windows CD-ROM available, or know where to find the Windows source files on your hard drive. Then follow the instructions on the screen, or see the documentation that came with your SCSI card for more information.

If you need help locating your source files, contact your computer manufacturer.

35

1. Turn on your scanner first; then turn on your computer. When you see the window on the right, click

2. Insert your Expression 1640XL Scanning Tools CD-ROM in your drive. Then click Other

Locations

.

36

3. Browse to the following location on your CD-ROM drive:

EPSON\Win95. (The example on

the right uses “E” as the CD-ROM drive letter. Your CD-ROM drive may have a different letter.) Click

OK.

4. When you see this window, click

Finish

Continue with the instructions in the next section to install EPSON TWAIN Pro and other software on your Expression 1640XL Scanning Tools CD-ROM.

.

Installing Other Software on Your Scanning Tools CD-ROM

Follow these steps to install EPSON TWAIN Pro, Presto! PageManager, Acrobat Reader, and complete the 1640XL electronic registration form:

1. Double-click the My

Computer

Windows desktop, then double-click the Epson CD-ROM icon. You see the window on the right.

icon on your

37

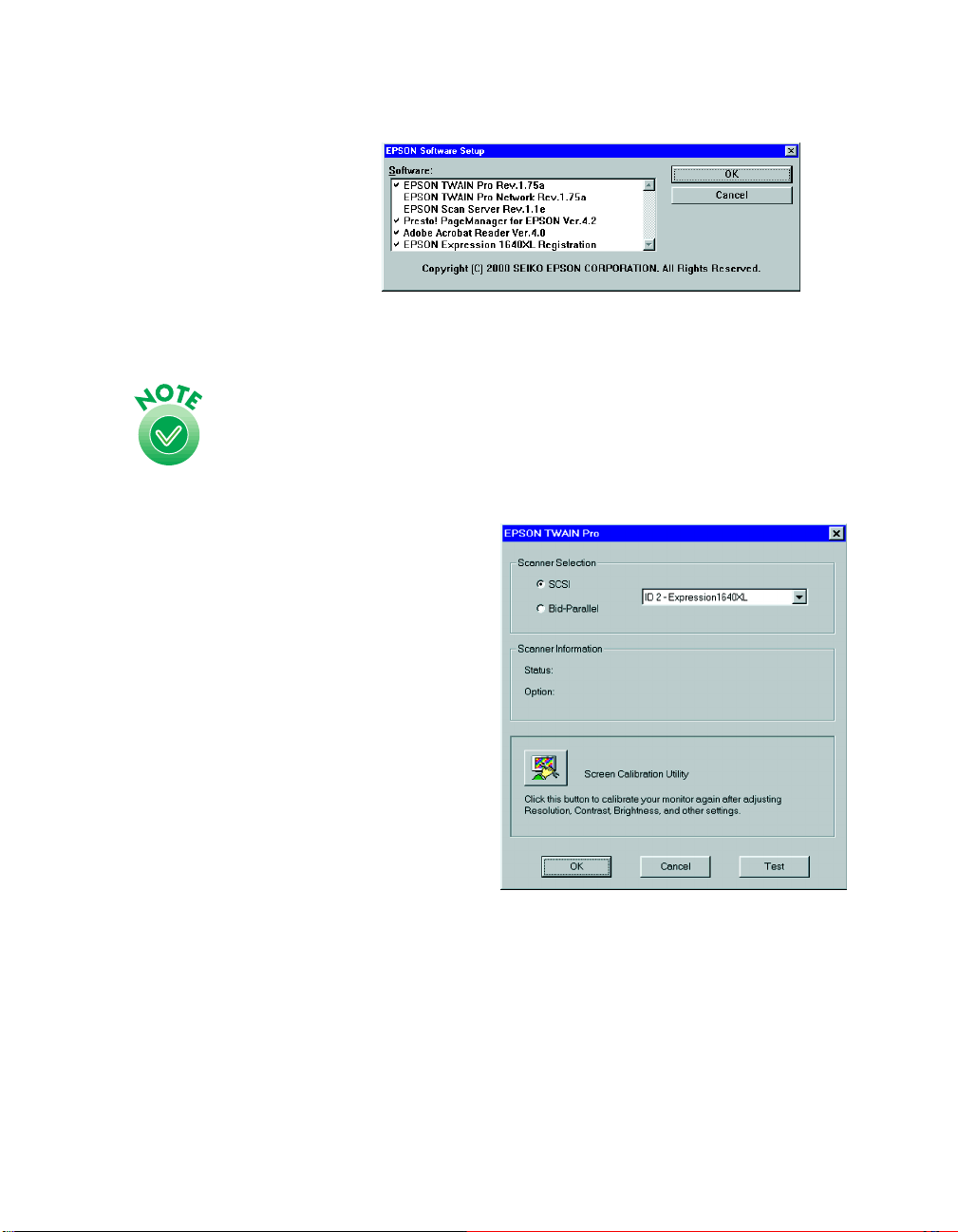

2. Click

Add Software

. You see the software selection window.

A check mark appears beside applications selected for installation. If you want to deselect either Presto! PageManager or Acrobat Reader, click the application to clear the check mark. Then click OK.

Don’t select either of the two network applications, EPSON TWAIN Pro Network or EPSON Scan Server. If you want to install software for a network scanner, go to Chapter 4, “Network Scanning.”

3. Follow the instructions on the screen to install EPSON TWAIN Pro. When installation is complete, you see the window on the right. Make sure SCSI is selected and Expression 1640XL appears in the Scanner Selection box.

38

4. Click Test to check the connection. If the scanner software is installed correctly, you see Status: Device

Ready

under Scanner Information.

Click OK to close the window.

5. When you see the EPSON Screen Calibration Utility, move the slider right or left until the stripes match as closely as possible. Then click OK.

6. Follow the instructions on the screen to install Presto! PageManager, Acrobat Reader, and complete the 1640XL electronic registration form.

If you’re done installing software, remove the EPSON Expression 1640XL Scanning Tools CD-ROM and restart your computer.

If you want to install ScanSoft TextBridge Pro, Adobe Photoshop LE, or MonacoEZcolor, continue with the instructions under “Installing Additional Windows Software” on page 43.

The EPSON Screen Calibration Utility calibrates the preview image you see in your EPSON TWAIN Pro driver to match your monitor settings.

You won’t need to change the screen calibration as long as you continue to use the same display. If you need to recalibrate your screen at a later time, open the EPSON TWAIN Pro window by double-clicking the EPSON TWAIN Pro icon in the Windows Control Panel. Then start the EPSON Screen Calibration Utility by clicking the Screen Calibration button at the bottom of the window.

Verify that the scanner is listed in the Windows Device Manager. (Click Start,

Settings, Control Panel, then double-click the System icon. Select the Device

Manager tab and double-click EPSON Scanners. EPSON Expression1640XL should appear in the list.)

39

Installing the Windows NT 4.0 Software

This procedure installs EPSON TWAIN Pro, Presto! PageManager, and Acrobat Reader. Before you begin, make sure the scanner is attached to your computer, and that you’ve recalibrated your screen to factory specifications.

If you’re configuring your SCSI interface card for the first time, you’ll be asked to install your SCSI driver at the beginning of installation. Make sure you have your Windows CD-ROM available, or know where to find the Windows source files on your hard drive. Then follow the instructions on the screen, or see the documentation that came with your SCSI card for more information.

If you need help locating your source files, contact your computer manufacturer.

1. Turn on your scanner first; then turn on your computer.

2. Log onto Windows NT. Then insert the EPSON Expression 1640XL Scanning Tools CD-ROM.

3. If the Software Setup window doesn’t appear, double-click the My

Computer

Windows desktop, then double-click the Epson

CD-ROM

icon on your

icon.

40

4. Click

Add Software

. You see the software selection window.

A check mark appears beside applications selected for installation. If you want to deselect either Presto! PageManager or Acrobat Reader, click the application to clear the check mark. Then click OK.

Don’t select either of the two network applications, EPSON TWAIN Pro Network or EPSON Scan Server. If you want to install software for a network scanner, go to Chapter 4, “Network Scanning.”

5. Follow the instructions on the screen to install EPSON TWAIN Pro. When installation is complete, you see the window on the right. Make sure SCSI is selected and Expression1640XL appears in the Scanner Selection box.

6. Click Test to check the connection. If the scanner software is installed correctly, you see Status: Device

Ready

under Scanner Information.

Click OK to close the window.

41

7. When you see the EPSON Screen Calibration Utility, move the slider right or left until the stripes match as closely as possible. Then click OK.

8. Follow the instructions on the screen to install Presto! PageManager for EPSON and Acrobat Reader, and complete the 1640XL electronic registration form.

If you’re done installing software, remove the EPSON Expression 1640XL Scanning Tools CD-ROM and restart your computer.

If you want to install ScanSoft TextBridge Pro, Adobe Photoshop LE, or MonacoEZcolor, continue with the instructions under “Installing Additional Windows Software” on page 43.

The EPSON Screen Calibration Utility calibrates the preview image you see in your EPSON TWAIN Pro driver to match your monitor settings.

You won’t need to change the screen calibration as long as you continue to use the same display. If you need to recalibrate your screen at a later time, open the EPSON TWAIN Pro window by double-clicking the EPSON TWAIN Pro icon in the Windows Control Panel. Then click the Screen Calibration button at the bottom of the window to start the utility.

42

To verify that the scanner software was installed correctly, click Start, Settings,

Control Panel, and then double-click SCSI Adapters. Click the Devices tab, if

necessary. Then click the +

EPSON Expression1640XL should be listed beneath it.

+ next to the listing for your SCSI card manufacturer;

++

Installing Additional Windows Software

Follow the instructions in this section to install Adobe Photoshop LE, MonacoEZcolor, and ScanSoft TextBridge Pro.

Installing Adobe Photoshop LE

To find out how to upgrade to the full version of Adobe Photoshop, see the Acrobat file titled Acrobat Reader installed to view this file).

1. Insert the Adobe Photoshop LE CD-ROM in your drive.

Upgrade.pdf

on the Adobe Photoshop LE CD-ROM (you must have

2. Double-click the double-click the Photoshop CD-ROM icon.

3. Double-click the Photosle folder, then double-click the setup icon.

4. Follow the instructions on the screen. When you see the User Information dialog box, enter your name and company, and then enter the serial number (including the hyphen) of your software exactly as it appears on the CD-ROM sleeve. Then click Next.

5. Follow the instructions on the screen to complete installation and create a Photoshop Limited Edition program folder in your Adobe program group.

6. Remove the Adobe Photoshop LE CD-ROM.

If you’re done installing software, restart your computer.

My Computer

icon on your Windows desktop, then

Installing MonacoEZcolor

1. Insert the MonacoEZcolor CD-ROM in your drive.

2. Double-click the My Computer icon on your Windows desktop, then double-click the MonacoEZcolor CD-ROM icon.

3. Double-click the Setup.exe icon and follow the instructions on the screen. When you’re done installing the software, click Finish and restart your computer.

43

Installing ScanSoft TextBridge Pro

1. If necessary, insert the EPSON Expression 1640XL Scanning Tools CD-ROM in your drive.

2. If the Software Setup window doesn’t appear, double-click the

My Computer

Windows desktop, then double-click the Epson CD-ROM icon.

3. Click Browse This CD.

4. Double-click the TBPro folder on the CD-ROM, then double-click the Setup installer icon.

icon on your

If you’re running Windows NT, you must have Service Pack 3 installed. Otherwise, you may see an error message indicating that your path to Setup.exe is invalid.

44

5. Follow the instructions on the screen to install ScanSoft TextBridge Pro. When installation is complete, remove the EPSON Expression 1640XL Scanning Tools CD-ROM. If you’re done installing software, restart your computer.

Installing the Macintosh Software

Although you can connect the scanner either before or after installing the scanner software, you’ll see a message that your scanner driver needs to be installed if you connect it before installing. Close the message and continue with the installation instructions in the next section. For instructions on installing software for a network scanner, go to Chapter 4, “Network Scanning.”

You can connect the scanner using either a SCSI or USB interface. If you have installed the optional IEEE 1394 FireWire scanner interface card, you can also connect the scanner using the IEEE 1394 FireWire interface. See “Connecting the Scanner to Your Computer” on page 18 for instructions on connecting the scanner, and “IEEE 1394 FireWire Scanner Interface Card” on page 122 for instructions on installing the IEEE scanner FireWire interface card.

If you’ve used an EPSON scanner on your Macintosh and have installed an older version of EPSON TWAIN software, open the Extensions Manager before you begin installation. Clear the checkboxes next to EPSON Scanner Monitor Extension or EPSON Scanner Monitor USB Extension and restart your computer. Then continue with the instructions below.

Starting the Macintosh Software Installation

Before you begin, make sure you’ve recalibrated your monitor to factory specifications. You can use tools such as ColorSync 2.5 or above, the Adobe Gamma utility included with Adobe Photoshop 5.0 and above, and MonacoEZcolor.

If you don’t calibrate your monitor, you may get inconsistent scanning results.

1. Turn on your Macintosh and turn off any virus protection programs you’re using.

2. Insert the EPSON Expression 1640XL Scanning Tools CD-ROM in your drive.

3. Double-click the EPSON TWAIN Pro folder.

4. Double-click the EPSON TWAIN Pro Installer icon.

45

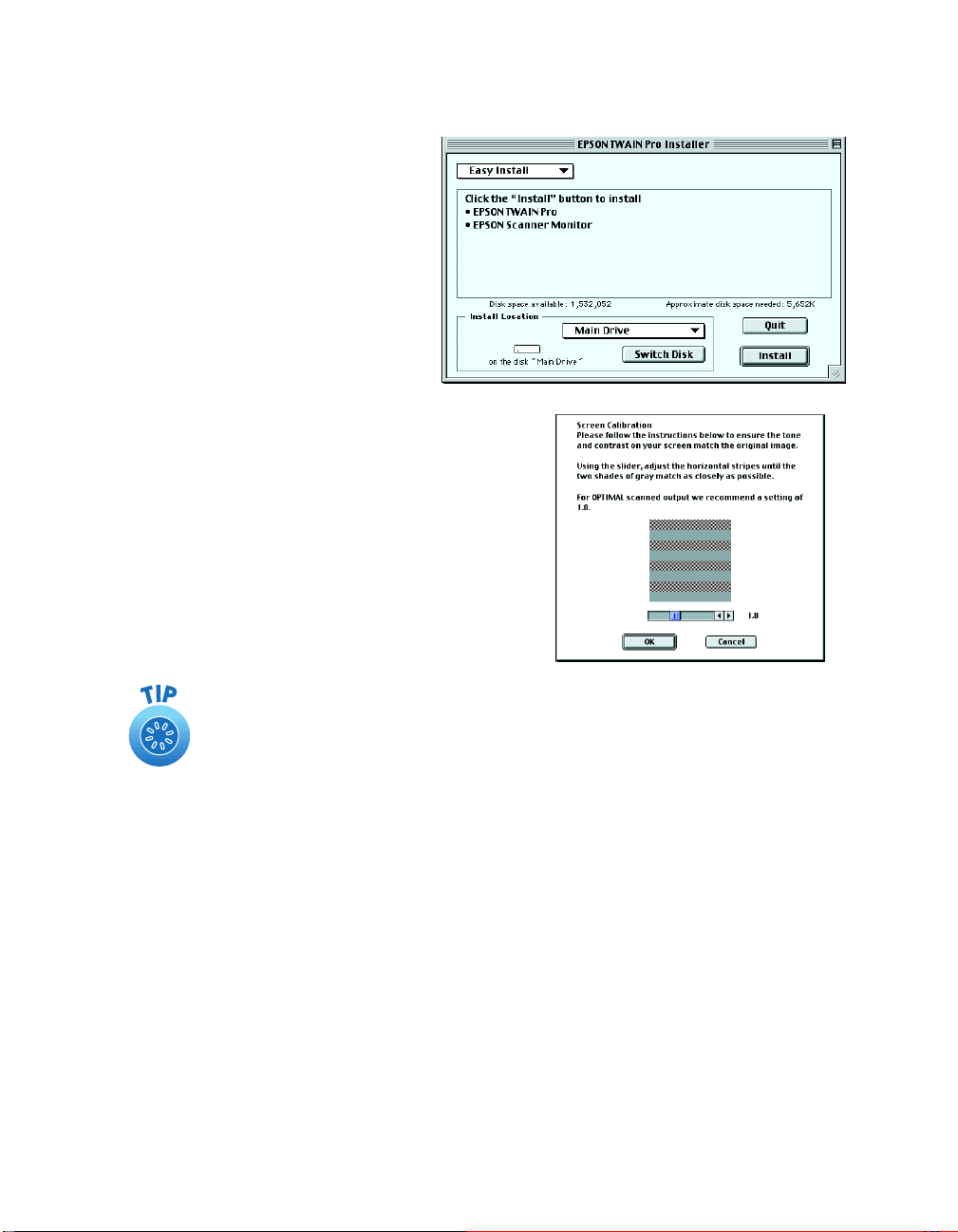

5. Click

Install

, and then follow the instructions on the screen to install EPSON TWAIN Pro and EPSON Scanner Monitor.

6. When installation finishes, click

Restart

.

The EPSON Screen Calibration Utility starts. (If you’ve previously installed another EPSON scanner on your computer, the EPSON Screen Calibration Utility may not start if it’s already installed on your computer.)

7. Move the slider left or right until the stripes match as closely as possible. Then click OK.

Your computer restarts.

The EPSON Screen Calibration Utility calibrates the preview image you see in your EPSON TWAIN Pro driver to match your monitor settings. If you need to recalibrate your screen at a later time, double-click the EPSON Screen Calibration icon in the EPSON Scanner folder on your hard drive.

46

Installing Other Software on Your Scanning Tools CD-ROM

Follow these steps to finish installing the software on your Expression 1640XL Scanning Tools CD-ROM:

1. Double-click the

EPSON

2. Double-click the

PageManager Installer #1 icon and follow the instructions on the screen to

install Presto! PageManager.

3. If you want to install Acrobat Reader 4.0, double-click the Acrobat Reader folder.

4. Double-click the to install Acrobat Reader.

5. When you’re done installing Acrobat Reader, double-click the TextBridge Pro folder.

6. Double-click the TextBridge Pro Installer folder.

7. Double-click the TextBridge Pro Installer icon, and then follow the instructions on the screen to install TextBridge Pro.

8. If you’ve finished installing software, remove the Expression 1640XL Scanning Tools CD-ROM and restart your computer. If you want to install other software, continue with the instructions below.

CD-ROM icon to open the CD-ROM window.)

Presto! PageManager

Presto! PageManager Disk 1

Reader Installer

icon and follow the instructions on the screen

folder. (If necessary, double-click the

folder. Double-click the

47

Installing Adobe Photoshop LE

To find out how to upgrade to the full version of Adobe Photoshop, see the Acrobat file titled

Upgrade.pdf

Acrobat Reader installed to view this file).

1. Insert the Adobe Photoshop LE CD-ROM in your drive.

2. Double-click the Adobe Photoshop LE CD-ROM icon, then double-click the

Adobe Photoshop LE

on the Adobe Photoshop LE CD-ROM (you must have

folder.

3. Double-click the Install Photoshop Installer banner. Click

Continue

®

LE icon. You see the Adobe Photoshop

.

4. At the next window, choose the country you’re in and click OK. You see the License Agreement.

5. Read the agreement and click Accept.

6. Follow the instructions on the screen until you see the registration screen. Enter your name and company, and then enter the serial number of your software (including the hyphen) exactly as it appears on the CD-ROM case. Click Next.

7. Follow the instructions on the screen to install the software and create an Adobe

Photoshop LE folder on your hard drive.

8. If you’ve finished installing software, restart your computer. If you want to install other software, continue with the instructions in the following sections.

Installing MonacoEZcolor

1. Insert the MonacoEZcolor CD-ROM in your drive.

2. Double-click the MonacoEZcolor CD-ROM icon on your desktop.

48

3. Double-click the MonacoEZcolor folder, and then double-click the

MonacoEZcolor Installer icon.

4. When you see the installer window, click Continue and follow the instructions on the screen.

5. Click Quit when installation is complete. Then restart your computer.

Selecting the Expression 1640XL as Your Default Scanner

To verify that the scanner is properly connected or if you have more than one EPSON scanner connected to your computer, you can choose which scanner you want to use.

Follow these steps to choose the Expression 1640XL as your default scanner:

1. From the Apple menu, click see the following window:

2. Select

Your selection remains in effect until you change it.

EPSON Expression1640XL

Control Panels, EPSON Scanner Selector

in the scanner list and click OK.

. You

49

50

How To Scan

This section gives you an overview of the scanning process and some tips for getting the best scan. It also includes step-by-step scanning instructions.

Scanning Tips

Getting the best scan possible depends on several factors, including the quality of your original and the resolution you select. The better your original is, the better your scan will be. While you can make some color corrections in your scanning software, you’ll need to do major color photo retouching in a program such as Adobe Photoshop. To get the best possible scan, keep the document table clean, and make sure the document is flat against the glass surface.

Selecting Resolution

Resolution refers to how many dots per inch (dpi) or dots per centimeter (dpcm) your image contains. The best resolution for a scanned image depends on the type of image you’re scanning and your final output device.

As a rule of thumb for most images except line art, use a scanning resolution that is approximately one third of your output resolution. For example, use a scanning resolution up to 100 dpi with a 300 dpi laser printer, and up to 200 dpi with a

®

600 dpi laser printer. For 1440 dpi ink jet printers, such as the EPSON Stylus COLOR series, use a scanning resolution of up to 300 dpi. Try a scanning resolution of 240 dpi for 720 dpi printing.

51

Keep the following in mind when you choose a resolution:

■ The higher the resolution you select, the larger the resulting image file will be. For

example, an 8.5 × The same original scanned at 72 dpi creates only a 1.3MB file. Large files take longer to process and print, so consider the practical limitations of your computer system and hard disk drive when selecting a resolution. To keep your file size manageable, select the lowest possible resolution that gives acceptable quality. (If your final output is for on-screen viewing, you can scan at 72 dpi and reduce your file size.)

■ If you need to scan at a higher resolution, you can reduce the size of the resulting

image file by scanning only part of the image. For information about selecting part of an image, see “Making and modifying marquees” in your electronic EPSON Expression 1640XL Online Reference Guide.

11-inch original scanned at 300 dpi can produce a 24MB file.

Scaling (Resizing) Images

If you plan to enlarge your image, it’s better to enlarge it by scanning at a higher resolution rather than adjusting resolution in your application. Each time you modify an image, you lose some image quality.

52

Keep in mind when you enlarge a small photo, such as 35 mm slides or wallet-size photos, you’ll need to scan at a high enough resolution to retain your image quality, but not so high that your file size is too large to be efficient.

Scanning Color Images

If the colors in your scanned image don’t match those in your original document, try experimenting with the Unsharp Mask setting. Click the Destination button in the EPSON TWAIN Pro main window to display the Destination window, and then select or deselect Unsharp Mask.

Batch Scanning

You can use batch scanning to save time. Batch scanning allows you to scan several images at once, or the same image with several different settings.

For more information, see “Making and modifying marquees” in your electronic EPSON Expression 1640XL Online Reference Guide.

Document Guide

You can use the document guide to make incremental changes to the angle of a document to correct for any slight shifts during scanning.

For more information, see “Using the Document Guide” on page 64.

Do not leave photographs on the document table for extended periods or they may stick to the glass. Also, do not place heavy objects on top of the scanner.

53

Recommended Settings

Here are some recommended settings for different types of scans.

Image type

Recommended application

Recommended TWAIN Pro* settings

Scanning resolution for printing**

Photograph Photoshop LE Image Type:

42-bit Color (HiFi)***, 24-bit Color (Std), 14-bit Gray (HiFi)***, or 8-bit Gray (Std)

Magazine Photoshop LE Image Type:

24-bit Color De-screening

Newspaper (text only) TextBridge Pro or

PageManager

Text for OCR TextBridge Pro or

PageManager

Text with images TextBridge Pro or

PageManager

Line art Photoshop LE Image Type: Line Art 300 to 3200 dpi

Negative transparency (35 mm film)

Positive transparency (35 mm slides)

Photoshop LE Document Source:

Image Type: OCR**** 300 or

Image Type: Line art B/W option: Auto Segmentation

TPU for Neg. Film

TPU for Pos. Film

Area

300 dpi**

300 dpi

400 dpi*****

300 or 400 dpi *****

300 to 3200 dpi

54

* Recommendations for EPSON TWAIN Pro also apply to EPSON TWAIN Pro Network.

** If your output is for on-screen viewing (for example, on a web page), select a resolution of

72 dpi.

*** This Image Type is available only in certain applications, such as Photoshop.

**** Automatically selects Text Enhancement Technology (TET) as your B/W option.

***** If you are enlarging your image, you must manually change the resolution (dpi).

Step-by-Step Scanning Instructions

This section contains step-by-step instructions for scanning an image. Although the Windows interface is shown, Macintosh steps are the same.

Placing Your Original Document

1. Raise the scanner cover and place your document face down on the document table. If you’re scanning a transparency, the optional transparency unit should be installed. (See “Installing the Transparency Unit” on page 105.)

2. Position the document so the horizontal and vertical edges are carefully aligned with the scales along the sides of the document table.

3. Close the document cover slowly. Be careful not to move the document.

Scanning with EPSON TWAIN Pro

1. Start your host application (for example, Adobe Photoshop LE).

2. Select your scanner driver. (Unless you change your source, you only need to do this step once.)

For example, if you’re running Windows and using Adobe Photoshop LE as your

host application, click File, Import, Select TWAIN_32 Source. In the Select Source dialog box, select

EPSON TWAIN Pro(32-bit)

If you have a Macintosh, click File, Import, Twain Select. In the Select a source dialog box, choose

The command you choose from the File menu differs from one host application to another. With other host applications, you might choose Acquire or Select Source instead of Import.

EPSON TWAIN Pro

and click OK.

3. Open the scanner software.

For example, choose Import from Photoshop’s File menu.

In Windows, select

TWAIN_32.

Click to start scanning.

On a Macintosh, select

TWAIN_Acquire

The EPSON TWAIN Pro

.

Click to display a preview of the image.

main window appears.

. Then click

Select

.

56

4. Choose the Document

Source Destination.

, Image Type, and

For example, if you’re scanning a photograph, select Flatbed as your Document

Source (Photo)

, 24-bit Color (Std) as your Image Type, and EPSON Stylus Printer

as the Destination, if you’re sending the scanned image to an EPSON

inkjet printer. If you’re using the optional transparency unit, select TPU for Neg.

Film

or TPU for Pos. Film as your Document Source. If you’re using the

optional automatic document feeder, select Auto Document Feeder as your

Document Source.

5. Click the

Preview

button.

You see a preview of your scan in the window that opens.

6. Click the

Auto Locate

button to automatically define the scan area around the edges of your image. Or adjust the scan area by positioning the mouse pointer over any of the eight boxes around the marquee’s edge and dragging the box to resize the marquee.

Click to define the scan area automatically.

A dotted marquee frames the area to be scanned.

Click the

Exposure

Auto

button to automatically set the highlight, midtones, and shadow exposure.

Generally it’s a good idea to use the Auto Exposure button to obtain the best settings for your scan. If you’re not satisfied with the results, see your electronic EPSON Expression 1640XL Online Reference Guide for information about adjusting settings.

If you need to remove color cast from your image, use the Gray Balance Intensity feature.

7. When you’ve finished making adjustments, click the Scan button.

The READY light on the front of the scanner flashes while it’s scanning. In a few moments, a scanned image is imported into your host application’s window.

(If the READY light continues to blink, it may indicate an error condition. See Chapter 7, “Solving Problems,” for more information.)

8. Click Close to close the EPSON TWAIN Pro window and return to your application.

9. If you want, save your image using the Save or Save As options from the File menu of your host application.

57

Using the

] Start Button

You can load a document in the scanner, press the Presto! PageManager starts and then scans, copies, faxes, or e-mails your document.

This section includes the following:

■ How to set up the

■ How to set up Presto! PageManager for one-touch scanning.

Setting Up the

]

Start button to launch other applications

]

To use the computer must start both the host application and EPSON TWAIN Pro Network. Pressing the scanned image to the client computer currently connected to the scanner server, but does not automatically launch any applications.

When EPSON Scan Server is running, the Expression 1640XL connected to the scanner server becomes a network scanner available only to remote users. The scanner server cannot use

]

the

Start button features described in this chapter, which

are only available to a local scanner.

Start button with a network scanner, the client

]

Start Button

] Start button, and watch while

]

Start button sends the

58

If you didn’t install Presto! PageManager, you need to assign an application to the Start button before you use it the first time.

If you’re running Windows 2000 or Windows 98, whenever you press the you’ll see a window asking you to choose which application to launch. To avoid this window, make sure that only one application is assigned to the the next section, “Windows 2000 and Windows 98.”

] Start button. Continue with

] Start button

]

If you’re running Windows 95 or Windows NT 4.0, go to “Windows 95 and Windows NT” on page 60. If you have a Macintosh, go to “Macintosh” on page 61.

Windows 2000 and Windows 98

Follow these steps to assign an application to the

1. Double-click the Scanners and

Cameras

icon in the Windows Control

Panel.

2. Select

EPSON Expression1640XL

and

click the Properties button.

3. Click the Events tab. You see the window to the right.

4. Make sure Start Button appears in the

Scanner events

box, then deselect any

applications you don’t want to use in the

Send to this application list. When you

finish, a check should appear only beside the application that you want to assign to the

] Start button.

] Start button:

5. Click Apply, then click OK to close the EPSON Expression 1640XL Properties window, then click OK again to close the Scanners and Cameras Properties window.

59

You can disable the device events checkbox on the Events tab.

] Start button by clicking the Disable

Whenever you press the scanner’s

Start button, the application you assigned

]

launches. If you assigned Presto! PageManager, it automatically starts EPSON TWAIN Pro. If you assigned another application, you must start EPSON TWAIN Pro manually.

Windows 95 and Windows NT

You don’t need to assign an application to the automatically launch Presto! PageManager. If you want it to launch a different application, follow these steps:

1. Click the Scanner Monitor icon located on your Windows taskbar.

2. Select

Preferences. You see

the EPSON Scanner Monitor window.

3. Do one of the following:

■ Choose an application in

the Launch Application list.

■ Browse to another application on your hard drive. Select the application and

click Open to close the Browse window. Your application’s path appears in the Launch Application box.

Start button if you want it to

]

60

4. Click OK to close the EPSON Scanner Monitor window and save your setting.

Whenever you press the scanner’s

Start button, the application you assigned

]

launches. You can then start EPSON TWAIN Pro.

Macintosh

Only Presto! PageManager automatically starts EPSON TWAIN Pro. If you assign another application to the button, you must start your scanner driver manually.

] Start

You don’t need to assign an application to the

Start button if you want it to

]

automatically launch Presto! PageManager. If you want it to launch a different application, follow these steps:

1. Select

Setup

EPSON Scanner Monitor

in the Apple menu. You see the

window to the right.

2. Browse to the application you want to use and open it. When your application’s icon appears in the Launch Application box, click OK.

Whenever you press the scanner’s

Start button, the application you assigned

]

launches. You can then start EPSON TWAIN Pro.

Only Presto! PageManager automatically starts EPSON TWAIN Pro. If you assign another application to the button, you must start your scanner driver manually.

] Start

Setting Up Presto! PageManager for One-Touch Scanning

You can set up Presto! PageManager to send your image directly to another application or utility, or to a peripheral device such as a printer. You can suppress the EPSON TWAIN Pro user interface so the scanner uses the settings assigned in this procedure. If you use this shortcut, faxing or printing an image could be as easy as pressing the scanner’s

Start button.

]

Follow these steps:

1. Start Presto! PageManager and select

Scan Buttons Setting from the File menu.

The Scan Buttons window opens.

61

2. You see an icon for your default printer, fax program, e-mail program, and other applications in the

Scan Buttons

box. Click the icon you want to highlight to see

its settings.

Select the icon for the application or peripheral you want to use.

Click to suppress the EPSON TWAIN Pro user interface.

3. Click the Suppress TWAIN user interface checkbox to select it. The settings for your scan become active.

62

4. Choose the Scan Mode, Scan Size, and Resolution. If you plan to use the automatic document feeder, select Enable Document Feeder. Make any other settings you want.

These are the default settings that will be used whenever you press the scanner’s ] Start button. Choose settings that you can use for most of the scans you initiate with one-touch scanning.

5. Click the

Start Button Setting

tab.

6. Scroll the

Select target application

box until you see the icon for your printer or program. (Programs or printers you added appear to the right.) Select the icon and click OK to assign it to the

] Start button.

A ]Start button icon appears next to the selected icon in Presto! PageManager’s Scan Buttons Palette. Now you can copy, fax, e-mail, print, or scan by simply pressing the

] Start button.

You can only assign one function at a time to the button.

Start button icon

]

Start

63

Using the Document Guide

Most scanners scan at a slight angle due to the movement of the carriage. If you find that your scanned images are being scanned at an angle, use the document guide to adjust the angle of scanning. This section includes instructions for:

■ Installing the Document Guide

■ Scanning with the Document Guide

■ Calculating the Adjustment Angle

■ Scanning Your Aligned Document

Before you install the document guide, locate the following parts, included in your scanner box.

grid document guide clear document guide

64

guide pin adjust pin

Be sure to remove the protective film from both the grid document guide and clear document guide before using them.

Installing the Document Guide

1. Insert the guide pin in the left hole above the scanner’s document table and the adjust pin in the right hole; push them in securely. Turn the adjust pin so its arrow faces the guide pin.

2. Lay the grid document guide on the document table with the document guide holes over the scanner screw holes. Make sure the larger document guide hole is on the right.

arrow

adjust pin

guide pin

3. Lift up the document guide and insert your document, image or picture under the guide. Align your document with the guide’s grid lines. Repeat this step for every document you want to scan, placing one document next to another (without overlapping them).

4. Close the document cover.

65

Scanning with the Document Guide

1. Open an application and access EPSON TWAIN Pro. Select the following settings:

Document Source:

Image Type:

Destination:

Resolution:

2. Click

Preview

800 dpi

. You see a preview of the document guide in the preview area.

Flatbed

8-bit Gray

LineWork Scan

3. Make a marquee around the scale boxes on the document guide as shown.

scale boxes

marquee

66

4. Use the Zoom tool to view the enlarged scale. Move the marquee to align its left edge with the left edges of the scale as shown.

5. Click

Scan

.

align the left edge of the marquee with the left edge of the scale

6. Compare the left edges of the scales with the scanned image. The starting points of the scales should match exactly.

Matching Do not match

A starts at 0 A starts at 0

B starts at 0 B starts at 2

7. Check the left edges of the scales of the scanned image and calculate the adjustment angle, as described in the next section.

67

Calculating the Adjustment Angle

If you need to adjust the document guide angle, you first need to determine which way to adjust it and by how much. For example, in the example shown above:

The adjusting angle = (scale A - scale B) / 4

For example:

If scale A starts at line 0, then 0 × 0.4 = 0; the value for

scale A = 0

If scale B starts at line 2, then 2 × 0.4 = 0.8; the value for

scale B = 0.8

(0 - 0.8)/4 = -0.2

In this example, the angle you need to adjust the adjust pin is -0.2

To adjust the angle:

1. Use a screwdriver to turn the adjust pin to the number you calculated (-0.2 in the previous example).

2. To confirm the angle, repeat the steps under “Scanning with the Document Guide.” Once you’ve confirmed the angle, it’s a good idea to write it down for future reference.

68

Scanning Your Aligned Document

Be sure to remove the protective film from both the grid document guide and clear document guide before using them.

1. Lay the clear document guide on the scanner document table with the document guide holes over the scanner screw holes. Make sure the larger document guide hole is on the left side.

2. Place your document face up on the clear document guide.

3. Place the grid document guide on top of your document, aligning the document guide holes over the scanner screw holes. Make sure the larger document guide hole is on the left.

4. Make sure your document is aligned with the grid document guide. After aligning the document to the proper position, use tape to secure it in place. Repeat this step for every document you want to scan, placing one document next to another (do not overlap them).

69

5. Remove the grid document guide.

6. Turn the clear document guide over and lay it on the document table with the document guide holes over the scanner screw holes. Make sure the larger document guide hole is on the right and your document faces down.

7. Close the document cover and scan the document.

70

Using the Clear Document Guide

The clear document guide can also be used to hold light originals against the document table; this will prevent the original from being pushed out of alignment by air currents as the document cover is closed.

Network Scanning

You can use EPSON Scan Server and EPSON TWAIN Pro Network, two applications on your EPSON Expression 1640XL Scanning Tools CD-ROM, to share your scanner with other users in a small workgroup.

Your network must have a scanner server (the Windows computer connected to the scanner) and one or more

client computers. Only one client computer at a time can connect to the scanner server and access the scanner. However, you can have more than one scanner and scanner server on a network, so clients can choose which scanner to use.

Here are some other requirements for sharing a scanner:

■ The scanner server must be an IBM pentium compatible PC computer running

Windows 2000, Windows 98, Windows 95, or Windows NT 4.0 with Service Pack 3 or higher.

■ Client computers can be running Windows 2000, Windows 98, Windows 95,

Windows NT 4.0, or Macintosh System 8.0 or later.

■ Both the client computers and the scanner server must have a network interface

card installed, and must be running the TCP/IP protocol (see Appendix B for instructions on installing the TCP/IP protocol).

■ EPSON Scan Server must be installed on the scanner server, and EPSON

TWAIN Pro Network must be installed on client computers.

71

This chapter includes the following:

■ How to install, set up and start EPSON Scan Server on the scanner server

■ How to install and start EPSON TWAIN Pro Network on client computers

■ How to begin a scan from the client computer, the scanner server, or the scanner’s

] Start button

■ How to stop a scan in progress.

Setting Up the Scanner Server

You can set up any Windows 95, Windows 98, Windows 2000, or Windows NT 4.0 computer as a scanner server, as long as it has a network interface card installed and is running the TCP/IP protocol.

Before you begin, make sure to unlock the scanner and connect it to the scanner server (see Chapter 2, “Setting Up Your Scanner,” for details). If you don’t have the TCP/IP protocol installed on the scanner server, see Appendix B, “Installing the TCP/IP Protocol.”

72

Follow the instructions for your operating system:

■ If you’re running Windows 2000, continue with the next section, “Installing the

Scanner Server Software on Windows 2000.”

■ If you’re running Windows 98, go to “Installing the Scanner Server Software on

Windows 98” on page 78.

■ If you’re running Windows 95 or Windows NT, go to “Installing the Scanner

Server Software on Windows 95 and Windows NT 4.0” on page 84.

Installing the Scanner Server Software on Windows 2000

Before you begin, make sure the Expression 1640XL is connected to your computer. Also, make sure you’ve recalibrated your monitor to factory specifications.

Depending on how your computer system was originally set up, you may be asked to insert your Windows 2000 CD-ROM during driver installation. Make sure you have it available, or know where to find the Windows source files on your hard disk (for example, in the Windows folder). If you need help, contact your computer manufacturer.

If you’ve just installed a SCSI interface card, you may be asked to install a SCSI driver at the beginning of installation. Follow the instructions on the screen to install the best driver, then continue with the scanner server installation.

1. Turn on your scanner first, then turn on your computer.

2. When you see the window on the

right, insert the EPSON Expression 1640XL Scanning Tools CD-ROM in your drive and click Next.

3. Select Search for a suitable driver

for my device

, and then click Next.

73

4. Select

Specify a location

necessary, and click

.

5. Browse to EPSON\ Win2000 on

your CD-ROM drive. (The example to the right uses “F” as the CD-ROM drive letter. Your CD-ROM drive letter may be different.) Click OK to close the Browse window, and then click

.

74

If you see a message asking for your Windows 2000 CD-ROM, insert it and click

OK (or click Browse and locate the Windows 2000 source files on your hard

drive; then click OK).

7. When you see the window to the

right, click Yes.

If prompted for the EPSON Scanners Driver Disk 1, reinsert your EPSON Expression 1640XL Scanning Tools CD-ROM.

8. When you see the EPSON Screen Calibration Utility,

move the slider right or left until the stripes match as closely as possible. Then click OK.

9. Click Finish when you see a message that installation

is complete.

Continue with the instructions in the next section.

The EPSON Screen Calibration Utility calibrates the preview image you see in your EPSON TWAIN Pro driver to match your monitor settings.

You won’t need to change the screen calibration as long as you continue to use the same display. If you need to recalibrate your screen at a later time, double-click the Scanners and Cameras icon in your Windows Control Panel to open the Scanners and Cameras Properties window. On the Devices tab, select EPSON Expression 1640XL and click the Properties button to display the EPSON Expression 1640XL Properties window. Click the Utility tab, and then click the Screen Calibration Utility button.

Finishing the Scanner Server Installation on Windows 2000

Before your computer can share its scanner, you must install EPSON Scan Server. At the same time, you can install other software that came with your scanner. Your scanner comes with a multi-user license (6) for Presto! PageManager, an unlimited license for EPSON TWAIN Pro Network and TWAIN Pro, and a single-user license for ScanSoft TextBridge Pro, Adobe Photoshop LE, and MonacoEZcolor. If you want to install these applications on additional computers, please contact the software manufacturer to purchase additional licenses. This information serves to modify the software End User License Agreement contained on the CD-ROM.

75

1. If the Software Setup

window doesn’t appear, double-click the My

Computer

icon on your Windows desktop, then double-click the Epson CD-ROM icon.

2. Click the

Add Software

button to display the software selection window.

3. Select EPSON Scan

Server

. A check mark appears beside applications selected for installation. If you want to deselect either Presto! PageManager or Acrobat Reader, click the application to clear the check mark. Then click OK.

You don’t need to install EPSON TWAIN Pro Network to use the scanner connected to your computer— use EPSON TWAIN Pro instead. EPSON TWAIN Pro is automatically installed when you install the scanner server software. Only install EPSON TWAIN Pro Network if you want to use an Expression 1640XL attached to another computer.

76

4. Follow the instructions on the screen to install EPSON Scan Server and any other software you selected in the software selection window.

If you’re installing EPSON TWAIN Pro Network in order to use a scanner attached to another computer, you’ll see a window that asks for the Network Scanner Address (the scanner server’s IP address). Enter the IP address for the computer you want to connect to (see page 93 for instructions).

5. Follow the instructions in “Installing Additional Windows Software” on page 43 if you want to install ScanSoft TextBridge Pro, Adobe Photoshop LE, or MonacoEZcolor.

6. When you’re done installing software, restart your computer.

Setting Up the Default Scanner on Windows 2000

If you have more than one scanner connected to your computer, you can set up the Expression 1640XL as the default scanner.

1. Double-click the

Cameras

icon in your Windows

Scanners and

Control Panel to open the Scanners and Cameras Properties window.

2. Make sure

1640XL Properties button. You see the

EPSON Expression

is selected, and click the

EPSON Expression 1640XL Properties window.

77

3. Click the

as default scanner for EPSON Scan Server

Utility

is checked, and then click OK.

tab. Make sure

Select

Installing the Scanner Server Software on Windows 98

Before you begin, make sure the Expression 1640XL is connected to your computer. Also, make sure you’ve recalibrated your monitor to factory specifications.

78

You may be asked to insert your Windows CD-ROM during this procedure. Make sure you have your Windows CD-ROM available, or know where to find the Windows source files on your hard drive. If you need help locating your source files, contact your computer manufacturer.

1. Turn on your scanner first, then turn on your computer.

2. When you see the window on the right, insert the EPSON Expression 1640XL Scanning Tools CD-ROM in your drive and click

3. Select Search for the best driver

for your device Next.

, and then click

4. Select Specify a location, if necessary, and click

5. Browse to

EPSON\ Win98

Browse

.

on your CD-ROM drive. (The example to the right uses “E” as the CD-ROM drive letter. Your CD-ROM drive letter may be different.) Click OK to close the Browse window, and then click Next.

6. Follow the instructions on the screen.

79

7. When you see the EPSON Screen Calibration Utility, move the slider right or left until the stripes match as closely as possible. Then click OK.

8. Click Finish when you see a message that installation is complete.

The EPSON Screen Calibration Utility calibrates the preview image you see in your EPSON TWAIN Pro driver to match your monitor settings.

You won’t need to change the screen calibration as long as you continue to use the same display. If you need to recalibrate your screen at a later time, double-click the Scanners and Cameras icon in your Windows Control Panel to open the Scanners and Cameras Properties window. On the Devices tab, select EPSON Expression 1640XL and click the Properties button to display the EPSON Expression 1640XL Properties window. Click the Utility tab, and then click the Screen Calibration Utility button.

80

Finishing the Scanner Server Installation on Windows 98

Before your computer can share its scanner, you must install EPSON Scan Server. At the same time, you can install other software that came with your scanner. Your scanner comes with a multi-user license (6) for Presto! PageManager, an unlimited license for EPSON TWAIN Pro Network and TWAIN Pro, and a single-user license for ScanSoft TextBridge Pro, Adobe Photoshop LE, and MonacoEZcolor. If you want to install these applications on additional computers, please contact the software manufacturer to purchase additional licenses. This information serves to modify the software End User License Agreement contained on the CD-ROM.

1. If the Software Setup window doesn’t appear, double-click the My

Computer

Windows desktop, then double-click the Epson CD-ROM icon.

2. Click the Add Software button to display the software selection window.

icon on your

3. Select

Server.

appears beside applications selected for installation. If you want to deselect either Presto! PageManager or Acrobat Reader, click the application to clear the check mark. Then click OK.

EPSON Scan

A check mark

81

You don’t need to install EPSON TWAIN Pro Network to use the scanner connected to your computer— use EPSON TWAIN Pro instead. EPSON TWAIN Pro is automatically installed when you install the scanner server software. Only install EPSON TWAIN Pro Network if you want to use an Expression 1640XL attached to another computer.

4. Follow the instructions on the screen to install EPSON Scan Server and any other software you selected in the software selection window.

If you’re installing EPSON TWAIN Pro Network in order to use a scanner attached to another computer, you’ll see a window that asks for the Network Scanner Address (the scanner server’s IP address). Enter the IP address for the computer you want to connect to (see page 93 for instructions).

5. Follow the instructions in “Installing Additional Windows Software” on page 43 if you want to install ScanSoft TextBridge Pro, Adobe Photoshop LE, or MonacoEZcolor.

6. When you’re done installing software, restart your computer. Then follow the instructions in “Testing the Scanner’s Operation (Windows 98)” on page 33 to make sure the scanner is operating properly.

82

Setting Up the Default Scanner on Windows 98

If you have more than one scanner connected to your computer, you can set up the Expression 1640XL as the default scanner.

1. Double-click the

Cameras

icon in your Windows

Scanners and

Control Panel to open the Scanners and Cameras Properties window.

2. Make sure EPSON Expression

1640XL Properties button. You see the EPSON

is selected, and click the

Expression 1640XL Properties window.

83

3. Click the

as default scanner for EPSON Scan Server

Utility

is checked, and then click OK.

tab. Make sure

Select

Installing the Scanner Server Software on Windows 95 and Windows NT 4.0

Make sure the Expression 1640XL is connected to your computer. Also, make sure you’ve recalibrated your monitor to factory specifications.

84

If you’re configuring your SCSI interface card for the first time, you’ll be asked to install your SCSI driver at the beginning of installation. Make sure you have your Windows CD-ROM available, or know where to find the Windows source files on your hard drive. Then follow the instructions on the screen, or see the documentation that came with your SCSI card for more information.

If you need help locating your source files, contact your computer manufacturer.

If you’re running Windows 95, continue with the instructions in the next section. If you’re running Windows NT 4.0, go to “Starting the Scanner Server Installation on Windows NT 4.0” on page 86.

Starting the Scanner Server Installation on Windows 95

Follow these steps to install the scanner driver and begin software installation:

1. Turn on your scanner first, then turn on your computer. When you see the window on the right, click Next.

2. Insert your EPSON Expression 1640XL Scanning Tools CD-ROM in your drive and click Other Locations.

3. Browse to the following location on your CD-ROM drive:

EPSON\Win95. (The example on

the right uses “E” as the CD-ROM drive letter. Your CD-ROM drive may have a different letter.) Click

OK to close the Browse window,

then click OK again.

85

4. When you see this window, click

Finish

.

5. Double-click the

Computer

Windows desktop, then double-click the CD-ROM icon. You see the window on the right.

6. Click the Add Software.

Continue with the instructions in “Finishing the Scanner Server Installation (Windows 95 and Windows NT 4.0)” on page 87.

My

icon on your

Epson

Starting the Scanner Server Installation on Windows NT 4.0

Follow these steps to begin the scanner server installation:

1. Turn on your scanner first; then turn on your computer.

86

2. Log onto Windows NT. Then insert the EPSON Expression 1640XL Scanning Tools CD-ROM.

3. If the Software Setup window doesn’t appear, double-click the

My Computer icon on your

Windows desktop, then double-click the CD-ROM icon.

4. Click the Add Software button to display the software selection window.

Continue with the instructions in the next section to finish installing the scanner server software.

Epson

Finishing the Scanner Server Installation (Windows 95 and Windows NT 4.0)

Before your computer can share its scanner, you must install EPSON Scan Server. At the same time, you can install other software that came with your scanner. Your scanner comes with a multi-user license (6) for Presto! PageManager, an unlimited license for EPSON TWAIN Pro Network and TWAIN Pro, and a single-user license for ScanSoft TextBridge Pro, Adobe Photoshop LE, and MonacoEZcolor. If you want to install these applications on additional computers, please contact the software manufacturer to purchase additional licenses. This information serves to modify the software End User License Agreement contained on the CD-ROM.

1. Select EPSON Scan

Server.

appears beside applications selected for installation. Click to select other software you want to install, or deselect software you don’t want. Then click

OK.

A check mark

87

Use EPSON TWAIN Pro to scan from the Expression 1640XL connected to your computer. Only install EPSON TWAIN Pro Network if you want to use an Expression 1640XL attached to another computer.

2. If you’re not installing EPSON TWAIN Pro, go to step 5.

If you are installing EPSON TWAIN Pro, follow the instructions on the screen. When you see the window on the right, make sure are selected under

SCSI

and

Expression1640XL

Scanner Selection

.

88

If you’re installing EPSON TWAIN Pro Network in order to use a scanner attached to another computer, you’ll see a window that asks for the Network Scanner Address (the scanner server’s IP address). Enter the IP address for the scanner server you want to connect to. See page 93 for instructions. Then continue with step 3 below.

3. Click Test to check scanner operation. If the scanner is communicating with your computer, you see Status: Device Ready under Scanner Information. Click

OK to close the window.

4. When you see the EPSON Screen Calibration Utility, move the slider right or left until the stripes match as closely as possible. Then click

.

OK

The EPSON Screen Calibration Utility calibrates the preview image you see in your EPSON TWAIN Pro driver to match your monitor settings.

You won’t need to change the screen calibration as long as you continue to use the same display. If you need to recalibrate your screen at a later time, open the EPSON TWAIN Pro window by double-clicking the EPSON TWAIN Pro icon in the Windows Control Panel. Then click the Screen Calibration button at the bottom of the window to start the utility.

5. Follow the instructions on the screen to install EPSON Scan Server. When you see the window on the right, make sure

Expression1640XL is selected under Scanner Selection. Select either Icon or Dialogbox as the scanner server Startup Mode

. (See “Changing the Scan Server Start

Up Mode” on page 91 for details.)

6. Click Test to test scanner operation.

OK. Scanner Available appears under Scanner Information if the scanner is

communicating with the scanner server. Click OK to close the window.

89

If you want to share a different network scanner with client computers, you can access the EPSON Scan Server window at any time by double-clicking the EPSON Scan Server icon in the Windows Control Panel. Then select the scanner you want in the Scanner Selection list.

7. Follow the instructions on the screen to complete installation of any other software you’ve selected in the software selection window.

8. Follow the instructions in “Installing Additional Windows Software” on page 43 if you want to install ScanSoft TextBridge Pro, Adobe Photoshop LE, or MonacoEZcolor.

9. When you’re done installing software, restart your computer.

90

Changing the Scan Server Start Up Mode

When you installed the software, you set up the Scan Server to start in either Dialog Box mode or Icon mode.

In Dialog Box mode, the following dialog box appears whenever you start EPSON Scan Server. (The message Waiting for connection in the status area indicates that the scanner is waiting for a connection to a client computer.)

Click here and select Taskbar Icon to switch to Icon mode.

In Icon mode, the EPSON Scan Server icon appears on the Windows taskbar when you start EPSON Scan Server.

■ To change from Dialog Box mode to Icon mode, click the scanner icon in the

upper left corner of the dialog box and select Taskbar Icon from the list.

■ To change from Icon mode to Dialog Box mode, right-click the EPSON Scan

Server icon on the taskbar and click Taskbar Icon to deselect it.

Your setting takes effect when you exit and restart EPSON Scan Server. See “Starting EPSON Scan Server” on page 99 for instructions on starting EPSON Scan Server.

Make sure no client computer is connected to the scanner server when you exit EPSON Scan Server.

91

Setting Up Client Computers

To set up a client computer, you’ll need to know the IP address or host name of the scanner server. Also, make sure the TCP/IP protocol is installed (see Appendix B, “Installing the TCP/IP Protocol,” for instructions).

The TCP/IP protocol is preinstalled on newer Macintosh systems. If you have a Macintosh, just make sure that TCP/IP is enabled in your Extensions Manager.

Installing EPSON TWAIN Pro Network on Windows

You must install EPSON TWAIN Pro Network on the client computer before the client can use the network scanner. At the same time, you can install other software that came with your scanner. Your scanner comes with a multi-user license (6) for Presto! PageManager, an unlimited license for EPSON TWAIN Pro Network and TWAIN Pro, and a single-user license for ScanSoft TextBridge Pro, Adobe Photoshop LE, and MonacoEZcolor. If you want to install these applications on additional computers, please contact the software manufacturer to purchase additional licenses. This information serves to modify the software End User License Agreement contained on the CD-ROM.

92

1. Insert the EPSON Expression 1640XL Scanning Tools CD-ROM in the CD-ROM drive. If the Software Setup window doesn’t appear, double-click the

My Computer icon on your desktop, and then double-click the Epson

CD-ROM icon.

2. Click Add Software. You see the software selection window.

Epson 1640XL User Manual 2

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents9

About Your Scanner

About Your Software

Getting More Information

Warnings, Cautions, Notes, and Tips

Reading Your Reference Guide

Viewing Your Other Electronic Manuals

Registering

Unpacking Your Scanner

Choosing a Good Place for Your Scanner

Identifying Scanner Parts

Unlocking the Scanner

Attaching the Document Guide Strip

Testing Your Scanner’s Operation

Connecting the Scanner to Your Computer

Connecting to a USB Interface

Connecting to a SCSI Interface

Connecting to an IEEE 1394 FireWire Interface

Installing the Windows Software

Installing the Windows 2000 Software

Installing the Windows 98 Software

Installing the Windows 95 Software

Installing the Windows NT 4.0 Software

Installing Additional Windows Software

Installing Adobe Photoshop LE

Installing MonacoEZcolor

Installing ScanSoft TextBridge Pro

Installing the Macintosh Software

Starting the Macintosh Software Installation

Installing Other Software on Your Scanning Tools CD-ROM

Installing Adobe Photoshop LE

Installing MonacoEZcolor

Scanning Tips

Selecting Resolution

Scaling (Resizing) Images

Scanning Color Images

Batch Scanning

Document Guide

Recommended Settings

Step-by-Step Scanning Instructions

Placing Your Original Document

Scanning with EPSON TWAIN Pro

Setting Up Presto! PageManager for One-Touch Scanning

Using the Document Guide

Installing the Document Guide

Scanning with the Document Guide

Calculating the Adjustment Angle

Scanning Your Aligned Document

Using the Clear Document Guide

Setting Up the Scanner Server

Installing the Scanner Server Software on Windows 2000

Installing the Scanner Server Software on Windows 98

Installing the Scanner Server Software on Windows 95 and Windows NT 4.0

Starting the Scanner Server Installation on Windows 95

Starting the Scanner Server Installation on Windows NT 4.0

Finishing the Scanner Server Installation (Windows 95 and Windows NT 4.0)

Changing the Scan Server Start Up Mode

Setting Up Client Computers

Installing EPSON TWAIN Pro Network on Windows
