• 2.4GHz
• 108Mbps
• 802.11b/g/Super G
• 7+1 Modes
M35
Multi-Function MESH AP
PRODUCT DESCRIPTION
M35 is a powerful, enhanced, enterprise level product supports 7 multi-functions to
operate for every kind of working environment.
It supports high transmit output power and high data rate which plays different roles
of Access Point/ Client Bridge / Repeater / WDS AP / WDS Bridge / Client Router /
AP Router / Mesh. It operates seamlessly in the 2.4 GHz frequency spectrum
supporting the 802.11b (2.4GHz, 11Mbps) and super high sped of 802.11g (2.4GHz,
108Mbps) wireless standards. It supports different output power level settings,
bandwidth selection, and RSSI indicator which enables the best transmitting and
receiving signal for traffic communication. Based on mesh function, it can be used to
establish mesh network, reduces the expense of equipment and risk of disconnection.
For more sensitive security requirements, M35 can encrypt all wireless transmissions
through WEP data encryption and WPA/WPA2.
M35 also supports IEEE 802.1x Supplicant function in CB mode, and authenticator in
AP mode. Those are the enhanced securities in AP/CB mode. The MAC address filter
lets you select any stations should have access to your network. The User isolation
function could protect the private network between client users. Normally, M35 has
mighty security function for your network safety.
M35 Datasheet Version 111110
*Theoretical wireless signal rate based on IEEE standard of 802.11 a, b, g, n chipset used. Actual throughput may vary.Network conditions and environmental
factors lower actual throughput rate.
** All specifications are subject to change without notice
Learn more about EnGenius Solutions at www.engeniustech.com.sg
BUSINESS CLASS
M35
Page 2
FEATURES
Wireless
- 2.4GHz It works in 2.4GHz frequency spectrum.
- MESH It is designed to establish a network with best link reliability under harsh outdoor environment. There is not any limitation on
transmission and network communication. In this mode for better performance, recommended 1 Gateway with 4 Relay in linear and
radiative deployment scenario. Transmit high output power programmable for different country selections.
- High output power High speed transmitting rate up to 108Mbps with Super G, support large payload such as MEPG
- High data rate video streaming.
Access Point/Client Bridge/Client Router/WDS Function/MESH.
- Multifunction application Transmit power control and distance control (ACK timeout).
- Long range transmitting Provide 5MHz/10MHz/20MHz bandwidth selection.
- Narrow Bandwidth RF signal strength status shown LEDs of 3 colors, making network build-up easier. LED indicators
- Signal Strength Display have the best transmit and receive signal for traffic communication.
4 SSID supported. Each SSID can set itself wireless or WAN access setting.
- Multiple SSID Enhance performance and density.
- QoS(WMM)
Datasheet
M35
Networking
- PPPoE & PPTP Point-to-Point Protocol over Ethernet at Client Router mode. This function will keep trying when failed or disconnected.
Point-to-Point Tunneling Protocol (PPTP) is a method for implementing virtual private networks
- Traffic Traffic shaping is the control of network traffic in order to optimize or guarantee performance.
Management
- 802.11i & 802.1x WEP, WPA, WPA2 (Encryption support TKIP/AES), IEEE802.1x Authenticator
- MAC address functions MAC address filter (AP mode) up to 50
- AP detection Scan all neighboring APs with their channels and signal strengths automatically for best operated channel selection on
installing
- Firmware Upgrade Upgrading firmware via web browser, setting are reserved after upgrade
- Reset & Backup Reset to factory default. User can export all setting into a file via WEB
- Ping & Trace Route Built-in PING function & Trace Route function in Web GUI
- MIB MIB I, MIB II(RFC1213) and Private MIB
- SNMP V1, V2c
TECHNICAL SPECIFICATION
> Hardware Specification
MCU/RF Atheros AR2316 Single Chip
Memory 32MB SDRAM
Flash 8MB
M35 Datasheet Version 111110
*Theoretical wireless signal rate based on IEEE standard of 802.11 a, b, g, n chipset used. Actual throughput may vary.Network conditions and environmental
factors lower actual throughput rate.
** All specifications are subject to change without notice
Learn more about EnGenius Solutions at www.engeniustech.com.sg
BUSINESS CLASS
M35
Page 3
Physical Interface One 10/100 Fast Ethernet RJ-45
One Reset Button
One Power Jack
LED indicators Power/ Status
LAN (10/100Mbps)
WLAN (Wireless Connection)
Power Requirements Power Supply : 90 to 240 VDC ± 10%, 50/60Hz (Depends on different countries)
Active Ethernet (Power over Ethernet, IEEE802.3af), 48VDC/0.375A
Adapter : 12V/1A
> RF Specification
Frequency Band 802.11b/g
2.412~2.472GHz
Modulation Technology
Operating Channels 802.11b/g
Receive Sensitivity (Typical)
Available transmit power
Internal Antenna
> Antenna Specification
OFDM = BPSK, QPSK, 16-QAM, 64-QAM
DSSS = DBPSK, DQPSK, CCK
11 for North America, 14 for Japan, 13 for Europe
802.11g
-92 dBm @ 6Mbps
-74 dBm @ 54Mbp
FCC ETSI
Frequency Power Frequency Power
2.412~2.462 GHz
IEEE802.11g
2.412~2.462 GHz
IEEE802.11b
Dual Polarization
28dBm@6~24Mbps
26dBm@36Mbps
24dBm@48Mbps
23dBm@54Mbps
28dBm@1~11Mbps
802.11b
-97 dBm @ 1Mbps
-89 dBm @ 11Mbps
2.412~2.472 GHz
IEEE802.11g
2.412~2.472 GHz
IEEE802.11b
Datasheet
M35
28dBm@6~24Mbps
26dBm@36Mbps
24dBm@48Mbps
23dBm@54Mbps
28dBm@1~11Mbps

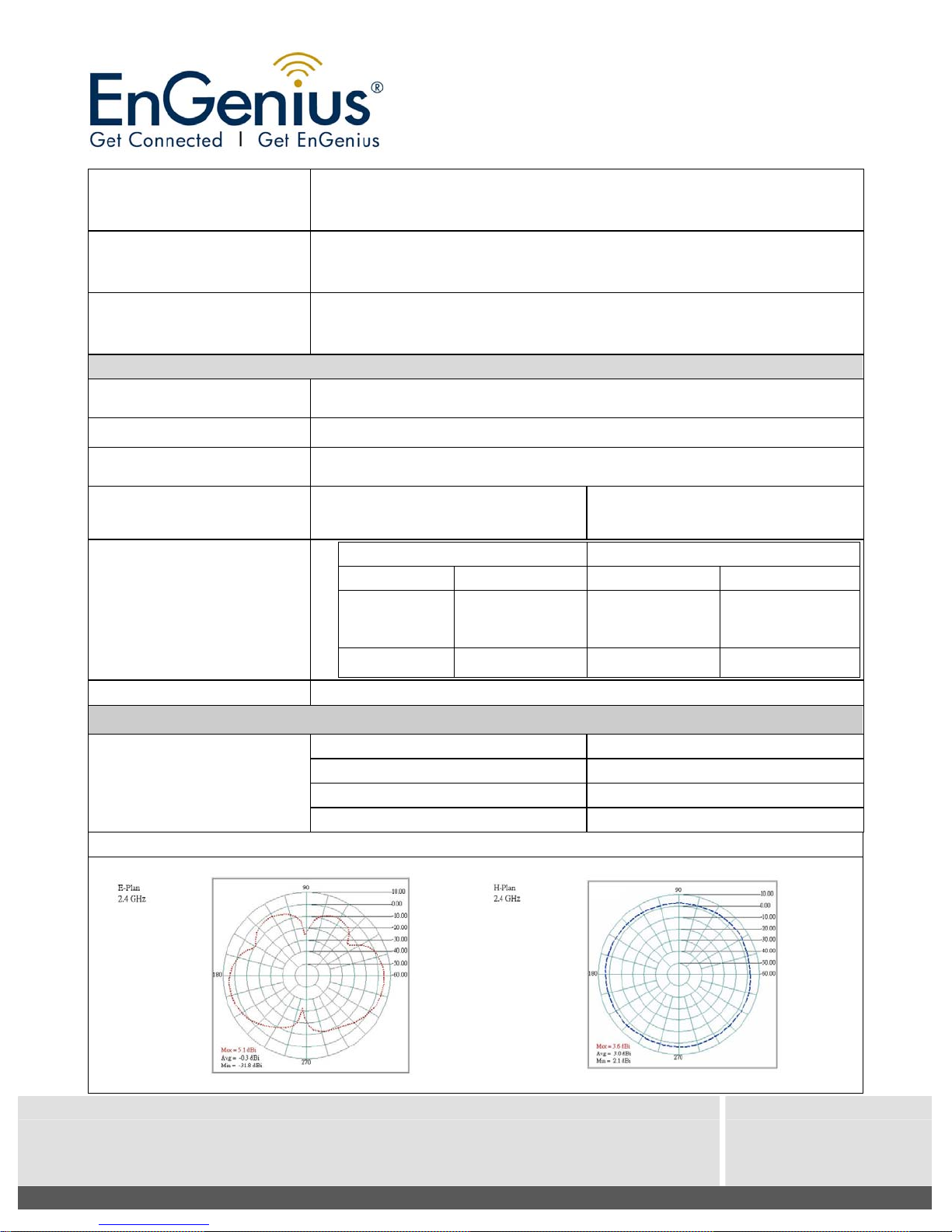

Gain 5dBi
Electrical Properties
Antenna Radiation Pattern
Radiation Omni
Frequency Band Range 0-6GHz
Gain 5dBi
M35 Datasheet Version 111110
*Theoretical wireless signal rate based on IEEE standard of 802.11 a, b, g, n chipset used. Actual throughput may vary.Network conditions and environmental
factors lower actual throughput rate.
** All specifications are subject to change without notice
Learn more about EnGenius Solutions at www.engeniustech.com.sg
BUSINESS CLASS
M35
Page 4
External Antenna 2*TNC connector
SOFTWARE FEATURES
> Settings
Topology Infrastructure
Protocol / Standard IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.11b/g (2.4GHz WLAN)
IEEE 802.3af
Operation Mode 802.11 b/g
Access Point
Client Bridge
Client Router
WDS AP/CB
AP Router
Repeater
Mesh Function
LAN DHCP Server
DHCP Client
VPN VPN – pass through
Wireless Channel Selection (Setting varies by countries)
Transmission Rate
11 b/g：54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 Mbps
Super G : 108 Mbps
Long distance transmission : 1km to 30km
Transmit power table
Antenna Diversity with Dual Polarization
Signal Strength indication using LEDs
Auto Channel Selection
AP Detection
Traffic Shaping
PPPoE(CR mode) and PPTP
Narrow Bandwidth 5MHz/10MHz/20MHz Support
PING function and Trace Route function
MSSID Support
VLAN Support
Security WEP Encryption-64/128/152 bit
WPA/WPA2 Personal (WPA-PSK using TKIP or AES)
WPA/WPA2 Enterprise (WPA-EAP using TKIP)
802.1x Authenticator
Hide SSID in beacons
MAC address filtering, up to 50 field
Wireless STA (Client) connected list
Datasheet
M35
M35 Datasheet Version 111110
*Theoretical wireless signal rate based on IEEE standard of 802.11 a, b, g, n chipset used. Actual throughput may vary.Network conditions and environmental
factors lower actual throughput rate.
** All specifications are subject to change without notice
Learn more about EnGenius Solutions at www.engeniustech.com.sg
BUSINESS CLASS
M35
Page 5
QoS WMM
> Management
Datasheet
M35
Configuration
Firmware Upgrade
Administrator Setting Administrator password change
Reset Setting - Reboot (Press 1 second)
System monitoring Status, Event Log
SNMP V1, V2c
MIB MIB I, MIB II (RFC1213) and Private MIB
Backup & Restore Settings through Web
Time setting NTP (Auto-setting of time)
Temperature Range Operating 0°C~45°C
Humidity (non-condensing) 5%～95% typical
Dimensions 125mm (L) x 108mm (W) x 31mm (H)
Weight 350g
Web-based configuration (HTTP)
- Upgrade firmware via web-browser
- Keep latest setting when f/w update
- Reset to Factory Default (Press 5 seconds)
ENVIRONMENT AND MECHANICAL
Storage -20°C to 70°C
PACKAGE CONTENT
► 1 x (M35)
► 1 x Power Adaptor
► 1 x CD with User’s Manual
► 1 x QIG
► 1 x CAT5 UTP Cable
► 2 x 5dBi 2.4GHz Dipole Antenna
M35 Datasheet Version 111110
*Theoretical wireless signal rate based on IEEE standard of 802.11 a, b, g, n chipset used. Actual throughput may vary.Network conditions and environmental
factors lower actual throughput rate.
** All specifications are subject to change without notice
Learn more about EnGenius Solutions at www.engeniustech.com.sg
BUSINESS CLASS
M35
