Technical Information
Proline t-mass B 150
Thermal Mass Flow Measuring System
For easy and cost-effective measurement of utility gases
Area of application
• Cost-effective measuring device for different utility gas
applications
• System optimization due to targeted monitoring of
utility gases
• Leakage detection in gas networks
• Suitable for in-house consumption accountancy
Device properties
• Direct mass flow measurement (kg/h, lbs/h, Scf/min,
Nm3, etc.)
• Selection of gases: air, carbon dioxide, nitrogen and
argon
• Nominal diameters: DN 80 to 1500 (3 to 60")
• ¾"- and 1" compression fittings
• Process temperature up to +100 °C (+212 °F)
• Process pressure: 500 mbar a to 20 bar g (7.25 psi a to
290 psi g)
• Calibration accuracy up to 3% o.r. and operable flow
range up to 150:1
• 4-20 mA HART, pulse/frequency/status
• cCSAus Cl. 1 Div. 2, CRN
• IP 66/67
Your benefits
The device enables direct measurement of the mass flow
of utility gases. Minimum maintenance and negligible
pressure loss drive down operating costs.
Sizing - correct product selection
Applicator - the reliable, easy-to-use tool for selecting
measuring devices for every application
Installation - simple and efficient
"Hot tap" mounting tool for installation and removal of
device under operating conditions
Commissioning - reliable and intuitive
• Intuitive configuration and simple operation
• Preconfigured in accordance with individual
requirements
Operation
Multivariable output values measured: mass flow,
corrected volume flow, FAD volume flow and
temperature
Life Cycle Management (W@M) for your plant
TI01020D/06/EN/02.12
71187194
Page 2
Table of contents Proline t-mass B 150
Table of contents
Document information ........................ 3
Document conventions ........................... 3
Function and system design .................... 4
Measuring principle ............................. 4
Measuring system .............................. 4
Characteristic values ......................... 5
Measured variable .............................. 5
Measuring range ............................... 5
Operable flow range ............................. 7
Output .................................... 7
Output signal ................................. 7
Signal on alarm ................................ 8
Low flow cut off ............................... 9
Galvanic isolation .............................. 9
Protocol-specific data ............................ 9
Power supply ............................. 10
Terminal assignment ........................... 10
Power consumption ............................ 10
Current consumption ........................... 11
Power supply failure ............................ 11
Electrical connection ........................... 11
Potential equalization ........................... 12
Terminals .................................. 12
Cable entries ................................ 12
Cable specification ............................. 13
Performance characteristics ................... 13
Reference operating conditions ..................... 13
Maximum measured error ........................ 13
Repeatability ................................ 14
Response time ............................... 14
Influence of medium pressure ...................... 14
Installation ............................... 15
Mounting location ............................. 15
Orientation ................................. 15
Requirement for pipework ........................ 15
Choosing the sensor length ....................... 16
Mounting conditions for mounting boss ................ 17
Align the insertion version with the direction of flow. ....... 17
Inlet and outlet runs ............................ 17
Process .................................. 19
Medium temperature range ....................... 19
Flow limit .................................. 19
Pressure loss ................................ 19
System pressure .............................. 19
Thermal insulation ............................. 19
Mechanical construction ..................... 20
Design, dimensions ............................ 20
Weight .................................... 22
Materials ................................... 23
Operability ............................... 24
Operating concept ............................. 24
Local operation ............................... 24
Remote operation ............................. 25
Languages .................................. 26
Certificates and approvals .................... 26
CE mark ................................... 26
C-Tick symbol ............................... 26
Ex approval ................................. 26
Other standards and guidelines ..................... 26
Ordering information ........................ 27
Application packages ........................ 27
Accessories ............................... 27
Device-specific accessories ........................ 27
Communication-specific accessories .................. 28
Service-specific accessories ........................ 28
System components ............................ 29
Documentation ............................ 29
Standard documentation ......................... 29
Supplementary device-dependent documentation .......... 29
Registered trademarks ....................... 29
Environment .............................. 18
Ambient temperature range ....................... 18
Storage temperature ............................ 18
Degree of protection ............................ 18
Shock resistance .............................. 18
Vibration resistance ............................ 19
Electromagnetic compatibility (EMC) ................. 19
2 Endress+Hauser
Page 3
Proline t-mass B 150
)
*
Document information
Document conventions Electrical symbols
Symbol Meaning
Direct current
A terminal to which DC voltage is applied or through which direct current flows.
A0011197
Alternating current
A0011198
A terminal to which alternating voltage (sine-wave) is applied or through which alternating current flows.
Ground connection
A grounded terminal which, as far as the operator is concerned, is grounded via a grounding system.
A0011200
Protective ground connection
A terminal which must be connected to ground prior to establishing any other connections.
A0011199
Equipotential connection
A connection that has to be connected to the plant grounding system: This may be a potential equalization
A0011201
line or a star grounding system depending on national or company codes of practice.
Tool symbols
Symbol
Meaning
Torx screwdriver
A0013442
Flat blade screwdriver
A0011220
Phillips head screwdriver
A0011219
Allen key
A0011221
Hexagon wrench
A0011222
Symbols for certain types of information
Symbol
Meaning
Allowed
Indicates procedures, processes or actions that are allowed.
A0011182
Preferred
Indicates procedures, processes or actions that are preferred.
A0011183
Forbidden
Indicates procedures, processes or actions that are forbidden.
A0011184
Tip
Indicates additional information.
A0011193
Reference to documentation
Refers to the corresponding device documentation.
A0011194
Reference to page
Refers to the corresponding page number.
A0011195
Reference to graphic
Refers to the corresponding graphic number and page number.
A0011196
Endress+Hauser 3
Page 4
Symbols in graphics
,…,
-
.
Symbol Meaning
1, 2, 3,...
A, B, C, ...
A-A, B-B, C-C, ...
Item numbers
Series of steps
Views
Sections
Flow direction
A0013441
Hazardous area
Indicates a hazardous area.
A0011187
Safe area (non-hazardous area)
Indicates a non-hazardous location.
A0011188
Function and system design
Proline t-mass B 150
Measuring principle
Measuring system
The thermal measuring principle is based on the cooling of a heated resistance thermometer (PT100), from
which heat is extracted by the passing gas. The gas passes two PT100 resistance thermometers in the
measurement section. One of these is used in the conventional way as a temperature probe, while the other
serves as a heating element. The temperature probe monitors and records the effective process temperature
while the heated resistance thermometer is kept at a constant differential temperature (compared to the
measured gas temperature) by controlling the electrical current used by the heating element. The greater the
mass current passing over the heated resistance thermometer, the greater the extent to which cooling takes
place and therefore the stronger the current required to maintain a constant differential temperature. This means
that the heat current measured is an indicator of the mass flow rate of the gas.
A0016823
The device consists of a transmitter and a sensor.
One device version is available: compact version comprising transmitter and sensor.
Transmitter
t-mass 150
Materials:
Aluminum coating AlSi10Mg
Configuration:
• Four-line local display with key operation and guided menu ("Setup") for
applications
• Operating tools (e.g. FieldCare)
A0015480
Other special features:
May also be ordered without local display
4 Endress+Hauser
Page 5
Proline t-mass B 150
Sensor
t-mass B
Characteristic values
Measured variable Direct measured variables
• Mass flow
• Gas temperature
Calculated measured variables
• Corrected volume flow
• FAD (free air delivery) volume flow
• Insertion version
• Nominal diameter range: DN 80 to 1500 (3 to 60")
• Sensor lengths: 235 mm (9.25 in), 335 mm (13.2 in), 435 mm (17.1 in),
608 mm (24.0 in)
• Transducer:
Stainless steel 1.4404/1.4435/316L
A0015601
Measuring range
The available measuring range depends on the choice of gas and the size of the pipe. The measuring device is
calibrated individually with air (under ambient conditions) and the value is converted in order to adapt it to
the customer's gas if necessary.
To obtain information on other gases and process conditions, please contact your Endress+Hauser sales
office.
To calculate the measuring range, use the Applicator sizing tool (® ä 28)
The following tables list the ranges available for air.
Measuring range "Calibration flow", option G and H (® ä 13)
SI units for insertion version
DN
[mm] min. Max. min. Max. min. Max.
80 20 2 030 16 1 570 17 1 660
100 38 3 750 29 2 900 31 3 070
150 75 7 500 58 5 800 61 6 130
200 125 12 500 97 9 700 102 10 200
250 200 20 000 155 15 500 164 16 400
300 280 28 000 217 21 700 229 22 900
400 500 50 000 387 38 700 409 40 900
500 800 80 000 620 62 000 655 65 500
600 1 150 115 000 890 89 000 941 94 100
700 1 590 159 000 1 230 123 000 1 300 130 000
1 000 3 200 320 000 2 480 248 000 2 620 262 000
1 500 7 200 720 000 5 568 556 800 5 886 588 600
[kg/h] [Nm3/h] at 0 °C (1.013 bar a) [Nm3/h at 15 °C (1.013 bar a)
Endress+Hauser 5
Page 6
Proline t-mass B 150
US units for insertion version
DN [lb/h] [Scf/min] at 32 °F (14.7 psi a) [Scf/min] at 59 °F (14.7 psi a)
[in] min. Max. min. Max. min. Max.
3 45 4 476 9 924 10 977
4 83 8 269 17 1 710 18 1 810
6 165 16 540 34 3 420 36 3 610
8 276 27 560 57 5 680 60 6 000
10 441 44 100 91 9 130 97 9 650
12 617 61 740 128 12 800 135 13 500
16 1 103 110 300 228 22 800 241 24 100
20 1 764 176 400 365 36 500 386 38 600
24 2 536 253 600 524 52 400 554 55 400
28 3 506 350 600 724 72 400 765 76 500
40 7 056 705 600 1 460 146 000 1 542 154 200
60 15 876 1 587 600 3 280 328 000 3 465 346 500
Measuring range "Calibration flow" option K (® ä 13)
SI units for insertion version
DN
[mm] min. Max. min. Max. min. Max.
80 20 3 045 16 2 355 17 2 490
100 38 5 625 29 4 350 31 4 605
150 75 11 250 58 8 700 61 9 195
200 125 18 750 97 14 550 102 15 300
250 200 30 000 155 23 250 164 24 600
300 280 42 000 217 32 550 229 34 350
400 500 75 000 387 58 050 409 61 350
500 800 120 000 620 93 000 655 98 250
600 1 150 172 500 890 133 500 941 141 150
700 1 590 238 500 1 230 184 500 1 300 195 000
1 000 3 200 480 000 2 480 372 000 2 620 393 000
1 500 7 200 1 080 000 5 568 835 200 5 886 882 900
[kg/h] [Nm3/h] at 0 °C (1.013 bar a) [Nm3/h at 15 °C (1.013 bar a)
US units for insertion version
DN
[in] min. Max. min. Max. min. Max.
3 45 6 714 9 1 386 10 1 466
4 83 12 403.5 17 2 565 18 2 715
6 165 24 807 34 5 130 36 5 415
8 276 41 344.5 57 8 520 60 9 000
10 441 66 150 91 13 695 97 14 475
12 617 92 610 128 19 200 135 20 250
16 1 103 165 375 228 34 200 241 36 150
[lb/h] [Scf/min] at 32 °F (14.7 psi a) [Scf/min] at 59 °F (14.7 psi a)
6 Endress+Hauser
Page 7
Proline t-mass B 150
DN [lb/h] [Scf/min] at 32 °F (14.7 psi a) [Scf/min] at 59 °F (14.7 psi a)
[in] min. Max. min. Max. min. Max.
20 1 764 264 600 365 54 750 386 57 900
24 2 536 380 362.5 524 78 600 554 81 300
28 3 506 525 892.5 724 108 600 765 114 750
40 7 056 1 058 400 1 460 219 000 1 542 231 300
60 15 876 2 381 400 3 280 492 000 3 465 519 750
Operable flow range
Over 100:1 (over 150:1 for calibration option code K).
Even in the extended measuring range (above the calibrated end value), the flow rate is captured and provided
as an output signal. However, the extended range is not subject to the specified measuring uncertainty.
Output
Output signal Current output
Current output
Maximum output values
Load
Resolution
Damping
Assignable measured
variables
4-20 mA HART, active
• DC 24 V (no flow)
• 22 mA
If the option Defined value is selected in the Failure mode parameter :
22.5 mA
0 to 750 Ω
16 Bit or 0.38 µA
Adjustable: 0 to 999 s
• Mass flow
• Corrected volume flow
• FAD volume flow
• Temperature
Pulse/frequency/switch output
Function
Version
Maximum input values
Voltage drop
Pulse output
Pulse width
Pulse value
Assignable measured
variables
Frequency output
Maximum frequency
Damping
Pulse/pause ratio
Can be set to pulse, frequency or switching output
Passive, open collector
• DC 30 V
• 25 mA
For 25 mA: £ DC 2 V
Adjustable: 0.5 to 2 000 ms ® pulse rate: 0 to 1 000 Pulse/s
Adjustable
• Mass flow
• Corrected volume flow
• FAD volume flow
Adjustable: 0 to 1 000 Hz
Adjustable: 0 to 999 s
1:1
Endress+Hauser 7
Page 8
Proline t-mass B 150
Signal on alarm
Assignable measured
variables
Switching output
Switching behavior
Switching delay
Number of switching cycles
Assignable functions
• Mass flow
• Corrected volume flow
• FAD volume flow
• Temperature
Binary, conductive or non-conductive
Adjustable: 0 to 100 s
Unlimited
• Off
• On
• Diagnostic behavior
• Limit value
• Status
Depending on the interface, failure information is displayed as follows:
Current output
Failure mode
Minimum alarm
Maximum alarm
Adjustable value
Can be selected (as per NAMUR recommendation NE 43)
3.6 mA
22 mA
3.59 to 22.5 mA
Pulse/frequency/switch output
Pulse output
Failure mode
Frequency output
Failure mode
Switching output
Failure mode
Choose from:
• Actual value
• No pulses
Choose from:
• Actual value
• Defined value: 0 to 1250 Hz
• 0 Hz
Choose from:
• Current status
• Open
• Closed
Local display
Plain text display
With information on cause and corrective action
Status signal as per NAMUR recommendation NE 107
Operating tool
• Via digital communication: HART protocol
• Via service interface
Plain text display
With information on cause and corrective action
8 Endress+Hauser
Page 9
Proline t-mass B 150
Additional information on remote operation(® ä 25)
Low flow cut off
Galvanic isolation
The switch point for low flow cut off is programmable.
The following connections are galvanically isolated from each other:
• Outputs
• Voltage supply
Protocol-specific data HART
Manufacturer ID 0x11
Device type ID 0x66
HART protocol revision 6.0
Device description files (DTM,
DD)
HART load Min. 250 Ω
Dynamic variables The measured variables can be freely assigned to the dynamic variables.
Information and files under:
www.endress.com
Measured variables for PV (primary dynamic variable)
• Mass flow
• Corrected volume flow
• FAD volume flow
• Temperature
Measured variables for SV, TV, QV (secondary, tertiary and quaternary
dynamic variable)
• Mass flow
• Corrected volume flow
• FAD volume flow
• Temperature
• Totalizer
Endress+Hauser 9
Page 10
Power supply
4
1
2
3
12
23
2224
2526
27
Terminal assignment Transmitter
Connection version 4-20 mA HART, pulse/frequency/switching output
1 Supply voltage
2 Signal transmission: Pulse/frequency/switching output
3 Signal transmission: 4-20 mA HART
4 Ground terminal for cable shield
Proline t-mass B 150
A0017178
Power consumption
Supply voltage
Order characteristic for
"Power supply"
Option D DC 24 V (18 to 30 V)
1 (L+) 2 (L-)
Terminal numbers
Signal transmission
Order characteristic for
"Output"
Option A 4-20 mA HART active -
Option B 4-20 mA HART active Pulse/frequency/switch output
Option K - Pulse/frequency/switch output
Output 1 Output 2
26 (+) 27 (-) 24 (+) 25 (-)
Terminal numbers
Supply voltage
DC 24 V (18 to 30 V)
The power supply circuit must comply with SELV/PELV requirements.
Order characteristic for
"Output"
Maximum power consumption
• Option A: 4-20mA HART
• Option B: 4-20mA HART, pulse/frequency/switching
output
10 Endress+Hauser
• Option K: Pulse/frequency/switching output
3.1 W
Page 11
Proline t-mass B 150
2
1
*
12
23
2224
25
26
27
4...20 mA
+
–
2
1
3
+
_
Current consumption
Order characteristic for
"Output"
• Option A: 4-20mA HART
• Option B: 4-20mA HART, pulse/frequency/switching
output
• Option K: Pulse/frequency/switching output
Power supply failure
• Totalizers stop at the last value measured.
• Configuration is retained in the device memory.
• Error messages (incl. total operated hours) are stored.
Electrical connection Connecting the transmitter
Maximum current
consumption
185 mA
Maximum switch-on
current
< 2.5 A
1
Cable entry for supply voltage
2 Cable entry for signal transmission
Connection examples

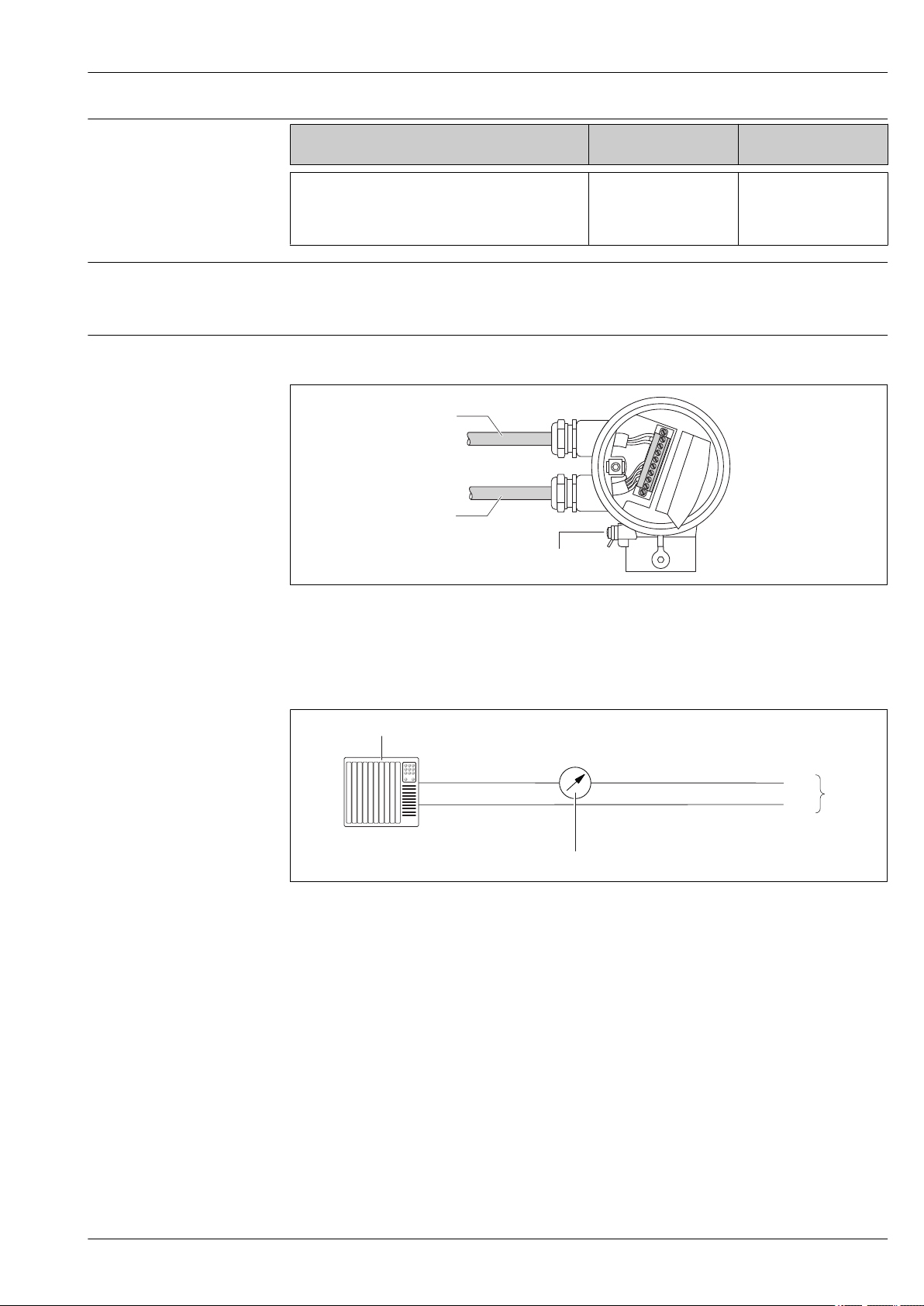

å 1 Connection example for current output, 4-20 mA active
1
Control system (e.g. PLC)
2
Analog display unit: observe maximum load (® ä 7)
A0017179
A0016960
Endress+Hauser 11
Page 12
4
4...20 mA
+
–
5
2
1
3
6
+
_
å 2 Connection example for current output, 4-20 mA HART active
1
+
_
12345
2
+
–
+
–
3
1
+
_
+
_
2
+
_
3
1 Control system (e.g. PLC)
2
Observe cable specification (® ä 13)
3 Connection for Field Communicator 375/475 or Commubox FXA191/195
4
Resistor for HART communication (³ 250 W): observe maximum load (® ä 7)
5
Analog display unit: observe maximum load (® ä 7)
Proline t-mass B 150
A0016800
Potential equalization

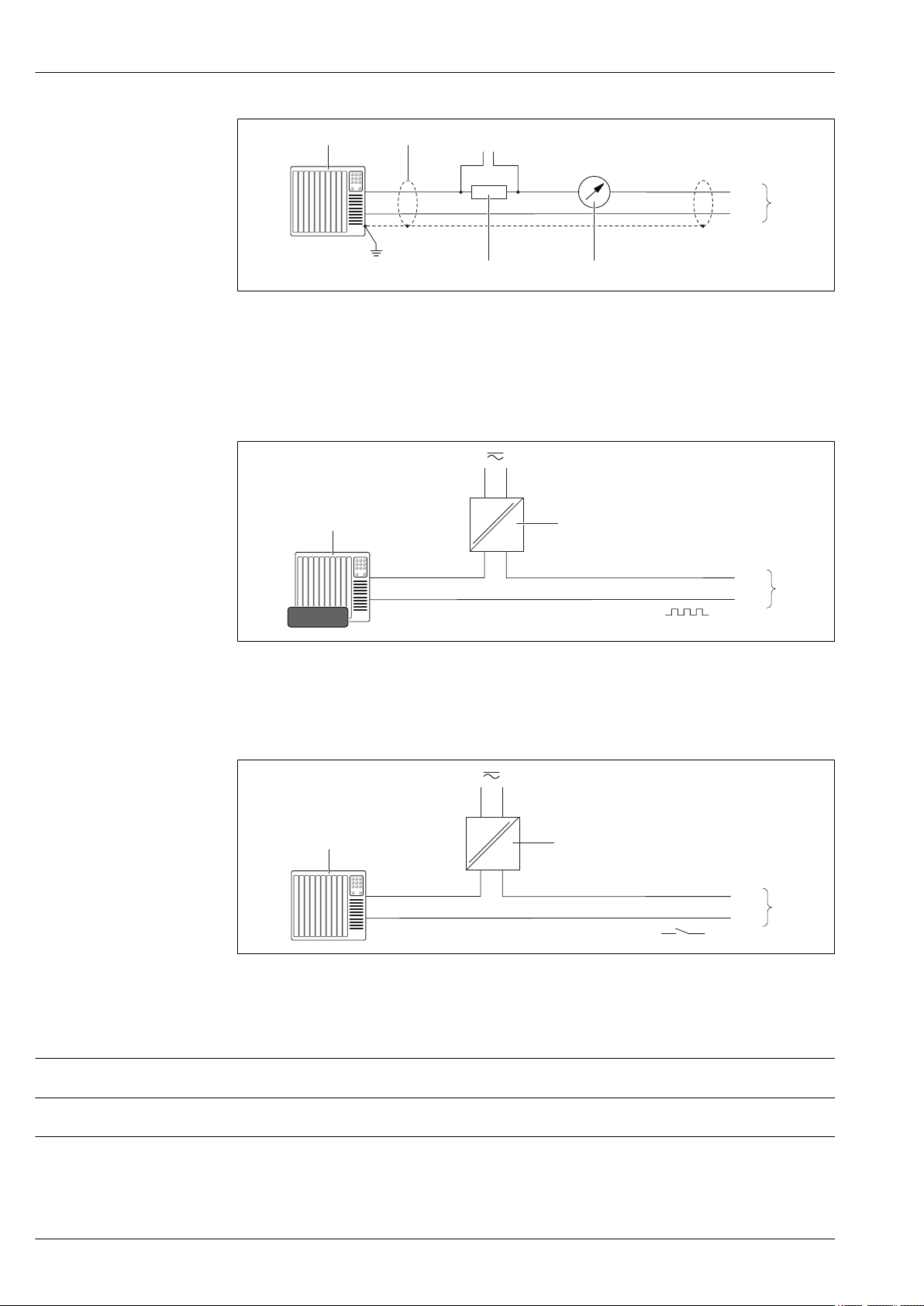

å 3 Connection example for pulse/frequency output (passive)
1
Automation system with pulse/frequency input (e.g. PLC)
2
Power supply (® ä 13)
3
Transmitter: Observe input values (® ä 7)
å 4 Connection example for switching output (passive)
Control system with switch input (e.g. PLC)
1
2
Power supply (® ä 13)
3
Transmitter: Observe input values (® ä 7)
No special measures for potential equalization are required.
A0016801
A0016802
Terminals
Cable entries
12 Endress+Hauser
Plug-in screw terminals for specified wire cross-sections
•
Cable gland: M20 × 1.5 with cable Æ 6 to 12 mm (0.24 to 0.47 in)
• Thread for cable entry:
– NPT ½"
– G ½"
Page 13
Proline t-mass B 150
Cable specification Wire cross-sectional area
0.5 to 1.5 mm2 (21 to 16 AWG)
Permitted temperature range
•
–40 °C (–40 °F)...³ 80 °C (176 °F)
•
Minimum requirement: cable temperature range ³ ambient temperature + 20 K
Signal cable
Current output
For 4-20 mA HART: Shielded cable recommended. Observe grounding concept of the plant.
Pulse/frequency/switch output
Standard installation cable is sufficient.
Supply voltage cable
Standard installation cable is sufficient.
Reference operating conditions
Maximum measured error
Performance characteristics
• Calibration systems traceable to national standards
• Accredited in accordance with ISO/IEC 17025
•
Air controlled to 24 °C ± 0.5 °C (75.2 °F ± 0.9 °F) at atmospheric pressure
•
Humidity controlled < 40 % RH
o.r. = of reading; o.f.s. = of full scale value
• The full scale value depends upon the nominal diameter of the measuring device and the max. flow of
the calibration rig.
•
Full scale values of the calibrated measuring range.(® ä 5)
Endress+Hauser 13
Page 14
Proline t-mass B 150
0 10
[% kg/h]
±10
0
50 80
[%]
90 100
±5
±15
20 30 40 60 70
±20
110 120 130 140 150
[% lb/h]
H
G
K
A0017329

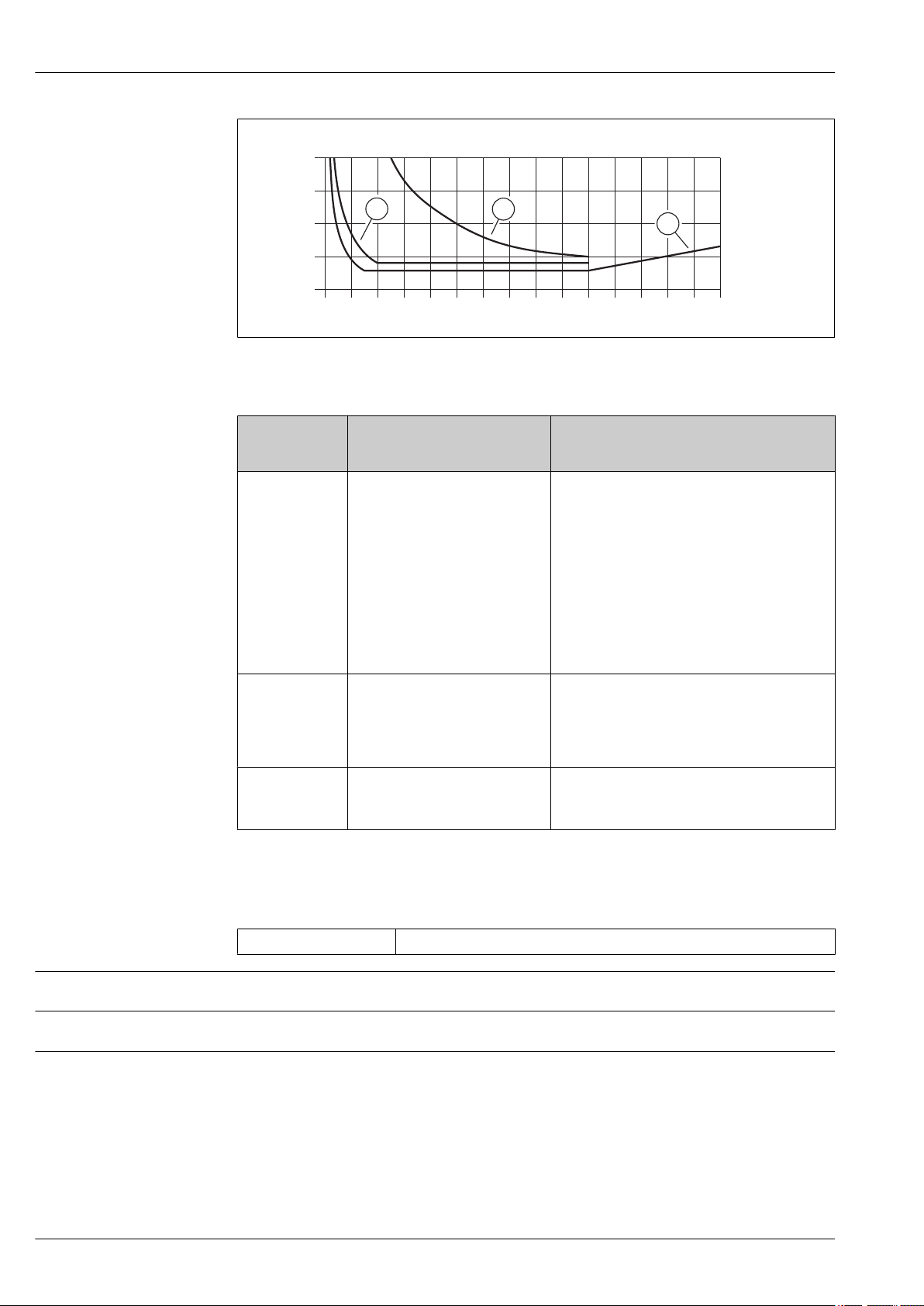

å 5 Maximum measured error (% mass flow) as % of measured value/full scale value. G, H, K: Order code options
for "Calibration flow", see the following table
Order code option
for "Calibration
flow"
K • Q = 100 to 150 %:
H • Q = 20 to 100 %
G Q = 1 to 100 %
Accuracy Description
from ±3 %to ±6.5 % of the current
measured value increasing linearly as
expressed in the following equation:
±3 ± (Xn -100) × 0.07[% o.r.]
(100 %< Xn £150 %; Xn = current flow
as a % o.f.s. )
• Q = 15 to 100 %:
±3 % of current measured value
• Q = 1 to 15 %
±0.45 % o.f.s.
(all data under reference conditions)
±4 % of current measured value
• Q = 1 to 20 %
±0.8 % o.f.s.
(all data under reference conditions)
±5 % o.f.s.
(under reference conditions)
Accuracy of outputs
The measuring device is calibrated and adjusted on an
accredited and traceable calibration rig . The accuracy is
certified with a calibration protocol.
The measuring performance of the device is tested, and a
verification protocol confirms that the device measures
within the specified tolerance.
This version is subject to neither a calibration nor a
verification of measuring performance.
Current output
Repeatability
Response time
Influence of medium pressure
Accuracy
±0.5 % of value for velocities > 1.0 m/s (3.3 ft/s)
Typically < 3 s for 63 % of a given step change (in both directions)
Air: 0.35 % of value per bar (0.02 % per psi) of process pressure change
Max. ±0.05 % o.f.s. or ±10 µA
14 Endress+Hauser
Page 15
Proline t-mass B 150
a
Installation
Mounting location
Orientation
Thermal measuring devices require a fully developed flow profile as a prerequisite for correct flow
measurement. For this reason, please pay attention to the following points and document sections
when installing the device:
• Avoid flow disturbances, as the thermal measuring principle reacts sensitively to them.
• Take measures to avoid condensation (e.g. condensation trap, thermal insulation etc.).
• For mechanical reasons and to protect the pipe, support is recommended for heavy sensors (e.g. when
installing a Hot tap extraction assembly).
The direction of the arrow on the sensor helps you to install the sensor according to the flow direction (direction
of medium flow through the piping).
Orientation
Vertical orientation
A0017337
Horizontal orientation, transmitter head up
A0015589
Horizontal orientation, transmitter head
down
A0015590
Inclined mounting position, transmitter head
down
Recommendation
1) 2)
3)
4)
Requirement for pipework
A0015773
1) In the case of saturated or unclean gases, upward flow in a vertical pipe section is preferred to minimize condensation
or contamination.
2) Not recommended in the case of extreme vibrations or unstable installations.
3) Suitable only for clean and dry gases. If buildup or condensate are always present: Mount the sensor in an inclined
position.
4)
Select inclined mounting position (a = approx. 135°) if the gas is very wet or saturated with water.
The measuring device must be professionally installed, and the following points must be observed:
• Piping must be professionally welded.
• Seals must be sized correctly.
• Flanges and seals must be correctly aligned.
• The internal diameter of the pipe must be known. The maximum permitted deviation from the input value
is:
–
1 mm (0.04 in) at DN < 200 mm (8 in)
–
3 mm (0.12 in) at DN ³ 200 mm (8 in)
• Following installation, the pipe must be free from dirt and particles in order to avoid damage to the sensors.
Further information ® ISO standard 14511
A0005103
Correctly aligned flanges and seals
Endress+Hauser 15
Page 16
Proline t-mass B 150
230
220
210
200
190
180
9
8
7
A
B
C2
C1
A
B
C2
C1
230
220
210
200
190
180
9
8
7
230
220
210
200
190
180
9
8
7

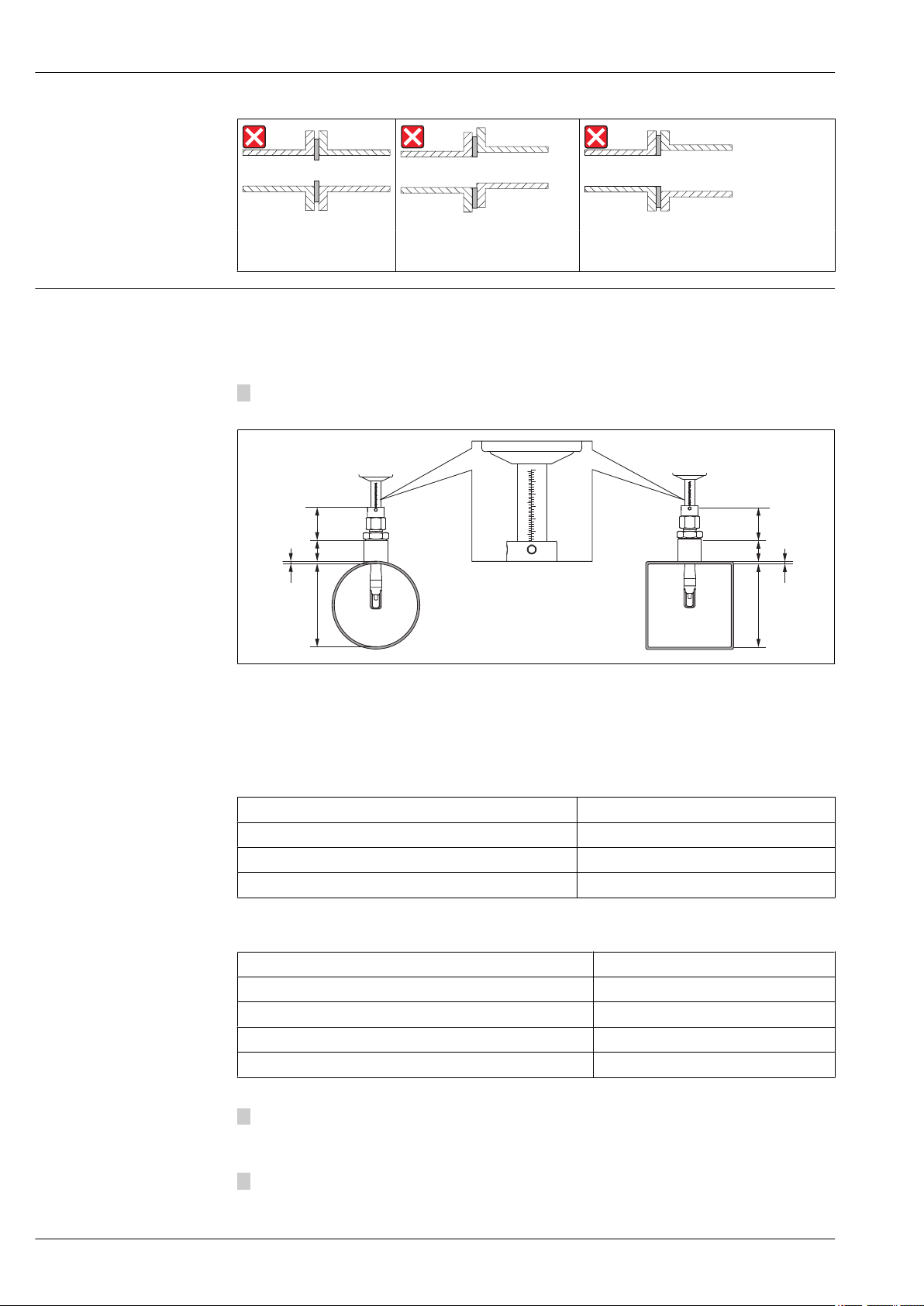

Choosing the sensor length
A0005105
A0005106
A0005104
Incorrectly sized seal Incorrectly aligned flanges and seals Internal diameter of pipe does not correspond to
internal diameter of sensor
The minimum length of the senor can be calculated using the Endress+Hauser calculation program Applicator
(from version 10.00 (® ä 28)) or using the following calculation.
The minimum length of the sensor is determined by the required insertion depth. The required insertion depth
that is calculated must be within the adjusting range of the selected insertion version.
►
Determining the dimensions A, B, C1 and C2
A0015768
A
Internal pipe diameter DN (circular pipe) or internal dimension (rectangular duct)
B Thickness of pipe wall or of duct wall
C1 Length of mounting set
C2 Length of sensor compression fitting
Determining C1 and C2 (Endress+Hauser original parts only)
DK6MB-BXA mounting boss G1A
DK6MB-DXA mounting boss G3/4A C1 + C2 = 99 mm (3.90 in)
DK6MB-AXA mounting boss 1" NPT C1 + C2 = 107 mm (4.21 in)
DK6MB-CXA mounting boss 3/4" NPT C1 + C2 = 102 mm (4.02 in)
C1 + C2 = 99 mm (3.90 in)
Determining C1 and C2 (not limited to Endress+Hauser original parts)
C1
C2 (compression fitting with G1A thread) 39 mm (1.54 in)
C2 (compression fitting with G3/4A thread) 39 mm (1.54 in)
C2 (compression fitting with 1" NPT thread) 47 mm (1.85 in)
C2 (compression fitting with 3/4" NPT thread) 42 mm (1.65 in)
►
Calculating insertion depth
(0.3 · A) + B + (C1 + C2)
►
Choosing the length of the insertion version
16 Endress+Hauser
Length of pipe connection used
Page 17
Proline t-mass B 150
90°
90°
D
90° (±3°)
90°(±7°)

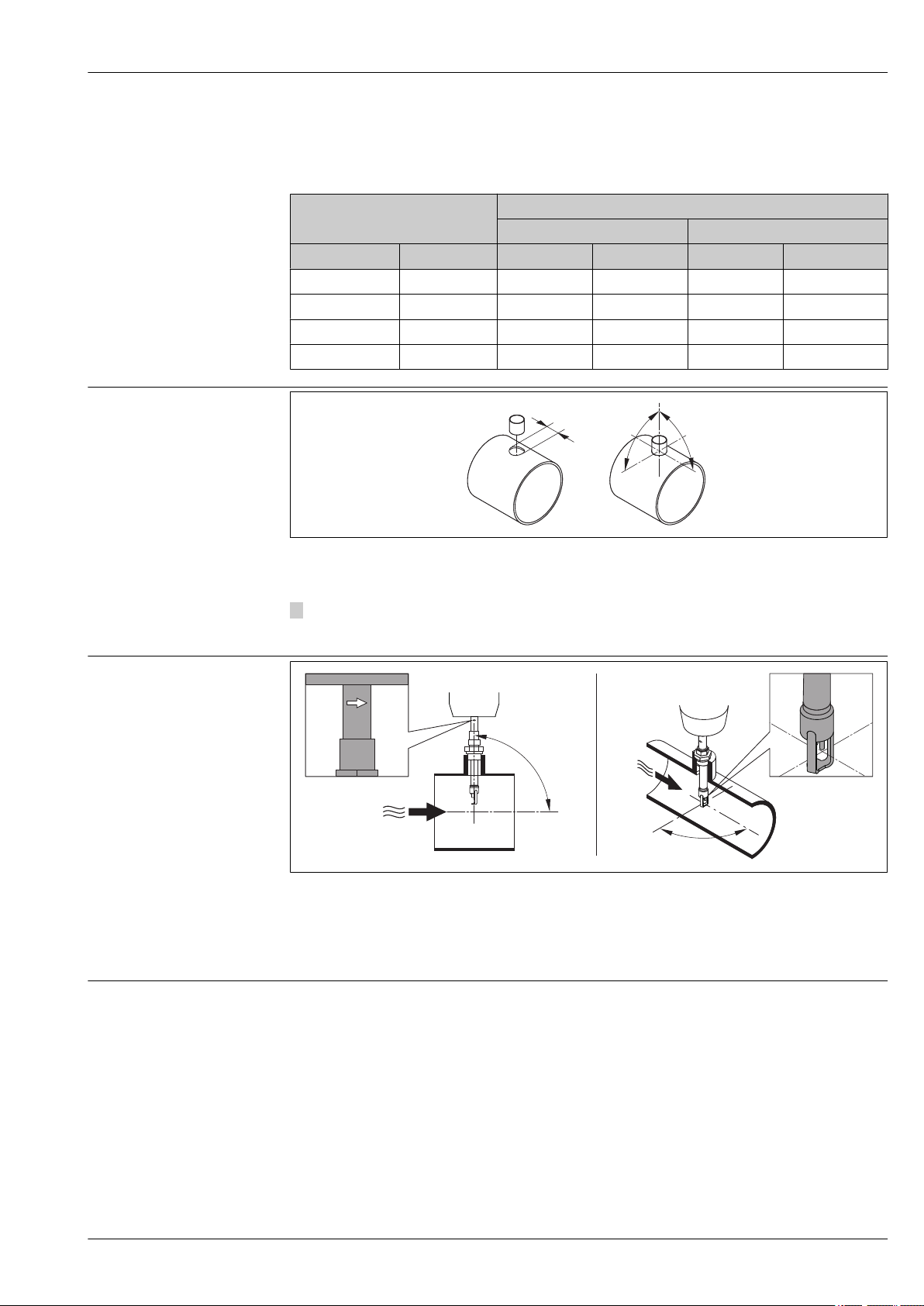

Mounting conditions for mounting boss
Using the insertion depth calculated in this way, the length of the insertion version can be selected with the
help of the following table.
The calculated insertion depth must be within the adjusting range of the insertion version!
Length of insertion tube Adjusting range (insertion depth)
GA thread NPT thread
mm in mm in mm in
235 9 120 to 230 4.7 to 9.0 126 to 230 4.96 to 9.0
335 13 120 to 330 4.7 to 13.0 126 to 330 4.96 to 13.0
435 17 120 to 430 4.7 to 17.0 126 to 430 4.96 to 17.0
608 24 120 to 604 4.7 to 23.8 126 to 604 4.96 to 23.8
Align the insertion version with the direction of flow.
A0011843
D
= 31.0 mm ± 0.05 mm (1.22 in ± 0.02 in)
►
When installing in rectangular ducts with thin walls:
Ã
Use suitable support brackets.
A0015746
Check and ensure that the sensor on the pipe/duct is aligned at a 90° angle to the direction of flow. Rotate the
sensor so that the arrow marking on the sensor body corresponds to the direction of flow. The line marking on
the body used to adjust the insertion depth must be aligned with the direction of flow.

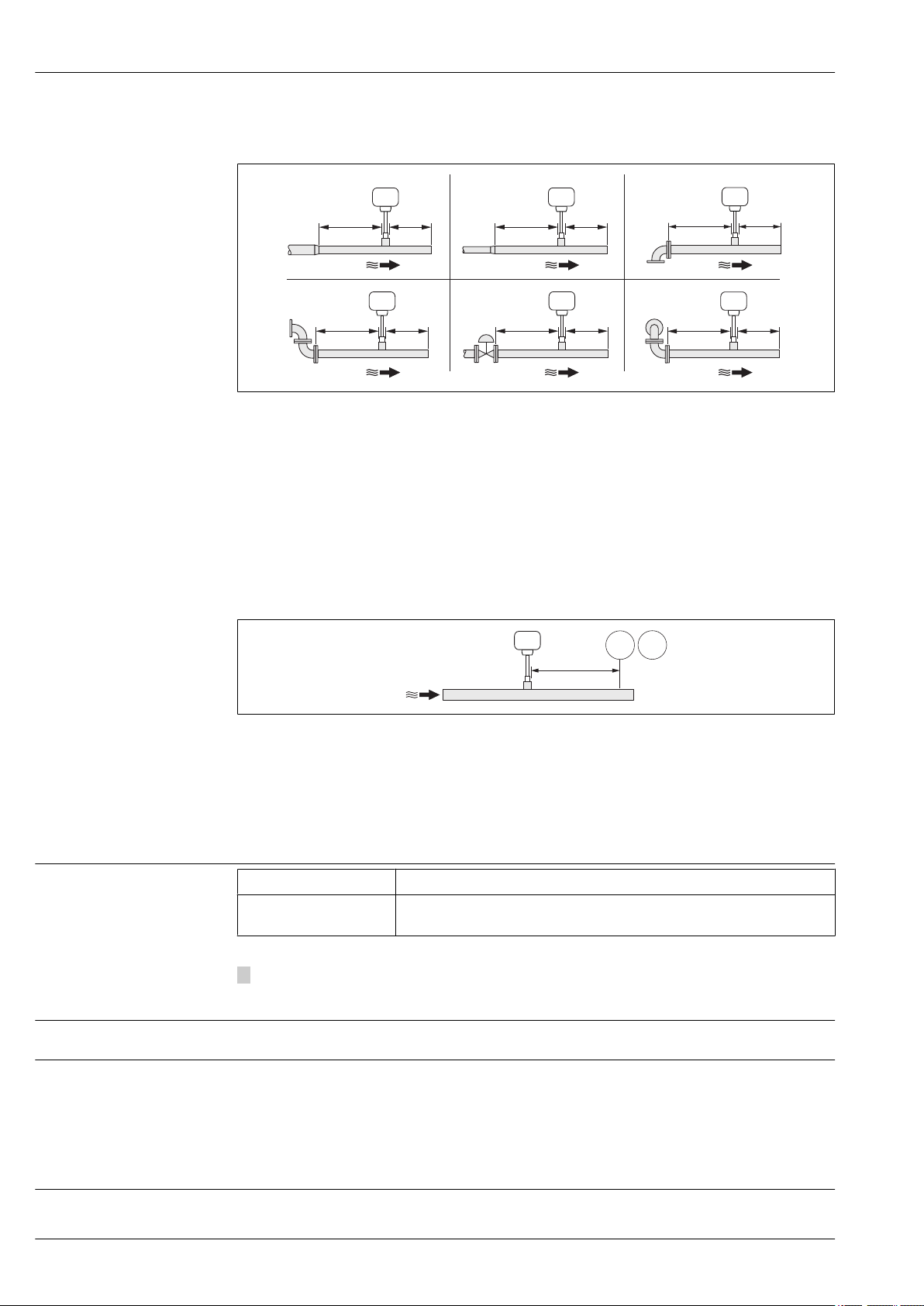

Inlet and outlet runs
The thermal measuring principle is sensitive to disturbed flow conditions.
• As a general rule, the measuring device should always be installed as far away as possible from any flow
disturbances. For further information, please refer to ® ISO 14511.
• If possible, the sensor should be installed upstream from valves, T-pieces, elbows etc. To attain the specified
level of accuracy of the measuring device, the below mentioned inlet and outlet runs must be maintained at
minimum. If there are several flow disturbances present, the longest specified inlet run must be maintained.
Endress+Hauser 17
Page 18
Recommended inlet and outlet runs
20 × DN 5 × DN
5 × DN25 × DN
20 × DN
5 × DN
5 × DN
5 × DN40 × DN
5 × DN50 × DN
20 × DN
1
4
2
6
3
5
PT
2…5 × DN
TT
1 reduction
2 expansion
3 90° elbow or T-piece
4 2 × 90° elbow
5 Control valve
6 2 × 90° elbow (3-dimensional)
Proline t-mass B 150
A0016943
Ambient temperature range
Outlet run for pressure or temperature transmitter
If a pressure or temperature measuring device is installed downstream of the measuring device, make sure there
is sufficient distance between the two devices.
A0015603
PT
Pressure measuring device
TT Temperature measuring device
Environment
Measuring device
Local display
►
If operating outdoors:
Avoid direct sunlight, particularly in warm climatic regions.
–40 to +60 °C (–40 to +140 °F)
–20 to +60 °C (–4 to +140 °F), the readability of the display may be impaired at
temperatures outside the temperature range.
Storage temperature
Degree of protection
–40 to +80 °C (–40 to +176 °F), preferably at +20 °C (+68 °F)
Transmitter
• As standard: IP66/67, type 4X enclosure
• When housing is open: IP20, type 1 enclosure
• Display module: IP20, type 1 enclosure
Sensor
IP66/67, type 4X enclosure
Shock resistance
18 Endress+Hauser
As per IEC/EN 60068-2-31
Page 19
Proline t-mass B 150
Vibration resistance
Electromagnetic compatibility (EMC)
Medium temperature range
Flow limit
Pressure loss
Acceleration up to 2 g, 10 to 150 Hz, as per IEC/EN 60068-2-6
As per IEC/EN 61326 and NAMUR Recommendation 21 (NE 21).
Details are provided in the Declaration of Conformity.
Process
Sensor
–40 to +100 °C (–40 to +212 °F)
Seals (G thread only)
•
HNBR: –40 to +100 °C (–40 to +212 °F)
•
EPDM: –35 to +100 °C (–31 to +212 °F)
Clamping ring
PEEK: –40 to +100 °C (–40 to +212 °F)
See "Measuring range"(® ä 5) section
The velocity in the measuring tube should not exceed 70 m/s (230 ft/s).
Negligible.
For a precise calculation, use the Applicator.
System pressure
Thermal insulation
Sensor
Depending on the version, please note the details on the name plate .
Max. 20 bar g (290 psi g)
If the gas is very humid or saturated with water, the pipe and the sensor housing should be insulated to prevent
water droplets condensing on the transducer.
A0015763
Endress+Hauser 19
Page 20
Mechanical construction
BA
C
D
G 1 A, G ¾ A
L
1" NPT, ¾" NPT

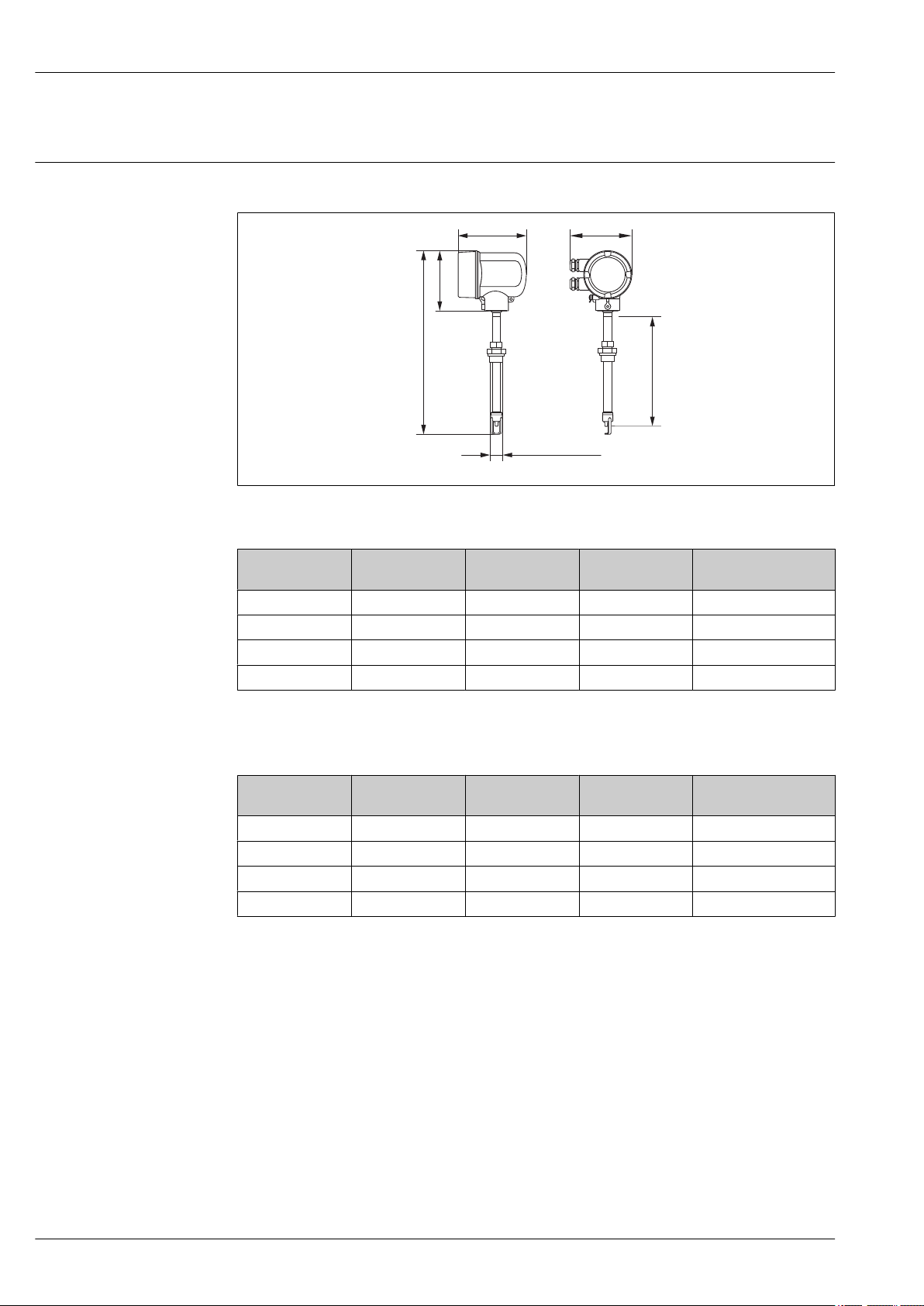

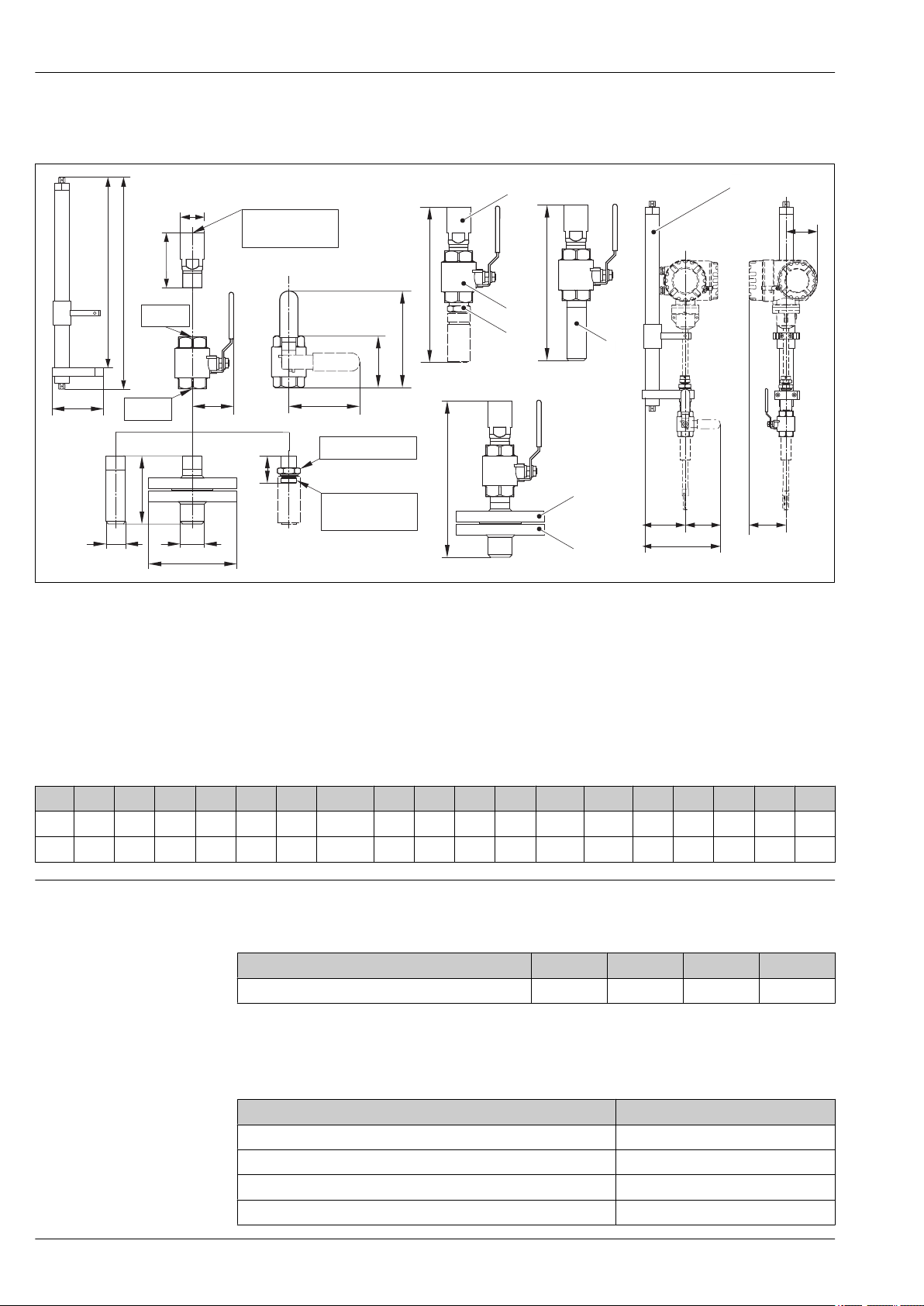

Design, dimensions Compact version
Proline t-mass B 150
A0015743
Dimensions in SI units
1)
L
[mm]
235 146 133 129 407
335 146 133 129 507
435 146 133 129 597.4
608 146 133 129 770.4
1) For version without local display values - 7 mm
A
[mm]
B
[mm]
C
[mm]
Dimensions in US units
1)
L
[in]
9 5.75 5.24 5.08 16.02
13 5.75 5.24 5.08 19.96
17 5.75 5.24 5.08 23.52
24 5.75 5.24 5.08 30.33
1) For version without local display values - 0.28 in
A
[in]
B
[in]
C
[in]
D
[mm]
D
[in]
20 Endress+Hauser
Page 21
Proline t-mass B 150
Q
B
C
N
A
P
1" NPT
L
V3
E
G
F
O
36 mm, 42 mm
R
D
L
V1
2
3
1
V2
L
4
5
2
4
5
3
Q
1
G ¾ A, G 1 A,
¾" NPT, 1" NPT
6
6
G 1 A,
1" NPT

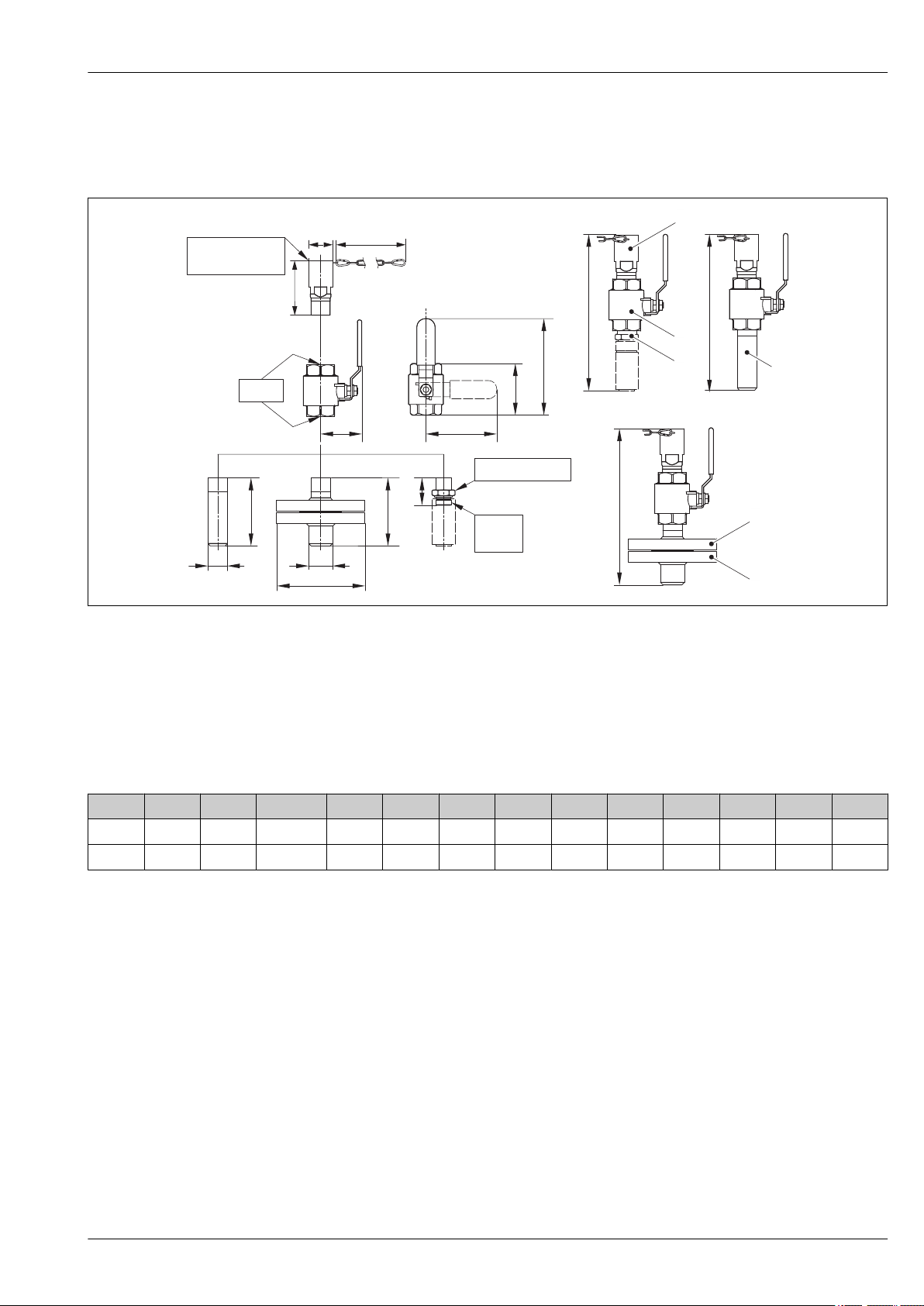

Hot tap
Low pressure version (up to 4.5 bar g (65 psi g))
1
Sensor connection with safety chain
2 Ball valve
3 Retrofit adapter
4 Process connection weld-in nipple
5 Flange adapter
6 Process connection flange
V1 Version with retrofit adapter
V2 Version with weld-in nipple
V3 Version with flange
A B C D E F G L N O P Q R
mm 42.4 96 620 71 165 88 209
inch 1.67 3.78 24.4 2.80 3.78 2.80 6.50
A0014289
~249.5
~3.46
33.4 33.4 123.9 105.5 61
1.31 1.31 4.88 4.15 2.40
Endress+Hauser 21
Page 22
Medium pressure version (up to 16 bar g (230 psi g)
36 mm / 42 mm
L1
2
3
1" NPT
1" NPT
Q
B
N
A
P
L1
V3
E
G
F
O
R
D
V1
1
5
2
4
6
3
1
U
W
V X
H
7
L2
K
7
L3
6
5
G ¾ A, G 1 A,
¾" NPT, 1" NPT
G ¾ A, G 1 A,
¾" NPT, 1" NPT
4
L1
V2
4
Proline t-mass B 150
1
Sensor connection
2 Ball valve
3 Retrofit adapter
4 Process connection weld-in nipple
5 Flange adapter
6 Process connection flange
7 Extractor assembly
V1 Version with retrofit adapter
V2 Version with weld-in nipple
V3 Version with flange
A B D E F G L1 L2 L3 N O P Q R U V W x
mm 42.4 96 71 165 88 209
inch 1.67 3.78 2.80 3.78 2.80 6.50
~249.5
~9.82
133 148 33.4 33.4 123.9 105.5 61 150 165 215 129
5.24 5.83 1.31 1.31 4.88 4.15 2.40 5.91 6.50 8.46 5.08
Weight Weight in SI units
235 335 435 608
2.2 2.3 2.4 2.5
[kg]
22 Endress+Hauser
Compact version
1) Weight of entire measuring device
Sensor length [mm]
Hot tap
Hot tap versions
with retrofit adapter (version V1) 1.8
with weld-in nipple (version V2) 2.2
with flange/flange adapter (version V3) 4.3
Extractor assembly 7.8
Weight [kg]
1)
A0014310
Page 23
Proline t-mass B 150
Weight in US units
Compact version
Sensor length [in] 9 13 17 24
Hot tap
Hot tap versions [lbs]
with retrofit adapter (version V1) 4.0
with weld-in nipple (version V2) 4.9
with flange/flange adapter (version V3) 9.5
Extractor assembly 17.5
Materials Transmitter housing
• Order characteristic for "Housing", option A: aluminum coating AlSi10Mg
• Window material: glass
Weight [lbs]
4.8 5.7 5.3 5.5
Sensor
Compression fitting:
• Thread: G ¾ A, G 1 A, ¾" NPT, 1" NPT
• Stainless steel 1.4404/1.4571 and 316L/316TI
• Clamping ring: PEEK 450G
• Sealing ring: EPDM/HNBR, 316/316L (outer ring)
Transducer
• Stainless steel 1.4404/1.4435 as per EN 10216-5/ EN 10272-5/ EN 10028-7/ EN 10088-2
• Stainless steel 316L as per ASTM A269/ A479/ A240/ A666
Cable entries
Order characteristic for "Housing", option A: compact, aluminum coating
Electrical connection
Cable gland M20 × 1.5 For non-hazardous areas Plastic
Thread G ½"
via adapter
Thread NPT ½"
via adapter
Type of protection Material
For non-Ex and Ex Nickel-plated brass
Accessories
Mounting boss
1.4404 as per EN 10272 and 316/316L as per ASTM A479
Endress+Hauser 23
Page 24
Hot tap
Esc
1
• Process connection:
– Weld-in nipple:
1.4404 as per EN 10272 and 316/316L as per ASTM A479
– Flange/flange Adapter:
1.4404 as per EN 1092-1, 316L as per JIS B 2220, ASME B16.5
• Sensor connection:
1.4404 as per EN 10216-5 and 316/316L as per ASTM A312
• Ball valve:
CF3M and CF8M
Seal:
PTFE
Operability
Proline t-mass B 150
Operating concept
Operator-oriented menu structure for user-specific tasks
• Commissioning
• Operation
• Diagnostics
• Expert level
Quick and safe commissioning
Menu guidance with brief explanations of the individual parameter functions
Reliable operation
•
Operation in different languages: (® ä 26)
– Via local display
– Via operating tools
• Uniform operating philosophy applied to device and operating tools
Efficient diagnostics increase measurement reliability
• Remedial information is integrated in plain text
• Diverse simulation options and optional line recorder functions

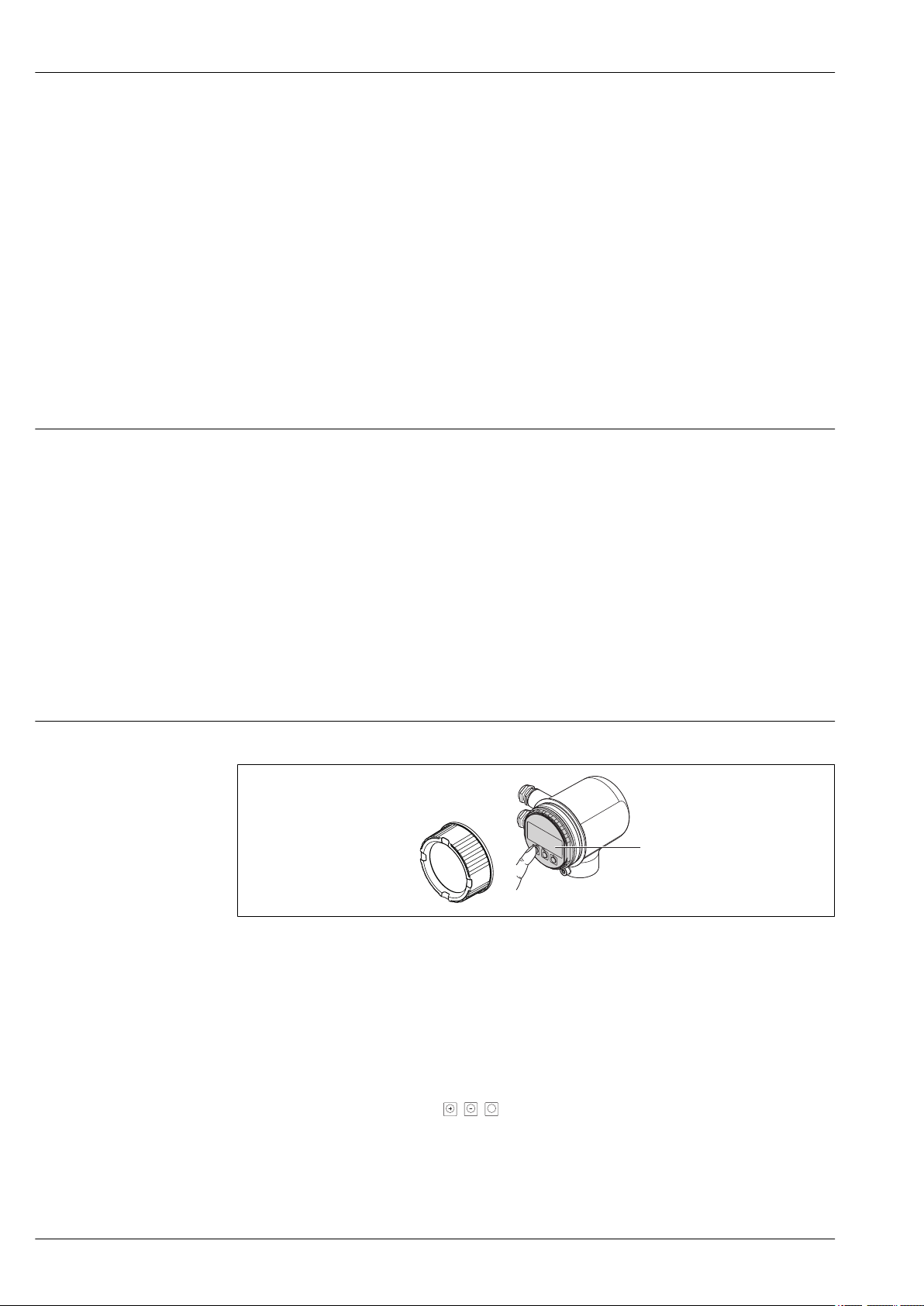

Local operation "Display; Operation" Order code option C
A0017279
1 Display module (pushbutton operation)
Display elements
• 4-line display
• Format for displaying measured variables and status variables can be individually configured
•
Permitted ambient temperature for the display: –20 to +60 °C (–4 to +140 °F)
The readability of the display may be impaired at temperatures outside the temperature range.
Operating elements
Local operation with 3 push buttons (
24 Endress+Hauser
, , E)
Page 25
Proline t-mass B 150
1
2
3 5
4 6
7
Additional functionality
• Data backup function
The device configuration can be saved in the display module.
• Data comparison function
The device configuration saved in the display module can be compared to the current device configuration.
• Data transfer function
The transmitter configuration can be transmitted to another device using the display module.
Remote operation Via HART protocol
This communication interface is present in the following device version:
• Order characteristic for "Outlet", option A: 4-20 mA HART
• Order characteristic for "Outlet", option B: 4-20 mA HART, pulse/frequency/switching output

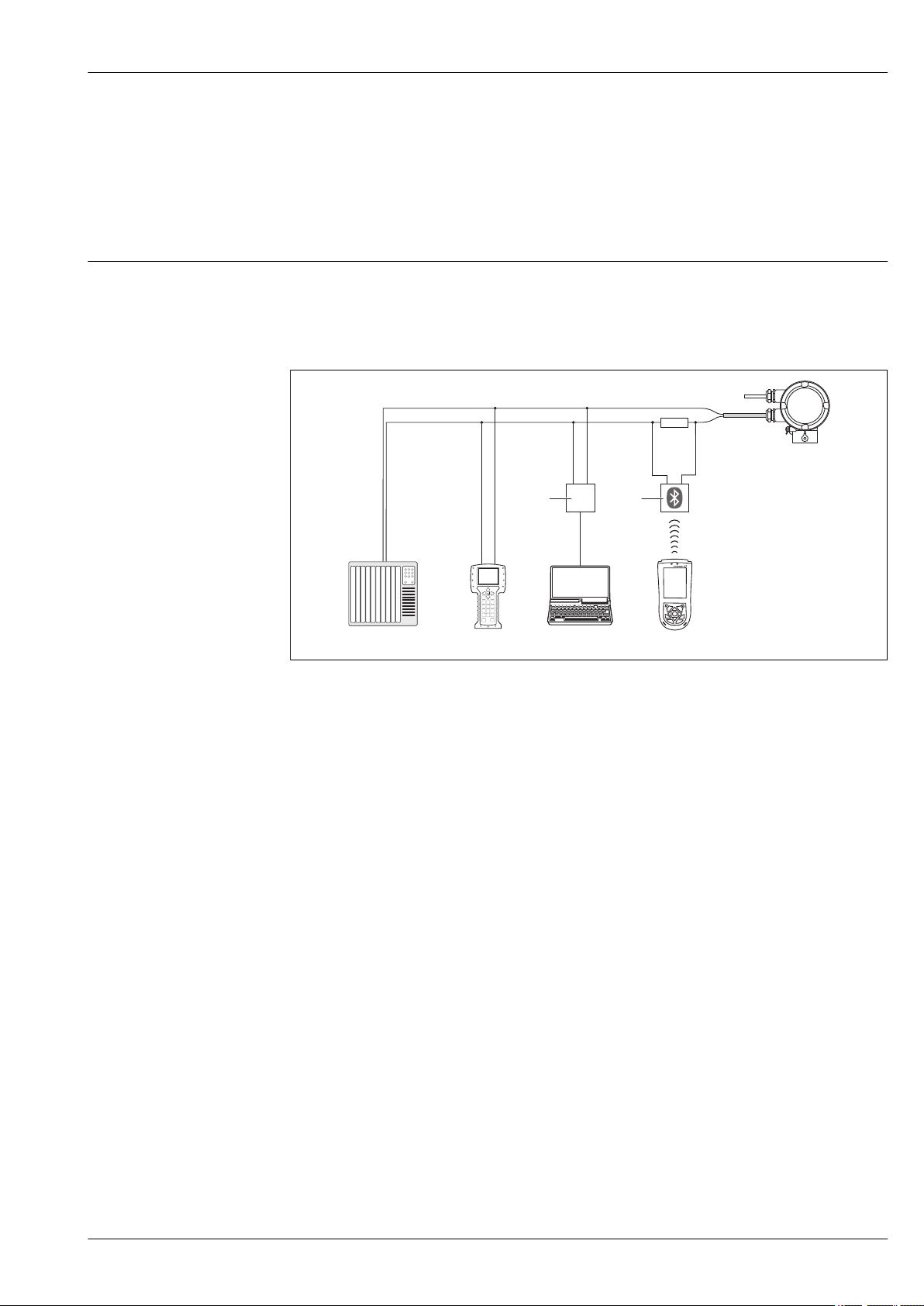

å 6 Options for remote operation via HART protocol
1
Control system (e.g. PLC)
2 Field Communicator 475
3 Computer with operating tool (e.g. FieldCare, AMS Device Manager, SIMATIC PDM)
4 Commubox FXA195 (USB)
5 Field Xpert SFX100
6 VIATOR Bluetooth modem with connecting cable
7 Transmitter
A0017373
Endress+Hauser 25
Page 26

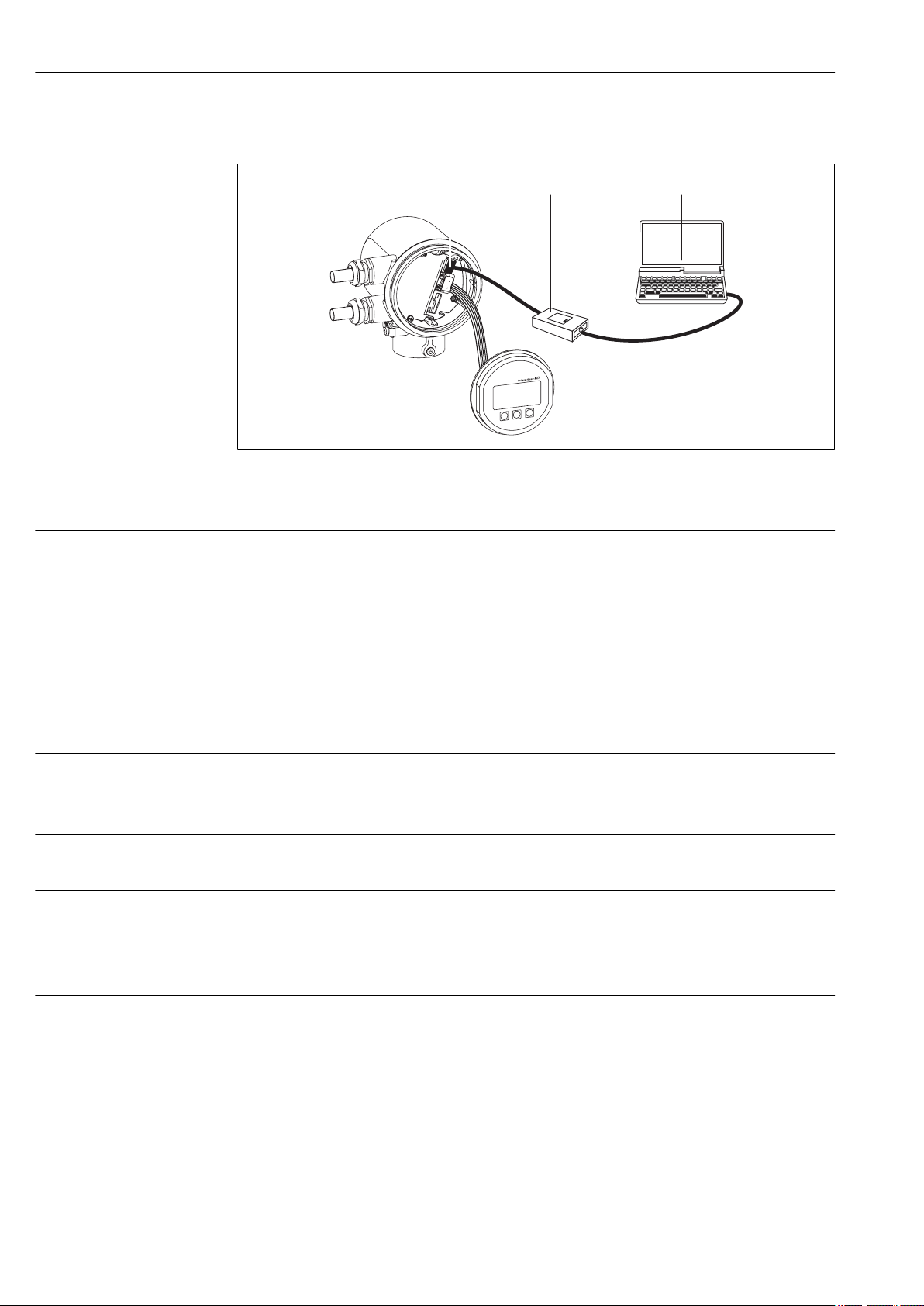

Via service interface (CDI)
1 2 3
E
+
–
1 Service interface (CDI) of the measuring device
2 Commubox FXA291
3 Computer with "FieldCare" operating tool
Proline t-mass B 150
A0017253
Languages
CE mark
C-Tick symbol
Ex approval
Can be operated in the following languages:
• Via local display:
English, German, French, Spanish, Italian, Dutch, Portuguese, Polish, Russian, Turkish, Japanese, Chinese,
Korean, Bahasa (Indonesian), Vietnamese, Czech
• Via operating tools:
English, German, French, Spanish, Italian, Dutch, Portuguese, Polish, Russian, Turkish, Japanese, Chinese,
Korean, Bahasa (Indonesian), Vietnamese, Czech
Certificates and approvals
The measuring system is in conformity with the statutory requirements of the applicable EC Directives. These
are listed in the corresponding EC Declaration of Conformity along with the standards applied.
Endress+Hauser confirms successful testing of the device by affixing to it the CE mark.
The measuring system meets the EMC requirements of the "Australian Communications and Media Authority
(ACMA)".
CSA
C
US
The following hazardous area versions currently available:
NI
Class 1, Division 2, Groups A, B, C and D T4 or Class I, Zone 2 IIC T4
Other standards and guidelines
• EN 60529
Degrees of protection provided by enclosures (IP code)
• EN 61010-1
Protection Measures for Electrical Equipment for Measurement, Control, Regulation and Laboratory
Procedures.
• IEC/EN 61326
Emission in accordance with Class A requirements. Electromagnetic compatibility (EMC requirements)
• NAMUR NE 21
Electromagnetic compatibility (EMC) of industrial process and laboratory control equipment.
• NAMUR NE 32
Data retention in the event of a power failure in field and control instruments with microprocessors
26 Endress+Hauser
Page 27
Proline t-mass B 150
• NAMUR NE 43
Standardization of the signal level for the breakdown information of digital transmitters with analog output
signal.
• NAMUR NE 53
Software of field devices and signal-processing devices with digital electronics
• NAMUR NE 105
Specifications for integrating fieldbus devices in engineering tools for field devices
• NAMUR NE 107
Status classification as per NE107
Ordering information
Your Endress+Hauser sales center can provide detailed ordering information and information on the extended
order code.
Application packages
Package
HistoROM extended
function
Accessories
Device-specific accessories For the sensor
Accessories
Mounting boss Mounting boss for t-mass insertion version.
Hot tap If the accessory is ordered as an extended option, only one particular set of standard features
Description
Comprises extended functions concerning the event log and the activation of the measured
value memory.
Event log:
• Memory volume is extended from 20 message entries (basic version) to up to 100 entries.
• Message entries are visualized via the local display or FieldCare.
Data logging (line recorder):
• Memory capacity for up to 1000 measured values is activated.
• 250 measured values can be output via each of the 4 memory channels. The recording
interval can be defined and configured by the user.
• Data logging is visualized via the local display or FieldCare.
Description
Order code DK6MB-*
is available.
Low pressure, order characteristic for "Accessories Enclosed", options PG, PH,
PK, PL
Mounting set contains welded socket (process connection), sensor connection with safety
chain and ball valve. To insert/remove the sensor at process pressures up to max. 4.5 barg
(65 psi).
High pressure, order characteristic for "Accessories Enclosed", options PI, PJ, PM,
PN
Mounting set contains welded socket (process connection), sensor connection, ball valve
and extractor assembly. To insert/remove the sensor at process pressures up to max. 16
barg (235 psi).
For details, see Installation Instructions EA00109D
If the accessory is ordered separately, individual combinations can be selected.
Order code DK6HT-*
Endress+Hauser 27
Page 28
Proline t-mass B 150
Communication-specific accessories
Accessories Description
Commubox FXA195 HART For intrinsically safe HART communication with FieldCare via the USB interface.
For details, see "Technical Information" TI00404F
HART Loop Converter
HMX50
Wireless HART adapter
SWA70
Fieldgate FXA320 Gateway for the remote monitoring of connected 4-20 mA measuring devices via a Web
Fieldgate FXA520 Gateway for the remote diagnostics and remote configuration of connected HART measuring
Is used to evaluate and convert dynamic HART process variables to analog current signals
or limit values.
For details, see "Technical Information" TI00429F and Operating Instructions
BA00371F
Is used for the wireless connection of field devices.
The WirelessHART adapter can be easily integrated into field devices and existing
infrastructures, offers data protection and transmission safety and can be operated in parallel
with other wireless networks with minimum cabling complexity.
For details, see Operating Instructions BA00061S
browser.
For details, see "Technical Information" TI00025S and Operating Instructions
BA00053S
devices via a Web browser.
For details, see "Technical Information" TI00025S and Operating Instructions
BA00051S
Service-specific accessories
Field Xpert SFX100 Compact, flexible and robust industry handheld terminal for remote configuration and for
obtaining measured values via the HART current output (4-20 mA).
For details, see Operating Instructions BA00060S
Commubox FXA291 Connects Endress+Hauser field devices with a CDI interface (= Endress+Hauser Common
Data Interface) and the USB port of a computer or laptop.
For details, see "Technical Information" TI00405C
Accessories
Applicator Software for selecting and sizing Endress+Hauser measuring devices:
W@M Life cycle management for your plant
Description
• Calculation of all the necessary data for identifying the optimum flowmeter: e.g. nominal
diameter, pressure loss, accuracy or process connections.
• Graphic illustration of the calculation results
Administration, documentation and access to all project-related data and parameters over
the entire life cycle of a project.
Applicator is available:
• Via the Internet: https://wapps.endress.com/applicator
• On CD-ROM for local PC installation.
W@M supports you with a wide range of software applications over the entire process: from
planning and procurement, to the installation, commissioning and operation of the
measuring devices. All the relevant device information, such as the device status, spare parts
and device-specific documentation, is available for every device over the entire life cycle.
The application already contains the data of your Endress+Hauser device. Endress+Hauser
also takes care of maintaining and updating the data records.
W@M is available:
• Via the Internet: www.endress.com/lifecyclemanagement
• On CD-ROM for local PC installation.
28 Endress+Hauser
Page 29
Proline t-mass B 150
FieldCare FDT-based plant asset management tool from Endress+Hauser.
It can configure all smart field units in your system and helps you manage them. By using
the status information, it is also a simple but effective way of checking their status and
condition.
For details, see Operating Instructions BA00027S and BA00059S
System components
Standard documentation
Supplementary devicedependent documentation
Accessories Description
Memograph M graphic
display recorder
The Memograph M graphic data manager provides information on all the relevant measured
variables. Measured values are recorded correctly, limit values are monitored and measuring
points analyzed. The data are stored in the 256 MB internal memory and also on a SD card
or USB stick.
For details, see "Technical Information" TI00133R and Operating Instructions
BA00247R
Documentation
The following document types are available:
• On the CD-ROM supplied with the device
•
In the Download Area of the Endress+Hauser Internet site: www.endress.com ® Download
Device type
6BAB**- - - - - Brief Operating Instructions KA01104D
Device type
6BAB**- Installation Instructions Specified for each
Communication Document type Documentation code
HART Operating Instructions BA01043D
Document type Approval Documentation code
individual accessory
(® ä 27)
Registered trademarks
Ò
HART
Registered trademark of the HART Communication Foundation, Austin, USA
ApplicatorÒ, FieldCareÒ, Field XpertTM, HistoROM
Registered or registration-pending trademarks of the Endress+Hauser Group
Ò
Endress+Hauser 29
Page 30
Page 31
Page 32
Instruments International
Endress+Hauser
Instruments International AG
Kaegenstrasse 2
4153 Reinach
Switzerland
Tel.+41 61 715 81 00
Fax+41 61 715 25 00
www.endress.com
info@ii.endress.com
TI01020D/06/EN/02.12
71187194
EH-COSIMA ProMoDo
Loading...
