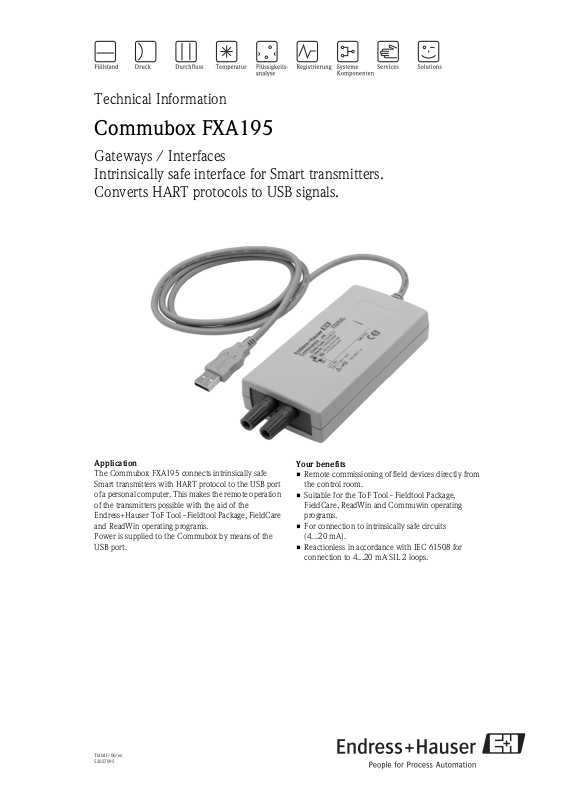

Page 1
Technical Information
Commubox FXA195
Gateways / Interfaces
Intrinsically safe interface for Smart transmitters.
Converts HART protocols to USB signals.
Application
The Commubox FXA195 connects intrinsically safe
Smart transmitters with HART protocol to the USB port
of a personal computer. This makes the remote operation
of the transmitters possible with the aid of the
Endress+Hauser ToF Tool - Fieldtool Package, FieldCare
and ReadWin operating programs.
Power is supplied to the Commubox by means of the
USB port.
Your benefits
• Remote commissioning of field devices directly from
the control room.
• Suitable for the ToF Tool - Fieldtool Package,
FieldCare, ReadWin and Commuwin operating
programs.
• For connection to intrinsically safe circuits
(4...20 mA).
• Reactionless in accordance with IEC 61508 for
connection to 4...20 mA SIL 2 loops.
TI404F/00/en
52027095
Page 2
Function and system design
Measuring system In HART operation, a transmitter is operated by means of a 250 Ω load.
Note!
Please observe the max. load of the Smart transmitter!
PLC
- FieldCare
- ToF Tool - FieldTool
Package
A
Commubox FXA195
Connection Commubox FXA195
Commubox
FXA191/195
X
E
Switch Commubox FXA195
Off
270 W
On
A
Transmitter powersupply unit,
e.g. RMA422
or RN221N
(with communication
resistor)
ENDRESS + HAUSER
RMA 422
FXA191/195
or
DXR375
dsdmdm
dsdmdm
df das.
df das.
asdas fa
asdas fa
asas la.
asas la.
DELTABAR:* * * * * * * *
DELTABAR:* * * * * * * *
ONLINE
ONLINE
1 QUICK SETUP
1 QUICK SETUP
2 OPERATING MENU
2 OPERATING MENU
3 PV 352 mbar
3 PV 352 mbar
4 SV 0 °C
4 SV 0 °C
HELP SAVE
HELP SAVE
Page
Page
Up
Up
DeleteBksp
DeleteBksp
Page
Page
On
On
# % &
A B C
# % &
A B C
D E F
D E F
1
3
1
3
2
2
Copy
Paste
Copy
Paste
Hot Key
Hot Key
G H I
G H I
J K L
M N O
J K L
M N O
6
6
4
5
4
5
Insert
+ Hot Key
Insert
+ Hot Key
P Q R S
P Q R S
T UV
W XY Z
T UV
W XY Z
8
8
9
9
7
7
, ( )‘
, ( )‘
_ < >
+ * /
_ < >
+ * /
-
-
.
0
.
0
HART handheld terminal
375
375
FIELD COMMUNICATOR
FIELD COMMUNICATOR
DXR375
MeasuredValue
64.50
%
Display
and
perating
o module
(optional)
L00-FXA195xx-14-00-06-en-001
X
E
Note!
The communication resistor (270 Ω) integrated in Commubox should not be connected in parallel to a power
supply point greater than 15 V. If the communication resistor is used, it should always be looped into the
4...20 mA circuit.
Note!
Prior to initially commissioning Commubox with the operating program (ToF Tool - Fieldtool Package,
FieldCare, ReadWin or Commuwin), the appropriate drivers must be installed from the CD-ROM supplied (list
of the Endress+Hauser operating programs and versions see Page 4).
Input/output
USB port Personal computer ↔ Commubox FXA195 = USB signal as per USB specification.
HART interface Measuring device(s) ↔ and Commubox FXA195 = HART signal as per HART specification.
Power supply
Connection • For computer: USB port
• For transmitter: adapter bushing, 4 mm, independent of polarity
Supply voltage Voltage range: from the USB port of the personal computer, 5V
Current consumption: < 20 mA
Intrinsically safe signal circuit BVS 05 ATEX E 039
For connecting an intrinsically safe circuit with explosion protection [EEx ia] IIC with the following maximum
value: connection voltage up to 30 V
DC
.
2 Endress + Hauser
DC
.
Page 3
Commubox FXA195
Operating conditions: Environment
Permitted ambient temperatures
Electromagnetic compatibility (EMC)
Application
in conjunction with protection functions
• Nominal operating range: -20 °C ... +50 °C
• Storage temperature: -40 °C ... +85 °C
• Humidity: 0 % ... 95 % (no condensation)
Interference Emission to EN 61326, Electrical Equipment Class B. Interference immunity to EN 61326.
Commubox FXA195 can be connected reactionless to protection functions that are graded as SIL 2 in
accordance with IEC 61508.
1
SFF
1) SFF (safe failure fraction) = proportion of safety-related faults
TI
1 year 1.23 x 10
5 years 6.13 x 10
10 years 1.23 x 10
1) TI = test interval between function tests of the protection function (in years)
2) PFD
60%
1
= average probability of dangerous failure on demand
avg
PFD
avg
2
-6
-6
-5
Mechanical construction
Design, dimensions Housing dimensions: 143 x 60 x 30 mm.
Weight approx. 200 g
Certificates and approvals
CE mark The Commubox meets the legal requirements of the EC directives.
Endress+Hauser confirms that the device has been successfully tested by applying the CE label.
Ex-approval See ordering information.
External standards and guidelines
Other standards and guidelines that were taken into account when designing and developing FXA195.
EN 60529
Ingress protections for housing (IP code)
EN 61010
Safety requirements for electrical equipment for measurement, control and laboratory use
EN 61326
Interference emission (Class B operating equipment), interference immunity (Appendix A - industrial sector)
Endress + Hauser 3
Page 4

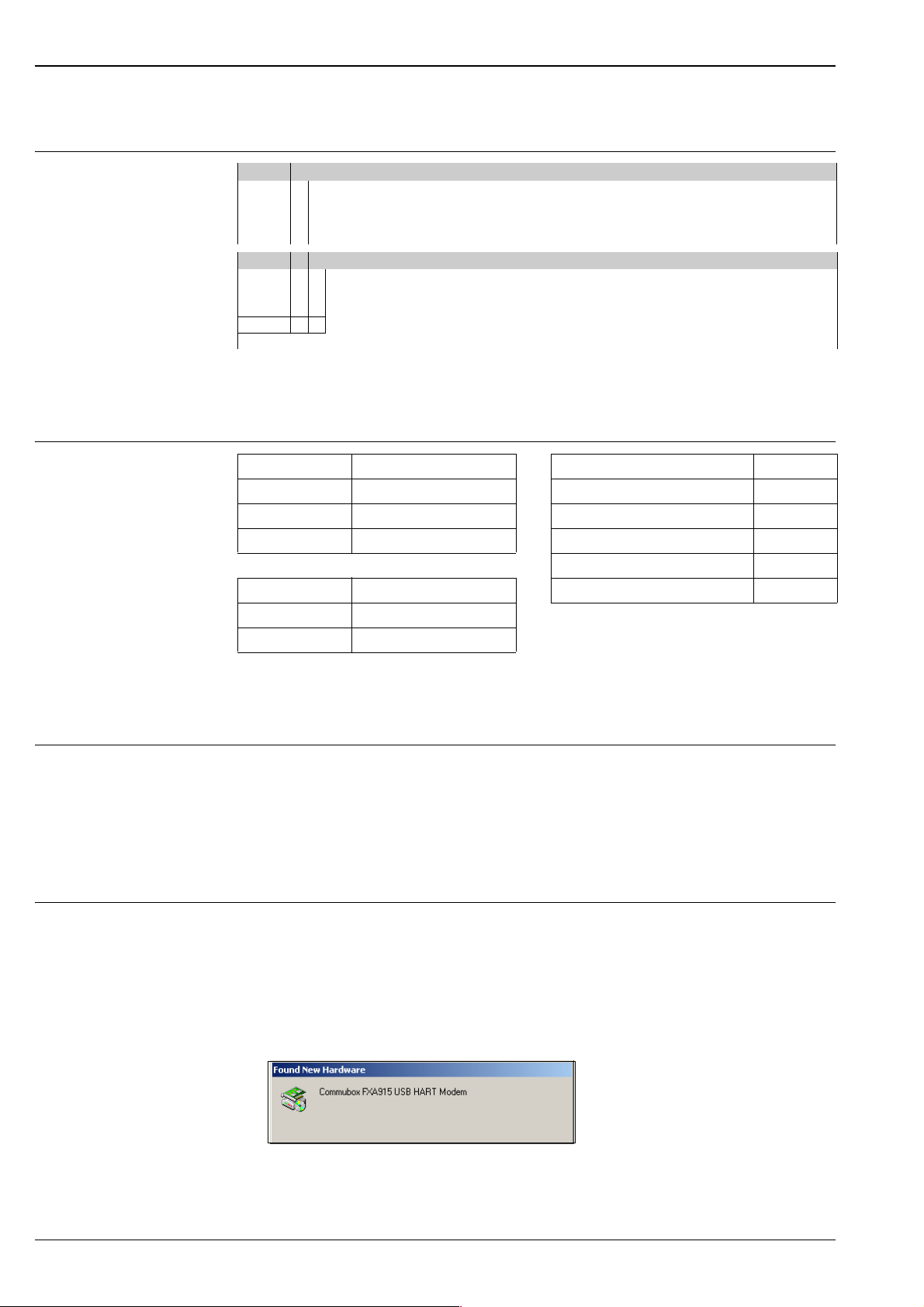

Ordering information
Commubox FXA195
Commubox FXA195
Hardware and software
10 Approval:
G ATEX II (1)GD EEx ia IIC
P FM IS CL.I,II,III Gr.A-G
S CSA IS CL.I,II,III Gr.A-G
Y Special version
20 Additional Option:
1 Basic version
9 Special version
FXA195- Complete product designation
System requirements
Hardware Minimum Endress+Hauser operating program from Version
Processor Pentium 500 MHz or higher ToF Tool - Fieldtool Package 3.01.00
Interface USB 1.1 or 2.0 FieldCare 2.01.00.383
Drives CD-ROM drive HART OPC server 2.1.1
Commuwin 2.08.01
Operating system Service Pack / extensions ReadWin 2000 1.17.2.0
Windows 2000 SP 3 or higher recommended
Windows XP SP 1a or higher recommended
Installation
Scope of delivery A CD-ROM with the following programs is supplied with Commubox FXA195:
• USB drivers - these are automatically installed by means of hardware detection. For an example for
installation on Windows 2000, see "Installing the USB driver" onPage 4-8.
• PreInstaller - you can use this program to install the USB drivers manually. To do so, you must first start
the program from the CD-ROM, follow the installation instructions and then connect the Commubox to
the personal computer.
• ComPortFinder - this program helps you find out which virtual COM port the USB port was set to. To do
so, simply start the program from the CD-ROM.
Installing the USB driver Note!
Please note that you require Administrator rights if installing on Windows 2000 and Windows XP!
The following are sample instructions for Windows 2000
1. Insert the "Commubox driver CD-ROM" into the CD-ROM drive of your computer.
2. Connect Commubox FXA195 to a free USB port of the computer.
The following screen tells you that new hardware has been found.
L00-FXA195xx-20-13-00-en-001
4 Endress + Hauser
Page 5
Commubox FXA195

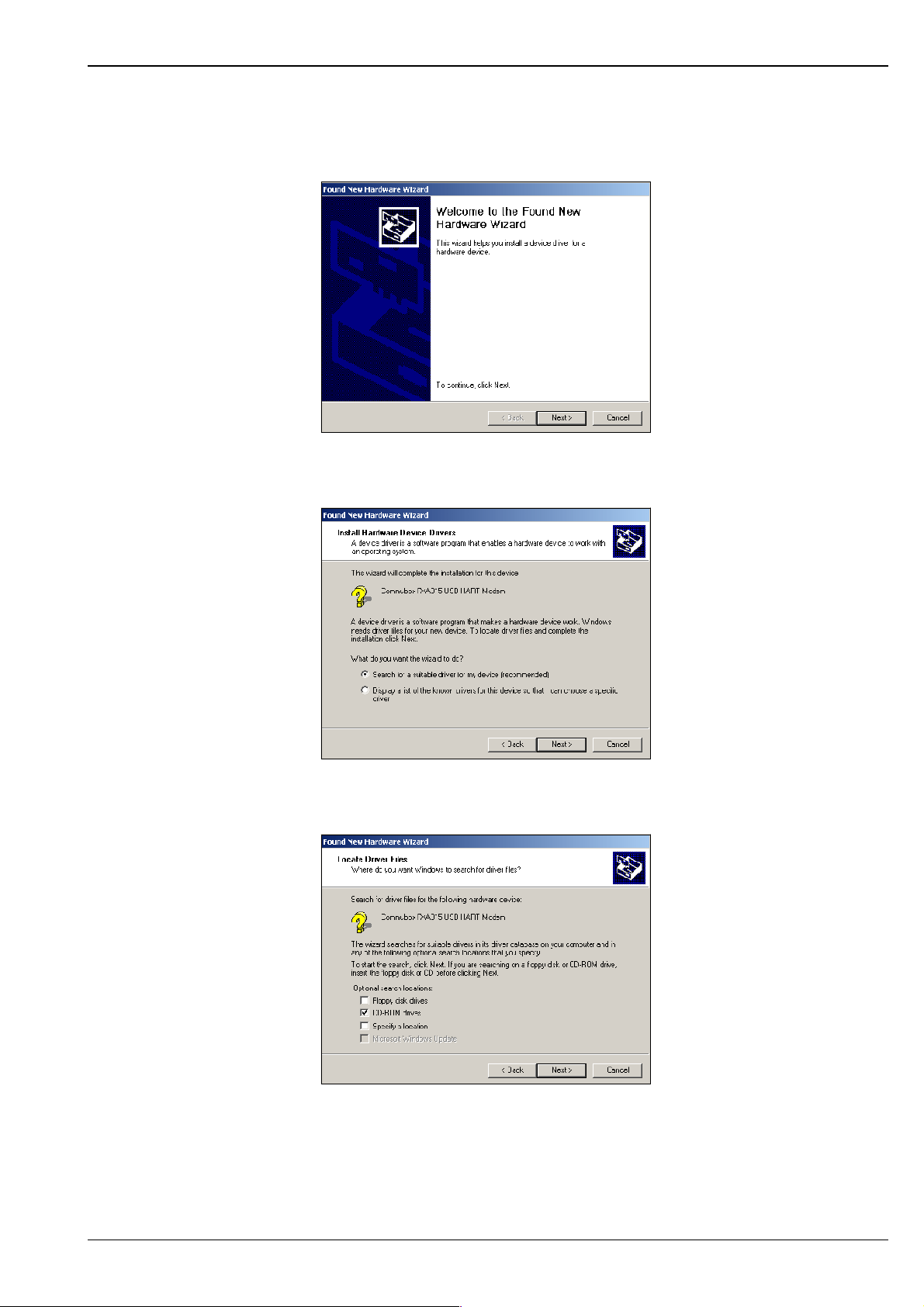

Initially, the USB driver is installed.
3. You are asked to install a driver for this hardware. Click "Next >".
L00-FXA195xx-20-13-00-en-002
4. Select "Search for a suitable driver for my device (recommended)" and click "Next >".
L00-FXA195xx-20-13-00-en-003
5. Activate the check box for "CD-ROM drives" and click "Next >".
L00-FXA195xx-20-13-00-en-004
Endress + Hauser 5
Page 6
Commubox FXA195

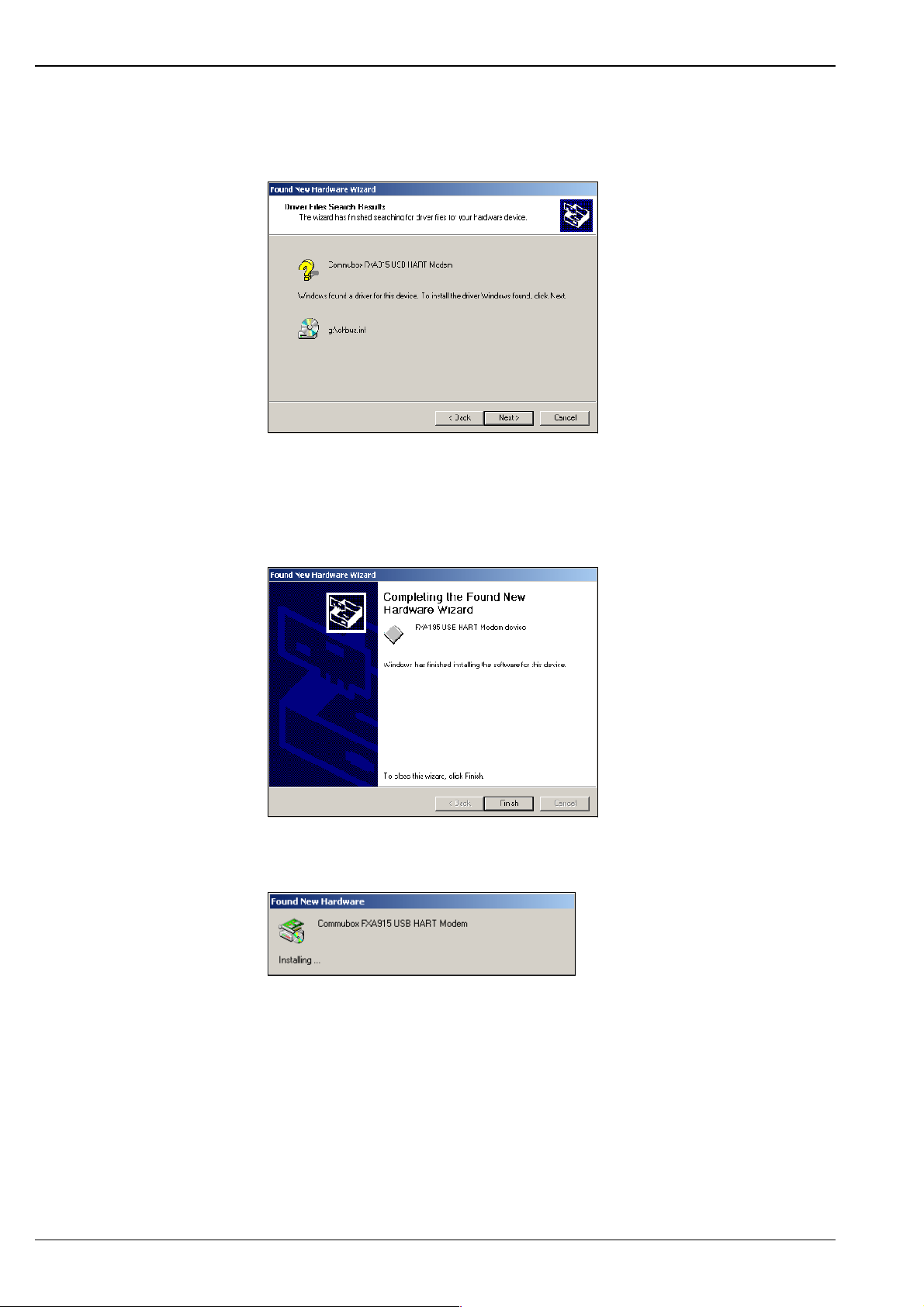

6. A driver has been found for the device. Click "Next >".
L00-FXA195xx-20-13-00-en-007
Note!
If the notice "WHQL test failed" appears when installing on Windows XP, please simply continue the
installation.
7. Click "Finish" to conclude the installation.
L00-FXA195xx-20-13-00-en-008
8. The following screen tells you that new hardware has been found.
L00-FXA195xx-20-13-00-en-009
Then, the driver for the virtual COM port is installed.
6 Endress + Hauser
Page 7
Commubox FXA195
9. You are asked to install a driver for this hardware. Click "Next >".
L00-FXA195xx-20-13-00-en-010
10. Select "Search for a suitable driver for my device (recommended)" and click "Next >".
L00-FXA195xx-20-13-00-en-011
11. Activate the check box for "CD-ROM drives" and click "Next >".
L00-FXA195xx-20-13-00-en-012
Endress + Hauser 7
Page 8
Commubox FXA195

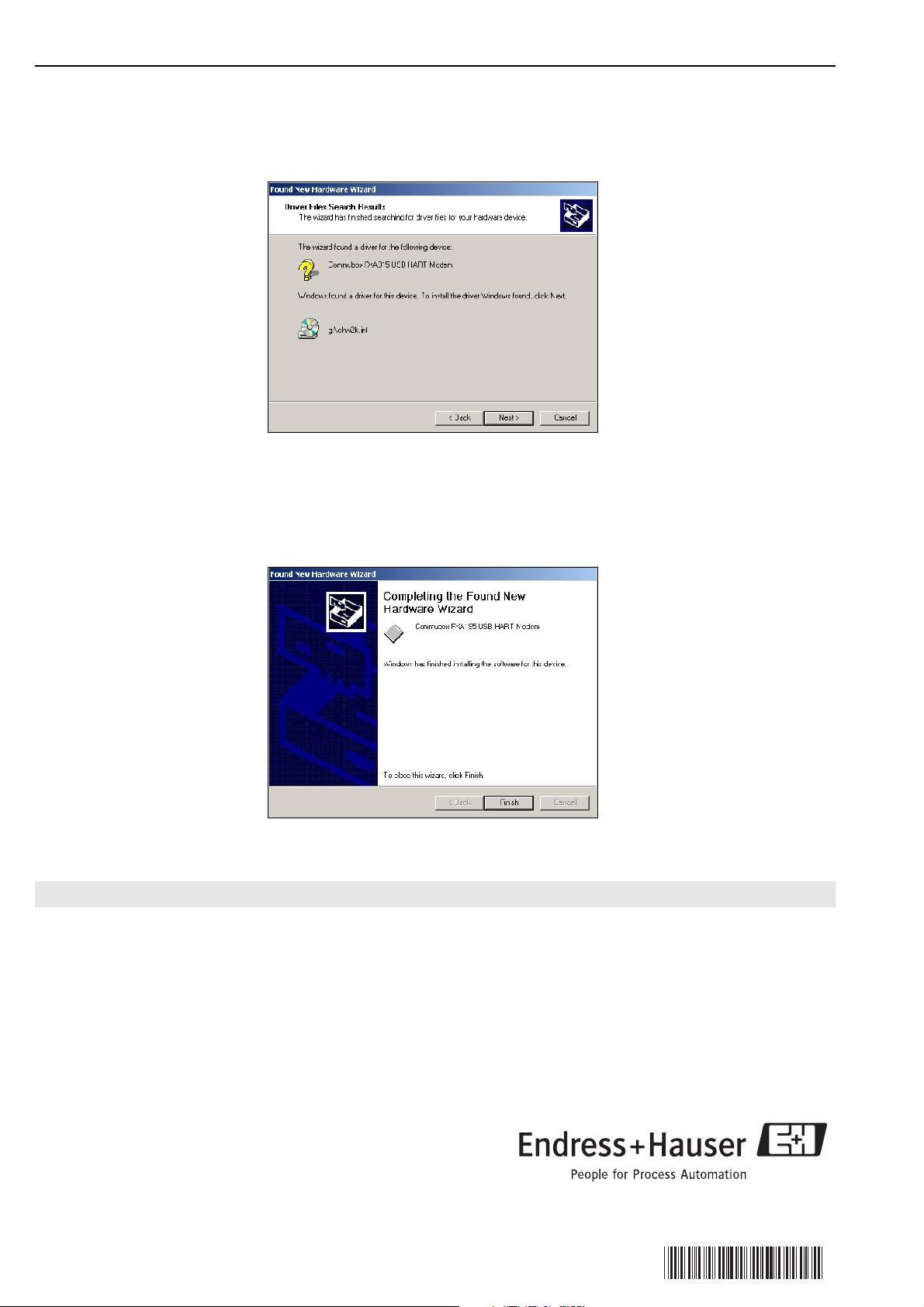

12. A driver has been found for the device. Click "Next >".
L00-FXA195xx-20-13-00-en-013
Note!
If the notice "WHQL test failed" appears when installing on Windows XP, please simply continue the
installation.
International Head Quarter
Endress+Hauser
GmbH+Co. KG
Instruments International
Colmarer Str. 6
79576 Weil am Rhein
Deutschland
Tel. +49 76 21 9 75 02
Fax +49 76 21 9 75 34 5
www.endress.com
info@ii.endress.com
13. Click "Finish" to conclude the installation.
L00-FXA195xx-20-13-00-en-014
14. You can use the "ComPortFinder" program to determine the virtual COM port.
TI404F/00/en/11.05
52027095
