EMKO EAOM-6 Instruction Manual

Download

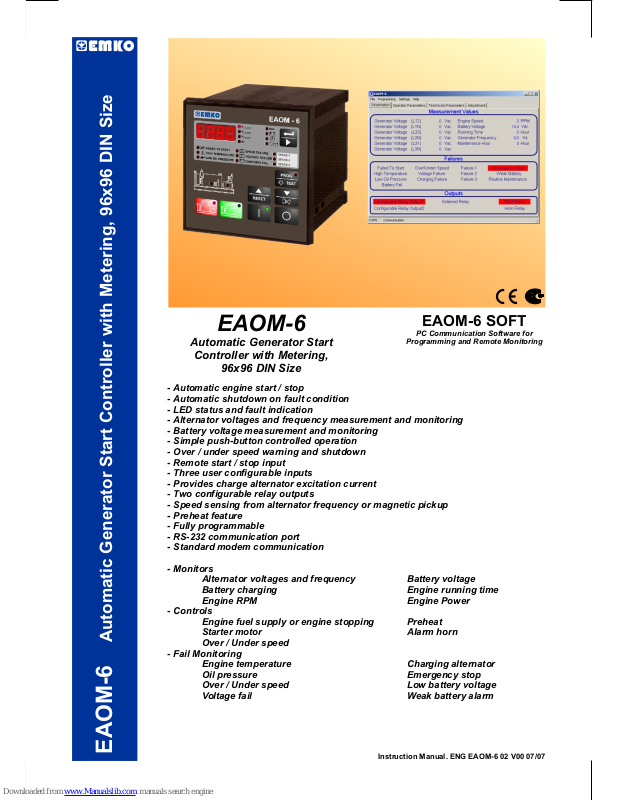

EAOM-6 Automatic Generator Start Controller with Metering, 96x96 DIN Size

- Automatic engine start / stop

- Automatic shutdown on fault condition

- LED status and fault indication

- Alternator voltages and frequency measurement and monitoring

- Battery voltage measurement and monitoring

- Simple push-button controlled operation

- Over / under speed warning and shutdown

- Remote start / stop input

- Three user configurable inputs

- Provides charge alternator excitation current

- Two configurable relay outputs

- Speed sensing from alternator frequency or magnetic pickup

- Preheat feature

- Fully programmable

- RS-232 communication port

- Standard modem communication

Alternator voltages and frequency Battery voltage Battery charging Engine running time Engine RPM Engine Power

Engine fuel supply or engine stopping Preheat Starter motor Alarm horn Over / Under speed

Engine temperature Charging alternator Oil pressure Emergency stop Over / Under speed Low battery voltage Voltage fail Weak battery alarm

Monitors

Controls

Fail Monitoring

Instruction Manual. ENG EAOM-6 02 V00 07/07

EAOM-6

Automatic Generator Start

Controller with Metering,

96x96 DIN Size

EAOM-6 SOFT

PC Communication Software for

Programming and Remote Monitoring

Instruction manual of EAOM-6 consists of two main sections. Explanation of these sections are below. Also, there is another section which include technical specifications of the device. All titles and page numbers in instruction manual are in “CONTENTS” section. User can reach to any title with section number.

Installation:

In this section, physical dimensions of the device, panel mounting, electrical wiring, physical and electrical installation of the device to the system are explained.

Operation and Parameters:

In this section, user interface of the device, how to access to the parameters, description of the parameters are explained.

Also in these sections, there are warnings to prevent serious injury while doing the physical and electrical mounting or using the device.

Explanation of the symbols which are used in these sections are given below.

This symbol is used to determine the dangerous situations as a result of an electric shock. User must pay attention to these warnings definitely.

This symbol is used for safety warnings. User must pay attention to these warnings.

This symbol is used to determine the important notes about functions and usage of the device.

ABOUT INSTRUCTION MANUAL

This symbol is used for VDC

This symbol is used for VAC

CONTENTS

Page 6

Page 12

Page 8

Page 16

Page 22

1.PREFACE............................................................................................................................................

1.1 GENERAL SPECIFICATIONS

1.2 WARRANTY

1.3 MAINTENANCE

2.INSTALLATION....................................................................................................................................

2.1 GENERAL DESCRIPTION

2.2 DIMENSIONS

2.3 PANEL CUT-OUT

2.4 ENVIRONMENTAL RATINGS

2.5 PANEL MOUNTING

2.6 INSTALLATION FIXING SCREWS

2.7 REMOVING FROM THE PANEL

3.ELECTRICAL WIRINGS......................................................................................................................

3.1 TERMINAL LAYOUT AND CONNECTION INSTRUCTIONS

3.2 ELECTRICAL WIRING DIAGRAM

3.2.1 1-PHASE WIRING DIAGRAM

3.2.2 3-PHASE WIRING DIAGRAM

...................

4.3.1 TECHNICAL SPECIFICATIONS

4.3.2 INSTALLATION INSTRUCTIONS

4.3.2.1 MINIMUM SYSTEM REQUIREMENTS

4.3.3 INSTALLING EAOM-6 SOFTWARE

4.3.4 USING OF EAOM-6 COMMUNICATION SOFTWARE

4.3.5 DESCRIPTION

4.3.6 OBSERVATION WINDOW

4.3.7 OPERATOR PARAMETERS WINDOW

4.3.8 TECHNICIAN PARAMETERS WINDOW

4.3.9 MAIN MENU

4.3.9.1 FILE

4.3.9.2 PROGRAMMING

4.3.9.3 SETTINGS

4.3.10 ENTERING TO THE OPERATOR PARAMETERS WINDOW

4.3.11 ENTERING TO THE TECHNICIAN PARAMETERS WINDOW

4.3.12 ENTERING TO THE ADJUSTMENT WINDOW

4.3.13 LOAD THE CONFIGURATION FILE FROM THE DISC

4.3.14 SAVE THE CONFIGURATION FILE TO THE DISC

4.3.15 UPLOAD

4.3.16 DOWNLOAD

5.PARAMETERS.....................................................................................................................................

5.1.4 MAINTENANCE INDICATION

5.1.15 CONFIGURABLE OUTPUTS

5.1.16 OPERATOR PASSWORD

5.1.17 TECHNICIAN PASSWORD

4.RS-232 SERIAL INTERFACE, PROGRAMMING THE DEVICE OVER PC OR MODEM

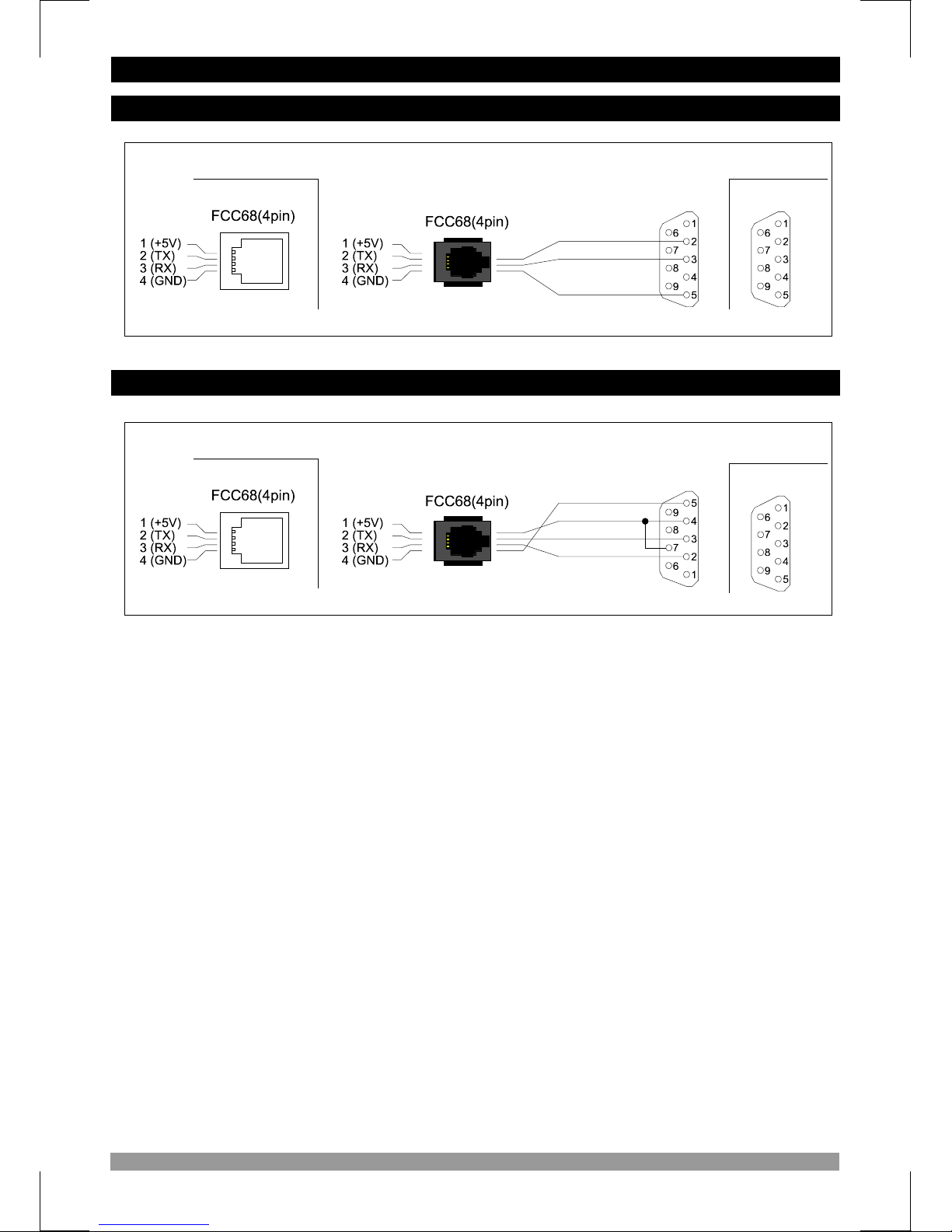

4.1 CABLE CONNECTION BETWEEN RS-232 TERMINAL OF THE DEVICE AND PC

4.2 CABLE CONNECTION BETWEEN RS-232 TERMINAL OF THE DEVICE AND MODEM

4.3 PC INTERFACE

5.1. PROGRAM FUNCTIONS

5.1.1 ALTERNATOR VOLTAGE

5.1.2 ALTERNATOR FREQUENCY

5.1.3 BATTERY VOLTAGE LOWER LIMIT

5.1.5 SPEED SENSING INPUT SELECTION

5.1.6 STOP / FUEL SOLENOID SELECTION

5.1.7 STOP MAGNET ENERGISING TIME

5.1.8 ENGINE STARTED SIGNALS

5.1.9 BATTERY VOLTAGE

5.1.10 ENGINE STARTING

5.1.11 OIL PRESSURE BY-PASS TIME

5.1.12 CONTROL ON DELAY

5.1.13 ENGINE COOLING TIME

5.1.14 CONFIGURABLE INPUTS

5.2 CHANGING and SAVING OPERATOR PARAMETER VALUE

5.3 CHANGING and SAVING TECHNICIAN PARAMETER VALUE

9. FAULT FINDING.................................................................................................................................

10.PROGRAMMABLE PARAMETERS..................................................................................................

11.SPECIFICATIONS..............................................................................................................................

6. LAMP TEST.........................................................................................................................................

7. OPERATION.......................................................................................................................................

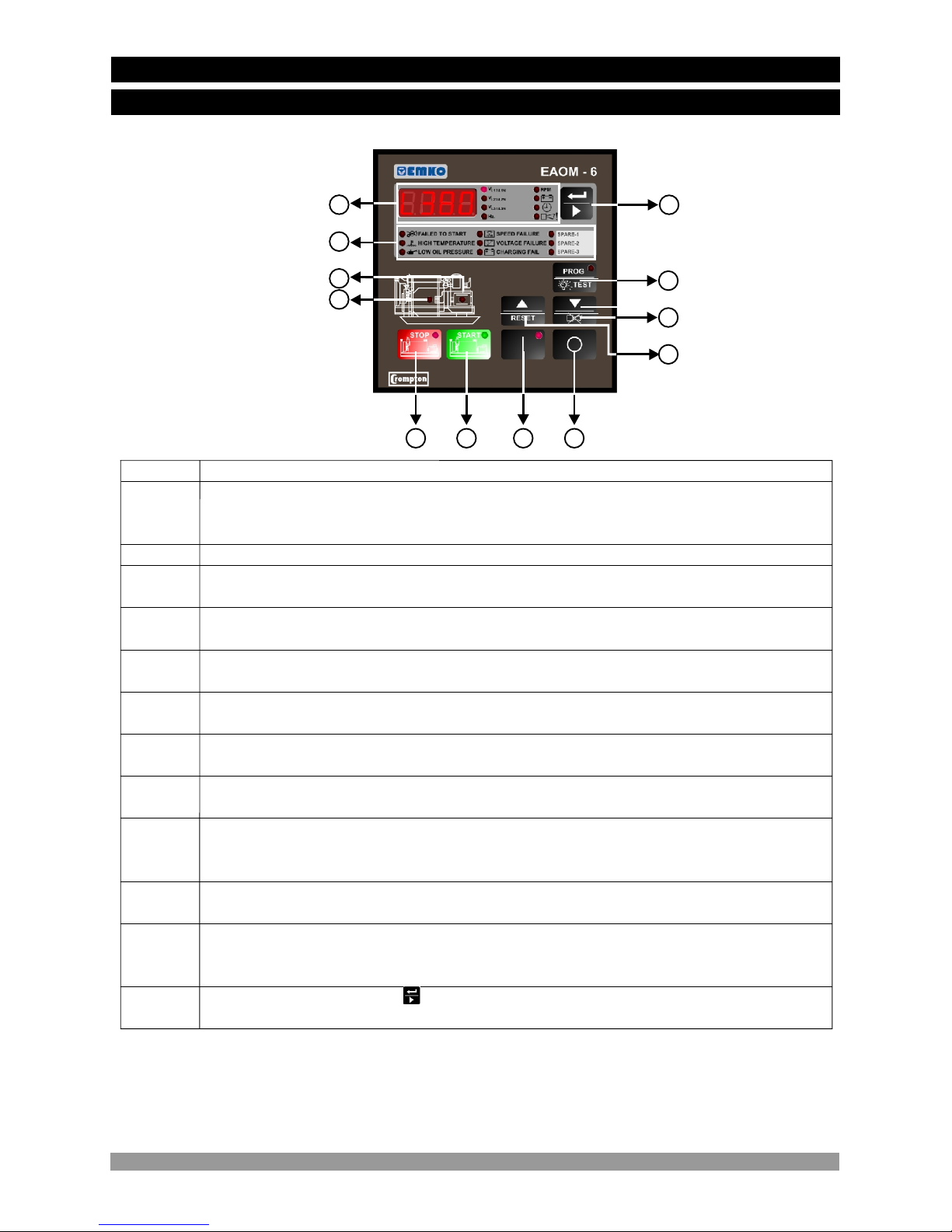

7.1 FRONT PANEL DESCRIPTION

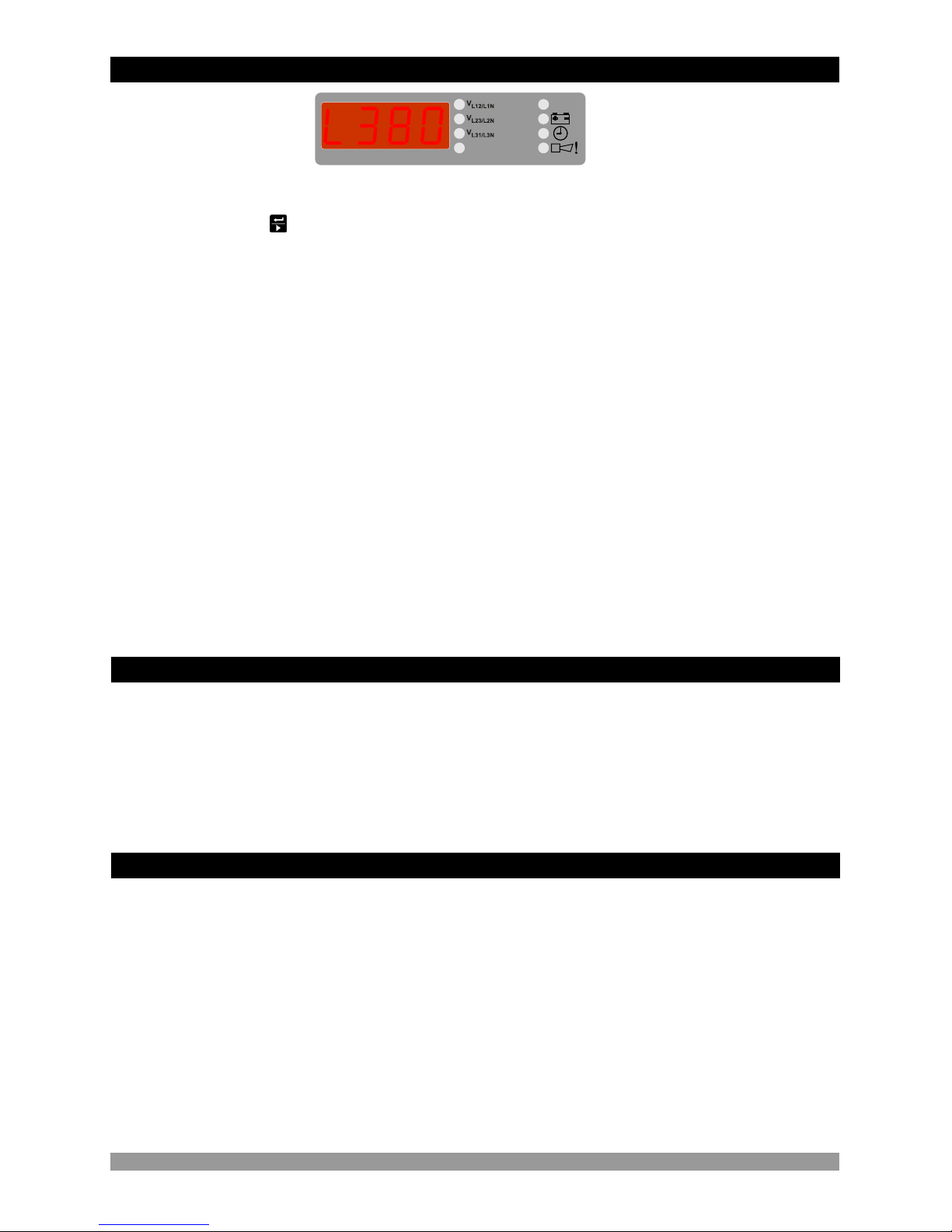

7.2 DISPLAY MODE INDICATORS

7.3 STARTING THE ENGINE

7.4 STOPPING THE ENGINE

8.COMMISSIONING...............................................................................................................................

9.1 FAULT INDICATIONS

9.1.1 FAILED TO START LED

9.1.2 HIGH TEMPERATURE LED

9.1.3 LOW OIL PRESSURE LED

9.1.4 CHARGE GENERATOR FAILURE LED

9.1.5 OVER / UNDER SPEED LED

9.1.6 GENERATOR VOLTAGE FAILURE LED

9.1.7 SPARE-1, 2, 3

9.1.8 EMERGENCY STOP MESSAGE LED

9.1.9 LOW BATTERY VOLTAGE MESSAGE (bAT1)

9.1.10 WEAK BATTERY ALARM MESSAGE (bAT2)

9.1.11 ROUTINE MAINTENANCE DUE (SErV)

Page 32

Page 36

Page 40

Page 33

Page 35

Page 38

Manufacturer Company Name : Emko Elektronik A.Þ.

Manufacturer Company Address: DOSAB, Karanfil Sokak, No:6, 16369 Bursa, Turkiye

The manufacturer hereby declares that the product conforms to the following standards and conditions.

Product Name :

Model Number :

Type Number : EAOM-6

Product Category : Electrical equipment for measurement, control and

laboratory use

Conforms to the following directives :

Electrical control equipment for generating sets

EAOM-6

EMC : BS EN 50081-2, EMC Generic Emission Standard for industrial

equipment

BS EN 50082-2, EMC Generic Immunity Standard for industrial equipment

Electrical Safety :EN 61010-1, Safety Requirements for electrical equipment for

measurement, control and laboratory use

EU DECLARATION OF CONFORMITY

1. PREFACE

These products provide control and protection in the operation of a generator set. The units allow starting and stopping of the engine and indicates status and fault conditions. The unit monitors:

Engine temperature

Oil pressure

Charging alternator

It controls:

Engine fuel supply or engine stopping, via external solenoid

Starter motor via external relay

Alarm horn

Preheat (configurable relay feature)

Load transfer (configurable relay feature)

A four-digit, seven-segment display provides extensive monitoring of unit and alternator parameters, including:

Alternator output voltage and frequency

Engine RPM

Battery voltage

Error indication

Program parameters

The unit is extensively programmable with password protection on two levels. In the event that the engine fails to start on the first attempt, the attempt will be repeated a programmed number of times or until successful. If a fault is detected, the unit shuts down the engine and indicates the failure by flashing an appropriate fault LED. Remote start and emergency stop inputs provide for remote control of the engine. Three userdefined inputs are included that sound an external horn, flash indicators on the panel and can be programmed to stop the engine. Two extra outputs can be configured to act on an alarm, when the engine is running, when a load can be transferred to the alternator or when engine preheating is required. The operational parameters of the unit can be monitored and controlled from a PC via a built-in RS-232 port.

Over / Under speed

Voltage fail

Emergency stop

Low battery voltage

Weak battery alarm

Battery charging

Engine running time

Maintenance time

Engine power

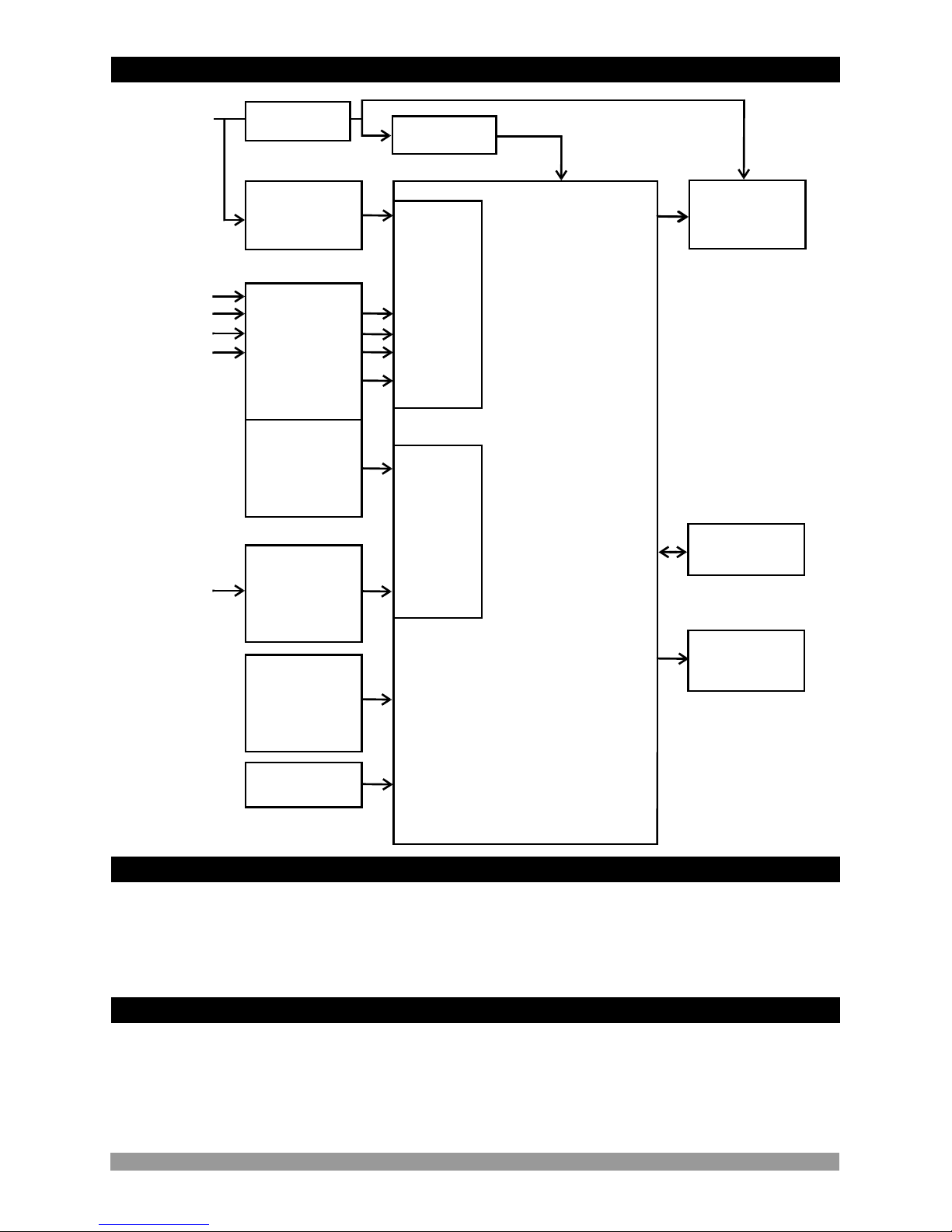

1.1 General Specifications

+BATTERY

N GEN L1 GEN L2 GEN L3

BATTERY VOLTAGE SENSING

GENERATOR

VOLTAGE SENSING

CONDITIONING

FREQUENCY

SENSING

FROM

GENERATOR

VOLTAGE

FREQUENCY

SENSING

FROM

MAGNETIC

PICK-UP

FAILURE

CONTROL

INPUTS

PUSH

BUTTONS

MAGNETIC PICK-UP

ANALOG

DIGITAL

CONVERTER

COUNTER

TIMER

MICROCONTROLLER

RELAY

OUTPUTS

RS-232 COMM.

POWER SUPPLY

FAILURE &

STATUS

INDICATORS

1.2 Warranty

EMKO Elektronik warrants that the equipment delivered is free from defects in material and workmanship. This warranty is provided for a period of two years. The warranty period starts from the delivery date. This warranty is in force if duty and responsibilities which are determined in warranty document and instruction manual performs by the customer completely.

1.3 Maintenance

Repairs should only be performed by trained and specialized personnel. Cut power to the device before accessing internal parts. Do not clean the case with hydrocarbon-based solvents (Petrol, Trichlorethylene etc.). Use of these solvents can reduce the mechanical reliability of the device. Use a cloth dampened in ethyl alcohol or water to clean the external plastic case.

12VZ/24VZ

SELECTION

Carefully unpack the unit and check for damage to the unit or to the cables supplied. Retain the packing in case of future need, e.g. returning the unit for calibration. Check the contents, as follows:

• One EAOM-6 unit.

• Operating Manual.

• Screw fixings.

• RS-232 Cable.

Before commencing installation:

• Disconnect all electrical power to the machine.

• Make sure the machine cannot operate during installation.

• Follow all of the machine manufacturers' safety warnings.

• Read and follow all installation instructions.

Report any shortage or damage to your local sales office as soon as possible.

A visual inspection of this product for possible damage occured during shipment is recommended before installation. It is your responsibility to ensure that qualified mechanical and electrical technicians install this product.

Be sure to use the rated power supply voltage to protect the unit against damage and to prevent failure.

Keep the power off until all of the wiring is completed so that electric shock and trouble with the unit can be prevented.

Never attempt to disassemble, modify or repair this unit. Tampering with the unit may results in malfunction, electric shock or fire.

Do not use the unit in combustible or explosive gaseous atmospheres.

During the equipment is putted in hole on the metal panel while mechanical installation some metal burrs can cause injury on hands, you must be careful. Montage of the product on a system must be done with it’s own fixing screws. Do not do the montage of the device with inappropriate fixing screws. Be sure that device will not fall while doing the montage. It is your responsibility if this equipment is used in a manner not specified in this instruction manual.

Before beginning installation of this product, please read the instruction manual and warnings below carefully.

2. INSTALLATION

2.1 General Description

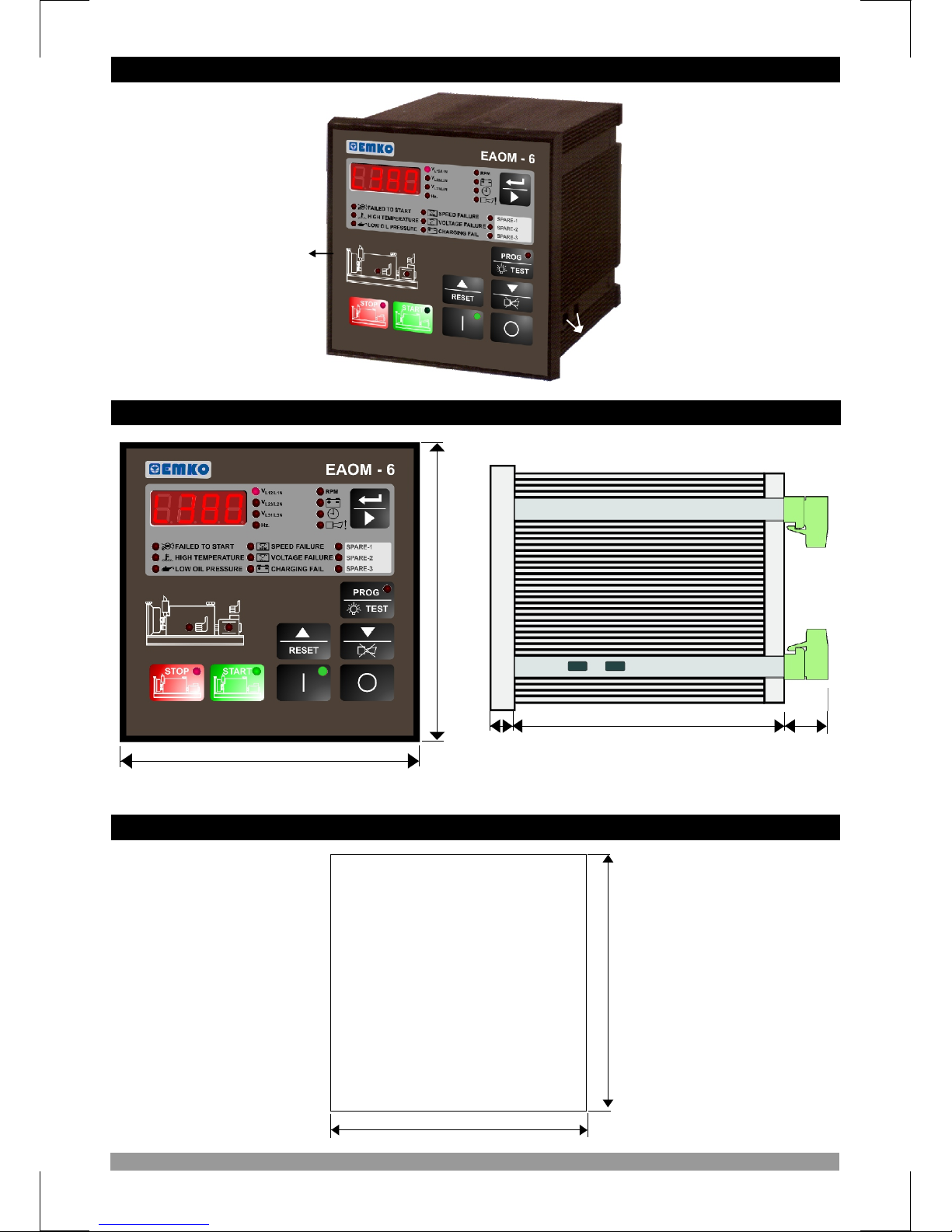

2.2 Dimensions

96mm

106mm9mm

96mm

13mm

2.3 Panel Cut-Out

92mm

Front Panel IP54 Protection NEMA4X

Mounting holes

Operating Temperature : -25°C to 70°C

Max. Operating Humidity : 90% Rh (non-condensing)

Altitude : Up to 2000m.

Operating Conditions

Forbidden Conditions: Corrosive atmosphere Explosive atmosphere Home applications (The unit is only for industrial applications)

2.4 Environmental Ratings

During installation into a metal panel, care should be taken to avoid injury from metal burrs which might be present. The equipment can loosen from vibration and become dislodged if installation parts are not properly tightened. These precautions for the safety of the person who does the panel mounting.

1. Prepare the panel cut-out in the correct dimensions.

f fixing parts are on the unit unscrew the fixing screws in the fixings parts to remove the fixings parts.

Maximum panel

thickness is 7mm (0.28 inch)

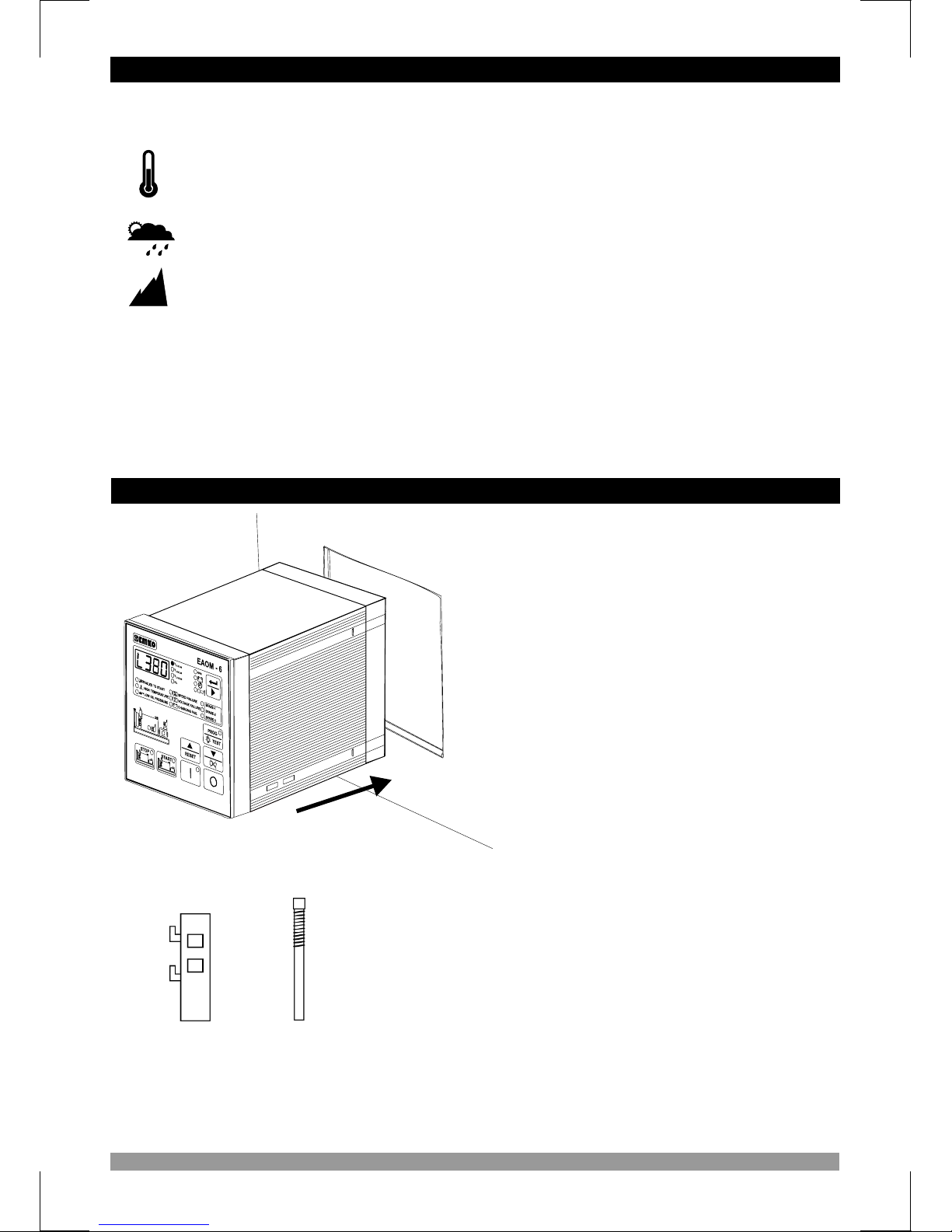

2. Insert the unit in the panel cut-out from the front. I

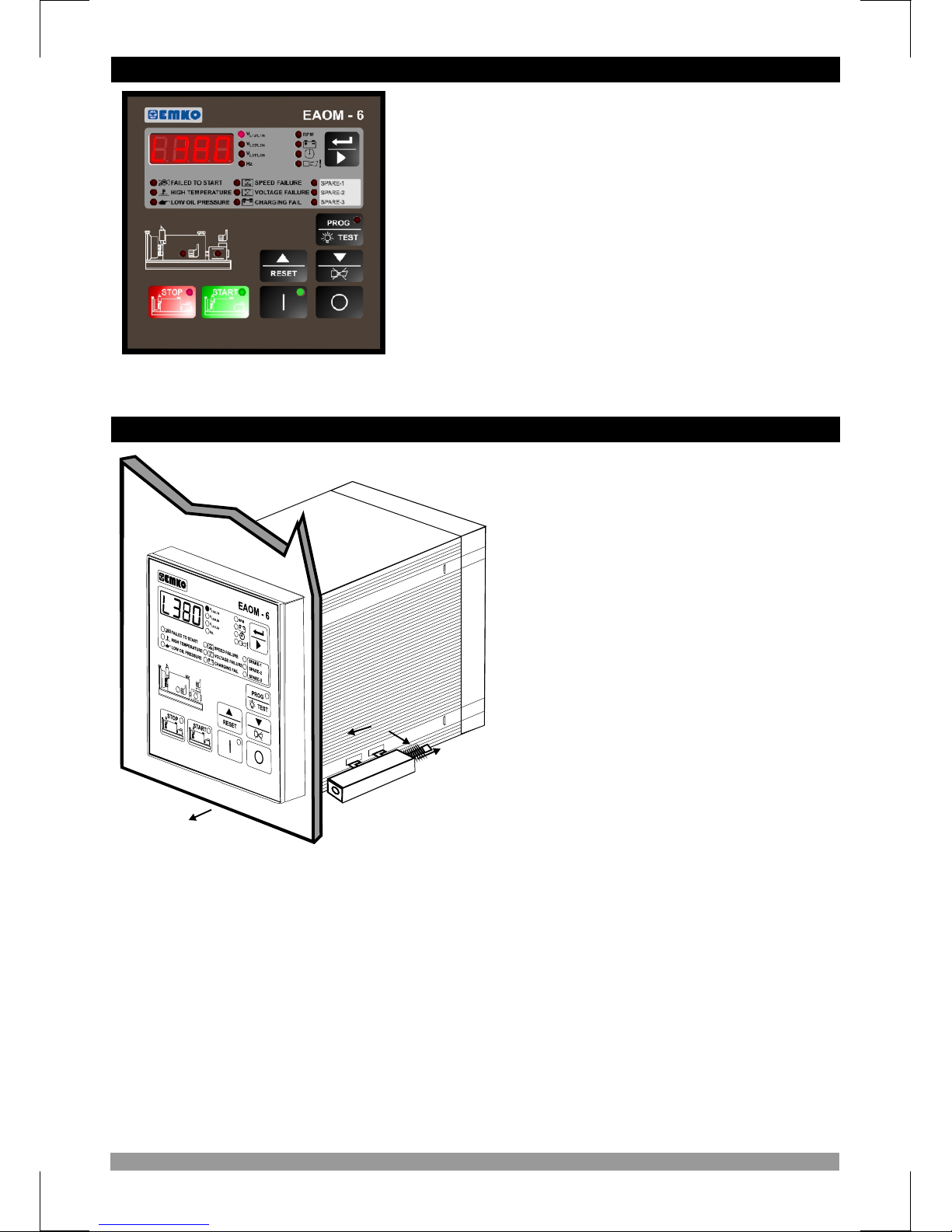

2.5 Panel Mounting

Fixing part Fixing screw

The unit is designed for panel mounting.

1.Insert the unit in the panel cut-out from the front side.

2.Insert the fixings through the mounting holes and

tighten the fixing screws to secure the unit against the panel.

Fixing is done

by two screw fixings

2.6 Installation Fixing Screws

the montage of the device with inappropriate fixing screws. Be sure that device will not fall while doing the montage.

During mechanical installation, beware of any sharp burrs on the metal panel aperture. Ensure that the fixings are properly tightened to prevent the fixings becoming loose due to panel vibration. Montage of the unit to a system must be done with it’s own fixing screws. Do not do

1. Loosen the screws on the fixing parts on the left and right side of the device.

2. Pull the fixing parts through the 2nd direction

3. Take off the fixing parts.

4. Pull the unit through the front side

of the panel

Before starting to remove the unit from panel, power off the unit and the related system.

2.7 Removing from the Panel

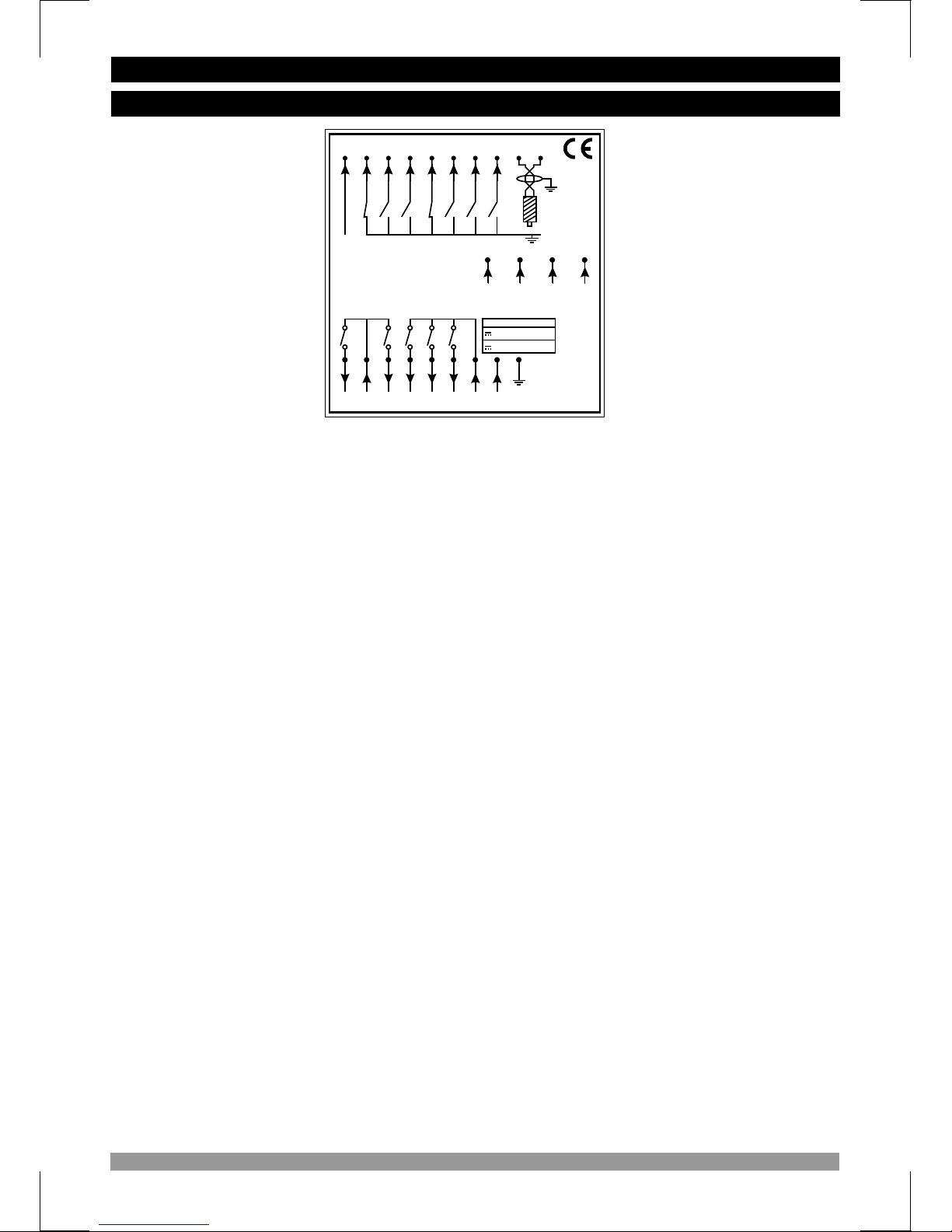

3.1 Terminal Layout and Connection Instructions

Only qualified personnel and trained technicians should work on this equipment.

Do not open or

dismantle the product enclosure.

This

equipment contains internal circuits with voltage dangerous to human life.

While installing the unit, battery voltage range must be controlled and appropriate battery voltage must be applied to the unit. Controlling prevents damages in unit and system and possible accidents as a result of incorrect battery voltage.

Switch on the battery voltage only after that all the electrical connections have been completed.

External fuse is recommended.

In case of failure it is suggested to return the instrument to the manufacturer for repair.

You must ensure that the device is correctly configured for your application. Incorrect configuration could result in damage to the process being controlled and/or personal injury. It is your responsibility, as the installer, to ensure that the configuration is correct. Device parameters has factory default values. These parameters must be set according to the system’s needs. There is severe danger for human life in the case of unauthorized intervention.

Magnetic

Pickup

(Max. 10kHz)

BATTERY VOLTAGE

12Vdc (8-16Vdc)

24Vdc (16-32Vdc)

SGN

GND

MAXIMUM ~300V (Ph - N)

D+ (W.L.)

CONF. INPUT 1

CONF. INPUT 2

CONF. INPUT 3

GENERATOR VOLTAGE

14 171615

-BAT

HORN 5A

CONF. OUT-2 5A

CONF. OUT-1 5A

987654321

27262524232221201918

LOW OIL PRES.

HIGH TEMP.

CHARGE GEN.

REMOTE START/STOP

E. STOP

START

SOLENOID

+BAT

12A

- BAT

Ensure the position of "Power supply position switch" is in the correct position according to the battery voltage (12 VZ or 24 VZ).

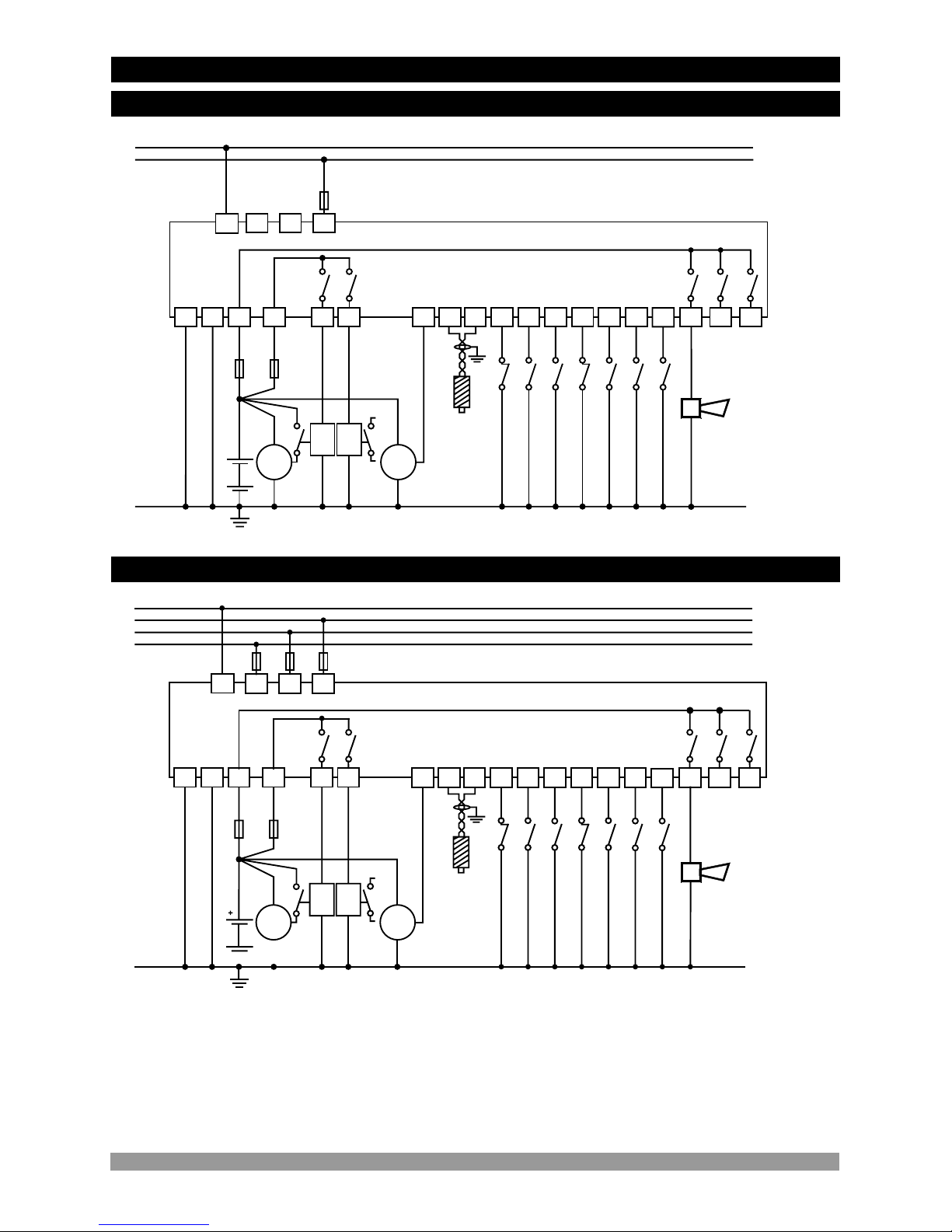

3. ELECTRICAL WIRINGS

All rear connectors are two-part removable and can be unplugged to facilitate fast and convenient connection. If remote start operation is required, the installer should ensure sufficient visual and audible warning takes place before commanding the start sequence. FUSE-1 should meet the current required by horn and configurable output ( Max. 15 A. T) FUSE-2 should meet the current required by solenoids ( Max.16 A. T) FUSE-3, FUSE-4, FUSE-5 should be 1 A. T

GENERATOR

N L

BATTERY

+BATTERY

GENERATOR VOLTAGE

FUSE-5

HORN

CONFIG.OUT1

CONFIG.OUT2

CONFIGURABLE INPUT3

CONFIGURABLE INPUT2

CONFIGURABLE INPUT1

LOW OIL PRESSURE

HIGH TEMPERATURE

REMOTE START/STOP

EMERGENCY STOP

16 15

9 8

2 1

18 26

19 20

21 22

24 25

STARTER

START RELAY

FUEL/ STOP RELAY

FUSE-2

FUSE-1

12A

D+(W.L)

B+

40A

CHARGE GENERATOR

Magnetic

Pickup

(up to 10kHz)

CHARGE

GEN.

40A

BATTERY NEGATIVE MUST BE GROUNDED

SGN

GND

GENERATOR N L1 L2 L3

16 15

9 8

2 1

18 26

19 20

21 22

24 25

N L1 L2 L3

LOAD

BATTERY NEGATIVE MUST BE GROUNDED

-BATTERY

+BATTERY

FUSE-1

FUSE-2

BATTERY

HORN

CONFIG.OUT1

CONFIG.OUT2

CONFIGURABLE INPUT3

CONFIGURABLE INPUT2

CONFIGURABLE INPUT1

LOW OIL PRESSURE

HIGH TEMPERATURE

REMOTE START/STOP

EMERGENCY STOP

STARTER

START RELAY

FUEL/ STOP RELAY

D+(W.L)

B+

40A

CHARGE GENERATOR

Magnetic

Pickup

(up to 10kHz)

CHARGE

GEN.

40A

GENERATOR VOLTAGE

FUSE-5

FUSE-4

FUSE-3

SGN

GND

12A

1- Connect the unit as shown in the appropriate diagram above. Be sure to connect the battery supply the right way round and

battery negative should be grounded. The connectors can be unplugged from the rear of the unit to facilitate connection. 2- Screened cable must be used for connecting the Magnetic Pickup, ensuring that the screen is grounded at one end ONLY.

3.2 Electrical Wiring Diagram

3.2.1 1-Phase Wiring Diagram

3.2.2 3-Phase Wiring Diagram

-BATTERY

Table 3.1 Unit wiring

Output to start solenoid

2.5

Description

Cable Size (mm)

Notes

Table 3.1 shows the connections and recommended cable sizes. Table 3.2 describes the functions of the connections.

Positive battery supply input Output to fuel solenoid

Output to horn

Configurable output-2 Configurable output-1 Positive battery supply input

7 8 9

Alternator neutral

L1 alternator input L2 alternator input L3 alternator input

Input from charge generator

Input from low oil pressure switch Input from high temperature switch Input from remote start/stop switch

Emergency stop input

Input from spare switch 1 Input from spare switch 2

Input from spare switch 3 Input from magnetic pick-up

Input from magnetic pick-up

2.5

1.0

2.5

1.0

0.5

Max. 12A@24 VZ Supplies external solenoids

Max. 12A@24 VZ Max. 5A@24 VZ

Max. 5A Max. 5A

For relay outputs

3-phase only 3-phase only Terminal must be left

unconnected if not used Switch to 0 VZ(NC)

Switch to 0 VZ(NO) Switch to 0 VZ(NO) Switch to 0 VZ(NC)

Switch to 0 VZ(NO) Switch to 0 VZ(NO)

Switch to 0 VZ(NO)

Negative battery supply input

5 6

23 24 25 26 27

15 16 17

19 20

Spare 3 input. Normally open. When switched to 0V, sounds the horn and flashes indicator on panel. Can be programmed to stop the engine.

Table 3.2 Unit wiring description

Function

Output to Start solenoid. Controls starter motor Battery positive input. +12 VZ or +24 VZ. Feeds external solenoids

Output to Fuel/Stop solenoid. Controls fuel to engine or controls engine stopping.

Output to horn.

Configurable output-2 Configurable output-1

Negative battery input (0 VZ) Negative battery input (0 VZ)

L1 L2 L3

Voltage inputs from alternator. Unit can be programmed to read frequency from alternator voltage input (L1 phase) and detect to engine has started. Pins 16 and 17 not used on single phase applications.

Charge generator failure input. It can be used to detect when engine has started. The EAOM-6 connection replaces the usual charge indicator lamp. It supplies current to the rotor coil from the battery until the engine is running.

Input from Low Oil Pressure switch. Normally closed contact to 0V. Open on low oil pressure. It can be used to detect when engine has started.

Input from High Temperature switch. Switched to 0V when engine temperature exceeds the r m o stat setting.

Input from remote Start switch. Normally open contact. Closed to 0V to start engine. O p e n switch to stop engine.

Input from Emergency Stop switch. Contact normally closed to 0V. Open on emergency t o s top the engine.

Spare 1 input. Normally open. When switched to 0V, sounds the horn and flashes indiic a t or on panel. Can be programmed to stop the engine..

Spare 2 input. Normally open. When switched to 0V, sounds the horn and flashes indicator on panel. Can be programmed to stop the engine..

Input from magnetic pickup. Unit can be programmed to read engine speed from magnetic pick-up and detect to engine has started.

26 27

Positive battery input. +12 VZ or +24VZ. Feeds relay outputs

4 5 6

9 15 16

16 17

Remote starting. Arrangements must be made to prevent remote starting of the engine while engine maintenace is being carried out. This can be achieved by using a key switch as the remote double-pole switch such that the key can be removed to prevent remote starting.

4.RS-232 SERIAL INTERFACE, PROGRAMMING THE DEVICE OVER PC OR MODEM

4.1 Cable Connection Between RS-232 Terminal of the Device and PC

9 pin D connector female

EAOM-6

Standard communication cable

9 pin D connector male

EAOM-6

MODEM communication cable

Green

Yellow

White

Brown

White

Green

Note: For 9600 baud rate, cable length must be maximum 10 meters.

MODEM

9 pin D connector male

9 pin D connector female

4.2 Cable Connection Between RS-232 Terminal of the Device and Modem

The PC interface kit comprises of a 9 pin D connector/FCC68(4 pin) connection lead with 2 meters of cable and the optional PC Software (Supplied on CD-ROM)

RS-232 non-isolated Serial interface 9600 Baud Rate 8 data bits, No Parity,1 Stop Bit Maximum allowable cable length is 10 meters

Processor : 486 66MHZ Operating Systems : Windows 95/98/XP, Windows NT, Windows 2000 Ram : 16 Mbyte Monitor : 14’’ SVGA (640x480 resolution) Fixed Disk Free Space : 5 Mbyte Disk Drive : CD-ROM Communication : An RS-232 communication port is needed to communicate with the

EAOM-6 unit

Insert the software CD into the CD-ROM drive on the PC. CD will autostart, then select E AOM-6

Install.exe from the menu.

Press the windows START button icon, then select EAOM-6 SW Þ EAOM-6 from the program menu.

EAOM-6 unit communicates with the PC using RS-232 communications. The PC software allows

the EAOM-6 unit’s parameters and status information to be displayed on the PC screen. Operator and Technician parameters can be viewed. Parameters are password protected. There are four windows in EAOM-6 PC SW: Observation Window, Operator Parameters Window,Technician Parameters Window and Adjustment Window.

4.3 PC Interface

4.3.1 Technical Specifications

4.3.2 Installation Instruction

4.3.2.1 Minimum System Requirements

4.3.3 Installing EAOM-6 Software

4.3.4 Using Of EAOM-6 Communication Software

4.3.5 Description

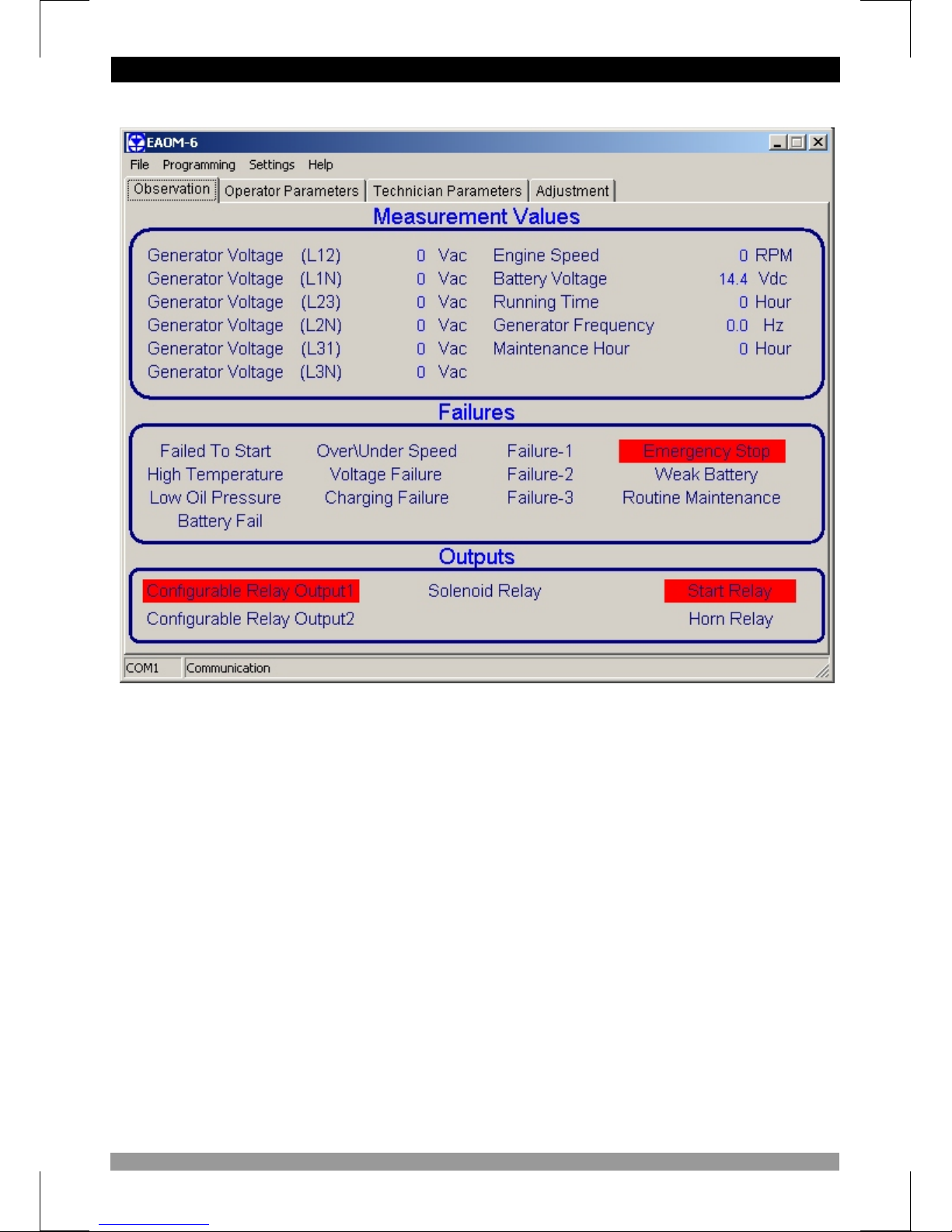

In this window the values listed below can be observed.

Measurement Values

Generator Voltage Engine Speed Battery Voltage Running Time Generator Frequency Maintenance Hour

Failures

Failed to Start High Temperature Low Oil Pressure Over / Under Speed Voltage Failure Charging Failure Failure 1 & 2 & 3 Emergency Stop Weak Battery Routine Maintenance Battery Fail

Outputs

Configurable Relay Output 1 & 2 Solenoid Relay Start Relay Horn Relay

4.3.6 Observation Window

Operator parameters can be viewed and edited. Parameters are password protected. When the operator password is entered, it is compared with operator password that is registered inside the EAOM-6 unit.

All parameters can be viewed and edited in this window. Parameters are password protected. When the technician password is entered, it is compared with technician password that is registered inside the EAOM-6 unit.

This menu allows the user to save configuration files to the disk, read from disk and write to disc

Open :This menu allows the user to load the registered configuration files to the PC. Save :This menu allows the user to save the parameters with a name defined by

user.

Print :This menu allows the user to print the parameters.

Printer Setup :This menu allows the user to select the printer that is connected to network or PC

and change the configuration of the printer.

Exit :Exit the program.

This menu is active only when the Operator or Technician Parameters Window is open. Using this menu allows the user to upload parameters from the EAOM-6 unit to the PC or download from the PC to the EAOM-6 unit.

Download : With this menu user can load parameters from PC to EAOM-6 . Upload : User can load the parameters stored on EAOM-6 unit to PC.

4.3.7 Operator Parameters Window

4.3.8 Technician Parameters Window

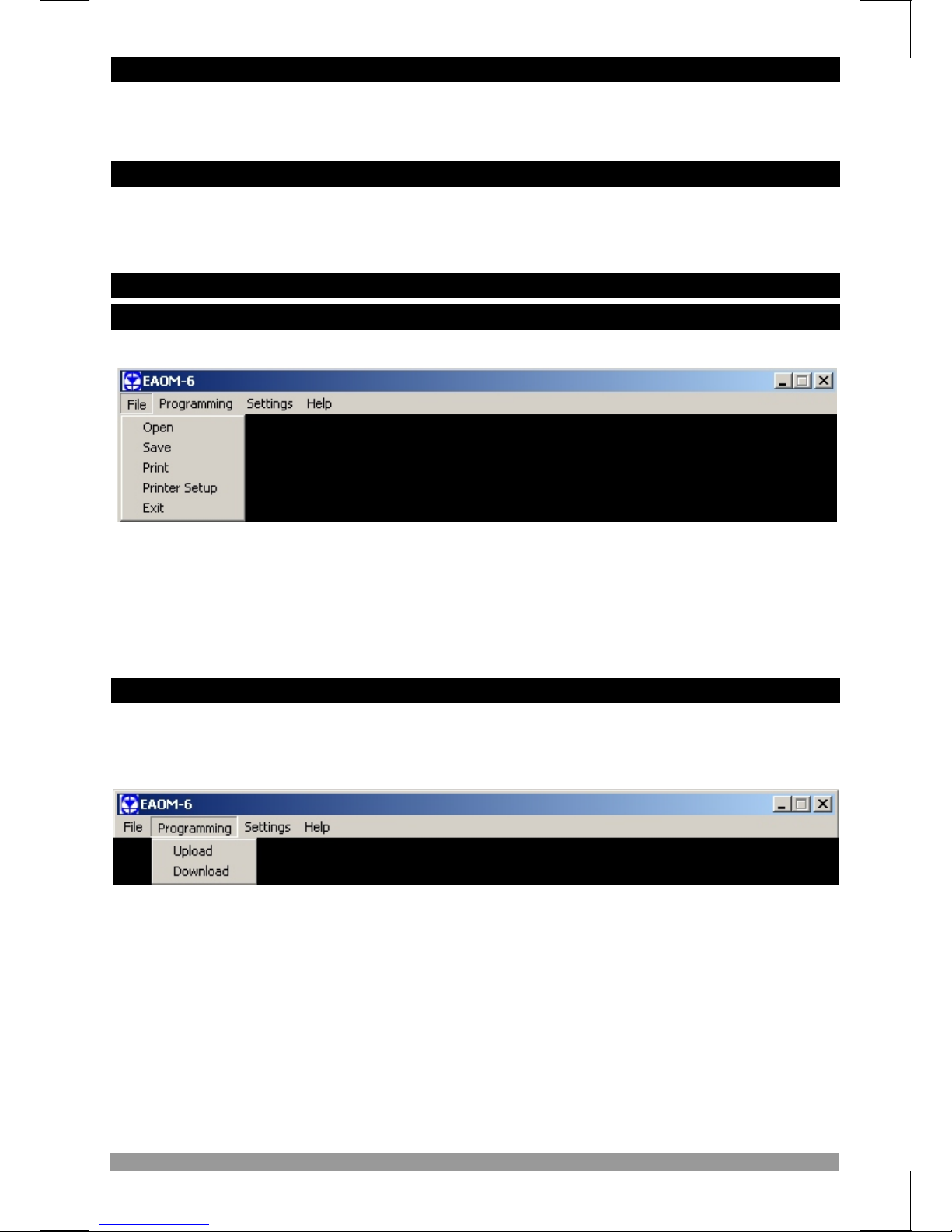

4.3.9 MAIN MENU

4.3.9.1 FILE

4.3.9.2 PROGRAMMING

Click Operator Parameter tab. Enter the Operator Parameter password. If the password is correct, operator parameters will be viewed.

Click Technician Parameter tab. Enter the Technician Parameter password. If password is correct, all parameters will be viewed.

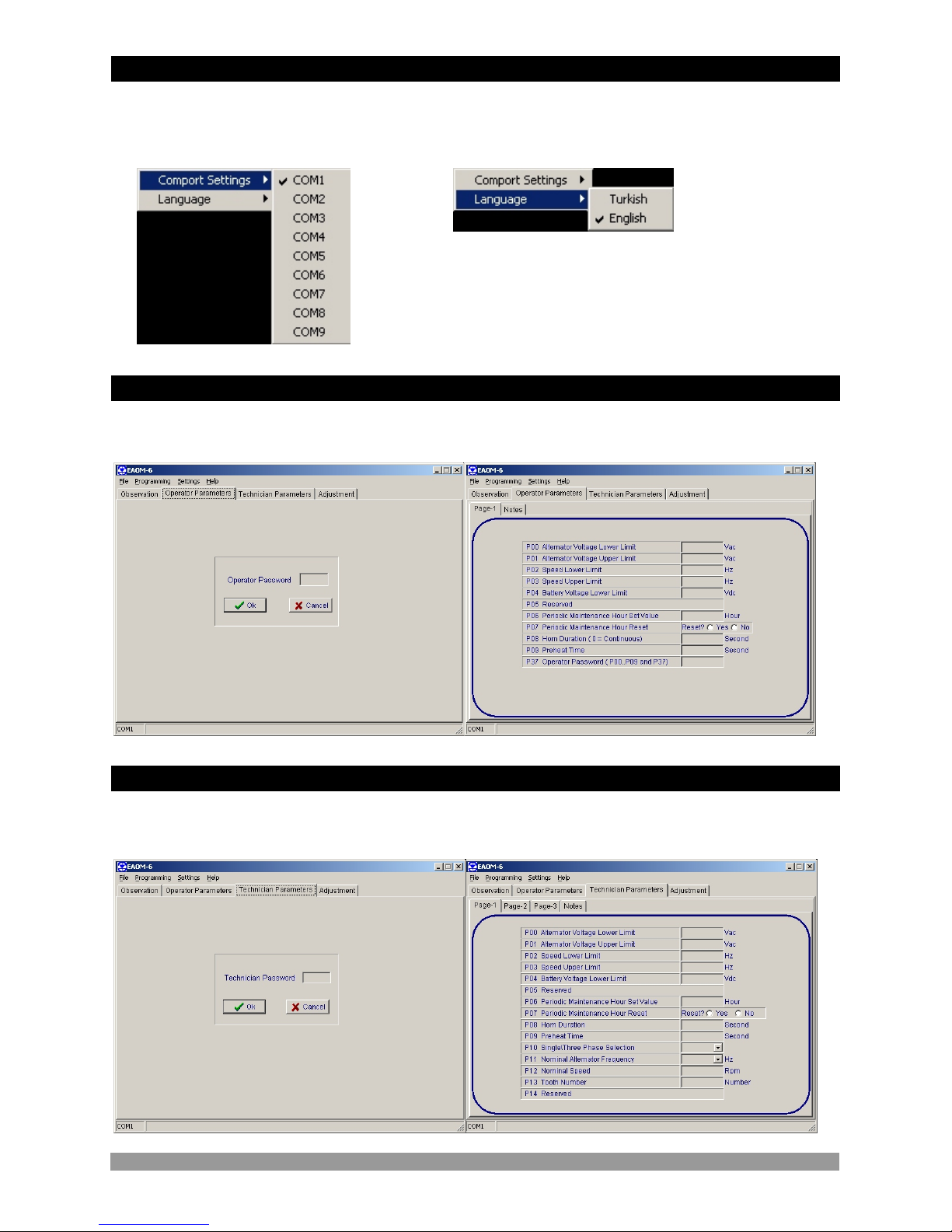

4.3.10 Entering to the Operator Parameters Window

4.3.11 Entering to the Technician Parameters Window

Communication Port Settings: With this menu, user can determine the serial port

configurations of the PC

Language: Turkish or English can be selected.

4.3.9.3 Settings

For loading parameters from EAOM-6 unit to PC follow the steps below. If user is in operator parameters window, only operator parameters will be viewed. If user is in Technician Parameters Window, all parameters will be viewed. Press 'Upload' in Program menu. While loading the parameters, the hour-glass cursor is displayed. Please wait for the upload operation to complete, when the cursor returns to normal.

For loading parameters from PC to EAOM-6 follow the steps below. If user is in operator parameters window, only operator parameters will be loaded. If user is in Technician Parameters Window, all parameters will be loaded. Press 'Download' in Program menu. While loading the parameters, the hour-glass cursor is displayed. Please wait for the download operation to complete, when the cursor returns to normal.

Click 'Open' in File menu. Choose configuration file which includes operator or technician parameters on Open Dialog Box. When the user clicks the 'Open' button on the Open Dialog Box, parameters will be transferred to PC window.

Click 'Save' in File menu. After choosing where to save the file, enter the file name. When the user clicks the 'Save' button on Save Dialog Box, all parameters will be saved to the file.

4.3.13 Load the Configuration File From the Disc

4.3.14 Save the Configuration File to the Disc

4.3.15 Upload

4.3.16 Download

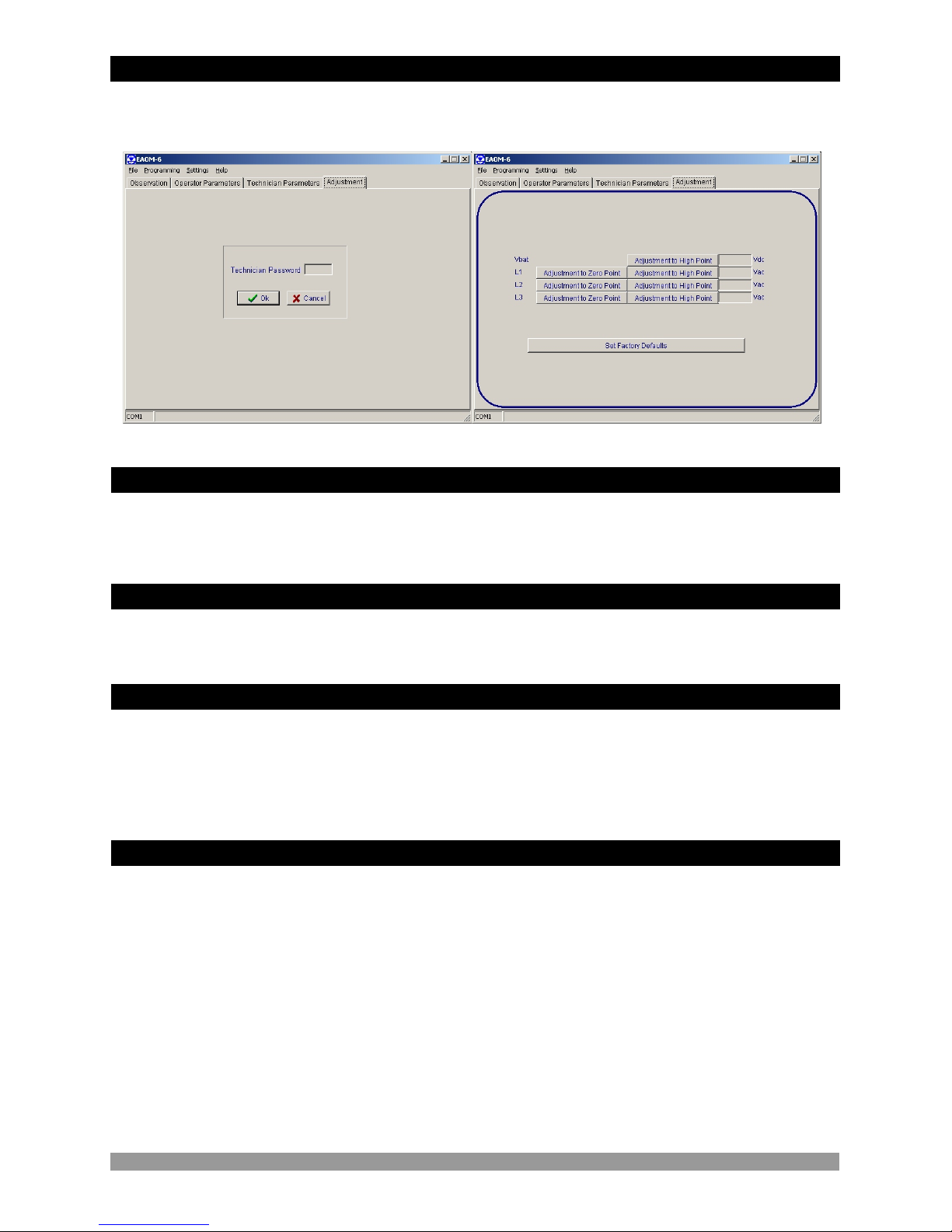

Click Adjustment tab. Enter the Technician Parameter password. If password is correct, adjustment window will be viewed.

4.3.12 Entering to the Adjustment Window

The unit is extensively programmable through the front panel and via PC software.

5. PARAMETERS

P15

P07

Definition of Parameter

Alternator Voltage Lower Limit

60 600

Speed Upper Limit

Alternator Voltage Upper Limit Speed Lower Limit

60 600

30.0 75.0

Hz Battery Voltage Lower Limit Reserved Periodic Maintenance Hour Set Value

7.2 24.0

Horn Duration (0 = Continuous)

Single / Three Phase Selection Nominal Alternator Frequency Nominal Speed Tooth Number

Speed Sensing Input Selection

Stop / Fuel Solenoid Selection

Stop / Fuel

Stop Magnet Energising Time

Battery Voltage Weak Control Time

Alternator voltage limit for crank disconnection Speed Limit For Crank Disconnection Number Of Starting Attempts Starting Attempt Duration Oil Pressure Bypass Time

Alternator Voltage Fault Control Delay Speed Fault Control Delay Engine Cooling Time(0 = disable)

Periodic Maintenance Hour Reset

Preheat Time

Reserved

9999

Hour

0 999

Second Second

1/3

50.0/60.0

500 5000

RPM

1 1000

0 99

Second

Battery Voltage Weak Limit

6.0 14.4

Second

36040

20.0 45.0

1 10

Second

0 99

Second

Control On Delay

0 99

Second

0.0 10.0

Second

0.0 10.0

Second

0 99

Minute

Engine Running Time Reset

P30

Configurable Failure Input-1

0 3 0 - Only horn temporary 1 - Only horn permanent 2 - Engine stop 3 - Contactor releaser

300 440

47.0

53.0

8.0

5000

60 10

50.0

3000

100

Fuel

7.0 3

300

40.0 3 5

30 10

5.0

5.0 3

P00 P01 P02 P03 P04 P05 P06

P08 P09 P10 P11 P12 P13 P14

P16 P17

P19 P20 P21 P22 P23 P24 P25 P26 P27 P28 P29

P31

Press ‘Silence Alarm’ button to reset

0-Alternator Signal

1-Magnetic Pick-up

Enter technician password to reset

time to ‘0’ (zero)

Min

Default

UnitMax

Engine started signal

P18.0

P18

P18.2 P18.3

0=No, 1=Yes

0/1 0/1

Charge Generator Speed

Alternator Voltage

Oil Pressure

P18.1

1 0

Configurable Failure Input-2

0 3 0 - Only horn temporary 1 - Only horn permanent 2 - Engine stop 3 - Contactor releaser

P32

Observing Time of Configurable Failure Inputs

P34

P34.0 - For Configurable Failure Input-1

P34.1 - For Configurable Failure Input-2

P34.2 - For Configurable Failure Input-3

0 0

0 - Observation Continuously 1 - Observation While Engine Running

Definition of Parameter

Operator Password Technician Password

0 9990

0 0

P37 P38

Min

Default

UnitMax

Configurable Failure Input-3

0 3 0 - Only horn temporary 1 - Only horn permanent 2 - Engine stop 3 - Contactor releaser

P33

Configurable Output-1

P35

0 - Alarm out 1 - Engine running 2 - Load permit

0 13 0

3 - Preheat 4 - Over speed 5 - High temperature

7 - Maintenance due 8 - Failed to start 9 - Over / under speed 10 - Voltage failure

6 - Low oil pressure

11 - Charging failure 12 - Low battery value 13 - Weak battery Configurable Output-2

P36

0 13 0 0 - Alarm out 1 - Engine running 2 - Load permit 3 - Preheat 4 - Over speed 5 - High temperature

7 - Maintenance due 8 - Failed to start 9 - Over / under speed 10 - Voltage failure

6 - Low oil pressure

11 - Charging failure 12 - Low battery value 13 - Weak battery

5.1 Program Functions

If the battery voltage drops below the defined Battery Voltage Lower Limit (P04), an alarm occurs and “Low Battery Failure” LED illuminates.

P02 Speed Lower Limit P03 Speed Upper Limit P28 Speed Fault Control Delay

A fault will be reported if the alternator output frequency goes outside the window defined by the upper and lower limits for more than the time defined as the Alternator speed fault control delay (P28). The fault will only occur if the engine has started to run and has been running for the period defined as the Control on Delay (P26). This failure immediately stops the generating set without Engine Cooling Time (P29)

P00 Alternator Voltage Lower Limit P01 Alternator Voltage Upper Limit P27 Alternator Voltage Fault Control Delay

A fault will be reported if the alternator output voltage goes outside the window defined by the upper and lower limits for more than the time defined as the Alternator Voltage Fault Control Delay (P27). The fault will only occur if the engine has started to run and has been running for the period defined as the Control on Delay (P26). This failure immediately stops the generating set without Engine Cooling Time (P29)

5.1.1 Alternator Voltage

5.1.2 Alternator Frequency

5.1.3 Battery Voltage Lower Limit (P04)

P06 Periodic Maintenance Hour Set Value P07 Periodic Maintenance Hour Reset

To ensure reliability, the engine must be serviced at regular intervals. The unit can be set to indicate when a service is due. Set Periodic Maintenance Hour Set Value (P06) to the number of running hours between services. Use Periodic Maintenace Hour Reset (P07) to reset the hours counter at each service. When the engine has run for the defined number of hours, the alarm LED will flash and when the alarm display option is selected, the display will show the error message bAEr.

5.1.4 Maintenance Indication

This parameter specifies the method to read generator frequency. The choice is between alternator frequency and external magnetic pick-up. Frequency and speed is monitored so as to detect when engine has started and if there is a generator frequency failure. See Sections 5.1.2 Alternator Frequency, 5.1.8 Engine started signals (P18) and 5.1.10 Engine Starting.Speed Limit for Crank Disconnection (P22) should be set to the frequency that must be achieved at start-up. When magnetic pick-up is using Tooth Number (P13) must be entered correctly. Nominal Alternator Frequency (P11) and Nominal Speed (P12) are used to compute alternator RPM or frequency. If Speed Sensing Input Selection (P15) ise set to 0 (from Alternator Voltage), the unit uses Nomainal Alternator Frequency (P11) and Nominal Speed (P12) to calculate RPM from the measured frequency of the alternator voltage. If Speed Sensing Input Selection (P15) is 1 (from Magnetic Pick-up), the unit uses Nominal Alternator Frequency (P11) and Nominal Speed (P12) to calculate alternator output frequency from the measured RPM.

5.1.5 Speed Sensing Input Selection (P15)

This parameter allows the use of either a Stop solenoid or a Fuel solenoid. (See Section 5.1.10 Engine Starting.)

If Fuel Solenoid selected, the fuel solenoid will be energised while the engine is running and deenergised to cut off the fuel and stop the engine. If Stop Solenoid selected, the stop solenoid is normally de-energised and only energised to stop the engine. The solenoid remains energised for the period defined as the Stop Magnet Energising Time (P17). See Section 5.1.10 Engine Starting.

This parameter sets the period for which the Stop solenoid is energised to stop the engine. It applies only where parameter Stop / Fuel Solenoid Selection (P16) is set to Stop Solenoid. See Section 5.1.6 Stop/Fuel Solenoid Selection (P16)

5.1.6 Stop / Fuel Solenoid Selection (P16)

5.1.7 Stop Magnet Energising Time (P17)

Battery Voltage Weak Limit (P19) Battery Voltage Weak Control Time (P20)

If the battery voltage drops below the level specified by the Battery Voltage Weak Limit (P19) for more than the Battery Voltage Weak Control Time (P20) during engine cranking an alarm occurs. The message Weak Battery is displayed on the LED display. Use the Reset Button to clear the alarm indication.

5.1.9 Battery Voltage

5.1.8 Engine Started Signals (P18)

The unit must de-energise the Start solenoid to disconnect the starter motor, once the engine is running. Conversely, if the engine does not start after the pre-set start time, the unit will turn off the starter motor and try again. Hence, the unit must be able to detect when the engine has started. Four signals are available to provide engine running information as follows :

0. Charge generator (P18.0); f r o. m charging generator energising coil current.

1. Speed (P18.1); if engine speed is higher than Speed Limit for Crank Disconnection (P22), pay

attention to the Speed Sensing Input Selection (P15) (Refer to 5.1.8)

2. Alternator Voltage (P18.2); if alternator voltage is higher than Alternator Voltage Limit for Crank Disconneciton (P21)

3. Oil pressure (P18.3); it looks if oil pressure switch is closed. Any or all of these signals can be selected for use. It is advisable to select at least two of them –preferably 1. Engine speed, 2. Charging generator or Alternator voltage. See Section 5.1.10 Engine Starting. If any of the selected signals appears, the unit assumes that the engine has started.

Number of Starting Attempts (P23) Starting Attempt Duration (P24)

After that the unit energises the start solenoid to drive the starter motor and energises the Fuel solenoid, the starting sequence commences. If the preheating output has been configured (see section 5.1.15 Configurable Outputs), the display will show the HEAT message for the time period set by Preheat Time (P09). After that the unit energises the start solenoid to drive the starter motor and energises the Fuel solenoid (if selected – see Section 5.1.6 Stop/Fuel Solenoid selection (P16)) to provide fuel for the engine. If the unit detects that the engine has started, it de-energises the starter motor. Engine start signals are defined by parameter P18 – see Section 5.1.8 Engine started signals (P18). Starting Attempt Duration (P24) defines the maximum period for which drive will be applied to the starter motor. If the unit does not detect engine starting within this period, it cuts off the drive to the starter motor and de-energises the fuel solenoid, if selected. It then makes a new attempt after a delay equal to twice the defined Starting Attempt Duration (P24). Number of Starting Attempts (P23) defines the number of unsuccessful tries that the unit will make before abandoning the attempts. If all these attempts fail, further operations are locked out and a Failed to Start indication is displayed. The unit remains locked until the reset button has been pressed.

5.1.10 Engine Starting

This sets the delay before a Low Oil Pressure warning will be generated. The Low Oil Pressure fault indicator will light if the oil pressure switch contact remains opened, while the engine is running, after the period defined by parameter. This period begins when the EAOM-6 has detected engine starting and has cut off the drive to the starter motor. This failure immediately stops the generating set without Engine Cooling Time (P29).

5.1.11 Oil Pressure By-Pass Time (P25)

During the initial period after the engine has been started, there can be fluctuations in engine speed and alternator output that could generate spurious fault indications. Control On Delay (P26) defines a period during which any fault indications, except High Temperature, will be ignored by the unit. This period begins when the EAOM-6 has detected engine starting and has cut off the drive to the starter motor.

5.1.12 Control On Delay (P26)

Engine Cooling Time (P29) defines the duration of the cooling-off period. When operating under heavy load, the engine can get very hot and is only prevented from overheating by circulating coolant. If the engine is stopped abruptly under these conditions, it can overheat as the coolant flow is cut off. Where the unit controls the load, via one of the configurable outputs, it can ensure that the engine continues to run after the load has been removed.

5.1.13 Engine Cooling Time (P29)

Configurable Failure Input-1 (P31) Configurable Failure Input-2 (P32) Configurable Failure Input-3 (P33)

A contact closure to 0V on any of these inputs causes the horn to sound for the period programmed by Horn Duration (P08) and lights the appropriate indicator on the panel. The unit can be programmed to respond in one of four ways:

0. Indication is unlatched-the LED flashes and horn is sounding while the input is 0V. If the input is not 0V the led will cancel flashing and horn sound.

1. Indication is latched when the input is 0V then, the led flashes and horn is sounding then stays on until the Reset button is pressed.

2. This is the same as 1 but in addition the engine is stopped.

3. Contactor releaser. It is valid only if the load transfer permit output is selected in configuration

outputs 1 and 2.

5.1.14 Configurable Inputs

Configurable Output-1 (P35) Configurable Output-2 (P36)

When active, this output provides battery voltage (12VZ or 24VZ) and can be programmed in one of fourteen different ways:

0. Alarm output. Active when any fault is reported. It can be used for either audible or visual alert.

1. Engine running. Active while the engine is running

2. Load transfer permitted. This output is active while engine is start to run and Control on Delay

(P26) expired and Alternator output voltage is between Alternator Voltage Upper Limit (P00) and Alternator Voltage Lower Limit (P01). This output can be used to control a contactor that transfers

the load to the alternator once the generator set is up and running.

3. Preheat function. On starting the output is active for time period defined in Preheat Time (P09) prior to running the starter motor.

4. Over speed

5. High temperature

6. Low oil pressure

10.

11.

12.

13.

Maintenance due Failed to start Over / under speed

Voltage failure Charging failure Low battery value Weak battery

Use this option to change the Operator password. This password allows access to the parameters from Alternator Voltage Lower Limit (P00) to Preheat Time (P09) and Operator Password ( P37).

Use this option to change the Technician password. It allows access to the all parameters from Alternator Voltage Lower Limit (P00) to Technician Password (P38).

5.1.15 Configurable Outputs

5.1.16 Operator Password (P37)

5.1.17 Technician Password (P38)

L31/L3N

L23/L2N

L12/L1N

RPM

PROGPROG

RESETRESET TESTTEST

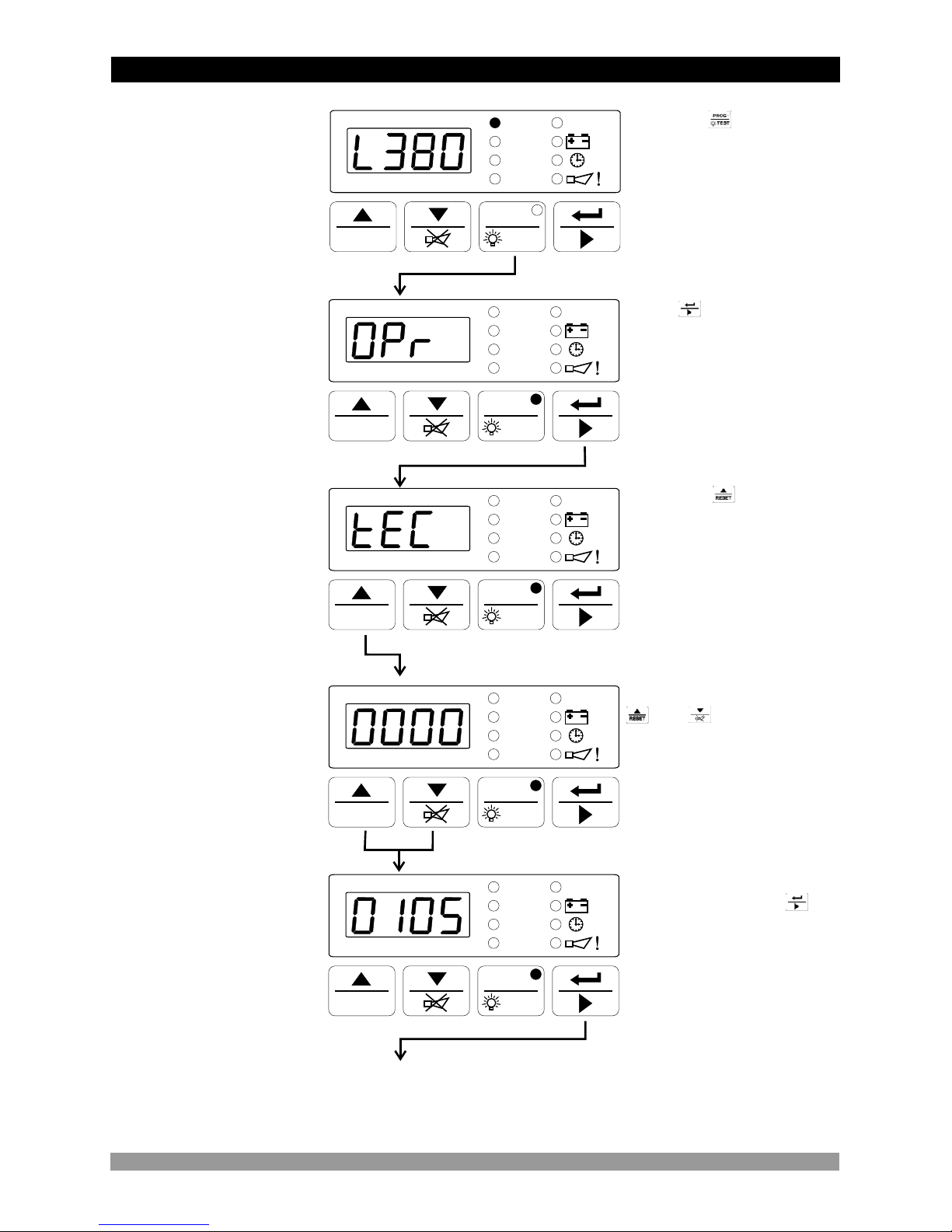

Operation Screen

When button is

pressed, all leds and digits

are energised, because

prog button is also used as

test button. Continue to

press the prog buton for 5

seconds, Operator Menu

Entering screen is shown

and prog led lights on.

L31/L3N

L23/L2N

L12/L1N

RPM

PROGPROG

RESETRESET TESTTEST

L31/L3N

L23/L2N

L12/L1N

RPM

PROGPROG

RESETRESET TESTTEST

When button is

pressed, operator

password entering screen

is shown.

L31/L3N

L23/L2N

L12/L1N

RPM

PROGPROG

RESETRESET TESTTEST

Operator Password Entering Screen

Change the password with and buttons

After entering the password, push the button for confirming the password and accessing to the first parameters of operator parameters.

L31/L3N

L23/L2N

L12/L1N

RPM

PROGPROG

RESETRESET TESTTEST

Operator Menu Entering Screen

NOTE : If no operation is performed for 20 seconds, the device exits from the programming mode and turns to the main operation screen.

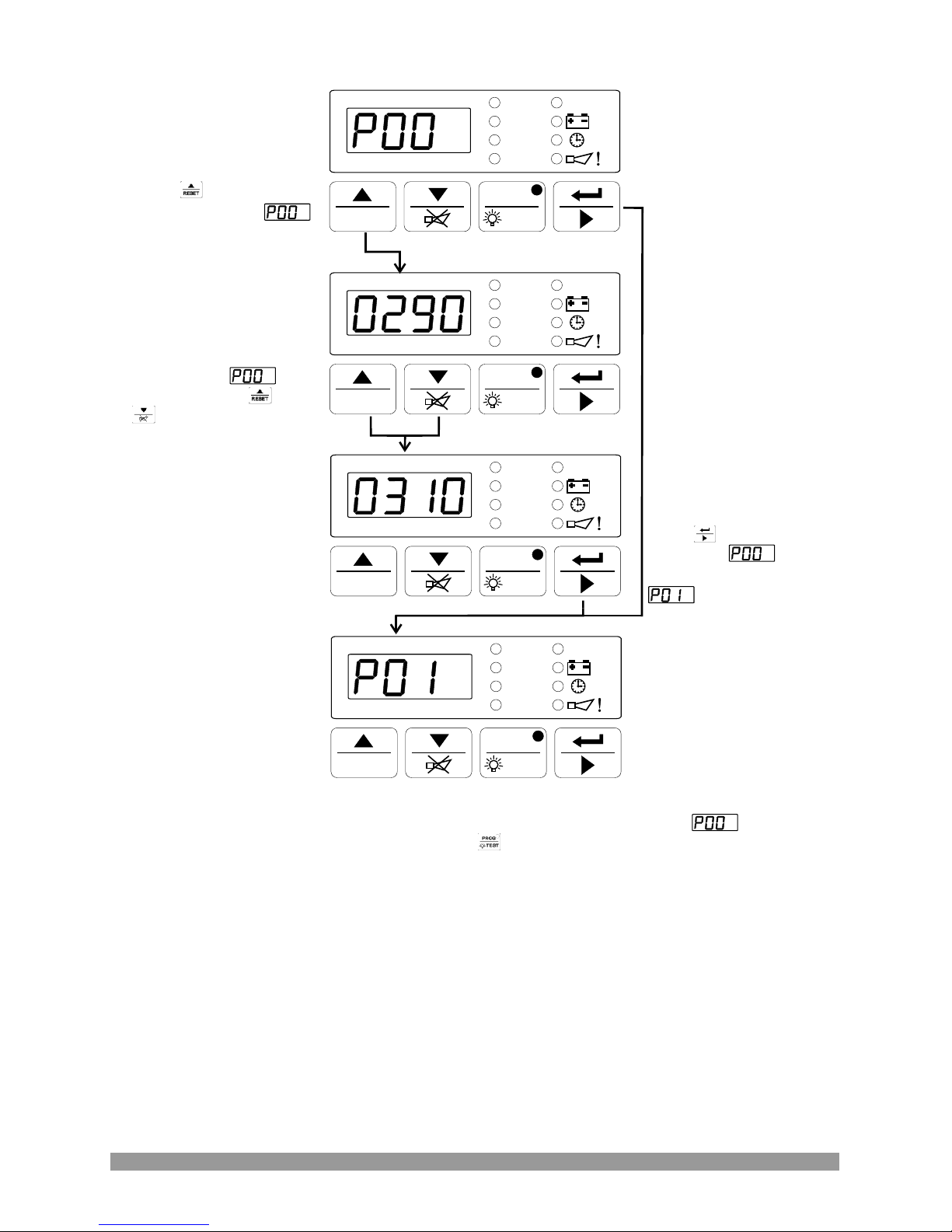

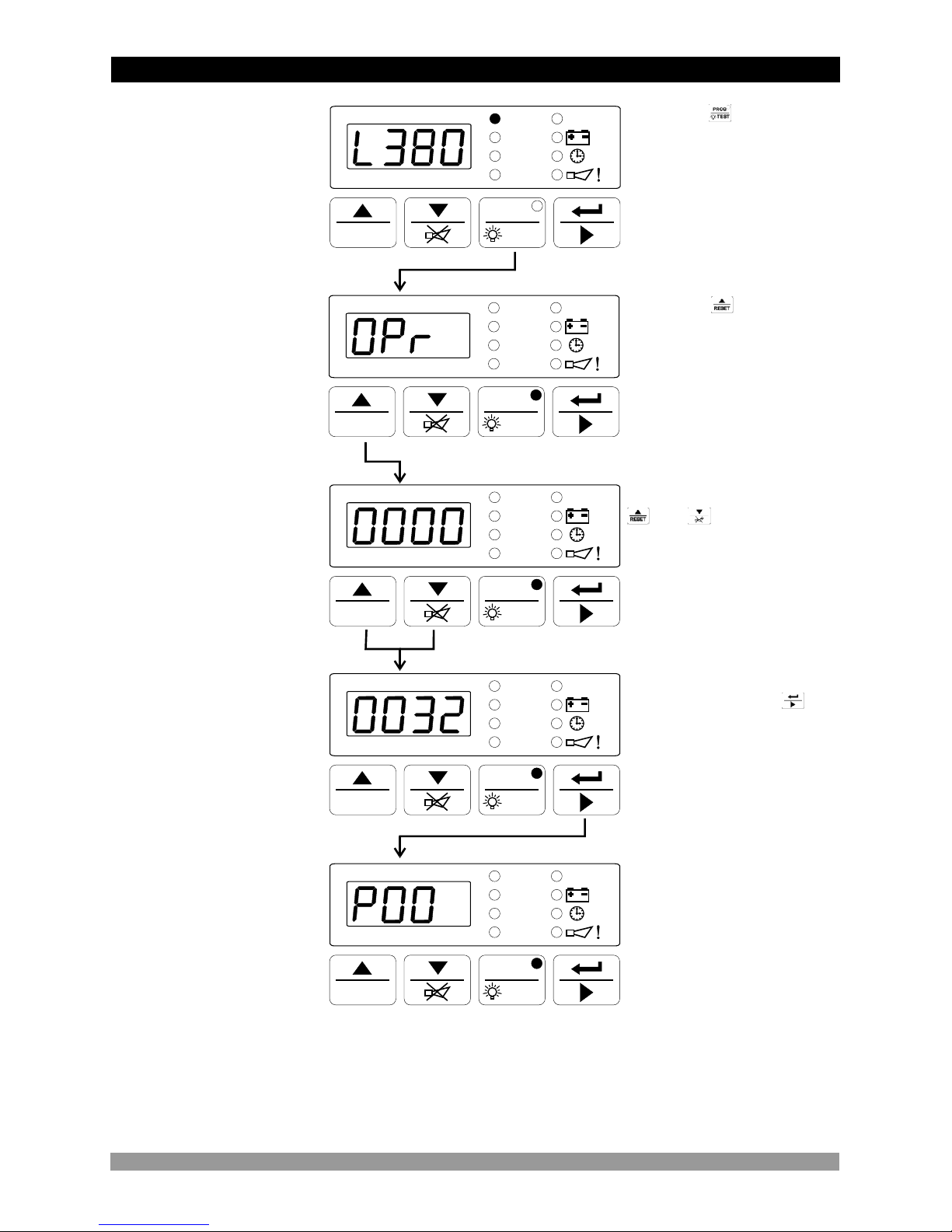

5.2 Changing and Saving Operator Parameter Value

Alternator Voltage Lower Limit Parameter

L31/L3N

L23/L2N

L12/L1N

RPM

PROGPROG

RESETRESET TESTTEST

L31/L3N

L23/L2N

L12/L1N

RPM

PROGPROG

RESETRESET TESTTEST

L31/L3N

L23/L2N

L12/L1N

RPM

PROGPROG

RESETRESET TESTTEST

L31/L3N

L23/L2N

L12/L1N

RPM

PROGPROG

RESETRESET TESTTEST

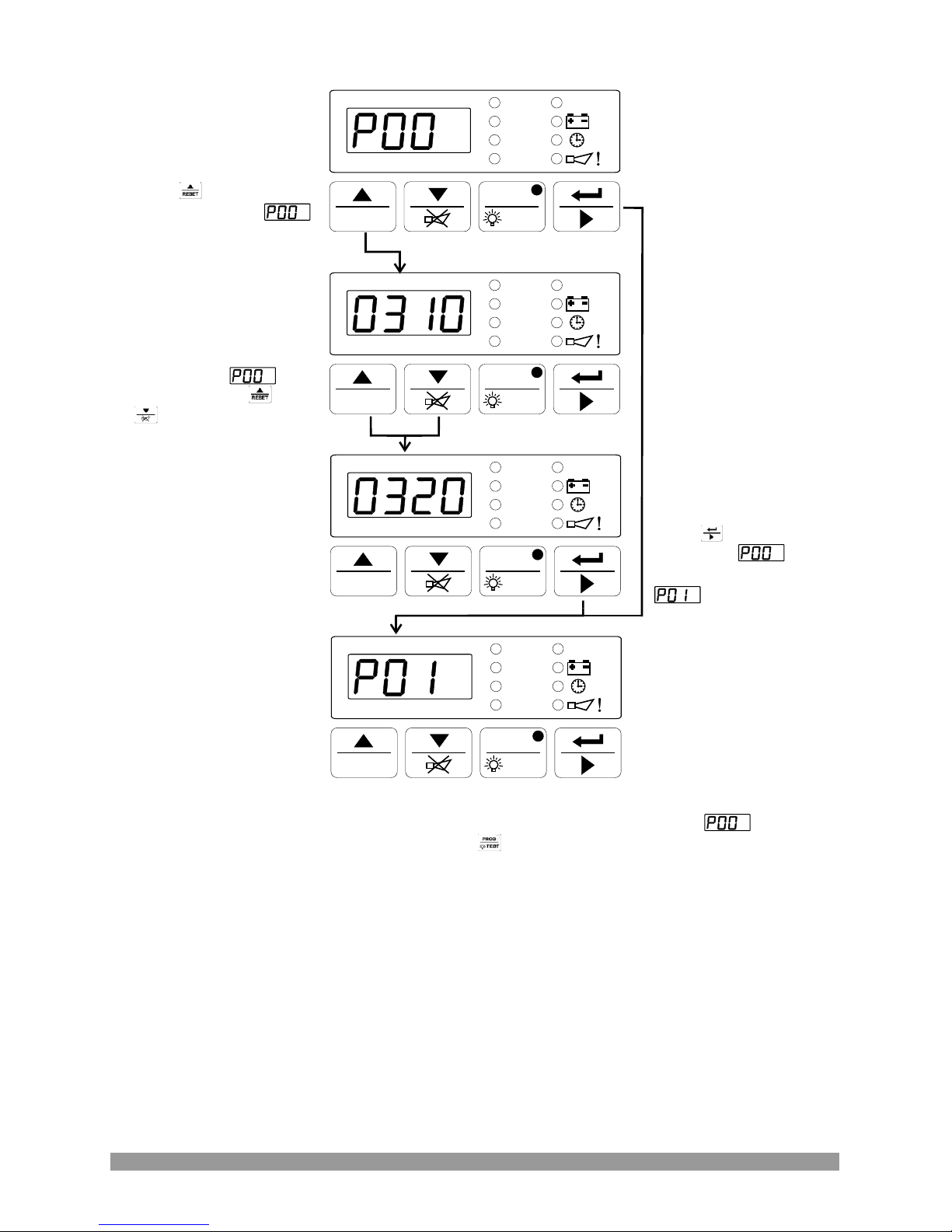

Alternator Voltage Lower Limit Value

Alternator Voltage Lower Limit Parameter

Alternator Voltage Upper Limit Parameter

Press button for accessing to the Value

Press button for saving the value and accessing to the Parameter

Change the parameter with and buttons

NOTE : Other operator paramaters can be accessed as explained for For exiting from programming mode, press

NOTE : If no operation is performed for 20 seconds, the device exits from the programming mode and turns to the main operation screen.

L31/L3N

L23/L2N

L12/L1N

RPM

PROGPROG

RESETRESET TESTTEST

Operation Screen

When button is

pressed, all leds and digits

are energised, because

prog button is also used as

test button. Continue to

press the prog buton for 5

seconds, Operator Menu

Entering screen is shown

and prog led lights on.

L31/L3N

L23/L2N

L12/L1N

RPM

PROGPROG

RESETRESET TESTTEST

L31/L3N

L23/L2N

L12/L1N

RPM

PROGPROG

RESETRESET TESTTEST

When button is pressed

for 10 seconds, technician

menu entering screen is

shown.

L31/L3N

L23/L2N

L12/L1N

RPM

PROGPROG

RESETRESET TESTTEST

Technician Password Entering Screen

Change the password with and buttons

After entering the password, press the button for confirming the password and accessing to the first parameters of technician parameters.

Operator Menu Entering Screen

L31/L3N

L23/L2N

L12/L1N

RPM

PROGPROG

RESETRESET TESTTEST

Technician Menu Entering Screen

When button is

pressed, technician

password entering screen

is shown.

Technician Password Entering Screen

5.3 Changing and Saving Technician Parameter Value

NOTE : If no operation is performed for 20 seconds, the device exits from the programming mode and turns to the main operation screen.

L31/L3N

L23/L2N

L12/L1N

RPM

PROGPROG

RESETRESET TESTTEST

L31/L3N

L23/L2N

L12/L1N

RPM

PROGPROG

RESETRESET TESTTEST

L31/L3N

L23/L2N

L12/L1N

RPM

PROGPROG

RESETRESET TESTTEST

L31/L3N

L23/L2N

L12/L1N

RPM

PROGPROG

RESETRESET TESTTEST

Alternator Voltage Lower Limit Value

Alternator Voltage Lower Limit Parameter

Alternator Voltage Upper Limit Parameter

Press button for accessing to the Value

Press button for saving the value and accessing to the Parameter

Change the parameter with and buttons

NOTE : Other technician paramaters can be accessed as explained for For exiting from programming mode, press

NOTE : If no operation is performed for 20 seconds, the device exits from the programming mode and turns to the main operation screen.

When button is pressed, all leds and digits are energised.

6. LAMP TEST

STOP START

EAOM - 6

PROG

TEST

RESET

Hz.

RPM

FAILED TO START

~~ ~~

~~~~~~~~

HIGH TEMPERATURE

LOW OIL PRESSURE

RPM

SPEED FAILURE

VOLTAGE FAILURE

CHARGING FAIL

STOP START

SPARE-1

SPARE-2

SPARE-3

Comment

7. OPERATION

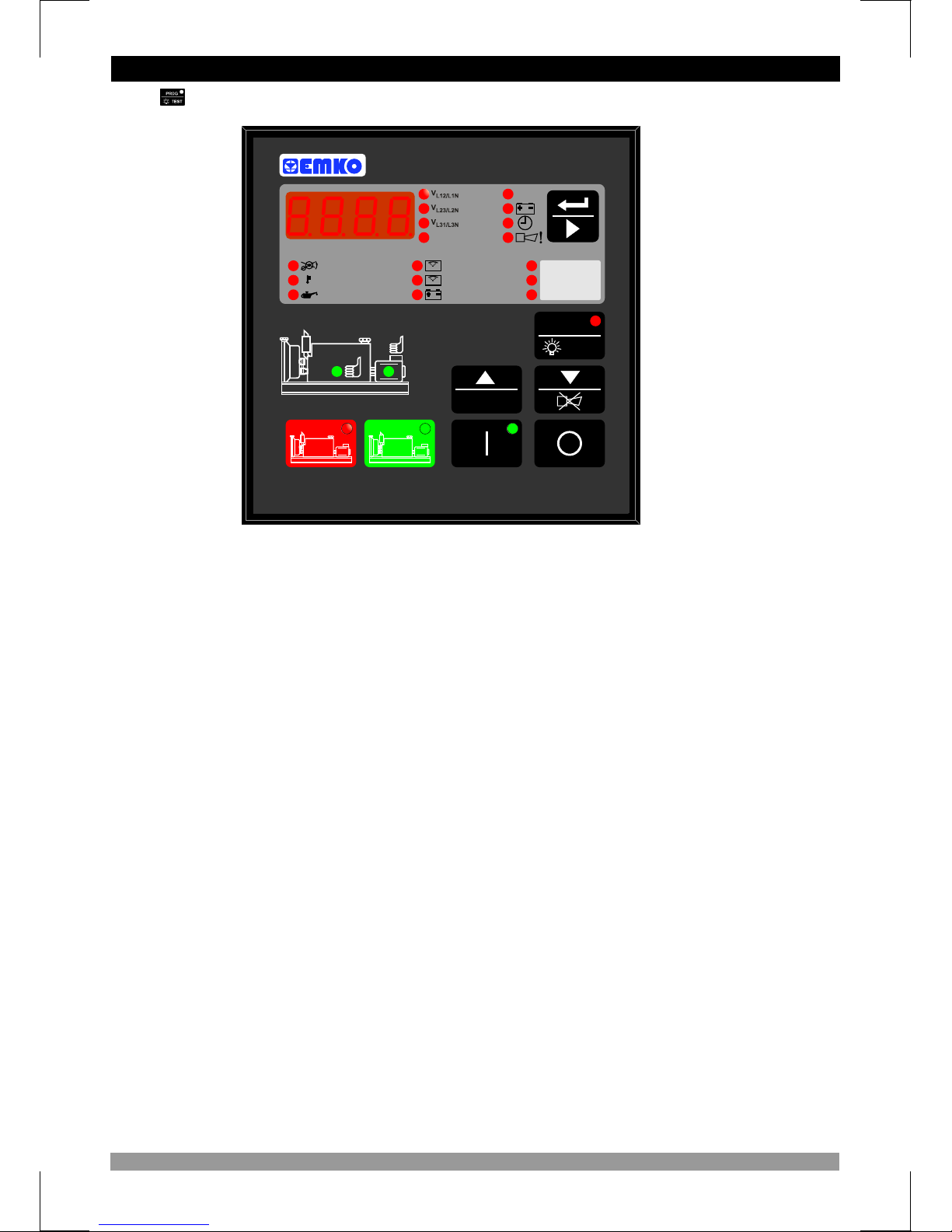

7.1 Front Panel Description

Multi Function Display. This is used for displaying the electrical measurements during normal operation and editing / inspecting programming parameters in programming mode.

Failure Indicators. Detailed information available in Section 9

The Display Scroll Button is used for rotating between measurement screen in normal operation and between programming parameters in programming mode.

Green LED lights to indicate that alternator output is available and within the Parameters set b y P00 and P01. Green LED lights to indicate that engine is running, as indicated by the signals selected by p rogram parameter Engine Started Signals (P18).

Engine Start button. Starts the engine. A green LED in the corner shows that the button has been pressed.

Engine Stop button. Stops the engine. A red LED in the corner shows that the button has b een pressed.

Prog/Test. Lights all the LEDs and segments on the panel so that you can see if any are not working. Holding the button pressed for ten seconds puts the unit into Programming mode.

Up/Reset. Restores unit operation after it has latched in a fault condition. The Increment (up a rrow) function is used in Programming mode as detailed in Section 5.3 Changing and Saving Technician Parameter Value

Down/Silence Alarm. Silences the audible alarm. The Decrement (down arrow) button is u sed in Programming mode as detailed in Section 5.3.

Power On. Turns on the unit. A green LED in the corner of the button shows that the unit is on

Power Off. Turns off the unit and stops the engine if it is running. In the Off state the unit c onsumes no current from the battery.

Number

Four-digit, seven-segment LED display. This displays the selected parameter from the list alongside. Use the button to select which parameter is to be displayed, as indicated by the adjacent LEDs. The button selects the parameter in sequence, as follows. Note that line voltage readings are prefixed by ‘L’ while phase-neutral readings are prefixed by ‘n’.

• Mains voltage L1-L2, prefix L

• Mains voltage L1-N, prefix n

• Mains voltage L2-L3, prefix L

• Mains voltage L2-N, prefix n

• Mains voltage L3-L1, prefix L

• Mains voltage L3-N, prefix n

• Alternator frequency (Hz)

• Alternator speed (RPM), as measured by alternator frequency or magnetic pick-up as selected by Speed Sensing Input Selection (P15)

• Battery Voltage (VBAT)

• Engine running time in hours-since last reset via Engine Running Time Reset (P30). This is a six-digit number. The first three (high) digits are shown in the first display - prefixed H- and the second (low) in the second display - prefixed L.

• The alarm LED will flash continually if the unit detects any fault. When the display select button is pressed so as to select this option, the display will show the cause of the fault indication. If more than one error condition is present, repeated pressing of the button will show each in turn. Possible error messages are: EStP - Emergency Stop bAT1 - Low Battery Voltage bAT2 - Weak Battery Alarm

7.2 Display Mode Indicators

Hz.

RPM

1. Press the Power On button.

2. Press the Engine Start button on the panel or the remote Start button. The engine should start.

The sequence is as follows:

The starter motor runs The engine starts

Once the engine is running,

The starter motor disengages. The green Engine and Alternator Leds (3) and (4) light.

7.3 Starting the Engine

Press the stop button or remote stop button the engine will stop.

7.4 Stopping the Engine

Beware of the high voltages connected to this unit.

8. COMMISSIONING

1. Check that the unit is correctly wired and that the wiring is of a standard and rating compatible with the system.

2. Check that the correct fuses are fitted.

3. Program the unit as detailed in Section

4. Take temporary steps to prevent the engine from starting - for example, disable the fuel

solenoid.

5. After a visual inspection to ensure it is safe to proceed, connect the battery supply.

6. Press the Power On button (7).

7. Press the Engine Start Button (6).

8. Check that the engine start sequence commences. The starter motor should run for the

Starting Attemp Duration (P24) for the Number of Starting Attempts (P23) number of times.

9. Check that the Failed to Start LED flashes.

10. Press the Power Off Button (8).

11. Restore the engine to operational state (reconnect the fuel solenoid).

12. Press the Power On Button (7).

13. Press the Engine Start Button (6).

14. Check the start sequence as follows:

The starter motor runs The engine starts The starter motor disengages once the engine is running If not check that the engine is fully operational (fuel available etc.) And check the wiring to the unit. Check the programmable parameters.

15. Check that the engine runs up to its operating speed. If not and an alarm is present, check that the alarm is valid and then check the input wiring.

16. Press the Engine Stop Button (5). The engine should stop. Allow time for the engine to come to rest.

17. Operate the remote start switch (if fitted) and check that the engine starts.

5.3 Changing and Saving Technician Parameter Value

Warning: Beware of the high voltages connected to this unit. Indicators on the central section of the panel will flash if a fault is detected. If a fault is indicated, proceed as follows:

1. Find and fix the fault.

2. Press the Reset button to enable a restart.

3. Press the Engine Start button

In addition to the indicators on the center panel, the Alarm LED will flash in the event of a fault. To discover the fault being reported by the Alarm LED, press repeatedly until the Alarm option has been selected. The display will indicate the fault condition, as follows:

This LED flashes if the engine has not started after the programmed Number of Starting Attempts (P23). The unit must be reset, by pressing the Failure Reset (9) button, before a fresh attempt can be made.

This LED flashes if the thermostatic switch on the engine indicates high temperature. If this fault occurs, the EAOM-6 will stop the engine without any Engine Cooling Time (P29).

This LED flashes if the Oil Pressure Switch on the engine indicates low oil pressure while the engine is running. To obtain this indication, the engine must have been running for at least the period specified by the Oil Pressure By-Pass Time (P25). If this fault occurs, the EAOM-6 will stop the engine without any Engine Cooling Time (P29).

This LED flashes and the horn sounds if the output from the battery charge generator fails after the engine has started. The fault will not be indicated if it occurs within the period defined by the Control On Delay parameter (P26) after the engine has started. This failure will not shut down the engine.

This LED flashes if the alternator speed goes outside the values defined by the Speed Lower Limit (P02) and Speed Higher Limit (P03) parameters. For a fault to be indicated, the speed must be outside these limits for longer than the period defined by the Speed Fault Control Delay parameter (P28). Alternator speed is measured either by measuring alternator output frequency or by monitoring an external magnetic pick-up as selected by program Speed Sensing Input Selection parameter (P15). This failure immediately stops the generating set without any Engine Cooling Time (P29)

9. FAULT FINDING

9.1 Fault indications

9.1.1 Failed to Start LED

9.1.2 High Temperature LED

9.1.3 Low Oil Pressure LED

9.1.4 Charge Generator Failure LED

9.1.5 Over / Under Speed LED

9.1.6 Generator Voltage Failure LED

Spare inputs 1, 2 and 3. These show the states of the Spare inputs on pins 23, 24, 25. The indications may be either latched or momentary.

9.1.7 Spare-1, 2, 3

This failure is indicated if the generator runs for Control On Delay (P26) time. This LED flashes if the alternator output voltage is outside of the limits programmed into Alternator Voltage Lower Limit (P00), and Alternator Voltage Upper Limit (P01), for a time period longer than the Alternator Voltage Fault Control Delay (P27). This failure immediately releases the generator contactor, and stops the generating set without any Engine Cooling Time (P29) period.

The remote Emergency Stop button has been pressed and has shut down the engine. Press Reset to remove the indication and restore unit operation.

9.1.8 Emergency Stop Message LED

9.1.9 Low Battery Voltage Message (bAT1)

This message appears if during engine cranking, the battery voltage drops below the value specified by the Battery Voltage Weak Limit (P19) for longer than the period specified by the Battery Voltage Weak Control Time (P20). The message is reset by Reset Button.

9.1.10 Weak Battery Alarm Message (bAT2)

The interval (hours run) between routine maintenance, set by Periodic Maintenance Hour Set Value (P06), has expired. On completion of the required engine maintenance, reset the maintenance timer using Periodic Maintenance Hour Reset (P07).

9.1.11 Routine Maintenance Due (SErV)

Isolate the equipment from the electricity supply during mechanical and electrical maintenance. When this is not possible, the equipment must be in the “OFF” position.

Symptom

Check all the wiring of the unit. Check the Z supply. (measure voltage between pins 7 and 8)

Check the Z fuse.

Check engine oil level and pressure. Check oil pressure switch and wiring.

Check engine temperature and cooling systems. Check switch and wiring.

Check fuel solenoid and wiring, fuel and battery. Reset the EAOM-6 and restart the engine.

Check solenoid transistor output activated, (Fuel Solenoid if selected)

Unit is inoperative.

Possible Remedy

Low oil pressure fault after engine has started

Failed to start fault. Engine failed to start after Number of Starting Attempts (P23)

High engine temperature fault after engine has started

Check the signals that the EAOM-6 is using to determine if the engine has started. Refer to the engine manual.

Check wiring to starter solenoid. Check battery supply. Check battery supply is present on the Start output (Pin3) of the

EAOM-6.

Starter motor Inoperative.

When the battery voltage falls below the value specified by the Battery Voltage Lower Limit (P04). The EAOM-6 measures battery voltage at the EAOM-6 terminals. This failure is indicated with an error messages in EAOM-6. When this failure occurs in EAOM-6, the led with exclamation mark starts to flash and user can see the error messages with the Scroll button .

The unit is extensively programmable through the front panel and via PC software.

10. PROGRAMMABLE PARAMETERS

P15

P07

Definition of Parameter

Alternator Voltage Lower Limit

60 600

Speed Upper Limit

Alternator Voltage Upper Limit Speed Lower Limit

60 600

30.0 75.0

30.0

75.0

Hz Battery Voltage Lower Limit Reserved Periodic Maintenance Hour Set Value

7.2 24.0

Horn Duration (0 = Continuous)

Single / Three Phase Selection Nominal Alternator Frequency Nominal Speed Tooth Number

Speed Sensing Input Selection

Stop / Fuel Solenoid Selection

Stop / Fuel

Stop Magnet Energising Time

Battery Voltage Weak Control Time

Alternator Voltage Limit for Crank Disconnection

Speed Limit For Crank Disconnection Number Of Starting Attempts Starting Attempt Duration Oil Pressure Bypass Time

Alternator Voltage Fault Control Delay Speed Fault Control Delay Engine Cooling Time(0 = disable)

Periodic Maintenance Hour Reset

Preheat Time

Reserved

9999

Hour

0 999

Second Second

1/3

50.0/60.0

500 5000

RPM

1 1000

0 99

Second

Battery Voltage Weak Limit

6.0 14.4

Second

36040

20.0 45.0

1 10

Second

0 99

Second

Control On Delay

0 99

Second

0.0 10.0

Second

0.0 10.0

Second

0 99

Minute

Engine Running Time Reset

P30

Configurable Failure Input-1

0 3

P00 P01 P02 P03 P04 P05 P06

P08 P09 P10

P12 P13 P14

P16 P17

P19 P20 P21 P22 P23 P24 P25 P26 P27 P28 P29

P31

Press ‘Silence Alarm’ button to reset

0-Alternator

Signal

1-Magnetic

Pick-up

Enter technician password to reset

time to ‘0’ (zero)

Min UnitMax

Default

Engine started signal

P18.0

P18

P18.2 P18.3

0=No, 1=Yes

0/1 0/1

Charge Generator Speed

Alternator Voltage

Oil Pressure

P18.1

Configurable Failure Input-2

0 3

P32

Configurable Failure Input-3

0 3

P33

P11

Definition of Parameter

No Min UnitMax

Default

P34

Configurable Output-1

P35

0 13

Configurable Output-2

P36

0 13 Operator Password Technician Password

0 9990

P37 P38

P34.0 - For Configurable Failure Input-1

P34.1 - For Configurable Failure Input-2

P34.2 - For Configurable Failure Input-3

0 - Observation Continuously 1 - Observation While Engine Running

Observing Time of Configurable Failure Inputs

Equipment Use : Electrical control equipment for generating sets Housing& Mounting : 96mmx96mmx115mm (excl. 13mm clips) Panel Cut-Out : 92 mm x 92 mm Protection : NEMA 4X (IP54 at front panel, IP20 at rear side). Weight : Approximately 0.7 Kg. Environmental Ratings : Standard, indoor at an altitude of less than 2000 meters with

non-condensing humidity

oooo

Operating/Storage Temperature : -25 C to +70 C / -40 C to +85 C Operating/Storage Humidity : 90 % max. (None condensing) Installation Over Voltage Category : II appliances, portable equipment Pollution Degree : II, normal office or workplace, none conductive pollution Mode of operation : Continuous EMC : EN-61000-6-4, EMC generic emission standard for industrial

equipment

EN-61000-6-2, EMC generic immunity standard for industrial

equipment

Electrical Safety : EN-61010-1, safety requirements for electrical equipment for

measurement, control and laboratory use

Supply Voltage(Z) : 12VZ(8.0VZ to 16.0VZ) or 24.0VZ (16.0VZ to 32.0VZ)

switch selectable

Supply Voltage Measurement : 8.0-40.0VZ. Accuracy : 1%, Resolution : 0.1VZ Generator Voltage Measurement : Single phase, 2 wire 35 to 300VL-N V Accuracy : 1%FS,

Resolution : 1VV

Measurement Accuracy : Volts: 1% Frequency: 0.25% Ampere: 1% Cranking Dropouts : Battery voltage can be 0VZ for max. 100msn during cranking

(battery voltage should be at least nominal voltage before cranking)

Generator Speed Measurement : From alternator or magnetic pickup Alternator Frequency Range :10-110 Hz. (@35-300VL-NZ)

Magnetic Pickup Freq. Range : 3 5 Hz - 10 kHz (@3-35 Volts peak)

Communication Interface : RS-232 serial communication Contact Sensing Input : Emergency stop (NC), Oil pressure switch (NC), Temperature switch

(NO), Remote start/stop input (NO), Configurable input 1 (NO), Configurable input 2 (NO), Configurable Input 3 (NO)

Outputs : Start Relay Output 12A (@12/24VZ), Fuel Relay Output 12A

(@12/24VZ), Alarm Relay Output 5A (@12/24VZ), Configurable Relay Output 1. 5A(@12/24VZ), Configurable Relay Output 2. 5A

(@12/24VZ)

Display (4digit,7segment LED display): Generator (L1–L2, L1–N, L2–L3, L2 – N, L3 – L1, L3 – N) Voltage,

Generator Frequency Hz, Engine Speed RPM, Battery Voltage Z, Engine Running Hours, Failure Information

Failure Indicators :Engine Start, High Engine Temperature, Low Oil Pressure, Over /

Under Speed, Generator Voltage Fail, Charge Generator Fail, User Configurable Input1, User Configurable Input2, User Configurable Input3

Status Indicators :Power On, Engine Start, Engine Stop, Engine Running, Generator is

ready to take the load

Information Alarm : Emergency stop, Low battery voltage, Weak battery alarm, Routine

Maintenance due

Approvals : GOST-R,

Charge Generator Excitation :12 VZ or 24 VZ, 200 mA, max 3W

11. SPECIFICATIONS

EMKO EAOM-6 Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
