NetSure™ 211
DC Power System
Key Features
n
Supports Ethernet, SNMP,
and RS485 communication
interfaces – enables remote
control and monitoring
n
NetSure™ rectifiers are designed
to operate from -40°C to +75°C,
providing 600W output at 65°C
– suitable for harsh
environmental conditions
n
Extremely wide AC voltage
range window – 85VAC to
300VAC
n
Several distribution configuration options – battery disconnect
breakers, load breakers, and
GMT fuses up to 15A to meet
application needs
n
NEBS Level 3 compliant and
UL Listed – to meet industry
standards
n
Monitoring and battery test and
charge functions – advanced
battery management features
and AC service monitoring
Description
The NetSure™ 211 DC Power Solution is a flexible system capable of providing DC
power through the use of 500W or 1000W rectifiers and a variet y of output distribution options. The system is available in an integrated distribution configuration. The
NetSure
suited for up to 6kW power requirements in the most harsh environments. The
system is supported by a single SCU+ or ACU+ controller (ACU+ for 2RU systems only)
that provides all control and operational conditions, as well as historical site data and
external signal conditioning and monitoring. Each rectifier shelf includes a slot for
the controller and space for the rectifiers. Distribution is provided by breakers or
fuses located in the power shelf.
Distribution options include load low-voltage disconnect (LLVD), battery low-voltage
disconnect (BLVD), or no low-voltage disconnect. Plug-in rectifiers, AC connectivity
and DC load outputs enhance the overall flexibility of the system by minimizing
installation and start-up time. This dynamic system also offers alternative AC input
configurations, relay rack configurations, battery tray options, battery box options
and pre-configured output load kits.
The NetSure
cost-effective solution is NEBS Level 3 compliant and UL Listed. Rated for continuous
operation from -40°C to +75°C, this system is designed for the harsh outside plant
environment, as well as customer premise FTTx, wireless back-haul, microwave, and
DLC applications.
™
211 is available in both 19" and 23" 1RU & 2RU rack-mount configurations,
™
211 is designed for up to 4kW loads (19") or 6kW loads (23"). This
n
Configuration file capability
– minimizes installation time
and allows planned network
conformity
2
The NetSure™ 211 is especially designed for all types of access
applications in both fixed and wireless access networks, offering
unmatched site installation flexibility.
Configurability for
Environmental
Endurance
Great output power at high temperatures
NetSure
power in relation to ambient temperature
conditions (see diagram 1), making them
especially suitable for high-temperature
environments. In a system with rectifiers
operating at 65°C, the output is still 60%
of full power.
Extremely wide AC voltage range window
The AC voltage input range vs. rectifier
output is another extraordinary feature of
this small system. The 1000W rectifier will
deliver full power from 176 VAC to 300 VAC.
From 85 VAC to 176 VAC the power level
is derated (see diagram 2). The 500W
rectifier will deliver full power from 104
VAC to 300 VAC.
™
211 rectifiers deliver high output
Diagram1: R48-1000 Output Power vs. Temperature
at 264V > Vin >176Vac
120
100
80
60
40
20
% of output power
0
-40-20 0204060 10080
For R48-1000 Temperature (°C)
Space and Energy
Efficiency
NetSure™ 211 comes in many
different shapes
This highly flexible DC power system,
featuring efficiency levels greater than
92%, is available in 1RU or 2RU integrated
distribution shelves. These alternatives
are optimal for rack-mounting in any
building, shelter or cabinet installation.
NetSure
any Emerson outdoor enclosure when
a pre-manufactured space-efficient
outdoor solution is needed. The system
can also be shipped loose or mounted in
a relay rack with battery trays.
™
211 is easily integrated into
Diagram2: Output Power vs. Input Voltage at Tamb <45°C
Output Power vs. Input Voltage and Vo > 48V at Tamb >45°C
120
100
80
60
40
20
% of output power
0
0 350
Application
The NetSure™ 211 System is designed for
deployment in central office, POP sites,
co-location sites, customer premises,
outdoor cabinets, CEVs, vaults or portable
shelters. Specific applications include:
DLC, xDSL, DSLAM, FTTx electronics,
broadband communications, multiplexers, LTE, WiMAX, microwave and PBX.
50 100150 200250 300
For R48-1000 Input voltage (VAC)
3
The NetSure™ 211’s extensive battery
management capabilities, easy configuration
and maintenance are all backed by the
resources and quality reputation of a
worldwide service organization.
Basic Configurations
Two core configurations define the combination of
rectifier and distribution shelves and determine the
ultimate capacity of the system.
Internal Distribution up to 3kW
Our most compact system measures 1RU high with distribution capability and rectifiers in the same shelf. Available in
19" and 23" widths, the system provides distribution space for
Internal Distribution up to 6kW
The 2RU high configuration is also available in 19" and 23"
widths with distribution capability and rectifiers in the same
shelf. The system provides distribution space for GMT fuses up
(10) GMT fuses up to 15A. Configuration options
include battery low voltage disconnect (BLVD) or no
low voltage disconnect.
to 15A or a combination of circuit breakers up to 100A and
GMT fuses. Configuration options include battery low
voltage disconnect (BLVD), load low voltage disconnect
(LLVD), or no low voltage disconnect.
4
Rectifier Shelves
The rectifier shelves integrated into the
NetSure
(1RU) or 3.5" (2RU) high and available
in 19" and 23" widths. These shelves
provide front to back ventilation and
can be mounted directly above or below
other electronic equipment, maximizing
revenue-generating space. Each unit
™
211 system are either 1.75"
will operate from 120/208/240VAC and
is equipped to accommodate plug-in AC
connections or open wire line cords.
DC output connection options for each
shelf include terminal blocks, plug-in
DC jumpers for GMT load, and two-hole
compression lugs for breakers. The shelf
with rectifiers is UL Listed and meets FCC
Class B EMI/RFI requirements.
As load demand grows, the system can be easily
expanded with additional modular components.
Rectifiers
The R48-500 and R48-1000 NetSure™
rectifiers are rated for 500W or 1000W
watt constant output power when
operated at 208/240VAC nominal input.
The 1000W model rectifier provides
approximately half its rated output when
operated at 120VAC. This auto-sensing
circuit enables each rectifier to automatically adjust its output to the available line
voltage. The rectifier will provide up to
100% of rated power at 45°C.
As the temperature increases from 45°C
to 75°C, the thermal power limit circuit
linearly decreases power. In the typical
operating range, these rectifiers have
a total harmonic distortion less than 5%,
and efficiencies greater than 92%
(1000W). Each hot-swappable rectifier
has an integral multi-speed cooling fan
and tri-LED status indication.
R48-1000, NetSure™ 211 Rectifier
Controller
The SCU+ and ACU+ (for 2RU systems
only) are powerful control units that enable remote monitoring of the main AC
supply, DC power plant, battery backup
and site environment.
The controller enables advanced battery
management such as sophisticated boost
charge control, remaining capacity test-
ing, constant current discharge testing
and scheduled discharge testing. With
basic energy saving functions, the SCU+
is a cost-efficient system component. For
more sophisticated site monitoring the
ACU+ is available as an option for 2RU
systems only. Information and alarms from
a specific site are monitored or checked
with a web browser or SNMP. When using
SCU+ Controller
a web browser, no additional software
is needed and the web browser login is
password protected.
5

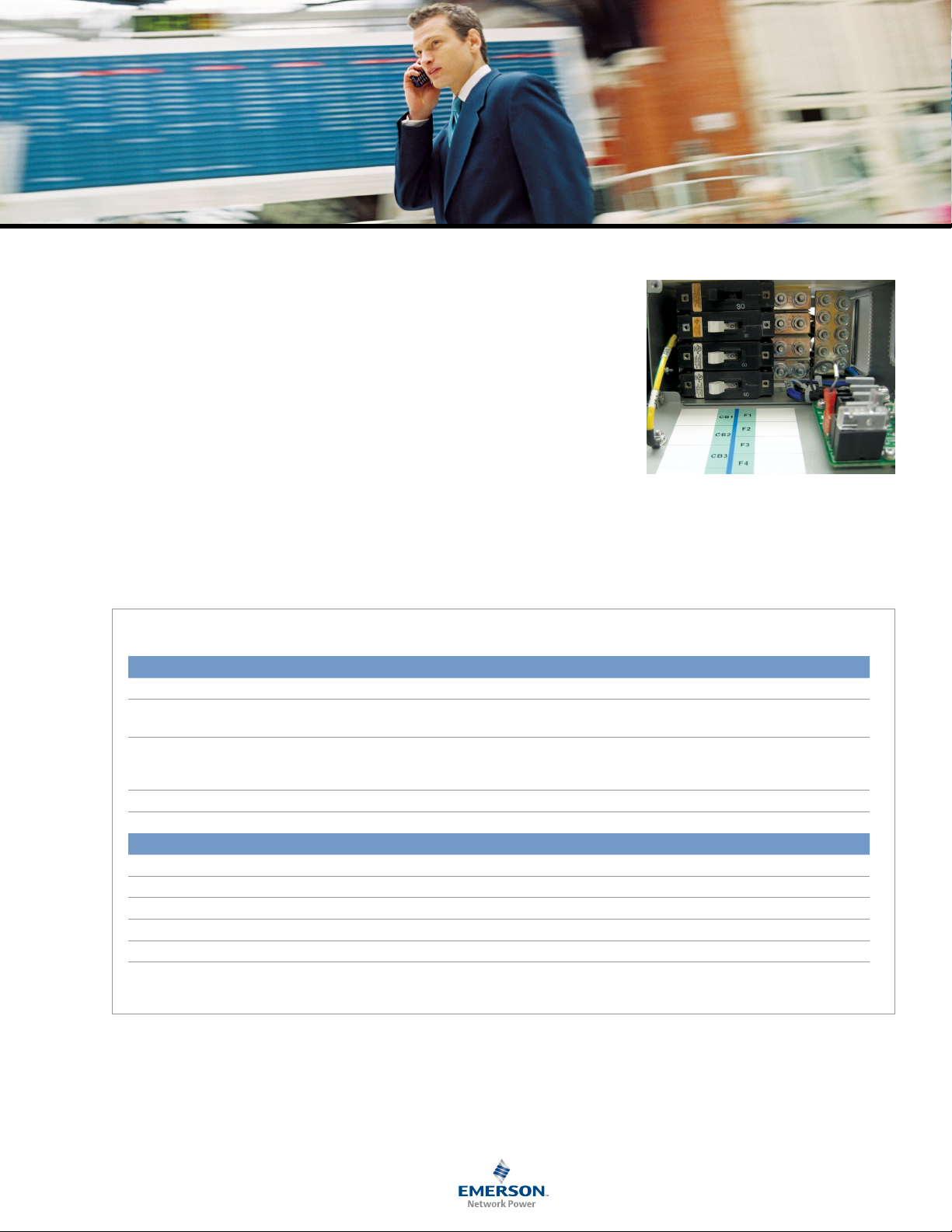

Distribution
Output distribution for the NetSure™ 211 is available in four different forms. Internal
distribution is attained through GMT fuses or circuit breakers. Internal distribution
options include: (10) GMT fuses (1RU); or 13 GMT fuses composed of a combination
of 15A positions and 10Amp positions; or (4) load circuit breakers (0 to 100A) and
(5) 10A GMT fuses; or (2) load circuit breakers (0 to 100A) and (2) battery disconnect
circuit breakers (0-125A) and (5) 10A GMT positions. All distribution panel options are
available with low-voltage disconnect capability.
Battery Cabinet
Internal Distribution Configuration
An enclosed battery cabinet is available that can be mounted on the wall or in a relay
rack. A 40A battery disconnect is included with the battery cabinet. It can be
connected in parallel with other cabinets to provide additional backup time.
System Specifications, NetSure™ 211
Input
Nominal System Voltage 120, 208, 240VAC
Output Capacity
Dimensions
19" 1RU up to 40A
23" 1RU up to 60A
Relay Rack (can be mounted in enclosures)
Mounting Width: 19" or 23" width
2RU Height 3.5"
Access Integrated System – Front for installation, operation and maintenance
Control SCU+ Controller, ACU+ controller (2RU systems only)
Environmental
Operating Temperature -40°F to +167°F (-40°C to +75°C) see rectifier specification for any derating*
Storage -40°F to +167°F (-40°C to +75°C)
Humidity 0 to 95%, non-condensing
Ventilation Fan-cooled front to rear
EMI/RFI Conforms to FCC rules Part 15, Subpart B, Class B and EN55022 Class B, radiated and conducted
Safety Compliance UL 60950 Recognized (US & Canada)
NEBS Level 3 Compliance
19" 2RU up to 80A
23" 2RU up to 120A
Mounting Depth: Integrated Distribution System 12"
1RU Height 1.75"
*Operating and storage temperatures for batteries installed in the battery cabinet are provided by the battery manufacturer.
6
Emerson Network Power—
a complete spectrum of best-in-class
reliable power, precision environmental
and connectivity solutions for
today’s telecommunications and
data network infrastructure
Rectifier Specifications, R48-500 and R48-1000
AC Input
Nominal Voltage 120, 208, 240VAC
Operating Voltage Range 85 to 300VAC
Frequency 45 Hz to 65 Hz
Power Factor (PF) >0.90 for 25%-50% load, >0.98 for 50%-100% load and >0.99 for 100% load
Total Harmonic Distortion <5% from 50 to 100% of rated load at 208 Voc – 240 Voc
Input Current Max 6.5A both 500W and 1000W
Inrush Current Inrush current does not exceed 150% of the rated input steady state peak value
Operating Efficiency 91% (500W) 92% (1000W)
DC Output
Output Voltage Range -42 to -58VDC
Output Power Constant power limiting operation 500W and 1000W @ -48VDC
Output Current 10.42A @ -48VDC (500W) 20.83A @ -48VDC (1000W)
Regulation Steady state output voltage remains within +/-1% for any combination of input voltage and temperature
Voice Band Noise The voice-frequency noise generated by a rectifier does not exceed 32dBrnC output noise from 0% to 100% load
Wide Band Noise Does not exceed 250mv peak-to-peak, or 100mv rms per Telcordia GR-947-CORE
Psophometric Noise <1mV at 0 to 100% of rated load; <32dBrnc at 0 to 100% of rated load (output voltage > -42V)
Protection High Voltage Shutdown fixed and selective capability. Fixed – requires manual restart.
Environmental
Temperature -40 to +75°C, -40 to 167°F
Altitude 2000m, 6560 ft at full power
Ventilation Front to back with speed-controlled fan (field replaceable)
Audible Noise The rectifier does not produce sound levels above 53dB(A), measured 0.6m in front of the rectifier, at the same hori-
Status /Alarm Indicators and Monitoring
Visual Indicators
Status Settings The SCU controller establishes all rectifier settings
Rectifier Physical Specifications
Mounting Plugin installation
Dimensions (H x W x D) 1.6" x 3.4" x 9.5" (40.8 x 86.5 x 241 mm)
Weight 2.76lbs (1.25kg)
Safety Compliance UL 60950 Recognized (US & Canada)
at 208Vac, 220Vac, 230Vac, 240Vac and 25°C
(for 1000W, see derating chart for voltages less than 176VDC or temperatures higher than 45°C)
from 5% to 100% load
Selective – If rectifier detects over voltage it will turn off. After 5 seconds it will restart;
if it encounters an over voltage within 5 minutes it will turn off and remain off until reset.
zontal line as the middle of the rectifier at 25°C
Green LED: Normal Operation
Red LED: Failure
Flashing Red LED: Fan Failure
Yellow LED: Alarm
Additional Information
For additional specification, engineering and installation information, request specification number 582136600 (system),
1R48500 or 1R481000 (rectifiers), or 541434 (battery cabinet).
For ordering information on the complete system, request SAG582136600.
7
Emerson (NYSE: EMR), based in St. Louis, Missouri (USA), is a global leader in bringing technology and engineering
together to provide innovative solutions for customers in industrial, commercial, and consumer markets around the
world. The company is comprised of five business segments: Process Management, Industrial Automation, Network
Power, Climate Technologies, and Commercial & Residential Solutions. For more information, visit: Emerson.com.
Emerson Network Power, a business of Emerson (NYSE:EMR), maximizes reliability, deployment speed and operational
efficiency for communications networks. A trusted industry leader in smart infrastructure technologies, Emerson
Network Power provides innovative, rapidly deployable solutions that deliver efficiency and uncompromised reliability
regardless of network demands. Our solutions are supported globally by local Emerson Network Power service technicians. Learn more about Emerson Network Power products and services at:
EmersonNetworkPower.com/EnergySystems.
Learn more about Emerson Network Power products and services at: EmersonNetworkPower.com.
EmersonNetworkPower.com/EnergySystems (North America)
EmersonNetworkPower.eu/EnergySystems (EME A)
© Emerson Network Power, Energy Systems, North America, Inc. 2013.
Business-Critical Continuity™, Emerson Network Power™, the Emer son Net work Power l ogo, Emer son™ and Consi der it Solv ed are ser vice mark s and
tradem arks of Eme rson Elec tric Co. En ergyMas ter
Netw ork Power, Ener gy Systems , North Am erica, In c. Any other p roduct , brand, or co mpany names o r logos are t he proper ty of the r especti ve owner.
™
, eSure™, NetPerform™, NetReach™, NetSpan™, NetSu re™ and NetXtend™ are trad emarks of E merson
While ev ery precau tion has been t aken to ensure acc uracy and
completeness herein, Emerson Electric Co. assumes no responsibility,
and disc laims all liabil ity, for damages r esulting fr om use of this
inform ation or for any er rors or omis sions. Specif ications su bject to
change without notice.
Any name s of companies an d products a re trademar ks or registe red
tradem arks of the res pective com panies. Any qu estions reg arding usage
of trademark names should be directed to the original manufacturer.
095B-NS211 / 0613
Loading...
