Emerson NetReach BUP Brochures and Data Sheets

NetReach™ BUP Series

Integrated Building Entrance Terminal Solution

Key Features

n

25, 50 and 100 pair versions

n

New compact 25 pair size requires

minimum mounting space

n

Outdoor or indoor mounting

capability for greater flexibility

n

Built-in splice chamber with

removable cover provides
improved wire management

n

Sealed chamber offers superior

environmental protection for
protector modules

n

Push to close slam-lock

ensures a fast and consistent
environmental seal

n

Variety of input and output

connections provides
application flexibility

n

Stackable up to 300 pair with

optional stacking kit

Description

The NetReach™ BUP Series is a self­contained building entrance terminal
for indoor or outdoor applications. The
enclosure is manufactured of heavy
gauge mill-galvanized steel treated with
a unique finishing process for longer
life. Input connection options include
field splice tail, 3M
connectors, 710 dry and gel connectors
or cable stub. Outgoing pair distribution
options are RLS IDC or binding post screw
down terminal blocks.

5-pin protector modules are housed in
a sealed chamber-within-a-chamber for
maximum environmental protection,
which is especially important for outdoor
applications. All UL listed standard 5-pin
protector modules may be used with this
line of enclosures.

®

4005 dry and gel

The NetReach

™

BUP Series is wall or pole­mountable. A new resealable stacking
feature, which permits stacking up to
300 pairs, is standard on all units
(stacking kit ordered separately). This
removable seal replaces the traditional
top exit knock out and is easily removed
without damaging the cabinet. All units
accept either a 28" or 52" cable skirt,
providing protection to the feeder and
distribution cable from incidental contact
and the environment (cable skirts
ordered separately). A quarter turn with a
216-type can wrench (Emerson catalog
no. 15 or 38) is all that is required to
open the unit. For further security, each
unit is also equipped with a padlock hasp.

n

All versions accept available cable

skirt (ordered separately)

n

Designed to meet GR-937-CORE

n

UL Listed for documented

performance

2

Application

NetReach™ BUP Series integrated building
entrance terminal solution provides
protection, termination, and distribution
between the central office and the
subscriber premises.

Potential application locations include
multi-tenant dwelling complexes,
hospitals, factories, shopping strip malls,
schools, and campus environments.

Dimensions

Pair Count H W D

25 11.0-in. (27.9 cm) 15.4-in. (39.1 cm) 5.7-in. (14.5 cm)

50 15.8-in. (40.1 cm) 15.4-in. (39.1 cm) 5.7-in. (14.5 cm)

100 25.3-in. (64.3 cm) 15.4-in. (39.1 cm) 5.7-in. (14.5 cm)

3

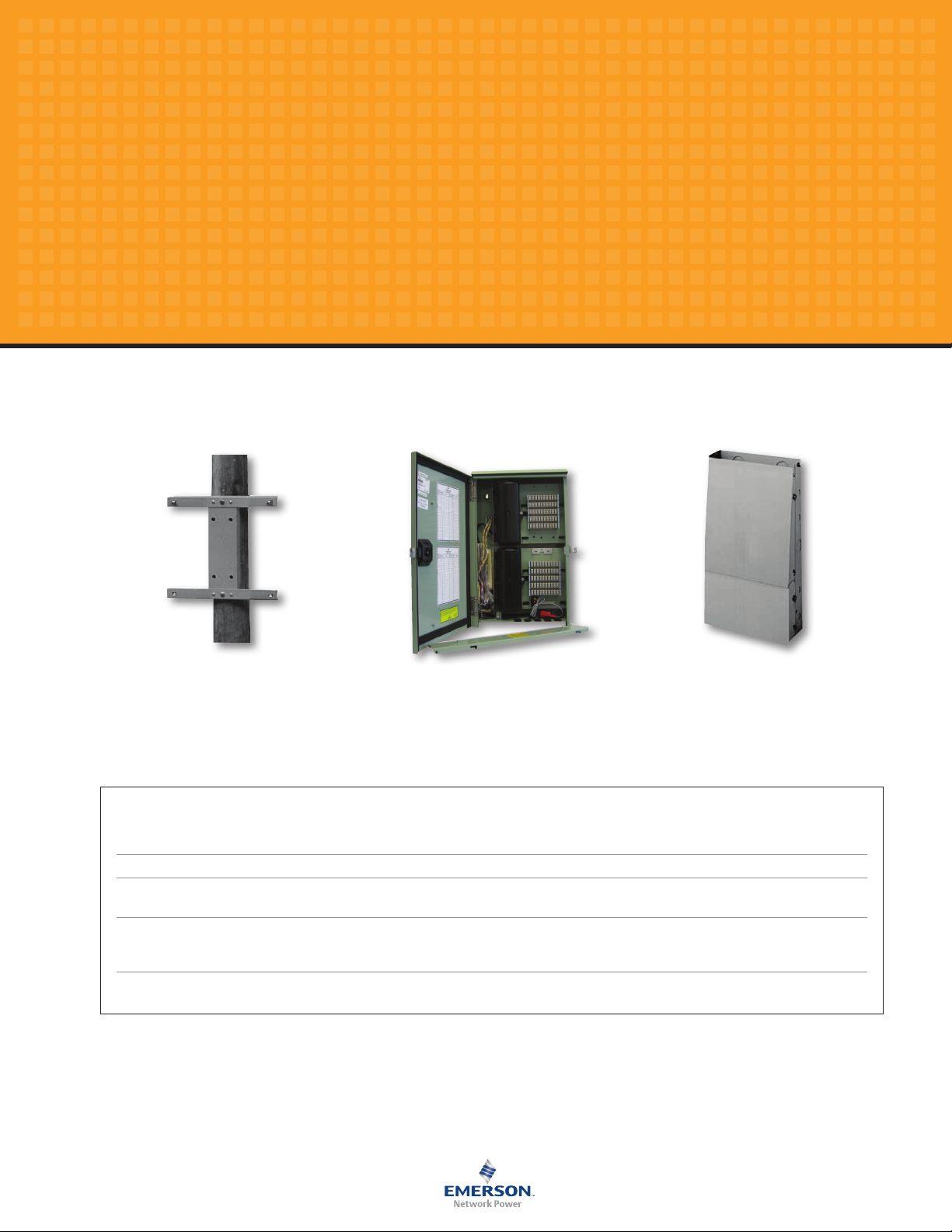

Pole-Mount Bracket BUPSNG100 BUPSKT

Catalog Number Matrix

Housing BUP = Indoor/Outdoor Building Entrance Protector

Output SNG = RLS (IDC) BNG = BT (binding post)

Pair Count 25

Input

Color Blank = Green B = Beige (off-white)

50

MM

GBM

= =25 pair

50 pair

FS

=

Field splice - 24" wire harness bundle

=

3M® 4005-D dry, (MS2)

=

3M® 4005 GBM gel (MS2)

100 = 100 pair

CF

=

710 SC1 gel

CFI

=

710 SD1 dry

SE25

=

25 foot, 24 AWG stub

4

Ordering Information – BUPSNG Field Splice

Catalog
Number

BUPSNG25FS F1008343 25 pair BUPNG

BUPSNG50FS F1008344 50 pair BUPNG

BUPSNG100FS F1008345 100 pair BUPNG

BUPSNG25FS3BE F1008618 25 pair BUPNG

BUPSNG50FS3BE F1008619 50 pair BUPNG

BUPSNG100FS3BE F1008620 100 pair BUPNG

Part
Number Description

FS-in RLS-out

FS-in RLS-out

FS-in RLS-out

FS-in RLS-out with R3B1EJZ

FS-in RLS-out with R3B1EJZ

FS-in RLS-out with R3B1EJZ

Number

of Pairs

Ordering Information – BUPSNG Stub

Catalog
Number

BUPSNG25SE25 F1008395 25 pair BUPNG

BUPSNG50SE25 F1008396 50 pair BUPNG

BUPSNG100SE25 F1008397 100 pair BUPNG

Part
Number

Description

25 ft. Stub-RLS

25 ft. Stub-RLS

25 ft. Stub-RLS

Number

of Pairs

25 X

50 X

100 X

INPUT OUTPUT PROTECTION

Field

Splice Stub MS

25 X

50 X

100 X

25 X

50 X X X

100 X

Field

Splice Stub MS

INPUT OUTPUT PROTECTION

2

710

2

710

R3BIEJZ -

RLS

X

X

X

X X

X X

R3BIEJZ -

RLS

X

X

X

GAS

GAS

5

Ordering Information – BUPSNG 3M® MS2™ DPM 4005 Dry Input (MM)

INPUT OUTPUT PROTECTION

Catalog
Number

BUPSNG25MM F1008358 25 pair BUPNG

BUPSNG50MM F1008359 50 pair BUPNG

BUPSNG100MM F1008360 100 pair BUPNG

BUPSNG25MM3BE F1008612 25 pair BUPNG MM-in

BUPSNG50MM3BE F1008613 50 pair BUPNG MM-in

BUPSNG100MM3BE F1008614 100 pair BUPNG MM-in

Part
Number Description

MM-in RLS-out

MM-in RLS-out

MM-in RLS-out

RLS-out with R3B1EJZ

RLS-out with R3B1EJZ

RLS-out with R3B1EJZ

Number

of Pairs

25 X X

50 X X

100 X X

25 X X

50 X X

100 X X

Field

Splice Stub MS

2

Ordering Information – BUPSNG 3M® MS2™ GBM 4005 Gel Input

INPUT OUTPUT PROTECTION

Catalog
Number

BUPSNG25GBM F1008368 25 pair BUPNG

BUPSNG50GBM F1008369 50 pair BUPNG

BUPSNG100GBM F1008370 100 pair BUPNG

BUPSNG25GBM3BE F1008615 25 pair BUPNG GBM-in

BUPSNG50GBM3BE F1008616 50 pair BUPNG GBM-in

BUPSNG100GBM3BE F1008617 100 pair BUPNG GBM-in

Part
Number Description

GBM-in RLS-out

GBM-in RLS-out

GBM-in RLS-out

RLS-out with R3B1EJZ

RLS-out with R3B1EJZ

RLS-out with R3B1EJZ

Number

of Pairs

25 X X

50 X X

100 X X

25 X X X

50 X X X

100 X X X

Field

Splice Stub MS

2

710

710

RLS

RLS

R3BIEJZ -

GAS

R3BIEJZ -

GAS

6

Ordering Information – BUPSNG 710SC1 Gel Input (CF)

Catalog
Number

BUPSNG25CF F1008377 25 pair BUPNG

BUPSNG50CF F1008378 50 pair BUPNG

BUPSNG100CF F1008379 100 pair BUPNG

Part
Number

Description

710SC1-in RLS-out

710SC1-in RLS-out

710SC1-in RLS-out

Number

of Pairs

25 X X

50 X X

100 X X

Field

Splice Stub

Ordering Information – BUPNG with Plywood Backboard

INPUT OUTPUT PROTECTION

MS

2

710

RLS

R3BIEJZ -

GAS

Catalog
Number

BUPNG1 F1009197 25 pair BUPNG enclosure with plywood backboard

BUPNG2 F1009198 50 pair BUPNG enclosure with plywood backboard

BUPNG3 F1009199 100 pair BUPNG enclosure with plywood backboard

Part
Number

Description

Accessories

Catalog Part
Number Number Description

BUPPM1 F019742 Metal pole-mounting bracket for 50-pair BUPNG & BUPNP1NG

BUPPM3NG F1008869 Metal pole-mounting bracket for 25-pair BUPNG

BUPPM4NG F1008945 Metal pole-mounting bracket for 100-pair BUPNG & BUPNP2NG

BUPLONGSKT F740098 Cable skirt for 25, 50, & 100-pair BUP, 52"H x 15.07"W x 6"D

BUPNGSTKIT F1008446 Stacking kit for 25, 50 & 100-pair BUPNG*

* Each stacking kit joins two units only. If stacking three units, order two stacking kits.

7
