Emerson Liebert GXT3 User Manual

Liebert® GXT3™ UPS 230V 700VA-3000VA

User Manual

AC Power
For Business-Critical Continuity™

TABLE OF CONTENTS

IMPORTANT SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

SAVE THESE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

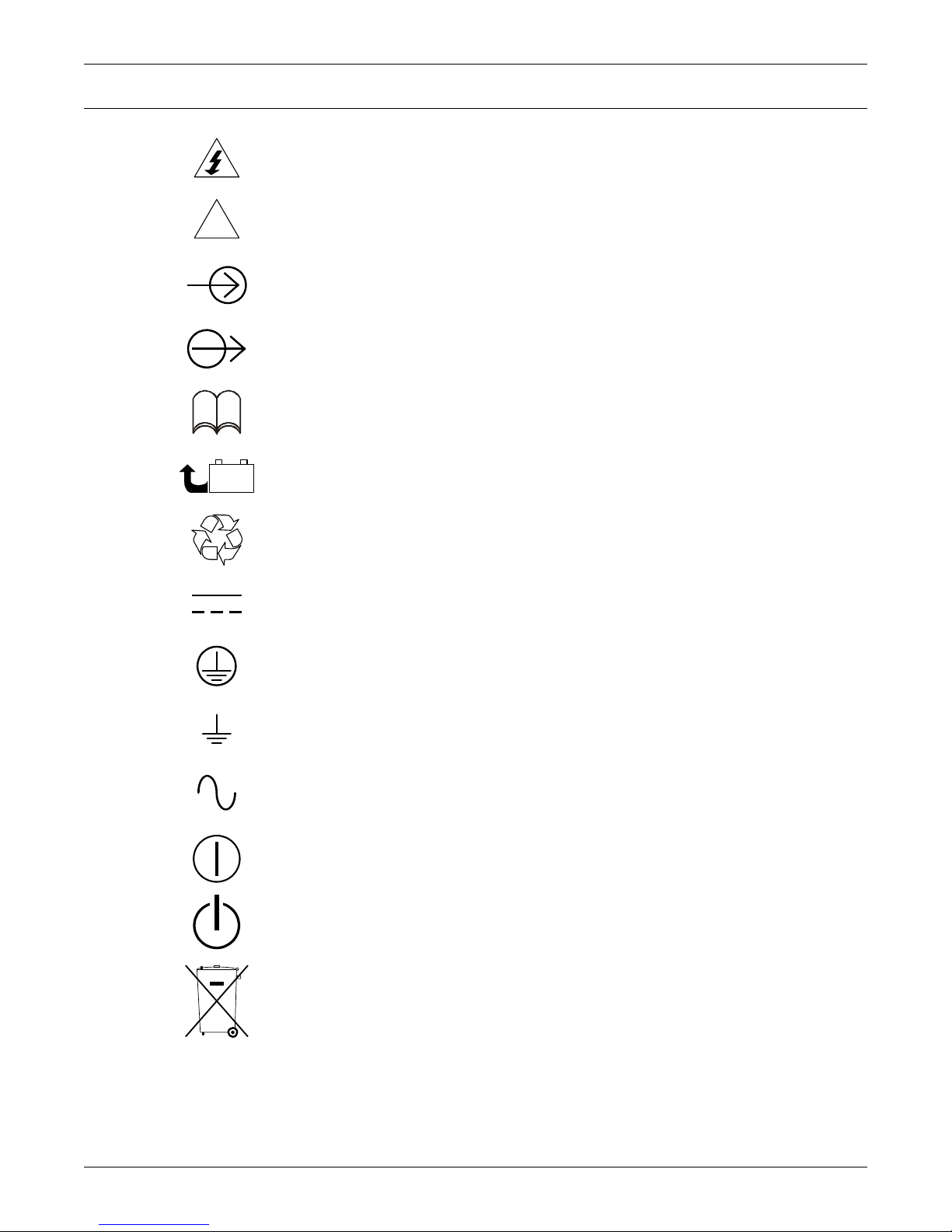

GLOSSARY OF SYMBOLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

1.0 PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.2 Available Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.3 Appearance and Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.3.1 Appearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.3.2 Rear Panel Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.4 Major Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.5 Operating Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1.5.1 Mains (AC) Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1.5.2 Manual Bypass Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

1.5.3 Battery Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

1.5.4 Battery Recharge Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

1.5.5 Frequency Converter Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.0 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

2.1 Unpacking and Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.2 What’s Included . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.3 Preparation for Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.3.1 Installation Environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.4 Mechanical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.4.1 Tower Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.4.2 Rack Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.5 Cable Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.5.1 Connecting Input Plug and Loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.5.2 Connecting Battery Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.6 Connecting Communication Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.6.1 Connecting USB Communication Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.6.2 Installing the Optional Liebert IntelliSlot Card and Communication Cables . . . . . . . . . . . . 15

3.0 OPERATION AND DISPLAY PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

3.1 Control Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3.1.1 On/Alarm Silence/Manual Battery Test button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3.1.2 Standby/Manual Bypass button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3.2 Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.2.1 Level Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.2.2 UPS Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

i

4.0 OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

4.1 Startup Checklist for the Liebert GXT3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4.2 Starting the UPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4.3 Manual Battery Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4.4 Manual Bypass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4.5 Shut Down the Liebert GXT3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

4.6 Disconnecting Input Power from the Liebert GXT3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

5.0 COMMUNICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5.1 Liebert IntelliSlot Communication Cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5.1.1 Liebert MultiLink . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5.2 USB Port Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

5.2.1 Configuration Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

5.3 Terminal Block Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.3.1 Any Mode Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.3.2 Battery Mode Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

5.3.3 On Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

5.3.4 Low Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

6.0 MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

6.1 Replacing the Internal Battery Pack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

6.1.1 Battery Replacement Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

6.2 Battery Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

6.3 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

6.4 Checking UPS Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

6.5 Checking UPS Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

7.0 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

7.1 UPS Symptoms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

7.1.1 Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

7.1.2 Audible Alarm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

7.2 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

8.0 BATTERY CABINET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

9.0 S

9.1 Product Warranty Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

PECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

ii

FIGURES

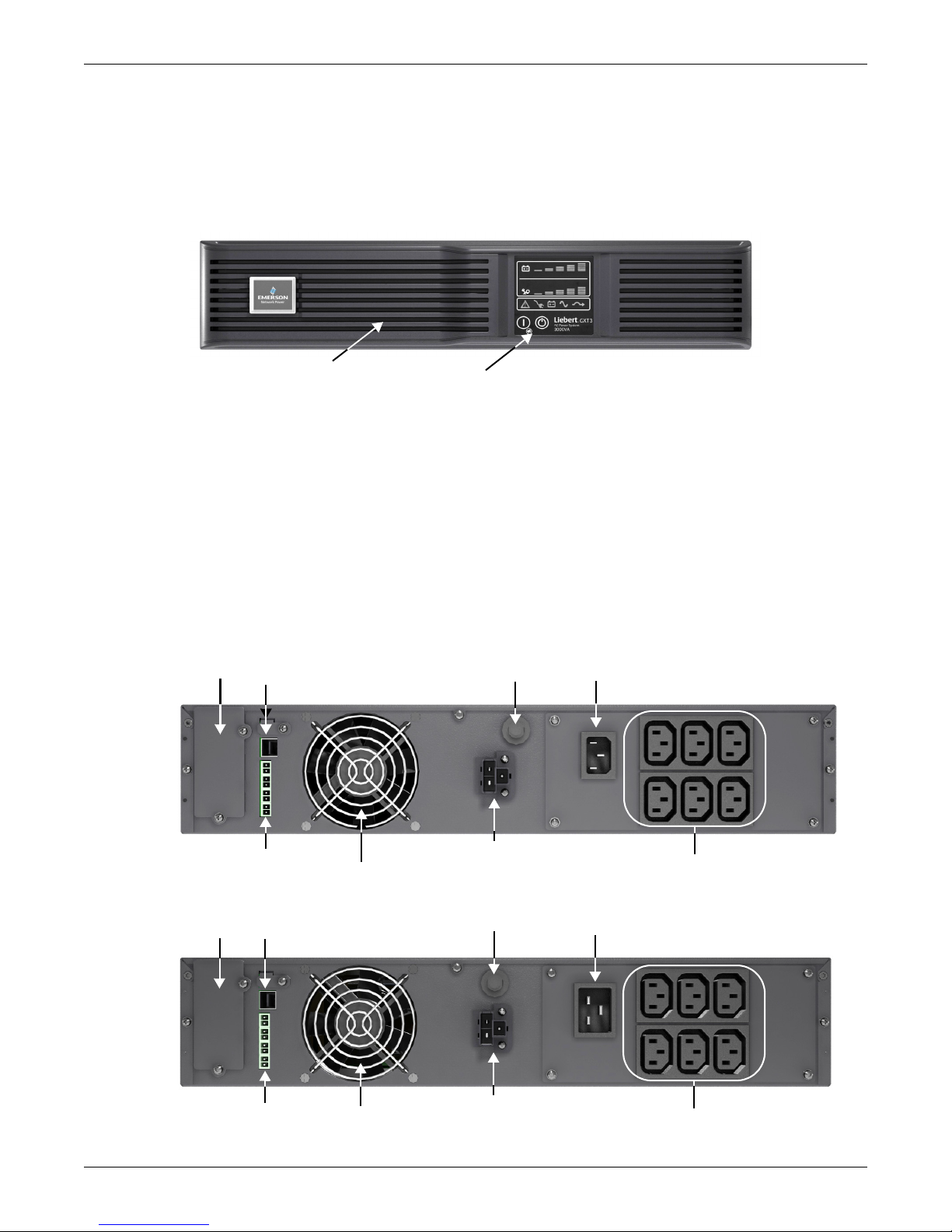

Figure 1 Liebert GXT3-700RT230 - GXT3-3000RT230 UPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Figure 2 Rear panel components, Liebert GXT3 230V 700VA, 1000VA and 1500VA models. . . . . . . . . . . . 5

Figure 3 Rear panel components, Liebert GXT3 230V 2000VA models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Figure 4 Rear panel components, Liebert GXT3 230V 3000VA models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Figure 5 Operating principle diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

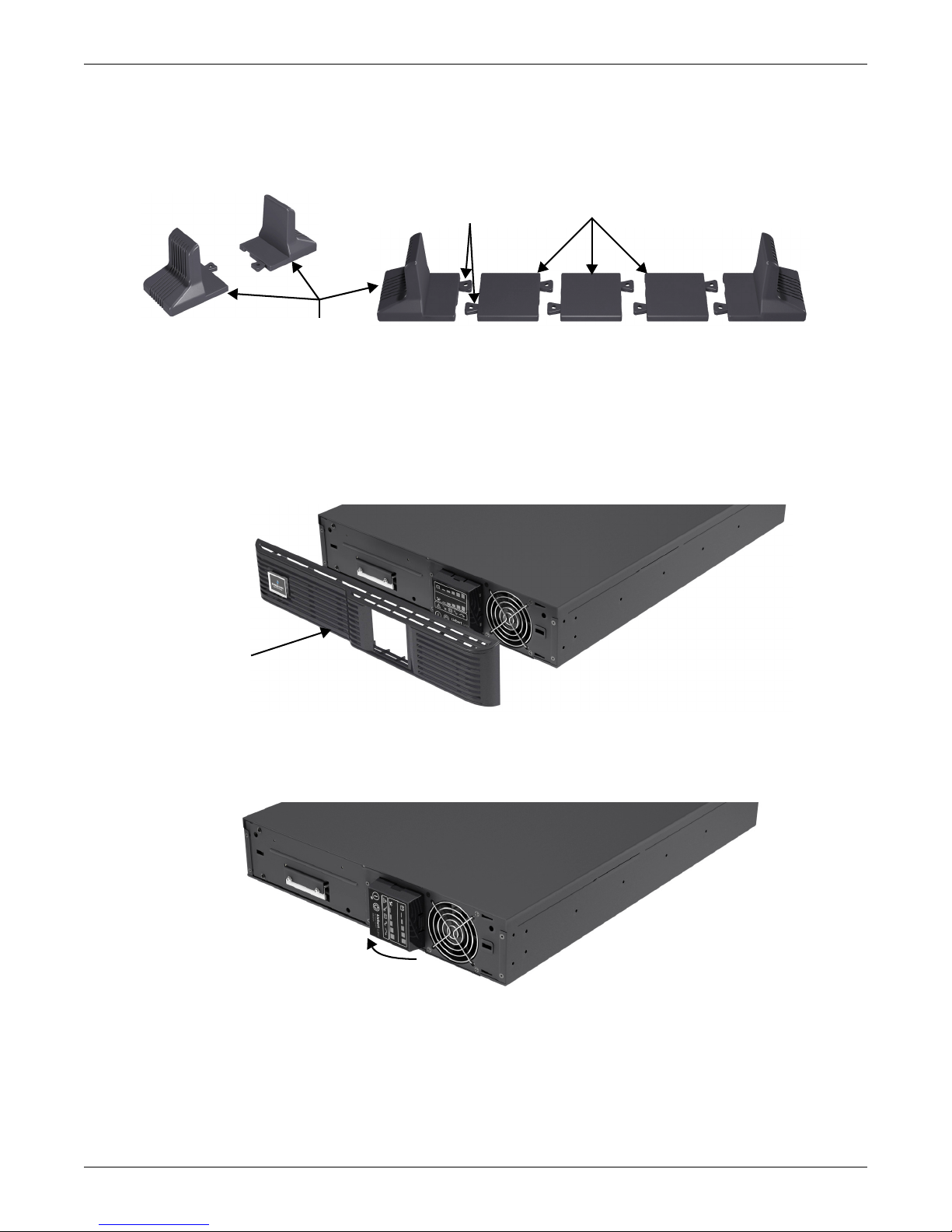

Figure 6 Support bases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Figure 7 Remove the front plastic bezel cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Figure 8 Rotate the operation and display panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

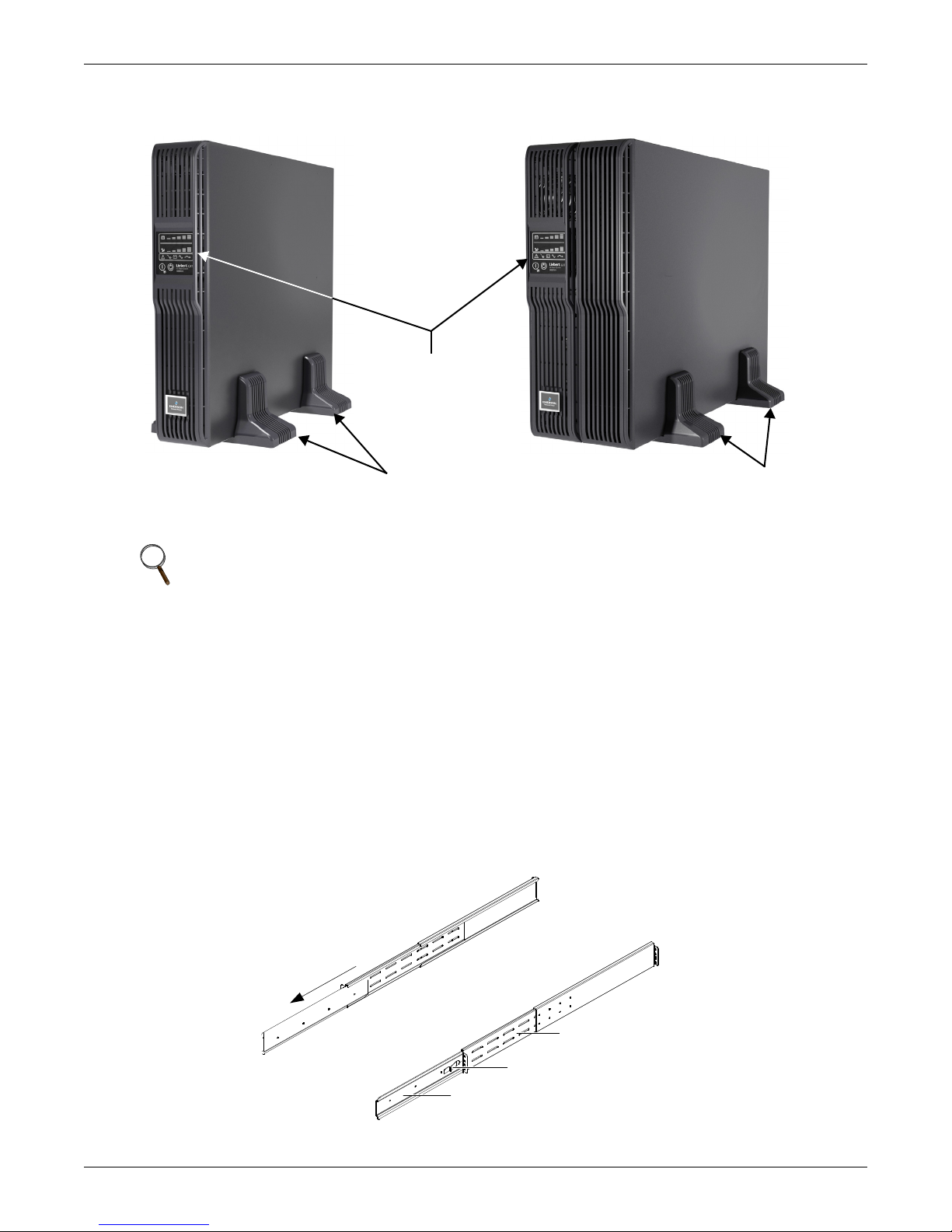

Figure 9 Tower installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

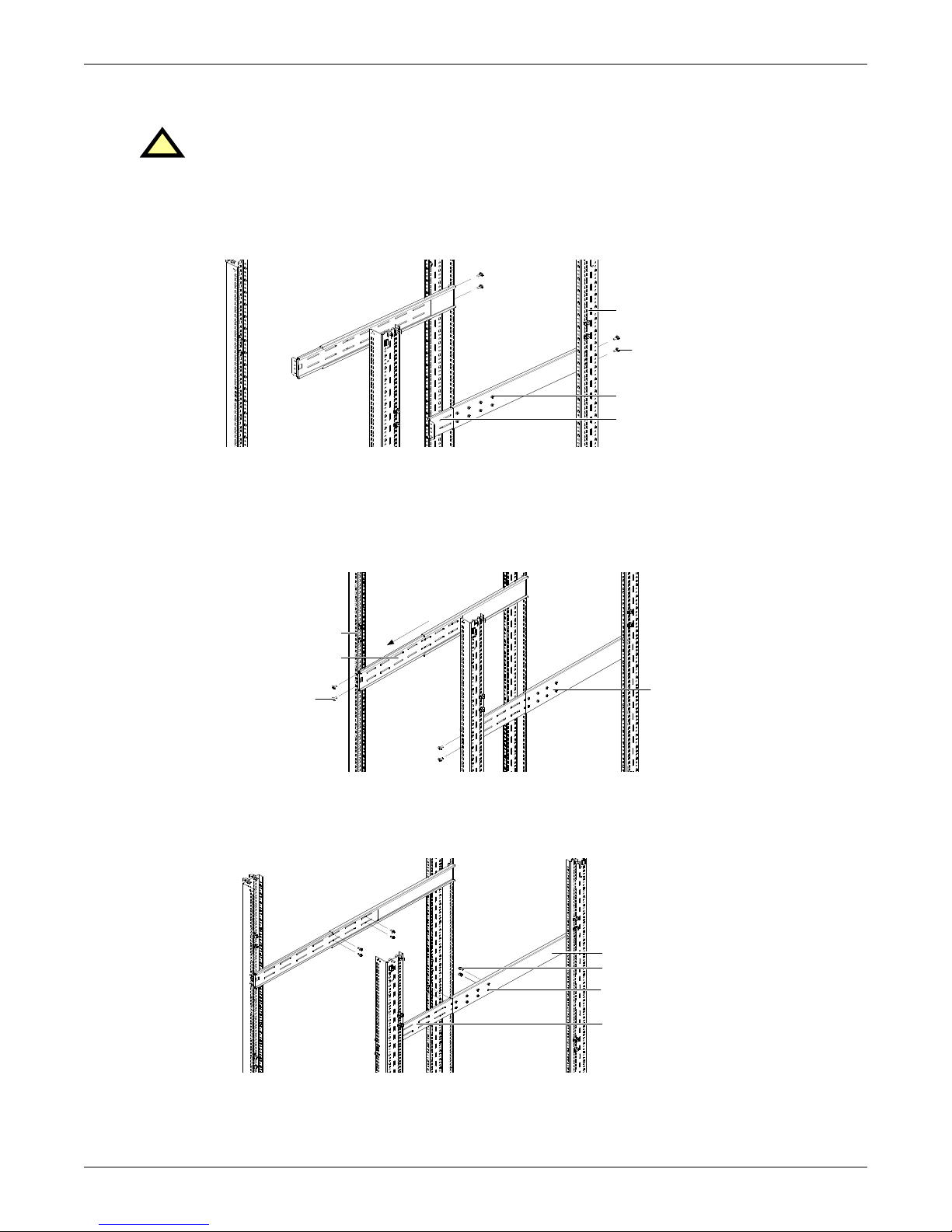

Figure 10 Pulling inner member from each bracket assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Figure 11 Installing rear member of each bracket assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Figure 12 Installing front member of each bracket assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Figure 13 Fastening rear member and front member together . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Figure 14 Installing inner members . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Figure 15 Installing ears . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Figure 16 Insert the UPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

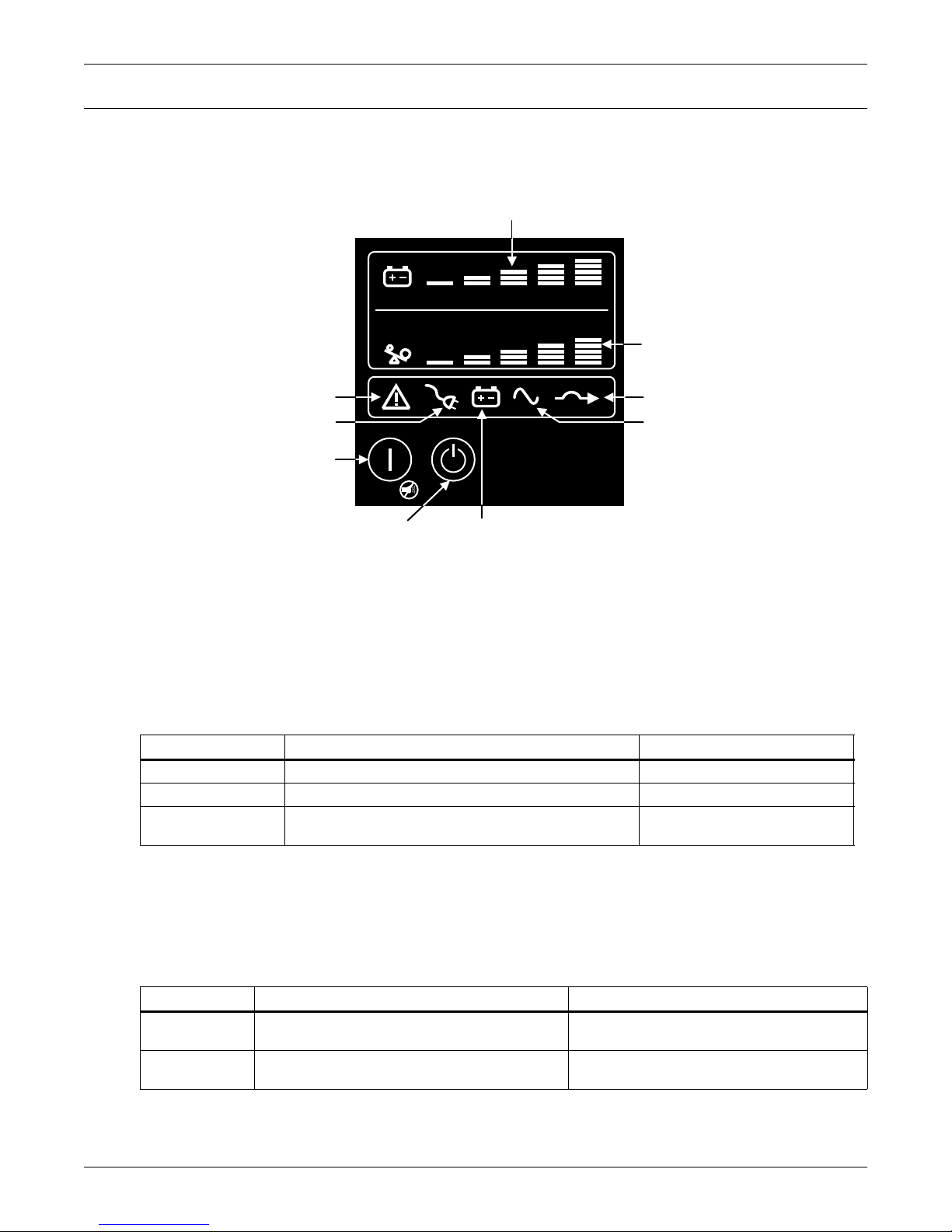

Figure 17 Operation and display panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

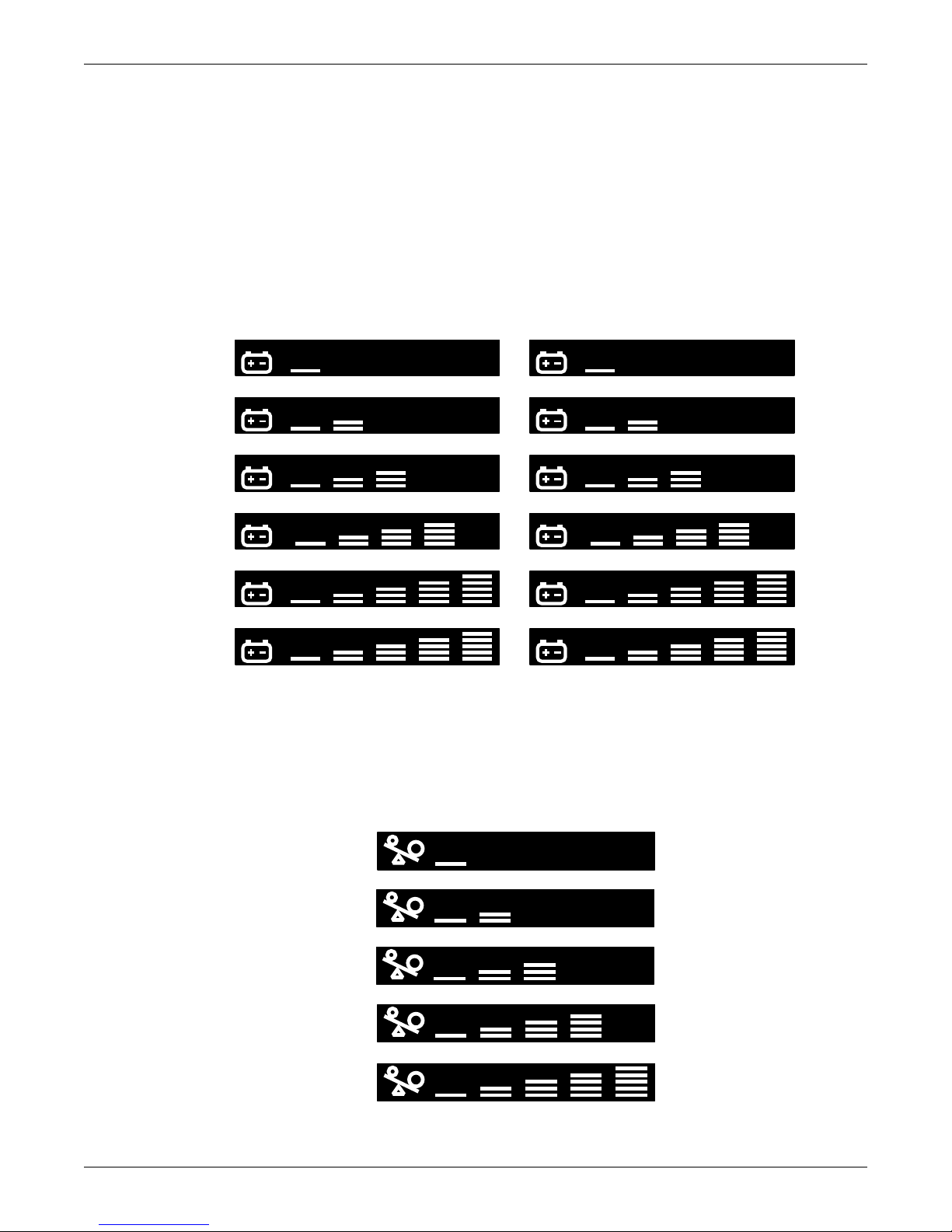

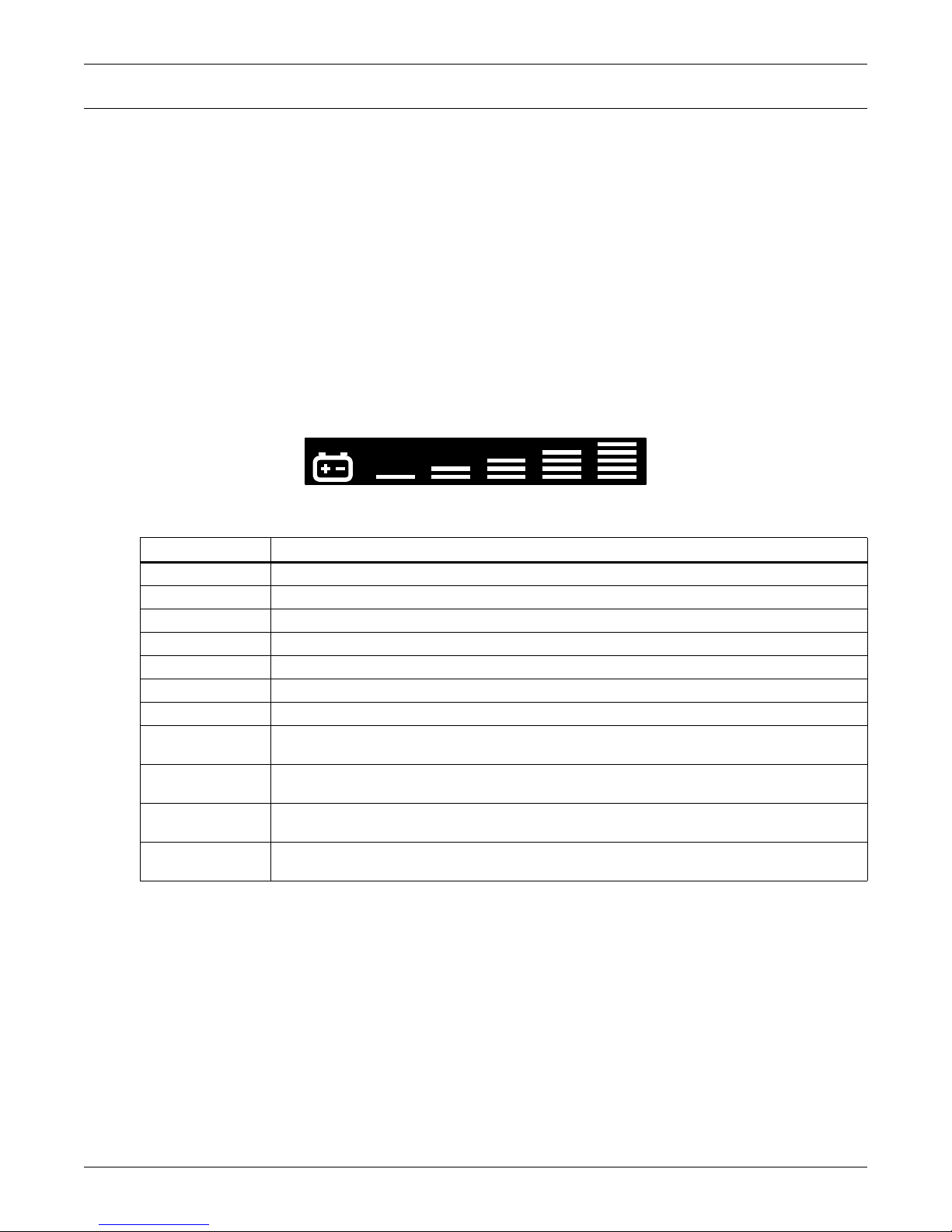

Figure 18 Battery level indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Figure 19 Load level indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Figure 20 Dry contact pin layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

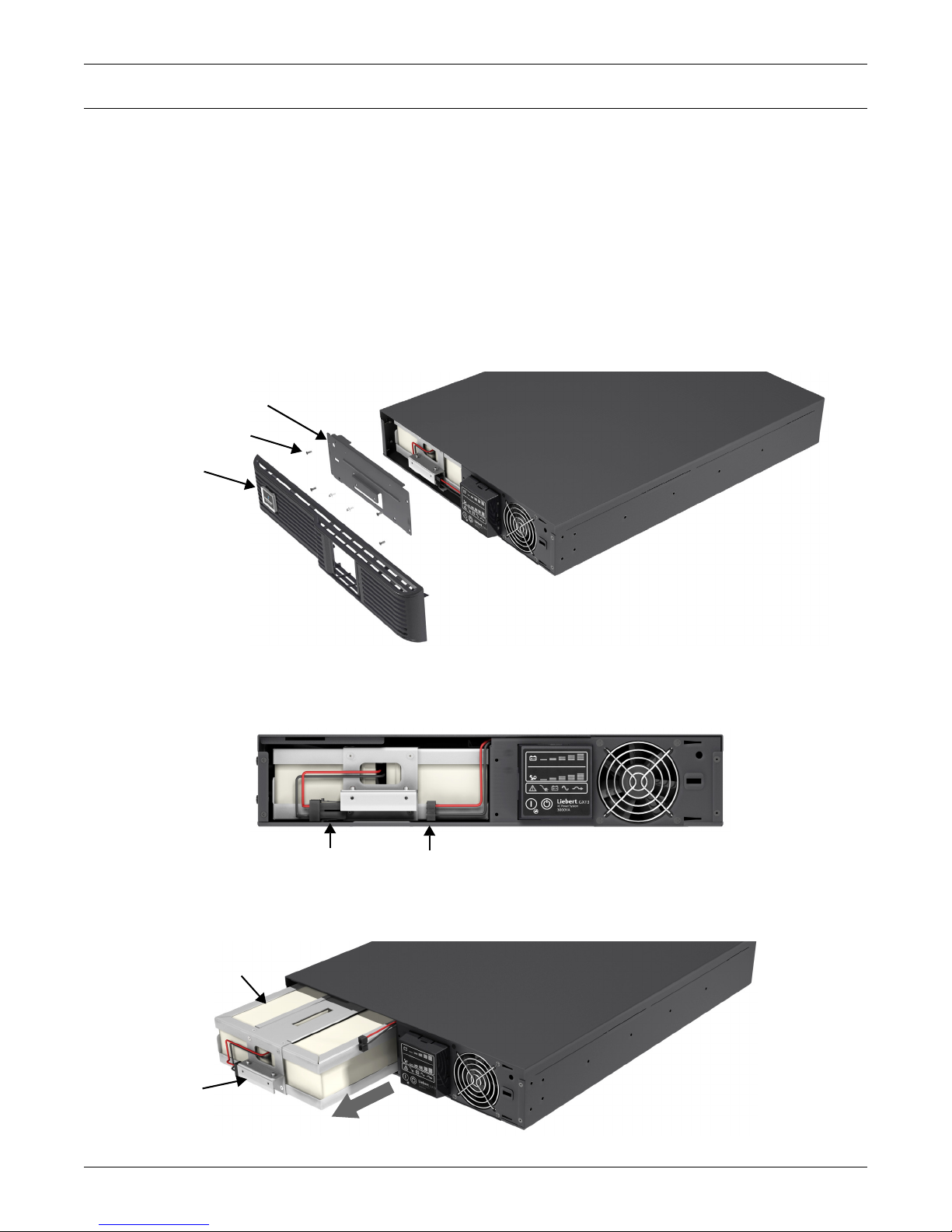

Figure 21 Removing the front plastic bezel cover and battery door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Figure 22 Disconnecting the battery plug and battery receptacle (front view) . . . . . . . . . . . . . . . . . . . . . . . 25

Figure 23 Pulling out the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Figure 24 Battery level indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

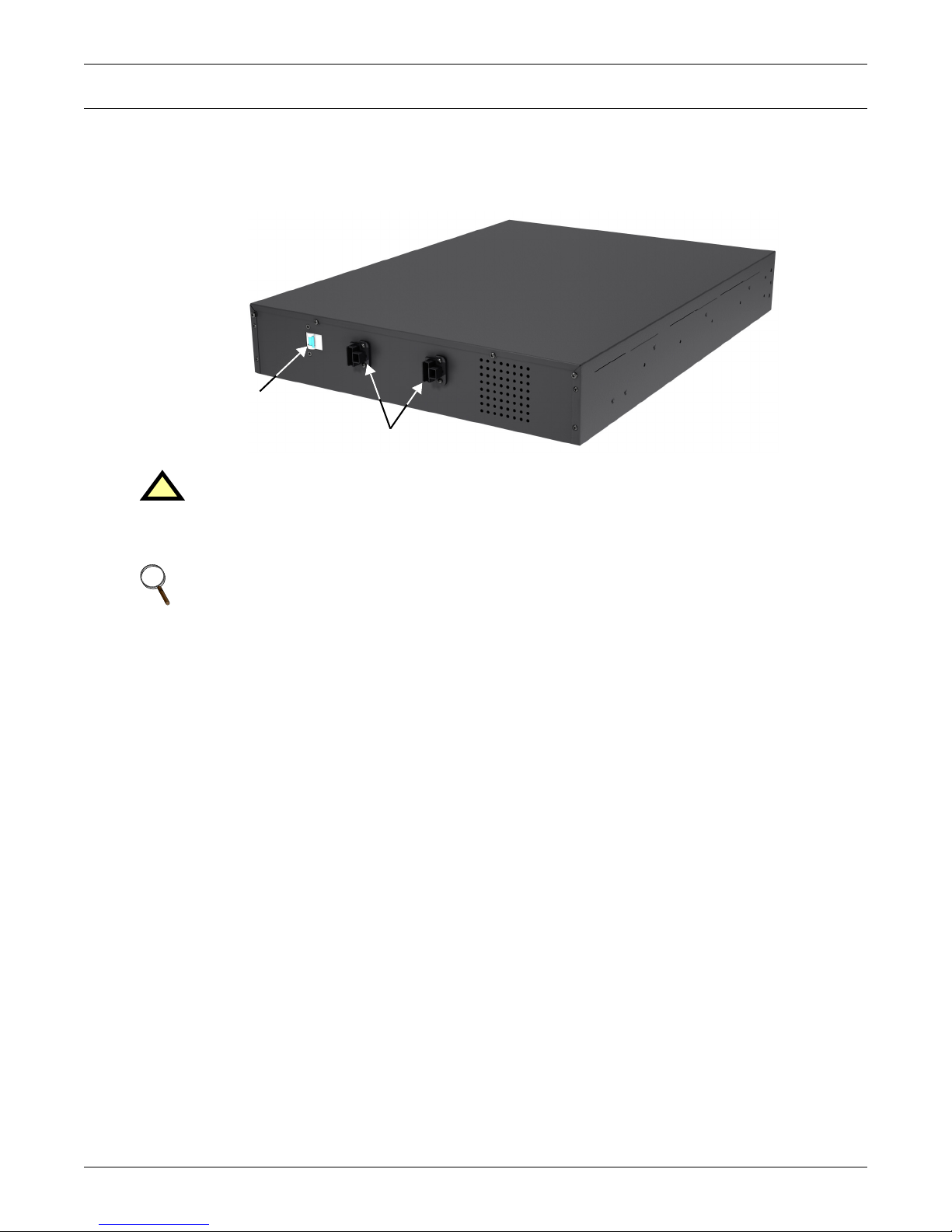

Figure 25 Battery cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

TABLES

Table 1 UPS models, power ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Table 2 Specification of input circuit breaker. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Table 3 Functions of the On/Alarm Silence/Manual Battery Test button . . . . . . . . . . . . . . . . . . . . . . . . . 16

Table 4 Functions of the Standby/Manual Bypass button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

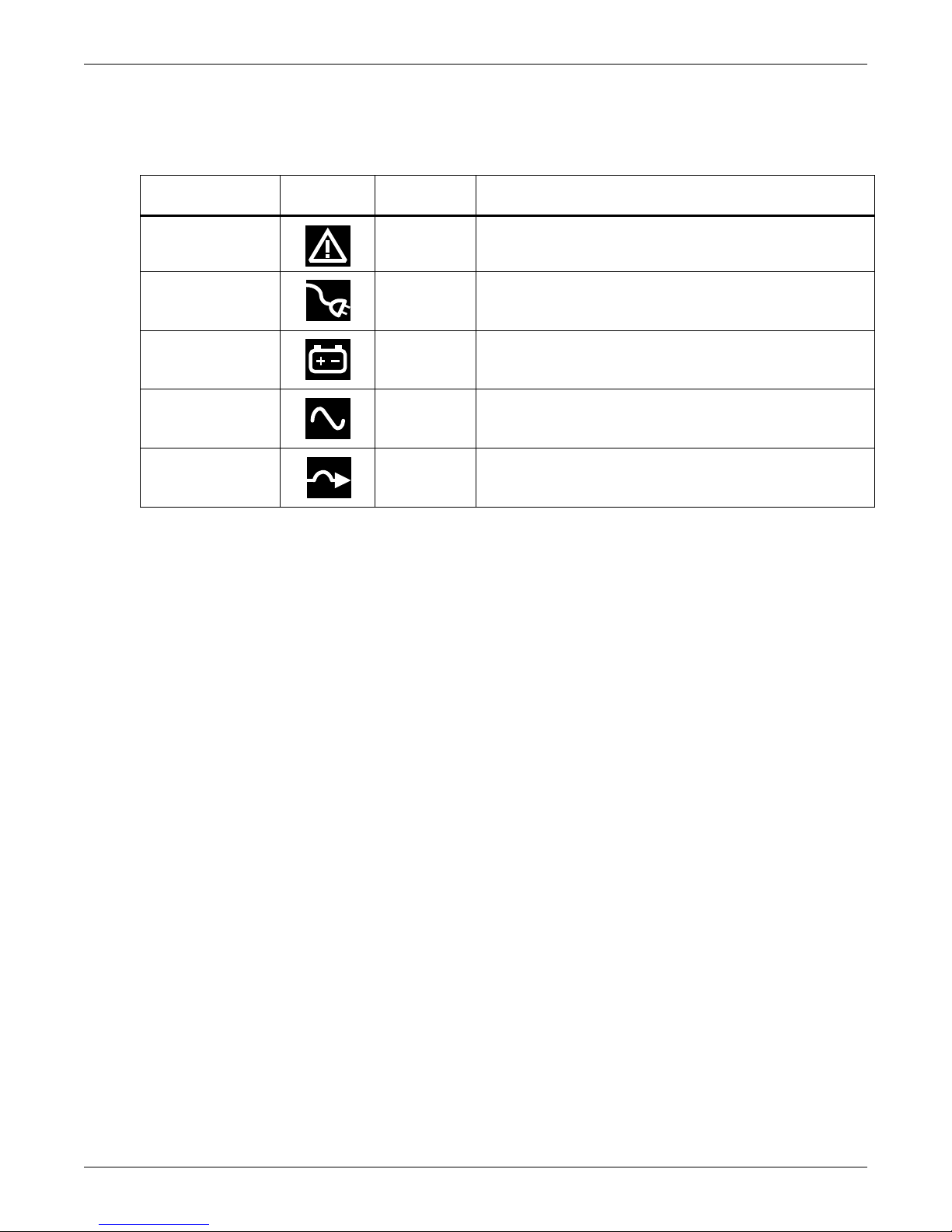

Table 5 UPS status indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Table 6 Output voltage option, all models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Table 7 Indicator descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Table 8 Audible alarm description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Table 9 Troubleshooting table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Table 10 Specifications of GXT3-700RT230 and GXT3-1000RT230 UPS. . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table 11 Specifications of the Liebert GXT3-1500RT230, GXT3-2000RT230 and GXT3-3000RT230 . . . . 33

Table 12 Operating temperature parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Table 13 Battery cabinet specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Table 14 Battery run times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

iii

iv

IMPORTANT SAFETY PRECAUTIONS

WARNING

!

Observe all cautions and warnings in this manual. Failure to do so may result in serious
injury or death.

Refer all UPS and battery service to properly trained and qualified service personnel. Do not
attempt to service this product yourself.

Opening or removing the cover may expose you to lethal voltages within this unit even when
it is apparently not operating and the input wiring is disconnected from the electrical source.

Never work alone.

SAVE THESE INSTRUCTIONS

This manual contains important safety instructions that must be followed during the installation and
maintenance of the UPS and batteries. Read this manual thoroughly before attempting to install or
operate this UPS.

UPS Safety Notes

The UPS contains no user-serviceable parts except the internal battery pack. Do not remove the
cover. Removing the cover may result in electric shock and will invalidate any implied warranty.

The UPS has an internal battery, so the output receptacles of the UPS may carry live voltage even if
the UPS is not connected to mains input power.

Before moving or rewiring the UPS, disconnect mains input power and the battery and make sure
that the UPS is completely shut down. Otherwise, the output terminal may carry live voltage, pre­senting an electric shock hazard.

To ensure human safety and normal UPS operation, the UPS must be properly grounded before use.

When the UPS is connected to an IT power distribution system, the short-circuit protection device
must be installed on the neutral line.

Install and use the UPS in the following environments:

• Temperature: 0°C to 40°C (32-104°F); relative humidity: 0% to 95%)

• Out of direct sunlight

• Away from heat source

• Stable surface, not subject to vibrations or shocks

• Away from dust and other particulates

• Away from corrosive substances, salts and flammable gases

Keep the air inlet and outlet of the UPS unobstructed. Poor ventilation will increase the UPS internal
temperature and can shorten the life of the UPS and its batteries.

Keep liquid and other foreign objects away from the UPS.

In case of fire, use a dry chemical fire extinguisher to put out the fire. Using a fluid fire extinguisher
may cause electric shock.

This UPS is not intended for use with life support and other designated critical devices. Maximum
load must not exceed that shown on the UPS rating label. This UPS is designed for data processing
equipment. If uncertain, consult your local dealer or Emerson representative.

1

Battery Safety

CAUTION

!

Do not dispose of the battery in a fire. The battery may explode.
Do not open or damage the battery. Released electrolyte is harmful to skin and eyes. If

electrolyte comes into contact with the skin, wash the affected area immediately with plenty
of clean water and get medical attention.

CAUTION

!

A battery can present a risk of electrical shock and high short-circuit current. The following
precautions should be observed when working on batteries:

• Remove watches, rings and other metal objects.

• Use tools with insulated handles.

• Wear rubber gloves and boots.

• Do not lay tools or metal parts on top of batteries.

• Disconnect charging source prior to connecting or disconnecting battery terminals.

• Determine if the battery is inadvertently grounded. If it is inadvertently grounded, remove
the source of the ground. Contact with any part of a grounded battery can result in electri­cal shock. The likelihood of such shock will be reduced if grounds are removed during
installation and maintenance (applicable to a UPS and a remote battery supply not having
a grounded supply circuit).

ELECTROMAGNETIC COMPATIBILITY—The Liebert GXT3 series complies with the limits for a
Class A digital device. Operating this device in a residential area is likely to cause harmful interfer­ence that users must correct at their own expense.

The Liebert GXT3 series complies with the requirements of EMC Directive 2004/108/EC and the pub­lished technical standards. Continued compliance requires installation in accordance with these
instructions and use of accessories approved by Emerson.

Information for the Protection of the Environment

UPS SERVICING—This UPS makes use of components dangerous for the environment (electronic
cards, electronic components). The components removed must be taken to specialized collection and
disposal centers.

NOTICE TO EUROPEAN UNION CUSTOMERS: DISPOSAL OF OLD APPLIANCES—This
product has been supplied from an environmentally aware manufacturer that complies with the
Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/CE.

The “crossed-out wheelie bin” symbol at right is placed on this product to
encourage you to recycle wherever possible. Please be environmentally
responsible and recycle this product through your recycling facility at its end
of life. Do not dispose of this product as unsorted municipal waste. Follow
local municipal waste ordinances for proper disposal provisions to reduce the
environmental impact of waste electrical and electronic equipment (WEEE).

For information regarding the scrapping of this equipment, please browse

http://www.eu.emersonnetworkpower.com (“Products session” or “Con-

tact us” session) or call our worldwide technical support.

• Toll Free: 00 80011554499

• Toll Number Based in Italy: [phone]

2

GLOSSARY OF SYMBOLS

!

PbH2SO4

-

+

R

Risk of electrical shock

Indicates caution followed by important instructions

AC input

AC output

i

Requests the user to consult the manual

Indicates the unit contains a valve-regulated lead acid battery

Recycle

DC voltage

Equipment grounding conductor

Bonded to ground

AC voltage

ON/Alarm Silence/Battery Test

OFF/Bypass

WEEE

3

1.0 PRODUCT DESCRIPTION

The Liebert GXT3 is a compact, online uninterruptible power system (UPS) that continuously condi­tions and regulates its output voltage. The Liebert GXT3 is designed to supply microcomputers and
other sensitive electronic equipment with clean sine wave input power, 700VA to 3000VA at 230V.

Upon generation, AC power is clean and stable. However, during transmission and distribution it is
subject to voltage sags, spikes and complete failure that may interrupt computer operations, cause
data loss and damage equipment.

The Liebert GXT3 protects equipment from these disturbances. The Liebert GXT3 continuously
charges its batteries from the mains, enabling it to supply power to connected loads, even when the
mains fail.

This section describes the UPS, its features, models, appearance and components, operating princi­ples and operating mode.

1.1 Features

The UPS includes the following features:

• Intelligent battery management to extend the battery life

• Operation and display panel with LED for monitoring load percentage and battery capacity inde­pendently

• Flexible network management with Liebert MultiLink

• Fan fault self-inspection and automated diagnostic function

• Intelligent fan operation, automatically changing rotation speed depending on system require­ments, to decrease power consumption and noise

• Input circuit breaker to ease recovery from overloads

• CE mark and safety approval from CE

• Communication options: USB port, Liebert IntelliSlot

• Dry contacts for remote monitoring

• Input power factor greater than 0.99

• Output voltage selection function

Product Description

™

software

®

port and terminal block communication

1.2 Available Models

Available models of the UPS are shown in Table 1:

Table 1 UPS models, power ratings

Model Nominal Power Rating

GXT3-700RT230 700VA/630W

GXT3-1000RT230 1000VA/900W

GXT3-1500RT230 1500VA/1350W

GXT3-2000RT230 2000VA/1800W

GXT3-3000RT230 3000VA/2700W

4

Product Description

Operation and Display Panel

Ventilation Slots

C14 Input Receptacle

External Battery
Connector

Cooling Fan

Input Circuit
Breaker

C13 Output Receptacles

Liebert IntelliSlot Port

USB Port

Terminal Block
Communication

C20 Input Receptacle

External Battery
Connector

Cooling Fan

C13 Output Receptacles

Liebert IntelliSlot Port

USB Port

Terminal Block
Communication

Input Circuit
Breaker

1.3 Appearance and Components

1.3.1 Appearance

The Liebert GXT3 rack/tower models in various power ratings have the same general appearance,
controls and features (see Figure 1). The various rack/tower models differ largely in the type of
receptacles each has.

Figure 1 Liebert GXT3-700RT230 - GXT3-3000RT230 UPS

1.3.2 Rear Panel Features

The rear panel of the Liebert GXT3 has these features:

•USB port

• Cooling fan

• C19 output receptacle (GXT3-3000RT230 only)

• Six C13 output receptacles

• Input circuit breaker

• Liebert IntelliSlot

• Communication terminal block

• Input receptacle

Figure 2 Rear panel components, Liebert GXT3 230V 700VA, 1000VA and 1500VA models

Figure 3 Rear panel components, Liebert GXT3 230V 2000VA models

5

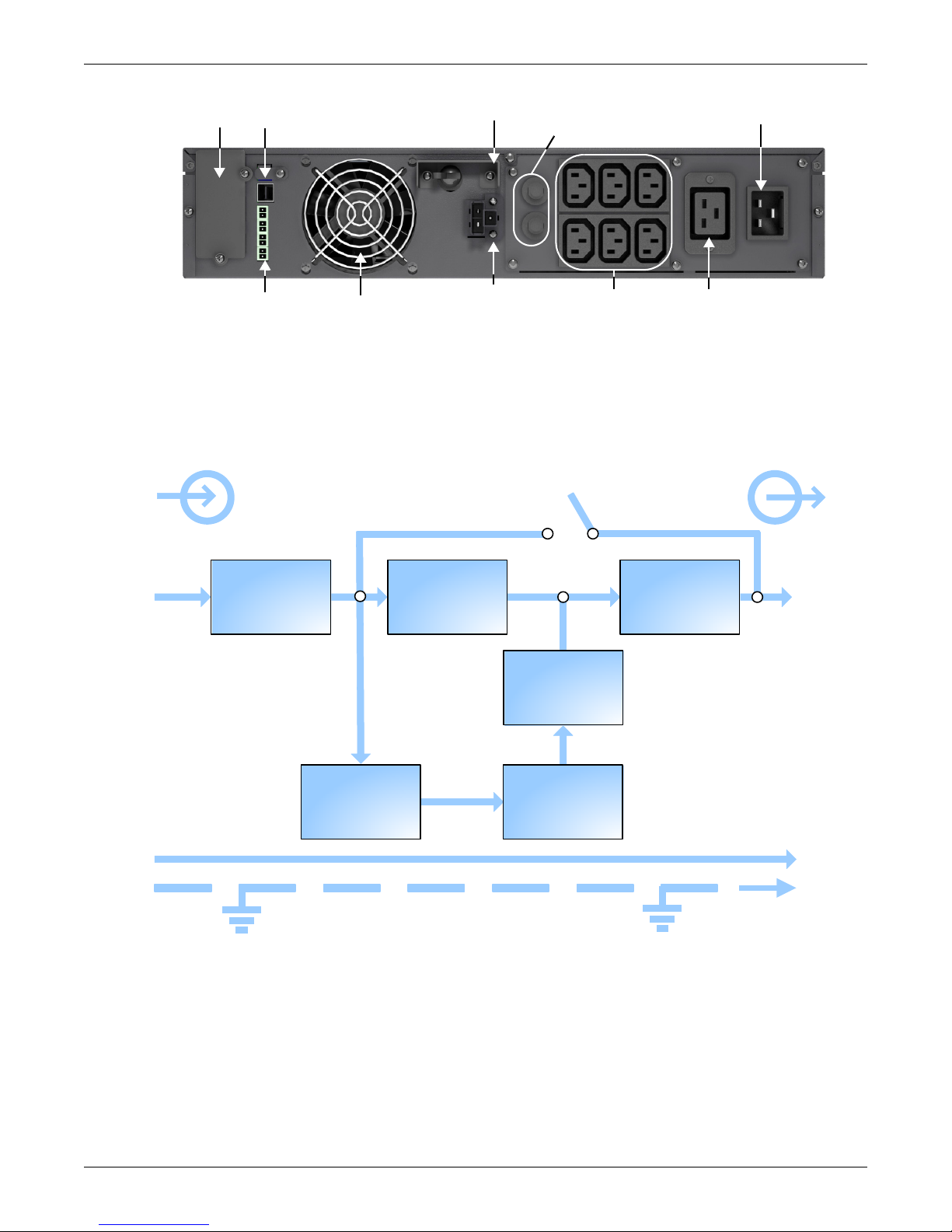

Figure 4 Rear panel components, Liebert GXT3 230V 3000VA models

C20 Input Receptacle

Output Circuit
Breakers

Cooling Fan

C13 Output
Receptacles

Liebert IntelliSlot Port

USB Port

Terminal Block
Communication

C19 Output
Receptacle

Input Circuit
Breaker

External Battery
Connector

L1

Dynamic

Bypass

Input

DC-to-DC

Converter

Rectifier/

PFC

Inverter

Battery

Battery

Charger

L1

TVSS & EMI/

RFI Filters

N

Output

N

G

G

1.4 Major Components

The operating principle of the UPS is shown in Figure 5.

Figure 5 Operating principle diagram

Product Description

The UPS is composed of mains input, TVSS and EMI/RFI filters, rectifier/PFC, inverter, battery char­ger, DC-to-DC converter, battery, dynamic bypass and UPS output.

Transient Voltage Surge Suppression (TVSS) and EMI/RFI Filters

The Liebert GXT3 has surge protection and filters that protect the connected load from power surges
and sags, electromagnetic interference (EMI) and radio frequency interference (RFI). These features
can minimize any surges or interference present in the mains power. The filters also prevent surges
or interference generated by the UPS from adversely affecting other devices connected on the same
branch as the UPS.

6

Product Description

Rectifier/Power Factor Correction (PFC) Circuit

In normal operation, the Liebert GXT3’s rectifier/power factor correction (PFC) circuit converts mains
power to regulated DC power for use by the inverter while ensuring that the wave shape of the input
current used by the UPS is near ideal. Extracting this sine wave input current achieves two objec­tives:

• Efficient power use by the UPS

• Reduced reflected harmonics

This results in cleaner power being available to other devices in the building that are not protected by
the UPS.

Inverter

In normal operation, the Liebert GXT3’s inverter utilizes the DC output of the PFC circuit to produce
precise, regulated sine wave AC power. When mains power fails, the inverter receives DC power from
the battery through the DC-to DC converter. In either operation mode, the UPS inverter is online,
continuously generating clean, precise, regulated AC output power.

Battery Charger

The battery charger utilizes energy from the mains power and precisely regulates it to continuously
float charge the batteries. The batteries are being charged whenever the Liebert GXT3 is plugged in,
even when the UPS is not turned on.

DC-to-DC Converter

The DC-to-DC converter raises the DC voltage from the battery to the optimum operating voltage for
the inverter. This allows the inverter to operate continuously at its optimum efficiency and voltage,
increasing reliability.

Battery

The Liebert GXT3 utilizes valve-regulated, nonspillable, lead acid batteries. To maintain battery
design life, operate the Liebert GXT3 in an ambient temperature of 0°C to 25°C (32°F to 77°F).

Optional external battery cabinets are available to extend battery run times.

Dynamic Bypass

The Liebert GXT3 provides an alternate path for mains power to the connected loads in the unlikely
event of a UPS malfunction. Should the Liebert GXT3 have an overload, overtemperature, or UPS
failure condition, the UPS automatically transfers the connected loads to bypass.

NOTE

The bypass power path does not protect the connected loads from disturbances on the mains.

1.5 Operating Mode

The UPS operation modes include the following: Mains (AC) Mode, Bypass Mode, Battery Mode, Bat­tery Recharge Mode and Frequency Converter Mode.

For the descriptions of operation mode indicators and control buttons, refer to 3.0 - Operation and
Display Panel.

1.5.1 Mains (AC) Mode

During Mains (AC) Mode, the mains provides energy to the Liebert GXT3. The filters, PFC circuit and
inverter process this power to provide high-level power to connected loads. Meanwhile, the UPS main­tains the batteries in a fully charged state.

7

1.5.2 Manual Bypass Mode

Manual Bypass Mode occurs when the Standby/Manual Bypass button is pressed once while the Lie­bert GXT3 is in Mains (AC) Mode. Bypass operation is indicated by an audible alarm and illuminated
amber bypass indicator. (If other indicators are illuminated, refer to 7.0 - Troubleshooting). During
Bypass Mode, mains power bypasses the inverter and provides energy to the connected load.

CAUTION

!

Turning off the UPS in Bypass Mode will result in loss of output power.

1.5.3 Battery Mode

The Liebert GXT3 enters Battery Mode when mains power fails or is outside acceptable values. The
battery system supplies power through the DC-to-DC converter to the inverter to generate clean AC
power for the connected loads.

When the Liebert GXT3 enters Battery Mode, the UPS sounds a half-second beep at 10-second inter­vals. When approximately 2 minutes of run time remains, the beeps sound every 5 seconds to warn
that the battery is getting low (this Low Battery Warning is user-configurable).

In Battery Mode, the AC Input indicator is Off and the Battery Level indicators illuminate to warn
that a mains problem has occurred. Each battery level indicator represents a 20% capacity level. As
capacity decreases, fewer indicators remain illuminated. Refer to 7.0 - Troubleshooting.

For approximate battery run times, refer to 9.0 - Specifications. The times in Table 14 are approxi­mate. They are based on resistive load and an ambient temperature of 25°C (77°F). To increase this
time, turn off non-essential loads (such as idle computers and monitors) or add optional external bat­tery cabinets.

Product Description

CAUTION

!

Turning Off the Liebert GXT3 when it is in Battery Mode will result in loss of output power.
If the UPS is turned Off manually, it must be manually restarted after mains power returns.
If the UPS is turned Off by a communication signal or because the batteries are depleted, it

will operate as selected in the configuration program for Auto-Restart (Refer to 5.2.1 -
Configuration Program).

1.5.4 Battery Recharge Mode

Once mains power is applied to the Liebert GXT3, the Battery Charger begins charging the batteries.

1.5.5 Frequency Converter Mode

All models of the Liebert GXT3 are capable of frequency conversion. Frequency Conversion Mode can
be selected using the configuration program. Allowable frequency operating modes include:

• Auto Sensing - 50Hz or 60 Hz – Bypass Enabled

• Auto Sensing - 50Hz or 60 Hz – Bypass Disabled

• Frequency Converter - 50Hz – Bypass Disabled

• Frequency Converter - 60Hz – Bypass Disabled

NOTE

The default for all models of the Liebert GXT3 is “Auto Sensing - 50Hz or 60 Hz – Bypass
Enabled.”

CAUTION

!

Do not touch the AC input receptacle when the UPS is operating. AC input voltages may still
be present even when the AC input indicator is Off.

8

2.0 INSTALLATION

2.1 Unpacking and Inspection

Unpack the UPS and conduct the following checks:

• Inspect the UPS for shipping damage. If any shipping damage is found, report it to the carrier and
your local dealer or Emerson representative immediately.

• Check the accessories against the delivery list. If there is any discrepancy, contact your local
dealer or your Emerson representative immediately.

2.2 What’s Included

With GXT3 UPS

• Compact Disk with:

• Liebert MultiLink

• Configuration Program

• User Manual

• USB Cable: one, 2m (6-1/2 ft.) long

• Mounting hardware, including screws and handles

• Plastic tower stand sets: 2 (four pieces)

• Warnings, Safety Instructions booklet and WEEE recycling sheet (ISO 14001 compliance)

• for 700VA - 1500VA (2) 10A IEC C13 C14 Output Cable, 2m (6-1/2 ft.) long

• for 2000VA - 3000VA (3) 10A IEC C13 C14 Output Cable, 2m (6-1/2 ft.) long

• for 3000VA:

• (1) CEE 7/7 (Schuko) to IEC C20 Input Cable, 2.5m (8-1/5 ft.) long

• (1) BS1363 (UK) to IEC C20 Input Cable, 2.5m (8-1/5 ft.) long

Installation

NOTE

The GXT3 External Battery Cabinet shipping package includes one battery cabinet, two
spacers for tower configuration and one DC power cable.

2.3 Preparation for Installation

2.3.1 Installation Environment

• Install the UPS indoors in a controlled environment, where it cannot be accidentally turned Off.
The installation environment should meet the specifications in 9.0 - Specifications.

• Place the UPS in an area where airflow around the unit is unrestricted and away from water,
flammable liquids, gases, corrosives and conductive contaminants. Avoid direct sunlight.

NOTE

Operating the Liebert GXT3 in temperatures above 25°C (77°F) reduces battery life.

Installation Clearances

Maintain a clearance of at least 100mm (4 inches) in the front and rear of the Liebert GXT3. Do not
obstruct the air inlets on the front panel and rear panel of the UPS; blocking the air inlets reduces
ventilation and heat dissipation, shortening the service life of the Liebert GXT3.

2.4 Mechanical Installation

The Liebert GXT3 may be installed as a tower or in a rack, depending on space and use consider­ations. The Liebert GXT3 may be used alone, as a single UPS, or with up to four battery cabinets.

NOTE

When installing the UPS or making input and output connections, comply with all relevant
safety codes and standards.

9

2.4.1 Tower Installation

Support Bases

Spacers

Connectors

Front Plastic

Bezel Cover

Operation and Display Panel

Rotated Clockwise 90 Degrees

To install the Liebert GXT3 as a tower:

1. Take out support bases from the accessories (see Figure 6).

Figure 6 Support bases

2. If optional Liebert external battery cabinets will be connected to the Liebert GXT3, take out the
spacers delivered with the battery cabinet.

3. Connect the spacers and the support bases as shown in Figure 6. Each Liebert GXT3 needs two
assembled support bases, one in the front and one in the rear.

4. Adjust the direction of the operation and display panel and logo on the Liebert GXT3.
a. Remove the front plastic bezel cover (see Figure 7).

Figure 7 Remove the front plastic bezel cover

Installation

b. Pull the operation and display panel, rotate it 90 degrees clockwise and snap it back into

position (see Figure 8).

Figure 8 Rotate the operation and display panel

c. Pull the logo on the front plastic bezel cover, rotate it 90 degrees clockwise and snap it back

into position. The rotated front plastic bezel cover is shown in Figure 9.

d. Replace the front plastic bezel cover on the Liebert GXT3. At this point, the UPS operation

and display panel and logo have been rotated 90 degrees clockwise, which provides upright
viewing for users.

5. Place the Liebert GXT3 and any battery cabinets on the support bases. Each Liebert GXT3 needs
four support bases, as shown in Figure 9.

10

Figure 9 Tower installation

Operation and

Display Panel

Rotated for

Tower Operation

Support Bases

Support Bases

Liebert GXT3 UPS

Liebert GXT3 UPS and

External Battery Cabinet

Inner member

Bracket assembly

P

u

l

l

o

u

t

Retaining latch

Installation

2.4.2 Rack Installation

NOTE

• When the Liebert GXT3 is installed in a rack, the UPS must be supported by a shelf,
brackets, or slide rails on each side. The factory-supplied ears cannot support the weight of
the UPS. They are used to move the UPS into and out of the rack and attach the UPS to the
rack.

• Mounting hardware and slide rails are sold separately. Contact your local dealer or
Emerson representative for these options and any assistance.

To install a Liebert GXT3 UPS in a rack:

1. Unpack the two bracket assemblies and mounting hardware from the rack-mounting kit
(P/N: RMKIT18-32). Bracket assembly includes inner member, front member and rear member.
They are interchangeable between left-hand and right-hand. Mounting hardware includes M4
screws and M5 screws.

2. Remove inner member of each bracket assembly by extending it to its outermost position,
depressing the retaining latch and then pulling the inner member from the bracket assembly (see

Figure 10).

Figure 10 Pulling inner member from each bracket assembly

11

3. Determine the desired height and mounting position of the Liebert GXT3 inside the rack’s vertical

M5 screw (4 pcs)

Vertical pole

Rear member

Front member

Front vertical pole

M5 screw (4 pcs)

Front member

Rear member

S

l

i

d

e

M4 screw (8 pcs)

Rear member

Front member

M4 nut (8 pcs)

rails.

CAUTION

!

Reduce risk of tipping the rack by installing the Liebert GXT3 in the lowest possible rack
position.

4. Attach the rear member of each bracket assembly to the rack’s vertical rails with two factory­supplied M5 screws (see Figure 11).

Figure 11 Installing rear member of each bracket assembly

5. Extend bracket assembly by sliding the front member forward until it touches the rack’s front
vertical rails (adjustable length: 18 inches to 32 inches).

6. Use two M5 screws to attach each front member onto the front vertical rails through the
installation holes. Make sure that the bracket assemblies are at the same mounting height on all
four of the rack’s vertical rails (see Figure 12.)

Figure 12 Installing front member of each bracket assembly

Installation

7. Fasten the rear and front members together using four M4 screws and four M4 nuts (M4 nuts
have been installed on the rear member before delivery) per bracket assembly, as shown in

Figure 13.

Figure 13 Fastening rear member and front member together

8. Fasten inner members pulled from the bracket assemblies in Step 2 to the UPS on both sides with

eight M4 screws provided in this kit. Make sure that the retaining latch is near the rear of the
UPS, as shown in Figure 14.

12

Figure 14 Installing inner members

M4 sc rew

, 8 pieces

Retaining Latch

Liebert GXT3 UPS

Inner Member

M4 Screw

, 8 pieces

Ear,

2pieces

Liebert GXT3 UPS

Inner Member

Front Member

Insert

9. Use M4 screws to install ears of accessories on both sides of the UPS, as shown in Figure 15.

Figure 15 Installing ears

Installation

Figure 16 Insert the UPS

10. Insert the UPS, with inner members attached, into bracket assemblies by inserting top and
bottom edges of inner members into the top and bottom curved tracks of front members and
sliding the UPS into the rack, as shown in Figure 16.

NOTE

Ends of inner members are tapered to allow the rear of the UPS to be angled upward before
insertion, if space allows.

The UPS should move smoothly into the bracket assemblies. If not, recheck alignment of front
and rear members from Steps 4 through 7.

13

11. Through the ears, use M5 screws provided in this kit to secure the front of the UPS to the rack’s
vertical rails to prevent the UPS from sliding out of position.

12. If optional Liebert external battery cabinets will be connected to the UPS, they can be placed all
on one side of the UPS or stacked beneath the UPS. The installation procedures are the same as
those for the UPS.

NOTE

Up to four external battery cabinets can be connected to the Liebert GXT3. Each cabinet will
increase the battery recharge time.

2.5 Cable Connection

The Liebert GXT3 rear panel has an input receptacle and output receptacles. Refer to 1.3.2 - Rear
Panel Features for details. The battery cables are supplied with the battery cabinet.

2.5.1 Connecting Input Plug and Loads

NOTE

Ensure that all the loads are turned off.

Prepare an input power supply that is properly protected by a circuit breaker in accordance
with national and local electrical codes. The wall receptacle must be grounded.

Emerson recommends installing an upstream circuit breaker of the same series as the Liebert
GXT3’s input circuit breaker. The upstream breaker should have a higher capacity than the
UPS input circuit breaker.

Installation

The specification of input circuit breaker on the rear panel of the UPS is given in Table 2.

Table 2 Specification of input circuit breaker

Rated Circuit

Model

GXT3-700RT230 10A

GXT3-1000RT230 10A

GXT3-1500RT230 10A

GXT3-2000RT230 16A

GXT3-3000RT230 16A

Breaker

1. Plug all loads into the output receptacles on the rear panel of the Liebert GXT3.

NOTE

1. Do not overload any one output receptacle.

2. Output cable length should not exceed 10m (32.8 ft).

3. Plug the input receptacle of the Liebert GXT3 into the input power connection.

2.5.2 Connecting Battery Cables

1. Switch Off the input breaker of the battery cabinet.

2. Take out the battery cable included with the battery cabinet.

3. Connect one end of the battery cable to the external battery connector on the rear panel of the
UPS, and connect the other end to any battery port on the rear panel of the battery cabinet.

4. Switch On the battery breaker on the rear of the external battery cabinet.

5. Use the Configuration Program included with the UPS to specify the number of external battery
cabinets connected to the Liebert GXT3. See Table 14 for approximate battery run times.

14

2.6 Connecting Communication Cables

Communication cable connection includes USB and option card cables.

2.6.1 Connecting USB Communication Cables

1. Remove the USB communication cables from the accessories box.

2. Insert one end of the USB communication cable to the USB port on the rear panel of the Liebert
GXT3 (see Figure 2).

3. Insert the other end of the USB communication cable to the USB port of the computer.

2.6.2 Installing the Optional Liebert IntelliSlot Card and Communication Cables

1. Remove the protective cover of the Liebert IntelliSlot port on the Liebert GXT3 and set it aside.

2. Insert the Liebert IntelliSlot card into the Liebert IntelliSlot port and secure it with screws.

3. To connect any cable associated with a Liebert IntelliSlot card, refer to the user manual provided
with the card.

To configure and use the Liebert IntelliSlot communication card, refer to the card’s user manual.
Manuals for the various Liebert IntelliSlot cards are available at Liebert’s Web site:

www.liebert.com

Installation

15

3.0 OPERATION AND DISPLAY PANEL

Liebert

®

GXT3
AC Power System
3000VA

Battery Level Indicators

Load Level Indicators

Bypass Indicator

Inverter Indicator

Battery Indicator

Standby/Manual Bypass Button

On/Alarm Silence/Manual
Battery Test Button

AC Input Indicator

Fault Indicator

The operation and display panel, shown in Figure 17, is on the front panel of the Liebert GXT3 (see
Figure 1).

Figure 17 Operation and display panel

Operation and Display Panel

3.1 Control Buttons

The operation and display panel has two control buttons: the On/Alarm Silence/Manual Battery Test
button and the Standby/Manual Bypass button.

3.1.1 On/Alarm Silence/Manual Battery Test button

The On/Alarm Silence/Manual Battery Test button controls output power to connected load(s) and
has three functions (see Table 3).

Table 3 Functions of the On/Alarm Silence/Manual Battery Test button

Function Operation Description

ON Press the button once for 3 seconds To start up the UPS

Alarm silence

Manual Battery Test

1. The low battery and bypass reminder alarms cannot be silenced.

2. After the alarm is silenced, UPS will reactivate the alarm system to alert of additional problems.

1

3.1.2 Standby/Manual Bypass button

The Standby/Manual Bypass button controls output power to connected load(s) and has two functions
(see Table 4).

Table 4 Functions of the Standby/Manual Bypass button

Function Operation Description

Manual Bypass Press the button once.

Standby Press the button twice within four seconds while

1. If the bypass is not available due to voltage or frequency, pressing this button once will be ignored.

2. Perform all necessary shutdown procedures on connected loads before turning off the Liebert GXT3.

Press the button for at least half a second To silence alarms

Press the button for at least half a second while
operating in Mains (AC) Mode with no alarms present.

1

the UPS is in Manual Bypass or Battery Mode.

To initiate a manual transfer of the connected
loads to the internal bypass, if available

To shut down the UPS and shut Off all power

2

to the connected loads

2

To initiate a manual battery test

16

3.2 Indicators

0 - 20%

Fully

Charged

81 - 100%

61 - 80%

41 - 60%

21 - 40%

ON ON ON ON ON

ONONONONON

OFFON ON ON ON

ON ON OFF OFF OF F

ON OFF OFF OFF OFF

ONON ON OF F OFF

Discharging

Flash OFF OFF OFF OFF

OFFON ON ON Flash

ONON Flash OFF OFF

ON Flash OFF OFF OFF

FlashONONONON

ON ON ON ON ON

Charging

ON OFF OF F OF F OF F

ON ON

OFF OFF OF F

ON ON ON OFF OFF

ON ON ON ON

OFF

ON ON ON ON ON

0 - 25%

Overload

76 - 100%

51 - 75%

26 - 50%

The operation and display panel has seven indicators (see Figure 16). The indicators can be divided
into two groups according to their applications: level indicators and UPS status indicators.

3.2.1 Level Indicators

Battery Level Indicators

The battery level indicator is composed of five sets of LED bars that illuminate and flash to indicate
the battery capacity level. The Liebert GXT3 battery capacity level is shown in 20% increments (±5%).
The battery level indicators will illuminate as shown in Figure 18.

Figure 18 Battery level indicators

Operation and Display Panel

Load Level Indicators

The load level indicator is composed of five sets of LED bars that illuminate to indicate the relative
load on the UPS output in 25% increments (±5%). The load level indicator will illuminate as shown in
Figure 19.

Figure 19 Load level indicators

17

3.2.2 UPS Status Indicators

UPS status is indicated by five symbols: fault indicator, AC input indicator, battery indicator,
inverter indicator and bypass indicator. Table 5 shows the symbols and their meanings.

Table 5 UPS status indicators

UPS Status

Indicator Icon Color Description

Fault Indicator Red On if the UPS has detected a fault; Off if there is no fault

Operation and Display Panel

AC input Indicator Green

Battery Indicator Amber

Inverter Indicator Green

Bypass Indicator Amber

On when the mains input power is normal; Off during mains
failure; flashing when mains power is outside specifications

On when the battery is supplying power; Off when the battery
is not supplying power

On when the inverter is supplying power; Off when the
inverter is not supplying power

On when the bypass is supplying power; Off when the bypass
is not supplying power; flashing when mains power is outside
specifications

18

4.0 OPERATION

This section describes checks to be made before starting the UPS, how to start the UPS, manual bat­tery test, manual bypass, shutting down the UPS and disconnecting the mains power from the UPS.

NOTE

The Liebert GXT3’s battery has been fully charged before delivery, but some charge will be lost
during storage and shipping. To ensure that the battery has adequate reserve power to protect
the connected load, charge the battery for three hours before putting the UPS into service.

4.1 Startup Checklist for the Liebert GXT3

Before starting the UPS, perform these checks:

___ 1. Check that the input plugs and loads are connected properly and reliably.

___ 2. Check that the battery cable is connected properly.

___ 3. Check that the communication cables are connected properly.

4.2 Starting the UPS

1. Turn On the input circuit breaker (see Figure 2 for its position).

2. Turn On the UPS by pressing the On/Alarm Silence/Manual Battery Test button for three
seconds.

After the button is pressed, the LEDs on the display will signal that the unit has initiated the
startup process.

3. Once the inverter LED has been illuminated, turn On the connected loads.

4. Check the status indicators to determine whether the Liebert GXT3 is operating normally.

5. Check the load level indicators to verify that the connected load does not exceed the UPS’s rated
capacity.

Operation

The UPS is now providing conditioned power to the loads.

4.3 Manual Battery Test

To initiate a manual battery test, press the On/Alarm Silence/Manual Battery Test button for at least
half a second while operating from mains power with no alarm conditions present.

• If only the first two of the five LED segments illuminate, allow the UPS to recharge the batteries
for 24 hours.

• Retest the batteries after 24 hours of charging.

• After the batteries have been retested, if only two of the five Battery LEDs illuminate, contact
your local Emerson representative or Emerson Network Power Channel Support.

• If none of the five Battery LEDs illuminate during a manual battery test, check the battery con­nection and allow the UPS to recharge the batteries for 1 hour, then initiate a manual battery test
again.

• If none of the five Battery LEDs illuminate during the second manual battery test, replace batter­ies and contact your local Emerson representative or Emerson Channel Support.

4.4 Manual Bypass

Press the Standby/Manual Bypass button once while the UPS is in Mains (AC) Mode. The UPS will
transfer the connected loads to the internal bypass. If the internal bypass is not available because of
mains power problems, pressing this button once will be ignored. Bypass operation is indicated by an
audible alarm and illuminated amber Bypass indicator. (If other indicators are illuminated, refer to

7.0 - Troubleshooting.)

19

4.5 Shut Down the Liebert GXT3

1. Transfer the UPS to manual bypass by pressing the manual bypass button once.
If manual bypass is not available, disregard the first step.

2. Press the Standby/Manual Bypass button twice within four seconds to shut down the UPS. The
UPS will shut down about 30 seconds after the button is pressed.

Power to the connected loads is now Off.

4.6 Disconnecting Input Power from the Liebert GXT3

1. After the UPS has been shut down as detailed in 4.5 - Shut Down the Liebert GXT3,
disconnect the input cable plug.

2. Wait 30 seconds and verify that all indicators have turned Off and the fan has stopped; this
indicates that the power-off is complete.

3. Turn the external battery cabinet breaker switch to the Off position if the UPS has an external
battery cabinet.

After powering off the UPS, the UPS ceases output and the load is powered Off.

Operation

20

5.0 COMMUNICATION

This section describes UPS communication over the three types of communication connections on the
rear of the Liebert GXT3:

• Liebert IntelliSlot port

• USB port (standard B-type)

• Terminal Block Communication

CAUTION

!

To maintain safety (SELV) barriers and for electromagnetic compatibility, signal cables
should be segregated and run separate from all other power cables.

5.1 Liebert IntelliSlot Communication Cards

The Liebert IntelliSlot port accepts three optional cards:

• Liebert IntelliSlot SNMP Card

• Liebert IntelliSlot Relay Card

• Liebert IntelliSlot 485 Card.

The Liebert IntelliSlot SNMP Card provides SNMP monitoring and control of the UPS across the net­work.

Communication

The Liebert IntelliSlot Relay Card provides dry contact relay outputs for custom-wired applications
and delivers support for built-in shutdown for AS/400 systems.

The Liebert IntelliSlot 485 Card is used to connect the UPS and computer system.

Follow instructions provided with the Liebert IntelliSlot card to configure Liebert MultiLink, the UPS
or any additional ancillary product for the Liebert GXT3. These instructions are available at:

multilink.liebert.com

5.1.1 Liebert MultiLink

Liebert MultiLink monitors the UPS continuously and can shut down the computer or server in the
event of an extended power failure. Liebert MultiLink can also be configured to shut down the UPS.

Liebert MultiLink can also be configured for use without the USB cable when the Liebert IntelliSlot
SNMP Card or Liebert IntelliSlot Web Card is installed in the UPS. An optional Liebert MultiLink
License Kit permits shutting down the UPS over a network.

For more information about the Liebert IntelliSlot SNMP Card, Liebert IntelliSlot Web Card and Lie­bert MultiLink License Kits, visit the Liebert Web site (www.liebert.com) or contact your local
Emerson representative.

21

5.2 USB Port Communication

The standard B-type USB port is used to connect the UPS and network server or other computer sys­tem using Liebert MultiLink. The configuration program can be completed through the communica­tion port.

5.2.1 Configuration Program

Accessing the Configuration Program via USB is a new feature of the Liebert GXT3. For most users,
the factory default settings will be adequate. This section illustrates the features available for modifi­cation, as well as the factory default setting.

The USB configuration program allows these features of the Liebert GXT3 to be changed:

• Enable/Disable Auto-Restart

• Select frequency converter operation with a fixed output frequency of 50Hz or 60Hz, bypass dis­abled

• Set the Low Battery Warning alarm time from 2 to 30 minutes

• Enable/Disable the Auto-Battery test

• Enable/Disable Auto-Restart after removing Remote shutdown

• Set the wiring mode of Remote shutdown

• Set the Auto-Enable output

• Set the Auto-Battery test to 7, 14, 21 or 28 days

• Select the number of external battery cabinets connected to the UPS to adjust the remaining run
time calculated by Liebert software products

• Select one of multiple output voltages to match various voltages (see Table 6).

Table 6 Output voltage option, all models

Factory Default Setting Output Voltage Option

230VAC 220VAC, 230VAC and 240VAC

Communication

WARNING

!

The output voltage settings cannot be changed while the UPS is on and powering connected
loads.

NOTE

Programming the output voltage of a 230V model of the Liebert GXT3 to 220V automatically
derates the UPS to 96% of both the VA and Watt ratings (refer to 9.0 - Specifications for VA
and Watt ratings).

NOTE

• This program is compatible with UPS models beginning with ‘GXT3,’ as in
‘GXT3-3000RT230.’ It is not compatible with earlier versions of the Liebert GXT UPS.

• A computer running Windows 2000
configuration program.

®

, XP® or Vista® is required to set up and run the

22

5.3 Terminal Block Communication

1

2

3
4

5
6

7
8

Any Mode

Shut Down

Battery Mode

Shut Down

Battery Mode

Low Battery

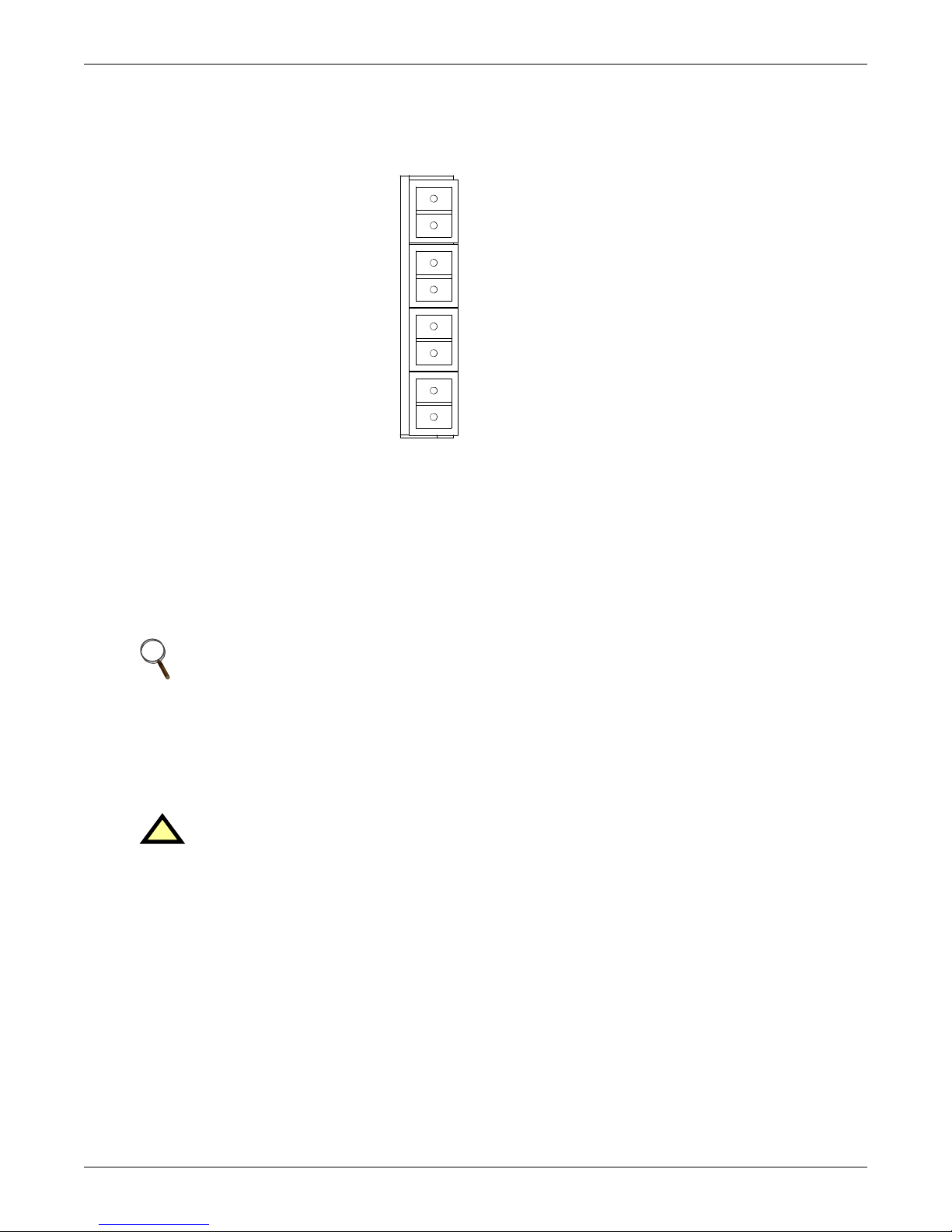

The Terminal Block includes eight pins, as shown in Figure 20.

Figure 20 Dry contact pin layout

5.3.1 Any Mode Shutdown

The purpose of Any Mode Shutdown is to shut down the UPS output by turning Off the rectifier,
inverter and static switch so that there is no power to the loads.

Communication

Any Mode Shutdown can be operated locally or remotely:

• Local Any Mode Shutdown can be performed by shorting Pin 1 and Pin 2.

• Remote Any Mode Shutdown can be performed using a switch connected to Pin 1 and Pin 2 and
mounted at a remote location.

NOTE

Remote Power Off will be performed either by NO or NC contact of Any Mode Shutdown,
depending on the settings in the configuration program.

A current-limited source (+12VDC, 50mA) will be available from the UPS.

The connection to the UPS for remote connection will be via terminal block connector.

Any Mode Shutdown wiring must conform to all national, regional and local wiring
regulations.

WARNING

!

When the Auto-Enable output option is selected and the UPS output is disabled using Pin 1
and Pin 2, the Liebert GXT3’s output can turn On automatically and without warning if the
Pin 1 and Pin 2 connection is changed.

23

5.3.2 Battery Mode Shutdown

Battery Mode Shutdown permits shutting down the UPS by turning off the rectifier, inverter and
static switch so that there is no power to the load when the UPS is On Battery. The auxiliary power
for the UPS will still be active.

Battery Mode Shutdown can be performed locally or remotely:

• Local Battery Mode shutdown can be performed by shorting Pin3 and Pin4.

• Remote Battery Mode Shutdown can be performed using a switch connected to Pin3 and Pin4 and
mounted at remote location.

NOTE

Remote Power Off will be performed by NO contact.

The current-limited source (+12VDC, 50mA) will be available from UPS.

The connection to the Liebert GXT3 for remote connection will be via terminal block connector.

Battery Mode Shutdown wiring must conform to all national, regional and local wiring codes
and laws.

This signal must last for 1.5 seconds or longer.

A battery shutdown signal will not cause an immediate shutdown. It will start a 2-minute
shutdown timer. This timer cannot be stopped once triggered. If the mains power returns
during this countdown, the Liebert GXT3 will still shut down and must remain shut down for
10 seconds. Whether the UPS turns back on when the power is restored depends on the
auto-restart setting.

Communication

5.3.3 On Battery

On Battery signal is a Normally Open (NO) dry contact. When the UPS is supplying output power
from the battery this dry contact will be closed.

5.3.4 Low Battery

Low Battery signal is a Normally Open (NO) dry contact. When the UPS is supplying output power
from the battery and has reached the Low Battery Warning time selected in the configuration pro­gram, this dry contact will be closed.

NOTE

The rated values for the dry contacts are:

• Rated Voltage: 5V

• Working Voltage Range: 4.5-10V

• Rated Current: 30ma

24

6.0 MAINTENANCE

Front Bezel

Battery Door

Screws, 6

Battery Connector Battery Receptacle

Internal Battery Pack

Battery
Handle

Pull Out with Battery Handle

This section describes replacing the internal battery pack, precautions, checking the Liebert GXT3’s
status and checking UPS functions.

6.1 Replacing the Internal Battery Pack

The Liebert GXT3 is designed to allow the user to replace the internal battery pack safely. Read the
safety cautions before proceeding. Contact your local dealer or Emerson representative to obtain the
part number and pricing of the appropriate replacement battery pack.

6.1.1 Battery Replacement Procedures

1. Gently remove the front plastic bezel cover from the UPS.

2. Loosen and remove the six screws on the battery door, as shown in Figure 21.

3. Lay the battery door and screws aside for reassembly.

Figure 21 Removing the front plastic bezel cover and battery door

Maintenance

4. Gently pull the battery wire out and disconnect the battery plug and battery receptacle, as shown

Figure 22 Disconnecting the battery plug and battery receptacle (front view)

5. Grasp the battery handle and pull the internal battery pack out of the UPS, as shown in

Figure 23 Pulling out the battery

in Figure 22.

Figure 23.

25

6. Unpack the new internal battery pack. Take care not to destroy the packing.
Compare the new and old internal battery packs to make sure they are the same type and model.

If they are the same, proceed with Step 7; if they are different, stop and contact your local Emer­son representative or Emerson Channel Support.

7. Line up and slide in the new internal battery pack.

8. Reconnect the battery plug and battery receptacle

9. Gently push the battery wire and internal battery pack back into the UPS.

10. Reattach the front battery door with the six screws.

11. Reattach the front plastic bezel cover to the UPS.

NOTE

The internal battery pack is hot-swappable. However, caution should be exercised because
during this procedure the load is unprotected from disturbances and power outages.

Do not replace the battery while the UPS is in Battery Mode. This will result in a loss of output
power and will drop the connected load.

6.2 Battery Charging

The batteries are valve-regulated, nonspillable, lead acid and should be kept charged to attain their
design life. The Liebert GXT3 charges the batteries continuously when it is connected to the mains
input power.

Maintenance

If the Liebert GXT3 will be stored for a long time, Emerson recommends connecting the UPS to input
power for at least 24 hours every four to six months to ensure full recharge of the batteries.

WARNING

!

The battery can present a risk of electrical shock and high short circuit current. The following
precautions should be observed before replacing the battery pack:

• Remove rings, watches and other metal objects.

• Use tools with insulated handles.

• Do not lay tools or other metal objects on the batteries.

• If the battery kit is damaged in any way or shows signs of leakage, contact your local Emer­son representative immediately.

• Do not dispose of batteries in a fire. The batteries may explode.

• Handle, transport and recycle batteries in accordance with local regulations.

6.3 Precautions

Although the Liebert GXT3 has been designed and manufactured to ensure personal safety, improper
use can result in electrical shock or fire. To ensure safety, observe the following precautions:

• Turn Off and unplug the Liebert GXT3 before cleaning it.

• Clean the UPS with a dry cloth. Do not use liquid or aerosol cleaners.

• Never block or insert any objects into the ventilation holes or other openings of the UPS.

• Do not place the Liebert GXT3 power cord where it might be damaged.

6.4 Checking UPS Status

Emerson recommends checking the UPS operation status every six months.

• Check whether the UPS is faulty: Is the Fault Indicator on? Is the UPS sounding an alarm?

• Check whether the UPS is operating in Bypass Mode. Normally, the UPS operates in Normal
Mode. If it is operating in Bypass Mode, stop and contact your local Emerson representative, or
Emerson Channel Support.

• Check whether the battery is discharging. When the mains input is normal, the battery should
not discharge. If the UPS is operating in Battery Mode, stop and contact your local Emerson rep­resentative or Emerson Channel Support.

26

6.5 Checking UPS Functions

NOTE

UPS function check procedures may interrupt power supply to the connected load.

Emerson recommends checking the UPS functions once every six months.

Back up the load data before conducting the UPS functions check. Procedures are as follows:

1. Press the Standby/Manual Bypass button to check whether the buzzer and indicators are normal.

2. Press the On/Alarm Silence/Manual Battery Test button to check again whether the indicators
are on and the UPS is operating normally.

3. Press the On/Alarm Silence/Manual Battery Test button for three seconds after Inverter Mode.
The UPS should initiate a battery self-test. Check to determine whether the battery is operating
normally. If not, stop and contact your local Emerson representative or Emerson Channel Support

Maintenance

27

7.0 TROUBLESHOOTING

ABCDE

This section indicates various UPS symptoms a user may encounter and provides a troubleshooting
guide in the event the UPS develops a problem. Use the following information to determine whether
external factors caused the problem and how to remedy the situation.

7.1 UPS Symptoms

The following symptoms indicate the Liebert GXT3 is malfunctioning:

• The relative indicators illuminate, indicating the UPS has detected a problem.

• An alarm buzzer sounds, alerting the user that the UPS requires attention.

7.1.1 Indicators

In addition to the fault indicator being illuminated, one or more of LED segments of battery level indi­cator will also be illuminated to provide a diagnostic aid to the user, as shown in Figure 24. The
descriptions are listed in Table 7.

Figure 24 Battery level indicator

Troubleshooting

Table 7 Indicator descriptions

Indicator Diagnosis/Audible alarm

A - E On bypass from output overload (half-second beep every half second)

A On bypass due to overtemperature condition (1-second beep every 4 seconds)

B On bypass due to DC bus overvoltage (1-second beep every 4 seconds)

C On bypass due to DC/DC power supply failure (1-second beep every 4 seconds)

D PFC failure (1-second beep every 4 seconds).

E On bypass due to inverter failure (1-second beep every 4 seconds)

A&C UPS failed battery test (2-second beep every 60 seconds)

C&E UPS shutdown by command from communication (USB port or Liebert IntelliSlot port) (no

audible)

A&B UPS Failure (includes dual-fan failure, single-fan failure under certain conditions and battery

charger failure) and continuous alarm

Battery Indicator
Flashing

Bypass Indicator
Flashing

A - E indicators are shown in Figure 24.
If the UPS experiences an overload, the UPS will transfer from bypass back to inverter approximately 5 minutes after the overload

condition ends.

Internal Battery source not available (continuous horn); check battery connection, power down
and reboot UPS.

Mains power voltage or frequency is out of tolerance; bypass is unavailable

28

7.1.2 Audible Alarm

An audible alarm will sound in conjunction with the visual indicators to indicate a change in UPS
operating status. The audible alarm will sound as described in Table 8.

Table 8 Audible alarm description

Condition Alarm

Battery discharge Half-second beep every 10 seconds

Low battery Two half-second beeps every 5 seconds

UPS fault, load on bypass 1-second beep every 4 seconds

UPS fault, no power to load Continuous

Overload Half-second beep every half second

Battery replacement 2-second beep every 60 seconds

Battery loss Continuous

Wiring problem (loss of proper grounding for UPS) Continuous

Bypass reminder 1-second beep every 2 minutes

7.2 Troubleshooting

In the event of an issue with the UPS, refer to Table 9 to determine the cause and solution. If the
fault persists, contact Emerson Channel Support.

Table 9 Troubleshooting table

Problem Cause Solution

UPS fails to start when the
On/Alarm Silence/Manual
Battery Test button is pressed

Battery indicator is illuminated

UPS has reduced battery
backup time

Fault and Bypass indicators
and all LED segments of
battery level indicator are
illuminated

Fault and Bypass indicators
and diagnostic A indicator are
illuminated

UPS is short-circuited or
overloaded

UPS is not plugged in

UPS input protection fuse has
blown/opened

Mains power is out of tolerance

Batteries are not fully charged

UPS is overloaded

Batteries may not be able to
hold a full charge due to age

UPS is overloaded or load is
faulty

UPS has been shut down due
to temperature condition; load
is on bypass power

Ensure UPS is Off. Disconnect all loads and ensure
nothing is lodged in output receptacles. Ensure loads
are not defective or shorted internally.

UPS is operating from battery mode. Ensure UPS is
securely plugged into the wall receptacle.

UPS is operating from battery mode. Save data and
close applications. Replace UPS input fuse, then restart
UPS.

UPS is operating from battery mode. Save data and
close applications. Ensure mains supply voltage is
within acceptable limits for UPS.

Keep UPS plugged in continuously at least 24 hours to
recharge batteries.

Check load level indicator and reduce the load on the
UPS.

Replace batteries. Contact your local dealer, Emerson
representative or Emerson Channel Support for
replacement battery kit.

Check load level indicator and remove non-essential
loads. Recalculate the load and reduce number of loads
connected to UPS. Check load for faults.

Ensure UPS is not overloaded, ventilation holes are not
blocked and room ambient temperature is not
excessive. Wait 30 minutes to allow UPS to cool, then
restart UPS. If UPS cannot restart, contact your local
dealer, Emerson representative or Emerson Channel
Support.

Troubleshooting

Fault and Bypass indicators
and diagnostic B indicator are
illuminated

UPS internal DC bus
overvoltage

UPS requires service. Contact your local dealer,
Emerson representative or Emerson Channel Support.

29

Table 9 Troubleshooting table (continued)

Problem Cause Solution

Troubleshooting

Fault and Bypass indicators
and diagnostic C indicator are
illuminated

Fault indicator and diagnostic
D indicator are illuminated

Fault and Bypass indicators
and diagnostic E indicator are
illuminated

Fault indicator and diagnostic
A and C indicators are
illuminated

Fault and Bypass indicators
and diagnostic C and E
indicators are illuminated

Fault indicator and diagnostic
A and B indicators are
illuminated

AC input indicator is flashing.

Battery indicator is flashing.

Bypass indicator is flashing.

UPS DC/DC fault

UPS PFC (Power Factor
Correction Circuit) fault

UPS inverter fault

UPS failed the battery test

UPS has been shut down by a
command from the
communications port(s)

UPS failure (includes dual-fan
failure, single-fan failure under
certain conditions and battery
charger failure) and continuous
alarm

UPS detected a line-to-neutral
reversal or a loss of proper
grounding for UPS; continuous
horn and UPS cannot start up
in standby status. This is active
only when power is first
applied to the input. Once the
UPS is running, the AC input
indicator will flash, unless the
input wiring is correctly
changed.

Battery source is not available;
continuous horn.

Because the voltage or
frequency is outside
acceptable limits, the bypass is
disabled.

UPS requires service. Contact your local dealer,
Emerson representative or Emerson Channel Support.

UPS requires service. Contact your local dealer,
Emerson representative or Emerson Channel Support.

UPS requires service. Contact your local dealer,
Emerson representative or Emerson Channel Support.

Replace batteries. Contact your local dealer, Emerson
representative or Emerson Channel Support.

Your UPS has received a signal or command from the
attached computer. If this was inadvertent, ensure the
communication cable used is correct for your system.
For assistance, contact your local dealer, Emerson
representative or Emerson Channel Support.

Ensure fan is not blocked up. If the fault is not removed,
contact your local dealer, Emerson representative or
Emerson Channel Support.

Contact a qualified electrician to verify site wiring.

Check battery connections, completely power down and
restart UPS.
NOTE: If the battery circuit opens while the UPS is
running, it will be detected when the next battery test is
performed.

The AC input powers the PFC input and serves as the
bypass source. If the AC is present but the voltage or
frequency exceeds the acceptable range for safe
operation with a load, the bypass will be disabled and
this indicator will flash, indicating that the bypass is
unavailable.

When reporting a UPS issue to Emerson, include the UPS model and serial number. These are on the
top panel of the Liebert GXT3.

30

8.0 BATTERY CABINET

Battery Ports

Input Breaker

Optional battery cabinets are available for the Liebert GXT3. The battery port and input breaker are
on the battery cabinet’s rear panel, as shown in Figure 25. For battery cabinet specifications, refer to
Table 12.

Figure 25 Battery cabinet

WARNING

!

Do not contact the battery ports and ground without wearing protective gloves and clothing
and taking other precautions against electrical shock. The battery loop and AC input are not
insulated, which may cause a dangerous voltage between the battery ports and ground.

Battery Cabinet

NOTE

The length of the standard battery cable delivered with the battery cabinet is 0.65m (2.13ft).

31

9.0 SPECIFICATIONS

The specifications of the Liebert GXT3 are listed in Table 10 and Table 11.

Table 10 Specifications of GXT3-700RT230 and GXT3-1000RT230 UPS

Product model

Parameters

Model Rating 700VA/630W 1000VA/900W

Dimensions, D x W x H, mm (in)

Unit

Shipping

Weight, kg (lb)

Unit 16.8 (37)

Shipping 20 (44)

Input AC

Voltage Range (typical) 230VAC nominal; variable based on output load

90% ~ 100% loading 177VAC/280VAC

70% ~ 90% loading 168VAC/280VAC

30% ~ 70% loading 150VAC/280VAC

0 ~ 30% loading 115VAC/280VAC

Frequency 40Hz ~ 70Hz; Auto Sensing

Input Power Receptacle C14

Output AC

Output Receptacles C13 × 6

Voltage 220/230/240VAC (user configurable); ±3%

Frequency 50Hz or 60Hz

Waveform Sine wave

Mains (AC) Mode Overload 200% for 2 seconds; 150% for 1 minute with transfer to bypass

Battery

Type Valve-regulated, nonspillable, lead acid

Qty × V× Rating 4 × 12V × 5.0Ah

Battery Mfr/Part# YUASA/NPH5-12; CSB/ HR 1221W

Backup Time See Table 14 - Battery run times

Recharge Time

Environmental Requirements

Operating Temp 0ºC to +40ºC (+32ºF to +104ºF); Table 13 - Operating temperature parameters

Storage Temp -15ºC to +50ºC (5ºF to 122ºF)

Relative Humidity 0%RH to 95%RH, non-condensing

Operating Elevation Up to 3000m (10,000 ft.) at 40ºC (104ºF) without derating

Storage Elevation 15,240 (50,000 ft.) maximum

Audible Noise

Agency

Safety EC/EN/AS 62040-1-1:2008

RFI/EMI IEC/EN/AS 62040-2 2nd Ed =CISPR22 Class A

Surge Immunity IEC 62040-2 2nd Ed

Transportation ISTA Procedure 1A

GXT3-700RT230 GXT3-1000RT230

497 x 430 x 85

(19.6 x 16.9 x 3.3)

617 x 570 x 262

(24.3 x 22.4 x 10.3)

3 hours to 90% capacity after full discharge with 100% load till UPS

auto-shutdown (Internal Batteries Only)

< 46 dBA, at 1 meter (3.2ft) from the rear

< 43 dBA, at 1 meter (3.2ft) from the front or sides

Specifications

32

Specifications

Table 11 Specifications of the Liebert GXT3-1500RT230, GXT3-2000RT230 and GXT3-3000RT230

Product model

Parameters

Model Rating 1500VA/1350W 2000VA/1800W 3000VA/2700W

Dimensions, D x W x H, mm (in)

Unit

Shipping

Weight, kg (lb)

Unit 23.2 (51.1) 28 (61.7) 32 (70.5)

Shipping 26 (57.3) 24 (52.9) 28 (61.7)

Input AC

Voltage Range (typical) 230VAC nominal; variable based on output load

90% ~ 100% loading 177VAC/280VAC 196VAC/280VAC

70% ~ 90% loading 168VAC/280VAC 184VAC/280VAC

30% ~ 70% loading 150VAC/280VAC 161VAC/280VAC

Frequency 115VAC/280VAC 115VAC/280VAC

0 ~ 30% loading 40Hz ~ 70Hz; Auto Sensing

Input Power Receptacle C14 C20

Output AC

Output Receptacles C13 x 6 C13 x 6; C19 x 1

Voltage 220/230/240VAC (user configurable); ±3%

Frequency 50Hz or 60Hz

Waveform Sine wave

Mains (AC) Mode Overload

Battery

Type Valve-regulated, nonspillable, lead acid

Qty × V× Rating 4 × 12V × 7.2Ah 4 × 12V × 9.0Ah 6 × 12V × 9.0Ah

Battery Mfr/Part# Panasonic/UP-RW1236

Backup Time See Table 14 - Battery run time

Recharge Time

3 hours to 90% capacity after full discharge with 100% load till UPS auto-shutdown

Environmental Requirements

Operating Temp 0ºC to 40ºC (32ºF to 104ºF); Table 13 - Operating temperature parameters

Storage Temp -15ºC to +50ºC (5ºF to 122ºF)

Relative Humidity 0%RH to 95%RH, non-condensing

Operating Elevation Up to 3000m (10,000 ft.) at 40ºC (104ºF) without derating

Storage Elevation 15000m (50,000 ft.) maximum

Audible Noise

< 45 dBA max. at 1 meter (3.2ft.) front and side

Agency

Safety EC/EN/AS 62040-1-1:2008

RFI/EMI IEC/EN/AS 62040-2 2nd Ed =CISPR22 Class A

Surge Immunity IEC 62040-2 2nd Ed

Transportation ISTA Procedure 1A

GXT3-1500RT230 GXT3-2000RT230 GXT3-3000RT230

497 × 430 × 85

(19.6 x 16.9 x 3.3)

617 x 570 x 262

(24.3 x 22.4 x 10.3)

200% for 2 seconds; 150% for 50 seconds

602 × 430 × 85

(23.7 x 16.9 x 3.3)

717 x 570 x 262

(28.2 x 22.4 x 10.3)

200% for 2 seconds;

150% for 55 seconds

Panasonic/UP-RW1245

CSB/ GP 1272

CSB/ HR 1234W F2

(Internal Batteries Only)

< 48 dBA max. at 1 meter (3.2ft.) front and side

< 46 dBA, at 1 meter (3.2ft.) rear

< 48 dBA, at 1 meter (3.2ft.) rear

33

Table 12 Battery cabinet specifications

Model Number

Parameter

GXT3-700RT230, GXT3-1000RT230,

Used w/UPS Model

Dimensions, D x W x H, mm (in)

Shipping

Weight, kg (lb)

Shipping 35 (77.2) 46 (101.4)

Battery parameters

Qty × V× Rating 2 × 4 × 12V × 9.0Ah 2 × 6 × 12V × 9.0Ah

Battery Mfr/Part# Panasonic/UP-RW1245 CSB/HR 1234W F2

Backup Time See Table 14 - Battery run times

Environmental

Operating Temperature 0ºC to 40ºC (32ºF to 104ºF)

Storage Temperature -15ºC to +40ºC (19ºF to 104ºF)

Relative Humidity 0% to 95%, non-condensing

Operating Elevation Up to 3000m (10,000 ft.) at 104ºF (40ºC) without derating

Storage Elevation 15000m (50,000 ft.) maximum

Agency

Safety EC/EN/AS 62040-1-1:2008

RFI/EMI FCC Part 15, Class A=CISPR22 Class B

Surge Immunity IEC 62040-2 2nd Ed

Transportation ISTA Procedure 1A

GXT3-1500RT230, GXT3-2000RT230 GXT3-3000RT230

Unit

Unit 32 (70.5) 42 (92.6)

Type Valve-regulated, nonspillable, lead acid

GXT3-48VBATT GXT3-72VBATT

497 × 430 × 85

(19.7 x 16.9 x 3.3)

617 x 570 x 262

(24.3x 22.4 x 10.3)

Specifications

602 × 430 × 85

(23.6 x 16.9 x 3.3)

717 x 570 x 262

(28.2 x 22.4 x 10.3)

Table 13 Operating temperature parameters

Ambient Temperature,
°C (°F)

Maximum Output
Power Factor Derating
@ Maximum Load

25-30 (77-86) 30-35 (86-95) (95-104)

100%-93% 93%-86% 86%-79%

34

Table 14 Battery run times

Run Time, Minutes, for Load, W

Number of

Batteries

Internal

Battery

Internal

Battery

+ 1External

Battery

Cabinet

Internal

Battery

+ 2External

Battery

Cabinets

Internal

Battery

+ 3 External

Battery

Cabinets

Internal

Battery

+ 4 External

Battery

Cabinets

1. Run times are valid for all models rated with the listed VA.

2. Approximate discharge times are in minutes and at 77°F (25°C) with a resistive load.

Model

1

VA

700VA26146———————— 6630

1000VA281595——————— 4900

1500VA—2616108 5 ————— 41350

2000VA — — 20 11 10 8 6 5 4 — — 4 1800

3000VA———25201410985442700

700VA1267854————————50630

1000VA128745241———————27900

1500VA—11072483628—————241350

2000VA — — 54 34 34 26 22 17 15 — — 15 1800

3000VA — — — 102 80 56 50 44 38 26 22 18 2700

700VA26412288————————82630

1000VA2521268460———————58900

1500VA—208132947454—————481350

2000VA——120826052443629— —291800

3000VA — — — 124 114 106 92 74 66 62 46 44 2700

700VA280140120————————116630

1000VA32014811880———————78900

1500VA—31020413810290—————821350

2000VA — — 180 126 92 72 62 52 45 — — 45 1800

3000VA — — — 174 150 122 110 105 104 76 62 62 2700

700VA560300146————————140630

1000VA600250138116———————109900

1500VA—400256180144110—————1001350

2000VA — — 240 166 130 108 94 84 64 — — 64 1800

3000VA — — — 184 172 150 128 120 119 105 92 84 2700

200 400 600 800 1000 1200 1400 1600 1800 2000 2500

Specifications

100% Load

Min. W

9.1 Product Warranty Registration

To register for warranty protection, visit the Quick Links section of the Liebert Web site at:

http://www.liebert.com

Click on Product Warranty Registration and fill in the form.

If you have any questions, contact Emerson Channel Applications Engineering at:

North America: 800-222-5877
Outside North America: 00-800-1155-4499

[e-mail]

35

Specifications

36

Ensuring The High Availability
Of Mission-Critical Data And Applications.

Emerson Network Power, the global leader in enabling business-critical
continuity, ensures network resiliency and adaptability through
a family of technologies—including Liebert power and cooling
technologies—that protect and support business-critical systems.
Liebert solutions employ an adaptive architecture that responds
to changes in criticality, density and capacity. Enterprises benefit
from greater IT system availability, operational flexibility and
reduced capital equipment and operating costs.

While every precaution has been taken to ensure the accuracy
and completeness of this literature, Liebert Corporation assumes no
responsibility and disclaims all liability for damages resulting from use of
this information or for any errors or omissions.
© 2009 Liebert Corporation
All rights reserved throughout the world. Specifications subject to change
without notice.
® Liebert is a registered trademark of Liebert Corporation.
All names referred to are trademarks
or registered trademarks of their respective owners.

SLI-23180_REV0_08-09

Technical Support / Service

Web Site

www.liebert.com

Monitoring

[e-mail]

800-222-5877

Outside North America: [phone]

Single-Phase & Three-Phase UPS

[e-mail]

800-222-5877

Outside North America: [phone]

Environmental Systems

800-543-2778

Outside the United States: 614-888-0246

Locations

United States

1050 Dearborn Drive

P.O. Box 29186

Columbus, OH 43229

Europe

Via Leonardo Da Vinci 8

Zona Industriale Tognana

35028 Piove Di Sacco (PD) Italy

[phone]

Fax: [phone]

Asia

29/F, The Orient Square Building

F. Ortigas Jr. Road, Ortigas Center

Pasig City 1605

Philippines

[phone]

Fax: [phone]

Emerson Network Power.
The global leader in enabling Business-Critical Continuity.

AC Power

Connectivity
DC Power

Business-Critical Continuity, Emerson Network Power and the Emerson Network Power logo are trademarks and service marks of Emerson Electric Co.

©2009 Emerson Electric Co.

Embedded Computing
Embedded Power Power Switching & Controls
Monitoring

Outside Plant

Precision Cooling

EmersonNetworkPower.com

Racks & Integrated Cabinets
Services
Surge Protection
