¡Tone Portable
Docking Station
for your iPod
The Perfect Portable Speaker System,
with Stereo Radio and Digital Alarm Clock
P' e m e r s o n I
t°Kesearch
Made for all iPod® models including iPod® nano, iPod® shuffie and iPod® mini
®
I TM
OWNER’S MANUAL
iP100C/iP100BKC
Visit our web site : www.emersonelectronics.ca
CAUTION
TO PREVENT FIRE OR SHOCK HAZARD. DO NOT USE THIS PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE
OR SHOCK HAZARD. DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION
RISK OF ELECTRIC SHOCK
í;::%;-DO;ÑbT OPENv^ri":
The üghtntng flash with arrow
head symbol, within an equi
lateral triangle is Intended to
alert the user to the presence
of uninsulated'dangerousvoitage'
within the product’s enclosure
that may be of sufficient
magnitude to constitute a risk
of electric shock to persons.
The Caution Marking maybe located at the bottom enclosure of the apparatus.
IMPORTANT SAPETY INSTRUCTIONS
1. ) Read these Instructions. Keep these instructions. Follow all instructions. Heed all warnings.
2. ) Do not use this apparatus near water,
3. ) Clean only with dry cloth,
4. ) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
5. ) Do not install near any heat sources such as radiators, heat registers, stoves, orother apparatus
{including amplifiers) that produce heat.
6. ) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong is provided for your safety, if the provided plug does not
fit into your outlet, consult an electrician for replacement of the obsolete outlet.
7. ) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
8. ) Only use attachments / accessories specified by the manufacturer.
9. ) Unplug this apparatus during lightning storms or when unused for long periods of time,
10. ) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in anyway, such as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
11. ) This appliance shall not be exposed to dripping or splashing water and no object filled with liquids
such as vases shall be placed on Ihe apparatus.
12. ) Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
13. ) Do not overload wall ouliel. Use only power source as indicated.
14. ) Use replacement parts as specified by the manufacturer.
15. ) The product may be mounted to a wall only if recommended by the manufacturer.
16. ) Upon completion of any service or repairs to this product, ask the service technician to perform
safety checks.
WARNING: TO REDUCE THE
RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER
(OR BACK), NO USER
SERVICEABLE PARTS INSIDE
REFER SERVICING TO
QUALIFIED SERVICE
PERSONNEL.
The exclam^ion point within
an equilateral triangle is in
tended to alert the user to
the presence of important
operating and maintenance
(servicing) instructions in
the literature accompany
ing the appliance.
Thank you
...............
.
For purchasing this ¡Tone’“ iPod® Compatible Portable Stereo System from
Emerson Research. This compact portable system features a built in iPod®
docking station so you can play your iPod® through the speakers of this
system when you are in the mood to share your music with others, or
when you simply do not want to use earphones. In addition, when this
system is connected to an AC outlet with the included AC adapter it wii!
also recharge the battery of any ‘dockable' iPod®. We have even included
four separate inserts so that every ‘dockable’ iPod® currently available (as
of January 2006) will fit correctly in the docking area.
This system also includes an AM/FM Stereo Radio with digital station
frequency display for more precise tuning, and a digital alarm clock that
can wake you to the radio or an electronic buzzer.
Finally we have also included an auxiliary input jack so that you can also
connect non-dockable iPod® such as the first generation models, or the
iPod® Shuffle, or even other brands of IVIP3 players and portable CD players
to this system. The required connection cable is included of course.
We have taken great care to ensure this system was in perfect working
order when it left our factory. If you experience any problems with the set
up or operation of this system please do not return it to the retail store. Call
the Emerson customer service hotline, toll free, at 1-800-663-5954, Monday
to Friday 9:00am - 5:00pm Eastern Standard Time.
Again, thank you for purchasing this iPod® compatible portable stereo
system from Emerson Research.
iPod® is a trademark of Apple Cotiiputer inc., registered in the U.S. and other countries.
1
IMPORTANT NOTES
Avoid insialiing this unit in places
exposed to direct sunlight or close to
heat radiating appiiances such as
electric heaters, on top of other stereo
equipment that radiates too much
heat, places tacking ventilation or
dusty areas, places subject to
constant vibration and/or humid or
Operate controls and switches as
described in the manual.
Before turning on the power, make
certain that the AC/DC adapter is
properly installed.
When moving the set, be sure to first
disconnect the AG/DC adapter.
moist areas.
Instruction Book wording is as follows:
IMPORTANT
Since digital circuitry may cause interference to other radio or television
tuners nearby, switch this unit off when not in use or move it away from the
affected radio/television tuner.
NOTE; This digital apparatus does not exceed the Class B limits for radio
noise emissions from digital apparatus as set out in the Radio Interference
Regulations of Industry Canada. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television operation
(which can be determined by turning the equipment off), the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help.
PREPARATION FOR USE
Unpacking And Set Up
• Remove the main unit, the AC adapter, the accessory auxiliary device
connection cord, and the 4 iPod® adapters from the carton, and remove al!
packing material from the main unit. We recommend that you save the carton
and packing material in the event that the unit ever needs to be returned for
service. Using the original carton and packing material is the only way to protect
your unit from damage during shipment.
• Remove any descriptive labels or stickers from the top or front panels of the
unit but do not remove any labels or stickers from the back or bottom panels.
• Remove the "dummy iPod®" display card from the docking area and discard it.
Power Sources
This system is designed to operate on 6 "C" batteries, not included, or on normal
120V AC house current with the included AC adapter. In addition, this unit requires
2 "/kA" batteries for the clock and alarm memory back up. We recommend that
you use a well-known brand of alkaline batteries for longest life and best
performance.
Attempting to operate this system from any other power source may cause damage
to the system, and such damage is not covered by your warranty.
Battery Precautions
Replacement of batteries must be done by an adult.
Do not mix old and new batteries.
Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium)
batteries.
The supply terminals are not to be short-circuited.
Non-rechargeabie batteries are not to be recharged.
Exhausted batteries are to be removed
Only batteries of the equivalent type are to be used.
Batteries are to be inserted with the correct poiarily.
Dispose of batteries properly, Do not dispose of batteries in Are, The batteries
may explode or leak.
Battery Installation
The battery compartments for the 6 "C" batteries and 2 "PA" batteries are located
on the back panel. To open the battery compartment covers press the door locking
tabs in the direction of the arrows. Remove the doors and insert the 6 "C" and 2
“AA” batteries in their respective compartments. Be sure the batteries are installed
correctly according to the polarity markings in the battery compartments. If the
batteries are installed incorrectly the unit will not work.
After installing the batteries replace both battery compartment covers and make
sure that they lock securely.
Using The AC Adapter
Connect the small female plug of the AC adapter to the DC Input Jack on the back
panel. Connect the housing of the AC adapter to your 120V AC outlet.
When the adapter is connected to the unit the AC power source is selected
automatically, even if there are batteries in the battery compartment. Note; In
order to operate the unit on batteries the AC adapter must be completely
disconnected from the DC Input Jack on the back panel.
NOTES:
* The housing of the AC adapter may become warm during operation. This
is normai.
• To reduce the risk of electric shock never connect or disconnect the AC
adapter while your hands are wet.
Battery Replacement
When the sound output becomes weak and distorted during battery operation it is
probably time to change the 6 "C" batteries. Try operating the system with the AC
adapter. If the sound is normal with the AC adapter this confirms that the batteries
are weak and should be replaced as soon as possible. If exhausted batteries are
left in the unit they may eventually leak and cause damage to the unit. When
changing the 6 “C" batteries always change ail 6 at the same time and do not mix
different types of batteries such as alkaline, carbon-zinc, and nickel cadmium.
The 2 “AA" batteries are only used for maintaining the clock and timer memory
and therefore they will probably last longer than the 6 "C" batteries. Two fresh
alkaline “AA" batteries should provide back up power for the clock and timer fora
period of 12 months.
Protect Your Furniture
This model is equipped with non-skid rubber 'feet' to prevent the product from
moving when you operate the controls. These 'feet' are made from non-migrating
rubber material specially formulated to avoid leaving any marks or stains on your
furniture. However certain types of oil based furniture polishes, wood preservatives,
or cleaning sprays may cause the rubber 'feet' to soften, and leave marks or a
rubber residue on the furniture. To prevent any damage to your furniture we strongly
recommend that you purchase small self-adhesive felt pads, available at hardware
stores and home improvement centers everywhere, and apply these pads to the
bottom of the rubber 'feet' before you place the product on fine wooden furniture.

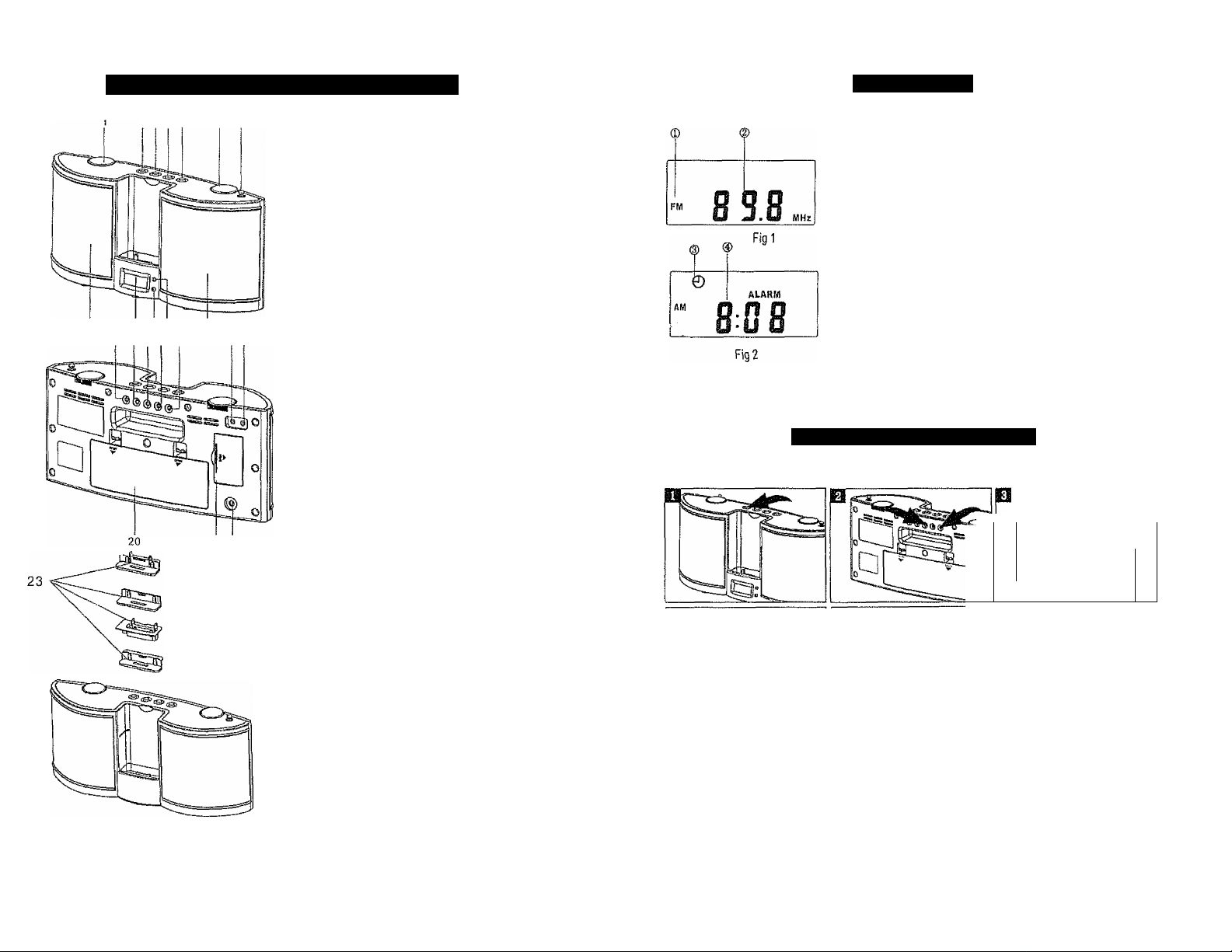

LOCATlbN OF CONTROLS AND INDICATORS
LCD DISPLAY
2 3-15 6 7
8 9 1011 12
13 141516 17 1819
21 22
1. VOLUME Control
2. POWER Mode Button
(ON/OFF/ALARM ON)
3. DBBS Button
4. FUNCTION Button
(iPod/AUX Buzzer,
RADIO)
5. FM AUTO /AM Button
6. TUNING Control
7. FM Antenna
8. Left Speaker
9. LCD Display
10. FM Stereo Indicator
11 .Power Indicator
12. Right Speaker
13. ALARM ON/OFF Button
14. ALARM SET Button
15. TIME SET Button
16. MINUTE Button
17. HOUR Button
18. AUX IN Jack
19. PHONES Jack
20. Battery Compartment
21 .Backup Battery
Compartment
22,AC Adapter Jack
23.iPod hoider(4 inserts)
Radio mode
1. Band indicator (AM/FM)
2. Radio Frequency
Clock/Timer Mode
3. Alarm On Indicator
4. Time/Alarm Time Display
OPERATING INSTRUCTIONS
SETTING THE CLOCK
a®;
Make sure the POWER switch
is set to the ‘Off position. The
time or alarm time cannot be
set or adjusted while the unit
is 'On',
it
Press and hold the TIME SET
button. While holding the TIME
SET button press the HR SET
button to adjust the hour.
While holding the TIME SET
button, press the MINUTE
SET button to adjust the
minute, Release all buttons
to complete time setting.
OPERATING INSTRUCTIONS (CONTINUED)
OPERATING INSTRUCTIONS (CONTINUED)
LISTENING TO THE RADIO
NOTE: To prevent any interference between your iPod® and the radio in this unit,
your iPod® should be switched 'Off when listening to the radio.
Set the POWER button to the
'On'jt position, the display
lighting turns on.
Set the FUNCTION button to
the Radio position. The display
wilt change from time to radio
frequency. Set the SAND
selector to the desired band,
AM or FM Auto.
Rotate the TUNING control
until the display shows the
desired AM or FM station
frequency. Turn the TUNING
control clockwise to select
higher numbered frequencies
or counter-clockwise to select
lower numbered frequencies.
The FM STEREO indicator will
light when you tune to an FM
Stereo station.
Docking and Charging Your iPod®
This system is designed with the same 30-pin connector found in all iPocP’ docks.
By simply connecting your iPod® to the docking station on the front panel of this
system you can play your iPod® through the speakers of this system. And you
can also recharge the battery in your iPod®.
Note: Recharging is only possible when you are using the system with the included
AC adapter. Your iPod® battery will not be recharged when you are operating this
system on battery power.
To accommodate all models of dockable iPod® we have included four different
adapter/ inserts to ensure that your iPod® will fit properly in the docking
station.
Refer to the chart below to select the proper adapter / insert for your particular
model of dockable iPod®. Note: if you have a earlier non-dockable iPod® , or an
iPod® Shuffle, please refer to the next section to connect you device to the
Auxiliary Input jack.
iPod® inserts
Your unit comes with 4 removable inserts to ensure your iPod® fits properly
in the dock on the front of the system.
ШЗ
iPad® version
T C .) -i :
t" ( )
Rotate the VOLUME control to
increase or decrease the
volume level. If you want to
increase the bass response
set the DBBS button to the
'On' -^positon.
Note; If you are listening to
music that contains heavy
bass at high volume levels the
sound may become distorted
if the DBBS switch is set to the
'On'j>- position. If this occurs
set the DBBS switch to the
‘Off position, or reduce
the volume level.
When you are finished listening
set the POWER button to the
'Оff’-M.position. The display
changes from radio frequency
to correct time and the display
lighting goes off.
iPod* size
GB GS
^. Place the proper adapter / insert into the docking station. The iPod® 30-pin
connector should fit through the opening in the bottom of the insert.
2. Gently press the insert Into the dock until it is properly seated.
3. With your iPod® in the Power 'Off mode carefully place it into the insert.
Note: Remove any accessory case or "skin" from your iPod® before inserting
it in the dock.
4. To remove or replace an insert, first remove your iPod ® from the dock, then
grip the insert and gently lift it upward and out of the dock.
10
operating INStRjJC^^
P!aying your iPod®
Important
To prevent distortion during iPod® playback you should go to the IVIain Menu
of your iPod® , select the Settings Menu page, select the EQ Setting, and make
sure that the EQ function is set to "Off*.
(Main Menu Settings Menu EQ Setting Select "Off” )
OPERATING INSTRUCTIONS(CONTINUED)
Listening To A Non-Docking iPod® Or Other Portable Music Player
Some early iPod® models and the iPod® Shuffle do not include the 30-pin docking connector
found on most other iPods®. We have provided an Auxiliary Input Jack on the back panel of this
system and included a stereo connection cable so that you can still connect non-docking
iPods®, other MP3 players, or personal CD players to this system.
p
©1
After inserting your iPod®
in the dock as described
above, set the POWER switch
of this system to the 'On'
position, and the FUNCTION
switch to the iPod® position.
If necessary, release the HOLD
switch on your iPod® and turn
it on.
Select the song or album that
you wish to play on your
iPod® using the click-wheei
navigation controls as usual
Use the VOLUME control on
this system to increase or
decrease the speaker volume
level. The volume control on
your iPod® has no effect on
the speaker volume levei.
Important Note
To prevent damage to your iPod® we recommend that you do not play your
iPod® when you are carrying this system around as a portable. The system
should be placed in a stable, secure position before connecting and
operating your iPod® ,
When you зге finished listening
press the POWER button to
turn this system 'Off, The
display lighting wili turn off.
If you are using the AC adapter,
the charging indicator will
appear on your iPod® display
Locate the stereo connection
cable supplied with this system.
Use the VOLUME control to
adjust the system volume.
You may need to adjust your
device volume, loo.
important Note
Connect one end of the
3.5mm stereo cable into the
auxiliary input jack (AUX)
located on the back of the
unit, and other end to the
headphone or line out jack
on your portable audio
device.
When you are finished listening
set the POWER button to the
‘Off position. Remember to shut
off the power to your portable
audio piayer as well.
Set the POWER button to the ’On’
position and (he FUNCTION button
to the AUX position. Also turn on
your external portable audio
player.
Remember to disconnect the stereo connection cable from the Aux Jack before inserting an
iPod® in the docking station.
11
12
^PBRATINiG
TROUBLESHOOTING GUIDE
SETTING THEALARM
Press and hold the ALARM
SET button to enter the aiarm
Time setting mode. The front
panel display will change from
current time to alarm time.
Note: The POWER switch must
be set to the 'Off position to
adjust the Alarm time.
Press the ALARM ON/OFF
button to activate the alarm.
The ALARM indicatoron the
front panes will turn ‘On'.
Set the FUNCTION selector
to the desired alarm mode,
Radio or Buzzer,
________
While continuing to hold the
ALARM SET button press
the HOUR button repeatedly
until the display shows the
desired wake-up hour. Be
sure to observe the AM/PM
indicator to confirm that you are
setting the alarm time correctly
To slop the alarm sooner,
press the ALARM ON/OFF
button once. The alarm stops
immediately but the alarm
indicator remains 'On' and the
alarm will turn on again on the
following day. To deactivate
the alarm so that it does not
repeat on the following day
press the ALARM ON/OFF
button once more. The alarm
indicator goes 'Off,
Whiie continuing to hold the
ALARM SET button press
the MINUTE button repeatedly
to se the desired wake-up
minute. When the desired
wake-up time appears on the
display release ail the buttons.
Symptom j Possible Cause j Solution
Radio
Noise or sound
distorted on AM or
FM broadcasts.
FM STEREO indicator
does not light
AM or FM. no sound
iPod® Player
Unit does not respond
(no power)
iPod^does not dock
porperly
iPod® does not respond
to the unit
iPod® did not charge up
Station not tuned properly for AM
or FM.
FM: Rod antenna is not extended.
AM: The bar antenna is not
positioned correctly.
The BAND switch is not set to FM
position.
Function switch is not set to RADiO.
Volume at minimum.
AC adaptor is not plugged into a
wall outlet or the connector is not
plugged into the power supply jack
on the back of the unit.
Using no or wrong iPod® insert
iPod® did not install property
iPod® is not installed properly
iPod® is locked up
Using first or second generation iPod®,
iPod® Shuffle or other devices.
iPod® is not installed properly
iPod® is locked up/frozen
iPod® battery has problem
Retune the AM or FM broadcast
station
Extend FM Rod antenna.
Reposition the unit until
best reception is obtained.
Set the BAND switch to
FM ST. Position
Set the Function switch to
RADIO.
Increase Volume
Plug the AC adaptor into a wall
outlet and plug the connector
into the supply jack on the unit.
Make sure the dock insert is the
proper fit for the iPod®
Remove the iPod® from the dock
and check for obstruction on the
connections in the dock and on
the iPod® .Then reseat it in the dock
Remove the iPod® from the dock
and check for obstruction on the
connectors in the dock and on
the iPod® Then reseat it in the dock
Please make sure your iPod® is
working properly before docking
into the unit. Please refer to the
iPod® manual for details.
This unit cannot control those
iPods® or other devices.
Remove the iPod® from the dock
and check for obstruction on the
connectors in the dock and on
the iPod®. Then reseat it in the dock
Please make sure your iPod® is
working properly before docking
into the unit. Please refer to your
iPod® manual for details.
...
13
14
CARE AND MAINTENANCE
If the cabinet becomes dusty, wipe it with a soft cloth, if the cabinet becomes
smudged or dirty, dean it with a soft, slightly dampened cloth, Never allow
water or any liquid to get inside the cabinet.
Never use any abrasive cleaners or cleaning pads as these will damage
the finish of your unit.
15
EMERSON WARRANTY
Consumer Electronics. Home Appliances and Home Office Products
Tliank you for choosing EMERSON!
RGC Redmond Group gives the following express wamnty to the original consumer purchaser or gift recipient for this
EMERSON product, when shipped in its original container and sold or distributed in Canada by RGC Redmond Group or
by an Authorized EMERSON Dealer:
RGC Redmond Group warrants that this product is free, under normal use and maintenance, from any defects in material
and workmanship. If any such defects should be found in this product within the applicable waiianty period, RGC
Redmond Group shall, at its option, repair or replace the product as specified herein. Replacement parts funtishcd in
connection with this warranty shall be warranted for a period equal to the unexpired portion of the original equipment
warranty.
This warranty shall not apply to:
a. Any defects caused or repairs required as a result of abusive operation, negligence, accident, improper installation or
inappropriate use as outliocd in file owner's manual.
b. Any EMERSON product tampered with, modified, adjusted or repaired by any party other than RGC Redmond Group
or EMERSON’S Authorized Service Centres.
c. Damage caused or repairs required as a result of the use with items not specified or approved by RGC Redmond Group,
including but not limited to head cleaning tapes and chemical cleaning agents.
d. Any replacement of accessories, glassware, consumable or peripheral items required through tmmial use of the product
including but not limited to earphones, remote controls, AC adapters, batteries, temperature probe, stylus, ttays, filters,
cables, paper, cabinet, cabinet parts, knobs, buttons, baskets, stands, shelves, cookware and cooking utensils,
e. Any cosmetic damage to the surface or exterior that has been defaced or caused by normal wear and tear,
f. Any damage caused by external or environmental conditions, including but not limited to transmissiou linc/power line
voltage or liquid spillage,
g. Any product received without appropriate model, serial number and CSA/cUL/cULus /cETL /cETLus markings.
h. Any products used for reotal or commercial purposes.
1. Any installation, setup and/or programming charges.
Should this EMERSON product fail to operate during the warranty period, warranty service may be obtained upon
delivery of the EMERSON product together with proof of purchase and a copy of this LIMITED WARRANTY statement
to an Authorized EMERSON Service Centre, This warranty eonstltates the entire express warranty granted by RGC
Redmond Group and no other dealer, service centre or their agent or employee is authorized to extend, enlarge or transfer
this warranty on behalf of RGC Redmond Group, To the extent the law permits, RGC Redmond Group disclaims any and
all liability for direct or indirect damages or losses or for any incidental, special or consequential damages or loss of
profits resulting from a defect in material or workmanship relating to the product, including damages for the loss of time
or use of this EMERSON product or the loss of information. The purchaser will be responsible for any removal,
remstanation, transportation and insurance costs incurred. Correction of defects, in the manner and period of time
described herein, constitute complete fulfillment of all obligations and responsibilities of RGC Redmond Group to the
purchaser with respect to the product and shall constitute full saíisfactíon of all claims, whether based on contract,
negligence, strict liability or olhenvise.
CARRY-IN PARTS & LABOUR WARRANTY PERIODS:
• Audio Products: Í Year (Remote Control, if applicable ~ 90 Days)
• Home Appliances: lYear
0 Microwave Magnetron parts only additional
0 Refrigerator / Freezer Compressor parts only, additional 4 years
• Home Office Products: 1 Year
To obtain die name and address of the nearest Authorized EMERSON Service Centre or Dealer, please contact:
RGC Redmond Group, 6185 McLaughlin Road, Mississauga, ON L5R 3W7.
For more information on this Warranty or Service Locations, please call (905)3(16-5100 or toll free i-800-663-5954,
Monday to Friday 9;00am - 5:00pm Eastern Standard Time,
C
Years
04/2006
16
Loading...
