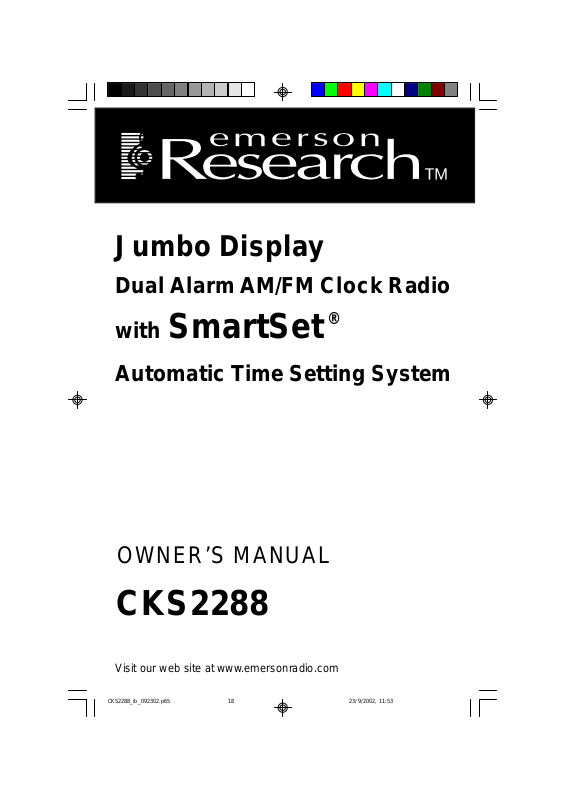

Emerson CKS2288 User Manual
Jumbo Display
Dual Alarm AM/FM Clock Radio
®
with SmartSet
Automatic Time Setting System
OWNER’S MANUAL
CKS2288
Visit our web site at www.emersonradio.com
CKS2288_ib_092302.p65 23/9/2002, 11:5318
CAUTION
!
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE
OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTIO N
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol, within an equilateral triangle is intented to
alert the user to the presence
of uninsulated ‘dangerous voltage’
within the product’s enclosure
that may be of sufficient
magnitude to constitute a risk
of electric shock to persons.
WARNING: TO REDUCE THE
RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER
(OR BACK), NO USER
SERVICEABLE PARTS INSIDE
REFER S ERVICING TO
Q U A L I F I E D S ER VI CE
PERSONNEL.
The exclamation point within
an equilateral triangle is intended to alert the user to
the presence of important
operating and maintenance
(servicing) instructions in
the literature accompanying the appliance.
IMPORTANT SAFETY INSTRUCTIONS
1.) Read these instructions.
2.) Keep these instructions.
3.) Heed all warnings.
4.) Follow all instructions.
5.) Do not use this apparatus near water.
6.) Clean only with dry cloth.
7.) Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8.) Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9.) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10.) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11.) Only use attachments / accessories specified by the manufacturer.
12.) Unplug this apparatus during lightning storms or when unused for long periods of time.
13.) Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain
or moisture, does not operate normally, or has been dropped.
14.) This appliance shall not be exposed to dripping or splashing water and no object filled with
liquids such as vases shall be placed on the apparatus.
15.) Do not overload wall outlet. Use only power source as indicated.
16.) Use replacement parts as specified by the manufacturer.
17.) The product may be mounted to a wall only if recommended by the manufacturer.
18.) Upon completion of any service or repairs to this product, ask the service technician to
perform safety checks.
1
CKS2288_ib_092302.p65 23/9/2002, 11:531
Congratulations!
And thank you for purchasing the Jumbo Display SmartSet
Emerson Research. SmartSet® is the world’s first and only LED clock radio that
will automatically set itself to the correct ‘Year’, ‘Month’, ‘Date’, ‘Day’, and ‘Time’ as
soon as you plug it in. The only thing you have to do is tell the SmartSet® what time
zone you are in, and the built in computer does everything else for you immediately.
And not only the first time, but every time the power is interrupted as well.
®
Clock Radio from
We all know how annoying it is to wake up in the morning and s ee the dreaded
flashing “12:00” display on our clocks or clock radios. But with your SmartSet
Clock Radio the dreaded flashing “12:00” display is a thing of the past.
The SmartSet® resets itself as soon as the power is restored and gets you up on
time, every time.
And if that isn’t enough, the SmartSet® computer also knows when Daylight Saving
Time begins and ends and it will adjust itself for those changes automatically for
the next 99 years! Leap Years too! And bes t of all, the long life lithium battery
backup battery is already installed in your radio. You don’t have to remember to put
a new 9-volt battery in your radio every 6 months. Under normal circumstances the
lithium battery can last for up to 5 years, and when it does need to be changed, a
low battery indicator will come on to let you know. The CR2430 lithium battery is
available almost anywhere that batteries are sold and it costs about the same as a
normal 9-volt battery.
The SmartSet® also gives you dual alarms that can be set to go off on weekdays
only, weekends only, or all 7 days. You can set one alarm to wake you up to buzzer
Monday through Friday when you have to get up early, and use the second alarm
to wake you up to soft music on Saturday and Sunday when you can sleep in.
Someday all clocks and clock radios may be this smart. But today the technology
is only available from Emerson Research. We’re sure you’ll be happy and amazed
by your SmartSet® Clock Radio, and that it will give you many years of enjoyment
and dependable service.
®
Once again, all of us at Emerson Research thank you for your purchase.
For future reference, record the serial number in the space provided.
Serial Number :
2
CKS2288_ib_092302.p65 23/9/2002, 11:532
IMPORTANT NOTES
• Avoid installing this unit in places
exposed to direct sunlight or close to
heat radiating appliances such as
electric heaters, on top of other stereo
equipment that radiates too much
heat, places lacking ventilation or dusty
areas, places subject to constant
• Operate controls and switches as
described in the manual.
• Before turning on the power, mak e
certain that the power cord is properly
installed.
• When moving the set, be sure to first
disconnect the AC power cord.
vibration and/or humid or moist areas.
FCC INFORMATION
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio c ommunications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to c orrect the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
3
CKS2288_ib_092302.p65 23/9/2002, 11:533
PREPARATION FOR USE
AC Outlet
UNPACKING AND SET UP
• Remove the radio from the carton and remove all packing material from the
radio. We suggest that you save the packing material, if possible, in the unlikely
event that your radio ever needs to be returned for service. The original carton
and packing material is the only safe way to pack your radio to protect it from
damage in transit.
• Remove any descriptive labels or stickers on the front or top of the cabinet. Do
not remove any labels or stickers from the back or bottom of the cabinet.
• Note the serial number on the bottom of your radio and write this number in the
space provided on Page 2 of this manual.
• Place your radio on a level surface such as a table, desk or shelf, convenient to
an AC outlet, out of direct sunlight, and away from sources of excess heat, dirt,
dust, moisture, humidity, or vibration.
NOTE: Do not place this radio on a metal shelf, metal table, or other metal
surface as this may interfere with AM reception.
• Unwind the AC power cord and extend it to its full length. The FM antenna is
built in to this cord. It must be fully extended to provide the best FM reception.
POWER SOURCE
This radio is designed to operate on normal 120V 60Hz AC power only. Do not
attempt to operate the radio on any other power source. You could cause damage
to the radio that is not covered by your warranty.
This radio should be connected to an AC outlet that is always ‘live’. Do not connect
it to an outlet that is controlled by a wall switc h. When the power to the radio is
interrupted, the built in lithium battery takes over to maintain the time and alarm
settings. To maximize the life of the lithium battery keep the radio connected to a
‘live’ AC outlet at all times
You will note that this system is equipped with a polarized AC power plug having
one blade wider than the other. This
is a safety feature. If this plug does
not fit into your existing AC outlet, do
not try to defeat this safety feature by
filing the wide blade to make it fit into
your outlet. If this plug will not fit into
your outlet, you probably have an outdated non-polarized AC outlet. You
should have your outlet changed by
a qualified licensed electrician.
4
CKS2288_ib_092302.p65 23/9/2002, 11:534
AC Plug
LOCATION OF CONTROLS AND INDICATORS
1 2 3
4
5
27
19
18
20 21 23
12
13
14
Top Panel
1. MONTH/DATE Setting Button.
2. TIME setting Button.
3. ALARM MODE Button.
(weekdays/weekends/everyday alarm)
4. ALM(Alarm) 1 Setting Button.
5. ALM(Alarm) 2 Setting Button.
6. SNOOZE/SLEEP OFF Button.
7. SET - Button.
8. SET + Button.
9. TIME ZONE Button.
10. SLEEP Button.
1 1 . RADIO ON/OFF Button.
Left Side
6 7 8 9 10 11
22
Right Side
15. VOLUME Control.
16. BAND(AM/FM) Switch.
17. TUNING Control.
Front Panel
18. ALM(Alarm) 2 ‘On’ Indicator.
19. ALM(Alarm) 1 ‘On’ Indicator.
20. AM Indicator.
21. Time Display .
22. Day Indicators.
23. BATT. LOW Indicator.
24. Month/Date Display .
25. Lighted Dial Pointer.
26
24
15
16
17
25
12. ALARM 1 Selector Switch.
(RADIO/BUZZER/OFF)
13. ALARM 2 Selector Switch.
(RADIO/BUZZER/OFF)
14. Display DIMMER(HIGH/LOW) Switch.
CKS2288_ib_092302.p65 23/9/2002, 11:545
Back Panel
26. Back Up Battery Compartment.
27. AC Power Cord.
5
