Emerson 2200, 1000, 1500, 3000 User Manual

AC Power
For Business-Critical Continuity™

Liebert® PSI XR

User Manual–1000/1500/2200/3000, 120VAC

™

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

GLOSSARY OF SYMBOLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

1.0 INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

2.0 WHAT’S INCLUDED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

3.0 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

3.1 Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3.2 Tower UPS Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.3 Rack-Mount UPS Conversion and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.4 Orient Display for Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.5 Charge Batteries and Perform Battery Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.6 Connect Input Power and Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.7 Connect Network Surge protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3.8 Connect Communication Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3.9 Set Up Liebert MultiLink software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.10 EPO Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.11 External Battery Cabinet Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4.0 CONTROLS AND INDICATORS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

4.1 Control Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4.1.1 On/Alarm Silence/Manual Self-Diagnostic Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4.1.2 Off Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4.2 Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4.2.1 Status Change Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4.2.2 Load Level Indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4.2.3 Battery Level Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

4.2.4 UPS Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

5.0 OPERATIONAL MODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

5.1 Normal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

5.2 Buck/Boost Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

5.3 Battery Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

5.4 Battery Recharge Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

i

6.0 COMMUNICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

6.1 DB-9 Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

6.2 Remote Shutdown Via the DB-9 Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

6.2.1 Any Mode Shutdown Via Pins 5 & 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

6.2.2 Battery Mode Shutdown Via Pins 4 & 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

6.3 Network Surge Protection Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

6.4 UPS Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

6.5 UPS Inverter/Transfer Voltage Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

7.0 BATTERY MAINTENANCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

7.1 Battery Charging, Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

7.2 Internal Battery Replacement Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

8.0 SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

9.0 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

FIGURES

Figure 1 Front view of UPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Figure 2 1000 and 1500—rear view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Figure 3 2200—rear view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Figure 4 3000—rear view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Figure 5 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Figure 6 Placing the Liebert PSI XR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

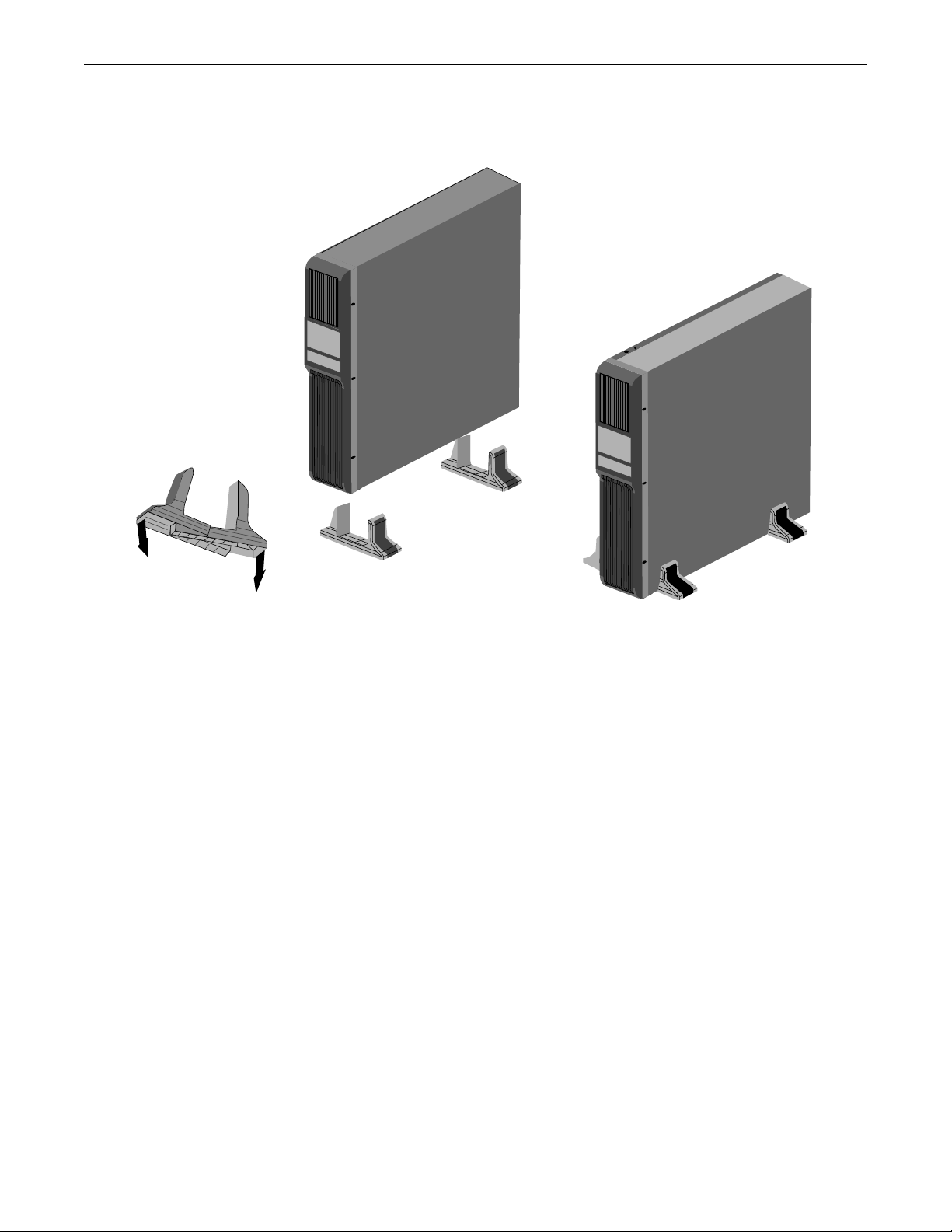

Figure 7 Tower configuration—attach Tower Stands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

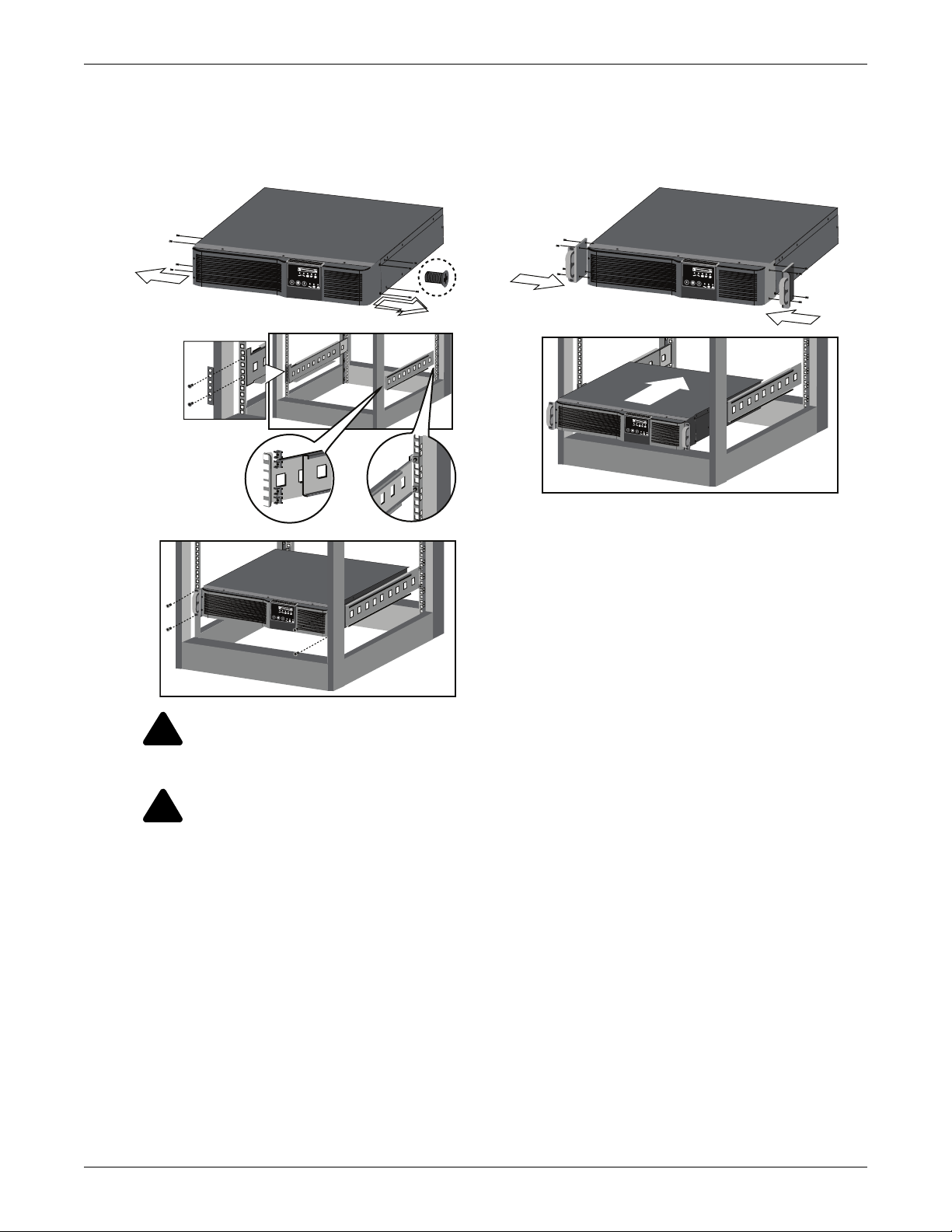

Figure 8 Convert the Liebert PSI XR for rack installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Figure 9 Orienting the UPS display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Figure 10 Connect input power and load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Figure 11 Connect network surge protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Figure 12 Connect communication interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Figure 13 EPO connection for normally open operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Figure 14 Install the external battery cabinet in tower installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Figure 15 Connect battery cabinets to UPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Figure 16 Display and status indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Figure 17 DIP switch settings for 120V system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Figure 18 Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

TABLES

Table 1 Battery cabinet connector color key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Table 2 Display and status indicators function, legend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Table 3 Status indicators—color, illumination mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Table 4 DB-9 pin assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Table 5 Voltage configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Table 6 Liebert PSI XR specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Table 7 Battery cabinet specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Table 8 Liebert PSI XR battery run times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Table 9 Troubleshooting—problems, causes and solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

ii

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

This manual contains important instructions that should be followed during installation and mainte­nance of the UPS.

• Intended for installation in a temperature-controlled, indoor area free of conductive
contaminants.

• Maximum ambient temperature 104°F (40°C).

Read this manual thoroughly before attempting to install or operate this UPS.

The equipment can be installed and operated by individuals without previous training.

Size of Branch Circuit Overcurrent Protection

CAUTION

!

To reduce the risk of fire, connect PS3000RT3-120XR models only to a circuit provided with
30 amperes maximum branch circuit overcurrent protection in accordance with the National
Electric Code, ANSI/NFPA 70. Other Liebert PSI models must be connected to a circuit with
20 amperes maximum branch circuit overcurrent protection.

WARNING

!

Operate the UPS only from a properly grounded (earthed) 110-127VAC, 50Hz or 60Hz AC
supply.

Some components are live, even when AC power is disconnected. For service, contact a
properly trained and qualified technician. Do not remove the cover; the UPS has no
user-serviceable parts inside except the internal battery pack.

WARNING

!

Although the UPS has been designed and manufactured to ensure personal safety, improper
use can result in electrical shock or fire. To ensure safety, observe the following rules:

• Turn Off and unplug the UPS before cleaning it. Clean the UPS with a dry cloth. Do not use
liquid or aerosol cleaners.

• Do not install or operate the UPS in or near water.

• Never block or insert any objects into the ventilation holes or other openings of the UPS.
Keep all vents free of dust accumulation that could restrict air flow.

• Do not place UPS power cord anywhere it might be damaged.

Battery Handling Precautions

WARNING

!

Batteries should be replaced only by properly trained and qualified personnel knowledgeable
of batteries and required precautions.

A battery can present a risk of electrical shock and high short-circuit current. The following
precautions must be observed when working on batteries:

• Remove watches, rings and other metal objects.

• Use tools with insulated handles.

• Do not dispose of the battery or batteries in a fire. The battery may explode.

• Do not open or mutilate the battery or batteries. Released electrolyte is toxic. It may cause
injury to the skin and eyes.

• When replacing the battery, use the same type of battery as is listed in Table 5.

• Handle, transport and recycle batteries in accordance with local regulations.

1

CONDITIONS OF USE—The input supply outlet must be within 6 ft. (1.8m) of the UPS and be eas­ily accessed.

This UPS provides conditioned power to connected equipment. It is not intended for use with life-sup­port and other designated “critical” devices. Maximum load must not exceed that shown on the UPS
rating label. If uncertain, consult your local dealer, local Emerson Network Power representative or
Channel Support Applications.

When installing the UPS or making input and output connections, comply with all relevant safety
codes and standards (e.g., UL 1778).

Placing magnetic storage media on top of the UPS may result in data corruption.

ELECTROMAGNETIC COMPATIBILITY—The Liebert PSI XR complies with part 15 of the FCC
Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received, including interference that may cause unde­sired operation.

This equipment uses, generates and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference with radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, the user is encouraged to
try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the UPS and the receiver.

• Connect the UPS to an outlet on a circuit different from the one the receiver is connected to.

NOTICE

Do not connect equipment that could overload the UPS or demand half-wave rectification
from the UPS, such as electric drills, vacuum cleaners, laserjet printers and hair dryers.

2

GLOSSARY OF SYMBOLS

Risk of electrical shock

!

Indicates caution followed by important instructions

Indicates the unit contains a valve-regulated, lead-acid battery

Recycle

DC voltage

Equipment grounding conductor

Bonded to ground

AC voltage

ON/Alarm Silence/Manual Self-Diagnostic Test

OFF

Status Change Button

3

1.0 INTRODUCTION

The Liebert PSI™ XR is a 2U, line-interactive UPS that may be installed in a rack or used as a tower
UPS.

Status indicators on the front of the Liebert PSI XR display load level, battery level, buck/boost, site­wiring fault, overload, battery status and UPS operation. Controls include a combination On/Alarm
Silence/Manual Self-Diagnostic Test button, an Off button and a Status Change button.

The Liebert PSI XR has USB, DB-9 (contact closure) and Liebert IntelliSlot
USB ports provide detailed operating information including voltages, currents, and alarm status to
the host system when used in conjunction with Liebert MultiLink

The Liebert PSI XR is compliant with the Restriction of Hazardous Substances Directive (ROHS),
prohibiting use of six hazardous materials manufacturing of electronics, including lead-free solder.

Figure 1 Front view of UPS

Liebert PSI XR

rack-mount configuration

Display rotates for use as tower

™

software.

Introduction

®

ports. The DB-9 and

Figure 2 1000 and 1500—rear view

Liebert
IntelliSlot
Port

USB
Port

EPO

DB-9 Port
(Contact
Closure)

EPO

FUNCTION
VOLTAGE=110V
VOLTAGE=120V
VOLTAGE=127V

2 1

tower configuration

Display rotates for use in rack

Input Circuit Breaker
(12A for 1000VA;
15A for 1500VA)

Liebert PSI XR

Output Circuit Breaker
(8A for 1000VA;
15A for 1500VA)

OUTPUTINPUT

DC 24V

Receptacles
NEMA 5-15R

Voltage Configuration
DIP Switch

Network Surge
Protection

External Battery
Cabinet Connector

4

Power Cord; 5-15P
(not shown for clarity)

Figure 3 2200—rear view

Introduction

DB-9 Port
(Contact
Closure)

EPO

Power Cord; 5-20P
(not shown for clarity)

Liebert
IntelliSlot
Port

EPO

FUNCTION

2 1
VOLTAGE=110V
VOLTAGE=120V
VOLTAGE=127V

USB Port

Voltage Configuration
DIP Switch

Network Surge
Protection

15A Output Circuit Breaker

for Receptacles #3 & #4

Receptacles #1 and #2;

30A Input

NEMA 5-20R T-Slot

Circuit Breaker

DC 48V

External Battery
Cabinet Connector

20A Input Circuit Breaker
Receptacles #1 and #2

Receptacles #3 and #4
NEMA 5-15R

Receptacles

#5 and #6

NEMA 5-15R

INPUT

OUTPUT

15A Output Circuit Breaker
for Receptacles #5 & #6

Figure 4 3000—rear view

Power Cord; L5-30P
(not shown for clarity)

Liebert
IntelliSlot

Port
DB-9 Port
(Contact
Closure)

EPO

FUNCTION

2 1
VOLTAGE=110V
VOLTAGE=120V
VOLTAGE=127V

EPO

USB Port

Voltage Configuration
DIP Switch

NEMA L5-30R
Receptacle

Network Surge
Protection

15A Output Circuit Breaker

for Receptacles #3 & #4

Receptacles #1 and #2;

30A Input

NEMA 5-20R T-Slot

Circuit Breaker

INPUT

DC 48V

External Battery
Cabinet Connector

20A Output Circuit Breaker
Receptacles #1 and #2

Receptacles #3 and #4
NEMA 5-15R

Receptacles

#5 and #6

NEMA 5-15R

OUTPUT

15A Output Circuit Breaker
for Receptacles #5 & #6

5

2.0 WHAT’S INCLUDED

The Liebert PSI XR is shipped with the following items:

• Multi-Language User Manual on CD

• Liebert MultiLink Software and User Manual, downloadable at multilink.liebert.com

• Contact Closure (ML9P9S) Cable

• USB Cable

• Tower Stands

• Mounting Hardware

• Rack-Mount Handles

• Fixed Mounting Rails

•EPO Connector

• Battery-UPS Tab

Figure 5 Accessories

What’s Included

Tow e r Sta n ds

Contact Closure
(ML9P9S) Cable

6 ft (1.8m)

USB cable

6 ft (1.8m)

Fixed

Mounting Rails

Mounting Hardware

(Screws and Washers)

Battery-UPS Tab

Rack-Mount

Handles

EPO

Connector

6

3.0 INSTALLATION

3.1 Preparation

CAUTION

!

The UPS and battery cabinets are heavy (see Table 6 and Table 7). Take proper precautions
when lifting or moving either the UPS or battery cabinets.

The Liebert PSI XR may be installed in either a tower or rack configuration. Determine the method
that suits the application and proceed.

Decide where to install the Liebert PSI XR. The UPS must be installed indoors in a controlled envi­ronment. Place it in an area with unrestricted airflow around the unit, away from water, flammable
liquids, gases, corrosives and conductive contaminants (see Figure 6).

Maintain a minimum clearance of 12 inches (305mm) in the front and rear of the UPS. Maintain an
ambient temperature range of 32°F to 104°F (0°C to 40°C).

Figure 6 Placing the Liebert PSI XR

Installation

A

I

R

R

I

A

A

I

R

m

m

5

0

3

/

.

n

i

2

1

32 F (0 C)

Relative humidity
(non-condensing)

0% ~ 90%

104 F (40 C)

7

3.2 Tower UPS Installation

See Figure 7 when using the Liebert PSI XR in a tower configuration.

Figure 7 Tower configuration—attach Tower Stands

Step 1

Installation

Step 2

8

3.3 Rack-Mount UPS Conversion and Installation

See Figure 8 when installing the Liebert PSI XR in a rack. External battery cabinets are installed in
same manner.

Figure 8 Convert the Liebert PSI XR for rack installation

Step 1 Step 2

Installation

Step 3

Step 5

L
o

a
d

L

e
v
e

l
B
a

t
t

e
r
y

L

e

v

e

l

L
o

a
d

L

e
v
e

l
B
a

t
t

e
r
y

L
e

v

e

l

Step 4

L
o

a
d

L
e

v
e

l
B
a

t
t
e

r
y

L
e

v

e

l

L
o

a
d

L
e

v
e

l
B
a

t
t
e

r
y

L
e

v

e

l

WARNING

!

Placing heavy equipment near the top of a rack may increase the risk of tipping. Place the
UPS, and battery cabinet if one is being used, in the bottom of the rack.

CAUTION

!

Lifting equipment into rack may be a two-person job, depending on weight of equipment.

NOTICE

When rack-mounted, the UPS must be supported by a shelf, slide rails, brackets or fixed rails
on each side. The rack-mount handles WILL NOT support the weight of the UPS. They are
used to move the UPS into and out of the rack.

9

3.4 Orient Display for Installation

The Liebert PSI XR features a rotating display that may be oriented for either tower or rack
installations.

To set the display for your installation, pull out on the display and rotate it until it is oriented
correctly, then press it into the UPS until it is seated.

Figure 9 Orienting the UPS display

Installation

3.5 Charge Batteries and Perform Battery Startup

Before connecting input power or connecting the load, Emerson recommends these steps:

• Charge the battery for at least 8 hours.

• Start the UPS on battery to ensure the battery is fully functional and charged.

• Turn the unit Off and proceed to 3.6 - Connect Input Power and Load.

3.6 Connect Input Power and Load

Connect input power to the UPS, then plug the equipment into the outlets on the rear of the UPS.
These UPS outlets provide battery backup and surge protection to the equipment when utility power
fails, spikes or sags (see Figure 10).

Figure 10 Connect input power and load

EPO

VOLTAGE=110V

VOLTAGE=120V

VOLTAGE=127V

FUNCTION

2 1

DC 24V

OUTPUTINPUT

10

3.7 Connect Network Surge protection

Connect a 10 base-T/100 network cable to the network surge protection IN jack on the rear of the
UPS. Connect from the OUT jack with network cabling to network equipment (see Figure 11).

Figure 11 Connect network surge protection

EPO

FUNCTION

2 1

VOLTAGE=110V
VOLTAGE=120V
VOLTAGE=127V

Network surge

protection OUT jack

3.8 Connect Communication Interface

Determine what type of communication connection to use to manage the UPS. The Liebert PSI XR
can be monitored with any of these communication methods:

Installation

Network

Equipment

OUTPUTINPUT

DC 24V

Network surge

protection IN Jack

• Contact closure

•USB

• SNMP (requires optional IS-WEBRT3 card)

Connect the appropriate, factory-supplied cable to the interface port on the rear of the UPS and to the
computer interface port.

See 3.9 - Set Up Liebert MultiLink software for details and installation information. Also refer to

6.4 - UPS Communications.

Figure 12 Connect communication interface

EPO

VOLT AGE= 110V

VOLT AGE=120 V

VOLT AGE=127 V

2 1FUNCTION

DC 24V

OUTPUTINPUT

11

3.9 Set Up Liebert MultiLink software

To start using Liebert MultiLink (software and user manual available at multilink.liebert.com):

• Install the software.
See the Liebert MultiLink quick-start guide or user manual for installation instructions.

• Connect one end of the USB cable (supplied) to the USB port on the rear of the UPS. Connect the
other end to a USB port on the computer.

See the Liebert MultiLink user manual for operating instructions.

NOTE

Emerson recommends connecting the USB cable directly to the computer WITHOUT using a
USB hub.

3.10 EPO Switch

The Liebert PSI XR is equipped with an Emergency Power Off (EPO) switch. The user must supply a
means of interfacing with the EPO circuit to allow disconnecting the UPS input feeder breaker to
interrupt all sources of power to the UPS and connected equipment to comply with national and local
wiring codes and regulations.

Figure 13 EPO connection for normally open operation

Installation

Short Pin 1 and Pin 2 to
enable the EPO function

2 = Ground

1 = EPO+

12

3.11 External Battery Cabinet Installation

Optional Liebert external battery cabinets may be connected to the UPS to provide additional battery
run time. External battery cabinets are designed to be placed all on one side of the UPS or stacked
beneath the UPS. The batteries have a maximum run time of three hours at full load.

1. Install the external battery cabinet in tower- or rack-configuration (see Figure 14 or 3.3 - Rack-
Mount UPS Conversion and Installation).

2. Connect the external battery cabinet cable to the rear of the external battery cabinet, then to the
rear of the UPS (see Figure 15).

Figure 14 Install the external battery cabinet in tower installation

Connect the top of the UPS
to the top of the battery cabinet
with the Battery UPS Tab and
hardware

If two or more battery cabinets are
used in a tower setup, the tower stand
must be extended with the spacers
included with each battery cabinet.

Installation

Connect tower stand and set
the UPS and battery cabinet in
them; check to ensure stability

NOTICE

External battery cabinet power connectors are color-coded as noted in Table 1. Do not try to
install external battery cabinets with connectors that are a different color from the battery
connector on the UPS.

Table 1 Battery cabinet connector color key

UPS Model Nominal System Voltage (connector color) External Battery Cabine Model

PS1000RT3-120XR

PS1000RT3120XRW

PS1500RT3-120XR

PS1500RT3120XRW

PS2200RT3-120XR

PS2200RT3120XRW

PS3000RT3-120XR

PS3000RT3120XRW

24VDC (Red) PSRT3-24VBXR

48VDC (Gray) PSRT3-48VBXR

13

Figure 15 Connect battery cabinets to UPS

EPO

FUNCTION

2 1
VOLTAGE=110V
VOLTAGE=120V
VOLTAGE=127V

Installation

OUTPUTINPUT

DC 24V

See Table 8 for approximate battery run times.

14

4.0 CONTROLS AND INDICATORS

Buttons on the front panel display control the Liebert PSI XR. Eight LEDs indicate the UPS’s status.
Refer to Figure 16 and Table 2.

Figure 16 Display and status indicators

Load Level
Battery Level

67891011

Table 2 Display and status indicators function, legend

Item Name Status Indicators Description

1 LED 1 AVR Boost UPS Operation in AVR Boost Mode

2 LED 2 AVR Buck UPS Operation in AVR Buck Mode

3 LED 3 Battery Condition Battery Fault/Weak

4 LED 4 Grounding/Site Wiring Fault UPS Grounding/Site Wiring Fault

5 LED 5 Overload UPS Overload

1 to 5 Load/Battery Level Indicate Load/Battery Level

6 Status Change Button

7 OFF Button UPS Off

8ON Button

9 LED 9 Normal Mode UPS Operation in Normal Mode

10 LED 10 Battery Mode UPS Operation in Battery Mode

11 LED 11 UPS Fault UPS Fault

Controls and Indicators

12345

Switches Display from Load Level Indicators
to Battery Level Indicators

Turn on UPS, Manual Self-Diagnostic (Normal Mode),
Silence Alarm (Battery Mode)

15

4.1 Control Buttons

4.1.1 On/Alarm Silence/Manual Self-Diagnostic Test

This button controls output power to connected load(s). It has three functions:

•On

•Alarm Silence

• Manual Self-Diagnostic Test

ON—Start the UPS by pressing this button for more than 3 seconds, then releasing the button (an
alarm will sound briefly). If the ON button is pressed and utility is outside input parameters, the UPS
will start on battery (dark start).

Alarm Silence—Silence a battery mode audible alarm by pressing this button for longer than one
second, then releasing it.

Manual Self-Diagnostic Test—To initiate a Manual Self-Diagnostic, press this button for at least
three (3) seconds while operating from utility power. UPS will switch to Battery Mode to detect bat­tery voltage and whether the UPS is operating normally.

If LED indicates the battery is weak: Allow the UPS to recharge the batteries for 8 hours.
Retest the battery after recharge.

If LED still indicates the battery is weak after the battery has been retested, contact your
local dealer, local Emerson representative or Channel Support Applications.

If LED indicates a Battery Fault: Contact your local dealer, local Emerson representative or
Channel Support Applications.

If LED indicates a UPS Fault: Remove the load, retest the self diagnostic test, if LED indicated
UPS Fault, Contact your local dealer, local Emerson representative or Channel Support Applica­tions.

Controls and Indicators

NOTE

Refer to Figure 16 and Table 2 for details about the LEDs’ meaning.

4.1.2 Off Button

When the UPS is operating in either Normal Mode or Battery Mode, pressing the Off button for more
than three seconds will shut down the UPS.

4.2 Status Indicators

4.2.1 Status Change Button

The Status Change button determines the information displayed by the five LEDs on the front panel.
The default information shown by the LEDs is the load level on the UPS. Pressing the Status Change
button while the UPS is On prompts the LED display to show battery capacity for 5 seconds. This
function assists in assessing the meaning of status indicators as described in 4.2.4 - UPS Status
Indicators. See Figure 16 and Table 2 for the Status Change button’s location.

4.2.2 Load Level Indicator

The five LEDs at the top of the front panel illuminate with a steady glow to indicate the load level on
the output of the UPS. The LEDs show the load level as a range, ± 5%. The LEDs’ load level meanings
and colors are:

LED 1 LED 2 LED 3 LED 4 LED 5

10-24% — Green 25-49% — Green 50-74% — Yellow 75-99% — Yellow 100% or greater — Red

16

4.2.3 Battery Level Indicator

The five LEDs illuminate with a steady glow to indicate battery capacity. Battery capacity is shown
for five seconds after the Status Change button is pressed. The LEDs show the battery capacity as a
range, ± 5% The LEDs’ battery level meanings and colors are:

LED 1LED 2LED 3LED 4LED 5

100-76% — Green 75-51% — Green 50-26% — Yellow 25-11% — Yellow 10% or less — Red

4.2.4 UPS Status Indicators

LEDs on the display panel illuminate with a steady glow or flash to indicate the UPS’s status:

Normal Mode—The Normal Mode indicator illuminates (LED 9) with a steady glow when utility
power is available and within the input specifications.

Battery Mode—The Battery Indicator illuminates (LED 10) with a steady glow when the UPS is
operating on battery

AVR Boost, AVR Buck—When the UPS is in AVR Boost/Buck Mode, the LED display will indicate
the relative load level on the output of the UPS and will flash LED 1 (boost) or LED 2 (buck) to indi­cate which mode the UPS is in.

Weak Battery—When the UPS battery voltage is low, the LED display will indicate the relative load
level on the output of the UPS and LED 3 will flash as a warning.

Site-Wiring Fault—In case of a site-wiring fault, the LED display will indicate the relative load
level on the output of the UPS and LED 4 will flash as a warning.

Controls and Indicators

Overload—When UPS operates in overload status, the LED display will indicate the relative load
level on the output of the UPS and LED 5 will flash as a warning.

Table 3 Status indicators—color, illumination mode

Status LED 1 LED 2 LED 3 LED 4 LED 5 LED 9 LED 10 LED 11

Normal Mode

AVR Boost

AVR Buck

Battery Mode
(dark start)

Weak Battery

Site-Wiring Fault

Overload

Battery Fault
Shutdown

Overload
Shutdown

UPS Output
Abnormal
Shutdown

Green

Flashes

Green

Flashes

Yellow

Flashes

Yellow

Flashes

Red

Flashes

Yellow

Steady

Red

Steady

Green

Steady

Green

Steady

Green

Steady

Yellow

Steady

Yellow

Steady

Red

Steady

Red

Steady

Red

Steady

17

5.0 OPERATIONAL MODES

5.1 Normal Mode

When the UPS is in Normal Mode, the Normal Mode Indicator illuminates green.

5.2 Buck/Boost Mode

The Automatic Voltage Regulator (AVR) circuitry compensates for fluctuations in utility power, such
as voltage surges and sags. When the Liebert PSI XR detects an abnormality, it raises the undervolt­age (boost) or lowers the overvoltage (buck) as needed. The AVR operates automatically and main­tains the output voltage to the connected equipment, without utilizing the batteries.

LED 1 flashes green and LED 9 illuminates steady green when the UPS is in Boost Mode. LED 2
flashes green and LED 9 illuminates steady green when the UPS is in Buck Mode (see 9.0 - Trouble-
shooting for details).

5.3 Battery Mode

The UPS switches to Battery Mode in the event of an extreme input voltage/frequency condition or
utility failure.

When the UPS is in Battery Mode, the Battery Indicator illuminates amber and an alarm sounds at
two-second intervals. As capacity decreases, fewer indicators remain illuminated.

Operational Modes

When a Low Battery condition occurs, the Battery Indicator flashes amber and an alarm sounds at
one-second intervals. Refer to Table 8 for approximate battery run times.

5.4 Battery Recharge Operation

Once utility power is restored, the UPS resumes normal operation and the Battery Charger begins
recharging the batteries.

18

6.0 COMMUNICATION

r

6.1 DB-9 Connector

The UPS has a DB-9 (9 pin female) connector on the rear to allow UPS status communications with a
computer running Liebert MultiLink software in contact closure mode. The connection provides On
Battery and Low Battery notification.

When power is interrupted and battery power is low, Liebert MultiLink software can signal the host
computer to gracefully shut down the operating system.

Table 4 DB-9 pin assignment

DB-9 Pin Assignment Description

1 Low Battery (open collector)

2 UPS TxD (not used)

3 UPS RxD (not used)

4 Remote Shutdown (5-12V); on-battery operation

5 Common

6 Output Off, (short to Pin 5, non-latching); any mode operation

7 Low Battery (open emitter)

8 Utility Fail (open emitter)

9 Utility Fail (open collector)

Communication

Pin Assignment Collector to Emitter*

6789

54321

6.2 Remote Shutdown Via the DB-9 Connector

The Liebert PSI XR can be shut down remotely by shorting Pins 5 and 6 or via Pins 4 and 5 of the DB­9 connector.

6.2.1 Any Mode Shutdown Via Pins 5 & 6

When Pin 6 is shorted to Pin 5, the UPS output is shut Off no matter what mode the UPS is operating
in. The UPS cannot be started as long as the pins are shorted. When the short is removed, the UPS
output can be enabled by pressing the ON/Alarm Silence/Manual Self-Diagnostic Test button.

6.2.2 Battery Mode Shutdown Via Pins 4 & 5

While the UPS is operating on battery, a 5-12VDC signal for 2 seconds or longer is required to signal
a shutdown. Signals for less than 2 seconds are ignored.

After Pin 4 receives the shutdown signal, a 2-minute shutdown timer begins a countdown. The shut­down timer cannot be stopped: If utility power returns during the 2-minute countdown, the shutdown
timer continues until the end of 2 minutes and the UPS turns Off. The UPS will restart 10 seconds
after utility power returns.

330 Ohms

(+)

(-)

Open
Collecto

Open
Emitter

6.3 Network Surge Protection Connectors

Network (in and out) connectors on the rear of the UPS provide transient voltage surge suppression
(TVSS) for network devices.

19

6.4 UPS Communications

The Liebert PSI XR is equipped with a Liebert IntelliSlot port to provide advanced communication
and monitoring options.

Liebert MultiLink software continually monitors the UPS and can shut down your computer or server
via USB, contact closure and SNMP (via IS-WEBRT3 card) in the event of an extended power failure.

The Liebert IS-WEBRT3 provides SNMP and Web-based monitoring and control of the UPS across
the network.

NOTE

The USB, SNMP and contact closure communications can operate in parallel.

6.5 UPS Inverter/Transfer Voltage Configurations

A two-pin DIP switch on the rear of the PSI XR permits setting the UPS to operate at nominal volt­ages of 110V, 120V or 127V. This feature will change the high and low points at which the UPS
switches to battery power. It also changes the UPS’ output voltage when the UPS is operating in bat­tery mode. The factory default setting is 120 VAC.

Turn Off the UPS before making any changes to the voltage configuration.

Figure 17 DIP switch settings for 120V system

Communication

ON

12

FUNCTION 2 1

Voltage = 110V

Voltage = 120V

Voltage = 120V

Voltage = 127V

Table 5 Voltage configurations

Setting Input Voltage Range Output Voltage (Battery Mode)

110 83~138 110VAC

120 90~150 120VAC

127 96~159 127VAC

20

7.0 BATTERY MAINTENANCE

7.1 Battery Charging, Storage

The batteries are valve-regulated, nonspillable, lead acid and must be kept charged to retain their
design life. The Liebert PSI XR continuously charges the batteries when connected to the utility sup­ply, even while the UPS is switched Off.

If the Liebert PSI XR will be stored for an extended period, Emerson recommends connecting the UPS
to input power for at least 8 hours every four to six months to keep the batteries charged.

Emerson recommends performing a monthly manual self-diagnostic test via the Web card or the front
panel display.

7.2 Internal Battery Replacement Procedure

NOTICE

This UPS is equipped with internal batteries that the user can replace without shutting down
the UPS or connected loads (hot swappable). Caution must be exercised when replacing the
batteries because the load is unprotected from power fluctuations and power failures.

To replace the batteries:

1. Remove the two screws on the left side of the front bezel.

2. Pull the front bezel off the UPS.

3. Remove the screw on the battery connector holder.

4. Remove the two screws on the battery bracket.

5. Disconnect the two slotted, red/gray and black battery connectors.

6. Grasp the battery pack assembly by the handle and pull it out of the front of the UPS.

7. Unpack the new battery assembly, taking care not to destroy the packing.

8. Compare the new and old battery assemblies to make sure they are the same. If so, proceed with
replacement. If they are different, STOP and contact your local dealer, local Emerson
representative or Channel Support Applications.

9. Slide the new battery pack into the UPS.

10. Reattach the battery bracket with the two screws.

11. Reconnect the slotted, red/gray and black battery connectors.

12. Reinsert the screw on the battery connector holder.

13. Reattach the front bezel.

Battery Maintenance

Figure 18 Battery replacement

Step 1 Step 2

Load Level
Battery Level

Step 3 Step 4

l

e

v

e

L

d

a

o

L

l

e

v

e

L
y
r

e
t
t

a

B

21

Load Level
Battery Level

Load Level
Battery Level

8.0 SPECIFICATIONS

Table 6 Liebert PSI XR specifications

Model Number

Power Rating, VA/W 1000VA/900W 1500VA/1350W 1920VA/1920W
Dimensions, W x D x H, in (mm)

Shipping 22 x 24.1 x 9 (560 x 612 x 228) 22 x 34.8 x 9.0 (560 x 884 x 228)

Weight, lb (kg)

Shipping 64 (29) 70 (32) 101 (46) 115 (52)

Input AC Parameters

Surge Protection 570J

Voltage Range

Without Battery Operation

Frequency Range 45~65Hz, (±0.5Hz)
Input Power Cord,

10ft (3m) attached

Output Receptacles (6) NEMA 5-15R

Voltage (Normal Mode) 110/120/127 VAC (configurable)
Voltage (Battery Mode) 110/120/127 VAC; ±5% before low-battery warning

Transfer Time 4-6 ms typical

Waveform Sinewave

Battery Parameters

Quantity x Voltage x Ah 4 x 12 x 7.2 4 x 12 x 9 8 x 12 x 7.2 8 x 12 x 9

Recharge Time 5 hours to 90% of rated capacity, after full discharge into resistive load

Battery Backup Time

Full Load 5 minutes

Half Load 10 minutes

Environmental

Operating Temperature, °F (°C) 32 to 104 (0 to 40)

Storage Temperature, °F (°C) 5 to 104 (-15 to 40)

Relative Humidity 0% to 90%, non-condensing

Operating Altitude Up to 10,000 ft (3000m)

Audible Noise <45 dBA

Agency

Safety UL 1778, c-UL Listed

Surge ANSI C62.41 CatA Lev3 (surges) IEC61000-4-5

Susceptibility IEC61000-4-3

Electrical Fast Transient IEC61000-4-4

Emissions FCC Part 15, Class A

Conducted Immunity IEC61000-4-6

Harmonics IEC61000-3-2
Network surge UL 497 B
Transportation ISTA Procedure 1A Certification

Environmental

PS1000RT3-120XR

PS1000RT3120XRW

Unit 17.3 x 19.3 x 3.5 (440 x 490.5 x 88) 17.3 x 27.6 x 3.5 (440 x 700.5 x 88)

Unit 56 (25) 62 (28) 92 (42) 105 (48)

NEMA 5-15P plug NEMA 5-20P plug NEMA L5-30P plug

Type Valve-regulated, nonspillable, lead acid

ESD IEC61000-4-2

PS1500RT3-120XR

PS1500RT3120XRW

83-159 VAC (configurable)

ROHS compliant

PS2200RT3-120XR

PS2200RT3120XRW

(4) NEMA 5-15R

(2) NEMA 5-20R T-Slot,

accepts15A Plug

Specifications

PS3000RT3-120XR

PS3000RT3120XRW

*

3000VA/2700W

(4) NEMA 5-15R

(2) NEMA 5-20R T-Slot,

accepts15A Plug

(1) NEMA L5-30R

* NEC limits the input current rating of the PS2200RT3-120XR and PS2200RT3120XRW models to 80% of the input plug's rating. Up to

2200VA/1980W is available by contacting a certified electrician to change the input plug to 30A plug. Emerson Network Power assumes no
liability for damage caused by miswiring or misapplication of the input plug.

22

Table 7 Battery cabinet specifications

Model Number PSRT3-24VBXR PSRT3-48VBXR

Used w/UPS Model

Dimensions, W x D x H, in (mm)

Unit 17.3 x 19.3 x 3.5 (440 x 490.5 x 88)

Shipping 22 x 26.6 x 9 (560 x 675 x 228)

Weight, lb (kg)

Unit 64 (29)

Shipping 73 (33)

Batteries

Type Valve-regulated, nonspillable, lead acid

Quantity x Voltage x Ah 8 x 12 x 7.2 8 x 12 x 7.2

Manufacturer CSB, YUASA or Equivalent

Environmental

Operating Temperature, °F (°C) 32 to 104 (0 to 40)

Storage Temperature, °F (°C) 5 to 104 (-15 to 40)

Relative Humidity 0% to 90%, non-condensing

Maximum Operating Altitude 10,000 ft. (3000m)

Agency

Safety UL 1778, c-UL Listed

Emissions FCC Part 15, Class A

Transportation ISTA Procedure 1A Certification

PS1000RT3-120XR

PS1000RT3120XRW

PS1500RT3-120XR

PS1500RT3120XRW

Specifications

PS2200RT3-120XR

PS2200RT3120XRW

PS3000RT3-120XR

PS3000RT3120XRW

23

Table 8 Liebert PSI XR battery run times

Number of Batteries Load % 1000 1500 2200 3000

10 83 82 76 75

20 52 48 48 47

30 31 28 28 28

40 18 17 17 17

Internal Battery

Internal battery
+ 1 External
Battery Cabinets

Internal battery
+ 2 External
Battery Cabinets

Internal battery
+ 3 External
Battery Cabinets

Run times are in minutes, assume fully charged batteries and are typical at 77°F (25°C) with resistive loads.

50 15 13 14 13

60 12 11 11 11

70 11 9 9 9

80 9787

90 7676

100 6555

10 263 222 161 143

20 165 131 101 83

30 120 93 69 60

40 95 68 55 47

50 73 56 45 32

60 62 47 31 27

70 54 33 27 18

80 48 29 18 16

90 43 26 17 14

100 32 18 15 12

10 439 357 242 205

20 275 212 152 127

30 200 150 111 92

40 157 116 82 68

50 129 95 68 56

60 110 76 57 47

70 96 65 50 33

80 80 58 44 30

90 71 52 32 26

100 65 47 29 18

10 614 492 322 267

20 385 291 202 166

30 280 207 147 120

40 220 160 116 94

50 181 131 96 73

60 154 111 77 62

70 134 95 67 54

80 119 79 59 47

90 106 71 53 43

100 96 64 48 31

Specifications

24

Table 8 Liebert PSI XR battery run times (continued)

Number of Batteries Load % 1000 1500 2200 3000

10 790 627 483 330

20 494 371 303 204

30 360 264 221 148

40 283 204 174 116

Internal battery
+ 4 External
Battery Cabinets

Internal battery
+ 5 External
Battery Cabinets

Internal battery
+ 6 External
Battery Cabinets

Run times are in minutes, assume fully charged batteries and are typical at 77°F (25°C) with resistive loads.

50 233 167 143 95

60 198 141 122 76

70 172 122 106 66

80 152 108 94 59

90 137 96 79 52

100 124 82 72 48

10 965 762 564 392

20 605 452 354 243

30 440 320 258 176

40 346 248 203 138

50 265 203 167 113

60 242 171 142 96

70 211 148 124 79

80 186 131 110 70

90 167 117 98 62

100 151 106 84 56

10 1140 897 644 454

20 714 531 405 281

30 520 377 295 204

40 408 292 232 160

50 337 239 191 131

60 286 202 163 112

70 249 175 142 97

80 220 154 125 81

90 197 138 112 72

100 179 124 102 65

Specifications

25

9.0 TROUBLESHOOTING

The information below indicates various symptoms a user may encounter if the Liebert PSI XR expe­riences a problem. See Table 9 for suggested solutions.

1. An alarm sounds, alerting that the UPS requires attention. The alarm can be silenced except for
low battery, overload warning and fault.

2. One or more additional indicators will be illuminated to provide a diagnostic aid to the operator,
as described below:

If the UPS fails to operate properly, turn Off the unit and repeat the steps in 3.0 - Installation. If the
problem persists, refer to Table 9.

Table 9 Troubleshooting—problems, causes and solutions

Problem Cause Solution

UPS will not start

UPS starts on battery, but will not
switch to AC (dark start)

UPS shuts down

Site Wiring Fault LED (LED 4) flashing

Battery weak LED (LED 3) flashing

Troubleshooting

Check the circuit breaker on the
rear of the UPS.
If it is tripped, reset it and restart the

Short circuit

Battery is disconnected or
completely discharged

UPS not plugged in Plug in the power cord securely.

Circuit breaker tripped

AC overvoltage

Short circuit or UPS output is
abnormal; LED 10 and LED 11
illuminate and sound audible
alarm

Overload; LED 5 and LED 11
illuminate and sound audible
alarm

LED 3 and LED 11 illuminate and
sound audible alarm

Liebert MultiLink software

Site Wiring Fault, UPS detected a
line-to-neutral reversal or a loss of
proper grounding.

Batteries weak Recharge batteries.
Batteries need to be replaced Replace batteries.

UPS. For help, contact your local
dealer, local Emerson
representative or Channel Support
Applications.

Check for proper connection of
battery or batteries.

Reset the circuit breaker and restart
the UPS.

Wait until voltage drops to an
appropriate level or have the utility
power checked by a properly
trained and qualified electrician.

Remove the load and turn on the
UPS again. For help, contact your
local dealer, local Emerson
representative or Channel Support
Applications.

Check load level display and
remove nonessential loads.
Recalculate the load and reduce
equipment connected to UPS - the
total wattage must not exceed the
capacity of the UPS.

Recharge the battery for 8 hours,
then turn ON the UPS.

Consult the Liebert MultiLink user
manual or contact your LAN
administrator.

Have the utility checked by a
properly trained and qualified
electrician.

NOTE

The PS2200RT3-120XR UPS will sound an Overload alarm under certain Low Line
conditions when it is fully loaded and it exceeds the input current rating. Unless the load is
reduced, the condition will trip the branch circuit breaker.

26

Ensuring The High Availability
Of Mission-Critical Data And Applications.

Emerson Network Power, the global leader in enabling business-critical
continuity, ensures network resiliency and adaptability through
a family of technologies—including Liebert power and cooling
technologies—that protect and support business-critical systems.
Liebert solutions employ an adaptive architecture that responds
to changes in criticality, density and capacity. Enterprises benefit
from greater IT system availability, operational flexibility and
reduced capital equipment and operating costs.

While every precaution has been taken to ensure the accuracy
and completeness of this literature, Liebert Corporation assumes no
responsibility and disclaims all liability for damages resulting from use of
this information or for any errors or omissions.
© 2008 Liebert Corporation
All rights reserved throughout the world. Specifications subject to change
without notice.
® Liebert is a registered trademark of Liebert Corporation.
All names referred to are trademarks
or registered trademarks of their respective owners.

SL-23315_REV03_07-09

Technical Support / Service

Web Site

www.liebert.com

Monitoring

800-222-5877

[e-mail]

Outside the US: 614-841-6755

Single-Phase UPS

800-222-5877

[e-mail]

Outside the US: 614-841-6755

Three-Phase UPS

800-543-2378

[e-mail]

Environmental Systems

800-543-2778

Outside the United States

614-888-0246

Locations

United States

1050 Dearborn Drive

P.O. Box 29186

Columbus, OH 43229

Europe

Via Leonardo Da Vinci 8

Zona Industriale Tognana

35028 Piove Di Sacco (PD) Italy

[phone]

Fax: [phone]

Asia

7/F Dah Sing Financial Centre

108 Gloucester Road

Wanc hai

Hong Kong

852 2572 2201

Fax: [phone]

Emerson Network Power.
The global leader in enabling Business-Critical Continuity.

AC Power

Connectivity
DC Power

Business-Critical Continuity, Emerson Network Power and the Emerson Network Power logo are trademarks and service marks of Emerson Electric Co.

©2008 Emerson Electric Co.

Embedded Computing
Embedded Power Power Switching & Controls
Monitoring

Outside Plant

Precision Cooling

EmersonNetworkPower.com

Racks & Integrated Cabinets
Services
Surge Protection
