Elitegroup H61H2-TI User Manual V1.0

Preface
Copyright
This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.
Version 1.0
The information in this document is subject to change without notice. The manufac­turer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publica­tion and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.
Trademark Recognition
Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp.
MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered trademarks of Intel Corporation.
Other product names used in this manual are the properties of their respective owners and are acknowledged.
Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential instal­lation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interfer­ence will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and the receiver
Connect the equipment onto an outlet on a circuit different from that to
which the receiver is connected
Consult the dealer or an experienced radio/TV technician for help
Shielded interconnect cables and a shielded AC power cable must be employed with this equipment to ensure compliance with the pertinent RF emission limits govern­ing this device. Changes or modifications not expressly approved by the system’s manufacturer could void the user’s authority to operate the equipment.
H61H2-TI USER MANUAL
Declaration of Conformity
This device complies with part 15 of the FCC rules. Operation is subject to the follow­ing conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference
that may cause undesired operation.
This device is in conformity with the following EC/EMC directives:
EN 55022
EN 61000-3-2
EN 61000-3-3
EN 55024
EN 60950
CE marking
Limits and methods of mesurement of radio disturbance char­acteristics of information technology equipment
Disturbances in supply systems caused
Disturbances in supply systems caused by household appli­ances and similar electrical equipment “ Voltage fluctuations”
Information technology equipment-Immunity characteristics­Limits and methods of measurement
Safety for information technology equipment including electri­cal business equipment
Canadian Department of Communications
This class B digital apparatus meets all requirements of the Canadian Interference­causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur le matériel brouilieur du Canada.
About the Manual
The manual consists of the following:
Chapter 1 Introducing the Motherboard
Describes features of the motherboard.
page 1
Chapter 2 Installing the Motherboard
Chapter 3 Using BIOS
Chapter 4 Using the Motherboard Software
Chapter 5 Trouble Shooting
ii
H61H2-TI USER MANUAL
Describes installation of motherboard components.
Provides information on us­ing the BIOS Setup Utility.
Describes the motherboard software.
Provides basic trouble shoot­ing tips.
page 7
page 29
page 55
page 59
TABLE OF CONTENTS
Preface i
Chapter 1 1
Introducing the Motherboard 1
Introduction...................................................................................1
Pakage Contents............................................................................1
Specifications................................................................................2
Motherboard Components..........................................................4
I/O Ports..............................................................................................6
Chapter 2 7
Installing the Motherboard 7
Safety Precautions.............................................................................7
Installing the Motherboard in a Chassis......................................7
Checking Jumper Settings...........................................................8
Installing Hardware..................................................................10
Installing the Processor...........................................................10
Installing the CPU Cooler.........................................................12
Installing Memory Modules....................................................13
Installing Add-on Cards...........................................................14
Connecting Optional Devices..................................................16
Installing a Hard Disk Drive/Optical Disk Drive......................24
Connecting Case Components.......................................................26
Chapter 3 29
Using BIOS 29
About the Setup Utility........................ .......................................29
The Standard Configuration........................ ...........................29
Entering the Setup Utility.......................................................29
Resetting the Default CMOS Values.....................................30
Using BIOS........................................................................................30
BIOS Navigation Keys..............................................................31
Main Menu.............................................................................32
Advanced Menu......................................................................33
Chipset Menu..........................................................................43
Frequency/Voltag Menu.........................................................46
Boot Menu..............................................................................50
Security Menu.........................................................................51
Exit Menu................................................................................52
Updating the BIOS...................................................................53
H61H2-TI USER MANUAL
iii
Chapter 4 55
Using the Motherboard Software 55
Auto-installing under Windows XP/7/8........................................55
Running Setup.........................................................................55
Manual Installation..........................................................................57
Chapter 5 59
Trouble Shooting 59
Start up problems during assembly..............................................59
Start up problems after prolong use............................................60
Maintenance and care tips..............................................................60
Basic Troubleshooting Flow
chart...................................................61
iv
H61H2-TI USER MANUAL
Chapter 1
Introducing the Motherboard
Introduction
Thank you for choosing the H61H2-TI motherboard. This motherboard is a high performance, enhanced function motherboard designed to support the LGA1155 socket for business or personal desktop markets.
This motherboard is based on Intel solution. It supports up to 16 GB 1066 SO-DIMM. Two mini PCI Express x1 slots are for extending usage (the PCIE1 supports half-card, the PCIE2 supports full-card and you can install a Mini SATA (mSATA) card into it).
It implements an EHCI (Enhanced Host Controller Interface) compliant interface that provides four USB 2.0 ports (two USB 2.0 ports at the rear panel and one USB 2.0 headers support additional two USB 2.0 ports). It also implements extra USB 3.0 chips which provide two USB 3.0 ports at the rear I/O with blue connectors.
The motherboard is equipped with advanced full set of I/O ports in the rear panel, including one RJ45 LAN connector, two USB 2.0 ports, two USB 3.0 ports, one HDMI port, one HDMI_IN port (optional) , one DC_IN port and audio jacks for line-out and mircophone.
In addition, this motherboard supports two SATA 3Gb/s connectors for expansion.
latest Intel® CoreTM Family/Pentium®/Celeron® Processors* for high-end
®
H61 Express Chipset for best desktop platform
of system memory with dual channel DDR3 1333/
*When accommodating Intel 3rd Generation CPU, the PCI Express 16X slot can run at Gen3 speed, which accelerates on 32GB/s rate that effectively delivers double of PCI Express Gen2 speed.
Chapter 1
Package Contents
Your motherboard package ships with the following items:
H61H2-TI Motherboard
User Manual
DVD
I/O Shield
1 SATA Cable and 1 SATA/Power Cable
Accessories may vary, please refer to actual goods you purchase.
H61H2-TI USER MANUAL
1
Chapter 1
Specifications
CPU
Chipset
Extra Chips
Memory
Expansion Slots
Storage
Audio
LAN Realtek 8111E Gigabit LAN
Rear Panel I/O
Internal I/O Connectors & Headers
LGA1155 socket for
Intel® H61 Chipset
Asmedia ASM1042 supports two USB 3.0 ports
Dual-channel DDR3 memory architecture
2 x 204-pin DDR3 SO-DIMM sockets support up to 16 GB
Supports DDR3 1333/1066 MHz DDR3 SDRAM
2 x mini PCI Express x1 slots (the PCIE1 supports half-card, the PCIE2 supports full-card and
Supported by Intel® H61 Express Chipset
Realtek ALC662
1 x HDMI port
1 x HDMI_IN port (optional)
1 x 19V DC_IN port
1 x RJ45 LAN connector
2 x USB 2.0 ports
2 x USB 3.0 ports
1 x Audio port (1 x line-out, 1 x Microphone)
1 x 4-pin CPU_FAN connector
1 x 4-pin SYS_FAN connector
1 x USB 2.0 header supports additional two USB 2.0 ports
2 x Serial SATA 3Gb/s connectors
1 x Case open header
1 x Front Panel switch/LED header
1 x Front Panel audio header
1 x Clear CMOS jumper
1 x ME enable/disable jumper
1 x Buzzer header
1 x LPC header
1 x SATA power connector
1 x Touch board header
1 x Consumer infrared
1 x Camera header
1 x Memory card reader header
1 x Digital Microphone header (optional)
1 x 2 channels audio speaker header (optional)
®
Celeron
you can install a Mini SATA (mSATA) card into it)
- 2 x Serial ATA 3Gb/s devices
- 1 x Mini SATA card
- 2 Channel High Definition Audio Codec
- Compliant with HD audio specification
- 10/100/1000 Fast Ethernet Controller
- Wake-on-LAN and remote wake-up support
Processors
latest Intel® CoreTM Family/Pentium®/
2
H61H2-TI USER MANUAL
1 x LCD panel backlight control (optional)
1 x LCD select jumper (optional)
1 x LVDS connetor (optional)
1 x LCD mode select header (optional)
System BIOS
Form Factor Thin Mini ITX Size, 170mm x 170mm
AMI BIOS with 64Mb SPI Flash ROM
- Supports Plug and Play
- Supports ACPI & DMI
- Supports S1 / STR (S3) /STD (S4)
- Supports Hardware monitor
- Audio, LAN, can be disabled in BIOS
- F7 hot key for boot up devices option
- Supports PgUp clear CMOS Hotkey (Has PS2 KB Model only)
- Supports GUI UEFI
- Supports Multi-Language
- Supports Dual-Monitor function
Chapter 1
H61H2-TI USER MANUAL
3
Chapter 1
Motherboard Components
4
H61H2-TI USER MANUAL
Table of Motherboard Components
LABEL COMPONENTS
LGA1155 socket for latest Intel® Core
TM
Family/
Pentium®/Celeron® Processors
2. DMIC Digital microphone header (optional)
3. SPEAKER 2 Channels audio speaker header (optional)
4. F_AUDIO Front panel audio header
5. PCIE2
Mini PCI Express x 1 slot (supports full-card and
you can install a Mini SATA (mSATA) card into it)
6. CASE Case open header
7. CLR_CMOS Clear CMOS jumper
8. PCIE1 Mini PCI Express x 1 slot (supports half-card)
9. SATA1~2 Serial ATA 3Gb/s connectors
10. SPK Buzzer header
11. LPC Low pin count header
12. ME_DIS ME enable/disable jumper
13. SATA_PWR SATA power connector
14. F_USB Front panel USB 2.0 headers
15. TOUCH Touch board header
16. CAMERA CCD header
17. F_PANEL Front panel switch/LED header
18. SYS_FAN 4-pin system cooling fan connector
19. CPU_FAN 4-pin CPU cooling fan connector
20. MCR Memory card reader header
21. CIR Consumer infrared
22. LVDS LVDS connector (optional)
23. LCD_MODE LCD mode select header (optional)
24. BKLT_CTRL LCD panel backlight control (optional)
25. DIMM1~2 204-pin DDR3 SDRAM SO-DIMMs
1. CPU Socket
Chapter 1
H61H2-TI USER MANUAL
5
Chapter 1
LAN LED Status Description
Activity LED
Link LED
Link LED
LAN Port
PC HDMI_IN port LCD_MODE button pulse
Power ON Un-plu gged
Power OFF Plugged
Power ON Plugged
Power OFF Un-plugged LCD off
I/O Ports
1. DC_IN Port
Connect the DC_IN port to the power adapter.
2. HDMI_IN Port (optional)
You can connect the HDMI output of other computer or other HDMI source to the
HDMI_IN port.
3. HDMI Port
You can connect the display device to the HDMI port.
PC
LCD off
HDMI
HDMI
LCD off
LCD off
PC
1. Please press button to switch the mode manually, it will not be automatically switched when inserting the HDMI cable.
2. When HDMI_IN is in use, front panel audio header will be invalid.
4. USB 2.0 Ports
Use the USB 2.0 ports to connect USB 2.0 devices.
5. USB 3.0 Ports
Use the USB 3.0 ports to connect USB 3.0 devices.
6. LAN Port
Connect an RJ-45 jack to the LAN port to connect your computer to the Network.
OFF No da ta Orange blinking Active OFF No link Green Link
7. Line-out (lime) It is used to connect to speakers or headphones.
8. Microphone (pink) It is used to connect to a microphone.
6
H61H2-TI USER MANUAL
Chapter 2
Installing the Motherboard
2-1. Safety Precautions
Follow these safety precautions when installing the motherboard:
Wear a grounding strap attached to a grounded device to avoid damage from static electricity.
Discharge static electricity by touching the metal case of a safely grounded object before working on the motherboard.
Leave components in the static-proof bags.
Always remove the AC power by unplugging the power cord from the power outlet before installing or removing the motherboard or other hardware components.
2-2. Installing the motherboard in a Chassis
This motherboard carries a Thin Mini ITX form factor of 170 x 170 mm. Choose a chassis that accommodates this form factor. Make sure that the I/O template in the chassis matches the I/O ports installed on the rear edge of the motherboard. Most system chassis have mounting brackets installed in the chassis, which corresponds to the holes in the motherboard. Place the motherboard over the mounting brack­ets and secure the motherboard onto the mounting brackets with screws.
Chapter 2
Do not over-tighten the screws as this can stress the motherboard.
H61H2-TI USER MANUAL
7
No. Components
1LCD_SEL
2CLR_CMOS
3ME_DIS
2-3. Checking Jumper Settings
This section explains how to set jumpers for correct configuration of the motherboard.
Chapter 2
1. LCD_SEL: LCD select jumper (optional)
1.When your panel connects to LVDS, please check LCD Select header setting
first.
2.Due to the differences of the panel parameters, please follow the above
illustration to place the jumper caps.
8
H61H2-TI USER MANUAL
2. CLR_CMOS: Clear CMOS jumper
The following illustration shows the location of the motherboard jumpers. Pin 1 is labeled.
To avoid the system instability after clearing CMOS, we recommend users to enter the main BIOS setting page to “Load Default Settings” and then “Save and Exit Setup”.
3. ME_DIS: ME enable/disable jumper
Chapter 2
H61H2-TI USER MANUAL
9
2-4. Installing Hardware
2-4-1. Installing the Processor
Chapter 2
This motherboard has an LGA1155 socket.
When choosing a processor, consider the performance requirements of the system. Performance is based on the processor design, the clock speed and system bus frequency of the processor, and the quantity of internal cache memory and external cache memory.
You may be able to change the settings in the system Setup Utility. We strongly recommend you do not over-clock processor or other compo­nents to run faster than their rated speed.
The following illustration shows CPU installation components.
A. Press the hook of lever down with your thumb and pull it to the right side to release it from retention tab.
B. Lift the tail of the load lever and rotate the load plate to fully open position.
10
C. Grasp the edge of the package substrate. Make sure pin 1 indicator is on your bottom-left side. Aim at the socket and place the package carefully into the socket by purely vertical motion.
H61H2-TI USER MANUAL
D. Rotate the load plate onto the package IHS (Intergraded Heat Spreader). Engage the load lever while pressing down lightly onto the load plate. Secure the load lever with the hook under retention tab. Then the cover will flick automatically.
Please save and replace the cover onto the CPU socket if processor is re­moved.
Chapter 2
H61H2-TI USER MANUAL
11
2-4-2. Installing the CPU Cooler
Chapter 2
Install the cooling fan in a well-lit work area so that you can clearly see the motherboard and processor socket.
Avoid using cooling fans with sharp edges in case the fan casing and the clips cause serious damage to the motherboard or its components.
To achieve better airflow rates and heat dissipation, we suggest that you use a high quality fan with 3800 rpm at least. CPU fan and heat sink instal­lation procedures may vary with the type of CPU fan/heatsink supplied. The form and size of fan/heatsink may also vary.
DO NOT remove the CPU cap from the socket before installing a CPU.
Return Material Authorization (RMA) requests will be accepted only if the motherboard comes with the cap on the LGA1155 socket.
The following illustration shows how to install CPU fan.
A. Apply some thermal grease onto the contacted area between the heatsink and the CPU, and make it to be a thin layer.
B. Fasten the cooling fan supporting base onto the CPU socket on the motherboard. And make sure the CPU fan is plugged to the CPU fan connector.
12
C. Connect the CPU cooler power connector to the CPU_FAN connector.
H61H2-TI USER MANUAL
2-4-3. Installing Memory Modules
This motherboard accommodates two memory modules. It can support two 204-pin DDR3 1333/1066.
Do not remove any memory module from its antistatic packaging until you are ready to install it on the motherboard. Handle the modules only by their edges. Do not touch the components or metal parts. Always wear a grounding strap when you handle the modules.
You must install at least one module in any of the two slots. Total memory capacity is 16 GB.
Refer to the following to install the memory modules.
Install the DIMM module into the slot and press it firmly down until it seats correctly. Check that the cutouts on the DIMM module edge connector match the notches in the DIMM slot.
Chapter 2
H61H2-TI USER MANUAL
13
2-4-4. Installing Add-on Cards
The slots on this motherboard are designed to hold expansion cards and connect them to the system bus. Expansion slots are a means of adding or enhancing the motherboard’s features and capabilities. With these efficient facilities, you can increase the motherboard’s capabilities by adding hardware that performs tasks
Chapter 2
that are not part of the basic system.
PCIE1~2 Slots The mini PCI Express x1 slots are for extending usage, one sup-
ports half-card, and the other supports full-card.
Before installing an add-on card, check the documentation for the card carefully. If the card is not Plug and Play, you may have to manually configure the card before installation.
14
H61H2-TI USER MANUAL
Follow these instructions to install a wireless card:
1 Remove a blanking plate from the system case, and insert the wireless
card into the MINIPCIE slot rightwards, then tighten the two screws (Please refer to Picture 1).
2 Press the metal connector of the cable into the connector on the wireless
card. Ensure that the metal connector is correctly seated (Please refer to Picture 2).
3 Make the other end of the cable (with a gold screw) through the upper hole
of the bracket, and tighten the antenna on to the gold screw after install­ing a metal gasket on the screw (Please refer to Picture 3).
Picture 1 Picture 2 Picture 3
* For reference only
Chapter 2
H61H2-TI USER MANUAL
15
2-4-5. Connecting Optional Devices
No. Components No. Components
1F_USB9DMIC
2TOUCH10F_AUDIO
3 CAMERA 1 1 CAS E
4 MCR 12 SATA1~2
5CIR13SPK
6LVDS14LPC
7 L CD_MODE 15 SATA_PWR
8 BKLT_CTRL —— ——
Refer to the following for information on connecting the motherboard’s optional devices:
Chapter 2
16
H61H2-TI USER MANUAL
1. F_USB: Front Panel USB 2.0 header
The motherboard has one USB 2.0 headers supporting two USB 2.0 ports. Addition­ally, some computer cases have USB 2.0 ports at the front of the case. If you have this kind of case, use auxiliary USB 2.0 connector to connect the front-mounted ports to the motherboard.
Please make sure that the USB cable has the same pin assignment as indi­cated above. A different pin assignment may cause damage or system hang­up.
Chapter 2
2 & 3 & 4. TOUCH/CAMERA/MCR: Touch board header/CCD Header/Memory Card reader header
Users please note to install the card to the correct header.
H61H2-TI USER MANUAL
17
5. CIR: Consumer infrared
Chapter 2
6. LVDS: LVDS connector (optional)
18
1. You can connect the large end of the cable to the LED Panel, and connect the other small end to the slot on the motherboard.
2.Due to the chipset limitation, using dual displays LVDS(AIO) + VGA or LVDS(AIO) + HDMI will cause the problem that you may not enter BIOS setup or have the display problem.
H61H2-TI USER MANUAL

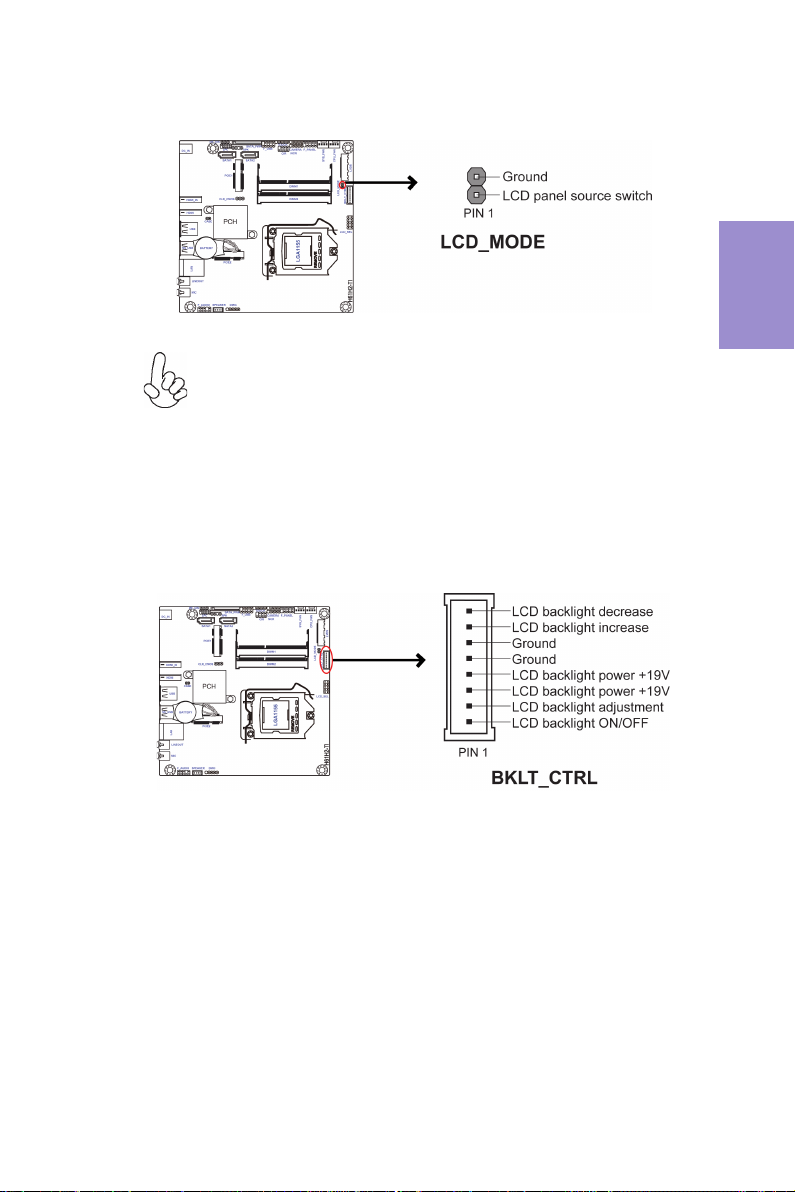

7. LCD_MODE: LCD mode select header (optional)
When you press this button, the LCD display will switch by the turns of AIO/ HDMI/LCD OFF.
8. BKLT_CTRL: LCD panel backlight control (optional)
Chapter 2
H61H2-TI USER MANUAL
19

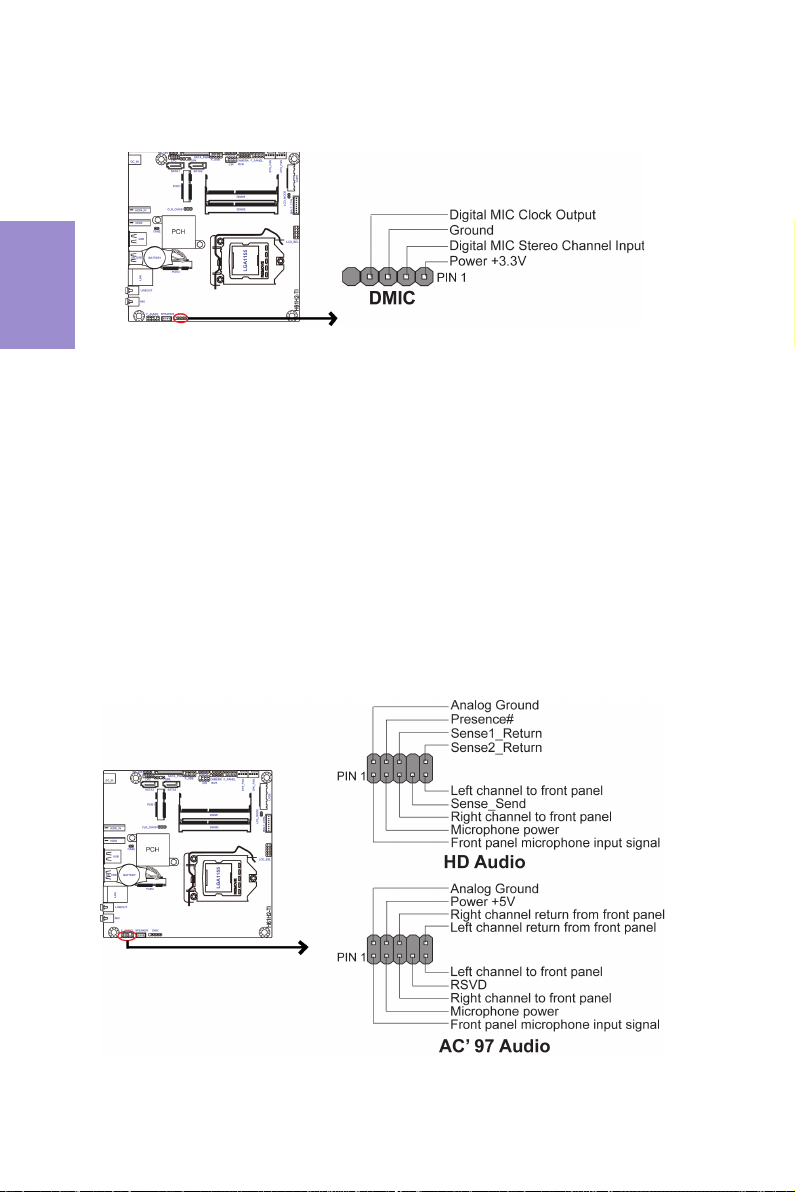

9. DMIC: Digital microphone header (optional)
Chapter 2
10. F_AUDIO: Front Panel Audio Header
The front panel audio header allows the user to install auxiliary front-oriented mi­crophone and line-out ports for easier access. This header supports HD audio by default. If you want connect an AC97 front panel audio to HD onboard headers, please set as below picture.
20
H61H2-TI USER MANUAL
AC97 Audio Configuration: To enable the front panel audio connector to support AC97 Audio mode.
If you use AC97 Front Panel, please tick off the option of Disabled Front Panel Detect . If you use HD Audio Front Panel, please dont tick off Disabled Front Panel Detect .
* For reference only
11. CASE: Chassis Intrusion Detect Header
This detects if the chassis cover has been removed. This function needs a chassis equipped with instrusion detection switch and needs to be enabled in BIOS.
Chapter 2
H61H2-TI USER MANUAL
21
12. SATA1~2: Serial ATA II connectors
SATA1~2 connectors are used to support the Serial ATA 3Gb/s device. Simpler disk drive cabling and easier PC assembly. It eliminates limitations of the current Paral­lel ATA interface. But maintains register compatibility and software compatibility with Parallel ATA.
Chapter 2
13. SPK: Buzzer header
22
H61H2-TI USER MANUAL
14. LPC: Low pin count header
15. SATA_PWR: SATA power connector
Chapter 2
H61H2-TI USER MANUAL
23
2-4-6. Installing a Hard Disk Drive/Optical Disk Drive
This section describes how to install a Hard Disk Drive/Optical Disk Drive.
About SATA Connectors
Chapter 2
Your motherboard features two SATA connectors supporting a total of two drives. SATA refers to Serial ATA (Advanced Technology Attachment) is the standard inter­face for the IDE hard drives which are currently used in most PCs. These connectors are well designed and will only fit in one orientation. Locate the SATA connectors on the motherboard and follow the illustration below to install the Hard Disk Drive/ Optical Disk Drive.
Installing Hard Disk Drive/Optical Disk Drive
To install the Hard Disk Drive (HDD)/Optical Disk Drive (ODD), use the HDD/ODD/SATA cables that support the Hard Disk Drive/Optical Disk Drive/Serial ATA protocol.
Refer to the illustration below for proper installation:
1 Attach either end of the single SATA cable to the SATA port on the
motherboard. 2 Attach the other end of the single SATA cable to the hard disk drive. 3 Attach the linked end of the combo HDD/ODD cable to the Hard Disk Drive/
Optical Disk Drive. Please note that, connect the black cable to the hard
disk Drive, then connect the orange cable to the optical disk drive. 4 Attach the other end of the combo HDD/ODD cable to the SATA port and
SATA_PWR connector on the motherboard. Please note that, connect the
black cable to the SATA_PWR connector, and connect the orange cable to
the SATA port.
24
* For reference only
H61H2-TI USER MANUAL
About mSATA Connectors
Your motherboard features two Mini PCI Express x1 slots, the PCIE2 supports full­card, you can install a Mini SATA (mSATA) card into it.
Refer to the illustration below for proper installation:
1 Insert a Mini SATA (mSATA) card into the PCIE2 Slot.
2 Lower the handle and tighten the screws.
Chapter 2
H61H2-TI USER MANUAL
25
2-4-7. Connecting Case Components
No. Components
1 F_PANEL
2SYS_FAN
3CPU_FAN
4 SP EAKER
After you have installed the motherboard into a case, you can begin connecting the motherboard components. Refer to the following:
Chapter 2
26
H61H2-TI USER MANUAL
1. F_PANEL: Front Panel Header
The front panel header (F_PANEL) provides a standard set of switch and LED headers commonly found on ATX or Micro ATX cases. Refer to the table below for information:
Hard Drive Activity LED
Connecting pins 1 and 3 to a front panel mounted LED provides visual indication that data is being read from or written to the hard drive. For the LED to function properly, an IDE drive should be connected to the onboard IDE interface. The LED will also show activity for devices connected to the SCSI (hard drive activity LED) connector.
Power/Sleep/Message waiting LED
Connecting pins 2 and 4 to a single or dual-color, front panel mounted LED provides power on/off, sleep, and message waiting indication.
Reset Switch
Supporting the reset function requires connecting pin 5 and 7 to a momentary-con­tact switch that is normally open. When the switch is closed, the board resets and runs POST.
Power Switch
Supporting the power on/off function requires connecting pins 6 and 8 to a momen­tary-contact switch that is normally open. The switch should maintain contact for at least 50 ms to signal the power supply to switch on or off. The time requirement is due to internal de-bounce circuitry. After receiving a power on/off signal, at least two seconds elapses before the power supply recognizes another on/off signal.
Chapter 2
H61H2-TI USER MANUAL
27
2 & 3 . SYS_FAN (System Cooling FAN Power Connector) &CPU_FAN (CPU cool­ing FAN Power Connector)
Connect the CPU cooling fan cable to CPU_FAN. Connect the system cooling fan connector to SYS_FAN.
Chapter 2
4. SPEAKER: 2 Channels audio speaker header (optional)
Connect the case speaker cable to SPEAKER.
Users please note that the fan connector supports the CPU cooling fan of 1.1A ~ 2.2A (26.4W max) at +12V.
28
This concludes Chapter 2. The next chapter covers the BIOS.
H61H2-TI USER MANUAL
Chapter 3
Using BIOS
About the Setup Utility
The computer uses the latest “American Megatrends Inc. ” BIOS with support for Windows Plug and Play. The CMOS chip on the motherboard contains the ROM setup instructions for configuring the motherboard BIOS.
The BIOS (Basic Input and Output System) Setup Utility displays the system’s con­figuration status and provides you with options to set system parameters. The pa­rameters are stored in battery-backed-up CMOS RAM that saves this information when the power is turned off. When the system is turned back on, the system is configured with the values you stored in CMOS.
The BIOS Setup Utility enables you to configure:
Hard drives, diskette drives and peripherals
Video display type and display options
Password protection from unauthorized use
Power Management features
The settings made in the Setup Utility affect how the computer performs. Before using the Setup Utility, ensure that you understand the Setup Utility options.
This chapter provides explanations for Setup Utility options.
The Standard Configuration
A standard configuration has already been set in the Setup Utility. However, we rec­ommend that you read this chapter in case you need to make any changes in the future.
This Setup Utility should be used:
when changing the system configuration
when a configuration error is detected and you are prompted to make changes to the Setup Utility
when trying to resolve IRQ conflicts
when making changes to the Power Management configuration
when changing the password or making other changes to the Security Setup
Entering the Setup Utility
When you power on the system, BIOS enters the Power-On Self Test (POST) routines. POST is a series of built-in diagnostics performed by the BIOS. After the POST routines are completed, the following message appears:
Press DEL to enter SETUP
Chapter 3
H61H2-TI USER MANUAL
29
Press the delete key to access BIOS Setup Utility.
Chapter 3
Resetting the Default CMOS Values
When powering on for the first time, the POST screen may show a “CMOS Settings Wrong” message. This standard message will appear following a clear CMOS data at factory by the manufacturer. You simply need to Load Default Settings and Save it to reset the default CMOS values.
Note: Changes to system hardware such as different CPU, memories, etc. may also trigger this message.
Above image is for reference only, for details please refer to actual image.
30
Using BIOS
When you start the Setup Utility, the main menu appears. The main menu of the Setup Utility displays a list of the options that are available. A highlight indicates which option is currently selected. Use the cursor arrow keys to move the highlight to other options. When an option is highlighted, execute the option by pressing <Enter>.
Some options lead to pop-up dialog boxes that prompt you to verify that you wish to execute that option. Other options lead to dialog boxes that prompt you for informa­tion.
Some options (marked with an icon ) lead to submenus that enable you to change the values for the option. Use the cursor arrow keys to scroll through the items in the submenu.
H61H2-TI USER MANUAL
In this manual, default values are enclosed in parenthesis. Submenu items are denoted by an icon .
The default BIOS setting for this motherboard apply for most conditions with optimum performance. We do not suggest users change the default values in the BIOS setup and take no responsibility to any damage caused by changing the BIOS settings.
BIOS Navigation Keys
The BIOS navigation keys are listed below:
KEY FUNCTION
ESC

+/-
Enter Select
F1 General Help
F2 Pr
F3 Optimized Defaults
F4 Save & Exit
1. For the purpose of better product maintenance, the manufacture reserves the right to change the BIOS items presented in this manual. The BIOS setup screens shown in this chapter are for reference only and may differ from the actual BIOS. Please visit the manufacture’s website for updated manual.
2. In this Gui BIOS, you can operate by mouse or keyboard. Click : select item; Double click: enter; Right click: exit.
Exits the current menu
Scrolls through the items on a menu
Change Opt.
evious Value
Chapter 3
H61H2-TI USER MANUAL
31
Main Menu
This menu shows the information of BIOS and enables you to set the system language, date and time.
Main Advanced Chipset Frequency/Voltag Boot Security Exit
Chapter 3
System Language (English)
This item is used to set system language.
System Date & Time
The Date and Time items show the current date and time on the computer. If you are running a Windows OS, these items are automatically updated whenever you make changes to the Windows Date and Time Properties utility.
BIOS Information
System Language English
System Date Fri 08/31/2012 System Time 00: 46: 39
Choose the system default language
: Select Screen

: Select Item

Enter : Select +/- : Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC : Exit
32
H61H2-TI USER MANUAL
Advanced Menu
The Advanced menu items allow you to change the settings for the CPU and other system.
Main Advanced Chipset Frequency/Voltag Boot Security Exit
LAN Configuration
PC Health Status Power Management Setup ACPI Settings CPU Configuration SATA Configuration USB Configuration Super IO Configuration
Intel(R) Smart Connect
Technology
Intel(R) Smart Connect Technology Settings
: Select Screen

: Select Item

Enter : Select +/- : Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC : Exit
Chapter 3
H61H2-TI USER MANUAL
33
LAN Configuration
The item in the menu shows the LAN-related information that the BIOS automatically detects.
Main Advanced Chipset Frequency/Voltag Boot Security Exit
LAN Configuration
Onboard LAN Controller Enabled
Chapter 3
Onboard LAN Controller (Enabled)
Use this item to enable or disable Onboard LAN 1 controller.
Press <Esc> to return to the Advanced Menu page.
Enabled/Disabled Onboard LAN 1 Controller
: Select Screen

: Select Item

Enter : Select +/- : Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC : Exit
34
H61H2-TI USER MANUAL
PC Health Status
On motherboards support hardware monitoring, this item lets you monitor the parameters for critical voltages, temperatures and fan speeds.
Main Advanced Chipset Frequency/Voltag Boot Security Exit
PC Health Status
System Temperature : 50°C CPU Fan Speed : 1251 RPM System Fan Speed : 1779 RPM CPU Voltage : 0.872V AXG Voltage : 0.832 V DIMM Voltage : 1.504 V
-=- PECI Mode -=­Offset to TCC Activation Temp. : -55
System Component Characteristics
These items display the monitoring of the overall inboard hardware health events, such as System temperature, CPU & DIMM voltage, CPU & System fan speed... etc.
System Temperature
CPU Fan Speed
System Fan Speed
CPU Voltage
AXG Voltage
DIMM Voltage
: Select Screen

/Click: Select Item

Enter : Select +/- : Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit
Chapter 3
Press <Esc> to return to the Advanced Menu page.
H61H2-TI USER MANUAL
35
Power Management Setup
This page sets up some parameters for system power management operation.
Main Advanced Chipset Frequency/Voltag Boot Security Exit
Power Management Setup
Resume By PME Disabled
Resume By USB(S3) Disabled EUP Function Enabled
Chapter 3
Resume By PME (Disabled)
This item specify whether the system will be awakened from power saving modes when activity or input signal of the specified hardware peripheral or components is detected.
Resume By USB(S3) (Disabled)
This item allows you to enable/disable the USB device wakeup function from S3 mode.
EUP Function (Enabled)
This item allows user to enable or disable EUP support.
About Resume by PCI/PCI-E/LAN/ Ext . USB3.0 PME
: Select Screen

: Select Item

Enter : Select +/- : Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC : Exit
36
Press <Esc> to return to the Advanced Menu page.
H61H2-TI USER MANUAL
ACPI Configuration
The item in the menu shows the highest ACPI sleep state when the system enters suspend.
Main Advanced Chipset Frequency/Voltag Boot Security Exit
ACPI Settings
ACPI Sleep State S3 (Suspend to RAM)
ACPI Sleep State [S3(Suspend to RAM)]
This item allows user to enter the ACPI S3 (Suspend to RAM) Sleep State (default).
Press <Esc> to return to the Advanced Menu page.
Select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed.
: Select Screen

: Select Item

Enter : Select +/- : Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC : Exit
Chapter 3
H61H2-TI USER MANUAL
37
CPU Configuration
The item in the menu shows the CPU Configuration.
Main Advanced Chipset Frequency/Voltag Boot Security Exit
CPU Configuration
Intel(R) Core(TM) I5-3330S CPU @ 2.70GHz 64-bit Supported Processor Speed 2700 MHz Processor Stepping 306a9 Microcode Revision 12 Processor Cores 4 Intel HT Technology Not Supported
Chapter 3
Intel VT-x Technology Supported
Active Processor Cores All
Limit CPUID Maximum Disabled Execute Disable Bit Enabled Intel Virtualization Technology Enabled CPU C3 Report Disabled CPU C6 Report Enabled Enhanced Halt (C1E) Enabled
Intel(R) Core(TM) i5-3330S CPU @ 2.70GHz
This is display-only field and diaplays the information of the CPU installed in your computer.
64-bit (Supported)
This item shows the computer supports EMT64.
Processor Speed (2700MHz)
This item shows the current processor speed.
Processor Stepping (306a9)
This item shows the processor stepping version.
Microcode Revision (12)
This item shows the Microcode version.
Processor Cores (4)
This item shows the core number of the processor.
Intel HT Technology (Not Supported)
This item shows that the computer supports Intel HT Technology.
Intel VT-x Technology (Supported)
This item shows that the computer supports Intel VT-x Technology.
Active Processor Cores (All)
This item shows the number of cores to enable in each processor package.
Limit CPUID Maximum (Disabled)
Use this item to enable or disable the maximum CPUID value limit, you can enable this item to prevent the system from “rebooting” when trying to install Windows NT
4.0.
Number of cores to enable in each processor package.
: Select Screen

: Select Item

Enter : Select +/- : Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC : Exit
38
H61H2-TI USER MANUAL
Excute Disable Bit (Enabled)
This item allows the processor to classify areas in memory by where application code can execute and where it cannot. When a malicious worm attempts to insert code in the buffer, the processor disables code execution, preventing damage or worm propagation. Replacing older computers with Execute Disable Bit enabled systems can halt worm attacks, reducing the need for virus related repair.
Intel Virtualization Technology (Enabled)
When disabled, a VMM cannot utilize the additional hardware capabilities provided by Vandor Pool Technology.
CPU C3 Report (Disabled)
Use this item to enable or disable CPU C3 (ACPI C2) report to OS.
CPU C6 Report (Enabled)
Use this item to enable or disable CPU C6 (ACPI C3) report to OS.
Enhanced Halt (C1E) (Enabled)
Use this item to enable the CPU energy-saving function when the system is not run­ning.
Press <Esc> to return to the Advanced Menu page.
Chapter 3
H61H2-TI USER MANUAL
39
SATA Configuration
Use this item to show the mode of serial SATA configuration options.
Main Advanced Chipset Frequency/Voltag Boot Security Exit
SATA Configuration
SATA Mode IDE Mode
SATA Port1 WDC WD3200AAJS (320.0GB)
SATA Port2 Not Present
Chapter 3
mSATA Not Present
SATA Mode (IDE Mode)
Use this it
SATA Port1~2/mSATA
This motherboard supports two SATA channels and mSATA channel, each channel allows one SATA device to be installed. Use these items to configure each device on the SATA/mSATA channel.
Press <Esc> to return to the Advanced Menu page.
em to select SATA mode.
Determines how SATA controller(s) operate.
: Select Screen

: Select Item

Enter : Select +/- : Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC : Exit
40
H61H2-TI USER MANUAL
USB Configuration
Use this item to show the information of USB configuration.
Main Advanced Chipset Frequency/Voltag Boot Security Exit
USB Configuration USB 3.0 Controller Enabled
Legacy USB Support Enabled
USB 3.0 Controller (Enabled)
Use this item to enable or disable USB 3.0 controller. We recommend users keep the default value. Disabling it might cause the USB devices not to work properly.
Legacy USB Support (Enabled)
Use this item to enable or disable support for legacy USB devices.
Press <Esc> to return to the Advanced Menu page.
If the USB 3.0 controller is external chip
: Select Screen

: Select Item

Enter : Select +/- : Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC : Exit
Chapter 3
H61H2-TI USER MANUAL
41
Super IO Configuration
Use this item to show the information of Super IO configuration.
Main Advanced Chipset Frequency/Voltag Boot Security Exit
Super IO Configuration
Super IO Chip F71808A CIR Controller Enabled
Chapter 3
Super IO Chip (F71808A)
This item shows the information of the super IO chip.
CIR Controller (Enabled)
This item allows you to enable or disable CIR controller.
Press <Esc> to return to the Advanced Menu page.
Intel(R) Smart Connect Technology
Use this item to show the information of Intel(R) Smart Connect Technology.
Enable or Disable CIR Controller
: Select Screen

: Select Item

Enter : Select +/- : Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC : Exit
42
Main Advanced Chipset Frequency/Voltag Boot Security Exit
ISCT Configuration Disabled
Enable or Disable ISCT Configuration
: Select Screen

: Select Item

Enter : Select +/- : Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC : Exit
ISCT Configuration (Disabled)
Use this item to enable or disable ISCT configuration.
Press <Esc> to return to the Advanced Menu page.
H61H2-TI USER MANUAL
Chipset Menu
The chipset menu items allow you to change the settings for the North Bridge chipset, South Bridge chipset and other system.
Main Advanced Chipset Frequency/Voltag Boot Security Exit
System Agent Configuration PCH Configuration
North Bridge Parameters.
ME Configuration
System Agent Configuration
Scroll to this item and press <Enter> and view the following screen:
Main Advanced Chipset Frequency/Voltag Boot Security Exit
System Agent Configuration
IGD Memory 64M
DVMT Memory 256M
Configure Management Engine Technology Param­eters
: Select Screen

: Select Item

Enter : Select +/- : Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC : Exit
Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the Internal Graphics Device.
: Select Screen

: Select Item

Enter : Select +/- : Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC : Exit
Chapter 3
IGD Memory (64M)
This item shows the information of the IGD (Internal Graphics Device) memory.
DVMT Memory (256M)
When set to Fixed Mode, the graphics driver will reserve a fixed position of the sys­tem memory as graphics memory, according to system and graphics requirements.
Press <Esc> to return to the Chipset Menu page.
H61H2-TI USER MANUAL
43
PCH Configuration
Scroll to this item and press <Enter> to view the following screen:
Main Advanced Chipset Frequency/Voltag Boot Security Exit
PCH Configuration
Restore AC Power Loss Power Off
Audio Configuration
Azalia HD Audio Enabled Azalia Internal HDMI codec Enabled
Chapter 3
Restore AC Power Loss (Power Off)
This item enables your computer to automatically restart or return to its operating status.
Azalia HD Audio (Enabled)
This item enables or disables Azalia HD audio.
Azalia Internal HDMI codec (Enabled)
This item enables or disables Azalia Internal HDMI codec.
Press <Esc> to return to the Chipset Menu page.
Select AC Power state when power is re-applied after a power failure.
: Select Screen

: Select Item

Enter : Select +/- : Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC : Exit
44
H61H2-TI USER MANUAL
ME Configuration
Scroll to this item and press <Enter> to view the following screen:
Main Advanced Chipset Frequency/Voltag Boot Security Exit
Management Engine Technology Configuration
ME FW Version 8.1.0.1248
: Select Screen

: Select Item

Enter : Select +/- : Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC : Exit
ME FW Version (8.1.0.1248)
This item shows the ME FW version.
Press <Esc> to return to the Chipset Menu page.
Chapter 3
H61H2-TI USER MANUAL
45
Frequency/Voltag Menu
This page enables you to set the clock speed and system bus for your system. The clock speed and system bus are determined by the kind of processor you have installed in your system.
Main Advanced Chipset Frequency/Voltag Boot Security Exit
Frequency/Voltage Control
CPU OverClocking Configuration Chipset OverClocking Configuration
B.O.M.P. Technology Enabled
Chapter 3
Auto Detect DIMM/PCI Clk Enabled Spread Spectrum Enabled
Intel(R) Core(TM) i5-3330S CPU @ 2.70GHz Processor Speed 2700 MHz Memory Frequency 1333 MHz Total Memory 2048 MB (DDR3)
CPU OverClocking Configuration
Scroll to this item to view the following screen:
Main Advanced Chipset Frequency/Voltag Boot Security Exit
CPU Advanced Configuration
CPU Frequency 100 CPU Ratio 27 Enhanced Intel SpeedStep Technology Enabled
Turbo Mode Enabled
Runtime Turbo Enable Disabled Over Clocking Extra Vol.(1/256 V) 0 1 Core Ratio Limit 32 2 Core Ratio Limit 31 3 Core Ratio Limit 29 4 Core Ratio Limit 28
Intel Graphics Configuration
Graphics Core Ratio Limit 21 Graphics Voltage(1/256) 0
Chipset Advanced Configuration
: Select Screen

: Select Item

Enter : Select +/- : Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC : Exit
Enhanced Intel SpeedStep Technology
: Select Screen

: Select Item

Enter : Select +/- : Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC : Exit
46
CPU Frequency (100)
This item shows the information of CPU frequency.
CPU Ratio (27)
This item allows users to control non turbo CPU ratio.
Enhanced Intel SpeedStep Technology (Enabled)
This item allows users to enable or disable the EIST (Enhanced Intel SpeedStep Tech­nology).
H61H2-TI USER MANUAL
Turbo Mode (Enabled)
This item allows you to control the Intel Turbo Boost Technology.
Runtime Turbo Enable (Disabled)
This item shows if CPU support runtime turbo or not.
Over Clocking Extra Vol.(1/256 V) (0)
This item allows you to control Extra CPU voltage.
1/2/3/4 Core Ratio Limit (32/31/29/28)
These items show the Core Ratio Limit Values.
Graphics Core Ratio Limit (21)
This item allows you to control the internal GFX Turbo ratio.
Graphics Voltage(1/256) (0)
This item allows you to adjust the internal GFX voltage.
Press <Esc> to return to the Frequency/Voltage Menu page.
Chapter 3
H61H2-TI USER MANUAL
47
Chipset OverClocking Configuration
Scroll to this item to view the following screen:
Main Advanced Chipset Frequency/Voltag Boot Security Exit
Memory Timing Cofiguration
CAS# Latency(tCL) 9 RAS# to CAS# Delay(tRCD) 9 Row Precharge Time(tRP) 9 RAS# Active Time(tRAS) 24 Write Recovery Time(tWR) 10 Row Refresh Cycle Time(tRFC) 74 Active to Active Delay(tRRD) 4
Chapter 3
Write to Read Delay(tWTR) 5 Read CAS# Precharge(tRTP) 5 Four Active Window Delay(tFAW) 20
CAS# Latency(tCL) (9)
This item determines the operation of DDR SDRAM memory CAS (column address strobe). It is recommended that you leave this item at the default value. The 2T setting requires faster memory that specifically supports this mode.
RAS# to CAS# Delay(tRCD) (9)
This item specifies RAS# to CAS# delay to Rd/Wr command to the same bank.
Row Precharge Time(tRP) (9)
This item specifies Row precharge to Active or Auto-Refresh of the same bank.
RAS# Active Time(tRAS) (24)
This item specifies the RAS# active time.
Write Recovery Time(tWR) (10)
This item specifies the write recovery time.
Row Refresh Cycle Time(tRFC) (74)
This item specifies the row refresh cycle time.
Active to Active Delay(tRRD) (4)
This item controls the active bank x to active bank y in memory clock cycles.
Write to Read Delay(tWTR) (5)
This item specifies the write to read delay time.
Read CAS# Precharge(tRTP) (5)
This item controls the Read to precharge delay for memory devices, in memory clock cycles.
Four Active Window Delay(tFAW) (20)
This item controls the four bank activate time in memory clock cycles.
: Select Screen

: Select Item

Enter : Select +/- : Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC : Exit
48
Press <Esc> to return to the Frequency/Voltage Menu page.
H61H2-TI USER MANUAL
B.O.M.P Technology (Enabled)
This item allows users to enable or disable B.O.M.P technology. This function can run safe setting to setup menu when system boot fail 3 times.
Auto Detect DIMM/PCI Clk (Enabled)
When this item is enabled, BIOS will disable the clock signal of free DIMM/PCI slots.
Spread Spectrum (Enabled)
If you enable spread spetrum, it can significantly reduce the EMI (Electro-Magnetic Interference) generated by the system.
Intel(R) Core(TM) i5-3330S CPU @ 2.70GHz
This is display-only field and displays the information of the CPU installed in your computer.
Processor Speed (2700 MHz)
This item shows the CPU speed.
Memory Frequency (1333 MHz)
This item shows the memory frequency.
Total Memory (2048 MB (DDR3))
This item shows the total memory.
Warning: Over-clocking components can adversely affect the reliability of the system and introduce errors into your system. Over-clocking can permanently damage the motherboard by generating excess heat in components that are run beyond the rated limits.
Fail-Safe Procedures for Over-clocking
When end-users encounter failure after attempting over-clocking, please take the following steps to recover from it.
1. Shut down the computer.
2. Press and hold the “Page Up Key (PgUp)” of the keyboard, and then boot the PC up.
3. Two seconds after the PC boots up, release the “Page Up Key (PgUp)”.
4. The BIOS returns to the default setting by itself.
Chapter 3
H61H2-TI USER MANUAL
49
Boot Menu
This page enables you to set the keyboard NumLock state.
Main Advanced Chipset Frequency/Voltag Boot Security Exit
Boot Configuration
Operation System Select Windows 7 or other OS
Launch PXE OpROM Disabled Launch Strorage OpROM Enabled
Bootup NumLock State On Boot mode select LEGACY
Chapter 3
Set Boot Priority Boot Option #1 Hard Disk Boot Boot Option #3 USB/Floppy Boot Option #4 USB CD/DVD Boot Option #5 USB Hard Disk Boot Option #6 USB Flash Boot Option #7 Network
Boot Configuration
This item shows the information of the Boot Configuration.
Operation System Select (Windows 7 or other OS)
This item is used to select the operation system.
Launch PXE OpROM (Disabled)
The item enables or disables launch PXE Option ROM.
Launch Storage OpROM (Enabled)
Use this item to enable or disable the Storage OpROM.
Bootup NumLock State (On)
This item enables you to select NumLock state.
Boot mode select (LEGACY)
Use this item to select boot mode.
Set Boot Priority
This item enables you to set boot priority for all boot devices.
Boot Op
These items show the boot priorities.
Option #2 CD/DVD
tion #1/2/3/4/5/6/7
Windows 7 or other OS: Boot policy for Legacy OS
Windows 8: Boot policy for UEFI OS without Compatibility Support Module(CSM)
Manual: User customized CSM parameters & boot policy
: Select Screen

: Select Item

Enter : Select +/- : Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC : Exit
50
H61H2-TI USER MANUAL
Security Menu
This page enables you to set setup administrator password and user password.
Main Advanced Chipset Frequency/Voltag Boot Security Exit
Administrator Password Status Not Install User Password Status Not Install
Administrator Password
System Mode state Setup Secure Boot state Disabled
Secure Boot Enabled
Administrator Password Status (Not Install)
This item shows administrator password installed or not.
User Password Status (Not Install)
This item shows user password installed or not.
System Mode state (Setup)
This item shows system mode setup or not.
Secure Boot state (Disabled)
This item allows you to enable or disable the secure boot state.
Secure Boot (Enabled)
This item is used to control the secure boot flow, it is possible only if system runs in User Mode.
Set Administrator Password
: Select Screen

: Select Item

Enter : Select +/- : Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC : Exit
Chapter 3
H61H2-TI USER MANUAL
51
Exit Menu
This page enables you to exit system setup after saving or without saving the changes.
Main Advanced Chipset Frequency/Voltag Boot Security Exit
Back to EZ Mode
Save Changes and Exit Discard Changes and Exit Discard Changes and Reset
Chapter 3
Save Options
Save Changes Discard Changes
Restore Defaults Save as User Defaults Restore User Defaults
Boot Override
Windows Boot Manager
Back to EZ Mode
This item enables you to back to EZ mode.
Save Changes and Exit
This item enables you to exit system setup after saving the changes.
Discard Changes and Exit
This item enables you to exit system setup without saving any changes.
Discard Changes and Reset
This item enables you to reset system setup without saving any changes.
Save Options
This item enables you to save the options that you have made.
Save Changes
This item enables you to save the changes that you have made.
Discard Changes
This item enables you to discard any changes that you have made.
Restore Defaults
This item enables you to restore the system defaults.
Save as User Defaults
This item enables you to save the changes that you have made as user defaults.
Restore User Defaults
This item enables you to restore the user defaults.
Boot Override
Use this item to select the boot device.
Go back to EZ Mode
: Select Screen

: Select Item

Enter : Select +/- : Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC : Exit
52
H61H2-TI USER MANUAL
Updating the BIOS
You can download and install updated BIOS for this motherboard from the manufacturer’s Website. New BIOS provides support for new peripherals, improve­ments in performance, or fixes for known bugs. Install new BIOS as follows:
1 If your motherboard has a BIOS protection jumper, change the setting to
allow BIOS flashing.
2 If your motherboard has an item called Firmware Write Protect in Ad-
vanced BIOS features, disable it. (Firmware Write Protect prevents BIOS from being overwritten.)
3 Prepare a bootable device or create a bootable system disk. (Refer to
Windows online help for information on creating a bootable system disk.)
4 Download the Flash Utility and new BIOS file from the manufacturer’s
Web site. Copy these files to the bootable device.
5 Turn off your computer and insert the bootable device in your computer.
(You might need to run the Setup Utility and change the boot priority items on the Advanced BIOS Features Setup page, to force your computer to boot from the bootable device first.)
6 At the C:\ or A:\ prompt, type the Flash Utility program name and the file
name of the new BIOS and then press <Enter>. Example: AFUDOS.EXE
040706.ROM
7 When the installation is complete, remove the bootable device from the
computer and restart your computer. If your motherboard has a Flash BIOS jumper, reset the jumper to protect the newly installed BIOS from being overwritten. The computer will restart automatically.
This concludes Chapter 3. Refer to the next chapter for information on the software supplied with the motherboard.
Chapter 3
H61H2-TI USER MANUAL
53
Memo
Chapter 3
54
H61H2-TI USER MANUAL
Chapter 4
Using the Motherboard Software
Auto-installing under Windows XP/7/8
The auto-install DVD-ROM makes it easy for you to install the drivers and software. The support software DVD-ROM disc loads automatically under Windows XP/7/8. When you insert the DVD-ROM disc in the DVD-ROM drive, the auto-run feature will automatically bring up the installation screen. The screen has four buttons on it:
Setup, Utilities, Browse CD and Exit.
Information:
Displays the path for all software and drivers available on the disk.
Click “Exit” button to close the Auto-Setup
window.
Browse CD:
Open Windows Explorer and show the contents
Click the “Setup” button to select and run the software installation program.
Click the “ Utilities” button to select and install ECS Intelligent Utility.
of the support disk.
Chapter 4
Running Setup
Follow these instructions to install device drivers and software for the motherboard:
1. Click Setup. The installation program begins:
The following screens are examples only. The screens and driver lists will be different according to the motherboard you are installing.
The motherboard identification is located in the upper left-hand corner.
H61H2-TI USER MANUAL
55
2. Click Next. The following screen appears:
3. Check the box next to the items you want to install. The default options are recommended.
4. Click Next to run the Installation Wizard. An item installation screen appears:
Chapter 4
5. Follow the instructions on the screen to install the items.
Drivers and software are automatically installed in sequence. Follow the onscreen instructions, confirm commands and allow the computer to re­start a few times to complete the installation.
56
Windows 8 will show the following screen after system restart, you must select “Desktop” in the bottom left to install the next driver.
H61H2-TI USER MANUAL
Windows 7/8 will appear below UAC (User Account Control) message after the system restart. You must select “Yes” to install the next driver. Continue
this process to complete the drivers installation.
Manual Installation
If the auto-install DVD-ROM does not work on your system, you can still install drivers through the file manager for your OS (for example, Windows Explorer). Look
for the chipset and motherboard model, and then browse to the directory and path to begin installing the drivers. Most drivers have a setup program (SETUP.EXE) that automatically detects your operating system before installation. Other drivers have the setup program located in the operating system subfolder.
If the driver you want to install does not have a setup program, browse to the oper­ating system subfolder and locate the readme text file (README.TXT or README.DOC) for information on installing the driver or software for your operating system.
H61H2-TI USER MANUAL
Chapter 4
57
Memo
Chapter 4
58
H61H2-TI USER MANUAL
Chapter 5
Trouble Shooting
Start up problems during assembly
After assembling the PC for the first time you may experience some start up problems. Before calling for technical support or returning for warranty, this chapter may help to address some of the common questions using some basic troubleshooting tips.
a) System does not power up and the fans are not running.
1. Disassemble the PC to remove the VGA adaptor card, DDR memory, LAN, USB and other peripherals including keyboard and mouse. Leave only the motherboard, CPU with CPU cooler and power supply connected. Make sure the power cord is plugged into the wall socket & the switch on the Power Supply Unit (PSU) is turned “ on “ as well. Turn on again to see if the CPU and power supply fans are running.
2. Make sure to remove any unused screws or other metal objects such as screwdrivers from the inside PC case. This is to prevent damage from short circuit.
3. Check the CPU FAN connector is connected to the motherboard.
4. For Intel platforms check the pins on the CPU socket for damage or bent. A bent pin may cause failure to boot and sometimes permanent damage from short circuit.
b) Power is on, fans are running but there is no display
1. Make sure the monitor is turned on and the monitor cable is properly connected to the PC.
2. Check the VGA adapter card (if applicable) is inserted properly.
3. Listen for beep sounds. If you are using internal PC speaker make sure it is connected. a. continuous 3 short beeps: memory not detected b. 1 long beep and 8 short beeps: VGA not detected
c) The PC suddenly shuts down while booting up.
1. The CPU may experience overheating so it will shutdown to protect itself. Apply the thermal grease onto the CPU heatsink & ensure the CPU fan is well-connected with the CPU heatsink. Check if the CPU fan is working properly while the system is running.
2. From the BIOS setting, try to disable the Smartfan function to let the fan run at default speed. Doing a Load Optimised Default will also disable the Smartfan.
H61H2-TI USER MANUAL
Chapter 5
59
Start up problems after prolong use
After a prolong period of use your PC may experience start up problems again. This may be caused by breakdown of devices connected to the motherboard such as HDD, CPU fan, etc. The following tips may help to revive the PC or identify the cause of failure.
1. Clear the CMOS values using the CLR_CMOS jumper. Refer to CLR_CMOS jumper in Chapter 2 for Checking Jumper Settings in this user manual. When completed, follow up with a Load Optimised Default in the BIOS setup.
2. Check the CPU cooler fan for dust. Long term accumulation of dust will reduce its effectiveness to cool the processor. Clean the cooler or replace a new one if necessary.
3. Remove the hard drive, optical drive or DDR memory to determine which of these components may be at fault.
4. Check whether there is any bulked up electrolytic capacitor or abnormal component.
Maintenance and care tips
Your computer, like any electrical appliance, requires proper care and maintenance. Here are some basic PC care tips to help prolong the life of the motherboard and keep it running as best as it can.
Chapter 5
1. Keep your computer in a well ventilated area. Leave some space between the PC and the wall for sufficient airflow.
60
2. Keep your computer in a cool dry place. Avoid dusty areas, direct sunlight and areas of high moisture content.
3. Routinely clean the CPU cooler fan to remove dust and hair.
4. In places of hot and humid weather you should turn on your computer once every other week to circulate the air and prevent damage from humidity.
5. Add more memory to your computer if possible. This not only speeds up the system but also reduces the loading of your hard drive to prolong its life span.
6. If possible, ensure the power cord has an earth ground pin directly from the wall outlet. This will reduce voltage fluctuation that may damage sensitive devices.
H61H2-TI USER MANUAL
tekcos llaw ot tcennoc ro
hctiws USP no nruT
.tratser dna
No
M SOC RLC tratser dna
?no denrut si hctiws USP dna
deulp si droc rewop CA gg
Basic Troubleshooting Flowchart
AMR tcatnoc >- melborp draob fI
?draob ro USP htiw melborP
seY
melborp draoB
AMR tcatnoc >-
.gn
es SOIB yfidom re
ts ot liaf metsyS elbatsnu ro tra
No
a
kcehc dna SOMC RLC
rewop V21 UPC fi
detcennoc si
CP eht tratseR
No
dnuos peeB ynA
seY
:speeb trohs 3 fI -
rotinom fi kcehC
yalpsid sah
seY
:speeb trohs 8 dna peeb gnol 1 fI -
ylreporp ton yromem MMID
eruliaf yromem ro detresni
detceted ton AGV
eussi ecived larehpireP
,rorre putes SOMC-
.melborp DDH-
No
desserp si no
.trats ot sliaf CP tub
uB rewoP
ylppuS rewoP fi kcehC
gnikrow si )USP(
tinU
No
h rotinom fi kcehC sa
seY
yalp
sid
No
neercs TSOP ta tlaH
seY
seY
AMR tcatnoc ,liaf fI
OMC RL dna SC tser .tra
d .SOMCRLC ot een
61
Memo
Chapter 5
62
H61H2-TI USER MANUAL
Loading...
