Elitegroup H61H2-M19 User Manual V1.0

Preface

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.

Version 1.0

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.

Trademark Recognition

Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp.

MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered trademarks of Intel Corporation.

Other product names used in this manual are the properties of their respective owners and are acknowledged.

Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and the receiver

• Connect the equipment onto an outlet on a circuit different from that to

which the receiver is connected

• Consult the dealer or an experienced radio/TV technician for help

Shielded interconnect cables and a shielded AC power cable must be employed with this equipment to ensure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system’s manufacturer could void the user’s authority to operate the equipment.

H61H2-M19 USER MANUAL

Declaration of Conformity

This device complies with part 15 of the FCC rules. Operation is subject to the following conditions:

• This device may not cause harmful interference.

• This device must accept any interference received, including interference

that may cause undesired operation.

This device is in conformity with the following EC/EMC directives:



EN 55022



EN 61000-3-2

EN 61000-3-3



EN 55024

EN 60950



CE marking



Limits and methods of mesurement of radio disturbance characteristics of information technology equipment

Disturbances in supply systems caused

Disturbances in supply systems caused by household appliances and similar electrical equipment “ Voltage fluctuations”

Information technology equipment-Immunity characteristicsLimits and methods of measurement

Safety for information technology equipment including electrical business equipment

Canadian Department of Communications

This class B digital apparatus meets all requirements of the Canadian Interferencecausing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur le matériel brouilieur du Canada.

About the Manual

The manual consists of the following:

Chapter 1 Introducing the Motherboard

Describes features of the motherboard.



page 1

Chapter 2 Installing the Motherboard

Chapter 3 Using BIOS

Chapter 4 Using the Motherboard Software

Chapter 5 Trouble Shooting

H61H2-M19 USER MANUAL

Describes installation of motherboard components.

Provides information on using the BIOS Setup Utility.

Describes the motherboard software.

Provides basic trouble shooting tips.



page 7

page 29

page 77

page 81

TABLE OF CONTENTS

Preface i

Chapter 1 1

Introducing the Motherboard 1

Introduction...........................................................................................1

Pakage Contents..................................................................................1

Specifications......................................................................................2

Motherboard Components................................................................4

I/O Ports...............................................................................................6

Chapter 2 7

Installing the Motherboard 7

Safety Precautions..............................................................................7

Installing the Motherboard in a Chassis.......................................7

Checking Jumper Settings..................................................................8

Installing Hardware...........................................................................11

Installing the Processor............................................................11

Installing the CPU Cooler........................................................13

Installing Memory Modules...................................................14

Installing Add-on Cards..........................................................15

Connecting Optional Devices.................................................17

Installing a SATA Hard Drive...................................................24

Connecting Case Components........................................................25

Front Panel Header................................................................27

Chapter 3 29

Using BIOS 29

About the Setup Utility......................................................................29

The Standard Configuration........................ ...........................29

Entering the Setup Utility.......................................................29

Resetting the Def

ault CMOS Values.....................................30

Using BIOS.........................................................................................30

BIOS Navigation Keys..............................................................31

Main Menu.............................................................................32

Advanced Menu......................................................................33

Chipset Menu..........................................................................57

M.I.B III(MB Intelligent BIOS III) Menu....................................64

Boot Menu...............................................................................68

Security Menu.........................................................................71

Exit Menu................................................................................74

Updating the BIOS......................................................................75

H16H2-M19 USER MANUAL

iii

Chapter 4 77

Using the Motherboard Software 77

Auto-installing under Windows XP/7/8.......................................77

Running Setup........................................................................77

Manual Installation..........................................................................79

Chapter 5 81

Trouble Shooting 81

Start up problems during assembly..............................................81

Start up problems after prolong use............................................82

Maintenance and care tips..............................................................82

Basic Troubleshooting Flowchart.....................................................83

H61H2-M19 USER MANUAL

Chapter 1

Introducing the Motherboard

Introduction

Thank you for choosing the H61H2-M19 motherboard. This motherboard is a high performance, enhanced function motherboard designed to support the LGA1155

socket for latest Intel

This motherboard is based on Intel solution. It supports up to 16 GB of system memory with dual channel DDR3 1600*2/ 1333/1066 MHz. One PCI Express x16 slot, intended for Graphics Interface, is supported. In addition, one PCI Express x1 slot and two PCI slots are for extending usage.

It integrates USB 2.0 interface, supporting up to ten USB 2.0 ports (four USB 2.0 ports and three USB 2.0 headers support additional six USB 2.0 ports).

The motherboard is equipped with advanced full set of I/O ports in the rear panel, including PS/2 mouse and PS/2 keyboard connectors, two COM ports, one VGA port, one DVI port, two RJ45 LAN connectors, four USB 2.0 ports, and 6-ch audio jacks for microphone, line-in and line-out.

In addition, this motherboard supports four SATA 3Gb/s connectors for expansion.

When accommodating Intel 3rd Generation CPU, the PCI Express 16X slot

can run at Gen3 speed, which accelerates on 32GB/s rate that effectively delivers double of PCI Express Gen2 speed.

*2 For Ivy Bridge CPU only.

®®

CoreTM Family/Pentium

®®

H61 Express Chipset for best desktop platform

®®

/Celeron

®®

Processors*1.

Chapter 1

H61H2-M19 USER MANUAL

Chapter 1

Specifications

CPU

Chipset

Memory

Expansion Slots

Storage

Audio

LAN

Rear Panel I/O

Internal I/O Connectors & Headers

• LGA1155 socket for latest Intel® CoreTM Family/Pentium®/ Celeron® Processors

• Supports “Hyper-Threading” technology CPU

• Supports CPU up to 95W TDP

Note: Please go to ECS website for the latest CPU support list.

• Intel® H61 Chipset

• Dual-channel DDR3 memory architecture

• 2 x 240-pin DDR3 DIMM sockets support up to 16 GB

• Supports DDR3 1600*/1333/1066 MHz DDR3 SDRAM

Note: *For Ivy Bridge CPU only.

Please go to ECS website for the latest Memory support list.

• 1 x PCI Express x16 slot

(The PCI Express x16 slot conforms to PCI Express 3.0* Standard)

• 2 x PCI slots

• 1 x PCI Express x1 slot

Not

e: *For Ivy Bridge CPU only.

• Supported by Intel

- 4 x Serial ATA 3Gb/s devices

• Realtek ALC662

- 6 Channel High Definiton Audio Codec

- Compliant with HD audio specification

• Realtek RTL8111E Gigabit Lan

- 10/100/1000 Fast Ethernet Controller

- Wake-on-LAN and remote wake-up support

• 1 x PS/2 keyboard and PS/2 mouse connectors

• 1 x D-Sub port (VGA)

• 2 x COM ports

• 1 x DVI port

• 4 x USB 2.0 ports

• 2 x RJ45 LAN connectors

• 1 x Audio port (1x Line in, 1x Line out, 1x Mic_in Rear)

• 1 x 24-pin ATX Power Supply connector

• 1 x 4-pin 12V Power connector

• 1 x 4-pin CPU_FAN connector

• 1 x 3-pin SYS_FAN connector

• 3 x USB 2.0 headers support additional six USB 2.0 ports

• 4 x Serial ATA 3Gb/s connectors

• 1 x Front Panel switch/LED header

• 1 x Front Panel USB power select jumper

• 1 x Rear USB/PS2 power select jumper

• 1 x General Purpose Input/Output header

• 1 x Case open header

• 1 x ME_UNLOCK header

H61 Express Chipset

H61H2-M19 USER MANUAL

• 1 x SPDIF out header

• 1 x Front Panel audio header

• 1 x LPT connector

• 1 x Analog audio input connector (CD_IN)

• 1 x AC power jumper

• 2 x JCOM connectors (support additional eight COM ports)

• 1 x SLEW header

• 2 x MODE headers

Chapter 1

System BIOS

Form Factor

• AMI BIOS with 32Mb SPI Flash ROM

- Supports Plug and Play, STR (S3)/STD (S4)

- Supports ACPI 2.0 & DMI

- Supports Hardware Monitor

- Supports Audio, LAN, can be disabled in BIOS

- F7 hot key for boot up devices option

- Supports Pgup clear CMOS Hotkey (Has PS2 KB Model only)

- Supports Dual Display

- Supports Multi-language

- Supports AC’97/HD Audio auto detect (default)

- 255-level watchdog timer

- Supports PS/2 KB/MS, USB wake-up

- Supports wake-up on Lan

- AC power failure recovery

- RTC alarm

- AT mode, default: AC ON

• Micro-ATX Size, 244mm x 220mm

H61H2-M19 USER MANUAL

Chapter 1

Motherboard Components

H61H2-M19 USER MANUAL

Table of Motherboard Components

LABEL COMPONENTS

1. CPU Socket

2. CPU_FAN 4-pin CPU cooling fan connector

3. DDR3_1~2 240-pin DDR3 Module slots

4. SYS_FAN 3-pin system cooling fan connector

5. ATX_POWER Standard 24-pin ATX power connector

6. JCOM7-10 JCOM connector (supports additional four COM ports)

7. BZ Buzzer

8. USBPWR_F Front panel USB power select jumper

9. SATA1~4 Serial ATA 3Gb/s connectors

10. F_PANEL Front panel switch/LED header

11. F_USB1~2 Front panel USB 2.0 headers

12. GPIO General purpose Input/Output header

13. CASE CASE open header

14. CLR_CMOS Clear CMOS jumper

15. F_USB3 Front panel USB 2.0 header

16. ME_UNLOCK ME unlock header-for factory use only

17. JCOM3-6 JCOM connector (supports additional four COM ports)

18. LPT Printer connector

19. CD_IN Analog audio input connector

20. SPDIFO SPDIF out header

21. AC_PWR AC power jumper

22. PCI1~2 32-bit add-on card slots

23. F_AUDIO Front panel audio header

24. PCIEX1 PCI Express x1 slot

25. PCIEX16 PCI Express slot for graphics interface

26. USBPWR_R Rear USB/PS2 power select jumper

27. SLEW Slew header

28. MODE1~2 Mode headers

LGA1155 socket for latest Intel® Core Celeron® Processors

Family/Pentium®/

Chapter 1

H61H2-M19 USER MANUAL

Chapter 1

I/O Ports

1. PS/2 Mouse(green)

Use the upper PS/2 port to connect a PS/2 mouse.

2. PS/2 Keyboard(purple) Use the lower PS/2 port to connect a PS/2 keyboard.

3. COM1~2 Ports

Use the COM1/2 port to connect the serial devices such as mice or fax/modems.

4. VGA Port

Connect your monitor to the VGA port.

5. LAN Ports

Connect a RJ-45 jack to the LAN port to connect your computer to the Network.

6. Line-in(blue) It can be connected to an external CD/DVD player, Tape player or other audio devices for audio input.

7. Line-out(lime) It is used to connect to speakers or headphones.

8. Microphone(pink) It is used to connect to a microphone.

9. USB 2.0 Ports

Use the USB 2.0 ports to connect USB 2.0 devices.

10. DVI Port

You can connect the display device to the DVI port.

LAN LED Status Description

Activity LED

Link LED

OFF No da ta Orange blinking Active OFF No link Green Link

Link LED

LAN Port

H61H2-M19 USER MANUAL

Chapter 2

Installing the Motherboard

2-1. Safety Precautions

Follow these safety precautions when installing the motherboard:

• Wear a grounding strap attached to a grounded device to avoid damage from static electricity.

• Discharge static electricity by touching the metal case of a safely grounded object before working on the motherboard.

• Leave components in the static-proof bags.

• Always remove the AC power by unplugging the power cord from the power outlet before installing or removing the motherboard or other hardware components.

2-2. Installing the motherboard in a Chassis

This motherboard carries a Micro ATX form factor of 244 x 220 mm. Choose a chassis that accommodates this from factor. Make sure that the I/O template in the chassis matches the I/O ports installed on the rear edge of the motherboard. Most system chassis have mounting brackets installed in the chassis, which corresponds to the holes in the motherboard. Place the motherboard over the mounting brackets and secure the motherboard onto the mounting brackets with screws.

Chapter 2

Do not over-tighten the screws as this can stress the motherboard.

H61H2-M19 USER MANUAL

2-3. Checking Jumper Settings

This section explains how to set jumpers for correct configuration of the motherboard.

Chapter 2

No. Components No. Components

1USBPWR_F4USBPWR_R

2CLR_CMOS5 SLEW

3AC_PWR6MODE1~2

H61H2-M19 USER MANUAL

1 & 2 & 4. USBPWR_F (Front panel USB power select jumper) & CLR_CMOS (Clear CMOS jumper) & USBPWR_R (Rear USB/PS2 power select jumper)

The following illustration shows the location of the motherboard jumpers. Pin 1 is labeled.

To avoid the system instability after clearing CMOS, we recommend users to enter the main BIOS setting page to “Load Default Settings” and then “Save and Exit Setup”.

Chapter 2

3. AC_PWR: AC power jumper

H61H2-M19 USER MANUAL

5. SLEW: SLEW header

Chapter 2

6. MODE1~2: Mode headers

H61H2-M19 USER MANUAL

2-4. Installing Hardware

2-4-1. Installing the Processor

• This motherboard has an LGA1155 socket.

• When choosing a processor, consider the performance requirements of the system. Performance is based on the processor design, the clock speed and system bus frequency of the processor, and the quantity of internal cache memory and external cache memory.

• You may be able to change the settings in the system Setup Utility. We strongly recommend you do not over-clock processor or other components to run faster than their rated speed.

• The following illustration shows CPU installation components.

A. Press the hook of lever down with your thumb and pull it to the right side to release it from retention tab.

B. Lift the tail of the load lever and rotate the load plate to fully open position.

Chapter 2

C. Grasp the edge of the package substrate. Make sure pin 1 indicator is on your bottom-left side. Aim at the socket and place the package carefully into the socket by purely vertical motion.

H61H2-M19 USER MANUAL

Chapter 2

D. Rotate the load plate onto the package IHS (Intergraded Heat Spreader). Engage the load lever while pressing down lightly onto the load plate. Secure the load lever with the hook under retention tab. Then the cover will flick automatically.

Please save and replace the cover onto the CPU socket if processor is removed.

H61H2-M19 USER MANUAL

2-4-2. Installing the CPU Cooler

• Install the cooling fan in a well-lit work area so that you can clearly see the motherboard and processor socket.

• Avoid using cooling fans with sharp edges in case the fan casing and the clips cause serious damage to the motherboard or its components.

• To achieve better airflow rates and heat dissipation, we suggest that you use a high quality fan with 3800 rpm at least. CPU fan and heat sink installation procedures may vary with the type of CPU fan/heatsink supplied. The form and size of fan/heatsink may also vary.

• DO NOT remove the CPU cap from the socket before installing a CPU.

• Return Material Authorization (RMA) requests will be accepted only if the motherboard comes with the cap on the LGA1155 socket.

• The following illustration shows how to install CPU fan.

A. Apply some thermal grease onto the contacted area between the heatsink and the CPU, and make it to be a thin layer.

B. Fasten the cooling fan supporting base onto the CPU socket on the motherboard. And make sure the CPU fan is plugged to the CPU fan connector.

Chapter 2

C. Connect the CPU cooler power connector to the CPU_FAN connector.

H61H2-M19 USER MANUAL

2-4-3. Installing Memory Modules

Chapter 2

• This motherboard accommodates two memory modules. It can support two 240-pin DDR3 1600*/1333/1066.

• Do not remove any memory module from its antistatic packaging until you are ready to install it on the motherboard. Handle the modules only by their edges. Do not touch the components or metal parts. Always wear a grounding strap when you handle the modules.

• You must install at least one module in any of the two slots. Total memory capacity is 16 GB.

• Refer to the following to install the memory modules.

A. Push the latches on each side of the DIMM slot down.

B. Install the DIMM module into the slot and press it firmly down until it

fits in place. Check that the cutouts on the DIMM module edge connector match the notches in the DIMM slot.

C. The slot latches are levered upwards and latch on to the edges of the

DIMM.

For Ivy Bridge CPU only.

H61H2-M19 USER MANUAL

2-4-4. Installing Add-on Cards

The slots on this motherboard are designed to hold expansion cards and connect them to the system bus. Expansion slots are a means of adding or enhancing the motherboard’s features and capabilities. With these efficient facilities, you can increase the motherboard’s capabilities by adding hardware that performs tasks that are not part of the basic system.

Chapter 2

PCIEX16 Slot

PCIEX1 Slot

PCI1~2 Slots

The PCI Express x16 slot is used to install an external PCI Express graphics card that is fully compliant to the PCI Express Base Specification revision 3.0*.

The PCI Express x1 slot is fully compliant to the PCI Express Base Specification revision 2.0.

This motherboard is equipped with two standard PCI slots. PCI stands for Peripheral Component Interconnect and is a bus standard for expansion cards, which for the most part, is a supplement of the older ISA bus standard. The PCI slots on this board are PCI v2.2 compliant.

*When accommodating Intel 3

Express 16X slot can run at Gen3 speed, which accelerates on 32GB/s rate that effectively delivers double of PCI Express Gen2 speed.

Before installing an add-on card, check the documentation for the card carefully. If the card is not Plug and Play, you may have to manually configure the card before installation.

Generation CPU, the PCI

H61H2-M19 USER MANUAL

Follow these instructions to install an add-on card:

Chapter 2

Please refer the following illustrations to install the add-on card:

1 Remove a blanking plate from the system case corresponding to the slot

you are going to use.

2 Install the edge connector of the add-on card into the expansion slot.

Ensure that the edge connector is correctly seated in the slot.

3 Secure the metal bracket of the card to the system case with a screw.

1. For some add-on cards, for example graphics adapters and network adapters, you have to install drivers and software before you can begin using the add-on card.

2. The onboard PCI interface does not support 64-bit SCSI cards.

Install the VGA Card in the PCI slot

Install the VGA Card in the PCIE X16 slot

H61H2-M19 USER MANUAL

Install the LAN Card in the PCIE X1 slot

2-4-5. Connecting Optional Devices

Refer to the following for information on connecting the motherboard’s optional devices:

No. Components No. Components

1JCOM7-10 7ME_UNLOCK

2 SATA1~4 8 JCOM3 -6

3F_USB1~29 LPT

4GPIO10CD_IN

5CASE11SPDIFO

6 F_US B3 12 F_AUDI O

Chapter 2

H61H2-M19 USER MANUAL

1 & 8. JCOM7-10/JCOM3-6: JCOM connectors (support additional eight COM ports)

Chapter 2

2. SATA1~4: Serial ATA connectors

SATA1~4 connectors are used to support the Serial ATA 3.0Gb/s device, simpler disk drive cabling and easier PC assembly. It eliminates limitations of the current Parallel ATA interface. But maintains register compatibility and software compatibility with Parallel ATA.

H61H2-M19 USER MANUAL

3 & 6. F_USB1~3: Front Panel USB 2.0 headers

The motherboard has three USB 2.0 headers supporting six USB 2.0 ports. Additionally, some computer cases have USB ports at the front of the case. If you have this kind of case, use auxiliary USB connector to connect the front-mounted ports to the motherboard.

Please make sure that the USB cable has the same pin assignment as indicated above. A different pin assignment may cause damage or system hangup.

4. GPIO: General purpose Input/Output Header

Chapter 2

H61H2-M19 USER MANUAL

5. CASE: Chassis Intrusion Detect Header

This detects if the chassis cover has been removed. This function needs a chassis equipped with instrusion detection switch and needs to be enabled in BIOS.

Chapter 2

7. ME_UNLOCK: ME Unlock Header

H61H2-M19 USER MANUAL

9. LPT: Onboard parallel port header

This is a header that can be used to connect to the printer, scanner or other devices.

10. CD_IN: Analog audio input connector

Chapter 2

H61H2-M19 USER MANUAL

11. SPDIFO: SPDIF out header

This is an optional header that provides an SPDIFO (Sony/Philips Digital Interface) output to digital multimedia device through optical fiber or coaxial connector.

Chapter 2

12. F_AUDIO: Front Panel Audio Header

The front panel audio header allows the user to install auxiliary front-oriented microphone and line-out ports for easier access. This header supports HD audio by default. If you want connect an AC’ 97 front panel audio to HD onboard headers, please set as below picture.

H61H2-M19 USER MANUAL

AC’ 97 Audio Configuration: To enable the front panel audio connector to support AC97 Audio mode.

If you use AC’ 97 Front Panel, please tick off the option of “ Disabled Front Panel Detect ” . If you use HD Audio Front Panel, please don’ t tick off “ Disabled Front Panel Detect ” .

* For reference only

If you use AC’ 97 Front Panel, please don’ t tick off “ Using Front Jack Detect ”. If you use HD Audio Front Panel, please tick off the option of “ Using Front Jack Detect ” .

Chapter 2

* For reference only

H61H2-M19 USER MANUAL

2-4-6. Installing a SATA Hard Drive

This section describes how to install a SATA Hard Drive.

About SATA Connectors

Your motherboard features four SATA connectors supporting a total of four drives.

Chapter 2

SATA refers to Serial ATA (Advanced Technology Attachment) is the standard interface for the IDE hard drives which are currently used in most PCs. These connectors are well designed and will only fit in one orientation. Locate the SATA connectors on the motherboard and follow the illustration below to install the SATA hard drives.

Installing Serial ATA Hard Drives

To install the Serial ATA (SATA) hard drives, use the SATA cable that supports the Serial ATA protocol. This SATA cable comes with a SATA power cable. You can connect either end of the SATA cable to the SATA hard drive or the connector on the motherboard.

Refer to the illustration below for proper installation:

1 Attach either cable end to the connector on the motherboard. 2 Attach the other cable end to the SATA hard drive. 3 Attach the SATA power cable to the SATA hard drive and connect the other

end to the power supply.

* For reference only

H61H2-M19 USER MANUAL

2-4-7. Connecting Case Components

After you have installed the motherboard into a case, you can begin connecting the motherboard components. Refer to the following:

No. Components No. Components

1 CPU_FAN 4 F_PANEL

2 SYS_FAN 5 ATX12V

3 ATX_POWER —— ——

1& 2. CPU_FAN (CPU cooling FAN Power Connector) & SYS_FAN (System Cooling FAN Power Connector)

Connect the CPU cooling fan cable to CPU_FAN. Connect the system cooling fan connector to SYS_FAN.

Chapter 2

Users please note that the fan connector supports the CPU cooling fan of 1.1A ~ 2.2A (26.4W max) at +12V.

H61H2-M19 USER MANUAL

3 & 5. ATX_POWER (ATX 24-pin Power Connector) & ATX12V (ATX 12V Power Connector)

Connect the standard power supply connector to ATX_POWER. Connect the auxiliary case power supply connector to ATX12V.

Chapter 2

Connecting 24-pin power cable

The ATX 24-pin connector allows you to connect to ATX v2.x power supply.

With ATX v2.x power supply, users please note that when installing 24-pin power cable, the latches of power cable and the ATX match perfectly.

24-pin power cable

Connecting 4-pin power cable

The ATX12V4P power connector is used to provide power to the CPU.

When installing 4-pin power cable, the latches of power cable and the ATX12V4P match perfectly.

4-pin power cable

H61H2-M19 USER MANUAL

4. F_PANEL: Front Panel Header

The front panel header (F_PANEL) provides a standard set of switch and LED headers commonly found on ATX or Micro ATX cases. Refer to the table below for information:

Hard Drive Activity LED

Connecting pins 1 and 3 to a front panel mounted LED provides visual indication that data is being read from or written to the hard drive. For the LED to function properly, an IDE drive should be connected to the onboard IDE interface. The LED will also show activity for devices connected to the SCSI (hard drive activity LED) connector.

Power/Sleep/Message waiting LED

Connecting pins 2 and 4 to a single or dual-color, front panel mounted LED provides power on/off, sleep, and message waiting indication.

Reset Switch

Supporting the reset function requires connecting pin 5 and 7 to a momentary-contact switch that is normally open. When the switch is closed, the board resets and runs POST.

Power Switch

Supporting the power on/off function requires connecting pins 6 and 8 to a momentary-contact switch that is normally open. The switch should maintain contact for at least 50 ms to signal the power supply to switch on or off. The time requirement is due to internal de-bounce circuitry. After receiving a power on/off signal, at least two seconds elapses before the power supply recognizes another on/off signal.

Chapter 2

H61H2-M19 USER MANUAL

Memo

Chapter 2

H61H2-M19 USER MANUAL

Chapter 3

Using BIOS

About the Setup Utility

The computer uses the latest “American Megatrends Inc. ” BIOS with support for Windows Plug and Play. The CMOS chip on the motherboard contains the ROM setup instructions for configuring the motherboard BIOS.

The BIOS (Basic Input and Output System) Setup Utility displays the system’s configuration status and provides you with options to set system parameters. The parameters are stored in battery-backed-up CMOS RAM that saves this information when the power is turned off. When the system is turned back on, the system is configured with the values you stored in CMOS.

The BIOS Setup Utility enables you to configure:

• Hard drives, diskette drives and peripherals

• Video display type and display options

• Password protection from unauthorized use

• Power Management features

The settings made in the Setup Utility affect how the computer performs. Before using the Setup Utility, ensure that you understand the Setup Utility options.

This chapter provides explanations for Setup Utility options.

The Standard Configuration

A standard configuration has already been set in the Setup Utility. However, we recommend that you read this chapter in case you need to make any changes in the future.

This Setup Utility should be used:

• when changing the system configuration

• when a configuration error is detected and you are prompted to make changes to the Setup Utility

• when trying to resolve IRQ conflicts

• when making changes to the Power Management configuration

• when changing the password or making other changes to the Security Setup

Entering the Setup Utility

When you power on the system, BIOS enters the Power-On Self Test (POST) routines. POST is a series of built-in diagnostics performed by the BIOS. After the POST routines are completed, the following message appears:

Press DEL to enter SETUP

Chapter 3

H61H2-M19 USER MANUAL

Press the delete key to access BIOS Setup Utility.

Main Advanced Chipset M.I.B III Boot Security Exit

BIOS Information

System Language [English]

System Date [Wed 11/21/2012] System Time [15:32:18]

Chapter 3

Resetting the Default CMOS Values

When powering on for the first time, the POST screen may show a “CMOS Settings Wrong” message. This standard message will appear following a clear CMOS data at factory by the manufacturer. You simply need to Load Default Settings and Save it to reset the default CMOS values.

Note: Changes to system hardware such as different CPU, memories, etc. may also trigger this message.

Choose the system default language.

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values F3:Optimized Defaults F4:Save & Exit

ESC:Exit

Using BIOS

When you start the Setup Utility, the main menu appears. The main menu of the Setup Utility displays a list of the options that are available. A highlight indicates which option is currently selected. Use the cursor arrow keys to move the highlight to other options. When an option is highlighted, execute the option by pressing <Enter>.

Some options lead to pop-up dialog boxes that prompt you to verify that you wish to execute that option. Other options lead to dialog boxes that prompt you for information.

Some options (marked with a triangle



) lead to submenus that enable you to change



the values for the option. Use the cursor arrow keys to scroll through the items in the submenu.

H61H2-M19 USER MANUAL

In this manual, default values are enclosed in parenthesis. Submenu items are denoted by a triangle

The default BIOS setting for this motherboard apply for most conditions with optimum performance. We do not suggest users change the default values in the BIOS setup and take no responsibility to any damage caused by changing the BIOS settings.



 .



BIOS Navigation Keys

The BIOS navigation keys are listed below:

KEY FUNCTION

ESC



+/-

Enter Select

F1 General Help

F2 Pr

F3 Optimized Defaults

F4 Save & Exit

For the purpose of better product maintenance, the manufacture reserves the right to change the BIOS items presented in this manual. The BIOS setup screens shown in this chapter are for reference only and may differ from the actual BIOS. Please visit the manufacture’s website for updated manual.

Exits the current menu

Scrolls through the items on a menu

Change Opt.

evious Value

Chapter 3

H61H2-M19 USER MANUAL

Main Menu

When you enter the BIOS Setup program, the main menu appears, giving you an overview of the basic system information. Select an item and press <Enter> to display the submenu.

Main Advanced Chipset M.I.B III Boot Security Exit

BIOS Information

System Language [English]

System Date [Wed 11/21/2012] System Time [15:32:18]

Chapter 3

System Language (English)

This item is used to set system language.

System Date & Time

The Date and Time items show the current date and time on the computer. If you are running a Windows OS, these items are automatically updated whenever you make changes to the Windows Date and Time Properties utility.

Choose the system default language.

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values F3:Optimized Defaults F4:Save & Exit

ESC:Exit

H61H2-M19 USER MANUAL

Advanced Menu

The Advanced menu items allow you to change the settings for the CPU and other system.

Main Advanced Chipset M.I.B III Boot Security Exit







LAN Configuration







PC Health Status Power Management Setup







ACPI Settings





 





CPU Configuration



SAT A Configuration





USB Configuration







Super IO Configuration







Intel(R) Smart Connect T echnology







Realtek PCIe GBE Family Controller (MAC:EC:A8:6B:83:7D:B0)







Realtek PCIe GBE Family Controller (MAC:EC:A8:6B:83:7D:B1)







LAN Configuration Parameters

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values F3:Optimized Defaults F4:Save & Exit

ESC:Exit

Chapter 3

H61H2-M19 USER MANUAL

LAN Configuration



The item in the menu shows the LAN-related information that the BIOS automatically detects.

Main Advanced Chipset M.I.B III Boot Security Exit

LAN Configuration

Onboard LAN 1 Controller [Enabled]

Onboard LAN 2 Controller [Enabled]

Chapter 3

Onboard LAN 1/2 Controller (Enabled)

Use these items to enable or disable Onboard LAN 1/2 controller.

Press <Esc> to return to the Advanced Menu page.

Enabled/Disabled Onboard LAN 1 Controller

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values F3:Optimized Defaults

F4:Save & Exit

ESC:Exit

H61H2-M19 USER MANUAL



PC Health Status

On motherboards support hardware monitoring, this item lets you monitor the parameters for critical voltages, temperatures and fan speeds.

Main Advanced Chipset M.I.B III Boot Security Exit

PC Health Status

Smart Fan Function



System Temperature : 25O C CPU Fan Speed : 1896 RPM System Fan Speed : 0 RPM CPU Voltage : 1.032 V AXG Voltage : 0.468 V DIMM Voltage : 1.560 V +5V : 4.980 V +12V : 12.096 V

-=- PECI Mode -=Offset to TCC Activation Temp. : -48

:Select Screen



:Select Item



Enter : Select

+/- : Change Opt.

F1:General Help

F2:Previous Values F3:Optimized Defaults F4:Save & Exit

ESC:Exit

Smart Fan Function

Scroll to this item and press <Enter> to view the following screen:

Main Advanced Chipset M.I.B III Boot Security Exit

CPU Smart Fan Control [Enabled]

Smart Fan Mode [Normal]

Smart Fan start PWM value 18 0 Smart Fan start PWM TEMP(-) 30 DeltaT 3 Smart Fan Slope PWM value 10 PWM value / unit CPU Fan Full Speed Offset(-) 23

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values F3:Optimized Defaults

F4:Save & Exit

ESC:Exit

Chapter 3

CPU Smart Fan Control (Enabled)

This item allows you to enable or disable the control of the CPU fan speed by changing the fan voltage.

Smart Fan Mode (Normal)

This item allows you to select the fan mode (Normal, Quiet, Silent, or Manual) for a better operation environment. If you choose Normal mode, the fan speed will be auto adjusted depending on the CPU temperature. If you choose Quiet mode, the fan speed will be auto minimized for quiet environment. If you choose Silent mode, the fan speed will be auto restricted to make system more quietly. If you choose Manual mode, the fan speed will be adjust depending on users’ parameters.

H61H2-M19 USER MANUAL

SMART Fan start PWM value (180)

This item is used to set the start PWM value of the smart fan.

SMART Fan start TEMP(-) (30)

This item is used to set the start temperature of the smart fan.

DeltaT (3)

This item specifies the range that controls CPU temperature and keeps it from going so high or so low when smart fan works.

Smart Fan Slope PWM value (10 PWM value / unite)

This item is used to set the Slope Select PWM of the smart fan.

CPU Fan Full Speed Offset(-) (23)

Chapter 3

This item is used to set the CPU fan full speed offset value.

Press <Esc> to return to the PC Health Status page.

System Component Characteristics

These items display the monitoring of the overall inboard hardware health events, such as System temperature, CPU & DIMM voltage, CPU & System fan speed... etc.

• System Temperature

• CPU Fan Speed

• System Fan Speed

• CPU Voltage

•

DIMM Voltage

Press <Esc> to return to the Advanced Menu page.

H61H2-M19 USER MANUAL

Power Management Setup



This page sets up some parameters for system power management operation.

Main Advanced Chipset M.I.B III Boot Security Exit

Power Management Setup

Resume By RING [Disabled]

Resume By PME [Disabled] Resume By USB 1.x/2.0(S3) [Disabled] Resume By PS2 KB(S3) [Disabled] Resume By PS2 MS(S3) [Disabled] Resume By RTC Alarm [Disabled] EUP Function [Enabled] Power LED Type [Dual Color LED]

About Resume by Ring

:Select Screen



:Select Item



Enter : Select

+/- : Change Opt.

F1:General Help

F2:Previous Values

F3:Optimized Defaults

F4:Save & Exit

ESC:Exit

Resume By RING (Disabled)

The system can be turned off with a software command. If you enable this item, the system can automatically resume if there is an incoming call on the Modem. You must use an ATX power supply in order to use this feature.

Resume By PME (Disabled)

This item specify whether the system will be awakened from power saving modes when activity or input signal of the specified hardware peripheral or components is detected.

esume By USB 1.x/2.0(S3) (Disabled)

This item allows you to enable/disable the USB device wakeup function from S3 mode.

Resume By PS2 KB (S3) (Disabled)

This item enables or disables you to allow keyboard activity to awaken the system from power saving mode.

Resume By PS2 MS (S3) (Disabled)

This item enables or disables you to allow mouse activity to awaken the system from power saving mode.

Resume By RTC Alarm (Disabled)

This item can be turned off with a software command. If you enable this item, the system can automatically resume at a fixed time based on the system’s RTC (realtime clock). Use the items below this one to set the date and time of the wakeup alarm. You must use an ATX power supply in order to use this feature.

EUP Function (Enabled)

This item allows user to enable or disable EUP support.

Power LED Type (Dual Color LED)

This item shows the type of the power LED.

Chapter 3

Press <Esc> to return to the Advanced Menu page.

H61H2-M19 USER MANUAL

ACPI Settings



The item in the menu shows the highest ACPI sleep state when the system enters suspend.

Main Advanced Chipset M.I.B III Boot Security Exit

ACPI Settings

ACPI Sleep State [S3 (Suspend to RAM)]

Chapter 3

ACPI Sleep State [S3(Suspend to RAM)]

This item allows user to enter the ACPI S3 (Suspend to RAM) Sleep State (default).

Press <Esc> to return to the Advanced Menu page.

Select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed.

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values

F3:Optimized Defaults

F4:Save & Exit

ESC:Exit

H61H2-M19 USER MANUAL

CPU Configuration



The item in the menu shows the CPU Configuration.

Main Advanced Chipset M.I.B III Boot Security Exit

CPU Configuration Intel(R) Celeron(R) CPU G550T @ 2.20GHz

64-bit Supported Processor Speed 2200 MHz Processor Stepping 206a7 Microcode Revision 28 Processor Cores 2 Intel HT Technology Not Supported Intel VT- x Technology Supported

Active Processor Cores [All]

Limit CPUID Maximum [Disabled] Execute Disable Bit [Enabled] Intel Virtualization T echnology [Enabled] CPU C3 Report [Disabled] CPU C6 Report [Enabled] Enhanced Halt (ClE) [Enabled]

Number of cores to enable in each processor package.

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values

F3:Optimized Defaults

F4:Save & Exit

ESC:Exit

Intel(R) Celeron(R) CPU G550T @ 2.20GHz

This is display-only field and diaplays the information of the CPU installed in your computer.

64-bit (Supported)

This item shows the computer supports EMT64.

Processor Speed (2200MHz)

This item shows the current processor speed.

Processor Stepping (206a7)

This item shows the processor stepping version.

Microcode Revision (28)

This item shows the Microcode version.

Processor Cores (2)

This item shows the core number of the processor.

Intel HT Technology (Not Supported)

This item shows that the computer supports Intel HT Technology or not.

Intel VT-x Technology (Supported)

This item shows that the computer supports Intel VT-x Technology or not.

Active Processor Cores (All)

Use this item to control the active processor cores.

Limit CPUID Maximum

(Disabled)

Use this item to enable or disable the maximum CPUID value limit, you can enable this item to prevent the system from “rebooting” when trying to install Windows NT

4.0.

Chapter 3

H61H2-M19 USER MANUAL

Excute Disable Bit (Enabled)

This item allows the processor to classify areas in memory by where application code can execute and where it cannot. When a malicious worm attempts to insert code in the buffer, the processor disables code execution, preventing damage or worm propagation. Replacing older computers with Execute Disable Bit enabled systems can halt worm attacks, reducing the need for virus related repair.

Intel Virtualization Technology (Enabled)

When disabled, a VMM cannot utilize the additional hardware capabilities provided by Vandor Pool Technology.

CPU C3 Report (Disabled)

Use this item to enable or disable CPU C3 (ACPI C2) report to OS.

Chapter 3

CPU C6 Report (Enabled)

Use this item to enable or disable CPU C6 (ACPI C3) report to OS.

Enhanced Halt (ClE) (Enabled)

Use this item to enable the CPU energy-saving function when the system is not running.

Press <Esc> to return to the Advanced Menu page.

H61H2-M19 USER MANUAL

SATA Configuration



Use this item to show the mode of serial SATA configuration options.

Main Advanced Chipset M.I.B III Boot Security Exit

SAT A Configuration

SATA Mode [IDE Mode]

SAT A Port1 WDC WD5000AAJS (500.1GB) SATA Port2 Not Present SATA Port3 Not Present SATA Port4 Not Present

Determines how SAT A controller(s) operate.

:Select Screen



:Select Item



Enter : Select

+/- : Change Opt.

F1:General Help

F2:Previous Values F3:Optimized Defaults F4:Save & Exit

ESC:Exit

SATA Mode (IDE Mode)

Use this item to select SATA mode.

SATA Port1~4 (WDC WD5000AAJS (500.1GB)/Not Present)

This motherboard supports four SATA channels, each channel allows one SATA device to be installed. Use these items to configure each device on the SATA channel.

Press <Esc> to return to the Advanced Menu page.

Chapter 3

H61H2-M19 USER MANUAL

USB Configuration



Use this item to show the information of USB configuration.

Main Advanced Chipset M.I.B III Boot Security Exit

USB Configuration

All USB Devices [Enabled]

Legacy USB Support [Enabled]

Chapter 3

All USB Devices (Enabled)

Use this item to enable or disable all USB devices.

Legacy USB Support (Enabled)

Use this item to enable or disable support for legacy USB devices.

Press <Esc> to return to the Advanced Menu page.

USB Support Parameters

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values

F3:Optimized Defaults

F4:Save & Exit

ESC:Exit

H61H2-M19 USER MANUAL

Super IO Configuration







Use this item to show the information of Super IO configuration.

Main Advanced Chipset M.I.B III Boot Security Exit

Super IO Configuration Super IO Chip IT8786, IT8768

Serial Port 1 Configutation







Serial Port 2 Configuration







Serial Port 3 Configuration







Serial Port 4 Configuration







Serial Port 5 Configuration







Serial Port 6 Configuration







Serial Port 7 Configuration







Serial Port 8 Configuration





 



Serial Port 9 Configuration

 



Serial Port 10 Configuration

 





Parallel Port Configuration

Set Parameters of Serial Port 1 (COMA)

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values

F3:Optimized Defaults

F4:Save & Exit

ESC:Exit

Super IO Chip (IT8786, IT8768)

This item shows the information of the super IO chip.

Serial Port 1 Configuration

Scroll to this item and press <Enter> to view the following screen:

Main Advanced Chipset M.I.B III Boot Security Exit

Serial Port 1 Configuration

Serial Port [Enabled]

Device Settings IO=3F8h; IRQ=4;

Change Settings [Auto] RS485 Mode [Disabled]

9-bit Multi-Drops Mode [Disabled]

Enable or Disable Serial Port (COM)

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values F3:Optimized Defaults

F4:Save & Exit

ESC:Exit

Chapter 3

Serial Port (Enabled)

This item allows you to enable or disable serial port.

Device Settings (IO=3F8h; IRQ=4)

This item shows the information of the device settings.

Change Settings (Auto)

Use this item to change device settings.

RS485 Mode (Disabled)

Use this item to enable or disable the RS485 mode.

9-bit Multi-Drops Mode (Disabled)

Use this item to enable or disable the 9-bit Multi-Drops mode.

Press <Esc> to return to the Super IO Configuration page.

H61H2-M19 USER MANUAL

Serial Port 2 Configuration

Scroll to this item and press <Enter> to view the following screen:

Main Advanced Chipset M.I.B III Boot Security Exit

Serial Port 2 Configuration

Serial Port [Enabled]

Device Settings IO=2F8h; IRQ=3;

Change Settings [Auto]

Chapter 3

Serial Port (Enabled)

This item allows you to enable or disable serial port.

Device Settings (IO=2F8h; IRQ=3)

This item shows the information of the device settings.

Change Settings (Auto)

Use this item to change device settings.

Press <Esc> to return to the Super IO Configuration page.

Enable or Disable Serial Port (COM)

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values

F3:Optimized Defaults

F4:Save & Exit

ESC:Exit

H61H2-M19 USER MANUAL

Serial Port 3 Configuration

Scroll to this item and press <Enter> to view the following screen:

Main Advanced Chipset M.I.B III Boot Security Exit

Serial Port 3 Configuration

Serial Port [Enabled]

Device Settings IO=3E8h; IRQ=6;

Change Settings [Auto]

Enable or Disable Serial Port (COM)

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values F3:Optimized Defaults

F4:Save & Exit

ESC:Exit

Serial Port (Enabled)

This item allows you to enable or disable serial port.

Device Settings (IO=3E8h; IRQ=6)

This item shows the information of the device settings.

Change Settings (Auto)

Use this item to change device settings.

Press <Esc> to return to the Super IO Configuration page.

Chapter 3

H61H2-M19 USER MANUAL

Serial Port 4 Configuration

Scroll to this item and press <Enter> to view the following screen:

Main Advanced Chipset M.I.B III Boot Security Exit

Serial Port 4 Configuration

Serial Port [Enabled]

Device Settings IO=2E8h; IRQ=6;

Change Settings [Auto]

Chapter 3

Serial Port (Enabled)

This item allows you to enable or disable serial port.

Device Settings (IO=2E8h; IRQ=6)

This item shows the information of the device settings.

Change Settings (Auto)

Use this item to change device settings.

Press <Esc> to return to the Super IO Configuration page.

Enable or Disable Serial Port (COM)

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values

F3:Optimized Defaults

F4:Save & Exit

ESC:Exit

H61H2-M19 USER MANUAL

Serial Port 5 Configuration

Scroll to this item and press <Enter> to view the following screen:

Main Advanced Chipset M.I.B III Boot Security Exit

Serial Port 5 Configuration

Serial Port [Enabled]

Device Settings IO=2F0h; IRQ=6;

Change Settings [Auto]

Enable or Disable Serial Port (COM)

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values F3:Optimized Defaults

F4:Save & Exit

ESC:Exit

Serial Port (Enabled)

This item allows you to enable or disable serial port.

Device Settings (IO=2F0h; IRQ=6)

This item shows the information of the device settings.

Change Settings (Auto)

Use this item to change device settings.

Press <Esc> to return to the Super IO Configuration page.

Chapter 3

H61H2-M19 USER MANUAL

Serial Port 6 Configuration

Scroll to this item and press <Enter> to view the following screen:

Main Advanced Chipset M.I.B III Boot Security Exit

Serial Port 6 Configuration

Serial Port [Enabled]

Device Settings IO=2E0h; IRQ=6;

Change Settings [Auto]

Chapter 3

Serial Port (Enabled)

This item allows you to enable or disable serial port.

Device Settings (IO=2E0h; IRQ=6)

This item shows the information of the device settings.

Change Settings (Auto)

Use this item to change device settings.

Press <Esc> to return to the Super IO Configuration page.

Enable or Disable Serial Port (COM)

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values

F3:Optimized Defaults

F4:Save & Exit

ESC:Exit

H61H2-M19 USER MANUAL

Serial Port 7 Configuration

Scroll to this item and press <Enter> to view the following screen:

Main Advanced Chipset M.I.B III Boot Security Exit

Serial Port 7 Configuration

Serial Port [Enabled]

Device Settings IO=240h; IRQ=11;

Change Settings [Auto]

Enable or Disable Serial Port (COM)

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values F3:Optimized Defaults

F4:Save & Exit

ESC:Exit

Serial Port (Enabled)

This item allows you to enable or disable serial port.

Device Settings (IO=240h; IRQ=11)

This item shows the information of the device settings.

Change Settings (Auto)

Use this item to change device settings.

Press <Esc> to return to the Super IO Configuration page.

Chapter 3

H61H2-M19 USER MANUAL

Serial Port 8 Configuration

Scroll to this item and press <Enter> to view the following screen:

Main Advanced Chipset M.I.B III Boot Security Exit

Serial Port 8 Configuration

Serial Port [Enabled]

Device Settings IO=248h; IRQ=11;

Change Settings [Auto]

Chapter 3

Serial Port (Enabled)

This item allows you to enable or disable serial port.

Device Settings (IO=248h; IRQ=11)

This item shows the information of the device settings.

Change Settings (Auto)

Use this item to change device settings.

Press <Esc> to return to the Super IO Configuration page.

Enable or Disable Serial Port (COM)

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values

F3:Optimized Defaults

F4:Save & Exit

ESC:Exit

H61H2-M19 USER MANUAL

Serial Port 9 Configuration

Scroll to this item and press <Enter> to view the following screen:

Main Advanced Chipset M.I.B III Boot Security Exit

Serial Port 9 Configuration

Serial Port [Enabled]

Device Settings IO=250h; IRQ=11;

Change Settings [Auto]

Enable or Disable Serial Port (COM)

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values F3:Optimized Defaults

F4:Save & Exit

ESC:Exit

Serial Port (Enabled)

This item allows you to enable or disable serial port.

Device Settings (IO=250h; IRQ=11)

This item shows the information of the device settings.

Change Settings (Auto)

Use this item to change device settings.

Press <Esc> to return to the Super IO Configuration page.

Chapter 3

H61H2-M19 USER MANUAL

Serial Port 10 Configuration

Scroll to this item and press <Enter> to view the following screen:

Main Advanced Chipset M.I.B III Boot Security Exit

Serial Port 10 Configuration

Serial Port [Enabled]

Device Settings IO=258h; IRQ=11;

Change Settings [Auto]

Chapter 3

Serial Port (Enabled)

This item allows you to enable or disable serial port.

Device Settings (IO=258h; IRQ=11)

This item shows the information of the device settings.

Change Settings (Auto)

Use this item to change device settings.

Press <Esc> to return to the Super IO Configuration page.

Enable or Disable Serial Port (COM)

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values

F3:Optimized Defaults

F4:Save & Exit

ESC:Exit

H61H2-M19 USER MANUAL

Parallel Port Configuration

Scroll to this item and press <Enter> to view the following screen:

Main Advanced Chipset M.I.B III Boot Security Exit

Parallel Port Configuration

Parallel Port [Enabled]

Device Settings IO=378h; IRQ=5;

Change Settings [Auto] Device Mode [Standard Parallel Port Mode]

Enable or Disable Parallel Port (LPT/LPTE)

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values F3:Optimized Defaults

F4:Save & Exit

ESC:Exit

Parallel Port (Enabled)

This item allows you to enable or disable parallel port.

Device Settings (IO=378h; IRQ=5)

This item shows the information of the device settings.

Change Settings (Auto)

Use this item to change device settings.

Device Mode (Standard Parallel Port Mode)

Use this item to select the parallel port mode: SPP/EPP/ECP/EPP+ECP.

Chapter 3

Press <Esc> to return to the Super IO Configuration page.

Press <Esc> to return to the Advanced Menu page.

H61H2-M19 USER MANUAL

Intel(R) Smart Connect Technology



Use this item to show the information of the Intel(R) Smart Connect Technology.

Main Advanced Chipset M.I.B III Boot Security Exit

ISCT Configuration [Disabled]

Chapter 3

ISCT Configuration (Disabled)

Use this item to enable or disable ISCT configuration.

Press <Esc> to return to the Advanced Menu page.

Enable/Disable ISCT Configuration

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values

F3:Optimized Defaults

F4:Save & Exit

ESC:Exit

H61H2-M19 USER MANUAL

Realtek PCIe GBE Family Controller (MAC: EC: A8: 6B: 83: 7D: B0)



Use this item to show the information of the Realtek PCIe GBE Family controller.

Main Advanced Chipset M.I.B III Boot Security Exit

Driver Information Driver Name: Realtek UEFI UNDI Driver Driver Version: 2.017 Driver Released Date: 2012/10/19

Device Information Device Name: Realtek PCIe GBE Family Controller PCI Slot: 04:00:00 MAC Address: EC: A8: 6B: 83: 7D: B0

F1:General Help

ESC:Exit

Driver Name (Realtek UEFI UNDI Driver)

This item shows the information of the driver name.

Driver Version (2.017)

This item shows the information of the driver version.

Driver Released Date (2012/10/19)

This item shows the driver released date.

Device Name (Realtek PCIe GBE Family Controller)

This item shows the device name.

PCI Slot (04: 00: 00)

This item shows the information of the PCI slot.

MAC Address (EC: A8: 6B: 83: 7D: B0)

This item shows the information of the MAC address.

:Select Screen



:Select Item



Enter : Select

+/- : Change Opt.

F2:Previous Values

F3:Optimized Defaults

F4:Save & Exit

Chapter 3

Press <Esc> to return to the Advanced Menu page.

H61H2-M19 USER MANUAL

Realtek PCIe GBE Family Controller (MAC: EC: A8: 6B: 83: 7D: B1)



Use this item to show the information of the Realtek PCIe GBE Family controller.

Main Advanced Chipset M.I.B III Boot Security Exit

Driver Information Driver Name: Realtek UEFI UNDI Driver Driver Version: 2.017 Driver Released Date: 2012/10/19

Device Information Device Name: Realtek PCIe GBE Family Controller PCI Slot: 05:00:00 MAC Address: EC: A8: 6B: 83: 7D: B1

Chapter 3

Driver Name (Realtek UEFI UNDI Driver)

This item shows the information of the driver name.

Driver Version (2.017)

This item shows the information of the driver version.

Driver Released Date (2012/10/19)

This item shows the driver released date.

Device Name (Realtek PCIe GBE Family Controller)

This item shows the device name.

PCI Slot (05: 00: 00)

This item shows the information of the PCI slot.

MAC Address (EC: A8: 6B: 83: 7D: B1)

This item shows the information of the MAC address.

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values F3:Optimized Defaults F4:Save & Exit

ESC:Exit

H61H2-M19 USER MANUAL

Chipset Menu

The chipset menu items allow you to change the settings for the North Bridge chipset, South Bridge chipset and other system.

Main Advanced Chipset M.I.B III Boot Security Exit

System Agent Configuration



PCH Configuration



ME Configuration



System Agent Configuration

System Agent (SA) Parameters

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values F3:Optimized Defaults

F4:Save & Exit

ESC:Exit

Scroll to this item and press <Enter> and view the following screen:

Main Advanced Chipset M.I.B III Boot Security Exit

System Agent Configuration

Initiate Graphic Adapter [Auto]

IGD Memory [64M] DVMT Memory [256M] IGD Multi-Monitor [Disabled]

Select which of IGFX/PEG/PCI Graphics device should be Primary Display Or select SG for Switchable Gfx.

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values

F3:Optimized Defaults

F4:Save & Exit

ESC:Exit

Chapter 3

Initiate Graphic Adapter (Auto)

This item allows you to select graphics controller to use as the primary boot device.

IGD Memory (64M)

This item shows the information of the IGD (Internal Graphics Device) memory.

DVMT Memory (256M)

When set to Fixed Mode, the graphics driver will reserve a fixed position of the system memory as graphics memory, according to system and graphics requirements.

IGD Multi-Monitor (Disabled)

This item enables or disables IGD (Internal Graphics devices) multi-monitor.

Press <Esc> to return to the Chipset Menu page.

H61H2-M19 USER MANUAL

Multi-Monitor technology

Multi-Monitor technology can help you to increase the area available for programs running on a single computer system through using multiple display devices.

It is not only to increase larger screen viewing but aslo to improving personal productivity.

Chapter 3

Step 1. Insert ECS drives DVD to run Auto setup or browse the DVD to install Intel chipset drivers, VGA and sound drivers.(If you want know the detail information, please refer to chapter 4.)

Intel Integrated Graphics

Please note that Multi-Monitor technology supports up to four monitors: one or two Intel integrated Graphics and one or two PCI-Express graphics devices under Windows 7/8.

PCI-Express Graphics

H61H2-M19 USER MANUAL

Step 2. Install all the drivers of PCI-Express graphic cards. Click the Browse CD item, then appears the following screen. Select the driver you want to install(e.g NVIDIA GeForce 8400 GS(Microsoft Corporation-WDDM v1.1)) and double click it.

Step 3. Enable IGD Multi-Monitor from BIOS. In the following BIOS screen, please set IGD Multi-Monitor to [Enabled].

Main Advanced Chipset M.I.B III Boot Security Exit

System Agent Configuration

Initiate Graphic Adapter [Auto]

IGD Memory [64M] DVMT Memory [256M] IGD Multi-Monitor [Disabled]

Select which of IGFX/PEG/PCI Graphics device should be Primary Display Or select SG for Switchable Gfx.

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values

F3:Optimized Defaults

F4:Save & Exit

ESC:Exit

Chapter 3

H61H2-M19 USER MANUAL

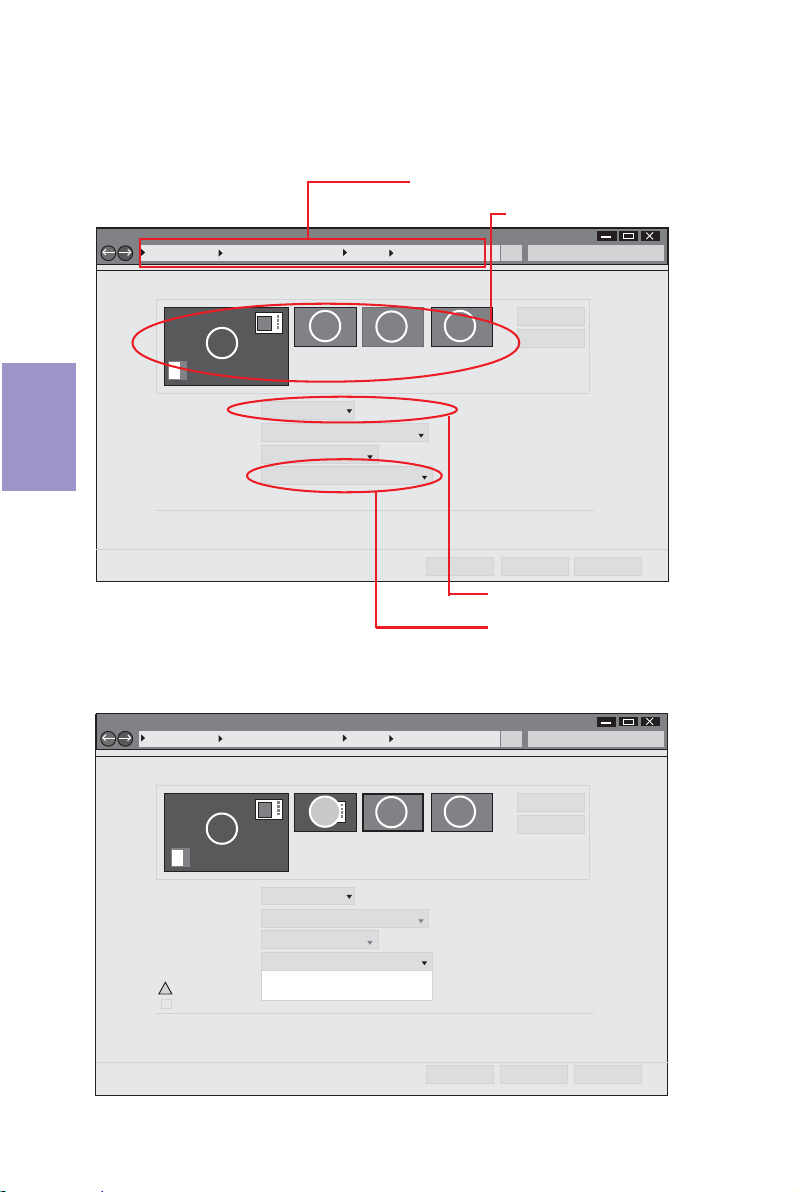

Step 4. Change the appearance of your displays under Windows 7/8.

1. Enter the Control Panel menu, select the Display in the All Control Panel Items and click the Screen Resolution, then appears the following screen.

Show the path of the setting location

Display devices

Chapter 3

2.Select display devices, set the multiple displays option and to extend destop for display “Multi-Monitor technology”.

Control Panel All Control Panel Items Display Screen Resolution

Change the apprearance of your displays

1. DELL U2410Display: Resolution: Orientation: Landscape

This is currently your main display.

Make text and other items larger or smaller What display settings should I choose?

Control Panel All Control Panel Items Display Screen Resolution

Change the apprearance of your displays

1920 x 1200 (recommended)

Extend desktop to this displayMultiple displays:

OK Cancel Apply

Search Control Panel

Detect

Identify

Advance settings

The type of the display

Set the multiple displays

Search Control Panel

Detect

Identify

3. DELL U2410Display: Resolution: Orientation: Landscape

Y ou must select Apply before making additional changes.

Make this my main display

Make text and other items larger or smaller What display settings should I choose?

1920 x 1200 (recommended)

Disconnect this displayMultiple displays: Extend desktop to this display Disconnect this display

H61H2-M19 USER MANUAL

Advance settings

OK Cancel Apply

Control Panel All Control Panel Items Display Screen Resolution

Change the apprearance of your displays

4. AL1717Display: Resolution: Orientation: Landscape

Y ou must select Apply before making additional changes.

Make this my main display

Make text and other items larger or smaller What display settings should I choose?

1920 x 1200 (recommended)

Disconnect this displayMultiple displays:

Search Control Panel

Detect

Identify

Advance settings

OK Cancel Apply

Control Panel All Control Panel Items Display Screen Resolution

Change the apprearance of your displays

4. AL1717Display:

Resolution: Orientation: Landscape

Y ou must select Apply before making additional changes.

Make this my main display

Make text and other items larger or smaller What display settings should I choose?

1920 x 1200 (recommended)

Extend desktop to this displayMultiple displays:

OK Cancel Apply

Chapter 3

Search Control Panel

Detect

Identify

Advance settings

H61H2-M19 USER MANUAL

PCH Configuration



Scroll to this item and press <Enter> to view the following screen:

Main Advanced Chipset M.I.B III Boot Security Exit

PCH Configuration

Restore AC Power Loss [Power Off]

Audio Configuration Azalia HD Audio [Enabled] Azalia Internal HDMI codec [Enabled]

Case Open Warning [Disabled] Chassis Opened [No]

Chapter 3

Restore AC Power Loss (Power Off)

This item enables your computer to automatically restart or return to its operating status.

Azalia HD Audio (Enabled)

This item enables or disables Azalia HD audio.

Azalia Internal HDMI codec (Enabled)

This item enables or disables Azalia Internal HDMI codec.

Case Open Warning (Disabled)

This item enables or disables the warning if the case is opened up, and the item below indicates the current status of the case.

Chassis Opened (No)

This item indicates whether the case has been opened.

Select AC power state when power is re-applied after a power failure.

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values

F3:Optimized Defaults F4:Save & Exit ESC:Exit

Press <Esc> to return to the Chipset Menu page.

H61H2-M19 USER MANUAL

ME Configuration



Scroll to this item and press <Enter> to view the following screen:

Main Advanced Chipset M.I.B III Boot Security Exit

Management Engine T echnology Configuration ME FW Version 8.1 .0.1248

ME FW Version (8.1.0.1248)

This item shows the ME FW version.

Press <Esc> to return to the Chipset Menu page.

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values

F3:Optimized Defaults

F4:Save & Exit

ESC:Exit

Chapter 3

H61H2-M19 USER MANUAL

M.I.B III (MB Intelligent BIOS III) Menu

This page enables you to set the clock speed and system bus for your system. The clock speed and system bus are determined by the kind of processor you have installed in your system.

Main Advanced Chipset M.I.B III Boot Security Exit

M.I.B III (MB Intelligent BIOS III)

Memory Voltage Control



CPU OverClocking Configuration



Chipset OverClocking Configuration



B.O.M.P T echnology [Enabled]

Chapter 3

Auto Detect DIMM/PCI Clk [Enabled] Spread Spectrum [Enabled]

Intel(R) Celeron(R) CPU G550T @ 2.20GHz Processor Speed 2200 MHz Memory Frequency 1333 MHz Total Memory 2048 MB (DDR3)

Memory Voltage Control



Scroll to this item and press <Enter> to view the following screen:

Memory Voltage Control

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values

F3:Optimized Defaults

F4:Save & Exit

ESC:Exit

Main Advanced Chipset M.I.B III Boot Security Exit

Memory Voltage Control

Memory Voltage Config [Auto]

Memory Voltage Config (Auto)

This item allows you to select memory voltage config.

Press <Esc> to return to the M.I.B III Menu page.

H61H2-M19 USER MANUAL

Auto: DDR3 standard voltage Low Voltage: Lowest voltage

supported by memory modules Manual: User customized

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values

F3:Optimized Defaults F4:Save & Exit ESC:Exit

CPU OverClocking Configuration



Scroll to this item and press <Enter> to view the following screen:

Main Advanced Chipset M.I.B III Boot Security Exit

CPU OverClocking Configuration CPU Frequency 10 0

CPU Ratio 22

Enhanced Intel SpeedStep T echnology [Enabled]

Intel Graphics Configuration Graphics Core Ratio Limit 2 0

Graphics Voltage(1/256) 0

Enhanced Intel SpeedStep T echnology

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values

F3:Optimized Defaults

F4:Save & Exit

ESC:Exit

CPU Frequency (100)

This item shows the information of CPU frequency.

CPU Ratio (22)

This item allows users to control non turbo CPU ratio.

Enhanced Intel SpeedStep Technology (Enabled)

This item allows users to enable or disable the EIST (Enhanced Intel SpeedStep Technology).

Graphics Core Ratio Limit (20)

This item allows you to control the internal GFX Turbo ratio.

Graphics Voltage(1/256) (0)

This item allows you to adjust the internal GFX voltage.

Chapter 3

Press <Esc> to return to the M.I.B III Menu page.

H61H2-M19 USER MANUAL

Chipset OverClocking Configuration



Scroll to this item and press <Enter> to view the following screen:

Main Advanced Chipset M.I.B III Boot Security Exit

Memory Multiplier Configuration

Performance Memory Profiles [Automatic]

Memory Timing Configuration CAS# Latency(tCL) 7

RAS# to CAS# Delay(tRCD) 7 Row Precharge Time(tRP) 7 RAS# Active Time(tRAS) 20

Chapter 3

Write Recovery Time(tWR) 8 Row Refresh Cycle Time(tRFC) 59 Active to Active Delay(tRRD) 4 Write to Read Delay(tWTR) 4 Read CAS# Precharge(tRTP) 4 Four Active Window Delay(tFAW) 1 6

Performance Memory Profiles (Automatic)

This item allows you to select the memory mode: Automatic, Manual, XMP Profile 1 or 2.

CAS# Latency(tCL) (7)

This item determines the operation of DDR SDRAM memory CAS (column address strobe). It is recommended that you leave this item at the default value. The 2T setting requires faster memory that specifically supports this mode.

Row Precharge Time(tRP) (7)

This item specifies Row precharge to Active or Auto-Refresh of the same bank.

RAS# to CAS# Delay(tRCD) (7)

This item specifies RAS# to CAS# delay to Rd/Wr command to the same bank.

RAS# Active Time(tRAS) (20)

This item specifies the RAS# active time.

Write Recovery Time(tWR) (8)

This item specifies the write recovery time.

Row Refresh Cycle Time(tRFC) (59)

This item specifies the row refresh cycle time.

Write to Read Delay(tWTR) (4)

This item specifies the write to read delay time.

Active to Active Delay(tRRD) (4)

This item controls the active bank x to active bank y in memory clock cycles.

Read CAS# Precharge(tRTP) (4)

This item controls the Read to precharge delay for memory devices, in memory clock cycles.

Four Active Window Delay(tFAW) (16)

This item controls the four bank activate time in memory clock cycles.

The selection of Performance Memory Profiles which impacts memory sizing behavior.

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values

F3:Optimized Defaults F4:Save & Exit ESC:Exit

Press <Esc> to return to the M.I.B III Menu page.

H61H2-M19 USER MANUAL

B.O.M.P Technology (Enabled)

This item allows users to enable or disable B.O.M.P technology. This function can run safe setting to setup menu when system boot fail 3 times.

Auto Detect DIMM/PCI Clk (Enabled)

When this item is enabled, BIOS will disable the clock signal of free DIMM/PCI slots.

Spread Spectrum (Enabled)

If you enable spread spetrum, it can significantly reduce the EMI (Electro-Magnetic Interference) generated by the system.

Intel(R) Celeron(R) CPU G550T @ 2.20GHz

This is display-only field and displays the information of the CPU installed in your computer.

Processor Speed (2200 MHz)

This item shows the CPU speed.

Memory Frequency (1333 MHz)

This item shows the memory frequency.

Total Memory (2048 MB (DDR3))

This item shows the total memory.

Warning: Over-clocking components can adversely affect the reliability of the system and introduce errors into your system. Over-clocking can permanently damage the motherboard by generating excess heat in components that are run beyond the rated limits.

Chapter 3

Fail-Safe Procedures for Over-clocking

When end-users encounter failure after attempting over-clocking, please take the following steps to recover from it.

1. Shut down the computer.

2. Press and hold the “Page Up Key (PgUp)” of the keyboard, and then boot the PC up.

3. Two seconds after the PC boots up, release the “Page Up Key (PgUp)”.

4. The BIOS returns to the default setting by itself.

H61H2-M19 USER MANUAL

Boot Menu

This page enables you to set the keyboard NumLock state.

Main Advanced Chipset M.I.B III Boot Security Exit

Boot Configuration Operating system select [Windows 7 or othre OS]

Launch PXE OpROM [Disabled] Launch Storage OpROM [Enabled]

Fast Boot [Enabled]

VGA Support [EFI Driver] USB Support [Full Initial] PS2 Devices Support [Enabled]

Chapter 3

Network Stack Driver Support [Disabled] Bootup NumLock State [On]

Boot mode select [LEGACY] Set Boot Priority

Boot Option #1 [Hard Disk: WDC WD5000AAJS-22A8B] Boot Option #2 [CD/DVD] Boot Option #3 [USB/Floppy] Boot Option #4 [USB CD/DVD] Boot Option #5 [USB Hard Disk] Boot Option #6 [USB Flash: Ut165 1.00] Boot Option #7 [Network]

Hard Disk Drive BBS Priorities



USB Key Drive BBS Priorities



Operation System Select (Windows 7 or other OS)

This item is used to select the operation system.

Launch PXE OpROM (Disabled)

The item enables or disables launch PXE Option ROM.

Launch Storage OpROM (Enabled)

Use this item to enable or disable the Storage OpROM.

Fast Boot (Enabled)

Use this item to enable or disable boot with initialization of a minimal set of devices required to launch active boot option. Has no effect for BBS boot options.

VGA Support (EFI Driver)*

If auto, only install legacy OpROM with legacy OS and Post logo will not be shown during post. EFI driver will still be installed with EFI OS.

USB Support (Full Initial)*

If you select Disabled, all USB devices will not be available until after OS boot. If you select Partial Initial, If you select Full Initial, all USB devices will be available in OS and POST.

PS2 Devices Support (Enabled)*

Use this item to enable or disable PS2 devices support. If enabled, PS2 devices will be initialized during boot. If disabled, PS2 devices will be skipped during boot to optimize the boot time.

Enables or disables boot with initialization of a minimal set of devices required to launch active boot option. Has no effect for BBS boot options.

:Select Screen



:Select Item



Enter : Select

+/- : Change Opt.

F1:General Help

F2:Previous Values

F3:Optimized Defaults

F4:Save & Exit

ESC:Exit

specific USB port/device will not be available before OS boot.

H61H2-M19 USER MANUAL

Network Stack Driver Support (Disabled)*

If disabled, Network stack driver will be skipped.

Bootup NumLock State (On)

This item enables you to select NumLock state.

Boot Mode select (LEGACY)

Use this item to select boot mode.

Set Boot Priority

This item enables you to set boot priority for all boot devices.

Boot Option #1 /2 /3 /4 /5 /6 /7

These items show the boot priorities.

These items will be hidden if the Fast Boot is set to be Disabled.

Hard Disk Drive BBS Priorities



Scroll to this item and press <Enter> to view the following screen:

Main Advanced Chipset M.I.B III Boot Security Exit

Boot Option #1 [SAT A PM: WDC WD5000AAJS-22A8B]

Sets the system boot order

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values

F3:Optimized Defaults

F4:Save & Exit

ESC:Exit

Chapter 3

Boot Option #1 (SATA PM: WDC WD5000AAJS-22A8B)

This item enables you to specify the sequence of loading the operating system from the installing hard disk drive.

Press <Esc> to return to the Boot Menu page.

H61H2-M19 USER MANUAL

USB Key Drive BBS Priorities



Scroll to this item and press <Enter> to view the following screen:

Main Advanced Chipset M.I.B III Boot Security Exit

Boot Option #1 [Ut165 1.00]

Chapter 3

Boot Option #1 (Ut165 1.00)

This item enables you to specify the sequence of loading the operating system from the installing USB Key drive.

Press <Esc> to return to the Boot Menu page.

Sets the system boot order

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values

F3:Optimized Defaults F4:Save & Exit ESC:Exit

H61H2-M19 USER MANUAL

Security Menu

This page enables you to set setup administrator password and user password.

Main Advanced Chipset M.I.B III Boot Security Exit

Administrator Password Status Not Install User Password Status Not Install

Administrator Password

System Mode state Setup Secure Boot state Disabled

Secure Boot [Enabled] Secure Boot Mode [Custom] Image Execution Policy



Key Management



Administrator Password Status (Not Install)

This item shows administrator password installed or not.

User Password Status (Not Install)

This item shows user password installed or not.

System Mode state (Setup)

This item shows system mode setup or not.

Secure Boot state (Disabled)

This item allows you to enable or disable the secure boot state.

Secure Boot (Enabled)

This item is used to control the secure boot flow, it is possible only if system runs in User Mode.

Secure Boot Mode (Custom)*

This item is used to select secure boot mode, when you select standard mode, secure boot policy is fixed; when you select custom mode, the image execution policy and secure boot key databases are changeable.

Image Execution Policy*

Sroll to this item and press <Enter> to view the sub menu.

Key Management*

Sroll to this item and press <Enter> to view the sub menu.

Set Administrator Password

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values

F3:Optimized Defaults

F4:Save & Exit

ESC:Exit

Chapter 3

These items will be hidden if the Secure Boot is set to be Disabled.

H61H2-M19 USER MANUAL

Image Execution Policy



Scroll to this item and press <Enter> to view the following screen:

Main Advanced Chipset M.I.B III Boot Security Exit

Internal FV [Always Execute]

Option ROM [Deny Execute] Removable Media [Deny Execute] Fixed Media [Deny Execute]

Chapter 3

Internal FV/Option ROM/Removable Media/Fixed Media (Always Execute/Deny Execute)

These items allow you to select image execution policy per device path on security violation. Only users logged with administrative password can exercise query user policy setting.

Press <Esc> to return to the Boot Menu page.

Image Execution Policy per device path on Security Violation. Note: Only users logged with Administrative password can excercise Query User policy setting

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values

F3:Optimized Defaults F4:Save & Exit ESC:Exit

H61H2-M19 USER MANUAL

Key Management



Scroll to this item and press <Enter> to view the following screen:

Main Advanced Chipset M.I.B III Boot Security Exit

Default Key Provisioning [Disabled]

Manage All Factory Keys (PK, KEK, DB, DBX) Install default Secure Boot keys

Platform Key (PK) NOT INSTALLED Set PK from File



Get PK to File

 

Delete the PK Key Exchange Key Database(KEK) NOT INSTALLED Set KEK from File



Get KEK to File



Delete the KEK



Append an entry to KEK



Authorized Signature Database(DB) NOT INST ALLED Set DB from File



Get DB to File



Delete the DB



Append an entry to DB



Forbidden Signature Database(DBX) NOT INSTALLED Set DBK from File



Get DBK to File



Delete the DBX



Append an entry to DBX



Image Execution Policy per device path on Security Violation. Note: Only users logged with Administrative password can excercise Query User policy setting

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values

F3:Optimized Defaults

F4:Save & Exit

ESC:Exit

Default Key Provisioning (Disabled)

This item enables or disables you to force OEM default secure boot keys if system is in setup mode.

Platform Key (PK)

This item shows the information of the platform key.

Set PK/KEK/DB/DBX from File

This item launches the file browser to set Efi Variable from the file. The file data must be formatted as Efi Variable with TimeBased Authenticated Header.

Get PK/KEK/DB/DBX to File

This item is used to store secure variable to a file with a matching name in selected file system’s root.

Delete the PK/KEK/DB/DBX

This item is used to delete the variable.

Key Exchange Key Database (KEK)

This item shows the information of the key exchange key database.

Authorized Signature Database (DB)

This item shows the information of the authorized signature database.

Forbidden Signature Database (DBX)

This item shows the information of the forbidden signature database.

Append an entry to KEK/DB/DBX

This item launches the file browser to Append new signature database from the file. The file data must be formatted as Efi Variable with TimeBased Authenticated Header.

Chapter 3

H61H2-M19 USER MANUAL

Exit Menu

This page enables you to exit system setup after saving or without saving the changes.

Save Changes and Reset

Discard Changes and Exit Discard Changes and Reset

Save Options Save Changes Discard Changes

Restore Defaults

Chapter 3

Save as User Defaults Restore User Defaults

Boot Override SAT A PM: WDC WD5000AAJS-22A8B Ut165 1.00

Save Changes and Reset

This item enables you to reset system setup after saving the changes.

Discard Changes and Exit

This item enables you to exit system setup without saving any changes.

Discard Changes and Reset

This item enables you to reset system setup without saving any changes.

Save Options

This item enables you to save the options that you have made.

Save Changes

This item enables you to save the changes that you have made.

Discard Changes

This item enables you to discard any changes that you have made.

Restore Defaults

This item enables you to restore the system defaults.

Save as User Defaults

This item enables you to save the changes that you have made as user defaults.

Restore User Defaults

This item enables you to restore the user defaults.

Boot Override

Use this item to select the boot device.

Main Advanced Chipset M.I.B III Boot Security Exit

Reset the system after saving the changes.

:Select Screen



:Select Item



Enter : Select +/- : Change Opt.

F1:General Help

F2:Previous Values

F3:Optimized Defaults F4:Save & Exit

ESC:Exit

H61H2-M19 USER MANUAL

Updating the BIOS

You can download and install updated BIOS for this motherboard from the manufacturer’s Website. New BIOS provides support for new peripherals, improvements in performance, or fixes for known bugs. Install new BIOS as follows:

1 If your motherboard has a BIOS protection jumper, change the setting to

allow BIOS flashing.

2 If your motherboard has an item called Firmware Write Protect in Ad-

vanced BIOS features, disable it. (Firmware Write Protect prevents BIOS from being overwritten.)

3 Prepare a bootable device or create a bootable system disk. (Refer to

Windows online help for information on creating a bootable system disk.)

4 Download the Flash Utility and new BIOS file from the manufacturer’s

Web site. Copy these files to the bootable device.

5 Turn off your computer and insert the bootable device in your computer.

(You might need to run the Setup Utility and change the boot priority items on the Advanced BIOS Features Setup page, to force your computer to boot from the bootable device first.)

6 At the C:\ or A:\ prompt, type the Flash Utility program name and the file

name of the new BIOS and then press <Enter>. Example: AFUDOS.EXE

040706.ROM

7 When the installation is complete, remove the bootable device from the

computer and restart your computer. If your motherboard has a Flash BIOS jumper, reset the jumper to protect the newly installed BIOS from being overwritten. The computer will restart automatically.

This concludes Chapter 3. Refer to the next chapter for information on the software supplied with the motherboard.

Chapter 3

H61H2-M19 USER MANUAL

Memo

Chapter 3

H61H2-M19 USER MANUAL

Chapter 4

Using the Motherboard Software

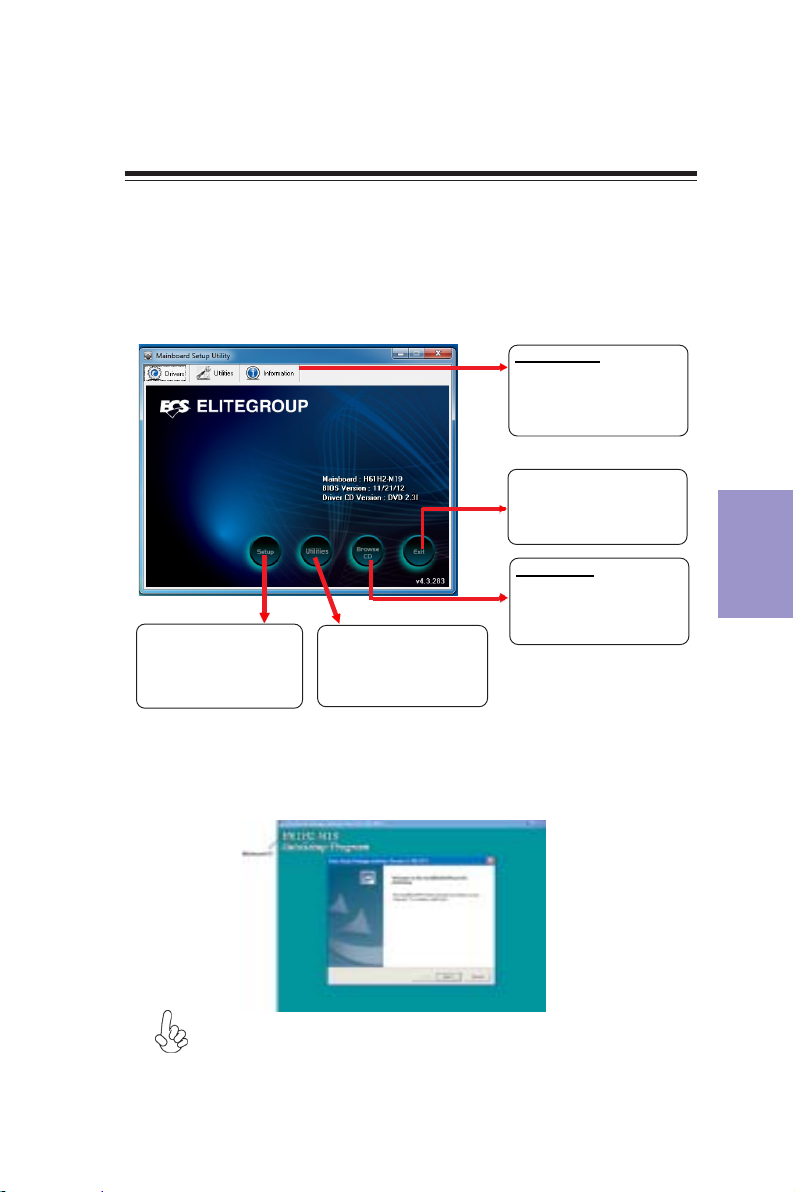

Auto-installing under Windows XP/Vista/7

The auto-install DVD-ROM makes it easy for you to install the drivers and software. The support software DVD-ROM disc loads automatically under Windows XP/Vista/7. When you insert the DVD-ROM disc in the DVD-ROM drive, the auto-run feature will automatically bring up the installation screen. The screen has four buttons on it: Setup, Utilities,

Browse CD and Exit.

Information:

Displays the path for all software and drivers available on the disk.

Click “Exit” button to close the Auto-Setup

window.

Browse CD:

Open Windows Explorer and show the contents of

Click the “Setup” button to select and run the software installation program.

Click the “ Utilities” button to select and install ECS Intelligent Utility.

the support disk.

Chapter 4

Running Setup

Follow these instructions to install device drivers and software for the motherboard:

1. Click Setup. The installation program begins:

The following screens are examples only. The screens and driver lists will be different according to the motherboard you are installing.

The motherboard identification is located in the upper left-hand corner.

H61H2-M19 USER MANUAL

2. Click Next. The following screen appears:

3. Check the box next to the items you want to install. The default options are recommended.

4. Click Next to run the Installation Wizard. An item installation screen appears:

Chapter 4

5. Follow the instructions on the screen to install the items.

Drivers and software are automatically installed in sequence. Follow the onscreen instructions, confirm commands and allow the computer to restart a few times to complete the installation.

Windows Vista/7 will appear below UAC (User Account Control) message after the system restart. You must select “Allow” to install the next driver. Con-

tinue this process to complete the drivers installation.

H61H2-M19 USER MANUAL

Manual Installation

If the auto-install DVD-ROM does not work on your system, you can still install drivers through the file manager for your OS (for example, Windows Explorer). Look for the

chipset and motherboard model, and then browse to the directory and path to begin installing the drivers. Most drivers have a setup program (SETUP.EXE) that automatically detects your operating system before installation. Other drivers have the setup program located in the operating system subfolder.

If the driver you want to install does not have a setup program, browse to the operating system subfolder and locate the readme text file (README.TXT or README.DOC) for information on installing the driver or software for your operating system.

Chapter 4

H61H2-M19 USER MANUAL

Memo

Chapter 4

H61H2-M19 USER MANUAL

Chapter 5

Trouble Shooting

Start up problems during assembly

After assembling the PC for the first time you may experience some start up problems. Before calling for technical support or returning for warranty, this chapter may help to address some of the common questions using some basic troubleshooting tips. You may also log onto our ECS website for more information:

http:// www.ecs.com.tw/ECSWebSite/Support/Support_FAQ.aspx?MenulD=49& childid=M 49&LanlD=0

a) System does not power up and the fans are not running.

1. Disassemble the PC to remove the VGA adaptor card, DDR memory, LAN, USB and other peripherals including keyboard and mouse. Leave only the motherboard, CPU with CPU cooler and power supply connected. Make sure the power cord is plugged into the wall socket & the switch on the Power Supply Unit (PSU) is turned “ on “ as well. Turn on again to see if the CPU and power supply fans are running.

2. Make sure to remove any unused screws or other metal objects such as screwdrivers from the inside PC case. This is to prevent damage from short circuit.

3. Check the CPU FAN connector is connected to the motherboard.

4. For Intel platforms check the pins on the CPU socket for damage or bent. A bent pin may cause failure to boot and sometimes permanent damage from short circuit.

5. Check the 12V power connector is connected to the motherboard.

6. Check that the 12V power & ATX connectors are fully inserted into the motherboard connectors. Make sure the latches of the cable and connector are locked into place.

b) Power is on, fans are running but there is no display

1. Make sure the monitor is turned on and the monitor cable is properly connected to the PC.

2. Check the VGA adapter card (if applicable) is inserted properly.

3. Listen for beep sounds. If you are using internal PC speaker make sure it is connected. a. continuous 3 short beeps: memory not detected b. 1 long beep and 8 short beeps: VGA not detected

c) The PC suddenly shuts down while booting up.

1. The CPU may experience overheating so it will shutdown to protect itself. Apply the thermal grease onto the CPU heatsink & ensure the CPU fan is well-connected with the CPU heatsink. Check if the CPU fan is working properly while the system is running.

H61H2-M19 USER MANUAL

Chapter 5

2. From the BIOS setting, try to disable the Smartfan function to let the fan run at default speed. Doing a Load Optimised Default will also disable the Smartfan.

Start up problems after prolong use

After a prolong period of use your PC may experience start up problems again. This may be caused by breakdown of devices connected to the motherboard such as HDD, CPU fan, etc. The following tips may help to revive the PC or identify the cause of failure.

1. Clear the CMOS values using the CLR_CMOS jumper. Refer to CLR_CMOS jumper in Chapter 2 for Checking Jumper Settings in this user manual. When completed, follow up with a Load Optimised Default in the BIOS setup.

2. Check the CPU cooler fan for dust. Long term accumulation of dust will reduce its effectiveness to cool the processor. Clean the cooler or replace a new one if necessary.

3. Check that the 12V power & ATX connectors are fully inserted into the motherboard connectors. Make sure the latches of the cable and connector are locked into place.

4. Remove the hard drive, optical drive or DDR memory to determine which of these components may be at fault.

5. Check whether there is any bulked up electrolytic capacitor or abnormal component.

Chapter 5

Please logo onto our ECS website: http://www.ecs.com.tw/ECSWebSite/Support/ Technical_Support_List.aspx?MenuID=50&LanID=0 for more information.

Maintenance and care tips

Your computer, like any electrical appliance, requires proper care and maintenance. Here are some basic PC care tips to help prolong the life of the motherboard and keep it running as best as it can.

1. Keep your computer in a well ventilated area. Leave some space between the PC and the wall for sufficient airflow.

2. Keep your computer in a cool dry place. Avoid dusty areas, direct sunlight and areas of high moisture content.

3. Routinely clean the CPU cooler fan to remove dust and hair.

4. In places of hot and humid weather you should turn on your computer once every other week to circulate the air and prevent damage from humidity.

5. Add more memory to your computer if possible. This not only speeds up the system but also reduces the loading of your hard drive to prolong its life span.

6. If possible, ensure the power cord has an earth ground pin directly from the wall outlet. This will reduce voltage fluctuation that may damage sensitive devices.

H61H2-M19 USER MANUAL

tekcos llaw ot tcennoc ro

hctiws USP no nruT

.tratser dna

M SOC RLC tratser dna

?no denrut si hctiws USP dna

deulp si droc rewop CA gg

Basic Troubleshooting Flowchart

AMR tcatnoc >- melborp draob fI

?draob ro USP htiw melborP

seY

melborp draoB

AMR tcatnoc >-

.gn

es SOIB yfidom re

ts ot liaf metsyS elbatsnu ro tra

kcehc dna SOMC RLC

rewop V21 UPC fi

detcennoc si

CP eht tratseR

ylreporp ton yromem MMID

dnuos peeB ynA

seY

:speeb trohs 3 fI -

rotinom fi kcehC

yalpsid sah

seY

:speeb trohs 8 dna peeb gnol 1 fI -

eruliaf yromem ro detresni

detceted ton AGV

eussi ecived larehpireP

,rorre putes SOMC-

.melborp DDH-

desserp si no

.trats ot sliaf CP tub

uB rewoP

ylppuS rewoP fi kcehC

gnikrow si )USP(

tinU

h rotinom fi kcehC sa

seY

yalp

sid

neercs TSOP ta tlaH

seY

AMR tcatnoc ,liaf fI

OMC RL dna SC tser .tra

d .SOMCRLC ot een

Memo

Chapter 5

H61H2-M19 USER MANUAL

Elitegroup H61H2-M19 User Manual V1.0

Specifications and Main Features

Frequently Asked Questions

User Manual
