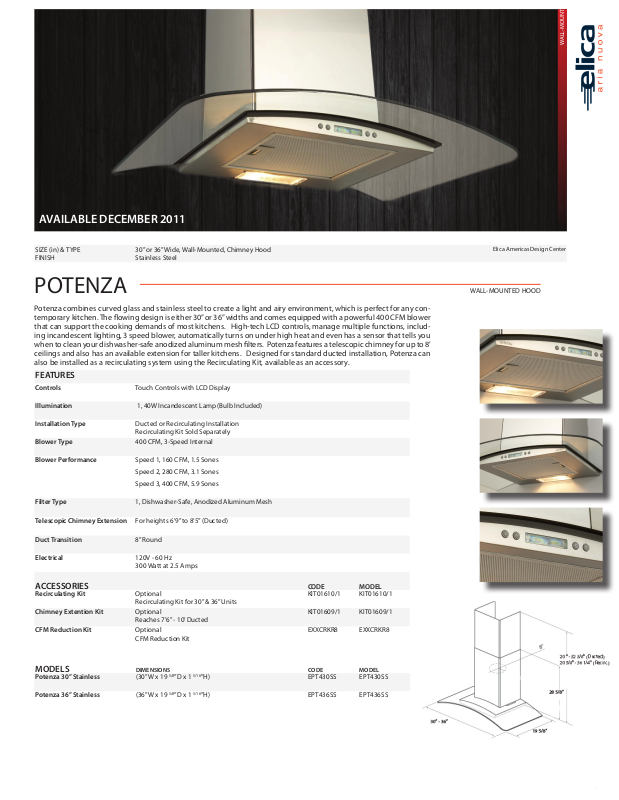

Elica EPT436SS, EPT430SS Specification Sheet

AVAILABLE DECEMBER 2011

WALL-MOUNT

SIZE (in) & TYPE 30” or 36” Wide, Wall-Mounted, Chimney Hood FINISH Stainless Steel

POTENZA

Potenza combines curved glass and stainless steel to create a light and airy environment, which is perfect for any contemporary kitchen. The owing design is either 30” or 36” widths and comes equipped with a powerful 400 CFM blower that can support the cooking demands of most kitchens. High-tech LCD controls, manage multiple functions, including incandescent lighting, 3 speed blower, automatically turns on under high heat and even has a sensor that tells you when to clean your dishwasher-safe anodized aluminum mesh lters. Potenza features a telescopic chimney for up to 8’ ceilings and also has an available extension for taller kitchens. Designed for standard ducted installation, Potenza can also be installed as a recirculating system using the Recirculating Kit, available as an accessory.

FEATURES

Controls Touch Controls with LCD Display

Illumination 1, 40W Incandescent Lamp (Bulb Included)

Installation Type Ducted or Recirculating Installation

Recirculating Kit Sold Separately

Blower Type 400 CFM, 3-Speed Internal

Blower Performance Speed 1, 160 CFM, 1.5 Sones

Speed 2, 280 CFM, 3.1 Sones

Speed 3, 400 CFM, 5.9 Sones

Filter Type 1, Dishwasher-Safe, Anodized Aluminum Mesh

Telescopic Chimney Extension For heights 6’9” to 8’5” (Ducted)

Duct Transition 8” Round

Elica Americas Design Center

WALL-MOUNTED HOOD

Electrical 120V - 60 Hz

ACCESSORIES CODE MODEL

Recirculating Kit Optional

Chimney Extention Kit Optional

CFM Reduction Kit Optional

MODELS DIMENSIONS CODE MODEL

Potenza 30” Stainless (30”W x 19

Potenza 36” Stainless (36”W x 19

300 Watt at 2.5 Amps

Recirculating Kit for 30” & 36” Units

Reaches 7’6” - 10’ Ducted

CFM Reduction Kit

5/8

5/16

”D x 1

”H) EPT430SS EPT430SS

5/8

5/16

”D x 1

”H) EPT436SS EPT436SS

KIT01610/1 KIT01610/1

KIT01609/1 KIT01609/1

EXXCRKR8 EXXCRKR8
