ELECTRONIC ASSEMBLY EA TFT035-32ANN Datasheet

Zeppelinstrasse 19 D-82205 Gilching Fon [phone]

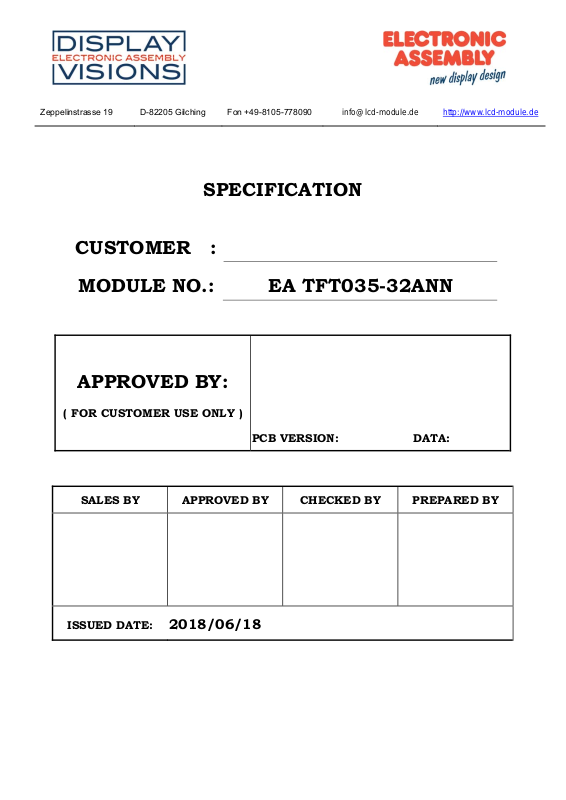

SPECIFICATION

CUSTOMER :

MODULE NO.: EA TFT035-32ANN

APPROVED BY:

[email protected]

http://www.lcd-module.de

( FOR CUSTOMER USE ONLY )

SALES BY APPROVED BY CHECKED BY PREPARED BY

ISSUED DATE: 2018/06/18

PCB VERSION: DATA:

Zeppelinstrasse 19 D-82205 Gilching Fon [phone]

Contents

1.Summary

2.General Specification

3.Absolute Maximum Ratings

4.Electrical Characteristics

5.DC Characteristics

6.AC Characteristics

[email protected]

http://www.lcd-module.de

7.Optical Characteristics

8.Interface

9.Block Diagram

10.Reliability

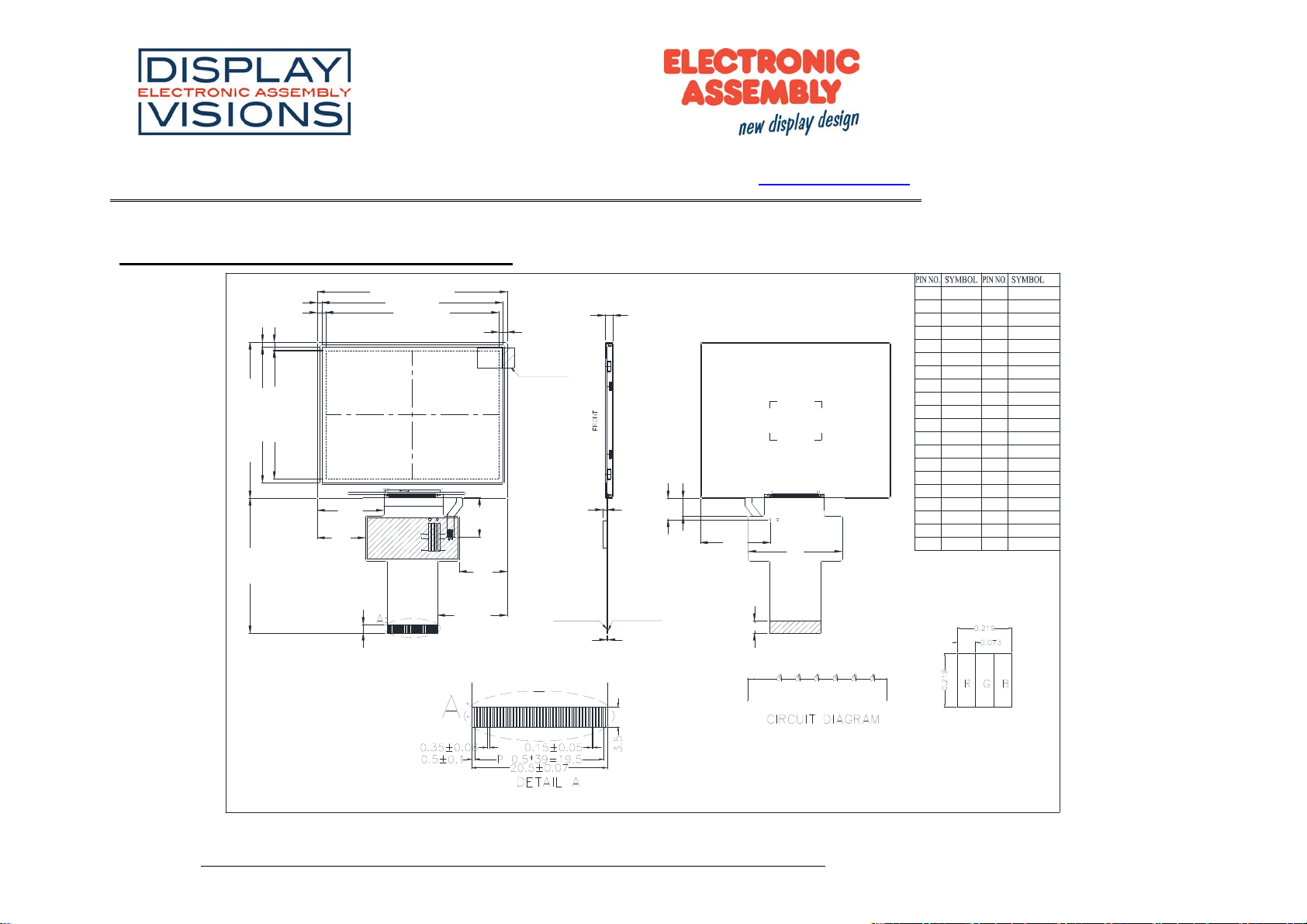

11.Contour Drawing

EA TFT035-32ANN

Page 2 of 18

Zeppelinstrasse 19 D-82205 Gilching Fon [phone]

[email protected]

http://www.lcd-module.de

1.Summary

This technical specification applies to 3.5” color TFT-LCD panel. The 3.5” color TFT-LCD
panel is designed for camcorder, digital camera application and other electronic products
which require high quality flat panel displays. This module follows RoHS.

1.1. Accessories

ZIF connector for display, bottom contact EA WF050-40S
ZIF connector for display, top contact EA WF050-40ST
ZIF connector for touch panel, top contact EA WF050-10T

EA TFT035-32ANN

Page 3 of 18

Zeppelinstrasse 19 D-82205 Gilching Fon [phone]

[email protected]

2.General Specifications

Item Dimension Unit

Size 3.5 inch

Dot Matrix 320 x RGBx240(TFT) dots

Module dimension 76.9x 63.9x 3.26 mm

Active area 70.08 x 52.56 mm

Dot pitch 0.073 x 0.219 mm

LCD type TFT, Normally White, Transmissive

http://www.lcd-module.de

View Direction 12o’clock

Gray Scale Inversion Direction 6 o’clock

Backlight Type LED ,Normally White

With /Without TP Without TP

Surface Anti-Glare

*Color tone slight changed by temperature and driving voltage.

EA TFT035-32ANN

Page 4 of 18

Zeppelinstrasse 19 D-82205 Gilching Fon [phone]

[email protected]

http://www.lcd-module.de

3.Absolute Maximum Ratings

Item Symbol Min Typ Max Unit

Operating Temperature TOP -20

Storage Temperature TST -30

Note: Device is subject to be damaged permanently if stresses beyond those absolute maximum ratings
listed above

1. Temp. ≦60℃, 90% RH MAX. Temp.＞60℃, Absolute humidity shall be less than 90% RH at 60℃

Ambient Tem. vs Alloeable Forward Curren

－

－

40

+70

+80

℃

℃

30

20

10

0

020406080100

Alloeable Forward Current IF(mA)

Ambient Temperature(oC)

EA TFT035-32ANN

Page 5 of 18

Zeppelinstrasse 19 D-82205 Gilching Fon [phone]

[email protected]

http://www.lcd-module.de

4.Electrical Characteristics

4.1. Operating conditions:

Item Symbol Condition Min Typ Max Unit Remark

Supply Voltage For LCM VCC

Supply Current For LCM ICC

Note 1 : This value is test for VCC =3.3V , Ta=25 ℃ only

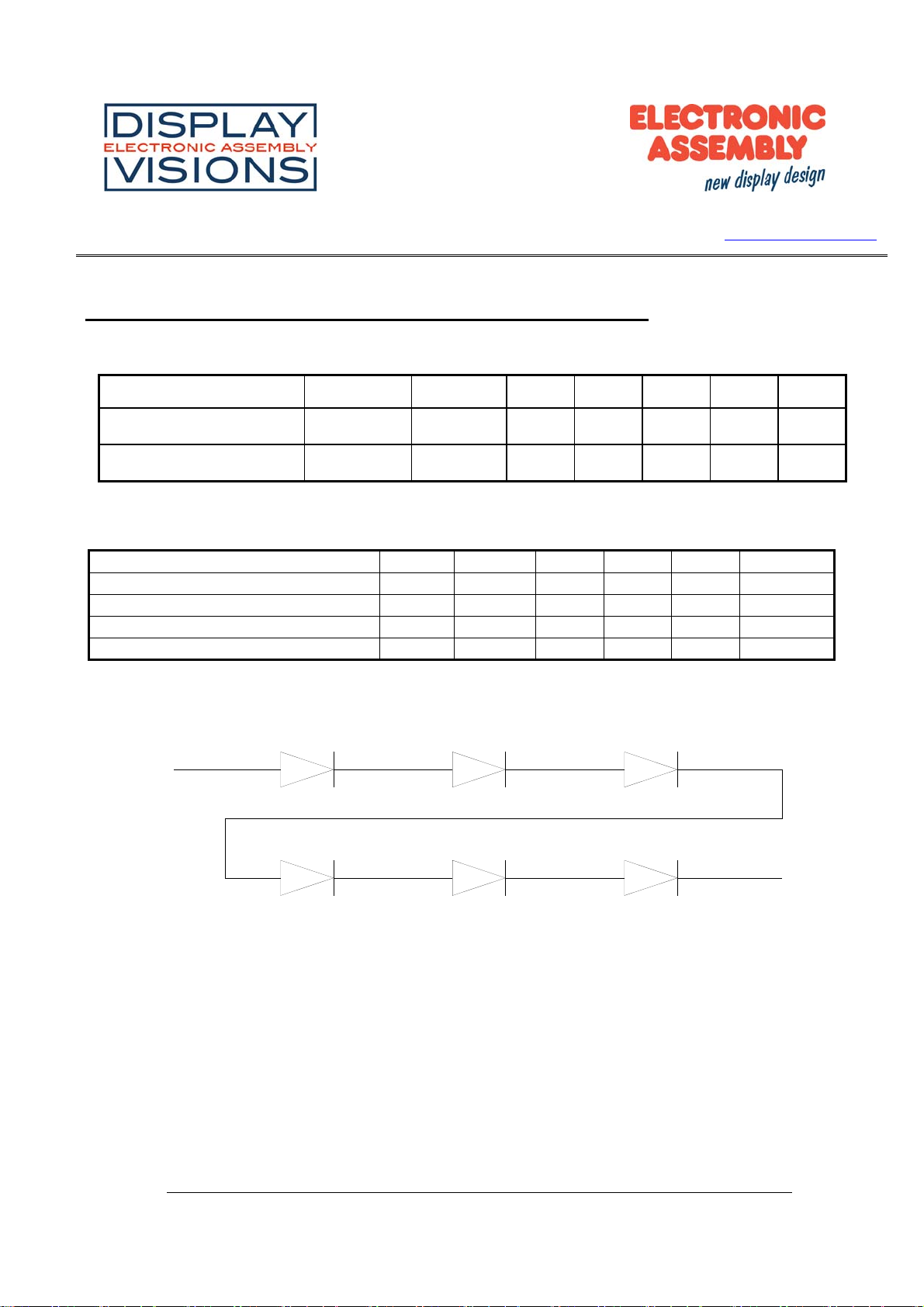

4.2. LED driving conditions

Parameter Symbol Min. Typ. Max. Unit Remark

LED current - 20 - mA
Power Consumption 348 384 408 mW
LED voltage LED+ 17.4 19.2 20.4 V Note 1
LED Life Time - 50,000 - Hr Note 2,3,4

Note 1 : There are 1 Groups LED

－

－

3.0 3.3 3.6 V

—

12 18 mA Note 1

LED+

ILED

Note 2 : Ta = 25 ℃
Note 3 : Brightness to be decreased to 50% of the initial value

Note 4 : The single LED lamp case

LED-

EA TFT035-32ANN

Page 6 of 18

Zeppelinstrasse 19 D-82205 Gilching Fon [phone]

[email protected]

5.DC CHARATERISTICS

Rating

Parameter Symbol

Min Typ Max

Low level input voltage VIL 0 - 0.3VCC V

High level input voltage VIH 0.7VCC - VCC V

http://www.lcd-module.de

Unit Condition

EA TFT035-32ANN

Page 7 of 18

Zeppelinstrasse 19 D-82205 Gilching Fon [phone]

[email protected]

6.AC Characteristics

Digital Parallel RGB interface

Signal Item Symbol Min Typ Max Unit

Frequency Tosc - 6.5 10 MHz

Dclk

Data

Hsync

High Time Tch - 77 - ns

Low Time Tcl - 77 - ns

Setup Time Tsu 12 - - ns

Hold Time Thd 12 - - ns

Period TH - 408 Tosc

Pulse Width THS 5 30 - Tosc

Back-Porch Thb - 38 - Tosc

Display Period TEP - 320 - Tosc

http://www.lcd-module.de

Hsync-den time THE 36 68 88 -

Front-Porch Thf - 20 - Tosc

Period Tv - 262 - TH

Pulse Width Tvs 1 3 5 TH

Vsync

Note:

1. Thp + Thb = 68, the user is make up by yourself.

2. Tv = Tvs + Tvb + Tvd + Tvf , the user is make up by yourself.

3.When SYNC mode is used,1st data start from 68th Dclk after Hsync falling

Back-Porch Tvb - 15 - TH

Display Period Tvd - 240 - TH

Front-Porch Tvf 2 4 - TH

EA TFT035-32ANN

Page 8 of 18

Zeppelinstrasse 19 D-82205 Gilching Fon [phone]

6.1. Waveform

[email protected]

http://www.lcd-module.de

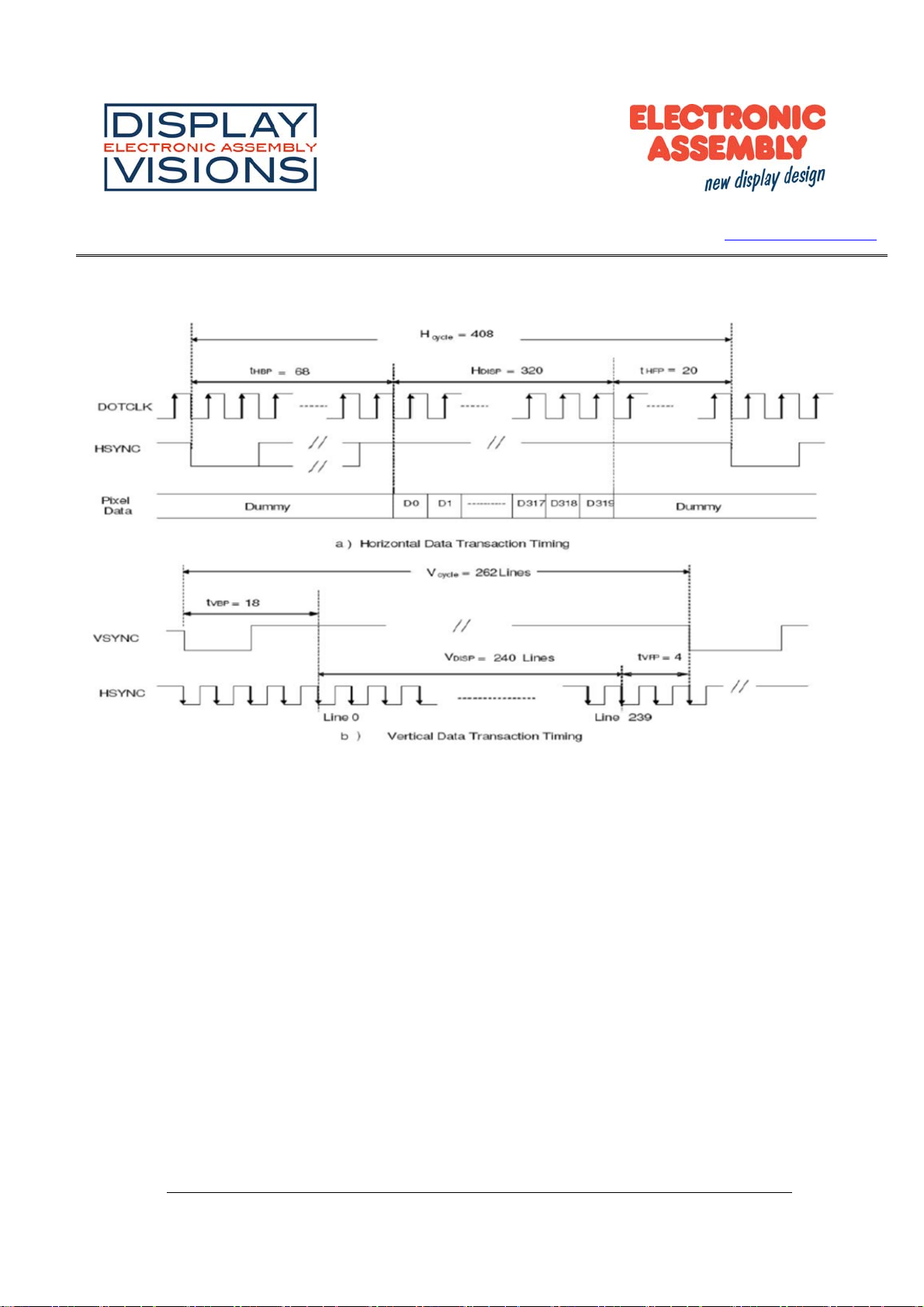

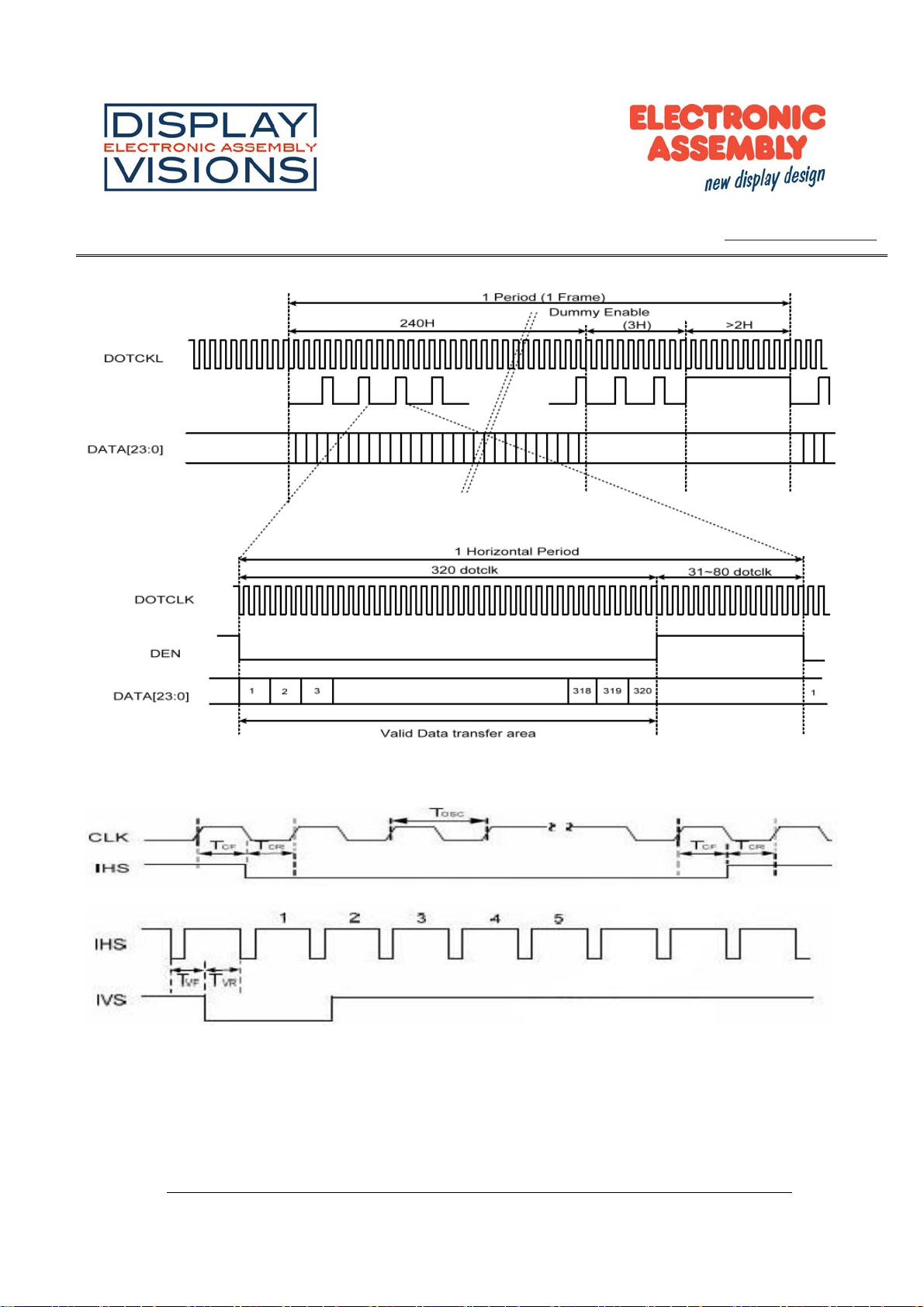

Figure 7.1.1 Data Transaction Timing in Parallel RGB (24 bit) Interface (SYNC Mode)

EA TFT035-32ANN

Page 9 of 18

Zeppelinstrasse 19 D-82205 Gilching Fon [phone]

[email protected]

http://www.lcd-module.de

Figure 6.1.2 Data Transaction Timing in Parallel RGB (24 bit) Interface (DE Mode)

6.2. Clock and Sync waveform

Figure 6.2.1 IHS and IVS timing waveforms

s

EA TFT035-32ANN

Page 10 of 18

Zeppelinstrasse 19 D-82205 Gilching Fon [phone]

[email protected]

http://www.lcd-module.de

Figure 6.2.2 TV and TH timing waveforms

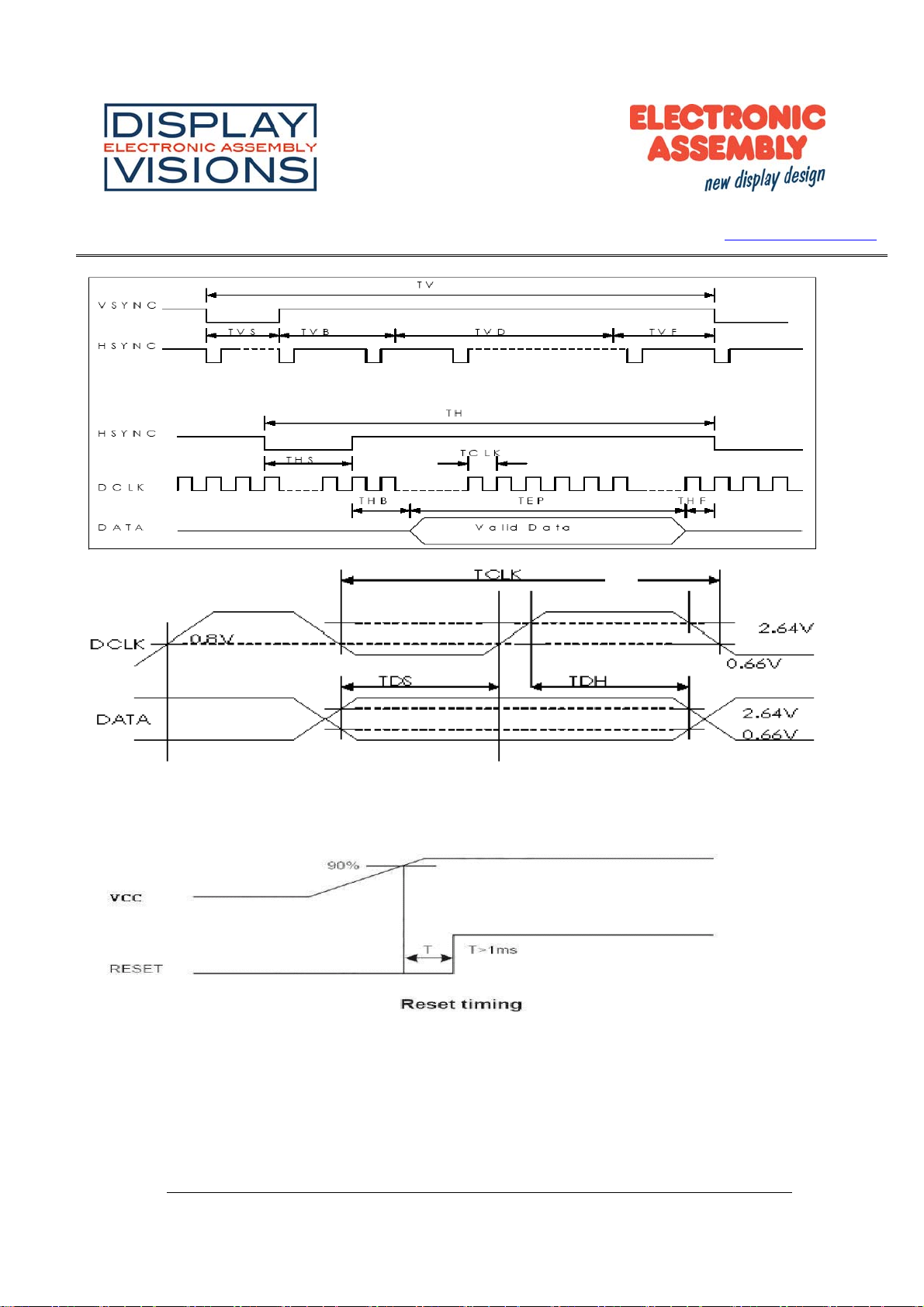

6.3. Reset Timing Chart

The RESET input must be held at least 1ms after power is stable

EA TFT035-32ANN

Page 11 of 18

Zeppelinstrasse 19 D-82205 Gilching Fon [phone]

[email protected]

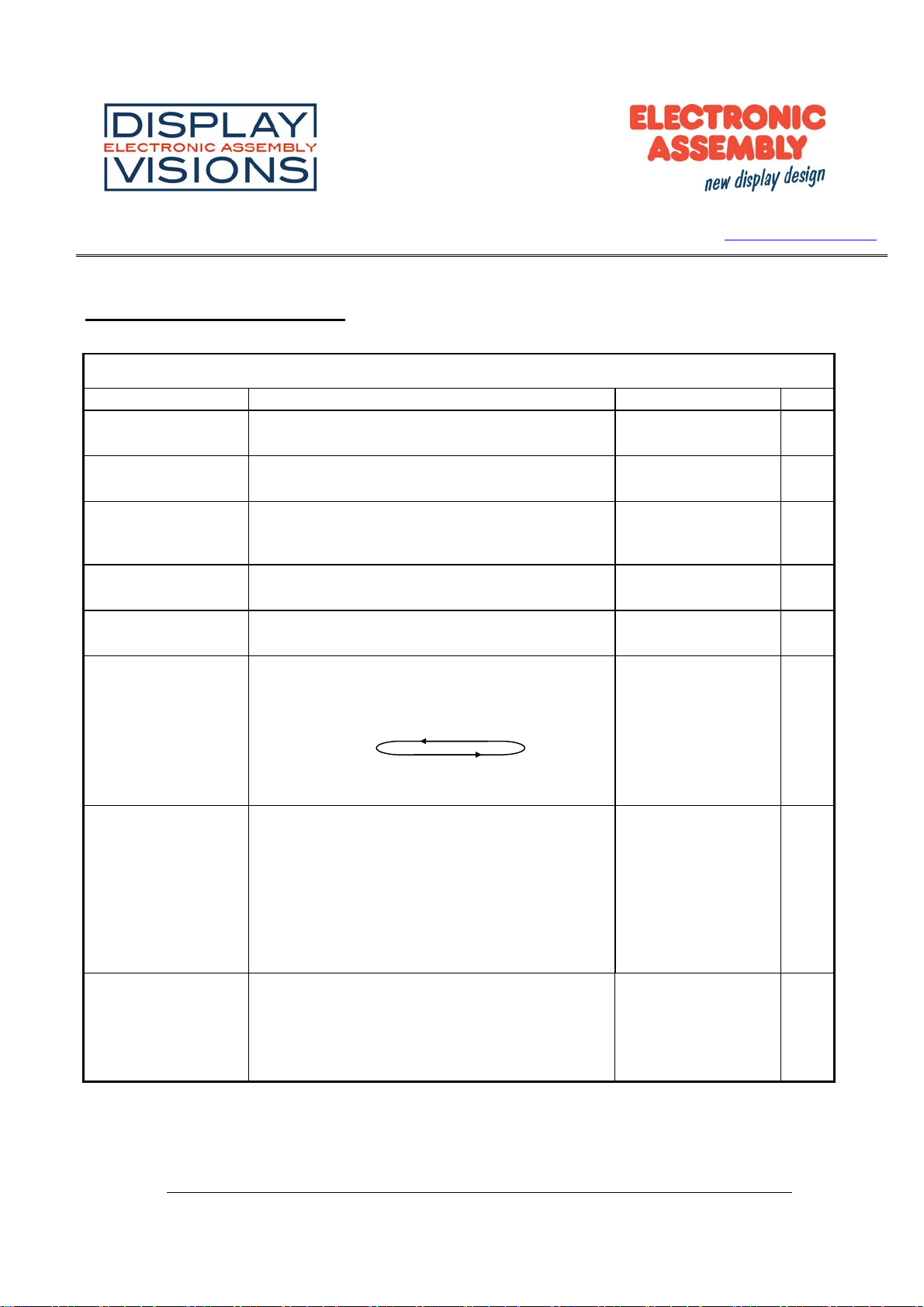

7.Optical Characteristics

Item Symbol Condition. Min Typ. Max. Unit

Response time

Contrast ratio CR

Color Chromaticity White

Viewing angle

(Gray Scale Inversion

Direction)

Ta=25± 2℃, IL=20mA
Note 1: Definition of viewing angle range

Brightness - - 350 420 - cd/m2

Hor.

Ve r.

Tr
Tf - 15 - ms

Wx

Wy 0.28 0.33 0.38 - -

ΘR
ΘL
ΦT
ΦB

θ=0˚、Φ=0˚

At optimized

viewing

angle

θ=0˚、Φ=0

CR≧10

- 10 - ms

300 350 - - Note 4,5

0.26 0.31 0.36 -

- 55 -

- 55 -

- 45 -

- 50 -

http://www.lcd-module.de

Remark

Note 3,5

Note
2,6,7

Deg. Note 1

Center of

display

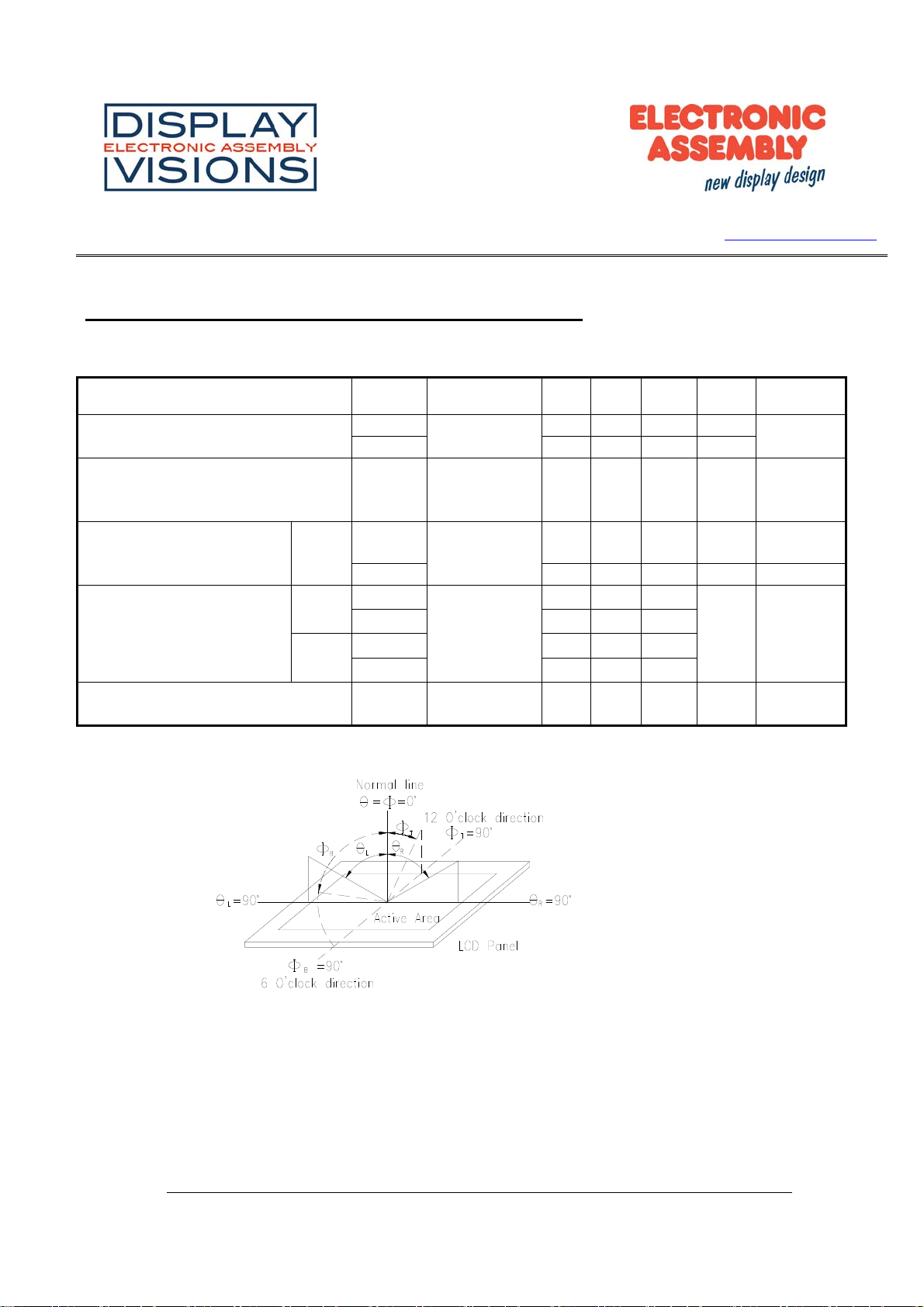

Fig. 8.1. Definition of viewing angle
Note 2: Test equipment setup:
After stabilizing and leaving the panel alone at a driven temperature for 10 minutes, the measurement
should be executed. Measurement should be executed in a stable, windless, and dark room. Optical
specifications are measured by Topcon BM-7orBM-5 luminance meter 1.0° field of view at a distance
of 50cm and normal direction.

EA TFT035-32ANN

Page 12 of 18

Zeppelinstrasse 19 D-82205 Gilching Fon [phone]

[email protected]

http://www.lcd-module.de

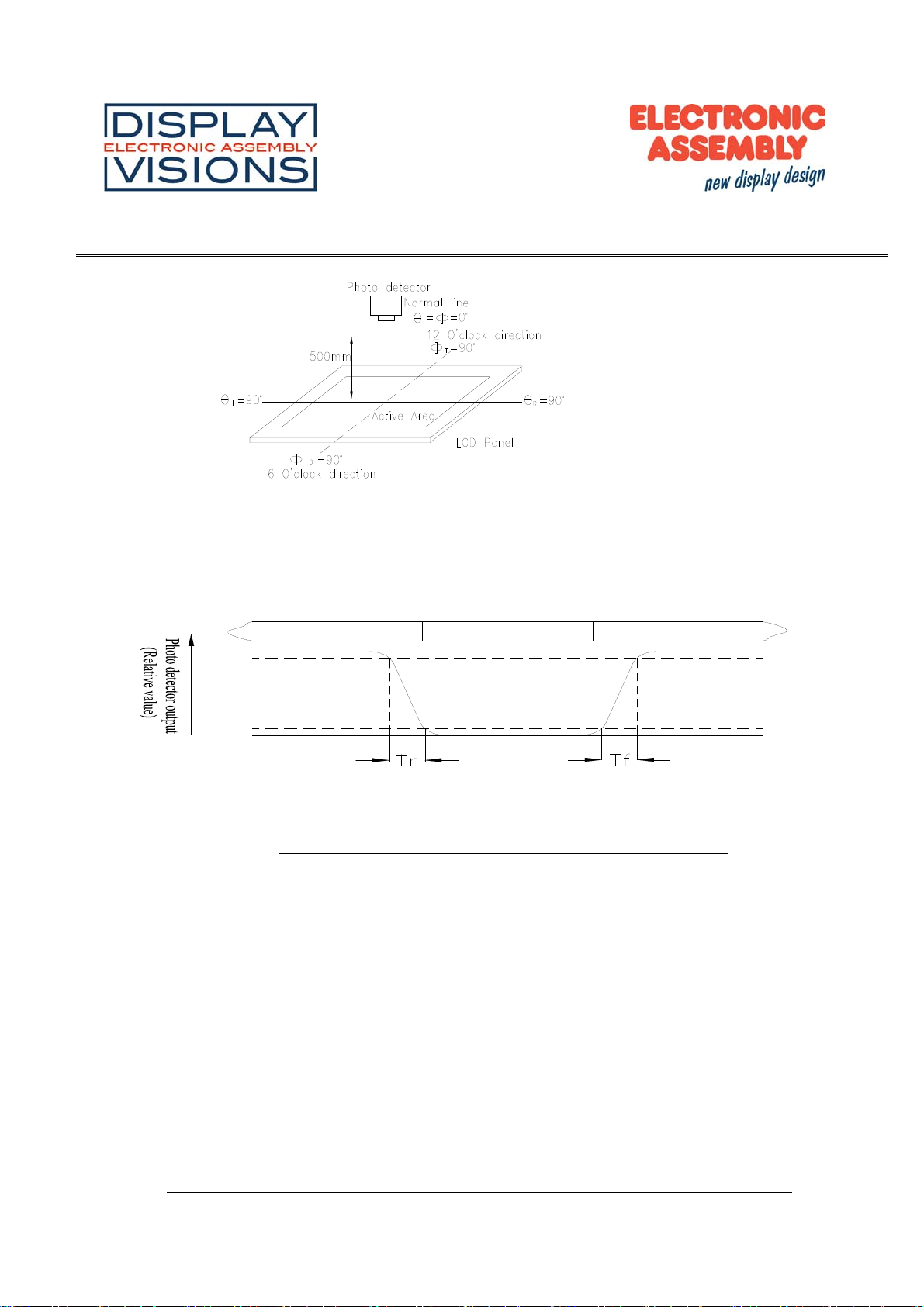

Fig. 8.2. Optical measurement system setup

Note 3: Definition of Response time:
The response time is defined as the LCD optical switching time interval between “White” state and
“Black” state. Rise time, Tr, is the time between photo detector output intensity changed from 90%to
10%. And fall time, Tf, is the time between photo detector output intensity changed from 10%to 90%

Display

Data

100%

90%

Black(TFT ON) White(TFT OFF)W hite(T FT O FF )

10%

0%

Note 4: Definition of contrast ratio:
The contrast ratio is defined as the following expression.

Contrast ratio (CR) =

Luminance measured when LCD on the "White" state
Luminance measured when LCD on the "Black" state

Note 5: White Vi = Vi50 ± 1.5V
Black Vi = Vi50 ± 2.0V
“±” means that the analog input signal swings in phase with VCOM signal.
“±” means that the analog input signal swings out of phase with VCOM signal.
The 100% transmission is defined as the transmission of LCD panel when all the input terminals of
module are electrically opened.

Note 6: Definition of color chromaticity (CIE 1931)
Color coordinates measured at the center point of LCD

Note 7: Measured at the center area of the panel when all the input terminals of LCD panel are
electrically opened.

EA TFT035-32ANN

Page 13 of 18

Zeppelinstrasse 19 D-82205 Gilching Fon [phone]

[email protected]

http://www.lcd-module.de

8.Interface

8.1. LCM PIN Definition

Pin Symbol Function Remark

1 VLED­2 VLED+
3 DGND

4 VCC
5 R0
6 R1
7 R2
8 R3

9 R4
10 R5
11 R6
12 R7
13 G0
14 G1
15 G2
16 G3
17 G4
18 G5
19 G6
20 G7
21 B0
22 B1
23 B2
24 B3
25 B4
26 B5
27 B6
28 B7
29 AVSS

30 CLK
31 NC
32 HSYNC
33 VSYNC
34 DE
35 NC
36 RESET
37 NC
38 NC
39 NC
40 NC

Note1:
For digital 24Bit RGB input data format, both SYNC mode and DE mode are supported. If DE signal is fixed low,
SYNC mode is used. Otherwise,DE mode is used. Suggest used SYNC mode!!

Power for LED backlight cathode
Power for LED backlight anode
System ground pin of the IC.
Connect to system ground.
Power Supply
Red Data bit(LSB)
Red Data bit
Red Data bit
Red Data bit
Red Data bit
Red Data bit
Red Data bit
Red Data bit (MSB)
Green Data bit(LSB)
Green Data bit
Green Data bit
Green Data bit
Green Data bit
Green Data bit
Green Data bit
Green Data bit (MSB)
Blue Data bit(LSB)
Blue Data bit
Blue Data bit
Blue Data bit
Blue Data bit
Blue Data bit
Blue Data bit
Blue Data bit (MSB)
Grounding for analog circuit
Connect to system ground
Dot-clock signal and oscillator source
No connect
Horizontal sync signal
Vertical sync signal
Data Enable signal
No connect
Hardware reset
No connect
No connect
No connect
No connect

Note1
Note1
Note1

EA TFT035-32ANN

Page 14 of 18

Zeppelinstrasse 19 D-82205 Gilching Fon [phone]

[email protected]

http://www.lcd-module.de

Mode D[23:16] D[15:8] D[7:0] IHS IVS DEN

DE signal is fixed low
for SYNC mode

DE for DE Mode

24 bit RGB R[7:0] G[7:0] B[7:0]

HSYNC VSYNC

Floating if
not used

Floating if

not used

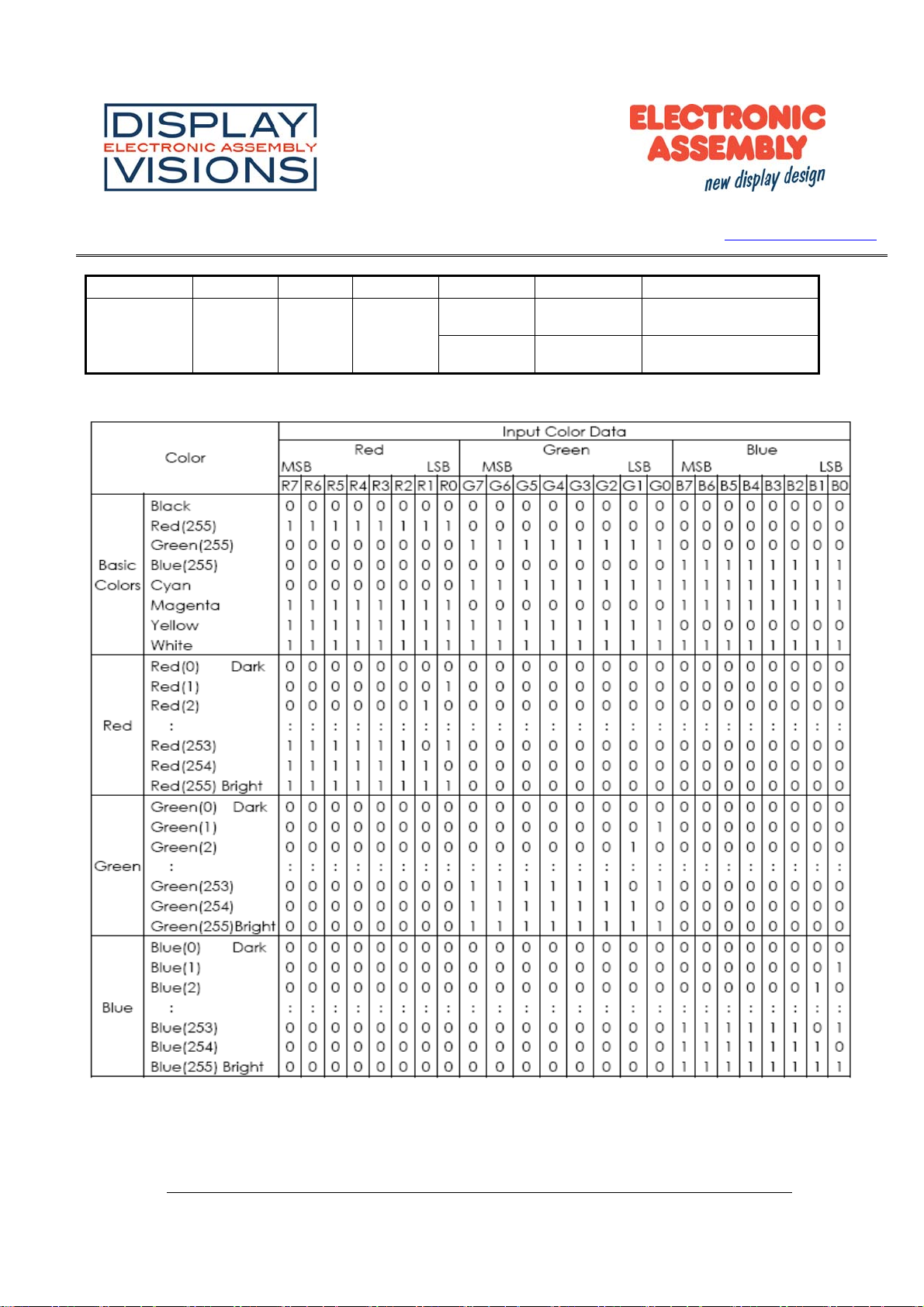

8.2. Basic Display Color and Gray Scale

EA TFT035-32ANN

Page 15 of 18

Zeppelinstrasse 19 D-82205 Gilching Fon [phone]

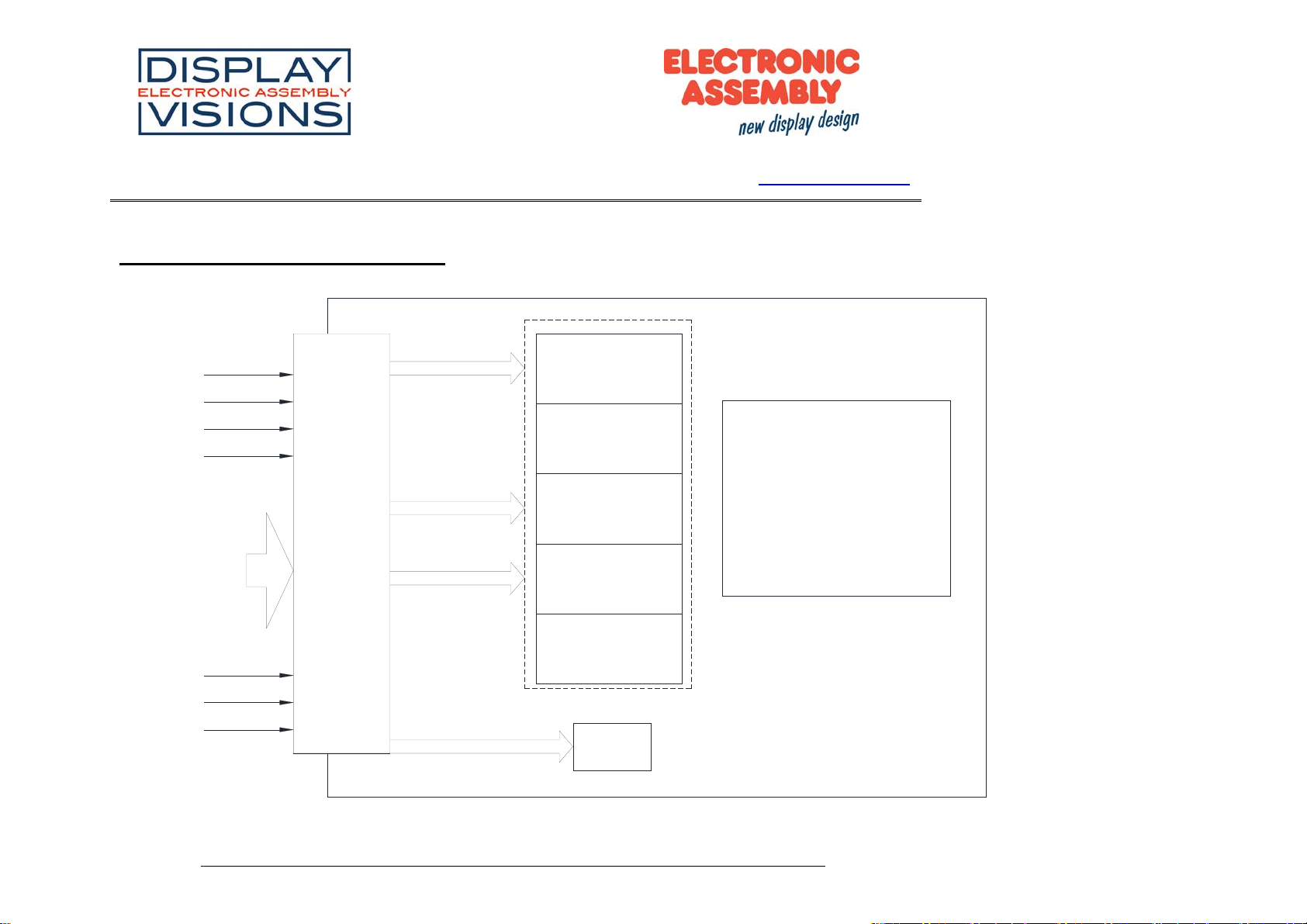

9.Block Diagram

LCD Driver Chip (COG)

Paralle- 24 bit RGB

VS

HS

DCLK

DE

FPC

R0~R7,G0~G7,B0~B7
HSYNC, VSYNC
DCLK,DE

RESET

VCC

[email protected]

Source +Gate

Driver

Grayscale

Manipulation

Voltage

TCON

VCON

http://www.lcd-module.de

3.5"

320(RGB)x240

Charge pump

RESET

Power supply

Backlight LED

LED_Anode , LED_Cathode

B/L

EA TFT035-32ANN

Page 16 of 18

Zeppelinstrasse 19 D-82205 Gilching Fon [phone]

[email protected]

http://www.lcd-module.de

10.Reliability

Content of Reliability Test (Wide temperature, -20℃~70℃)

Environmental Test

Test Item Content of Test Test Condition Note

High Temperature
storage

Low Temperature
storage

High Temperature
Operation

Low Temperature
Operation

High Temperature/
Humidity Operation

Thermal shock
resistance

Vibration test Endurance test applying the vibration during

Static electricity test Endurance test applying the electric stress to the

Note1: No dew condensation to be observed.
Note2: The function test shall be conducted after 4 hours storage at the normal
Temperature and humidity after remove from the test chamber.
Note3: The packing have to including into the vibration testing.

Endurance test applying the high storage
temperature for a long time.

Endurance test applying the low storage
temperature for a long time.

Endurance test applying the electric stress
(Voltage & Current) and the thermal stress to the
element for a long time.
Endurance test applying the electric stress under
low temperature for a long time.

The module should be allowed to stand at 60
℃,90%RH max

The sample should be allowed stand the
following 10 cycles of operation

-20℃ 25℃ 70℃

30min 5min 30min
1 cycle

transportation and using.

terminal.

80℃
200hrs

-30℃
200hrs
70℃
200hrs

-20℃
200hrs
60℃,90%RH
96hrs

-20℃/70℃
10 cycles

Total fixed
amplitude : 15mm
Vibration Frequency :
10~55Hz
One cycle 60 seconds
to 3 directions of
X,Y,Z for Each 15
minutes
VS=±600V(contact),
±800v(air),
RS=330Ω

CS=150pF
10 times

2

1,2

——

1

1,2

——

3

——

EA TFT035-32ANN

Page 17 of 18

Zeppelinstrasse 19 D-82205 Gilching Fon [phone]

11.Contour Drawing

76.9¡ Ó0.2( OUTLINE)
TFT VA 73.11.9

320 * 240 Dots

COMPONENT

1

3.5

TFT AA70.08

YD

YU XL

XR

40

19.5

28.2¡ Ó0.5

(16.3)

3.41

Pull tape

1.65max

Component Area

3.41

2TFT VA 55.5

3.37

TFT AA52.56

63.9 ¡ Ó0.2(OUTLINE)

26.92

19.5

55.2¡ Ó0.5

[email protected]

Contact side

0.3¡ Ó0.05

Stiffener Side

3.26¡ Ó0.2

http://www.lcd-module.de

21

1

VLED-

2

VLED+

3

DGND

4

VCC

5

R0

6

R1

7

R2

8

R3

9

R4

10

R5

11

R6

12

R7

13

G0

14

G1

15

7.24

8.72

28.33

37.9

5

G2

16

G3
G4

17

G5

18

G6

19

G7

20

B0

22

B1

23

B2

24

B3

25

B4
B5

26

B6

27

B7

28

AVSS

29

CLK

30
31

NC
Hsync

32
33

Vsync

34

DE

35

NC

36

RESET

37

NC

38

NC

39

NC
NC

40

A (VLED+)

K(VLED-)

The non-specified tolerance of dimension is ¡ Ó0.3

EA TFT035-32ANN

Page 18 of 18
