Electrolux Elco 900, ZBTTG2D 210114, ZBTTG2 210101, ZBTTG2P 210123, ZBTT7G2D 210133 Specifications

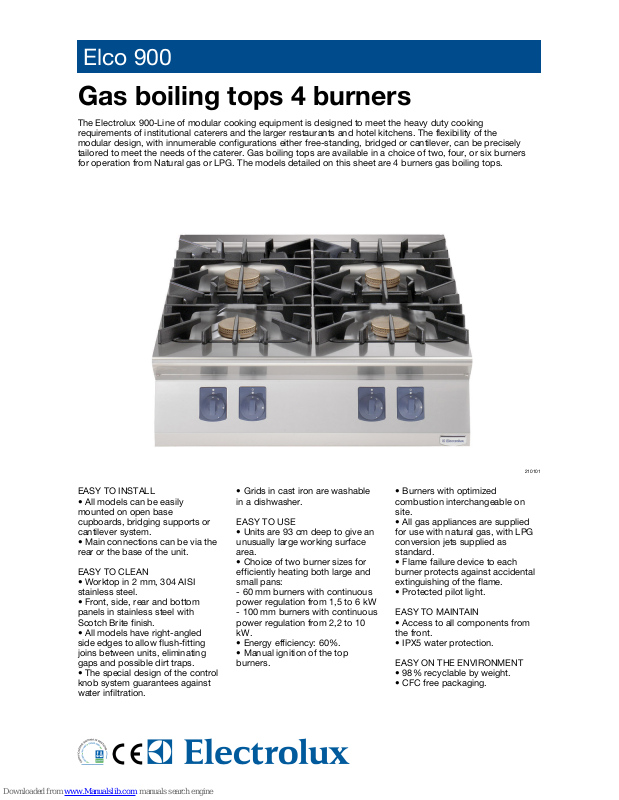

Elco 900

Gas boiling tops 4 burners

The Electrolux 900-Line of modular cooking equipment is designed to meet the heavy duty cooking
requirements of institutional caterers and the larger restaurants and hotel kitchens. The flexibility of the
modular design, with innumerable configurations either free-standing, bridged or cantilever, can be precisely
tailored to meet the needs of the caterer. Gas boiling tops are available in a choice of two, four, or six burners
for operation from Natural gas or LPG. The models detailed on this sheet are 4 burners gas boiling tops.

210101

EASY TO INSTALL

• All models can be easily
mounted on open base
cupboards, bridging supports or
cantilever system.

• Main connections can be via the
rear or the base of the unit.

EASY TO CLEAN

• Worktop in 2 mm, 304 AISI
stainless steel.

• Front, side, rear and bottom
panels in stainless steel with
Scotch Brite finish.

• All models have right-angled
side edges to allow flush-fitting
joins between units, eliminating
gaps and possible dirt traps.

• The special design of the control
knob system guarantees against
water infiltration.

• Grids in cast iron are washable
in a dishwasher.

EASY TO USE

• Units are 93 cm deep to give an
unusually large working surface
area.

• Choice of two burner sizes for
efficiently heating both large and
small pans:

- 60 mm burners with continuous
power regulation from 1,5 to 6 kW

- 100 mm burners with continuous
power regulation from 2,2 to 10
kW.

• Energy efficiency: 60%.

• Manual ignition of the top
burners.

• Burners with optimized
combustion interchangeable on
site.

• All gas appliances are supplied
for use with natural gas, with LPG
conversion jets supplied as
standard.

• Flame failure device to each
burner protects against accidental
extinguishing of the flame.

• Protected pilot light.

EASY TO MAINTAIN

• Access to all components from
the front.

• IPX5 water protection.

EASY ON THE ENVIRONMENT

• 98% recyclable by weight.

• CFC free packaging.

Elco 900Gas boiling tops 4 burners

Internet: http://www.electrolux.com/foodservice

CAAA0202009-12-16

WATER COLUMN EXTENSION FOR 900 LINE 206290 206290 206290 206290

STAND/SUPPORT 800 MM 206184 206184 206184 206184

STAND/SUPPORT 400 MM 206183 206183 206183 206183

SINGLE BURNER SMOOTH PLATE - 900 LINE 206171 206171 206171 206171

SINGLE BURNER RIBBED PLATE - 900 LINE 206172 206172 206172 206172

SINGLE BURNER RADIANT PLATE - 900 LINE 206170 206170 206170 206170

SIDE HANDRAIL-RIGHT/LEFT HAND 216044 216044 216044 216044

S/S GRID FOR DOUBLE BURNER-900 LINE 206298 206298 206298 206298

PRESSURE REGULATOR FOR GAS UNITS 927225 927225 927225 927225

PAIR OF CAST IRON GRIDS 206208 206208 206208 206208

MATCHING RING FOR FLUE CONDENSER 150DIAM 206133 206133 206133 206133

LARGE HANDRAIL(PORTIONING SHELF)800 MM 216186 216186 216186 216186

LARGE HANDRAIL(PORTIONING SHELF)400 MM 216185 216185 216185 216185

JUNCTION SEALING KIT 206086 206086 206086 206086

FRONTAL HANDRAIL 800 MM 216047 216047 216047 216047

FRONTAL HANDRAIL 400 MM 216046 216046 216046 216046

FRONTAL HANDRAIL 1600 MM 216050 216050 216050 216050

FRONTAL HANDRAIL 1200 MM 216049 216049 216049 216049

FLUE CONDENSER FOR 1 MODULE DIAM.150MM 206246 206246 206246 206246

DRAUGHT DIVERTER WITH 150 MM DIAMETER 206132 206132 206132 206132

CHIMNEY UPSTAND 800MM 206304 206304 206304 206304

2 SIDE COVERING PANELS FOR TOP-D=900MM 216278 216278 216278 216278

ACCESSORIES

Net weight - kg. 79 79 79 45

Gas power - kW 28 28 40 40

Front burners power - kW 6, 6 5.5, 5.5 10, 10 7.5, 7.5

Front burners dimension - mm Ø 60, Ø 60 Ø 60, Ø 60 Ø 100, Ø 100 Ø 100, Ø 100

Back burners power - kW 10, 6 5.5, 7.5 10, 10 7.5, 7.5

Back burner dimensions - mm Ø 100, Ø 60 Ø 60, Ø 100 Ø 100, Ø 100 Ø 100, Ø 100

Control Knob Gas cock Gas cock Gas cock Gas cock

height 250 250 250 250

depth 930 930 930 930

width 800 800 800 800

External dimensions - mm

Power supply Gas Gas Gas Gas

TECHNICAL DATA

G - Gas connection 1/2" 1/2" 1/2" 1/2"

LEGEND

ZBTTG2

210101

ZBTTG2D

210114

ZBTTG2P

210123

ZBTT7G2D

210133

210101, 210133, 210123, 210114
