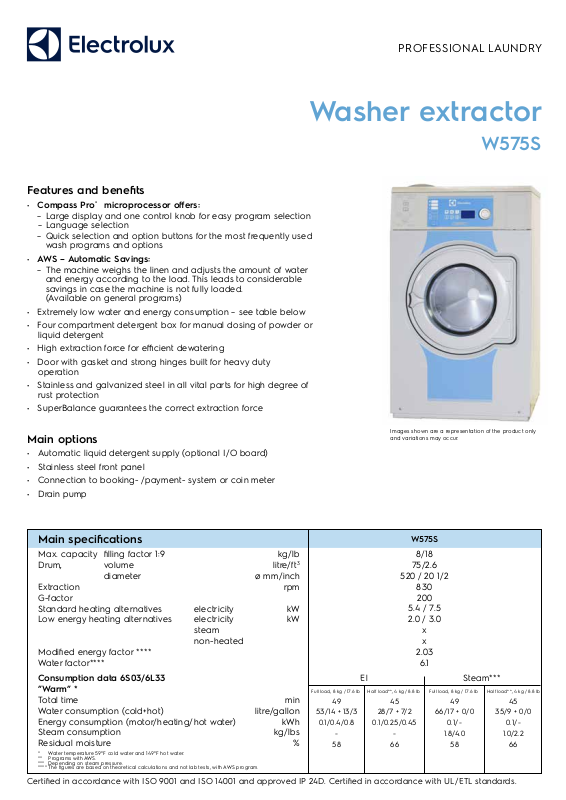

Electrolux W575S User Manual

Washer extractor

Features and beneﬁts

• Compass Pro – Large display and one control knob for easy program selection

– Language selection

– Quick selection and option buttons for the most frequently used

wash programs and options

• AWS – Automatic Savings: – The machine weighs the linen and adjusts the amount of water

and energy according to the load. This leads to considerable savings in case the machine is not fully loaded. (Available on general programs)

• Extremely low water and energy consumption – see table below

• Four compartment detergent box for manual dosing of powder or liquid detergent

• High extraction force for eﬃcient dewatering

• Door with gasket and strong hinges built for heavy duty operation

• Stainless and galvanized steel in all vital parts for high degree of rust protection

• SuperBalance guarantees the correct extraction force

microprocessor oﬀers:

PROFESSIONAL LAUNDRY

W575S

Images shown are a representation of the product only

Main options

and variations may occur.

• Automatic liquid detergent supply (optional I/O board)

• Stainless steel front panel

• Connection to booking- /payment- system or coin meter

• Drain pump

Main speciﬁcations

Max. capacity ﬁlling factor 1:9 kg/lb Drum, volume litre/ft diameter ø mm/inch Extraction rpm G-factor Standard heating alternatives electricity kW Low energy heating alternatives electricity kW steam non-heated Modiﬁed energy factor **** Water factor****

Consumption data 6S03/6L33 ”Warm” *

Total time min Water consumption (cold+hot) litre/gallon Energy consumption (motor/heating/hot water) kWh Steam consumption kg/lbs Residual moisture %

* Water temperature 59°F cold water and 149°F hot water. ** Programs with AWS. *** Depending on steam pressure. **** The ﬁgures are based on theoretical calculations and not lab tests, with AWS program.

Certiﬁed in accordance with ISO 9001 and ISO 14001 and approved IP 24D. Certiﬁed in accordance with UL/ETL standards.

El Steam***

Full load, 8 kg / 17.6 lb Half load**, 4 kg / 8.8 lb Full load, 8 kg / 17.6 lb Half load**, 4 kg / 8.8 lb

49 45 49 45 53/14 + 13/3 28/7 + 7/2 66/17 + 0/0 35/9 + 0/0

0.1/0.4/0.8 0.1/0.25/0.45 0.1/- 0.1/-

- - 1.8/4.0 1.0/2.2 58 66 58 66

W575S

8/18

75/2.6

520 / 20 1/2

830 200

5.4 / 7.5

2.0 / 3.0 x x

2.03

6.1

Electrical connections

Heating Main voltage Heating Total Recommended alternative power power ITCB Hz kW kW A

Electric heated

208-240V 1 ~ 60 5.4/7.5 5.5/7.6 15/20 208-240V 1 ~ 60 2.0/3.0 2.1/3.1 30/50 208-240V 3 ~ 60 5.4/7.5 5.5/7.6 20/25 208-240V 3 ~ 60 2.0/3.0 2.1/3.1 15 440/480V 3 ~ 60 7.5 7.6 15

Steam or

120-480V 1/3 ~ 60 - 1.0 15 Non heated

Water and steam connection

Water valves DN/inch Water pressure psi Capacity at 300 kPa l/min Drain valve ø mm/inch Draining capacity l/min Steam valve DN/inch Steam pressure psi Liquid detergent supplies

Floor requirements

Frequency of the dynamic force Hz Floor load at max extraction kN

Sound levels

Sound pressure level* Wash dB(A) Extraction dB(A)

Heat emission

% of installed power, max

Shipping data**

Weight net, kg/lbs

Shipping volume m

/ft

Accessories

Steel base Hose kits for water or steam Fluﬀ collector

Dimensions in mm/inch

A Width B Depth C Height D E F G H I J K L M N O

1 Operating panel 2 Door opening ø 310 mm /

12 3/16 inch

3 Detergent box 4 Cold water 5 Hot water

Front and side panels in light grey and blue (RAL 260 70 05, 250 60 30) * A-weighted emmission sound pressure level at workingstations. ** Average data. Crated weight/shipping volume depends on conﬁguration.

Please contact logistics for exact measures.

6 Re-used water 7 Drain 8 Liquid detergent supply 9 Electrical connection 10 Steam connection

W575S

20 / 3/4

30-90

75 / 3

170

15 / 1/2

40-90

13.8

1.6 ± 2.4

<70

116 / 256

0.75 / 26

x x x

660 / 26

681 / 26 13/16

1131 / 44 1/2 409 / 16 1/8

1099 / 43 1/4

835 / 32 7/8

80 / 3 1/8

1034 / 40 11/16

217 / 8 9/16

124 / 4 7/8

1014 / 39 15/16

914 / 36

278 / 10 15/16

101 / 4

199 / 7 13/16

Front

Side view

www.electrolux.com/professional

Share more of our thinking at www.electrolux.com

Rear

Art. No. 438919501US/2016.01.15

We reserve the right to alter speciﬁcations without notice.
