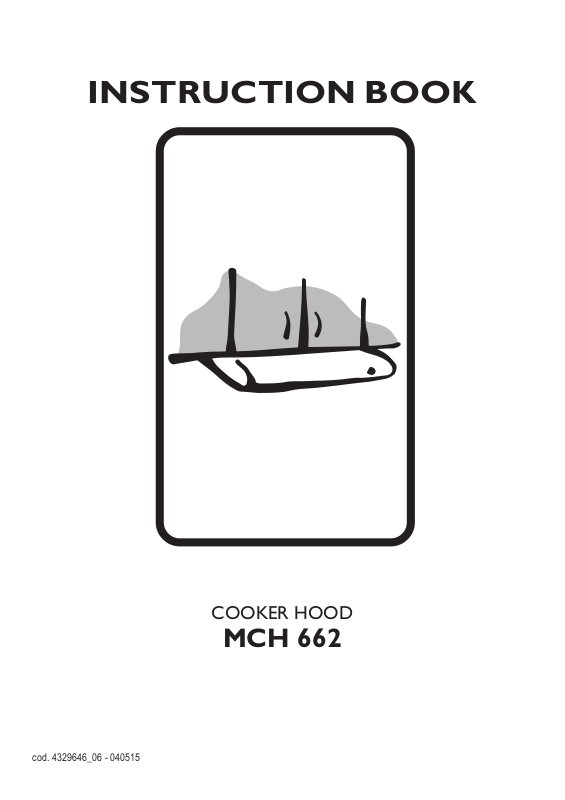

INSTRUCTION BOOK
cod. 4329646_06 - 040515
COOKER HOOD
MCH 662
Thank you for buying an Moffat product.
To enable you to use your appliance effectively and safely, please read this instruction book carefully before using
the appliance and retain for future reference. If you require guidance in the use of the appliance or require further
information on Moffat Products, please contact our Customer Care Department. For general enquiries concerning
your Moffat appliance or for further information, visit our website at http:\\www.electrolux.co.uk
Customer Care Department
Moffat
55 - 77 High Street
Slough
Berkshire Tel: 08705 950 950
SL1 1DZ
To register ownership, please ensure you complete and return the guarantee card supplied with the appliance.
For the User
Important Safety Information
Your Appliance
Operating Instructions
Cooker Hood Controls
To Operate
Recirculation
Extraction
Maintenance and Cleaning
External Cleaning
Synthetic Paper Grease Filter
To Replace the Synthetic Paper Grease Filter
Charcoal Filter
To Remove the Charcoal Filter
Changing a Lamp
Something Not Working
Service and Spare Parts
Guarantee Conditions
For the Installer
Installation Instructions
Technical Information
Electrical Connections
Electrical Requirements
Electrical Connection
Installing the Cooker Hood
Installation Requirements
Ducting
Clearance Height
Unpacking
The fixing kit comprises
Fitting the Wall Brackets
Venting
To Fit the Ducting
Recirculation
Fitting the Cooker Hood to the Wall
Decor Panel
Fitting a Decor Panel to the Hood Visor
To Refit the Hood With Decor Panel Attached
Adjustment
Service Force Centres
Guide to use the instruction book
The following Symbols will be found in the text to guide you through the instruction book
Safety instructions Step by step instructions
2
IMPORTANT SAFETY INFORMATION
These warnings are provided in the interests of your safety. Ensure that you understand them all before
installing or using this appliance. Your safety is of paramount importance. If you are unsure about any of
the meanings of these warnings contact the Customer Care Department.
Installation
• Any installation work must be undertaken by a
qualified electrician or a competent person.
• This hood must be installed in accordance with the
installation instructions and all measurements must
be adhered to.
• If the cooker hood is installed for use above a gas
appliance then the provision for ventilation must be
in accordance with the Gas Safety Codes of Practice
BS.6172, BS.5440 and BS.6891 (Natural Gas) and
BS.5482 (LP Gas) 1994, the Gas Safety (Installation
& Use) Regulations, the Building Regulations issued
by the Department of the Environment, the Building
standards (Scotland) (Consolidated) Regulations
issued by the Scottish Development Department.
• The fan motor of this cooker hood incorporates a cutout device which will operate if the cooker hood is
installed below the minimum height recommended
under section ‘Clearance Height’, or if the motor
becomes overheated. If the cut-out device is
activated, switch off the fan motor and allow the
cooker hood to cool. The cut-out device will reset
itself when the fan motor has cooled significantly.
• It is dangerous to alter the specifications or modify
this product in any way.
• When installed between adjoining wall cabinets the
wall cabinets must not overhang the hob.
Child Safety
• This appliance is designed to be operated by adults.
Children should not be allowed to tamper with the
controls or play with the appliance.
During Use
• This product is for domestic use only.
• Never leave frying pans unattended during use as
over-heated fats and oils might catch fire.
• Never do flambé cooking under this cooker hood.
• Do not leave naked flames under the hood.
Maintenance and Service
• This appliance can be a hazard if the synthetic paper
and charcoal filters are not replaced as
recommended.
• Under no circumstances should you attempt to repair
the appliance yourself. Repairs carried out by
inexperienced persons may cause injury or more
serious malfunction. Refer to your local Moffat
Service Force Centre. Always insist on genuine spare
parts.
• If the room where the hood is to be used contains a
fuel burning appliance such as a central heating boiler
then its flue must be of the room sealed or balanced
flue type.
• If other types of flue or appliances are fitted ensure
that there is an adequate supply of air to the room.
• The ducting system for this appliance must not be
connected to any existing ventilation system which
is being used for any other purpose.
• Do not install above a cooker with a high level grill.
3
YOUR APPLIANCE
OPERA TING INSTRUCTIONS
This cooker hood is designed to extract unpleasant
odours from the kitchen, it will not extract steam.
To obtain the best performance it is advisable to switch
on the hood a few minutes before you start cooking
and leave it running for approximately 15 minutes after
finishing.
Cooker Hood Controls
M. Fan Speed Control
Position 0 - Off
Position 1 - Low
Position 2 - Normal
Position 3 - Boost
L. Light ON/OFF control
Position 0 - Off
Position 1 - On
L
M
1
To Operate
Open the visor and select the required functions.
The appliance can be installed to recirculate or extract
contaminated air. The cooker hood is more effective
when used in the extraction mode.
Recirculation
The hood is supplied specified for use in the recirculation
mode with the charcoal filter/s fitted.
The contaminated air is cleaned by passing through the
filters and then back into the kitchen.
Extraction
The contaminated air enters the hood passing through
the grease filter and out through the ducting into the
atmosphere.
When the extraction mode is selected the charcoal
filter is not required.
Never do flambé cooking under this cooker
hood.
Take extra care when frying and never leave
frying pans unattended during use, as overheated fats and oils can catch fire.
Do not leave naked flames under the cooker
hood.
Ensure the visor is open when using the hob,
even if the fan on the hood is not switched on.
Ensure heating areas on your hob are covered
with pots and pans when using the hob and
cooker hood simultaneously.
Extraction Mode
Recirculation Mode
5
MAINTENANCE AND CLEANING
Before carrying out any maintenance or
cleaning isolate the cooker hood from the
mains supply.
The cooker hood must be kept clean, as a
build up of grease or fat can be a fire hazard.
External Cleaning
Wipe the cooker hood frequently with warm soapy water
using a mild detergent.
Always wear protective gloves when cleaning
the hood.
Never use scouring pads or abrasive cleaners.
Never use excessive amounts of water when
cleaning particularly around the control panel.
Synthetic Grease Filter
The synthetic grease filter cannot be cleaned. It should
be replaced approximately every three months or more
often if the hood is used for more than three hours per
day.
It cannot be washed.
To replace the synthetic paper grease
filter
1. Open the visor.
2. Press inwardly on the two slide catches and lower
the grille to the stop position. Raise the front edge
of the grille through a 45° angle until it detaches
itself from the guides.
3. Carefully ease out the metal wire retaining clips.
4. Clean the metal grille and clips before replacing
the grease filter.
Charcoal Filter
The charcoal filter/s absorb the odours from cooking.
They will slowly become saturated and gradually less
effective.
The charcoal filter cannot be cleaned, it should be
replaced approximately every three months or more often
if the hood is used for more than three hours per day.
To Remove/Replace the Charcoal
Filter/s
1. Remove the metal inlet grille.
2. Carefully turn the disk (C) anti-clockwise and
remove the charcoal filter/s (B) from the motor
support/s (A) as illustrated opposite.
6
