Electrolux G 9 88 50-4i User Manual

ARCTIS G 9 88 50-4i

Integrated Freezer

Operating and Installation Instructions

Dear customer,

Before switching on your new refrigerator/freezer please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance.

Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

These operating instructions are for use with several technically comparable models with varying accessories. Please observe the notes which apply to your model.

Notes which are important for your safety or for the proper functioning of the appliance are stressed with a warning triangle and/or with signal words (Warning!, Important!, Attention!). Please observe the following instructions carefully.

Additional information regarding operation and practical applications of the appliance appear after this symbol.

Tips and notes concerning economical and environmentally sound use of the appliance are marked with the flower.

In the event of a malfunction, these operating instructions contain information on how to rectify faults yourself, see the “Something Not Working” section.

For futher assistance contact your local AEG Service Force Centre, see the chapter “Service and Spare Parts”.

Printed on paper manufactured with environmentally sound processes.

who thinks ecologically acts accordingly ...

Regulations, Standards, Guidelines

This appliance was designed for household use and was manufactured in accordance with the appropriate standards. The necessary measures in accordance with appliance safety legislation regulations (GSG), accident prevention regulations for refrigeration appliances (VBG 20) and the regu- lations of the German Society of Electrical Engineers (VDE) were observed in the manufacture of this appliance.

The refrigerant circuit has been checked for leaks.

This appliance is in accordance with the following EU guidelines:

– 73/23/EWG dated 19 February 1973 - low voltage guidelines. – 89/336/EWG dated 3 May 1989 (including guideline change notice 92/31/EWG) - EMV guideline

Contents

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Appliance Packaging Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Disposal of Old Appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Remove Transport Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Operating and Indicator Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Starting Up and Temperature Regulation . . . . . . . . . . . . . . . . . . . . .8

Ice Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Freezing and Storing Frozen Food . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Preparation of Ice Cubes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Frozen Food Symbols/ Freezing Calendar . . . . . . . . . . . . . . . . . . . .11

Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Switching Off the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Energy Saving Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Something Not Working . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Service and Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Guarantee Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

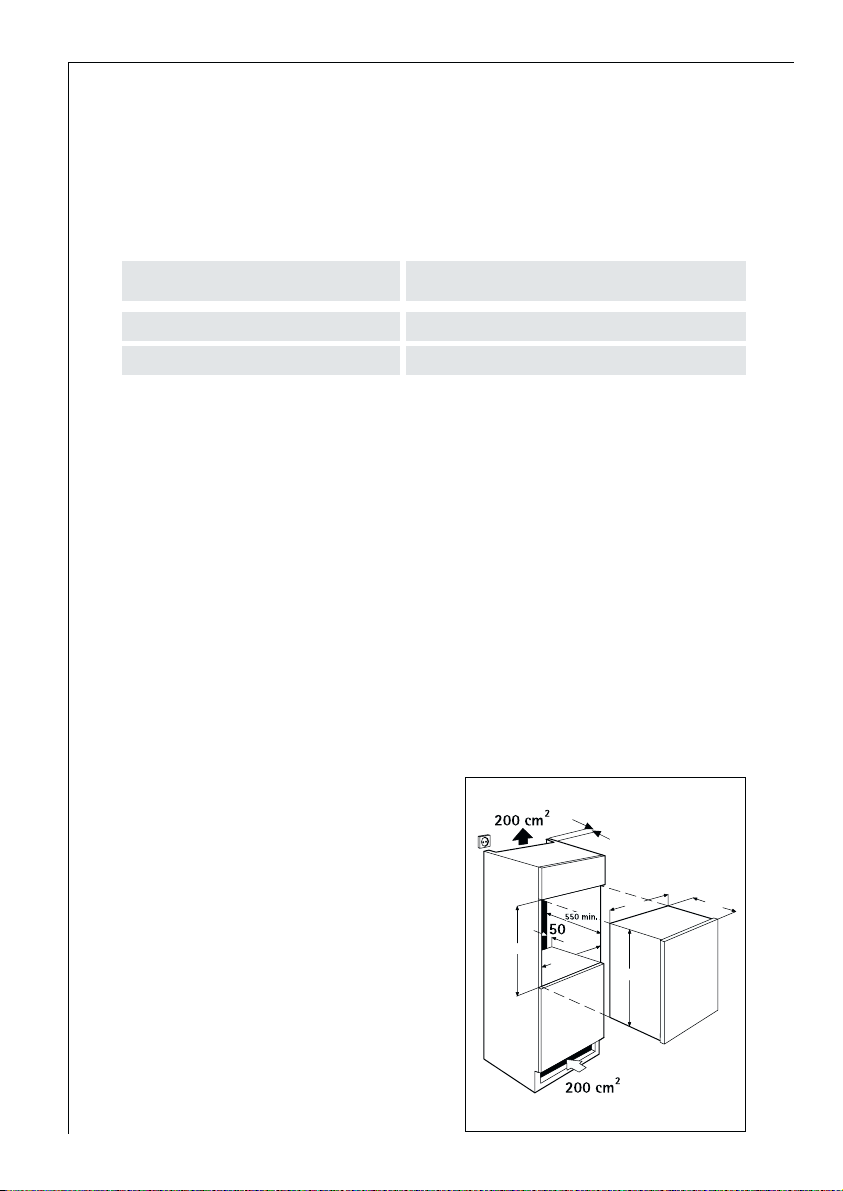

Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Your Appliance Needs Air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Regulations, Standards, Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . .19

Safety

Please read this instruction book before using the appliance and retain for future reference. These warnings are provided in the interests of your safety, ensure you understand them fully before using the appliance.

Intended use

• The appliance is intended for use in the home. It is suitable for the freezing and storing of frozen food, as well as for making ice. If the appliance is used for purposes other than those intended or used incorrectly, no liability can be accepted by the manufacturer for any damage that may be caused.

• Alterations or changes to the appliance are not permitted for reasons of safety.

Prior to initial start–up

• Check the appliance for transport damage. Under no circumstance should a damaged appliance be plugged in! In the event of damage, please contact your retailer.

Refrigerant

The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

• During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

• If the refrigerant circuit should become damaged:

– avoid open flames and sources of ignition; – thoroughly ventilate the room in which the appliance is situated.

Safety of children

• Keep packaging material away from children.

• Please make old appliances unusable prior to disposal. Pull out the mains plug, cut off the mains cable and remove any locks or catches, to prevent young children being trapped inside.

• Do not allow children to tamper with the controls or play with the product.

Installation

Electrical Connection

Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

WARNING – THIS APPLIANCE MUST BE EARTHED The manufacturer declines any liability should these safety measures not

be observed.

Before switching on, make sure the electricity supply voltage is the same as that indicated on the appliance rating plate. The rating plate is inside, on the left.

The appliance is supplied with a 13 amp plug fitted. In the event of having to change the fuse in the plug supplied, a 13 amp ASTA approved (BS 1362) fuse must be used.

Important!

The wires in the mains lead are coloured in accordance with the fol- lowing code:

Green and Yellow Earth Blue Neutral Brown Live As the colours of the wires in the

mains lead of this appliance may not correspond with the coloured mark- ings identifying the terminals in your plug, proceed as follows:

1. The wire coloured green and yellow must be connected to the terminal marked with the letter “E” or by the earth symbol or coloured green and yel- low.

2. The wire coloured blue must be connected to the terminal marked “N” or coloured black.

3. The wire coloured brown must be connected to the terminal marked “L” or coloured red.

4. Upon completion there must be no cut, or stray strands of wire present and the cord clamp must be secure over the outer sheath.

Warning! A cut-off plug inserted into a 13 amp socket is a serious safety (shock) hazard. Ensure that the cut-off plug is disposed of safely.

D207

GREEN & YELLOW

13 AMP. FUSE

BROWN

CORD CLAMP

BLUE

13 AMP

Daily Operation

• Do not operate any electrical appliances in the refrigerator/freezer (e.g. electric ice cream makers, mixers etc.).

• Before cleaning the appliance, always switch off the appliance and disconnect from the electricity supply.

• When unplugging always pull the plug from the mains socket, do not pull on the cable.

Service

• Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local AEG Service Force Centre.

Disposal

Appliance Packaging Information

All materials are environmentally sound. The plastics can be recycled and are identified as follows: >PE< for polyethylene, e.g. the outer covering and the bags in the interior. >PS< for polystyrene foam, e.g. the pads, which are all free of chlorofluo-

rocarbon. The carton parts are made from recycled paper and should be disposed of

at a waste-paper recycling collection location.

Remove transport packaging

The appliance and the interior fittings are protected for transport.

• Remove all adhesive tape and packing pieces from the interior of the appliance.

Disposal of Old Appliances

For environmental reasons, refrigeration appliances must be disposed of properly. This applies to your old appliance, and - at the end of its service life - to your new appliance as well.

Warning! Before disposing of old appliances make them inoperable. Remove plug from mains, sever the power cable, remove or destroy any snap or latch closures, to prevent small children being trapped inside.

• Contact your local Council or Environmental Health Office to see if there are facilities in your area to recycle the appliance.

Service and Spare Parts

In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local Service Force Centre by telephoning:

0870 5 929929

Your telephone call will be automatically routed to the Service Force Centre covering your post code area. For the address of your local Service Force Centre and further information about Ser- vice Force, please visit the website at www

.serviceforce.co.uk.

Before calling out an engineer, please ensure you have read details under the heading “Some- thing Not Working”. When you contact the Service Force Centre you will need to give following details

1. Your name, address and post code

2. Your telephone number

3. Clear and concise details of the fault

4. The model and serial number of the apliance. (found on the rating plate).

5. The purchase date

Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee service calls.

For Customer Services in the Republic of Ireland please contact us at the address below:

AEG Electrolux Group (Irl) Ltd Long Mile Road Dublin 12 - Republic of Ireland Tel: +353 (0) 1 4090751

Email: service.eid@electrolux.ie

Customer Care Department

For general enquiries concerning your AEG appliance or for futher information on AEG products, please contact our Customer Care Department by letter or telephone at the address below or visit our website at www.aeg.co.uk.

Customer Care Department

AEG Domestic Appliances

55-77 High Street,

Slough,

Berkshire

SL1 1DZ

Tel: 08705 350 350*

* calls to this number may be recorded for training purposes

Operating and Indicator Panel

°C

ON/OFF

FROSTMATIC ALARMOFF

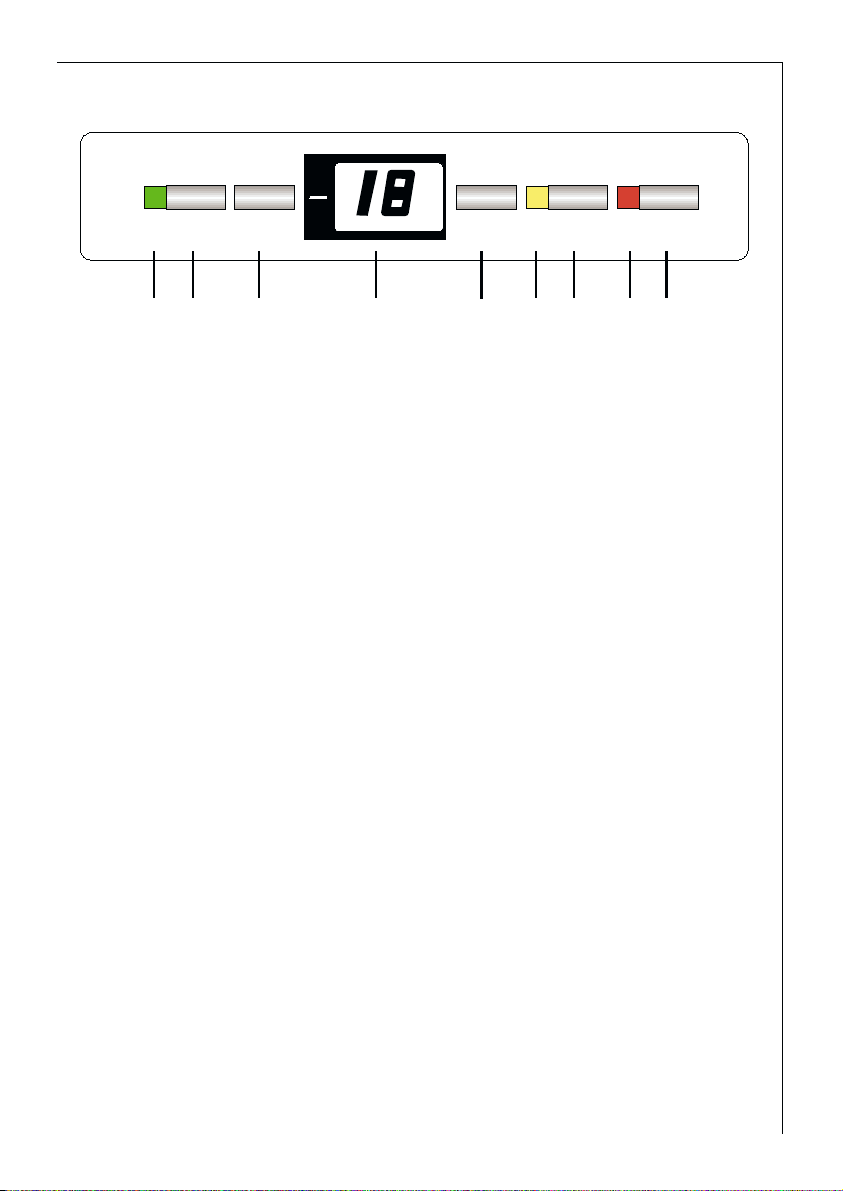

A. ON/OFF light B. Freezer button ON/OFF (green) C. Temperature setting button (warmest) D. Temperature display E. Temperature setting button (coldest) F. Fast freezing light (amber) G. Frostmatic button H. Alarm light (red) I. Alarm reset button

Temperature setting buttons

The temperature is adjusted using the „C“ and „E“ buttons. These buttons are connected to the temperature display.

• The temperature display is switched over from the display of the ACTUAL temperature (Temperature display is illuminated) to the display of the DESIRED temperature (Temperature display flashes) by pressing one of the two buttons, „C“ or „E“.

• Each time one of the two buttons is pressed again the DESIRED temperature is adjusted by 1 °C. The DESIRED temperature must be reached within 24 hours.

If neither button is pressed, the temperature display automatically switches back after a short period (approx. 5 sec.) to the display of the ACTUAL temperature.

DESIRED temperature means:

The temperature that has been selected for inside the freezer. The DESIRED temperature is indicated by flashing numbers.

ACTUAL temperature means:

The temperature display indicates the current temperature inside the freezer. The ACTUAL temperature is indicated with illuminated numbers.

Temperature display

The temperature display can indicate several pieces of information.

• During normal operation, the temperature currently present in the freezer (ACTUAL temperature) is displayed.

• When the temperature is being adjusted a flashing display indicates the freezer temperature currently set (DESIRED temperature).

Starting Up - Setting the Temperature

1. Plug the mains plug into the mains socket.

2. Press ON/OFF button. The green mains pilot indicator illuminates. The alarm light flashes until the temperature is reached. The buzzer sounds. This can be cancelled by pressing the button.

3. Press either the „C“ or „E“ button. The temperature display switches over and the DESIRED temperature currently set flashes on the temperature display.

4. Set the required temperature by pressing the „C“ or „E“ buttons (see section "Temperature setting buttons"). The temperature display will immediately show the changed setting. Each time the button is pressed the temperature is adjusted by 1 °C.

From a food safety point of view -18 °C should be considered sufficiently cold for storing food in the freezer.

5. The buzzer stops,when the set temperature is reached.Press the alarm button to turn off the alarm light

Ice pack

There is an ice pack in one drawer of the freezer. In the event of a power failure or malfunction, the ice pack will lengthen

the amount of time it takes for the frozen food to become too warm by several hours. The ice pack can only fulfil this task optimally if it is placed in the uppermost drawer, at the front, above the frozen food. You can use the ice pack for cooling cold bags.

FROSTMATIC

The FROSTMATIC function accelerates the freezing of fresh food and, at the same time, protects foodstuffs already stored from undesirable warming.

1. The FROSTMATIC function is switched on by pressing the FROSTMATIC button. The yellow light illuminates.

– cleansers which contain acetic acid. Do not allow such substances to come into contact with appliance parts.

• Many proprietary kitchen surface cleaners contain chemicals that can attack/damage the plastics used in this appliance. For this reason it is recommended that the outer casing of this appliance is only cleaned with warm water with a little washing-up liqiud added.

1. Remove frozen food and the food from the refrigerator. Wrap frozen food in several layers of newspaper. Store it in a cool place, well covered.

2. Switch the appliance off and remove the plug from the mains, or discon- nect from the electricity supply.

3. Clean the appliance and the interior accessories with lukewarm water and with a little bicarbonate of soda added (5ml to 0,5 litre of water).

4. Dry the appliance thoroughly.

5. When everything is dry turn the appliance back on.

Energy Saving Tips

• Do not install the appliance near radiators or other sources of continuous

warmth. High ambient temperatures cause longer, more frequent opera- tion of the compressor.

• Ensure sufficient air circulation at the appliance base and at the back wall

of the appliance. Never cover air vent openings.

• Do not place warm foods into the appliance. Allow warm foods to cool

first.

• Only leave door open as long as necessary.

• Do not set temperature any colder than necessary.

• Put frozen food in the fridge to defrost. The cold in the frozen food will

then be used to cool the fridge.

Something Not Working

If the appliance is not functioning correctly, please carry out the following checks before contacting your local AEG Service Force Centre.

Warning!

Repairs should only be carried out by qualified service engineers. Repairs carried out by inexperienced persons may cause injury or serious malfunc- tioning.

If the FROSTMATIC function is not ended manually, the appliance electro nics switch off the FROSTMATIC function after 24 hours. The yellow light

goes out.

2. The FROSTMATIC function can be ended manually at any time by pressing the FROSTMATIC button again. The yellow light goes out.

Alarm reset button

In the event of an abnormal temperature rise inside the freezer (e.g. power cut) warning light (H) will start to flash and a buzzer will sound.

After the temperature has returned to normal, the warning light (H) will continue to flash, although the buzzer has stopped.

When the alarm button is pressed, the warmest temperature reached in the compartment flashes on the indicator.

Switching the Appliance off

To switch off, hold down the ON/OFF button for approx. 5 seconds. This will result in a countdown from "3" to "1" taking place in the temperature display. On reaching "1" the fridge will switch off. The temperature display will go off.

Note:

The appliance cannot be switched on or off if unplugged, or if there is no power being supplied to it. Following connection to the mains power supply, the appliance returns to the same operating state as before the interruption of main power.

If the appliance is not going to be used for an extended period:

1. Switch off the appliance, holding down the ON/OFF button until the display goes off (see above).

2. Remove the mains plug or switch off or turn out the circuit breaker or fuse.

3. Defrost the freezer compartment and clean the appliance thoroughly (see section: “Cleaning and Maintenance”).

4. Finally, leave the doors open so as to avoid a build up of odours.

Freezing and storing frozen food

You can use your freezer for freezing fresh food yourself.

• The temperature in the freezer compartment must be –18 °C or colder

before freezing food.

• Please observe the freezing capacity given on the rating plate. The free-

zing capacity is the maximum quantity of fresh food that can be frozen

within a period of 24 hours. If you wish to freeze food several days in a row, please observe a maximum capacity of only 2/3 to 3/4 of that on the rating plate. The quality of the food is best preserved when it is frozen right through to the core as quickly as possible.

• Allow warm food to cool down before freezing. The warmth will cause increased ice formation and increase the power consumption.

• Please note the maximum storage times specified by the manufacturer.

• Thawed foods which have not been processed further (cooked into meals) may not under any circumstances be frozen a second time.

• Containers with flammable gases or liquids can leak at low temperatures. There is a risk of an explosion! Do not store any containers with flammable materials such as, for example, spray cans, fire extinguisher refill cartridges etc in the refrigerator/freezer.

• Bottles and cans must not be placed in the freezer. They can burst when the contents freeze, high carbonate content drinks can even explode! Never store lemonade, juices, beer, wine, sparkling wine etc. in the freezer.

• All foods must be packed air tight prior to freezing, so that they do not dry out or lose their flavour, and so that no flavour contamination of other frozen goods occurs.

• Ice cream or ice cubes can cause 'frost/freezer' burns if consumed straight from the freezer.

Important! Do not touch frozen food with wet hands. Your hands could stick to the food.

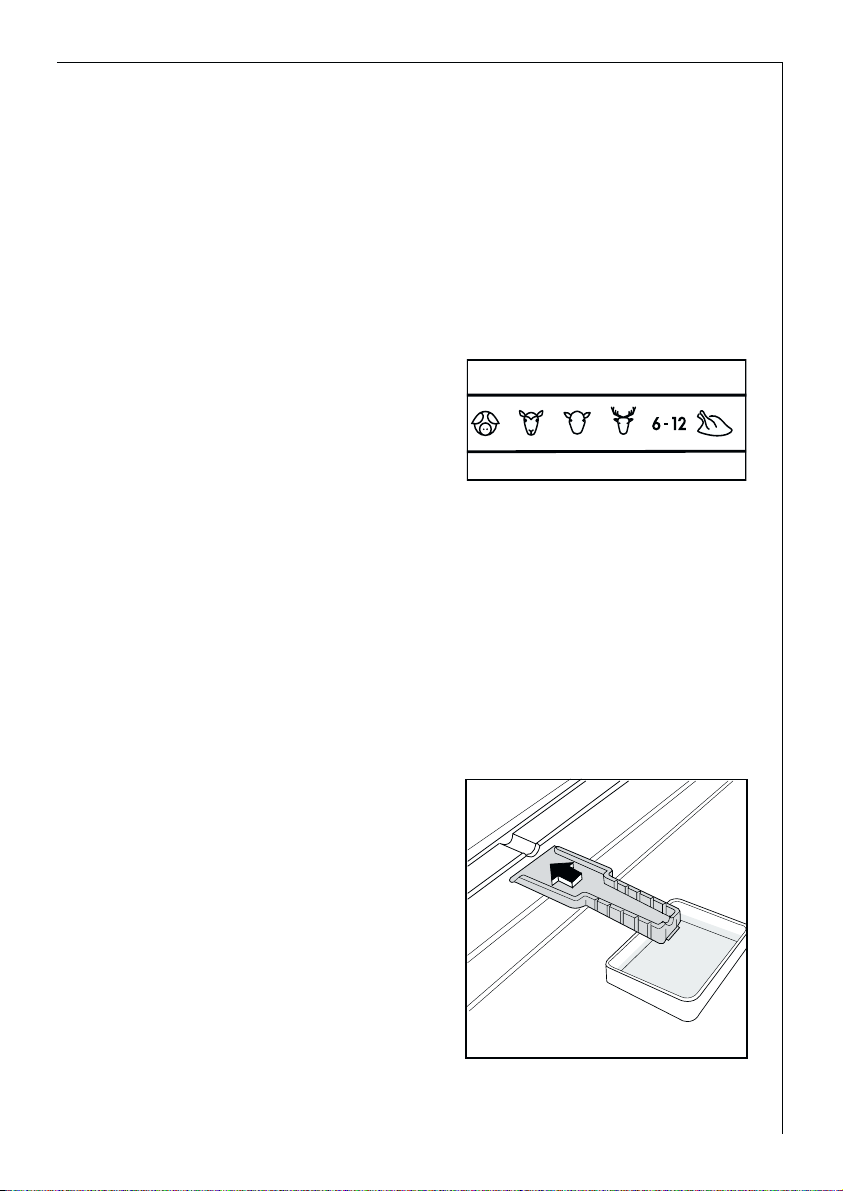

1. Place the packed food in the drawers. Place food to be frozen as shown in figure. Unfrozen food must not touch items already frozen, otherwise the frozen food could begin to defrost.

2. Press the Frostmatic button 24 hours before introducing fresh food for freezing. The yellow light comes on.

3. Place frozen foods in the drawers sorted by type, as far as possible.

Preparation of Ice Cubes

1. Fill the ice cube tray 3/4 full with cold water, place it in the freezer compartment and leave to freeze.

2. To loosen the frozen cubes, either twist the ice cube tray or hold it under

running water for a few seconds. Important! Never try to free an ice tray that is frozen to the freezer com-

partment using pointed or sharp edged objects. Use the ice scraper supplied.

Storage Goods Symbols/Freezing Calendar

• The symbols on the drawers show different types of frozen goods.

• The numbers indicate storage times in months for the appropriate types of frozen goods. Whether the upper or lower value of the indicated storage time is valid depends on the quality of the foods and pre-treating before freezing. The lower value applies to foods with high fat content.

Defrosting

The freezer however, will become progressively covered with frost. This should be removed with the special plastic scraper provided, whenever the thickness of the frost exceeds 4 mm. During this operation it is not neces- sary to switch off the power supply or to remove the foodstuffs.

However when the ice becomes very thick on the inner liner, complete defrosting should be carried out as follows:

1. Remove the frozen food from the freezer, wrap it in several layers of newspaper and put it in a very cool place.

2. Switch off the appliance and pull out the plug, or press the “ON/OFF” button

3. Leave the freezer compartment door open.

4. Insert the plastic scraper into the recess provided under the defrost water channel and place a collec- ting basin under it.

5. Once defrosting is completed keep the scraper for future use;

6. Replace the plug in the power socket. Push the on/off button. The settings

D068

9 Kg

7 Kg

D670

running water for a few seconds. Important! Never try to free an ice tray that is frozen to the freezer com-

partment using pointed or sharp edged objects. Use the ice scraper supplied.

Storage Goods Symbols/Freezing Calendar

• The symbols on the drawers show different types of frozen goods.

• The numbers indicate storage times

in months for the appropriate types of frozen goods. Whether the upper or lower value of the indicated storage time is valid depends on the quality of the foods and pre-treating before freezing. The lower value applies to foods with high fat content.

Defrosting

The freezer however, will become progressively covered with frost. This should be removed with the special plastic scraper provided, whenever the thickness of the frost exceeds 4 mm. During this operation it is not necessary to switch off the power supply or to remove the foodstuffs.

However when the ice becomes very thick on the inner liner, complete defrosting should be carried out as follows:

1. Remove the frozen food from the freezer, wrap it in several layers of newspaper and put it in a very cool place.

2. Switch off the appliance and pull out the plug, or press the “ON/OFF” button

3. Leave the freezer compartment door open.

4. Insert the plastic scraper into the recess provided under the defrost water channel and place a collecting basin under it.

5. Once defrosting is completed keep the scraper for future use;

6. Replace the plug in the power socket. Push the on/off button. The settings

D068

If the FROSTMATIC function is not ended manually, the appliance electro nics switch off the FROSTMATIC function after 24 hours. The yellow light

goes out.

2. The FROSTMATIC function can be ended manually at any time by pressing the FROSTMATIC button again. The yellow light goes out.

Alarm reset button

In the event of an abnormal temperature rise inside the freezer (e.g. power cut) warning light (H) will start to flash and a buzzer will sound.

After the temperature has returned to normal, the warning light (H) will continue to flash, although the buzzer has stopped.

When the alarm button is pressed, the warmest temperature reached in the compartment flashes on the indicator.

Switching the Appliance off

Note:

The appliance cannot be switched on or off if unplugged, or if there is no power being supplied to it. Following connection to the mains power sup- ply, the appliance returns to the same operating state as before the inter- ruption of main power.

If the appliance is not going to be used for an extended period:

1. Switch off the appliance, holding down the ON/OFF button until the display goes off (see above).

2. Remove the mains plug or switch off or turn out the circuit breaker or fuse.

3. Defrost the freezer compartment and clean the appliance thoroughly (see section: “Cleaning and Maintenance”).

4. Finally, leave the doors open so as to avoid a build up of odours.

Freezing and storing frozen food

You can use your freezer for freezing fresh food yourself.

• The temperature in the freezer compartment must be –18 °C or colder

before freezing food.

• Please observe the freezing capacity given on the rating plate. The free-

zing capacity is the maximum quantity of fresh food that can be frozen

which were in place before the appliance was turned off will be reinstated.

Warning!

Never use metal tools to scrape off the frost Do not use a mechanical device or any artificial means to speed up the

thawing process other than those recommended by the manufacturer. A temperature rise of the frozen food packs, during defrosting , may shor-

ten their safe storage life.

Switching off the appliance

To switch off the appliance, press the “ON/OFF” button or disconnect from the electricity supply.

If the appliance is not going to be used for an extended period:

1. Remove all deep-frozen packages as well as ice trays.

2. Switch off the appliance by pushing the on/off button for 5 seconds.

3. Remove the mains plug or switch off.

4. Defrost freezer compartment and clean thoroughly (see section: “Cleaning and Care”).

5. Leave the door open to avoid the build up of odours.

Cleaning and Care

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

Warning!

Before carrying out any cleaning or maintenance, disconnect the appliance from the electricity supply.

• Never clean the appliance with a steam cleaner. Moisture could accumu-

late in electrical components and could cause an electric shock! Hot vapours can lead to the damage of plastic parts.

• The appliance must be dry before it is turned back on.

Warning!

• Ethereal oils and organic solvents can attack plastic parts, e.g. – lemon juice or the juice from orange peel, – butyric acid;

– cleansers which contain acetic acid. Do not allow such substances to come into contact with appliance parts.

1. Remove frozen food and the food from the refrigerator. Wrap frozen food in several layers of newspaper. Store it in a cool place, well covered.

2. Switch the appliance off and remove the plug from the mains, or disconnect from the electricity supply.

3. Clean the appliance and the interior accessories with lukewarm water and with a little bicarbonate of soda added (5ml to 0,5 litre of water).

4. Dry the appliance thoroughly.

5. When everything is dry turn the appliance back on.

Energy Saving Tips

• Do not install the appliance near radiators or other sources of continuous

warmth. High ambient temperatures cause longer, more frequent operation of the compressor.

• Ensure sufficient air circulation at the appliance base and at the back wall

of the appliance. Never cover air vent openings.

• Do not place warm foods into the appliance. Allow warm foods to cool

first.

• Only leave door open as long as necessary.

• Do not set temperature any colder than necessary.

• Put frozen food in the fridge to defrost. The cold in the frozen food will

then be used to cool the fridge.

Something Not Working

If the appliance is not functioning correctly, please carry out the following checks before contacting your local AEG Service Force Centre.

Warning!

Repairs should only be carried out by qualified service engineers. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning.

Operating and Indicator Panel

°C

ON/OFF

FROSTMATIC ALARMOFF

Temperature setting buttons

The temperature is adjusted using the „C“ and „E“ buttons. These buttons are connected to the temperature display.

• The temperature display is switched over from the display of the ACTUAL temperature (Temperature display is illuminated) to the display of the DESI- RED temperature (Temperature display flashes) by pressing one of the two buttons, „C“ or „E“.

• Each time one of the two buttons is pressed again the DESIRED temperatu- re is adjusted by 1 °C. The DESIRED temperature must be reached within 24 hours.

If neither button is pressed, the temperature display automatically switches back after a short period (approx. 5 sec.) to the display of the ACTUAL tem- perature.

DESIRED temperature means:

The temperature that has been selected for inside the freezer. The DESIRED temperature is indicated by flashing numbers.

If, after carrying out the necessary checks there is still a fault with your appliance please contact your local AEG Service Force Centre.

In guarantee customers should ensure that the suggested checks have been made as the engineer will make a charge if the fault is not a mechanical or electrical breakdown.

Please note that proof of purchase is required for any in-guarantee service calls.

Heavy build up of frost, possibly also on the door seal.

Door seal is not air tight (possibly after changing over the hinges).

Carefully warm the leaking sections of the door seal with a hair dryer (not hotter than approx. 50 °C). At the same time shape the warmed door seal by hand until it sits correctly.

The freezer temperature is not sufficient, red light lights up, temperature alarm sounds

The appliance is near a heat source.

Temperature is not properly adjusted.

Please look in the "Initial Start Up" section.

Press the frostmatic switch

Door was open for an extended period.

Please look in the "Installation location" section.

A large quantity of warm food was placed in the appliance within the last 24 hours.

Open the door only as long as necessary.

Symptom Possible Cause Remedy

The compressor starts after a period of time.

This is normal, no error has occurred.

The compressor does not start immediately after changing the temperature setting.

Appliance does not work no pilot light is illuminated.

Appliance is not switched on Switch on the appliance.

Mains plug is not plugged in or is loose.

Insert mains plug.

Fuse has blown or is defective.

Check fuse, replace if necessary.

Socket is defective.

Mains malfunctions are to be corrected by an electrician.

Appliance cools too much. Temperature is set too cold.

Press the temperature setting button to a warmer setting.

Green light does not light up, yellow light lights up when frostmatic fuction is activated, appliance is on.

Green light faulty.

Please inform your local AEG Service Force Centre

Yellow light does not light up, when frostmatic fuction is activated, appliance is on.

Yellow light faulty.

Please inform your local AEG Service Force Centre

Service and Spare Parts

In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local Service Force Centre by telephoning:

0870 5 929929

.serviceforce.co.uk.

Before calling out an engineer, please ensure you have read details under the heading “Something Not Working”. When you contact the Service Force Centre you will need to give following details

1. Your name, address and post code

2. Your telephone number

3. Clear and concise details of the fault

4. The model and serial number of the apliance. (found on the rating plate).

5. The purchase date

Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee service calls.

For Customer Services in the Republic of Ireland please contact us at the address below:

AEG Electrolux Group (Irl) Ltd Long Mile Road Dublin 12 - Republic of Ireland Tel: +353 (0) 1 4090751

Email: service.eid@electrolux.ie

Customer Care Department

AEG Domestic Appliances

55-77 High Street,

Slough,

Berkshire

SL1 1DZ

Tel: 08705 350 350*

* calls to this number may be recorded for training purposes

Daily Operation

• Do not operate any electrical appliances in the refrigerator/freezer (e.g.

electric ice cream makers, mixers etc.).

• Before cleaning the appliance, always switch off the appliance and

disconnect from the electricity supply.

• When unplugging always pull the plug from the mains socket, do not pull

on the cable.

Service

• Under no circumstances should you attempt to repair the appliance your-

self. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local AEG Service Force Centre.

Disposal

Appliance Packaging Information

rocarbon. The carton parts are made from recycled paper and should be disposed of

at a waste-paper recycling collection location.

Guarantee Conditions

AEG offer the following guarantee to the first purchaser of this appliance.

1. The guarantee is valid for 12 months commencing when the appliance is handed over to

the first retail purchaser, which must be verified by purchase invoice or similar documentation. The guarantee does not cover commercial use.

2. The guarantee covers all parts or components which fail due to faulty workmanship or

faulty materials. The guarantee does not cover appliances where defects or poor performance are due to misuse, accidental damage, neglect, faulty.installation, unauthorised modification or attempted repair, commercial use or failure to observe requirements and recommendations set out in the instruction book. This guarantee does not cover such parts as light bulbs, removable glassware, or plastic.

3. Should guarantee repairs be necessary the purchaser must inform your local Service For-

ce Centre (manufacturer’s service or authorised agent). AEG reserves the right to stipulate the place of the repair (i.e. the customer’s home, place of installation or AEG workshop).

4. The guarantee or free replacement includes both labour and materials.

5. Repairs carried out under guarantee do not extend the guarantee period for the applian-

ce. Parts removed during guarantee repairs become the property of AEG.

6. The purchaser’s statutory rights are not affected by this guarantee.

European Guarantee

If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications:

- The guarantee starts from the date you first purchased your product.

- The guarantee is for the same period and to the same extent for labour and parts as exist

in the new country of use for this brand or range of products.

- This guarantee relates to you and cannot be transferred to another user.

- Your new home is within the European Community (EC) or European Free Trade Area.

- The product is installed and used in accordance with our instructions and is only used

domestically, i.e. a normal household.

- The product is installed taking into account regulations in your new country. Before you move please contact your nearest Customer Care Centre, listed below, to give

them details of your new home. They will then ensure that the local Service Organisation is aware of your move and able to look after you and your appliances.

France Senlis +33 (0)3 44 62 29 29 Germany Nürnberg +49 (0) 800 234 7378 Italy Pordenone +39 (0) 800 117 511 Sweden Stockholm +46 (0) 8 672 53 60 UK Slough +44 (0) 1753 219899

Installation

Electrical Connection

Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

WARNING – THIS APPLIANCE MUST BE EARTHED The manufacturer declines any liability should these safety measures not

be observed.

Before switching on, make sure the electricity supply voltage is the same as that indicated on the appliance rating plate. The rating plate is inside, on the left.

The appliance is supplied with a 13 amp plug fitted. In the event of having to change the fuse in the plug supplied, a 13 amp ASTA approved (BS 1362) fuse must be used.

Important!

The wires in the mains lead are coloured in accordance with the following code:

Green and Yellow Earth Blue Neutral Brown Live As the colours of the wires in the

mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

1. The wire coloured green and yellow must be connected to the terminal marked with the letter “E” or by the earth symbol or coloured green and yellow.

2. The wire coloured blue must be connected to the terminal marked “N” or coloured black.

3. The wire coloured brown must be connected to the terminal marked “L” or coloured red.

4. Upon completion there must be no cut, or stray strands of wire present and the cord clamp must be secure over the outer sheath.

Warning! A cut-off plug inserted into a 13 amp socket is a serious safety (shock) hazard. Ensure that the cut-off plug is disposed of safely.

D207

GREEN & YELLOW

13 AMP. FUSE

BROWN

CORD CLAMP

BLUE

13 AMP
